Skil 9745-Type-1 Sander Replacement Parts For Model 9745 (Type-1)

We Sell Only Genuine Skil Parts

Popular Parts for 9745

SCREW – Part Number: 2610327867 SCREW
In Stock
Minimum Quantity of 2 required
$5.95
WASHER – Part Number: 2610347092 WASHER
Special Order
$5.95
SCREW – Part Number: 2610318812 SCREW
Special Order
$5.95
BALL BEARING – Part Number: 2610042699 BALL BEARING
Special Order
$14.42

Search Within Model

Questions & Answers for Skil 9745
Browse all Parts Search by Area

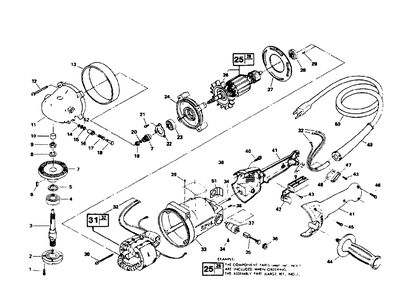

Fig-0 Diagram and Parts List for Type-1 Skil Sander
Fig-0
Previous Showing All Parts Next
Fig-0

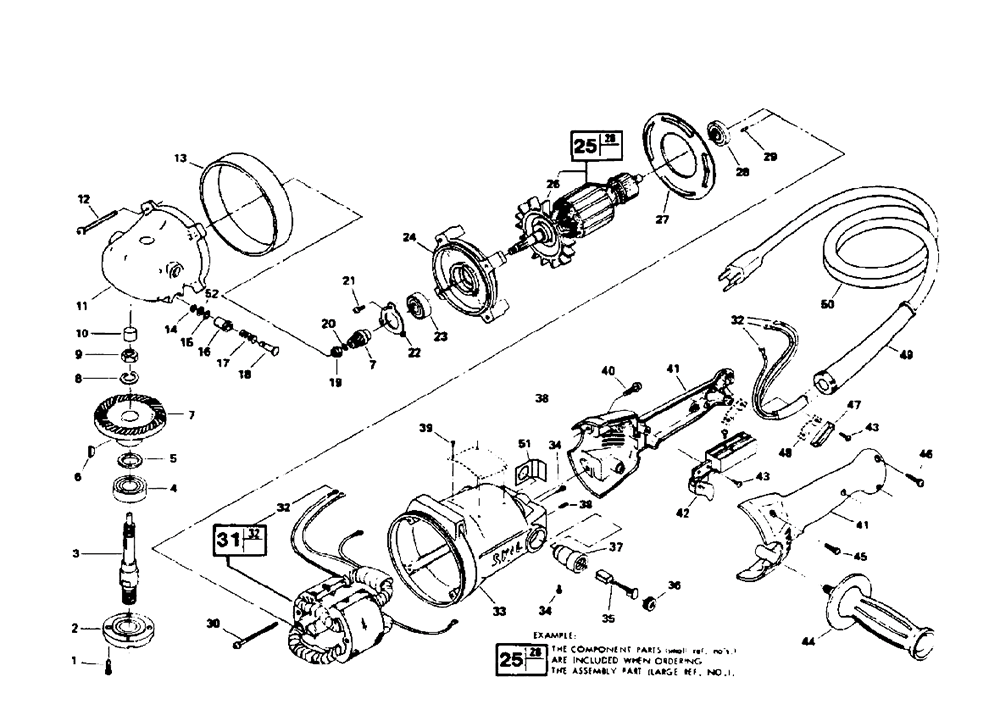

Fig-0 Diagram and Parts List for Type-1 Skil Sander
  • 1
    SCREW – Part Number: 2610318812
    SCREW
    Part Number: 2610318812
      Special Order
    $5.95
  • 2
    Plate – Part Number: 2610347001
    Plate
    Part Number: 2610347001
      No Longer Available
  • 3
    Spindle – Part Number: 2610347000
    Spindle
    Part Number: 2610347000
      No Longer Available
  • 4
    Ball Bearing – Part Number: 2610347002
    Ball Bearing
    Part Number: 2610347002
      No Longer Available
  • 5
    Washer – Part Number: 2610347003
    Washer
    Part Number: 2610347003
      No Longer Available
  • 6
    Key – Part Number: 2610347009
    Key
    Part Number: 2610347009
      No Longer Available
  • 7
    Gear Set – Part Number: 2610347010
    Gear Set
    Part Number: 2610347010
      No Longer Available
  • 8
    Lock Washer – Part Number: 2610347012
    Lock Washer
    Part Number: 2610347012
      No Longer Available
  • 9
    Lock Nut – Part Number: 2610347013
    Lock Nut
    Part Number: 2610347013
      No Longer Available
  • 10
    Needle Bearing – Part Number: 2610347014
    Needle Bearing
    Part Number: 2610347014
      No Longer Available
  • 11
    Gear Housing – Part Number: 2610347016
    Gear Housing
    Part Number: 2610347016
      No Longer Available
  • 12
    Screw – Part Number: 2610347015
    Screw
    Part Number: 2610347015
      No Longer Available
  • 13
    Wear Ring – Part Number: 2610347041
    Wear Ring
    Part Number: 2610347041
      No Longer Available
  • 14
    Retaining Ring – Part Number: 2610347095
    Retaining Ring
    Part Number: 2610347095
      No Longer Available
  • 15
    Washer – Part Number: 2610347091
    Washer
    Part Number: 2610347091
      No Longer Available
  • 16
    Bushing – Part Number: 2610347088
    Bushing
    Part Number: 2610347088
      No Longer Available
  • 17
    Spring – Part Number: 2610347090
    Spring
    Part Number: 2610347090
      No Longer Available
  • 18
    Locking Pin – Part Number: 2610347089
    Locking Pin
    Part Number: 2610347089
      No Longer Available
  • 19
    Lock Nut – Part Number: 2610347045
    Lock Nut
    Part Number: 2610347045
      No Longer Available
  • 20
    Spacer – Part Number: 2610347018
    Spacer
    Part Number: 2610347018
      No Longer Available
  • 21
    Screw – Part Number: 2610318836
    Screw
    Part Number: 2610318836
      No Longer Available
  • 22
    Retainer Plate – Part Number: 2610347044
    Retainer Plate
    Part Number: 2610347044
      No Longer Available
  • 23
    Deep-Groove Ball Bearing – Part Number: 2610017349
    Deep-Groove Ball Bearing
    Part Number: 2610017349
      No Longer Available
  • 23
    Deep-Groove Ball Bearing – Part Number: 5700490016
    Deep-Groove Ball Bearing
    Part Number: 5700490016
      Special Order
    $6.10
  • 24
    Bearing Plate – Part Number: 2610347042
    Bearing Plate
    Part Number: 2610347042
      No Longer Available
  • 25
    Armature – Part Number: 2610347038
    Armature
    Part Number: 2610347038
      No Longer Available
  • 26
    Fan – Part Number: 2610347040
    Fan
    Part Number: 2610347040
      No Longer Available
  • 27
    Baffle – Part Number: 2610347039
    Baffle
    Part Number: 2610347039
      No Longer Available
  • 28
    Bearing – Part Number: 5700490044
    Bearing
    Part Number: 5700490044
      No Longer Available
  • 28
    BALL BEARING – Part Number: 2610042699
    BALL BEARING
    Part Number: 2610042699
      Special Order
    $14.42
  • 29
    Rubber Plug – Part Number: 2610347032
    Rubber Plug
    Part Number: 2610347032
      No Longer Available
  • 30
    Screw – Part Number: 2610347017
    Screw
    Part Number: 2610347017
      No Longer Available
  • 31
    Field – Part Number: 2610347035
    Field
    Part Number: 2610347035
      No Longer Available
  • 32
    Terminal – Part Number: 2610347023
    Terminal
    Part Number: 2610347023
      No Longer Available
  • 33
    Motor Housing – Part Number: 2610347021
    Motor Housing
    Part Number: 2610347021
      No Longer Available
  • 34
    Screw – Part Number: 2610347030
    Screw
    Part Number: 2610347030
      No Longer Available
  • 35
    Brush – Part Number: 2610347034
    Brush
    Part Number: 2610347034
      No Longer Available
  • 36
    Part#: 2610347029 – Part Number: 2610347029
    Part#: 2610347029
    Part Number: 2610347029
      No Longer Available
  • 37
    Brush Holder – Part Number: 347033
    Brush Holder
    Part Number: 347033
      No Longer Available
  • 38
    Set Screw – Part Number: 2610347031
    Set Screw
    Part Number: 2610347031
      No Longer Available
  • 39
    Drive Screw – Part Number: 2610327849
    Drive Screw
    Part Number: 2610327849
      No Longer Available
  • 40
    Part#: 2610347047 – Part Number: 2610347047
    Part#: 2610347047
    Part Number: 2610347047
      No Longer Available
  • 41
    Handle – Part Number: 2610347048
    Handle
    Part Number: 2610347048
      No Longer Available
  • 42
    On-Off Switch – Part Number: 2610329995
    On-Off Switch
    Part Number: 2610329995
      No Longer Available
  • 43
    Screw – Part Number: 2610327862
    Screw
    Part Number: 2610327862
      No Longer Available
  • 44
    Auxiliary Handle – Part Number: 2610347049
    Auxiliary Handle
    Part Number: 2610347049
      No Longer Available
  • 45
    Screw – Part Number: 2610327865
    Screw
    Part Number: 2610327865
      No Longer Available
  • 46
    SCREW – Part Number: 2610327867
    SCREW
    Part Number: 2610327867
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 47
    Cable Clip – Part Number: 3132419002
    Cable Clip
    Part Number: 3132419002
      No Longer Available
  • 47
    Cable Clip – Part Number: 2610003719
    Cable Clip
    Part Number: 2610003719
      No Longer Available
  • 48
    Cord Clamp – Part Number: 2610348733
    Cord Clamp
    Part Number: 2610348733
      No Longer Available
  • 49
    Strain Relief – Part Number: 2610348732
    Strain Relief
    Part Number: 2610348732
      No Longer Available
  • 50
    Cord – Part Number: 2610313476
    Cord
    Part Number: 2610313476
      No Longer Available
  • 51
    Insert – Part Number: 2610347082
    Insert
    Part Number: 2610347082
      No Longer Available
  • 52
    WASHER – Part Number: 2610347092
    WASHER
    Part Number: 2610347092
      Special Order
    $5.95
