Dynabrade 11" Gear-Driven Sander Sander Polisher Replacement Parts For Model 58041

We Sell Only Genuine Dynabrade Parts

Popular Parts for 58041

Bearing – Part Number: 56052 Bearing
In Stock
$65.09
Tip Valve – Part Number: 51944 Tip Valve
In Stock
$16.50
Retaining Ring – Part Number: 95626 Retaining Ring
In Stock
$5.95
Valve Stem – Part Number: 56579 Valve Stem
Special Order
$13.40
Spring – Part Number: 51943 Spring
In Stock
$14.38
Bearing Removal Tool – Part Number: 96213 Bearing Removal Tool
Special Order
$92.50
Rear Bearing Plate – Part Number: 54629 Rear Bearing Plate
Special Order
$71.09
Mount Plate Assembly – Part Number: 56452 Mount Plate Assembly
Special Order
$543.19

Search Within Model

Questions & Answers for Dynabrade 58041
Browse all Parts Search by Area

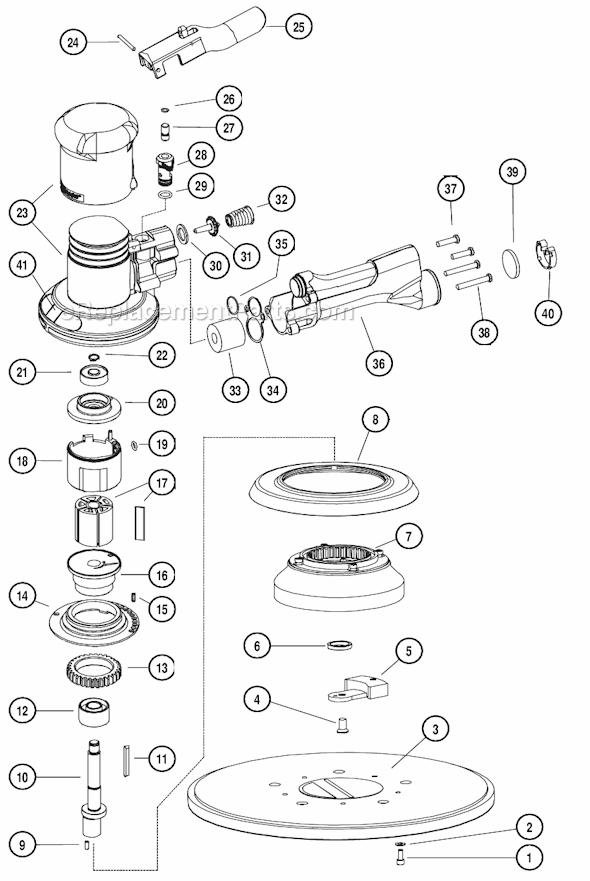

Page A Diagram and Parts List for Dynabrade Sander Polisher
Page A
Previous Showing All Parts Next
Page A
Page A Diagram and Parts List for Dynabrade Sander Polisher
  • 1
    Screw (4) – Part Number: 97010
    Screw (4)
    Part Number: 97010
      Special Order
    $5.95
  • 2
    Washer – Part Number: 95886
    Washer
    Part Number: 95886
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 3
    Pad-11 In. – Part Number: 56231
    Pad-11 In.
    Part Number: 56231
      In Stock
    $193.60
  • 4
    Screw – Part Number: 96477
    Screw
    Part Number: 96477
      Special Order
    Minimum Quantity of 2 required
    $5.95
  • 5
    Balance Arm Assembly: 11" – Part Number: 59277
    Balance Arm Assembly: 11"
    Part Number: 59277
      Special Order
    $105.02
  • 6
    Balance Washer – Part Number: 56474
    Balance Washer
    Part Number: 56474
      Special Order
    $11.16
  • 7
    Mount Plate Assembly – Part Number: 56452
    Mount Plate Assembly
    Part Number: 56452
      Special Order
    $543.19
  • 8
    8" Non-Vacuum Shroud – Part Number: 56489
    8" Non-Vacuum Shroud
    Part Number: 56489
      In Stock
    $73.30
  • 9
    Pin – Part Number: 01673
    Pin
    Part Number: 01673
      Special Order
    Minimum Quantity of 2 required
    $5.95
  • 10
    Shaft – Part Number: 56589
    Shaft
    Part Number: 56589
      Special Order
    $234.45
  • 11
    Rotor Key – Part Number: 54673
    Rotor Key
    Part Number: 54673
      Special Order
    $23.80
  • 12
    Bearing – Part Number: 56052
    Bearing
    Part Number: 56052
    ★★★★★
    ★★★★★
    (2)
      In Stock
    $65.09
  • 13
    Pinion – Part Number: 57749
    Pinion
    Part Number: 57749
      Special Order
    $147.56
  • 14
    Lock Ring – Part Number: 57332
    Lock Ring
    Part Number: 57332
      In Stock
    $66.62
  • 15
    Set Screw – Part Number: 96166
    Set Screw
    Part Number: 96166
      Special Order
    $5.95
  • 16
    Front Bearing Plate – Part Number: 56559
    Front Bearing Plate
    Part Number: 56559
      Special Order
    $174.71
  • 17
    Rotor And Blade Set – Part Number: 54705
    Rotor And Blade Set
    Part Number: 54705
      On Order
    $167.64
  • 18
    Cylinder Assembly – Part Number: 56595
    Cylinder Assembly
    Part Number: 56595
      In Stock
    $220.86
  • 19
    O-Ring – Part Number: 01020
    O-Ring
    Part Number: 01020
      Special Order
    Minimum Quantity of 2 required
    $5.95
  • 20
    Rear Bearing Plate – Part Number: 54629
    Rear Bearing Plate
    Part Number: 54629
      Special Order
    $71.09
  • 21
    Bearing – Part Number: 01206
    Bearing
    Part Number: 01206
      In Stock
    $31.86
  • 22
    Retaining Ring – Part Number: 95626
    Retaining Ring
    Part Number: 95626
      In Stock
    $5.95
  • 23
    Housing – Part Number: 59221
    Housing
    Part Number: 59221
      Special Order
    $172.64
  • 24
    Pin – Part Number: 95627
    Pin
    Part Number: 95627
      Special Order
    Minimum Quantity of 2 required
    $5.95
  • 25
    Safety Throttle Lever – Part Number: 56582
    Safety Throttle Lever
    Part Number: 56582
      In Stock
    $62.11
  • 26
    O-ring – Part Number: 98459
    O-ring
    Part Number: 98459
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 27
    Valve Stem – Part Number: 56579
    Valve Stem
    Part Number: 56579
      Special Order
    $13.40
  • 28
    Speed Regulator – Part Number: 56578
    Speed Regulator
    Part Number: 56578
      Special Order
    $23.80
  • 29
    O-Ring (Sold Individually) – Part Number: 01025
    O-Ring (Sold Individually)
    Part Number: 01025
      No Longer Available
  • 30
    Seal – Part Number: 56598
    Seal
    Part Number: 56598
      On Order
    Minimum Quantity of 2 required
    $7.76
  • 31
    Tip Valve – Part Number: 51944
    Tip Valve
    Part Number: 51944
      In Stock
    $16.50
  • 32
    Spring – Part Number: 51943
    Spring
    Part Number: 51943
      In Stock
    $14.38
  • 33
    Vacuum Plug – Part Number: 56586
    Vacuum Plug
    Part Number: 56586
      In Stock
    $27.02
  • 34
    Exhaust Gasket – Part Number: 56469
    Exhaust Gasket
    Part Number: 56469
      Special Order
    $13.65
  • 35
    O-ring – Part Number: 96459
    O-ring
    Part Number: 96459
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 36
    Handle Housing Assy. – Part Number: 56468
    Handle Housing Assy.
    Part Number: 56468
      In Stock
    $78.72
  • 37
    Screw (2) – Part Number: 96469
    Screw (2)
    Part Number: 96469
      Special Order
    $5.95
  • 38
    Screw (2) – Part Number: 96454
    Screw (2)
    Part Number: 96454
      Special Order
    Minimum Quantity of 2 required
    $5.95
  • 39
    Muffler – Part Number: 56597
    Muffler
    Part Number: 56597
      In Stock
    $11.98
  • 40
    Muffler Clip – Part Number: 56596
    Muffler Clip
    Part Number: 56596
      Special Order
    $15.10
  • 801
    Arbor Press – Part Number: 96232
    Arbor Press
    Part Number: 96232
      Special Order
    $1417.61
  • 802
    Bearing Separator (2") – Part Number: 96346
    Bearing Separator (2")
    Part Number: 96346
      Special Order
    $227.77
  • 803
    Retaining Ring Pliers – Part Number: 96343
    Retaining Ring Pliers
    Part Number: 96343
      Special Order
    $124.89
  • 804
    Motor Repair Kit – Part Number: 96283
    Motor Repair Kit
    Part Number: 96283
      Special Order
    $459.91
  • 805
    Bearing Removal Tool – Part Number: 96213
    Bearing Removal Tool
    Part Number: 96213
      Special Order
    $92.50
  • 806
    Front Plate Removal Tool – Part Number: 96182
    Front Plate Removal Tool
    Part Number: 96182
      No Longer Available
  • 807
    Motor Tune-Up Kit – Part Number: 98576
    Motor Tune-Up Kit
    Part Number: 98576
      Special Order
    $292.43
  • 808
    Vinyl – Part Number: 56230
    Vinyl
    Part Number: 56230
      No Longer Available
  • 809
    Loop-Face – Part Number: 56232
    Loop-Face
    Part Number: 56232
      No Longer Available
  • 810
    HookIt TM II Interface Pad – Part Number: 56220
    HookIt TM II Interface Pad
    Part Number: 56220
      No Longer Available
  • 811
    Pad-11 In. – Part Number: 56231
    Pad-11 In.
    Part Number: 56231
      In Stock
    $193.60
  • 812
    Hook-Face, Vac (15 Hole) – Part Number: 53997
    Hook-Face, Vac (15 Hole)
    Part Number: 53997
      No Longer Available
  • 813
    Interface Pad (Hook-Face) – Part Number: 53998
    Interface Pad (Hook-Face)
    Part Number: 53998
      Special Order
    $66.60
  • 814
    9/64" Hex Wrench – Part Number: 95134
    9/64" Hex Wrench
    Part Number: 95134
      Special Order
    $5.95
  • 815
    5/32" Hex Wrench – Part Number: 95135
    5/32" Hex Wrench
    Part Number: 95135
      In Stock
    $5.95
  • 816
    Air Lube – Part Number: 95842
    Air Lube
    Part Number: 95842
      Special Order
    $43.96
  • 817
    Dynabrade Air Lube (3.8L) – Part Number: 95843
    Dynabrade Air Lube (3.8L)
    Part Number: 95843
      Special Order
    $155.15
  • 818
    Grease (10 Oz.) – Part Number: 95544
    Grease (10 Oz.)
    Part Number: 95544
      Special Order
    $21.43
  • 819
    Oil Gun – Part Number: 95541
    Oil Gun
    Part Number: 95541
      Special Order
    $57.24
  • A
    Vacuum Edge Guard – Part Number: 61361
    Vacuum Edge Guard
    Part Number: 61361
      Special Order
    $57.02
  • B
    Washer – Part Number: 95886
    Washer
    Part Number: 95886
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • C
    Screw (4) – Part Number: 96425
    Screw (4)
    Part Number: 96425
      Special Order
    Minimum Quantity of 2 required
    $5.95
  • D
    Vac Adapter-1-1/4" – Part Number: 61362
    Vac Adapter-1-1/4"
    Part Number: 61362
      Special Order
    $66.48
