Bosch Concrete Grinder Sander Grinder Replacement Parts For Model GBR14CA (0601773739)

We Sell Only Genuine Bosch Parts

Popular Parts for GBR14CA

GROMMET – Part Number: 2600703013 GROMMET
In Stock
$6.16
ROUND NUT – Part Number: 3603340503 ROUND NUT
In Stock
$21.96
BALL BEARING – Part Number: 1610905025 BALL BEARING
In Stock
$12.97
CLAMPING FLANGE – Part Number: 3603340501 CLAMPING FLANGE
In Stock
$11.29
BRUSH – Part Number: 3600290054 BRUSH
In Stock
$24.55
CARBON-BRUSH SET – Part Number: 3607014011 CARBON-BRUSH SET
In Stock
$24.55
CROWN GEAR – Part Number: 1607000D4Y CROWN GEAR
In Stock
$29.71
PUSH BUTTON – Part Number: 1607000253 PUSH BUTTON
On Order
$6.16

Search Within Model

Questions & Answers for Bosch GBR14CA
Browse all Parts Search by Area
Section 1 Diagram and Parts List for 0601773739 Bosch Sander Grinder
Section 1
Section 2 Diagram and Parts List for 0601773739 Bosch Sander Grinder
Section 2
Previous Showing All Parts Next
Section 1

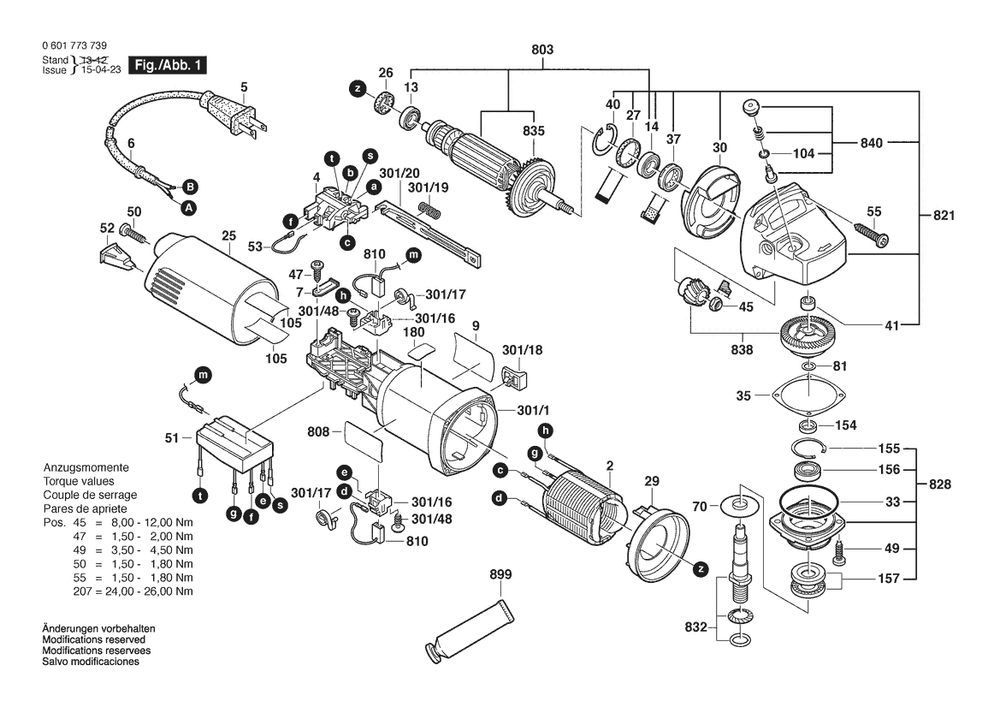

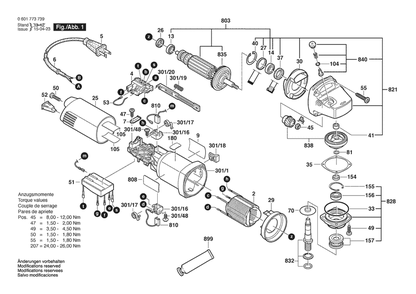

Section 1 Diagram and Parts List for 0601773739 Bosch Sander Grinder
  • 2
    FIELD – Part Number: 1604220307
    FIELD
    Part Number: 1604220307
      In Stock
    $47.82
  • 4
    ON-OFF SWITCH – Part Number: 1607200150
    ON-OFF SWITCH
    Part Number: 1607200150
      In Stock
    $34.71
  • 5
    Power Supply Cord – Part Number: 1604460138
    Power Supply Cord
    Part Number: 1604460138
      No Longer Available
  • 6
    GROMMET – Part Number: 2600703013
    GROMMET
    Part Number: 2600703013
    ★★★★★
    ★★★★★
    (2)
      In Stock
    $6.16
  • 7
    FASTENING CLAMP – Part Number: 1601302017
    FASTENING CLAMP
    Part Number: 1601302017
      In Stock
    $6.16
  • 9
    MANUFACTURERS NAMEPLATE – Part Number: 1601118C77
    MANUFACTURERS NAMEPLATE
    Part Number: 1601118C77
      Special Order
    $7.36
  • 13
    BALL BEARING – Part Number: 1610905025
    BALL BEARING
    Part Number: 1610905025
    ★★★★★
    ★★★★★
    (4)
      In Stock
    $12.97
  • 14
    BALL BEARING – Part Number: 1600905032
    BALL BEARING
    Part Number: 1600905032
      In Stock
    $11.29
  • 25
    HOUSING COVER – Part Number: 1600508016
    HOUSING COVER
    Part Number: 1600508016
      Special Order
    $12.97
  • 26
    RUBBER RING – Part Number: 1600206036
    RUBBER RING
    Part Number: 1600206036
      In Stock
    Minimum Quantity of 2 required
    $6.16
  • 27
    INTERMEDIATE RING – Part Number: 1600206025
    INTERMEDIATE RING
    Part Number: 1600206025
      In Stock
    Minimum Quantity of 2 required
    $6.16
  • 29
    AIR-DEFLECTOR RING – Part Number: 1600591025
    AIR-DEFLECTOR RING
    Part Number: 1600591025
      In Stock
    $6.16
  • 30
    AIR-DEFLECTOR RING – Part Number: 1600591014
    AIR-DEFLECTOR RING
    Part Number: 1600591014
      In Stock
    $6.16
  • 33
    O-RING – Part Number: 3600210124
    O-RING
    Part Number: 3600210124
      In Stock
    $6.16
  • 35
    SHIM 0,15 MM THICK – Part Number: 1600136020
    SHIM 0,15 MM THICK
    Part Number: 1600136020
      Special Order
    $6.16
  • 35
    SHIM – Part Number: 1600136013
    SHIM
    Part Number: 1600136013
      Special Order
    $6.16
  • 35
    SHIM 0,2 MM THICK – Part Number: 1600136014
    SHIM 0,2 MM THICK
    Part Number: 1600136014
      Special Order
    Minimum Quantity of 2 required
    $6.16
  • 35
    SHIM – Part Number: 1600136015
    SHIM
    Part Number: 1600136015
      Special Order
    $6.16
  • 37
    RADIAL-LIP-TYPE OIL SEAL – Part Number: 1600290016
    RADIAL-LIP-TYPE OIL SEAL
    Part Number: 1600290016
      In Stock
    $7.36
  • 40
    C-CLIP – Part Number: 1600119011
    C-CLIP
    Part Number: 1600119011
      In Stock
    $6.16
  • 41
    NEEDLE BUSHING – Part Number: 1600910018
    NEEDLE BUSHING
    Part Number: 1600910018
      In Stock
    $6.16
  • 45
    HEXAGON NUT – Part Number: 1603300016
    HEXAGON NUT
    Part Number: 1603300016
      In Stock
    $6.16
  • 47
    SELF-CUTTING SCREW – Part Number: 1603435042
    SELF-CUTTING SCREW
    Part Number: 1603435042
      Special Order
    $6.16
  • 49
    SCREW – Part Number: 3603435047
    SCREW
    Part Number: 3603435047
      Special Order
    $6.16
  • 50
    SELF-TAPPING SCREW – Part Number: 2912401420
    SELF-TAPPING SCREW
    Part Number: 2912401420
      In Stock
    Minimum Quantity of 2 required
    $6.16
  • 51
    GOVERNOR – Part Number: 1607233149
    GOVERNOR
    Part Number: 1607233149
      Special Order
    $80.74
  • 52
    LIGHT CONDUCTOR – Part Number: 3604460117
    LIGHT CONDUCTOR
    Part Number: 3604460117
      Special Order
    $6.16
  • 53
    CONNECTING CABLE – Part Number: 3604438020
    CONNECTING CABLE
    Part Number: 3604438020
      Special Order
    $6.16
  • 55
    TORX OVAL-HEAD SCREW – Part Number: 1603435078
    TORX OVAL-HEAD SCREW
    Part Number: 1603435078
      In Stock
    Minimum Quantity of 2 required
    $6.16
  • 70
    COVER DISC – Part Number: 3600150023
    COVER DISC
    Part Number: 3600150023
      Special Order
    $6.16
  • 81
    SHIM – Part Number: 2600101022
    SHIM
    Part Number: 2600101022
      Special Order
    Minimum Quantity of 2 required
    $6.16
  • 104
    O-RING – Part Number: 1600210034
    O-RING
    Part Number: 1600210034
      Special Order
    Minimum Quantity of 2 required
    $6.16
  • 105
    INSULATING PLATE – Part Number: 1601008005
    INSULATING PLATE
    Part Number: 1601008005
      Special Order
    $6.16
  • 154
    DISTANCE PIPE – Part Number: 3600913010
    DISTANCE PIPE
    Part Number: 3600913010
      Special Order
    $8.50
  • 155
    C-CLIP – Part Number: 2916660013
    C-CLIP
    Part Number: 2916660013
      Special Order
    $6.16
  • 156
    Groove Ball Bearing – Part Number: 160090003C
    Groove Ball Bearing
    Part Number: 160090003C
      No Longer Available
  • 157
    SEAL RING – Part Number: 3600105009
    SEAL RING
    Part Number: 3600105009
      In Stock
    $12.97
  • 180
    WARNING PLATE – Part Number: 3601119229
    WARNING PLATE
    Part Number: 3601119229
      Special Order
    $7.36
  • 207
    HEXAGON SCREW – Part Number: 2911061285
    HEXAGON SCREW
    Part Number: 2911061285
      In Stock
    Minimum Quantity of 2 required
    $6.16
  • 301/1
    MOTOR HOUSING – Part Number: 1605108208
    MOTOR HOUSING
    Part Number: 1605108208
      Special Order
    $21.96
  • 301/16
    BRUSH HOLDER – Part Number: 1601323025
    BRUSH HOLDER
    Part Number: 1601323025
      In Stock
    $7.36
  • 301/17
    Brush Spring – Part Number: 1604652013
    Brush Spring
    Part Number: 1604652013
      No Longer Available
  • 301/18
    SWITCH HANDLE – Part Number: 1602026057
    SWITCH HANDLE
    Part Number: 1602026057
    ★★★★★
    ★★★★★
    (1)
      On Order
    $9.76
  • 301/19
    SPRING – Part Number: 1604611026
    SPRING
    Part Number: 1604611026
      Special Order
    $6.16
  • 301/20
    ADJUSTING SLIDE – Part Number: 1602319011
    ADJUSTING SLIDE
    Part Number: 1602319011
      In Stock
    $6.16
  • 301/48
    SHEET METAL SCREW – Part Number: 2912401005
    SHEET METAL SCREW
    Part Number: 2912401005
      Special Order
    Minimum Quantity of 2 required
    $6.16
  • 803
    ARMATURE – Part Number: 1604010651
    ARMATURE
    Part Number: 1604010651
      Special Order
    $120.40
  • 808
    NAMEPLATE – Part Number: 3601119267
    NAMEPLATE
    Part Number: 3601119267
      Special Order
    $7.36
  • 810
    CARBON-BRUSH SET – Part Number: 3607014011
    CARBON-BRUSH SET
    Part Number: 3607014011
      In Stock
    $24.55
  • 821
    GEAR HOUSING – Part Number: 16058065B1
    GEAR HOUSING
    Part Number: 16058065B1
      Special Order
    $47.82
  • 828
    BEARING FLANGE – Part Number: 3605700158
    BEARING FLANGE
    Part Number: 3605700158
      Special Order
    $86.44
  • 835
    FAN – Part Number: 1606610132
    FAN
    Part Number: 1606610132
      Special Order
    $6.16
  • 838
    CROWN GEAR – Part Number: 1607000D4Y
    CROWN GEAR
    Part Number: 1607000D4Y
      In Stock
    $29.71
  • 840
    PUSH BUTTON – Part Number: 1607000253
    PUSH BUTTON
    Part Number: 1607000253
      On Order
    $6.16
  • 899
    SILICONE SEALING – Part Number: 3605430011
    SILICONE SEALING
    Part Number: 3605430011
      Special Order
    $35.06
Section 2

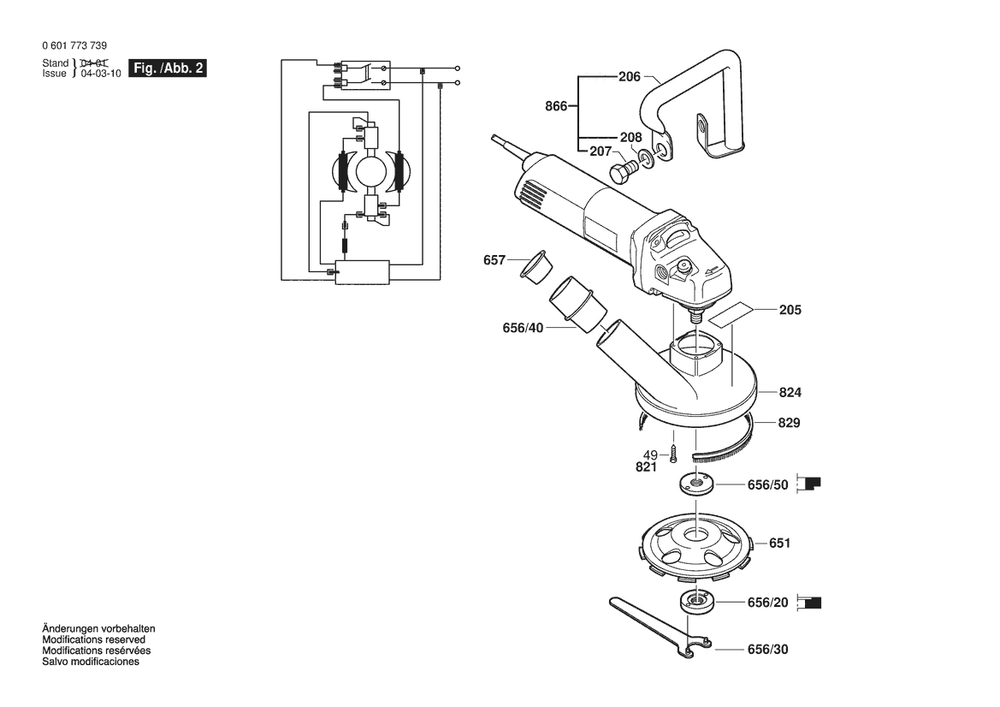

Section 2 Diagram and Parts List for 0601773739 Bosch Sander Grinder
