Craftsman Router Replacement Parts For Model 315175130

We Sell Only Genuine Craftsman Parts

Popular Parts for 315175130

Screw (8-10 X 5/8 In. Pan HD.) – Part Number: 617966030 Screw (8-10 X 5/8 In. Pan HD.)
In Stock
$6.16

Search Within Model

Browse all Parts Search by Area
Motor Diagram and Parts List for Craftsman Router
Motor
Page C Diagram and Parts List for Craftsman Router
Page C
Router Diagram and Parts List for Craftsman Router
Router
Previous Showing All Parts Next

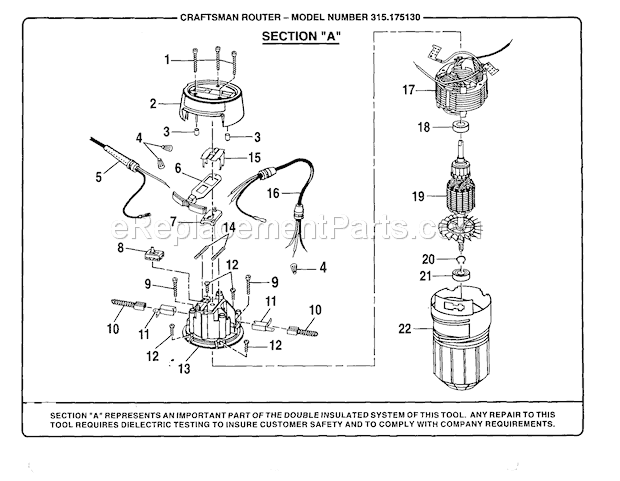

Motor
Motor Diagram and Parts List for Craftsman Router
  • B-1
    Screw – Part Number: 989592-002
    Screw
    Part Number: 989592-002
      No Longer Available
  • B-2
    End Cap – Part Number: 970502-007
    End Cap
    Part Number: 970502-007
      No Longer Available
  • B-4
    Nut-wire Black 150c **std375 – Part Number: 870126002
    Nut-wire Black 150c **std375
    Part Number: 870126002
      No Longer Available
  • B-6
    Button – Part Number: 973738-001
    Button
    Part Number: 973738-001
      No Longer Available
  • B-8
    Switch – Part Number: 612856-002
    Switch
    Part Number: 612856-002
      No Longer Available
  • B-9
    Screw – Part Number: 989629-001
    Screw
    Part Number: 989629-001
      No Longer Available
  • B-10
    Brush Asm – Part Number: 610784-048
    Brush Asm
    Part Number: 610784-048
      No Longer Available
  • B-12
    Screw 8pk – Part Number: STD610807
    Screw 8pk
    Part Number: STD610807
      No Longer Available
  • B-13
    T. Brg. Plte – Part Number: 612848-007
    T. Brg. Plte
    Part Number: 612848-007
      No Longer Available
  • B-14
    Compression Spring – Part Number: 974951-001
    Compression Spring
    Part Number: 974951-001
      No Longer Available
  • B-15
    Ret Clip – Part Number: 989573-001
    Ret Clip
    Part Number: 989573-001
      No Longer Available
  • B-16
    Ac Cord – Part Number: 971669-002
    Ac Cord
    Part Number: 971669-002
      No Longer Available
  • B-18
    608Lz – Part Number: STD315483
    608Lz
    Part Number: STD315483
      No Longer Available
  • B-20
    Retain Ring – Part Number: 622167-012
    Retain Ring
    Part Number: 622167-012
      No Longer Available
  • B-21
    6001 Brg – Part Number: STD315515
    6001 Brg
    Part Number: STD315515
      No Longer Available
  • B-22
    Housing – Part Number: 973739-001
    Housing
    Part Number: 973739-001
      No Longer Available

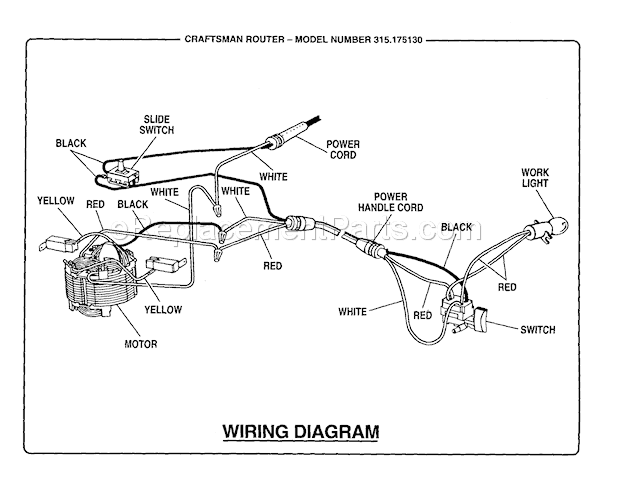

Page C
Page C Diagram and Parts List for Craftsman Router

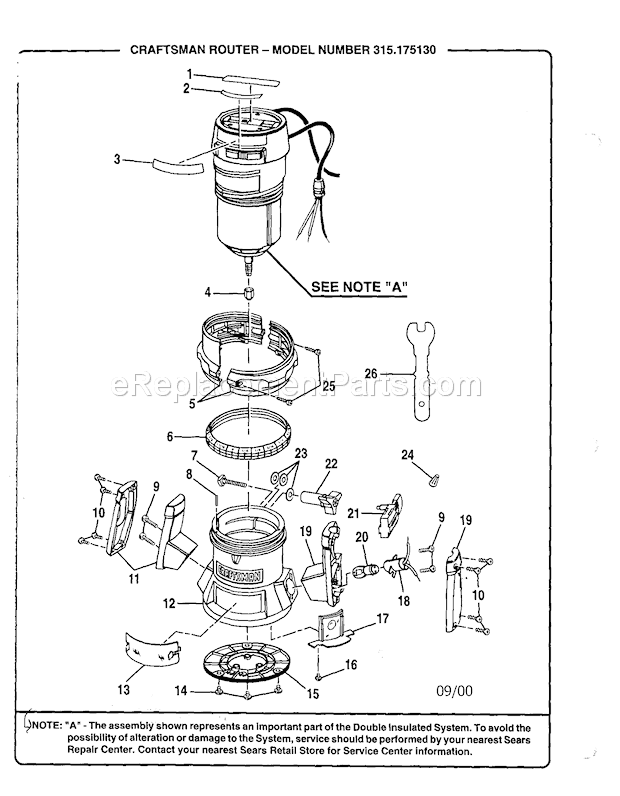

Router
Router Diagram and Parts List for Craftsman Router
  • A-1
    Data Plate – Part Number: 982063-001
    Data Plate
    Part Number: 982063-001
      No Longer Available
  • A-2
    Label – Part Number: 970692-001
    Label
    Part Number: 970692-001
      No Longer Available
  • A-3
    Logo Plate – Part Number: 982065-001
    Logo Plate
    Part Number: 982065-001
      No Longer Available
  • A-4
    Collet Nut – Part Number: 989985-003
    Collet Nut
    Part Number: 989985-003
      No Longer Available
  • A-7
    Bolt – Part Number: 623166-006
    Bolt
    Part Number: 623166-006
      No Longer Available
  • A-8
    Roll Pin – Part Number: 622832-014
    Roll Pin
    Part Number: 622832-014
      No Longer Available
  • A-9
    Screw 8Pk – Part Number: STD511107
    Screw 8Pk
    Part Number: STD511107
      No Longer Available
  • A-10
    Screw (8-10 X 5/8 In. Pan HD.) – Part Number: 617966030
    Screw (8-10 X 5/8 In. Pan HD.)
    Part Number: 617966030
      In Stock
    $6.16
  • A-11
    Handle Assy. – Part Number: 970697-000
    Handle Assy.
    Part Number: 970697-000
      No Longer Available
  • A-13
    Chip Shield – Part Number: 606688-002
    Chip Shield
    Part Number: 606688-002
      No Longer Available
  • A-14
    Screw 8Pk – Part Number: STD511102
    Screw 8Pk
    Part Number: STD511102
      No Longer Available
  • A-15
    Subbase – Part Number: 511983001
    Subbase
    Part Number: 511983001
      No Longer Available
  • A-16
    Screw 8Pk – Part Number: STD600602
    Screw 8Pk
    Part Number: STD600602
      No Longer Available
  • A-19
    Handle Asy – Part Number: 970696-000
    Handle Asy
    Part Number: 970696-000
      No Longer Available
  • A-20
    Light Bulb – Part Number: 610951-002
    Light Bulb
    Part Number: 610951-002
      No Longer Available
  • A-22
    L Knob – Part Number: 999603-001
    L Knob
    Part Number: 999603-001
      No Longer Available
  • A-23
    Washer 8Pk – Part Number: STD551025
    Washer 8Pk
    Part Number: STD551025
      No Longer Available
  • A-24
    Nut-wire Black 150c **std375 – Part Number: 870126002
    Nut-wire Black 150c **std375
    Part Number: 870126002
      No Longer Available
  • A-25
    Screw – Part Number: 999053-003
    Screw
    Part Number: 999053-003
      No Longer Available
✖
