Black and Decker 2-1/4 Hp Router 220 Replacement Parts For Model 3338-2 (3)

We Sell Only Genuine Black and Decker Parts

Popular Parts for 3338-2

Wing Screw – Part Number: 326573-01 Wing Screw
In Stock
$6.90
Collet Nut – Part Number: 942893-01 Collet Nut
In Stock
$15.36
Electric Drill Cord Protector – Part Number: 330005-01 Electric Drill Cord Protector
In Stock
$10.32
Screw – Part Number: 860205-04 Screw
In Stock
Minimum Quantity of 2 required
$5.95
1/2-inch Collet – Part Number: 868116-01 1/2-inch Collet
In Stock
$32.08
Knob Assembly – Part Number: 869355-00 Knob Assembly
In Stock
$34.66
Ball Bearing – Part Number: 605040-23 Ball Bearing
In Stock
$12.55
Spring – Part Number: 868082-00 Spring
On Order
Minimum Quantity of 2 required
$5.95

Search Within Model

Questions & Answers for Black and Decker 3338-2
Browse all Parts Search by Area

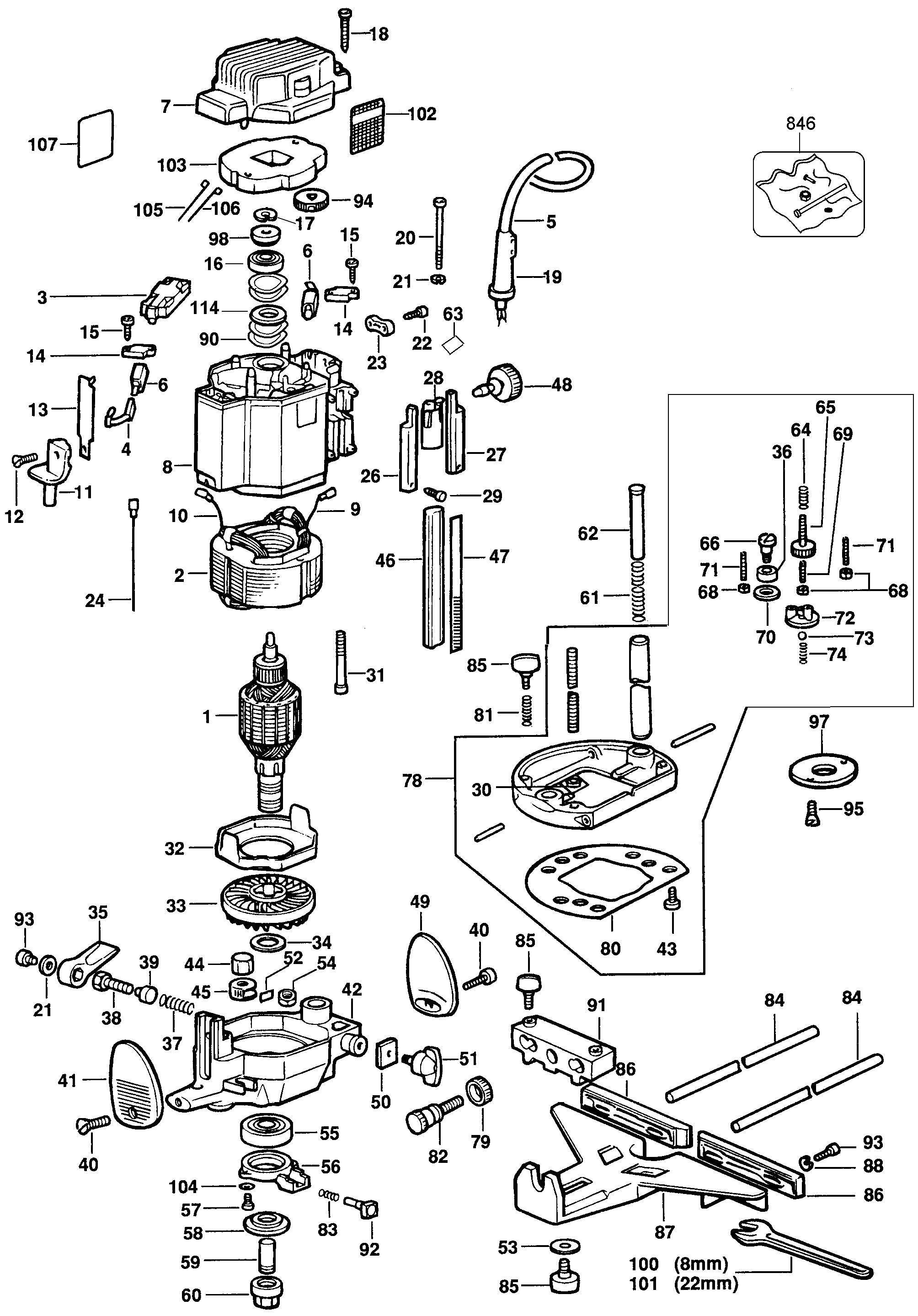

Page A Diagram and Parts List for 3 Black and Decker Router
Page A
Previous Showing All Parts Next
Page A
Page A Diagram and Parts List for 3 Black and Decker Router
  • 3
    Switch – Part Number: 868128-00
    Switch
    Part Number: 868128-00
      No Longer Available
  • 4
    BRUSH – Part Number: 940146-00
    BRUSH
    Part Number: 940146-00
      In Stock
    $7.78
  • 6
    Brush Holder – Part Number: 761202-00
    Brush Holder
    Part Number: 761202-00
      In Stock
    $7.50
  • 6
    Ball Bearing – Part Number: 605040-23
    Ball Bearing
    Part Number: 605040-23
      In Stock
    $12.55
  • 10
    Lead – Part Number: 868129-07
    Lead
    Part Number: 868129-07
      No Longer Available
  • 11
    Lever,Switch – Part Number: 868145-00
    Lever,Switch
    Part Number: 868145-00
      In Stock
    $5.95
  • 13
    Actuator,Switch – Part Number: 868123-00
    Actuator,Switch
    Part Number: 868123-00
      Special Order
    $5.95
  • 14
    Clamp – Part Number: 761203-00
    Clamp
    Part Number: 761203-00
      No Longer Available
  • 15
    Screw – Part Number: 949896-12
    Screw
    Part Number: 949896-12
      No Longer Available
  • 17
    Circlip – Part Number: 860079-03
    Circlip
    Part Number: 860079-03
      Special Order
    Minimum Quantity of 2 required
    $5.95
  • 18
    Screw – Part Number: 249220-00
    Screw
    Part Number: 249220-00
      Special Order
    $5.95
  • 19
    Electric Drill Cord Protector – Part Number: 330005-01
    Electric Drill Cord Protector
    Part Number: 330005-01
      In Stock
    $10.32
  • 21
    Washer – Part Number: 930248-00
    Washer
    Part Number: 930248-00
      Special Order
    $5.95
  • 23
    Clamp,Cord – Part Number: 248611-00
    Clamp,Cord
    Part Number: 248611-00
      No Longer Available
  • 26
    Support,Lens(L) – Part Number: 248395-00
    Support,Lens(L)
    Part Number: 248395-00
      Special Order
    $5.95
  • 27
    Support,Lens(R) – Part Number: 248394-00
    Support,Lens(R)
    Part Number: 248394-00
      No Longer Available
  • 28
    Lens – Part Number: 868124-01
    Lens
    Part Number: 868124-01
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 29
    Screw – Part Number: 949896-12
    Screw
    Part Number: 949896-12
      No Longer Available
  • 30
    Nut – Part Number: 761225-02
    Nut
    Part Number: 761225-02
      In Stock
    $5.95
  • 31
    Screw – Part Number: 248934-00
    Screw
    Part Number: 248934-00
      Special Order
    $5.95
  • 32
    Baffle – Part Number: 942902-01
    Baffle
    Part Number: 942902-01
      Special Order
    $5.95
  • 33
    FAN – Part Number: N041821
    FAN
    Part Number: N041821
      No Longer Available
  • 35
    Lever,Clamp – Part Number: 942906-00
    Lever,Clamp
    Part Number: 942906-00
      Special Order
    $9.68
  • 37
    Spring – Part Number: 942909-00
    Spring
    Part Number: 942909-00
      Special Order
    Minimum Quantity of 2 required
    $5.95
  • 38
    Screw,Special – Part Number: 868204-00
    Screw,Special
    Part Number: 868204-00
      In Stock
    Minimum Quantity of 2 required
    $6.13
  • 39
    Pin – Part Number: 942908-00
    Pin
    Part Number: 942908-00
      Special Order
    $9.18
  • 41
    Knob Assembly – Part Number: 869355-00
    Knob Assembly
    Part Number: 869355-00
    ★★★★★
    ★★★★★
    (2)
      In Stock
    $34.66
  • 42
    Housing,Lower – Part Number: 942898-00
    Housing,Lower
    Part Number: 942898-00
      Special Order
    $67.35
  • 43
    Screw – Part Number: 860205-04
    Screw
    Part Number: 860205-04
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 44
    Nut – Part Number: 868150-00
    Nut
    Part Number: 868150-00
      In Stock
    $5.95
  • 45
    Support – Part Number: 942910-00
    Support
    Part Number: 942910-00
      In Stock
    $9.60
  • 46
    Rack – Part Number: 868122-00
    Rack
    Part Number: 868122-00
      Special Order
    $20.82
  • 48
    Pinion – Part Number: 761243-05
    Pinion
    Part Number: 761243-05
      In Stock
    $7.38
  • 49
    Knob Assembly – Part Number: 869355-00
    Knob Assembly
    Part Number: 869355-00
    ★★★★★
    ★★★★★
    (2)
      In Stock
    $34.66
  • 50
    Plate – Part Number: 868119-00
    Plate
    Part Number: 868119-00
      Special Order
    $5.95
  • 51
    Screw,Wing – Part Number: 939840-05
    Screw,Wing
    Part Number: 939840-05
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 52
    Spring – Part Number: 942912-00
    Spring
    Part Number: 942912-00
    ★★★★★
    ★★★★★
    (1)
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 54
    Lock – Part Number: 942911-00
    Lock
    Part Number: 942911-00
      Special Order
    $9.13
  • 55
    Bearing – Part Number: 868132-03
    Bearing
    Part Number: 868132-03
      On Order
    $17.98
  • 56
    Clamp – Part Number: 942900-03
    Clamp
    Part Number: 942900-03
      In Stock
    $18.26
  • 57
    Screw – Part Number: 249424-02
    Screw
    Part Number: 249424-02
      Special Order
    Minimum Quantity of 2 required
    $5.95
  • 58
    Nut – Part Number: 942901-00
    Nut
    Part Number: 942901-00
      Special Order
    $12.36
  • 59
    1/2-inch Collet – Part Number: 868116-01
    1/2-inch Collet
    Part Number: 868116-01
      In Stock
    $32.08
  • 60
    Collet Nut – Part Number: 942893-01
    Collet Nut
    Part Number: 942893-01
    ★★★★★
    ★★★★★
    (4)
      In Stock
    $15.36
  • 61
    Spring – Part Number: 868115-00
    Spring
    Part Number: 868115-00
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 62
    Rod – Part Number: 868566-01
    Rod
    Part Number: 868566-01
      Special Order
    $5.95
  • 63
    Lens – Part Number: 868124-01
    Lens
    Part Number: 868124-01
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 65
    Screw – Part Number: 868125-00
    Screw
    Part Number: 868125-00
      Special Order
    Minimum Quantity of 2 required
    $6.60
  • 66
    Screw – Part Number: 249432-00
    Screw
    Part Number: 249432-00
      No Longer Available
  • 68
    Nut,Hex – Part Number: 330015-04
    Nut,Hex
    Part Number: 330015-04
      In Stock
    $5.95
  • 69
    Screw – Part Number: 942931-02
    Screw
    Part Number: 942931-02
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 71
    Screw – Part Number: 942931-01
    Screw
    Part Number: 942931-01
      In Stock
    $5.95
  • 73
    Ball – Part Number: 720664-00
    Ball
    Part Number: 720664-00
      Special Order
    $5.95
  • 74
    Spring – Part Number: 868082-00
    Spring
    Part Number: 868082-00
      On Order
    Minimum Quantity of 2 required
    $5.95
  • 78
    Plate,Base – Part Number: 329820-49
    Plate,Base
    Part Number: 329820-49
      In Stock
    $138.55
  • 79
    Scale – Part Number: 942918-02
    Scale
    Part Number: 942918-02
      No Longer Available
  • 80
    Base,sub – Part Number: 940459-00
    Base,sub
    Part Number: 940459-00
      In Stock
    $13.42
  • 81
    Spring – Part Number: 868082-00
    Spring
    Part Number: 868082-00
      On Order
    Minimum Quantity of 2 required
    $5.95
  • 83
    Spring – Part Number: 942904-00
    Spring
    Part Number: 942904-00
      Special Order
    Minimum Quantity of 2 required
    $5.95
  • 84
    Rod – Part Number: 868147-01
    Rod
    Part Number: 868147-01
      In Stock
    $5.95
  • 85
    Wing Screw – Part Number: 326573-01
    Wing Screw
    Part Number: 326573-01
    ★★★★★
    ★★★★★
    (5)
      In Stock
    $6.90
  • 86
    Face,Guide – Part Number: 942915-00
    Face,Guide
    Part Number: 942915-00
      Special Order
    $15.12
  • 88
    Washer – Part Number: 860073-01
    Washer
    Part Number: 860073-01
      In Stock
    $5.95
  • 90
    Wavy Washer – Part Number: 248978-00
    Wavy Washer
    Part Number: 248978-00
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 92
    Lock,Spindle – Part Number: 942930-00
    Lock,Spindle
    Part Number: 942930-00
      In Stock
    $5.95
  • 93
    Screw – Part Number: 249424-21
    Screw
    Part Number: 249424-21
      Special Order
    $5.95
  • 95
    Screw – Part Number: 249412-20
    Screw
    Part Number: 249412-20
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 97
    Bushing,Guide – Part Number: 868151-00
    Bushing,Guide
    Part Number: 868151-00
      In Stock
    $33.62
  • 98
    Pole Piece – Part Number: 868141-00
    Pole Piece
    Part Number: 868141-00
      In Stock
    $6.98
  • 100
    Spanner – Part Number: 868148-00
    Spanner
    Part Number: 868148-00
    ★★★★★
    ★★★★★
    (1)
      In Stock
    $7.48
  • 104
    Washer – Part Number: 932839-00
    Washer
    Part Number: 932839-00
      Special Order
    Minimum Quantity of 2 required
    $5.95
  • 105
    Lead – Part Number: 868129-09
    Lead
    Part Number: 868129-09
      In Stock
    $5.95
  • 106
    LEAD – Part Number: 868129-10
    LEAD
    Part Number: 868129-10
      No Longer Available
  • 107
    NAMEPLATE-SHEET – Part Number: 233304-00
    NAMEPLATE-SHEET
    Part Number: 233304-00
      Special Order
    $26.32
  • 114
    Spacer – Part Number: 868127-01
    Spacer
    Part Number: 868127-01
      In Stock
    $6.15
