Whirlpool Refrigerator Replacement Parts For Model KBBX104EPA00

We Sell Only Genuine Whirlpool Parts

Popular Parts for KBBX104EPA00

COVER, FAN – Part Number: W10506654 COVER, FAN
Special Order
$19.90
COVER, SENSOR – Part Number: W10506496 COVER, SENSOR
Special Order
$17.80
LED ASSEMBLY – Part Number: W10398001 LED ASSEMBLY
Special Order
$58.09
EVAPORATOR MOTOR ASSEMBLY – Part Number: W10518444 EVAPORATOR MOTOR ASSEMBLY
Special Order
$75.43
Trim, rear – Part Number: W10495387 Trim, rear
Special Order
$26.20
Spacer, door panel – Part Number: W10556651 Spacer, door panel
Special Order
$20.95
TRIM-CABNT – Part Number: W11553482 TRIM-CABNT
Special Order
$56.05
GASKET-FIP – Part Number: W11625083 GASKET-FIP
Special Order
$101.95

Search Within Model

Questions & Answers for Whirlpool KBBX104EPA00
Browse all Parts Search by Area
01 - COVER SHEET Diagram and Parts List for Whirlpool Refrigerator
01 - COVER SHEET
02 - CABINET PARTS Diagram and Parts List for Whirlpool Refrigerator
02 - CABINET PARTS
03 - LINER PARTS Diagram and Parts List for Whirlpool Refrigerator
03 - LINER PARTS
04 - REFRIGERATOR DOOR PARTS Diagram and Parts List for Whirlpool Refrigerator
04 - REFRIGERATOR DOOR PARTS
05 - FREEZER DOOR PARTS Diagram and Parts List for Whirlpool Refrigerator
05 - FREEZER DOOR PARTS
06 - REFRIGERATOR SHELF PARTS Diagram and Parts List for Whirlpool Refrigerator
06 - REFRIGERATOR SHELF PARTS
07 - FREEZER SHELF PARTS Diagram and Parts List for Whirlpool Refrigerator
07 - FREEZER SHELF PARTS
08 - UNIT PARTS Diagram and Parts List for Whirlpool Refrigerator
08 - UNIT PARTS
Previous Showing All Parts Next

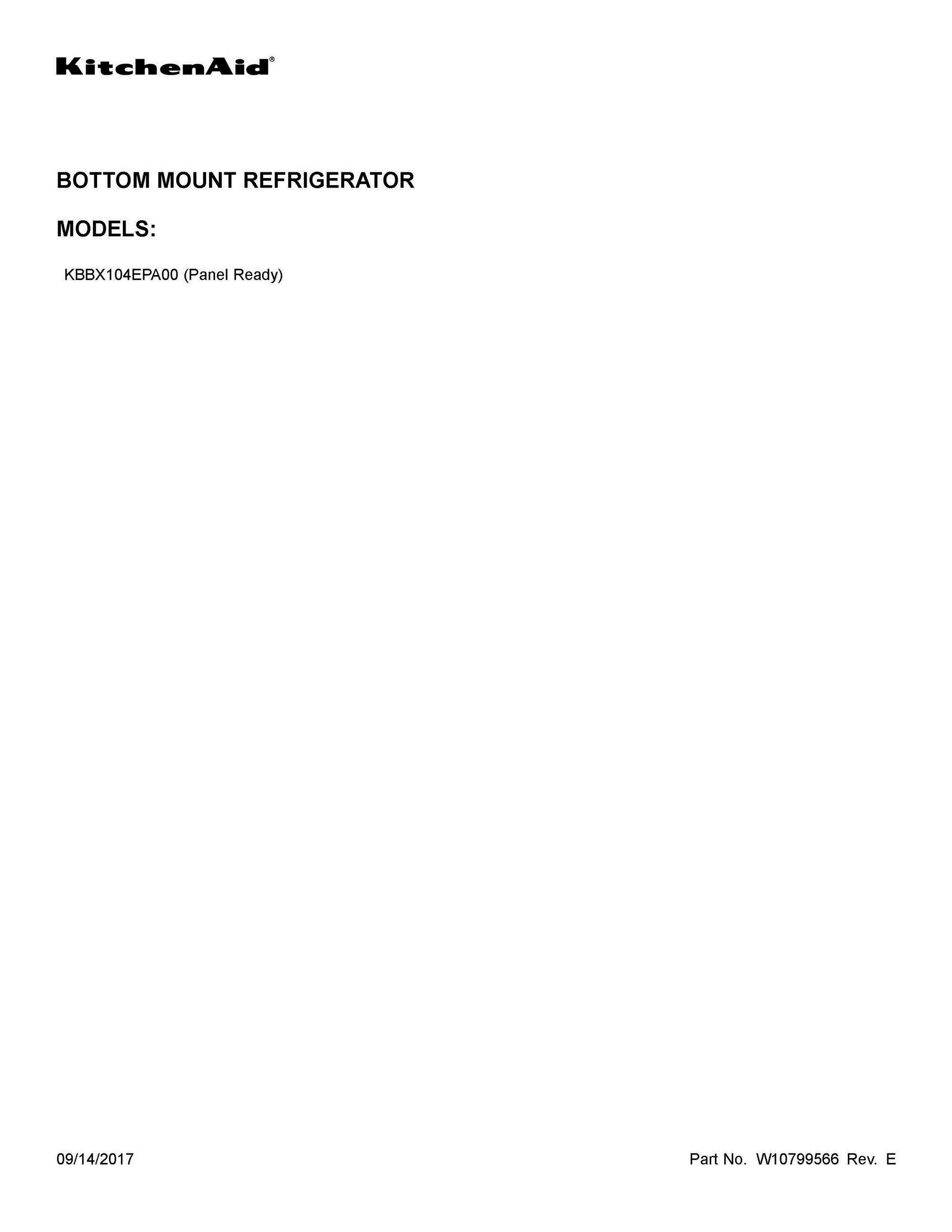

01 - COVER SHEET
01 - COVER SHEET Diagram and Parts List for Whirlpool Refrigerator

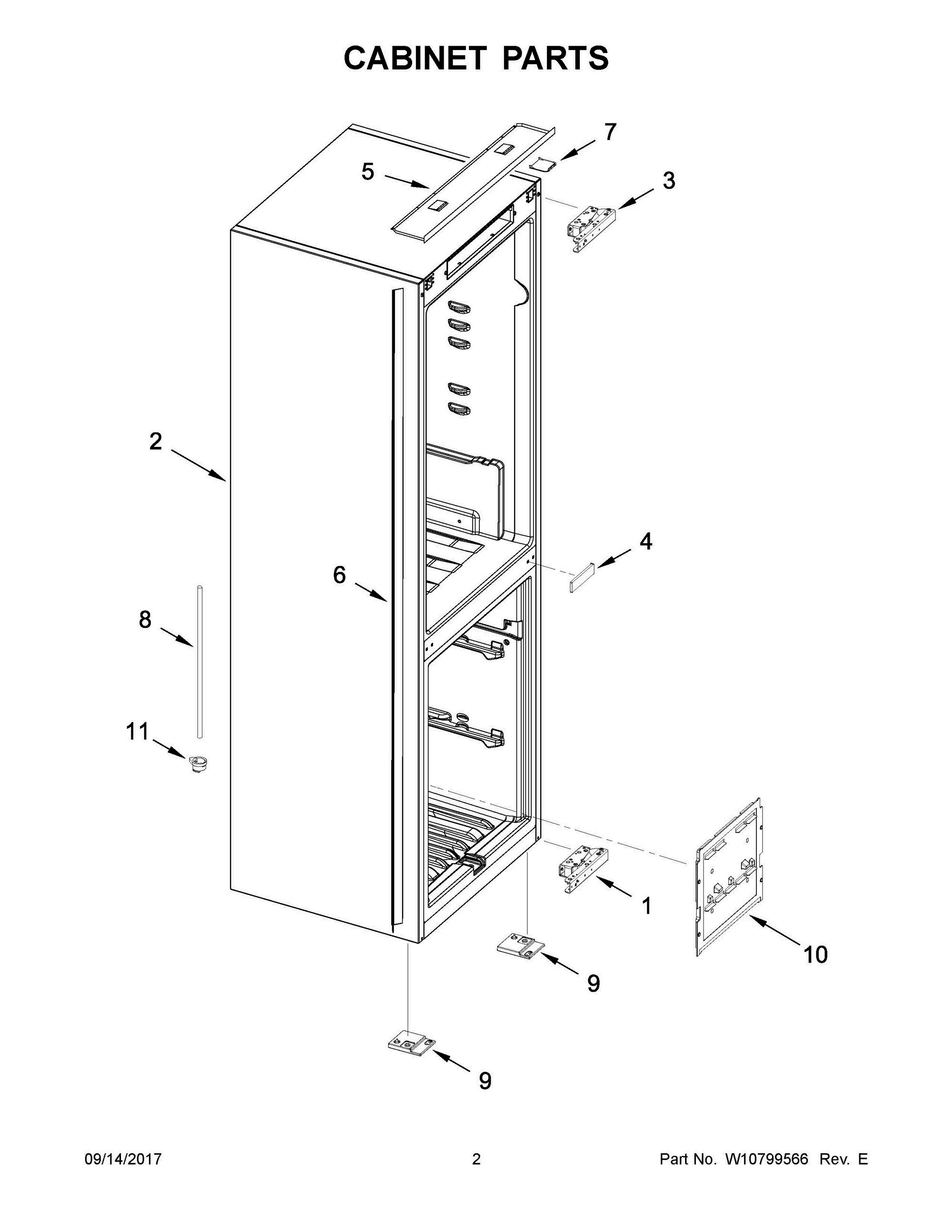

02 - CABINET PARTS
02 - CABINET PARTS Diagram and Parts List for Whirlpool Refrigerator
  • 1
    Hinge, bottom – Part Number: W10804397
    Hinge, bottom
    Part Number: W10804397
      Special Order
    $83.49
  • 2
    NOT AVAILABLE – Part Number: N/P
    NOT AVAILABLE
    Part Number: N/P
      No Longer Available
  • 3
    Top hinge – Part Number: W10804396
    Top hinge
    Part Number: W10804396
      Special Order
    $77.65
  • 4
    Hinge cover – Part Number: W10804387
    Hinge cover
    Part Number: W10804387
      Special Order
    $23.05
  • 5
    Fastener, upper – Part Number: W10508414
    Fastener, upper
    Part Number: W10508414
      Special Order
    $43.21
  • 6
    TRIM-CABNT – Part Number: W11553482
    TRIM-CABNT
    Part Number: W11553482
      Special Order
    $56.05
  • 7
    Cover screw – Part Number: W10804407
    Cover screw
    Part Number: W10804407
      Special Order
    $23.05
  • 8
    Drain tube – Part Number: W10804414
    Drain tube
    Part Number: W10804414
      Special Order
    $18.85
  • 9
    Foot (left hand) – Part Number: W10642999
    Foot (left hand)
    Part Number: W10642999
      Special Order
    $24.10
  • 9A
    Foot (right hand) – Part Number: W10642997
    Foot (right hand)
    Part Number: W10642997
      Special Order
    $24.10
  • 10
    Cover, unit (includes fan motor) – Part Number: W10751012
    Cover, unit (includes fan motor)
    Part Number: W10751012
      Special Order
    $181.59
  • 11
    Diaphragm – Part Number: W10804411
    Diaphragm
    Part Number: W10804411
      Special Order
    $24.10

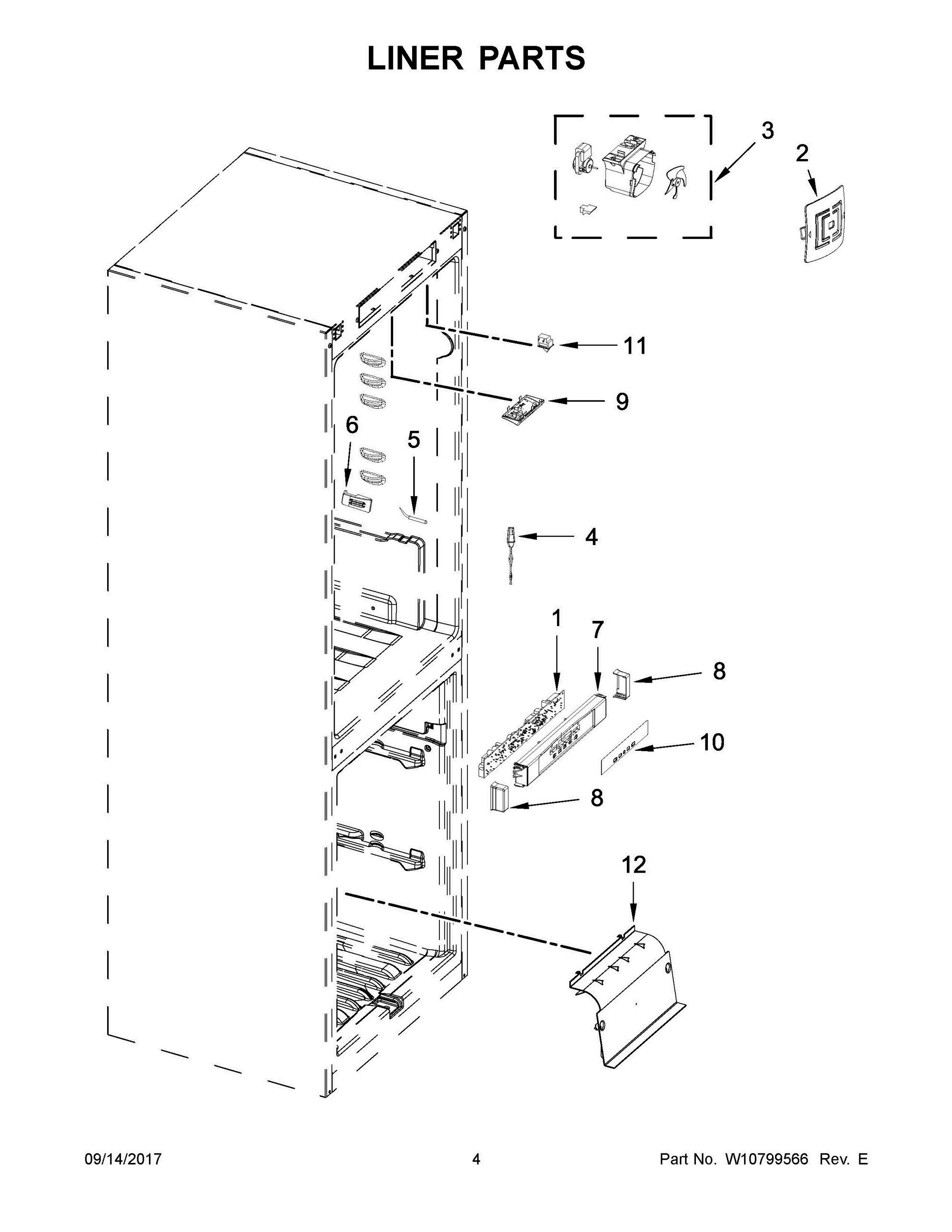

03 - LINER PARTS
03 - LINER PARTS Diagram and Parts List for Whirlpool Refrigerator
  • 1
    CNTRL-ELEC – Part Number: W10805028
    CNTRL-ELEC
    Part Number: W10805028
      Special Order
    $169.54
  • 2
    COVER, FAN – Part Number: W10506654
    COVER, FAN
    Part Number: W10506654
      Special Order
    $19.90
  • 3
    EVAPORATOR MOTOR ASSEMBLY – Part Number: W10518444
    EVAPORATOR MOTOR ASSEMBLY
    Part Number: W10518444
      Special Order
    $75.43
  • 4
    Pin, drain – Part Number: W10804413
    Pin, drain
    Part Number: W10804413
      Special Order
    $19.90
  • 5
    Kit, service sensor – Part Number: W10804410
    Kit, service sensor
    Part Number: W10804410
      Special Order
    $56.05
  • 6
    COVER, SENSOR – Part Number: W10506496
    COVER, SENSOR
    Part Number: W10506496
      Special Order
    $17.80
  • 7
    Control housing – Part Number: W10734478
    Control housing
    Part Number: W10734478
      Special Order
    $51.45
  • 8
    Panel insert – Part Number: W10804409
    Panel insert
    Part Number: W10804409
      Special Order
    $23.05
  • 9
    LED ASSEMBLY – Part Number: W10398001
    LED ASSEMBLY
    Part Number: W10398001
      Special Order
    $58.09
  • 10
    Overlay – Part Number: W10749451
    Overlay
    Part Number: W10749451
      Special Order
    $55.03
  • 11
    Light switch – Part Number: W10720006
    Light switch
    Part Number: W10720006
      Special Order
    $32.91
  • 12
    Air tower – Part Number: W10762427
    Air tower
    Part Number: W10762427
      Special Order
    $50.42

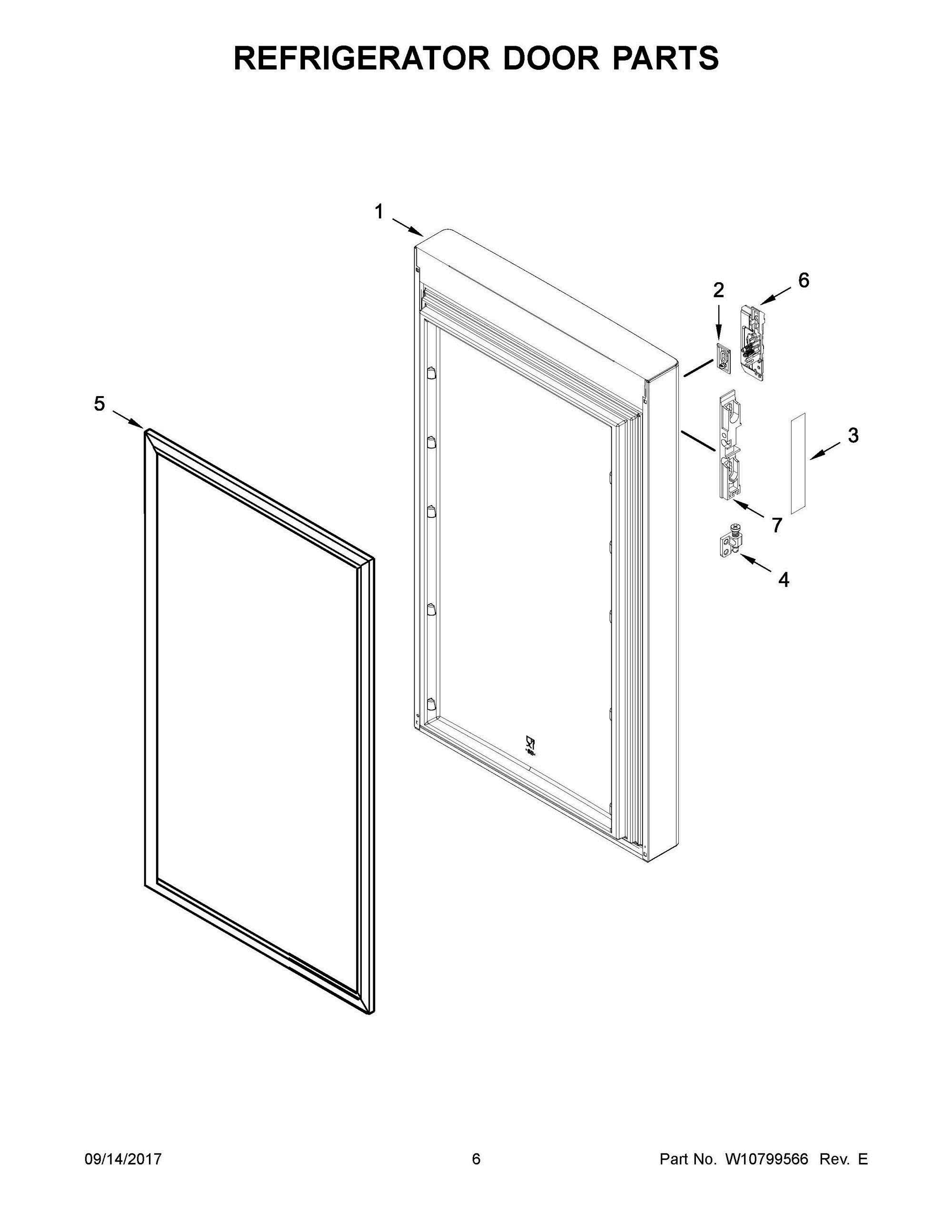

04 - REFRIGERATOR DOOR PARTS
04 - REFRIGERATOR DOOR PARTS Diagram and Parts List for Whirlpool Refrigerator
  • 1
    Refrigerator door – Part Number: W10753516
    Refrigerator door
    Part Number: W10753516
      Special Order
    $368.23
  • 2
    Spacer, door panel – Part Number: W10556651
    Spacer, door panel
    Part Number: W10556651
      Special Order
    $20.95
  • 3
    COVER – Part Number: W11727835
    COVER
    Part Number: W11727835
      Special Order
    $26.73
  • 4
    Bracket – Part Number: W10748034
    Bracket
    Part Number: W10748034
      Special Order
    $46.30
  • 4A
    Bracket – Part Number: W10748042
    Bracket
    Part Number: W10748042
      Special Order
    $46.30
  • 5
    GASKET-FIP – Part Number: W11625078
    GASKET-FIP
    Part Number: W11625078
      Special Order
    $101.95
  • 6
    BRACKET – Part Number: W11416744
    BRACKET
    Part Number: W11416744
      Special Order
    $57.07
  • 6A
    Bracket – Part Number: W10748078
    Bracket
    Part Number: W10748078
      Special Order
    $46.30
  • 7
    Bracket – Part Number: W11416054
    Bracket
    Part Number: W11416054
      Special Order
    $57.07
  • NI
    KIT-INSTAL – Part Number: W10775677
    KIT-INSTAL
    Part Number: W10775677
      Special Order
    $67.27
  • NI
    NOT AVAILABLE – Part Number: N/P
    NOT AVAILABLE
    Part Number: N/P
      No Longer Available

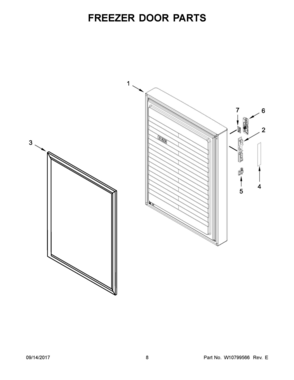

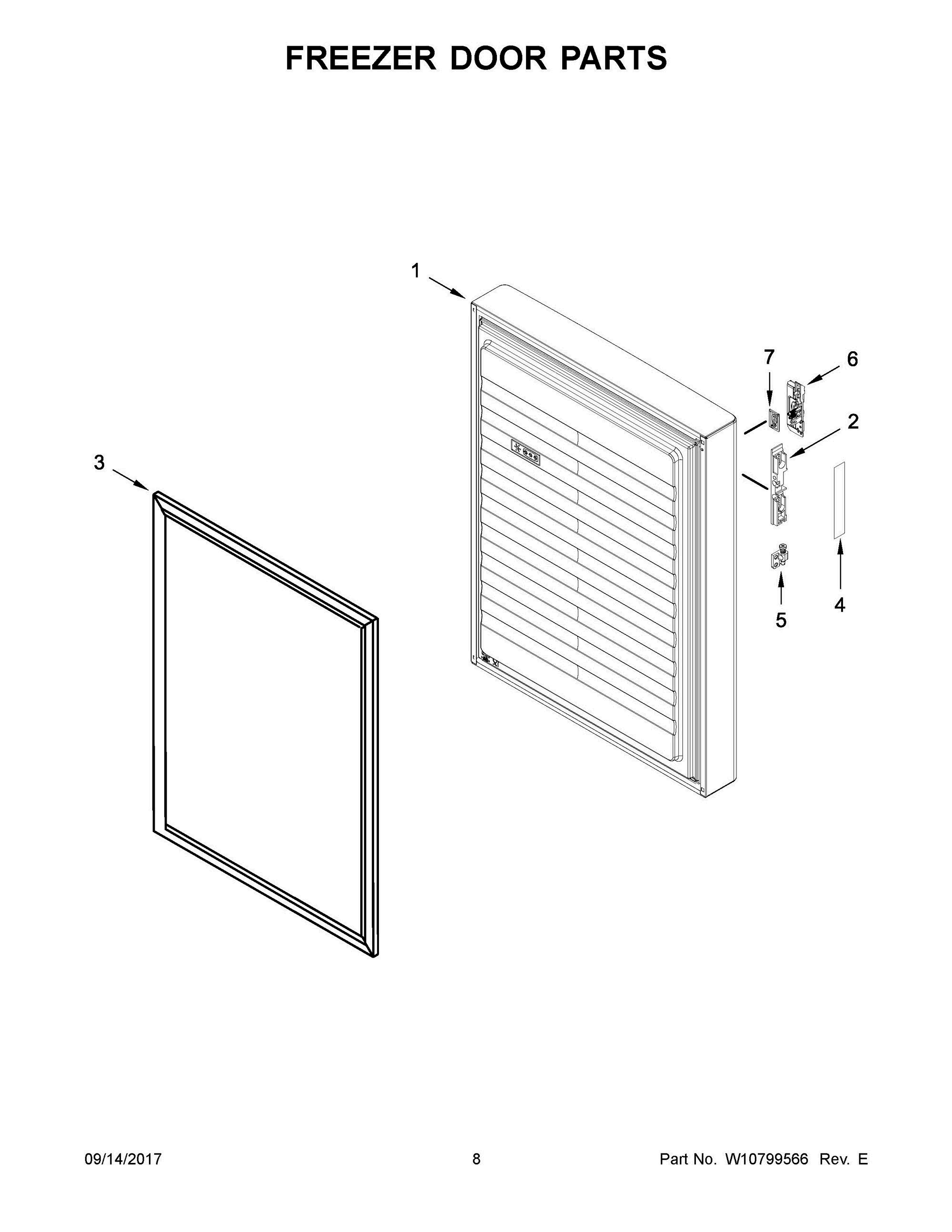

05 - FREEZER DOOR PARTS
05 - FREEZER DOOR PARTS Diagram and Parts List for Whirlpool Refrigerator
  • 1
    Freezer door – Part Number: W10753820
    Freezer door
    Part Number: W10753820
      Special Order
    $280.14
  • 2
    Bracket – Part Number: W11416054
    Bracket
    Part Number: W11416054
      Special Order
    $57.07
  • 3
    GASKET-FIP – Part Number: W11625083
    GASKET-FIP
    Part Number: W11625083
      Special Order
    $101.95
  • 4
    COVER – Part Number: W11727835
    COVER
    Part Number: W11727835
      Special Order
    $26.73
  • 5
    Bracket – Part Number: W10748034
    Bracket
    Part Number: W10748034
      Special Order
    $46.30
  • 5A
    Bracket – Part Number: W10748042
    Bracket
    Part Number: W10748042
      Special Order
    $46.30
  • 6
    BRACKET – Part Number: W11416744
    BRACKET
    Part Number: W11416744
      Special Order
    $57.07
  • 6A
    Bracket – Part Number: W10748078
    Bracket
    Part Number: W10748078
      Special Order
    $46.30
  • 7
    Spacer, door panel – Part Number: W10556651
    Spacer, door panel
    Part Number: W10556651
      Special Order
    $20.95

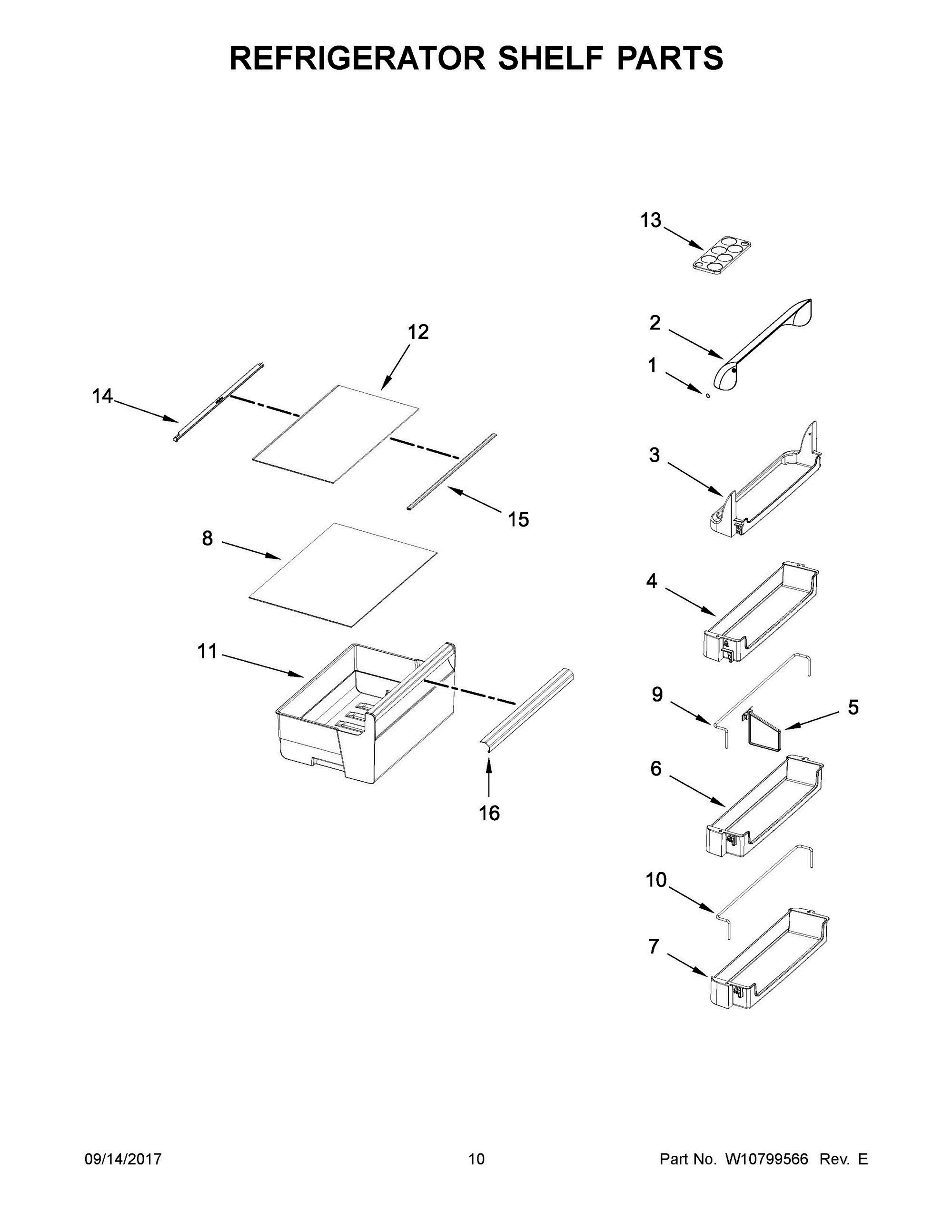

06 - REFRIGERATOR SHELF PARTS
06 - REFRIGERATOR SHELF PARTS Diagram and Parts List for Whirlpool Refrigerator
  • 1
    Damper – Part Number: W10804412
    Damper
    Part Number: W10804412
      Special Order
    $23.05
  • 2
    Lid, dairy compartment – Part Number: W10752367
    Lid, dairy compartment
    Part Number: W10752367
      In Stock
    $45.27
  • 3
    Dairy compartment – Part Number: W10770276
    Dairy compartment
    Part Number: W10770276
      Special Order
    $56.05
  • 4
    Holder, bottle – Part Number: W10778021
    Holder, bottle
    Part Number: W10778021
      In Stock
    $54.01
  • 5
    Divider, door bin – Part Number: W10804390
    Divider, door bin
    Part Number: W10804390
      Special Order
    $25.15
  • 6
    Holder, bottle – Part Number: W10778020
    Holder, bottle
    Part Number: W10778020
      In Stock
    $56.05
  • 7
    Holder, bottle – Part Number: W10470959
    Holder, bottle
    Part Number: W10470959
      In Stock
    $49.39
  • 8
    Shelf-glas – Part Number: W10805024
    Shelf-glas
    Part Number: W10805024
      Special Order
    $51.97
  • 9
    Holder, short wire – Part Number: W10804391
    Holder, short wire
    Part Number: W10804391
      Special Order
    $43.21
  • 10
    Holder, long wire – Part Number: W10804392
    Holder, long wire
    Part Number: W10804392
      Special Order
    $43.21
  • 11
    Crisper pan – Part Number: W10471452
    Crisper pan
    Part Number: W10471452
      In Stock
    $89.78
  • 12
    Shelf-glas – Part Number: W10805025
    Shelf-glas
    Part Number: W10805025
      Special Order
    $56.05
  • 13
    Holder, egg – Part Number: W10470963
    Holder, egg
    Part Number: W10470963
      Special Order
    $14.65
  • 14
    Trim, rear – Part Number: W10495387
    Trim, rear
    Part Number: W10495387
      Special Order
    $26.20
  • 15
    Trim, front – Part Number: W10804406
    Trim, front
    Part Number: W10804406
      Special Order
    $25.15
  • 16
    Crisper trim – Part Number: W10804394
    Crisper trim
    Part Number: W10804394
      Special Order
    $47.33

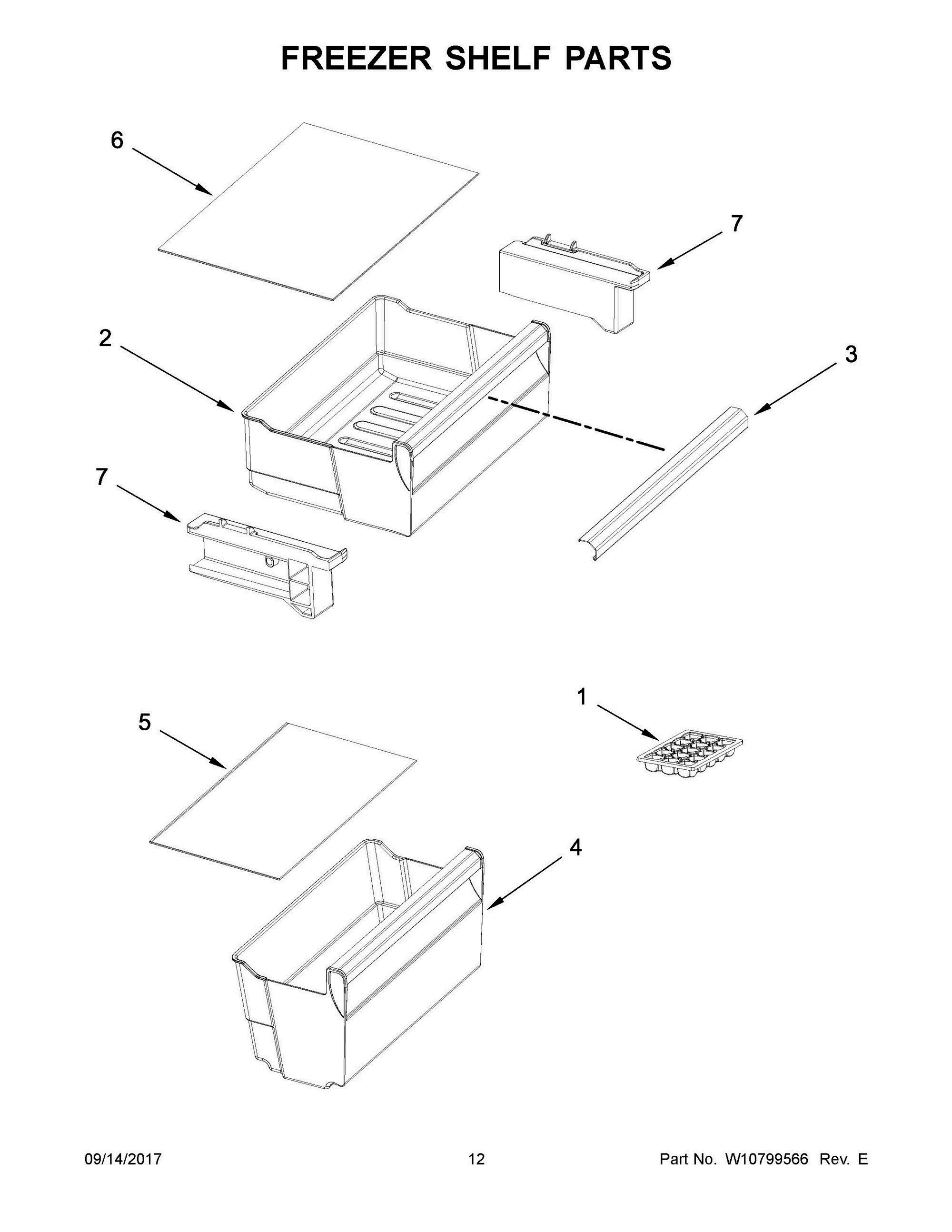

07 - FREEZER SHELF PARTS
07 - FREEZER SHELF PARTS Diagram and Parts List for Whirlpool Refrigerator
08 - UNIT PARTS
08 - UNIT PARTS Diagram and Parts List for Whirlpool Refrigerator
