Whirlpool Refrigerator Replacement Parts For Model EL02CCXLB

We Sell Only Genuine Whirlpool Parts

Popular Parts for EL02CCXLB

Screw – Part Number: W11233072 Screw
In Stock
$20.95
Washer Screw 818 X 1/2 – Part Number: WP3390631 Washer Screw 818 X 1/2
In Stock
$7.30
Filter Drier Tube – Part Number: W10843121 Filter Drier Tube
In Stock
$43.21
LEVELER – Part Number: 4312445 LEVELER
Special Order
$42.18
COMPRESSOR – Part Number: 4312506 COMPRESSOR
Special Order
$294.43

Search Within Model

Questions & Answers for Whirlpool EL02CCXLB
Browse all Parts Search by Area
CABINET Diagram and Parts List for Whirlpool Refrigerator
CABINET
DOOR Diagram and Parts List for Whirlpool Refrigerator
DOOR
SHELF Diagram and Parts List for Whirlpool Refrigerator
SHELF
UNIT Diagram and Parts List for Whirlpool Refrigerator
UNIT
Previous Showing All Parts Next
CABINET

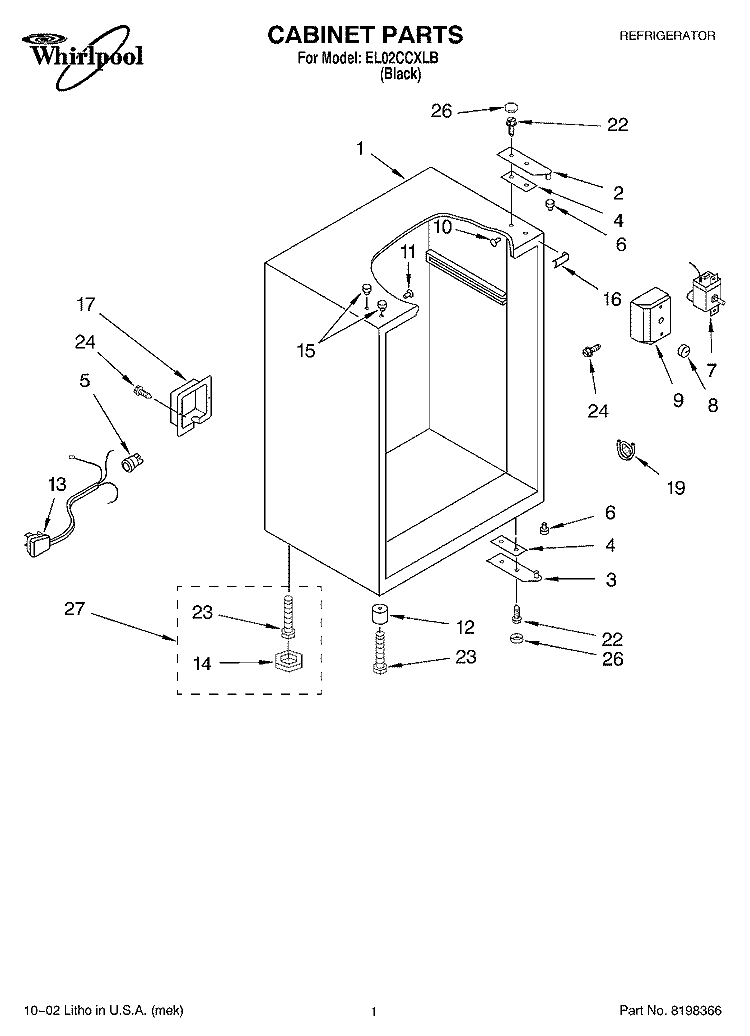

CABINET Diagram and Parts List for Whirlpool Refrigerator
  • 1
    Hood, Canopy Non-serviceable – Part Number: N/A
    Hood, Canopy Non-serviceable
    Part Number: N/A
      No Longer Available
  • 2
    HINGE-DOOR – Part Number: 4312568
    HINGE-DOOR
    Part Number: 4312568
      No Longer Available
  • 3
    HINGE-DOOR – Part Number: 4312569
    HINGE-DOOR
    Part Number: 4312569
      No Longer Available
  • 4
    SHIM-HINGE – Part Number: 4312438
    SHIM-HINGE
    Part Number: 4312438
      No Longer Available
  • 5
    RELIEF-STR – Part Number: 4312439
    RELIEF-STR
    Part Number: 4312439
      No Longer Available
  • 6
    HING-BUSHG – Part Number: 4312570
    HING-BUSHG
    Part Number: 4312570
      No Longer Available
  • 7
    THERMOSTAT – Part Number: 4312399
    THERMOSTAT
    Part Number: 4312399
      No Longer Available
  • 8
    KNOB-THERM – Part Number: 4312571
    KNOB-THERM
    Part Number: 4312571
      No Longer Available
  • 9
    CONTRL-BOX – Part Number: 4312572
    CONTRL-BOX
    Part Number: 4312572
      No Longer Available
  • 10
    STUD-ANCHO – Part Number: 4312443
    STUD-ANCHO
    Part Number: 4312443
      No Longer Available
  • 11
    STUD-ANCHO – Part Number: 4312444
    STUD-ANCHO
    Part Number: 4312444
      No Longer Available
  • 12
    LEVELER – Part Number: 4312445
    LEVELER
    Part Number: 4312445
      Special Order
    $42.18
  • 13
    CORD-POWER – Part Number: 4312446
    CORD-POWER
    Part Number: 4312446
      No Longer Available
  • 14
    LEVELER – Part Number: 4312407
    LEVELER
    Part Number: 4312407
      No Longer Available
  • 15
    BUTTON-PLG – Part Number: 4312574
    BUTTON-PLG
    Part Number: 4312574
      No Longer Available
  • 16
    FILLER – Part Number: 4312575
    FILLER
    Part Number: 4312575
      No Longer Available
  • 17
    BOX-JUNCTN – Part Number: 4312514
    BOX-JUNCTN
    Part Number: 4312514
      No Longer Available
  • 19
    COVER – Part Number: 4312579
    COVER
    Part Number: 4312579
      No Longer Available
  • 22
    SCREW – Part Number: 4312453
    SCREW
    Part Number: 4312453
      No Longer Available
  • 23
    LEVELER – Part Number: 4312407
    LEVELER
    Part Number: 4312407
      No Longer Available
  • 24
    SCREW – Part Number: 4312454
    SCREW
    Part Number: 4312454
      No Longer Available
  • 26
    COVER – Part Number: 4312578
    COVER
    Part Number: 4312578
      No Longer Available
  • 27
    LEVELER – Part Number: 4312407
    LEVELER
    Part Number: 4312407
      No Longer Available
DOOR

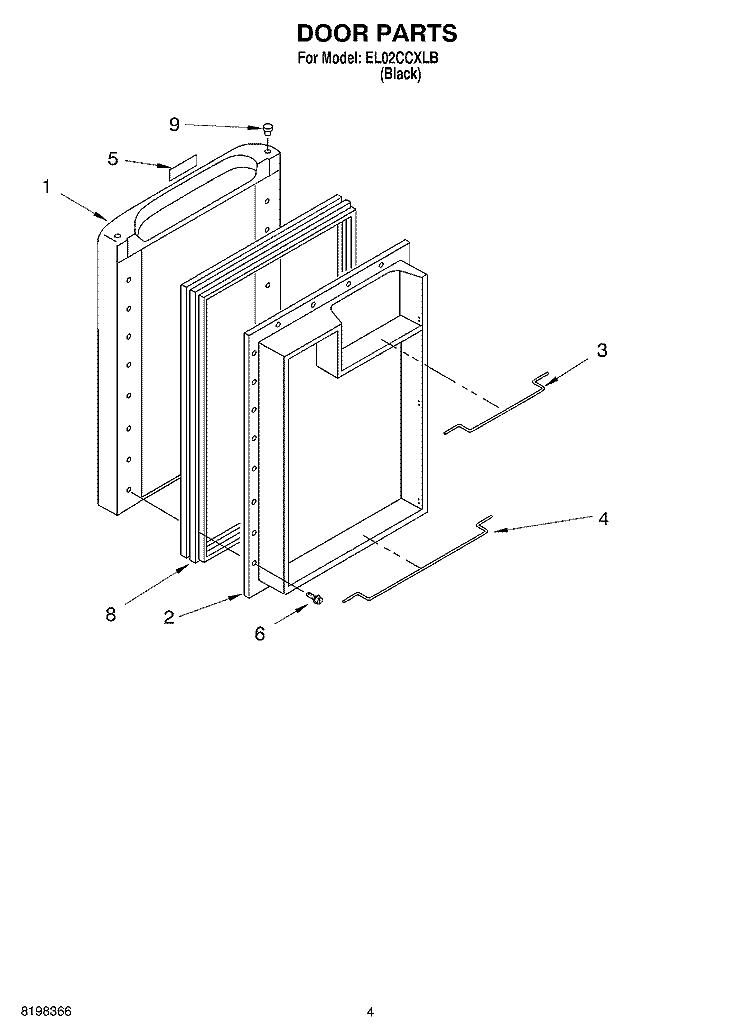

DOOR Diagram and Parts List for Whirlpool Refrigerator
  • 1
    PANEL-EXT – Part Number: 4312586
    PANEL-EXT
    Part Number: 4312586
      No Longer Available
  • 2
    PANEL-INT – Part Number: 4312519
    PANEL-INT
    Part Number: 4312519
      No Longer Available
  • 3
    TRIM-DOOR – Part Number: 4312501
    TRIM-DOOR
    Part Number: 4312501
      No Longer Available
  • 4
    TRIM-DOOR – Part Number: 4312502
    TRIM-DOOR
    Part Number: 4312502
      No Longer Available
  • 5
    BUTTON-PLG – Part Number: 4312594
    BUTTON-PLG
    Part Number: 4312594
      No Longer Available
  • 6
    SCREW – Part Number: 4312454
    SCREW
    Part Number: 4312454
      No Longer Available
  • 8
    GASKET-DOR – Part Number: 4312590
    GASKET-DOR
    Part Number: 4312590
      No Longer Available
  • 9
    BUTTON-PLG – Part Number: 4312594
    BUTTON-PLG
    Part Number: 4312594
      No Longer Available
SHELF

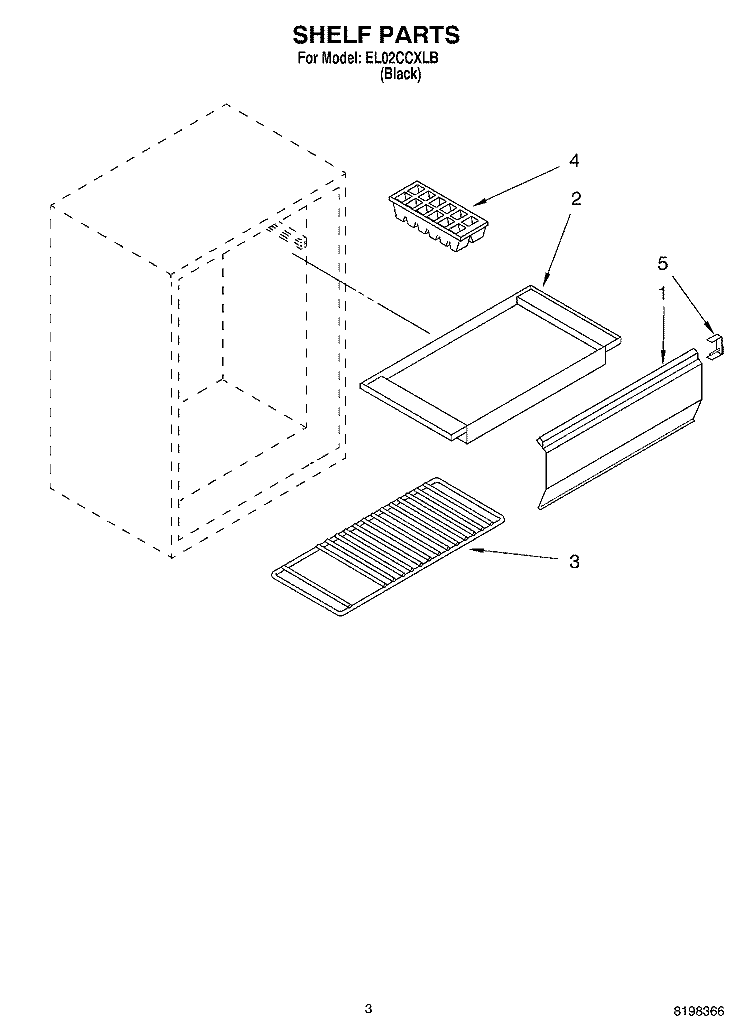

SHELF Diagram and Parts List for Whirlpool Refrigerator
  • 1
    DOOR-COMP – Part Number: 4312516
    DOOR-COMP
    Part Number: 4312516
      No Longer Available
  • 2
    USE WPL 4312498 – Part Number: 4312517
    USE WPL 4312498
    Part Number: 4312517
      No Longer Available
  • 3
    SHELF-WIRE – Part Number: 4312469
    SHELF-WIRE
    Part Number: 4312469
      No Longer Available
  • 4
    TRAY – Part Number: 4312585
    TRAY
    Part Number: 4312585
      No Longer Available
  • 5
    HINGE-PIN – Part Number: 4312471
    HINGE-PIN
    Part Number: 4312471
      No Longer Available
UNIT

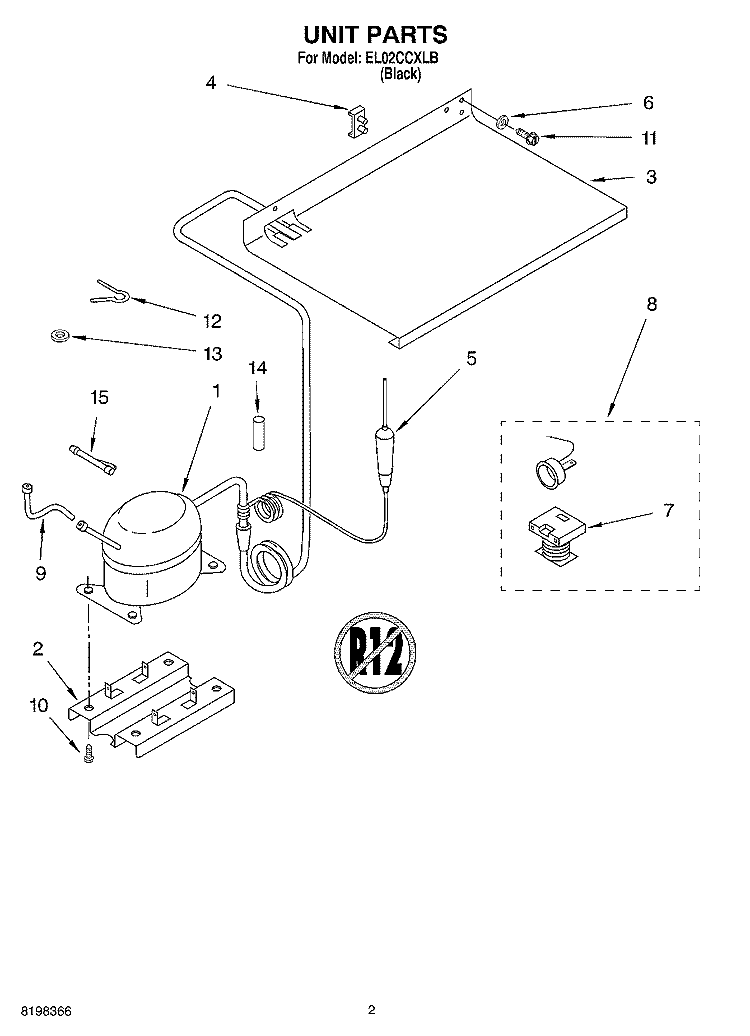

UNIT Diagram and Parts List for Whirlpool Refrigerator
  • 1
    COMPRESSOR – Part Number: 4312506
    COMPRESSOR
    Part Number: 4312506
      Special Order
    $294.43
  • 2
    BASE-UNIT – Part Number: 4312457
    BASE-UNIT
    Part Number: 4312457
      No Longer Available
  • 3
    EVAPORATOR – Part Number: 4312495
    EVAPORATOR
    Part Number: 4312495
      No Longer Available
  • 4
    RETAINER – Part Number: 4312459
    RETAINER
    Part Number: 4312459
      No Longer Available
  • 5
    Filter Drier Tube – Part Number: W10843121
    Filter Drier Tube
    Part Number: W10843121
      In Stock
    $43.21
  • 6
    WASHER – Part Number: 4312461
    WASHER
    Part Number: 4312461
      No Longer Available
  • 7
    Hood, Canopy Non-serviceable – Part Number: N/A
    Hood, Canopy Non-serviceable
    Part Number: N/A
      No Longer Available
  • 8
    OVERLOAD – Part Number: 4312581
    OVERLOAD
    Part Number: 4312581
      No Longer Available
  • 9
    TUBE – Part Number: 4312580
    TUBE
    Part Number: 4312580
      No Longer Available
  • 10
    Washer Screw 818 X 1/2 – Part Number: WP3390631
    Washer Screw 818 X 1/2
    Part Number: WP3390631
      In Stock
    $7.30
  • 11
    Screw – Part Number: W11233072
    Screw
    Part Number: W11233072
      In Stock
    $20.95
  • 12
    PIN-COTTER – Part Number: 4312465
    PIN-COTTER
    Part Number: 4312465
      No Longer Available
  • 13
    WASHER – Part Number: 4312466
    WASHER
    Part Number: 4312466
      No Longer Available
  • 14
    GASKET – Part Number: 4312515
    GASKET
    Part Number: 4312515
      No Longer Available
  • 15
    USE WPL 4312511 – Part Number: 4312557
    USE WPL 4312511
    Part Number: 4312557
      No Longer Available
