Whirlpool Freestanding, Gas Range Replacement Parts For Model SF365BEPW3

We Sell Only Genuine Whirlpool Parts

Find Whirlpool SF365BEPW3 Parts By Symptom

Gas igniter glows, but will not light

47%

Will Not Start

26%

Little to no heat when baking

18%

Element will not heat

6%

Little to no heat when broiling

3%

Popular Parts for Whirlpool SF365BEPW3

Search Within Model

Browse all Parts Search by Area

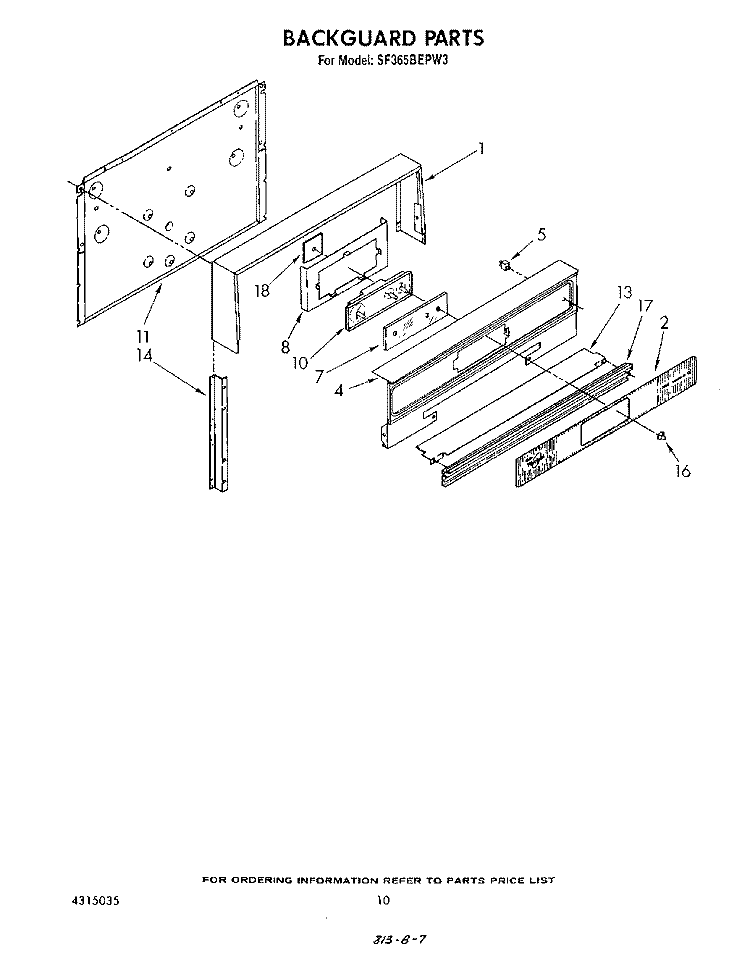

BACKGUARD , LIT / OPTIONAL Diagram and Parts List for SF365BEPW3  Whirlpool Range
BACKGUARD , LIT / OPTIONAL

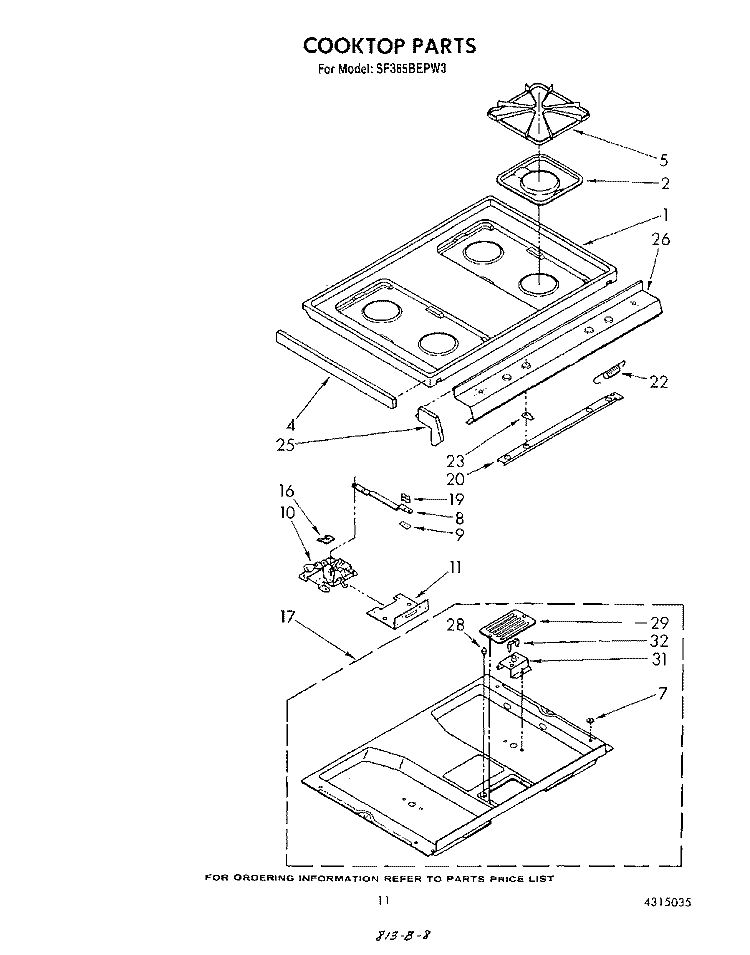

COOK TOP Diagram and Parts List for SF365BEPW3  Whirlpool Range
COOK TOP

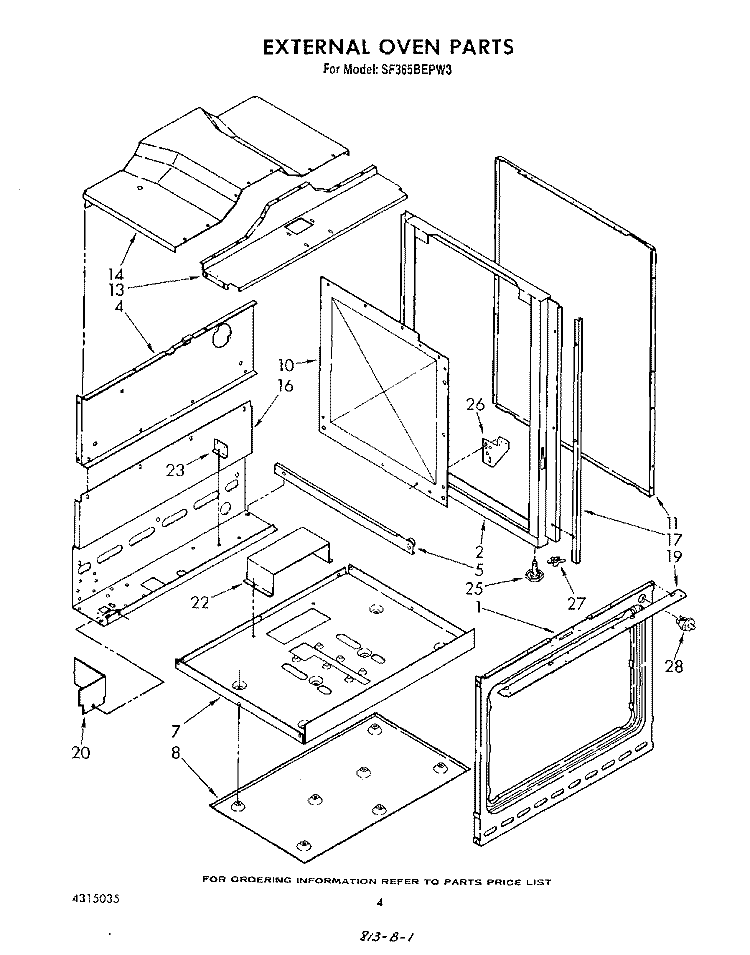

EXTERNAL OVEN Diagram and Parts List for SF365BEPW3  Whirlpool Range
EXTERNAL OVEN

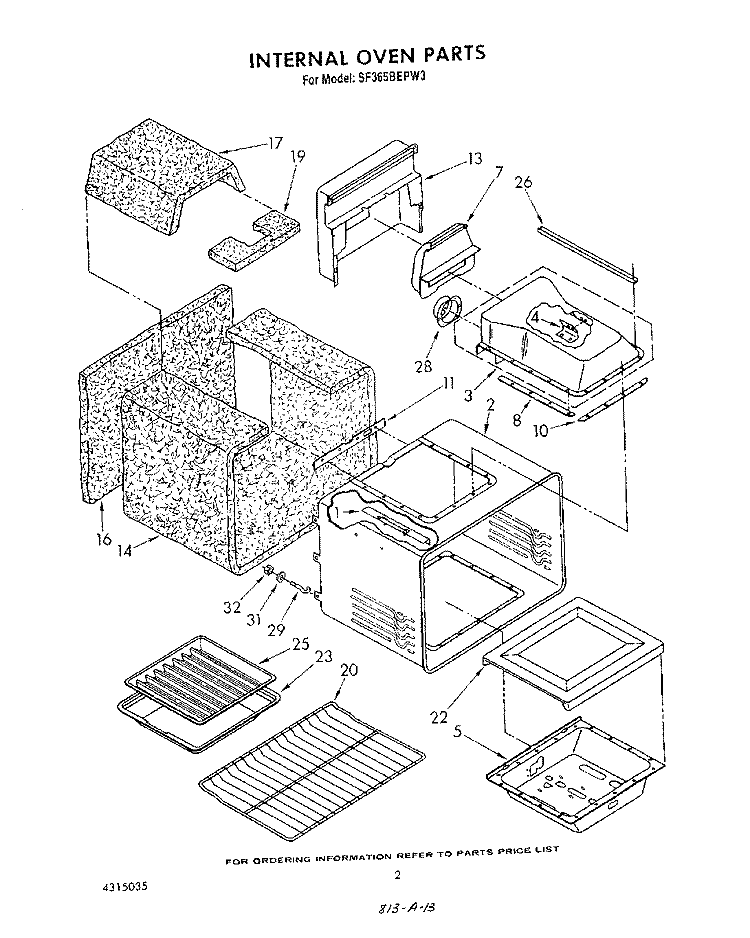

INTERNAL OVEN Diagram and Parts List for SF365BEPW3  Whirlpool Range
INTERNAL OVEN

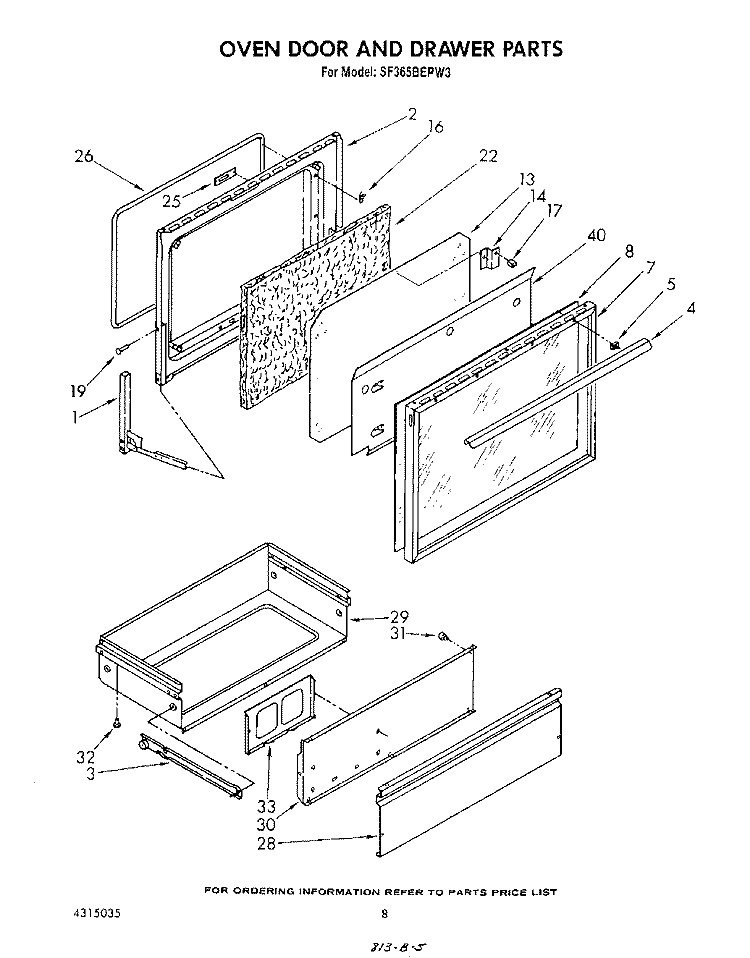

OVEN DOOR AND DRAWER Diagram and Parts List for SF365BEPW3  Whirlpool Range
OVEN DOOR AND DRAWER
OVEN ELECTRICAL Diagram and Parts List for SF365BEPW3  Whirlpool Range
OVEN ELECTRICAL

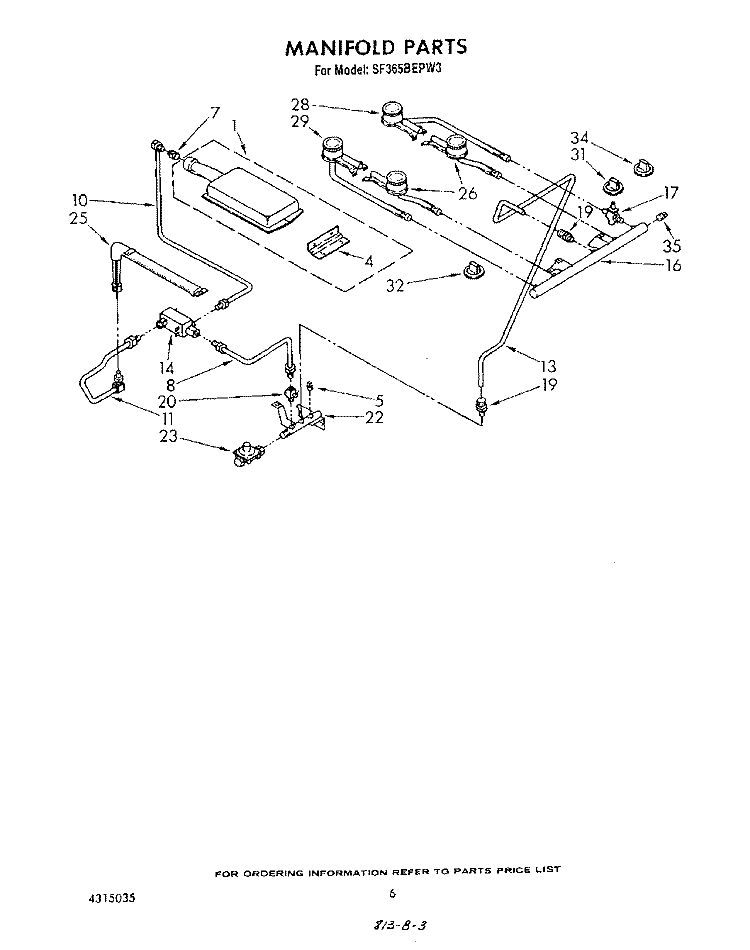

SECTION Diagram and Parts List for SF365BEPW3  Whirlpool Range
SECTION
Previous Showing All Parts Next
BACKGUARD , LIT / OPTIONAL
BACKGUARD , LIT / OPTIONAL Diagram and Parts List for SF365BEPW3  Whirlpool Range
COOK TOP
COOK TOP Diagram and Parts List for SF365BEPW3  Whirlpool Range
EXTERNAL OVEN
EXTERNAL OVEN Diagram and Parts List for SF365BEPW3  Whirlpool Range
INTERNAL OVEN
INTERNAL OVEN Diagram and Parts List for SF365BEPW3  Whirlpool Range
OVEN DOOR AND DRAWER
OVEN DOOR AND DRAWER Diagram and Parts List for SF365BEPW3  Whirlpool Range
OVEN ELECTRICAL
OVEN ELECTRICAL Diagram and Parts List for SF365BEPW3  Whirlpool Range
SECTION
SECTION Diagram and Parts List for SF365BEPW3  Whirlpool Range
