Whirlpool Range Replacement Parts For Model AER6303MFS3

We Sell Only Genuine Whirlpool Parts

Find Whirlpool AER6303MFS3 Parts By Symptom

Element will not heat

29%

Little to no heat when baking

26%

Oven is too hot

16%

Oven not heating evenly

10%

Little to no heat when broiling

7%

Will Not Start

6%

Door won’t close

5%

Touchpad does not respond

1%

Popular Parts for AER6303MFS3

Search Within Model

Questions & Answers for Whirlpool AER6303MFS3
Browse all Parts Search by Area
Chassis Parts Diagram and Parts List for  Whirlpool Range
Chassis Parts
Control Panel Parts Diagram and Parts List for  Whirlpool Range
Control Panel Parts
Cooktop Parts Diagram and Parts List for  Whirlpool Range
Cooktop Parts
Door Parts Diagram and Parts List for  Whirlpool Range
Door Parts
Drawer And Broiler Parts Diagram and Parts List for  Whirlpool Range
Drawer And Broiler Parts
Optional Parts Diagram and Parts List for  Whirlpool Range
Optional Parts
Previous Showing All Parts Next

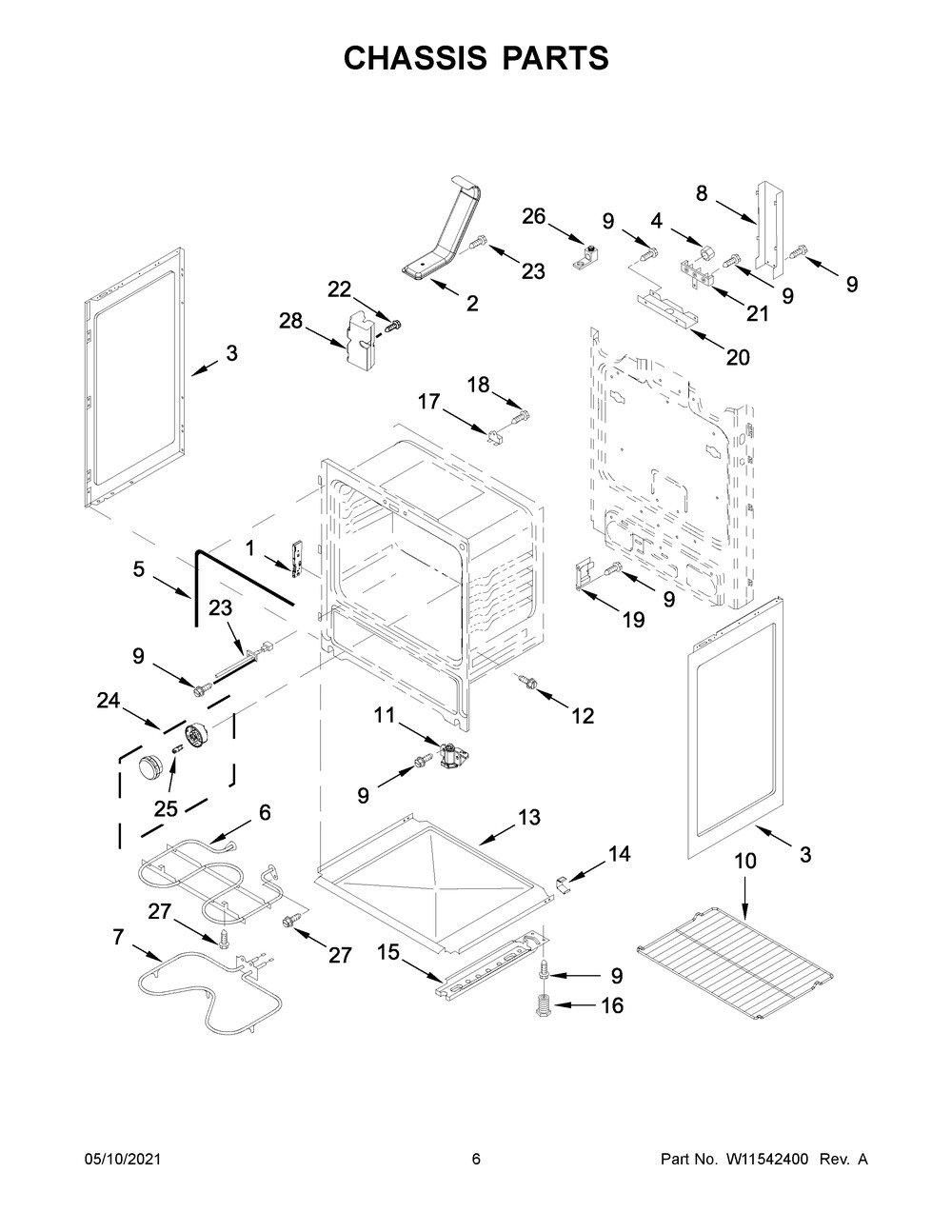

Chassis Parts
Chassis Parts Diagram and Parts List for  Whirlpool Range

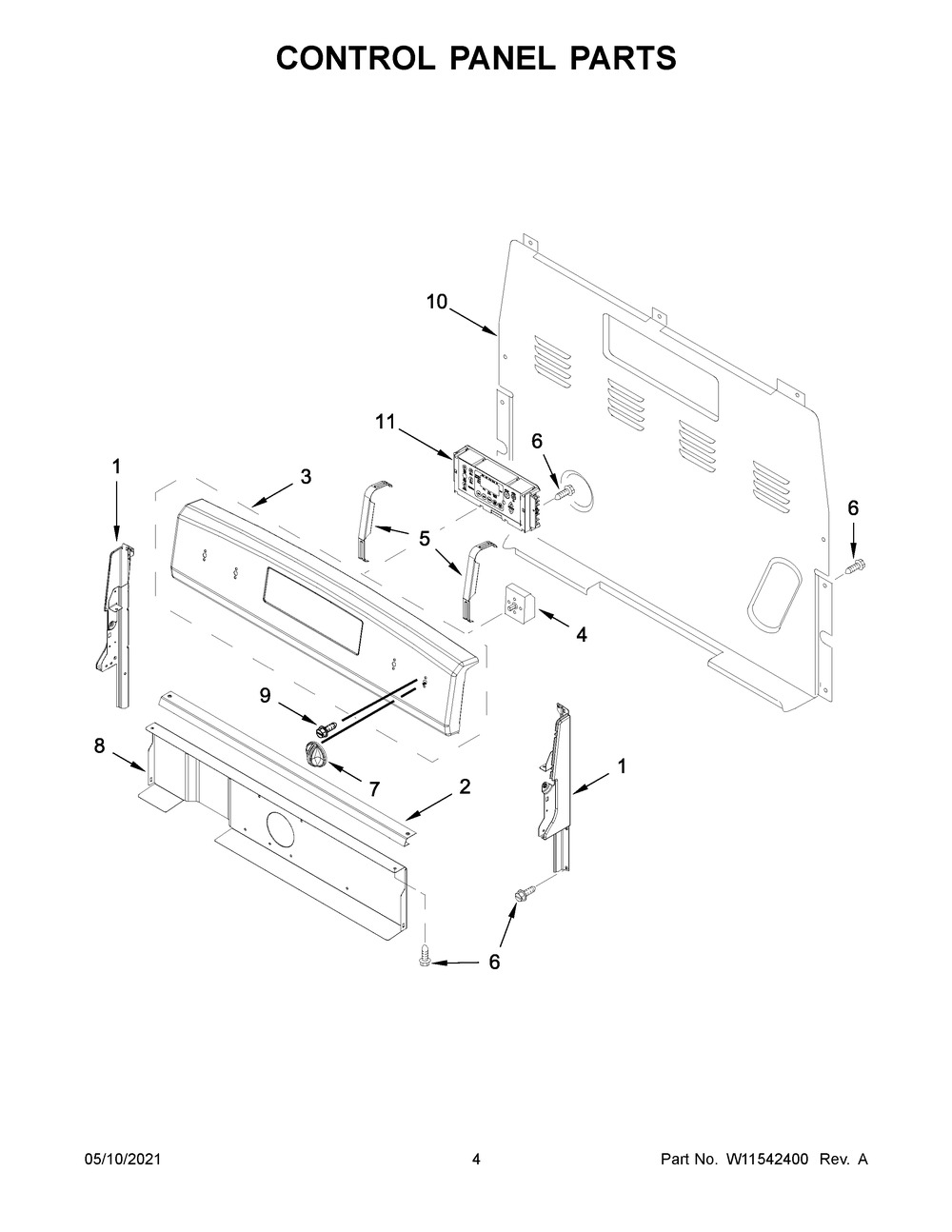

Control Panel Parts
Control Panel Parts Diagram and Parts List for  Whirlpool Range
  • 1
    ENDCAP-PNL – Part Number: W11219664
    ENDCAP-PNL
    Part Number: W11219664
      In Stock
    $105.15
  • 1A
    End Cap – Part Number: W11219665
    End Cap
    Part Number: W11219665
      Special Order
    $27.69
  • 2
    BRKT-CNTRL – Part Number: W10525121
    BRKT-CNTRL
    Part Number: W10525121
      Special Order
    $51.17
  • 3
    PANL-CNTRL – Part Number: W11247313
    PANL-CNTRL
    Part Number: W11247313
      Special Order
    $164.28
  • 4
    Infinite Switch - 6 Inch – Part Number: WP3148952
    Infinite Switch - 6 Inch
    Part Number: WP3148952
      In Stock
    $53.35
  • 4A
    Infinite Switch - 8 Inch – Part Number: WP3148953
    Infinite Switch - 8 Inch
    Part Number: WP3148953
      In Stock
    $58.50
  • 5
    BRKT-MNTG – Part Number: W11230932
    BRKT-MNTG
    Part Number: W11230932
      In Stock
    $61.24
  • 6
    Screw – Part Number: W11233072
    Screw
    Part Number: W11233072
      In Stock
    $21.70
  • 7
    KNOB – Part Number: W11409244
    KNOB
    Part Number: W11409244
      Special Order
    $61.55
  • 8
    SHIELD-HT – Part Number: W10134247
    SHIELD-HT
    Part Number: W10134247
      In Stock
    $145.13
  • 9
    Range Installation Screw – Part Number: WP3400882
    Range Installation Screw
    Part Number: WP3400882
      In Stock
    $7.56
  • 10
    Cover, Upper – Part Number: WP8272473
    Cover, Upper
    Part Number: WP8272473
      Special Order
    $137.47
  • 11
    Control Board – Part Number: W11747105
    Control Board
    Part Number: W11747105
      In Stock
    $212.32

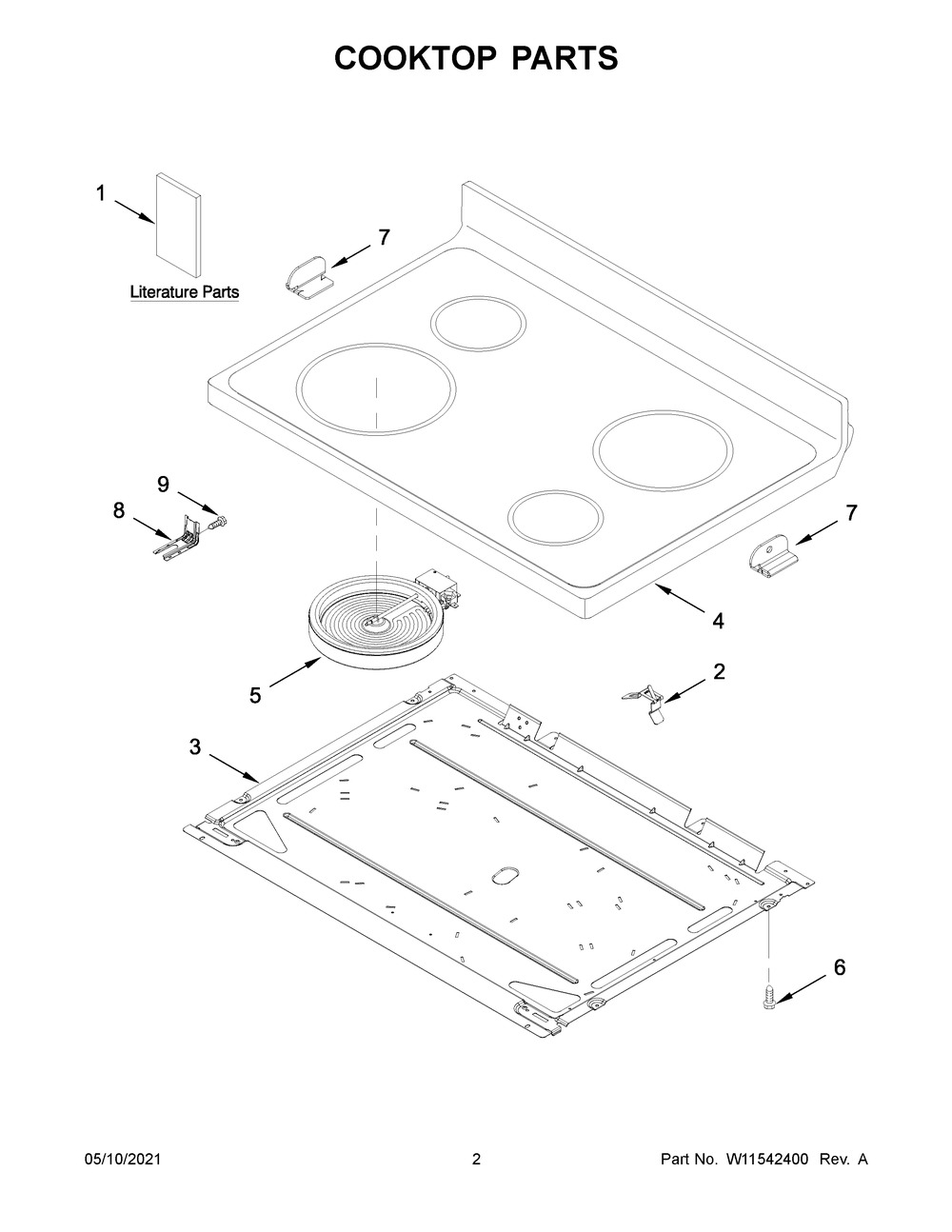

Cooktop Parts
Cooktop Parts Diagram and Parts List for  Whirlpool Range

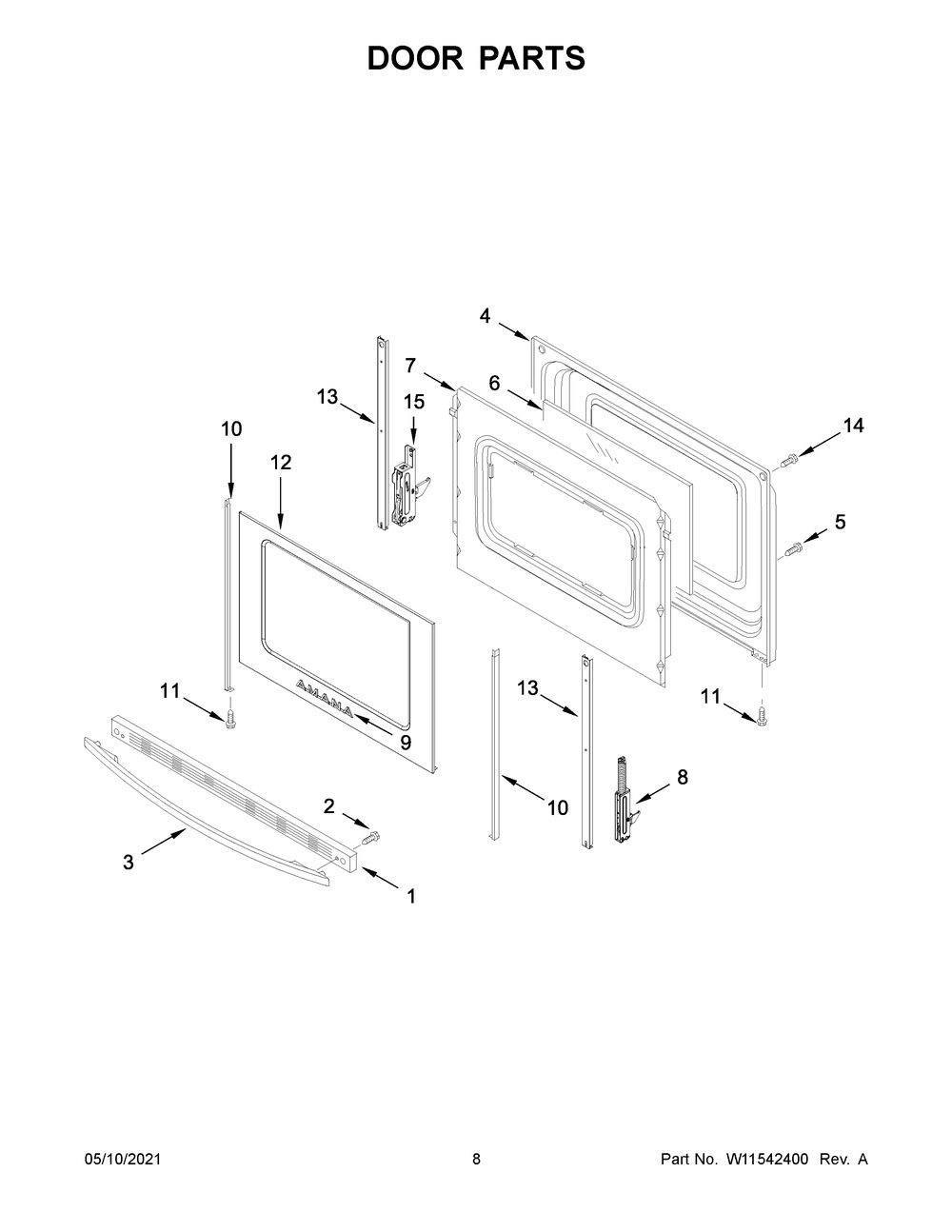

Door Parts
Door Parts Diagram and Parts List for  Whirlpool Range

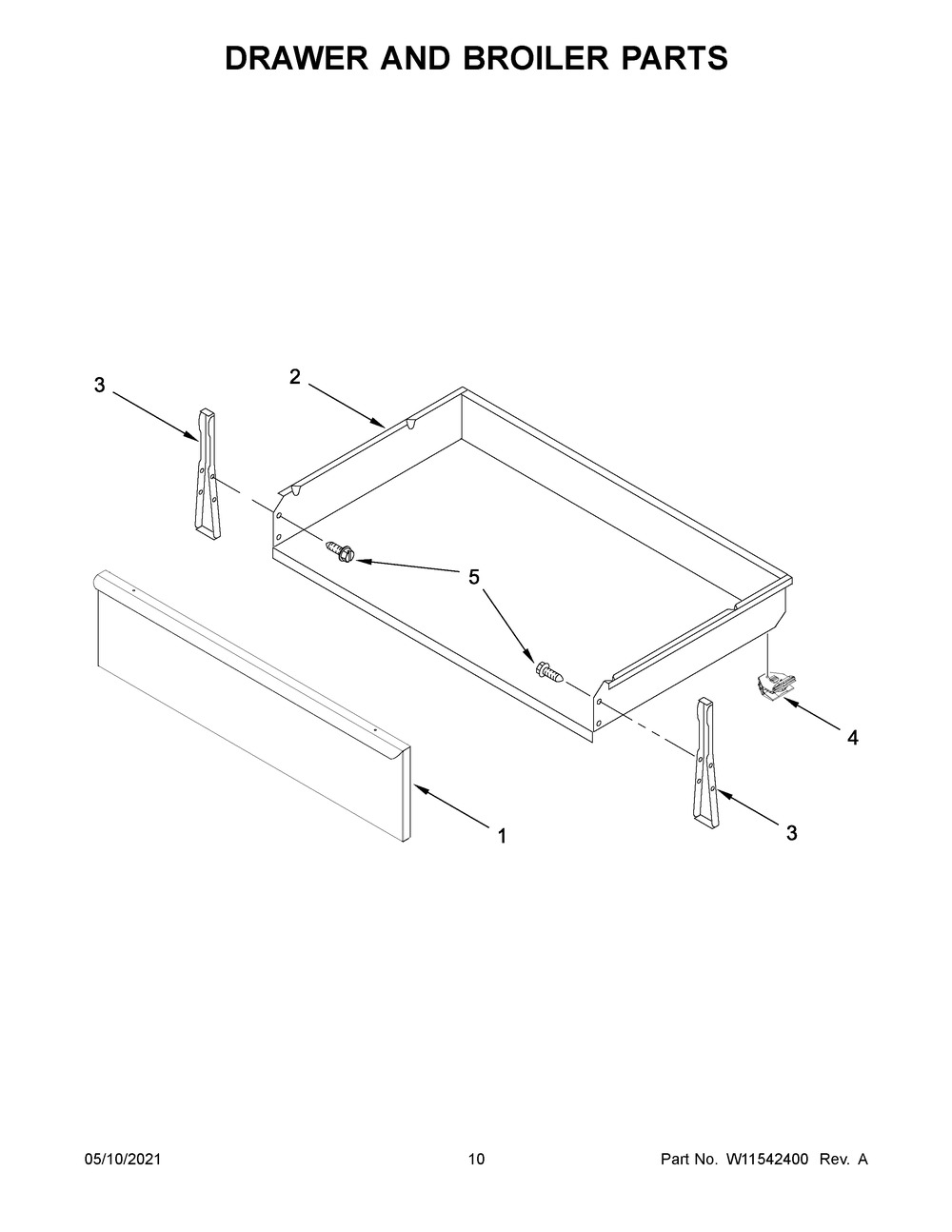

Drawer And Broiler Parts
Drawer And Broiler Parts Diagram and Parts List for  Whirlpool Range
Optional Parts
Optional Parts Diagram and Parts List for  Whirlpool Range
