Maytag Freestanding, Gas Range Replacement Parts For Model BCRG800

We Sell Only Genuine Maytag Parts

Find Maytag BCRG800 Parts By Symptom

Gas igniter glows, but will not light

47%

Little to no heat when baking

22%

Will Not Start

21%

Element will not heat

4%

Oven not heating evenly

2%

Door won’t close

2%

Gas smell

2%

Little to no heat when broiling

1%

Popular Parts for Maytag BCRG800

Search Within Model

Browse all Parts Search by Area
BROILER DRAWER Diagram and Parts List for BCRG800  Maytag Range
BROILER DRAWER
BURNERS, VALVES & CONTROLS Diagram and Parts List for BCRG800  Maytag Range
BURNERS, VALVES & CONTROLS
CONTROL PANEL Diagram and Parts List for BCRG800  Maytag Range
CONTROL PANEL
OVEN ASSEMBLY Diagram and Parts List for BCRG800  Maytag Range
OVEN ASSEMBLY
OVEN DOOR ASSEMBLY Diagram and Parts List for BCRG800  Maytag Range
OVEN DOOR ASSEMBLY
TOP ASSEMBLY Diagram and Parts List for BCRG800  Maytag Range
TOP ASSEMBLY
Previous Showing All Parts Next

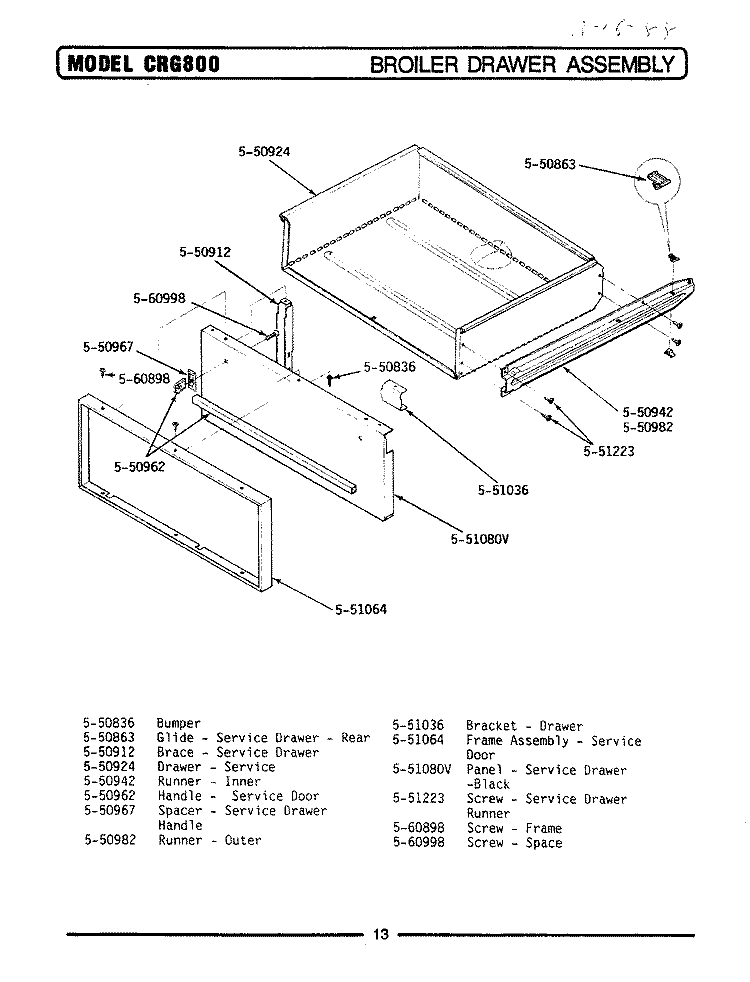

BROILER DRAWER
BROILER DRAWER Diagram and Parts List for BCRG800  Maytag Range
BURNERS, VALVES & CONTROLS
BURNERS, VALVES & CONTROLS Diagram and Parts List for BCRG800  Maytag Range

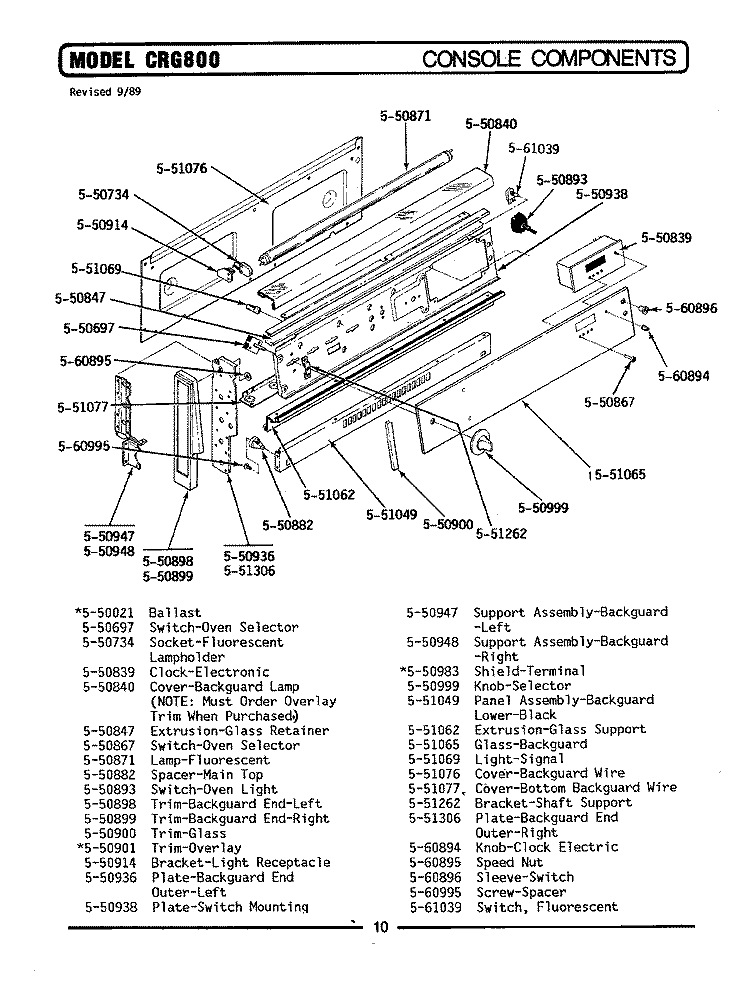

CONTROL PANEL
CONTROL PANEL Diagram and Parts List for BCRG800  Maytag Range

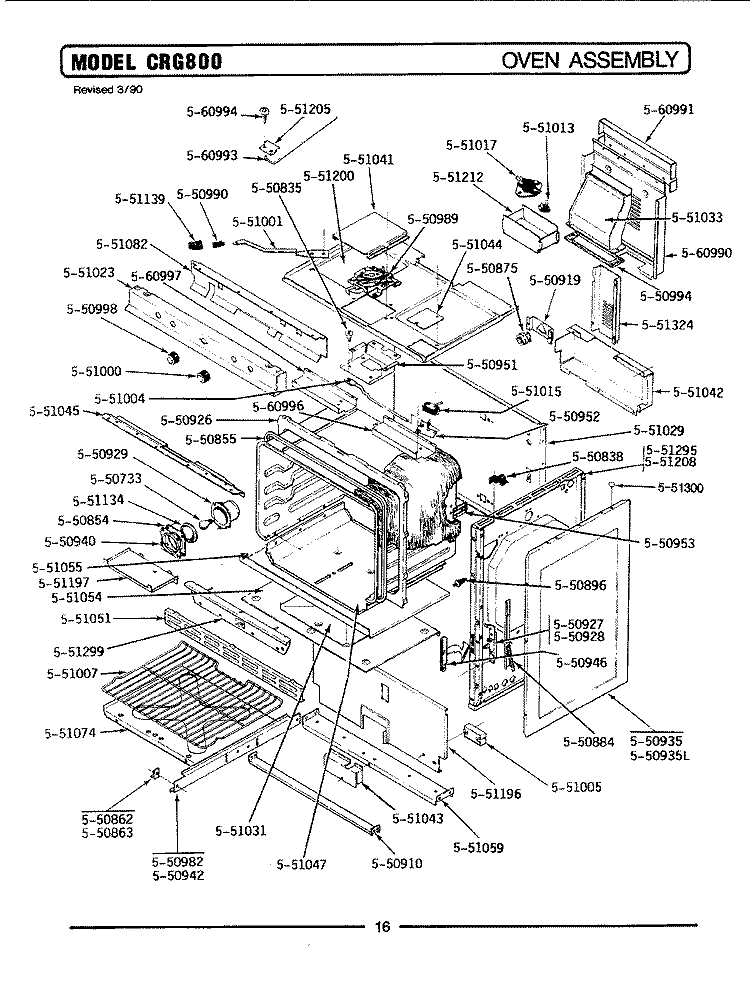

OVEN ASSEMBLY
OVEN ASSEMBLY Diagram and Parts List for BCRG800  Maytag Range

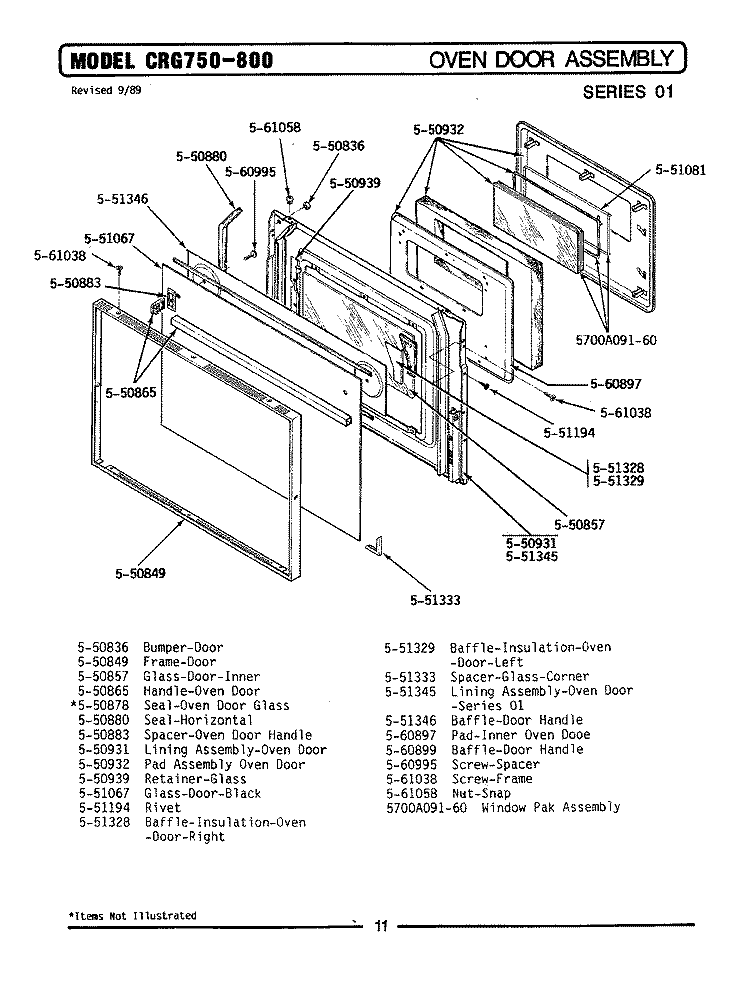

OVEN DOOR ASSEMBLY
OVEN DOOR ASSEMBLY Diagram and Parts List for BCRG800  Maytag Range
TOP ASSEMBLY
TOP ASSEMBLY Diagram and Parts List for BCRG800  Maytag Range
