LG Oven-Range Replacement Parts For Model MA1420W01 (CW1EGSE)

We Sell Only Genuine LG Parts

Find LG MA1420W01 (CW1EGSE) Parts By Symptom

No heat

35%

Door not closing properly

25%

Won’t turn on

21%

Tray won’t turn

12%

Doesn’t shut off

5%

Noisy

1%
-  Show Fewer Symptoms

Popular Parts for LG MA1420W01 (CW1EGSE)

Time Delay Fuse – Part Number: 3B74133Q Time Delay Fuse
In Stock
$11.91
Microwave Locker – Part Number: 4026W2A019A Microwave Locker
In Stock
$14.25
Microwave Screwtapping – Part Number: 1TTL0402818 Microwave Screwtapping
Special Order
$14.09
Spring – Part Number: 4970WRA001B Spring
Special Order
$14.09
High Voltage Diode – Part Number: 6021W3B001V High Voltage Diode
In Stock
$17.35
Switch,Micro – Part Number: 3B73361E Switch, Micro
Special Order
$21.70
Thermostat – Part Number: 6930W1A003A Thermostat
Special Order
$21.70
Lamp,Incandescent – Part Number: 6912W3B002L Lamp, Incandescent
On Order
$21.70

Search Within Model

Browse all Parts Search by Area
Base Plate Parts Diagram and Parts List for MA1420W01 CW1EGSE LG Range
Base Plate Parts
Controller Parts Diagram and Parts List for MA1420W01 CW1EGSE LG Range
Controller Parts
Door Parts Diagram and Parts List for MA1420W01 CW1EGSE LG Range
Door Parts
Interior Parts 1 Diagram and Parts List for MA1420W01 CW1EGSE LG Range
Interior Parts 1
Interior Parts 2 Diagram and Parts List for MA1420W01 CW1EGSE LG Range
Interior Parts 2
Latch Board Parts Diagram and Parts List for MA1420W01 CW1EGSE LG Range
Latch Board Parts
Oven Cavity Parts Diagram and Parts List for MA1420W01 CW1EGSE LG Range
Oven Cavity Parts
Previous Showing All Parts Next

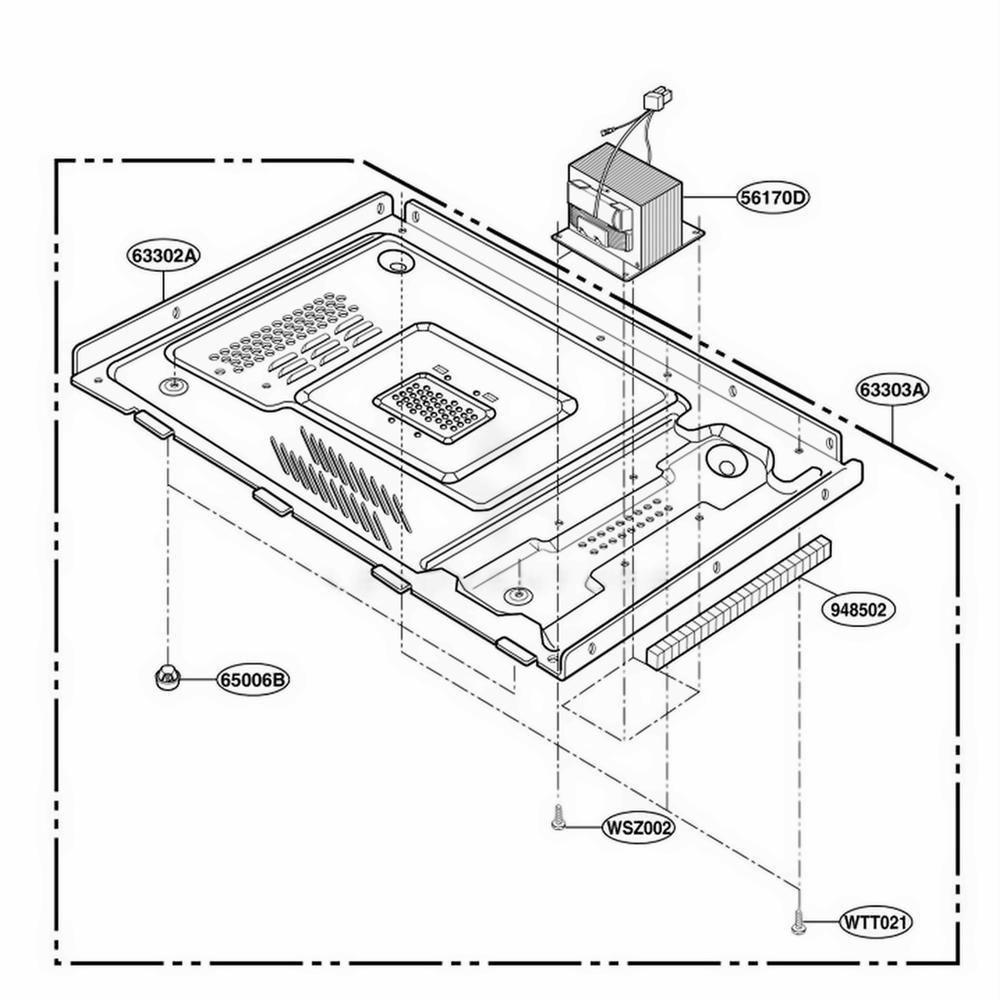

Base Plate Parts
Base Plate Parts Diagram and Parts List for MA1420W01 CW1EGSE LG Range
  • 56170D
    TRANSFORMER,HIGH VOL – Part Number: 6170W1D023L
    TRANSFORMER,HIGH VOL
    Part Number: 6170W1D023L
      No Longer Available
  • 63302A
    Plate,Base – Part Number: 3302W0A036B
    Plate,Base
    Part Number: 3302W0A036B
      No Longer Available
  • 63303A
    Plate Assembly,Base – Part Number: 3303W0A019B
    Plate Assembly,Base
    Part Number: 3303W0A019B
      No Longer Available
  • 65006B
    Cap,Base Plate – Part Number: 5006W3A019A
    Cap,Base Plate
    Part Number: 5006W3A019A
      No Longer Available
  • 948502
    Damper – Part Number: 4850W1A001F
    Damper
    Part Number: 4850W1A001F
      Special Order
    $14.09
  • WSZ002
    Screw,Taptite – Part Number: 1SBF0402418
    Screw,Taptite
    Part Number: 1SBF0402418
      Special Order
    $14.09
  • WTT021
    Screw,Tapping – Part Number: 1TTL0402418
    Screw,Tapping
    Part Number: 1TTL0402418
      In Stock
    $11.91

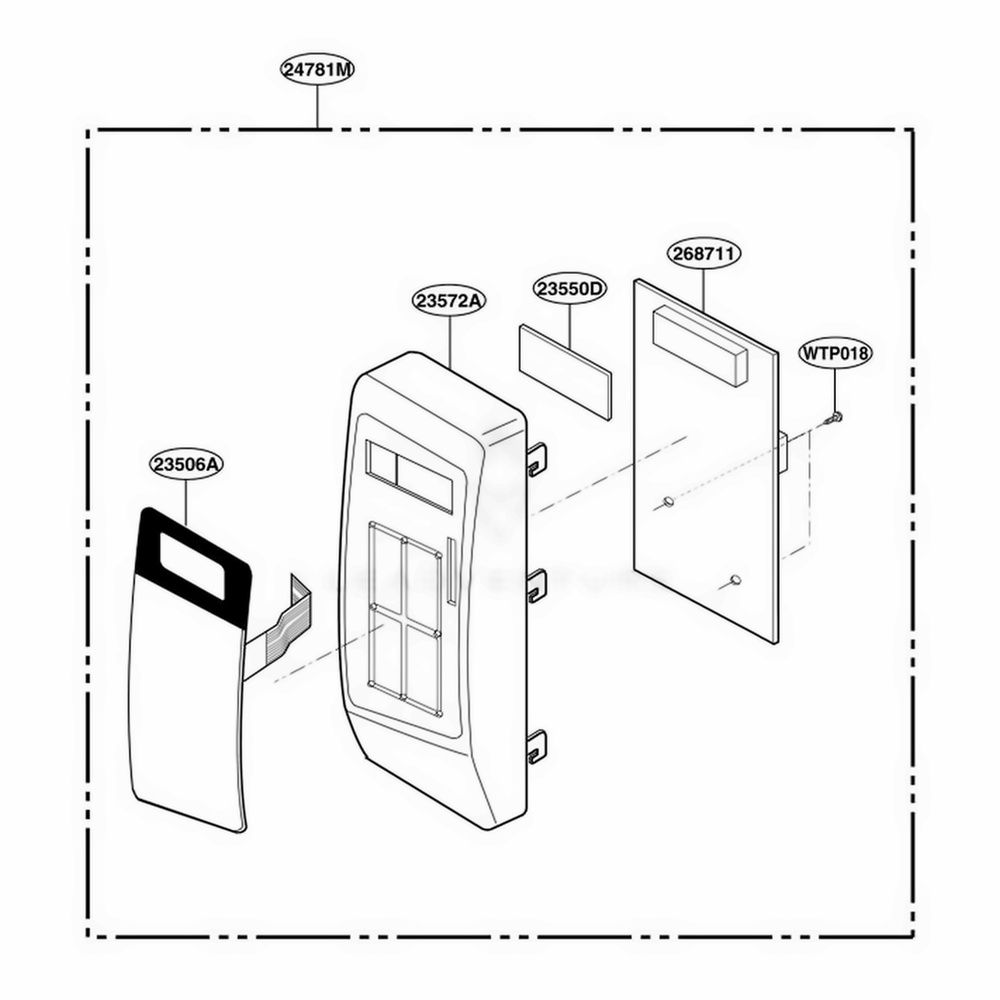

Controller Parts
Controller Parts Diagram and Parts List for MA1420W01 CW1EGSE LG Range

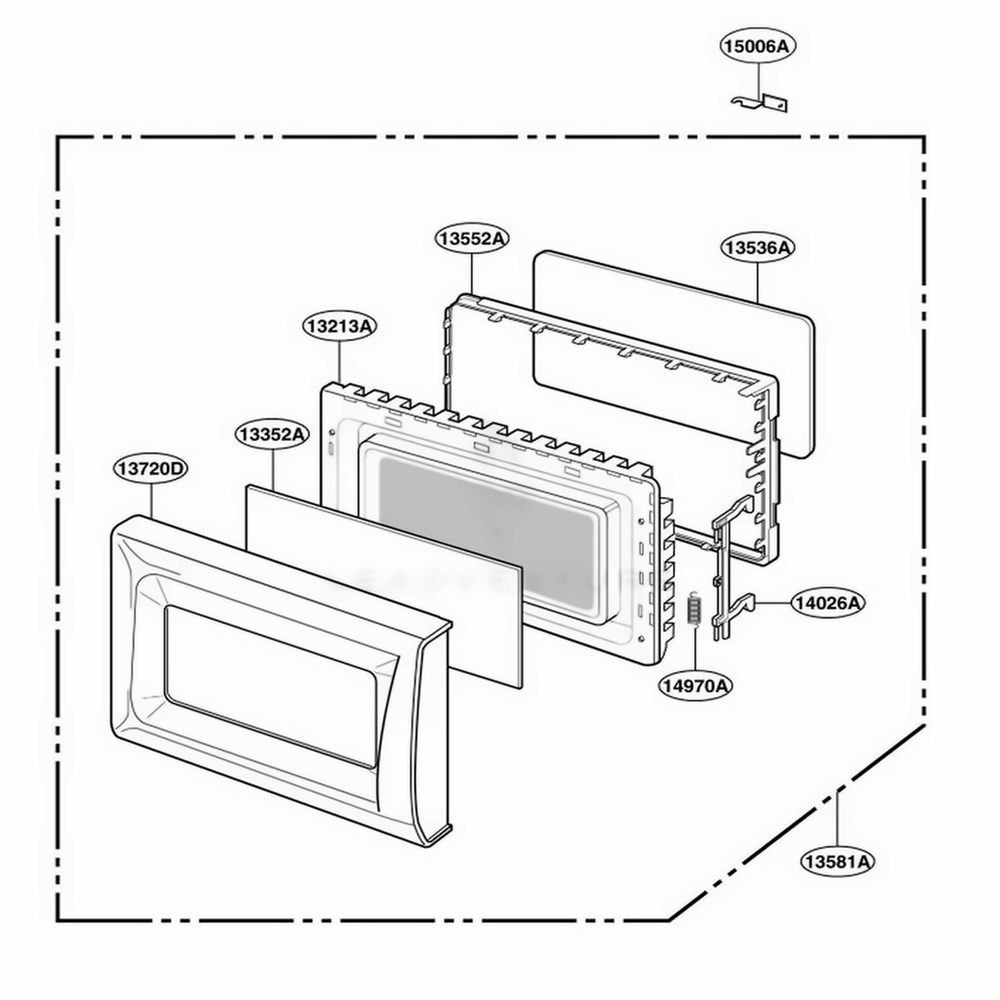

Door Parts
Door Parts Diagram and Parts List for MA1420W01 CW1EGSE LG Range
  • 13213A
    Frame Assembly,Door – Part Number: 3213W1A031Q
    Frame Assembly,Door
    Part Number: 3213W1A031Q
      No Longer Available
  • 13352A
    WINDOW,SCREEN – Part Number: 3352W1A142A
    WINDOW,SCREEN
    Part Number: 3352W1A142A
      No Longer Available
  • 13536A
    Tape,Sealing – Part Number: 3536W1A004A
    Tape,Sealing
    Part Number: 3536W1A004A
      Special Order
    $14.09
  • 13552A
    Cover,Choke – Part Number: 3552W0A012A
    Cover,Choke
    Part Number: 3552W0A012A
      No Longer Available
  • 13581A
    DOOR ASSEMBLY – Part Number: 3581W1A376A
    DOOR ASSEMBLY
    Part Number: 3581W1A376A
      No Longer Available
  • 13720D
    PANEL,DOOR – Part Number: 3720W1D108A
    PANEL,DOOR
    Part Number: 3720W1D108A
      Special Order
    $50.10
  • 14026A
    Microwave Locker – Part Number: 4026W2A019A
    Microwave Locker
    Part Number: 4026W2A019A
      In Stock
    $14.25
  • 14970A
    Spring – Part Number: 4970WRA001B
    Spring
    Part Number: 4970WRA001B
      Special Order
    $14.09
  • 15006A
    Cap,Choke Cover – Part Number: 5006W3A012A
    Cap,Choke Cover
    Part Number: 5006W3A012A
      No Longer Available

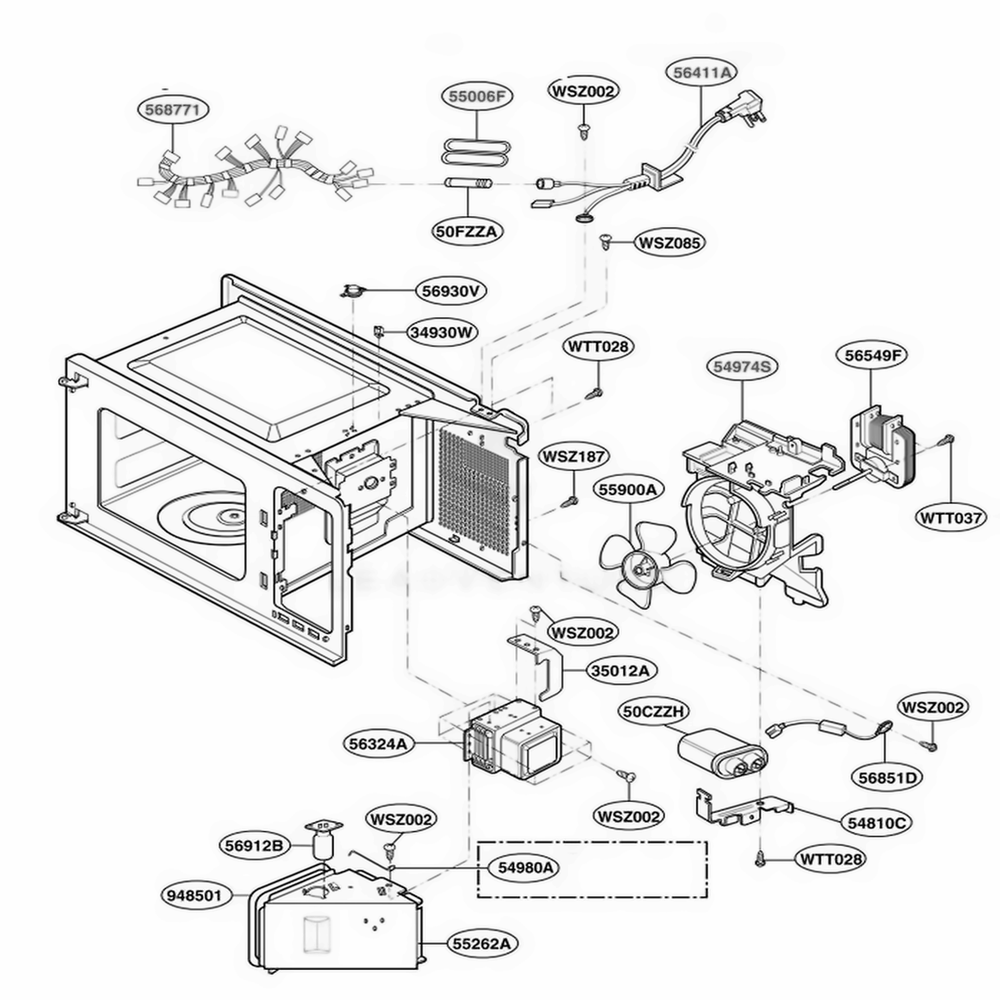

Interior Parts 1
Interior Parts 1 Diagram and Parts List for MA1420W01 CW1EGSE LG Range
  • 50CZZH
    Capacitor – Part Number: 0CZZW1H004B
    Capacitor
    Part Number: 0CZZW1H004B
      Special Order
    $43.70
  • 50FZZA
    Time Delay Fuse – Part Number: 3B74133Q
    Time Delay Fuse
    Part Number: 3B74133Q
      In Stock
    $11.91
  • 34930W
    Wire Holder – Part Number: 4B72944B
    Wire Holder
    Part Number: 4B72944B
      Special Order
    $14.09
  • 35012A
    Insulator – Part Number: 5012W3A020C
    Insulator
    Part Number: 5012W3A020C
      Special Order
    $14.09
  • 54810C
    Bracket,Capacitor – Part Number: 4810W4C003B
    Bracket,Capacitor
    Part Number: 4810W4C003B
      Special Order
    $14.09
  • 54974S
    Guide,Suction – Part Number: 4974W0A003B
    Guide,Suction
    Part Number: 4974W0A003B
      No Longer Available
  • 54980A
    Supporter – Part Number: 4980W3A038A
    Supporter
    Part Number: 4980W3A038A
      Special Order
    $14.09
  • 55262A
    Duct – Part Number: 5208W1A017A
    Duct
    Part Number: 5208W1A017A
      Special Order
    $21.70
  • 55900A
    Fan – Part Number: 5900W1A007B
    Fan
    Part Number: 5900W1A007B
      Special Order
    $14.09
  • 56324A
    Magnetron – Part Number: 6324W1A001L
    Magnetron
    Part Number: 6324W1A001L
      In Stock
    $133.71
  • 56411A
    POWER CORD ASSEMBLY – Part Number: 6411W1A019T
    POWER CORD ASSEMBLY
    Part Number: 6411W1A019T
      No Longer Available
  • 56549F
    Motor,AC Fan – Part Number: EAU42744405
    Motor,AC Fan
    Part Number: EAU42744405
      Special Order
    $65.46
  • 56851D
    High Voltage Diode – Part Number: 6021W3B001V
    High Voltage Diode
    Part Number: 6021W3B001V
      In Stock
    $17.35
  • 56912B
    Lamp,Incandescent – Part Number: 6912W3B002L
    Lamp,Incandescent
    Part Number: 6912W3B002L
      On Order
    $21.70
  • 56930V
    Thermostat – Part Number: 6930W1A003A
    Thermostat
    Part Number: 6930W1A003A
      Special Order
    $21.70
  • 568771
    HARNESS – Part Number: 6877W1A625A
    HARNESS
    Part Number: 6877W1A625A
      No Longer Available
  • 948501
    Damper – Part Number: 3B72244C
    Damper
    Part Number: 3B72244C
      Special Order
    $14.09
  • WSZ002
    Screw,Taptite – Part Number: 1SBF0402418
    Screw,Taptite
    Part Number: 1SBF0402418
      Special Order
    $14.09
  • WSZ085
    Screw,Customized – Part Number: 4B70188C
    Screw,Customized
    Part Number: 4B70188C
      In Stock
    $14.09
  • WTT028
    Microwave Screwtapping – Part Number: 1TTL0402818
    Microwave Screwtapping
    Part Number: 1TTL0402818
      Special Order
    $14.09

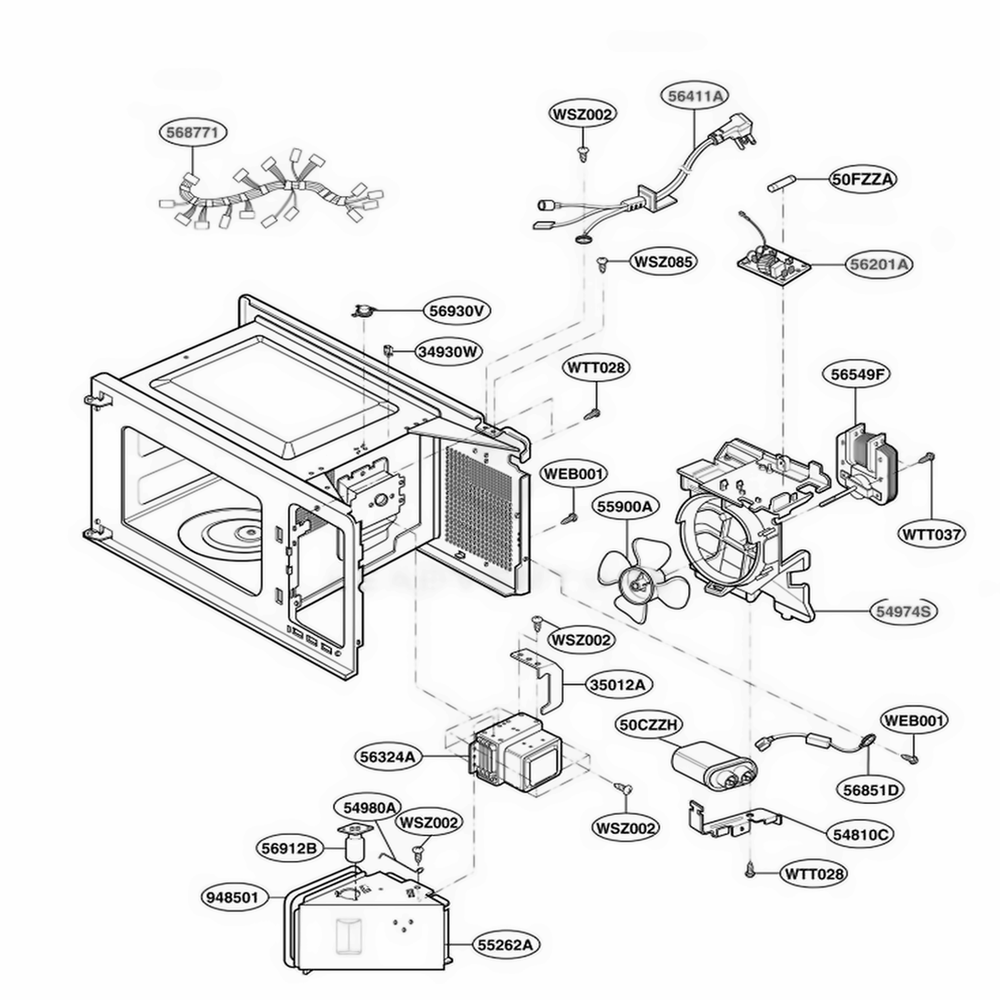

Interior Parts 2
Interior Parts 2 Diagram and Parts List for MA1420W01 CW1EGSE LG Range
  • 50CZZH
    Capacitor – Part Number: 0CZZW1H004B
    Capacitor
    Part Number: 0CZZW1H004B
      Special Order
    $43.70
  • 50FZZA
    Time Delay Fuse – Part Number: 3B74133Q
    Time Delay Fuse
    Part Number: 3B74133Q
      In Stock
    $11.91
  • 34930W
    Wire Holder – Part Number: 4B72944B
    Wire Holder
    Part Number: 4B72944B
      Special Order
    $14.09
  • 35012A
    Insulator – Part Number: 5012W3A020C
    Insulator
    Part Number: 5012W3A020C
      Special Order
    $14.09
  • 54810C
    Bracket,Capacitor – Part Number: 4810W4C003B
    Bracket,Capacitor
    Part Number: 4810W4C003B
      Special Order
    $14.09
  • 54974S
    Guide,Suction – Part Number: 4974W0A003B
    Guide,Suction
    Part Number: 4974W0A003B
      No Longer Available
  • 54980A
    Supporter – Part Number: 4980W3A038A
    Supporter
    Part Number: 4980W3A038A
      Special Order
    $14.09
  • 55262A
    Duct – Part Number: 5208W1A017A
    Duct
    Part Number: 5208W1A017A
      Special Order
    $21.70
  • 55900A
    Fan – Part Number: 5900W1A007B
    Fan
    Part Number: 5900W1A007B
      Special Order
    $14.09
  • 56201A
    Filter Assembly,Noise – Part Number: 6201W1A014A
    Filter Assembly,Noise
    Part Number: 6201W1A014A
      No Longer Available
  • 56324A
    Magnetron – Part Number: 6324W1A001L
    Magnetron
    Part Number: 6324W1A001L
      In Stock
    $133.71
  • 56411A
    POWER CORD ASSEMBLY – Part Number: 6411W1A019T
    POWER CORD ASSEMBLY
    Part Number: 6411W1A019T
      No Longer Available
  • 56549F
    Motor,AC Fan – Part Number: EAU42744405
    Motor,AC Fan
    Part Number: EAU42744405
      Special Order
    $65.46
  • 56851D
    High Voltage Diode – Part Number: 6021W3B001V
    High Voltage Diode
    Part Number: 6021W3B001V
      In Stock
    $17.35
  • 56912B
    Lamp,Incandescent – Part Number: 6912W3B002L
    Lamp,Incandescent
    Part Number: 6912W3B002L
      On Order
    $21.70
  • 56930V
    Thermostat – Part Number: 6930W1A003A
    Thermostat
    Part Number: 6930W1A003A
      Special Order
    $21.70
  • 568771
    HARNESS – Part Number: 6877W1A625A
    HARNESS
    Part Number: 6877W1A625A
      No Longer Available
  • 948501
    Damper – Part Number: 3B72244C
    Damper
    Part Number: 3B72244C
      Special Order
    $14.09
  • WEB001
    Screw,Taptite – Part Number: 1EBF0402494
    Screw,Taptite
    Part Number: 1EBF0402494
      Special Order
    $14.09
  • WSZ002
    Screw,Taptite – Part Number: 1SBF0402418
    Screw,Taptite
    Part Number: 1SBF0402418
      Special Order
    $14.09
  • WSZ085
    Screw,Customized – Part Number: 4B70188C
    Screw,Customized
    Part Number: 4B70188C
      In Stock
    $14.09
  • WTT028
    Microwave Screwtapping – Part Number: 1TTL0402818
    Microwave Screwtapping
    Part Number: 1TTL0402818
      Special Order
    $14.09

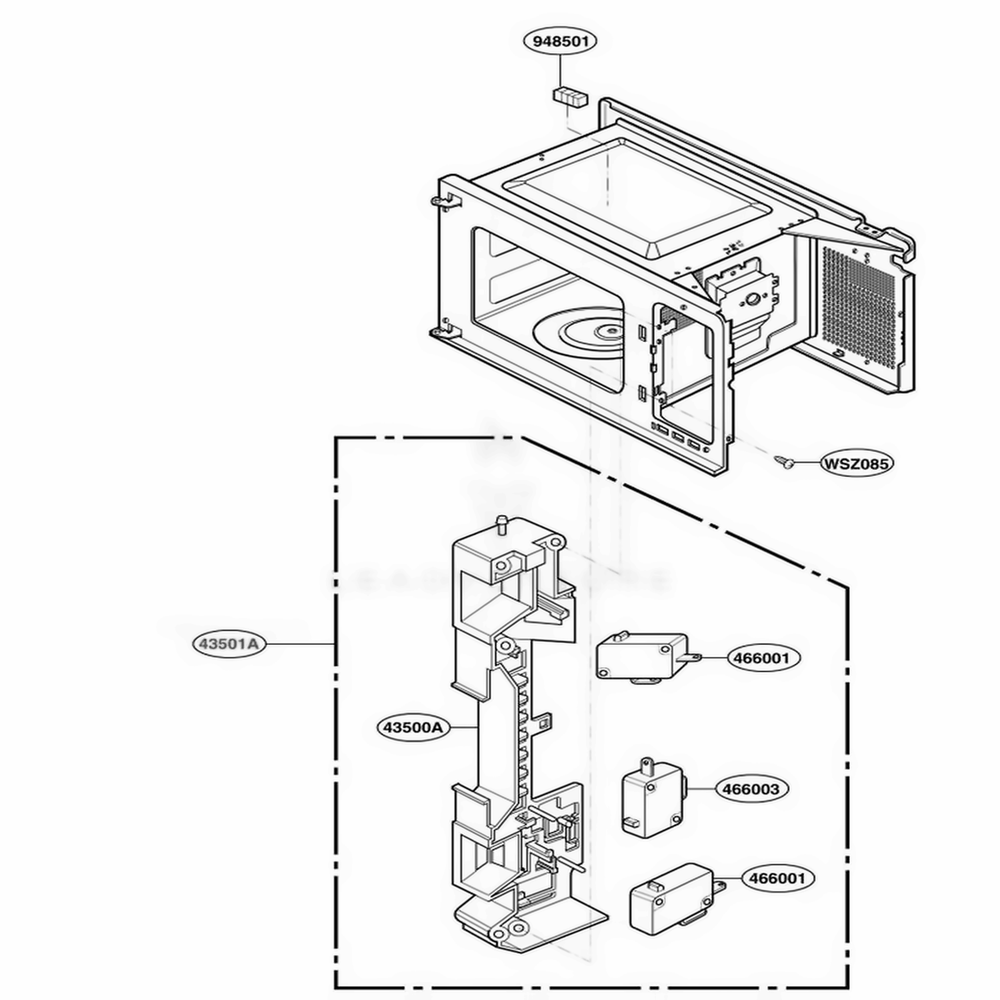

Latch Board Parts
Latch Board Parts Diagram and Parts List for MA1420W01 CW1EGSE LG Range
  • 43500A
    Holder,Locker – Part Number: 3500W1A010A
    Holder,Locker
    Part Number: 3500W1A010A
      No Longer Available
  • 466001
    Micro Switch – Part Number: 3B73362F
    Micro Switch
    Part Number: 3B73362F
      Special Order
    $21.70
  • 466003
    Switch,Micro – Part Number: 3B73361E
    Switch,Micro
    Part Number: 3B73361E
      Special Order
    $21.70
  • 948501
    Damper – Part Number: 3B72244C
    Damper
    Part Number: 3B72244C
      Special Order
    $14.09
  • WSZ085
    Screw,Customized – Part Number: 4B70188C
    Screw,Customized
    Part Number: 4B70188C
      In Stock
    $14.09

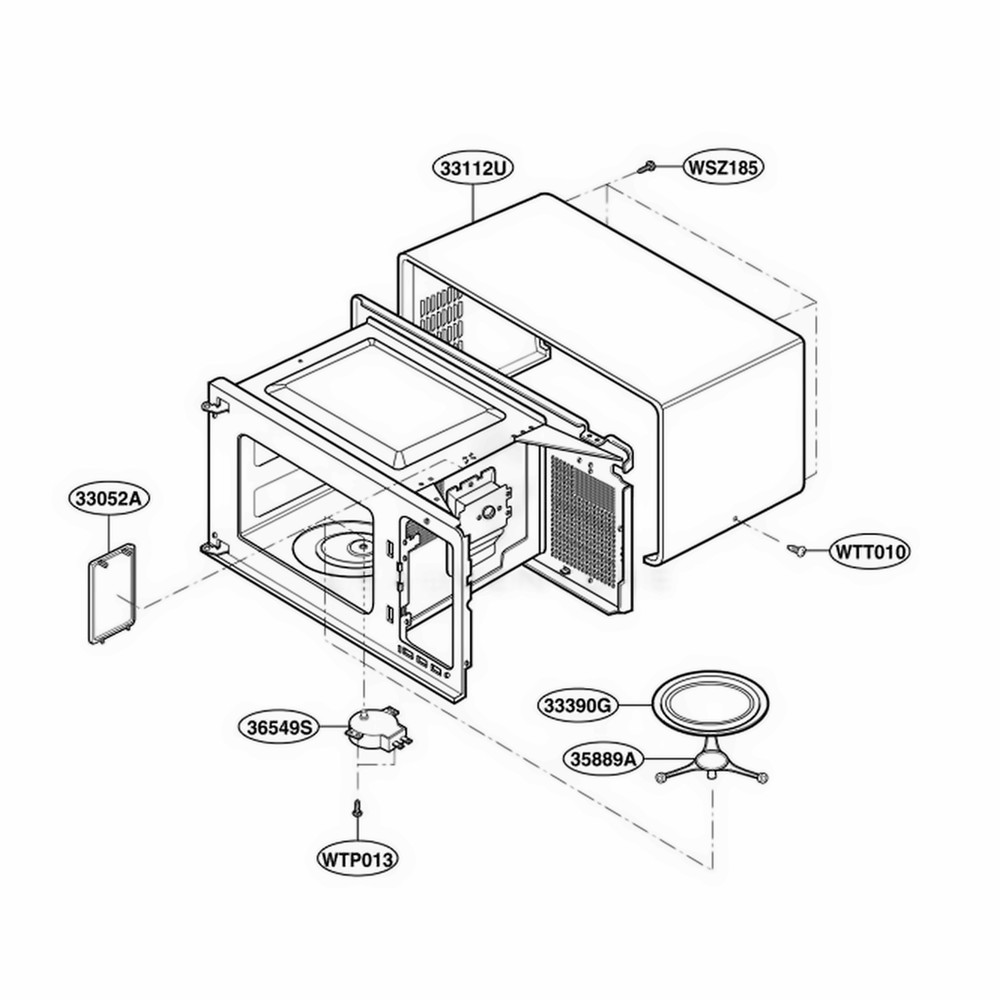

Oven Cavity Parts
Oven Cavity Parts Diagram and Parts List for MA1420W01 CW1EGSE LG Range
✖
