General Electric Parts

General Electric Range Replacement Parts For Model P2B940SEJ4SS

We Sell Only Genuine General Electric Parts

Find General Electric P2B940SEJ4SS Parts By Symptom

Element will not heat

45%

Little to no heat when baking

38%

Little to no heat when broiling

6%

Oven not heating evenly

6%

Will Not Start

4%

Oven is too hot

1%

Will not program

0%

Popular Parts for P2B940SEJ4SS

Search Within Model

Questions & Answers for General Electric P2B940SEJ4SS
Browse all Parts Search by Area

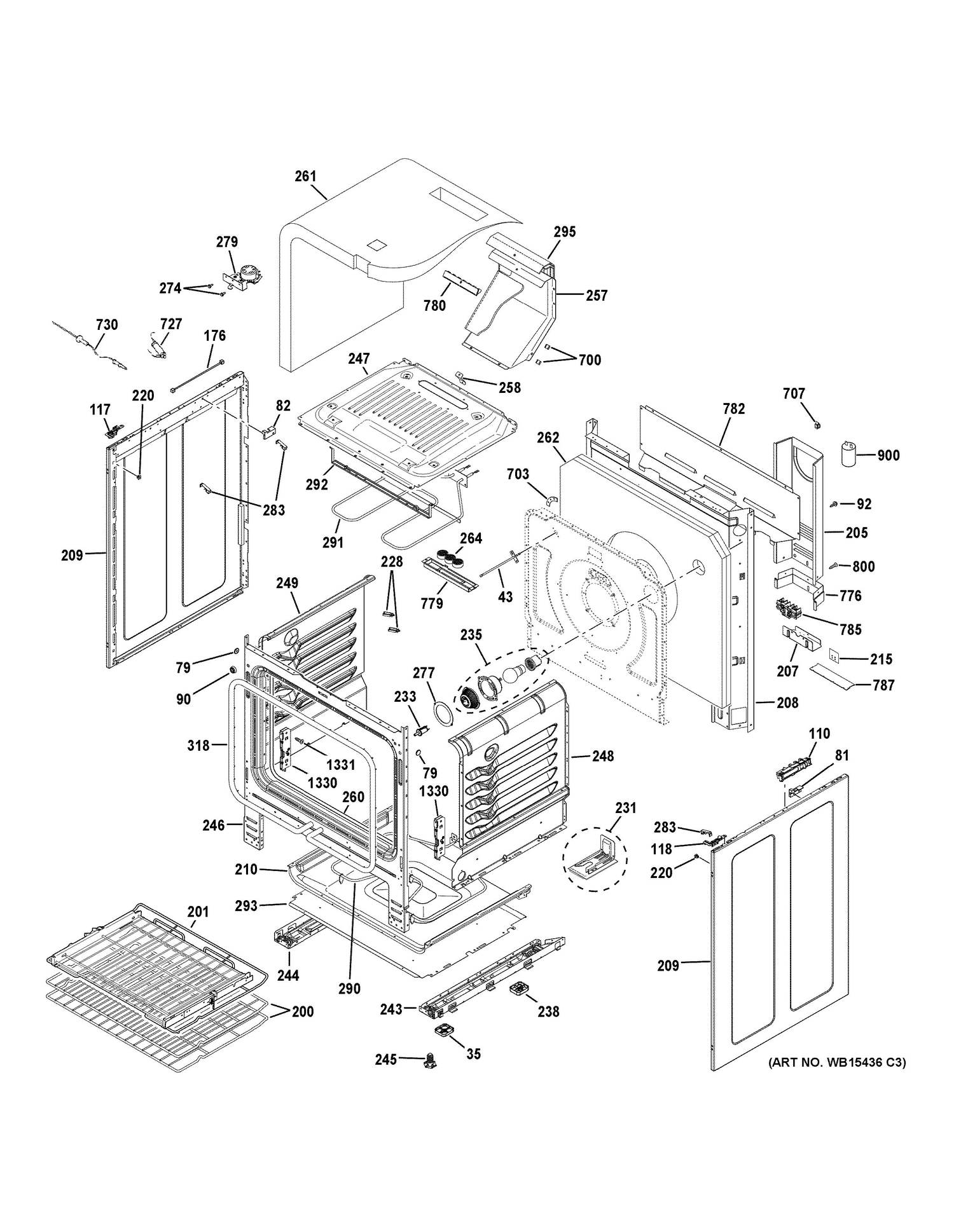

BODY PARTS Diagram and Parts List for  General Electric Range
BODY PARTS

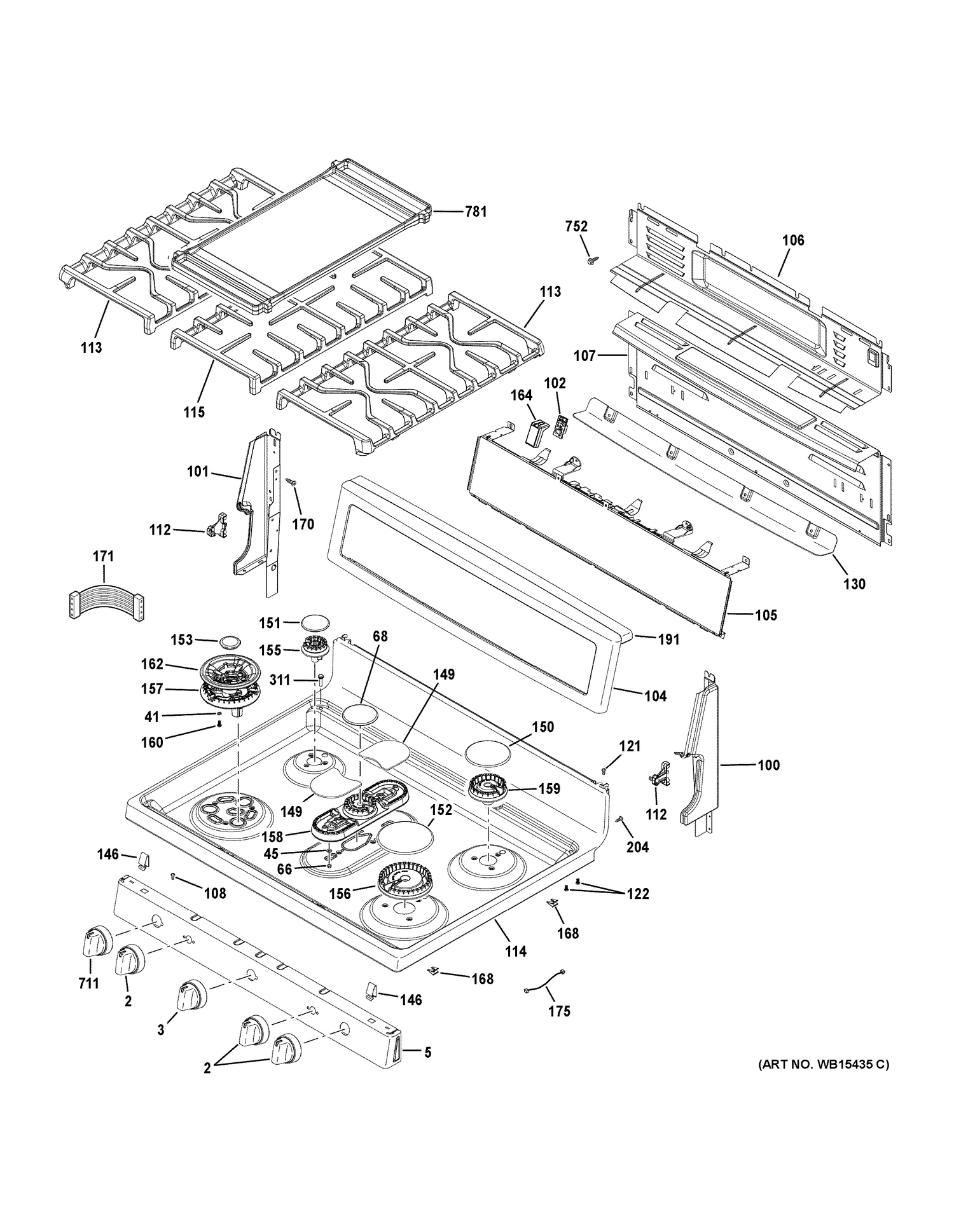

CONTROL PANEL & COOKTOP Diagram and Parts List for  General Electric Range
CONTROL PANEL & COOKTOP

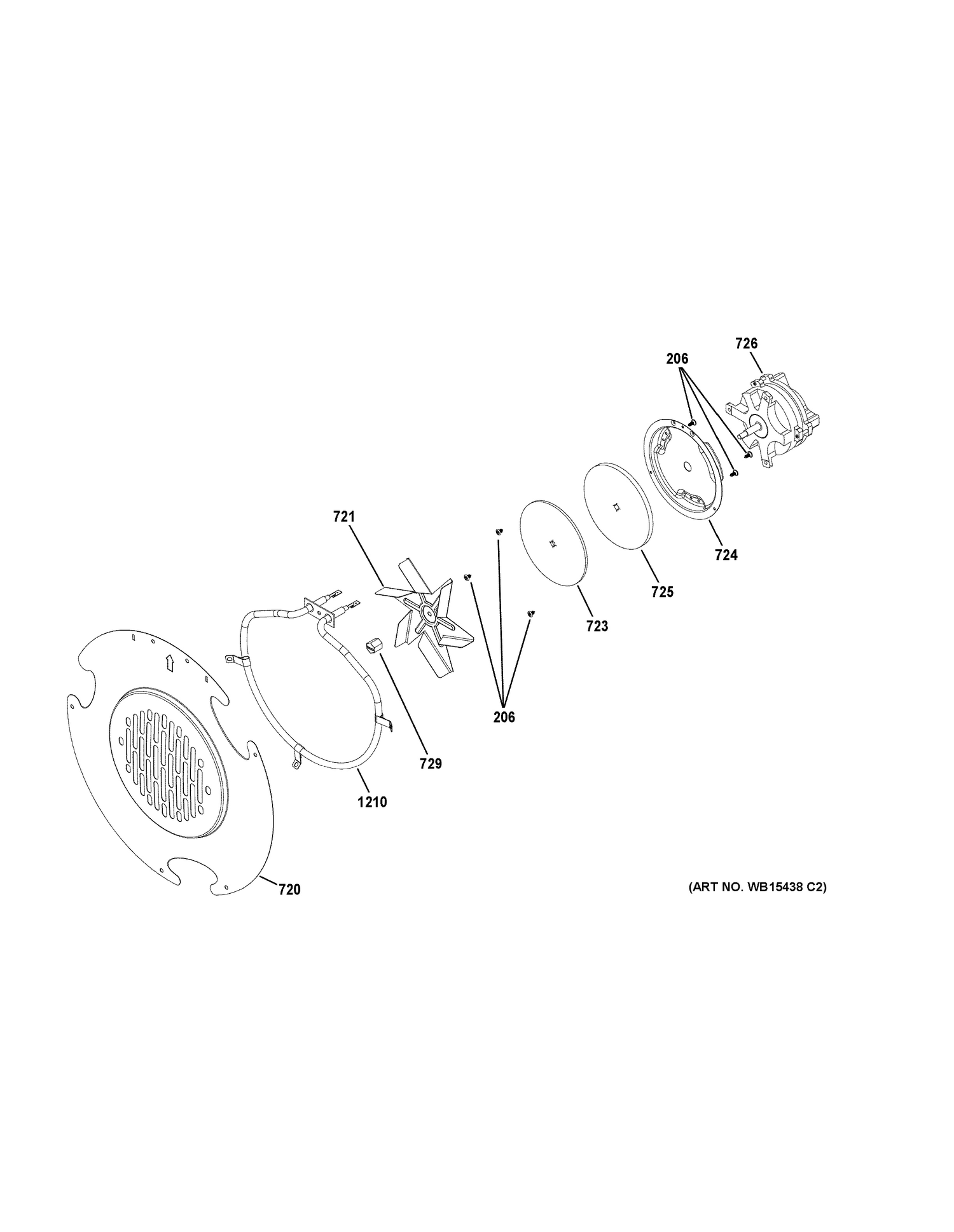

CONVECTION FAN Diagram and Parts List for  General Electric Range
CONVECTION FAN

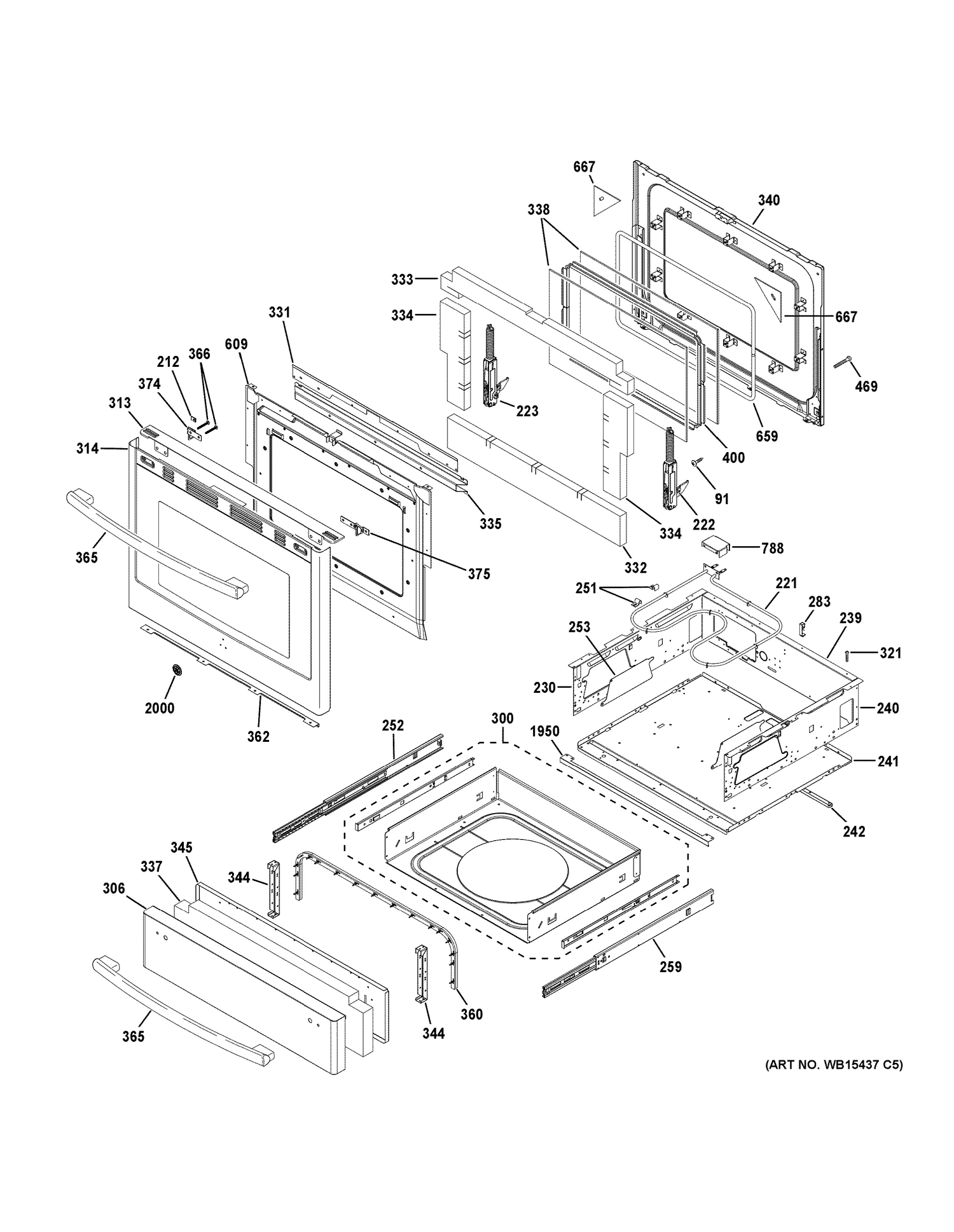

DOOR & DRAWER PARTS Diagram and Parts List for  General Electric Range
DOOR & DRAWER PARTS

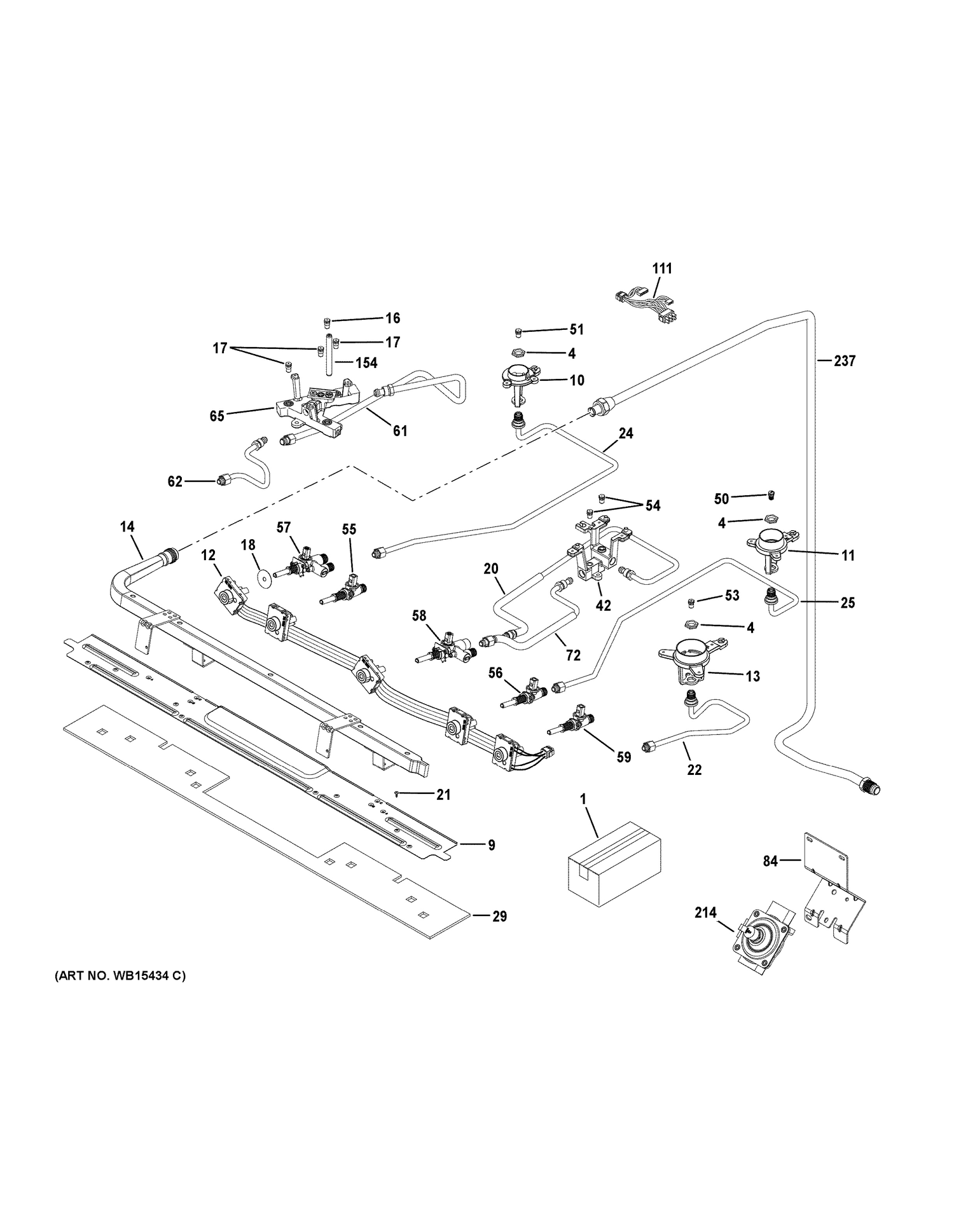

GAS & BURNER PARTS Diagram and Parts List for  General Electric Range
GAS & BURNER PARTS
Previous Showing All Parts Next
BODY PARTS
BODY PARTS Diagram and Parts List for  General Electric Range
CONTROL PANEL & COOKTOP
CONTROL PANEL & COOKTOP Diagram and Parts List for  General Electric Range
CONVECTION FAN
CONVECTION FAN Diagram and Parts List for  General Electric Range
  • 206
    SCREW – Part Number: WB01K10091
    SCREW
    Part Number: WB01K10091
      In Stock
    $19.44
  • 720
    FAN COVER – Part Number: WB34K10142
    FAN COVER
    Part Number: WB34K10142
      Special Order
    $68.92
  • 721
    Fan Blade – Part Number: WB2X8351
    Fan Blade
    Part Number: WB2X8351
      In Stock
    $30.95
  • 723
    Insulation Fan – Part Number: WB35K10013
    Insulation Fan
    Part Number: WB35K10013
      Special Order
    $16.28
  • 724
    FAN SUPPORT – Part Number: WB02K10170
    FAN SUPPORT
    Part Number: WB02K10170
      Special Order
    $38.36
  • 725
    FAN INSULATOR – Part Number: WB35X20989
    FAN INSULATOR
    Part Number: WB35X20989
      Special Order
    $15.26
  • 726
    Convection Motor – Part Number: WB26X25118
    Convection Motor
    Part Number: WB26X25118
      In Stock
    $121.16
  • 729
    NUT – Part Number: WB02T10017
    NUT
    Part Number: WB02T10017
      Special Order
    $18.81
  • 1210
    CONVECTION ELEMENT – Part Number: WB44X10051
    CONVECTION ELEMENT
    Part Number: WB44X10051
      Special Order
    $75.55
DOOR & DRAWER PARTS
DOOR & DRAWER PARTS Diagram and Parts List for  General Electric Range
GAS & BURNER PARTS
GAS & BURNER PARTS Diagram and Parts List for  General Electric Range
