Frigidaire Free Standing, Electric Range Replacement Parts For Model R30BCH2

We Sell Only Genuine Frigidaire Parts

Find Frigidaire R30BCH2 Parts By Symptom

Element will not heat

59%

Little to no heat when baking

32%

Will Not Start

5%

Oven not heating evenly

3%

Oven is too hot

1%

Little to no heat when broiling

0%

Popular Parts for R30BCH2

Search Within Model

Questions & Answers for Frigidaire R30BCH2
Browse all Parts Search by Area

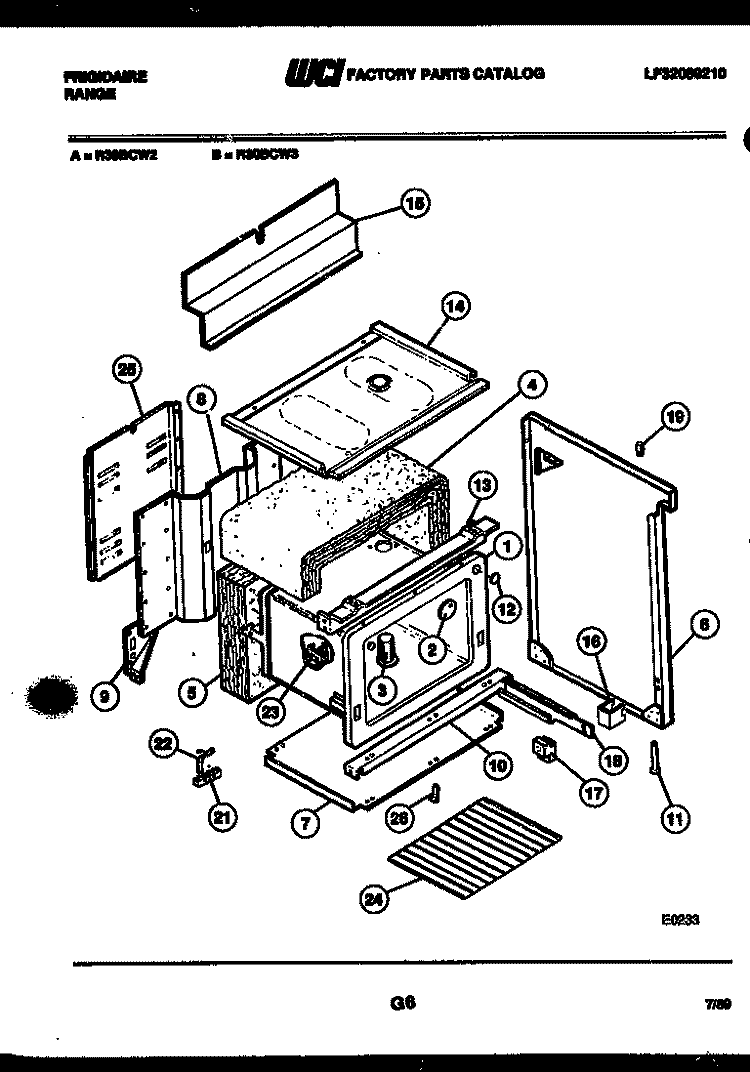

BODY PARTS Diagram and Parts List for  Frigidaire Range
BODY PARTS

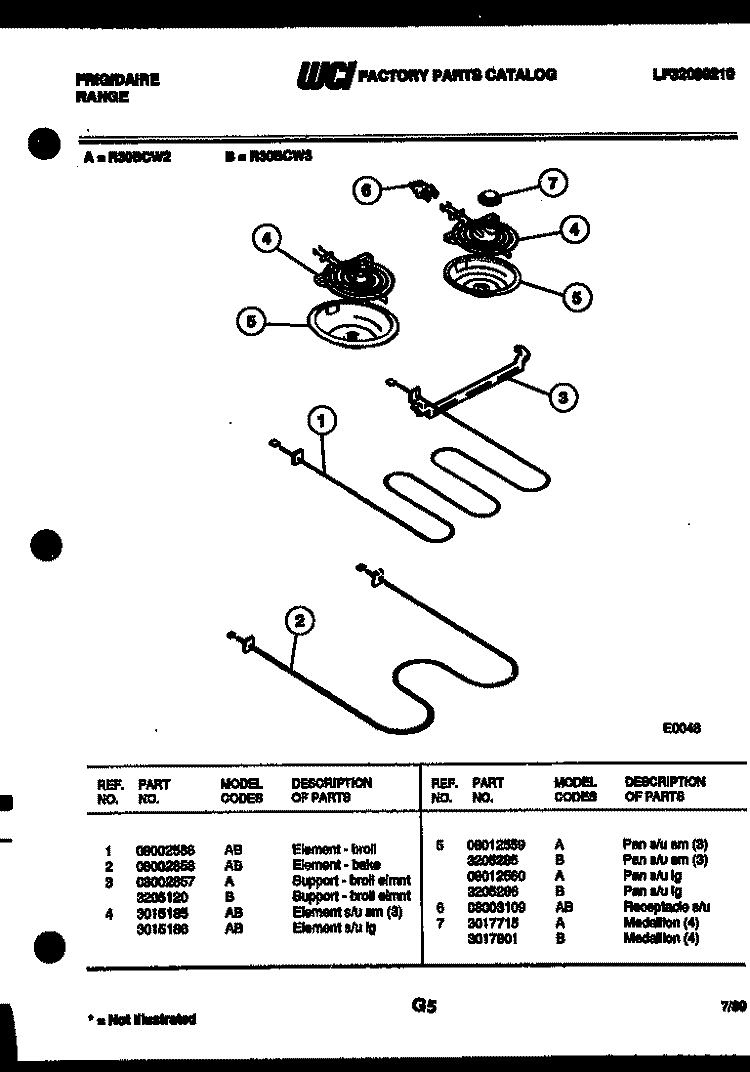

BROILER PARTS Diagram and Parts List for  Frigidaire Range
BROILER PARTS
CONTROL PANEL Diagram and Parts List for  Frigidaire Range
CONTROL PANEL

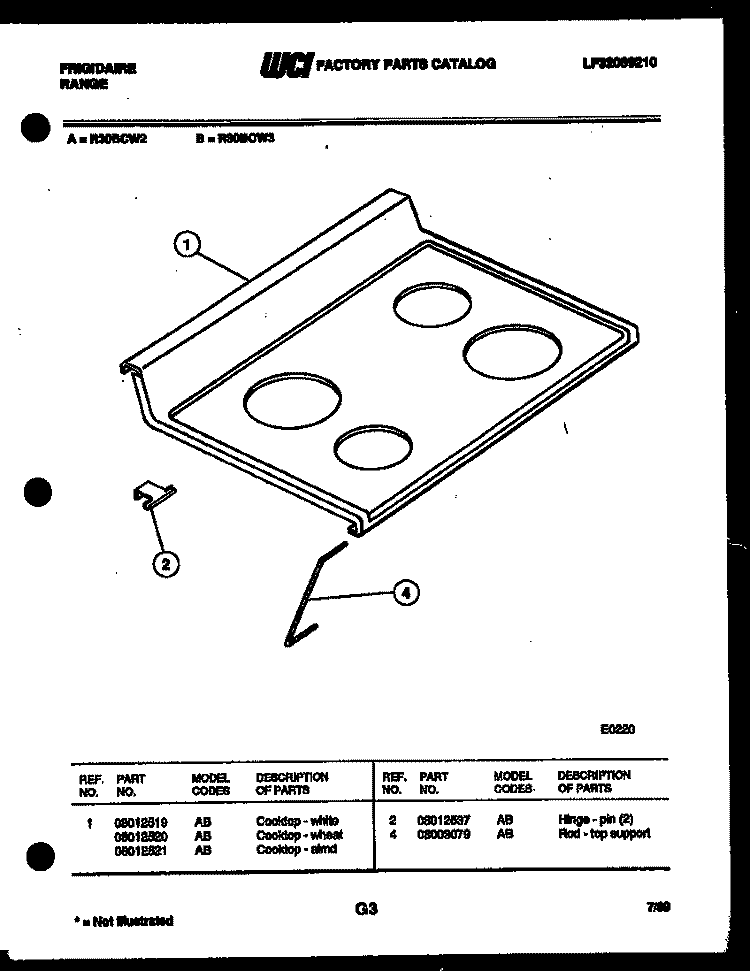

COOKTOP PARTS Diagram and Parts List for  Frigidaire Range
COOKTOP PARTS

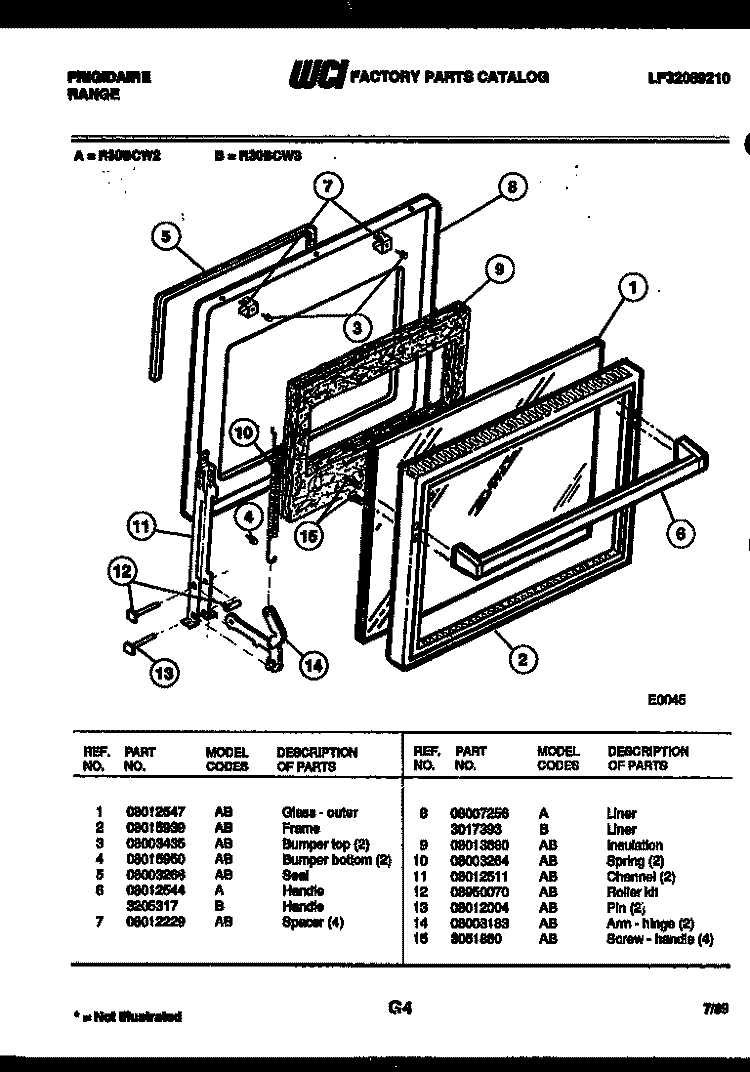

DOOR PARTS Diagram and Parts List for  Frigidaire Range
DOOR PARTS

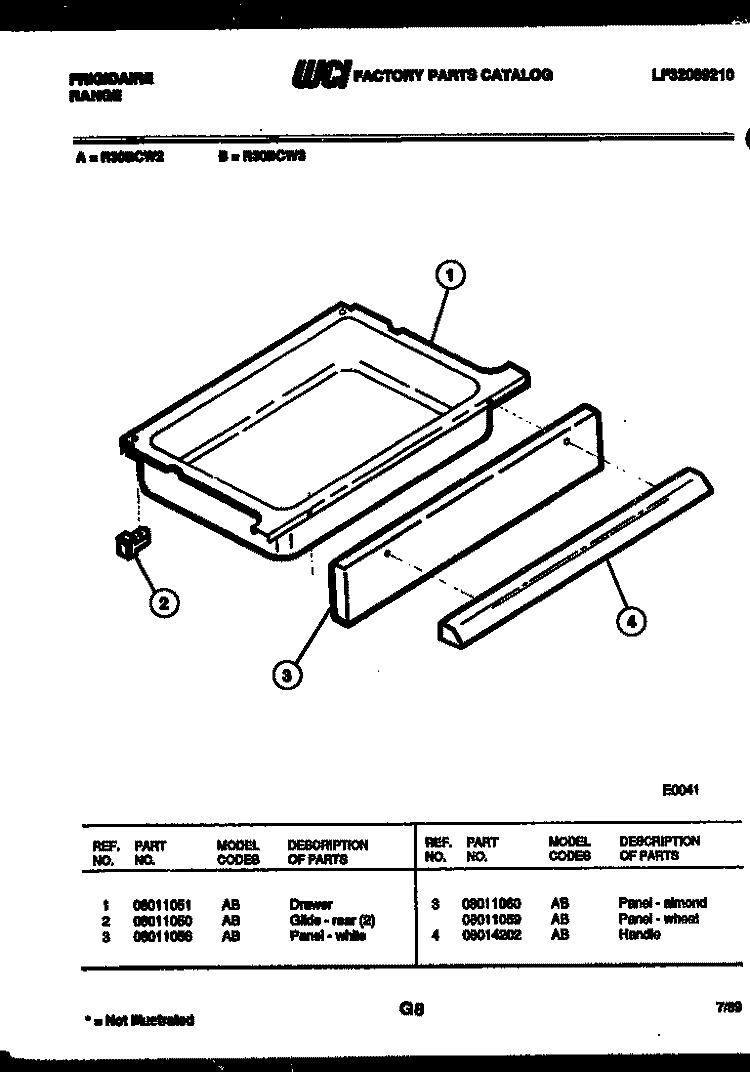

DRAWER PARTS Diagram and Parts List for  Frigidaire Range
DRAWER PARTS
Previous Showing All Parts Next
BODY PARTS
BODY PARTS Diagram and Parts List for  Frigidaire Range
BROILER PARTS
BROILER PARTS Diagram and Parts List for  Frigidaire Range
CONTROL PANEL
CONTROL PANEL Diagram and Parts List for  Frigidaire Range
COOKTOP PARTS
COOKTOP PARTS Diagram and Parts List for  Frigidaire Range
  • 1
    COOKTOP - WHEAT – Part Number: 08012520
    COOKTOP - WHEAT
    Part Number: 08012520
      No Longer Available
  • 2
    HINGE PIN – Part Number: 08012537
    HINGE PIN
    Part Number: 08012537
      Special Order
    $8.35
  • 4
    ROD – Part Number: 3051554
    ROD
    Part Number: 3051554
      Special Order
    $37.03
DOOR PARTS
DOOR PARTS Diagram and Parts List for  Frigidaire Range
  • 1
    GLASS-OVEN DOOR – Part Number: 5308012547
    GLASS-OVEN DOOR
    Part Number: 5308012547
      No Longer Available
  • 2
    FRAME – Part Number: 5308015939
    FRAME
    Part Number: 5308015939
      Special Order
    $74.41
  • 3
    BUMPER-DOOR – Part Number: 5303131771
    BUMPER-DOOR
    Part Number: 5303131771
      Special Order
    $23.05
  • 4
    BUMPER-DOOR – Part Number: 5305297101
    BUMPER-DOOR
    Part Number: 5305297101
      Special Order
    $8.35
  • 5
    SEAL, DOOR – Part Number: 5308003268
    SEAL, DOOR
    Part Number: 5308003268
      No Longer Available
  • 6
    HANDLE – Part Number: 5303051716
    HANDLE
    Part Number: 5303051716
      No Longer Available
  • 7
    SPACER-GLASS – Part Number: 5301324812
    SPACER-GLASS
    Part Number: 5301324812
      Special Order
    $8.35
  • 8
    LINER – Part Number: 5303017393
    LINER
    Part Number: 5303017393
      Special Order
    $75.43
  • 9
    INSULATION – Part Number: 3203029
    INSULATION
    Part Number: 3203029
      No Longer Available
  • 10
    SPRING-OVEN DOOR – Part Number: 08003264
    SPRING-OVEN DOOR
    Part Number: 08003264
      No Longer Available
  • 11
    CHANNEL (2) – Part Number: 08012511
    CHANNEL (2)
    Part Number: 08012511
      No Longer Available
  • 12
    ROLLER – Part Number: 5301167752
    ROLLER
    Part Number: 5301167752
      No Longer Available
  • 13
    STUD-AXLE – Part Number: 5308012004
    STUD-AXLE
    Part Number: 5308012004
      Special Order
    $12.55
  • 14
    HINGE – Part Number: 5308003183
    HINGE
    Part Number: 5308003183
      Special Order
    $72.37
  • 15
    SCREW-HANDLE Mounting – Part Number: 5303051860
    SCREW-HANDLE Mounting
    Part Number: 5303051860
      No Longer Available
DRAWER PARTS
DRAWER PARTS Diagram and Parts List for  Frigidaire Range
