Mi-T-M Industrial Cold Water Pressure Washer Replacement Parts For Model CBA-4004-0MHB

We Sell Only Genuine Mi-T-M Parts

Search Within Model

Questions & Answers for Mi-T-M CBA-4004-0MHB
Browse all Parts Search by Area
Frame Assembly After S/N 10202373 Diagram and Parts List for Mi-T-M Pressure Washer
Frame Assembly After S/N 10202373
Frame Assembly After S/N 10239171 Diagram and Parts List for Mi-T-M Pressure Washer
Frame Assembly After S/N 10239171
Frame Assembly After S/N 10455300 Diagram and Parts List for Mi-T-M Pressure Washer
Frame Assembly After S/N 10455300
Frame Assembly Before S/N 10202373 Diagram and Parts List for Mi-T-M Pressure Washer
Frame Assembly Before S/N 10202373

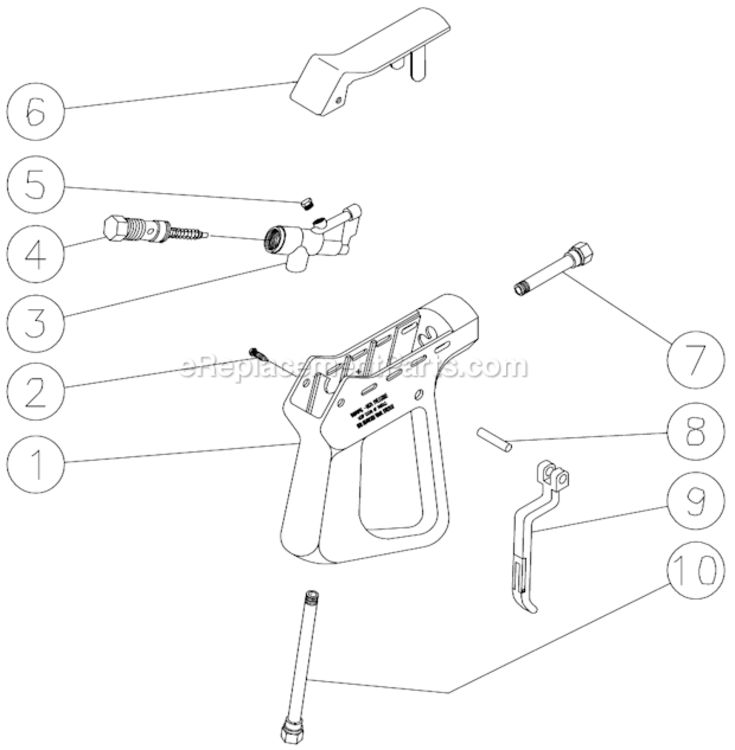

Gun Assembly Diagram and Parts List for Mi-T-M Pressure Washer
Gun Assembly

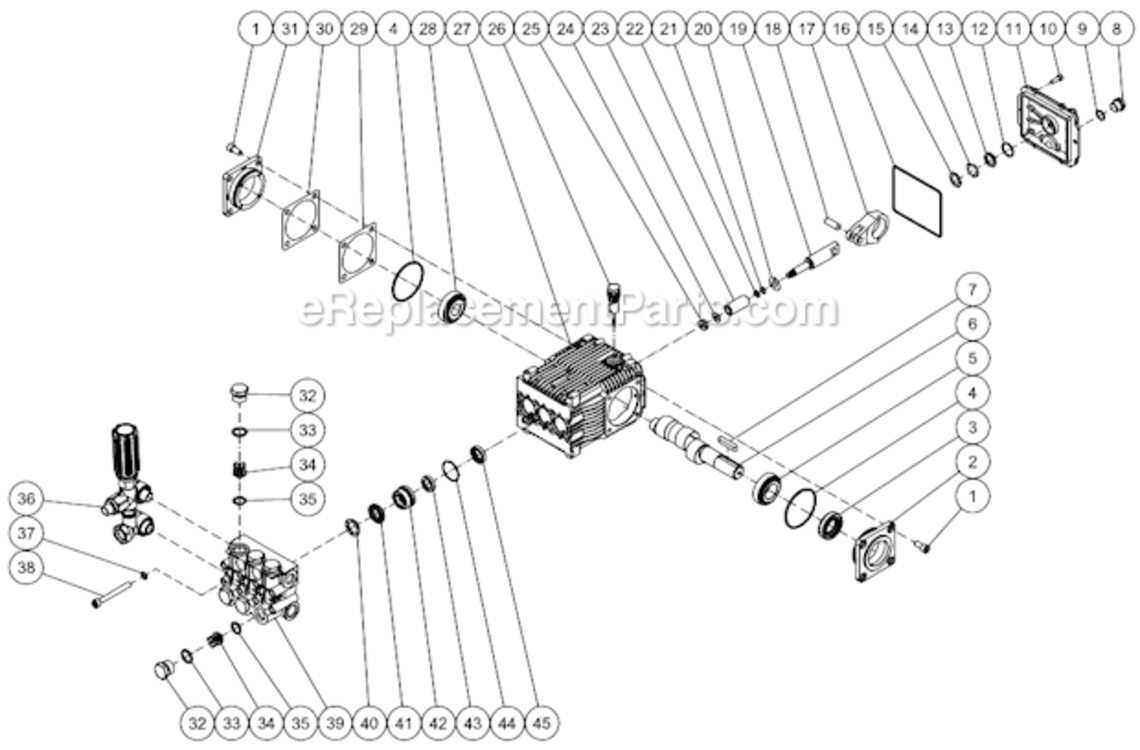

Page G Diagram and Parts List for Mi-T-M Pressure Washer
Page G
Pump Assembly Diagram and Parts List for Mi-T-M Pressure Washer
Pump Assembly

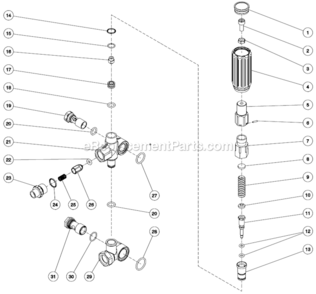

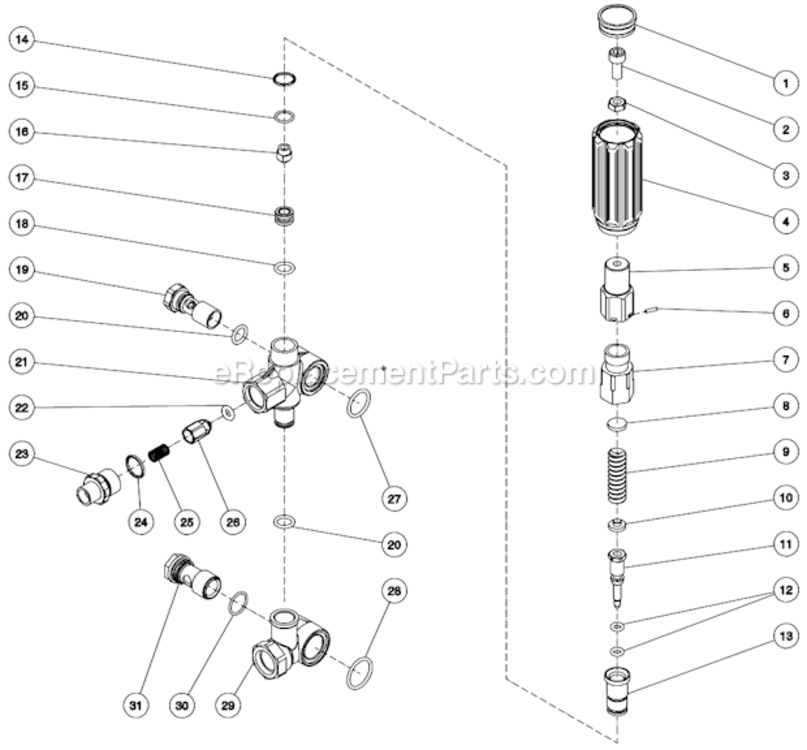

Unloader Assembly Diagram and Parts List for Mi-T-M Pressure Washer
Unloader Assembly
Previous Showing All Parts Next

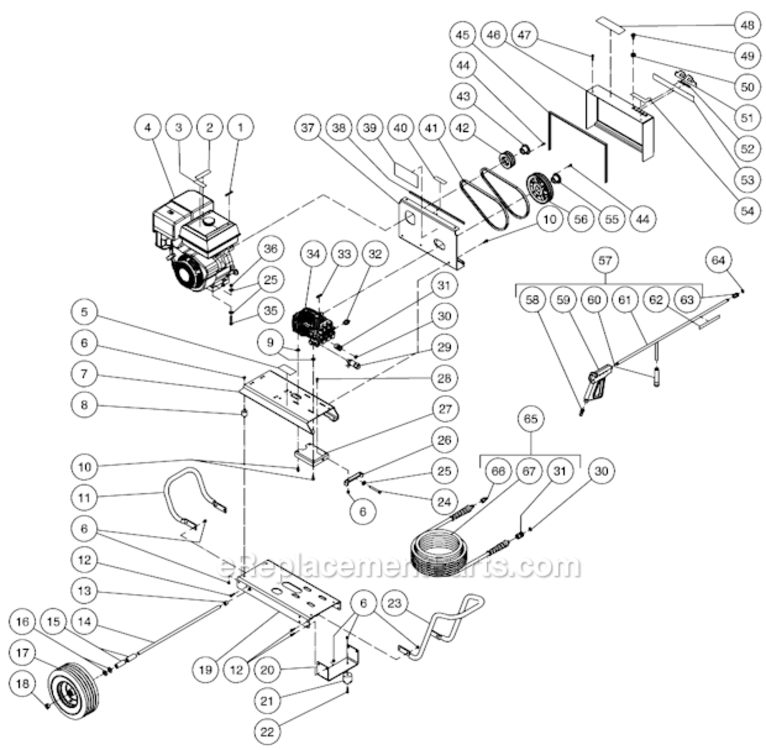

Frame Assembly After S/N 10202373
Frame Assembly After S/N 10202373 Diagram and Parts List for Mi-T-M Pressure Washer
  • B-1
    Key – Part Number: 43-0078
    Key
    Part Number: 43-0078
      Special Order
    $9.95
  • B-4
    Engine-13 H.P. Honda – Part Number: 1-0086
    Engine-13 H.P. Honda
    Part Number: 1-0086
      Special Order
    $2199.55
  • B-6
    Hex Nylon Locknut – Part Number: 30-0157
    Hex Nylon Locknut
    Part Number: 30-0157
      In Stock
    $5.95
  • B-7
    Isolation Plate – Part Number: 5-0223
    Isolation Plate
    Part Number: 5-0223
      Special Order
    $178.55
  • B-8
    ISOLATOR – Part Number: 14-0177
    ISOLATOR
    Part Number: 14-0177
      In Stock
    $8.20
  • B-9
    Flatwasher – Part Number: 28-0022
    Flatwasher
    Part Number: 28-0022
      Special Order
    $5.95
  • B-10
    Bolt – Part Number: 27-9524
    Bolt
    Part Number: 27-9524
      Special Order
    Minimum Quantity of 2 required
    $5.95
  • B-11
    Rear Handle – Part Number: 7-0183
    Rear Handle
    Part Number: 7-0183
      Special Order
    $108.85
  • B-12
    Bolt – Part Number: 27-0067
    Bolt
    Part Number: 27-0067
      Special Order
    $5.95
  • B-13
    Bushing – Part Number: 62-0175
    Bushing
    Part Number: 62-0175
      In Stock
    $5.95
  • B-14
    Axle – Part Number: 20-0819
    Axle
    Part Number: 20-0819
      Special Order
    $24.95
  • B-15
    Spacer – Part Number: 62-0189
    Spacer
    Part Number: 62-0189
      In Stock
    $5.95
  • B-16
    Washer – Part Number: 28-0008
    Washer
    Part Number: 28-0008
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • B-17
    Wheel – Part Number: 14-0127
    Wheel
    Part Number: 14-0127
      No Longer Available
  • B-18
    Lock Collar/Shaft – Part Number: 33-0351
    Lock Collar/Shaft
    Part Number: 33-0351
      Special Order
    $5.95
  • B-19
    Baseplate – Part Number: 5-0222
    Baseplate
    Part Number: 5-0222
      Special Order
    $150.87
  • B-20
    Support Bracket – Part Number: 56-0054
    Support Bracket
    Part Number: 56-0054
      In Stock
    $37.95
  • B-21
    Solator – Part Number: 14-0008
    Solator
    Part Number: 14-0008
      In Stock
    $6.00
  • B-22
    Bolt – Part Number: 27-0068
    Bolt
    Part Number: 27-0068
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • B-23
    Front Handle – Part Number: 7-018201
    Front Handle
    Part Number: 7-018201
      No Longer Available
  • B-24
    Bolt – Part Number: 27-0576
    Bolt
    Part Number: 27-0576
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • B-25
    Washer – Part Number: 28-0023
    Washer
    Part Number: 28-0023
      Special Order
    Minimum Quantity of 2 required
    $5.95
  • B-26
    Tension Bracket – Part Number: 21-0218
    Tension Bracket
    Part Number: 21-0218
      Special Order
    $22.95
  • B-27
    Tension Bracket – Part Number: 21-0220
    Tension Bracket
    Part Number: 21-0220
      Special Order
    $70.95
  • B-28
    Bolt – Part Number: 27-0066
    Bolt
    Part Number: 27-0066
      Special Order
    $5.95
  • B-29
    Inline Strainer Complete – Part Number: 19-0206
    Inline Strainer Complete
    Part Number: 19-0206
    ★★★★★
    ★★★★★
    (1)
      In Stock
    $60.95
  • B-30
    O-ring – Part Number: 25-0123
    O-ring
    Part Number: 25-0123
      Special Order
    Minimum Quantity of 2 required
    $5.95
  • B-31
    Quick Connect Socket – Part Number: 17-0004
    Quick Connect Socket
    Part Number: 17-0004
      In Stock
    $18.95
  • B-32
    Thermal Relief Valve – Part Number: 22-0005
    Thermal Relief Valve
    Part Number: 22-0005
    ★★★★★
    ★★★★★
    (1)
      In Stock
    $19.95
  • B-33
    Key – Part Number: 43-0091
    Key
    Part Number: 43-0091
      In Stock
    $9.95
  • B-34
    Pump – Part Number: 3-0230
    Pump
    Part Number: 3-0230
      Special Order
    $1120.43
  • B-35
    Bolt – Part Number: 27-0121
    Bolt
    Part Number: 27-0121
      Special Order
    $5.95
  • B-36
    Hex Nylon Locknut – Part Number: 30-0159
    Hex Nylon Locknut
    Part Number: 30-0159
      Special Order
    $5.95
  • B-37
    Belt Guard Back – Part Number: 6-0106
    Belt Guard Back
    Part Number: 6-0106
      Special Order
    $96.95
  • B-38
    Edging – Part Number: 33-0433
    Edging
    Part Number: 33-0433
      No Longer Available
  • B-41
    Belt – Part Number: 11-0031
    Belt
    Part Number: 11-0031
      In Stock
    $25.95
  • B-42
    Sheave – Part Number: 10-0074
    Sheave
    Part Number: 10-0074
      In Stock
    $58.95
  • B-43
    Bushing – Part Number: 9-0005
    Bushing
    Part Number: 9-0005
      In Stock
    $20.95
  • B-44
    Bolt – Part Number: 27-0015
    Bolt
    Part Number: 27-0015
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • B-45
    Edging – Part Number: 33-0433
    Edging
    Part Number: 33-0433
      No Longer Available
  • B-46
    Belt Guard Cover – Part Number: 6-0107
    Belt Guard Cover
    Part Number: 6-0107
      Special Order
    $125.68
  • B-47
    Bolt – Part Number: 27-8898
    Bolt
    Part Number: 27-8898
      Special Order
    $5.95
  • B-49
    NOZZLE 00035 QC – Part Number: 18-0392
    NOZZLE 00035 QC
    Part Number: 18-0392
      In Stock
    $5.95
  • B-49
    NOZZLE 25035 QC – Part Number: 18-0395
    NOZZLE 25035 QC
    Part Number: 18-0395
      Special Order
    $6.00
  • B-49
    NOZZLE 40035 QC – Part Number: 18-0396
    NOZZLE 40035 QC
    Part Number: 18-0396
      In Stock
    $6.00
  • B-49
    NOZZLE 15035 QC – Part Number: 18-0393
    NOZZLE 15035 QC
    Part Number: 18-0393
      Special Order
    $5.95
  • B-50
    Grommet – Part Number: 33-0001
    Grommet
    Part Number: 33-0001
      In Stock
    $5.95
  • B-51
    Mi-T-M Logo – Part Number: 62-0086
    Mi-T-M Logo
    Part Number: 62-0086
      No Longer Available
  • B-52
    Decal-Die Cut 4000 – Part Number: 34-1400
    Decal-Die Cut 4000
    Part Number: 34-1400
      No Longer Available
  • B-53
    Decal - Stripe – Part Number: 34-0502
    Decal - Stripe
    Part Number: 34-0502
      No Longer Available
  • B-54
    Decal-Nozzles – Part Number: 34-0500
    Decal-Nozzles
    Part Number: 34-0500
      No Longer Available
  • B-55
    Bushing – Part Number: 9-0017
    Bushing
    Part Number: 9-0017
      In Stock
    $20.95
  • B-56
    Sheave-Pump – Part Number: 10-0035
    Sheave-Pump
    Part Number: 10-0035
      Special Order
    $94.95
  • B-57
    Gun & Wand Assy – Part Number: 851-0095
    Gun & Wand Assy
    Part Number: 851-0095
      Special Order
    $183.30
  • B-58
    Quick Connect Plug – Part Number: 17-0005
    Quick Connect Plug
    Part Number: 17-0005
      Special Order
    $16.95
  • B-59
    Gun Assembly Complete – Part Number: 16-0001
    Gun Assembly Complete
    Part Number: 16-0001
      No Longer Available
  • B-60
    Handle Grip – Part Number: 7-0002
    Handle Grip
    Part Number: 7-0002
      Special Order
    $5.95
  • B-61
    Wand – Part Number: 16-0418
    Wand
    Part Number: 16-0418
      Special Order
    $57.95
  • B-63
    Quick Connect Socket – Part Number: 17-0001
    Quick Connect Socket
    Part Number: 17-0001
      In Stock
    $15.95
  • B-64
    O-ring – Part Number: 25-0122
    O-ring
    Part Number: 25-0122
      Special Order
    Minimum Quantity of 2 required
    $5.95
  • B-65
    Pressure Hose Assy – Part Number: 851-0338
    Pressure Hose Assy
    Part Number: 851-0338
      Special Order
    $375.95
  • B-66
    Quick Connect Plug – Part Number: 17-0006
    Quick Connect Plug
    Part Number: 17-0006
      In Stock
    $23.95
  • B-67
    Pressure Hose – Part Number: 15-0209
    Pressure Hose
    Part Number: 15-0209
      Special Order
    $265.97
  • B-800
    Safety Decal Kit – Part Number: 34-9017
    Safety Decal Kit
    Part Number: 34-9017
      No Longer Available

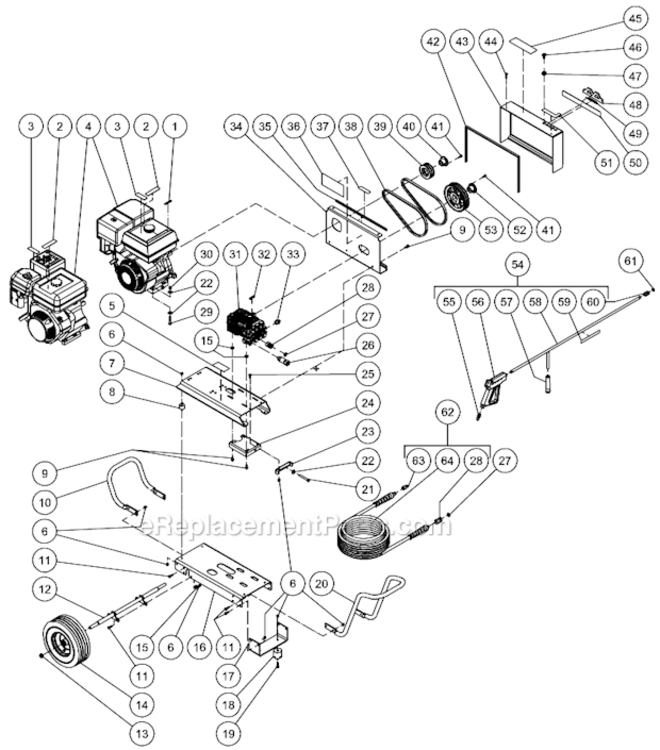

Frame Assembly After S/N 10239171
Frame Assembly After S/N 10239171 Diagram and Parts List for Mi-T-M Pressure Washer
  • C-1
    Key – Part Number: 43-0078
    Key
    Part Number: 43-0078
      Special Order
    $9.95
  • C-4
    Engine-13.5 H.P. Subaru – Part Number: 1-0156
    Engine-13.5 H.P. Subaru
    Part Number: 1-0156
      No Longer Available
  • C-4
    Engine-13 H.P. Honda – Part Number: 1-0086
    Engine-13 H.P. Honda
    Part Number: 1-0086
      Special Order
    $2199.55
  • C-6
    Hex Nylon Locknut – Part Number: 30-0157
    Hex Nylon Locknut
    Part Number: 30-0157
      In Stock
    $5.95
  • C-7
    Isolation Plate – Part Number: 5-0223
    Isolation Plate
    Part Number: 5-0223
      Special Order
    $178.55
  • C-8
    ISOLATOR – Part Number: 14-0177
    ISOLATOR
    Part Number: 14-0177
      In Stock
    $8.20
  • C-9
    Bolt – Part Number: 27-9524
    Bolt
    Part Number: 27-9524
      Special Order
    Minimum Quantity of 2 required
    $5.95
  • C-10
    Rear Handle – Part Number: 7-0183
    Rear Handle
    Part Number: 7-0183
      Special Order
    $108.85
  • C-11
    Bolt – Part Number: 27-0067
    Bolt
    Part Number: 27-0067
      Special Order
    $5.95
  • C-12
    Axle – Part Number: 20-0864
    Axle
    Part Number: 20-0864
      No Longer Available
  • C-13
    Jam Nut – Part Number: 30-0117
    Jam Nut
    Part Number: 30-0117
      In Stock
    $5.95
  • C-14
    Wheel – Part Number: 14-0127
    Wheel
    Part Number: 14-0127
      No Longer Available
  • C-15
    Flatwasher – Part Number: 28-0022
    Flatwasher
    Part Number: 28-0022
      Special Order
    $5.95
  • C-16
    Baseplate – Part Number: 5-0222
    Baseplate
    Part Number: 5-0222
      Special Order
    $150.87
  • C-17
    Support Bracket – Part Number: 56-0054
    Support Bracket
    Part Number: 56-0054
      In Stock
    $37.95
  • C-18
    Solator – Part Number: 14-0008
    Solator
    Part Number: 14-0008
      In Stock
    $6.00
  • C-19
    Bolt – Part Number: 27-0068
    Bolt
    Part Number: 27-0068
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • C-20
    Front Handle – Part Number: 7-018201
    Front Handle
    Part Number: 7-018201
      No Longer Available
  • C-21
    Bolt – Part Number: 27-0576
    Bolt
    Part Number: 27-0576
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • C-22
    Washer – Part Number: 28-0023
    Washer
    Part Number: 28-0023
      Special Order
    Minimum Quantity of 2 required
    $5.95
  • C-23
    Tension Bracket – Part Number: 21-0218
    Tension Bracket
    Part Number: 21-0218
      Special Order
    $22.95
  • C-24
    Tension Bracket – Part Number: 21-0220
    Tension Bracket
    Part Number: 21-0220
      Special Order
    $70.95
  • C-25
    Bolt – Part Number: 27-0066
    Bolt
    Part Number: 27-0066
      Special Order
    $5.95
  • C-26
    Inline Strainer Complete – Part Number: 19-0206
    Inline Strainer Complete
    Part Number: 19-0206
    ★★★★★
    ★★★★★
    (1)
      In Stock
    $60.95
  • C-27
    O-ring – Part Number: 25-0123
    O-ring
    Part Number: 25-0123
      Special Order
    Minimum Quantity of 2 required
    $5.95
  • C-28
    Quick Connect Socket – Part Number: 17-0004
    Quick Connect Socket
    Part Number: 17-0004
      In Stock
    $18.95
  • C-29
    Bolt – Part Number: 27-0121
    Bolt
    Part Number: 27-0121
      Special Order
    $5.95
  • C-30
    Hex Nylon Locknut – Part Number: 30-0159
    Hex Nylon Locknut
    Part Number: 30-0159
      Special Order
    $5.95
  • C-31
    Pump – Part Number: 3-0230
    Pump
    Part Number: 3-0230
      Special Order
    $1120.43
  • C-32
    Key – Part Number: 43-0091
    Key
    Part Number: 43-0091
      In Stock
    $9.95
  • C-33
    Thermal Relief Valve – Part Number: 22-0005
    Thermal Relief Valve
    Part Number: 22-0005
    ★★★★★
    ★★★★★
    (1)
      In Stock
    $19.95
  • C-34
    Belt Guard Back – Part Number: 6-0106
    Belt Guard Back
    Part Number: 6-0106
      Special Order
    $96.95
  • C-35
    Edging – Part Number: 33-0433
    Edging
    Part Number: 33-0433
      No Longer Available
  • C-38
    Belt – Part Number: 11-0031
    Belt
    Part Number: 11-0031
      In Stock
    $25.95
  • C-39
    Sheave – Part Number: 10-0074
    Sheave
    Part Number: 10-0074
      In Stock
    $58.95
  • C-40
    Bushing – Part Number: 9-0005
    Bushing
    Part Number: 9-0005
      In Stock
    $20.95
  • C-41
    Bolt – Part Number: 27-0015
    Bolt
    Part Number: 27-0015
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • C-42
    Edging – Part Number: 33-0433
    Edging
    Part Number: 33-0433
      No Longer Available
  • C-43
    Belt Guard Cover – Part Number: 6-0107
    Belt Guard Cover
    Part Number: 6-0107
      Special Order
    $125.68
  • C-44
    Bolt – Part Number: 27-8898
    Bolt
    Part Number: 27-8898
      Special Order
    $5.95
  • C-46
    NOZZLE 00035 QC – Part Number: 18-0392
    NOZZLE 00035 QC
    Part Number: 18-0392
      In Stock
    $5.95
  • C-46
    NOZZLE 25035 QC – Part Number: 18-0395
    NOZZLE 25035 QC
    Part Number: 18-0395
      Special Order
    $6.00
  • C-46
    NOZZLE 15035 QC – Part Number: 18-0393
    NOZZLE 15035 QC
    Part Number: 18-0393
      Special Order
    $5.95
  • C-46
    NOZZLE 40035 QC – Part Number: 18-0396
    NOZZLE 40035 QC
    Part Number: 18-0396
      In Stock
    $6.00
  • C-47
    Grommet – Part Number: 33-0001
    Grommet
    Part Number: 33-0001
      In Stock
    $5.95
  • C-48
    Mi-T-M Logo – Part Number: 62-0086
    Mi-T-M Logo
    Part Number: 62-0086
      No Longer Available
  • C-49
    Decal-Die Cut 4000 – Part Number: 34-1400
    Decal-Die Cut 4000
    Part Number: 34-1400
      No Longer Available
  • C-50
    Decal - Stripe – Part Number: 34-0502
    Decal - Stripe
    Part Number: 34-0502
      No Longer Available
  • C-51
    Decal-Nozzles – Part Number: 34-0500
    Decal-Nozzles
    Part Number: 34-0500
      No Longer Available
  • C-52
    Bushing – Part Number: 9-0017
    Bushing
    Part Number: 9-0017
      In Stock
    $20.95
  • C-53
    Sheave-Pump – Part Number: 10-0035
    Sheave-Pump
    Part Number: 10-0035
      Special Order
    $94.95
  • C-54
    Gun Assembly – Part Number: 851-0371
    Gun Assembly
    Part Number: 851-0371
      Special Order
    $189.00
  • C-55
    Quick Connect Plug – Part Number: 17-0005
    Quick Connect Plug
    Part Number: 17-0005
      Special Order
    $16.95
  • C-56
    Gun Assembly Complete – Part Number: 16-0001
    Gun Assembly Complete
    Part Number: 16-0001
      No Longer Available
  • C-57
    Handle Grip – Part Number: 7-0002
    Handle Grip
    Part Number: 7-0002
      Special Order
    $5.95
  • C-58
    Wand – Part Number: 16-0439
    Wand
    Part Number: 16-0439
      Special Order
    $62.95
  • C-60
    Quick Connect Socket – Part Number: 17-0001
    Quick Connect Socket
    Part Number: 17-0001
      In Stock
    $15.95
  • C-61
    O-ring – Part Number: 25-0122
    O-ring
    Part Number: 25-0122
      Special Order
    Minimum Quantity of 2 required
    $5.95
  • C-62
    Pressure Hose Assy – Part Number: 851-0338
    Pressure Hose Assy
    Part Number: 851-0338
      Special Order
    $375.95
  • C-63
    Quick Connect Plug – Part Number: 17-0006
    Quick Connect Plug
    Part Number: 17-0006
      In Stock
    $23.95
  • C-64
    Pressure Hose – Part Number: 15-0209
    Pressure Hose
    Part Number: 15-0209
      Special Order
    $265.97
  • C-800
    Safety Decal Kit – Part Number: 34-9017
    Safety Decal Kit
    Part Number: 34-9017
      No Longer Available
Frame Assembly After S/N 10455300
Frame Assembly After S/N 10455300 Diagram and Parts List for Mi-T-M Pressure Washer
  • D-1
    Key – Part Number: 43-0078
    Key
    Part Number: 43-0078
      Special Order
    $9.95
  • D-4
    Engine-13.5 H.P. Subaru – Part Number: 1-0156
    Engine-13.5 H.P. Subaru
    Part Number: 1-0156
      No Longer Available
  • D-4
    Engine-13 H.P. Honda – Part Number: 1-0086
    Engine-13 H.P. Honda
    Part Number: 1-0086
      Special Order
    $2199.55
  • D-6
    Hex Nylon Locknut – Part Number: 30-0157
    Hex Nylon Locknut
    Part Number: 30-0157
      In Stock
    $5.95
  • D-7
    Isolation Plate – Part Number: 5-0223
    Isolation Plate
    Part Number: 5-0223
      Special Order
    $178.55
  • D-8
    ISOLATOR – Part Number: 14-0177
    ISOLATOR
    Part Number: 14-0177
      In Stock
    $8.20
  • D-9
    Bolt – Part Number: 27-9524
    Bolt
    Part Number: 27-9524
      Special Order
    Minimum Quantity of 2 required
    $5.95
  • D-10
    Rear Handle – Part Number: 7-0183
    Rear Handle
    Part Number: 7-0183
      Special Order
    $108.85
  • D-11
    Bolt – Part Number: 27-0067
    Bolt
    Part Number: 27-0067
      Special Order
    $5.95
  • D-12
    Axle – Part Number: 20-0864
    Axle
    Part Number: 20-0864
      No Longer Available
  • D-13
    Jam Nut – Part Number: 30-0117
    Jam Nut
    Part Number: 30-0117
      In Stock
    $5.95
  • D-14
    Wheel – Part Number: 14-0127
    Wheel
    Part Number: 14-0127
      No Longer Available
  • D-15
    Flatwasher – Part Number: 28-0022
    Flatwasher
    Part Number: 28-0022
      Special Order
    $5.95
  • D-16
    Baseplate – Part Number: 5-0222
    Baseplate
    Part Number: 5-0222
      Special Order
    $150.87
  • D-17
    Support Bracket – Part Number: 56-0054
    Support Bracket
    Part Number: 56-0054
      In Stock
    $37.95
  • D-18
    Solator – Part Number: 14-0008
    Solator
    Part Number: 14-0008
      In Stock
    $6.00
  • D-19
    Bolt – Part Number: 27-0068
    Bolt
    Part Number: 27-0068
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • D-20
    Front Handle – Part Number: 7-018201
    Front Handle
    Part Number: 7-018201
      No Longer Available
  • D-21
    Bolt – Part Number: 27-0576
    Bolt
    Part Number: 27-0576
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • D-22
    Washer – Part Number: 28-0023
    Washer
    Part Number: 28-0023
      Special Order
    Minimum Quantity of 2 required
    $5.95
  • D-23
    Tension Bracket – Part Number: 21-0218
    Tension Bracket
    Part Number: 21-0218
      Special Order
    $22.95
  • D-24
    Tension Bracket – Part Number: 21-0220
    Tension Bracket
    Part Number: 21-0220
      Special Order
    $70.95
  • D-25
    Bolt – Part Number: 27-0066
    Bolt
    Part Number: 27-0066
      Special Order
    $5.95
  • D-26
    Inline Strainer Complete – Part Number: 19-0206
    Inline Strainer Complete
    Part Number: 19-0206
    ★★★★★
    ★★★★★
    (1)
      In Stock
    $60.95
  • D-27
    O-ring – Part Number: 25-0123
    O-ring
    Part Number: 25-0123
      Special Order
    Minimum Quantity of 2 required
    $5.95
  • D-28
    Quick Connect Socket – Part Number: 17-0004
    Quick Connect Socket
    Part Number: 17-0004
      In Stock
    $18.95
  • D-29
    Bolt – Part Number: 27-0121
    Bolt
    Part Number: 27-0121
      Special Order
    $5.95
  • D-30
    Hex Nylon Locknut – Part Number: 30-0159
    Hex Nylon Locknut
    Part Number: 30-0159
      Special Order
    $5.95
  • D-31
    Pump – Part Number: 3-0268
    Pump
    Part Number: 3-0268
      Special Order
    $950.29
  • D-32
    Key – Part Number: 43-0091
    Key
    Part Number: 43-0091
      In Stock
    $9.95
  • D-33
    Plug – Part Number: 23-0244
    Plug
    Part Number: 23-0244
      Special Order
    $9.95
  • D-34
    Thermal Relief Valve – Part Number: 22-0005
    Thermal Relief Valve
    Part Number: 22-0005
    ★★★★★
    ★★★★★
    (1)
      In Stock
    $19.95
  • D-35
    Belt Guard Back – Part Number: 6-0106
    Belt Guard Back
    Part Number: 6-0106
      Special Order
    $96.95
  • D-36
    Edging – Part Number: 33-0433
    Edging
    Part Number: 33-0433
      No Longer Available
  • D-39
    Belt – Part Number: 11-0031
    Belt
    Part Number: 11-0031
      In Stock
    $25.95
  • D-40
    Sheave – Part Number: 10-0074
    Sheave
    Part Number: 10-0074
      In Stock
    $58.95
  • D-41
    Bushing – Part Number: 9-0005
    Bushing
    Part Number: 9-0005
      In Stock
    $20.95
  • D-42
    Bolt – Part Number: 27-0015
    Bolt
    Part Number: 27-0015
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • D-43
    Edging – Part Number: 33-0433
    Edging
    Part Number: 33-0433
      No Longer Available
  • D-44
    Belt Guard Cover – Part Number: 6-0107
    Belt Guard Cover
    Part Number: 6-0107
      Special Order
    $125.68
  • D-45
    Bolt – Part Number: 27-8898
    Bolt
    Part Number: 27-8898
      Special Order
    $5.95
  • D-47
    NOZZLE 00035 QC – Part Number: 18-0392
    NOZZLE 00035 QC
    Part Number: 18-0392
      In Stock
    $5.95
  • D-47
    NOZZLE 25035 QC – Part Number: 18-0395
    NOZZLE 25035 QC
    Part Number: 18-0395
      Special Order
    $6.00
  • D-47
    NOZZLE 15035 QC – Part Number: 18-0393
    NOZZLE 15035 QC
    Part Number: 18-0393
      Special Order
    $5.95
  • D-47
    NOZZLE 40035 QC – Part Number: 18-0396
    NOZZLE 40035 QC
    Part Number: 18-0396
      In Stock
    $6.00
  • D-48
    Grommet – Part Number: 33-0001
    Grommet
    Part Number: 33-0001
      In Stock
    $5.95
  • D-49
    Decal - Mi-t-m – Part Number: 34-2169
    Decal - Mi-t-m
    Part Number: 34-2169
      In Stock
    $5.95
  • D-50
    Decal - Die Cut – Part Number: 34-2902
    Decal - Die Cut
    Part Number: 34-2902
      Special Order
    $5.95
  • D-51
    Decal - 17" Stripe – Part Number: 34-2187
    Decal - 17" Stripe
    Part Number: 34-2187
      In Stock
    $10.95
  • D-52
    Decal-Nozzles – Part Number: 34-0500
    Decal-Nozzles
    Part Number: 34-0500
      No Longer Available
  • D-53
    Bushing – Part Number: 9-0017
    Bushing
    Part Number: 9-0017
      In Stock
    $20.95
  • D-54
    Sheave-Pump – Part Number: 10-0035
    Sheave-Pump
    Part Number: 10-0035
      Special Order
    $94.95
  • D-55
    Gun Assembly – Part Number: 851-0371
    Gun Assembly
    Part Number: 851-0371
      Special Order
    $189.00
  • D-56
    Quick Connect Plug – Part Number: 17-0005
    Quick Connect Plug
    Part Number: 17-0005
      Special Order
    $16.95
  • D-57
    Gun Assembly Complete – Part Number: 16-0001
    Gun Assembly Complete
    Part Number: 16-0001
      No Longer Available
  • D-58
    Handle Grip – Part Number: 7-0002
    Handle Grip
    Part Number: 7-0002
      Special Order
    $5.95
  • D-59
    Wand – Part Number: 16-0439
    Wand
    Part Number: 16-0439
      Special Order
    $62.95
  • D-61
    Quick Connect Socket – Part Number: 17-0001
    Quick Connect Socket
    Part Number: 17-0001
      In Stock
    $15.95
  • D-62
    O-ring – Part Number: 25-0122
    O-ring
    Part Number: 25-0122
      Special Order
    Minimum Quantity of 2 required
    $5.95
  • D-63
    Pressure Hose Assy – Part Number: 851-0338
    Pressure Hose Assy
    Part Number: 851-0338
      Special Order
    $375.95
  • D-64
    Quick Connect Plug – Part Number: 17-0006
    Quick Connect Plug
    Part Number: 17-0006
      In Stock
    $23.95
  • D-65
    Pressure Hose – Part Number: 15-0209
    Pressure Hose
    Part Number: 15-0209
      Special Order
    $265.97
  • D-800
    Safety Decal Kit – Part Number: 34-9017
    Safety Decal Kit
    Part Number: 34-9017
      No Longer Available
Frame Assembly Before S/N 10202373
Frame Assembly Before S/N 10202373 Diagram and Parts List for Mi-T-M Pressure Washer
  • A-1
    Key – Part Number: 43-0078
    Key
    Part Number: 43-0078
      Special Order
    $9.95
  • A-4
    Engine-13 H.P. Honda – Part Number: 1-0086
    Engine-13 H.P. Honda
    Part Number: 1-0086
      Special Order
    $2199.55
  • A-6
    Hex Nylon Locknut – Part Number: 30-0157
    Hex Nylon Locknut
    Part Number: 30-0157
      In Stock
    $5.95
  • A-7
    Isolation Plate – Part Number: 5-0223
    Isolation Plate
    Part Number: 5-0223
      Special Order
    $178.55
  • A-8
    ISOLATOR – Part Number: 14-0177
    ISOLATOR
    Part Number: 14-0177
      In Stock
    $8.20
  • A-9
    Flatwasher – Part Number: 28-0022
    Flatwasher
    Part Number: 28-0022
      Special Order
    $5.95
  • A-10
    Bolt – Part Number: 27-9524
    Bolt
    Part Number: 27-9524
      Special Order
    Minimum Quantity of 2 required
    $5.95
  • A-11
    Rear Handle – Part Number: 7-0183
    Rear Handle
    Part Number: 7-0183
      Special Order
    $108.85
  • A-12
    Bolt – Part Number: 27-0067
    Bolt
    Part Number: 27-0067
      Special Order
    $5.95
  • A-13
    Bushing – Part Number: 62-0175
    Bushing
    Part Number: 62-0175
      In Stock
    $5.95
  • A-14
    Axle – Part Number: 20-0819
    Axle
    Part Number: 20-0819
      Special Order
    $24.95
  • A-15
    Spacer – Part Number: 62-0189
    Spacer
    Part Number: 62-0189
      In Stock
    $5.95
  • A-16
    Washer – Part Number: 28-0008
    Washer
    Part Number: 28-0008
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • A-17
    Wheel – Part Number: 14-0127
    Wheel
    Part Number: 14-0127
      No Longer Available
  • A-18
    Lock Collar/Shaft – Part Number: 33-0351
    Lock Collar/Shaft
    Part Number: 33-0351
      Special Order
    $5.95
  • A-19
    Baseplate – Part Number: 5-0222
    Baseplate
    Part Number: 5-0222
      Special Order
    $150.87
  • A-20
    Support Bracket – Part Number: 56-0054
    Support Bracket
    Part Number: 56-0054
      In Stock
    $37.95
  • A-21
    Solator – Part Number: 14-0008
    Solator
    Part Number: 14-0008
      In Stock
    $6.00
  • A-22
    Bolt – Part Number: 27-0068
    Bolt
    Part Number: 27-0068
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • A-23
    Front Handle – Part Number: 7-018201
    Front Handle
    Part Number: 7-018201
      No Longer Available
  • A-24
    Bolt – Part Number: 27-0576
    Bolt
    Part Number: 27-0576
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • A-25
    Washer – Part Number: 28-0023
    Washer
    Part Number: 28-0023
      Special Order
    Minimum Quantity of 2 required
    $5.95
  • A-26
    Tension Bracket – Part Number: 21-0218
    Tension Bracket
    Part Number: 21-0218
      Special Order
    $22.95
  • A-27
    Bolt – Part Number: 27-0066
    Bolt
    Part Number: 27-0066
      Special Order
    $5.95
  • A-28
    Inline Strainer Complete – Part Number: 19-0206
    Inline Strainer Complete
    Part Number: 19-0206
    ★★★★★
    ★★★★★
    (1)
      In Stock
    $60.95
  • A-29
    O-ring – Part Number: 25-0123
    O-ring
    Part Number: 25-0123
      Special Order
    Minimum Quantity of 2 required
    $5.95
  • A-30
    Quick Connect Socket – Part Number: 17-0004
    Quick Connect Socket
    Part Number: 17-0004
      In Stock
    $18.95
  • A-31
    Thermal Relief Valve – Part Number: 22-0005
    Thermal Relief Valve
    Part Number: 22-0005
    ★★★★★
    ★★★★★
    (1)
      In Stock
    $19.95
  • A-32
    Key – Part Number: 43-0091
    Key
    Part Number: 43-0091
      In Stock
    $9.95
  • A-33
    Pump – Part Number: 3-0230
    Pump
    Part Number: 3-0230
      Special Order
    $1120.43
  • A-34
    Bolt – Part Number: 27-0121
    Bolt
    Part Number: 27-0121
      Special Order
    $5.95
  • A-35
    Hex Nylon Locknut – Part Number: 30-0159
    Hex Nylon Locknut
    Part Number: 30-0159
      Special Order
    $5.95
  • A-36
    Belt Guard Back – Part Number: 6-0106
    Belt Guard Back
    Part Number: 6-0106
      Special Order
    $96.95
  • A-37
    Edging – Part Number: 33-0433
    Edging
    Part Number: 33-0433
      No Longer Available
  • A-40
    Belt – Part Number: 11-0031
    Belt
    Part Number: 11-0031
      In Stock
    $25.95
  • A-41
    Sheave – Part Number: 10-0074
    Sheave
    Part Number: 10-0074
      In Stock
    $58.95
  • A-42
    Bushing – Part Number: 9-0005
    Bushing
    Part Number: 9-0005
      In Stock
    $20.95
  • A-43
    Bolt – Part Number: 27-0015
    Bolt
    Part Number: 27-0015
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • A-44
    Edging – Part Number: 33-0433
    Edging
    Part Number: 33-0433
      No Longer Available
  • A-45
    Belt Guard Cover – Part Number: 6-0107
    Belt Guard Cover
    Part Number: 6-0107
      Special Order
    $125.68
  • A-46
    Bolt – Part Number: 27-8898
    Bolt
    Part Number: 27-8898
      Special Order
    $5.95
  • A-48
    NOZZLE 00035 QC – Part Number: 18-0392
    NOZZLE 00035 QC
    Part Number: 18-0392
      In Stock
    $5.95
  • A-48
    NOZZLE 25035 QC – Part Number: 18-0395
    NOZZLE 25035 QC
    Part Number: 18-0395
      Special Order
    $6.00
  • A-48
    NOZZLE 40035 QC – Part Number: 18-0396
    NOZZLE 40035 QC
    Part Number: 18-0396
      In Stock
    $6.00
  • A-48
    NOZZLE 15035 QC – Part Number: 18-0393
    NOZZLE 15035 QC
    Part Number: 18-0393
      Special Order
    $5.95
  • A-49
    Grommet – Part Number: 33-0001
    Grommet
    Part Number: 33-0001
      In Stock
    $5.95
  • A-50
    Mi-T-M Logo – Part Number: 62-0086
    Mi-T-M Logo
    Part Number: 62-0086
      No Longer Available
  • A-51
    Decal-Die Cut 4000 – Part Number: 34-1400
    Decal-Die Cut 4000
    Part Number: 34-1400
      No Longer Available
  • A-52
    Decal - Stripe – Part Number: 34-0502
    Decal - Stripe
    Part Number: 34-0502
      No Longer Available
  • A-53
    Decal-Nozzles – Part Number: 34-0500
    Decal-Nozzles
    Part Number: 34-0500
      No Longer Available
  • A-54
    Bushing – Part Number: 9-0017
    Bushing
    Part Number: 9-0017
      In Stock
    $20.95
  • A-55
    Sheave-Pump – Part Number: 10-0035
    Sheave-Pump
    Part Number: 10-0035
      Special Order
    $94.95
  • A-56
    Gun & Wand Assy – Part Number: 851-0095
    Gun & Wand Assy
    Part Number: 851-0095
      Special Order
    $183.30
  • A-57
    Quick Connect Plug – Part Number: 17-0005
    Quick Connect Plug
    Part Number: 17-0005
      Special Order
    $16.95
  • A-58
    Gun Assembly Complete – Part Number: 16-0001
    Gun Assembly Complete
    Part Number: 16-0001
      No Longer Available
  • A-59
    Handle Grip – Part Number: 7-0002
    Handle Grip
    Part Number: 7-0002
      Special Order
    $5.95
  • A-60
    Wand – Part Number: 16-0418
    Wand
    Part Number: 16-0418
      Special Order
    $57.95
  • A-62
    Quick Connect Socket – Part Number: 17-0001
    Quick Connect Socket
    Part Number: 17-0001
      In Stock
    $15.95
  • A-63
    O-ring – Part Number: 25-0122
    O-ring
    Part Number: 25-0122
      Special Order
    Minimum Quantity of 2 required
    $5.95
  • A-64
    Pressure Hose Assy – Part Number: 851-0338
    Pressure Hose Assy
    Part Number: 851-0338
      Special Order
    $375.95
  • A-65
    Quick Connect Plug – Part Number: 17-0006
    Quick Connect Plug
    Part Number: 17-0006
      In Stock
    $23.95
  • A-66
    Pressure Hose – Part Number: 15-0209
    Pressure Hose
    Part Number: 15-0209
      Special Order
    $265.97
  • A-800
    Safety Decal Kit – Part Number: 34-9017
    Safety Decal Kit
    Part Number: 34-9017
      No Longer Available
Gun Assembly
Gun Assembly Diagram and Parts List for Mi-T-M Pressure Washer
Page G
Page G Diagram and Parts List for Mi-T-M Pressure Washer
  • G-1
    Bolt – Part Number: 27-8884
    Bolt
    Part Number: 27-8884
      In Stock
    $5.95
  • G-2
    Pump Shaft Cover – Part Number: 46-0691
    Pump Shaft Cover
    Part Number: 46-0691
      Special Order
    $76.95
  • G-3
    Oil Seal – Part Number: 26-0188
    Oil Seal
    Part Number: 26-0188
      Special Order
    $38.95
  • G-4
    O-Ring – Part Number: 25-0380
    O-Ring
    Part Number: 25-0380
      Special Order
    $10.95
  • G-5
    Bearing – Part Number: 48-0061
    Bearing
    Part Number: 48-0061
      Special Order
    $142.51
  • G-6
    Crankshaft – Part Number: 46-1103
    Crankshaft
    Part Number: 46-1103
      Special Order
    $356.21
  • G-7
    Key – Part Number: 43-0091
    Key
    Part Number: 43-0091
      In Stock
    $9.95
  • G-8
    Drain Plug – Part Number: 39-0102
    Drain Plug
    Part Number: 39-0102
      In Stock
    $10.95
  • G-9
    O-ring – Part Number: 25-0325
    O-ring
    Part Number: 25-0325
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • G-10
    Bolt – Part Number: 27-8885
    Bolt
    Part Number: 27-8885
      Special Order
    $5.95
  • G-11
    Crankcase Cover – Part Number: 46-0719
    Crankcase Cover
    Part Number: 46-0719
      Special Order
    $94.95
  • G-12
    O-Ring – Part Number: 25-0370
    O-Ring
    Part Number: 25-0370
      Special Order
    Minimum Quantity of 2 required
    $5.95
  • G-13
    Oilsight Glass – Part Number: 46-0670
    Oilsight Glass
    Part Number: 46-0670
      Special Order
    $6.95
  • G-14
    Reflector – Part Number: 46-0824
    Reflector
    Part Number: 46-0824
      Special Order
    $5.95
  • G-15
    Spring Retainer – Part Number: 46-0671
    Spring Retainer
    Part Number: 46-0671
      Special Order
    $5.95
  • G-16
    O-Ring – Part Number: 25-0398
    O-Ring
    Part Number: 25-0398
      Special Order
    $5.95
  • G-17
    Connecting Rod – Part Number: 46-0896
    Connecting Rod
    Part Number: 46-0896
      Special Order
    $44.95
  • G-18
    Piston Pin – Part Number: 46-0698
    Piston Pin
    Part Number: 46-0698
      Special Order
    $9.95
  • G-19
    Plunger Rod – Part Number: 46-0699
    Plunger Rod
    Part Number: 46-0699
      Special Order
    $122.71
  • G-20
    Washer – Part Number: 46-0700
    Washer
    Part Number: 46-0700
      Special Order
    $5.95
  • G-21
    Back-Up Ring – Part Number: 25-0404
    Back-Up Ring
    Part Number: 25-0404
      Special Order
    $5.95
  • G-22
    O-ring – Part Number: 25-0415
    O-ring
    Part Number: 25-0415
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • G-23
    Piston – Part Number: 46-0701
    Piston
    Part Number: 46-0701
      Special Order
    $152.83
  • G-24
    Washer – Part Number: 26-0191
    Washer
    Part Number: 26-0191
      Special Order
    $5.95
  • G-25
    Nut – Part Number: 30-6020
    Nut
    Part Number: 30-6020
      Special Order
    $10.95
  • G-26
    Oil Dipstick – Part Number: 39-0090
    Oil Dipstick
    Part Number: 39-0090
      Special Order
    $26.95
  • G-27
    Pump Crankcase – Part Number: 46-1198
    Pump Crankcase
    Part Number: 46-1198
      Special Order
    $273.49
  • G-28
    Bearing – Part Number: 46-0072
    Bearing
    Part Number: 46-0072
      Special Order
    $575.23
  • G-29
    Shim 0.2Mm – Part Number: 46-0705
    Shim 0.2Mm
    Part Number: 46-0705
      Special Order
    $5.95
  • G-30
    Shim 0.1Mm – Part Number: 46-0704
    Shim 0.1Mm
    Part Number: 46-0704
      Special Order
    $5.95
  • G-31
    Bearing Cap – Part Number: 46-0703
    Bearing Cap
    Part Number: 46-0703
      Special Order
    $81.95
  • G-32
    Valve Cap – Part Number: 39-0095
    Valve Cap
    Part Number: 39-0095
      On Order
    $25.95
  • G-33
    O-ring – Part Number: 25-0160
    O-ring
    Part Number: 25-0160
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • G-35
    O-Ring – Part Number: 25-0386
    O-Ring
    Part Number: 25-0386
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • G-36
    Unloader – Part Number: 8-0631
    Unloader
    Part Number: 8-0631
      On Order
    $127.66
  • G-37
    Lockwasher – Part Number: 29-0154
    Lockwasher
    Part Number: 29-0154
      Special Order
    Minimum Quantity of 2 required
    $5.95
  • G-38
    Screw – Part Number: 27-8440
    Screw
    Part Number: 27-8440
      Special Order
    $5.95
  • G-39
    Manifold – Part Number: 46-1186
    Manifold
    Part Number: 46-1186
      Special Order
    $613.77
  • G-42
    Packing Retainer – Part Number: 46-0708
    Packing Retainer
    Part Number: 46-0708
      Special Order
    $44.95
  • G-44
    O-Ring – Part Number: 25-0384
    O-Ring
    Part Number: 25-0384
      Special Order
    Minimum Quantity of 2 required
    $5.95
  • G-45
    Oil Seal – Part Number: 46-0931
    Oil Seal
    Part Number: 46-0931
      Special Order
    $43.95
  • G-800
    Valve Kit – Part Number: 70-0319
    Valve Kit
    Part Number: 70-0319
      Special Order
    $145.48
  • G-800
    Support Ring Kit – Part Number: 70-0178
    Support Ring Kit
    Part Number: 70-0178
      Special Order
    $36.95
  • G-800
    High Pressure Seal Kit – Part Number: 70-0177
    High Pressure Seal Kit
    Part Number: 70-0177
      Special Order
    $257.51
  • G-800
    Oil Seal Kit – Part Number: 70-0321
    Oil Seal Kit
    Part Number: 70-0321
      Special Order
    $152.83
  • G-800
    Piston Kit – Part Number: 70-0352
    Piston Kit
    Part Number: 70-0352
      Special Order
    $429.53
Pump Assembly
Pump Assembly Diagram and Parts List for Mi-T-M Pressure Washer
  • F-1
    Bolt – Part Number: 27-8884
    Bolt
    Part Number: 27-8884
      In Stock
    $5.95
  • F-2
    Pump Shaft Cover – Part Number: 46-0691
    Pump Shaft Cover
    Part Number: 46-0691
      Special Order
    $76.95
  • F-3
    Oil Seal – Part Number: 26-0188
    Oil Seal
    Part Number: 26-0188
      Special Order
    $38.95
  • F-4
    O-Ring – Part Number: 25-0380
    O-Ring
    Part Number: 25-0380
      Special Order
    $10.95
  • F-5
    Bearing – Part Number: 48-0072
    Bearing
    Part Number: 48-0072
      Special Order
    $107.86
  • F-6
    Key – Part Number: 43-0091
    Key
    Part Number: 43-0091
      In Stock
    $9.95
  • F-7
    Crankshaft – Part Number: 46-1103
    Crankshaft
    Part Number: 46-1103
      Special Order
    $356.21
  • F-8
    Drain Plug – Part Number: 39-0102
    Drain Plug
    Part Number: 39-0102
      In Stock
    $10.95
  • F-9
    O-ring – Part Number: 25-0325
    O-ring
    Part Number: 25-0325
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • F-10
    Drain Plug – Part Number: 39-0102
    Drain Plug
    Part Number: 39-0102
      In Stock
    $10.95
  • F-11
    Bolt – Part Number: 27-8885
    Bolt
    Part Number: 27-8885
      Special Order
    $5.95
  • F-12
    Crankcase Cover – Part Number: 46-0719
    Crankcase Cover
    Part Number: 46-0719
      Special Order
    $94.95
  • F-13
    O-Ring – Part Number: 25-0370
    O-Ring
    Part Number: 25-0370
      Special Order
    Minimum Quantity of 2 required
    $5.95
  • F-14
    Oilsight Glass – Part Number: 46-0670
    Oilsight Glass
    Part Number: 46-0670
      Special Order
    $6.95
  • F-15
    Reflector – Part Number: 46-0824
    Reflector
    Part Number: 46-0824
      Special Order
    $5.95
  • F-16
    Spring Retainer – Part Number: 46-0671
    Spring Retainer
    Part Number: 46-0671
      Special Order
    $5.95
  • F-17
    O-Ring – Part Number: 25-0398
    O-Ring
    Part Number: 25-0398
      Special Order
    $5.95
  • F-18
    Connecting Rod – Part Number: 46-0922
    Connecting Rod
    Part Number: 46-0922
      Special Order
    $133.60
  • F-19
    Piston Pin – Part Number: 46-0698
    Piston Pin
    Part Number: 46-0698
      Special Order
    $9.95
  • F-20
    Plunger Rod – Part Number: 46-0699
    Plunger Rod
    Part Number: 46-0699
      Special Order
    $122.71
  • F-21
    Washer – Part Number: 46-0700
    Washer
    Part Number: 46-0700
      Special Order
    $5.95
  • F-22
    Back-Up Ring – Part Number: 25-0404
    Back-Up Ring
    Part Number: 25-0404
      Special Order
    $5.95
  • F-23
    O-ring – Part Number: 25-0415
    O-ring
    Part Number: 25-0415
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • F-24
    Piston – Part Number: 46-0701
    Piston
    Part Number: 46-0701
      Special Order
    $152.83
  • F-25
    Washer – Part Number: 26-0191
    Washer
    Part Number: 26-0191
      Special Order
    $5.95
  • F-26
    Nut – Part Number: 30-6020
    Nut
    Part Number: 30-6020
      Special Order
    $10.95
  • F-27
    Oil Dipstick – Part Number: 39-0090
    Oil Dipstick
    Part Number: 39-0090
      Special Order
    $26.95
  • F-28
    Bearing Cap – Part Number: 46-0703
    Bearing Cap
    Part Number: 46-0703
      Special Order
    $81.95
  • F-29
    Shim 0.2Mm – Part Number: 46-0705
    Shim 0.2Mm
    Part Number: 46-0705
      Special Order
    $5.95
  • F-29
    Shim 0.1Mm – Part Number: 46-0704
    Shim 0.1Mm
    Part Number: 46-0704
      Special Order
    $5.95
  • F-30
    Crankcase – Part Number: 46-0811
    Crankcase
    Part Number: 46-0811
      Special Order
    $625.99
  • F-31
    Oil Seal – Part Number: 46-0931
    Oil Seal
    Part Number: 46-0931
      Special Order
    $43.95
  • F-32
    O-Ring – Part Number: 25-0384
    O-Ring
    Part Number: 25-0384
      Special Order
    Minimum Quantity of 2 required
    $5.95
  • F-34
    Packing Retainer – Part Number: 46-0708
    Packing Retainer
    Part Number: 46-0708
      Special Order
    $44.95
  • F-37
    O-ring – Part Number: 25-0372
    O-ring
    Part Number: 25-0372
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • F-38
    Plug – Part Number: 39-0103
    Plug
    Part Number: 39-0103
      Special Order
    $42.95
  • F-39
    Plug – Part Number: 39-0104
    Plug
    Part Number: 39-0104
      Special Order
    $18.95
  • F-40
    Manifold – Part Number: 46-0813
    Manifold
    Part Number: 46-0813
      Special Order
    $1022.67
  • F-41
    Valve Cap – Part Number: 39-0105
    Valve Cap
    Part Number: 39-0105
      Special Order
    $23.95
  • F-42
    O-ring – Part Number: 25-0160
    O-ring
    Part Number: 25-0160
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • F-44
    O-Ring – Part Number: 25-0386
    O-Ring
    Part Number: 25-0386
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • F-49
    Plug – Part Number: 39-0096
    Plug
    Part Number: 39-0096
      Special Order
    $12.95
  • F-50
    O-Ring – Part Number: 25-0387
    O-Ring
    Part Number: 25-0387
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • F-51
    Screw – Part Number: 27-8440
    Screw
    Part Number: 27-8440
      Special Order
    $5.95
  • F-52
    Lockwasher – Part Number: 29-0154
    Lockwasher
    Part Number: 29-0154
      Special Order
    Minimum Quantity of 2 required
    $5.95
  • F-53
    Unloader – Part Number: 8-0631
    Unloader
    Part Number: 8-0631
      On Order
    $127.66
  • F-800
    Oil Seal Kit – Part Number: 70-0321
    Oil Seal Kit
    Part Number: 70-0321
      Special Order
    $152.83
  • F-800
    Support Ring Kit – Part Number: 70-0178
    Support Ring Kit
    Part Number: 70-0178
      Special Order
    $36.95
  • F-800
    High Pressure Seal Kit – Part Number: 70-0177
    High Pressure Seal Kit
    Part Number: 70-0177
      Special Order
    $257.51
  • F-800
    Piston Kit – Part Number: 70-0352
    Piston Kit
    Part Number: 70-0352
      Special Order
    $429.53
  • F-800
    Valve Kit – Part Number: 70-0319
    Valve Kit
    Part Number: 70-0319
      Special Order
    $145.48
Unloader Assembly
Unloader Assembly Diagram and Parts List for Mi-T-M Pressure Washer
  • H-1
    Unloader Cap – Part Number: 7-0142
    Unloader Cap
    Part Number: 7-0142
      Special Order
    $5.95
  • H-2
    Screw – Part Number: 27-8433
    Screw
    Part Number: 27-8433
      Special Order
    $5.95
  • H-3
    Nut – Part Number: 8-0293
    Nut
    Part Number: 8-0293
      Special Order
    $5.95
  • H-4
    Unloader Knob – Part Number: 7-0141
    Unloader Knob
    Part Number: 7-0141
      Special Order
    $8.95
  • H-5
    Adjustment Barrel – Part Number: 8-0476
    Adjustment Barrel
    Part Number: 8-0476
      Special Order
    $159.69
  • H-6
    Unloader Pin – Part Number: 8-0478
    Unloader Pin
    Part Number: 8-0478
      Special Order
    $19.95
  • H-7
    Spring Guide – Part Number: 8-0523
    Spring Guide
    Part Number: 8-0523
      Special Order
    $41.95
  • H-8
    Upper Plate – Part Number: 8-0524
    Upper Plate
    Part Number: 8-0524
      Special Order
    $5.95
  • H-9
    Spring – Part Number: 49-0132
    Spring
    Part Number: 49-0132
      Special Order
    $14.95
  • H-10
    Lower Plate – Part Number: 8-0525
    Lower Plate
    Part Number: 8-0525
      No Longer Available
  • H-11
    Piston – Part Number: 8-0526
    Piston
    Part Number: 8-0526
      Special Order
    $83.95
  • H-12
    O-Ring – Part Number: 25-0526
    O-Ring
    Part Number: 25-0526
      Special Order
    $7.95
  • H-13
    Piston Guide – Part Number: 8-0527
    Piston Guide
    Part Number: 8-0527
      Special Order
    $49.95
  • H-14
    O-Ring – Part Number: 25-0510
    O-Ring
    Part Number: 25-0510
      Special Order
    $5.95
  • H-15
    O-RING - 12.42MM X 1.78MM – Part Number: 25-0655
    O-RING - 12.42MM X 1.78MM
    Part Number: 25-0655
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • H-16
    Unloader-By Pass Jet – Part Number: 8-0528
    Unloader-By Pass Jet
    Part Number: 8-0528
      Special Order
    $53.95
  • H-17
    Seat – Part Number: 8-0529
    Seat
    Part Number: 8-0529
      Special Order
    $49.95
  • H-18
    O-Ring – Part Number: 25-0527
    O-Ring
    Part Number: 25-0527
      Special Order
    $5.95
  • H-19
    Bolt – Part Number: 8-0531
    Bolt
    Part Number: 8-0531
      No Longer Available
  • H-20
    O-Ring – Part Number: 25-0388
    O-Ring
    Part Number: 25-0388
      In Stock
    $5.95
  • H-21
    Unloader Body – Part Number: 8-0530
    Unloader Body
    Part Number: 8-0530
      Special Order
    $124.69
  • H-22
    O-Ring – Part Number: 25-0437
    O-Ring
    Part Number: 25-0437
      In Stock
    $5.95
  • H-23
    Adapter Nipple – Part Number: 24-0159
    Adapter Nipple
    Part Number: 24-0159
      Special Order
    $65.95
  • H-24
    O-ring – Part Number: 25-0372
    O-ring
    Part Number: 25-0372
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • H-25
    Check Valve Spring – Part Number: 49-0123
    Check Valve Spring
    Part Number: 49-0123
      In Stock
    $7.95
  • H-26
    Check Valve – Part Number: 8-0454
    Check Valve
    Part Number: 8-0454
      Special Order
    $39.95
  • H-27
    O-Ring – Part Number: 25-0528
    O-Ring
    Part Number: 25-0528
      Special Order
    $5.95
  • H-28
    O-Ring – Part Number: 25-0519
    O-Ring
    Part Number: 25-0519
      Special Order
    $5.95
  • H-29
    Bypass Housing – Part Number: 8-0532
    Bypass Housing
    Part Number: 8-0532
      In Stock
    $98.95
  • H-30
    O-Ring – Part Number: 25-0389
    O-Ring
    Part Number: 25-0389
      No Longer Available
  • H-31
    Bolt – Part Number: 8-0517
    Bolt
    Part Number: 8-0517
      Special Order
    $28.95
  • H-800
    Unloader Repair Kit – Part Number: 70-0341
    Unloader Repair Kit
    Part Number: 70-0341
      Special Order
    $68.95

Questions & Answers

?

Our customer Service team is at the ready daily to answer your part and product questions.

Be the first to ask our experts a question about this part!

Ask our Team

We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.

✖

Our customer service team are at the ready daily to answer your part and product questions. We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
