Graco Hydra-Clean Pressure Washer Replacement Parts For Model 3040 (800-631)

We Sell Only Genuine Graco Parts

Search Within Model

Questions & Answers for Graco 3040
Browse all Parts Search by Area
Page A Diagram and Parts List for 800-631 Graco Pressure Washer
Page A
Page B Diagram and Parts List for 800-631 Graco Pressure Washer
Page B
Previous Showing All Parts Next
Page A

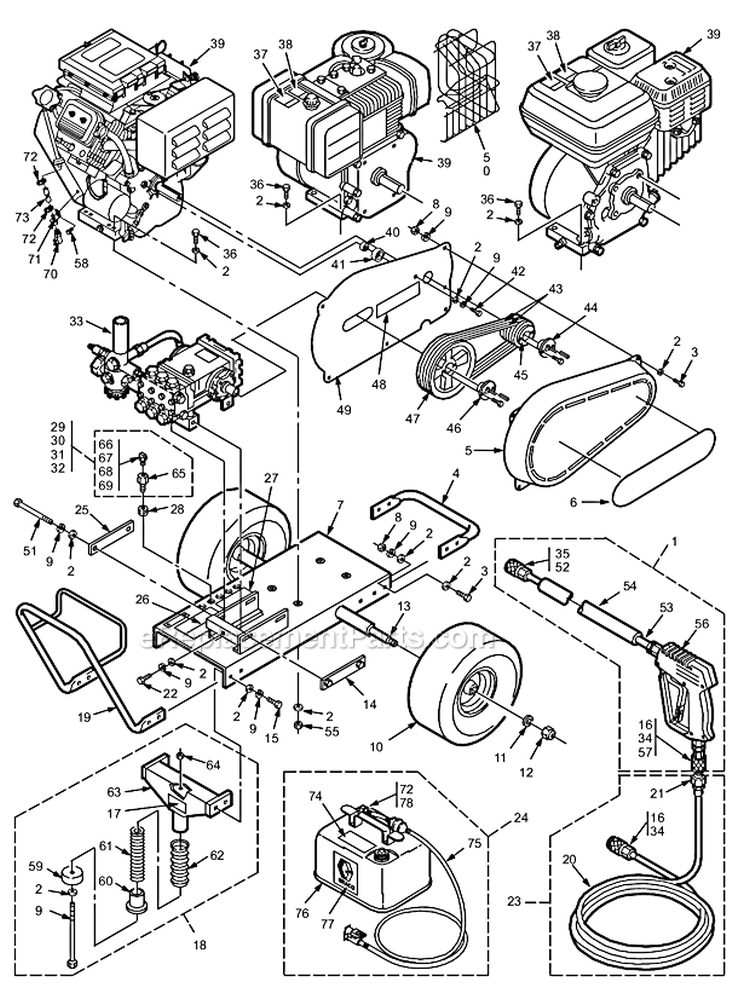

Page A Diagram and Parts List for 800-631 Graco Pressure Washer
Page B

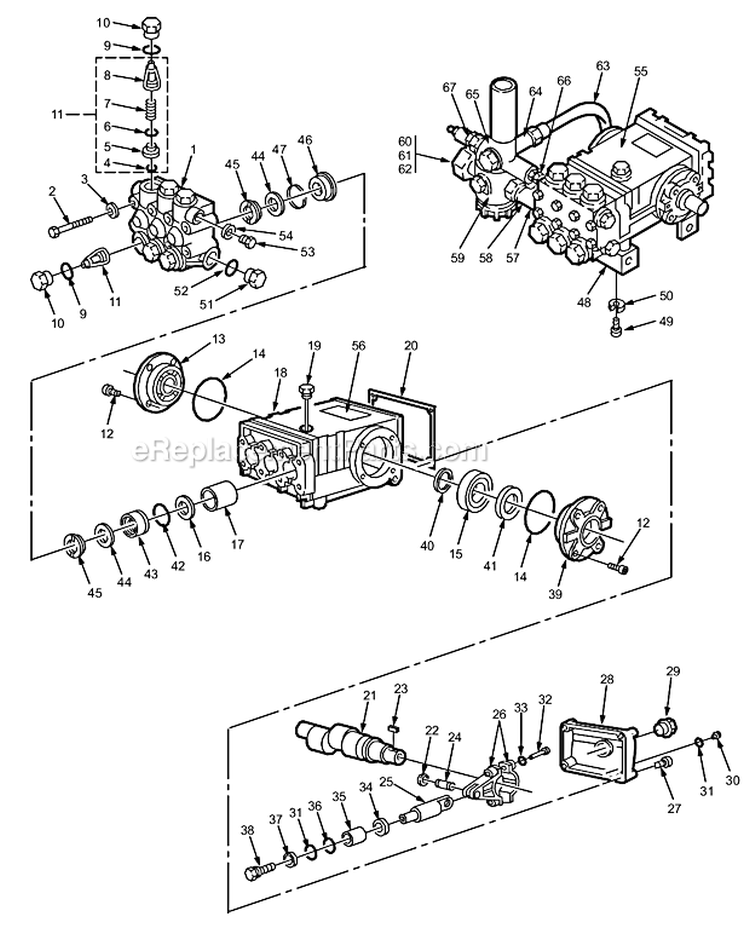

Page B Diagram and Parts List for 800-631 Graco Pressure Washer
  • B-1
    Manifold – Part Number: 801467
    Manifold
    Part Number: 801467
      No Longer Available
  • B-2
    Screw, Cap – Part Number: 801468
    Screw, Cap
    Part Number: 801468
      No Longer Available
  • B-3
    Washer, Lock – Part Number: 801469
    Washer, Lock
    Part Number: 801469
      No Longer Available
  • B-12
    Screw, Cap – Part Number: 803283
    Screw, Cap
    Part Number: 803283
      No Longer Available
  • B-13
    Cover, Crankcase – Part Number: 803284
    Cover, Crankcase
    Part Number: 803284
      No Longer Available
  • B-14
    O-Ring – Part Number: 802500
    O-Ring
    Part Number: 802500
      No Longer Available
  • B-15
    Bearing – Part Number: 803285
    Bearing
    Part Number: 803285
      No Longer Available
  • B-17
    Bushing – Part Number: 803286
    Bushing
    Part Number: 803286
      No Longer Available
  • B-18
    Crankcase – Part Number: 802895
    Crankcase
    Part Number: 802895
      No Longer Available
  • B-19
    Dipstick – Part Number: 801475
    Dipstick
    Part Number: 801475
      No Longer Available
  • B-20
    Gasket, Cover – Part Number: 803144
    Gasket, Cover
    Part Number: 803144
      No Longer Available
  • B-21
    Crankshaft – Part Number: 803332
    Crankshaft
    Part Number: 803332
      No Longer Available
  • B-22
    Retaining Ring – Part Number: 803288
    Retaining Ring
    Part Number: 803288
      No Longer Available
  • B-23
    Key – Part Number: 802794
    Key
    Part Number: 802794
      No Longer Available
  • B-24
    Pin – Part Number: 803289
    Pin
    Part Number: 803289
      No Longer Available
  • B-25
    Guide, Piston – Part Number: 803290
    Guide, Piston
    Part Number: 803290
      No Longer Available
  • B-26
    Rod, Connecting – Part Number: 803291
    Rod, Connecting
    Part Number: 803291
      No Longer Available
  • B-27
    Screw – Part Number: 803292
    Screw
    Part Number: 803292
      No Longer Available
  • B-28
    Cover, Crankcase – Part Number: 803293
    Cover, Crankcase
    Part Number: 803293
      No Longer Available
  • B-29
    Gauge – Part Number: 802345
    Gauge
    Part Number: 802345
      Special Order
    $34.62
  • B-30
    Plug – Part Number: 802793
    Plug
    Part Number: 802793
      No Longer Available
  • B-32
    Screw, Cap – Part Number: 803294
    Screw, Cap
    Part Number: 803294
      No Longer Available
  • B-33
    Washer, Lock – Part Number: 801652
    Washer, Lock
    Part Number: 801652
      No Longer Available
  • B-34
    Washer – Part Number: 801660
    Washer
    Part Number: 801660
      No Longer Available
  • B-35
    Plunger – Part Number: 801490
    Plunger
    Part Number: 801490
      Special Order
    $219.50
  • B-39
    Cover, Crankcase – Part Number: 803295
    Cover, Crankcase
    Part Number: 803295
      No Longer Available
  • B-40
    Shim – Part Number: 803296
    Shim
    Part Number: 803296
      No Longer Available
  • B-48
    Bracket, Pump – Part Number: 801526
    Bracket, Pump
    Part Number: 801526
      Special Order
    $63.63
  • B-49
    Screw, Cap – Part Number: 802305
    Screw, Cap
    Part Number: 802305
      No Longer Available
  • B-50
    Washer, Lock – Part Number: 802304
    Washer, Lock
    Part Number: 802304
      No Longer Available
  • B-51
    Plug, Hex – Part Number: 801482
    Plug, Hex
    Part Number: 801482
      No Longer Available
  • B-52
    Washer, Flat – Part Number: 801483
    Washer, Flat
    Part Number: 801483
      No Longer Available
  • B-53
    Plug, Hex – Part Number: 801484
    Plug, Hex
    Part Number: 801484
      No Longer Available
  • B-54
    Washer, Flat – Part Number: 801485
    Washer, Flat
    Part Number: 801485
      No Longer Available
  • B-55
    Pump – Part Number: 803737
    Pump
    Part Number: 803737
      No Longer Available
  • B-56
    Label – Part Number: 803083
    Label
    Part Number: 803083
      No Longer Available
  • B-57
    Nipple – Part Number: 802085
    Nipple
    Part Number: 802085
      No Longer Available
  • B-58
    Tee – Part Number: 801106
    Tee
    Part Number: 801106
      No Longer Available
  • B-59
    Filter – Part Number: 800113
    Filter
    Part Number: 800113
      No Longer Available
  • B-60
    Nut – Part Number: 801111
    Nut
    Part Number: 801111
      Special Order
    $65.76
  • B-61
    Adapter – Part Number: 801110
    Adapter
    Part Number: 801110
      No Longer Available
  • B-62
    Strainer – Part Number: 801112
    Strainer
    Part Number: 801112
      Special Order
    $6.16
  • B-63
    Warning Label, Belt Guard – Part Number: 801141
    Warning Label, Belt Guard
    Part Number: 801141
      No Longer Available
  • B-64
    Nipple – Part Number: 803142
    Nipple
    Part Number: 803142
      No Longer Available
  • B-65
    Uploader – Part Number: 800324
    Uploader
    Part Number: 800324
      Special Order
    $339.94
  • B-66
    Nipple 3/8" – Part Number: 156849
    Nipple 3/8"
    Part Number: 156849
      Special Order
    $24.12
  • B-67
    Coupler Male 3/8 – Part Number: 801568
    Coupler Male 3/8
    Part Number: 801568
      Special Order
    $49.28
  • B-800
    Valve Cap Kit – Part Number: 802306
    Valve Cap Kit
    Part Number: 802306
      Special Order
    $116.96
  • B-800
    Plunger Reapir Kit – Part Number: 801474
    Plunger Reapir Kit
    Part Number: 801474
      Special Order
    $99.81
  • B-800
    Packing Kit – Part Number: 127492
    Packing Kit
    Part Number: 127492
      Special Order
    $279.06
  • B-800
    Crankshaft Seal Kit – Part Number: 802511
    Crankshaft Seal Kit
    Part Number: 802511
      Special Order
    $58.18
  • B-800
    Packing and Retainer Kit – Part Number: 801487
    Packing and Retainer Kit
    Part Number: 801487
      Special Order
    $143.54
  • B-800
    Valve Kit – Part Number: 801472
    Valve Kit
    Part Number: 801472
      On Order
    $174.64
  • B-800
    Oil Seal Kit – Part Number: 801473
    Oil Seal Kit
    Part Number: 801473
      Special Order
    $93.31
