Craftsman Sears Broadcast Sprayer Pressure Washer Replacement Parts For Model 471462550

We Sell Only Genuine Craftsman Parts

Popular Parts for 471462550

CABLE, THROTTLE, 42 – Part Number: 5101073SM CABLE, THROTTLE, 42
Special Order
$44.09

Search Within Model

Questions & Answers for Craftsman 471462550
Browse all Parts Search by Area
Bypass Valve 5143066 Diagram and Parts List for Craftsman Pressure Washer
Bypass Valve 5143066
Replacement Parts Diagram and Parts List for Craftsman Pressure Washer
Replacement Parts
Sears Broadcast Sprayer Diagram and Parts List for Craftsman Pressure Washer
Sears Broadcast Sprayer
Previous Showing All Parts Next

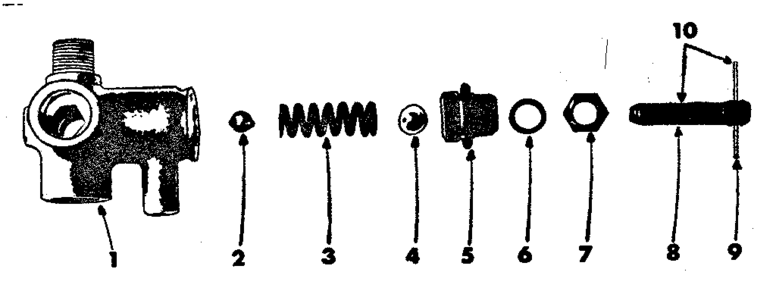

Bypass Valve 5143066
Bypass Valve 5143066 Diagram and Parts List for Craftsman Pressure Washer
  • Manual – Part Number: 5004135
    Manual
    Part Number: 5004135
      No Longer Available
  • Spar prt kit – Part Number: 5168187
    Spar prt kit
    Part Number: 5168187
      No Longer Available
  • 2
    Ball – Part Number: 5026014
    Ball
    Part Number: 5026014
      No Longer Available
  • 3
    Spring – Part Number: 5019067
    Spring
    Part Number: 5019067
      No Longer Available
  • 4
    Spring disc – Part Number: 5042003
    Spring disc
    Part Number: 5042003
      No Longer Available
  • 5
    Body cap – Part Number: 5046063
    Body cap
    Part Number: 5046063
      No Longer Available
  • 6
    Gasket – Part Number: 5072122
    Gasket
    Part Number: 5072122
      No Longer Available
  • 7
    Lock nut – Part Number: 5006121
    Lock nut
    Part Number: 5006121
      No Longer Available
  • 8
    Stem – Part Number: 5132031
    Stem
    Part Number: 5132031
      No Longer Available
  • 9
    CABLE, THROTTLE, 42 – Part Number: 5101073SM
    CABLE, THROTTLE, 42
    Part Number: 5101073SM
      Special Order
    $44.09
  • 10
    Stem assembly – Part Number: 5132032
    Stem assembly
    Part Number: 5132032
      No Longer Available

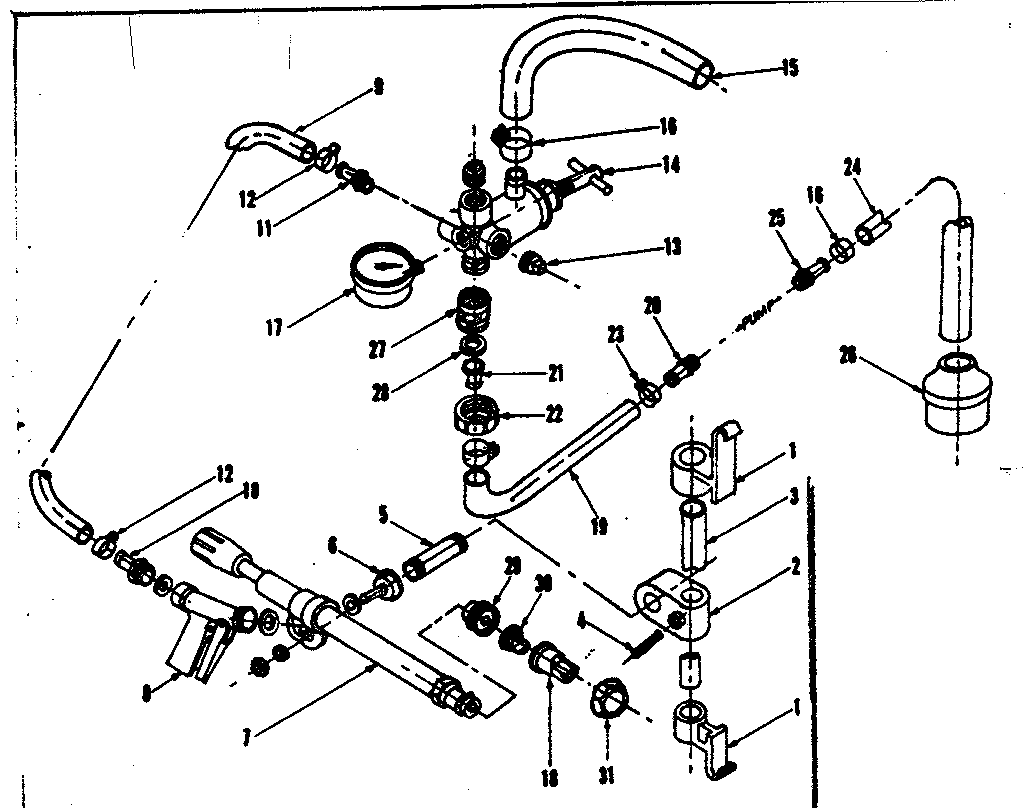

Replacement Parts
Replacement Parts Diagram and Parts List for Craftsman Pressure Washer
  • Spar prt kit – Part Number: 5168187
    Spar prt kit
    Part Number: 5168187
      No Longer Available
  • Manual – Part Number: 5004135
    Manual
    Part Number: 5004135
      No Longer Available
  • 1
    Brl hok cstg – Part Number: 5082008
    Brl hok cstg
    Part Number: 5082008
      No Longer Available
  • 2
    Ctr adj cstg – Part Number: 5125001
    Ctr adj cstg
    Part Number: 5125001
      No Longer Available
  • 3
    Upright pipe – Part Number: 5011076
    Upright pipe
    Part Number: 5011076
      No Longer Available
  • 4
    Set screw, 2-pack – Part Number: 5117105
    Set screw, 2-pack
    Part Number: 5117105
      No Longer Available
  • 5
    Sliding arm – Part Number: 5011059
    Sliding arm
    Part Number: 5011059
      No Longer Available
  • 6
    Mount gun – Part Number: 5271527
    Mount gun
    Part Number: 5271527
      No Longer Available
  • 7
    Hand gun – Part Number: 5163014
    Hand gun
    Part Number: 5163014
      No Longer Available
  • 8
    Trigger valve – Part Number: 5005076
    Trigger valve
    Part Number: 5005076
      No Longer Available
  • 9
    Hose – Part Number: 5020135
    Hose
    Part Number: 5020135
      No Longer Available
  • 10
    Barb – Part Number: 5067025
    Barb
    Part Number: 5067025
      No Longer Available
  • 11
    Barb hose – Part Number: 5010021
    Barb hose
    Part Number: 5010021
      No Longer Available
  • 12
    Hose clamp – Part Number: 5051011
    Hose clamp
    Part Number: 5051011
      No Longer Available
  • 13
    Pipe plug – Part Number: 5102023
    Pipe plug
    Part Number: 5102023
      No Longer Available
  • 14
    Valve relief – Part Number: 5143066
    Valve relief
    Part Number: 5143066
      No Longer Available
  • 15
    Hose – Part Number: 5020117
    Hose
    Part Number: 5020117
      No Longer Available
  • 16
    Clmp/fuel ln – Part Number: 5051015
    Clmp/fuel ln
    Part Number: 5051015
      No Longer Available
  • 17
    Gauge – Part Number: 5167005
    Gauge
    Part Number: 5167005
      No Longer Available
  • 18
    Tip nozzle – Part Number: 5138267
    Tip nozzle
    Part Number: 5138267
      No Longer Available
  • 19
    Hose – Part Number: 5020112
    Hose
    Part Number: 5020112
      No Longer Available
  • 20
    Barb hose – Part Number: 5067012
    Barb hose
    Part Number: 5067012
      No Longer Available
  • 21
    Barb hose – Part Number: 5149011
    Barb hose
    Part Number: 5149011
      No Longer Available
  • 22
    Swivel nut – Part Number: 5006055
    Swivel nut
    Part Number: 5006055
      No Longer Available
  • 23
    Clmp/fuel ln – Part Number: 5051015
    Clmp/fuel ln
    Part Number: 5051015
      No Longer Available
  • 24
    Hose – Part Number: 5020103
    Hose
    Part Number: 5020103
      No Longer Available
  • 25
    Barb Hose – Part Number: 5010020
    Barb Hose
    Part Number: 5010020
      No Longer Available
  • 26
    Screen – Part Number: 5116110
    Screen
    Part Number: 5116110
      No Longer Available
  • 27
    Fitting – Part Number: 5005023
    Fitting
    Part Number: 5005023
      No Longer Available
  • 28
    Hose Washer – Part Number: 5016066
    Hose Washer
    Part Number: 5016066
      No Longer Available
  • 29
    Tip adapter – Part Number: 5005066
    Tip adapter
    Part Number: 5005066
      No Longer Available
  • 30
    Selector plug – Part Number: 5102018
    Selector plug
    Part Number: 5102018
      No Longer Available
  • 31
    Cap – Part Number: 5046032
    Cap
    Part Number: 5046032
      No Longer Available

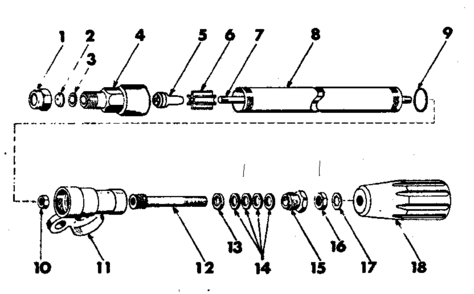

Sears Broadcast Sprayer
Sears Broadcast Sprayer Diagram and Parts List for Craftsman Pressure Washer
