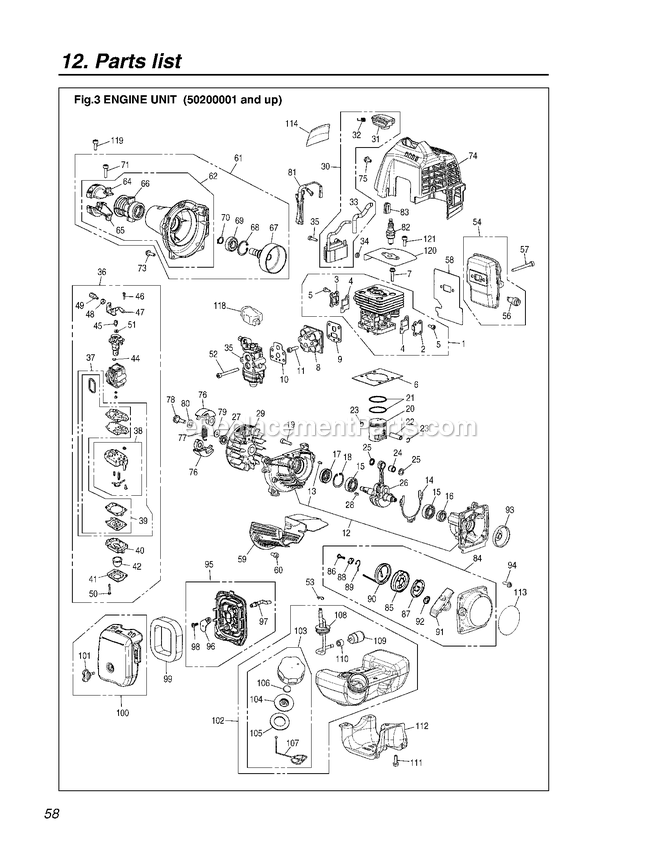

Engine Diagram and Parts List for 50200101 - 60600100 RedMax Pole Saw
Engine
Previous Showing All Parts Next
Cutting Equipment
Cutting Equipment Diagram and Parts List for 50200101 - 60600100 RedMax Pole Saw
  • 1
    Cylinder Comp. – Part Number: 506653801
    Cylinder Comp.
    Part Number: 506653801
      Special Order
    $78.35
  • 1
    Pipe – Part Number: 528868901
    Pipe
    Part Number: 528868901
      Special Order
    $68.50
  • 2
    Shaft – Part Number: 514344201
    Shaft
    Part Number: 514344201
      On Order
    $51.62
  • 2
    Cover – Part Number: 5113492-01
    Cover
    Part Number: 5113492-01
      No Longer Available
  • 3
    Cover – Part Number: 5113493-01
    Cover
    Part Number: 5113493-01
      No Longer Available
  • 3
    Grip – Part Number: 514394301
    Grip
    Part Number: 514394301
      No Longer Available
  • 4
    Lever Assy – Part Number: 5109478-01
    Lever Assy
    Part Number: 5109478-01
      No Longer Available
  • 4
    Gasket.Tr – Part Number: 5113494-01
    Gasket.Tr
    Part Number: 5113494-01
      No Longer Available
  • 5
    Bolt – Part Number: 5153880-01
    Bolt
    Part Number: 5153880-01
      No Longer Available
  • 5
    Lever Assy – Part Number: 5109472-01
    Lever Assy
    Part Number: 5109472-01
      No Longer Available
  • 6
    GASKET, BASE – Part Number: 521751901
    GASKET, BASE
    Part Number: 521751901
      Special Order
    $5.95
  • 6
    Stay – Part Number: 5214190-01
    Stay
    Part Number: 5214190-01
      No Longer Available
  • 7
    Bolt – Part Number: 506745201
    Bolt
    Part Number: 506745201
      In Stock
    Minimum Quantity of 2 required
    $5.96
  • 8
    Lever – Part Number: 5218033-01
    Lever
    Part Number: 5218033-01
      No Longer Available
  • 8
    Insulator – Part Number: 5113496-01
    Insulator
    Part Number: 5113496-01
      No Longer Available
  • 9
    Screw – Part Number: 5214193-01
    Screw
    Part Number: 5214193-01
      No Longer Available
  • 9
    Gasket.Insu – Part Number: 5113498-01
    Gasket.Insu
    Part Number: 5113498-01
      No Longer Available
  • 10
    Nut – Part Number: 5214194-01
    Nut
    Part Number: 5214194-01
      No Longer Available
  • 10
    Gasket – Part Number: 5113501-01
    Gasket
    Part Number: 5113501-01
      No Longer Available
  • 11
    Shaft – Part Number: 5214195-01
    Shaft
    Part Number: 5214195-01
      No Longer Available
  • 11
    Bolt Torx M5xl20 T27 – Part Number: 506689001
    Bolt Torx M5xl20 T27
    Part Number: 506689001
      Special Order
    $5.96
  • 12
    CRANKCASE-C – Part Number: 512325801
    CRANKCASE-C
    Part Number: 512325801
      Special Order
    $170.95
  • 12
    Spring – Part Number: 5214196-01
    Spring
    Part Number: 5214196-01
      No Longer Available
  • 13
    Spring – Part Number: 5214197-01
    Spring
    Part Number: 5214197-01
      No Longer Available
  • 13
    Pin – Part Number: 505296101
    Pin
    Part Number: 505296101
      Special Order
    $5.95
  • 14
    Button – Part Number: 5218059-01
    Button
    Part Number: 5218059-01
      No Longer Available
  • 14
    Gasket – Part Number: 5123260-01
    Gasket
    Part Number: 5123260-01
      No Longer Available
  • 15
    Bearing – Part Number: 5105710-01
    Bearing
    Part Number: 5105710-01
      No Longer Available
  • 15
    E Ring – Part Number: 5214199-01
    E Ring
    Part Number: 5214199-01
      No Longer Available
  • 16
    Sealing – Part Number: 504121501
    Sealing
    Part Number: 504121501
      In Stock
    $11.92
  • 16
    Cord – Part Number: 5218034-01
    Cord
    Part Number: 5218034-01
      No Longer Available
  • 17
    Seal – Part Number: 506612901
    Seal
    Part Number: 506612901
      Special Order
    $5.95
  • 17
    Cord – Part Number: 5218035-01
    Cord
    Part Number: 5218035-01
      No Longer Available
  • 18
    TUBE – Part Number: 512497101
    TUBE
    Part Number: 512497101
      Special Order
    $5.99
  • 18
    Ring – Part Number: 5105508-01
    Ring
    Part Number: 5105508-01
      No Longer Available
  • 19
    CABLE-C – Part Number: 512498601
    CABLE-C
    Part Number: 512498601
      Special Order
    $22.40
  • 19
    Bolt Torx M5xl20 T27 – Part Number: 506689001
    Bolt Torx M5xl20 T27
    Part Number: 506689001
      Special Order
    $5.96
  • 20
    Hanger-Comp – Part Number: 521822101
    Hanger-Comp
    Part Number: 521822101
      No Longer Available
  • 20
    Piston – Part Number: 5113506-01
    Piston
    Part Number: 5113506-01
      No Longer Available
  • 21
    Ring – Part Number: 5109176-01
    Ring
    Part Number: 5109176-01
      No Longer Available
  • 21
    Hanger – Part Number: 5125726-01
    Hanger
    Part Number: 5125726-01
      No Longer Available
  • 22
    Pin – Part Number: 505040701
    Pin
    Part Number: 505040701
      Special Order
    $8.96
  • 22
    Clamp – Part Number: 5125729-01
    Clamp
    Part Number: 5125729-01
      No Longer Available
  • 23
    Ring – Part Number: 505045201
    Ring
    Part Number: 505045201
      Special Order
    $5.95
  • 23
    Screw – Part Number: 521515301
    Screw
    Part Number: 521515301
      Special Order
    $5.95
  • 24
    BEARING – Part Number: 521753401
    BEARING
    Part Number: 521753401
      No Longer Available
  • 25
    GRIP – Part Number: 515633801
    GRIP
    Part Number: 515633801
      Special Order
    $74.73
  • 25
    Washer – Part Number: 505041001
    Washer
    Part Number: 505041001
      Special Order
    $5.95
  • 26
    SPRING – Part Number: 515540501
    SPRING
    Part Number: 515540501
      Special Order
    $17.92
  • 26
    CRANKSHAFT-C – Part Number: 528058401
    CRANKSHAFT-C
    Part Number: 528058401
      Special Order
    $248.11
  • 27
    STRAP ASSEMBLY – Part Number: 521651101
    STRAP ASSEMBLY
    Part Number: 521651101
      Special Order
    $22.52
  • 27
    Nut – Part Number: 504118001
    Nut
    Part Number: 504118001
      In Stock
    $5.95
  • 28
    Key – Part Number: 506689401
    Key
    Part Number: 506689401
      In Stock
    $5.95
  • 28
    Tool-set – Part Number: 521532201
    Tool-set
    Part Number: 521532201
      No Longer Available
  • 29
    Rotor – Part Number: 515384501
    Rotor
    Part Number: 515384501
      Special Order
    $38.05
  • 29
    Driver – Part Number: 506689501
    Driver
    Part Number: 506689501
      Special Order
    $7.46
  • 30
    Socket – Part Number: 506686101
    Socket
    Part Number: 506686101
      Special Order
    $8.96
  • 30
    Coil-a – Part Number: 511351101
    Coil-a
    Part Number: 511351101
      No Longer Available
  • 31
    Wrench – Part Number: 5106298-01
    Wrench
    Part Number: 5106298-01
      No Longer Available
  • 31
    Hub Cap – Part Number: 5153851-01
    Hub Cap
    Part Number: 5153851-01
      No Longer Available
  • 32
    Spanner – Part Number: 506615001
    Spanner
    Part Number: 506615001
      Special Order
    $7.46
  • 32
    Spring – Part Number: 5113513-01
    Spring
    Part Number: 5113513-01
      No Longer Available
  • 33
    Goggle – Part Number: 510989401
    Goggle
    Part Number: 510989401
      No Longer Available
  • 33
    Tube – Part Number: 5109347-01
    Tube
    Part Number: 5109347-01
      No Longer Available
  • 34
    Spacer – Part Number: 504118601
    Spacer
    Part Number: 504118601
      Special Order
    $5.95
  • 35
    Bolt – Part Number: 506745701
    Bolt
    Part Number: 506745701
      Special Order
    $5.95
  • 36
    Carburetor-A – Part Number: 5113515-01
    Carburetor-A
    Part Number: 5113515-01
      No Longer Available
  • 37
    Rebuild Kit – Part Number: 528070101
    Rebuild Kit
    Part Number: 528070101
      Special Order
    $84.38
  • 38
    Body – Part Number: 5134184-01
    Body
    Part Number: 5134184-01
      No Longer Available
  • 39
    Gasket Kit – Part Number: 506615501
    Gasket Kit
    Part Number: 506615501
      Special Order
    $68.50
  • 40
    BODY, PURGE – Part Number: 516543801
    BODY, PURGE
    Part Number: 516543801
      Special Order
    $11.92
  • 41
    Cover – Part Number: 506741001
    Cover
    Part Number: 506741001
      Special Order
    $7.46
  • 42
    Pump – Part Number: 505306701
    Pump
    Part Number: 505306701
    ★★★★★
    ★★★★★
    (1)
      In Stock
    $11.92
  • 44
    Ring – Part Number: 506738601
    Ring
    Part Number: 506738601
      Special Order
    Minimum Quantity of 2 required
    $5.95
  • 45
    Swivel – Part Number: 506741201
    Swivel
    Part Number: 506741201
      Special Order
    $5.96
  • 46
    Screw – Part Number: 505307901
    Screw
    Part Number: 505307901
      Special Order
    $5.95
  • 47
    Bracket – Part Number: 521359901
    Bracket
    Part Number: 521359901
      Special Order
    $7.46
  • 48
    Nut – Part Number: 510487401
    Nut
    Part Number: 510487401
      Special Order
    $5.95
  • 49
    Screw – Part Number: 521756001
    Screw
    Part Number: 521756001
      In Stock
    $5.96
  • 50
    Screw – Part Number: 506741101
    Screw
    Part Number: 506741101
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 51
    Washer – Part Number: 506746101
    Washer
    Part Number: 506746101
      Special Order
    Minimum Quantity of 2 required
    $5.95
  • 52
    Bolt Torx M5xl50 T27 – Part Number: 504116501
    Bolt Torx M5xl50 T27
    Part Number: 504116501
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 53
    Clip – Part Number: 506741501
    Clip
    Part Number: 506741501
      In Stock
    $5.95
  • 54
    MUFFLER – Part Number: 521613501
    MUFFLER
    Part Number: 521613501
      Special Order
    $11.96
  • 56
    Arrester – Part Number: 506615601
    Arrester
    Part Number: 506615601
      Special Order
    $8.96
  • 57
    Bolt Torx M5xl50 T27 – Part Number: 504116501
    Bolt Torx M5xl50 T27
    Part Number: 504116501
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 58
    GASKET, MUFFLER – Part Number: 511350401
    GASKET, MUFFLER
    Part Number: 511350401
      Special Order
    $5.95
  • 59
    Plate – Part Number: 5113412-01
    Plate
    Part Number: 5113412-01
      No Longer Available
  • 60
    Screw – Part Number: 504119601
    Screw
    Part Number: 504119601
      Special Order
    $5.78
  • 61
    HOUSING ASSEMBLY (RPLS T155131 – Part Number: 528053101
    HOUSING ASSEMBLY (RPLS T155131
    Part Number: 528053101
      Special Order
    $202.99
  • 62
    Housing – Part Number: 5123262-01
    Housing
    Part Number: 5123262-01
      No Longer Available
  • 64
    Bracket(A) – Part Number: 5123603-01
    Bracket(A)
    Part Number: 5123603-01
      No Longer Available
  • 65
    Bracket(B) – Part Number: 5123604-01
    Bracket(B)
    Part Number: 5123604-01
      No Longer Available
  • 66
    Cushion – Part Number: 512360501
    Cushion
    Part Number: 512360501
      In Stock
    $5.95
  • 67
    Drum – Part Number: 5113606-01
    Drum
    Part Number: 5113606-01
      No Longer Available
  • 68
    Ring – Part Number: 5105508-01
    Ring
    Part Number: 5105508-01
      No Longer Available
  • 69
    Bearing – Part Number: 5123638-01
    Bearing
    Part Number: 5123638-01
      No Longer Available
  • 70
    Ring – Part Number: 516124101
    Ring
    Part Number: 516124101
      Special Order
    Minimum Quantity of 2 required
    $5.95
  • 71
    Bolt Torx M5xl20 T27 – Part Number: 506689001
    Bolt Torx M5xl20 T27
    Part Number: 506689001
      Special Order
    $5.96
  • 73
    Bolt – Part Number: 515391301
    Bolt
    Part Number: 515391301
      Special Order
    $5.95
  • 74
    COVER, ENGINE – Part Number: 511350501
    COVER, ENGINE
    Part Number: 511350501
      Special Order
    $19.40
  • 75
    Bolt – Part Number: 5109035-01
    Bolt
    Part Number: 5109035-01
      No Longer Available
  • 76
    Shoe – Part Number: 5123284-01
    Shoe
    Part Number: 5123284-01
      No Longer Available
  • 77
    Spring – Part Number: 515389301
    Spring
    Part Number: 515389301
      Special Order
    $5.96
  • 78
    Bolt – Part Number: 513189601
    Bolt
    Part Number: 513189601
      Special Order
    $5.95
  • 79
    Washer – Part Number: 505054401
    Washer
    Part Number: 505054401
      Special Order
    $5.95
  • 80
    Washer – Part Number: 513189501
    Washer
    Part Number: 513189501
      Special Order
    $5.95
  • 81
    Cord-Comp – Part Number: 512328601
    Cord-Comp
    Part Number: 512328601
      Special Order
    $14.92
  • 82
    Spark Plug – Part Number: 514530801
    Spark Plug
    Part Number: 514530801
      No Longer Available
  • 83
    Gromet – Part Number: 506615901
    Gromet
    Part Number: 506615901
      Special Order
    $5.95
  • 84
    Recoil Assembly – Part Number: 512328801
    Recoil Assembly
    Part Number: 512328801
      In Stock
    $62.27
  • 85
    Rope – Part Number: 504114901
    Rope
    Part Number: 504114901
      In Stock
    $10.46
  • 86
    Screw – Part Number: 515367101
    Screw
    Part Number: 515367101
      Special Order
    $5.95
  • 87
    Spring.spiral – Part Number: 504114701
    Spring.spiral
    Part Number: 504114701
      Special Order
    $17.92
  • 88
    Collar – Part Number: 504114601
    Collar
    Part Number: 504114601
      Special Order
    $5.96
  • 89
    Collar – Part Number: 504114601
    Collar
    Part Number: 504114601
      Special Order
    $5.96
  • 90
    Arm – Part Number: 504114801
    Arm
    Part Number: 504114801
      Special Order
    $7.46
  • 91
    Knob – Part Number: 506614701
    Knob
    Part Number: 506614701
      On Order
    $8.96
  • 92
    Plate.Stopper – Part Number: 515385601
    Plate.Stopper
    Part Number: 515385601
      Special Order
    $5.95
  • 93
    Pulley – Part Number: 504114401
    Pulley
    Part Number: 504114401
      Special Order
    $14.60
  • 94
    Bolt Torx – Part Number: 506745601
    Bolt Torx
    Part Number: 506745601
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 95
    BODY Assembly – Part Number: 521605001
    BODY Assembly
    Part Number: 521605001
      Special Order
    $31.24
  • 96
    Plate – Part Number: 506684301
    Plate
    Part Number: 506684301
      Special Order
    $5.95
  • 97
    Lever Choke – Part Number: 521760501
    Lever Choke
    Part Number: 521760501
      Special Order
    $5.96
  • 98
    Screw – Part Number: 506673801
    Screw
    Part Number: 506673801
      Special Order
    Minimum Quantity of 2 required
    $5.95
  • 99
    Element – Part Number: 512329601
    Element
    Part Number: 512329601
      Special Order
    $8.96
  • 100
    Cover – Part Number: 5216177-01
    Cover
    Part Number: 5216177-01
      No Longer Available
  • 101
    Knob – Part Number: 506673901
    Knob
    Part Number: 506673901
      Special Order
    $5.95
  • 102
    TANK ASSEMBLY EVP – Part Number: 581493301
    TANK ASSEMBLY EVP
    Part Number: 581493301
      On Order
    $47.55
  • 103
    Cap Assembly – Part Number: 505309601
    Cap Assembly
    Part Number: 505309601
      In Stock
    $17.92
  • 104
    Holder Assembly – Part Number: 506615401
    Holder Assembly
    Part Number: 506615401
      No Longer Available
  • 105
    Packing – Part Number: 506744301
    Packing
    Part Number: 506744301
      Special Order
    Minimum Quantity of 2 required
    $5.95
  • 106
    Filter – Part Number: 506746801
    Filter
    Part Number: 506746801
      In Stock
    $8.10
  • 107
    Stopper – Part Number: 506745801
    Stopper
    Part Number: 506745801
      Special Order
    $5.95
  • 108
    FUEL HOSE ASSY – Part Number: 597967201
    FUEL HOSE ASSY
    Part Number: 597967201
      In Stock
    $14.92
  • 109
    Chainsaw Fuel Filter – Part Number: 591375401
    Chainsaw Fuel Filter
    Part Number: 591375401
    ★★★★★
    ★★★★★
    (14)
      In Stock
    $13.42
  • 110
    Collar – Part Number: 5137256-01
    Collar
    Part Number: 5137256-01
      No Longer Available
  • 111
    Bolt – Part Number: 515391301
    Bolt
    Part Number: 515391301
      Special Order
    $5.95
  • 112
    Guard, Tank – Part Number: 512326501
    Guard, Tank
    Part Number: 512326501
      No Longer Available
  • 113
    Label – Part Number: 5217540-01
    Label
    Part Number: 5217540-01
      No Longer Available
  • 114
    Label.Cover – Part Number: 512326401
    Label.Cover
    Part Number: 512326401
      No Longer Available
  • 118
    Cover – Part Number: 506744201
    Cover
    Part Number: 506744201
      In Stock
    $7.46
  • 119
    Screw – Part Number: 504119601
    Screw
    Part Number: 504119601
      Special Order
    $5.78
  • 120
    Plate – Part Number: 511349501
    Plate
    Part Number: 511349501
      No Longer Available
  • 121
    Screw – Part Number: 504119601
    Screw
    Part Number: 504119601
      Special Order
    $5.78
  • A1
    Case L-comp – Part Number: 521536801
    Case L-comp
    Part Number: 521536801
      No Longer Available
  • A2
    Bearing – Part Number: 506610101
    Bearing
    Part Number: 506610101
      Special Order
    $10.46
  • A3
    Gearcase Comp – Part Number: 521808901
    Gearcase Comp
    Part Number: 521808901
      No Longer Available
  • A4
    Bearing – Part Number: 516130401
    Bearing
    Part Number: 516130401
      No Longer Available
  • A5
    Bolt, M5 X 12 – Part Number: 516070401
    Bolt, M5 X 12
    Part Number: 516070401
      No Longer Available
  • A6
    Fitting – Part Number: 505171501
    Fitting
    Part Number: 505171501
      In Stock
    $7.46
  • A7
    Screw – Part Number: 521809101
    Screw
    Part Number: 521809101
      No Longer Available
  • A8
    NUT – Part Number: 521809201
    NUT
    Part Number: 521809201
      Special Order
    $7.64
  • A9
    Bolt – Part Number: 5226554-01
    Bolt
    Part Number: 5226554-01
      No Longer Available
  • A10
    Shim – Part Number: 521809001
    Shim
    Part Number: 521809001
      No Longer Available
  • A11
    Bolt – Part Number: 514157601
    Bolt
    Part Number: 514157601
      No Longer Available
  • A12
    Cover, Chain – Part Number: 521809701
    Cover, Chain
    Part Number: 521809701
      No Longer Available
  • A13
    Nut – Part Number: 521809801
    Nut
    Part Number: 521809801
      No Longer Available
  • A14
    GEAR, WORM – Part Number: 521810201
    GEAR, WORM
    Part Number: 521810201
      Special Order
    $6.09
  • A15
    Pump Assembly, Oil – Part Number: 521810101
    Pump Assembly, Oil
    Part Number: 521810101
      No Longer Available
  • A16
    Screw, M4 X 10 – Part Number: 516109301
    Screw, M4 X 10
    Part Number: 516109301
      No Longer Available
  • A17
    Gasket – Part Number: 521810301
    Gasket
    Part Number: 521810301
      No Longer Available
  • A18
    Pipe Assembly, Oil – Part Number: 521810501
    Pipe Assembly, Oil
    Part Number: 521810501
      No Longer Available
  • A19
    Pipe, Oil – Part Number: 521810601
    Pipe, Oil
    Part Number: 521810601
      No Longer Available
  • A20
    Filter – Part Number: 521810701
    Filter
    Part Number: 521810701
      No Longer Available
  • A21
    TANK ASSY,OIL(RPLS T307313800) – Part Number: 521536701
    TANK ASSY,OIL(RPLS T307313800)
    Part Number: 521536701
      Special Order
    $36.62
  • A22
    Collar – Part Number: 521810901
    Collar
    Part Number: 521810901
      No Longer Available
  • A23
    Valve – Part Number: 521811001
    Valve
    Part Number: 521811001
      No Longer Available
  • A24
    Screw, M5 X 12 – Part Number: 521811101
    Screw, M5 X 12
    Part Number: 521811101
      No Longer Available
  • A25
    CAP ASSEMBLY, OIL – Part Number: 521811201
    CAP ASSEMBLY, OIL
    Part Number: 521811201
      Special Order
    $8.54
  • A26
    Gasket, Oil Cap – Part Number: 521811301
    Gasket, Oil Cap
    Part Number: 521811301
      No Longer Available
  • A27
    Shaft, Gear – Part Number: 521809501
    Shaft, Gear
    Part Number: 521809501
      No Longer Available
  • A28
    Gear, Bevel – Part Number: 521809601
    Gear, Bevel
    Part Number: 521809601
      No Longer Available
  • A29
    Bearing – Part Number: 505169201
    Bearing
    Part Number: 505169201
      Special Order
    $8.96
  • A30
    Bearing – Part Number: 516130301
    Bearing
    Part Number: 516130301
      No Longer Available
  • A31
    Ring – Part Number: 505169501
    Ring
    Part Number: 505169501
      Special Order
    $10.46
  • A32
    SNAP RING – Part Number: 516125401
    SNAP RING
    Part Number: 516125401
      Special Order
    $5.95
  • A33
    Collar – Part Number: 521809901
    Collar
    Part Number: 521809901
      No Longer Available
  • A34
    Sprocket – Part Number: 521810001
    Sprocket
    Part Number: 521810001
      No Longer Available
  • A35
    Label (psz2500) – Part Number: 521810401
    Label (psz2500)
    Part Number: 521810401
      No Longer Available
  • A36
    Washer – Part Number: 521809301
    Washer
    Part Number: 521809301
      No Longer Available
  • A37
    Screw – Part Number: 521809401
    Screw
    Part Number: 521809401
      No Longer Available
  • A38
    12-inch Bar – Part Number: 574102601
    12-inch Bar
    Part Number: 574102601
      No Longer Available
  • A39
    12-inch Bar – Part Number: 574102601
    12-inch Bar
    Part Number: 574102601
      No Longer Available
Engine
Engine Diagram and Parts List for 50200101 - 60600100 RedMax Pole Saw
  • 1
    Cylinder Comp. – Part Number: 506653801
    Cylinder Comp.
    Part Number: 506653801
      Special Order
    $78.35
  • 1
    Pipe – Part Number: 528868901
    Pipe
    Part Number: 528868901
      Special Order
    $68.50
  • 2
    Shaft – Part Number: 514344201
    Shaft
    Part Number: 514344201
      On Order
    $51.62
  • 2
    Cover – Part Number: 5113492-01
    Cover
    Part Number: 5113492-01
      No Longer Available
  • 3
    Cover – Part Number: 5113493-01
    Cover
    Part Number: 5113493-01
      No Longer Available
  • 3
    Grip – Part Number: 514394301
    Grip
    Part Number: 514394301
      No Longer Available
  • 4
    Gasket.Tr – Part Number: 5113494-01
    Gasket.Tr
    Part Number: 5113494-01
      No Longer Available
  • 4
    Lever Assy – Part Number: 5109478-01
    Lever Assy
    Part Number: 5109478-01
      No Longer Available
  • 5
    Lever Assy – Part Number: 5109472-01
    Lever Assy
    Part Number: 5109472-01
      No Longer Available
  • 5
    Bolt – Part Number: 5153880-01
    Bolt
    Part Number: 5153880-01
      No Longer Available
  • 6
    GASKET, BASE – Part Number: 521751901
    GASKET, BASE
    Part Number: 521751901
      Special Order
    $5.95
  • 6
    Stay – Part Number: 5214190-01
    Stay
    Part Number: 5214190-01
      No Longer Available
  • 7
    Bolt – Part Number: 506745201
    Bolt
    Part Number: 506745201
      In Stock
    Minimum Quantity of 2 required
    $5.96
  • 8
    Lever – Part Number: 5218033-01
    Lever
    Part Number: 5218033-01
      No Longer Available
  • 8
    Insulator – Part Number: 5113496-01
    Insulator
    Part Number: 5113496-01
      No Longer Available
  • 9
    Screw – Part Number: 5214193-01
    Screw
    Part Number: 5214193-01
      No Longer Available
  • 9
    Gasket.Insu – Part Number: 5113498-01
    Gasket.Insu
    Part Number: 5113498-01
      No Longer Available
  • 10
    Gasket – Part Number: 5113501-01
    Gasket
    Part Number: 5113501-01
      No Longer Available
  • 10
    Nut – Part Number: 5214194-01
    Nut
    Part Number: 5214194-01
      No Longer Available
  • 11
    Bolt Torx M5xl20 T27 – Part Number: 506689001
    Bolt Torx M5xl20 T27
    Part Number: 506689001
      Special Order
    $5.96
  • 11
    Shaft – Part Number: 5214195-01
    Shaft
    Part Number: 5214195-01
      No Longer Available
  • 12
    Spring – Part Number: 5214196-01
    Spring
    Part Number: 5214196-01
      No Longer Available
  • 12
    CRANKCASE-C – Part Number: 512325801
    CRANKCASE-C
    Part Number: 512325801
      Special Order
    $170.95
  • 13
    Pin – Part Number: 505296101
    Pin
    Part Number: 505296101
      Special Order
    $5.95
  • 13
    Spring – Part Number: 5214197-01
    Spring
    Part Number: 5214197-01
      No Longer Available
  • 14
    Button – Part Number: 5218059-01
    Button
    Part Number: 5218059-01
      No Longer Available
  • 14
    Gasket – Part Number: 5123260-01
    Gasket
    Part Number: 5123260-01
      No Longer Available
  • 15
    E Ring – Part Number: 5214199-01
    E Ring
    Part Number: 5214199-01
      No Longer Available
  • 15
    Bearing – Part Number: 5105710-01
    Bearing
    Part Number: 5105710-01
      No Longer Available
  • 16
    Sealing – Part Number: 504121501
    Sealing
    Part Number: 504121501
      In Stock
    $11.92
  • 16
    Cord – Part Number: 5218034-01
    Cord
    Part Number: 5218034-01
      No Longer Available
  • 17
    Seal – Part Number: 506612901
    Seal
    Part Number: 506612901
      Special Order
    $5.95
  • 17
    Cord – Part Number: 5218035-01
    Cord
    Part Number: 5218035-01
      No Longer Available
  • 18
    Ring – Part Number: 5105508-01
    Ring
    Part Number: 5105508-01
      No Longer Available
  • 18
    TUBE – Part Number: 512497101
    TUBE
    Part Number: 512497101
      Special Order
    $5.99
  • 19
    CABLE-C – Part Number: 512498601
    CABLE-C
    Part Number: 512498601
      Special Order
    $22.40
  • 19
    Bolt Torx M5xl20 T27 – Part Number: 506689001
    Bolt Torx M5xl20 T27
    Part Number: 506689001
      Special Order
    $5.96
  • 20
    Piston – Part Number: 5113506-01
    Piston
    Part Number: 5113506-01
      No Longer Available
  • 20
    Hanger-Comp – Part Number: 521822101
    Hanger-Comp
    Part Number: 521822101
      No Longer Available
  • 21
    Ring – Part Number: 5109176-01
    Ring
    Part Number: 5109176-01
      No Longer Available
  • 21
    Hanger – Part Number: 5125726-01
    Hanger
    Part Number: 5125726-01
      No Longer Available
  • 22
    Clamp – Part Number: 5125729-01
    Clamp
    Part Number: 5125729-01
      No Longer Available
  • 22
    Pin – Part Number: 505040701
    Pin
    Part Number: 505040701
      Special Order
    $8.96
  • 23
    Ring – Part Number: 505045201
    Ring
    Part Number: 505045201
      Special Order
    $5.95
  • 23
    Screw – Part Number: 521515301
    Screw
    Part Number: 521515301
      Special Order
    $5.95
  • 24
    BEARING – Part Number: 521753401
    BEARING
    Part Number: 521753401
      No Longer Available
  • 25
    GRIP – Part Number: 515633801
    GRIP
    Part Number: 515633801
      Special Order
    $74.73
  • 25
    Washer – Part Number: 505041001
    Washer
    Part Number: 505041001
      Special Order
    $5.95
  • 26
    SPRING – Part Number: 515540501
    SPRING
    Part Number: 515540501
      Special Order
    $17.92
  • 26
    CRANKSHAFT-C – Part Number: 528058401
    CRANKSHAFT-C
    Part Number: 528058401
      Special Order
    $248.11
  • 27
    Nut – Part Number: 504118001
    Nut
    Part Number: 504118001
      In Stock
    $5.95
  • 27
    STRAP ASSEMBLY – Part Number: 521651101
    STRAP ASSEMBLY
    Part Number: 521651101
      Special Order
    $22.52
  • 28
    Key – Part Number: 506689401
    Key
    Part Number: 506689401
      In Stock
    $5.95
  • 28
    Tool-set – Part Number: 521532201
    Tool-set
    Part Number: 521532201
      No Longer Available
  • 29
    Rotor – Part Number: 515384501
    Rotor
    Part Number: 515384501
      Special Order
    $38.05
  • 29
    Driver – Part Number: 506689501
    Driver
    Part Number: 506689501
      Special Order
    $7.46
  • 30
    Coil-a – Part Number: 511351101
    Coil-a
    Part Number: 511351101
      No Longer Available
  • 30
    Socket – Part Number: 506686101
    Socket
    Part Number: 506686101
      Special Order
    $8.96
  • 31
    Hub Cap – Part Number: 5153851-01
    Hub Cap
    Part Number: 5153851-01
      No Longer Available
  • 31
    Wrench – Part Number: 5106298-01
    Wrench
    Part Number: 5106298-01
      No Longer Available
  • 32
    Spring – Part Number: 5113513-01
    Spring
    Part Number: 5113513-01
      No Longer Available
  • 32
    Spanner – Part Number: 506615001
    Spanner
    Part Number: 506615001
      Special Order
    $7.46
  • 33
    Goggle – Part Number: 510989401
    Goggle
    Part Number: 510989401
      No Longer Available
  • 33
    Tube – Part Number: 5109347-01
    Tube
    Part Number: 5109347-01
      No Longer Available
  • 34
    Spacer – Part Number: 504118601
    Spacer
    Part Number: 504118601
      Special Order
    $5.95
  • 35
    Bolt – Part Number: 506745701
    Bolt
    Part Number: 506745701
      Special Order
    $5.95
  • 36
    Carburetor-A – Part Number: 5113515-01
    Carburetor-A
    Part Number: 5113515-01
      No Longer Available
  • 37
    Rebuild Kit – Part Number: 528070101
    Rebuild Kit
    Part Number: 528070101
      Special Order
    $84.38
  • 38
    Body – Part Number: 5134184-01
    Body
    Part Number: 5134184-01
      No Longer Available
  • 39
    Gasket Kit – Part Number: 506615501
    Gasket Kit
    Part Number: 506615501
      Special Order
    $68.50
  • 40
    BODY, PURGE – Part Number: 516543801
    BODY, PURGE
    Part Number: 516543801
      Special Order
    $11.92
  • 41
    Cover – Part Number: 506741001
    Cover
    Part Number: 506741001
      Special Order
    $7.46
  • 42
    Pump – Part Number: 505306701
    Pump
    Part Number: 505306701
    ★★★★★
    ★★★★★
    (1)
      In Stock
    $11.92
  • 44
    Ring – Part Number: 506738601
    Ring
    Part Number: 506738601
      Special Order
    Minimum Quantity of 2 required
    $5.95
  • 45
    Swivel – Part Number: 506741201
    Swivel
    Part Number: 506741201
      Special Order
    $5.96
  • 46
    Screw – Part Number: 505307901
    Screw
    Part Number: 505307901
      Special Order
    $5.95
  • 47
    Bracket – Part Number: 521359901
    Bracket
    Part Number: 521359901
      Special Order
    $7.46
  • 48
    Nut – Part Number: 510487401
    Nut
    Part Number: 510487401
      Special Order
    $5.95
  • 49
    Screw – Part Number: 521756001
    Screw
    Part Number: 521756001
      In Stock
    $5.96
  • 50
    Screw – Part Number: 506741101
    Screw
    Part Number: 506741101
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 51
    Washer – Part Number: 506746101
    Washer
    Part Number: 506746101
      Special Order
    Minimum Quantity of 2 required
    $5.95
  • 52
    Bolt Torx M5xl50 T27 – Part Number: 504116501
    Bolt Torx M5xl50 T27
    Part Number: 504116501
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 53
    Clip – Part Number: 506741501
    Clip
    Part Number: 506741501
      In Stock
    $5.95
  • 54
    MUFFLER – Part Number: 521613501
    MUFFLER
    Part Number: 521613501
      Special Order
    $11.96
  • 56
    Arrester – Part Number: 506615601
    Arrester
    Part Number: 506615601
      Special Order
    $8.96
  • 57
    Bolt Torx M5xl50 T27 – Part Number: 504116501
    Bolt Torx M5xl50 T27
    Part Number: 504116501
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 58
    GASKET, MUFFLER – Part Number: 511350401
    GASKET, MUFFLER
    Part Number: 511350401
      Special Order
    $5.95
  • 59
    Plate – Part Number: 5113412-01
    Plate
    Part Number: 5113412-01
      No Longer Available
  • 60
    Screw – Part Number: 504119601
    Screw
    Part Number: 504119601
      Special Order
    $5.78
  • 61
    HOUSING ASSEMBLY (RPLS T155131 – Part Number: 528053101
    HOUSING ASSEMBLY (RPLS T155131
    Part Number: 528053101
      Special Order
    $202.99
  • 62
    Housing – Part Number: 5123262-01
    Housing
    Part Number: 5123262-01
      No Longer Available
  • 64
    Bracket(A) – Part Number: 5123603-01
    Bracket(A)
    Part Number: 5123603-01
      No Longer Available
  • 65
    Bracket(B) – Part Number: 5123604-01
    Bracket(B)
    Part Number: 5123604-01
      No Longer Available
  • 66
    Cushion – Part Number: 512360501
    Cushion
    Part Number: 512360501
      In Stock
    $5.95
  • 67
    Drum – Part Number: 5113606-01
    Drum
    Part Number: 5113606-01
      No Longer Available
  • 68
    Ring – Part Number: 5105508-01
    Ring
    Part Number: 5105508-01
      No Longer Available
  • 69
    Bearing – Part Number: 5123638-01
    Bearing
    Part Number: 5123638-01
      No Longer Available
  • 70
    Ring – Part Number: 516124101
    Ring
    Part Number: 516124101
      Special Order
    Minimum Quantity of 2 required
    $5.95
  • 71
    Bolt Torx M5xl20 T27 – Part Number: 506689001
    Bolt Torx M5xl20 T27
    Part Number: 506689001
      Special Order
    $5.96
  • 73
    Bolt – Part Number: 515391301
    Bolt
    Part Number: 515391301
      Special Order
    $5.95
  • 74
    COVER, ENGINE – Part Number: 511350501
    COVER, ENGINE
    Part Number: 511350501
      Special Order
    $19.40
  • 75
    Bolt – Part Number: 5109035-01
    Bolt
    Part Number: 5109035-01
      No Longer Available
  • 76
    Shoe – Part Number: 5123284-01
    Shoe
    Part Number: 5123284-01
      No Longer Available
  • 77
    Spring – Part Number: 515389301
    Spring
    Part Number: 515389301
      Special Order
    $5.96
  • 78
    Bolt – Part Number: 513189601
    Bolt
    Part Number: 513189601
      Special Order
    $5.95
  • 79
    Washer – Part Number: 505054401
    Washer
    Part Number: 505054401
      Special Order
    $5.95
  • 80
    Washer – Part Number: 513189501
    Washer
    Part Number: 513189501
      Special Order
    $5.95
  • 81
    Cord-Comp – Part Number: 512328601
    Cord-Comp
    Part Number: 512328601
      Special Order
    $14.92
  • 82
    Spark Plug – Part Number: 514530801
    Spark Plug
    Part Number: 514530801
      No Longer Available
  • 83
    Gromet – Part Number: 506615901
    Gromet
    Part Number: 506615901
      Special Order
    $5.95
  • 84
    Recoil Assembly – Part Number: 512328801
    Recoil Assembly
    Part Number: 512328801
      In Stock
    $62.27
  • 85
    Rope – Part Number: 504114901
    Rope
    Part Number: 504114901
      In Stock
    $10.46
  • 86
    Screw – Part Number: 515367101
    Screw
    Part Number: 515367101
      Special Order
    $5.95
  • 87
    Spring.spiral – Part Number: 504114701
    Spring.spiral
    Part Number: 504114701
      Special Order
    $17.92
  • 88
    Collar – Part Number: 504114601
    Collar
    Part Number: 504114601
      Special Order
    $5.96
  • 89
    Collar – Part Number: 504114601
    Collar
    Part Number: 504114601
      Special Order
    $5.96
  • 90
    Arm – Part Number: 504114801
    Arm
    Part Number: 504114801
      Special Order
    $7.46
  • 91
    Knob – Part Number: 506614701
    Knob
    Part Number: 506614701
      On Order
    $8.96
  • 92
    Plate.Stopper – Part Number: 515385601
    Plate.Stopper
    Part Number: 515385601
      Special Order
    $5.95
  • 93
    Pulley – Part Number: 504114401
    Pulley
    Part Number: 504114401
      Special Order
    $14.60
  • 94
    Bolt Torx – Part Number: 506745601
    Bolt Torx
    Part Number: 506745601
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 95
    BODY Assembly – Part Number: 521605001
    BODY Assembly
    Part Number: 521605001
      Special Order
    $31.24
  • 96
    Plate – Part Number: 506684301
    Plate
    Part Number: 506684301
      Special Order
    $5.95
  • 97
    Lever Choke – Part Number: 521760501
    Lever Choke
    Part Number: 521760501
      Special Order
    $5.96
  • 98
    Screw – Part Number: 506673801
    Screw
    Part Number: 506673801
      Special Order
    Minimum Quantity of 2 required
    $5.95
  • 99
    Element – Part Number: 512329601
    Element
    Part Number: 512329601
      Special Order
    $8.96
  • 100
    Cover – Part Number: 5216177-01
    Cover
    Part Number: 5216177-01
      No Longer Available
  • 101
    Knob – Part Number: 506673901
    Knob
    Part Number: 506673901
      Special Order
    $5.95
  • 102
    TANK ASSEMBLY EVP – Part Number: 581493301
    TANK ASSEMBLY EVP
    Part Number: 581493301
      On Order
    $47.55
  • 103
    Cap Assembly – Part Number: 505309601
    Cap Assembly
    Part Number: 505309601
      In Stock
    $17.92
  • 104
    Holder Assembly – Part Number: 506615401
    Holder Assembly
    Part Number: 506615401
      No Longer Available
  • 105
    Packing – Part Number: 506744301
    Packing
    Part Number: 506744301
      Special Order
    Minimum Quantity of 2 required
    $5.95
  • 106
    Filter – Part Number: 506746801
    Filter
    Part Number: 506746801
      In Stock
    $8.10
  • 107
    Stopper – Part Number: 506745801
    Stopper
    Part Number: 506745801
      Special Order
    $5.95
  • 108
    FUEL HOSE ASSY – Part Number: 597967201
    FUEL HOSE ASSY
    Part Number: 597967201
      In Stock
    $14.92
  • 109
    Chainsaw Fuel Filter – Part Number: 591375401
    Chainsaw Fuel Filter
    Part Number: 591375401
    ★★★★★
    ★★★★★
    (14)
      In Stock
    $13.42
  • 110
    Collar – Part Number: 5137256-01
    Collar
    Part Number: 5137256-01
      No Longer Available
  • 111
    Bolt – Part Number: 515391301
    Bolt
    Part Number: 515391301
      Special Order
    $5.95
  • 112
    Guard, Tank – Part Number: 512326501
    Guard, Tank
    Part Number: 512326501
      No Longer Available
  • 113
    Label – Part Number: 5217540-01
    Label
    Part Number: 5217540-01
      No Longer Available
  • 114
    Label.Cover – Part Number: 512326401
    Label.Cover
    Part Number: 512326401
      No Longer Available
  • 118
    Cover – Part Number: 506744201
    Cover
    Part Number: 506744201
      In Stock
    $7.46
  • 119
    Screw – Part Number: 504119601
    Screw
    Part Number: 504119601
      Special Order
    $5.78
  • 120
    Plate – Part Number: 511349501
    Plate
    Part Number: 511349501
      No Longer Available
  • 121
    Screw – Part Number: 504119601
    Screw
    Part Number: 504119601
      Special Order
    $5.78
  • A1
    Case L-comp – Part Number: 521536801
    Case L-comp
    Part Number: 521536801
      No Longer Available
  • A2
    Bearing – Part Number: 506610101
    Bearing
    Part Number: 506610101
      Special Order
    $10.46
  • A3
    Gearcase Comp – Part Number: 521808901
    Gearcase Comp
    Part Number: 521808901
      No Longer Available
  • A4
    Bearing – Part Number: 516130401
    Bearing
    Part Number: 516130401
      No Longer Available
  • A5
    Bolt, M5 X 12 – Part Number: 516070401
    Bolt, M5 X 12
    Part Number: 516070401
      No Longer Available
  • A6
    Fitting – Part Number: 505171501
    Fitting
    Part Number: 505171501
      In Stock
    $7.46
  • A7
    Screw – Part Number: 521809101
    Screw
    Part Number: 521809101
      No Longer Available
  • A8
    NUT – Part Number: 521809201
    NUT
    Part Number: 521809201
      Special Order
    $7.64
  • A9
    Bolt – Part Number: 5226554-01
    Bolt
    Part Number: 5226554-01
      No Longer Available
  • A10
    Shim – Part Number: 521809001
    Shim
    Part Number: 521809001
      No Longer Available
  • A11
    Bolt – Part Number: 514157601
    Bolt
    Part Number: 514157601
      No Longer Available
  • A12
    Cover, Chain – Part Number: 521809701
    Cover, Chain
    Part Number: 521809701
      No Longer Available
  • A13
    Nut – Part Number: 521809801
    Nut
    Part Number: 521809801
      No Longer Available
  • A14
    GEAR, WORM – Part Number: 521810201
    GEAR, WORM
    Part Number: 521810201
      Special Order
    $6.09
  • A15
    Pump Assembly, Oil – Part Number: 521810101
    Pump Assembly, Oil
    Part Number: 521810101
      No Longer Available
  • A16
    Screw, M4 X 10 – Part Number: 516109301
    Screw, M4 X 10
    Part Number: 516109301
      No Longer Available
  • A17
    Gasket – Part Number: 521810301
    Gasket
    Part Number: 521810301
      No Longer Available
  • A18
    Pipe Assembly, Oil – Part Number: 521810501
    Pipe Assembly, Oil
    Part Number: 521810501
      No Longer Available
  • A19
    Pipe, Oil – Part Number: 521810601
    Pipe, Oil
    Part Number: 521810601
      No Longer Available
  • A20
    Filter – Part Number: 521810701
    Filter
    Part Number: 521810701
      No Longer Available
  • A21
    TANK ASSY,OIL(RPLS T307313800) – Part Number: 521536701
    TANK ASSY,OIL(RPLS T307313800)
    Part Number: 521536701
      Special Order
    $36.62
  • A22
    Collar – Part Number: 521810901
    Collar
    Part Number: 521810901
      No Longer Available
  • A23
    Valve – Part Number: 521811001
    Valve
    Part Number: 521811001
      No Longer Available
  • A24
    Screw, M5 X 12 – Part Number: 521811101
    Screw, M5 X 12
    Part Number: 521811101
      No Longer Available
  • A25
    CAP ASSEMBLY, OIL – Part Number: 521811201
    CAP ASSEMBLY, OIL
    Part Number: 521811201
      Special Order
    $8.54
  • A26
    Gasket, Oil Cap – Part Number: 521811301
    Gasket, Oil Cap
    Part Number: 521811301
      No Longer Available
  • A27
    Shaft, Gear – Part Number: 521809501
    Shaft, Gear
    Part Number: 521809501
      No Longer Available
  • A28
    Gear, Bevel – Part Number: 521809601
    Gear, Bevel
    Part Number: 521809601
      No Longer Available
  • A29
    Bearing – Part Number: 505169201
    Bearing
    Part Number: 505169201
      Special Order
    $8.96
  • A30
    Bearing – Part Number: 516130301
    Bearing
    Part Number: 516130301
      No Longer Available
  • A31
    Ring – Part Number: 505169501
    Ring
    Part Number: 505169501
      Special Order
    $10.46
  • A32
    SNAP RING – Part Number: 516125401
    SNAP RING
    Part Number: 516125401
      Special Order
    $5.95
  • A33
    Collar – Part Number: 521809901
    Collar
    Part Number: 521809901
      No Longer Available
  • A34
    Sprocket – Part Number: 521810001
    Sprocket
    Part Number: 521810001
      No Longer Available
  • A35
    Label (psz2500) – Part Number: 521810401
    Label (psz2500)
    Part Number: 521810401
      No Longer Available
  • A36
    Washer – Part Number: 521809301
    Washer
    Part Number: 521809301
      No Longer Available
  • A37
    Screw – Part Number: 521809401
    Screw
    Part Number: 521809401
      No Longer Available
  • A38
    12-inch Bar – Part Number: 574102601
    12-inch Bar
    Part Number: 574102601
      No Longer Available
  • A39
    12-inch Bar – Part Number: 574102601
    12-inch Bar
    Part Number: 574102601
      No Longer Available

Questions & Answers

?

Our customer Service team is at the ready daily to answer your part and product questions.

Be the first to ask our experts a question about this part!

Ask our Team

We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.

✖

Our customer service team are at the ready daily to answer your part and product questions. We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
