Titan Advantage Gas Piston Pump Paint Sprayer Replacement Parts For Model GPX (0509038)

We Sell Only Genuine Titan Parts

Search Within Model

Questions & Answers for Titan GPX
Browse all Parts Search by Area
5 Gallon Siphon Set Diagram and Parts List for 0509038 Titan Paint Sprayer
5 Gallon Siphon Set
Cart Assembly Diagram and Parts List for 0509038 Titan Paint Sprayer
Cart Assembly
Drive Assembly Diagram and Parts List for 0509038 Titan Paint Sprayer
Drive Assembly
Filter Assembly Diagram and Parts List for 0509038 Titan Paint Sprayer
Filter Assembly
Fluid Section Assembly Diagram and Parts List for 0509038 Titan Paint Sprayer
Fluid Section Assembly
Main Assembly Diagram and Parts List for 0509038 Titan Paint Sprayer
Main Assembly
Page Diagram and Parts List for 0509038 Titan Paint Sprayer
Page
Page Diagram and Parts List for 0509038 Titan Paint Sprayer
Page
Prime/Spray Valve Assembly Diagram and Parts List for 0509038 Titan Paint Sprayer
Prime/Spray Valve Assembly
Previous Showing All Parts Next
5 Gallon Siphon Set
5 Gallon Siphon Set Diagram and Parts List for 0509038 Titan Paint Sprayer
Cart Assembly

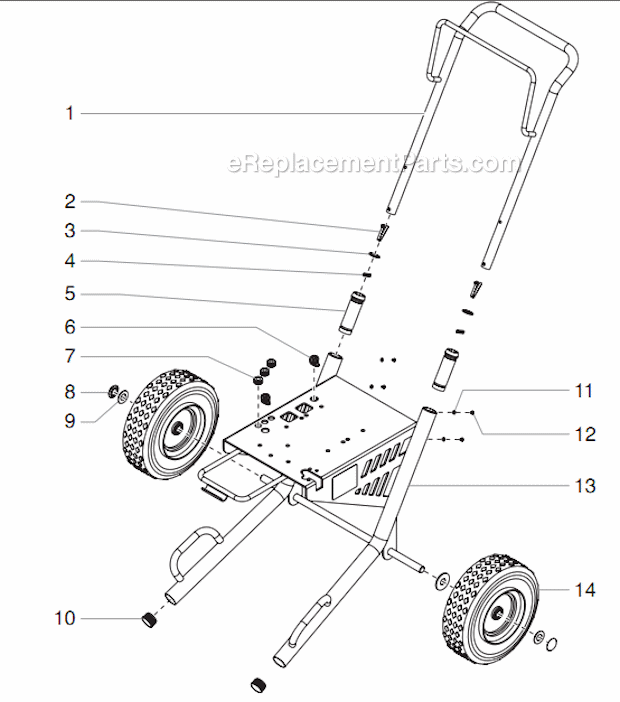

Cart Assembly Diagram and Parts List for 0509038 Titan Paint Sprayer
  • D-1
    Handle – Part Number: 0507766
    Handle
    Part Number: 0507766
      Special Order
    $292.29
  • D-2
    Snap Button – Part Number: 9841504
    Snap Button
    Part Number: 9841504
      Special Order
    $6.60
  • D-3
    Handle Washer – Part Number: 590-506
    Handle Washer
    Part Number: 590-506
      Special Order
    $5.95
  • D-4
    Roll Pin – Part Number: 590-508
    Roll Pin
    Part Number: 590-508
      Special Order
    $5.95
  • D-5
    Handle Sleeve – Part Number: 0295607
    Handle Sleeve
    Part Number: 0295607
      No Longer Available
  • D-6
    STRAIN RELIEF – Part Number: 555603
    STRAIN RELIEF
    Part Number: 555603
      Special Order
    $5.95
  • D-7
    Grommet, 7/16 – Part Number: 800-036
    Grommet, 7/16
    Part Number: 800-036
      Special Order
    $7.20
  • D-8
    Axle Cap – Part Number: 0509625
    Axle Cap
    Part Number: 0509625
      No Longer Available
  • D-9
    Wheel Spacer – Part Number: 0509626
    Wheel Spacer
    Part Number: 0509626
      No Longer Available
  • D-10
    Plug – Part Number: 9885571
    Plug
    Part Number: 9885571
      In Stock
    $5.95
  • D-11
    Lock Washer – Part Number: 0509386
    Lock Washer
    Part Number: 0509386
      No Longer Available
  • D-12
    Screw – Part Number: 0295608
    Screw
    Part Number: 0295608
      No Longer Available
  • D-13
    Cart – Part Number: 0555218
    Cart
    Part Number: 0555218
      Special Order
    $695.55
  • D-14
    Wheel – Part Number: 0509624
    Wheel
    Part Number: 0509624
      No Longer Available
Drive Assembly
Drive Assembly Diagram and Parts List for 0509038 Titan Paint Sprayer
Filter Assembly
Filter Assembly Diagram and Parts List for 0509038 Titan Paint Sprayer
Fluid Section Assembly

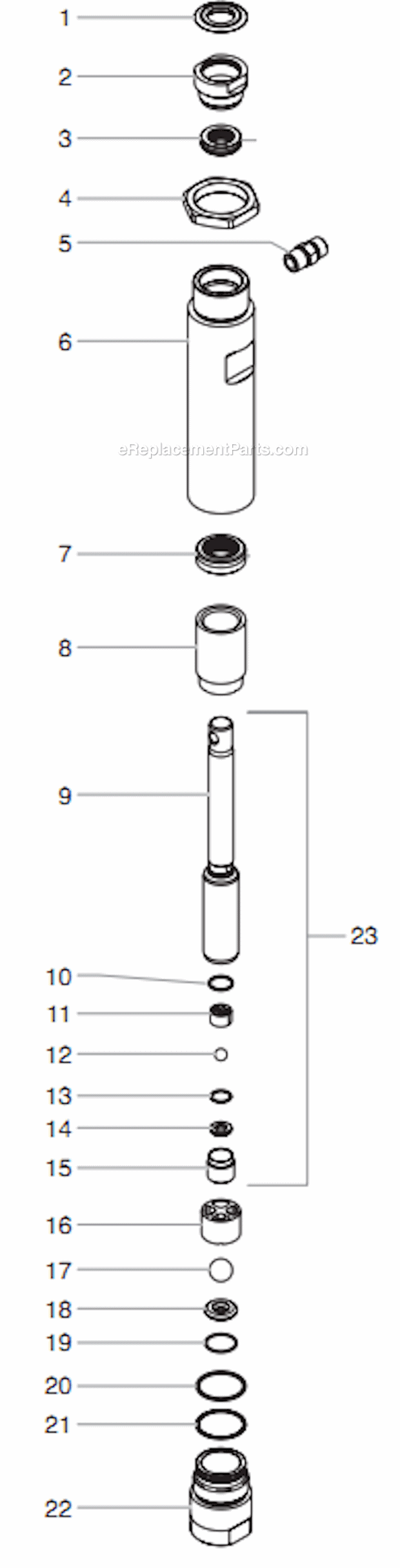

Fluid Section Assembly Diagram and Parts List for 0509038 Titan Paint Sprayer
  • C-1
    Splash Guard – Part Number: 761162
    Splash Guard
    Part Number: 761162
      Special Order
    $12.90
  • C-2
    Upper Seal Retainer – Part Number: 0509554
    Upper Seal Retainer
    Part Number: 0509554
      No Longer Available
  • C-3
    Upper Packing Assembly – Part Number: 0509912
    Upper Packing Assembly
    Part Number: 0509912
      No Longer Available
  • C-4
    Jam Nut – Part Number: 0509505
    Jam Nut
    Part Number: 0509505
      Special Order
    $52.36
  • C-5
    Fitting, 3/8 – Part Number: 508343
    Fitting, 3/8
    Part Number: 508343
      Special Order
    $43.09
  • C-6
    Cylinder – Part Number: 0509914
    Cylinder
    Part Number: 0509914
      Special Order
    $297.93
  • C-7
    Lower Packing Assembly – Part Number: 0509911
    Lower Packing Assembly
    Part Number: 0509911
      No Longer Available
  • C-8
    Lower Support Ring – Part Number: 0509511
    Lower Support Ring
    Part Number: 0509511
      Special Order
    $82.26
  • C-9
    Piston – Part Number: 0509913
    Piston
    Part Number: 0509913
      Special Order
    $385.35
  • C-11
    Outlet Valve Cage – Part Number: 507452
    Outlet Valve Cage
    Part Number: 507452
      Special Order
    $39.55
  • C-12
    Outlet Ball – Part Number: 9841502
    Outlet Ball
    Part Number: 9841502
      Special Order
    $34.24
  • C-13
    Nylon Washer – Part Number: 0507454
    Nylon Washer
    Part Number: 0507454
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • C-14
    Outlet Valve Seat – Part Number: 294516
    Outlet Valve Seat
    Part Number: 294516
      Special Order
    $99.94
  • C-15
    Outlet Valve Retainer – Part Number: 0507733
    Outlet Valve Retainer
    Part Number: 0507733
      No Longer Available
  • C-16
    Foot Valve Cage – Part Number: 800-322
    Foot Valve Cage
    Part Number: 800-322
      Special Order
    $58.00
  • C-17
    Inlet Valve Ball – Part Number: 51519
    Inlet Valve Ball
    Part Number: 51519
      Special Order
    $29.18
  • C-18
    Seat – Part Number: 310
    Seat
    Part Number: 310
      In Stock
    $111.82
  • C-19
    O-Ring, Teflon – Part Number: 00203
    O-Ring, Teflon
    Part Number: 00203
      Special Order
    Minimum Quantity of 2 required
    $5.46
  • C-20
    O-ring – Part Number: 800-332
    O-ring
    Part Number: 800-332
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • C-21
    Back-up Ring, Teflon – Part Number: 800-333
    Back-up Ring, Teflon
    Part Number: 800-333
      In Stock
    Minimum Quantity of 2 required
    $7.50
  • C-22
    Foot Valve – Part Number: 800-148
    Foot Valve
    Part Number: 800-148
      Special Order
    $109.84
  • C-23
    Piston Assembly – Part Number: 0509135
    Piston Assembly
    Part Number: 0509135
      No Longer Available
  • C-800
    Repacking Kit – Part Number: 0509510
    Repacking Kit
    Part Number: 0509510
      Special Order
    $178.67
  • C-801
    Lower Packing Insertion Tool – Part Number: 0509927
    Lower Packing Insertion Tool
    Part Number: 0509927
      Special Order
    $86.88
Main Assembly
Main Assembly Diagram and Parts List for 0509038 Titan Paint Sprayer
Page
Page Diagram and Parts List for 0509038 Titan Paint Sprayer
Page
Page Diagram and Parts List for 0509038 Titan Paint Sprayer
Prime/Spray Valve Assembly

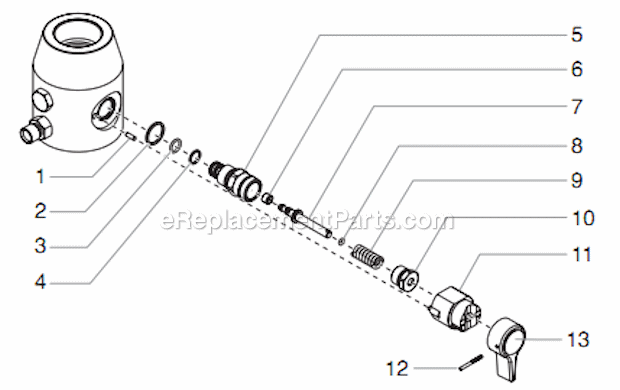

Prime/Spray Valve Assembly Diagram and Parts List for 0509038 Titan Paint Sprayer
  • F-1
    Dowel Pin – Part Number: 700-823
    Dowel Pin
    Part Number: 700-823
      In Stock
    $5.95
  • F-2
    Gasket – Part Number: 0507745
    Gasket
    Part Number: 0507745
      Special Order
    $5.95
  • F-3
    O-Ring, Teflon – Part Number: 5000529
    O-Ring, Teflon
    Part Number: 5000529
      No Longer Available
  • F-4
    O-Ring, Viton – Part Number: 0507741
    O-Ring, Viton
    Part Number: 0507741
      No Longer Available
  • F-5
    Valve Housing – Part Number: 700-253
    Valve Housing
    Part Number: 700-253
      Special Order
    $42.27
  • F-6
    Valve Seat – Part Number: 0507746
    Valve Seat
    Part Number: 0507746
      No Longer Available
  • F-7
    Valve Stem – Part Number: 700-250
    Valve Stem
    Part Number: 700-250
      No Longer Available
  • F-8
    O-Ring, Viton – Part Number: 5006547
    O-Ring, Viton
    Part Number: 5006547
      No Longer Available
  • F-10
    Valve Retainer – Part Number: 700-248
    Valve Retainer
    Part Number: 700-248
      In Stock
    $8.56
  • F-11
    Cam Base – Part Number: 0507735
    Cam Base
    Part Number: 0507735
      No Longer Available
  • F-12
    Groove Pin – Part Number: 700-759
    Groove Pin
    Part Number: 700-759
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • F-13
    Valve Handle – Part Number: 0507662
    Valve Handle
    Part Number: 0507662
      Special Order
    $27.16
