Whirlpool Stand Mixer Replacement Parts For Model 5KSM180WSFEG5

We Sell Only Genuine Whirlpool Parts

Find Whirlpool 5KSM180WSFEG5 Parts By Symptom

Noisy

97%

Touchpad does not respond

3%

Popular Parts for 5KSM180WSFEG5

Worm Gear – Part Number: WPW10112253 Worm Gear
In Stock
$18.85
Mixer Speed Control Plate – Part Number: WPW10119326 Mixer Speed Control Plate
In Stock
$24.10
Mixer Retaining Pin – Part Number: WP9707223 Mixer Retaining Pin
In Stock
$8.35
GEAR-HUB – Part Number: W11192794 GEAR-HUB
In Stock
$44.24
Mixer Screw Cap – Part Number: WPW10191926 Mixer Screw Cap
In Stock
$25.15
Mixer Dowel Pin – Part Number: WP16910 Mixer Dowel Pin
In Stock
$8.35
Dryer Retaining Ring – Part Number: WP9703438 Dryer Retaining Ring
In Stock
$6.25
Speed Governor – Part Number: WPW10330804 Speed Governor
In Stock
$20.95

Search Within Model

Questions & Answers for Whirlpool 5KSM180WSFEG5
Browse all Parts Search by Area
02 - Color Variation Parts Diagram and Parts List for Whirlpool Mixer
02 - Color Variation Parts
03 - Base And Pedestal Unit Parts Diagram and Parts List for Whirlpool Mixer
03 - Base And Pedestal Unit Parts
04 - Case, Gearing And Planetary Unit Parts Diagram and Parts List for Whirlpool Mixer
04 - Case, Gearing And Planetary Unit Parts
05 - Motor And Control Unit Parts Diagram and Parts List for Whirlpool Mixer
05 - Motor And Control Unit Parts
Previous Showing All Parts Next

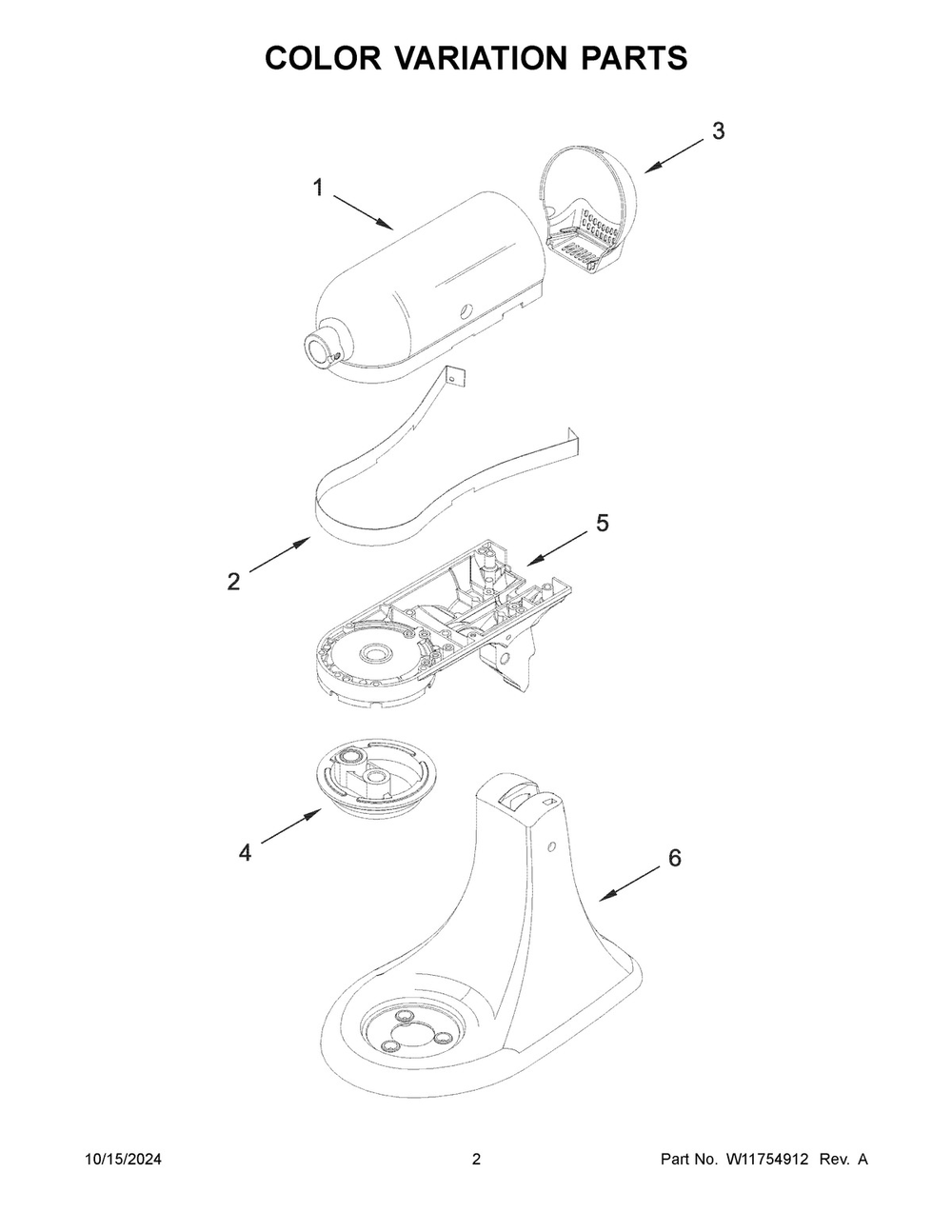

02 - Color Variation Parts
02 - Color Variation Parts Diagram and Parts List for Whirlpool Mixer
  • 1
    HOUSING – Part Number: W11734420
    HOUSING
    Part Number: W11734420
      Special Order
    $77.28
  • 2
    BAND-TRIM – Part Number: W11734421
    BAND-TRIM
    Part Number: W11734421
      Special Order
    $60.13
  • 3
    Cover – Part Number: W11636274
    Cover
    Part Number: W11636274
      Special Order
    $44.24
  • 4
    Cover – Part Number: W11640898
    Cover
    Part Number: W11640898
      Special Order
    $47.33
  • 5
    Gearcase – Part Number: W11636267
    Gearcase
    Part Number: W11636267
      Special Order
    $59.11
  • 6
    Gearcase – Part Number: W11636261
    Gearcase
    Part Number: W11636261
      Special Order
    $73.40
03 - Base And Pedestal Unit Parts
03 - Base And Pedestal Unit Parts Diagram and Parts List for Whirlpool Mixer
  • 1
    USE & CARE GUIDE – Part Number: W11634656
    USE & CARE GUIDE
    Part Number: W11634656
      No Longer Available
  • 2
    Headlock – Part Number: WP3184264
    Headlock
    Part Number: WP3184264
      In Stock
    $12.55
  • 3
    BEATER-MXR – Part Number: W11305076
    BEATER-MXR
    Part Number: W11305076
      Special Order
    $66.25
  • 4
    BOWL-MIXER – Part Number: W11734432
    BOWL-MIXER
    Part Number: W11734432
      Special Order
    $537.64
  • 5
    SCREW – Part Number: W11544572
    SCREW
    Part Number: W11544572
      Special Order
    $6.25
  • 6
    Mixer Screw Cap – Part Number: WPW10191926
    Mixer Screw Cap
    Part Number: WPW10191926
    ★★★★★
    ★★★★★
    (1)
      In Stock
    $25.15
  • 7
    FOOT – Part Number: W11736697
    FOOT
    Part Number: W11736697
      Special Order
    $8.35
  • 8
    WHIP-WIRE – Part Number: W11324095
    WHIP-WIRE
    Part Number: W11324095
      In Stock
    $50.42
  • 9
    HOOK-DOUGH – Part Number: W11305078
    HOOK-DOUGH
    Part Number: W11305078
      Special Order
    $74.41
  • 10
    LATCH – Part Number: W11246352
    LATCH
    Part Number: W11246352
      Special Order
    $6.25
  • 11
    LEVER-LTCH – Part Number: W11734433
    LEVER-LTCH
    Part Number: W11734433
      Special Order
    $26.73
  • 12
    Screw – Part Number: WP110679
    Screw
    Part Number: WP110679
      In Stock
    $8.35
  • 13
    Washer – Part Number: WP116241
    Washer
    Part Number: WP116241
      In Stock
    $8.35
  • 14
    SPRING – Part Number: W11188450
    SPRING
    Part Number: W11188450
      Special Order
    $8.35
  • 15
    SCREW – Part Number: W10802060
    SCREW
    Part Number: W10802060
      Special Order
    $8.35
  • 16
    LINK-LATCH – Part Number: W11232016
    LINK-LATCH
    Part Number: W11232016
      In Stock
    $6.25
  • 17
    LEVER-LTCH – Part Number: W11734434
    LEVER-LTCH
    Part Number: W11734434
      Special Order
    $17.80
  • 18
    Mixer Dowel Pin – Part Number: WP16910
    Mixer Dowel Pin
    Part Number: WP16910
      In Stock
    $8.35
  • 20
    Stand Mixer Screw – Part Number: WP4159193
    Stand Mixer Screw
    Part Number: WP4159193
      In Stock
    $8.35

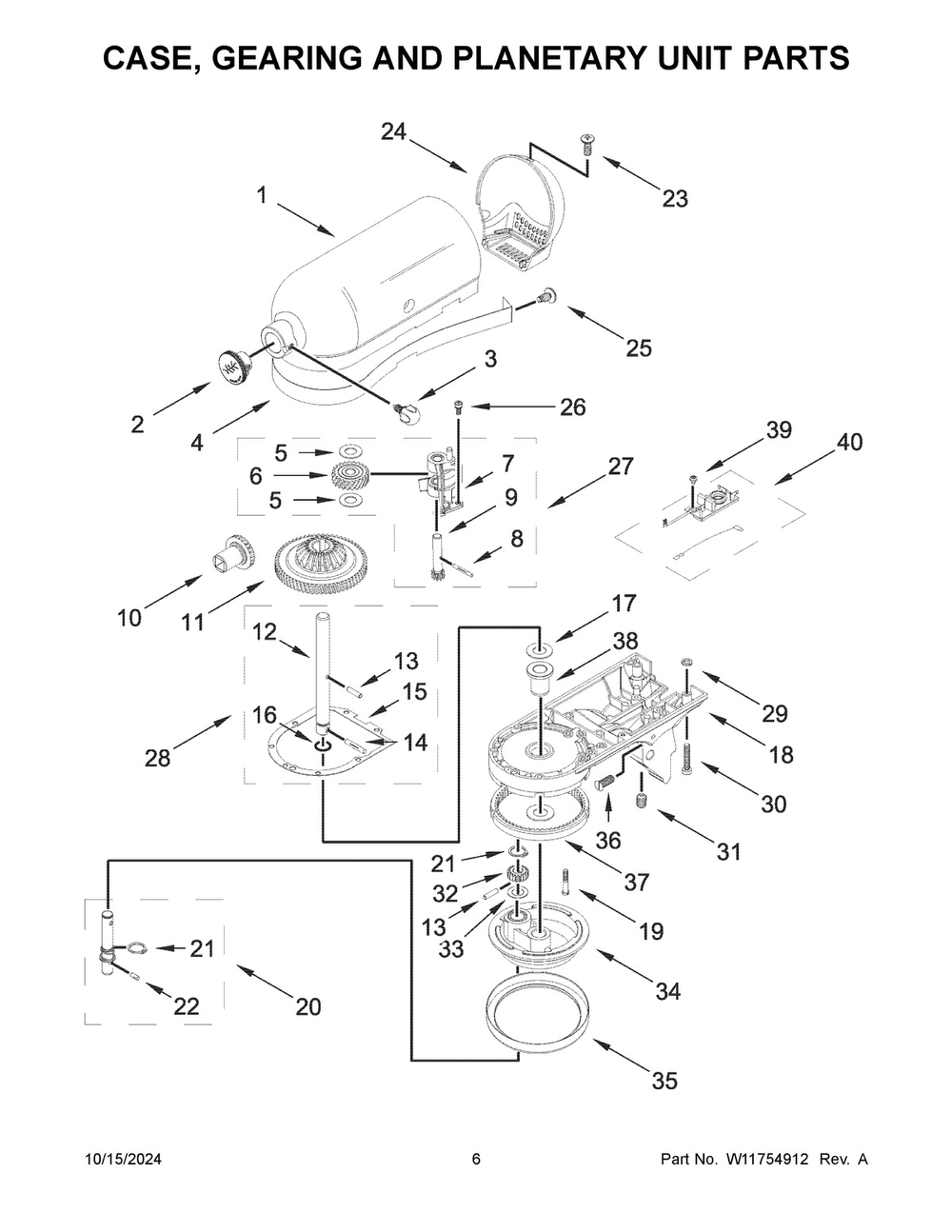

04 - Case, Gearing And Planetary Unit Parts
04 - Case, Gearing And Planetary Unit Parts Diagram and Parts List for Whirlpool Mixer

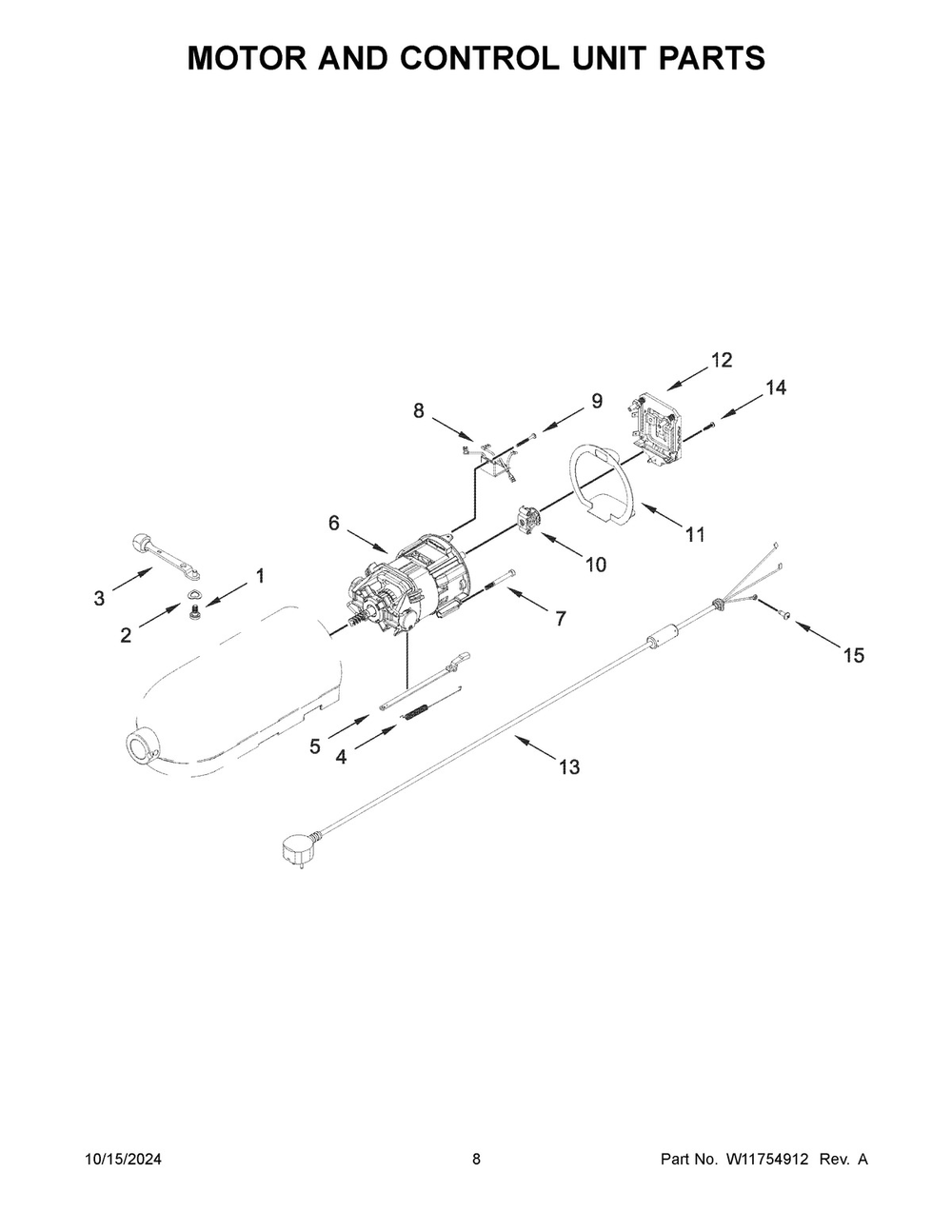

05 - Motor And Control Unit Parts
05 - Motor And Control Unit Parts Diagram and Parts List for Whirlpool Mixer
