Craftsman Miter Saw Replacement Parts For Model 315212240

We Sell Only Genuine Craftsman Parts

Popular Parts for 315212240

Retaining Ring – Part Number: 538417000 Retaining Ring
Special Order
$5.16
Torque Arm – Part Number: 46615 Torque Arm
In Stock
$36.48
Compression Spring – Part Number: 976649-001 Compression Spring
Special Order
$5.95
E-Ring – Part Number: 976651-001 E-Ring
Special Order
$5.95
LASER,PACKED COMPLETE *TBO* – Part Number: 555D07020 LASER, PACKED COMPLETE *TBO*
Special Order
$90.24

Search Within Model

Questions & Answers for Craftsman 315212240
Browse all Parts Search by Area
Base Assy Diagram and Parts List for Craftsman Miter Saw
Base Assy
Blade Assy Diagram and Parts List for Craftsman Miter Saw
Blade Assy
Guard Assy Diagram and Parts List for Craftsman Miter Saw
Guard Assy
Motor Assy Diagram and Parts List for Craftsman Miter Saw
Motor Assy
Previous Showing All Parts Next
Base Assy

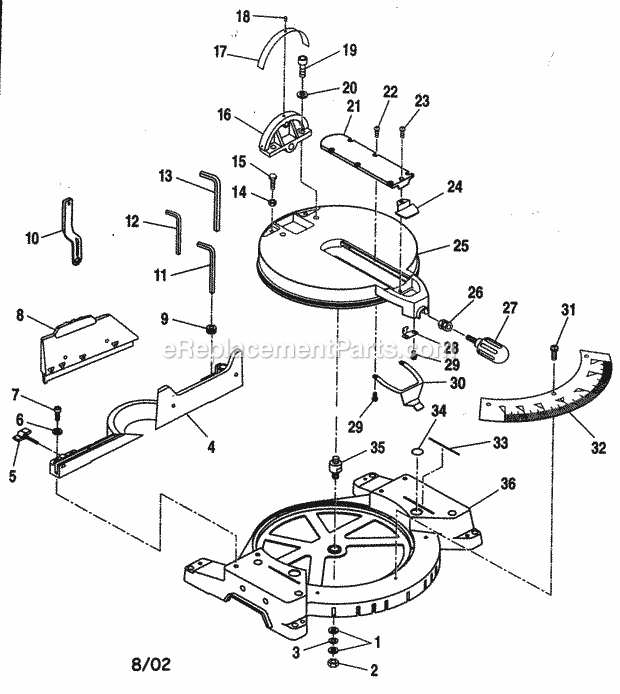

Base Assy Diagram and Parts List for Craftsman Miter Saw
  • A-1
    Flat Washer – Part Number: STD851010
    Flat Washer
    Part Number: STD851010
      No Longer Available
  • A-2
    Nut 5Pk – Part Number: STD541437
    Nut 5Pk
    Part Number: STD541437
      No Longer Available
  • A-3
    Lk Washer 8P – Part Number: STD852010
    Lk Washer 8P
    Part Number: STD852010
      No Longer Available
  • A-4
    Fence – Part Number: 555102000
    Fence
    Part Number: 555102000
      No Longer Available
  • A-5
    Knob – Part Number: 555104000
    Knob
    Part Number: 555104000
      No Longer Available
  • A-6
    Lock Washer – Part Number: STD852008
    Lock Washer
    Part Number: STD852008
      No Longer Available
  • A-7
    Capacitor Screw – Part Number: STD870835
    Capacitor Screw
    Part Number: STD870835
      No Longer Available
  • A-8
    Fence – Part Number: 555103000
    Fence
    Part Number: 555103000
      No Longer Available
  • A-10
    Blade Wrench – Part Number: 976568-001
    Blade Wrench
    Part Number: 976568-001
      No Longer Available
  • A-11
    6 Hex Key – Part Number: 46606
    6 Hex Key
    Part Number: 46606
      No Longer Available
  • A-12
    5 mm Hex Key (Allen Wrench) – Part Number: 791050000
    5 mm Hex Key (Allen Wrench)
    Part Number: 791050000
      No Longer Available
  • A-14
    Hex Nut – Part Number: STD840812
    Hex Nut
    Part Number: STD840812
      No Longer Available
  • A-15
    Capacitor Screw – Part Number: STD835030
    Capacitor Screw
    Part Number: STD835030
      No Longer Available
  • A-16
    Bracket – Part Number: 980245-001
    Bracket
    Part Number: 980245-001
      No Longer Available
  • A-17
    Scale – Part Number: 980234-001
    Scale
    Part Number: 980234-001
      No Longer Available
  • A-18
    Rivet – Part Number: 976531-001
    Rivet
    Part Number: 976531-001
      No Longer Available
  • A-20
    Lock Washer – Part Number: STD852012
    Lock Washer
    Part Number: STD852012
      No Longer Available
  • A-21
    Plate – Part Number: 980257-001
    Plate
    Part Number: 980257-001
      No Longer Available
  • A-22
    Screw – Part Number: A10007040100
    Screw
    Part Number: A10007040100
      No Longer Available
  • A-23
    Screw – Part Number: 980250-001
    Screw
    Part Number: 980250-001
      No Longer Available
  • A-24
    Indicator – Part Number: 980251-001
    Indicator
    Part Number: 980251-001
      No Longer Available
  • A-25
    Miter Tabl – Part Number: 980243-001
    Miter Tabl
    Part Number: 980243-001
      No Longer Available
  • A-26
    Clamp Nut – Part Number: 980258-001
    Clamp Nut
    Part Number: 980258-001
      No Longer Available
  • A-27
    Handle – Part Number: 980233-001
    Handle
    Part Number: 980233-001
      No Longer Available
  • A-28
    Plate – Part Number: 980242-001
    Plate
    Part Number: 980242-001
      No Longer Available
  • A-29
    Screw – Part Number: 980260-001
    Screw
    Part Number: 980260-001
      No Longer Available
  • A-30
    Lock Plate – Part Number: 980264-001
    Lock Plate
    Part Number: 980264-001
      No Longer Available
  • A-32
    Scale – Part Number: 980240-001
    Scale
    Part Number: 980240-001
      No Longer Available
  • A-33
    Line Label – Part Number: 977435-001
    Line Label
    Part Number: 977435-001
      No Longer Available
  • A-34
    Hand Warning Label – Part Number: 977434-001
    Hand Warning Label
    Part Number: 977434-001
      No Longer Available
  • A-35
    Spindle – Part Number: 980253-001
    Spindle
    Part Number: 980253-001
      No Longer Available
  • A-36
    Frame – Part Number: 980230-001
    Frame
    Part Number: 980230-001
      No Longer Available
  • A-800
    Torque Arm – Part Number: 46615
    Torque Arm
    Part Number: 46615
      In Stock
    $36.48
Blade Assy

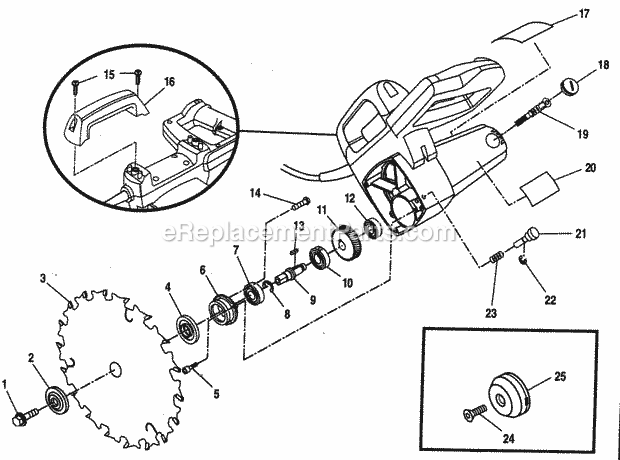

Blade Assy Diagram and Parts List for Craftsman Miter Saw
  • C-1
    Blade Bolt – Part Number: 980296-001
    Blade Bolt
    Part Number: 980296-001
      No Longer Available
  • C-2
    Washer – Part Number: 980288-001
    Washer
    Part Number: 980288-001
      No Longer Available
  • C-3
    Screw, Shcs M6x1x35mm – Part Number: NSP
    Screw, Shcs M6x1x35mm
    Part Number: NSP
      No Longer Available
  • C-4
    Washer – Part Number: 980270-001
    Washer
    Part Number: 980270-001
      No Longer Available
  • C-5
    Screw – Part Number: 980283-001
    Screw
    Part Number: 980283-001
      No Longer Available
  • C-7
    203 Brg – Part Number: STD315235
    203 Brg
    Part Number: STD315235
      No Longer Available
  • C-8
    External Retaining Ring – Part Number: 976648-001
    External Retaining Ring
    Part Number: 976648-001
      No Longer Available
  • C-9
    Gear Shaft – Part Number: 980272-001
    Gear Shaft
    Part Number: 980272-001
      No Longer Available
  • C-10
    Lock Ring – Part Number: 976653-001
    Lock Ring
    Part Number: 976653-001
      No Longer Available
  • C-11
    Gear – Part Number: 980289-001
    Gear
    Part Number: 980289-001
      No Longer Available
  • C-12
    Ball Bearing – Part Number: 330003-09
    Ball Bearing
    Part Number: 330003-09
      No Longer Available
  • C-15
    Screw – Part Number: 982102-001
    Screw
    Part Number: 982102-001
      No Longer Available
  • C-16
    Top Handle – Part Number: 511311000
    Top Handle
    Part Number: 511311000
      No Longer Available
  • C-17
    Warning Label – Part Number: 979695-001
    Warning Label
    Part Number: 979695-001
      No Longer Available
  • C-18
    Brush Cap – Part Number: 976682-001
    Brush Cap
    Part Number: 976682-001
      No Longer Available
  • C-19
    Brush Assembly – Part Number: 976683-001
    Brush Assembly
    Part Number: 976683-001
      No Longer Available
  • C-20
    Data Plate – Part Number: 555322000
    Data Plate
    Part Number: 555322000
      No Longer Available
  • C-21
    Pin – Part Number: 982060-001
    Pin
    Part Number: 982060-001
      No Longer Available
  • C-22
    E-Ring – Part Number: 976651-001
    E-Ring
    Part Number: 976651-001
      Special Order
    $5.95
  • C-23
    Compression Spring – Part Number: 976649-001
    Compression Spring
    Part Number: 976649-001
      Special Order
    $5.95
  • C-24
    Bolt – Part Number: 6631601
    Bolt
    Part Number: 6631601
      No Longer Available
  • C-25
    LASER,PACKED COMPLETE *TBO* – Part Number: 555D07020
    LASER,PACKED COMPLETE *TBO*
    Part Number: 555D07020
      Special Order
    $90.24
Guard Assy

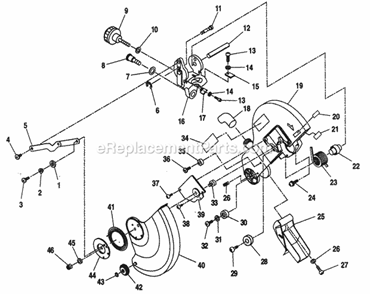

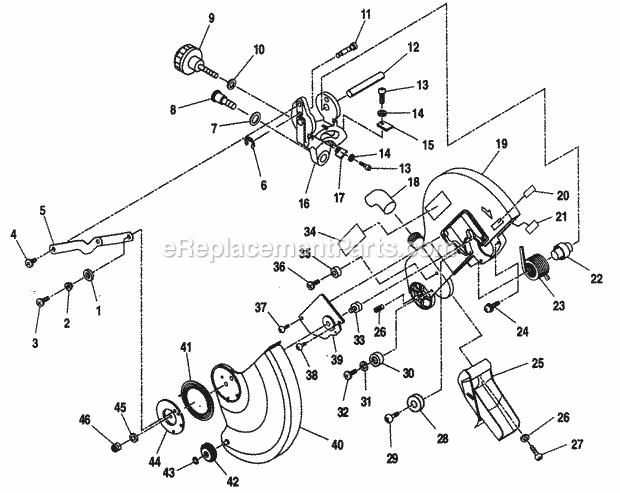

Guard Assy Diagram and Parts List for Craftsman Miter Saw
  • B-1
    Flat Washer – Part Number: STD851012
    Flat Washer
    Part Number: STD851012
      No Longer Available
  • B-2
    Stop – Part Number: 980249-001
    Stop
    Part Number: 980249-001
      No Longer Available
  • B-3
    Screw – Part Number: 980255-001
    Screw
    Part Number: 980255-001
      No Longer Available
  • B-4
    Screw – Part Number: 980262-001
    Screw
    Part Number: 980262-001
      No Longer Available
  • B-5
    Link Assy – Part Number: S55500100
    Link Assy
    Part Number: S55500100
      No Longer Available
  • B-6
    E-ring – Part Number: 976643-001
    E-ring
    Part Number: 976643-001
      No Longer Available
  • B-7
    Washer – Part Number: 980254-001
    Washer
    Part Number: 980254-001
      No Longer Available
  • B-9
    Knob – Part Number: 980237-001
    Knob
    Part Number: 980237-001
      No Longer Available
  • B-10
    Flat Washer – Part Number: STD851010
    Flat Washer
    Part Number: STD851010
      No Longer Available
  • B-14
    Washer – Part Number: STD851004
    Washer
    Part Number: STD851004
      No Longer Available
  • B-15
    Scale Indicator – Part Number: 980287-001
    Scale Indicator
    Part Number: 980287-001
      No Longer Available
  • B-16
    Bracket – Part Number: 555201000
    Bracket
    Part Number: 555201000
      No Longer Available
  • B-18
    Dust Guide – Part Number: 977223-001
    Dust Guide
    Part Number: 977223-001
      No Longer Available
  • B-19
    Guard – Part Number: 555411000
    Guard
    Part Number: 555411000
      No Longer Available
  • B-20
    Dust Guide – Part Number: 976567-001
    Dust Guide
    Part Number: 976567-001
      No Longer Available
  • B-21
    Label – Part Number: 976540-001
    Label
    Part Number: 976540-001
      No Longer Available
  • B-22
    Locator – Part Number: 980290-001
    Locator
    Part Number: 980290-001
      No Longer Available
  • B-23
    Spring – Part Number: 980282-001
    Spring
    Part Number: 980282-001
      No Longer Available
  • B-24
    Screw – Part Number: 982043-001
    Screw
    Part Number: 982043-001
      No Longer Available
  • B-25
    Dust Chute – Part Number: S55500200
    Dust Chute
    Part Number: S55500200
      No Longer Available
  • B-28
    Stop Block – Part Number: 980291-501
    Stop Block
    Part Number: 980291-501
      No Longer Available
  • B-30
    Stop Block – Part Number: 555407000
    Stop Block
    Part Number: 555407000
      No Longer Available
  • B-31
    Lock Washer – Part Number: STD852006
    Lock Washer
    Part Number: STD852006
      No Longer Available
  • B-32
    Screw – Part Number: 980260-001
    Screw
    Part Number: 980260-001
      No Longer Available
  • B-33
    Bolt – Part Number: 981638-001
    Bolt
    Part Number: 981638-001
      No Longer Available
  • B-34
    Logo Plate – Part Number: 979693-001
    Logo Plate
    Part Number: 979693-001
      No Longer Available
  • B-35
    Roller – Part Number: 980417-001
    Roller
    Part Number: 980417-001
      No Longer Available
  • B-36
    Screw – Part Number: 980416-001
    Screw
    Part Number: 980416-001
      No Longer Available
  • B-37
    Screw – Part Number: 980286-001
    Screw
    Part Number: 980286-001
      No Longer Available
  • B-38
    Screw – Part Number: A19001050122
    Screw
    Part Number: A19001050122
      No Longer Available
  • B-39
    Bolt Cover – Part Number: 555409000
    Bolt Cover
    Part Number: 555409000
      No Longer Available
  • B-40
    Guard – Part Number: 555404000
    Guard
    Part Number: 555404000
      No Longer Available
  • B-41
    Return Spring – Part Number: 976554-001
    Return Spring
    Part Number: 976554-001
      No Longer Available
  • B-42
    Lower Blade Guard Roller – Part Number: 566407000
    Lower Blade Guard Roller
    Part Number: 566407000
      No Longer Available
  • B-43
    Retaining Ring – Part Number: 538417000
    Retaining Ring
    Part Number: 538417000
      Special Order
    $5.16
  • B-44
    Holder – Part Number: 555414000
    Holder
    Part Number: 555414000
      No Longer Available
  • B-45
    Flat Washer – Part Number: STD851006
    Flat Washer
    Part Number: STD851006
      No Longer Available
Motor Assy

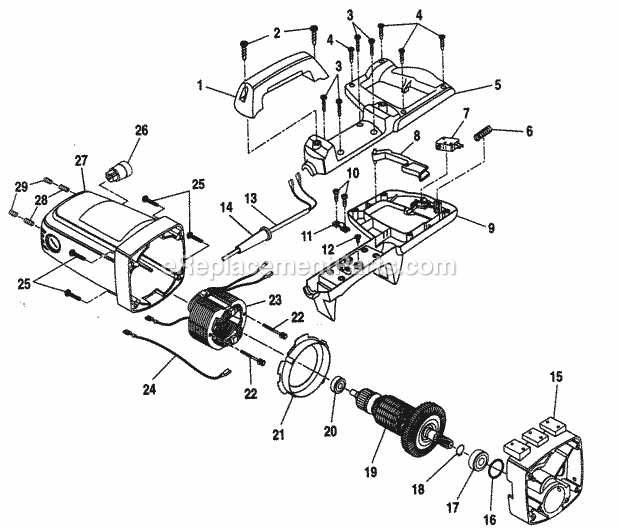

Motor Assy Diagram and Parts List for Craftsman Miter Saw
  • D-1
    Top Handle – Part Number: 511311000
    Top Handle
    Part Number: 511311000
      No Longer Available
  • D-2
    Screw – Part Number: 982102-001
    Screw
    Part Number: 982102-001
      No Longer Available
  • D-4
    Screw – Part Number: 982101-001
    Screw
    Part Number: 982101-001
      No Longer Available
  • D-5
    Handle – Part Number: 511U03050
    Handle
    Part Number: 511U03050
      No Longer Available
  • D-6
    Compression Spring – Part Number: 511308000
    Compression Spring
    Part Number: 511308000
      No Longer Available
  • D-7
    Switch – Part Number: 976676-002
    Switch
    Part Number: 976676-002
      No Longer Available
  • D-8
    Trigger – Part Number: 511307000
    Trigger
    Part Number: 511307000
      No Longer Available
  • D-9
    Handle – Part Number: 511U03050
    Handle
    Part Number: 511U03050
      No Longer Available
  • D-10
    Screw (M4 X 12) – Part Number: 900030401
    Screw (M4 X 12)
    Part Number: 900030401
      No Longer Available
  • D-11
    Cord Clamp – Part Number: 578313-006
    Cord Clamp
    Part Number: 578313-006
      No Longer Available
  • D-13
    Ac Cord – Part Number: 511306000
    Ac Cord
    Part Number: 511306000
      No Longer Available
  • D-14
    Relief – Part Number: 976688-001
    Relief
    Part Number: 976688-001
      No Longer Available
  • D-16
    0 Ring – Part Number: A63020000320
    0 Ring
    Part Number: A63020000320
      No Longer Available
  • D-17
    608 Brg – Part Number: STD315485
    608 Brg
    Part Number: STD315485
      No Longer Available
  • D-18
    External Retaining Ring – Part Number: 976648-001
    External Retaining Ring
    Part Number: 976648-001
      No Longer Available
  • D-19
    Armature – Part Number: 9070C01010
    Armature
    Part Number: 9070C01010
      No Longer Available
  • D-20
    608Zz – Part Number: STD315486
    608Zz
    Part Number: STD315486
      No Longer Available
  • D-21
    Fan Casing – Part Number: 558309100
    Fan Casing
    Part Number: 558309100
      No Longer Available
  • D-22
    Screw – Part Number: 976668-001
    Screw
    Part Number: 976668-001
      No Longer Available
  • D-23
    Field Assy – Part Number: 9070C02000
    Field Assy
    Part Number: 9070C02000
      No Longer Available
  • D-26
    Holder Brs – Part Number: 976684-001
    Holder Brs
    Part Number: 976684-001
      No Longer Available
  • D-27
    Housing – Part Number: 980302-001
    Housing
    Part Number: 980302-001
      No Longer Available
  • D-28
    Set Screw – Part Number: 981315-001
    Set Screw
    Part Number: 981315-001
      No Longer Available
  • D-29
    Set Screw – Part Number: 981313-001
    Set Screw
    Part Number: 981313-001
      No Longer Available

Questions & Answers

?

Our customer Service team is at the ready daily to answer your part and product questions.

Be the first to ask our experts a question about this part!

Ask our Team

We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.

✖

Our customer service team are at the ready daily to answer your part and product questions. We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
