Samsung MICROWAVE OVEN Replacement Parts For Model MW3500T (XAA)

We Sell Only Genuine Samsung Parts

Popular Parts for Samsung MW3500T (XAA)

C-RESONATOR;CSB 500E – Part Number: 74539-202-003 C-RESONATOR;CSB 500E
Special Order
$7.56
MAIN RELAY;VSD 116P-1 – Part Number: 74729-204-524 MAIN RELAY;VSD 116P-1
Special Order
$15.18
DRIVE MOTOR;M2CC29ZR2 – Part Number: 74769-221-713 DRIVE MOTOR;M2CC29ZR2
Special Order
$26.05
FAN MOTOR;AMM35-002ZS – Part Number: 74769-221-724 FAN MOTOR;AMM35-002ZS
Special Order
$31.96
ROLLER;TEFLON(017) – Part Number: 75224-203-620 ROLLER;TEFLON(017)
Special Order
$7.56
PANEL OUTER;VINYL STE – Part Number: 76402-286-110 PANEL OUTER;VINYL STE
Special Order
$42.63
SUPPO – Part Number: 76462-211-420 SUPPO
Special Order
$20.62
BKT MGT;RE-350T EGI T – Part Number: 76613-241-100 BKT MGT;RE-350T EGI T
Special Order
$9.74

Search Within Model

Browse all Parts Search by Area

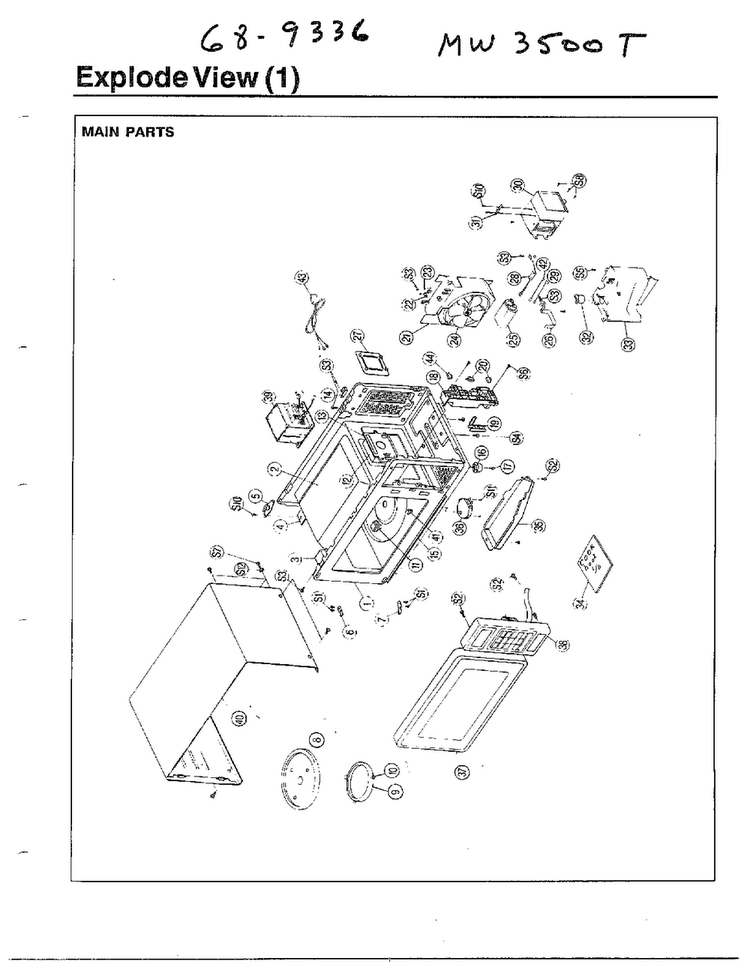

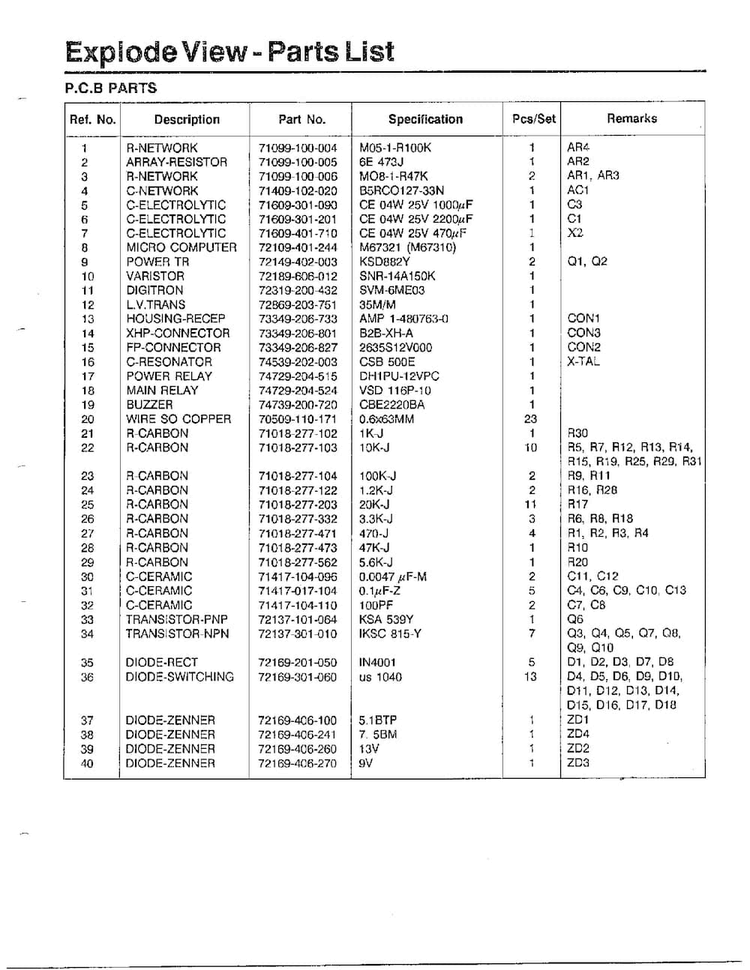

Explode View - Parts List Diagram and Parts List for MW3500T XAA Samsung Microwave
Explode View - Parts List

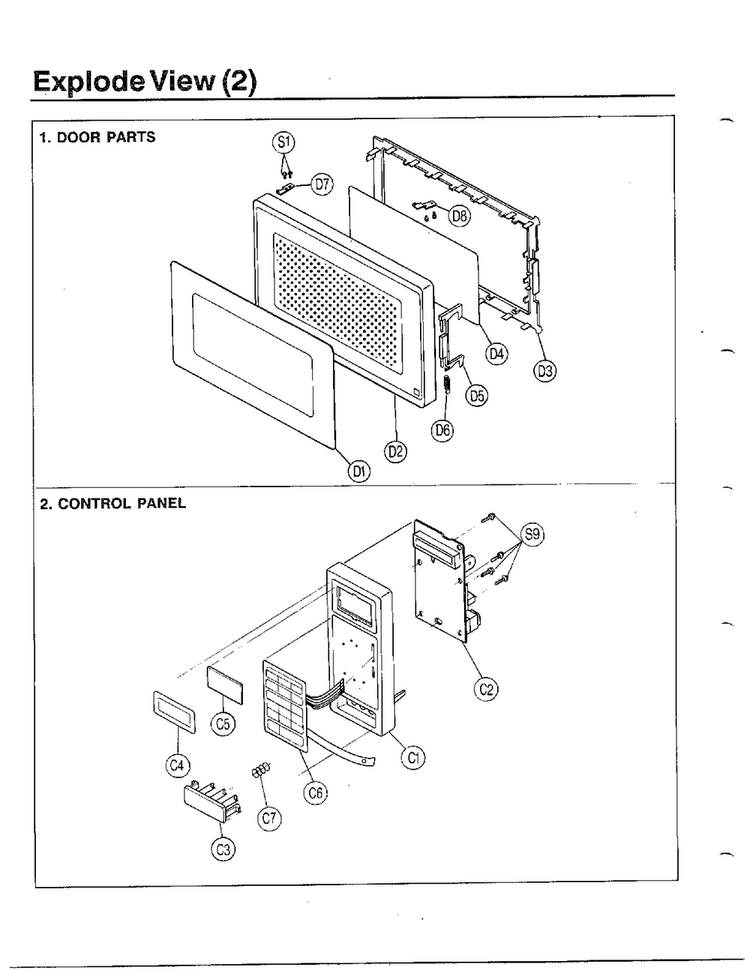

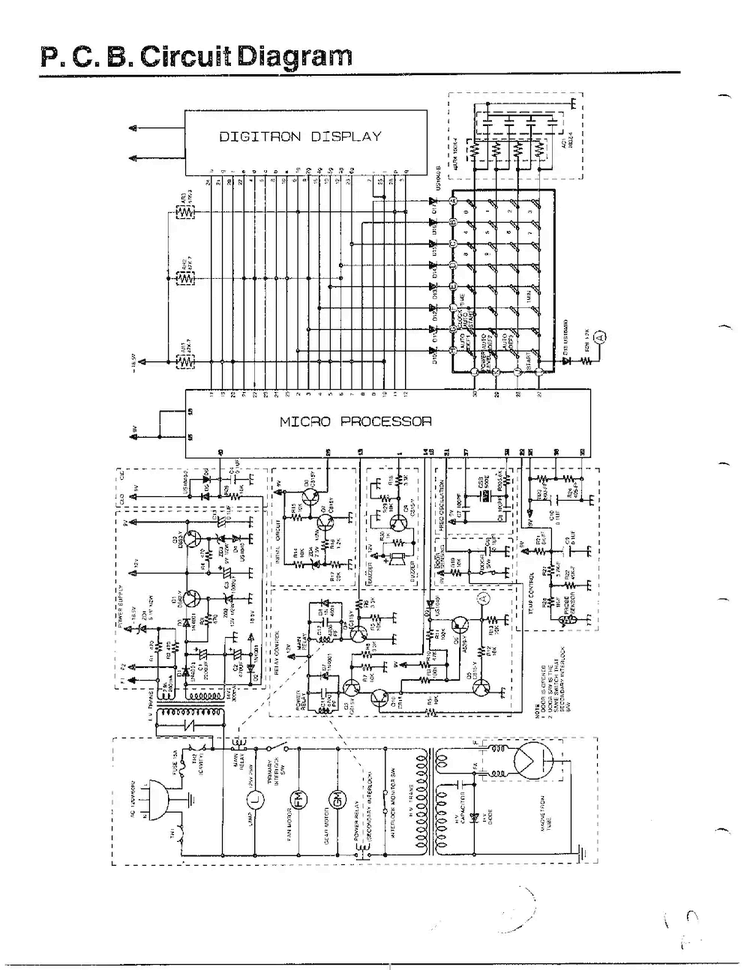

Explode View - Parts List Page 2 Diagram and Parts List for MW3500T XAA Samsung Microwave
Explode View - Parts List Page 2
Parts List - Exploded View Diagram and Parts List for MW3500T XAA Samsung Microwave
Parts List - Exploded View
Parts List - Exploded View Page 2 Diagram and Parts List for MW3500T XAA Samsung Microwave
Parts List - Exploded View Page 2

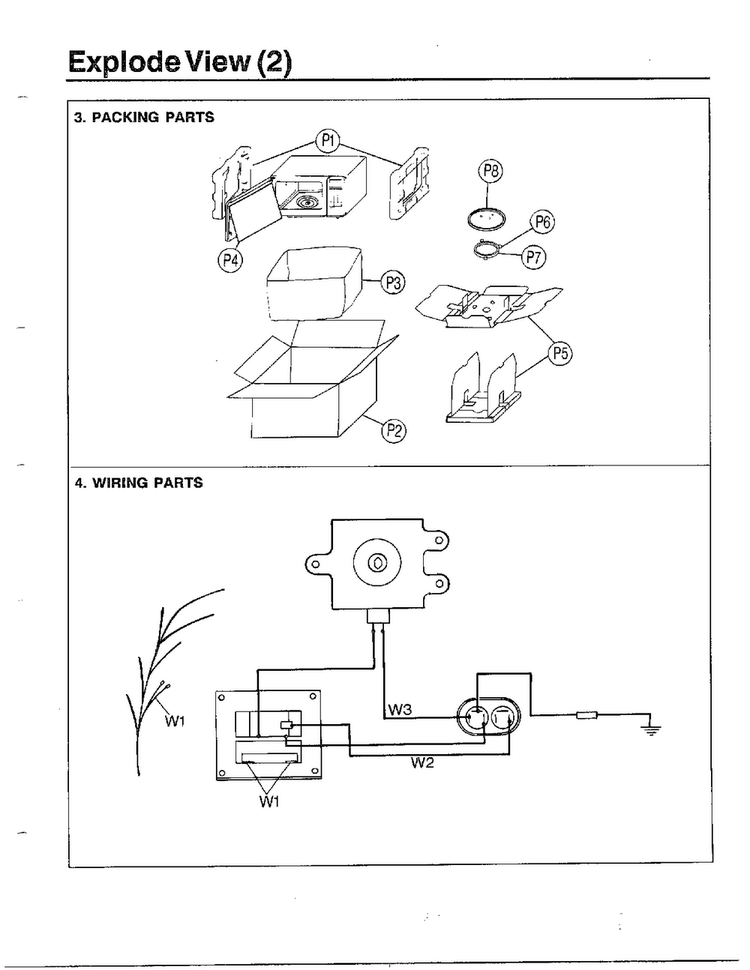

Parts List - Exploded View Page 3 Diagram and Parts List for MW3500T XAA Samsung Microwave
Parts List - Exploded View Page 3

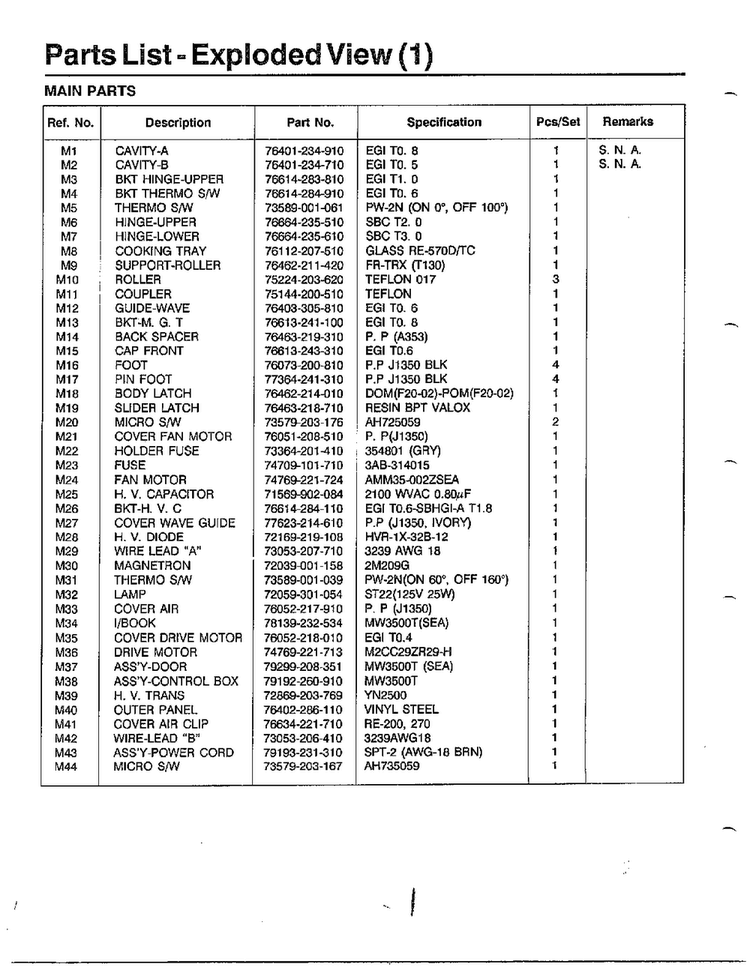

Parts List - Exploded View Page 4 Diagram and Parts List for MW3500T XAA Samsung Microwave
Parts List - Exploded View Page 4

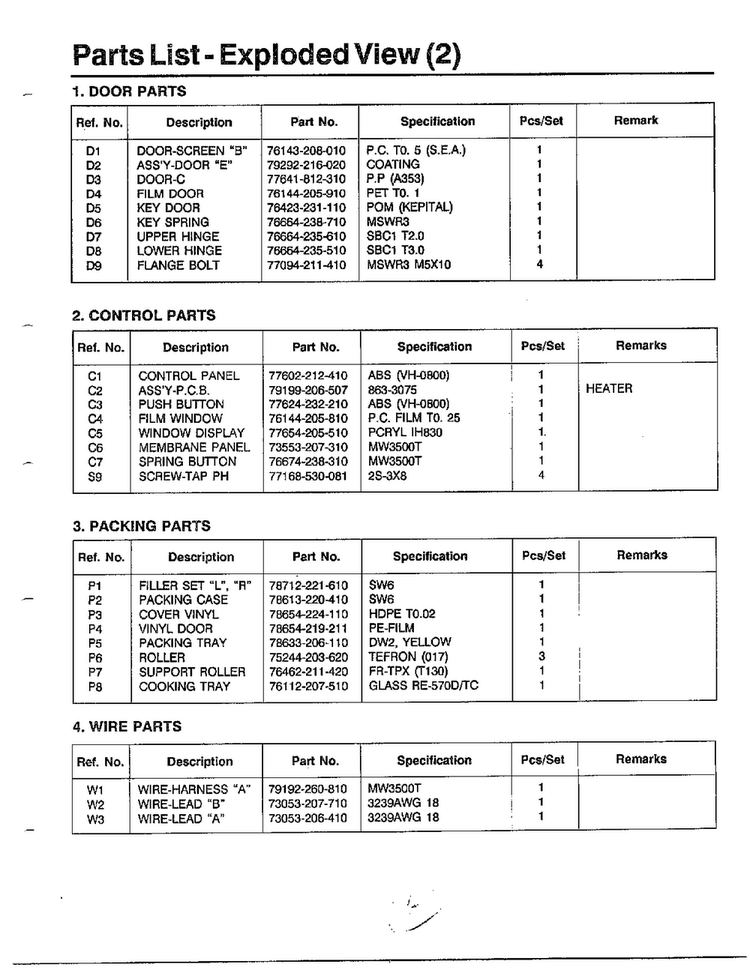

Parts List - Exploded View Page 5 Diagram and Parts List for MW3500T XAA Samsung Microwave
Parts List - Exploded View Page 5

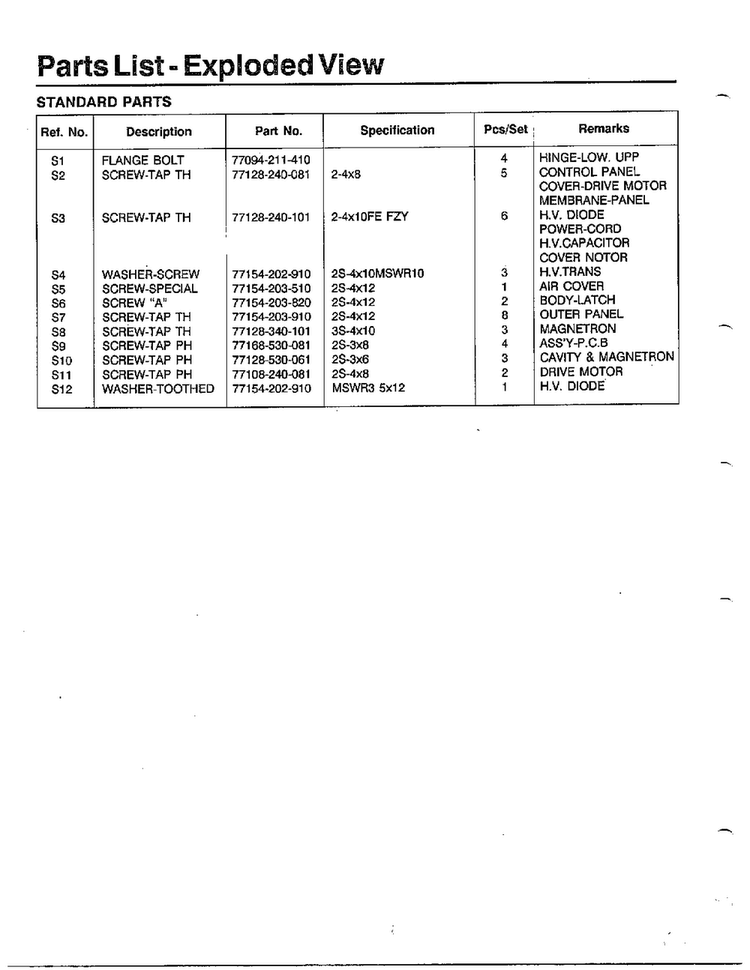

Parts List - Exploded View Page 6 Diagram and Parts List for MW3500T XAA Samsung Microwave
Parts List - Exploded View Page 6
Previous Showing All Parts Next
Explode View - Parts List
Explode View - Parts List Diagram and Parts List for MW3500T XAA Samsung Microwave
  • 1
    R-NETWORK;M05-1-R100K – Part Number: 71099-100-004
    R-NETWORK;M05-1-R100K
    Part Number: 71099-100-004
      Special Order
    $7.56
  • 2
    R-NETWORK;M06-1-R47K – Part Number: 71099-100-005
    R-NETWORK;M06-1-R47K
    Part Number: 71099-100-005
      Special Order
    $7.56
  • 3
    R-NETWORK;M08-1-R47K – Part Number: 71099-100-006
    R-NETWORK;M08-1-R47K
    Part Number: 71099-100-006
      Special Order
    $7.56
  • 4
    CAPAC – Part Number: 71409-102-020
    CAPAC
    Part Number: 71409-102-020
      Special Order
    $7.56
  • 5
    Electrolytic – Part Number: 71609-301-090
    Electrolytic
    Part Number: 71609-301-090
      No Longer Available
  • 6
    C-ELECTROLYTIC;DE 0.4 – Part Number: 71609-301-201
    C-ELECTROLYTIC;DE 0.4
    Part Number: 71609-301-201
      Special Order
    $7.56
  • 7
    470mfd 25v – Part Number: 71609-401-710
    470mfd 25v
    Part Number: 71609-401-710
      No Longer Available
  • 8
    MICRO COMPUTER;M67321 – Part Number: 72109-401-244
    MICRO COMPUTER;M67321
    Part Number: 72109-401-244
      Special Order
    $30.89
  • 9
    POWER – Part Number: 72149-402-003
    POWER
    Part Number: 72149-402-003
      Special Order
    $7.56
  • 10
    Varistor – Part Number: 72189-606-102
    Varistor
    Part Number: 72189-606-102
      No Longer Available
  • 11
    Digitron – Part Number: 72319-200-432
    Digitron
    Part Number: 72319-200-432
      No Longer Available
  • 12
    Transformer – Part Number: 72869-203-751
    Transformer
    Part Number: 72869-203-751
      No Longer Available
  • 13
    Housing-recep – Part Number: 73349-206-733
    Housing-recep
    Part Number: 73349-206-733
      No Longer Available
  • 14
    Xhp-connector – Part Number: 73349-206-801
    Xhp-connector
    Part Number: 73349-206-801
      No Longer Available
  • 15
    Fp-connector – Part Number: 73349-206-827
    Fp-connector
    Part Number: 73349-206-827
      No Longer Available
  • 16
    C-RESONATOR;CSB 500E – Part Number: 74539-202-003
    C-RESONATOR;CSB 500E
    Part Number: 74539-202-003
      Special Order
    $7.56
  • 17
    DISCONTINUED – Part Number: 74729-204-515
    DISCONTINUED
    Part Number: 74729-204-515
      No Longer Available
  • 18
    MAIN RELAY;VSD 116P-1 – Part Number: 74729-204-524
    MAIN RELAY;VSD 116P-1
    Part Number: 74729-204-524
      Special Order
    $15.18
  • 19
    Buzzer – Part Number: 74739-200-720
    Buzzer
    Part Number: 74739-200-720
      No Longer Available
  • 20
    Wire – Part Number: 70509-110-171
    Wire
    Part Number: 70509-110-171
      No Longer Available
  • 21
    Resistor – Part Number: 71018-277-102
    Resistor
    Part Number: 71018-277-102
      No Longer Available
  • 22
    Res 10k 1/4w – Part Number: 71018-277-103
    Res 10k 1/4w
    Part Number: 71018-277-103
      No Longer Available
  • 23
    Res 100k 1/4 – Part Number: 71018-277-104
    Res 100k 1/4
    Part Number: 71018-277-104
      No Longer Available
  • 24
    Res 1.2k 1/4 – Part Number: 71018-277-122
    Res 1.2k 1/4
    Part Number: 71018-277-122
      No Longer Available
  • 25
    Resistor – Part Number: 71018-277-203
    Resistor
    Part Number: 71018-277-203
      No Longer Available
  • 26
    Res 3.3k 1/4 – Part Number: 71018-277-332
    Res 3.3k 1/4
    Part Number: 71018-277-332
      No Longer Available
  • 27
    R-CARBON;RD1/4TP 470- – Part Number: 71018-277-471
    R-CARBON;RD1/4TP 470-
    Part Number: 71018-277-471
      Special Order
    $7.56
  • 28
    R-CARBON;RD1/4TP 47K- – Part Number: 71018-277-473
    R-CARBON;RD1/4TP 47K-
    Part Number: 71018-277-473
      Special Order
    $7.56
  • 29
    Res 5.6k 1/4 – Part Number: 71018-277-562
    Res 5.6k 1/4
    Part Number: 71018-277-562
      No Longer Available
  • 30
    Capacitor – Part Number: 71417-104-096
    Capacitor
    Part Number: 71417-104-096
      No Longer Available
  • 32
    100 pf 50v – Part Number: 71417-104-110
    100 pf 50v
    Part Number: 71417-104-110
      No Longer Available
  • 33
    Bumper – Part Number: 72137-101-064
    Bumper
    Part Number: 72137-101-064
      No Longer Available
  • 34
    Tstr 2sc1815 – Part Number: 72137-301-010
    Tstr 2sc1815
    Part Number: 72137-301-010
      No Longer Available
  • 35
    Diode – Part Number: 72169-201-050
    Diode
    Part Number: 72169-201-050
      No Longer Available
  • 36
    DIODE-SWITCHING;UL104 – Part Number: 72169-301-060
    DIODE-SWITCHING;UL104
    Part Number: 72169-301-060
      Special Order
    $7.56
  • 37
    DIODE – Part Number: 72169-406-100
    DIODE
    Part Number: 72169-406-100
      Special Order
    $7.56
  • 38
    Znr gza7.5y – Part Number: 72169-406-241
    Znr gza7.5y
    Part Number: 72169-406-241
      No Longer Available
  • 39
    Zener hz12b3 – Part Number: 72169-406-260
    Zener hz12b3
    Part Number: 72169-406-260
      No Longer Available
  • 40
    Znr gza9.1y – Part Number: 72169-406-270
    Znr gza9.1y
    Part Number: 72169-406-270
      No Longer Available
Explode View - Parts List Page 2
Explode View - Parts List Page 2 Diagram and Parts List for MW3500T XAA Samsung Microwave
  • 1
    R-NETWORK;M05-1-R100K – Part Number: 71099-100-004
    R-NETWORK;M05-1-R100K
    Part Number: 71099-100-004
      Special Order
    $7.56
  • 2
    R-NETWORK;M06-1-R47K – Part Number: 71099-100-005
    R-NETWORK;M06-1-R47K
    Part Number: 71099-100-005
      Special Order
    $7.56
  • 3
    R-NETWORK;M08-1-R47K – Part Number: 71099-100-006
    R-NETWORK;M08-1-R47K
    Part Number: 71099-100-006
      Special Order
    $7.56
  • 4
    CAPAC – Part Number: 71409-102-020
    CAPAC
    Part Number: 71409-102-020
      Special Order
    $7.56
  • 5
    Electrolytic – Part Number: 71609-301-090
    Electrolytic
    Part Number: 71609-301-090
      No Longer Available
  • 6
    C-ELECTROLYTIC;DE 0.4 – Part Number: 71609-301-201
    C-ELECTROLYTIC;DE 0.4
    Part Number: 71609-301-201
      Special Order
    $7.56
  • 7
    470mfd 25v – Part Number: 71609-401-710
    470mfd 25v
    Part Number: 71609-401-710
      No Longer Available
  • 8
    MICRO COMPUTER;M67321 – Part Number: 72109-401-244
    MICRO COMPUTER;M67321
    Part Number: 72109-401-244
      Special Order
    $30.89
  • 9
    POWER – Part Number: 72149-402-003
    POWER
    Part Number: 72149-402-003
      Special Order
    $7.56
  • 10
    Varistor – Part Number: 72189-606-102
    Varistor
    Part Number: 72189-606-102
      No Longer Available
  • 11
    Digitron – Part Number: 72319-200-432
    Digitron
    Part Number: 72319-200-432
      No Longer Available
  • 12
    Transformer – Part Number: 72869-203-751
    Transformer
    Part Number: 72869-203-751
      No Longer Available
  • 13
    Housing-recep – Part Number: 73349-206-733
    Housing-recep
    Part Number: 73349-206-733
      No Longer Available
  • 14
    Xhp-connector – Part Number: 73349-206-801
    Xhp-connector
    Part Number: 73349-206-801
      No Longer Available
  • 15
    Fp-connector – Part Number: 73349-206-827
    Fp-connector
    Part Number: 73349-206-827
      No Longer Available
  • 16
    C-RESONATOR;CSB 500E – Part Number: 74539-202-003
    C-RESONATOR;CSB 500E
    Part Number: 74539-202-003
      Special Order
    $7.56
  • 17
    DISCONTINUED – Part Number: 74729-204-515
    DISCONTINUED
    Part Number: 74729-204-515
      No Longer Available
  • 18
    MAIN RELAY;VSD 116P-1 – Part Number: 74729-204-524
    MAIN RELAY;VSD 116P-1
    Part Number: 74729-204-524
      Special Order
    $15.18
  • 19
    Buzzer – Part Number: 74739-200-720
    Buzzer
    Part Number: 74739-200-720
      No Longer Available
  • 20
    Wire – Part Number: 70509-110-171
    Wire
    Part Number: 70509-110-171
      No Longer Available
  • 21
    Resistor – Part Number: 71018-277-102
    Resistor
    Part Number: 71018-277-102
      No Longer Available
  • 22
    Res 10k 1/4w – Part Number: 71018-277-103
    Res 10k 1/4w
    Part Number: 71018-277-103
      No Longer Available
  • 23
    Res 100k 1/4 – Part Number: 71018-277-104
    Res 100k 1/4
    Part Number: 71018-277-104
      No Longer Available
  • 24
    Res 1.2k 1/4 – Part Number: 71018-277-122
    Res 1.2k 1/4
    Part Number: 71018-277-122
      No Longer Available
  • 25
    Resistor – Part Number: 71018-277-203
    Resistor
    Part Number: 71018-277-203
      No Longer Available
  • 26
    Res 3.3k 1/4 – Part Number: 71018-277-332
    Res 3.3k 1/4
    Part Number: 71018-277-332
      No Longer Available
  • 27
    R-CARBON;RD1/4TP 470- – Part Number: 71018-277-471
    R-CARBON;RD1/4TP 470-
    Part Number: 71018-277-471
      Special Order
    $7.56
  • 28
    R-CARBON;RD1/4TP 47K- – Part Number: 71018-277-473
    R-CARBON;RD1/4TP 47K-
    Part Number: 71018-277-473
      Special Order
    $7.56
  • 29
    Res 5.6k 1/4 – Part Number: 71018-277-562
    Res 5.6k 1/4
    Part Number: 71018-277-562
      No Longer Available
  • 30
    Capacitor – Part Number: 71417-104-096
    Capacitor
    Part Number: 71417-104-096
      No Longer Available
  • 32
    100 pf 50v – Part Number: 71417-104-110
    100 pf 50v
    Part Number: 71417-104-110
      No Longer Available
  • 33
    Bumper – Part Number: 72137-101-064
    Bumper
    Part Number: 72137-101-064
      No Longer Available
  • 34
    Tstr 2sc1815 – Part Number: 72137-301-010
    Tstr 2sc1815
    Part Number: 72137-301-010
      No Longer Available
  • 35
    Diode – Part Number: 72169-201-050
    Diode
    Part Number: 72169-201-050
      No Longer Available
  • 36
    DIODE-SWITCHING;UL104 – Part Number: 72169-301-060
    DIODE-SWITCHING;UL104
    Part Number: 72169-301-060
      Special Order
    $7.56
  • 37
    DIODE – Part Number: 72169-406-100
    DIODE
    Part Number: 72169-406-100
      Special Order
    $7.56
  • 38
    Znr gza7.5y – Part Number: 72169-406-241
    Znr gza7.5y
    Part Number: 72169-406-241
      No Longer Available
  • 39
    Zener hz12b3 – Part Number: 72169-406-260
    Zener hz12b3
    Part Number: 72169-406-260
      No Longer Available
  • 40
    Znr gza9.1y – Part Number: 72169-406-270
    Znr gza9.1y
    Part Number: 72169-406-270
      No Longer Available
Parts List - Exploded View
Parts List - Exploded View Diagram and Parts List for MW3500T XAA Samsung Microwave
  • Fuse – Part Number: 11255
    Fuse
    Part Number: 11255
      No Longer Available
  • C1
    Panel control – Part Number: 77602-212-410
    Panel control
    Part Number: 77602-212-410
      No Longer Available
  • C2
    Assembly – Part Number: 79199-206-507
    Assembly
    Part Number: 79199-206-507
      Special Order
    $76.03
  • C3
    Button – Part Number: 77624-232-210
    Button
    Part Number: 77624-232-210
      No Longer Available
  • C4
    Film window – Part Number: 76144-205-810
    Film window
    Part Number: 76144-205-810
      No Longer Available
  • C5
    WINDO – Part Number: 77654-205-510
    WINDO
    Part Number: 77654-205-510
      Special Order
    $7.56
  • C6
    Membrane panel – Part Number: 73553-207-310
    Membrane panel
    Part Number: 73553-207-310
      No Longer Available
  • C7
    Spring button – Part Number: 76674-238-310
    Spring button
    Part Number: 76674-238-310
      No Longer Available
  • D1
    Film scren – Part Number: 76143-208-010
    Film scren
    Part Number: 76143-208-010
      No Longer Available
  • D2
    Assembly DOOR"E";COATING – Part Number: 79292-216-020
    Assembly DOOR"E";COATING
    Part Number: 79292-216-020
      Special Order
    $35.16
  • D3
    DOOR"C";P.P(A353) – Part Number: 77641-812-310
    DOOR"C";P.P(A353)
    Part Number: 77641-812-310
      Special Order
    $7.56
  • D4
    Film door – Part Number: 76144-205-910
    Film door
    Part Number: 76144-205-910
      No Longer Available
  • D5
    Key door – Part Number: 76423-231-110
    Key door
    Part Number: 76423-231-110
      No Longer Available
  • D6
    Spring key – Part Number: 76664-238-710
    Spring key
    Part Number: 76664-238-710
      No Longer Available
  • D7
    Hinge lower – Part Number: 76664-235-610
    Hinge lower
    Part Number: 76664-235-610
      No Longer Available
  • D8
    Hinge upper – Part Number: 76664-235-510
    Hinge upper
    Part Number: 76664-235-510
      No Longer Available
  • D9
    Bolt flange – Part Number: 77094-211-410
    Bolt flange
    Part Number: 77094-211-410
      No Longer Available
  • M1
    Cavity a – Part Number: 76401-234-910
    Cavity a
    Part Number: 76401-234-910
      No Longer Available
  • M2
    Cavity b – Part Number: 76401-234-710
    Cavity b
    Part Number: 76401-234-710
      No Longer Available
  • M3
    Bkt hinge-u – Part Number: 76614-283-810
    Bkt hinge-u
    Part Number: 76614-283-810
      No Longer Available
  • M4
    Bkt thermo s/w – Part Number: 76614-284-910
    Bkt thermo s/w
    Part Number: 76614-284-910
      No Longer Available
  • M5
    Thermostat switch – Part Number: 73589-001-061
    Thermostat switch
    Part Number: 73589-001-061
      No Longer Available
  • M6
    Hinge upper – Part Number: 76664-235-510
    Hinge upper
    Part Number: 76664-235-510
      No Longer Available
  • M7
    Hinge lower – Part Number: 76664-235-610
    Hinge lower
    Part Number: 76664-235-610
      No Longer Available
  • M8
    Tray – Part Number: 76112-207-510
    Tray
    Part Number: 76112-207-510
      No Longer Available
  • M9
    SUPPO – Part Number: 76462-211-420
    SUPPO
    Part Number: 76462-211-420
      Special Order
    $20.62
  • M10
    ROLLER;TEFLON(017) – Part Number: 75224-203-620
    ROLLER;TEFLON(017)
    Part Number: 75224-203-620
      Special Order
    $7.56
  • M11
    Turntable coupling – Part Number: 75144-200-510
    Turntable coupling
    Part Number: 75144-200-510
      No Longer Available
  • M12
    Guide – Part Number: 76403-305-810
    Guide
    Part Number: 76403-305-810
      No Longer Available
  • M13
    BKT MGT;RE-350T EGI T – Part Number: 76613-241-100
    BKT MGT;RE-350T EGI T
    Part Number: 76613-241-100
      Special Order
    $9.74
  • M14
    P/n conflict - check with supplier – Part Number: 76463-219-310
    P/n conflict - check with supplier
    Part Number: 76463-219-310
      No Longer Available
  • M15
    Cap – Part Number: 76613-243-310
    Cap
    Part Number: 76613-243-310
      No Longer Available
  • M16
    Foot – Part Number: 76073-200-810
    Foot
    Part Number: 76073-200-810
      No Longer Available
  • M17
    Pin foot – Part Number: 77364-241-310
    Pin foot
    Part Number: 77364-241-310
      No Longer Available
  • M18
    Latch body – Part Number: 76462-214-010
    Latch body
    Part Number: 76462-214-010
      No Longer Available
  • M19
    Slider latch – Part Number: 76463-218-710
    Slider latch
    Part Number: 76463-218-710
      No Longer Available
  • M20
    Switch – Part Number: 73579-203-176
    Switch
    Part Number: 73579-203-176
      No Longer Available
  • M21
    Cover – Part Number: 76051-208-510
    Cover
    Part Number: 76051-208-510
      No Longer Available
  • M22
    FUSE-HOLDER;354801 GY – Part Number: 73364-201-410
    FUSE-HOLDER;354801 GY
    Part Number: 73364-201-410
      Special Order
    $7.56
  • M23
    Fuse – Part Number: 74709-101-710
    Fuse
    Part Number: 74709-101-710
      No Longer Available
  • M24
    FAN MOTOR;AMM35-002ZS – Part Number: 74769-221-724
    FAN MOTOR;AMM35-002ZS
    Part Number: 74769-221-724
      Special Order
    $31.96
  • M25
    Capacitor – Part Number: 71569-902-084
    Capacitor
    Part Number: 71569-902-084
      No Longer Available
  • M26
    Bkt hv-c – Part Number: 76614-284-110
    Bkt hv-c
    Part Number: 76614-284-110
      No Longer Available
  • M27
    Cover guide – Part Number: 77623-214-610
    Cover guide
    Part Number: 77623-214-610
      No Longer Available
  • M29
    Wire – Part Number: 73053-207-710
    Wire
    Part Number: 73053-207-710
      No Longer Available
  • M30
    M.G.T – Part Number: 72039-001-158
    M.G.T
    Part Number: 72039-001-158
      No Longer Available
  • M31
    Switch thermo – Part Number: 73589-001-039
    Switch thermo
    Part Number: 73589-001-039
      No Longer Available
  • M32
    Lamp – Part Number: 72059-301-054
    Lamp
    Part Number: 72059-301-054
      No Longer Available
  • M33
    Cover air – Part Number: 76052-217-910
    Cover air
    Part Number: 76052-217-910
      No Longer Available
  • M34
    INSTRUCTION BOOK(COO; – Part Number: 78139-232-534
    INSTRUCTION BOOK(COO;
    Part Number: 78139-232-534
      Special Order
    $7.56
  • M35
    Cover – Part Number: 76052-218-010
    Cover
    Part Number: 76052-218-010
      No Longer Available
  • M36
    DRIVE MOTOR;M2CC29ZR2 – Part Number: 74769-221-713
    DRIVE MOTOR;M2CC29ZR2
    Part Number: 74769-221-713
      Special Order
    $26.05
  • M37
    Assembly DOOR;MW3500T – Part Number: 79299-208-351
    Assembly DOOR;MW3500T
    Part Number: 79299-208-351
      Special Order
    $49.03
  • M38
    Ass y-control box – Part Number: 79192-260-910
    Ass y-control box
    Part Number: 79192-260-910
      No Longer Available
  • M39
    Trans hv – Part Number: 72869-203-769
    Trans hv
    Part Number: 72869-203-769
      No Longer Available
  • M40
    PANEL OUTER;VINYL STE – Part Number: 76402-286-110
    PANEL OUTER;VINYL STE
    Part Number: 76402-286-110
      Special Order
    $42.63
  • M41
    Cover air clip – Part Number: 76634-221-710
    Cover air clip
    Part Number: 76634-221-710
      No Longer Available
  • M42
    Wire lead b – Part Number: 73053-206-410
    Wire lead b
    Part Number: 73053-206-410
      No Longer Available
  • M43
    Ay cord – Part Number: 79193-231-310
    Ay cord
    Part Number: 79193-231-310
      No Longer Available
  • M44
    Micro s/w – Part Number: 73579-203-167
    Micro s/w
    Part Number: 73579-203-167
      No Longer Available
  • P1
    Filler set l/r – Part Number: 78712-221-610
    Filler set l/r
    Part Number: 78712-221-610
      No Longer Available
  • P2
    Case – Part Number: 78613-220-410
    Case
    Part Number: 78613-220-410
      No Longer Available
  • P3
    Cover vinyl – Part Number: 78654-224-110
    Cover vinyl
    Part Number: 78654-224-110
      No Longer Available
  • P4
    Door vinyl – Part Number: 78654-219-211
    Door vinyl
    Part Number: 78654-219-211
      No Longer Available
  • P5
    Tray – Part Number: 78633-206-110
    Tray
    Part Number: 78633-206-110
      No Longer Available
  • P6
    Turntable roller – Part Number: 75244-203-620
    Turntable roller
    Part Number: 75244-203-620
      No Longer Available
  • P7
    SUPPO – Part Number: 76462-211-420
    SUPPO
    Part Number: 76462-211-420
      Special Order
    $20.62
  • P8
    Tray – Part Number: 76112-207-510
    Tray
    Part Number: 76112-207-510
      No Longer Available
  • S1
    Bolt flange – Part Number: 77094-211-410
    Bolt flange
    Part Number: 77094-211-410
      No Longer Available
  • S2
    Screw – Part Number: 77128-240-081
    Screw
    Part Number: 77128-240-081
      No Longer Available
  • S3
    Screw-tap th – Part Number: 77128-420-101
    Screw-tap th
    Part Number: 77128-420-101
      No Longer Available
  • S4
    Washer – Part Number: 77154-202-910
    Washer
    Part Number: 77154-202-910
      No Longer Available
  • S5
    SCREW SPECIAL;2S-4X10 – Part Number: 77154-203-510
    SCREW SPECIAL;2S-4X10
    Part Number: 77154-203-510
      Special Order
    $7.56
  • S6
    Screw a – Part Number: 77154-203-820
    Screw a
    Part Number: 77154-203-820
      No Longer Available
  • S7
    Screw a – Part Number: 77154-203-910
    Screw a
    Part Number: 77154-203-910
      No Longer Available
  • S8
    Screw th – Part Number: 77128-340-101
    Screw th
    Part Number: 77128-340-101
      No Longer Available
  • S9
    Screw – Part Number: 77168-530-081
    Screw
    Part Number: 77168-530-081
      No Longer Available
  • S10
    Screw – Part Number: 77128-530-061
    Screw
    Part Number: 77128-530-061
      No Longer Available
  • S11
    SCREW-TAP,PH;2-4X8 FE – Part Number: 77108-240-081
    SCREW-TAP,PH;2-4X8 FE
    Part Number: 77108-240-081
      Special Order
    $7.56
  • S12
    Washer – Part Number: 77154-202-910
    Washer
    Part Number: 77154-202-910
      No Longer Available
  • W1
    Wire harness a – Part Number: 79192-260-810
    Wire harness a
    Part Number: 79192-260-810
      No Longer Available
  • W2
    Wire – Part Number: 73053-207-710
    Wire
    Part Number: 73053-207-710
      No Longer Available
  • W3
    Wire lead b – Part Number: 73053-206-410
    Wire lead b
    Part Number: 73053-206-410
      No Longer Available
Parts List - Exploded View Page 2
Parts List - Exploded View Page 2 Diagram and Parts List for MW3500T XAA Samsung Microwave
  • C1
    Panel control – Part Number: 77602-212-410
    Panel control
    Part Number: 77602-212-410
      No Longer Available
  • C2
    Assembly – Part Number: 79199-206-507
    Assembly
    Part Number: 79199-206-507
      Special Order
    $76.03
  • C3
    Button – Part Number: 77624-232-210
    Button
    Part Number: 77624-232-210
      No Longer Available
  • C4
    Film window – Part Number: 76144-205-810
    Film window
    Part Number: 76144-205-810
      No Longer Available
  • C5
    WINDO – Part Number: 77654-205-510
    WINDO
    Part Number: 77654-205-510
      Special Order
    $7.56
  • C6
    Membrane panel – Part Number: 73553-207-310
    Membrane panel
    Part Number: 73553-207-310
      No Longer Available
  • C7
    Spring button – Part Number: 76674-238-310
    Spring button
    Part Number: 76674-238-310
      No Longer Available
  • D1
    Film scren – Part Number: 76143-208-010
    Film scren
    Part Number: 76143-208-010
      No Longer Available
  • D2
    Assembly DOOR"E";COATING – Part Number: 79292-216-020
    Assembly DOOR"E";COATING
    Part Number: 79292-216-020
      Special Order
    $35.16
  • D3
    DOOR"C";P.P(A353) – Part Number: 77641-812-310
    DOOR"C";P.P(A353)
    Part Number: 77641-812-310
      Special Order
    $7.56
  • D4
    Film door – Part Number: 76144-205-910
    Film door
    Part Number: 76144-205-910
      No Longer Available
  • D5
    Key door – Part Number: 76423-231-110
    Key door
    Part Number: 76423-231-110
      No Longer Available
  • D6
    Spring key – Part Number: 76664-238-710
    Spring key
    Part Number: 76664-238-710
      No Longer Available
  • D7
    Hinge lower – Part Number: 76664-235-610
    Hinge lower
    Part Number: 76664-235-610
      No Longer Available
  • D8
    Hinge upper – Part Number: 76664-235-510
    Hinge upper
    Part Number: 76664-235-510
      No Longer Available
  • D9
    Bolt flange – Part Number: 77094-211-410
    Bolt flange
    Part Number: 77094-211-410
      No Longer Available
  • M1
    Cavity a – Part Number: 76401-234-910
    Cavity a
    Part Number: 76401-234-910
      No Longer Available
  • M2
    Cavity b – Part Number: 76401-234-710
    Cavity b
    Part Number: 76401-234-710
      No Longer Available
  • M3
    Bkt hinge-u – Part Number: 76614-283-810
    Bkt hinge-u
    Part Number: 76614-283-810
      No Longer Available
  • M4
    Bkt thermo s/w – Part Number: 76614-284-910
    Bkt thermo s/w
    Part Number: 76614-284-910
      No Longer Available
  • M5
    Thermostat switch – Part Number: 73589-001-061
    Thermostat switch
    Part Number: 73589-001-061
      No Longer Available
  • M6
    Hinge upper – Part Number: 76664-235-510
    Hinge upper
    Part Number: 76664-235-510
      No Longer Available
  • M7
    Hinge lower – Part Number: 76664-235-610
    Hinge lower
    Part Number: 76664-235-610
      No Longer Available
  • M8
    Tray – Part Number: 76112-207-510
    Tray
    Part Number: 76112-207-510
      No Longer Available
  • M9
    SUPPO – Part Number: 76462-211-420
    SUPPO
    Part Number: 76462-211-420
      Special Order
    $20.62
  • M10
    ROLLER;TEFLON(017) – Part Number: 75224-203-620
    ROLLER;TEFLON(017)
    Part Number: 75224-203-620
      Special Order
    $7.56
  • M11
    Turntable coupling – Part Number: 75144-200-510
    Turntable coupling
    Part Number: 75144-200-510
      No Longer Available
  • M12
    Guide – Part Number: 76403-305-810
    Guide
    Part Number: 76403-305-810
      No Longer Available
  • M13
    BKT MGT;RE-350T EGI T – Part Number: 76613-241-100
    BKT MGT;RE-350T EGI T
    Part Number: 76613-241-100
      Special Order
    $9.74
  • M14
    P/n conflict - check with supplier – Part Number: 76463-219-310
    P/n conflict - check with supplier
    Part Number: 76463-219-310
      No Longer Available
  • M15
    Cap – Part Number: 76613-243-310
    Cap
    Part Number: 76613-243-310
      No Longer Available
  • M16
    Foot – Part Number: 76073-200-810
    Foot
    Part Number: 76073-200-810
      No Longer Available
  • M17
    Pin foot – Part Number: 77364-241-310
    Pin foot
    Part Number: 77364-241-310
      No Longer Available
  • M18
    Latch body – Part Number: 76462-214-010
    Latch body
    Part Number: 76462-214-010
      No Longer Available
  • M19
    Slider latch – Part Number: 76463-218-710
    Slider latch
    Part Number: 76463-218-710
      No Longer Available
  • M20
    Switch – Part Number: 73579-203-176
    Switch
    Part Number: 73579-203-176
      No Longer Available
  • M21
    Cover – Part Number: 76051-208-510
    Cover
    Part Number: 76051-208-510
      No Longer Available
  • M22
    FUSE-HOLDER;354801 GY – Part Number: 73364-201-410
    FUSE-HOLDER;354801 GY
    Part Number: 73364-201-410
      Special Order
    $7.56
  • M23
    Fuse – Part Number: 74709-101-710
    Fuse
    Part Number: 74709-101-710
      No Longer Available
  • M24
    FAN MOTOR;AMM35-002ZS – Part Number: 74769-221-724
    FAN MOTOR;AMM35-002ZS
    Part Number: 74769-221-724
      Special Order
    $31.96
  • M25
    Capacitor – Part Number: 71569-902-084
    Capacitor
    Part Number: 71569-902-084
      No Longer Available
  • M26
    Bkt hv-c – Part Number: 76614-284-110
    Bkt hv-c
    Part Number: 76614-284-110
      No Longer Available
  • M27
    Cover guide – Part Number: 77623-214-610
    Cover guide
    Part Number: 77623-214-610
      No Longer Available
  • M29
    Wire – Part Number: 73053-207-710
    Wire
    Part Number: 73053-207-710
      No Longer Available
  • M30
    M.G.T – Part Number: 72039-001-158
    M.G.T
    Part Number: 72039-001-158
      No Longer Available
  • M31
    Switch thermo – Part Number: 73589-001-039
    Switch thermo
    Part Number: 73589-001-039
      No Longer Available
  • M32
    Lamp – Part Number: 72059-301-054
    Lamp
    Part Number: 72059-301-054
      No Longer Available
  • M33
    Cover air – Part Number: 76052-217-910
    Cover air
    Part Number: 76052-217-910
      No Longer Available
  • M34
    INSTRUCTION BOOK(COO; – Part Number: 78139-232-534
    INSTRUCTION BOOK(COO;
    Part Number: 78139-232-534
      Special Order
    $7.56
  • M35
    Cover – Part Number: 76052-218-010
    Cover
    Part Number: 76052-218-010
      No Longer Available
  • M36
    DRIVE MOTOR;M2CC29ZR2 – Part Number: 74769-221-713
    DRIVE MOTOR;M2CC29ZR2
    Part Number: 74769-221-713
      Special Order
    $26.05
  • M37
    Assembly DOOR;MW3500T – Part Number: 79299-208-351
    Assembly DOOR;MW3500T
    Part Number: 79299-208-351
      Special Order
    $49.03
  • M38
    Ass y-control box – Part Number: 79192-260-910
    Ass y-control box
    Part Number: 79192-260-910
      No Longer Available
  • M39
    Trans hv – Part Number: 72869-203-769
    Trans hv
    Part Number: 72869-203-769
      No Longer Available
  • M40
    PANEL OUTER;VINYL STE – Part Number: 76402-286-110
    PANEL OUTER;VINYL STE
    Part Number: 76402-286-110
      Special Order
    $42.63
  • M41
    Cover air clip – Part Number: 76634-221-710
    Cover air clip
    Part Number: 76634-221-710
      No Longer Available
  • M42
    Wire lead b – Part Number: 73053-206-410
    Wire lead b
    Part Number: 73053-206-410
      No Longer Available
  • M43
    Ay cord – Part Number: 79193-231-310
    Ay cord
    Part Number: 79193-231-310
      No Longer Available
  • M44
    Micro s/w – Part Number: 73579-203-167
    Micro s/w
    Part Number: 73579-203-167
      No Longer Available
  • P1
    Filler set l/r – Part Number: 78712-221-610
    Filler set l/r
    Part Number: 78712-221-610
      No Longer Available
  • P2
    Case – Part Number: 78613-220-410
    Case
    Part Number: 78613-220-410
      No Longer Available
  • P3
    Cover vinyl – Part Number: 78654-224-110
    Cover vinyl
    Part Number: 78654-224-110
      No Longer Available
  • P4
    Door vinyl – Part Number: 78654-219-211
    Door vinyl
    Part Number: 78654-219-211
      No Longer Available
  • P5
    Tray – Part Number: 78633-206-110
    Tray
    Part Number: 78633-206-110
      No Longer Available
  • P6
    Turntable roller – Part Number: 75244-203-620
    Turntable roller
    Part Number: 75244-203-620
      No Longer Available
  • P7
    SUPPO – Part Number: 76462-211-420
    SUPPO
    Part Number: 76462-211-420
      Special Order
    $20.62
  • P8
    Tray – Part Number: 76112-207-510
    Tray
    Part Number: 76112-207-510
      No Longer Available
  • S1
    Bolt flange – Part Number: 77094-211-410
    Bolt flange
    Part Number: 77094-211-410
      No Longer Available
  • S2
    Screw – Part Number: 77128-240-081
    Screw
    Part Number: 77128-240-081
      No Longer Available
  • S3
    Screw-tap th – Part Number: 77128-420-101
    Screw-tap th
    Part Number: 77128-420-101
      No Longer Available
  • S4
    Washer – Part Number: 77154-202-910
    Washer
    Part Number: 77154-202-910
      No Longer Available
  • S5
    SCREW SPECIAL;2S-4X10 – Part Number: 77154-203-510
    SCREW SPECIAL;2S-4X10
    Part Number: 77154-203-510
      Special Order
    $7.56
  • S6
    Screw a – Part Number: 77154-203-820
    Screw a
    Part Number: 77154-203-820
      No Longer Available
  • S7
    Screw a – Part Number: 77154-203-910
    Screw a
    Part Number: 77154-203-910
      No Longer Available
  • S8
    Screw th – Part Number: 77128-340-101
    Screw th
    Part Number: 77128-340-101
      No Longer Available
  • S9
    Screw – Part Number: 77168-530-081
    Screw
    Part Number: 77168-530-081
      No Longer Available
  • S10
    Screw – Part Number: 77128-530-061
    Screw
    Part Number: 77128-530-061
      No Longer Available
  • S11
    SCREW-TAP,PH;2-4X8 FE – Part Number: 77108-240-081
    SCREW-TAP,PH;2-4X8 FE
    Part Number: 77108-240-081
      Special Order
    $7.56
  • S12
    Washer – Part Number: 77154-202-910
    Washer
    Part Number: 77154-202-910
      No Longer Available
  • W1
    Wire harness a – Part Number: 79192-260-810
    Wire harness a
    Part Number: 79192-260-810
      No Longer Available
  • W2
    Wire – Part Number: 73053-207-710
    Wire
    Part Number: 73053-207-710
      No Longer Available
  • W3
    Wire lead b – Part Number: 73053-206-410
    Wire lead b
    Part Number: 73053-206-410
      No Longer Available
Parts List - Exploded View Page 3
Parts List - Exploded View Page 3 Diagram and Parts List for MW3500T XAA Samsung Microwave
  • C1
    Panel control – Part Number: 77602-212-410
    Panel control
    Part Number: 77602-212-410
      No Longer Available
  • C2
    Assembly – Part Number: 79199-206-507
    Assembly
    Part Number: 79199-206-507
      Special Order
    $76.03
  • C3
    Button – Part Number: 77624-232-210
    Button
    Part Number: 77624-232-210
      No Longer Available
  • C4
    Film window – Part Number: 76144-205-810
    Film window
    Part Number: 76144-205-810
      No Longer Available
  • C5
    WINDO – Part Number: 77654-205-510
    WINDO
    Part Number: 77654-205-510
      Special Order
    $7.56
  • C6
    Membrane panel – Part Number: 73553-207-310
    Membrane panel
    Part Number: 73553-207-310
      No Longer Available
  • C7
    Spring button – Part Number: 76674-238-310
    Spring button
    Part Number: 76674-238-310
      No Longer Available
  • D1
    Film scren – Part Number: 76143-208-010
    Film scren
    Part Number: 76143-208-010
      No Longer Available
  • D2
    Assembly DOOR"E";COATING – Part Number: 79292-216-020
    Assembly DOOR"E";COATING
    Part Number: 79292-216-020
      Special Order
    $35.16
  • D3
    DOOR"C";P.P(A353) – Part Number: 77641-812-310
    DOOR"C";P.P(A353)
    Part Number: 77641-812-310
      Special Order
    $7.56
  • D4
    Film door – Part Number: 76144-205-910
    Film door
    Part Number: 76144-205-910
      No Longer Available
  • D5
    Key door – Part Number: 76423-231-110
    Key door
    Part Number: 76423-231-110
      No Longer Available
  • D6
    Spring key – Part Number: 76664-238-710
    Spring key
    Part Number: 76664-238-710
      No Longer Available
  • D7
    Hinge lower – Part Number: 76664-235-610
    Hinge lower
    Part Number: 76664-235-610
      No Longer Available
  • D8
    Hinge upper – Part Number: 76664-235-510
    Hinge upper
    Part Number: 76664-235-510
      No Longer Available
  • D9
    Bolt flange – Part Number: 77094-211-410
    Bolt flange
    Part Number: 77094-211-410
      No Longer Available
  • M1
    Cavity a – Part Number: 76401-234-910
    Cavity a
    Part Number: 76401-234-910
      No Longer Available
  • M2
    Cavity b – Part Number: 76401-234-710
    Cavity b
    Part Number: 76401-234-710
      No Longer Available
  • M3
    Bkt hinge-u – Part Number: 76614-283-810
    Bkt hinge-u
    Part Number: 76614-283-810
      No Longer Available
  • M4
    Bkt thermo s/w – Part Number: 76614-284-910
    Bkt thermo s/w
    Part Number: 76614-284-910
      No Longer Available
  • M5
    Thermostat switch – Part Number: 73589-001-061
    Thermostat switch
    Part Number: 73589-001-061
      No Longer Available
  • M6
    Hinge upper – Part Number: 76664-235-510
    Hinge upper
    Part Number: 76664-235-510
      No Longer Available
  • M7
    Hinge lower – Part Number: 76664-235-610
    Hinge lower
    Part Number: 76664-235-610
      No Longer Available
  • M8
    Tray – Part Number: 76112-207-510
    Tray
    Part Number: 76112-207-510
      No Longer Available
  • M9
    SUPPO – Part Number: 76462-211-420
    SUPPO
    Part Number: 76462-211-420
      Special Order
    $20.62
  • M10
    ROLLER;TEFLON(017) – Part Number: 75224-203-620
    ROLLER;TEFLON(017)
    Part Number: 75224-203-620
      Special Order
    $7.56
  • M11
    Turntable coupling – Part Number: 75144-200-510
    Turntable coupling
    Part Number: 75144-200-510
      No Longer Available
  • M12
    Guide – Part Number: 76403-305-810
    Guide
    Part Number: 76403-305-810
      No Longer Available
  • M13
    BKT MGT;RE-350T EGI T – Part Number: 76613-241-100
    BKT MGT;RE-350T EGI T
    Part Number: 76613-241-100
      Special Order
    $9.74
  • M14
    P/n conflict - check with supplier – Part Number: 76463-219-310
    P/n conflict - check with supplier
    Part Number: 76463-219-310
      No Longer Available
  • M15
    Cap – Part Number: 76613-243-310
    Cap
    Part Number: 76613-243-310
      No Longer Available
  • M16
    Foot – Part Number: 76073-200-810
    Foot
    Part Number: 76073-200-810
      No Longer Available
  • M17
    Pin foot – Part Number: 77364-241-310
    Pin foot
    Part Number: 77364-241-310
      No Longer Available
  • M18
    Latch body – Part Number: 76462-214-010
    Latch body
    Part Number: 76462-214-010
      No Longer Available
  • M19
    Slider latch – Part Number: 76463-218-710
    Slider latch
    Part Number: 76463-218-710
      No Longer Available
  • M20
    Switch – Part Number: 73579-203-176
    Switch
    Part Number: 73579-203-176
      No Longer Available
  • M21
    Cover – Part Number: 76051-208-510
    Cover
    Part Number: 76051-208-510
      No Longer Available
  • M22
    FUSE-HOLDER;354801 GY – Part Number: 73364-201-410
    FUSE-HOLDER;354801 GY
    Part Number: 73364-201-410
      Special Order
    $7.56
  • M23
    Fuse – Part Number: 74709-101-710
    Fuse
    Part Number: 74709-101-710
      No Longer Available
  • M24
    FAN MOTOR;AMM35-002ZS – Part Number: 74769-221-724
    FAN MOTOR;AMM35-002ZS
    Part Number: 74769-221-724
      Special Order
    $31.96
  • M25
    Capacitor – Part Number: 71569-902-084
    Capacitor
    Part Number: 71569-902-084
      No Longer Available
  • M26
    Bkt hv-c – Part Number: 76614-284-110
    Bkt hv-c
    Part Number: 76614-284-110
      No Longer Available
  • M27
    Cover guide – Part Number: 77623-214-610
    Cover guide
    Part Number: 77623-214-610
      No Longer Available
  • M29
    Wire – Part Number: 73053-207-710
    Wire
    Part Number: 73053-207-710
      No Longer Available
  • M30
    M.G.T – Part Number: 72039-001-158
    M.G.T
    Part Number: 72039-001-158
      No Longer Available
  • M31
    Switch thermo – Part Number: 73589-001-039
    Switch thermo
    Part Number: 73589-001-039
      No Longer Available
  • M32
    Lamp – Part Number: 72059-301-054
    Lamp
    Part Number: 72059-301-054
      No Longer Available
  • M33
    Cover air – Part Number: 76052-217-910
    Cover air
    Part Number: 76052-217-910
      No Longer Available
  • M34
    INSTRUCTION BOOK(COO; – Part Number: 78139-232-534
    INSTRUCTION BOOK(COO;
    Part Number: 78139-232-534
      Special Order
    $7.56
  • M35
    Cover – Part Number: 76052-218-010
    Cover
    Part Number: 76052-218-010
      No Longer Available
  • M36
    DRIVE MOTOR;M2CC29ZR2 – Part Number: 74769-221-713
    DRIVE MOTOR;M2CC29ZR2
    Part Number: 74769-221-713
      Special Order
    $26.05
  • M37
    Assembly DOOR;MW3500T – Part Number: 79299-208-351
    Assembly DOOR;MW3500T
    Part Number: 79299-208-351
      Special Order
    $49.03
  • M38
    Ass y-control box – Part Number: 79192-260-910
    Ass y-control box
    Part Number: 79192-260-910
      No Longer Available
  • M39
    Trans hv – Part Number: 72869-203-769
    Trans hv
    Part Number: 72869-203-769
      No Longer Available
  • M40
    PANEL OUTER;VINYL STE – Part Number: 76402-286-110
    PANEL OUTER;VINYL STE
    Part Number: 76402-286-110
      Special Order
    $42.63
  • M41
    Cover air clip – Part Number: 76634-221-710
    Cover air clip
    Part Number: 76634-221-710
      No Longer Available
  • M42
    Wire lead b – Part Number: 73053-206-410
    Wire lead b
    Part Number: 73053-206-410
      No Longer Available
  • M43
    Ay cord – Part Number: 79193-231-310
    Ay cord
    Part Number: 79193-231-310
      No Longer Available
  • M44
    Micro s/w – Part Number: 73579-203-167
    Micro s/w
    Part Number: 73579-203-167
      No Longer Available
  • P1
    Filler set l/r – Part Number: 78712-221-610
    Filler set l/r
    Part Number: 78712-221-610
      No Longer Available
  • P2
    Case – Part Number: 78613-220-410
    Case
    Part Number: 78613-220-410
      No Longer Available
  • P3
    Cover vinyl – Part Number: 78654-224-110
    Cover vinyl
    Part Number: 78654-224-110
      No Longer Available
  • P4
    Door vinyl – Part Number: 78654-219-211
    Door vinyl
    Part Number: 78654-219-211
      No Longer Available
  • P5
    Tray – Part Number: 78633-206-110
    Tray
    Part Number: 78633-206-110
      No Longer Available
  • P6
    Turntable roller – Part Number: 75244-203-620
    Turntable roller
    Part Number: 75244-203-620
      No Longer Available
  • P7
    SUPPO – Part Number: 76462-211-420
    SUPPO
    Part Number: 76462-211-420
      Special Order
    $20.62
  • P8
    Tray – Part Number: 76112-207-510
    Tray
    Part Number: 76112-207-510
      No Longer Available
  • S1
    Bolt flange – Part Number: 77094-211-410
    Bolt flange
    Part Number: 77094-211-410
      No Longer Available
  • S2
    Screw – Part Number: 77128-240-081
    Screw
    Part Number: 77128-240-081
      No Longer Available
  • S3
    Screw-tap th – Part Number: 77128-420-101
    Screw-tap th
    Part Number: 77128-420-101
      No Longer Available
  • S4
    Washer – Part Number: 77154-202-910
    Washer
    Part Number: 77154-202-910
      No Longer Available
  • S5
    SCREW SPECIAL;2S-4X10 – Part Number: 77154-203-510
    SCREW SPECIAL;2S-4X10
    Part Number: 77154-203-510
      Special Order
    $7.56
  • S6
    Screw a – Part Number: 77154-203-820
    Screw a
    Part Number: 77154-203-820
      No Longer Available
  • S7
    Screw a – Part Number: 77154-203-910
    Screw a
    Part Number: 77154-203-910
      No Longer Available
  • S8
    Screw th – Part Number: 77128-340-101
    Screw th
    Part Number: 77128-340-101
      No Longer Available
  • S9
    Screw – Part Number: 77168-530-081
    Screw
    Part Number: 77168-530-081
      No Longer Available
  • S10
    Screw – Part Number: 77128-530-061
    Screw
    Part Number: 77128-530-061
      No Longer Available
  • S11
    SCREW-TAP,PH;2-4X8 FE – Part Number: 77108-240-081
    SCREW-TAP,PH;2-4X8 FE
    Part Number: 77108-240-081
      Special Order
    $7.56
  • S12
    Washer – Part Number: 77154-202-910
    Washer
    Part Number: 77154-202-910
      No Longer Available
  • W1
    Wire harness a – Part Number: 79192-260-810
    Wire harness a
    Part Number: 79192-260-810
      No Longer Available
  • W2
    Wire – Part Number: 73053-207-710
    Wire
    Part Number: 73053-207-710
      No Longer Available
  • W3
    Wire lead b – Part Number: 73053-206-410
    Wire lead b
    Part Number: 73053-206-410
      No Longer Available
Parts List - Exploded View Page 4
Parts List - Exploded View Page 4 Diagram and Parts List for MW3500T XAA Samsung Microwave
  • C1
    Panel control – Part Number: 77602-212-410
    Panel control
    Part Number: 77602-212-410
      No Longer Available
  • C2
    Assembly – Part Number: 79199-206-507
    Assembly
    Part Number: 79199-206-507
      Special Order
    $76.03
  • C3
    Button – Part Number: 77624-232-210
    Button
    Part Number: 77624-232-210
      No Longer Available
  • C4
    Film window – Part Number: 76144-205-810
    Film window
    Part Number: 76144-205-810
      No Longer Available
  • C5
    WINDO – Part Number: 77654-205-510
    WINDO
    Part Number: 77654-205-510
      Special Order
    $7.56
  • C6
    Membrane panel – Part Number: 73553-207-310
    Membrane panel
    Part Number: 73553-207-310
      No Longer Available
  • C7
    Spring button – Part Number: 76674-238-310
    Spring button
    Part Number: 76674-238-310
      No Longer Available
  • D1
    Film scren – Part Number: 76143-208-010
    Film scren
    Part Number: 76143-208-010
      No Longer Available
  • D2
    Assembly DOOR"E";COATING – Part Number: 79292-216-020
    Assembly DOOR"E";COATING
    Part Number: 79292-216-020
      Special Order
    $35.16
  • D3
    DOOR"C";P.P(A353) – Part Number: 77641-812-310
    DOOR"C";P.P(A353)
    Part Number: 77641-812-310
      Special Order
    $7.56
  • D4
    Film door – Part Number: 76144-205-910
    Film door
    Part Number: 76144-205-910
      No Longer Available
  • D5
    Key door – Part Number: 76423-231-110
    Key door
    Part Number: 76423-231-110
      No Longer Available
  • D6
    Spring key – Part Number: 76664-238-710
    Spring key
    Part Number: 76664-238-710
      No Longer Available
  • D7
    Hinge lower – Part Number: 76664-235-610
    Hinge lower
    Part Number: 76664-235-610
      No Longer Available
  • D8
    Hinge upper – Part Number: 76664-235-510
    Hinge upper
    Part Number: 76664-235-510
      No Longer Available
  • D9
    Bolt flange – Part Number: 77094-211-410
    Bolt flange
    Part Number: 77094-211-410
      No Longer Available
  • M1
    Cavity a – Part Number: 76401-234-910
    Cavity a
    Part Number: 76401-234-910
      No Longer Available
  • M2
    Cavity b – Part Number: 76401-234-710
    Cavity b
    Part Number: 76401-234-710
      No Longer Available
  • M3
    Bkt hinge-u – Part Number: 76614-283-810
    Bkt hinge-u
    Part Number: 76614-283-810
      No Longer Available
  • M4
    Bkt thermo s/w – Part Number: 76614-284-910
    Bkt thermo s/w
    Part Number: 76614-284-910
      No Longer Available
  • M5
    Thermostat switch – Part Number: 73589-001-061
    Thermostat switch
    Part Number: 73589-001-061
      No Longer Available
  • M6
    Hinge upper – Part Number: 76664-235-510
    Hinge upper
    Part Number: 76664-235-510
      No Longer Available
  • M7
    Hinge lower – Part Number: 76664-235-610
    Hinge lower
    Part Number: 76664-235-610
      No Longer Available
  • M8
    Tray – Part Number: 76112-207-510
    Tray
    Part Number: 76112-207-510
      No Longer Available
  • M9
    SUPPO – Part Number: 76462-211-420
    SUPPO
    Part Number: 76462-211-420
      Special Order
    $20.62
  • M10
    ROLLER;TEFLON(017) – Part Number: 75224-203-620
    ROLLER;TEFLON(017)
    Part Number: 75224-203-620
      Special Order
    $7.56
  • M11
    Turntable coupling – Part Number: 75144-200-510
    Turntable coupling
    Part Number: 75144-200-510
      No Longer Available
  • M12
    Guide – Part Number: 76403-305-810
    Guide
    Part Number: 76403-305-810
      No Longer Available
  • M13
    BKT MGT;RE-350T EGI T – Part Number: 76613-241-100
    BKT MGT;RE-350T EGI T
    Part Number: 76613-241-100
      Special Order
    $9.74
  • M14
    P/n conflict - check with supplier – Part Number: 76463-219-310
    P/n conflict - check with supplier
    Part Number: 76463-219-310
      No Longer Available
  • M15
    Cap – Part Number: 76613-243-310
    Cap
    Part Number: 76613-243-310
      No Longer Available
  • M16
    Foot – Part Number: 76073-200-810
    Foot
    Part Number: 76073-200-810
      No Longer Available
  • M17
    Pin foot – Part Number: 77364-241-310
    Pin foot
    Part Number: 77364-241-310
      No Longer Available
  • M18
    Latch body – Part Number: 76462-214-010
    Latch body
    Part Number: 76462-214-010
      No Longer Available
  • M19
    Slider latch – Part Number: 76463-218-710
    Slider latch
    Part Number: 76463-218-710
      No Longer Available
  • M20
    Switch – Part Number: 73579-203-176
    Switch
    Part Number: 73579-203-176
      No Longer Available
  • M21
    Cover – Part Number: 76051-208-510
    Cover
    Part Number: 76051-208-510
      No Longer Available
  • M22
    FUSE-HOLDER;354801 GY – Part Number: 73364-201-410
    FUSE-HOLDER;354801 GY
    Part Number: 73364-201-410
      Special Order
    $7.56
  • M23
    Fuse – Part Number: 74709-101-710
    Fuse
    Part Number: 74709-101-710
      No Longer Available
  • M24
    FAN MOTOR;AMM35-002ZS – Part Number: 74769-221-724
    FAN MOTOR;AMM35-002ZS
    Part Number: 74769-221-724
      Special Order
    $31.96
  • M25
    Capacitor – Part Number: 71569-902-084
    Capacitor
    Part Number: 71569-902-084
      No Longer Available
  • M26
    Bkt hv-c – Part Number: 76614-284-110
    Bkt hv-c
    Part Number: 76614-284-110
      No Longer Available
  • M27
    Cover guide – Part Number: 77623-214-610
    Cover guide
    Part Number: 77623-214-610
      No Longer Available
  • M29
    Wire – Part Number: 73053-207-710
    Wire
    Part Number: 73053-207-710
      No Longer Available
  • M30
    M.G.T – Part Number: 72039-001-158
    M.G.T
    Part Number: 72039-001-158
      No Longer Available
  • M31
    Switch thermo – Part Number: 73589-001-039
    Switch thermo
    Part Number: 73589-001-039
      No Longer Available
  • M32
    Lamp – Part Number: 72059-301-054
    Lamp
    Part Number: 72059-301-054
      No Longer Available
  • M33
    Cover air – Part Number: 76052-217-910
    Cover air
    Part Number: 76052-217-910
      No Longer Available
  • M34
    INSTRUCTION BOOK(COO; – Part Number: 78139-232-534
    INSTRUCTION BOOK(COO;
    Part Number: 78139-232-534
      Special Order
    $7.56
  • M35
    Cover – Part Number: 76052-218-010
    Cover
    Part Number: 76052-218-010
      No Longer Available
  • M36
    DRIVE MOTOR;M2CC29ZR2 – Part Number: 74769-221-713
    DRIVE MOTOR;M2CC29ZR2
    Part Number: 74769-221-713
      Special Order
    $26.05
  • M37
    Assembly DOOR;MW3500T – Part Number: 79299-208-351
    Assembly DOOR;MW3500T
    Part Number: 79299-208-351
      Special Order
    $49.03
  • M38
    Ass y-control box – Part Number: 79192-260-910
    Ass y-control box
    Part Number: 79192-260-910
      No Longer Available
  • M39
    Trans hv – Part Number: 72869-203-769
    Trans hv
    Part Number: 72869-203-769
      No Longer Available
  • M40
    PANEL OUTER;VINYL STE – Part Number: 76402-286-110
    PANEL OUTER;VINYL STE
    Part Number: 76402-286-110
      Special Order
    $42.63
  • M41
    Cover air clip – Part Number: 76634-221-710
    Cover air clip
    Part Number: 76634-221-710
      No Longer Available
  • M42
    Wire lead b – Part Number: 73053-206-410
    Wire lead b
    Part Number: 73053-206-410
      No Longer Available
  • M43
    Ay cord – Part Number: 79193-231-310
    Ay cord
    Part Number: 79193-231-310
      No Longer Available
  • M44
    Micro s/w – Part Number: 73579-203-167
    Micro s/w
    Part Number: 73579-203-167
      No Longer Available
  • P1
    Filler set l/r – Part Number: 78712-221-610
    Filler set l/r
    Part Number: 78712-221-610
      No Longer Available
  • P2
    Case – Part Number: 78613-220-410
    Case
    Part Number: 78613-220-410
      No Longer Available
  • P3
    Cover vinyl – Part Number: 78654-224-110
    Cover vinyl
    Part Number: 78654-224-110
      No Longer Available
  • P4
    Door vinyl – Part Number: 78654-219-211
    Door vinyl
    Part Number: 78654-219-211
      No Longer Available
  • P5
    Tray – Part Number: 78633-206-110
    Tray
    Part Number: 78633-206-110
      No Longer Available
  • P6
    Turntable roller – Part Number: 75244-203-620
    Turntable roller
    Part Number: 75244-203-620
      No Longer Available
  • P7
    SUPPO – Part Number: 76462-211-420
    SUPPO
    Part Number: 76462-211-420
      Special Order
    $20.62
  • P8
    Tray – Part Number: 76112-207-510
    Tray
    Part Number: 76112-207-510
      No Longer Available
  • S1
    Bolt flange – Part Number: 77094-211-410
    Bolt flange
    Part Number: 77094-211-410
      No Longer Available
  • S2
    Screw – Part Number: 77128-240-081
    Screw
    Part Number: 77128-240-081
      No Longer Available
  • S3
    Screw-tap th – Part Number: 77128-420-101
    Screw-tap th
    Part Number: 77128-420-101
      No Longer Available
  • S4
    Washer – Part Number: 77154-202-910
    Washer
    Part Number: 77154-202-910
      No Longer Available
  • S5
    SCREW SPECIAL;2S-4X10 – Part Number: 77154-203-510
    SCREW SPECIAL;2S-4X10
    Part Number: 77154-203-510
      Special Order
    $7.56
  • S6
    Screw a – Part Number: 77154-203-820
    Screw a
    Part Number: 77154-203-820
      No Longer Available
  • S7
    Screw a – Part Number: 77154-203-910
    Screw a
    Part Number: 77154-203-910
      No Longer Available
  • S8
    Screw th – Part Number: 77128-340-101
    Screw th
    Part Number: 77128-340-101
      No Longer Available
  • S9
    Screw – Part Number: 77168-530-081
    Screw
    Part Number: 77168-530-081
      No Longer Available
  • S10
    Screw – Part Number: 77128-530-061
    Screw
    Part Number: 77128-530-061
      No Longer Available
  • S11
    SCREW-TAP,PH;2-4X8 FE – Part Number: 77108-240-081
    SCREW-TAP,PH;2-4X8 FE
    Part Number: 77108-240-081
      Special Order
    $7.56
  • S12
    Washer – Part Number: 77154-202-910
    Washer
    Part Number: 77154-202-910
      No Longer Available
  • W1
    Wire harness a – Part Number: 79192-260-810
    Wire harness a
    Part Number: 79192-260-810
      No Longer Available
  • W2
    Wire – Part Number: 73053-207-710
    Wire
    Part Number: 73053-207-710
      No Longer Available
  • W3
    Wire lead b – Part Number: 73053-206-410
    Wire lead b
    Part Number: 73053-206-410
      No Longer Available
Parts List - Exploded View Page 5
Parts List - Exploded View Page 5 Diagram and Parts List for MW3500T XAA Samsung Microwave
  • C1
    Panel control – Part Number: 77602-212-410
    Panel control
    Part Number: 77602-212-410
      No Longer Available
  • C2
    Assembly – Part Number: 79199-206-507
    Assembly
    Part Number: 79199-206-507
      Special Order
    $76.03
  • C3
    Button – Part Number: 77624-232-210
    Button
    Part Number: 77624-232-210
      No Longer Available
  • C4
    Film window – Part Number: 76144-205-810
    Film window
    Part Number: 76144-205-810
      No Longer Available
  • C5
    WINDO – Part Number: 77654-205-510
    WINDO
    Part Number: 77654-205-510
      Special Order
    $7.56
  • C6
    Membrane panel – Part Number: 73553-207-310
    Membrane panel
    Part Number: 73553-207-310
      No Longer Available
  • C7
    Spring button – Part Number: 76674-238-310
    Spring button
    Part Number: 76674-238-310
      No Longer Available
  • D1
    Film scren – Part Number: 76143-208-010
    Film scren
    Part Number: 76143-208-010
      No Longer Available
  • D2
    Assembly DOOR"E";COATING – Part Number: 79292-216-020
    Assembly DOOR"E";COATING
    Part Number: 79292-216-020
      Special Order
    $35.16
  • D3
    DOOR"C";P.P(A353) – Part Number: 77641-812-310
    DOOR"C";P.P(A353)
    Part Number: 77641-812-310
      Special Order
    $7.56
  • D4
    Film door – Part Number: 76144-205-910
    Film door
    Part Number: 76144-205-910
      No Longer Available
  • D5
    Key door – Part Number: 76423-231-110
    Key door
    Part Number: 76423-231-110
      No Longer Available
  • D6
    Spring key – Part Number: 76664-238-710
    Spring key
    Part Number: 76664-238-710
      No Longer Available
  • D7
    Hinge lower – Part Number: 76664-235-610
    Hinge lower
    Part Number: 76664-235-610
      No Longer Available
  • D8
    Hinge upper – Part Number: 76664-235-510
    Hinge upper
    Part Number: 76664-235-510
      No Longer Available
  • D9
    Bolt flange – Part Number: 77094-211-410
    Bolt flange
    Part Number: 77094-211-410
      No Longer Available
  • M1
    Cavity a – Part Number: 76401-234-910
    Cavity a
    Part Number: 76401-234-910
      No Longer Available
  • M2
    Cavity b – Part Number: 76401-234-710
    Cavity b
    Part Number: 76401-234-710
      No Longer Available
  • M3
    Bkt hinge-u – Part Number: 76614-283-810
    Bkt hinge-u
    Part Number: 76614-283-810
      No Longer Available
  • M4
    Bkt thermo s/w – Part Number: 76614-284-910
    Bkt thermo s/w
    Part Number: 76614-284-910
      No Longer Available
  • M5
    Thermostat switch – Part Number: 73589-001-061
    Thermostat switch
    Part Number: 73589-001-061
      No Longer Available
  • M6
    Hinge upper – Part Number: 76664-235-510
    Hinge upper
    Part Number: 76664-235-510
      No Longer Available
  • M7
    Hinge lower – Part Number: 76664-235-610
    Hinge lower
    Part Number: 76664-235-610
      No Longer Available
  • M8
    Tray – Part Number: 76112-207-510
    Tray
    Part Number: 76112-207-510
      No Longer Available
  • M9
    SUPPO – Part Number: 76462-211-420
    SUPPO
    Part Number: 76462-211-420
      Special Order
    $20.62
  • M10
    ROLLER;TEFLON(017) – Part Number: 75224-203-620
    ROLLER;TEFLON(017)
    Part Number: 75224-203-620
      Special Order
    $7.56
  • M11
    Turntable coupling – Part Number: 75144-200-510
    Turntable coupling
    Part Number: 75144-200-510
      No Longer Available
  • M12
    Guide – Part Number: 76403-305-810
    Guide
    Part Number: 76403-305-810
      No Longer Available
  • M13
    BKT MGT;RE-350T EGI T – Part Number: 76613-241-100
    BKT MGT;RE-350T EGI T
    Part Number: 76613-241-100
      Special Order
    $9.74
  • M14
    P/n conflict - check with supplier – Part Number: 76463-219-310
    P/n conflict - check with supplier
    Part Number: 76463-219-310
      No Longer Available
  • M15
    Cap – Part Number: 76613-243-310
    Cap
    Part Number: 76613-243-310
      No Longer Available
  • M16
    Foot – Part Number: 76073-200-810
    Foot
    Part Number: 76073-200-810
      No Longer Available
  • M17
    Pin foot – Part Number: 77364-241-310
    Pin foot
    Part Number: 77364-241-310
      No Longer Available
  • M18
    Latch body – Part Number: 76462-214-010
    Latch body
    Part Number: 76462-214-010
      No Longer Available
  • M19
    Slider latch – Part Number: 76463-218-710
    Slider latch
    Part Number: 76463-218-710
      No Longer Available
  • M20
    Switch – Part Number: 73579-203-176
    Switch
    Part Number: 73579-203-176
      No Longer Available
  • M21
    Cover – Part Number: 76051-208-510
    Cover
    Part Number: 76051-208-510
      No Longer Available
  • M22
    FUSE-HOLDER;354801 GY – Part Number: 73364-201-410
    FUSE-HOLDER;354801 GY
    Part Number: 73364-201-410
      Special Order
    $7.56
  • M23
    Fuse – Part Number: 74709-101-710
    Fuse
    Part Number: 74709-101-710
      No Longer Available
  • M24
    FAN MOTOR;AMM35-002ZS – Part Number: 74769-221-724
    FAN MOTOR;AMM35-002ZS
    Part Number: 74769-221-724
      Special Order
    $31.96
  • M25
    Capacitor – Part Number: 71569-902-084
    Capacitor
    Part Number: 71569-902-084
      No Longer Available
  • M26
    Bkt hv-c – Part Number: 76614-284-110
    Bkt hv-c
    Part Number: 76614-284-110
      No Longer Available
  • M27
    Cover guide – Part Number: 77623-214-610
    Cover guide
    Part Number: 77623-214-610
      No Longer Available
  • M29
    Wire – Part Number: 73053-207-710
    Wire
    Part Number: 73053-207-710
      No Longer Available
  • M30
    M.G.T – Part Number: 72039-001-158
    M.G.T
    Part Number: 72039-001-158
      No Longer Available
  • M31
    Switch thermo – Part Number: 73589-001-039
    Switch thermo
    Part Number: 73589-001-039
      No Longer Available
  • M32
    Lamp – Part Number: 72059-301-054
    Lamp
    Part Number: 72059-301-054
      No Longer Available
  • M33
    Cover air – Part Number: 76052-217-910
    Cover air
    Part Number: 76052-217-910
      No Longer Available
  • M34
    INSTRUCTION BOOK(COO; – Part Number: 78139-232-534
    INSTRUCTION BOOK(COO;
    Part Number: 78139-232-534
      Special Order
    $7.56
  • M35
    Cover – Part Number: 76052-218-010
    Cover
    Part Number: 76052-218-010
      No Longer Available
  • M36
    DRIVE MOTOR;M2CC29ZR2 – Part Number: 74769-221-713
    DRIVE MOTOR;M2CC29ZR2
    Part Number: 74769-221-713
      Special Order
    $26.05
  • M37
    Assembly DOOR;MW3500T – Part Number: 79299-208-351
    Assembly DOOR;MW3500T
    Part Number: 79299-208-351
      Special Order
    $49.03
  • M38
    Ass y-control box – Part Number: 79192-260-910
    Ass y-control box
    Part Number: 79192-260-910
      No Longer Available
  • M39
    Trans hv – Part Number: 72869-203-769
    Trans hv
    Part Number: 72869-203-769
      No Longer Available
  • M40
    PANEL OUTER;VINYL STE – Part Number: 76402-286-110
    PANEL OUTER;VINYL STE
    Part Number: 76402-286-110
      Special Order
    $42.63
  • M41
    Cover air clip – Part Number: 76634-221-710
    Cover air clip
    Part Number: 76634-221-710
      No Longer Available
  • M42
    Wire lead b – Part Number: 73053-206-410
    Wire lead b
    Part Number: 73053-206-410
      No Longer Available
  • M43
    Ay cord – Part Number: 79193-231-310
    Ay cord
    Part Number: 79193-231-310
      No Longer Available
  • M44
    Micro s/w – Part Number: 73579-203-167
    Micro s/w
    Part Number: 73579-203-167
      No Longer Available
  • P1
    Filler set l/r – Part Number: 78712-221-610
    Filler set l/r
    Part Number: 78712-221-610
      No Longer Available
  • P2
    Case – Part Number: 78613-220-410
    Case
    Part Number: 78613-220-410
      No Longer Available
  • P3
    Cover vinyl – Part Number: 78654-224-110
    Cover vinyl
    Part Number: 78654-224-110
      No Longer Available
  • P4
    Door vinyl – Part Number: 78654-219-211
    Door vinyl
    Part Number: 78654-219-211
      No Longer Available
  • P5
    Tray – Part Number: 78633-206-110
    Tray
    Part Number: 78633-206-110
      No Longer Available
  • P6
    Turntable roller – Part Number: 75244-203-620
    Turntable roller
    Part Number: 75244-203-620
      No Longer Available
  • P7
    SUPPO – Part Number: 76462-211-420
    SUPPO
    Part Number: 76462-211-420
      Special Order
    $20.62
  • P8
    Tray – Part Number: 76112-207-510
    Tray
    Part Number: 76112-207-510
      No Longer Available
  • S1
    Bolt flange – Part Number: 77094-211-410
    Bolt flange
    Part Number: 77094-211-410
      No Longer Available
  • S2
    Screw – Part Number: 77128-240-081
    Screw
    Part Number: 77128-240-081
      No Longer Available
  • S3
    Screw-tap th – Part Number: 77128-420-101
    Screw-tap th
    Part Number: 77128-420-101
      No Longer Available
  • S4
    Washer – Part Number: 77154-202-910
    Washer
    Part Number: 77154-202-910
      No Longer Available
  • S5
    SCREW SPECIAL;2S-4X10 – Part Number: 77154-203-510
    SCREW SPECIAL;2S-4X10
    Part Number: 77154-203-510
      Special Order
    $7.56
  • S6
    Screw a – Part Number: 77154-203-820
    Screw a
    Part Number: 77154-203-820
      No Longer Available
  • S7
    Screw a – Part Number: 77154-203-910
    Screw a
    Part Number: 77154-203-910
      No Longer Available
  • S8
    Screw th – Part Number: 77128-340-101
    Screw th
    Part Number: 77128-340-101
      No Longer Available
  • S9
    Screw – Part Number: 77168-530-081
    Screw
    Part Number: 77168-530-081
      No Longer Available
  • S10
    Screw – Part Number: 77128-530-061
    Screw
    Part Number: 77128-530-061
      No Longer Available
  • S11
    SCREW-TAP,PH;2-4X8 FE – Part Number: 77108-240-081
    SCREW-TAP,PH;2-4X8 FE
    Part Number: 77108-240-081
      Special Order
    $7.56
  • S12
    Washer – Part Number: 77154-202-910
    Washer
    Part Number: 77154-202-910
      No Longer Available
  • W1
    Wire harness a – Part Number: 79192-260-810
    Wire harness a
    Part Number: 79192-260-810
      No Longer Available
  • W2
    Wire – Part Number: 73053-207-710
    Wire
    Part Number: 73053-207-710
      No Longer Available
  • W3
    Wire lead b – Part Number: 73053-206-410
    Wire lead b
    Part Number: 73053-206-410
      No Longer Available
Parts List - Exploded View Page 6
Parts List - Exploded View Page 6 Diagram and Parts List for MW3500T XAA Samsung Microwave
  • C1
    Panel control – Part Number: 77602-212-410
    Panel control
    Part Number: 77602-212-410
      No Longer Available
  • C2
    Assembly – Part Number: 79199-206-507
    Assembly
    Part Number: 79199-206-507
      Special Order
    $76.03
  • C3
    Button – Part Number: 77624-232-210
    Button
    Part Number: 77624-232-210
      No Longer Available
  • C4
    Film window – Part Number: 76144-205-810
    Film window
    Part Number: 76144-205-810
      No Longer Available
  • C5
    WINDO – Part Number: 77654-205-510
    WINDO
    Part Number: 77654-205-510
      Special Order
    $7.56
  • C6
    Membrane panel – Part Number: 73553-207-310
    Membrane panel
    Part Number: 73553-207-310
      No Longer Available
  • C7
    Spring button – Part Number: 76674-238-310
    Spring button
    Part Number: 76674-238-310
      No Longer Available
  • D1
    Film scren – Part Number: 76143-208-010
    Film scren
    Part Number: 76143-208-010
      No Longer Available
  • D2
    Assembly DOOR"E";COATING – Part Number: 79292-216-020
    Assembly DOOR"E";COATING
    Part Number: 79292-216-020
      Special Order
    $35.16
  • D3
    DOOR"C";P.P(A353) – Part Number: 77641-812-310
    DOOR"C";P.P(A353)
    Part Number: 77641-812-310
      Special Order
    $7.56
  • D4
    Film door – Part Number: 76144-205-910
    Film door
    Part Number: 76144-205-910
      No Longer Available
  • D5
    Key door – Part Number: 76423-231-110
    Key door
    Part Number: 76423-231-110
      No Longer Available
  • D6
    Spring key – Part Number: 76664-238-710
    Spring key
    Part Number: 76664-238-710
      No Longer Available
  • D7
    Hinge lower – Part Number: 76664-235-610
    Hinge lower
    Part Number: 76664-235-610
      No Longer Available
  • D8
    Hinge upper – Part Number: 76664-235-510
    Hinge upper
    Part Number: 76664-235-510
      No Longer Available
  • D9
    Bolt flange – Part Number: 77094-211-410
    Bolt flange
    Part Number: 77094-211-410
      No Longer Available
  • M1
    Cavity a – Part Number: 76401-234-910
    Cavity a
    Part Number: 76401-234-910
      No Longer Available
  • M2
    Cavity b – Part Number: 76401-234-710
    Cavity b
    Part Number: 76401-234-710
      No Longer Available
  • M3
    Bkt hinge-u – Part Number: 76614-283-810
    Bkt hinge-u
    Part Number: 76614-283-810
      No Longer Available
  • M4
    Bkt thermo s/w – Part Number: 76614-284-910
    Bkt thermo s/w
    Part Number: 76614-284-910
      No Longer Available
  • M5
    Thermostat switch – Part Number: 73589-001-061
    Thermostat switch
    Part Number: 73589-001-061
      No Longer Available
  • M6
    Hinge upper – Part Number: 76664-235-510
    Hinge upper
    Part Number: 76664-235-510
      No Longer Available
  • M7
    Hinge lower – Part Number: 76664-235-610
    Hinge lower
    Part Number: 76664-235-610
      No Longer Available
  • M8
    Tray – Part Number: 76112-207-510
    Tray
    Part Number: 76112-207-510
      No Longer Available
  • M9
    SUPPO – Part Number: 76462-211-420
    SUPPO
    Part Number: 76462-211-420
      Special Order
    $20.62
  • M10
    ROLLER;TEFLON(017) – Part Number: 75224-203-620
    ROLLER;TEFLON(017)
    Part Number: 75224-203-620
      Special Order
    $7.56
  • M11
    Turntable coupling – Part Number: 75144-200-510
    Turntable coupling
    Part Number: 75144-200-510
      No Longer Available
  • M12
    Guide – Part Number: 76403-305-810
    Guide
    Part Number: 76403-305-810
      No Longer Available
  • M13
    BKT MGT;RE-350T EGI T – Part Number: 76613-241-100
    BKT MGT;RE-350T EGI T
    Part Number: 76613-241-100
      Special Order
    $9.74
  • M14
    P/n conflict - check with supplier – Part Number: 76463-219-310
    P/n conflict - check with supplier
    Part Number: 76463-219-310
      No Longer Available
  • M15
    Cap – Part Number: 76613-243-310
    Cap
    Part Number: 76613-243-310
      No Longer Available
  • M16
    Foot – Part Number: 76073-200-810
    Foot
    Part Number: 76073-200-810
      No Longer Available
  • M17
    Pin foot – Part Number: 77364-241-310
    Pin foot
    Part Number: 77364-241-310
      No Longer Available
  • M18
    Latch body – Part Number: 76462-214-010
    Latch body
    Part Number: 76462-214-010
      No Longer Available
  • M19
    Slider latch – Part Number: 76463-218-710
    Slider latch
    Part Number: 76463-218-710
      No Longer Available
  • M20
    Switch – Part Number: 73579-203-176
    Switch
    Part Number: 73579-203-176
      No Longer Available
  • M21
    Cover – Part Number: 76051-208-510
    Cover
    Part Number: 76051-208-510
      No Longer Available
  • M22
    FUSE-HOLDER;354801 GY – Part Number: 73364-201-410
    FUSE-HOLDER;354801 GY
    Part Number: 73364-201-410
      Special Order
    $7.56
  • M23
    Fuse – Part Number: 74709-101-710
    Fuse
    Part Number: 74709-101-710
      No Longer Available
  • M24
    FAN MOTOR;AMM35-002ZS – Part Number: 74769-221-724
    FAN MOTOR;AMM35-002ZS
    Part Number: 74769-221-724
      Special Order
    $31.96
  • M25
    Capacitor – Part Number: 71569-902-084
    Capacitor
    Part Number: 71569-902-084
      No Longer Available
  • M26
    Bkt hv-c – Part Number: 76614-284-110
    Bkt hv-c
    Part Number: 76614-284-110
      No Longer Available
  • M27
    Cover guide – Part Number: 77623-214-610
    Cover guide
    Part Number: 77623-214-610
      No Longer Available
  • M29
    Wire – Part Number: 73053-207-710
    Wire
    Part Number: 73053-207-710
      No Longer Available
  • M30
    M.G.T – Part Number: 72039-001-158
    M.G.T
    Part Number: 72039-001-158
      No Longer Available
  • M31
    Switch thermo – Part Number: 73589-001-039
    Switch thermo
    Part Number: 73589-001-039
      No Longer Available
  • M32
    Lamp – Part Number: 72059-301-054
    Lamp
    Part Number: 72059-301-054
      No Longer Available
  • M33
    Cover air – Part Number: 76052-217-910
    Cover air
    Part Number: 76052-217-910
      No Longer Available
  • M34
    INSTRUCTION BOOK(COO; – Part Number: 78139-232-534
    INSTRUCTION BOOK(COO;
    Part Number: 78139-232-534
      Special Order
    $7.56
  • M35
    Cover – Part Number: 76052-218-010
    Cover
    Part Number: 76052-218-010
      No Longer Available
  • M36
    DRIVE MOTOR;M2CC29ZR2 – Part Number: 74769-221-713
    DRIVE MOTOR;M2CC29ZR2
    Part Number: 74769-221-713
      Special Order
    $26.05
  • M37
    Assembly DOOR;MW3500T – Part Number: 79299-208-351
    Assembly DOOR;MW3500T
    Part Number: 79299-208-351
      Special Order
    $49.03
  • M38
    Ass y-control box – Part Number: 79192-260-910
    Ass y-control box
    Part Number: 79192-260-910
      No Longer Available
  • M39
    Trans hv – Part Number: 72869-203-769
    Trans hv
    Part Number: 72869-203-769
      No Longer Available
  • M40
    PANEL OUTER;VINYL STE – Part Number: 76402-286-110
    PANEL OUTER;VINYL STE
    Part Number: 76402-286-110
      Special Order
    $42.63
  • M41
    Cover air clip – Part Number: 76634-221-710
    Cover air clip
    Part Number: 76634-221-710
      No Longer Available
  • M42
    Wire lead b – Part Number: 73053-206-410
    Wire lead b
    Part Number: 73053-206-410
      No Longer Available
  • M43
    Ay cord – Part Number: 79193-231-310
    Ay cord
    Part Number: 79193-231-310
      No Longer Available
  • M44
    Micro s/w – Part Number: 73579-203-167
    Micro s/w
    Part Number: 73579-203-167
      No Longer Available
  • P1
    Filler set l/r – Part Number: 78712-221-610
    Filler set l/r
    Part Number: 78712-221-610
      No Longer Available
  • P2
    Case – Part Number: 78613-220-410
    Case
    Part Number: 78613-220-410
      No Longer Available
  • P3
    Cover vinyl – Part Number: 78654-224-110
    Cover vinyl
    Part Number: 78654-224-110
      No Longer Available
  • P4
    Door vinyl – Part Number: 78654-219-211
    Door vinyl
    Part Number: 78654-219-211
      No Longer Available
  • P5
    Tray – Part Number: 78633-206-110
    Tray
    Part Number: 78633-206-110
      No Longer Available
  • P6
    Turntable roller – Part Number: 75244-203-620
    Turntable roller
    Part Number: 75244-203-620
      No Longer Available
  • P7
    SUPPO – Part Number: 76462-211-420
    SUPPO
    Part Number: 76462-211-420
      Special Order
    $20.62
  • P8
    Tray – Part Number: 76112-207-510
    Tray
    Part Number: 76112-207-510
      No Longer Available
  • S1
    Bolt flange – Part Number: 77094-211-410
    Bolt flange
    Part Number: 77094-211-410
      No Longer Available
  • S2
    Screw – Part Number: 77128-240-081
    Screw
    Part Number: 77128-240-081
      No Longer Available
  • S3
    Screw-tap th – Part Number: 77128-420-101
    Screw-tap th
    Part Number: 77128-420-101
      No Longer Available
  • S4
    Washer – Part Number: 77154-202-910
    Washer
    Part Number: 77154-202-910
      No Longer Available
  • S5
    SCREW SPECIAL;2S-4X10 – Part Number: 77154-203-510
    SCREW SPECIAL;2S-4X10
    Part Number: 77154-203-510
      Special Order
    $7.56
  • S6
    Screw a – Part Number: 77154-203-820
    Screw a
    Part Number: 77154-203-820
      No Longer Available
  • S7
    Screw a – Part Number: 77154-203-910
    Screw a
    Part Number: 77154-203-910
      No Longer Available
  • S8
    Screw th – Part Number: 77128-340-101
    Screw th
    Part Number: 77128-340-101
      No Longer Available
  • S9
    Screw – Part Number: 77168-530-081
    Screw
    Part Number: 77168-530-081
      No Longer Available
  • S10
    Screw – Part Number: 77128-530-061
    Screw
    Part Number: 77128-530-061
      No Longer Available
  • S11
    SCREW-TAP,PH;2-4X8 FE – Part Number: 77108-240-081
    SCREW-TAP,PH;2-4X8 FE
    Part Number: 77108-240-081
      Special Order
    $7.56
  • S12
    Washer – Part Number: 77154-202-910
    Washer
    Part Number: 77154-202-910
      No Longer Available
  • W1
    Wire harness a – Part Number: 79192-260-810
    Wire harness a
    Part Number: 79192-260-810
      No Longer Available
  • W2
    Wire – Part Number: 73053-207-710
    Wire
    Part Number: 73053-207-710
      No Longer Available
  • W3
    Wire lead b – Part Number: 73053-206-410
    Wire lead b
    Part Number: 73053-206-410
      No Longer Available
✖

Our customer service team are at the ready daily to answer your part and product questions. We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
