Amana COUNTERTOP MICROWAVE 1.0 CU. FT. Replacement Parts For Model AMC5101AAW14

We Sell Only Genuine Amana Parts

Find Amana AMC5101AAW14 Parts By Symptom

No heat

66%

Won’t turn on

25%

Doesn’t shut off

9%

Popular Parts for AMC5101AAW14

Search Within Model

Questions & Answers for Amana AMC5101AAW14
Browse all Parts Search by Area
Base Plate And Convection Parts Diagram and Parts List for  Amana Microwave
Base Plate And Convection Parts
Microwave Control Panel Parts Diagram and Parts List for  Amana Microwave
Microwave Control Panel Parts
Microwave Door Parts Diagram and Parts List for  Amana Microwave
Microwave Door Parts
Microwave Interior Parts Diagram and Parts List for  Amana Microwave
Microwave Interior Parts
Microwave Latch Board Parts Diagram and Parts List for  Amana Microwave
Microwave Latch Board Parts
Microwave Oven Cavity Parts Diagram and Parts List for  Amana Microwave
Microwave Oven Cavity Parts
Previous Showing All Parts Next

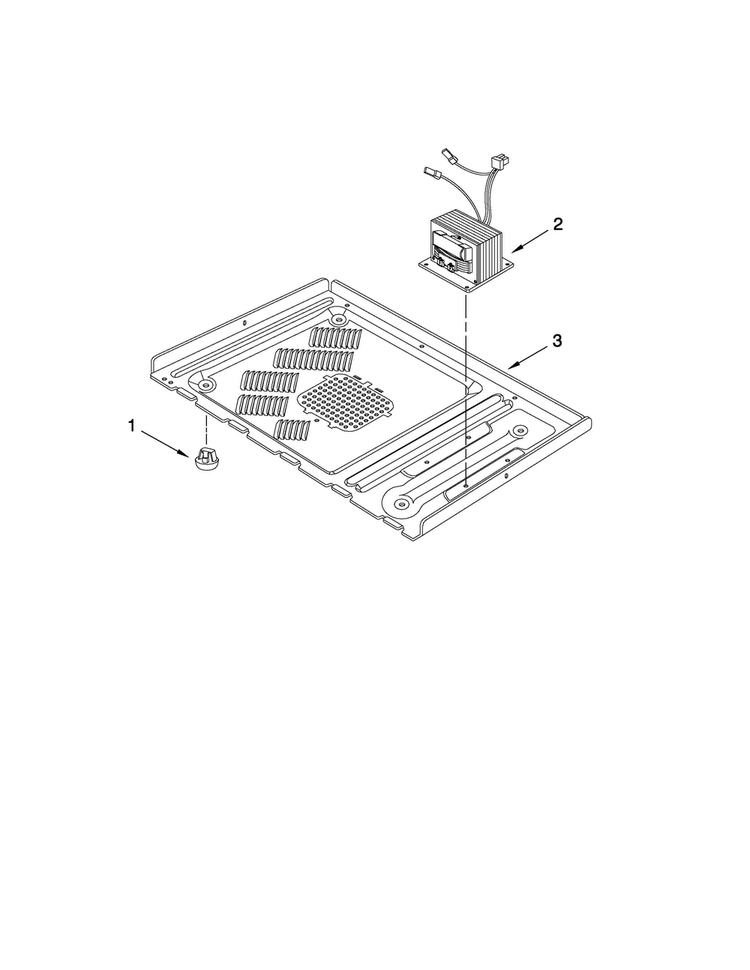

Base Plate And Convection Parts
Base Plate And Convection Parts Diagram and Parts List for  Amana Microwave
  • 1
    FOOT – Part Number: DE61-40066A
    FOOT
    Part Number: DE61-40066A
      No Longer Available
  • 2
    TRANSFORMR – Part Number: W10261244
    TRANSFORMR
    Part Number: W10261244
      No Longer Available
  • 3
    BASE-PLATE – Part Number: DE61-00557A
    BASE-PLATE
    Part Number: DE61-00557A
      No Longer Available

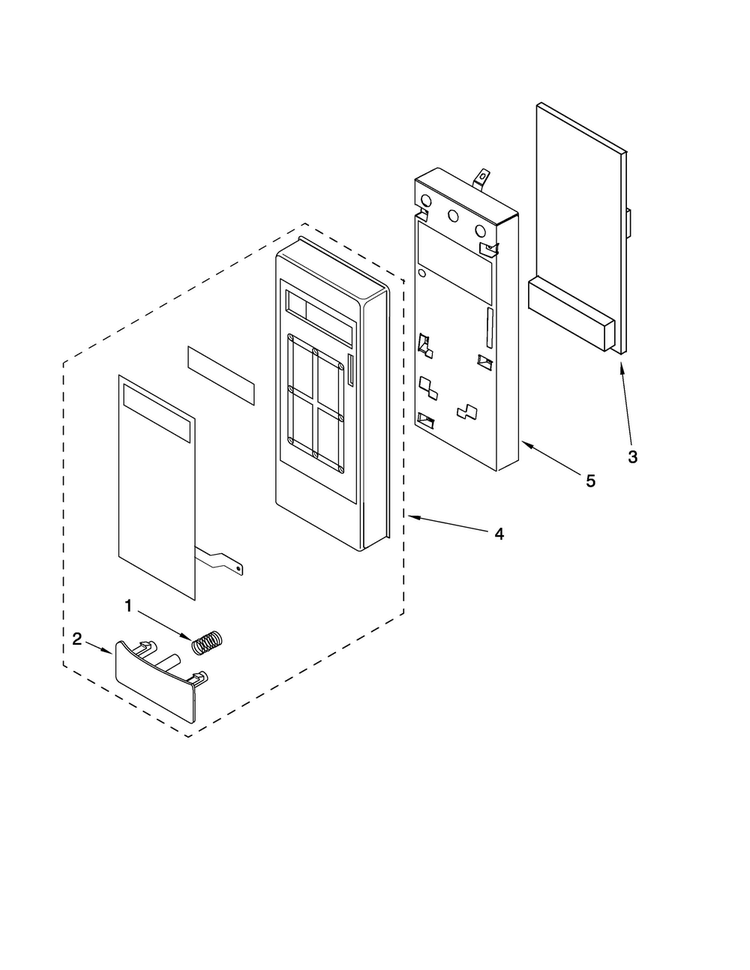

Microwave Control Panel Parts
Microwave Control Panel Parts Diagram and Parts List for  Amana Microwave
  • 1
    Button Spring – Part Number: DE61-70076A
    Button Spring
    Part Number: DE61-70076A
      No Longer Available
  • 2
    BUTTON- PU – Part Number: DE67-00099E
    BUTTON- PU
    Part Number: DE67-00099E
      Special Order
    $49.39
  • 2A
    Push Button – Part Number: DE67-00099F
    Push Button
    Part Number: DE67-00099F
      Special Order
    $13.60
  • 3
    CNTRL-ELEC – Part Number: W10127086
    CNTRL-ELEC
    Part Number: W10127086
      No Longer Available
  • 4
    CONTROL PA – Part Number: DE94-00445F
    CONTROL PA
    Part Number: DE94-00445F
      No Longer Available
  • 4A
    USE WPL DE94-00416N – Part Number: DE94-00445J
    USE WPL DE94-00416N
    Part Number: DE94-00445J
      No Longer Available
  • 4B
    CONTROL PA – Part Number: DE94-00529L
    CONTROL PA
    Part Number: DE94-00529L
      No Longer Available
  • 5
    LED HOLDER – Part Number: DE61-00666A
    LED HOLDER
    Part Number: DE61-00666A
      No Longer Available
Microwave Door Parts
Microwave Door Parts Diagram and Parts List for  Amana Microwave

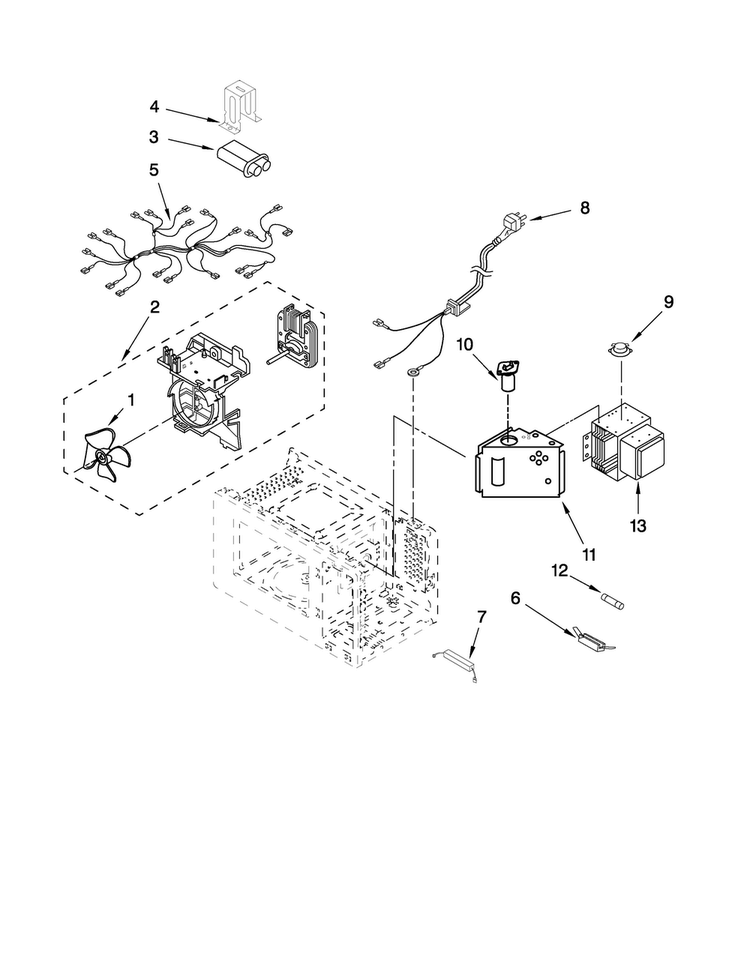

Microwave Interior Parts
Microwave Interior Parts Diagram and Parts List for  Amana Microwave
  • 1
    BLADE-FAN – Part Number: DE31-90057A
    BLADE-FAN
    Part Number: DE31-90057A
      No Longer Available
  • 2
    FAN MOTOR – Part Number: DE96-00305A
    FAN MOTOR
    Part Number: DE96-00305A
      No Longer Available
  • 3
    Coil – Part Number: 2501-001011
    Coil
    Part Number: 2501-001011
      In Stock
    $85.95
  • 4
    BRACKET- C – Part Number: DE61-50106A
    BRACKET- C
    Part Number: DE61-50106A
      No Longer Available
  • 5
    HARNESS- W – Part Number: DE39-00197A
    HARNESS- W
    Part Number: DE39-00197A
      No Longer Available
  • 6
    HOLDER-FUS – Part Number: DE47-40025A
    HOLDER-FUS
    Part Number: DE47-40025A
      No Longer Available
  • 7
    Black Sleeve Diode – Part Number: WPR9800486
    Black Sleeve Diode
    Part Number: WPR9800486
      In Stock
    $14.82
  • 8
    CORD-POWER – Part Number: DE39-20146E
    CORD-POWER
    Part Number: DE39-20146E
      No Longer Available
  • 9
    THERMOSTAT – Part Number: DE47-20032B
    THERMOSTAT
    Part Number: DE47-20032B
      No Longer Available
  • 10
    Microwave Light Bulb – Part Number: WP8183592
    Microwave Light Bulb
    Part Number: WP8183592
      In Stock
    $34.97
  • 11
    COVER-AIR – Part Number: DE63-00208A
    COVER-AIR
    Part Number: DE63-00208A
      No Longer Available
  • 12
    Ceramic Fuse - 20 amp – Part Number: WPM0805101
    Ceramic Fuse - 20 amp
    Part Number: WPM0805101
      In Stock
    $5.32
  • 13
    Magnetron – Part Number: WPW10126794
    Magnetron
    Part Number: WPW10126794
      In Stock
    $169.91

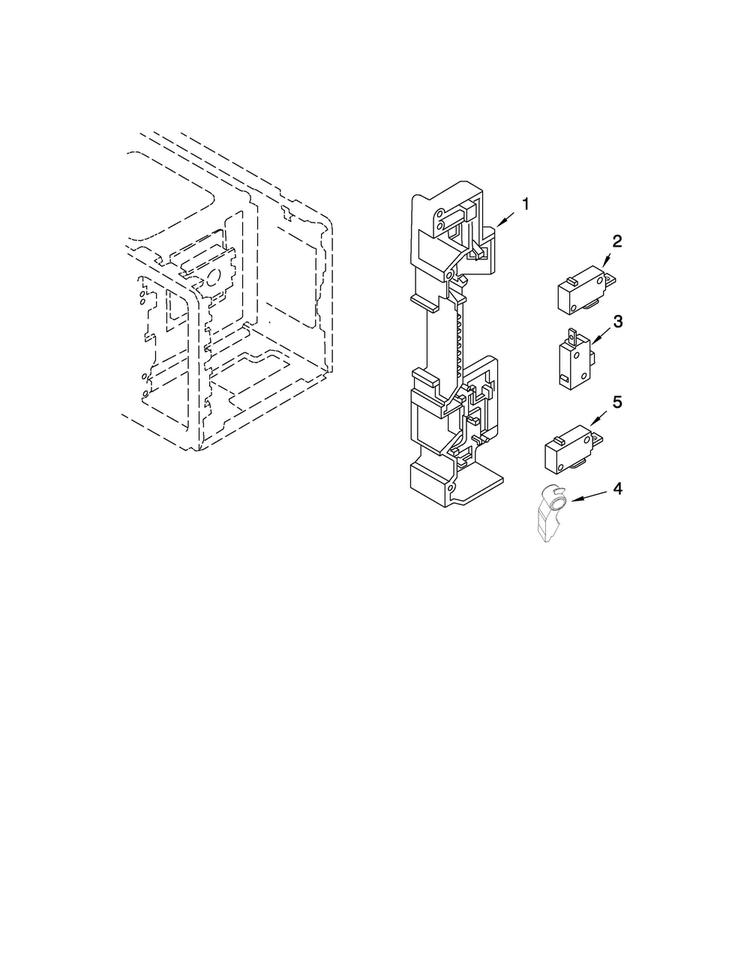

Microwave Latch Board Parts
Microwave Latch Board Parts Diagram and Parts List for  Amana Microwave
  • 1
    BODY-LATCH – Part Number: DE72-00138A
    BODY-LATCH
    Part Number: DE72-00138A
      No Longer Available
  • 2
    Micro Door Switch – Part Number: 3405-001034
    Micro Door Switch
    Part Number: 3405-001034
      In Stock
    $31.88
  • 3
    Micro Switch – Part Number: 3405-001033
    Micro Switch
    Part Number: 3405-001033
      In Stock
    $29.82
  • 4
    LEVER-SWIT – Part Number: DE66-00088A
    LEVER-SWIT
    Part Number: DE66-00088A
      No Longer Available
  • 5
    SWITCH-MIC – Part Number: 3405-001042
    SWITCH-MIC
    Part Number: 3405-001042
      No Longer Available

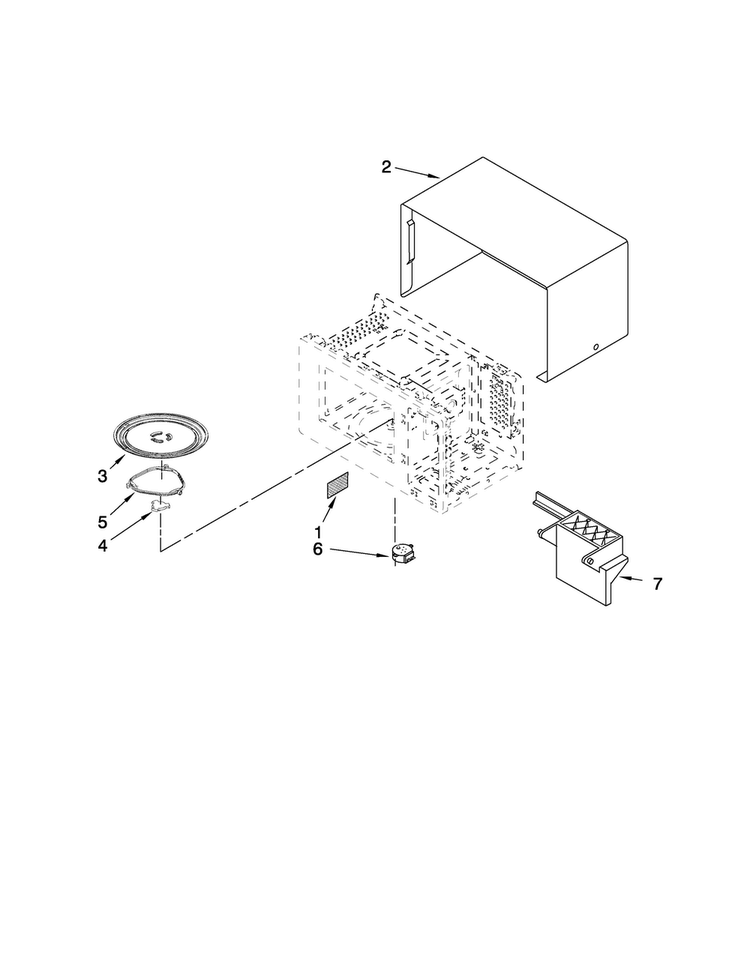

Microwave Oven Cavity Parts
Microwave Oven Cavity Parts Diagram and Parts List for  Amana Microwave
  • 1
    COVER-MGT – Part Number: DE63-00209A
    COVER-MGT
    Part Number: DE63-00209A
      No Longer Available
  • 2
    PANEL-OUTE – Part Number: DE64-01141A
    PANEL-OUTE
    Part Number: DE64-01141A
      No Longer Available
  • 2A
    PANEL- OUT – Part Number: DE70-00302L
    PANEL- OUT
    Part Number: DE70-00302L
      No Longer Available
  • 3
    Tray – Part Number: DE74-20015G
    Tray
    Part Number: DE74-20015G
      In Stock
    $69.31
  • 4
    COUPLER – Part Number: DE67-00182A
    COUPLER
    Part Number: DE67-00182A
      No Longer Available
  • 5
    Guide Roller Assembly – Part Number: DE97-00222A
    Guide Roller Assembly
    Part Number: DE97-00222A
      Special Order
    $45.27
  • 6
    MOTOR-DRIV – Part Number: DE31-10154A
    MOTOR-DRIV
    Part Number: DE31-10154A
      No Longer Available
  • 7
    LEVER-DOOR – Part Number: DE66-90113A
    LEVER-DOOR
    Part Number: DE66-90113A
      No Longer Available
