LG Lg Lmh1017cvst / As1elga Microwave Oven Microwave Oven Combo Replacement Parts For Model LMH1017CVST (AS1ELGA)

We Sell Only Genuine LG Parts

Find LG LMH1017CVST Parts By Symptom

No heat

43%

Won’t turn on

28%

Tray won’t turn

15%

Doesn’t shut off

9%

Door not closing properly

5%
-  Show Fewer Symptoms

Popular Parts for LMH1017CVST

Time Delay Fuse – Part Number: 3B74133Q Time Delay Fuse
In Stock
$11.50
Turntable Assembly – Part Number: 5889W2A015K Turntable Assembly
In Stock
$26.73
Diode (Cable, Assembly) – Part Number: 6851W1A002E Diode (Cable, Assembly)
In Stock
$16.75
Thermostat – Part Number: 6930W1A003J Thermostat
In Stock
$20.95
Microwave Screwtapping – Part Number: 1TTL0402818 Microwave Screwtapping
Special Order
$13.60
High Voltage Diode – Part Number: 6021W3B001V High Voltage Diode
In Stock
$16.75
Motor Synchronous – Part Number: 6549W1S013A Motor Synchronous
In Stock
$49.39
Turntable Motor Coupler – Part Number: 4370W1A006B Turntable Motor Coupler
In Stock
$16.75

Search Within Model

Questions & Answers for LG LMH1017CVST
Browse all Parts Search by Area
Section 1 Diagram and Parts List for AS1ELGA LG Microwave Oven Combo
Section 1
Section 2 Diagram and Parts List for AS1ELGA LG Microwave Oven Combo
Section 2
Section 3 Diagram and Parts List for AS1ELGA LG Microwave Oven Combo
Section 3
Section 4 Diagram and Parts List for AS1ELGA LG Microwave Oven Combo
Section 4
Section 5 Diagram and Parts List for AS1ELGA LG Microwave Oven Combo
Section 5
Section 6 Diagram and Parts List for AS1ELGA LG Microwave Oven Combo
Section 6

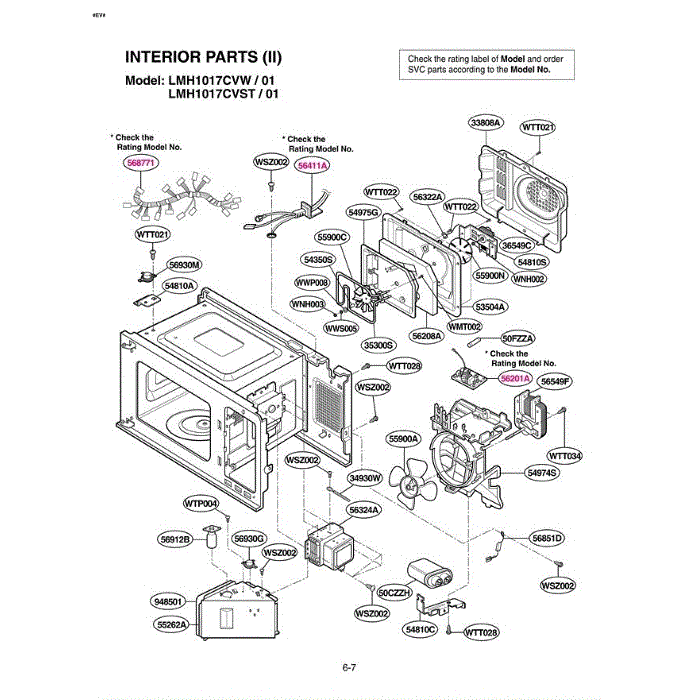

Section 7 Diagram and Parts List for AS1ELGA LG Microwave Oven Combo
Section 7

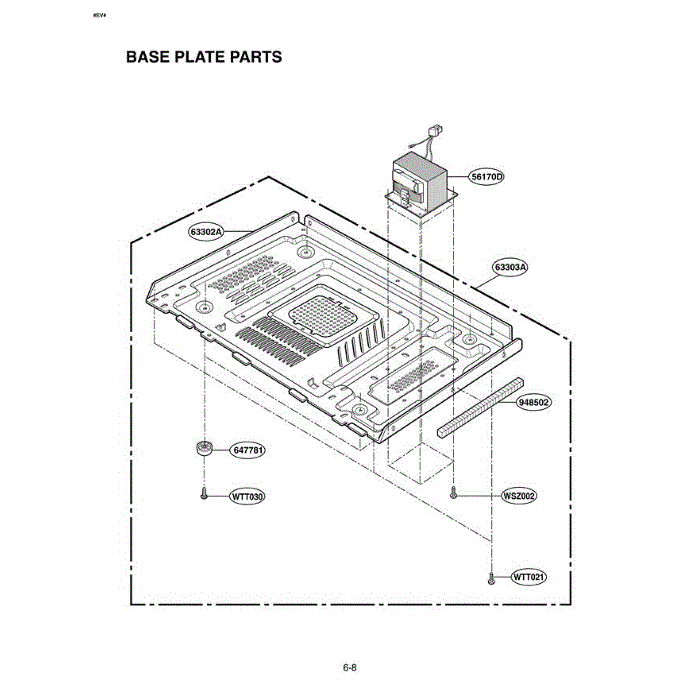

Section 8 Diagram and Parts List for AS1ELGA LG Microwave Oven Combo
Section 8
Previous Showing All Parts Next

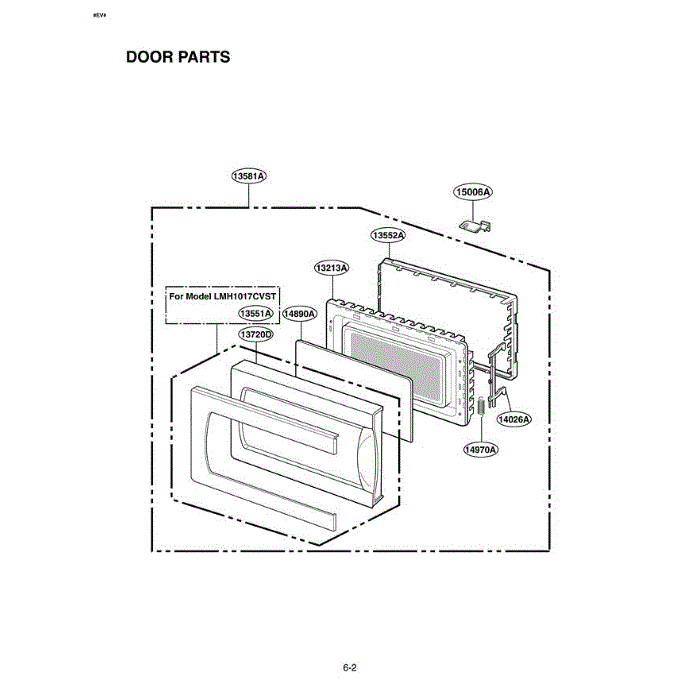

Section 1
Section 1 Diagram and Parts List for AS1ELGA LG Microwave Oven Combo
  • 13213A
    Frame Assembly,Door – Part Number: 3213W1A032L
    Frame Assembly,Door
    Part Number: 3213W1A032L
      No Longer Available
  • 13551A
    Panel Assembly,Door – Part Number: 3721W1A009C
    Panel Assembly,Door
    Part Number: 3721W1A009C
      No Longer Available
  • 13552A
    Cover,Choke – Part Number: 3552W1A042A
    Cover,Choke
    Part Number: 3552W1A042A
      No Longer Available
  • 13581A
    Door Assembly – Part Number: 3581W1A426S
    Door Assembly
    Part Number: 3581W1A426S
      No Longer Available
  • 14026A
    Locker – Part Number: 4026W2A015A
    Locker
    Part Number: 4026W2A015A
      No Longer Available
  • 14890A
    Window,Glass – Part Number: 4890W1A010M
    Window,Glass
    Part Number: 4890W1A010M
      No Longer Available
  • 14970A
    Spring – Part Number: 4970WRA001G
    Spring
    Part Number: 4970WRA001G
      In Stock
    $13.60
  • 15006A
    Cap,Choke Cover – Part Number: 5006W3A017A
    Cap,Choke Cover
    Part Number: 5006W3A017A
      No Longer Available

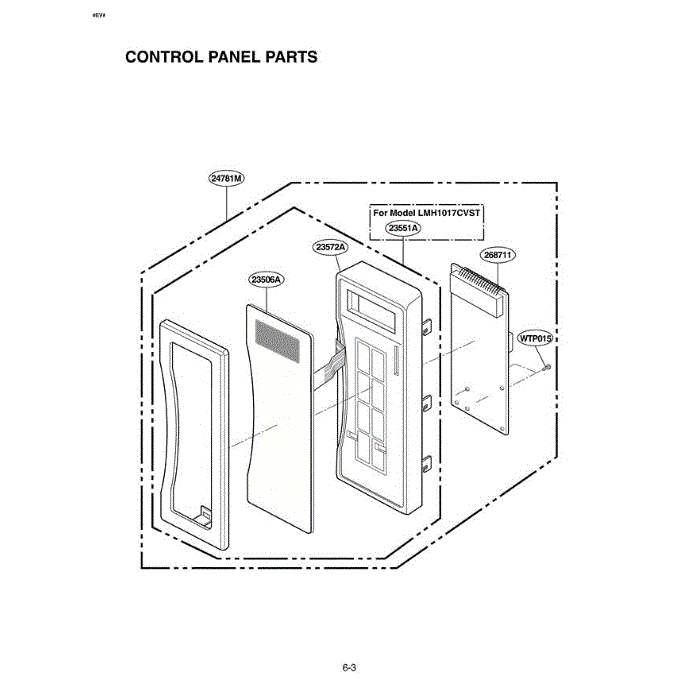

Section 2
Section 2 Diagram and Parts List for AS1ELGA LG Microwave Oven Combo

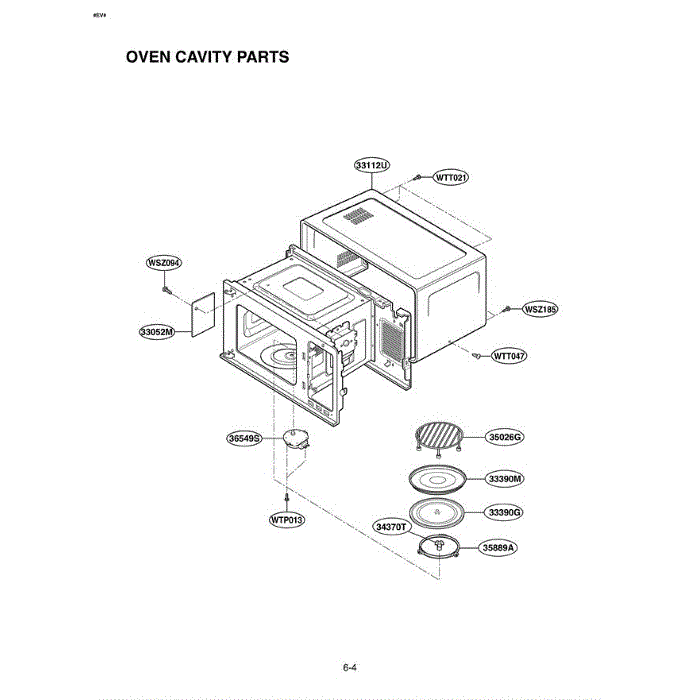

Section 3
Section 3 Diagram and Parts List for AS1ELGA LG Microwave Oven Combo
  • 33052M
    Cover,Insulator – Part Number: 3052W3M011E
    Cover,Insulator
    Part Number: 3052W3M011E
      No Longer Available
  • 33112U
    Case,Flat – Part Number: 3112W1F061C
    Case,Flat
    Part Number: 3112W1F061C
      No Longer Available
  • 33390G
    Tray,Glass – Part Number: 1B71018G
    Tray,Glass
    Part Number: 1B71018G
      No Longer Available
  • 33390G
    Tray,Glass – Part Number: 1B71018G
    Tray,Glass
    Part Number: 1B71018G
      No Longer Available
  • 33390M
    TRAY,METAL – Part Number: 3390W2P002K
    TRAY,METAL
    Part Number: 3390W2P002K
      On Order
    $91.95
  • 34370T
    Turntable Motor Coupler – Part Number: 4370W1A006B
    Turntable Motor Coupler
    Part Number: 4370W1A006B
      In Stock
    $16.75
  • 35026G
    Shelf – Part Number: 3B71492A
    Shelf
    Part Number: 3B71492A
      No Longer Available
  • 35889A
    Turntable Assembly – Part Number: 5889W2A015K
    Turntable Assembly
    Part Number: 5889W2A015K
      In Stock
    $26.73
  • 35889A
    TURNTABLE ASSEMBLY – Part Number: 5889W2A015A
    TURNTABLE ASSEMBLY
    Part Number: 5889W2A015A
      No Longer Available
  • 36549S
    Motor Synchronous – Part Number: 6549W1S013A
    Motor Synchronous
    Part Number: 6549W1S013A
      In Stock
    $49.39
  • WSZ094
    Screw,Customized – Part Number: 4B70572D
    Screw,Customized
    Part Number: 4B70572D
      Special Order
    $13.60
  • WSZ185
    Screw,Customized – Part Number: 1SZZW2A002A
    Screw,Customized
    Part Number: 1SZZW2A002A
      Special Order
    $13.60
  • WTP013
    Screw,Tapping – Part Number: 1TTL0402418
    Screw,Tapping
    Part Number: 1TTL0402418
      In Stock
    $11.50
  • WTT021
    Screw,Tapping – Part Number: 1TTL0402418
    Screw,Tapping
    Part Number: 1TTL0402418
      In Stock
    $11.50
  • WTT047
    Tapping Screw – Part Number: 1TTG0402416
    Tapping Screw
    Part Number: 1TTG0402416
      Special Order
    $13.60

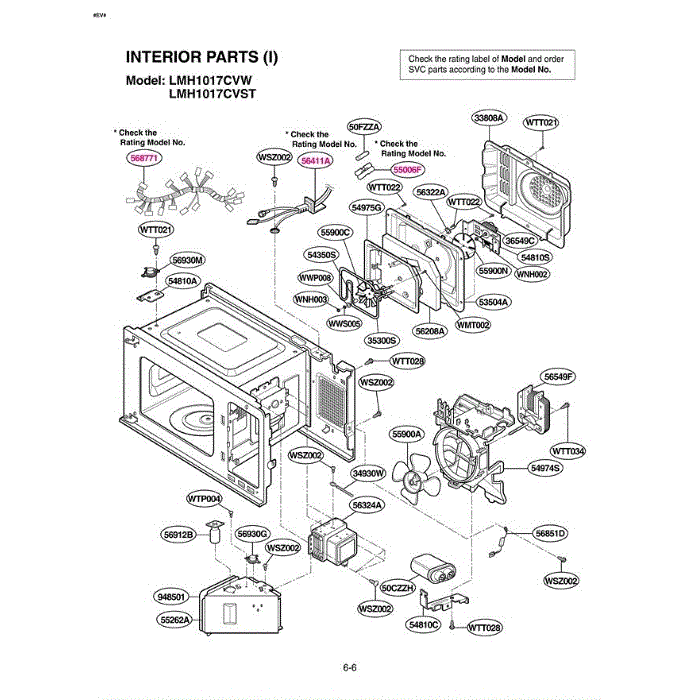

Section 4
Section 4 Diagram and Parts List for AS1ELGA LG Microwave Oven Combo
  • 50CZZH
    Capacitor – Part Number: 0CZZW1H004S
    Capacitor
    Part Number: 0CZZW1H004S
      In Stock
    $48.36
  • 50FZZA
    Time Delay Fuse – Part Number: 3B74133Q
    Time Delay Fuse
    Part Number: 3B74133Q
      In Stock
    $11.50
  • 33808A
    Cover,Rear – Part Number: 3550W1A117A
    Cover,Rear
    Part Number: 3550W1A117A
      No Longer Available
  • 34930W
    Holder,Wire – Part Number: 4B72510F
    Holder,Wire
    Part Number: 4B72510F
      Special Order
    $13.60
  • 35300S
    Heater,Sheath – Part Number: 5300W2S018E
    Heater,Sheath
    Part Number: 5300W2S018E
      No Longer Available
  • 36549C
    Motor,AC Fan – Part Number: 2B72066P
    Motor,AC Fan
    Part Number: 2B72066P
      No Longer Available
  • 53504A
    Chamber – Part Number: 3300W1G057A
    Chamber
    Part Number: 3300W1G057A
      No Longer Available
  • 54350S
    Ring – Part Number: 4B73725A
    Ring
    Part Number: 4B73725A
      Special Order
    $13.60
  • 54810A
    Bracket,Thermostat – Part Number: 4810W1A224A
    Bracket,Thermostat
    Part Number: 4810W1A224A
      No Longer Available
  • 54810C
    Bracket,Capacitor – Part Number: 4810W4C003B
    Bracket,Capacitor
    Part Number: 4810W4C003B
      Special Order
    $13.60
  • 54810S
    BRACKET,MOTOR – Part Number: MAZ66388901
    BRACKET,MOTOR
    Part Number: MAZ66388901
      In Stock
    $20.95
  • 54974S
    Guide,Suction – Part Number: 4974W1S016C
    Guide,Suction
    Part Number: 4974W1S016C
      Special Order
    $48.36
  • 54975G
    Guide Assembly,Chamber – Part Number: 4975W1G002C
    Guide Assembly,Chamber
    Part Number: 4975W1G002C
      No Longer Available
  • 55262A
    Duct – Part Number: 5262W2A020A
    Duct
    Part Number: 5262W2A020A
      Special Order
    $13.60
  • 55900A
    FAN – Part Number: 5900W1A004C
    FAN
    Part Number: 5900W1A004C
      Special Order
    $13.60
  • 55900C
    Fan – Part Number: 3B72561A
    Fan
    Part Number: 3B72561A
      No Longer Available
  • 55900N
    Fan – Part Number: 3B72559A
    Fan
    Part Number: 3B72559A
      On Order
    $13.60
  • 56208A
    Insulator – Part Number: 6208W2A005D
    Insulator
    Part Number: 6208W2A005D
      No Longer Available
  • 56322A
    Thermistor,NTC – Part Number: 6322W2A001A
    Thermistor,NTC
    Part Number: 6322W2A001A
      Special Order
    $42.18
  • 56324A
    Magnetron – Part Number: 6324W1A001L
    Magnetron
    Part Number: 6324W1A001L
      In Stock
    $128.95
  • 56411A
    Power Cord Assembly – Part Number: 6411W1A018L
    Power Cord Assembly
    Part Number: 6411W1A018L
      No Longer Available
  • 56549F
    Motor,AC Fan – Part Number: 6549W1F015B
    Motor,AC Fan
    Part Number: 6549W1F015B
      No Longer Available
  • 56549F
    Motor,AC Fan – Part Number: 6549W1F005B
    Motor,AC Fan
    Part Number: 6549W1F005B
      No Longer Available
  • 56851D
    Diode (Cable, Assembly) – Part Number: 6851W1A002E
    Diode (Cable, Assembly)
    Part Number: 6851W1A002E
      In Stock
    $16.75
  • 56851D
    High Voltage Diode – Part Number: 6021W3B001V
    High Voltage Diode
    Part Number: 6021W3B001V
      In Stock
    $16.75
  • 56912B
    Lamp,Incandescent – Part Number: 6912W3B002L
    Lamp,Incandescent
    Part Number: 6912W3B002L
      Special Order
    $20.95
  • 56930G
    Thermostat – Part Number: 6930W1A003V
    Thermostat
    Part Number: 6930W1A003V
      No Longer Available
  • 56930M
    Thermostat – Part Number: 6930W1A003J
    Thermostat
    Part Number: 6930W1A003J
      In Stock
    $20.95
  • 568771
    Harness,Single – Part Number: 6877W1A516B
    Harness,Single
    Part Number: 6877W1A516B
      No Longer Available
  • 948501
    Damper – Part Number: 3B72244C
    Damper
    Part Number: 3B72244C
      Special Order
    $13.60
  • WMT002
    Screw,Machine – Part Number: 1MTC0402432
    Screw,Machine
    Part Number: 1MTC0402432
      Special Order
    $13.60
  • WNH002
    Common Nut – Part Number: 1NHB0500032
    Common Nut
    Part Number: 1NHB0500032
      Special Order
    $13.60
  • WNH003
    Nut,Common – Part Number: 1NHA0400032
    Nut,Common
    Part Number: 1NHA0400032
      Special Order
    $13.60
  • WSZ002
    SCREW,TAPPING[TRUSS HEAD] – Part Number: 1TTG0402422
    SCREW,TAPPING[TRUSS HEAD]
    Part Number: 1TTG0402422
      In Stock
    $13.60
  • WTP004
    Screw,Tapping – Part Number: 1TPL0302018
    Screw,Tapping
    Part Number: 1TPL0302018
      Special Order
    $13.60
  • WTT021
    Screw,Tapping – Part Number: 1TTL0402418
    Screw,Tapping
    Part Number: 1TTL0402418
      In Stock
    $11.50
  • WTT022
    Screw,Tapping – Part Number: 1TTL0402418
    Screw,Tapping
    Part Number: 1TTL0402418
      In Stock
    $11.50
  • WTT028
    Microwave Screwtapping – Part Number: 1TTL0402818
    Microwave Screwtapping
    Part Number: 1TTL0402818
      Special Order
    $13.60
  • WTT034
    Screw,Tapping – Part Number: 1TTL0403418
    Screw,Tapping
    Part Number: 1TTL0403418
      Special Order
    $13.60
  • WWP008
    Customized Washer – Part Number: 1WZZ81N001A
    Customized Washer
    Part Number: 1WZZ81N001A
      Special Order
    $13.60
  • WWS005
    Washer,Common – Part Number: 1WSD0400032
    Washer,Common
    Part Number: 1WSD0400032
      In Stock
    $13.60

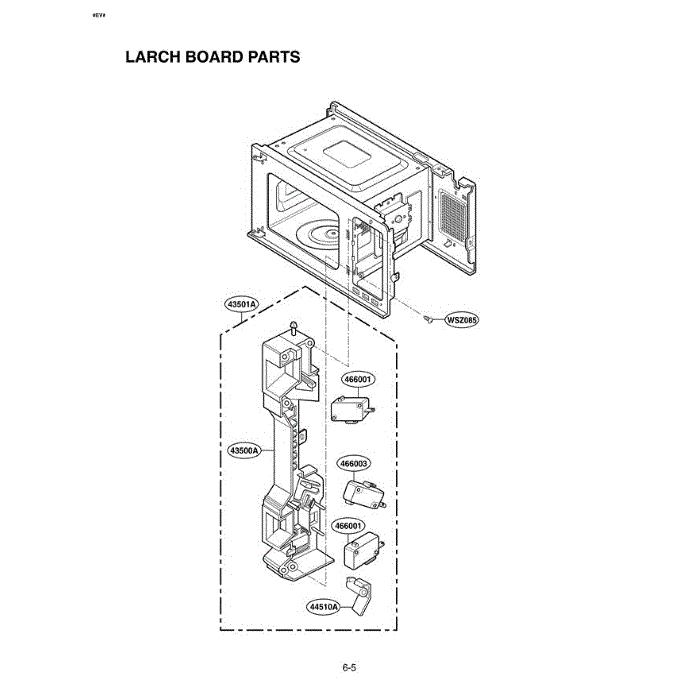

Section 5
Section 5 Diagram and Parts List for AS1ELGA LG Microwave Oven Combo
  • 43500A
    Holder,Locker – Part Number: 3500W1A028B
    Holder,Locker
    Part Number: 3500W1A028B
      No Longer Available
  • 43501A
    HOLDER ASSEMBLY,LOCKER – Part Number: AEJ75540901
    HOLDER ASSEMBLY,LOCKER
    Part Number: AEJ75540901
      In Stock
    $13.60
  • 43501A
    Holder Assembly,Locker – Part Number: 3501W1A016V
    Holder Assembly,Locker
    Part Number: 3501W1A016V
      No Longer Available
  • 44510A
    LEVER – Part Number: 4510W4A005E
    LEVER
    Part Number: 4510W4A005E
      In Stock
    $13.60
  • 44510A
    Lever – Part Number: 4510W3A012C
    Lever
    Part Number: 4510W3A012C
      Special Order
    $13.60
  • 466001
    Micro Switch – Part Number: 3B73362F
    Micro Switch
    Part Number: 3B73362F
      Special Order
    $20.95
  • 466003
    Micro Switch – Part Number: 6600W1K001R
    Micro Switch
    Part Number: 6600W1K001R
      In Stock
    $13.60
  • 466003
    Microwave Micro Switch – Part Number: 6600W1K001C
    Microwave Micro Switch
    Part Number: 6600W1K001C
      Special Order
    $20.95
  • WSZ085
    Screw,Customized – Part Number: 4B70188C
    Screw,Customized
    Part Number: 4B70188C
      In Stock
    $13.60

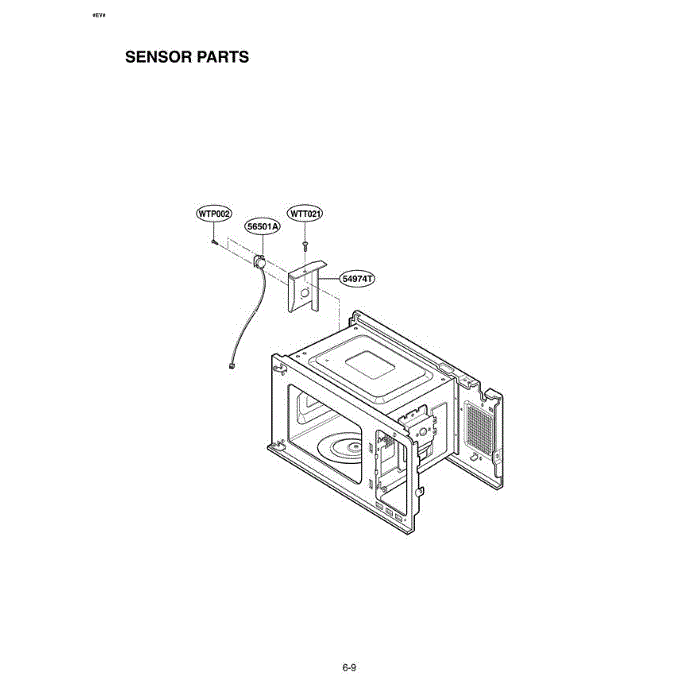

Section 6
Section 6 Diagram and Parts List for AS1ELGA LG Microwave Oven Combo
  • 54974T
    Bracket,Sensor – Part Number: 5208W1A026B
    Bracket,Sensor
    Part Number: 5208W1A026B
      No Longer Available
  • 56501A
    Sensor Assembly – Part Number: 6501W1A013A
    Sensor Assembly
    Part Number: 6501W1A013A
      In Stock
    $73.39
  • WTP002
    Screw,Tapping – Part Number: 1TPL0302018
    Screw,Tapping
    Part Number: 1TPL0302018
      Special Order
    $13.60
  • WTT021
    Screw,Tapping – Part Number: 1TTL0402418
    Screw,Tapping
    Part Number: 1TTL0402418
      In Stock
    $11.50
Section 7
Section 7 Diagram and Parts List for AS1ELGA LG Microwave Oven Combo
  • 50CZZH
    Capacitor – Part Number: 0CZZW1H004S
    Capacitor
    Part Number: 0CZZW1H004S
      In Stock
    $48.36
  • 50FZZA
    Time Delay Fuse – Part Number: 3B74133Q
    Time Delay Fuse
    Part Number: 3B74133Q
      In Stock
    $11.50
  • 33808A
    Cover,Rear – Part Number: 3550W1A117A
    Cover,Rear
    Part Number: 3550W1A117A
      No Longer Available
  • 34930W
    Holder,Wire – Part Number: 4B72510F
    Holder,Wire
    Part Number: 4B72510F
      Special Order
    $13.60
  • 35300S
    Heater,Sheath – Part Number: 5300W2S018E
    Heater,Sheath
    Part Number: 5300W2S018E
      No Longer Available
  • 36549C
    Motor,AC Fan – Part Number: 2B72066P
    Motor,AC Fan
    Part Number: 2B72066P
      No Longer Available
  • 53504A
    Chamber – Part Number: 3300W1G057A
    Chamber
    Part Number: 3300W1G057A
      No Longer Available
  • 54350S
    Ring – Part Number: 4B73725A
    Ring
    Part Number: 4B73725A
      Special Order
    $13.60
  • 54810A
    Bracket,Thermostat – Part Number: 4810W1A224A
    Bracket,Thermostat
    Part Number: 4810W1A224A
      No Longer Available
  • 54810C
    Bracket,Capacitor – Part Number: 4810W4C003B
    Bracket,Capacitor
    Part Number: 4810W4C003B
      Special Order
    $13.60
  • 54810S
    BRACKET,MOTOR – Part Number: MAZ66388901
    BRACKET,MOTOR
    Part Number: MAZ66388901
      In Stock
    $20.95
  • 54974S
    Guide,Suction – Part Number: 4974W1S016C
    Guide,Suction
    Part Number: 4974W1S016C
      Special Order
    $48.36
  • 54975G
    Guide Assembly,Chamber – Part Number: 4975W1G002C
    Guide Assembly,Chamber
    Part Number: 4975W1G002C
      No Longer Available
  • 55262A
    Duct – Part Number: 5262W2A020A
    Duct
    Part Number: 5262W2A020A
      Special Order
    $13.60
  • 55900A
    FAN – Part Number: 5900W1A004C
    FAN
    Part Number: 5900W1A004C
      Special Order
    $13.60
  • 55900C
    Fan – Part Number: 3B72561A
    Fan
    Part Number: 3B72561A
      No Longer Available
  • 55900N
    Fan – Part Number: 3B72559A
    Fan
    Part Number: 3B72559A
      On Order
    $13.60
  • 56201A
    Filter,AC Line – Part Number: 6201W2A018A
    Filter,AC Line
    Part Number: 6201W2A018A
      No Longer Available
  • 56208A
    Insulator – Part Number: 6208W2A005D
    Insulator
    Part Number: 6208W2A005D
      No Longer Available
  • 56322A
    Thermistor,NTC – Part Number: 6322W2A001A
    Thermistor,NTC
    Part Number: 6322W2A001A
      Special Order
    $42.18
  • 56324A
    Magnetron – Part Number: 6324W1A001L
    Magnetron
    Part Number: 6324W1A001L
      In Stock
    $128.95
  • 56411A
    Power Cord Assembly – Part Number: 6411W1A018L
    Power Cord Assembly
    Part Number: 6411W1A018L
      No Longer Available
  • 56549F
    Motor,AC Fan – Part Number: 6549W1F015B
    Motor,AC Fan
    Part Number: 6549W1F015B
      No Longer Available
  • 56549F
    Motor,AC Fan – Part Number: 6549W1F005B
    Motor,AC Fan
    Part Number: 6549W1F005B
      No Longer Available
  • 56851D
    High Voltage Diode – Part Number: 6021W3B001V
    High Voltage Diode
    Part Number: 6021W3B001V
      In Stock
    $16.75
  • 56851D
    Diode (Cable, Assembly) – Part Number: 6851W1A002E
    Diode (Cable, Assembly)
    Part Number: 6851W1A002E
      In Stock
    $16.75
  • 56912B
    Lamp,Incandescent – Part Number: 6912W3B002L
    Lamp,Incandescent
    Part Number: 6912W3B002L
      Special Order
    $20.95
  • 56930G
    Thermostat – Part Number: 6930W1A003V
    Thermostat
    Part Number: 6930W1A003V
      No Longer Available
  • 56930M
    Thermostat – Part Number: 6930W1A003J
    Thermostat
    Part Number: 6930W1A003J
      In Stock
    $20.95
  • 568771
    Harness,Single – Part Number: 6877W1A516B
    Harness,Single
    Part Number: 6877W1A516B
      No Longer Available
  • 948501
    Damper – Part Number: 3B72244C
    Damper
    Part Number: 3B72244C
      Special Order
    $13.60
  • WMT002
    Screw,Machine – Part Number: 1MTC0402432
    Screw,Machine
    Part Number: 1MTC0402432
      Special Order
    $13.60
  • WNH002
    Common Nut – Part Number: 1NHB0500032
    Common Nut
    Part Number: 1NHB0500032
      Special Order
    $13.60
  • WNH003
    Nut,Common – Part Number: 1NHA0400032
    Nut,Common
    Part Number: 1NHA0400032
      Special Order
    $13.60
  • WSZ002
    SCREW,TAPPING[TRUSS HEAD] – Part Number: 1TTG0402422
    SCREW,TAPPING[TRUSS HEAD]
    Part Number: 1TTG0402422
      In Stock
    $13.60
  • WTP004
    Screw,Tapping – Part Number: 1TPL0302018
    Screw,Tapping
    Part Number: 1TPL0302018
      Special Order
    $13.60
  • WTT021
    Screw,Tapping – Part Number: 1TTL0402418
    Screw,Tapping
    Part Number: 1TTL0402418
      In Stock
    $11.50
  • WTT022
    Screw,Tapping – Part Number: 1TTL0402418
    Screw,Tapping
    Part Number: 1TTL0402418
      In Stock
    $11.50
  • WTT028
    Microwave Screwtapping – Part Number: 1TTL0402818
    Microwave Screwtapping
    Part Number: 1TTL0402818
      Special Order
    $13.60
  • WTT034
    Screw,Tapping – Part Number: 1TTL0403418
    Screw,Tapping
    Part Number: 1TTL0403418
      Special Order
    $13.60
  • WWP008
    Customized Washer – Part Number: 1WZZ81N001A
    Customized Washer
    Part Number: 1WZZ81N001A
      Special Order
    $13.60
  • WWS005
    Washer,Common – Part Number: 1WSD0400032
    Washer,Common
    Part Number: 1WSD0400032
      In Stock
    $13.60
Section 8
Section 8 Diagram and Parts List for AS1ELGA LG Microwave Oven Combo

Questions & Answers

?

Our customer Service team is at the ready daily to answer your part and product questions.

Be the first to ask our experts a question about this part!

Ask our Team

We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.

✖

Our customer service team are at the ready daily to answer your part and product questions. We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
