Search Within Model

Questions & Answers for RedMax EBZ5100RHCA
Browse all Parts Search by Area
Carburetor Details Diagram and Parts List for 70700001 AND UP RedMax Leaf Blower / Vacuum
Carburetor Details

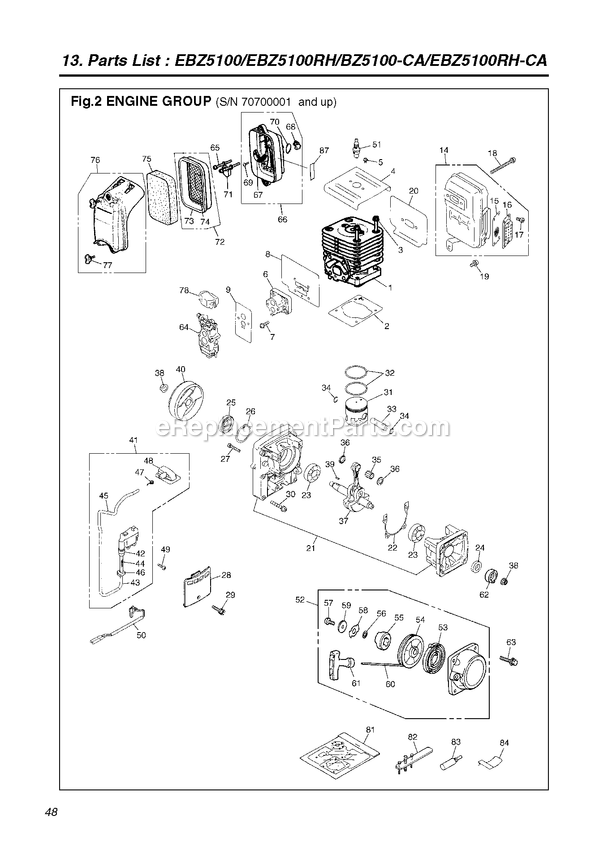

Engine Diagram and Parts List for 70700001 AND UP RedMax Leaf Blower / Vacuum
Engine

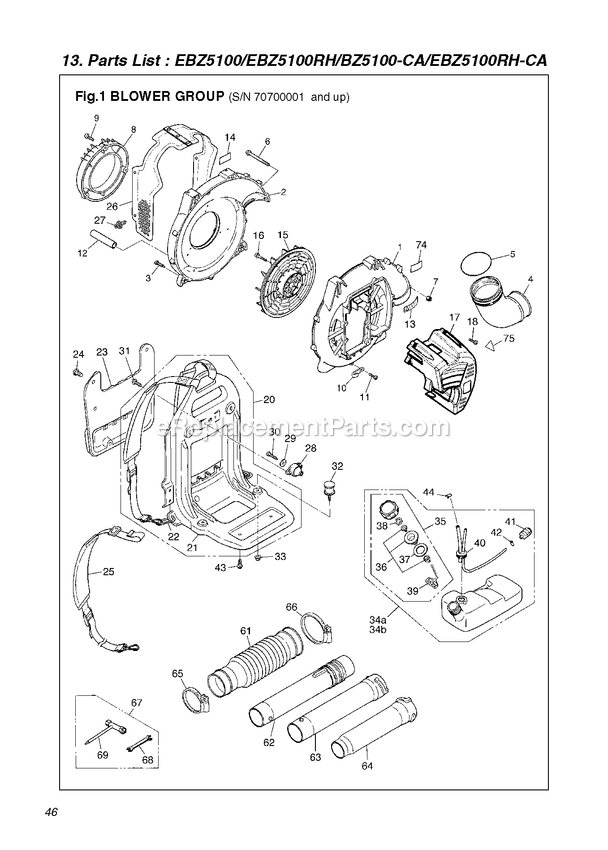

Frame Diagram and Parts List for 70700001 AND UP RedMax Leaf Blower / Vacuum
Frame

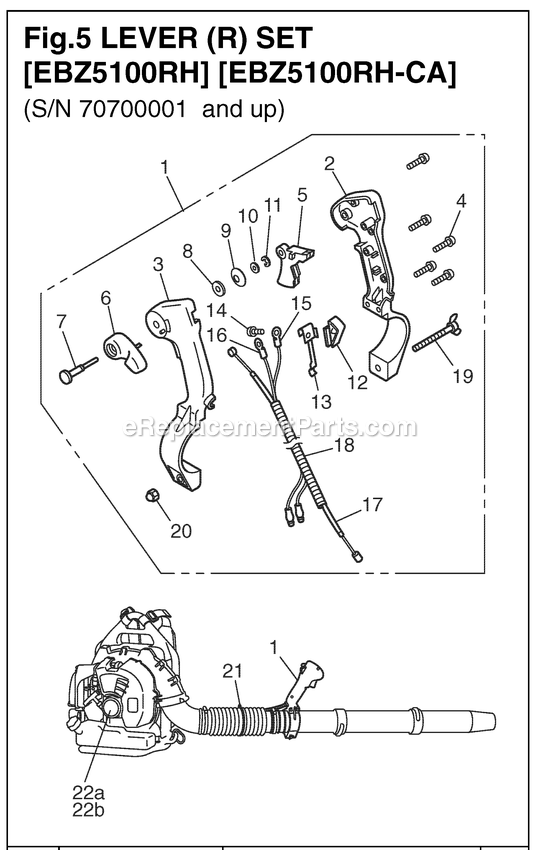

Handle And Controls Diagram and Parts List for 70700001 AND UP RedMax Leaf Blower / Vacuum
Handle And Controls
Previous Showing All Parts Next
Carburetor Details
Carburetor Details Diagram and Parts List for 70700001 AND UP RedMax Leaf Blower / Vacuum
  • 1
    VOLUTE CASE – Part Number: 574769301
    VOLUTE CASE
    Part Number: 574769301
      Special Order
    $100.93
  • 1
    Cylinder – Part Number: 502848701
    Cylinder
    Part Number: 502848701
    ★★★★★
    ★★★★★
    (1)
      In Stock
    $57.46
  • 1
    Lever – Part Number: 5117303-01
    Lever
    Part Number: 5117303-01
      No Longer Available
  • 2
    Gasket – Part Number: 502848801
    Gasket
    Part Number: 502848801
    ★★★★★
    ★★★★★
    (1)
      In Stock
    $8.95
  • 2
    Cover – Part Number: 512690801
    Cover
    Part Number: 512690801
      In Stock
    $14.92
  • 2
    VOLUTE COVER – Part Number: 511727901
    VOLUTE COVER
    Part Number: 511727901
      Special Order
    $130.63
  • 3
    Screw – Part Number: 512848101
    Screw
    Part Number: 512848101
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 3
    Bolt – Part Number: 506745201
    Bolt
    Part Number: 506745201
      In Stock
    Minimum Quantity of 2 required
    $5.96
  • 3
    Case – Part Number: 511746901
    Case
    Part Number: 511746901
      In Stock
    $17.92
  • 4
    Screw – Part Number: 521840701
    Screw
    Part Number: 521840701
      In Stock
    Minimum Quantity of 2 required
    $5.96
  • 4
    Plate – Part Number: 502846501
    Plate
    Part Number: 502846501
      Special Order
    $14.92
  • 4
    Elbow Tube – Part Number: 577078701
    Elbow Tube
    Part Number: 577078701
      In Stock
    $17.92
  • 5
    Lever.throttle – Part Number: 512694901
    Lever.throttle
    Part Number: 512694901
      Special Order
    $7.46
  • 5
    O-ring – Part Number: 516135401
    O-ring
    Part Number: 516135401
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 5
    Screw – Part Number: 544256801
    Screw
    Part Number: 544256801
      In Stock
    $5.95
  • 6
    Lever – Part Number: 521673501
    Lever
    Part Number: 521673501
      Special Order
    $5.95
  • 6
    Insulation – Part Number: 502845401
    Insulation
    Part Number: 502845401
      Special Order
    $33.96
  • 6
    Bolt – Part Number: 512846101
    Bolt
    Part Number: 512846101
      No Longer Available
  • 7
    SHAFT – Part Number: 521841001
    SHAFT
    Part Number: 521841001
      Special Order
    $14.92
  • 7
    Bolt – Part Number: 521516501
    Bolt
    Part Number: 521516501
      Special Order
    $5.95
  • 7
    Nut – Part Number: 514183901
    Nut
    Part Number: 514183901
      In Stock
    $5.95
  • 8
    Gasket, Insulator – Part Number: 502845501
    Gasket, Insulator
    Part Number: 502845501
      On Order
    $17.92
  • 8
    Funnel – Part Number: 5117280-01
    Funnel
    Part Number: 5117280-01
      No Longer Available
  • 9
    Screw – Part Number: 512848101
    Screw
    Part Number: 512848101
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 9
    Gasket – Part Number: 502845301
    Gasket
    Part Number: 502845301
      On Order
    $7.46
  • 9
    Spring Washer – Part Number: 521841201
    Spring Washer
    Part Number: 521841201
      Special Order
    $5.95
  • 10
    Washer – Part Number: 514154401
    Washer
    Part Number: 514154401
      Special Order
    $5.95
  • 10
    Clamp – Part Number: 513671901
    Clamp
    Part Number: 513671901
      Special Order
    $5.95
  • 11
    Clip – Part Number: 512696601
    Clip
    Part Number: 512696601
      Special Order
    $11.92
  • 12
    Tube – Part Number: 516869801
    Tube
    Part Number: 516869801
      No Longer Available
  • 12
    Switch – Part Number: 512698001
    Switch
    Part Number: 512698001
      Special Order
    $7.46
  • 13
    LABEL.CAUTION – Part Number: 513666101
    LABEL.CAUTION
    Part Number: 513666101
      Special Order
    $5.95
  • 13
    Spring – Part Number: 521841601
    Spring
    Part Number: 521841601
    ★★★★★
    ★★★★★
    (1)
      Special Order
    $5.96
  • 14
    Label Net – Part Number: 5218324-01
    Label Net
    Part Number: 5218324-01
      No Longer Available
  • 14
    Screw – Part Number: 521841701
    Screw
    Part Number: 521841701
      Special Order
    $5.95
  • 14
    Muffler Assembly – Part Number: 502845701
    Muffler Assembly
    Part Number: 502845701
      In Stock
    $68.50
  • 15
    Spark Arrestor Screen – Part Number: 502845801
    Spark Arrestor Screen
    Part Number: 502845801
      No Longer Available
  • 15
    Fan – Part Number: 502850201
    Fan
    Part Number: 502850201
      Special Order
    $74.73
  • 15
    Cord – Part Number: 510933801
    Cord
    Part Number: 510933801
      No Longer Available
  • 16
    Bolt – Part Number: 510906101
    Bolt
    Part Number: 510906101
      Special Order
    $5.96
  • 16
    Exhaust Duct – Part Number: 502845901
    Exhaust Duct
    Part Number: 502845901
      Special Order
    $7.46
  • 16
    Cord – Part Number: 510933901
    Cord
    Part Number: 510933901
      No Longer Available
  • 17
    Bolt – Part Number: 544362701
    Bolt
    Part Number: 544362701
      Special Order
    $5.95
  • 17
    Cable – Part Number: 512699701
    Cable
    Part Number: 512699701
      In Stock
    $26.88
  • 17
    ENGINE COVER – Part Number: 511726901
    ENGINE COVER
    Part Number: 511726901
      In Stock
    $29.88
  • 18
    Tube – Part Number: 5109225-01
    Tube
    Part Number: 5109225-01
      No Longer Available
  • 18
    Bolt – Part Number: 544257901
    Bolt
    Part Number: 544257901
      Special Order
    $5.96
  • 18
    Screw – Part Number: 512848101
    Screw
    Part Number: 512848101
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 19
    Wing Bolt – Part Number: 514338401
    Wing Bolt
    Part Number: 514338401
      In Stock
    $5.96
  • 19
    BOLT – Part Number: 512846301
    BOLT
    Part Number: 512846301
      Special Order
    $9.02
  • 20
    Nut – Part Number: 513671401
    Nut
    Part Number: 513671401
      Special Order
    $5.95
  • 20
    FRAME ASSEMBLY(RPLS -3500,-350 – Part Number: 511782401
    FRAME ASSEMBLY(RPLS -3500,-350
    Part Number: 511782401
      Special Order
    $68.50
  • 20
    Gasket – Part Number: 511496901
    Gasket
    Part Number: 511496901
      No Longer Available
  • 21
    Crankcase – Part Number: 502848901
    Crankcase
    Part Number: 502848901
      In Stock
    $78.35
  • 21
    Clamp – Part Number: 502842801
    Clamp
    Part Number: 502842801
      In Stock
    $8.96
  • 21
    FRAME COMP. – Part Number: 511782501
    FRAME COMP.
    Part Number: 511782501
      Special Order
    $114.78
  • 22
    Gasket – Part Number: 502849401
    Gasket
    Part Number: 502849401
      In Stock
    $5.96
  • 22b
    Label.Recoil – Part Number: 5117319-01
    Label.Recoil
    Part Number: 5117319-01
      No Longer Available
  • 23
    BEARING – Part Number: 596449101
    BEARING
    Part Number: 596449101
      Special Order
    $13.46
  • 23
    PAD – Part Number: 511782601
    PAD
    Part Number: 511782601
      Special Order
    $54.35
  • 24
    Clip – Part Number: 526476701
    Clip
    Part Number: 526476701
      In Stock
    $5.95
  • 24
    Sealing – Part Number: 502849201
    Sealing
    Part Number: 502849201
      Special Order
    $14.92
  • 25
    Sealing – Part Number: 502849001
    Sealing
    Part Number: 502849001
      Special Order
    $14.92
  • 25
    BAND ASSEMBLY. (BUCKLE 2756329 – Part Number: 511709601
    BAND ASSEMBLY. (BUCKLE 2756329
    Part Number: 511709601
      Special Order
    $29.88
  • 26
    NET COMP (RPLS-T402325430) – Part Number: 511743601
    NET COMP (RPLS-T402325430)
    Part Number: 511743601
      Special Order
    $29.88
  • 26
    Snap Ring – Part Number: 502849301
    Snap Ring
    Part Number: 502849301
      Special Order
    $5.95
  • 27
    Bolt – Part Number: 515388101
    Bolt
    Part Number: 515388101
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 27
    Clip – Part Number: 526243901
    Clip
    Part Number: 526243901
      Special Order
    $5.95
  • 28
    Damper – Part Number: 513666702
    Damper
    Part Number: 513666702
      In Stock
    $17.92
  • 28
    Cover – Part Number: 513663901
    Cover
    Part Number: 513663901
      Special Order
    $11.92
  • 29
    Washer – Part Number: 544270601
    Washer
    Part Number: 544270601
      In Stock
    $7.46
  • 29
    Bolt – Part Number: 506745701
    Bolt
    Part Number: 506745701
      Special Order
    $5.95
  • 30
    Bolt – Part Number: 576810401
    Bolt
    Part Number: 576810401
      Special Order
    $5.95
  • 30
    SCREW (RPLS T497054010) – Part Number: 521863801
    SCREW (RPLS T497054010)
    Part Number: 521863801
      On Order
    $5.95
  • 31
    Piston – Part Number: 502849601
    Piston
    Part Number: 502849601
      In Stock
    $47.55
  • 31
    Screw – Part Number: 544270801
    Screw
    Part Number: 544270801
      In Stock
    $5.96
  • 32
    Damper lower – Part Number: 513667302
    Damper lower
    Part Number: 513667302
      Special Order
    $31.24
  • 32
    Piston Ring – Part Number: 502849501
    Piston Ring
    Part Number: 502849501
    ★★★★★
    ★★★★★
    (4)
      In Stock
    $14.92
  • 33
    Nut – Part Number: 513667501
    Nut
    Part Number: 513667501
      In Stock
    $6.48
  • 34
    Snap Ring – Part Number: 502849801
    Snap Ring
    Part Number: 502849801
    ★★★★★
    ★★★★★
    (1)
      In Stock
    $5.95
  • 34b
    Tank Assy(Evapo) – Part Number: 5289134-01
    Tank Assy(Evapo)
    Part Number: 5289134-01
      No Longer Available
  • 35
    Bearing – Part Number: 502849901
    Bearing
    Part Number: 502849901
      In Stock
    $17.92
  • 35
    Leaf Blower Tank Cap Assembly – Part Number: 504117701
    Leaf Blower Tank Cap Assembly
    Part Number: 504117701
      In Stock
    $17.92
  • 36
    Holder-A – Part Number: 515369401
    Holder-A
    Part Number: 515369401
      Special Order
    $8.96
  • 36
    Washer – Part Number: 502850001
    Washer
    Part Number: 502850001
      In Stock
    $7.46
  • 37
    Crankshaft – Part Number: 502850101
    Crankshaft
    Part Number: 502850101
      In Stock
    $191.71
  • 37
    Packing – Part Number: 506744301
    Packing
    Part Number: 506744301
      Special Order
    Minimum Quantity of 2 required
    $5.95
  • 38
    Filter – Part Number: 506746801
    Filter
    Part Number: 506746801
      In Stock
    $8.10
  • 39
    Key – Part Number: 506689401
    Key
    Part Number: 506689401
      In Stock
    $5.95
  • 39
    Stopper – Part Number: 504117901
    Stopper
    Part Number: 504117901
      In Stock
    $5.95
  • 40
    Flywheel – Part Number: 502846301
    Flywheel
    Part Number: 502846301
      In Stock
    $54.34
  • 40
    PIPE COMPLETE – Part Number: 595847005
    PIPE COMPLETE
    Part Number: 595847005
      In Stock
    $22.40
  • 41
    COIL ASSEMBLY – Part Number: 596812701
    COIL ASSEMBLY
    Part Number: 596812701
      Special Order
    $78.35
  • 41
    Chainsaw Fuel Filter – Part Number: 591375401
    Chainsaw Fuel Filter
    Part Number: 591375401
    ★★★★★
    ★★★★★
    (14)
      In Stock
    $13.42
  • 42
    Cap – Part Number: 516744001
    Cap
    Part Number: 516744001
      On Order
    $5.96
  • 42
    Clip – Part Number: 506707001
    Clip
    Part Number: 506707001
    ★★★★★
    ★★★★★
    (1)
      On Order
    $5.95
  • 43
    Screw – Part Number: 544273101
    Screw
    Part Number: 544273101
      Special Order
    $5.95
  • 43
    Cord – Part Number: 5114959-01
    Cord
    Part Number: 5114959-01
      No Longer Available
  • 44
    Tube-b – Part Number: 511493401
    Tube-b
    Part Number: 511493401
      No Longer Available
  • 44
    Clip – Part Number: 506741501
    Clip
    Part Number: 506741501
      In Stock
    $5.95
  • 45
    Tube – Part Number: 544362901
    Tube
    Part Number: 544362901
      Special Order
    $10.46
  • 46
    Grommet – Part Number: 515415301
    Grommet
    Part Number: 515415301
      Special Order
    $5.95
  • 47
    Spring – Part Number: 515415201
    Spring
    Part Number: 515415201
      Special Order
    $5.95
  • 48
    CAP – Part Number: 512258501
    CAP
    Part Number: 512258501
      Special Order
    $17.92
  • 49
    Bolt – Part Number: 506745701
    Bolt
    Part Number: 506745701
      Special Order
    $5.95
  • 50
    Cable – Part Number: 512258401
    Cable
    Part Number: 512258401
    ★★★★★
    ★★★★★
    (1)
      Special Order
    $10.46
  • 51
    Sparkplug – Part Number: 528074001
    Sparkplug
    Part Number: 528074001
    ★★★★★
    ★★★★★
    (5)
      In Stock
    $11.92
  • 52
    Leaf Blower Starter Assembly – Part Number: 502843101
    Leaf Blower Starter Assembly
    Part Number: 502843101
    ★★★★★
    ★★★★★
    (2)
      In Stock
    $62.27
  • 53
    Spring – Part Number: 502843301
    Spring
    Part Number: 502843301
      In Stock
    $17.92
  • 54
    Starter Pulley – Part Number: 502843401
    Starter Pulley
    Part Number: 502843401
    ★★★★★
    ★★★★★
    (1)
      Special Order
    $19.40
  • 55
    Starter Pawl – Part Number: 504554801
    Starter Pawl
    Part Number: 504554801
      In Stock
    $14.60
  • 56
    Washer – Part Number: 502843601
    Washer
    Part Number: 502843601
      Special Order
    Minimum Quantity of 2 required
    $5.95
  • 57
    Screw – Part Number: 502843801
    Screw
    Part Number: 502843801
      Special Order
    $5.95
  • 58
    Retainer – Part Number: 504554901
    Retainer
    Part Number: 504554901
      Special Order
    $5.96
  • 59
    Washer – Part Number: 502843701
    Washer
    Part Number: 502843701
      Special Order
    $5.96
  • 60
    Starter Rope – Part Number: 502843501
    Starter Rope
    Part Number: 502843501
      Special Order
    $7.46
  • 61
    Bellows – Part Number: 577078801
    Bellows
    Part Number: 577078801
    ★★★★★
    ★★★★★
    (3)
      In Stock
    $26.88
  • 61
    Knob – Part Number: 502843201
    Knob
    Part Number: 502843201
      Special Order
    $10.46
  • 62
    Swivel Joint – Part Number: 577078901
    Swivel Joint
    Part Number: 577078901
    ★★★★★
    ★★★★★
    (4)
      In Stock
    $17.92
  • 63
    Middle Tube – Part Number: 577079301
    Middle Tube
    Part Number: 577079301
    ★★★★★
    ★★★★★
    (4)
      In Stock
    $10.45
  • 63
    Bolt Torx – Part Number: 506745601
    Bolt Torx
    Part Number: 506745601
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 64
    Carburetor – Part Number: 502845001
    Carburetor
    Part Number: 502845001
      In Stock
    $118.75
  • 64
    PIPE.END – Part Number: 521672301
    PIPE.END
    Part Number: 521672301
      Special Order
    $22.40
  • 65
    Screw – Part Number: 502844601
    Screw
    Part Number: 502844601
      In Stock
    $8.10
  • 65
    Clamp – Part Number: 504064901
    Clamp
    Part Number: 504064901
      In Stock
    $5.95
  • 66
    Air Filter Holder – Part Number: 502844902
    Air Filter Holder
    Part Number: 502844902
    ★★★★★
    ★★★★★
    (1)
      In Stock
    $31.23
  • 66
    Clamp – Part Number: 544274101
    Clamp
    Part Number: 544274101
    ★★★★★
    ★★★★★
    (2)
      In Stock
    $5.95
  • 67
    Plate, Choke – Part Number: 512259601
    Plate, Choke
    Part Number: 512259601
      On Order
    $5.96
  • 67
    Tool-Set – Part Number: 5215323-01
    Tool-Set
    Part Number: 5215323-01
      No Longer Available
  • 68
    Lever – Part Number: 521740501
    Lever
    Part Number: 521740501
      In Stock
    $5.95
  • 68
    Spanner – Part Number: 506615001
    Spanner
    Part Number: 506615001
      Special Order
    $7.46
  • 69
    Screw – Part Number: 506673801
    Screw
    Part Number: 506673801
      Special Order
    Minimum Quantity of 2 required
    $5.95
  • 69
    Socket – Part Number: 521533001
    Socket
    Part Number: 521533001
      In Stock
    $8.96
  • 70
    O-Ring – Part Number: 512260001
    O-Ring
    Part Number: 512260001
      Special Order
    Minimum Quantity of 2 required
    $6.48
  • 71
    Plate – Part Number: 502844701
    Plate
    Part Number: 502844701
      In Stock
    $9.72
  • 72
    Gasket – Part Number: 502844501
    Gasket
    Part Number: 502844501
      In Stock
    $33.95
  • 73
    Packing – Part Number: 512260301
    Packing
    Part Number: 512260301
      Special Order
    $27.42
  • 74
    Label.Sound – Part Number: 5109638-01
    Label.Sound
    Part Number: 5109638-01
      No Longer Available
  • 74
    Screen – Part Number: 521741401
    Screen
    Part Number: 521741401
      Special Order
    $6.43
  • 75
    Label – Part Number: 544363401
    Label
    Part Number: 544363401
      No Longer Available
  • 75
    Air Filter – Part Number: 502844401
    Air Filter
    Part Number: 502844401
    ★★★★★
    ★★★★★
    (6)
      In Stock
    $13.42
  • 76
    COVER ASSEMBLY. – Part Number: 511496101
    COVER ASSEMBLY.
    Part Number: 511496101
      In Stock
    $32.48
  • 77
    Knob – Part Number: 506673901
    Knob
    Part Number: 506673901
      Special Order
    $5.95
  • 81
    GASKET KIT – Part Number: 528759701
    GASKET KIT
    Part Number: 528759701
      Special Order
    $33.96
  • 82
    PULLER ASSEMBLY – Part Number: 513673501
    PULLER ASSEMBLY
    Part Number: 513673501
      Special Order
    $225.55
  • 83
    STOPPER – Part Number: 515387901
    STOPPER
    Part Number: 515387901
      Special Order
    $63.62
  • 84
    GAUGE – Part Number: 510961701
    GAUGE
    Part Number: 510961701
      Special Order
    $38.02
  • 87
    Label – Part Number: 521740201
    Label
    Part Number: 521740201
      Special Order
    $5.95
Engine
Engine Diagram and Parts List for 70700001 AND UP RedMax Leaf Blower / Vacuum
  • 1
    Lever – Part Number: 5117303-01
    Lever
    Part Number: 5117303-01
      No Longer Available
  • 1
    VOLUTE CASE – Part Number: 574769301
    VOLUTE CASE
    Part Number: 574769301
      Special Order
    $100.93
  • 1
    Cylinder – Part Number: 502848701
    Cylinder
    Part Number: 502848701
    ★★★★★
    ★★★★★
    (1)
      In Stock
    $57.46
  • 2
    VOLUTE COVER – Part Number: 511727901
    VOLUTE COVER
    Part Number: 511727901
      Special Order
    $130.63
  • 2
    Gasket – Part Number: 502848801
    Gasket
    Part Number: 502848801
    ★★★★★
    ★★★★★
    (1)
      In Stock
    $8.95
  • 2
    Cover – Part Number: 512690801
    Cover
    Part Number: 512690801
      In Stock
    $14.92
  • 3
    Bolt – Part Number: 506745201
    Bolt
    Part Number: 506745201
      In Stock
    Minimum Quantity of 2 required
    $5.96
  • 3
    Case – Part Number: 511746901
    Case
    Part Number: 511746901
      In Stock
    $17.92
  • 3
    Screw – Part Number: 512848101
    Screw
    Part Number: 512848101
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 4
    Elbow Tube – Part Number: 577078701
    Elbow Tube
    Part Number: 577078701
      In Stock
    $17.92
  • 4
    Screw – Part Number: 521840701
    Screw
    Part Number: 521840701
      In Stock
    Minimum Quantity of 2 required
    $5.96
  • 4
    Plate – Part Number: 502846501
    Plate
    Part Number: 502846501
      Special Order
    $14.92
  • 5
    Screw – Part Number: 544256801
    Screw
    Part Number: 544256801
      In Stock
    $5.95
  • 5
    Lever.throttle – Part Number: 512694901
    Lever.throttle
    Part Number: 512694901
      Special Order
    $7.46
  • 5
    O-ring – Part Number: 516135401
    O-ring
    Part Number: 516135401
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 6
    Insulation – Part Number: 502845401
    Insulation
    Part Number: 502845401
      Special Order
    $33.96
  • 6
    Bolt – Part Number: 512846101
    Bolt
    Part Number: 512846101
      No Longer Available
  • 6
    Lever – Part Number: 521673501
    Lever
    Part Number: 521673501
      Special Order
    $5.95
  • 7
    Nut – Part Number: 514183901
    Nut
    Part Number: 514183901
      In Stock
    $5.95
  • 7
    SHAFT – Part Number: 521841001
    SHAFT
    Part Number: 521841001
      Special Order
    $14.92
  • 7
    Bolt – Part Number: 521516501
    Bolt
    Part Number: 521516501
      Special Order
    $5.95
  • 8
    Gasket, Insulator – Part Number: 502845501
    Gasket, Insulator
    Part Number: 502845501
      On Order
    $17.92
  • 8
    Funnel – Part Number: 5117280-01
    Funnel
    Part Number: 5117280-01
      No Longer Available
  • 9
    Spring Washer – Part Number: 521841201
    Spring Washer
    Part Number: 521841201
      Special Order
    $5.95
  • 9
    Gasket – Part Number: 502845301
    Gasket
    Part Number: 502845301
      On Order
    $7.46
  • 9
    Screw – Part Number: 512848101
    Screw
    Part Number: 512848101
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 10
    Clamp – Part Number: 513671901
    Clamp
    Part Number: 513671901
      Special Order
    $5.95
  • 10
    Washer – Part Number: 514154401
    Washer
    Part Number: 514154401
      Special Order
    $5.95
  • 11
    Clip – Part Number: 512696601
    Clip
    Part Number: 512696601
      Special Order
    $11.92
  • 12
    Tube – Part Number: 516869801
    Tube
    Part Number: 516869801
      No Longer Available
  • 12
    Switch – Part Number: 512698001
    Switch
    Part Number: 512698001
      Special Order
    $7.46
  • 13
    LABEL.CAUTION – Part Number: 513666101
    LABEL.CAUTION
    Part Number: 513666101
      Special Order
    $5.95
  • 13
    Spring – Part Number: 521841601
    Spring
    Part Number: 521841601
    ★★★★★
    ★★★★★
    (1)
      Special Order
    $5.96
  • 14
    Muffler Assembly – Part Number: 502845701
    Muffler Assembly
    Part Number: 502845701
      In Stock
    $68.50
  • 14
    Screw – Part Number: 521841701
    Screw
    Part Number: 521841701
      Special Order
    $5.95
  • 14
    Label Net – Part Number: 5218324-01
    Label Net
    Part Number: 5218324-01
      No Longer Available
  • 15
    Fan – Part Number: 502850201
    Fan
    Part Number: 502850201
      Special Order
    $74.73
  • 15
    Cord – Part Number: 510933801
    Cord
    Part Number: 510933801
      No Longer Available
  • 15
    Spark Arrestor Screen – Part Number: 502845801
    Spark Arrestor Screen
    Part Number: 502845801
      No Longer Available
  • 16
    Cord – Part Number: 510933901
    Cord
    Part Number: 510933901
      No Longer Available
  • 16
    Bolt – Part Number: 510906101
    Bolt
    Part Number: 510906101
      Special Order
    $5.96
  • 16
    Exhaust Duct – Part Number: 502845901
    Exhaust Duct
    Part Number: 502845901
      Special Order
    $7.46
  • 17
    ENGINE COVER – Part Number: 511726901
    ENGINE COVER
    Part Number: 511726901
      In Stock
    $29.88
  • 17
    Cable – Part Number: 512699701
    Cable
    Part Number: 512699701
      In Stock
    $26.88
  • 17
    Bolt – Part Number: 544362701
    Bolt
    Part Number: 544362701
      Special Order
    $5.95
  • 18
    Bolt – Part Number: 544257901
    Bolt
    Part Number: 544257901
      Special Order
    $5.96
  • 18
    Screw – Part Number: 512848101
    Screw
    Part Number: 512848101
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 18
    Tube – Part Number: 5109225-01
    Tube
    Part Number: 5109225-01
      No Longer Available
  • 19
    Wing Bolt – Part Number: 514338401
    Wing Bolt
    Part Number: 514338401
      In Stock
    $5.96
  • 19
    BOLT – Part Number: 512846301
    BOLT
    Part Number: 512846301
      Special Order
    $9.02
  • 20
    FRAME ASSEMBLY(RPLS -3500,-350 – Part Number: 511782401
    FRAME ASSEMBLY(RPLS -3500,-350
    Part Number: 511782401
      Special Order
    $68.50
  • 20
    Nut – Part Number: 513671401
    Nut
    Part Number: 513671401
      Special Order
    $5.95
  • 20
    Gasket – Part Number: 511496901
    Gasket
    Part Number: 511496901
      No Longer Available
  • 21
    FRAME COMP. – Part Number: 511782501
    FRAME COMP.
    Part Number: 511782501
      Special Order
    $114.78
  • 21
    Crankcase – Part Number: 502848901
    Crankcase
    Part Number: 502848901
      In Stock
    $78.35
  • 21
    Clamp – Part Number: 502842801
    Clamp
    Part Number: 502842801
      In Stock
    $8.96
  • 22
    Gasket – Part Number: 502849401
    Gasket
    Part Number: 502849401
      In Stock
    $5.96
  • 22b
    Label.Recoil – Part Number: 5117319-01
    Label.Recoil
    Part Number: 5117319-01
      No Longer Available
  • 23
    BEARING – Part Number: 596449101
    BEARING
    Part Number: 596449101
      Special Order
    $13.46
  • 23
    PAD – Part Number: 511782601
    PAD
    Part Number: 511782601
      Special Order
    $54.35
  • 24
    Sealing – Part Number: 502849201
    Sealing
    Part Number: 502849201
      Special Order
    $14.92
  • 24
    Clip – Part Number: 526476701
    Clip
    Part Number: 526476701
      In Stock
    $5.95
  • 25
    Sealing – Part Number: 502849001
    Sealing
    Part Number: 502849001
      Special Order
    $14.92
  • 25
    BAND ASSEMBLY. (BUCKLE 2756329 – Part Number: 511709601
    BAND ASSEMBLY. (BUCKLE 2756329
    Part Number: 511709601
      Special Order
    $29.88
  • 26
    Snap Ring – Part Number: 502849301
    Snap Ring
    Part Number: 502849301
      Special Order
    $5.95
  • 26
    NET COMP (RPLS-T402325430) – Part Number: 511743601
    NET COMP (RPLS-T402325430)
    Part Number: 511743601
      Special Order
    $29.88
  • 27
    Bolt – Part Number: 515388101
    Bolt
    Part Number: 515388101
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 27
    Clip – Part Number: 526243901
    Clip
    Part Number: 526243901
      Special Order
    $5.95
  • 28
    Cover – Part Number: 513663901
    Cover
    Part Number: 513663901
      Special Order
    $11.92
  • 28
    Damper – Part Number: 513666702
    Damper
    Part Number: 513666702
      In Stock
    $17.92
  • 29
    Washer – Part Number: 544270601
    Washer
    Part Number: 544270601
      In Stock
    $7.46
  • 29
    Bolt – Part Number: 506745701
    Bolt
    Part Number: 506745701
      Special Order
    $5.95
  • 30
    SCREW (RPLS T497054010) – Part Number: 521863801
    SCREW (RPLS T497054010)
    Part Number: 521863801
      On Order
    $5.95
  • 30
    Bolt – Part Number: 576810401
    Bolt
    Part Number: 576810401
      Special Order
    $5.95
  • 31
    Screw – Part Number: 544270801
    Screw
    Part Number: 544270801
      In Stock
    $5.96
  • 31
    Piston – Part Number: 502849601
    Piston
    Part Number: 502849601
      In Stock
    $47.55
  • 32
    Damper lower – Part Number: 513667302
    Damper lower
    Part Number: 513667302
      Special Order
    $31.24
  • 32
    Piston Ring – Part Number: 502849501
    Piston Ring
    Part Number: 502849501
    ★★★★★
    ★★★★★
    (4)
      In Stock
    $14.92
  • 33
    Nut – Part Number: 513667501
    Nut
    Part Number: 513667501
      In Stock
    $6.48
  • 34
    Snap Ring – Part Number: 502849801
    Snap Ring
    Part Number: 502849801
    ★★★★★
    ★★★★★
    (1)
      In Stock
    $5.95
  • 34b
    Tank Assy(Evapo) – Part Number: 5289134-01
    Tank Assy(Evapo)
    Part Number: 5289134-01
      No Longer Available
  • 35
    Bearing – Part Number: 502849901
    Bearing
    Part Number: 502849901
      In Stock
    $17.92
  • 35
    Leaf Blower Tank Cap Assembly – Part Number: 504117701
    Leaf Blower Tank Cap Assembly
    Part Number: 504117701
      In Stock
    $17.92
  • 36
    Holder-A – Part Number: 515369401
    Holder-A
    Part Number: 515369401
      Special Order
    $8.96
  • 36
    Washer – Part Number: 502850001
    Washer
    Part Number: 502850001
      In Stock
    $7.46
  • 37
    Packing – Part Number: 506744301
    Packing
    Part Number: 506744301
      Special Order
    Minimum Quantity of 2 required
    $5.95
  • 37
    Crankshaft – Part Number: 502850101
    Crankshaft
    Part Number: 502850101
      In Stock
    $191.71
  • 38
    Filter – Part Number: 506746801
    Filter
    Part Number: 506746801
      In Stock
    $8.10
  • 39
    Stopper – Part Number: 504117901
    Stopper
    Part Number: 504117901
      In Stock
    $5.95
  • 39
    Key – Part Number: 506689401
    Key
    Part Number: 506689401
      In Stock
    $5.95
  • 40
    PIPE COMPLETE – Part Number: 595847005
    PIPE COMPLETE
    Part Number: 595847005
      In Stock
    $22.40
  • 40
    Flywheel – Part Number: 502846301
    Flywheel
    Part Number: 502846301
      In Stock
    $54.34
  • 41
    COIL ASSEMBLY – Part Number: 596812701
    COIL ASSEMBLY
    Part Number: 596812701
      Special Order
    $78.35
  • 41
    Chainsaw Fuel Filter – Part Number: 591375401
    Chainsaw Fuel Filter
    Part Number: 591375401
    ★★★★★
    ★★★★★
    (14)
      In Stock
    $13.42
  • 42
    Cap – Part Number: 516744001
    Cap
    Part Number: 516744001
      On Order
    $5.96
  • 42
    Clip – Part Number: 506707001
    Clip
    Part Number: 506707001
    ★★★★★
    ★★★★★
    (1)
      On Order
    $5.95
  • 43
    Cord – Part Number: 5114959-01
    Cord
    Part Number: 5114959-01
      No Longer Available
  • 43
    Screw – Part Number: 544273101
    Screw
    Part Number: 544273101
      Special Order
    $5.95
  • 44
    Clip – Part Number: 506741501
    Clip
    Part Number: 506741501
      In Stock
    $5.95
  • 44
    Tube-b – Part Number: 511493401
    Tube-b
    Part Number: 511493401
      No Longer Available
  • 45
    Tube – Part Number: 544362901
    Tube
    Part Number: 544362901
      Special Order
    $10.46
  • 46
    Grommet – Part Number: 515415301
    Grommet
    Part Number: 515415301
      Special Order
    $5.95
  • 47
    Spring – Part Number: 515415201
    Spring
    Part Number: 515415201
      Special Order
    $5.95
  • 48
    CAP – Part Number: 512258501
    CAP
    Part Number: 512258501
      Special Order
    $17.92
  • 49
    Bolt – Part Number: 506745701
    Bolt
    Part Number: 506745701
      Special Order
    $5.95
  • 50
    Cable – Part Number: 512258401
    Cable
    Part Number: 512258401
    ★★★★★
    ★★★★★
    (1)
      Special Order
    $10.46
  • 51
    Sparkplug – Part Number: 528074001
    Sparkplug
    Part Number: 528074001
    ★★★★★
    ★★★★★
    (5)
      In Stock
    $11.92
  • 52
    Leaf Blower Starter Assembly – Part Number: 502843101
    Leaf Blower Starter Assembly
    Part Number: 502843101
    ★★★★★
    ★★★★★
    (2)
      In Stock
    $62.27
  • 53
    Spring – Part Number: 502843301
    Spring
    Part Number: 502843301
      In Stock
    $17.92
  • 54
    Starter Pulley – Part Number: 502843401
    Starter Pulley
    Part Number: 502843401
    ★★★★★
    ★★★★★
    (1)
      Special Order
    $19.40
  • 55
    Starter Pawl – Part Number: 504554801
    Starter Pawl
    Part Number: 504554801
      In Stock
    $14.60
  • 56
    Washer – Part Number: 502843601
    Washer
    Part Number: 502843601
      Special Order
    Minimum Quantity of 2 required
    $5.95
  • 57
    Screw – Part Number: 502843801
    Screw
    Part Number: 502843801
      Special Order
    $5.95
  • 58
    Retainer – Part Number: 504554901
    Retainer
    Part Number: 504554901
      Special Order
    $5.96
  • 59
    Washer – Part Number: 502843701
    Washer
    Part Number: 502843701
      Special Order
    $5.96
  • 60
    Starter Rope – Part Number: 502843501
    Starter Rope
    Part Number: 502843501
      Special Order
    $7.46
  • 61
    Bellows – Part Number: 577078801
    Bellows
    Part Number: 577078801
    ★★★★★
    ★★★★★
    (3)
      In Stock
    $26.88
  • 61
    Knob – Part Number: 502843201
    Knob
    Part Number: 502843201
      Special Order
    $10.46
  • 62
    Swivel Joint – Part Number: 577078901
    Swivel Joint
    Part Number: 577078901
    ★★★★★
    ★★★★★
    (4)
      In Stock
    $17.92
  • 63
    Bolt Torx – Part Number: 506745601
    Bolt Torx
    Part Number: 506745601
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 63
    Middle Tube – Part Number: 577079301
    Middle Tube
    Part Number: 577079301
    ★★★★★
    ★★★★★
    (4)
      In Stock
    $10.45
  • 64
    PIPE.END – Part Number: 521672301
    PIPE.END
    Part Number: 521672301
      Special Order
    $22.40
  • 64
    Carburetor – Part Number: 502845001
    Carburetor
    Part Number: 502845001
      In Stock
    $118.75
  • 65
    Clamp – Part Number: 504064901
    Clamp
    Part Number: 504064901
      In Stock
    $5.95
  • 65
    Screw – Part Number: 502844601
    Screw
    Part Number: 502844601
      In Stock
    $8.10
  • 66
    Air Filter Holder – Part Number: 502844902
    Air Filter Holder
    Part Number: 502844902
    ★★★★★
    ★★★★★
    (1)
      In Stock
    $31.23
  • 66
    Clamp – Part Number: 544274101
    Clamp
    Part Number: 544274101
    ★★★★★
    ★★★★★
    (2)
      In Stock
    $5.95
  • 67
    Tool-Set – Part Number: 5215323-01
    Tool-Set
    Part Number: 5215323-01
      No Longer Available
  • 67
    Plate, Choke – Part Number: 512259601
    Plate, Choke
    Part Number: 512259601
      On Order
    $5.96
  • 68
    Lever – Part Number: 521740501
    Lever
    Part Number: 521740501
      In Stock
    $5.95
  • 68
    Spanner – Part Number: 506615001
    Spanner
    Part Number: 506615001
      Special Order
    $7.46
  • 69
    Screw – Part Number: 506673801
    Screw
    Part Number: 506673801
      Special Order
    Minimum Quantity of 2 required
    $5.95
  • 69
    Socket – Part Number: 521533001
    Socket
    Part Number: 521533001
      In Stock
    $8.96
  • 70
    O-Ring – Part Number: 512260001
    O-Ring
    Part Number: 512260001
      Special Order
    Minimum Quantity of 2 required
    $6.48
  • 71
    Plate – Part Number: 502844701
    Plate
    Part Number: 502844701
      In Stock
    $9.72
  • 72
    Gasket – Part Number: 502844501
    Gasket
    Part Number: 502844501
      In Stock
    $33.95
  • 73
    Packing – Part Number: 512260301
    Packing
    Part Number: 512260301
      Special Order
    $27.42
  • 74
    Screen – Part Number: 521741401
    Screen
    Part Number: 521741401
      Special Order
    $6.43
  • 74
    Label.Sound – Part Number: 5109638-01
    Label.Sound
    Part Number: 5109638-01
      No Longer Available
  • 75
    Air Filter – Part Number: 502844401
    Air Filter
    Part Number: 502844401
    ★★★★★
    ★★★★★
    (6)
      In Stock
    $13.42
  • 75
    Label – Part Number: 544363401
    Label
    Part Number: 544363401
      No Longer Available
  • 76
    COVER ASSEMBLY. – Part Number: 511496101
    COVER ASSEMBLY.
    Part Number: 511496101
      In Stock
    $32.48
  • 77
    Knob – Part Number: 506673901
    Knob
    Part Number: 506673901
      Special Order
    $5.95
  • 81
    GASKET KIT – Part Number: 528759701
    GASKET KIT
    Part Number: 528759701
      Special Order
    $33.96
  • 82
    PULLER ASSEMBLY – Part Number: 513673501
    PULLER ASSEMBLY
    Part Number: 513673501
      Special Order
    $225.55
  • 83
    STOPPER – Part Number: 515387901
    STOPPER
    Part Number: 515387901
      Special Order
    $63.62
  • 84
    GAUGE – Part Number: 510961701
    GAUGE
    Part Number: 510961701
      Special Order
    $38.02
  • 87
    Label – Part Number: 521740201
    Label
    Part Number: 521740201
      Special Order
    $5.95
Frame
Frame Diagram and Parts List for 70700001 AND UP RedMax Leaf Blower / Vacuum
  • 1
    VOLUTE CASE – Part Number: 574769301
    VOLUTE CASE
    Part Number: 574769301
      Special Order
    $100.93
  • 1
    Cylinder – Part Number: 502848701
    Cylinder
    Part Number: 502848701
    ★★★★★
    ★★★★★
    (1)
      In Stock
    $57.46
  • 1
    Lever – Part Number: 5117303-01
    Lever
    Part Number: 5117303-01
      No Longer Available
  • 2
    Cover – Part Number: 512690801
    Cover
    Part Number: 512690801
      In Stock
    $14.92
  • 2
    Gasket – Part Number: 502848801
    Gasket
    Part Number: 502848801
    ★★★★★
    ★★★★★
    (1)
      In Stock
    $8.95
  • 2
    VOLUTE COVER – Part Number: 511727901
    VOLUTE COVER
    Part Number: 511727901
      Special Order
    $130.63
  • 3
    Case – Part Number: 511746901
    Case
    Part Number: 511746901
      In Stock
    $17.92
  • 3
    Screw – Part Number: 512848101
    Screw
    Part Number: 512848101
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 3
    Bolt – Part Number: 506745201
    Bolt
    Part Number: 506745201
      In Stock
    Minimum Quantity of 2 required
    $5.96
  • 4
    Plate – Part Number: 502846501
    Plate
    Part Number: 502846501
      Special Order
    $14.92
  • 4
    Screw – Part Number: 521840701
    Screw
    Part Number: 521840701
      In Stock
    Minimum Quantity of 2 required
    $5.96
  • 4
    Elbow Tube – Part Number: 577078701
    Elbow Tube
    Part Number: 577078701
      In Stock
    $17.92
  • 5
    Lever.throttle – Part Number: 512694901
    Lever.throttle
    Part Number: 512694901
      Special Order
    $7.46
  • 5
    O-ring – Part Number: 516135401
    O-ring
    Part Number: 516135401
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 5
    Screw – Part Number: 544256801
    Screw
    Part Number: 544256801
      In Stock
    $5.95
  • 6
    Bolt – Part Number: 512846101
    Bolt
    Part Number: 512846101
      No Longer Available
  • 6
    Insulation – Part Number: 502845401
    Insulation
    Part Number: 502845401
      Special Order
    $33.96
  • 6
    Lever – Part Number: 521673501
    Lever
    Part Number: 521673501
      Special Order
    $5.95
  • 7
    Nut – Part Number: 514183901
    Nut
    Part Number: 514183901
      In Stock
    $5.95
  • 7
    Bolt – Part Number: 521516501
    Bolt
    Part Number: 521516501
      Special Order
    $5.95
  • 7
    SHAFT – Part Number: 521841001
    SHAFT
    Part Number: 521841001
      Special Order
    $14.92
  • 8
    Funnel – Part Number: 5117280-01
    Funnel
    Part Number: 5117280-01
      No Longer Available
  • 8
    Gasket, Insulator – Part Number: 502845501
    Gasket, Insulator
    Part Number: 502845501
      On Order
    $17.92
  • 9
    Spring Washer – Part Number: 521841201
    Spring Washer
    Part Number: 521841201
      Special Order
    $5.95
  • 9
    Screw – Part Number: 512848101
    Screw
    Part Number: 512848101
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 9
    Gasket – Part Number: 502845301
    Gasket
    Part Number: 502845301
      On Order
    $7.46
  • 10
    Clamp – Part Number: 513671901
    Clamp
    Part Number: 513671901
      Special Order
    $5.95
  • 10
    Washer – Part Number: 514154401
    Washer
    Part Number: 514154401
      Special Order
    $5.95
  • 11
    Clip – Part Number: 512696601
    Clip
    Part Number: 512696601
      Special Order
    $11.92
  • 12
    Tube – Part Number: 516869801
    Tube
    Part Number: 516869801
      No Longer Available
  • 12
    Switch – Part Number: 512698001
    Switch
    Part Number: 512698001
      Special Order
    $7.46
  • 13
    Spring – Part Number: 521841601
    Spring
    Part Number: 521841601
    ★★★★★
    ★★★★★
    (1)
      Special Order
    $5.96
  • 13
    LABEL.CAUTION – Part Number: 513666101
    LABEL.CAUTION
    Part Number: 513666101
      Special Order
    $5.95
  • 14
    Label Net – Part Number: 5218324-01
    Label Net
    Part Number: 5218324-01
      No Longer Available
  • 14
    Screw – Part Number: 521841701
    Screw
    Part Number: 521841701
      Special Order
    $5.95
  • 14
    Muffler Assembly – Part Number: 502845701
    Muffler Assembly
    Part Number: 502845701
      In Stock
    $68.50
  • 15
    Spark Arrestor Screen – Part Number: 502845801
    Spark Arrestor Screen
    Part Number: 502845801
      No Longer Available
  • 15
    Cord – Part Number: 510933801
    Cord
    Part Number: 510933801
      No Longer Available
  • 15
    Fan – Part Number: 502850201
    Fan
    Part Number: 502850201
      Special Order
    $74.73
  • 16
    Bolt – Part Number: 510906101
    Bolt
    Part Number: 510906101
      Special Order
    $5.96
  • 16
    Cord – Part Number: 510933901
    Cord
    Part Number: 510933901
      No Longer Available
  • 16
    Exhaust Duct – Part Number: 502845901
    Exhaust Duct
    Part Number: 502845901
      Special Order
    $7.46
  • 17
    Bolt – Part Number: 544362701
    Bolt
    Part Number: 544362701
      Special Order
    $5.95
  • 17
    Cable – Part Number: 512699701
    Cable
    Part Number: 512699701
      In Stock
    $26.88
  • 17
    ENGINE COVER – Part Number: 511726901
    ENGINE COVER
    Part Number: 511726901
      In Stock
    $29.88
  • 18
    Bolt – Part Number: 544257901
    Bolt
    Part Number: 544257901
      Special Order
    $5.96
  • 18
    Screw – Part Number: 512848101
    Screw
    Part Number: 512848101
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 18
    Tube – Part Number: 5109225-01
    Tube
    Part Number: 5109225-01
      No Longer Available
  • 19
    Wing Bolt – Part Number: 514338401
    Wing Bolt
    Part Number: 514338401
      In Stock
    $5.96
  • 19
    BOLT – Part Number: 512846301
    BOLT
    Part Number: 512846301
      Special Order
    $9.02
  • 20
    Gasket – Part Number: 511496901
    Gasket
    Part Number: 511496901
      No Longer Available
  • 20
    FRAME ASSEMBLY(RPLS -3500,-350 – Part Number: 511782401
    FRAME ASSEMBLY(RPLS -3500,-350
    Part Number: 511782401
      Special Order
    $68.50
  • 20
    Nut – Part Number: 513671401
    Nut
    Part Number: 513671401
      Special Order
    $5.95
  • 21
    FRAME COMP. – Part Number: 511782501
    FRAME COMP.
    Part Number: 511782501
      Special Order
    $114.78
  • 21
    Crankcase – Part Number: 502848901
    Crankcase
    Part Number: 502848901
      In Stock
    $78.35
  • 21
    Clamp – Part Number: 502842801
    Clamp
    Part Number: 502842801
      In Stock
    $8.96
  • 22
    Gasket – Part Number: 502849401
    Gasket
    Part Number: 502849401
      In Stock
    $5.96
  • 22b
    Label.Recoil – Part Number: 5117319-01
    Label.Recoil
    Part Number: 5117319-01
      No Longer Available
  • 23
    BEARING – Part Number: 596449101
    BEARING
    Part Number: 596449101
      Special Order
    $13.46
  • 23
    PAD – Part Number: 511782601
    PAD
    Part Number: 511782601
      Special Order
    $54.35
  • 24
    Sealing – Part Number: 502849201
    Sealing
    Part Number: 502849201
      Special Order
    $14.92
  • 24
    Clip – Part Number: 526476701
    Clip
    Part Number: 526476701
      In Stock
    $5.95
  • 25
    Sealing – Part Number: 502849001
    Sealing
    Part Number: 502849001
      Special Order
    $14.92
  • 25
    BAND ASSEMBLY. (BUCKLE 2756329 – Part Number: 511709601
    BAND ASSEMBLY. (BUCKLE 2756329
    Part Number: 511709601
      Special Order
    $29.88
  • 26
    NET COMP (RPLS-T402325430) – Part Number: 511743601
    NET COMP (RPLS-T402325430)
    Part Number: 511743601
      Special Order
    $29.88
  • 26
    Snap Ring – Part Number: 502849301
    Snap Ring
    Part Number: 502849301
      Special Order
    $5.95
  • 27
    Clip – Part Number: 526243901
    Clip
    Part Number: 526243901
      Special Order
    $5.95
  • 27
    Bolt – Part Number: 515388101
    Bolt
    Part Number: 515388101
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 28
    Damper – Part Number: 513666702
    Damper
    Part Number: 513666702
      In Stock
    $17.92
  • 28
    Cover – Part Number: 513663901
    Cover
    Part Number: 513663901
      Special Order
    $11.92
  • 29
    Washer – Part Number: 544270601
    Washer
    Part Number: 544270601
      In Stock
    $7.46
  • 29
    Bolt – Part Number: 506745701
    Bolt
    Part Number: 506745701
      Special Order
    $5.95
  • 30
    Bolt – Part Number: 576810401
    Bolt
    Part Number: 576810401
      Special Order
    $5.95
  • 30
    SCREW (RPLS T497054010) – Part Number: 521863801
    SCREW (RPLS T497054010)
    Part Number: 521863801
      On Order
    $5.95
  • 31
    Screw – Part Number: 544270801
    Screw
    Part Number: 544270801
      In Stock
    $5.96
  • 31
    Piston – Part Number: 502849601
    Piston
    Part Number: 502849601
      In Stock
    $47.55
  • 32
    Piston Ring – Part Number: 502849501
    Piston Ring
    Part Number: 502849501
    ★★★★★
    ★★★★★
    (4)
      In Stock
    $14.92
  • 32
    Damper lower – Part Number: 513667302
    Damper lower
    Part Number: 513667302
      Special Order
    $31.24
  • 33
    Nut – Part Number: 513667501
    Nut
    Part Number: 513667501
      In Stock
    $6.48
  • 34
    Snap Ring – Part Number: 502849801
    Snap Ring
    Part Number: 502849801
    ★★★★★
    ★★★★★
    (1)
      In Stock
    $5.95
  • 34b
    Tank Assy(Evapo) – Part Number: 5289134-01
    Tank Assy(Evapo)
    Part Number: 5289134-01
      No Longer Available
  • 35
    Bearing – Part Number: 502849901
    Bearing
    Part Number: 502849901
      In Stock
    $17.92
  • 35
    Leaf Blower Tank Cap Assembly – Part Number: 504117701
    Leaf Blower Tank Cap Assembly
    Part Number: 504117701
      In Stock
    $17.92
  • 36
    Holder-A – Part Number: 515369401
    Holder-A
    Part Number: 515369401
      Special Order
    $8.96
  • 36
    Washer – Part Number: 502850001
    Washer
    Part Number: 502850001
      In Stock
    $7.46
  • 37
    Crankshaft – Part Number: 502850101
    Crankshaft
    Part Number: 502850101
      In Stock
    $191.71
  • 37
    Packing – Part Number: 506744301
    Packing
    Part Number: 506744301
      Special Order
    Minimum Quantity of 2 required
    $5.95
  • 38
    Filter – Part Number: 506746801
    Filter
    Part Number: 506746801
      In Stock
    $8.10
  • 39
    Stopper – Part Number: 504117901
    Stopper
    Part Number: 504117901
      In Stock
    $5.95
  • 39
    Key – Part Number: 506689401
    Key
    Part Number: 506689401
      In Stock
    $5.95
  • 40
    Flywheel – Part Number: 502846301
    Flywheel
    Part Number: 502846301
      In Stock
    $54.34
  • 40
    PIPE COMPLETE – Part Number: 595847005
    PIPE COMPLETE
    Part Number: 595847005
      In Stock
    $22.40
  • 41
    Chainsaw Fuel Filter – Part Number: 591375401
    Chainsaw Fuel Filter
    Part Number: 591375401
    ★★★★★
    ★★★★★
    (14)
      In Stock
    $13.42
  • 41
    COIL ASSEMBLY – Part Number: 596812701
    COIL ASSEMBLY
    Part Number: 596812701
      Special Order
    $78.35
  • 42
    Clip – Part Number: 506707001
    Clip
    Part Number: 506707001
    ★★★★★
    ★★★★★
    (1)
      On Order
    $5.95
  • 42
    Cap – Part Number: 516744001
    Cap
    Part Number: 516744001
      On Order
    $5.96
  • 43
    Screw – Part Number: 544273101
    Screw
    Part Number: 544273101
      Special Order
    $5.95
  • 43
    Cord – Part Number: 5114959-01
    Cord
    Part Number: 5114959-01
      No Longer Available
  • 44
    Clip – Part Number: 506741501
    Clip
    Part Number: 506741501
      In Stock
    $5.95
  • 44
    Tube-b – Part Number: 511493401
    Tube-b
    Part Number: 511493401
      No Longer Available
  • 45
    Tube – Part Number: 544362901
    Tube
    Part Number: 544362901
      Special Order
    $10.46
  • 46
    Grommet – Part Number: 515415301
    Grommet
    Part Number: 515415301
      Special Order
    $5.95
  • 47
    Spring – Part Number: 515415201
    Spring
    Part Number: 515415201
      Special Order
    $5.95
  • 48
    CAP – Part Number: 512258501
    CAP
    Part Number: 512258501
      Special Order
    $17.92
  • 49
    Bolt – Part Number: 506745701
    Bolt
    Part Number: 506745701
      Special Order
    $5.95
  • 50
    Cable – Part Number: 512258401
    Cable
    Part Number: 512258401
    ★★★★★
    ★★★★★
    (1)
      Special Order
    $10.46
  • 51
    Sparkplug – Part Number: 528074001
    Sparkplug
    Part Number: 528074001
    ★★★★★
    ★★★★★
    (5)
      In Stock
    $11.92
  • 52
    Leaf Blower Starter Assembly – Part Number: 502843101
    Leaf Blower Starter Assembly
    Part Number: 502843101
    ★★★★★
    ★★★★★
    (2)
      In Stock
    $62.27
  • 53
    Spring – Part Number: 502843301
    Spring
    Part Number: 502843301
      In Stock
    $17.92
  • 54
    Starter Pulley – Part Number: 502843401
    Starter Pulley
    Part Number: 502843401
    ★★★★★
    ★★★★★
    (1)
      Special Order
    $19.40
  • 55
    Starter Pawl – Part Number: 504554801
    Starter Pawl
    Part Number: 504554801
      In Stock
    $14.60
  • 56
    Washer – Part Number: 502843601
    Washer
    Part Number: 502843601
      Special Order
    Minimum Quantity of 2 required
    $5.95
  • 57
    Screw – Part Number: 502843801
    Screw
    Part Number: 502843801
      Special Order
    $5.95
  • 58
    Retainer – Part Number: 504554901
    Retainer
    Part Number: 504554901
      Special Order
    $5.96
  • 59
    Washer – Part Number: 502843701
    Washer
    Part Number: 502843701
      Special Order
    $5.96
  • 60
    Starter Rope – Part Number: 502843501
    Starter Rope
    Part Number: 502843501
      Special Order
    $7.46
  • 61
    Knob – Part Number: 502843201
    Knob
    Part Number: 502843201
      Special Order
    $10.46
  • 61
    Bellows – Part Number: 577078801
    Bellows
    Part Number: 577078801
    ★★★★★
    ★★★★★
    (3)
      In Stock
    $26.88
  • 62
    Swivel Joint – Part Number: 577078901
    Swivel Joint
    Part Number: 577078901
    ★★★★★
    ★★★★★
    (4)
      In Stock
    $17.92
  • 63
    Bolt Torx – Part Number: 506745601
    Bolt Torx
    Part Number: 506745601
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 63
    Middle Tube – Part Number: 577079301
    Middle Tube
    Part Number: 577079301
    ★★★★★
    ★★★★★
    (4)
      In Stock
    $10.45
  • 64
    Carburetor – Part Number: 502845001
    Carburetor
    Part Number: 502845001
      In Stock
    $118.75
  • 64
    PIPE.END – Part Number: 521672301
    PIPE.END
    Part Number: 521672301
      Special Order
    $22.40
  • 65
    Screw – Part Number: 502844601
    Screw
    Part Number: 502844601
      In Stock
    $8.10
  • 65
    Clamp – Part Number: 504064901
    Clamp
    Part Number: 504064901
      In Stock
    $5.95
  • 66
    Clamp – Part Number: 544274101
    Clamp
    Part Number: 544274101
    ★★★★★
    ★★★★★
    (2)
      In Stock
    $5.95
  • 66
    Air Filter Holder – Part Number: 502844902
    Air Filter Holder
    Part Number: 502844902
    ★★★★★
    ★★★★★
    (1)
      In Stock
    $31.23
  • 67
    Tool-Set – Part Number: 5215323-01
    Tool-Set
    Part Number: 5215323-01
      No Longer Available
  • 67
    Plate, Choke – Part Number: 512259601
    Plate, Choke
    Part Number: 512259601
      On Order
    $5.96
  • 68
    Spanner – Part Number: 506615001
    Spanner
    Part Number: 506615001
      Special Order
    $7.46
  • 68
    Lever – Part Number: 521740501
    Lever
    Part Number: 521740501
      In Stock
    $5.95
  • 69
    Socket – Part Number: 521533001
    Socket
    Part Number: 521533001
      In Stock
    $8.96
  • 69
    Screw – Part Number: 506673801
    Screw
    Part Number: 506673801
      Special Order
    Minimum Quantity of 2 required
    $5.95
  • 70
    O-Ring – Part Number: 512260001
    O-Ring
    Part Number: 512260001
      Special Order
    Minimum Quantity of 2 required
    $6.48
  • 71
    Plate – Part Number: 502844701
    Plate
    Part Number: 502844701
      In Stock
    $9.72
  • 72
    Gasket – Part Number: 502844501
    Gasket
    Part Number: 502844501
      In Stock
    $33.95
  • 73
    Packing – Part Number: 512260301
    Packing
    Part Number: 512260301
      Special Order
    $27.42
  • 74
    Screen – Part Number: 521741401
    Screen
    Part Number: 521741401
      Special Order
    $6.43
  • 74
    Label.Sound – Part Number: 5109638-01
    Label.Sound
    Part Number: 5109638-01
      No Longer Available
  • 75
    Label – Part Number: 544363401
    Label
    Part Number: 544363401
      No Longer Available
  • 75
    Air Filter – Part Number: 502844401
    Air Filter
    Part Number: 502844401
    ★★★★★
    ★★★★★
    (6)
      In Stock
    $13.42
  • 76
    COVER ASSEMBLY. – Part Number: 511496101
    COVER ASSEMBLY.
    Part Number: 511496101
      In Stock
    $32.48
  • 77
    Knob – Part Number: 506673901
    Knob
    Part Number: 506673901
      Special Order
    $5.95
  • 81
    GASKET KIT – Part Number: 528759701
    GASKET KIT
    Part Number: 528759701
      Special Order
    $33.96
  • 82
    PULLER ASSEMBLY – Part Number: 513673501
    PULLER ASSEMBLY
    Part Number: 513673501
      Special Order
    $225.55
  • 83
    STOPPER – Part Number: 515387901
    STOPPER
    Part Number: 515387901
      Special Order
    $63.62
  • 84
    GAUGE – Part Number: 510961701
    GAUGE
    Part Number: 510961701
      Special Order
    $38.02
  • 87
    Label – Part Number: 521740201
    Label
    Part Number: 521740201
      Special Order
    $5.95
Handle And Controls
Handle And Controls Diagram and Parts List for 70700001 AND UP RedMax Leaf Blower / Vacuum
  • 1
    Cylinder – Part Number: 502848701
    Cylinder
    Part Number: 502848701
    ★★★★★
    ★★★★★
    (1)
      In Stock
    $57.46
  • 1
    VOLUTE CASE – Part Number: 574769301
    VOLUTE CASE
    Part Number: 574769301
      Special Order
    $100.93
  • 1
    Lever – Part Number: 5117303-01
    Lever
    Part Number: 5117303-01
      No Longer Available
  • 2
    VOLUTE COVER – Part Number: 511727901
    VOLUTE COVER
    Part Number: 511727901
      Special Order
    $130.63
  • 2
    Cover – Part Number: 512690801
    Cover
    Part Number: 512690801
      In Stock
    $14.92
  • 2
    Gasket – Part Number: 502848801
    Gasket
    Part Number: 502848801
    ★★★★★
    ★★★★★
    (1)
      In Stock
    $8.95
  • 3
    Bolt – Part Number: 506745201
    Bolt
    Part Number: 506745201
      In Stock
    Minimum Quantity of 2 required
    $5.96
  • 3
    Case – Part Number: 511746901
    Case
    Part Number: 511746901
      In Stock
    $17.92
  • 3
    Screw – Part Number: 512848101
    Screw
    Part Number: 512848101
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 4
    Screw – Part Number: 521840701
    Screw
    Part Number: 521840701
      In Stock
    Minimum Quantity of 2 required
    $5.96
  • 4
    Elbow Tube – Part Number: 577078701
    Elbow Tube
    Part Number: 577078701
      In Stock
    $17.92
  • 4
    Plate – Part Number: 502846501
    Plate
    Part Number: 502846501
      Special Order
    $14.92
  • 5
    Screw – Part Number: 544256801
    Screw
    Part Number: 544256801
      In Stock
    $5.95
  • 5
    O-ring – Part Number: 516135401
    O-ring
    Part Number: 516135401
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 5
    Lever.throttle – Part Number: 512694901
    Lever.throttle
    Part Number: 512694901
      Special Order
    $7.46
  • 6
    Insulation – Part Number: 502845401
    Insulation
    Part Number: 502845401
      Special Order
    $33.96
  • 6
    Lever – Part Number: 521673501
    Lever
    Part Number: 521673501
      Special Order
    $5.95
  • 6
    Bolt – Part Number: 512846101
    Bolt
    Part Number: 512846101
      No Longer Available
  • 7
    SHAFT – Part Number: 521841001
    SHAFT
    Part Number: 521841001
      Special Order
    $14.92
  • 7
    Bolt – Part Number: 521516501
    Bolt
    Part Number: 521516501
      Special Order
    $5.95
  • 7
    Nut – Part Number: 514183901
    Nut
    Part Number: 514183901
      In Stock
    $5.95
  • 8
    Gasket, Insulator – Part Number: 502845501
    Gasket, Insulator
    Part Number: 502845501
      On Order
    $17.92
  • 8
    Funnel – Part Number: 5117280-01
    Funnel
    Part Number: 5117280-01
      No Longer Available
  • 9
    Gasket – Part Number: 502845301
    Gasket
    Part Number: 502845301
      On Order
    $7.46
  • 9
    Spring Washer – Part Number: 521841201
    Spring Washer
    Part Number: 521841201
      Special Order
    $5.95
  • 9
    Screw – Part Number: 512848101
    Screw
    Part Number: 512848101
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 10
    Clamp – Part Number: 513671901
    Clamp
    Part Number: 513671901
      Special Order
    $5.95
  • 10
    Washer – Part Number: 514154401
    Washer
    Part Number: 514154401
      Special Order
    $5.95
  • 11
    Clip – Part Number: 512696601
    Clip
    Part Number: 512696601
      Special Order
    $11.92
  • 12
    Switch – Part Number: 512698001
    Switch
    Part Number: 512698001
      Special Order
    $7.46
  • 12
    Tube – Part Number: 516869801
    Tube
    Part Number: 516869801
      No Longer Available
  • 13
    Spring – Part Number: 521841601
    Spring
    Part Number: 521841601
    ★★★★★
    ★★★★★
    (1)
      Special Order
    $5.96
  • 13
    LABEL.CAUTION – Part Number: 513666101
    LABEL.CAUTION
    Part Number: 513666101
      Special Order
    $5.95
  • 14
    Label Net – Part Number: 5218324-01
    Label Net
    Part Number: 5218324-01
      No Longer Available
  • 14
    Muffler Assembly – Part Number: 502845701
    Muffler Assembly
    Part Number: 502845701
      In Stock
    $68.50
  • 14
    Screw – Part Number: 521841701
    Screw
    Part Number: 521841701
      Special Order
    $5.95
  • 15
    Spark Arrestor Screen – Part Number: 502845801
    Spark Arrestor Screen
    Part Number: 502845801
      No Longer Available
  • 15
    Fan – Part Number: 502850201
    Fan
    Part Number: 502850201
      Special Order
    $74.73
  • 15
    Cord – Part Number: 510933801
    Cord
    Part Number: 510933801
      No Longer Available
  • 16
    Cord – Part Number: 510933901
    Cord
    Part Number: 510933901
      No Longer Available
  • 16
    Bolt – Part Number: 510906101
    Bolt
    Part Number: 510906101
      Special Order
    $5.96
  • 16
    Exhaust Duct – Part Number: 502845901
    Exhaust Duct
    Part Number: 502845901
      Special Order
    $7.46
  • 17
    Cable – Part Number: 512699701
    Cable
    Part Number: 512699701
      In Stock
    $26.88
  • 17
    ENGINE COVER – Part Number: 511726901
    ENGINE COVER
    Part Number: 511726901
      In Stock
    $29.88
  • 17
    Bolt – Part Number: 544362701
    Bolt
    Part Number: 544362701
      Special Order
    $5.95
  • 18
    Screw – Part Number: 512848101
    Screw
    Part Number: 512848101
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 18
    Tube – Part Number: 5109225-01
    Tube
    Part Number: 5109225-01
      No Longer Available
  • 18
    Bolt – Part Number: 544257901
    Bolt
    Part Number: 544257901
      Special Order
    $5.96
  • 19
    BOLT – Part Number: 512846301
    BOLT
    Part Number: 512846301
      Special Order
    $9.02
  • 19
    Wing Bolt – Part Number: 514338401
    Wing Bolt
    Part Number: 514338401
      In Stock
    $5.96
  • 20
    Nut – Part Number: 513671401
    Nut
    Part Number: 513671401
      Special Order
    $5.95
  • 20
    Gasket – Part Number: 511496901
    Gasket
    Part Number: 511496901
      No Longer Available
  • 20
    FRAME ASSEMBLY(RPLS -3500,-350 – Part Number: 511782401
    FRAME ASSEMBLY(RPLS -3500,-350
    Part Number: 511782401
      Special Order
    $68.50
  • 21
    FRAME COMP. – Part Number: 511782501
    FRAME COMP.
    Part Number: 511782501
      Special Order
    $114.78
  • 21
    Clamp – Part Number: 502842801
    Clamp
    Part Number: 502842801
      In Stock
    $8.96
  • 21
    Crankcase – Part Number: 502848901
    Crankcase
    Part Number: 502848901
      In Stock
    $78.35
  • 22
    Gasket – Part Number: 502849401
    Gasket
    Part Number: 502849401
      In Stock
    $5.96
  • 22b
    Label.Recoil – Part Number: 5117319-01
    Label.Recoil
    Part Number: 5117319-01
      No Longer Available
  • 23
    PAD – Part Number: 511782601
    PAD
    Part Number: 511782601
      Special Order
    $54.35
  • 23
    BEARING – Part Number: 596449101
    BEARING
    Part Number: 596449101
      Special Order
    $13.46
  • 24
    Sealing – Part Number: 502849201
    Sealing
    Part Number: 502849201
      Special Order
    $14.92
  • 24
    Clip – Part Number: 526476701
    Clip
    Part Number: 526476701
      In Stock
    $5.95
  • 25
    Sealing – Part Number: 502849001
    Sealing
    Part Number: 502849001
      Special Order
    $14.92
  • 25
    BAND ASSEMBLY. (BUCKLE 2756329 – Part Number: 511709601
    BAND ASSEMBLY. (BUCKLE 2756329
    Part Number: 511709601
      Special Order
    $29.88
  • 26
    NET COMP (RPLS-T402325430) – Part Number: 511743601
    NET COMP (RPLS-T402325430)
    Part Number: 511743601
      Special Order
    $29.88
  • 26
    Snap Ring – Part Number: 502849301
    Snap Ring
    Part Number: 502849301
      Special Order
    $5.95
  • 27
    Clip – Part Number: 526243901
    Clip
    Part Number: 526243901
      Special Order
    $5.95
  • 27
    Bolt – Part Number: 515388101
    Bolt
    Part Number: 515388101
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 28
    Damper – Part Number: 513666702
    Damper
    Part Number: 513666702
      In Stock
    $17.92
  • 28
    Cover – Part Number: 513663901
    Cover
    Part Number: 513663901
      Special Order
    $11.92
  • 29
    Bolt – Part Number: 506745701
    Bolt
    Part Number: 506745701
      Special Order
    $5.95
  • 29
    Washer – Part Number: 544270601
    Washer
    Part Number: 544270601
      In Stock
    $7.46
  • 30
    Bolt – Part Number: 576810401
    Bolt
    Part Number: 576810401
      Special Order
    $5.95
  • 30
    SCREW (RPLS T497054010) – Part Number: 521863801
    SCREW (RPLS T497054010)
    Part Number: 521863801
      On Order
    $5.95
  • 31
    Screw – Part Number: 544270801
    Screw
    Part Number: 544270801
      In Stock
    $5.96
  • 31
    Piston – Part Number: 502849601
    Piston
    Part Number: 502849601
      In Stock
    $47.55
  • 32
    Piston Ring – Part Number: 502849501
    Piston Ring
    Part Number: 502849501
    ★★★★★
    ★★★★★
    (4)
      In Stock
    $14.92
  • 32
    Damper lower – Part Number: 513667302
    Damper lower
    Part Number: 513667302
      Special Order
    $31.24
  • 33
    Nut – Part Number: 513667501
    Nut
    Part Number: 513667501
      In Stock
    $6.48
  • 34
    Snap Ring – Part Number: 502849801
    Snap Ring
    Part Number: 502849801
    ★★★★★
    ★★★★★
    (1)
      In Stock
    $5.95
  • 34b
    Tank Assy(Evapo) – Part Number: 5289134-01
    Tank Assy(Evapo)
    Part Number: 5289134-01
      No Longer Available
  • 35
    Bearing – Part Number: 502849901
    Bearing
    Part Number: 502849901
      In Stock
    $17.92
  • 35
    Leaf Blower Tank Cap Assembly – Part Number: 504117701
    Leaf Blower Tank Cap Assembly
    Part Number: 504117701
      In Stock
    $17.92
  • 36
    Holder-A – Part Number: 515369401
    Holder-A
    Part Number: 515369401
      Special Order
    $8.96
  • 36
    Washer – Part Number: 502850001
    Washer
    Part Number: 502850001
      In Stock
    $7.46
  • 37
    Crankshaft – Part Number: 502850101
    Crankshaft
    Part Number: 502850101
      In Stock
    $191.71
  • 37
    Packing – Part Number: 506744301
    Packing
    Part Number: 506744301
      Special Order
    Minimum Quantity of 2 required
    $5.95
  • 38
    Filter – Part Number: 506746801
    Filter
    Part Number: 506746801
      In Stock
    $8.10
  • 39
    Stopper – Part Number: 504117901
    Stopper
    Part Number: 504117901
      In Stock
    $5.95
  • 39
    Key – Part Number: 506689401
    Key
    Part Number: 506689401
      In Stock
    $5.95
  • 40
    PIPE COMPLETE – Part Number: 595847005
    PIPE COMPLETE
    Part Number: 595847005
      In Stock
    $22.40
  • 40
    Flywheel – Part Number: 502846301
    Flywheel
    Part Number: 502846301
      In Stock
    $54.34
  • 41
    COIL ASSEMBLY – Part Number: 596812701
    COIL ASSEMBLY
    Part Number: 596812701
      Special Order
    $78.35
  • 41
    Chainsaw Fuel Filter – Part Number: 591375401
    Chainsaw Fuel Filter
    Part Number: 591375401
    ★★★★★
    ★★★★★
    (14)
      In Stock
    $13.42
  • 42
    Cap – Part Number: 516744001
    Cap
    Part Number: 516744001
      On Order
    $5.96
  • 42
    Clip – Part Number: 506707001
    Clip
    Part Number: 506707001
    ★★★★★
    ★★★★★
    (1)
      On Order
    $5.95
  • 43
    Screw – Part Number: 544273101
    Screw
    Part Number: 544273101
      Special Order
    $5.95
  • 43
    Cord – Part Number: 5114959-01
    Cord
    Part Number: 5114959-01
      No Longer Available
  • 44
    Tube-b – Part Number: 511493401
    Tube-b
    Part Number: 511493401
      No Longer Available
  • 44
    Clip – Part Number: 506741501
    Clip
    Part Number: 506741501
      In Stock
    $5.95
  • 45
    Tube – Part Number: 544362901
    Tube
    Part Number: 544362901
      Special Order
    $10.46
  • 46
    Grommet – Part Number: 515415301
    Grommet
    Part Number: 515415301
      Special Order
    $5.95
  • 47
    Spring – Part Number: 515415201
    Spring
    Part Number: 515415201
      Special Order
    $5.95
  • 48
    CAP – Part Number: 512258501
    CAP
    Part Number: 512258501
      Special Order
    $17.92
  • 49
    Bolt – Part Number: 506745701
    Bolt
    Part Number: 506745701
      Special Order
    $5.95
  • 50
    Cable – Part Number: 512258401
    Cable
    Part Number: 512258401
    ★★★★★
    ★★★★★
    (1)
      Special Order
    $10.46
  • 51
    Sparkplug – Part Number: 528074001
    Sparkplug
    Part Number: 528074001
    ★★★★★
    ★★★★★
    (5)
      In Stock
    $11.92
  • 52
    Leaf Blower Starter Assembly – Part Number: 502843101
    Leaf Blower Starter Assembly
    Part Number: 502843101
    ★★★★★
    ★★★★★
    (2)
      In Stock
    $62.27
  • 53
    Spring – Part Number: 502843301
    Spring
    Part Number: 502843301
      In Stock
    $17.92
  • 54
    Starter Pulley – Part Number: 502843401
    Starter Pulley
    Part Number: 502843401
    ★★★★★
    ★★★★★
    (1)
      Special Order
    $19.40
  • 55
    Starter Pawl – Part Number: 504554801
    Starter Pawl
    Part Number: 504554801
      In Stock
    $14.60
  • 56
    Washer – Part Number: 502843601
    Washer
    Part Number: 502843601
      Special Order
    Minimum Quantity of 2 required
    $5.95
  • 57
    Screw – Part Number: 502843801
    Screw
    Part Number: 502843801
      Special Order
    $5.95
  • 58
    Retainer – Part Number: 504554901
    Retainer
    Part Number: 504554901
      Special Order
    $5.96
  • 59
    Washer – Part Number: 502843701
    Washer
    Part Number: 502843701
      Special Order
    $5.96
  • 60
    Starter Rope – Part Number: 502843501
    Starter Rope
    Part Number: 502843501
      Special Order
    $7.46
  • 61
    Bellows – Part Number: 577078801
    Bellows
    Part Number: 577078801
    ★★★★★
    ★★★★★
    (3)
      In Stock
    $26.88
  • 61
    Knob – Part Number: 502843201
    Knob
    Part Number: 502843201
      Special Order
    $10.46
  • 62
    Swivel Joint – Part Number: 577078901
    Swivel Joint
    Part Number: 577078901
    ★★★★★
    ★★★★★
    (4)
      In Stock
    $17.92
  • 63
    Middle Tube – Part Number: 577079301
    Middle Tube
    Part Number: 577079301
    ★★★★★
    ★★★★★
    (4)
      In Stock
    $10.45
  • 63
    Bolt Torx – Part Number: 506745601
    Bolt Torx
    Part Number: 506745601
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 64
    Carburetor – Part Number: 502845001
    Carburetor
    Part Number: 502845001
      In Stock
    $118.75
  • 64
    PIPE.END – Part Number: 521672301
    PIPE.END
    Part Number: 521672301
      Special Order
    $22.40
  • 65
    Screw – Part Number: 502844601
    Screw
    Part Number: 502844601
      In Stock
    $8.10
  • 65
    Clamp – Part Number: 504064901
    Clamp
    Part Number: 504064901
      In Stock
    $5.95
  • 66
    Clamp – Part Number: 544274101
    Clamp
    Part Number: 544274101
    ★★★★★
    ★★★★★
    (2)
      In Stock
    $5.95
  • 66
    Air Filter Holder – Part Number: 502844902
    Air Filter Holder
    Part Number: 502844902
    ★★★★★
    ★★★★★
    (1)
      In Stock
    $31.23
  • 67
    Plate, Choke – Part Number: 512259601
    Plate, Choke
    Part Number: 512259601
      On Order
    $5.96
  • 67
    Tool-Set – Part Number: 5215323-01
    Tool-Set
    Part Number: 5215323-01
      No Longer Available
  • 68
    Spanner – Part Number: 506615001
    Spanner
    Part Number: 506615001
      Special Order
    $7.46
  • 68
    Lever – Part Number: 521740501
    Lever
    Part Number: 521740501
      In Stock
    $5.95
  • 69
    Socket – Part Number: 521533001
    Socket
    Part Number: 521533001
      In Stock
    $8.96
  • 69
    Screw – Part Number: 506673801
    Screw
    Part Number: 506673801
      Special Order
    Minimum Quantity of 2 required
    $5.95
  • 70
    O-Ring – Part Number: 512260001
    O-Ring
    Part Number: 512260001
      Special Order
    Minimum Quantity of 2 required
    $6.48
  • 71
    Plate – Part Number: 502844701
    Plate
    Part Number: 502844701
      In Stock
    $9.72
  • 72
    Gasket – Part Number: 502844501
    Gasket
    Part Number: 502844501
      In Stock
    $33.95
  • 73
    Packing – Part Number: 512260301
    Packing
    Part Number: 512260301
      Special Order
    $27.42
  • 74
    Label.Sound – Part Number: 5109638-01
    Label.Sound
    Part Number: 5109638-01
      No Longer Available
  • 74
    Screen – Part Number: 521741401
    Screen
    Part Number: 521741401
      Special Order
    $6.43
  • 75
    Air Filter – Part Number: 502844401
    Air Filter
    Part Number: 502844401
    ★★★★★
    ★★★★★
    (6)
      In Stock
    $13.42
  • 75
    Label – Part Number: 544363401
    Label
    Part Number: 544363401
      No Longer Available
  • 76
    COVER ASSEMBLY. – Part Number: 511496101
    COVER ASSEMBLY.
    Part Number: 511496101
      In Stock
    $32.48
  • 77
    Knob – Part Number: 506673901
    Knob
    Part Number: 506673901
      Special Order
    $5.95
  • 81
    GASKET KIT – Part Number: 528759701
    GASKET KIT
    Part Number: 528759701
      Special Order
    $33.96
  • 82
    PULLER ASSEMBLY – Part Number: 513673501
    PULLER ASSEMBLY
    Part Number: 513673501
      Special Order
    $225.55
  • 83
    STOPPER – Part Number: 515387901
    STOPPER
    Part Number: 515387901
      Special Order
    $63.62
  • 84
    GAUGE – Part Number: 510961701
    GAUGE
    Part Number: 510961701
      Special Order
    $38.02
  • 87
    Label – Part Number: 521740201
    Label
    Part Number: 521740201
      Special Order
    $5.95

Questions & Answers

?

Our customer Service team is at the ready daily to answer your part and product questions.

Be the first to ask our experts a question about this part!

Ask our Team

We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.

✖

Our customer service team are at the ready daily to answer your part and product questions. We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
