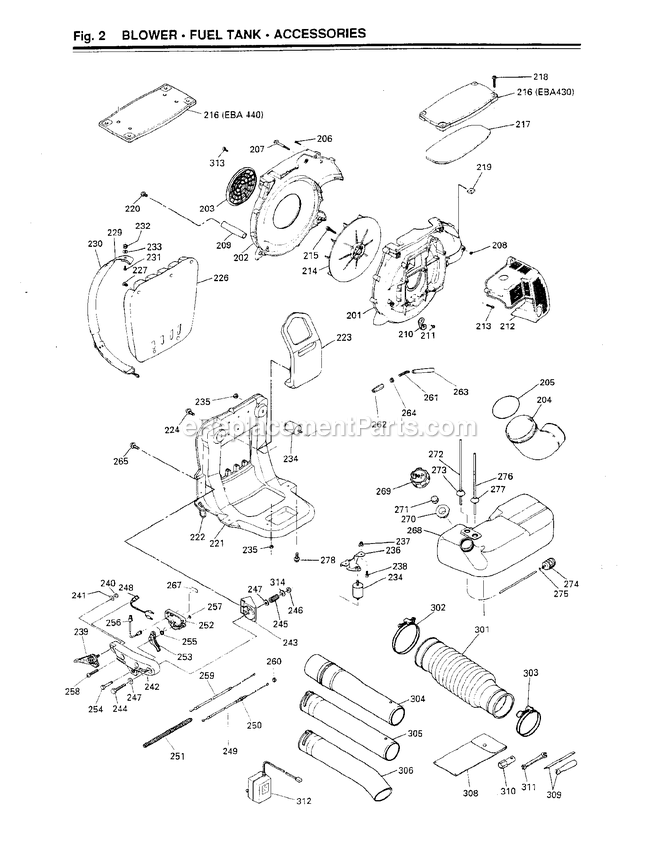

Assembly Diagram and Parts List for 000001 AND UP RedMax Leaf Blower / Vacuum
Assembly

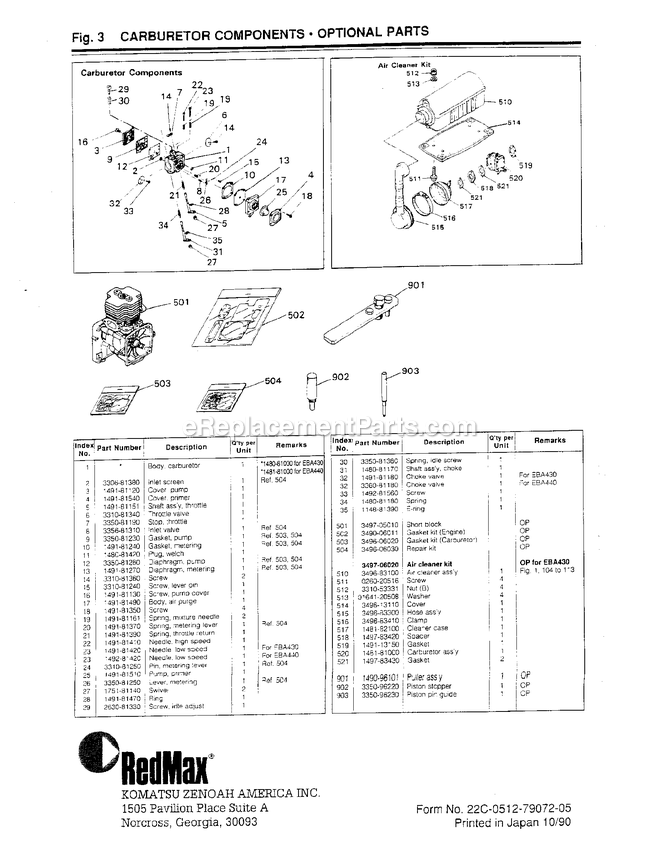

Carburetor Diagram and Parts List for 000001 AND UP RedMax Leaf Blower / Vacuum
Carburetor

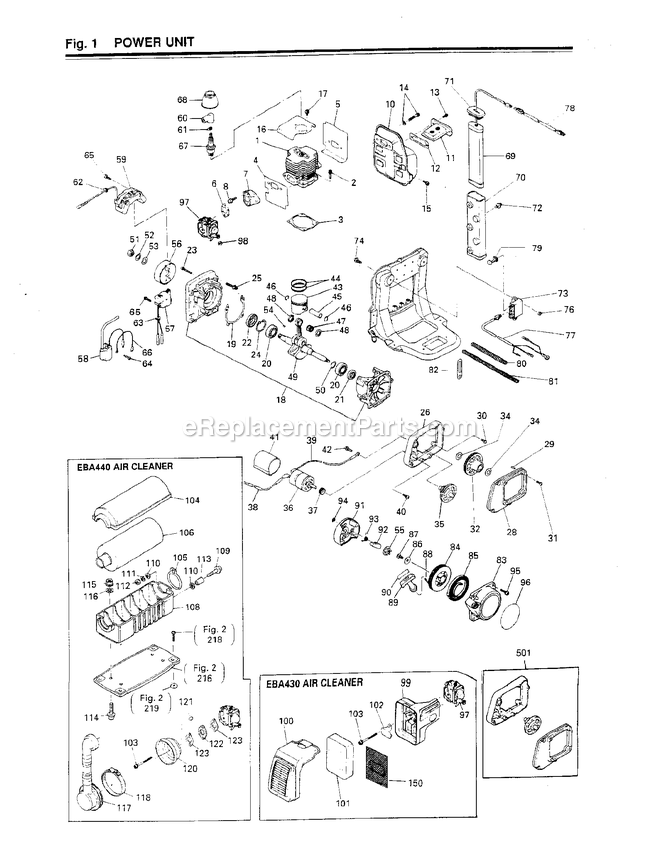

Engine Diagram and Parts List for 000001 AND UP RedMax Leaf Blower / Vacuum
Engine
Previous Showing All Parts Next
Assembly
Assembly Diagram and Parts List for 000001 AND UP RedMax Leaf Blower / Vacuum
  • 1
    Carburetor Assy – Part Number: 5163436-01
    Carburetor Assy
    Part Number: 5163436-01
      No Longer Available
  • 2
    Bolt – Part Number: 5141770-01
    Bolt
    Part Number: 5141770-01
      No Longer Available
  • 2
    Screen – Part Number: 520957001
    Screen
    Part Number: 520957001
      Special Order
    $6.16
  • 3
    GASKET.CYL – Part Number: 513236901
    GASKET.CYL
    Part Number: 513236901
      Special Order
    $9.28
  • 3
    Cover – Part Number: 5133012-01
    Cover
    Part Number: 5133012-01
      No Longer Available
  • 4
    COVER, PUMP – Part Number: 516360201
    COVER, PUMP
    Part Number: 516360201
      Special Order
    $18.56
  • 5
    Shaft – Part Number: 5163587-01
    Shaft
    Part Number: 5163587-01
      No Longer Available
  • 6
    Needle Valve – Part Number: 5209785-01
    Needle Valve
    Part Number: 5209785-01
      No Longer Available
  • 6
    Gasket – Part Number: 5163539-01
    Gasket
    Part Number: 5163539-01
      No Longer Available
  • 7
    THROTTLE STOP – Part Number: 521065401
    THROTTLE STOP
    Part Number: 521065401
      Special Order
    $6.21
  • 7
    Insulator – Part Number: 5163542-01
    Insulator
    Part Number: 5163542-01
      No Longer Available
  • 8
    BOLT, M5 X 25 (RPLS 1491-14120 – Part Number: 516090301
    BOLT, M5 X 25 (RPLS 1491-14120
    Part Number: 516090301
      Special Order
    $2.99
  • 8
    Valve, Inlet – Part Number: 5740249-01
    Valve, Inlet
    Part Number: 5740249-01
      No Longer Available
  • 9
    Gasket – Part Number: 514242701
    Gasket
    Part Number: 514242701
      Special Order
    $7.73
  • 10
    Gasket – Part Number: 5163592-01
    Gasket
    Part Number: 5163592-01
      No Longer Available
  • 10
    Muffler Assy – Part Number: 5163646-01
    Muffler Assy
    Part Number: 5163646-01
      No Longer Available
  • 11
    ARRESTER (RPLS 149115520) – Part Number: 516355601
    ARRESTER (RPLS 149115520)
    Part Number: 516355601
      Special Order
    $5.17
  • 11
    Plug – Part Number: 516342901
    Plug
    Part Number: 516342901
      Special Order
    $10.84
  • 12
    GASKET (RPLS 149115530) – Part Number: 516355801
    GASKET (RPLS 149115530)
    Part Number: 516355801
      Special Order
    $4.13
  • 12
    95-75 Diaphragm – Part Number: 514243001
    95-75 Diaphragm
    Part Number: 514243001
      Special Order
    $27.85
  • 13
    Screw, M4 X 10 – Part Number: 516109301
    Screw, M4 X 10
    Part Number: 516109301
      No Longer Available
  • 13
    DIAPHRAGM, METERING – Part Number: 516359301
    DIAPHRAGM, METERING
    Part Number: 516359301
      Special Order
    $27.85
  • 14
    DISCONTINUED – Part Number: 520759801
    DISCONTINUED
    Part Number: 520759801
      Special Order
    $6.16
  • 14
    BOLT – Part Number: 513298901
    BOLT
    Part Number: 513298901
      Special Order
    $5.17
  • 15
    Screw – Part Number: 510478301
    Screw
    Part Number: 510478301
      No Longer Available
  • 15
    Screw – Part Number: 520977301
    Screw
    Part Number: 520977301
      Special Order
    $6.16
  • 16
    COVER – Part Number: 516356201
    COVER
    Part Number: 516356201
      Special Order
    $5.17
  • 16
    Screw – Part Number: 513301301
    Screw
    Part Number: 513301301
      No Longer Available
  • 17
    Body – Part Number: 5163430-01
    Body
    Part Number: 5163430-01
      No Longer Available
  • 17
    Screw – Part Number: 510478301
    Screw
    Part Number: 510478301
      No Longer Available
  • 18
    Crankcase – Part Number: 5163424-01
    Crankcase
    Part Number: 5163424-01
      No Longer Available
  • 18
    Screw – Part Number: 5163431-01
    Screw
    Part Number: 5163431-01
      No Longer Available
  • 19
    GASKET,CRNKCASE(RPLS140021140) – Part Number: 516312201
    GASKET,CRNKCASE(RPLS140021140)
    Part Number: 516312201
      Special Order
    $4.13
  • 19
    Spring – Part Number: 5163589-01
    Spring
    Part Number: 5163589-01
      No Longer Available
  • 20
    Spring – Part Number: 5163595-01
    Spring
    Part Number: 5163595-01
      No Longer Available
  • 20
    Bearing – Part Number: 510571301
    Bearing
    Part Number: 510571301
      No Longer Available
  • 21
    SPRING – Part Number: 516359601
    SPRING
    Part Number: 516359601
      Special Order
    $7.73
  • 21
    Oilseal – Part Number: 5163682-01
    Oilseal
    Part Number: 5163682-01
      No Longer Available
  • 22
    Seal – Part Number: 5132387-01
    Seal
    Part Number: 5132387-01
      No Longer Available
  • 22
    Needle – Part Number: 5133025-01
    Needle
    Part Number: 5133025-01
      No Longer Available
  • 23
    Screw – Part Number: 5160955-01
    Screw
    Part Number: 5160955-01
      No Longer Available
  • 23
    Needle – Part Number: 5133056-01
    Needle
    Part Number: 5133056-01
      No Longer Available
  • 24
    Ring – Part Number: 516126001
    Ring
    Part Number: 516126001
      Special Order
    $4.28
  • 24
    Pin – Part Number: 520977401
    Pin
    Part Number: 520977401
      In Stock
    $7.73
  • 25
    BOLT – Part Number: 513298901
    BOLT
    Part Number: 513298901
      Special Order
    $5.17
  • 25
    Pumping Button – Part Number: 5163601-01
    Pumping Button
    Part Number: 5163601-01
      No Longer Available
  • 26
    Lever – Part Number: 514242901
    Lever
    Part Number: 514242901
      Special Order
    $12.35
  • 27
    Swivel – Part Number: 5134007-01
    Swivel
    Part Number: 5134007-01
      No Longer Available
  • 28
    Ring – Part Number: 5163599-01
    Ring
    Part Number: 5163599-01
      No Longer Available
  • 29
    Screw – Part Number: 5135929-01
    Screw
    Part Number: 5135929-01
      No Longer Available
  • 29
    Pen – Part Number: 515245601
    Pen
    Part Number: 515245601
      No Longer Available
  • 30
    Screw – Part Number: 5161030-01
    Screw
    Part Number: 5161030-01
      No Longer Available
  • 30
    Spring, Idle – Part Number: 521066301
    Spring, Idle
    Part Number: 521066301
      Special Order
    $6.17
  • 31
    Shaft – Part Number: 5132768-01
    Shaft
    Part Number: 5132768-01
      No Longer Available
  • 31
    Screw – Part Number: 510481601
    Screw
    Part Number: 510481601
      Special Order
    $6.16
  • 32
    Valve – Part Number: 5142565-01
    Valve
    Part Number: 5142565-01
      No Longer Available
  • 32
    Gear – Part Number: 5740029-01
    Gear
    Part Number: 5740029-01
      No Longer Available
  • 33
    Screw – Part Number: 5133057-01
    Screw
    Part Number: 5133057-01
      No Longer Available
  • 34
    Spring – Part Number: 5740257-01
    Spring
    Part Number: 5740257-01
      No Longer Available
  • 34
    Washer – Part Number: 5740047-01
    Washer
    Part Number: 5740047-01
      No Longer Available
  • 35
    Clip – Part Number: 505056501
    Clip
    Part Number: 505056501
      Special Order
    $6.17
  • 35
    Gear (B) (Rpls 148023201) – Part Number: 5740030-01
    Gear (B) (Rpls 148023201)
    Part Number: 5740030-01
      No Longer Available
  • 36
    Motor – Part Number: 5740031-01
    Motor
    Part Number: 5740031-01
      No Longer Available
  • 37
    Gear(A) – Part Number: 5132747-01
    Gear(A)
    Part Number: 5132747-01
      No Longer Available
  • 38
    Cord – Part Number: 5740254-01
    Cord
    Part Number: 5740254-01
      No Longer Available
  • 39
    Cord – Part Number: 5132746-01
    Cord
    Part Number: 5132746-01
      No Longer Available
  • 40
    Screw, M4 X 10 – Part Number: 516109301
    Screw, M4 X 10
    Part Number: 516109301
      No Longer Available
  • 41
    Cover – Part Number: 5134872-01
    Cover
    Part Number: 5134872-01
      No Longer Available
  • 42
    BOLT – Part Number: 510455701
    BOLT
    Part Number: 510455701
      Special Order
    $9.28
  • 43
    Piston – Part Number: 5163447-01
    Piston
    Part Number: 5163447-01
      No Longer Available
  • 44
    Ring.Piston – Part Number: 510917901
    Ring.Piston
    Part Number: 510917901
      In Stock
    $10.57
  • 45
    PIN, PISTON – Part Number: 521057101
    PIN, PISTON
    Part Number: 521057101
      Special Order
    $7.73
  • 46
    Snap Ring – Part Number: 502849801
    Snap Ring
    Part Number: 502849801
    ★★★★★
    ★★★★★
    (1)
      In Stock
    $6.16
  • 47
    Bearing – Part Number: 502849901
    Bearing
    Part Number: 502849901
      In Stock
    $18.56
  • 48
    Washer – Part Number: 502850001
    Washer
    Part Number: 502850001
      In Stock
    $7.73
  • 50
    Shim – Part Number: 513226501
    Shim
    Part Number: 513226501
      No Longer Available
  • 51
    Nut – Part Number: 5161722-01
    Nut
    Part Number: 5161722-01
      No Longer Available
  • 52
    Washer – Part Number: 5161187-01
    Washer
    Part Number: 5161187-01
      No Longer Available
  • 53
    Washer – Part Number: 5160780-01
    Washer
    Part Number: 5160780-01
      No Longer Available
  • 54
    Key – Part Number: 506689401
    Key
    Part Number: 506689401
      In Stock
    $6.16
  • 55
    Nut – Part Number: 504118001
    Nut
    Part Number: 504118001
      In Stock
    $6.16
  • 56
    ROTOR – Part Number: 516352301
    ROTOR
    Part Number: 516352301
      Special Order
    $87.42
  • 58
    Ignition Coil – Part Number: 5163567-01
    Ignition Coil
    Part Number: 5163567-01
      No Longer Available
  • 61
    Spring – Part Number: 505298901
    Spring
    Part Number: 505298901
      Special Order
    $6.16
  • 62
    GROMMET – Part Number: 516173301
    GROMMET
    Part Number: 516173301
      Special Order
    $2.99
  • 63
    GROMMET – Part Number: 516193701
    GROMMET
    Part Number: 516193701
      Special Order
    $2.99
  • 64
    SCREW, M4 X 16 – Part Number: 516115501
    SCREW, M4 X 16
    Part Number: 516115501
      Special Order
    $2.99
  • 65
    Screw – Part Number: 516109601
    Screw
    Part Number: 516109601
      No Longer Available
  • 66
    Cable – Part Number: 5163568-01
    Cable
    Part Number: 5163568-01
      No Longer Available
  • 67
    Spark Plug – Part Number: 5133095-01
    Spark Plug
    Part Number: 5133095-01
      No Longer Available
  • 68
    Hub Cap – Part Number: 5162873-01
    Hub Cap
    Part Number: 5162873-01
      No Longer Available
  • 69
    Battery – Part Number: 5163426-01
    Battery
    Part Number: 5163426-01
      No Longer Available
  • 70
    Case – Part Number: 5132764-01
    Case
    Part Number: 5132764-01
      No Longer Available
  • 71
    Grommet – Part Number: 5132765-01
    Grommet
    Part Number: 5132765-01
      No Longer Available
  • 72
    Clip – Part Number: 526243901
    Clip
    Part Number: 526243901
      Special Order
    $6.16
  • 73
    RELAY – Part Number: 574025501
    RELAY
    Part Number: 574025501
      Special Order
    $99.91
  • 74
    Bolt – Part Number: 513667201
    Bolt
    Part Number: 513667201
      No Longer Available
  • 77
    Cord – Part Number: 5740256-01
    Cord
    Part Number: 5740256-01
      No Longer Available
  • 78
    CORD ASSEMBLY – Part Number: 574003201
    CORD ASSEMBLY
    Part Number: 574003201
      Special Order
    $7.73
  • 79
    Hub Cap – Part Number: 5155197-01
    Hub Cap
    Part Number: 5155197-01
      No Longer Available
  • 80
    Tube – Part Number: 5740033-01
    Tube
    Part Number: 5740033-01
      No Longer Available
  • 81
    Tube – Part Number: 5740034-01
    Tube
    Part Number: 5740034-01
      No Longer Available
  • 82
    Clamp – Part Number: 516377201
    Clamp
    Part Number: 516377201
      No Longer Available
  • 83
    RECOIL ASSY (RPLS 160075100) – Part Number: 516388201
    RECOIL ASSY (RPLS 160075100)
    Part Number: 516388201
      Special Order
    $64.51
  • 84
    Reel – Part Number: 5163886-01
    Reel
    Part Number: 5163886-01
      No Longer Available
  • 85
    SPRING.SPIRAL – Part Number: 513345301
    SPRING.SPIRAL
    Part Number: 513345301
      Special Order
    $12.35
  • 86
    Washer – Part Number: 5163888-01
    Washer
    Part Number: 5163888-01
      No Longer Available
  • 87
    Screw – Part Number: 5163890-01
    Screw
    Part Number: 5163890-01
      No Longer Available
  • 88
    ROPE – Part Number: 516389101
    ROPE
    Part Number: 516389101
      Special Order
    $7.73
  • 89
    Plate.Stopper – Part Number: 504114001
    Plate.Stopper
    Part Number: 504114001
      Special Order
    $7.73
  • 90
    Tape – Part Number: 5133458-01
    Tape
    Part Number: 5133458-01
      No Longer Available
  • 91
    Pulley Assy – Part Number: 5163895-01
    Pulley Assy
    Part Number: 5163895-01
      No Longer Available
  • 92
    Ratchet – Part Number: 5163898-01
    Ratchet
    Part Number: 5163898-01
      No Longer Available
  • 93
    SPRING, RETURN – Part Number: 516389901
    SPRING, RETURN
    Part Number: 516389901
      Special Order
    $2.99
  • 94
    E-Clip – Part Number: 513167701
    E-Clip
    Part Number: 513167701
      Special Order
    $6.16
  • 95
    Screw – Part Number: 510482301
    Screw
    Part Number: 510482301
      Special Order
    $6.17
  • 97
    Carburetor Assy – Part Number: 5163436-01
    Carburetor Assy
    Part Number: 5163436-01
      No Longer Available
  • 98
    Hub Cap – Part Number: 513352401
    Hub Cap
    Part Number: 513352401
      Special Order
    $6.16
  • 99
    BODY – Part Number: 516360601
    BODY
    Part Number: 516360601
      Special Order
    $13.90
  • 100
    COVER – Part Number: 513303201
    COVER
    Part Number: 513303201
      Special Order
    $10.84
  • 101
    Air Filter – Part Number: 513303301
    Air Filter
    Part Number: 513303301
      On Order
    $10.84
  • 102
    PLATE – Part Number: 513303701
    PLATE
    Part Number: 513303701
      Special Order
    $6.21
  • 103
    Screw – Part Number: 5161109-01
    Screw
    Part Number: 5161109-01
      No Longer Available
  • 104
    Cleaner Body – Part Number: 5211502-01
    Cleaner Body
    Part Number: 5211502-01
      No Longer Available
  • 105
    Rubber Band – Part Number: 5211503-01
    Rubber Band
    Part Number: 5211503-01
      No Longer Available
  • 106
    Element – Part Number: 5211504-01
    Element
    Part Number: 5211504-01
      No Longer Available
  • 108
    Cleaner – Part Number: 5211506-01
    Cleaner
    Part Number: 5211506-01
      No Longer Available
  • 109
    Screw – Part Number: 5143399-01
    Screw
    Part Number: 5143399-01
      No Longer Available
  • 110
    WASHER, M5 X .8 – Part Number: 516077501
    WASHER, M5 X .8
    Part Number: 516077501
      Special Order
    $4.28
  • 111
    Washer, Spring M – Part Number: 516076301
    Washer, Spring M
    Part Number: 516076301
      No Longer Available
  • 114
    Screw – Part Number: 5161010-01
    Screw
    Part Number: 5161010-01
      No Longer Available
  • 115
    Nut – Part Number: 514183901
    Nut
    Part Number: 514183901
      In Stock
    $6.16
  • 116
    WASHER, M5 X .8 – Part Number: 516077501
    WASHER, M5 X .8
    Part Number: 516077501
      Special Order
    $4.28
  • 117
    HOSE (RPLS 349683300) – Part Number: 521151001
    HOSE (RPLS 349683300)
    Part Number: 521151001
      Special Order
    $70.96
  • 118
    Clamp – Part Number: 5211511-01
    Clamp
    Part Number: 5211511-01
      No Longer Available
  • 120
    Case, Cleaner – Part Number: 5740037-01
    Case, Cleaner
    Part Number: 5740037-01
      No Longer Available
  • 121
    Plug – Part Number: 5141508-01
    Plug
    Part Number: 5141508-01
      No Longer Available
  • 122
    Spacer – Part Number: 5133099-01
    Spacer
    Part Number: 5133099-01
      No Longer Available
  • 123
    GASKET (RPLS 149783430) – Part Number: 516365501
    GASKET (RPLS 149783430)
    Part Number: 516365501
      Special Order
    $2.99
  • 150
    Screen – Part Number: 513303501
    Screen
    Part Number: 513303501
      In Stock
    $11.88
  • 501
    Kit, Gear*** – Part Number: 5740820-01
    Kit, Gear***
    Part Number: 5740820-01
      No Longer Available
  • 502
    GASKET KIT (RPLS 3490-06010) – Part Number: 521140401
    GASKET KIT (RPLS 3490-06010)
    Part Number: 521140401
      Special Order
    $27.85
  • 503
    Gasket Kit – Part Number: 5211495-01
    Gasket Kit
    Part Number: 5211495-01
      No Longer Available
  • 504
    Repair Kit – Part Number: 5211496-01
    Repair Kit
    Part Number: 5211496-01
      No Longer Available
  • 510
    Cleaner – Part Number: 5211500-01
    Cleaner
    Part Number: 5211500-01
      No Longer Available
  • 511
    Screw – Part Number: 5161010-01
    Screw
    Part Number: 5161010-01
      No Longer Available
  • 512
    Nut – Part Number: 514183901
    Nut
    Part Number: 514183901
      In Stock
    $6.16
  • 513
    WASHER, M5 X .8 – Part Number: 516077501
    WASHER, M5 X .8
    Part Number: 516077501
      Special Order
    $4.28
  • 515
    HOSE (RPLS 349683300) – Part Number: 521151001
    HOSE (RPLS 349683300)
    Part Number: 521151001
      Special Order
    $70.96
  • 516
    Clamp – Part Number: 5211511-01
    Clamp
    Part Number: 5211511-01
      No Longer Available
  • 517
    Case, Cleaner – Part Number: 5740037-01
    Case, Cleaner
    Part Number: 5740037-01
      No Longer Available
  • 518
    Spacer – Part Number: 5133099-01
    Spacer
    Part Number: 5133099-01
      No Longer Available
  • 519
    Gasket – Part Number: 5163539-01
    Gasket
    Part Number: 5163539-01
      No Longer Available
  • 520
    Carburetor Assy – Part Number: 5163436-01
    Carburetor Assy
    Part Number: 5163436-01
      No Longer Available
  • 521
    GASKET (RPLS 149783430) – Part Number: 516365501
    GASKET (RPLS 149783430)
    Part Number: 516365501
      Special Order
    $2.99
  • 800
    Holder – Part Number: 5211505-01
    Holder
    Part Number: 5211505-01
      No Longer Available
  • 800
    Cleaner – Part Number: 5211500-01
    Cleaner
    Part Number: 5211500-01
      No Longer Available
  • 901
    Pulley Assy – Part Number: 5163529-01
    Pulley Assy
    Part Number: 5163529-01
      No Longer Available
  • 902
    STOPPER – Part Number: 514243901
    STOPPER
    Part Number: 514243901
      Special Order
    $34.62
  • 903
    Guide – Part Number: 521068101
    Guide
    Part Number: 521068101
      No Longer Available
Carburetor
Carburetor Diagram and Parts List for 000001 AND UP RedMax Leaf Blower / Vacuum
  • 1
    Carburetor Assy – Part Number: 5163436-01
    Carburetor Assy
    Part Number: 5163436-01
      No Longer Available
  • 2
    Screen – Part Number: 520957001
    Screen
    Part Number: 520957001
      Special Order
    $6.16
  • 2
    Bolt – Part Number: 5141770-01
    Bolt
    Part Number: 5141770-01
      No Longer Available
  • 3
    Cover – Part Number: 5133012-01
    Cover
    Part Number: 5133012-01
      No Longer Available
  • 3
    GASKET.CYL – Part Number: 513236901
    GASKET.CYL
    Part Number: 513236901
      Special Order
    $9.28
  • 4
    COVER, PUMP – Part Number: 516360201
    COVER, PUMP
    Part Number: 516360201
      Special Order
    $18.56
  • 5
    Shaft – Part Number: 5163587-01
    Shaft
    Part Number: 5163587-01
      No Longer Available
  • 6
    Gasket – Part Number: 5163539-01
    Gasket
    Part Number: 5163539-01
      No Longer Available
  • 6
    Needle Valve – Part Number: 5209785-01
    Needle Valve
    Part Number: 5209785-01
      No Longer Available
  • 7
    THROTTLE STOP – Part Number: 521065401
    THROTTLE STOP
    Part Number: 521065401
      Special Order
    $6.21
  • 7
    Insulator – Part Number: 5163542-01
    Insulator
    Part Number: 5163542-01
      No Longer Available
  • 8
    Valve, Inlet – Part Number: 5740249-01
    Valve, Inlet
    Part Number: 5740249-01
      No Longer Available
  • 8
    BOLT, M5 X 25 (RPLS 1491-14120 – Part Number: 516090301
    BOLT, M5 X 25 (RPLS 1491-14120
    Part Number: 516090301
      Special Order
    $2.99
  • 9
    Gasket – Part Number: 514242701
    Gasket
    Part Number: 514242701
      Special Order
    $7.73
  • 10
    Muffler Assy – Part Number: 5163646-01
    Muffler Assy
    Part Number: 5163646-01
      No Longer Available
  • 10
    Gasket – Part Number: 5163592-01
    Gasket
    Part Number: 5163592-01
      No Longer Available
  • 11
    ARRESTER (RPLS 149115520) – Part Number: 516355601
    ARRESTER (RPLS 149115520)
    Part Number: 516355601
      Special Order
    $5.17
  • 11
    Plug – Part Number: 516342901
    Plug
    Part Number: 516342901
      Special Order
    $10.84
  • 12
    GASKET (RPLS 149115530) – Part Number: 516355801
    GASKET (RPLS 149115530)
    Part Number: 516355801
      Special Order
    $4.13
  • 12
    95-75 Diaphragm – Part Number: 514243001
    95-75 Diaphragm
    Part Number: 514243001
      Special Order
    $27.85
  • 13
    DIAPHRAGM, METERING – Part Number: 516359301
    DIAPHRAGM, METERING
    Part Number: 516359301
      Special Order
    $27.85
  • 13
    Screw, M4 X 10 – Part Number: 516109301
    Screw, M4 X 10
    Part Number: 516109301
      No Longer Available
  • 14
    DISCONTINUED – Part Number: 520759801
    DISCONTINUED
    Part Number: 520759801
      Special Order
    $6.16
  • 14
    BOLT – Part Number: 513298901
    BOLT
    Part Number: 513298901
      Special Order
    $5.17
  • 15
    Screw – Part Number: 510478301
    Screw
    Part Number: 510478301
      No Longer Available
  • 15
    Screw – Part Number: 520977301
    Screw
    Part Number: 520977301
      Special Order
    $6.16
  • 16
    Screw – Part Number: 513301301
    Screw
    Part Number: 513301301
      No Longer Available
  • 16
    COVER – Part Number: 516356201
    COVER
    Part Number: 516356201
      Special Order
    $5.17
  • 17
    Screw – Part Number: 510478301
    Screw
    Part Number: 510478301
      No Longer Available
  • 17
    Body – Part Number: 5163430-01
    Body
    Part Number: 5163430-01
      No Longer Available
  • 18
    Screw – Part Number: 5163431-01
    Screw
    Part Number: 5163431-01
      No Longer Available
  • 18
    Crankcase – Part Number: 5163424-01
    Crankcase
    Part Number: 5163424-01
      No Longer Available
  • 19
    GASKET,CRNKCASE(RPLS140021140) – Part Number: 516312201
    GASKET,CRNKCASE(RPLS140021140)
    Part Number: 516312201
      Special Order
    $4.13
  • 19
    Spring – Part Number: 5163589-01
    Spring
    Part Number: 5163589-01
      No Longer Available
  • 20
    Spring – Part Number: 5163595-01
    Spring
    Part Number: 5163595-01
      No Longer Available
  • 20
    Bearing – Part Number: 510571301
    Bearing
    Part Number: 510571301
      No Longer Available
  • 21
    SPRING – Part Number: 516359601
    SPRING
    Part Number: 516359601
      Special Order
    $7.73
  • 21
    Oilseal – Part Number: 5163682-01
    Oilseal
    Part Number: 5163682-01
      No Longer Available
  • 22
    Seal – Part Number: 5132387-01
    Seal
    Part Number: 5132387-01
      No Longer Available
  • 22
    Needle – Part Number: 5133025-01
    Needle
    Part Number: 5133025-01
      No Longer Available
  • 23
    Needle – Part Number: 5133056-01
    Needle
    Part Number: 5133056-01
      No Longer Available
  • 23
    Screw – Part Number: 5160955-01
    Screw
    Part Number: 5160955-01
      No Longer Available
  • 24
    Pin – Part Number: 520977401
    Pin
    Part Number: 520977401
      In Stock
    $7.73
  • 24
    Ring – Part Number: 516126001
    Ring
    Part Number: 516126001
      Special Order
    $4.28
  • 25
    Pumping Button – Part Number: 5163601-01
    Pumping Button
    Part Number: 5163601-01
      No Longer Available
  • 25
    BOLT – Part Number: 513298901
    BOLT
    Part Number: 513298901
      Special Order
    $5.17
  • 26
    Lever – Part Number: 514242901
    Lever
    Part Number: 514242901
      Special Order
    $12.35
  • 27
    Swivel – Part Number: 5134007-01
    Swivel
    Part Number: 5134007-01
      No Longer Available
  • 28
    Ring – Part Number: 5163599-01
    Ring
    Part Number: 5163599-01
      No Longer Available
  • 29
    Screw – Part Number: 5135929-01
    Screw
    Part Number: 5135929-01
      No Longer Available
  • 29
    Pen – Part Number: 515245601
    Pen
    Part Number: 515245601
      No Longer Available
  • 30
    Spring, Idle – Part Number: 521066301
    Spring, Idle
    Part Number: 521066301
      Special Order
    $6.17
  • 30
    Screw – Part Number: 5161030-01
    Screw
    Part Number: 5161030-01
      No Longer Available
  • 31
    Shaft – Part Number: 5132768-01
    Shaft
    Part Number: 5132768-01
      No Longer Available
  • 31
    Screw – Part Number: 510481601
    Screw
    Part Number: 510481601
      Special Order
    $6.16
  • 32
    Valve – Part Number: 5142565-01
    Valve
    Part Number: 5142565-01
      No Longer Available
  • 32
    Gear – Part Number: 5740029-01
    Gear
    Part Number: 5740029-01
      No Longer Available
  • 33
    Screw – Part Number: 5133057-01
    Screw
    Part Number: 5133057-01
      No Longer Available
  • 34
    Spring – Part Number: 5740257-01
    Spring
    Part Number: 5740257-01
      No Longer Available
  • 34
    Washer – Part Number: 5740047-01
    Washer
    Part Number: 5740047-01
      No Longer Available
  • 35
    Gear (B) (Rpls 148023201) – Part Number: 5740030-01
    Gear (B) (Rpls 148023201)
    Part Number: 5740030-01
      No Longer Available
  • 35
    Clip – Part Number: 505056501
    Clip
    Part Number: 505056501
      Special Order
    $6.17
  • 36
    Motor – Part Number: 5740031-01
    Motor
    Part Number: 5740031-01
      No Longer Available
  • 37
    Gear(A) – Part Number: 5132747-01
    Gear(A)
    Part Number: 5132747-01
      No Longer Available
  • 38
    Cord – Part Number: 5740254-01
    Cord
    Part Number: 5740254-01
      No Longer Available
  • 39
    Cord – Part Number: 5132746-01
    Cord
    Part Number: 5132746-01
      No Longer Available
  • 40
    Screw, M4 X 10 – Part Number: 516109301
    Screw, M4 X 10
    Part Number: 516109301
      No Longer Available
  • 41
    Cover – Part Number: 5134872-01
    Cover
    Part Number: 5134872-01
      No Longer Available
  • 42
    BOLT – Part Number: 510455701
    BOLT
    Part Number: 510455701
      Special Order
    $9.28
  • 43
    Piston – Part Number: 5163447-01
    Piston
    Part Number: 5163447-01
      No Longer Available
  • 44
    Ring.Piston – Part Number: 510917901
    Ring.Piston
    Part Number: 510917901
      In Stock
    $10.57
  • 45
    PIN, PISTON – Part Number: 521057101
    PIN, PISTON
    Part Number: 521057101
      Special Order
    $7.73
  • 46
    Snap Ring – Part Number: 502849801
    Snap Ring
    Part Number: 502849801
    ★★★★★
    ★★★★★
    (1)
      In Stock
    $6.16
  • 47
    Bearing – Part Number: 502849901
    Bearing
    Part Number: 502849901
      In Stock
    $18.56
  • 48
    Washer – Part Number: 502850001
    Washer
    Part Number: 502850001
      In Stock
    $7.73
  • 50
    Shim – Part Number: 513226501
    Shim
    Part Number: 513226501
      No Longer Available
  • 51
    Nut – Part Number: 5161722-01
    Nut
    Part Number: 5161722-01
      No Longer Available
  • 52
    Washer – Part Number: 5161187-01
    Washer
    Part Number: 5161187-01
      No Longer Available
  • 53
    Washer – Part Number: 5160780-01
    Washer
    Part Number: 5160780-01
      No Longer Available
  • 54
    Key – Part Number: 506689401
    Key
    Part Number: 506689401
      In Stock
    $6.16
  • 55
    Nut – Part Number: 504118001
    Nut
    Part Number: 504118001
      In Stock
    $6.16
  • 56
    ROTOR – Part Number: 516352301
    ROTOR
    Part Number: 516352301
      Special Order
    $87.42
  • 58
    Ignition Coil – Part Number: 5163567-01
    Ignition Coil
    Part Number: 5163567-01
      No Longer Available
  • 61
    Spring – Part Number: 505298901
    Spring
    Part Number: 505298901
      Special Order
    $6.16
  • 62
    GROMMET – Part Number: 516173301
    GROMMET
    Part Number: 516173301
      Special Order
    $2.99
  • 63
    GROMMET – Part Number: 516193701
    GROMMET
    Part Number: 516193701
      Special Order
    $2.99
  • 64
    SCREW, M4 X 16 – Part Number: 516115501
    SCREW, M4 X 16
    Part Number: 516115501
      Special Order
    $2.99
  • 65
    Screw – Part Number: 516109601
    Screw
    Part Number: 516109601
      No Longer Available
  • 66
    Cable – Part Number: 5163568-01
    Cable
    Part Number: 5163568-01
      No Longer Available
  • 67
    Spark Plug – Part Number: 5133095-01
    Spark Plug
    Part Number: 5133095-01
      No Longer Available
  • 68
    Hub Cap – Part Number: 5162873-01
    Hub Cap
    Part Number: 5162873-01
      No Longer Available
  • 69
    Battery – Part Number: 5163426-01
    Battery
    Part Number: 5163426-01
      No Longer Available
  • 70
    Case – Part Number: 5132764-01
    Case
    Part Number: 5132764-01
      No Longer Available
  • 71
    Grommet – Part Number: 5132765-01
    Grommet
    Part Number: 5132765-01
      No Longer Available
  • 72
    Clip – Part Number: 526243901
    Clip
    Part Number: 526243901
      Special Order
    $6.16
  • 73
    RELAY – Part Number: 574025501
    RELAY
    Part Number: 574025501
      Special Order
    $99.91
  • 74
    Bolt – Part Number: 513667201
    Bolt
    Part Number: 513667201
      No Longer Available
  • 77
    Cord – Part Number: 5740256-01
    Cord
    Part Number: 5740256-01
      No Longer Available
  • 78
    CORD ASSEMBLY – Part Number: 574003201
    CORD ASSEMBLY
    Part Number: 574003201
      Special Order
    $7.73
  • 79
    Hub Cap – Part Number: 5155197-01
    Hub Cap
    Part Number: 5155197-01
      No Longer Available
  • 80
    Tube – Part Number: 5740033-01
    Tube
    Part Number: 5740033-01
      No Longer Available
  • 81
    Tube – Part Number: 5740034-01
    Tube
    Part Number: 5740034-01
      No Longer Available
  • 82
    Clamp – Part Number: 516377201
    Clamp
    Part Number: 516377201
      No Longer Available
  • 83
    RECOIL ASSY (RPLS 160075100) – Part Number: 516388201
    RECOIL ASSY (RPLS 160075100)
    Part Number: 516388201
      Special Order
    $64.51
  • 84
    Reel – Part Number: 5163886-01
    Reel
    Part Number: 5163886-01
      No Longer Available
  • 85
    SPRING.SPIRAL – Part Number: 513345301
    SPRING.SPIRAL
    Part Number: 513345301
      Special Order
    $12.35
  • 86
    Washer – Part Number: 5163888-01
    Washer
    Part Number: 5163888-01
      No Longer Available
  • 87
    Screw – Part Number: 5163890-01
    Screw
    Part Number: 5163890-01
      No Longer Available
  • 88
    ROPE – Part Number: 516389101
    ROPE
    Part Number: 516389101
      Special Order
    $7.73
  • 89
    Plate.Stopper – Part Number: 504114001
    Plate.Stopper
    Part Number: 504114001
      Special Order
    $7.73
  • 90
    Tape – Part Number: 5133458-01
    Tape
    Part Number: 5133458-01
      No Longer Available
  • 91
    Pulley Assy – Part Number: 5163895-01
    Pulley Assy
    Part Number: 5163895-01
      No Longer Available
  • 92
    Ratchet – Part Number: 5163898-01
    Ratchet
    Part Number: 5163898-01
      No Longer Available
  • 93
    SPRING, RETURN – Part Number: 516389901
    SPRING, RETURN
    Part Number: 516389901
      Special Order
    $2.99
  • 94
    E-Clip – Part Number: 513167701
    E-Clip
    Part Number: 513167701
      Special Order
    $6.16
  • 95
    Screw – Part Number: 510482301
    Screw
    Part Number: 510482301
      Special Order
    $6.17
  • 97
    Carburetor Assy – Part Number: 5163436-01
    Carburetor Assy
    Part Number: 5163436-01
      No Longer Available
  • 98
    Hub Cap – Part Number: 513352401
    Hub Cap
    Part Number: 513352401
      Special Order
    $6.16
  • 99
    BODY – Part Number: 516360601
    BODY
    Part Number: 516360601
      Special Order
    $13.90
  • 100
    COVER – Part Number: 513303201
    COVER
    Part Number: 513303201
      Special Order
    $10.84
  • 101
    Air Filter – Part Number: 513303301
    Air Filter
    Part Number: 513303301
      On Order
    $10.84
  • 102
    PLATE – Part Number: 513303701
    PLATE
    Part Number: 513303701
      Special Order
    $6.21
  • 103
    Screw – Part Number: 5161109-01
    Screw
    Part Number: 5161109-01
      No Longer Available
  • 104
    Cleaner Body – Part Number: 5211502-01
    Cleaner Body
    Part Number: 5211502-01
      No Longer Available
  • 105
    Rubber Band – Part Number: 5211503-01
    Rubber Band
    Part Number: 5211503-01
      No Longer Available
  • 106
    Element – Part Number: 5211504-01
    Element
    Part Number: 5211504-01
      No Longer Available
  • 108
    Cleaner – Part Number: 5211506-01
    Cleaner
    Part Number: 5211506-01
      No Longer Available
  • 109
    Screw – Part Number: 5143399-01
    Screw
    Part Number: 5143399-01
      No Longer Available
  • 110
    WASHER, M5 X .8 – Part Number: 516077501
    WASHER, M5 X .8
    Part Number: 516077501
      Special Order
    $4.28
  • 111
    Washer, Spring M – Part Number: 516076301
    Washer, Spring M
    Part Number: 516076301
      No Longer Available
  • 114
    Screw – Part Number: 5161010-01
    Screw
    Part Number: 5161010-01
      No Longer Available
  • 115
    Nut – Part Number: 514183901
    Nut
    Part Number: 514183901
      In Stock
    $6.16
  • 116
    WASHER, M5 X .8 – Part Number: 516077501
    WASHER, M5 X .8
    Part Number: 516077501
      Special Order
    $4.28
  • 117
    HOSE (RPLS 349683300) – Part Number: 521151001
    HOSE (RPLS 349683300)
    Part Number: 521151001
      Special Order
    $70.96
  • 118
    Clamp – Part Number: 5211511-01
    Clamp
    Part Number: 5211511-01
      No Longer Available
  • 120
    Case, Cleaner – Part Number: 5740037-01
    Case, Cleaner
    Part Number: 5740037-01
      No Longer Available
  • 121
    Plug – Part Number: 5141508-01
    Plug
    Part Number: 5141508-01
      No Longer Available
  • 122
    Spacer – Part Number: 5133099-01
    Spacer
    Part Number: 5133099-01
      No Longer Available
  • 123
    GASKET (RPLS 149783430) – Part Number: 516365501
    GASKET (RPLS 149783430)
    Part Number: 516365501
      Special Order
    $2.99
  • 150
    Screen – Part Number: 513303501
    Screen
    Part Number: 513303501
      In Stock
    $11.88
  • 501
    Kit, Gear*** – Part Number: 5740820-01
    Kit, Gear***
    Part Number: 5740820-01
      No Longer Available
  • 502
    GASKET KIT (RPLS 3490-06010) – Part Number: 521140401
    GASKET KIT (RPLS 3490-06010)
    Part Number: 521140401
      Special Order
    $27.85
  • 503
    Gasket Kit – Part Number: 5211495-01
    Gasket Kit
    Part Number: 5211495-01
      No Longer Available
  • 504
    Repair Kit – Part Number: 5211496-01
    Repair Kit
    Part Number: 5211496-01
      No Longer Available
  • 510
    Cleaner – Part Number: 5211500-01
    Cleaner
    Part Number: 5211500-01
      No Longer Available
  • 511
    Screw – Part Number: 5161010-01
    Screw
    Part Number: 5161010-01
      No Longer Available
  • 512
    Nut – Part Number: 514183901
    Nut
    Part Number: 514183901
      In Stock
    $6.16
  • 513
    WASHER, M5 X .8 – Part Number: 516077501
    WASHER, M5 X .8
    Part Number: 516077501
      Special Order
    $4.28
  • 515
    HOSE (RPLS 349683300) – Part Number: 521151001
    HOSE (RPLS 349683300)
    Part Number: 521151001
      Special Order
    $70.96
  • 516
    Clamp – Part Number: 5211511-01
    Clamp
    Part Number: 5211511-01
      No Longer Available
  • 517
    Case, Cleaner – Part Number: 5740037-01
    Case, Cleaner
    Part Number: 5740037-01
      No Longer Available
  • 518
    Spacer – Part Number: 5133099-01
    Spacer
    Part Number: 5133099-01
      No Longer Available
  • 519
    Gasket – Part Number: 5163539-01
    Gasket
    Part Number: 5163539-01
      No Longer Available
  • 520
    Carburetor Assy – Part Number: 5163436-01
    Carburetor Assy
    Part Number: 5163436-01
      No Longer Available
  • 521
    GASKET (RPLS 149783430) – Part Number: 516365501
    GASKET (RPLS 149783430)
    Part Number: 516365501
      Special Order
    $2.99
  • 800
    Holder – Part Number: 5211505-01
    Holder
    Part Number: 5211505-01
      No Longer Available
  • 800
    Cleaner – Part Number: 5211500-01
    Cleaner
    Part Number: 5211500-01
      No Longer Available
  • 901
    Pulley Assy – Part Number: 5163529-01
    Pulley Assy
    Part Number: 5163529-01
      No Longer Available
  • 902
    STOPPER – Part Number: 514243901
    STOPPER
    Part Number: 514243901
      Special Order
    $34.62
  • 903
    Guide – Part Number: 521068101
    Guide
    Part Number: 521068101
      No Longer Available
Engine
Engine Diagram and Parts List for 000001 AND UP RedMax Leaf Blower / Vacuum
  • 1
    Carburetor Assy – Part Number: 5163436-01
    Carburetor Assy
    Part Number: 5163436-01
      No Longer Available
  • 2
    Bolt – Part Number: 5141770-01
    Bolt
    Part Number: 5141770-01
      No Longer Available
  • 2
    Screen – Part Number: 520957001
    Screen
    Part Number: 520957001
      Special Order
    $6.16
  • 3
    GASKET.CYL – Part Number: 513236901
    GASKET.CYL
    Part Number: 513236901
      Special Order
    $9.28
  • 3
    Cover – Part Number: 5133012-01
    Cover
    Part Number: 5133012-01
      No Longer Available
  • 4
    COVER, PUMP – Part Number: 516360201
    COVER, PUMP
    Part Number: 516360201
      Special Order
    $18.56
  • 5
    Shaft – Part Number: 5163587-01
    Shaft
    Part Number: 5163587-01
      No Longer Available
  • 6
    Gasket – Part Number: 5163539-01
    Gasket
    Part Number: 5163539-01
      No Longer Available
  • 6
    Needle Valve – Part Number: 5209785-01
    Needle Valve
    Part Number: 5209785-01
      No Longer Available
  • 7
    Insulator – Part Number: 5163542-01
    Insulator
    Part Number: 5163542-01
      No Longer Available
  • 7
    THROTTLE STOP – Part Number: 521065401
    THROTTLE STOP
    Part Number: 521065401
      Special Order
    $6.21
  • 8
    BOLT, M5 X 25 (RPLS 1491-14120 – Part Number: 516090301
    BOLT, M5 X 25 (RPLS 1491-14120
    Part Number: 516090301
      Special Order
    $2.99
  • 8
    Valve, Inlet – Part Number: 5740249-01
    Valve, Inlet
    Part Number: 5740249-01
      No Longer Available
  • 9
    Gasket – Part Number: 514242701
    Gasket
    Part Number: 514242701
      Special Order
    $7.73
  • 10
    Gasket – Part Number: 5163592-01
    Gasket
    Part Number: 5163592-01
      No Longer Available
  • 10
    Muffler Assy – Part Number: 5163646-01
    Muffler Assy
    Part Number: 5163646-01
      No Longer Available
  • 11
    Plug – Part Number: 516342901
    Plug
    Part Number: 516342901
      Special Order
    $10.84
  • 11
    ARRESTER (RPLS 149115520) – Part Number: 516355601
    ARRESTER (RPLS 149115520)
    Part Number: 516355601
      Special Order
    $5.17
  • 12
    GASKET (RPLS 149115530) – Part Number: 516355801
    GASKET (RPLS 149115530)
    Part Number: 516355801
      Special Order
    $4.13
  • 12
    95-75 Diaphragm – Part Number: 514243001
    95-75 Diaphragm
    Part Number: 514243001
      Special Order
    $27.85
  • 13
    DIAPHRAGM, METERING – Part Number: 516359301
    DIAPHRAGM, METERING
    Part Number: 516359301
      Special Order
    $27.85
  • 13
    Screw, M4 X 10 – Part Number: 516109301
    Screw, M4 X 10
    Part Number: 516109301
      No Longer Available
  • 14
    DISCONTINUED – Part Number: 520759801
    DISCONTINUED
    Part Number: 520759801
      Special Order
    $6.16
  • 14
    BOLT – Part Number: 513298901
    BOLT
    Part Number: 513298901
      Special Order
    $5.17
  • 15
    Screw – Part Number: 510478301
    Screw
    Part Number: 510478301
      No Longer Available
  • 15
    Screw – Part Number: 520977301
    Screw
    Part Number: 520977301
      Special Order
    $6.16
  • 16
    Screw – Part Number: 513301301
    Screw
    Part Number: 513301301
      No Longer Available
  • 16
    COVER – Part Number: 516356201
    COVER
    Part Number: 516356201
      Special Order
    $5.17
  • 17
    Screw – Part Number: 510478301
    Screw
    Part Number: 510478301
      No Longer Available
  • 17
    Body – Part Number: 5163430-01
    Body
    Part Number: 5163430-01
      No Longer Available
  • 18
    Screw – Part Number: 5163431-01
    Screw
    Part Number: 5163431-01
      No Longer Available
  • 18
    Crankcase – Part Number: 5163424-01
    Crankcase
    Part Number: 5163424-01
      No Longer Available
  • 19
    Spring – Part Number: 5163589-01
    Spring
    Part Number: 5163589-01
      No Longer Available
  • 19
    GASKET,CRNKCASE(RPLS140021140) – Part Number: 516312201
    GASKET,CRNKCASE(RPLS140021140)
    Part Number: 516312201
      Special Order
    $4.13
  • 20
    Spring – Part Number: 5163595-01
    Spring
    Part Number: 5163595-01
      No Longer Available
  • 20
    Bearing – Part Number: 510571301
    Bearing
    Part Number: 510571301
      No Longer Available
  • 21
    Oilseal – Part Number: 5163682-01
    Oilseal
    Part Number: 5163682-01
      No Longer Available
  • 21
    SPRING – Part Number: 516359601
    SPRING
    Part Number: 516359601
      Special Order
    $7.73
  • 22
    Needle – Part Number: 5133025-01
    Needle
    Part Number: 5133025-01
      No Longer Available
  • 22
    Seal – Part Number: 5132387-01
    Seal
    Part Number: 5132387-01
      No Longer Available
  • 23
    Screw – Part Number: 5160955-01
    Screw
    Part Number: 5160955-01
      No Longer Available
  • 23
    Needle – Part Number: 5133056-01
    Needle
    Part Number: 5133056-01
      No Longer Available
  • 24
    Ring – Part Number: 516126001
    Ring
    Part Number: 516126001
      Special Order
    $4.28
  • 24
    Pin – Part Number: 520977401
    Pin
    Part Number: 520977401
      In Stock
    $7.73
  • 25
    BOLT – Part Number: 513298901
    BOLT
    Part Number: 513298901
      Special Order
    $5.17
  • 25
    Pumping Button – Part Number: 5163601-01
    Pumping Button
    Part Number: 5163601-01
      No Longer Available
  • 26
    Lever – Part Number: 514242901
    Lever
    Part Number: 514242901
      Special Order
    $12.35
  • 27
    Swivel – Part Number: 5134007-01
    Swivel
    Part Number: 5134007-01
      No Longer Available
  • 28
    Ring – Part Number: 5163599-01
    Ring
    Part Number: 5163599-01
      No Longer Available
  • 29
    Screw – Part Number: 5135929-01
    Screw
    Part Number: 5135929-01
      No Longer Available
  • 29
    Pen – Part Number: 515245601
    Pen
    Part Number: 515245601
      No Longer Available
  • 30
    Screw – Part Number: 5161030-01
    Screw
    Part Number: 5161030-01
      No Longer Available
  • 30
    Spring, Idle – Part Number: 521066301
    Spring, Idle
    Part Number: 521066301
      Special Order
    $6.17
  • 31
    Screw – Part Number: 510481601
    Screw
    Part Number: 510481601
      Special Order
    $6.16
  • 31
    Shaft – Part Number: 5132768-01
    Shaft
    Part Number: 5132768-01
      No Longer Available
  • 32
    Gear – Part Number: 5740029-01
    Gear
    Part Number: 5740029-01
      No Longer Available
  • 32
    Valve – Part Number: 5142565-01
    Valve
    Part Number: 5142565-01
      No Longer Available
  • 33
    Screw – Part Number: 5133057-01
    Screw
    Part Number: 5133057-01
      No Longer Available
  • 34
    Spring – Part Number: 5740257-01
    Spring
    Part Number: 5740257-01
      No Longer Available
  • 34
    Washer – Part Number: 5740047-01
    Washer
    Part Number: 5740047-01
      No Longer Available
  • 35
    Gear (B) (Rpls 148023201) – Part Number: 5740030-01
    Gear (B) (Rpls 148023201)
    Part Number: 5740030-01
      No Longer Available
  • 35
    Clip – Part Number: 505056501
    Clip
    Part Number: 505056501
      Special Order
    $6.17
  • 36
    Motor – Part Number: 5740031-01
    Motor
    Part Number: 5740031-01
      No Longer Available
  • 37
    Gear(A) – Part Number: 5132747-01
    Gear(A)
    Part Number: 5132747-01
      No Longer Available
  • 38
    Cord – Part Number: 5740254-01
    Cord
    Part Number: 5740254-01
      No Longer Available
  • 39
    Cord – Part Number: 5132746-01
    Cord
    Part Number: 5132746-01
      No Longer Available
  • 40
    Screw, M4 X 10 – Part Number: 516109301
    Screw, M4 X 10
    Part Number: 516109301
      No Longer Available
  • 41
    Cover – Part Number: 5134872-01
    Cover
    Part Number: 5134872-01
      No Longer Available
  • 42
    BOLT – Part Number: 510455701
    BOLT
    Part Number: 510455701
      Special Order
    $9.28
  • 43
    Piston – Part Number: 5163447-01
    Piston
    Part Number: 5163447-01
      No Longer Available
  • 44
    Ring.Piston – Part Number: 510917901
    Ring.Piston
    Part Number: 510917901
      In Stock
    $10.57
  • 45
    PIN, PISTON – Part Number: 521057101
    PIN, PISTON
    Part Number: 521057101
      Special Order
    $7.73
  • 46
    Snap Ring – Part Number: 502849801
    Snap Ring
    Part Number: 502849801
    ★★★★★
    ★★★★★
    (1)
      In Stock
    $6.16
  • 47
    Bearing – Part Number: 502849901
    Bearing
    Part Number: 502849901
      In Stock
    $18.56
  • 48
    Washer – Part Number: 502850001
    Washer
    Part Number: 502850001
      In Stock
    $7.73
  • 50
    Shim – Part Number: 513226501
    Shim
    Part Number: 513226501
      No Longer Available
  • 51
    Nut – Part Number: 5161722-01
    Nut
    Part Number: 5161722-01
      No Longer Available
  • 52
    Washer – Part Number: 5161187-01
    Washer
    Part Number: 5161187-01
      No Longer Available
  • 53
    Washer – Part Number: 5160780-01
    Washer
    Part Number: 5160780-01
      No Longer Available
  • 54
    Key – Part Number: 506689401
    Key
    Part Number: 506689401
      In Stock
    $6.16
  • 55
    Nut – Part Number: 504118001
    Nut
    Part Number: 504118001
      In Stock
    $6.16
  • 56
    ROTOR – Part Number: 516352301
    ROTOR
    Part Number: 516352301
      Special Order
    $87.42
  • 58
    Ignition Coil – Part Number: 5163567-01
    Ignition Coil
    Part Number: 5163567-01
      No Longer Available
  • 61
    Spring – Part Number: 505298901
    Spring
    Part Number: 505298901
      Special Order
    $6.16
  • 62
    GROMMET – Part Number: 516173301
    GROMMET
    Part Number: 516173301
      Special Order
    $2.99
  • 63
    GROMMET – Part Number: 516193701
    GROMMET
    Part Number: 516193701
      Special Order
    $2.99
  • 64
    SCREW, M4 X 16 – Part Number: 516115501
    SCREW, M4 X 16
    Part Number: 516115501
      Special Order
    $2.99
  • 65
    Screw – Part Number: 516109601
    Screw
    Part Number: 516109601
      No Longer Available
  • 66
    Cable – Part Number: 5163568-01
    Cable
    Part Number: 5163568-01
      No Longer Available
  • 67
    Spark Plug – Part Number: 5133095-01
    Spark Plug
    Part Number: 5133095-01
      No Longer Available
  • 68
    Hub Cap – Part Number: 5162873-01
    Hub Cap
    Part Number: 5162873-01
      No Longer Available
  • 69
    Battery – Part Number: 5163426-01
    Battery
    Part Number: 5163426-01
      No Longer Available
  • 70
    Case – Part Number: 5132764-01
    Case
    Part Number: 5132764-01
      No Longer Available
  • 71
    Grommet – Part Number: 5132765-01
    Grommet
    Part Number: 5132765-01
      No Longer Available
  • 72
    Clip – Part Number: 526243901
    Clip
    Part Number: 526243901
      Special Order
    $6.16
  • 73
    RELAY – Part Number: 574025501
    RELAY
    Part Number: 574025501
      Special Order
    $99.91
  • 74
    Bolt – Part Number: 513667201
    Bolt
    Part Number: 513667201
      No Longer Available
  • 77
    Cord – Part Number: 5740256-01
    Cord
    Part Number: 5740256-01
      No Longer Available
  • 78
    CORD ASSEMBLY – Part Number: 574003201
    CORD ASSEMBLY
    Part Number: 574003201
      Special Order
    $7.73
  • 79
    Hub Cap – Part Number: 5155197-01
    Hub Cap
    Part Number: 5155197-01
      No Longer Available
  • 80
    Tube – Part Number: 5740033-01
    Tube
    Part Number: 5740033-01
      No Longer Available
  • 81
    Tube – Part Number: 5740034-01
    Tube
    Part Number: 5740034-01
      No Longer Available
  • 82
    Clamp – Part Number: 516377201
    Clamp
    Part Number: 516377201
      No Longer Available
  • 83
    RECOIL ASSY (RPLS 160075100) – Part Number: 516388201
    RECOIL ASSY (RPLS 160075100)
    Part Number: 516388201
      Special Order
    $64.51
  • 84
    Reel – Part Number: 5163886-01
    Reel
    Part Number: 5163886-01
      No Longer Available
  • 85
    SPRING.SPIRAL – Part Number: 513345301
    SPRING.SPIRAL
    Part Number: 513345301
      Special Order
    $12.35
  • 86
    Washer – Part Number: 5163888-01
    Washer
    Part Number: 5163888-01
      No Longer Available
  • 87
    Screw – Part Number: 5163890-01
    Screw
    Part Number: 5163890-01
      No Longer Available
  • 88
    ROPE – Part Number: 516389101
    ROPE
    Part Number: 516389101
      Special Order
    $7.73
  • 89
    Plate.Stopper – Part Number: 504114001
    Plate.Stopper
    Part Number: 504114001
      Special Order
    $7.73
  • 90
    Tape – Part Number: 5133458-01
    Tape
    Part Number: 5133458-01
      No Longer Available
  • 91
    Pulley Assy – Part Number: 5163895-01
    Pulley Assy
    Part Number: 5163895-01
      No Longer Available
  • 92
    Ratchet – Part Number: 5163898-01
    Ratchet
    Part Number: 5163898-01
      No Longer Available
  • 93
    SPRING, RETURN – Part Number: 516389901
    SPRING, RETURN
    Part Number: 516389901
      Special Order
    $2.99
  • 94
    E-Clip – Part Number: 513167701
    E-Clip
    Part Number: 513167701
      Special Order
    $6.16
  • 95
    Screw – Part Number: 510482301
    Screw
    Part Number: 510482301
      Special Order
    $6.17
  • 97
    Carburetor Assy – Part Number: 5163436-01
    Carburetor Assy
    Part Number: 5163436-01
      No Longer Available
  • 98
    Hub Cap – Part Number: 513352401
    Hub Cap
    Part Number: 513352401
      Special Order
    $6.16
  • 99
    BODY – Part Number: 516360601
    BODY
    Part Number: 516360601
      Special Order
    $13.90
  • 100
    COVER – Part Number: 513303201
    COVER
    Part Number: 513303201
      Special Order
    $10.84
  • 101
    Air Filter – Part Number: 513303301
    Air Filter
    Part Number: 513303301
      On Order
    $10.84
  • 102
    PLATE – Part Number: 513303701
    PLATE
    Part Number: 513303701
      Special Order
    $6.21
  • 103
    Screw – Part Number: 5161109-01
    Screw
    Part Number: 5161109-01
      No Longer Available
  • 104
    Cleaner Body – Part Number: 5211502-01
    Cleaner Body
    Part Number: 5211502-01
      No Longer Available
  • 105
    Rubber Band – Part Number: 5211503-01
    Rubber Band
    Part Number: 5211503-01
      No Longer Available
  • 106
    Element – Part Number: 5211504-01
    Element
    Part Number: 5211504-01
      No Longer Available
  • 108
    Cleaner – Part Number: 5211506-01
    Cleaner
    Part Number: 5211506-01
      No Longer Available
  • 109
    Screw – Part Number: 5143399-01
    Screw
    Part Number: 5143399-01
      No Longer Available
  • 110
    WASHER, M5 X .8 – Part Number: 516077501
    WASHER, M5 X .8
    Part Number: 516077501
      Special Order
    $4.28
  • 111
    Washer, Spring M – Part Number: 516076301
    Washer, Spring M
    Part Number: 516076301
      No Longer Available
  • 114
    Screw – Part Number: 5161010-01
    Screw
    Part Number: 5161010-01
      No Longer Available
  • 115
    Nut – Part Number: 514183901
    Nut
    Part Number: 514183901
      In Stock
    $6.16
  • 116
    WASHER, M5 X .8 – Part Number: 516077501
    WASHER, M5 X .8
    Part Number: 516077501
      Special Order
    $4.28
  • 117
    HOSE (RPLS 349683300) – Part Number: 521151001
    HOSE (RPLS 349683300)
    Part Number: 521151001
      Special Order
    $70.96
  • 118
    Clamp – Part Number: 5211511-01
    Clamp
    Part Number: 5211511-01
      No Longer Available
  • 120
    Case, Cleaner – Part Number: 5740037-01
    Case, Cleaner
    Part Number: 5740037-01
      No Longer Available
  • 121
    Plug – Part Number: 5141508-01
    Plug
    Part Number: 5141508-01
      No Longer Available
  • 122
    Spacer – Part Number: 5133099-01
    Spacer
    Part Number: 5133099-01
      No Longer Available
  • 123
    GASKET (RPLS 149783430) – Part Number: 516365501
    GASKET (RPLS 149783430)
    Part Number: 516365501
      Special Order
    $2.99
  • 150
    Screen – Part Number: 513303501
    Screen
    Part Number: 513303501
      In Stock
    $11.88
  • 501
    Kit, Gear*** – Part Number: 5740820-01
    Kit, Gear***
    Part Number: 5740820-01
      No Longer Available
  • 502
    GASKET KIT (RPLS 3490-06010) – Part Number: 521140401
    GASKET KIT (RPLS 3490-06010)
    Part Number: 521140401
      Special Order
    $27.85
  • 503
    Gasket Kit – Part Number: 5211495-01
    Gasket Kit
    Part Number: 5211495-01
      No Longer Available
  • 504
    Repair Kit – Part Number: 5211496-01
    Repair Kit
    Part Number: 5211496-01
      No Longer Available
  • 510
    Cleaner – Part Number: 5211500-01
    Cleaner
    Part Number: 5211500-01
      No Longer Available
  • 511
    Screw – Part Number: 5161010-01
    Screw
    Part Number: 5161010-01
      No Longer Available
  • 512
    Nut – Part Number: 514183901
    Nut
    Part Number: 514183901
      In Stock
    $6.16
  • 513
    WASHER, M5 X .8 – Part Number: 516077501
    WASHER, M5 X .8
    Part Number: 516077501
      Special Order
    $4.28
  • 515
    HOSE (RPLS 349683300) – Part Number: 521151001
    HOSE (RPLS 349683300)
    Part Number: 521151001
      Special Order
    $70.96
  • 516
    Clamp – Part Number: 5211511-01
    Clamp
    Part Number: 5211511-01
      No Longer Available
  • 517
    Case, Cleaner – Part Number: 5740037-01
    Case, Cleaner
    Part Number: 5740037-01
      No Longer Available
  • 518
    Spacer – Part Number: 5133099-01
    Spacer
    Part Number: 5133099-01
      No Longer Available
  • 519
    Gasket – Part Number: 5163539-01
    Gasket
    Part Number: 5163539-01
      No Longer Available
  • 520
    Carburetor Assy – Part Number: 5163436-01
    Carburetor Assy
    Part Number: 5163436-01
      No Longer Available
  • 521
    GASKET (RPLS 149783430) – Part Number: 516365501
    GASKET (RPLS 149783430)
    Part Number: 516365501
      Special Order
    $2.99
  • 800
    Holder – Part Number: 5211505-01
    Holder
    Part Number: 5211505-01
      No Longer Available
  • 800
    Cleaner – Part Number: 5211500-01
    Cleaner
    Part Number: 5211500-01
      No Longer Available
  • 901
    Pulley Assy – Part Number: 5163529-01
    Pulley Assy
    Part Number: 5163529-01
      No Longer Available
  • 902
    STOPPER – Part Number: 514243901
    STOPPER
    Part Number: 514243901
      Special Order
    $34.62
  • 903
    Guide – Part Number: 521068101
    Guide
    Part Number: 521068101
      No Longer Available

Questions & Answers

?

Our customer Service team is at the ready daily to answer your part and product questions.

Be the first to ask our experts a question about this part!

Ask our Team

We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.

✖

Our customer service team are at the ready daily to answer your part and product questions. We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
