Craftsman 20v Max Axial Blower Leaf Blower / Vacuum Replacement Parts For Model CMCBL720M1 (Type 1)

We Sell Only Genuine Craftsman Parts

Popular Parts for CMCBL720M1

Search Within Model

Questions & Answers for Craftsman CMCBL720M1
Browse all Parts Search by Area

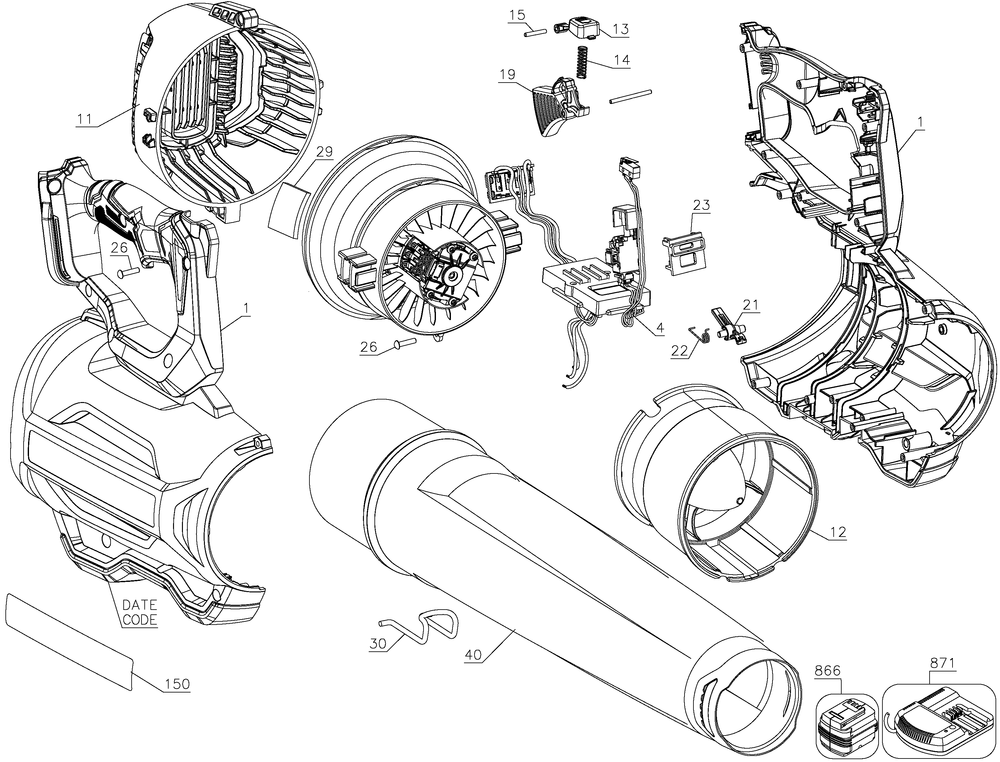

Diagram Diagram and Parts List for Type 1 Craftsman Leaf Blower / Vacuum
Diagram
Previous Showing All Parts Next
Diagram
Diagram Diagram and Parts List for Type 1 Craftsman Leaf Blower / Vacuum
  • 1
    HOUSINGS – Part Number: N531217
    HOUSINGS
    Part Number: N531217
      Special Order
    $52.48
  • 4
    MODULE – Part Number: N626687
    MODULE
    Part Number: N626687
      Special Order
    $69.65
  • 4
    Module – Part Number: N563894
    Module
    Part Number: N563894
      No Longer Available
  • 11
    INLET CAP – Part Number: N531215
    INLET CAP
    Part Number: N531215
      Special Order
    $13.82
  • 12
    HOUSING – Part Number: 90614111
    HOUSING
    Part Number: 90614111
      In Stock
    $5.16
  • 13
    BUTTON, BOOST – Part Number: N561314
    BUTTON, BOOST
    Part Number: N561314
      Special Order
    $5.95
  • 14
    ACTUATOR SPRING – Part Number: 90623558
    ACTUATOR SPRING
    Part Number: 90623558
      No Longer Available
  • 15
    Pin – Part Number: 632492-00
    Pin
    Part Number: 632492-00
      Special Order
    $5.95
  • 19
    TRIGGER – Part Number: N567167
    TRIGGER
    Part Number: N567167
      Special Order
    $5.95
  • 21
    TUBE CLIP – Part Number: 90605748
    TUBE CLIP
    Part Number: 90605748
    ★★★★★
    ★★★★★
    (3)
      In Stock
    $5.95
  • 22
    TORSION SPRING – Part Number: 90609997
    TORSION SPRING
    Part Number: 90609997
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 23
    SWITCH SUPPORT – Part Number: 90605114
    SWITCH SUPPORT
    Part Number: 90605114
      Special Order
    $5.95
  • 26
    Screw – Part Number: 330019-03
    Screw
    Part Number: 330019-03
    ★★★★★
    ★★★★★
    (2)
      On Order
    Minimum Quantity of 2 required
    $5.95
  • 29
    FOAM PAD – Part Number: 90620643
    FOAM PAD
    Part Number: 90620643
      No Longer Available
  • 30
    HOOK, VERSATRACK – Part Number: N545340
    HOOK, VERSATRACK
    Part Number: N545340
      Special Order
    $5.95
  • 40
    BLOWER TUBE – Part Number: N580299
    BLOWER TUBE
    Part Number: N580299
      Special Order
    $46.98
  • 150
    LABEL RATING CMCBL720 – Part Number: N537869
    LABEL RATING CMCBL720
    Part Number: N537869
      Special Order
    $5.95
  • 866
    Battery – Part Number: CMCB204
    Battery
    Part Number: CMCB204
      No Longer Available
  • 871
    Charger – Part Number: CMCB104
    Charger
    Part Number: CMCB104
      No Longer Available
