Toro Z147 Z Master, With 44-Inch Sfs Side Discharge Mower Lawn Tractor Replacement Parts For Model 74170 (990001 - 999999)

We Sell Only Genuine Toro Parts

Popular Parts for 74170

Nut-lock, Ni – Part Number: 3296-42 Nut-lock, Ni
In Stock
$5.95
Nut-lock, Ni – Part Number: 3296-29 Nut-lock, Ni
In Stock
$5.95
Lawn Mower Ignition Key – Part Number: 63-8360 Lawn Mower Ignition Key
In Stock
$7.92
Washer-flat – Part Number: 3256-24 Washer-flat
In Stock
Minimum Quantity of 2 required
$5.95
Roller-scalp, Anti – Part Number: 1-603299 Roller-scalp, Anti
In Stock
$29.98
Solenoid – Part Number: 117-1197 Solenoid
In Stock
$53.73
Oil Filter – Part Number: 49065-2071 Oil Filter
In Stock
$19.40
Screw-hh – Part Number: 323-9 Screw-hh
In Stock
Minimum Quantity of 2 required
$5.95

Search Within Model

Questions & Answers for Toro 74170
Browse all Parts Search by Area
Air-Filter/Muffler Assembly Kawasaki Fh500v-As10 Diagram and Parts List for 990001 - 999999 Toro Lawn Tractor
Air-Filter/Muffler Assembly Kawasaki Fh500v-As10
Blade, Spindle And Belt Assembly Diagram and Parts List for 990001 - 999999 Toro Lawn Tractor
Blade, Spindle And Belt Assembly
Carburetor Assembly Kawasaki Fh500v-As10 Diagram and Parts List for 990001 - 999999 Toro Lawn Tractor
Carburetor Assembly Kawasaki Fh500v-As10

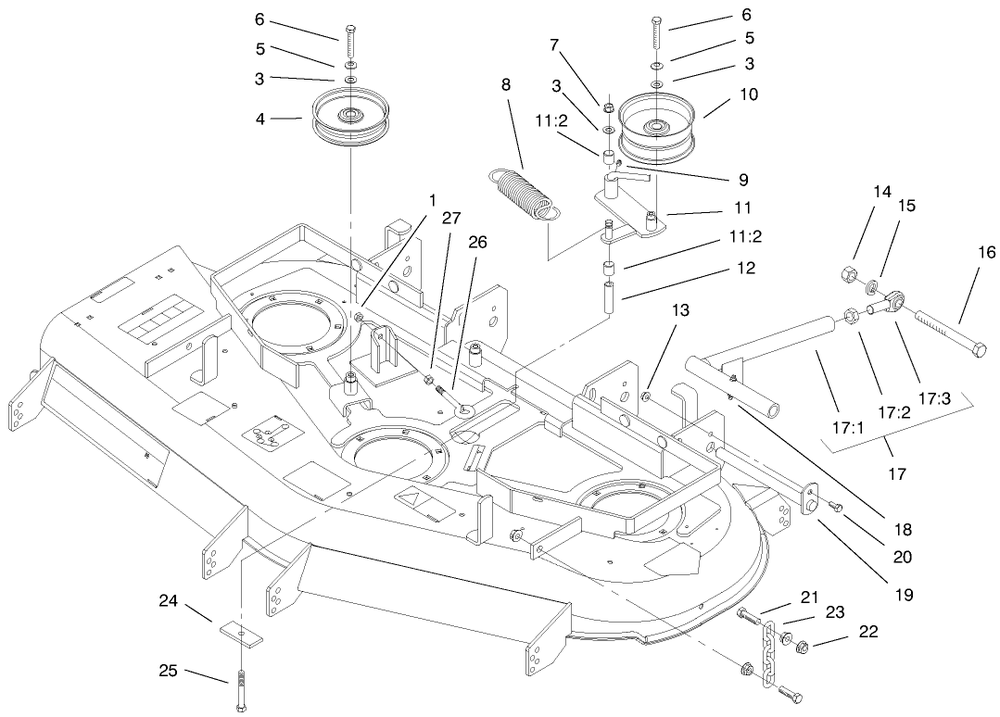

Chains, Pulleys, Lift Struts And Idler Assembly Diagram and Parts List for 990001 - 999999 Toro Lawn Tractor
Chains, Pulleys, Lift Struts And Idler Assembly
Control-Equipment Assembly Kawasaki Fh500v-As10 Diagram and Parts List for 990001 - 999999 Toro Lawn Tractor
Control-Equipment Assembly Kawasaki Fh500v-As10

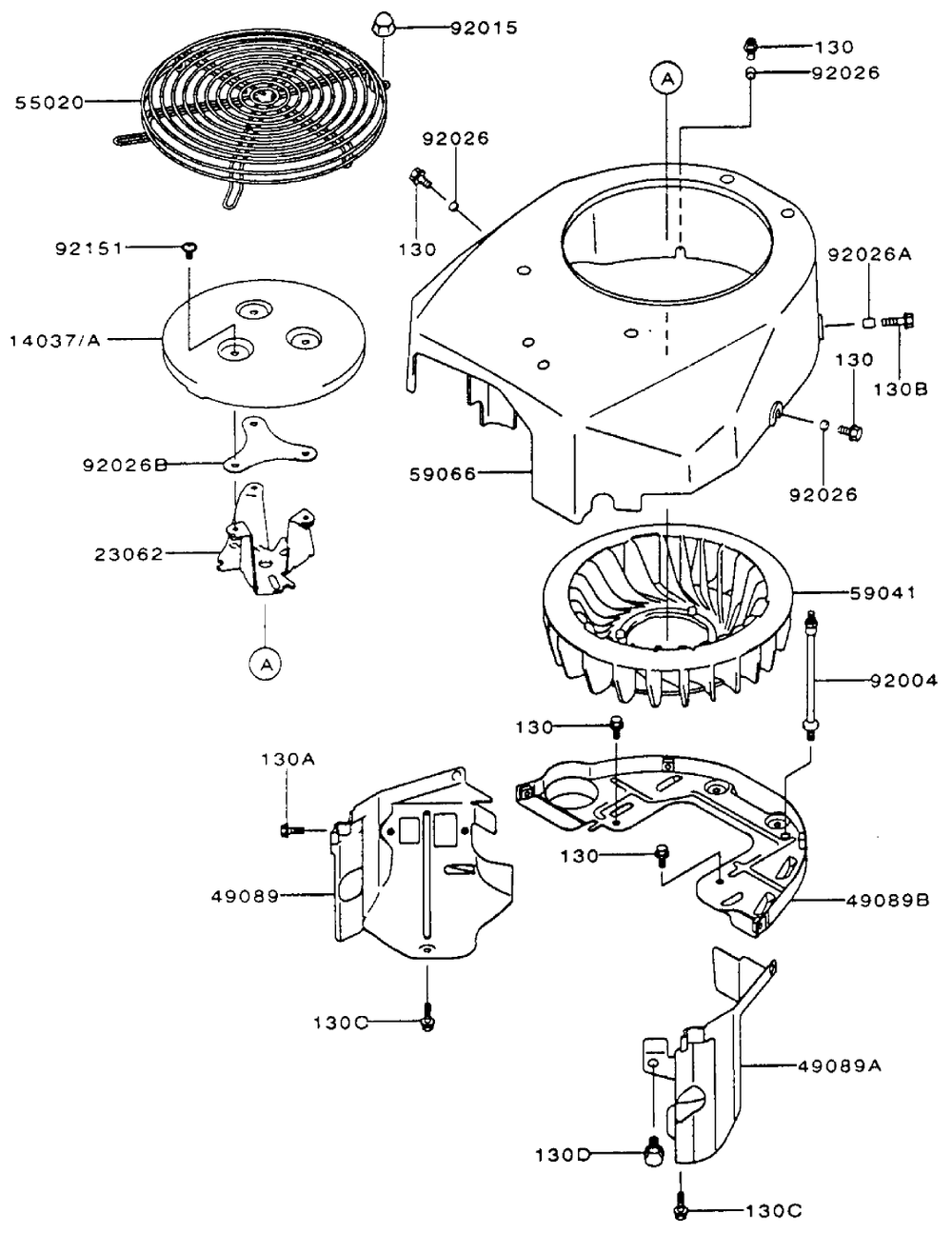

Cooling-Equipment Assembly Kawasaki Fh500v-As10 Diagram and Parts List for 990001 - 999999 Toro Lawn Tractor
Cooling-Equipment Assembly Kawasaki Fh500v-As10
Cylinder/Crankcase Assembly Kawasaki Fh500v-As10 Diagram and Parts List for 990001 - 999999 Toro Lawn Tractor
Cylinder/Crankcase Assembly Kawasaki Fh500v-As10
Decals, Deflector, Cover And Rollers Assembly Diagram and Parts List for 990001 - 999999 Toro Lawn Tractor
Decals, Deflector, Cover And Rollers Assembly
Electric-Equipment Assembly Kawasaki Fh500v-As10 Diagram and Parts List for 990001 - 999999 Toro Lawn Tractor
Electric-Equipment Assembly Kawasaki Fh500v-As10
Electrical System Assembly Diagram and Parts List for 990001 - 999999 Toro Lawn Tractor
Electrical System Assembly
Engine And Clutch Assembly Diagram and Parts List for 990001 - 999999 Toro Lawn Tractor
Engine And Clutch Assembly
Front Frame Assembly Diagram and Parts List for 990001 - 999999 Toro Lawn Tractor
Front Frame Assembly
Fuel System Assembly Diagram and Parts List for 990001 - 999999 Toro Lawn Tractor
Fuel System Assembly

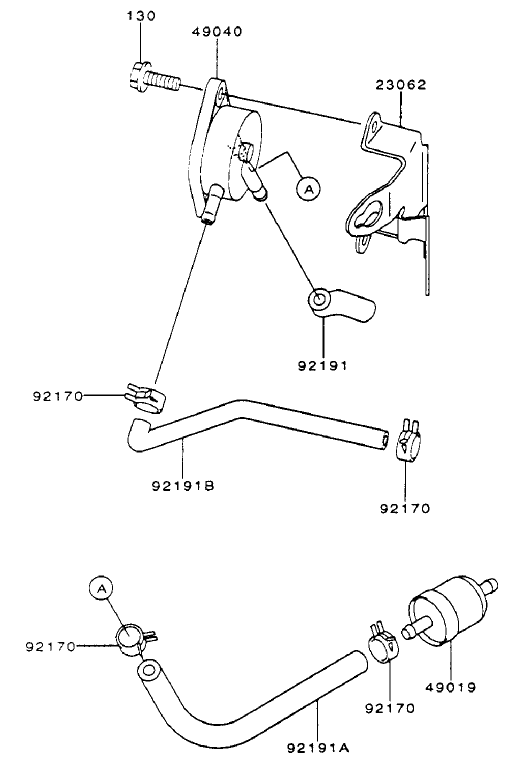

Fuel-Tank/Fuel-Valve Assembly Kawasaki Fh500v-As10 Diagram and Parts List for 990001 - 999999 Toro Lawn Tractor
Fuel-Tank/Fuel-Valve Assembly Kawasaki Fh500v-As10
Hydraulic System Assembly Diagram and Parts List for 990001 - 999999 Toro Lawn Tractor
Hydraulic System Assembly

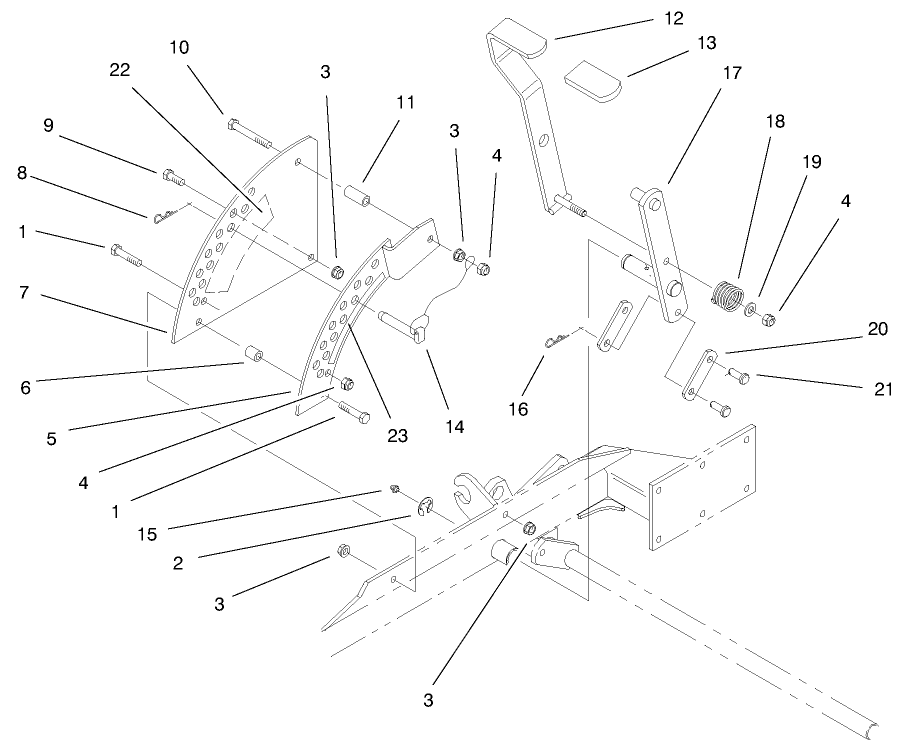

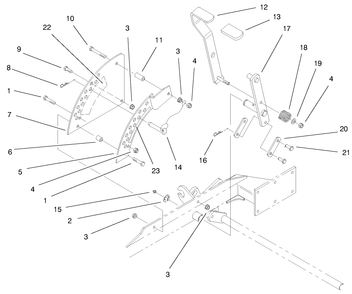

Lift Handles And Plates Diagram and Parts List for 990001 - 999999 Toro Lawn Tractor
Lift Handles And Plates

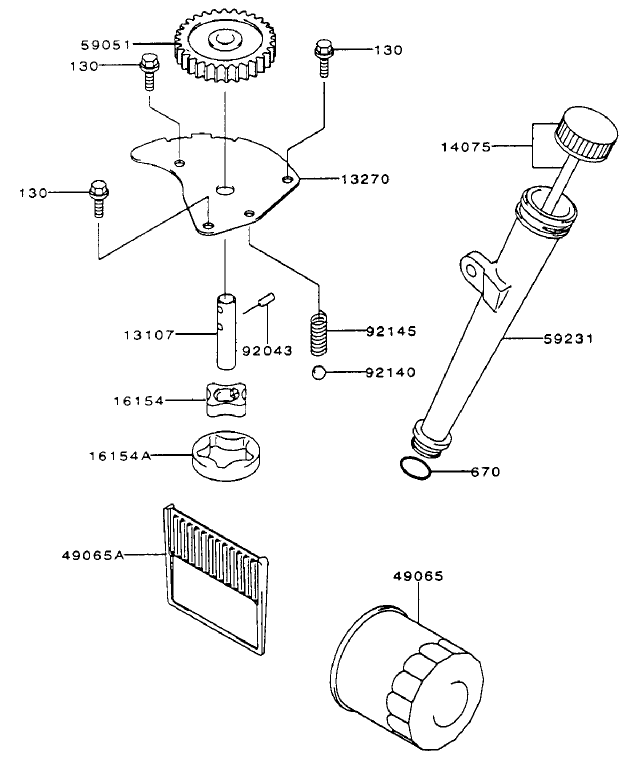

Lubrication-Equipment Assembly Kawasaki Fh500v-As10 Diagram and Parts List for 990001 - 999999 Toro Lawn Tractor
Lubrication-Equipment Assembly Kawasaki Fh500v-As10
Main Frame Assembly Diagram and Parts List for 990001 - 999999 Toro Lawn Tractor
Main Frame Assembly

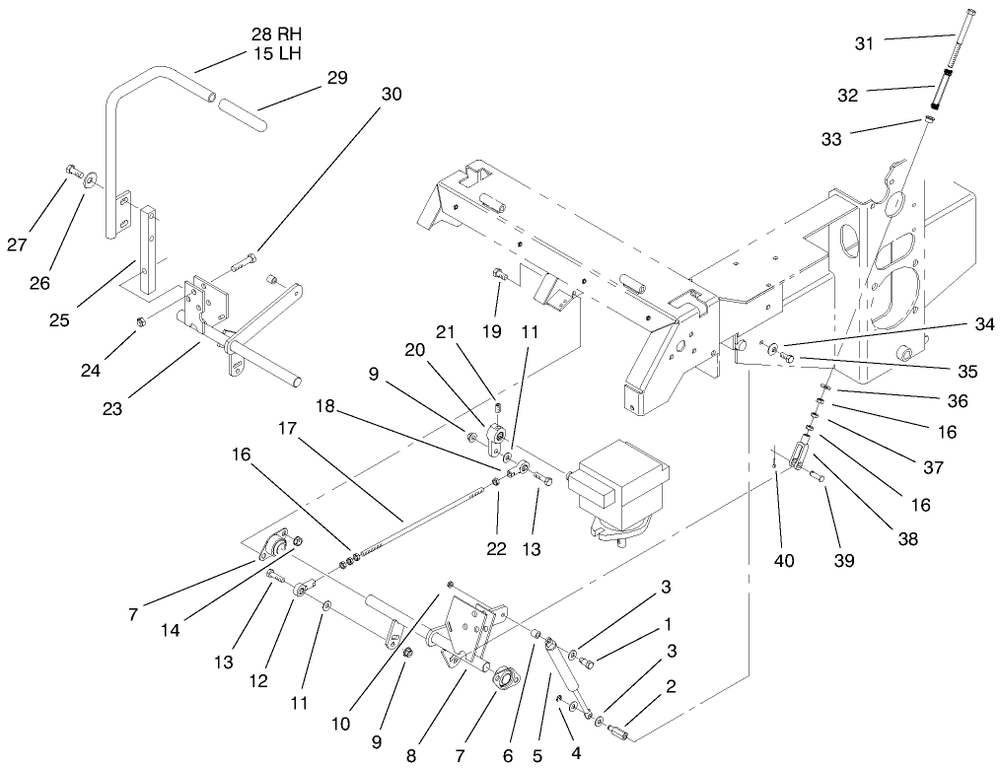

Motion Control System Assembly Diagram and Parts List for 990001 - 999999 Toro Lawn Tractor
Motion Control System Assembly
Parking Brake System Assembly Diagram and Parts List for 990001 - 999999 Toro Lawn Tractor
Parking Brake System Assembly

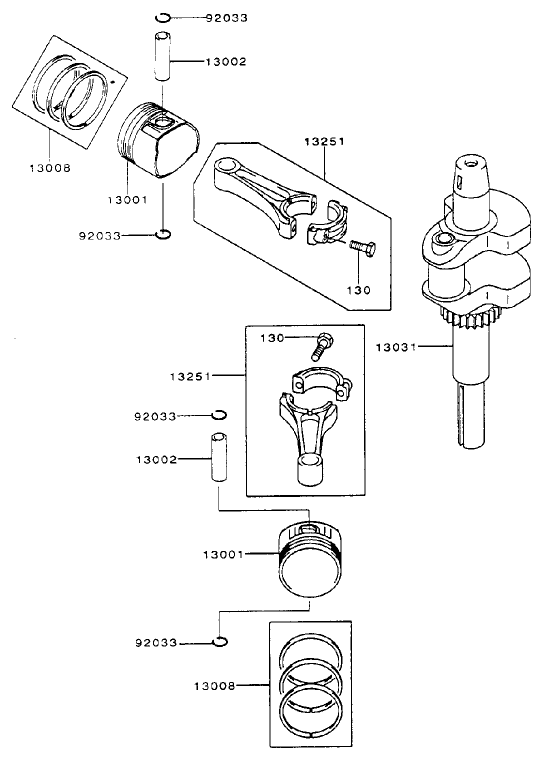

Piston/Crankshaft Assembly Kawasaki Fh500v-As10 Diagram and Parts List for 990001 - 999999 Toro Lawn Tractor
Piston/Crankshaft Assembly Kawasaki Fh500v-As10

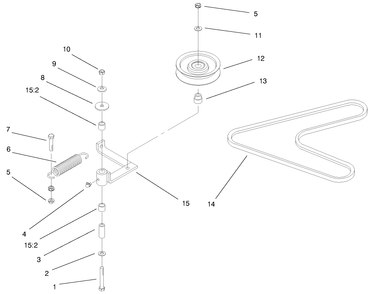

Pump, Idler And Belt Assembly Diagram and Parts List for 990001 - 999999 Toro Lawn Tractor
Pump, Idler And Belt Assembly

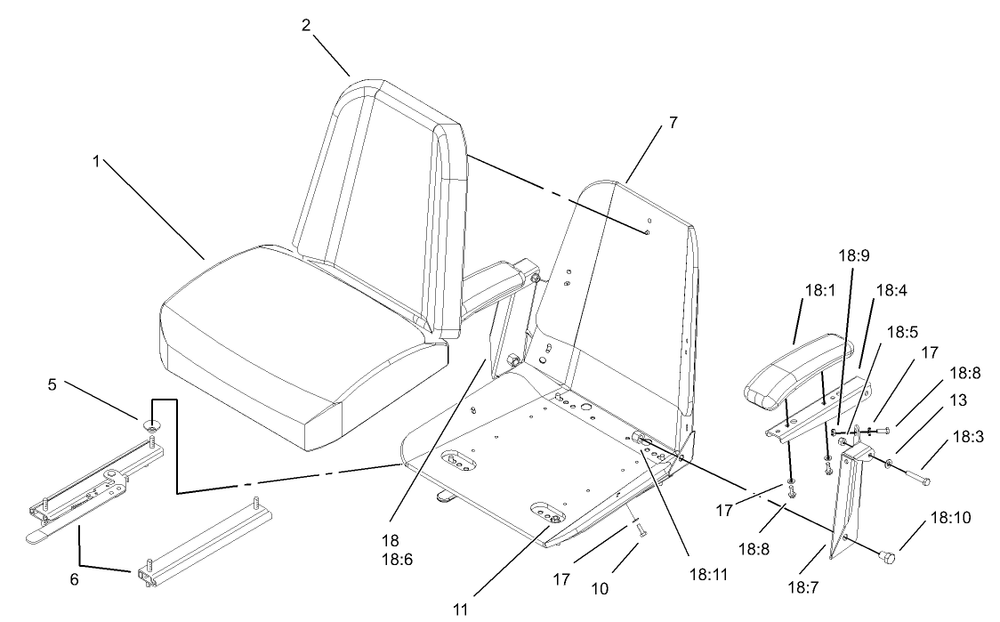

Seat Assembly No. 1-633705 Diagram and Parts List for 990001 - 999999 Toro Lawn Tractor
Seat Assembly No. 1-633705

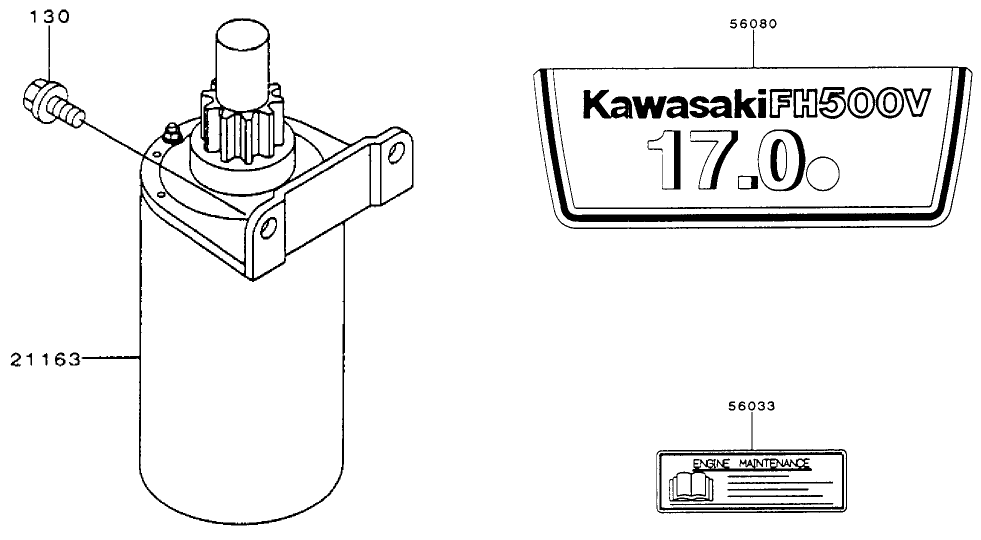

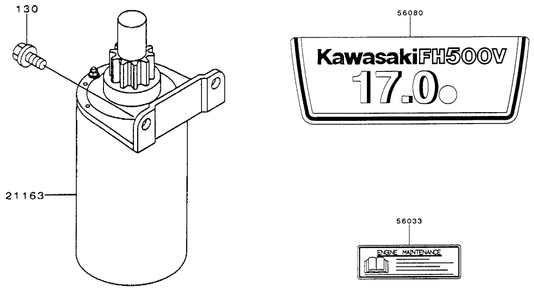

Starter/Decals-Kawasaki Fh500v-As10 Diagram and Parts List for 990001 - 999999 Toro Lawn Tractor
Starter/Decals-Kawasaki Fh500v-As10
Valve/Camshaft Assembly Kawasaki Fh500v-As10 Diagram and Parts List for 990001 - 999999 Toro Lawn Tractor
Valve/Camshaft Assembly Kawasaki Fh500v-As10
Previous Showing All Parts Next

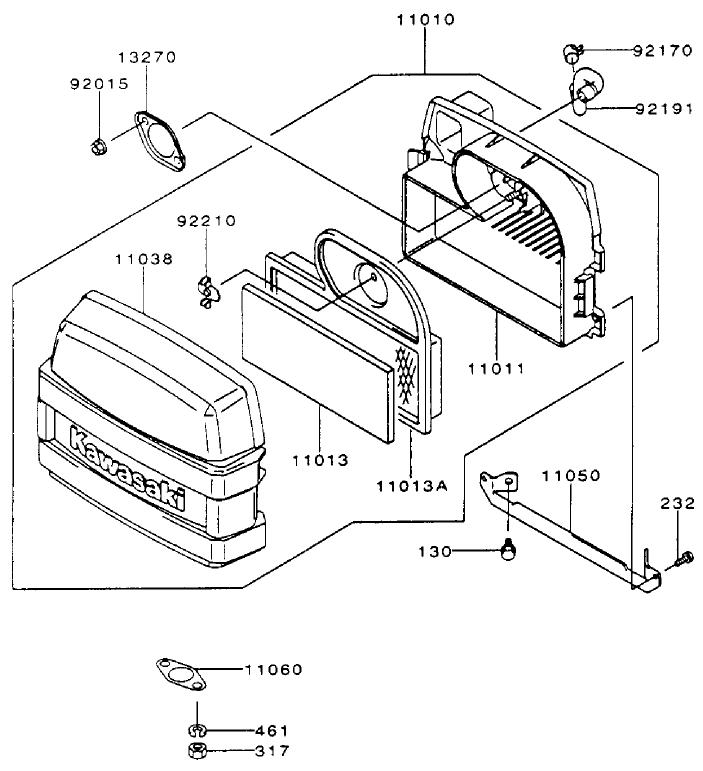

Air-Filter/Muffler Assembly Kawasaki Fh500v-As10
Air-Filter/Muffler Assembly Kawasaki Fh500v-As10 Diagram and Parts List for 990001 - 999999 Toro Lawn Tractor
  • 130
    Bolt-Flanged (6X12) – Part Number: 130B0612
    Bolt-Flanged (6X12)
    Part Number: 130B0612
      No Longer Available
  • 232
    Screw-Pan – Part Number: 232B0514
    Screw-Pan
    Part Number: 232B0514
      No Longer Available
  • 317
    Nut-Hex, Small (8Mm) – Part Number: 317R0800
    Nut-Hex, Small (8Mm)
    Part Number: 317R0800
      No Longer Available
  • 461
    Washer-Spring (8Mm) – Part Number: 461F0800
    Washer-Spring (8Mm)
    Part Number: 461F0800
      No Longer Available
  • 11010
    Filter-Assy-Air – Part Number: 11010-7001
    Filter-Assy-Air
    Part Number: 11010-7001
      No Longer Available
  • 11011
    Case-Air Filter – Part Number: 11011-7001
    Case-Air Filter
    Part Number: 11011-7001
      No Longer Available
  • 11013
    Element-Filter, Air – Part Number: 11013-7001
    Element-Filter, Air
    Part Number: 11013-7001
      No Longer Available
  • 11013A
    Element-Filter, Air – Part Number: 11013-7002
    Element-Filter, Air
    Part Number: 11013-7002
      No Longer Available
  • 11038
    DISCONTINUED – Part Number: 11038-7001
    DISCONTINUED
    Part Number: 11038-7001
      No Longer Available
  • 11050
    Bracket – Part Number: 11050-7006
    Bracket
    Part Number: 11050-7006
      No Longer Available
  • 11060
    Gasket, Muffler – Part Number: 11060-7006
    Gasket, Muffler
    Part Number: 11060-7006
      No Longer Available
  • 13270
    Plate – Part Number: 13270-7001
    Plate
    Part Number: 13270-7001
      In Stock
    $7.10
  • 92015
    Nut – Part Number: 92015-1193
    Nut
    Part Number: 92015-1193
      No Longer Available
  • 92170
    Clamp – Part Number: 92170-7003
    Clamp
    Part Number: 92170-7003
      In Stock
    $5.95
  • 92191
    Tube – Part Number: 92191-7001
    Tube
    Part Number: 92191-7001
      No Longer Available
  • 92210
    Nut – Part Number: 92210-7004
    Nut
    Part Number: 92210-7004
      No Longer Available

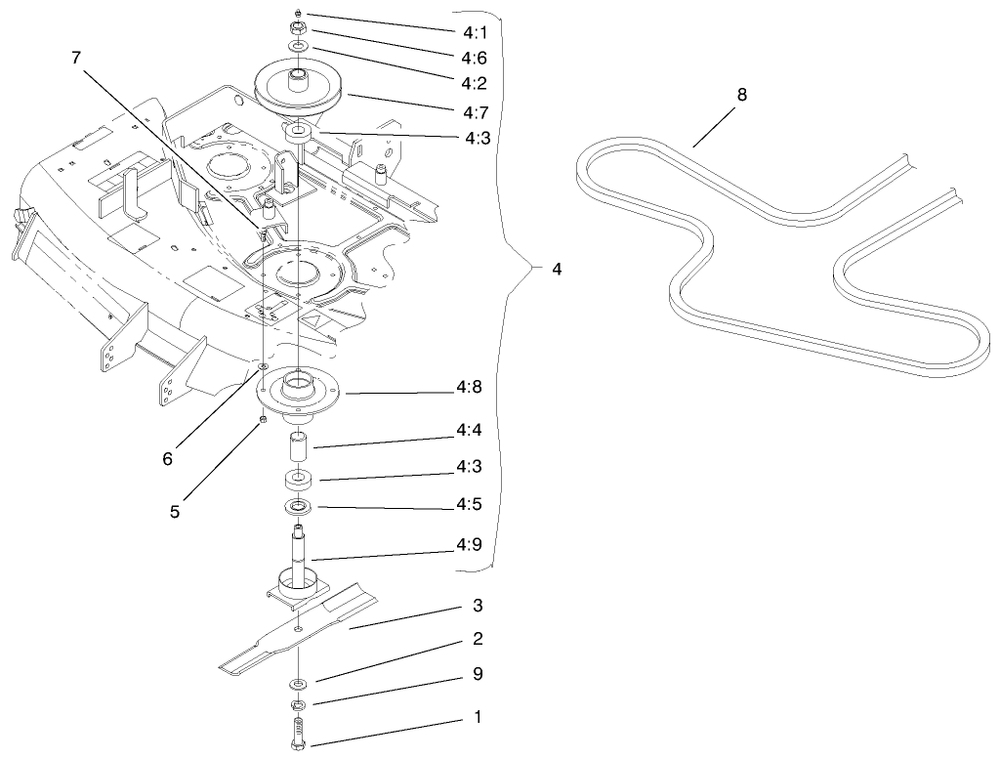

Blade, Spindle And Belt Assembly
Blade, Spindle And Belt Assembly Diagram and Parts List for 990001 - 999999 Toro Lawn Tractor
  • 1
    Screw-blade – Part Number: 51-4060
    Screw-blade
    Part Number: 51-4060
      In Stock
    $11.08
  • 2
    Washer-Flat – Part Number: 3256-27
    Washer-Flat
    Part Number: 3256-27
      Special Order
    $5.95
  • 3
    Blade – Part Number: 54-0010-03
    Blade
    Part Number: 54-0010-03
      In Stock
    $33.95
  • 4
    Spindle Housing Asm – Part Number: 100-3977
    Spindle Housing Asm
    Part Number: 100-3977
      Special Order
    $388.38
  • 4:1
    Fitting-Grease – Part Number: 302-2
    Fitting-Grease
    Part Number: 302-2
      Special Order
    $5.95
  • 4:2
    Washer – Part Number: 7-4150
    Washer
    Part Number: 7-4150
      Special Order
    $5.95
  • 4:3
    Bearing-Ball – Part Number: 251-257
    Bearing-Ball
    Part Number: 251-257
      Special Order
    $26.22
  • 4:4
    Spacer-Bearing – Part Number: 67-7580
    Spacer-Bearing
    Part Number: 67-7580
      No Longer Available
  • 4:5
    Spacer-Spindle – Part Number: 67-7570
    Spacer-Spindle
    Part Number: 67-7570
      Special Order
    $18.72
  • 4:6
    Nut-Jam – Part Number: 32146-20
    Nut-Jam
    Part Number: 32146-20
      Special Order
    $6.06
  • 4:7
    PULLEY Assembly – Part Number: 99-4631
    PULLEY Assembly
    Part Number: 99-4631
      No Longer Available
  • 4:8
    Housing – Part Number: 67-7590
    Housing
    Part Number: 67-7590
      Special Order
    $342.84
  • 4:9
    Spindle Shaft Assembly – Part Number: 99-3912
    Spindle Shaft Assembly
    Part Number: 99-3912
      No Longer Available
  • 5
    7/8X046 In Snap Ring – Part Number: 32151-1
    7/8X046 In Snap Ring
    Part Number: 32151-1
      Special Order
    $5.95
  • 6
    Washer-Flat – Part Number: 3256-2
    Washer-Flat
    Part Number: 3256-2
      Special Order
    Minimum Quantity of 2 required
    $5.95
  • 7
    Screw-hh – Part Number: 322-4
    Screw-hh
    Part Number: 322-4
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 8
    V-Belt, Drive – Part Number: 98-3780
    V-Belt, Drive
    Part Number: 98-3780
      In Stock
    $139.54
  • 9
    Washer-Lock – Part Number: 3253-8
    Washer-Lock
    Part Number: 3253-8
      In Stock
    Minimum Quantity of 2 required
    $5.95

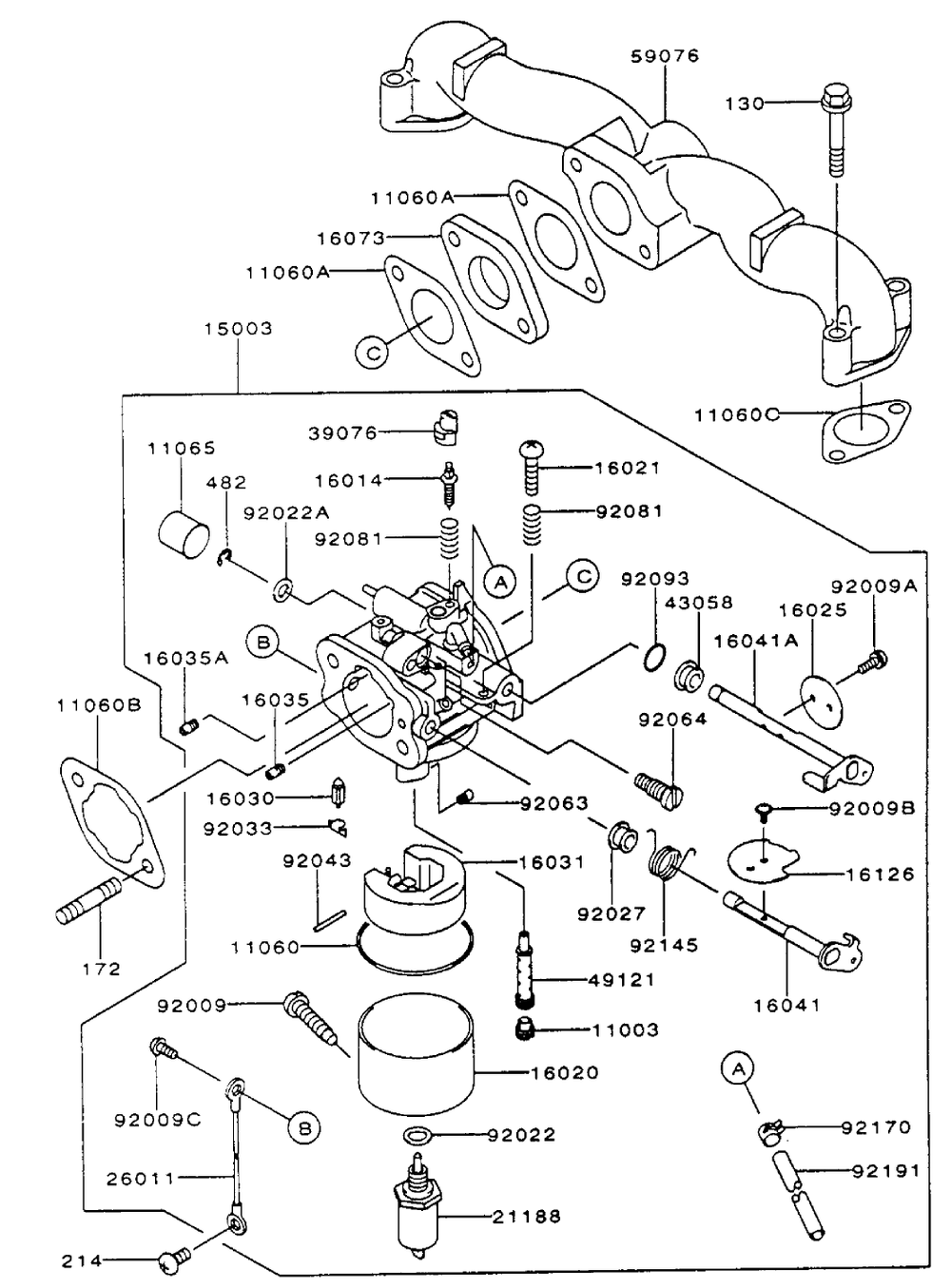

Carburetor Assembly Kawasaki Fh500v-As10
Carburetor Assembly Kawasaki Fh500v-As10 Diagram and Parts List for 990001 - 999999 Toro Lawn Tractor
  • 130
    Bolt-Flanged – Part Number: 130B0635
    Bolt-Flanged
    Part Number: 130B0635
      No Longer Available
  • 172
    Bolt-Stud – Part Number: 172G0685
    Bolt-Stud
    Part Number: 172G0685
      No Longer Available
  • 214
    Screw-Pan 5X10 – Part Number: 214B0510
    Screw-Pan 5X10
    Part Number: 214B0510
      No Longer Available
  • 482
    Circlip-Type-E – Part Number: 482L400
    Circlip-Type-E
    Part Number: 482L400
      No Longer Available
  • 11003
    Seat-Valve – Part Number: 11003-2105
    Seat-Valve
    Part Number: 11003-2105
      No Longer Available
  • 11060
    Gasket-chamber – Part Number: 11060-2406
    Gasket-chamber
    Part Number: 11060-2406
      Special Order
    Minimum Quantity of 2 required
    $6.76
  • 11060A
    Gasket-Insulator – Part Number: 11060-7003
    Gasket-Insulator
    Part Number: 11060-7003
      No Longer Available
  • 11060B
    Gsket-Air Filter – Part Number: 11060-7004
    Gsket-Air Filter
    Part Number: 11060-7004
      No Longer Available
  • 11060C
    Gasket, Manifold – Part Number: 11060-7005
    Gasket, Manifold
    Part Number: 11060-7005
      No Longer Available
  • 11065
    Cap – Part Number: 11065-2061
    Cap
    Part Number: 11065-2061
      Special Order
    $5.95
  • 15003
    Carburetor-Assy – Part Number: 15003-2632
    Carburetor-Assy
    Part Number: 15003-2632
      No Longer Available
  • 16014
    Screw-Pilot Air – Part Number: 16014-2080
    Screw-Pilot Air
    Part Number: 16014-2080
      No Longer Available
  • 16020
    Chamber-Float – Part Number: 16020-2141
    Chamber-Float
    Part Number: 16020-2141
      No Longer Available
  • 16021
    Screw-Throttle Stop – Part Number: 16021-2060
    Screw-Throttle Stop
    Part Number: 16021-2060
      Special Order
    $7.88
  • 16025
    Valve-Throttle-130 – Part Number: 16025-2193
    Valve-Throttle-130
    Part Number: 16025-2193
      Special Order
    $12.32
  • 16030
    Valve-Float – Part Number: 16030-2067
    Valve-Float
    Part Number: 16030-2067
      No Longer Available
  • 16031
    Float – Part Number: 16031-2066
    Float
    Part Number: 16031-2066
    ★★★★★
    ★★★★★
    (1)
      Special Order
    $36.30
  • 16035
    Jet-Air-#1.7 – Part Number: 16035-2060
    Jet-Air-#1.7
    Part Number: 16035-2060
      Special Order
    $12.72
  • 16035A
    Jet-Air-1.2 – Part Number: 16035-2061
    Jet-Air-1.2
    Part Number: 16035-2061
      Special Order
    $9.96
  • 16041
    Shaft-Carburetor-Choke – Part Number: 16041-2252
    Shaft-Carburetor-Choke
    Part Number: 16041-2252
      Special Order
    $27.00
  • 16041A
    Shaft-Carburetor-Throttle – Part Number: 16041-2253
    Shaft-Carburetor-Throttle
    Part Number: 16041-2253
      Special Order
    $43.87
  • 16073
    Insulator – Part Number: 16073-7001
    Insulator
    Part Number: 16073-7001
      No Longer Available
  • 16126
    Valve – Part Number: 16126-2218
    Valve
    Part Number: 16126-2218
      Special Order
    $8.26
  • 21188
    Solenoid – Part Number: 21188-2011
    Solenoid
    Part Number: 21188-2011
      Special Order
    $183.16
  • 26011
    Wire-Lead – Part Number: 26011-2281
    Wire-Lead
    Part Number: 26011-2281
      Special Order
    $8.60
  • 39076
    Limiter – Part Number: 39076-2053
    Limiter
    Part Number: 39076-2053
      Special Order
    $8.48
  • 43058
    Ring – Part Number: 43058-3716
    Ring
    Part Number: 43058-3716
      Special Order
    $5.95
  • 49121
    Nozzle-Main-113A – Part Number: 49121-2222
    Nozzle-Main-113A
    Part Number: 49121-2222
      No Longer Available
  • 59076
    Manifold-Intake – Part Number: 59076-7001
    Manifold-Intake
    Part Number: 59076-7001
      No Longer Available
  • 92009
    Screw – Part Number: 92009-2015
    Screw
    Part Number: 92009-2015
      Special Order
    $7.40
  • 92009A
    Screw – Part Number: 92009-2024
    Screw
    Part Number: 92009-2024
      In Stock
    $5.95
  • 92009B
    Screw – Part Number: 92009-2081
    Screw
    Part Number: 92009-2081
      Special Order
    $5.95
  • 92009C
    Screw – Part Number: 92009-2400
    Screw
    Part Number: 92009-2400
      Special Order
    $5.95
  • 92022
    Washer – Part Number: 92022-2231
    Washer
    Part Number: 92022-2231
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 92022A
    Washer – Part Number: 92022-2239
    Washer
    Part Number: 92022-2239
      Special Order
    $5.95
  • 92027
    Collar – Part Number: 92027-2025
    Collar
    Part Number: 92027-2025
      No Longer Available
  • 92033
    Ring-snap – Part Number: 92033-2067
    Ring-snap
    Part Number: 92033-2067
      In Stock
    $6.70
  • 92043
    Pin – Part Number: 92043-2226
    Pin
    Part Number: 92043-2226
      Special Order
    $9.36
  • 92063
    Jet-Main-125 – Part Number: 92063-2358
    Jet-Main-125
    Part Number: 92063-2358
      In Stock
    $14.28
  • 92064
    Jet-Pilot-48.8 – Part Number: 92064-2125
    Jet-Pilot-48.8
    Part Number: 92064-2125
      No Longer Available
  • 92081
    Spring – Part Number: 92081-2009
    Spring
    Part Number: 92081-2009
      In Stock
    $5.95
  • 92093
    Seal – Part Number: 92093-2002
    Seal
    Part Number: 92093-2002
      In Stock
    $5.95
  • 92145
    Spring – Part Number: 92145-2061
    Spring
    Part Number: 92145-2061
      No Longer Available
  • 92170
    Clamp – Part Number: 92170-2023
    Clamp
    Part Number: 92170-2023
      Special Order
    $5.95
  • 92191
    Tube – Part Number: 92191-2067
    Tube
    Part Number: 92191-2067
      No Longer Available
Chains, Pulleys, Lift Struts And Idler Assembly
Chains, Pulleys, Lift Struts And Idler Assembly Diagram and Parts List for 990001 - 999999 Toro Lawn Tractor
Control-Equipment Assembly Kawasaki Fh500v-As10
Control-Equipment Assembly Kawasaki Fh500v-As10 Diagram and Parts List for 990001 - 999999 Toro Lawn Tractor
  • 130
    Bolt-Flanged (6X12) – Part Number: 130B0612
    Bolt-Flanged (6X12)
    Part Number: 130B0612
      No Longer Available
  • 214
    Screw-Pan 4X8 – Part Number: 214B0408
    Screw-Pan 4X8
    Part Number: 214B0408
      No Longer Available
  • 311
    Nut-Hex (6Mm) – Part Number: 311B0600
    Nut-Hex (6Mm)
    Part Number: 311B0600
      No Longer Available
  • 411
    Washer-Plain – Part Number: 411b0600
    Washer-Plain
    Part Number: 411b0600
      No Longer Available
  • 13107
    Shaft – Part Number: 13107-7002
    Shaft
    Part Number: 13107-7002
      No Longer Available
  • 13270
    Plate – Part Number: 132707006
    Plate
    Part Number: 132707006
      No Longer Available
  • 16169
    Link-Choke – Part Number: 16169-7001
    Link-Choke
    Part Number: 16169-7001
      No Longer Available
  • 16171
    Link – Part Number: 16171-7001
    Link
    Part Number: 16171-7001
      No Longer Available
  • 39129
    Spring-Governor – Part Number: 39129-7002
    Spring-Governor
    Part Number: 39129-7002
      No Longer Available
  • 39129A
    Spring-Governor – Part Number: 39129-7003
    Spring-Governor
    Part Number: 39129-7003
      No Longer Available
  • 49103
    Arm-Governor – Part Number: 49103-7001
    Arm-Governor
    Part Number: 49103-7001
      No Longer Available
  • 49113
    Panel-Comp-Control – Part Number: 49113-7002
    Panel-Comp-Control
    Part Number: 49113-7002
      Special Order
    $18.52
  • 92145
    Spring – Part Number: 92145-7003
    Spring
    Part Number: 92145-7003
      No Longer Available
  • 92150
    Bolt 5X18 – Part Number: 92150-2182
    Bolt 5X18
    Part Number: 92150-2182
      No Longer Available
  • 92151
    Bolt-6X30 – Part Number: 92151-7006
    Bolt-6X30
    Part Number: 92151-7006
      No Longer Available
  • 92170
    Clamp – Part Number: 92170-7001
    Clamp
    Part Number: 92170-7001
      No Longer Available
Cooling-Equipment Assembly Kawasaki Fh500v-As10
Cooling-Equipment Assembly Kawasaki Fh500v-As10 Diagram and Parts List for 990001 - 999999 Toro Lawn Tractor
  • 130
    Bolt-Flanged (6X12) – Part Number: 130B0612
    Bolt-Flanged (6X12)
    Part Number: 130B0612
      No Longer Available
  • 130A
    Bolt-Flanged (6X16) – Part Number: 130B0616
    Bolt-Flanged (6X16)
    Part Number: 130B0616
      No Longer Available
  • 130B
    Bolt-Flanged (6X20) – Part Number: 130B0620
    Bolt-Flanged (6X20)
    Part Number: 130B0620
      No Longer Available
  • 130C
    Bolt-Flanged – Part Number: 130B0625
    Bolt-Flanged
    Part Number: 130B0625
      No Longer Available
  • 130D
    Bolt-Flanged (8X16) – Part Number: 130B0816
    Bolt-Flanged (8X16)
    Part Number: 130B0816
      No Longer Available
  • 14037
    Screen – Part Number: 14037-7003
    Screen
    Part Number: 14037-7003
      No Longer Available
  • 14037A
    Screen – Part Number: 14037-7003-9H
    Screen
    Part Number: 14037-7003-9H
      No Longer Available
  • 23062
    Bracket-Comp – Part Number: 23062-7002
    Bracket-Comp
    Part Number: 23062-7002
      No Longer Available
  • 49089
    Shroud-Engine – Part Number: 49089-7001
    Shroud-Engine
    Part Number: 49089-7001
      No Longer Available
  • 49089A
    Shroud-Engine – Part Number: 49089-7002
    Shroud-Engine
    Part Number: 49089-7002
      No Longer Available
  • 49089B
    Shroud-Engine – Part Number: 49089-7003
    Shroud-Engine
    Part Number: 49089-7003
      No Longer Available
  • 55020
    Guard – Part Number: 55020-7001
    Guard
    Part Number: 55020-7001
      No Longer Available
  • 59041
    Fan – Part Number: 59041-7001
    Fan
    Part Number: 59041-7001
      No Longer Available
  • 59066
    Housing-Fan – Part Number: 59066-7002
    Housing-Fan
    Part Number: 59066-7002
      No Longer Available
  • 92004
    Stud – Part Number: 920042148
    Stud
    Part Number: 920042148
      No Longer Available
  • 92015
    Nut – Part Number: 92015-1170
    Nut
    Part Number: 92015-1170
      No Longer Available
  • 92026
    Spacer (6.2x7.9x5) – Part Number: 92026-7001
    Spacer (6.2x7.9x5)
    Part Number: 92026-7001
      No Longer Available
  • 92026A
    Spacer-6.5X7.9X10.5 – Part Number: 92026-7003
    Spacer-6.5X7.9X10.5
    Part Number: 92026-7003
      No Longer Available
  • 92026B
    Spacer – Part Number: 92026-7004
    Spacer
    Part Number: 92026-7004
      No Longer Available
  • 92151
    Bolt, 6x10 – Part Number: 92151-7009
    Bolt, 6x10
    Part Number: 92151-7009
      No Longer Available
Cylinder/Crankcase Assembly Kawasaki Fh500v-As10
Cylinder/Crankcase Assembly Kawasaki Fh500v-As10 Diagram and Parts List for 990001 - 999999 Toro Lawn Tractor
Decals, Deflector, Cover And Rollers Assembly

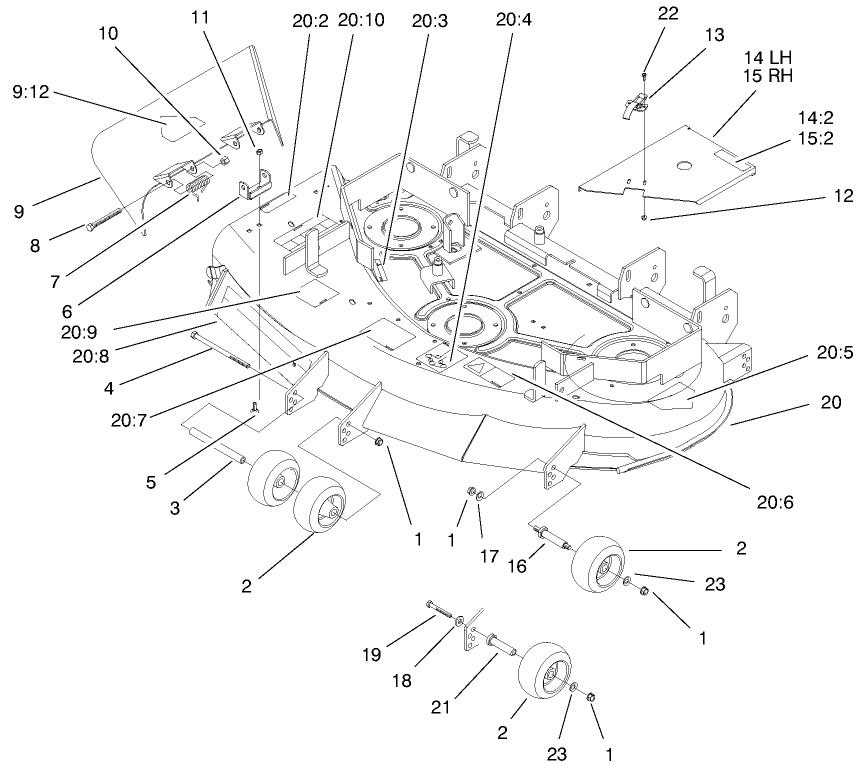

Decals, Deflector, Cover And Rollers Assembly Diagram and Parts List for 990001 - 999999 Toro Lawn Tractor
Electric-Equipment Assembly Kawasaki Fh500v-As10
Electric-Equipment Assembly Kawasaki Fh500v-As10 Diagram and Parts List for 990001 - 999999 Toro Lawn Tractor
  • Washer – Part Number: 92220-7002
    Washer
    Part Number: 92220-7002
      No Longer Available
  • 130
    Bolt-Flanged (6X20) – Part Number: 130B0620
    Bolt-Flanged (6X20)
    Part Number: 130B0620
      No Longer Available
  • 224
    Screw-Pan – Part Number: 224B0520
    Screw-Pan
    Part Number: 224B0520
      No Longer Available
  • 510
    Key-Woodruff – Part Number: 510A5100
    Key-Woodruff
    Part Number: 510A5100
      No Longer Available
  • 13159
    Connector – Part Number: 13159-7001
    Connector
    Part Number: 13159-7001
      Special Order
    $5.95
  • 21066
    Regulator-Voltage – Part Number: 21066-7001
    Regulator-Voltage
    Part Number: 21066-7001
      No Longer Available
  • 21171
    Coil–Assembly–Ignition – Part Number: 211717001
    Coil–Assembly–Ignition
    Part Number: 211717001
      No Longer Available
  • 21193
    Flywheel-Assy – Part Number: 21193-7001
    Flywheel-Assy
    Part Number: 21193-7001
      No Longer Available
  • 26011
    Wire-Lead – Part Number: 26011-7001
    Wire-Lead
    Part Number: 26011-7001
      No Longer Available
  • 26011A
    Wire-Lead – Part Number: 26011-7002
    Wire-Lead
    Part Number: 26011-7002
      Special Order
    $5.95
  • 26011B
    Wire-Lead – Part Number: 26011-7003
    Wire-Lead
    Part Number: 26011-7003
      Special Order
    $5.95
  • 26011C
    Wire-Lead – Part Number: 26011-7004
    Wire-Lead
    Part Number: 26011-7004
      Special Order
    $5.95
  • 26030
    Harness – Part Number: 26030-7001
    Harness
    Part Number: 26030-7001
      No Longer Available
  • 59031
    Coil-Charging – Part Number: 59031-7001
    Coil-Charging
    Part Number: 59031-7001
      No Longer Available
  • 92004
    Stud – Part Number: 92004-2147
    Stud
    Part Number: 92004-2147
      No Longer Available
  • 92009
    Screw – Part Number: 92009-2308
    Screw
    Part Number: 92009-2308
      No Longer Available
  • 92070
    Plug-Spark (Rcj8y) – Part Number: 92070-7001
    Plug-Spark (Rcj8y)
    Part Number: 92070-7001
      No Longer Available
  • 92072
    Band – Part Number: 92072-7001
    Band
    Part Number: 92072-7001
      No Longer Available
  • 92151
    Bolt 12X30 – Part Number: 92151-2097
    Bolt 12X30
    Part Number: 92151-2097
      No Longer Available
Electrical System Assembly

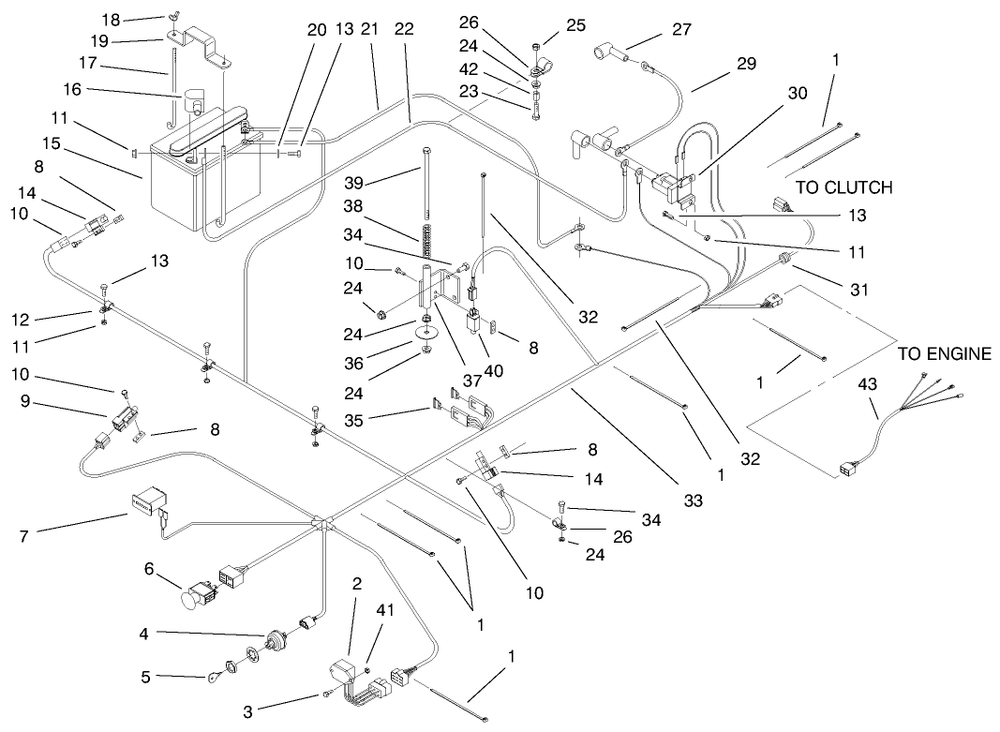

Electrical System Assembly Diagram and Parts List for 990001 - 999999 Toro Lawn Tractor
Engine And Clutch Assembly
Engine And Clutch Assembly Diagram and Parts List for 990001 - 999999 Toro Lawn Tractor
Front Frame Assembly

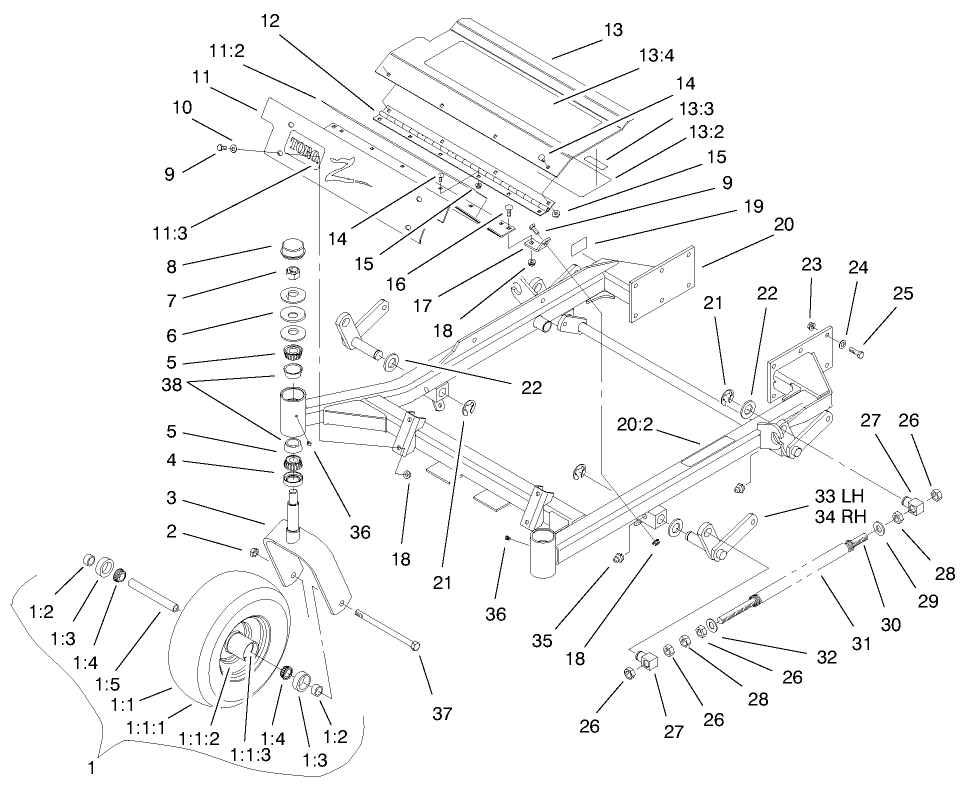

Front Frame Assembly Diagram and Parts List for 990001 - 999999 Toro Lawn Tractor
Fuel System Assembly
Fuel System Assembly Diagram and Parts List for 990001 - 999999 Toro Lawn Tractor
Fuel-Tank/Fuel-Valve Assembly Kawasaki Fh500v-As10
Fuel-Tank/Fuel-Valve Assembly Kawasaki Fh500v-As10 Diagram and Parts List for 990001 - 999999 Toro Lawn Tractor
  • 130
    Bolt-Flanged (6X20) – Part Number: 130B0620
    Bolt-Flanged (6X20)
    Part Number: 130B0620
      No Longer Available
  • 23062
    Bracket-Comp – Part Number: 23062-7001-9H
    Bracket-Comp
    Part Number: 23062-7001-9H
      No Longer Available
  • 49019
    Filter-Fuel – Part Number: 49019-7001
    Filter-Fuel
    Part Number: 49019-7001
      No Longer Available
  • 49040
    Pump-Fuel – Part Number: 49040-2075
    Pump-Fuel
    Part Number: 49040-2075
      No Longer Available
  • 92170
    Clamp – Part Number: 92170-2088
    Clamp
    Part Number: 92170-2088
      No Longer Available
  • 92191
    Tube – Part Number: 92191-7002
    Tube
    Part Number: 92191-7002
      No Longer Available
  • 92191A
    Tube – Part Number: 92191-7003
    Tube
    Part Number: 92191-7003
      No Longer Available
  • 92191B
    Tube – Part Number: 92191-7004
    Tube
    Part Number: 92191-7004
      No Longer Available
Hydraulic System Assembly
Hydraulic System Assembly Diagram and Parts List for 990001 - 999999 Toro Lawn Tractor
  • 1
    Pump-Hydraulic, Right Hand – Part Number: 103-2766
    Pump-Hydraulic, Right Hand
    Part Number: 103-2766
      Special Order
    $1845.52
  • 2
    HOSE Assembly – Part Number: 1-632285
    HOSE Assembly
    Part Number: 1-632285
      Special Order
    $64.75
  • 3
    Fitting-90 Deg – Part Number: 1-513840
    Fitting-90 Deg
    Part Number: 1-513840
      No Longer Available
  • 4
    Fitting-Tee – Part Number: 1-603721
    Fitting-Tee
    Part Number: 1-603721
      No Longer Available
  • 5
    Clamp-Hose – Part Number: 1-603827
    Clamp-Hose
    Part Number: 1-603827
      Special Order
    $5.95
  • 6
    HOSE – Part Number: 1-413273
    HOSE
    Part Number: 1-413273
      Special Order
    $22.48
  • 7
    Pulley – Part Number: 1-653156
    Pulley
    Part Number: 1-653156
      Special Order
    $94.52
  • 8
    Screw-set, Sqh – Part Number: 3242-4
    Screw-set, Sqh
    Part Number: 3242-4
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 9
    Key – Part Number: 1-807272
    Key
    Part Number: 1-807272
      Special Order
    $5.95
  • 10
    Screw-hh – Part Number: 323-7
    Screw-hh
    Part Number: 323-7
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 11
    Nut-hhf, Whiz – Part Number: 3290-357
    Nut-hhf, Whiz
    Part Number: 3290-357
      In Stock
    $5.95
  • 12
    Grip-Valve, Dump – Part Number: 1-613073
    Grip-Valve, Dump
    Part Number: 1-613073
      Special Order
    $8.42
  • 13
    Nut-lock, Ni – Part Number: 3296-42
    Nut-lock, Ni
    Part Number: 3296-42
    ★★★★★
    ★★★★★
    (4)
      In Stock
    $5.95
  • 14
    Screw – Part Number: 1-801063
    Screw
    Part Number: 1-801063
      In Stock
    $7.62
  • 15
    Hose-Pressure, Low – Part Number: 1-632286
    Hose-Pressure, Low
    Part Number: 1-632286
      Special Order
    $40.89
  • 16
    Fitting – Part Number: 1-603989
    Fitting
    Part Number: 1-603989
      Special Order
    $54.53
  • 17
    Fitting-Straight – Part Number: 1-603990
    Fitting-Straight
    Part Number: 1-603990
      Special Order
    $23.98
  • 18
    Elbow 90deg. – Part Number: 1-633605
    Elbow 90deg.
    Part Number: 1-633605
      Special Order
    $53.73
  • 19
    Hose-front – Part Number: 1-653186
    Hose-front
    Part Number: 1-653186
      Special Order
    $102.81
  • 20
    Hose-rear, Rh – Part Number: 1-653187
    Hose-rear, Rh
    Part Number: 1-653187
      Special Order
    $104.32
  • 21
    HOSE – Part Number: 1-654144
    HOSE
    Part Number: 1-654144
      Special Order
    $82.80
  • 22
    FITTING-ELBOW – Part Number: 1-603987
    FITTING-ELBOW
    Part Number: 1-603987
      Special Order
    $31.86
  • 23
    Elbow – Part Number: 1-603988
    Elbow
    Part Number: 1-603988
      No Longer Available
  • 24
    HYDRAULIC TANK Assembly – Part Number: 99-4625
    HYDRAULIC TANK Assembly
    Part Number: 99-4625
      No Longer Available
  • 24:2
    Decal-Surface, Hot – Part Number: 65-2690
    Decal-Surface, Hot
    Part Number: 65-2690
      Special Order
    $6.28
  • 24:3
    Decal-Hydraulic Tank – Part Number: 1-513890
    Decal-Hydraulic Tank
    Part Number: 1-513890
      Special Order
    $9.93
  • 25
    Gasket-cap, Tank – Part Number: 1-523103
    Gasket-cap, Tank
    Part Number: 1-523103
      In Stock
    $10.48
  • 26
    Cap – Part Number: 1-513167
    Cap
    Part Number: 1-513167
      In Stock
    $40.89
  • 27
    Screw-Hh – Part Number: 321-15
    Screw-Hh
    Part Number: 321-15
      Special Order
    $5.95
  • 28
    Nut-Hf – Part Number: 32128-33
    Nut-Hf
    Part Number: 32128-33
      In Stock
    $5.95
  • 29
    DISCONTINUED – Part Number: E654145
    DISCONTINUED
    Part Number: E654145
      No Longer Available
  • 30
    Hose – Part Number: 1-654197
    Hose
    Part Number: 1-654197
      No Longer Available
  • 31
    FITTING-STRAIGHT – Part Number: 1-513510
    FITTING-STRAIGHT
    Part Number: 1-513510
      Special Order
    $18.72
  • 32
    DISCONTINUED – Part Number: E603720
    DISCONTINUED
    Part Number: E603720
      No Longer Available
  • 33
    Nut-hf – Part Number: 32128-20
    Nut-hf
    Part Number: 32128-20
      In Stock
    $5.95
  • 34
    Filter-oil, Hyd – Part Number: 1-633752
    Filter-oil, Hyd
    Part Number: 1-633752
      In Stock
    $38.95
  • 34
    FILTER-OIL, HYD – Part Number: 1-633750
    FILTER-OIL, HYD
    Part Number: 1-633750
      In Stock
    $28.95
  • 35
    Screw-hh – Part Number: 322-5
    Screw-hh
    Part Number: 322-5
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 36
    Fitting-Tee – Part Number: 1-603722
    Fitting-Tee
    Part Number: 1-603722
      Special Order
    $37.48
  • 37
    Clamp-Hose – Part Number: 1-603826
    Clamp-Hose
    Part Number: 1-603826
      Special Order
    $5.95
  • 38
    Hose – Part Number: 1-653188
    Hose
    Part Number: 1-653188
      Special Order
    $113.39
Lift Handles And Plates
Lift Handles And Plates Diagram and Parts List for 990001 - 999999 Toro Lawn Tractor
Lubrication-Equipment Assembly Kawasaki Fh500v-As10
Lubrication-Equipment Assembly Kawasaki Fh500v-As10 Diagram and Parts List for 990001 - 999999 Toro Lawn Tractor
  • 130
    Bolt-Flanged (6X12) – Part Number: 130B0612
    Bolt-Flanged (6X12)
    Part Number: 130B0612
      No Longer Available
  • 670
    O-RING (16mm) – Part Number: 670D2016
    O-RING (16mm)
    Part Number: 670D2016
      No Longer Available
  • 13107
    Shaft, Oil Pump – Part Number: 131072099
    Shaft, Oil Pump
    Part Number: 131072099
      No Longer Available
  • 13270
    Plate – Part Number: 13270-7004
    Plate
    Part Number: 13270-7004
      Special Order
    $5.95
  • 14075
    DISCONTINUED – Part Number: 14075-7001
    DISCONTINUED
    Part Number: 14075-7001
      No Longer Available
  • 16154
    Rotor-Pump – Part Number: 16154-2053
    Rotor-Pump
    Part Number: 16154-2053
      No Longer Available
  • 16154A
    Rotor-Pump – Part Number: 16154-2054
    Rotor-Pump
    Part Number: 16154-2054
      No Longer Available
  • 49065
    Oil Filter – Part Number: 49065-2071
    Oil Filter
    Part Number: 49065-2071
    ★★★★★
    ★★★★★
    (1)
      In Stock
    $19.40
  • 49065A
    Filter-Oil – Part Number: 49065-7001
    Filter-Oil
    Part Number: 49065-7001
      Special Order
    $5.95
  • 59051
    Gear–Spur – Part Number: 590517004
    Gear–Spur
    Part Number: 590517004
      No Longer Available
  • 59231
    Filler – Part Number: 59231-7001
    Filler
    Part Number: 59231-7001
      No Longer Available
  • 92043
    Pin – Part Number: 92043-7003
    Pin
    Part Number: 92043-7003
      No Longer Available
  • 92140
    Ball – Part Number: 92140-7003
    Ball
    Part Number: 92140-7003
      In Stock
    $5.95
  • 92145
    Spring – Part Number: 92145-7002
    Spring
    Part Number: 92145-7002
      No Longer Available
Main Frame Assembly
Main Frame Assembly Diagram and Parts List for 990001 - 999999 Toro Lawn Tractor

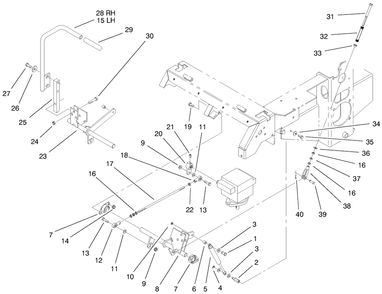

Motion Control System Assembly
Motion Control System Assembly Diagram and Parts List for 990001 - 999999 Toro Lawn Tractor

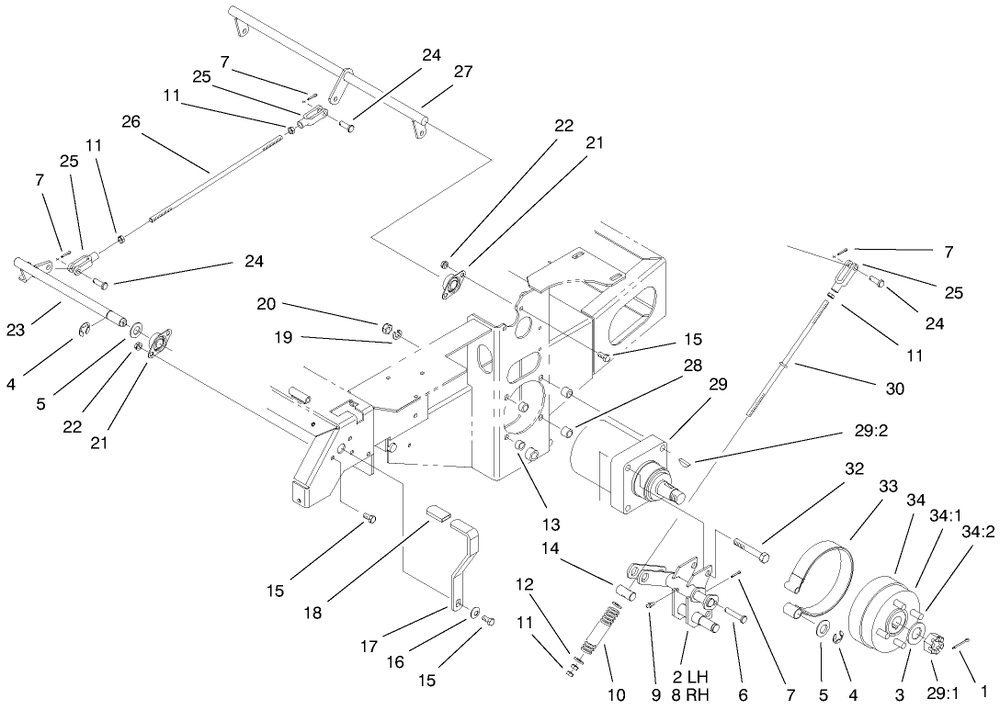

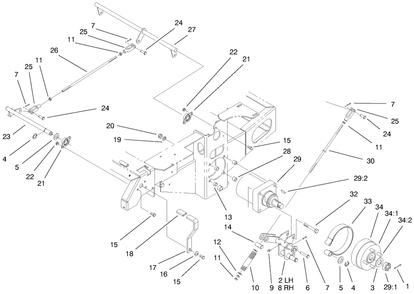

Parking Brake System Assembly
Parking Brake System Assembly Diagram and Parts List for 990001 - 999999 Toro Lawn Tractor
  • 1
    Pin-Cotter – Part Number: 1-806800
    Pin-Cotter
    Part Number: 1-806800
      Special Order
    $5.95
  • 2
    DISCONTINUED – Part Number: E652134
    DISCONTINUED
    Part Number: E652134
      No Longer Available
  • 3
    Washer-spacer – Part Number: 1-523157
    Washer-spacer
    Part Number: 1-523157
      Special Order
    $5.95
  • 4
    E-ring – Part Number: 32151-48
    E-ring
    Part Number: 32151-48
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 5
    Washer-flat – Part Number: 3256-28
    Washer-flat
    Part Number: 3256-28
    ★★★★★
    ★★★★★
    (3)
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 6
    DISCONTINUED – Part Number: E808283
    DISCONTINUED
    Part Number: E808283
      No Longer Available
  • 7
    Pin-Cotter – Part Number: 3272-10
    Pin-Cotter
    Part Number: 3272-10
      Special Order
    $5.95
  • 8
    Bracket-Brake, Right Hand – Part Number: 1-652135-03
    Bracket-Brake, Right Hand
    Part Number: 1-652135-03
      Special Order
    $286.59
  • 9
    Fitting-Lube, 45 Deg – Part Number: 302-11
    Fitting-Lube, 45 Deg
    Part Number: 302-11
      On Order
    $5.95
  • 10
    SPRING-BRAKE – Part Number: 1-633454
    SPRING-BRAKE
    Part Number: 1-633454
      Special Order
    $13.48
  • 11
    Nut-Hex – Part Number: 3219-3
    Nut-Hex
    Part Number: 3219-3
      Special Order
    $5.95
  • 12
    Washer-Flat – Part Number: 3256-4
    Washer-Flat
    Part Number: 3256-4
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 13
    Spacer – Part Number: 1-653069
    Spacer
    Part Number: 1-653069
      Special Order
    $16.48
  • 14
    Pin-Trunnion – Part Number: 1-633144
    Pin-Trunnion
    Part Number: 1-633144
      Special Order
    $19.48
  • 15
    Screw-Hh – Part Number: 323-4
    Screw-Hh
    Part Number: 323-4
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 16
    Washer-belleville – Part Number: 98-5975
    Washer-belleville
    Part Number: 98-5975
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 17
    Handle-Brake, Park – Part Number: 1-653074-03
    Handle-Brake, Park
    Part Number: 1-653074-03
      Special Order
    $79.67
  • 18
    Grip-Lever – Part Number: 1-633268
    Grip-Lever
    Part Number: 1-633268
      Special Order
    $19.48
  • 19
    Washer-lock – Part Number: 3253-7
    Washer-lock
    Part Number: 3253-7
      Special Order
    $5.95
  • 20
    Nut-Hh – Part Number: 3217-9
    Nut-Hh
    Part Number: 3217-9
      Special Order
    $5.95
  • 21
    Bearing-Flange, Side – Part Number: 1-633102
    Bearing-Flange, Side
    Part Number: 1-633102
      Special Order
    $26.98
  • 22
    Nut-hhf, Whiz – Part Number: 3290-357
    Nut-hhf, Whiz
    Part Number: 3290-357
      In Stock
    $5.95
  • 23
    DISCONTINUED – Part Number: E652085
    DISCONTINUED
    Part Number: E652085
      No Longer Available
  • 24
    Pin-Clevis – Part Number: 1-808285
    Pin-Clevis
    Part Number: 1-808285
      Special Order
    $5.95
  • 25
    Yoke-Linkage, Brake – Part Number: 1-633131
    Yoke-Linkage, Brake
    Part Number: 1-633131
      Special Order
    $22.48
  • 26
    Linkage-Handle,Brake – Part Number: 1-653061
    Linkage-Handle,Brake
    Part Number: 1-653061
      Special Order
    $31.86
  • 27
    Crank-Brake – Part Number: 1-652073-03
    Crank-Brake
    Part Number: 1-652073-03
      No Longer Available
  • 28
    Spacer – Part Number: 1-653068
    Spacer
    Part Number: 1-653068
      Special Order
    $20.60
  • 29
    MOTOR-WHEEL – Part Number: 1-523328
    MOTOR-WHEEL
    Part Number: 1-523328
      Special Order
    $1617.84
  • 29:1
    Nut-hh – Part Number: 1-809036
    Nut-hh
    Part Number: 1-809036
      Special Order
    $44.98
  • 29:2
    Key-Woodruff – Part Number: 3257-42
    Key-Woodruff
    Part Number: 3257-42
      Special Order
    $11.22
  • 30
    ROD-BRAKE – Part Number: 1-633477
    ROD-BRAKE
    Part Number: 1-633477
      Special Order
    $25.48
  • 32
    Screw-Hh – Part Number: 325-13
    Screw-Hh
    Part Number: 325-13
      Special Order
    $6.70
  • 33
    Brake Band – Part Number: 1-633693
    Brake Band
    Part Number: 1-633693
      Special Order
    $101.29
  • 34
    Hub-Wheel – Part Number: 1-641337
    Hub-Wheel
    Part Number: 1-641337
      Special Order
    $297.30
  • 34
    Hub And Wheel Asm – Part Number: 103-0590
    Hub And Wheel Asm
    Part Number: 103-0590
      Special Order
    $182.35
  • 34:1
    Hub-Wheel – Part Number: 1-641337
    Hub-Wheel
    Part Number: 1-641337
      Special Order
    $297.30
  • 34:2
    Stud-Wheel – Part Number: 1-633926
    Stud-Wheel
    Part Number: 1-633926
      In Stock
    $6.28
Piston/Crankshaft Assembly Kawasaki Fh500v-As10
Piston/Crankshaft Assembly Kawasaki Fh500v-As10 Diagram and Parts List for 990001 - 999999 Toro Lawn Tractor
  • 130
    Bolt-Flanged (6x30) – Part Number: 130G0630
    Bolt-Flanged (6x30)
    Part Number: 130G0630
      No Longer Available
  • 13001
    Piston-Engine – Part Number: 13001-7001
    Piston-Engine
    Part Number: 13001-7001
      No Longer Available
  • 13002
    Pin-Piston – Part Number: 13002-7001
    Pin-Piston
    Part Number: 13002-7001
      In Stock
    Minimum Quantity of 2 required
    $6.26
  • 13008
    Ring-set-piston – Part Number: 13008-6055
    Ring-set-piston
    Part Number: 13008-6055
      Special Order
    $67.92
  • 13031
    Crankshaft-Comp – Part Number: 13031-7001
    Crankshaft-Comp
    Part Number: 13031-7001
      No Longer Available
  • 13251
    DISCONTINUED – Part Number: 13251-7001
    DISCONTINUED
    Part Number: 13251-7001
      No Longer Available
  • 92033
    Ring-Snap – Part Number: 92033-7002
    Ring-Snap
    Part Number: 92033-7002
      No Longer Available
Pump, Idler And Belt Assembly

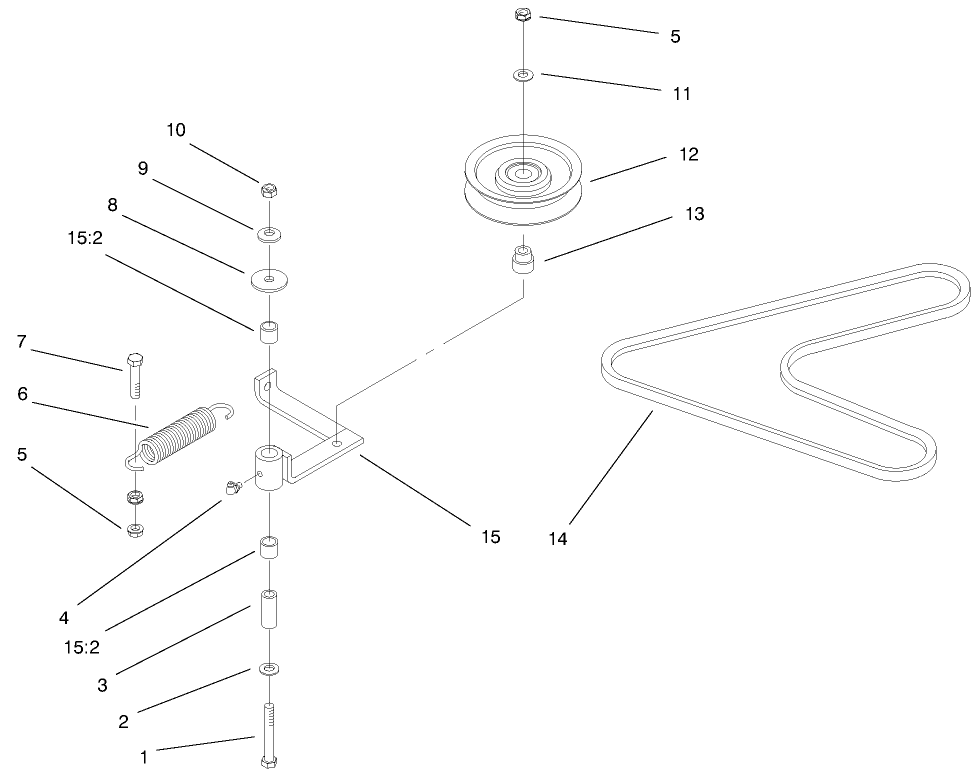

Pump, Idler And Belt Assembly Diagram and Parts List for 990001 - 999999 Toro Lawn Tractor
Seat Assembly No. 1-633705
Seat Assembly No. 1-633705 Diagram and Parts List for 990001 - 999999 Toro Lawn Tractor
Starter/Decals-Kawasaki Fh500v-As10
Starter/Decals-Kawasaki Fh500v-As10 Diagram and Parts List for 990001 - 999999 Toro Lawn Tractor
Valve/Camshaft Assembly Kawasaki Fh500v-As10
Valve/Camshaft Assembly Kawasaki Fh500v-As10 Diagram and Parts List for 990001 - 999999 Toro Lawn Tractor
  • 12004
    Valve-intake – Part Number: 12004-7001
    Valve-intake
    Part Number: 12004-7001
      Special Order
    $22.60
  • 12005
    Valve-exhaust – Part Number: 12005-7001
    Valve-exhaust
    Part Number: 12005-7001
      Special Order
    $37.00
  • 12009
    Retainer-valve Spring – Part Number: 12009-7001
    Retainer-valve Spring
    Part Number: 12009-7001
      Special Order
    Minimum Quantity of 2 required
    $5.95
  • 12011
    Collet – Part Number: 12011-2056
    Collet
    Part Number: 12011-2056
      No Longer Available
  • 12016
    Arm-Rocker – Part Number: 12016-7001
    Arm-Rocker
    Part Number: 12016-7001
      No Longer Available
  • 12032
    Tappet – Part Number: 12032-7001
    Tappet
    Part Number: 12032-7001
      No Longer Available
  • 13070
    Guide – Part Number: 13070-7001
    Guide
    Part Number: 13070-7001
      No Longer Available
  • 13070A
    Guide – Part Number: 13070-7002
    Guide
    Part Number: 13070-7002
      No Longer Available
  • 13116
    Rod-Push – Part Number: 13116-2057
    Rod-Push
    Part Number: 13116-2057
      No Longer Available
  • 13270
    Plate – Part Number: 13270-7002
    Plate
    Part Number: 13270-7002
      No Longer Available
  • 13270A
    Plate – Part Number: 13270-7003
    Plate
    Part Number: 13270-7003
      No Longer Available
  • 42036
    DISCONTINUED – Part Number: 42036-7001
    DISCONTINUED
    Part Number: 42036-7001
      No Longer Available
  • 49078
    Spring-Valve, Engine – Part Number: 49078-7001
    Spring-Valve, Engine
    Part Number: 49078-7001
      No Longer Available
  • 49118
    Camshaft-Comp – Part Number: 49118-7002
    Camshaft-Comp
    Part Number: 49118-7002
      Special Order
    $91.76
  • 92009
    SCREW – Part Number: 920092341
    SCREW
    Part Number: 920092341
      No Longer Available
  • 92015
    Nut – Part Number: 92015-2253
    Nut
    Part Number: 92015-2253
      No Longer Available
  • 92033
    Ring-Snap – Part Number: 92033-7001
    Ring-Snap
    Part Number: 92033-7001
      No Longer Available
  • 92140
    Ball – Part Number: 92140-7002
    Ball
    Part Number: 92140-7002
      No Longer Available
  • 92145
    Spring – Part Number: 92145-7001
    Spring
    Part Number: 92145-7001
      No Longer Available
  • 92151
    DISCONTINUED – Part Number: 92151-7001
    DISCONTINUED
    Part Number: 92151-7001
      No Longer Available
  • 92200
    Washer – Part Number: 92200-7001
    Washer
    Part Number: 92200-7001
      No Longer Available

Questions & Answers

?

Our customer Service team is at the ready daily to answer your part and product questions.

Be the first to ask our experts a question about this part!

Ask our Team

We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.

✖

Our customer service team are at the ready daily to answer your part and product questions. We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
