60in Deck Assembly Diagram and Parts List for 413000000 - 414299999 Toro Lawn Tractor
60in Deck Assembly
60in Deck Decal Assembly No. 145-4605 Diagram and Parts List for 413000000 - 414299999 Toro Lawn Tractor
60in Deck Decal Assembly No. 145-4605
Caster Wheel Assembly No. 145-4603 Diagram and Parts List for 413000000 - 414299999 Toro Lawn Tractor
Caster Wheel Assembly No. 145-4603
Console And Guard Assembly Diagram and Parts List for 413000000 - 414299999 Toro Lawn Tractor
Console And Guard Assembly
Deck Lift Assembly Diagram and Parts List for 413000000 - 414299999 Toro Lawn Tractor
Deck Lift Assembly
Deck Strut Assembly No. 126-8365 Diagram and Parts List for 413000000 - 414299999 Toro Lawn Tractor
Deck Strut Assembly No. 126-8365
Electrical Assembly Diagram and Parts List for 413000000 - 414299999 Toro Lawn Tractor
Electrical Assembly
Engine Assembly Diagram and Parts List for 413000000 - 414299999 Toro Lawn Tractor
Engine Assembly
Frame Assembly Diagram and Parts List for 413000000 - 414299999 Toro Lawn Tractor
Frame Assembly
Front Caster Wheel Assembly Diagram and Parts List for 413000000 - 414299999 Toro Lawn Tractor
Front Caster Wheel Assembly
Fuel Tank And Vent Hose System Assembly Diagram and Parts List for 413000000 - 414299999 Toro Lawn Tractor
Fuel Tank And Vent Hose System Assembly
Fuel Tank Assembly No. 126-4724 Diagram and Parts List for 413000000 - 414299999 Toro Lawn Tractor
Fuel Tank Assembly No. 126-4724
Harness Assembly No. 126-5803 Diagram and Parts List for 413000000 - 414299999 Toro Lawn Tractor
Harness Assembly No. 126-5803
Lh And Rh Motion Control Assembly Diagram and Parts List for 413000000 - 414299999 Toro Lawn Tractor
Lh And Rh Motion Control Assembly
Lh Transaxle Assembly No. 135-0140 Diagram and Parts List for 413000000 - 414299999 Toro Lawn Tractor
Lh Transaxle Assembly No. 135-0140
Motion Control Assembly Diagram and Parts List for 413000000 - 414299999 Toro Lawn Tractor
Motion Control Assembly
Rh Transaxle Assembly No. 135-0139 Diagram and Parts List for 413000000 - 414299999 Toro Lawn Tractor
Rh Transaxle Assembly No. 135-0139
Roll-Over Protection System Assembly No. 144-1848 Diagram and Parts List for 413000000 - 414299999 Toro Lawn Tractor
Roll-Over Protection System Assembly No. 144-1848
Seat Assembly No. 144-1965 Diagram and Parts List for 413000000 - 414299999 Toro Lawn Tractor
Seat Assembly No. 144-1965
Seat Pan Assembly Diagram and Parts List for 413000000 - 414299999 Toro Lawn Tractor
Seat Pan Assembly
Transaxle Assembly Diagram and Parts List for 413000000 - 414299999 Toro Lawn Tractor
Transaxle Assembly
Wheel Assembly Diagram and Parts List for 413000000 - 414299999 Toro Lawn Tractor
Wheel Assembly
Previous Showing All Parts Next
60in Deck Assembly
60in Deck Assembly Diagram and Parts List for 413000000 - 414299999 Toro Lawn Tractor
60in Deck Decal Assembly No. 145-4605
60in Deck Decal Assembly No. 145-4605 Diagram and Parts List for 413000000 - 414299999 Toro Lawn Tractor
Caster Wheel Assembly No. 145-4603
Caster Wheel Assembly No. 145-4603 Diagram and Parts List for 413000000 - 414299999 Toro Lawn Tractor
  • 1
    CASTER FORK – Part Number: 139-7537-03
    CASTER FORK
    Part Number: 139-7537-03
      Special Order
    $128.89
  • 2
    Spanner-Wheel – Part Number: 133-4487
    Spanner-Wheel
    Part Number: 133-4487
      Special Order
    $17.98
  • 3
    Tire And Wheel Asm – Part Number: 139-7532
    Tire And Wheel Asm
    Part Number: 139-7532
      In Stock
    $127.42
  • 3:2
    Tire – Part Number: 126-5959
    Tire
    Part Number: 126-5959
      Special Order
    $105.83
  • 3:3
    Valve – Part Number: 5108
    Valve
    Part Number: 5108
      In Stock
    $11.80
  • 3:4
    Bearing – Part Number: 136-4190
    Bearing
    Part Number: 136-4190
      Special Order
    $16.48
  • 4
    Washer – Part Number: 136-5590
    Washer
    Part Number: 136-5590
      Special Order
    Minimum Quantity of 2 required
    $5.95
  • 5
    Guard-Seal – Part Number: 138-7208
    Guard-Seal
    Part Number: 138-7208
      Special Order
    $5.95
  • 6
    Screw-Hhf – Part Number: 126-5389
    Screw-Hhf
    Part Number: 126-5389
      In Stock
    $10.32
  • 7
    NUT-LOCK – Part Number: 99-5107
    NUT-LOCK
    Part Number: 99-5107
      In Stock
    $5.95
Console And Guard Assembly
Console And Guard Assembly Diagram and Parts List for 413000000 - 414299999 Toro Lawn Tractor

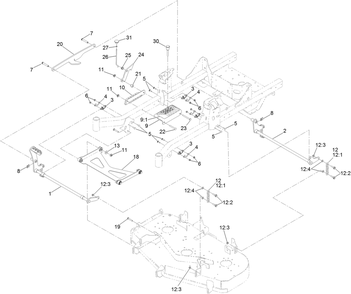

Deck Lift Assembly
Deck Lift Assembly Diagram and Parts List for 413000000 - 414299999 Toro Lawn Tractor
  • 1
    Shaft-Lift, Deck – Part Number: 126-3342-03
    Shaft-Lift, Deck
    Part Number: 126-3342-03
      Special Order
    $139.14
  • 2
    Shaft-Lift, Deck (Rear) – Part Number: 126-3343-03
    Shaft-Lift, Deck (Rear)
    Part Number: 126-3343-03
      Special Order
    $116.42
  • 3
    Bushing-flange – Part Number: 115-5065
    Bushing-flange
    Part Number: 115-5065
    ★★★★★
    ★★★★★
    (4)
      In Stock
    $8.97
  • 4
    Gusset - Deck Lift – Part Number: 116-2887
    Gusset - Deck Lift
    Part Number: 116-2887
      In Stock
    Minimum Quantity of 2 required
    $6.27
  • 5
    Screw-carr – Part Number: 3230-22
    Screw-carr
    Part Number: 3230-22
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 6
    Nut-flange, Ni – Part Number: 104-8300
    Nut-flange, Ni
    Part Number: 104-8300
    ★★★★★
    ★★★★★
    (1)
      In Stock
    $5.95
  • 7
    Pin-Clevis – Part Number: 126-9181
    Pin-Clevis
    Part Number: 126-9181
      Special Order
    $10.78
  • 8
    Clip-Pin – Part Number: 138-8491
    Clip-Pin
    Part Number: 138-8491
      Special Order
    $11.06
  • 9
    Bracket Asm – Part Number: 126-4535
    Bracket Asm
    Part Number: 126-4535
      Special Order
    $43.62
  • 9:1
    Decal-Hoc – Part Number: 126-4784
    Decal-Hoc
    Part Number: 126-4784
      Special Order
    $16.86
  • 10
    Angle-Hoc, Lower – Part Number: 126-4640-03
    Angle-Hoc, Lower
    Part Number: 126-4640-03
      Special Order
    $117.76
  • 11
    Nut-flange, Ni – Part Number: 109-6658
    Nut-flange, Ni
    Part Number: 109-6658
      Special Order
    $5.95
  • 12
    Deck Chain Asm – Part Number: 126-8877
    Deck Chain Asm
    Part Number: 126-8877
      Special Order
    $17.98
  • 12:1
    Chain-Lift, Deck – Part Number: 1-633447
    Chain-Lift, Deck
    Part Number: 1-633447
      Special Order
    $14.98
  • 12:2
    Bolt-Shoulder – Part Number: 130-0742
    Bolt-Shoulder
    Part Number: 130-0742
      Special Order
    $5.95
  • 12:3
    Nut-flange, Ni – Part Number: 104-8301
    Nut-flange, Ni
    Part Number: 104-8301
      In Stock
    $5.95
  • 12:4
    Spacer – Part Number: 43-0940
    Spacer
    Part Number: 43-0940
      In Stock
    $5.95
  • 13
    Washer – Part Number: 1-373034
    Washer
    Part Number: 1-373034
      Special Order
    Minimum Quantity of 2 required
    $5.95
  • 18
    Deck Strut Asm – Part Number: 126-8365
    Deck Strut Asm
    Part Number: 126-8365
      Special Order
    $174.70
  • 19
    Screw-Carr – Part Number: 3231-7
    Screw-Carr
    Part Number: 3231-7
      In Stock
    $5.95
  • 20
    Link-Lift – Part Number: 126-4639-03
    Link-Lift
    Part Number: 126-4639-03
      Special Order
    $85.92
  • 21
    Spacer-Stepped – Part Number: 126-5221
    Spacer-Stepped
    Part Number: 126-5221
      Special Order
    $7.62
  • 22
    SCREW-CARR – Part Number: 3231-42
    SCREW-CARR
    Part Number: 3231-42
      Special Order
    $5.95
  • 23
    Screw-Carr – Part Number: 135-0313
    Screw-Carr
    Part Number: 135-0313
      Special Order
    $5.95
  • 24
    Plate-Lock, Transport – Part Number: 126-5222
    Plate-Lock, Transport
    Part Number: 126-5222
      Special Order
    $23.98
  • 25
    Grommet – Part Number: 126-5593
    Grommet
    Part Number: 126-5593
      Special Order
    $5.95
  • 26
    Rod-Lock, Transport – Part Number: 126-5223
    Rod-Lock, Transport
    Part Number: 126-5223
      Special Order
    $6.72
  • 27
    Nut-Jam – Part Number: 3218-1
    Nut-Jam
    Part Number: 3218-1
      Special Order
    $5.95
  • 30
    Pin-Hoc – Part Number: 126-5401
    Pin-Hoc
    Part Number: 126-5401
      Special Order
    $28.48
  • 31
    Knob – Part Number: 126-7019
    Knob
    Part Number: 126-7019
      Special Order
    $13.48
Deck Strut Assembly No. 126-8365
Deck Strut Assembly No. 126-8365 Diagram and Parts List for 413000000 - 414299999 Toro Lawn Tractor
  • 2
    Bushing-Rubber, Suspension – Part Number: 126-8360
    Bushing-Rubber, Suspension
    Part Number: 126-8360
      In Stock
    $5.95
  • 3
    Spacer – Part Number: 108-6544
    Spacer
    Part Number: 108-6544
      In Stock
    $20.08
  • 4
    Screw-Carr – Part Number: 3231-7
    Screw-Carr
    Part Number: 3231-7
      In Stock
    $5.95
  • 5
    Washer – Part Number: 2844
    Washer
    Part Number: 2844
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 6
    Nut-flange, Ni – Part Number: 104-8301
    Nut-flange, Ni
    Part Number: 104-8301
      In Stock
    $5.95
Electrical Assembly
Electrical Assembly Diagram and Parts List for 413000000 - 414299999 Toro Lawn Tractor
Engine Assembly
Engine Assembly Diagram and Parts List for 413000000 - 414299999 Toro Lawn Tractor
  • 1
    Nut-flange, Ni – Part Number: 104-8301
    Nut-flange, Ni
    Part Number: 104-8301
      In Stock
    $5.95
  • 6
    Gasket-exhaust – Part Number: 110-6697
    Gasket-exhaust
    Part Number: 110-6697
      In Stock
    $8.82
  • 8
    Pulley-flat, 3.50 Dia – Part Number: 116-2456
    Pulley-flat, 3.50 Dia
    Part Number: 116-2456
      In Stock
    $26.95
  • 10
    Oil Drain Hose Asm – Part Number: 116-5108
    Oil Drain Hose Asm
    Part Number: 116-5108
      Special Order
    $46.35
  • 10:2
    Plug-hh – Part Number: 353-508
    Plug-hh
    Part Number: 353-508
      Special Order
    $11.96
  • 10:2:1
    O-Ring – Part Number: 237-42
    O-Ring
    Part Number: 237-42
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 13:4
    Plug-Pipe, Sqh – Part Number: 281-1
    Plug-Pipe, Sqh
    Part Number: 281-1
      Special Order
    $6.86
  • 14
    Idler Arm Asm – Part Number: 126-0973
    Idler Arm Asm
    Part Number: 126-0973
      Special Order
    $114.90
  • 14:2
    Sleeve-bearing – Part Number: 1-513034
    Sleeve-bearing
    Part Number: 1-513034
      In Stock
    $9.57
  • 14:3
    Fitting-Grease – Part Number: 302-40
    Fitting-Grease
    Part Number: 302-40
      In Stock
    $5.95
  • 14:4
    Screw-hwh – Part Number: 32144-11
    Screw-hwh
    Part Number: 32144-11
      In Stock
    $10.48
  • 23
    Muffler-Kohler Aes – Part Number: 126-4359
    Muffler-Kohler Aes
    Part Number: 126-4359
      Special Order
    $173.28
  • 27
    Belt-V – Part Number: 126-5993
    Belt-V
    Part Number: 126-5993
      Special Order
    $56.95
  • 29
    Sheave-Engine – Part Number: 135-0134
    Sheave-Engine
    Part Number: 135-0134
      Special Order
    $73.95
  • 30
    Anchor-Clutch – Part Number: 126-6687-03
    Anchor-Clutch
    Part Number: 126-6687-03
      Special Order
    $31.35
  • 32
    Screw-Hh W/Loctite – Part Number: 126-7198
    Screw-Hh W/Loctite
    Part Number: 126-7198
      Special Order
    $28.10
  • 33
    Clutch-pto – Part Number: 127-3410
    Clutch-pto
    Part Number: 127-3410
      Special Order
    $405.09
  • 44
    Bushing-Pivot, Idler – Part Number: 1-603384
    Bushing-Pivot, Idler
    Part Number: 1-603384
      In Stock
    $19.48
  • 45
    Spring-Extension – Part Number: 1-603402
    Spring-Extension
    Part Number: 1-603402
      In Stock
    $11.07
  • 46
    Washer-Spring – Part Number: 1-603610
    Washer-Spring
    Part Number: 1-603610
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 48
    Key – Part Number: 1-807259
    Key
    Part Number: 1-807259
      Special Order
    $5.95
  • 49
    Screw – Part Number: 32144-109
    Screw
    Part Number: 32144-109
      In Stock
    $5.95
  • 50
    Screw-Hh – Part Number: 323-15
    Screw-Hh
    Part Number: 323-15
      Special Order
    $5.95
  • 54
    Screw-Carr – Part Number: 3231-29
    Screw-Carr
    Part Number: 3231-29
      On Order
    $5.95
  • 56
    Washer-Flat – Part Number: 3256-4
    Washer-Flat
    Part Number: 3256-4
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 57
    Washer-belleville – Part Number: 98-5975
    Washer-belleville
    Part Number: 98-5975
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 59
    Nut-Hf – Part Number: 32128-33
    Nut-Hf
    Part Number: 32128-33
      In Stock
    $5.95
Frame Assembly
Frame Assembly Diagram and Parts List for 413000000 - 414299999 Toro Lawn Tractor
  • 8
    Frame-60 [with Decals] – Part Number: 145-4601
    Frame-60 [with Decals]
    Part Number: 145-4601
      No Longer Available
  • 8:2
    Decal-Belt Routing – Part Number: 109-6014
    Decal-Belt Routing
    Part Number: 109-6014
      Special Order
    $9.58
  • 8:3
    Decal-Release, Drive – Part Number: 116-8588
    Decal-Release, Drive
    Part Number: 116-8588
      Special Order
    $5.95
  • 8:5
    Decal-Warning – Part Number: 126-4363
    Decal-Warning
    Part Number: 126-4363
      Special Order
    $22.48
  • 8:6
    Strip-Seal – Part Number: 127-6618
    Strip-Seal
    Part Number: 127-6618
      Special Order
    $9.80
  • 11
    Assembly-Rops – Part Number: 144-1848
    Assembly-Rops
    Part Number: 144-1848
      Special Order
    $618.56
  • 12
    Pan-Floor Assembly [service] – Part Number: 145-4602
    Pan-Floor Assembly [service]
    Part Number: 145-4602
      No Longer Available
  • 12:2
    Decal-Danger – Part Number: 126-8383
    Decal-Danger
    Part Number: 126-8383
      Special Order
    $12.42
  • 21
    Grommet-Rubber – Part Number: 126-7065
    Grommet-Rubber
    Part Number: 126-7065
      Special Order
    $7.33
  • 30
    Mat-Floor – Part Number: 144-1961
    Mat-Floor
    Part Number: 144-1961
      Special Order
    $61.35
  • 31
    Plug-Plastic – Part Number: 117-2382
    Plug-Plastic
    Part Number: 117-2382
      Special Order
    $5.95
  • 32
    Plate-Step – Part Number: 144-1883-03
    Plate-Step
    Part Number: 144-1883-03
      Special Order
    $26.22
  • 33
    Plate-Backer – Part Number: 144-1884-01
    Plate-Backer
    Part Number: 144-1884-01
      Special Order
    $25.48
  • 34
    Plate-Fascia – Part Number: 144-1885-03
    Plate-Fascia
    Part Number: 144-1885-03
      Special Order
    $31.35
  • 35
    Screw – Part Number: 138-9753
    Screw
    Part Number: 138-9753
      Special Order
    $5.95
  • 36
    Decal – Part Number: 140-2099
    Decal
    Part Number: 140-2099
      In Stock
    $5.95
  • 42
    Bumper-Rubber – Part Number: 138-2662
    Bumper-Rubber
    Part Number: 138-2662
      Special Order
    $36.68
  • 43
    Nut-Hf – Part Number: 32128-33
    Nut-Hf
    Part Number: 32128-33
      In Stock
    $5.95
  • 46
    BRACKET-LIGHT – Part Number: 145-0568-03
    BRACKET-LIGHT
    Part Number: 145-0568-03
      Special Order
    $37.48
  • 47
    SCREW-HSBH – Part Number: 3274-94
    SCREW-HSBH
    Part Number: 3274-94
      Special Order
    $5.95
Front Caster Wheel Assembly
Front Caster Wheel Assembly Diagram and Parts List for 413000000 - 414299999 Toro Lawn Tractor
Fuel Tank And Vent Hose System Assembly
Fuel Tank And Vent Hose System Assembly Diagram and Parts List for 413000000 - 414299999 Toro Lawn Tractor
Fuel Tank Assembly No. 126-4724
Fuel Tank Assembly No. 126-4724 Diagram and Parts List for 413000000 - 414299999 Toro Lawn Tractor
Harness Assembly No. 126-5803
Harness Assembly No. 126-5803 Diagram and Parts List for 413000000 - 414299999 Toro Lawn Tractor
Lh And Rh Motion Control Assembly
Lh And Rh Motion Control Assembly Diagram and Parts List for 413000000 - 414299999 Toro Lawn Tractor
Lh Transaxle Assembly No. 135-0140
Lh Transaxle Assembly No. 135-0140 Diagram and Parts List for 413000000 - 414299999 Toro Lawn Tractor
  • Seal Kit – Part Number: 140-8351
    Seal Kit
    Part Number: 140-8351
      In Stock
    $119.44
  • Brake Shaft Seal Kit – Part Number: 135-3604
    Brake Shaft Seal Kit
    Part Number: 135-3604
      Special Order
    $196.86
  • 1
    Element-Oil Filter, Hyd – Part Number: 109-3321
    Element-Oil Filter, Hyd
    Part Number: 109-3321
      In Stock
    $31.95
  • 2
    Adapter-Straight – Part Number: 109-3278
    Adapter-Straight
    Part Number: 109-3278
      Special Order
    $154.82
  • 2:1
    O-Ring – Part Number: 237-42
    O-Ring
    Part Number: 237-42
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 3
    O-ring-seal – Part Number: 109-3540
    O-ring-seal
    Part Number: 109-3540
      In Stock
    $8.38
  • 4
    Spring-Extension – Part Number: 109-5592
    Spring-Extension
    Part Number: 109-5592
      Special Order
    $28.10
  • 5
    Hub-Offset – Part Number: 116-3872
    Hub-Offset
    Part Number: 116-3872
      In Stock
    $79.95
  • 6
    Nut-Hub – Part Number: 109-3536
    Nut-Hub
    Part Number: 109-3536
      In Stock
    $37.48
  • 7
    Fan And Pulley Kit – Part Number: 135-7347
    Fan And Pulley Kit
    Part Number: 135-7347
      In Stock
    $117.15
  • 7:1
    Nut-Jam, Hex – Part Number: 116-9714
    Nut-Jam, Hex
    Part Number: 116-9714
      Special Order
    $5.95
  • 7:2
    Fan – Part Number: 126-0226
    Fan
    Part Number: 126-0226
      Special Order
    $65.60
  • 8
    Cap-Long Axle – Part Number: 116-6214
    Cap-Long Axle
    Part Number: 116-6214
      Special Order
    $22.48
  • 9
    Tube-Axle – Part Number: 116-6213
    Tube-Axle
    Part Number: 116-6213
      In Stock
    $16.48
  • 10
    Guard-filter, Lh – Part Number: 120-7979
    Guard-filter, Lh
    Part Number: 120-7979
      Special Order
    $51.11
  • 11
    Charge Kit – Part Number: 114-8465
    Charge Kit
    Part Number: 114-8465
      Special Order
    $142.08
  • 11:3
    O-ring-seal – Part Number: 109-3540
    O-ring-seal
    Part Number: 109-3540
      In Stock
    $8.38
Motion Control Assembly
Motion Control Assembly Diagram and Parts List for 413000000 - 414299999 Toro Lawn Tractor
  • 1
    Nut-flange, Ni – Part Number: 104-8300
    Nut-flange, Ni
    Part Number: 104-8300
    ★★★★★
    ★★★★★
    (1)
      In Stock
    $5.95
  • 2
    Nut-flange, Ni – Part Number: 104-8301
    Nut-flange, Ni
    Part Number: 104-8301
      In Stock
    $5.95
  • 3
    Spring-Extension – Part Number: 107-1045
    Spring-Extension
    Part Number: 107-1045
      Special Order
    $7.33
  • 5
    Spring-Compression – Part Number: 109-7694
    Spring-Compression
    Part Number: 109-7694
      Special Order
    $8.68
  • 6
    Nut – Part Number: 112-3306
    Nut
    Part Number: 112-3306
      Special Order
    $5.95
  • 7
    Bolt-pivot – Part Number: 115-5099
    Bolt-pivot
    Part Number: 115-5099
      Special Order
    $5.95
  • 8
    Pin-Cotter, Locking – Part Number: 119-1415
    Pin-Cotter, Locking
    Part Number: 119-1415
      Special Order
    $5.95
  • 9
    Screw-hh – Part Number: 323-8
    Screw-hh
    Part Number: 323-8
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 10
    Washer-wave – Part Number: 119-4164
    Washer-wave
    Part Number: 119-4164
      Special Order
    $5.95
  • 11
    Screw-Hsbh – Part Number: 126-4299
    Screw-Hsbh
    Part Number: 126-4299
      Special Order
    $5.95
  • 12
    Damper – Part Number: 142-6851
    Damper
    Part Number: 142-6851
      Special Order
    $36.80
  • 13
    Screw-Shoulder – Part Number: 126-4424
    Screw-Shoulder
    Part Number: 126-4424
      Special Order
    $5.95
  • 14
    Shaft-Brake – Part Number: 126-5813
    Shaft-Brake
    Part Number: 126-5813
      Special Order
    $47.71
  • 15
    Linkage-Brake, Upper – Part Number: 126-5819
    Linkage-Brake, Upper
    Part Number: 126-5819
      Special Order
    $17.98
  • 16
    Pivot-Flange – Part Number: 126-5989
    Pivot-Flange
    Part Number: 126-5989
      Special Order
    $5.95
  • 17
    Lever-Brake (With Grip) – Part Number: 126-9490
    Lever-Brake (With Grip)
    Part Number: 126-9490
      Special Order
    $34.07
  • 18
    Bracket-Brake – Part Number: 126-6456
    Bracket-Brake
    Part Number: 126-6456
      Special Order
    $29.98
  • 18:2
    Bearing-Spherical – Part Number: 126-5820
    Bearing-Spherical
    Part Number: 126-5820
      Special Order
    $10.32
  • 19
    Rh Control Handle Asm – Part Number: 126-9191
    Rh Control Handle Asm
    Part Number: 126-9191
      Special Order
    $95.30
  • 19:2
    Grip – Part Number: 126-7359
    Grip
    Part Number: 126-7359
      Special Order
    $22.48
  • 20
    Lh Control Handle Asm – Part Number: 126-9192
    Lh Control Handle Asm
    Part Number: 126-9192
      Special Order
    $95.30
  • 20:2
    Grip – Part Number: 126-7359
    Grip
    Part Number: 126-7359
      Special Order
    $22.48
  • 21
    Linkage-Brake, Lower – Part Number: 126-7217
    Linkage-Brake, Lower
    Part Number: 126-7217
      Special Order
    $17.98
  • 24
    Yoke-Adjustable – Part Number: 1-303105
    Yoke-Adjustable
    Part Number: 1-303105
      Special Order
    $17.98
  • 26
    Pin-Clevis – Part Number: 1-808280
    Pin-Clevis
    Part Number: 1-808280
      Special Order
    Minimum Quantity of 2 required
    $5.95
  • 27
    Ring-Retaining, External – Part Number: 32120-47
    Ring-Retaining, External
    Part Number: 32120-47
      Special Order
    $5.95
  • 28
    Screw-hhf – Part Number: 3234-42
    Screw-hhf
    Part Number: 3234-42
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 29
    Bolt-Shoulder – Part Number: 37-8771
    Bolt-Shoulder
    Part Number: 37-8771
      In Stock
    Minimum Quantity of 2 required
    $6.72
  • 30
    Decal – Part Number: 115-9625
    Decal
    Part Number: 115-9625
      Special Order
    $5.95
  • 31
    Screw-Torx – Part Number: 126-6266
    Screw-Torx
    Part Number: 126-6266
      Special Order
    $5.95
  • 32
    Bearing-Spherical – Part Number: 126-5820
    Bearing-Spherical
    Part Number: 126-5820
      Special Order
    $10.32
  • 39
    Washer – Part Number: 2844
    Washer
    Part Number: 2844
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 40
    Nut-jam – Part Number: 3218-3
    Nut-jam
    Part Number: 3218-3
      In Stock
    $5.95
Rh Transaxle Assembly No. 135-0139
Rh Transaxle Assembly No. 135-0139 Diagram and Parts List for 413000000 - 414299999 Toro Lawn Tractor
  • Brake Shaft Seal Kit – Part Number: 135-3604
    Brake Shaft Seal Kit
    Part Number: 135-3604
      Special Order
    $196.86
  • Seal Kit – Part Number: 140-8351
    Seal Kit
    Part Number: 140-8351
      In Stock
    $119.44
  • 1
    Element-Oil Filter, Hyd – Part Number: 109-3321
    Element-Oil Filter, Hyd
    Part Number: 109-3321
      In Stock
    $31.95
  • 2
    Adapter-Straight – Part Number: 109-3278
    Adapter-Straight
    Part Number: 109-3278
      Special Order
    $154.82
  • 2:1
    O-Ring – Part Number: 237-42
    O-Ring
    Part Number: 237-42
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 3
    O-ring-seal – Part Number: 109-3540
    O-ring-seal
    Part Number: 109-3540
      In Stock
    $8.38
  • 4
    Spring-Extension – Part Number: 109-5592
    Spring-Extension
    Part Number: 109-5592
      Special Order
    $28.10
  • 5
    Hub-Offset – Part Number: 116-3872
    Hub-Offset
    Part Number: 116-3872
      In Stock
    $79.95
  • 6
    Nut-Hub – Part Number: 109-3536
    Nut-Hub
    Part Number: 109-3536
      In Stock
    $37.48
  • 7
    Fan And Pulley Kit – Part Number: 135-7347
    Fan And Pulley Kit
    Part Number: 135-7347
      In Stock
    $117.15
  • 7:1
    Nut-Jam, Hex – Part Number: 116-9714
    Nut-Jam, Hex
    Part Number: 116-9714
      Special Order
    $5.95
  • 7:2
    Fan – Part Number: 126-0226
    Fan
    Part Number: 126-0226
      Special Order
    $65.60
  • 8
    Cap-Long Axle – Part Number: 116-6214
    Cap-Long Axle
    Part Number: 116-6214
      Special Order
    $22.48
  • 9
    Tube-Axle – Part Number: 116-6213
    Tube-Axle
    Part Number: 116-6213
      In Stock
    $16.48
  • 10
    Guard-filter, Rh – Part Number: 120-7981
    Guard-filter, Rh
    Part Number: 120-7981
      Special Order
    $51.11
  • 11
    Charge Kit – Part Number: 114-8465
    Charge Kit
    Part Number: 114-8465
      Special Order
    $142.08
  • 11:3
    O-ring-seal – Part Number: 109-3540
    O-ring-seal
    Part Number: 109-3540
      In Stock
    $8.38
Roll-Over Protection System Assembly No. 144-1848
Roll-Over Protection System Assembly No. 144-1848 Diagram and Parts List for 413000000 - 414299999 Toro Lawn Tractor
  • 1:2
    Decal-Warning, Folding Rops – Part Number: 107-3069
    Decal-Warning, Folding Rops
    Part Number: 107-3069
      Special Order
    $35.78
  • 4
    PIN-ROPS, ASM – Part Number: 161-4477
    PIN-ROPS, ASM
    Part Number: 161-4477
      Special Order
    $43.62
  • 5
    Bolt-Shoulder – Part Number: 126-9209
    Bolt-Shoulder
    Part Number: 126-9209
      Special Order
    $9.13
  • 6
    NUT-LOCK – Part Number: 99-5107
    NUT-LOCK
    Part Number: 99-5107
      In Stock
    $5.95
  • 7
    BUMPER-ROPS – Part Number: 109-5337
    BUMPER-ROPS
    Part Number: 109-5337
      Special Order
    $9.13
  • 8
    Screw-Hhf – Part Number: 126-9488
    Screw-Hhf
    Part Number: 126-9488
      Special Order
    $10.02
  • 9
    NUT-FLANGE – Part Number: 32128-50
    NUT-FLANGE
    Part Number: 32128-50
      Special Order
    $5.95
  • 10
    Washer-wave – Part Number: 119-4164
    Washer-wave
    Part Number: 119-4164
      Special Order
    $5.95
Seat Assembly No. 144-1965
Seat Assembly No. 144-1965 Diagram and Parts List for 413000000 - 414299999 Toro Lawn Tractor
Seat Pan Assembly
Seat Pan Assembly Diagram and Parts List for 413000000 - 414299999 Toro Lawn Tractor
Transaxle Assembly
Transaxle Assembly Diagram and Parts List for 413000000 - 414299999 Toro Lawn Tractor
Wheel Assembly

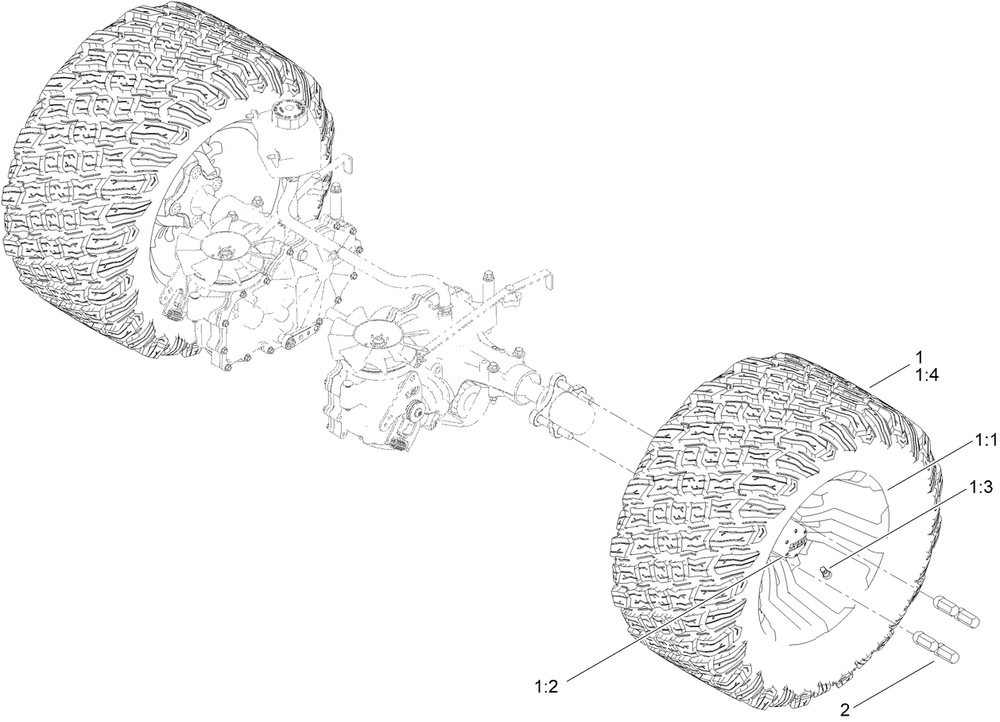

Wheel Assembly Diagram and Parts List for 413000000 - 414299999 Toro Lawn Tractor
  • 1
    TIRE ASM – Part Number: 145-0522
    TIRE ASM
    Part Number: 145-0522
      Special Order
    $387.04
  • 1:1
    WHEEL – Part Number: 145-0523
    WHEEL
    Part Number: 145-0523
      Special Order
    $224.99
  • 1:2
    CAP-WHEEL – Part Number: 145-0524
    CAP-WHEEL
    Part Number: 145-0524
      Special Order
    $33.73
  • 1:3
    Stem-Valve – Part Number: 145-0529
    Stem-Valve
    Part Number: 145-0529
      Special Order
    $5.95
  • 1:4
    Tire – Part Number: 144-1864
    Tire
    Part Number: 144-1864
      Special Order
    $233.02
  • 2
    Nut-Lug – Part Number: 139-3603
    Nut-Lug
    Part Number: 139-3603
      Special Order
    $5.98

Questions & Answers

?

Our customer Service team is at the ready daily to answer your part and product questions.

Be the first to ask our experts a question about this part!

Ask our Team

We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.

✖

Our customer service team are at the ready daily to answer your part and product questions. We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
