Toro Parts

Toro Groundsmaster 52 Lawn Tractor Replacement Parts For Model 30760 (90001 - 99999)

We Sell Only Genuine Toro Parts

Popular Parts for 30760

Nut-lock, Ni – Part Number: 3296-42 Nut-lock, Ni
In Stock
$6.16
Nut-lock, Ni – Part Number: 3296-29 Nut-lock, Ni
In Stock
$6.16
Screw – Part Number: 321-10 Screw
In Stock
Minimum Quantity of 2 required
$6.16
Washer-flat – Part Number: 3256-24 Washer-flat
In Stock
Minimum Quantity of 2 required
$6.16
Lawn Mower Hex Head Screw – Part Number: 321-4 Lawn Mower Hex Head Screw
In Stock
Minimum Quantity of 2 required
$6.16
Ring-retaining – Part Number: 32151-36 Ring-retaining
In Stock
$6.16
Nut-lock, Ni – Part Number: 3296-39 Nut-lock, Ni
In Stock
$6.16
Locknut – Part Number: 603773 Locknut
In Stock
$6.16

Search Within Model

Questions & Answers for Toro 30760
Browse all Parts Search by Area
48" Snowthrower Adapter Kit Model No. 30510 Diagram and Parts List for 90001 - 99999 Toro Lawn Tractor
48" Snowthrower Adapter Kit Model No. 30510
48" Snowthrower Model No. 30515 Diagram and Parts List for 90001 - 99999 Toro Lawn Tractor
48" Snowthrower Model No. 30515
48" Snowthrower Model No. 30515 (Continued) Diagram and Parts List for 90001 - 99999 Toro Lawn Tractor
48" Snowthrower Model No. 30515 (Continued)
48" Snowthrower Model No. 30515 (Continued) Diagram and Parts List for 90001 - 99999 Toro Lawn Tractor
48" Snowthrower Model No. 30515 (Continued)
48" Snowthrower Model No. 30515 (Continued) Diagram and Parts List for 90001 - 99999 Toro Lawn Tractor
48" Snowthrower Model No. 30515 (Continued)
Air Cleaner Assembly 8-2329 Diagram and Parts List for 90001 - 99999 Toro Lawn Tractor
Air Cleaner Assembly 8-2329

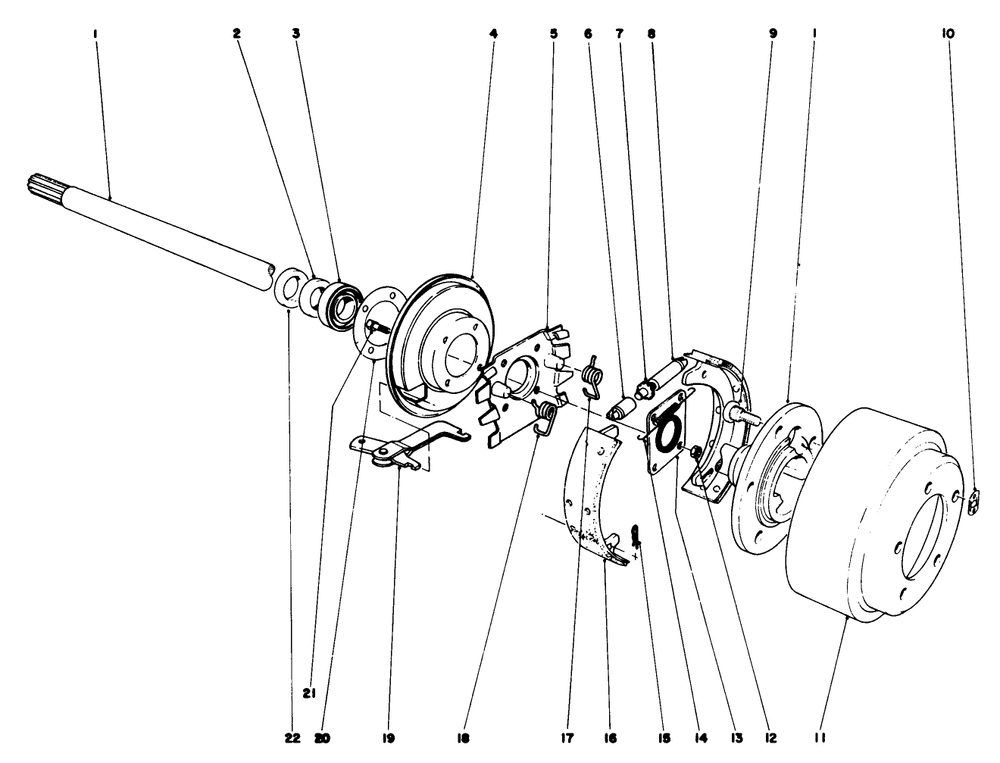

Brake Assembly Diagram and Parts List for 90001 - 99999 Toro Lawn Tractor
Brake Assembly

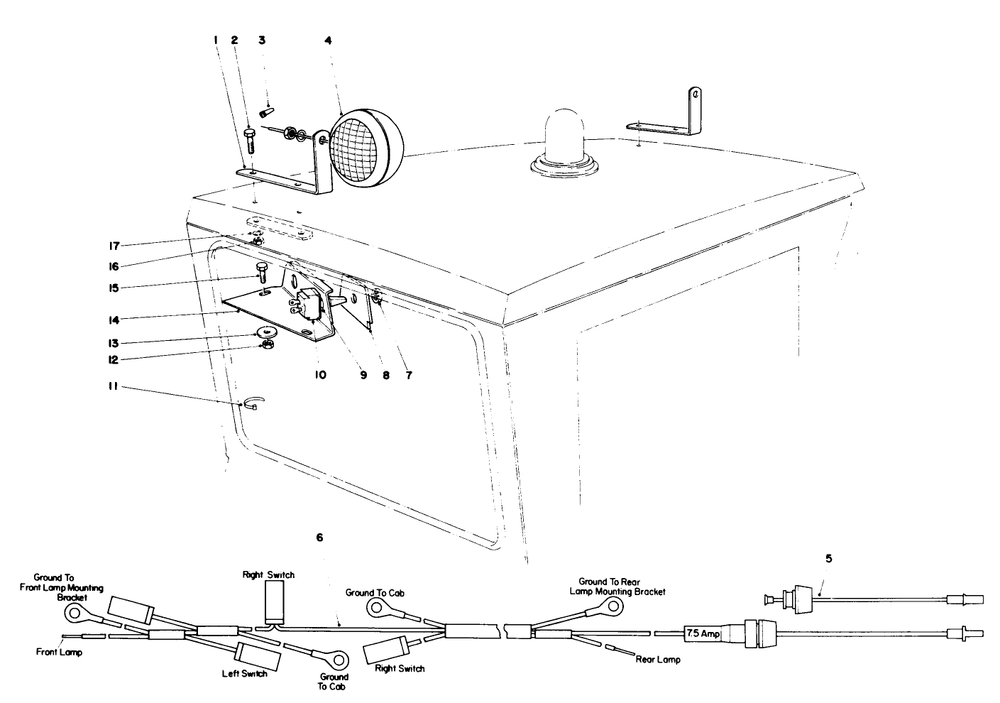

Cab Light Kit Model No. 30501 Diagram and Parts List for 90001 - 99999 Toro Lawn Tractor
Cab Light Kit Model No. 30501
Cutting Unit Assembly Diagram and Parts List for 90001 - 99999 Toro Lawn Tractor
Cutting Unit Assembly

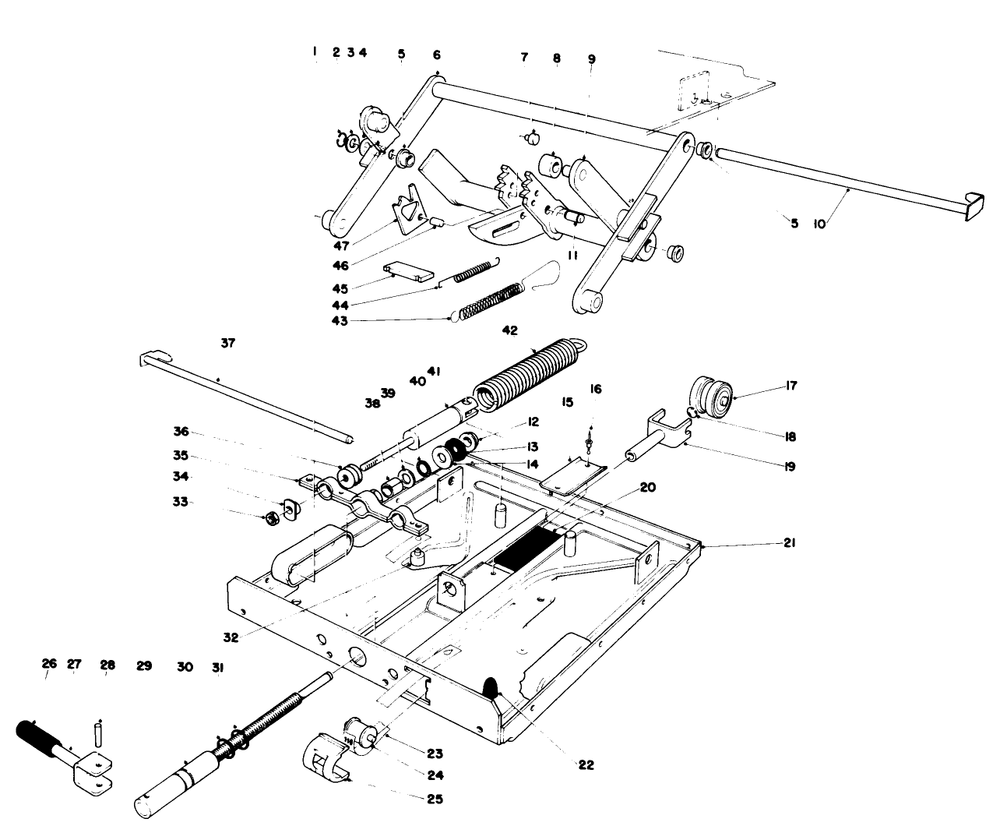

Deluxe Seat Kit Model No. 30766 Diagram and Parts List for 90001 - 99999 Toro Lawn Tractor
Deluxe Seat Kit Model No. 30766

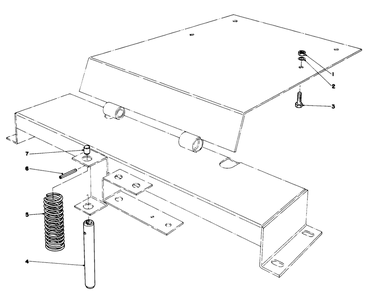

Deluxe Seat Kit Model No. 30766 (Continued) Diagram and Parts List for 90001 - 99999 Toro Lawn Tractor
Deluxe Seat Kit Model No. 30766 (Continued)

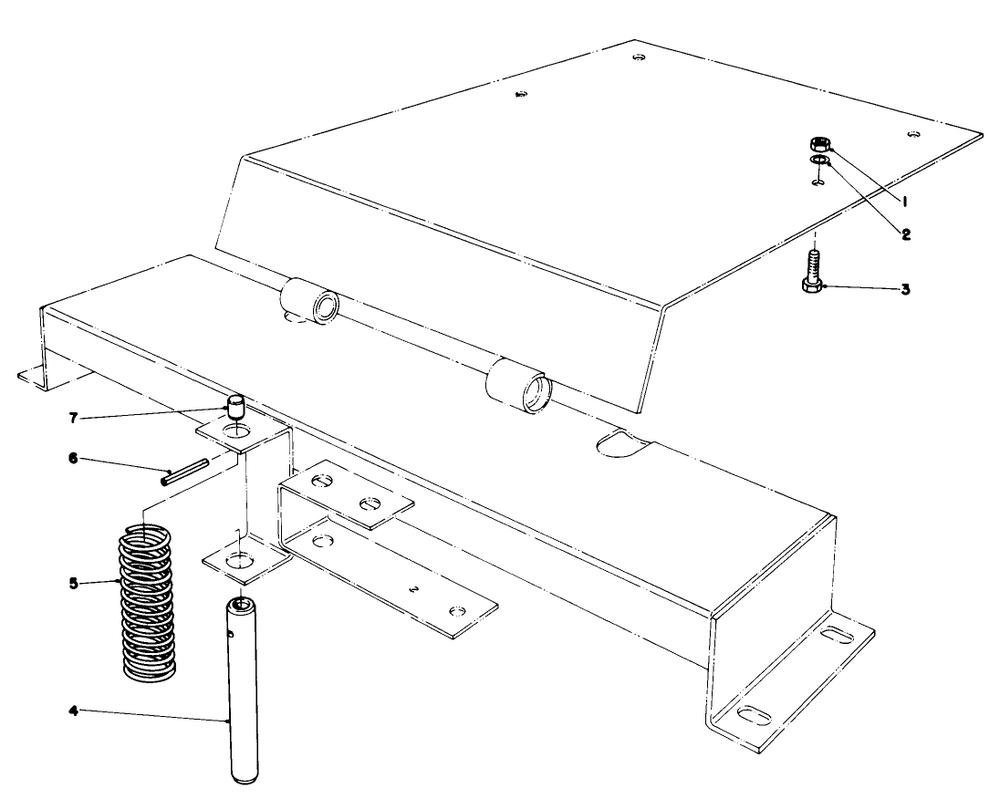

Deluxe Seat Kit Model No. 30766 (Continued) Diagram and Parts List for 90001 - 99999 Toro Lawn Tractor
Deluxe Seat Kit Model No. 30766 (Continued)

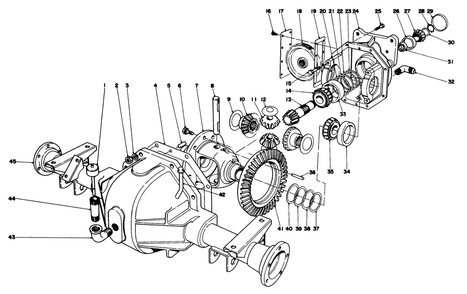

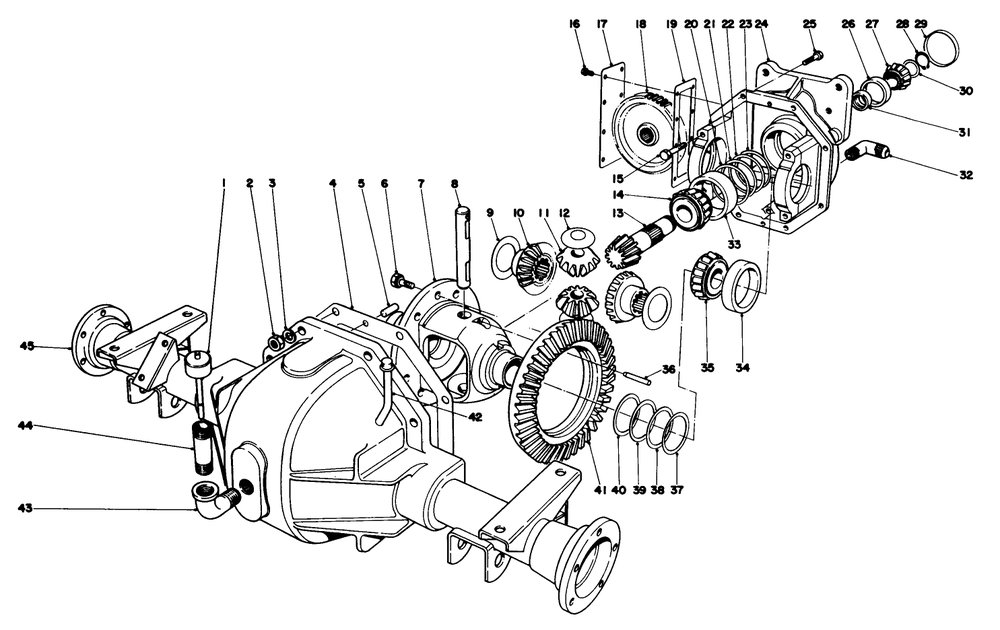

Differential Assembly Diagram and Parts List for 90001 - 99999 Toro Lawn Tractor
Differential Assembly

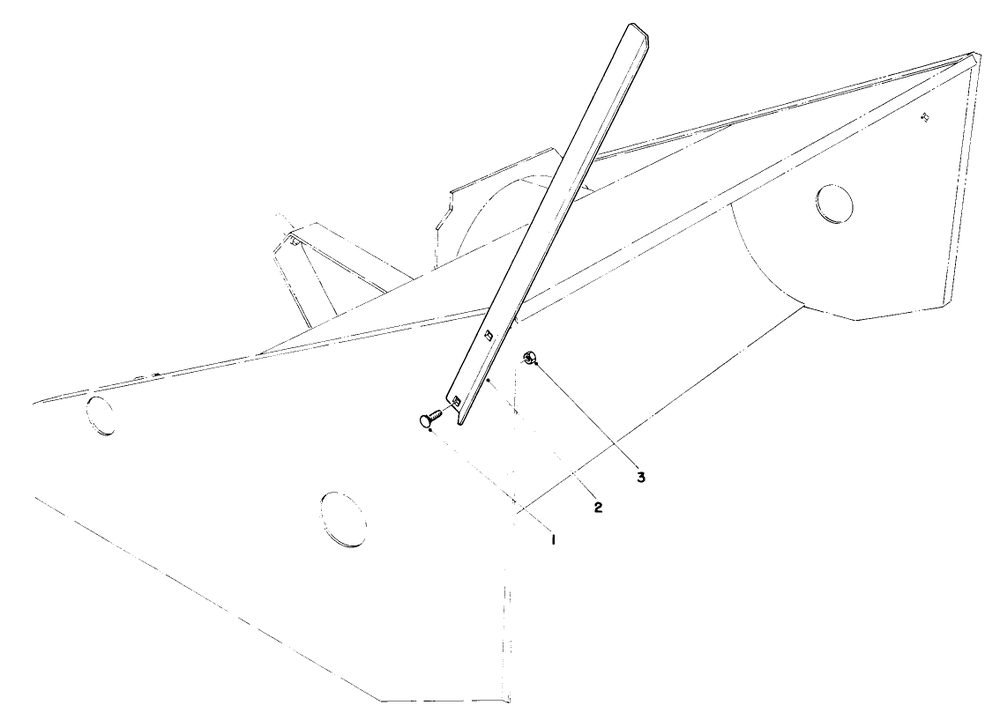

Drift Cutter 48" Snowthrower Model No. 30-1000 Diagram and Parts List for 90001 - 99999 Toro Lawn Tractor
Drift Cutter 48" Snowthrower Model No. 30-1000

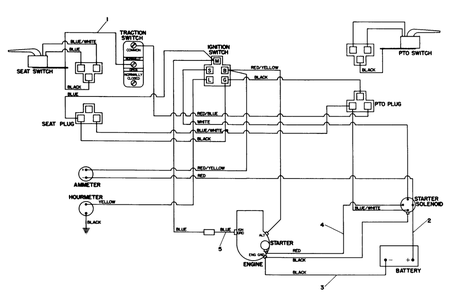

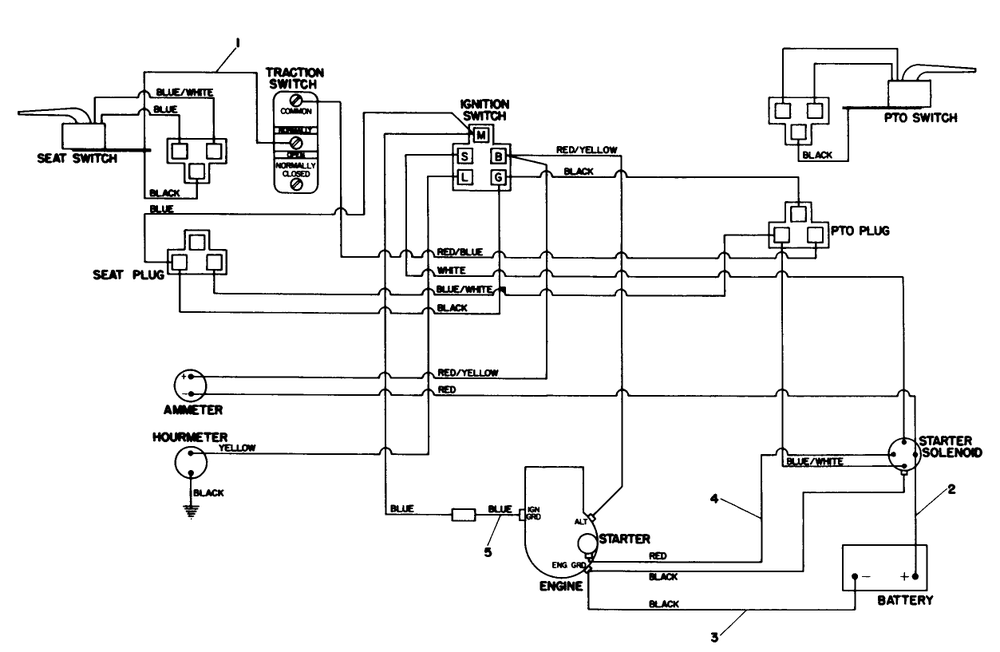

Electrical Schematic Diagram and Parts List for 90001 - 99999 Toro Lawn Tractor
Electrical Schematic

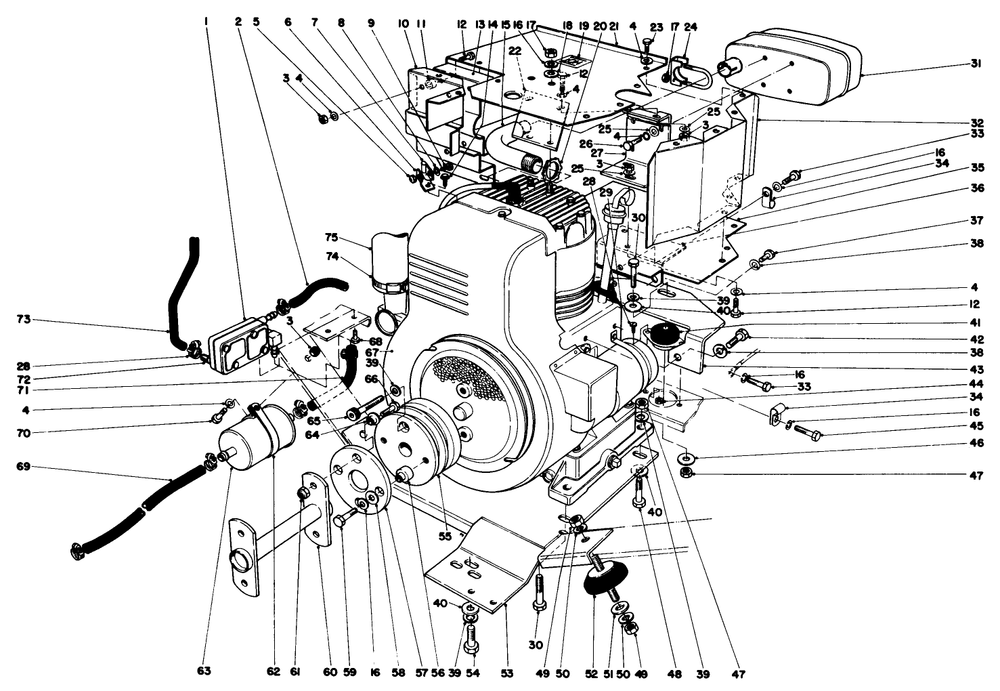

Engine Assembly Diagram and Parts List for 90001 - 99999 Toro Lawn Tractor
Engine Assembly

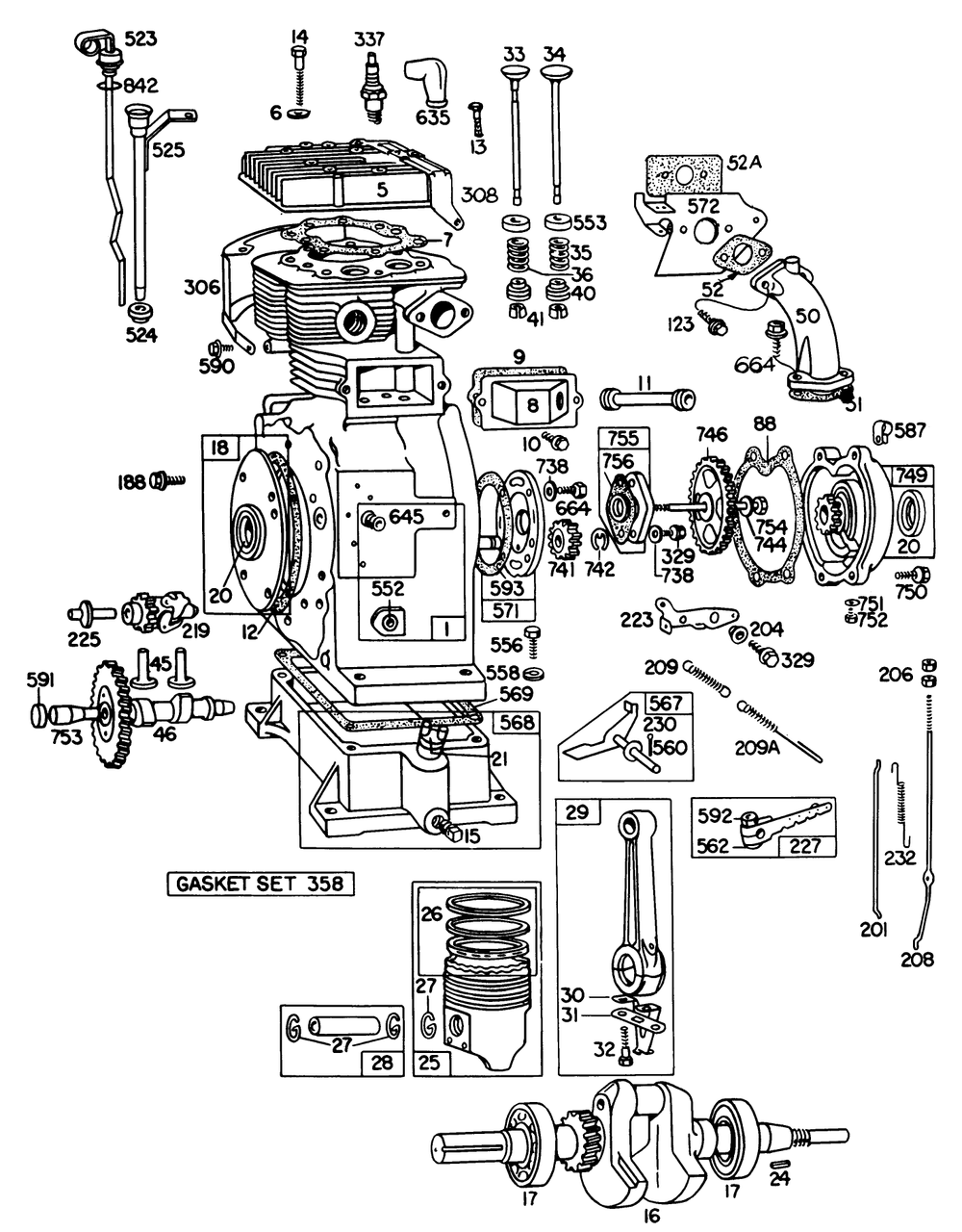

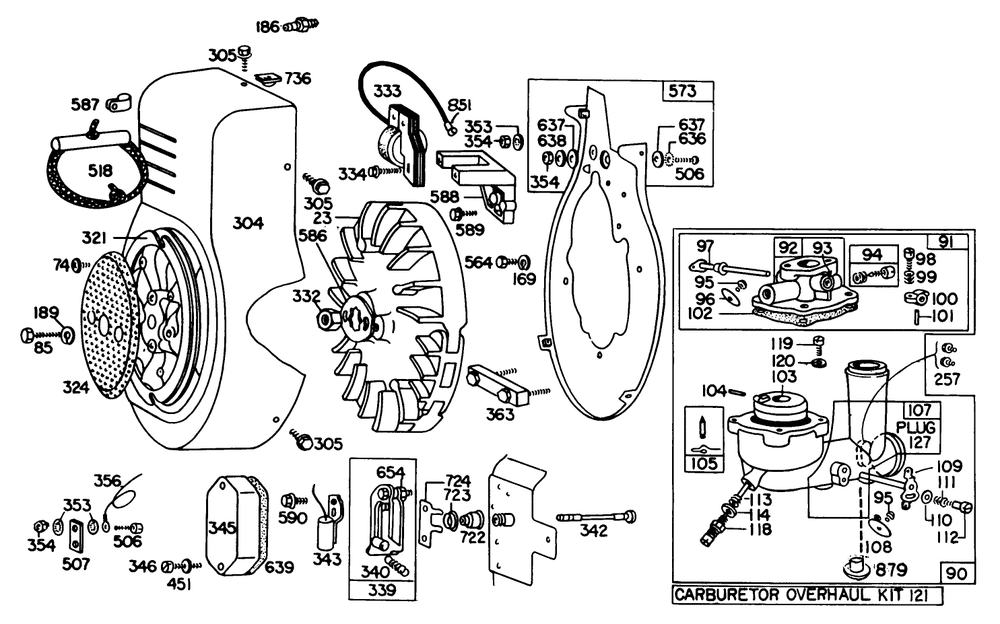

Engine Briggs And Stratton Model No. 326437-0262-01 Diagram and Parts List for 90001 - 99999 Toro Lawn Tractor
Engine Briggs And Stratton Model No. 326437-0262-01
Engine Model No. 326437-0262-01 Diagram and Parts List for 90001 - 99999 Toro Lawn Tractor
Engine Model No. 326437-0262-01
Engine Model No. 326437-0262-01 Diagram and Parts List for 90001 - 99999 Toro Lawn Tractor
Engine Model No. 326437-0262-01

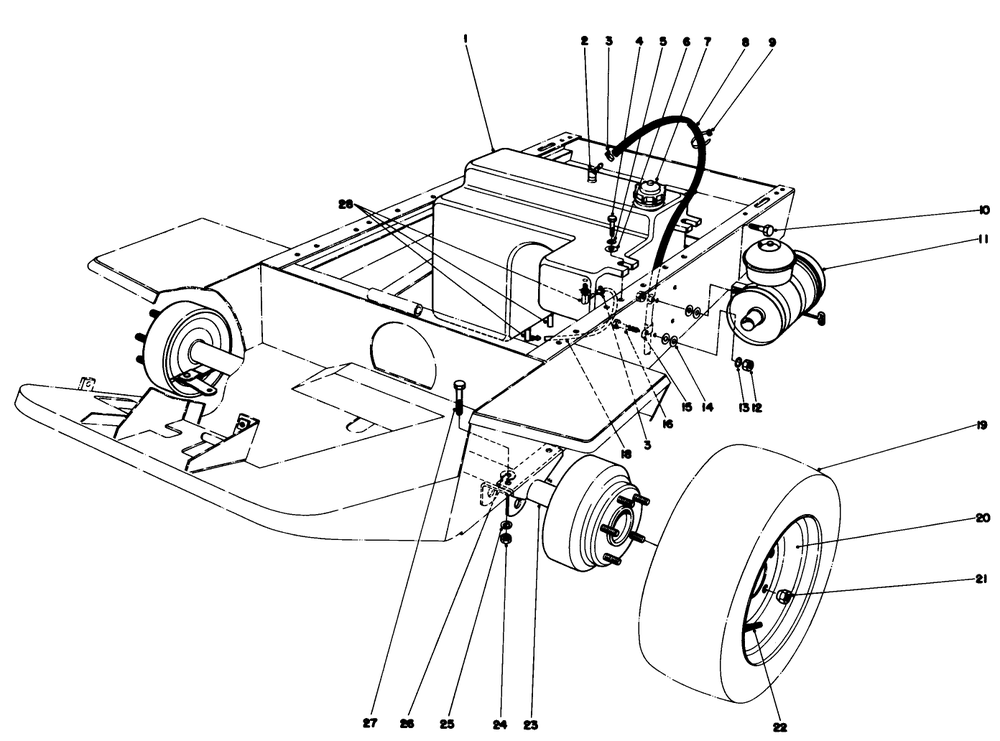

Gas Tank And Air Cleaner Assembly Diagram and Parts List for 90001 - 99999 Toro Lawn Tractor
Gas Tank And Air Cleaner Assembly
Gear Box Assembly 8-0909 Diagram and Parts List for 90001 - 99999 Toro Lawn Tractor
Gear Box Assembly 8-0909
Heater Kit Model No. 30878 Diagram and Parts List for 90001 - 99999 Toro Lawn Tractor
Heater Kit Model No. 30878
Hydraulic Cyllnder 27-2510 Diagram and Parts List for 90001 - 99999 Toro Lawn Tractor
Hydraulic Cyllnder 27-2510

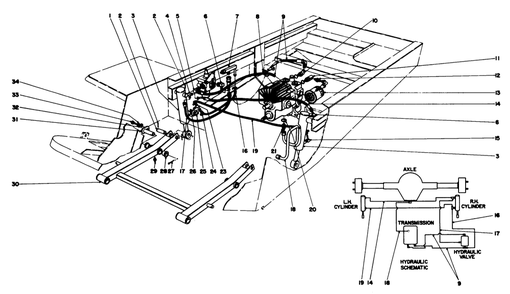

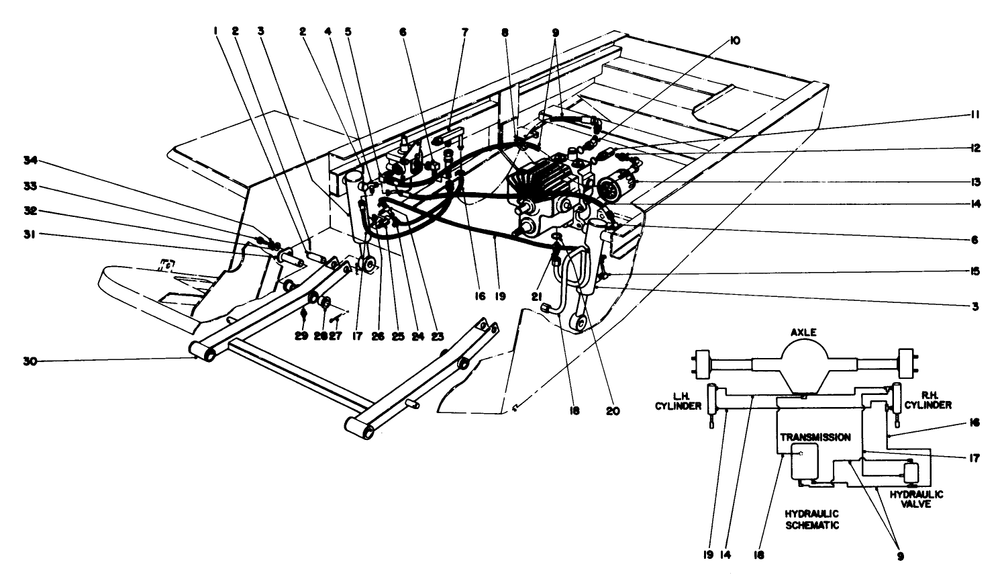

Hydraulic Valve And Lift Arm And Cylinders Diagram and Parts List for 90001 - 99999 Toro Lawn Tractor
Hydraulic Valve And Lift Arm And Cylinders
Instrument Panel And Steering Post Assembly Diagram and Parts List for 90001 - 99999 Toro Lawn Tractor
Instrument Panel And Steering Post Assembly

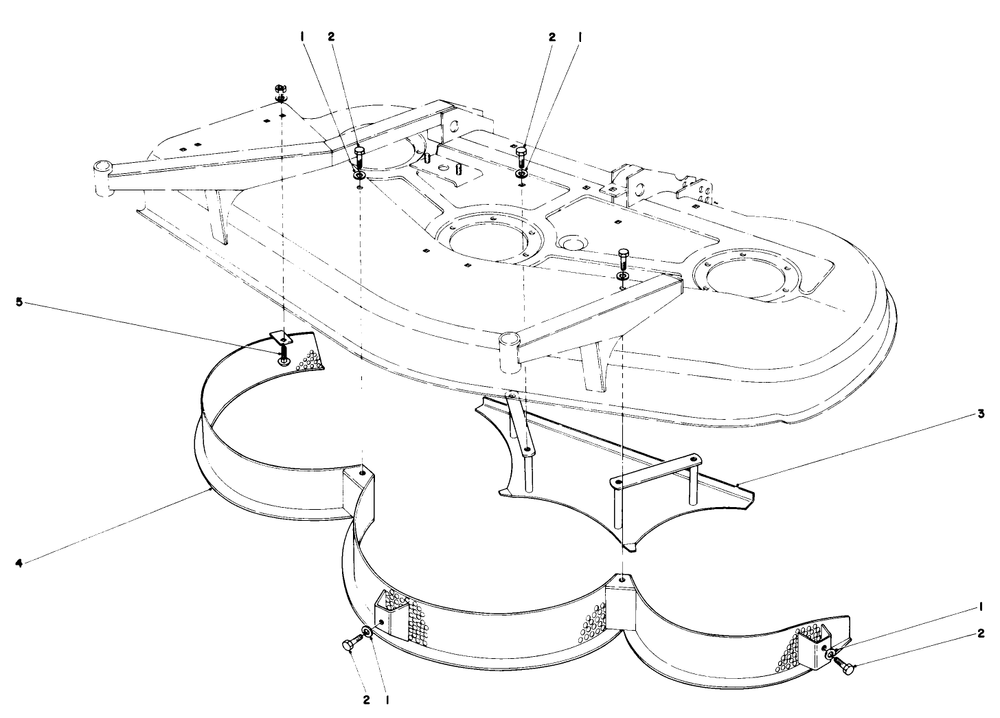

Leaf Mulcher Kit No. 30771 (Optional) Diagram and Parts List for 90001 - 99999 Toro Lawn Tractor
Leaf Mulcher Kit No. 30771 (Optional)

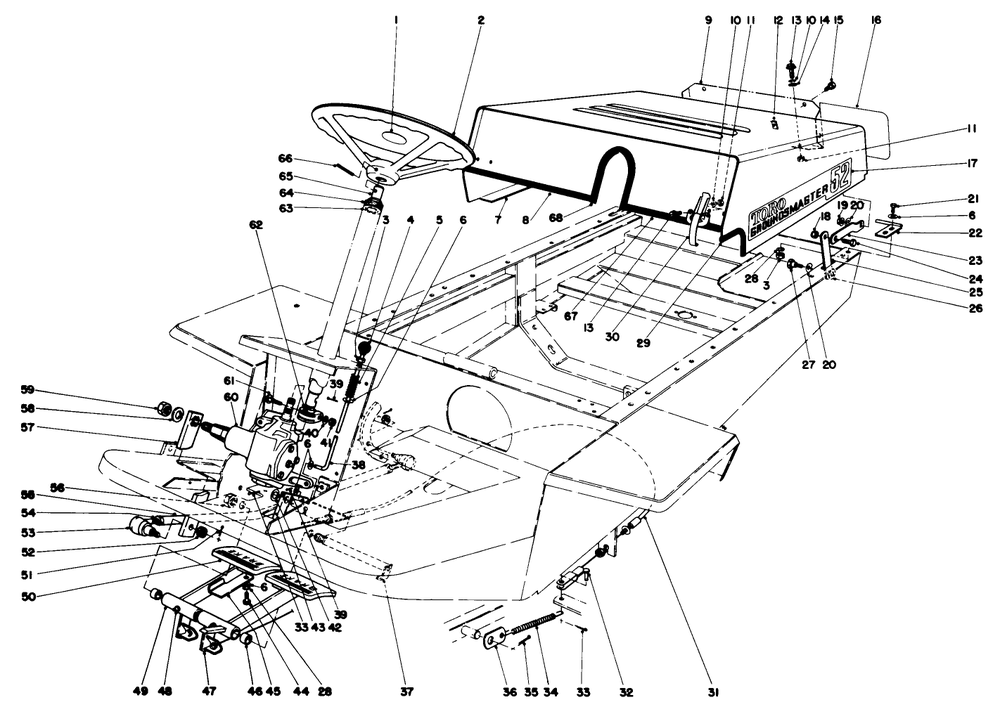

Pedals, Hood And Steering Wheel Assembly Diagram and Parts List for 90001 - 99999 Toro Lawn Tractor
Pedals, Hood And Steering Wheel Assembly
Power Take Off Assembly Diagram and Parts List for 90001 - 99999 Toro Lawn Tractor
Power Take Off Assembly

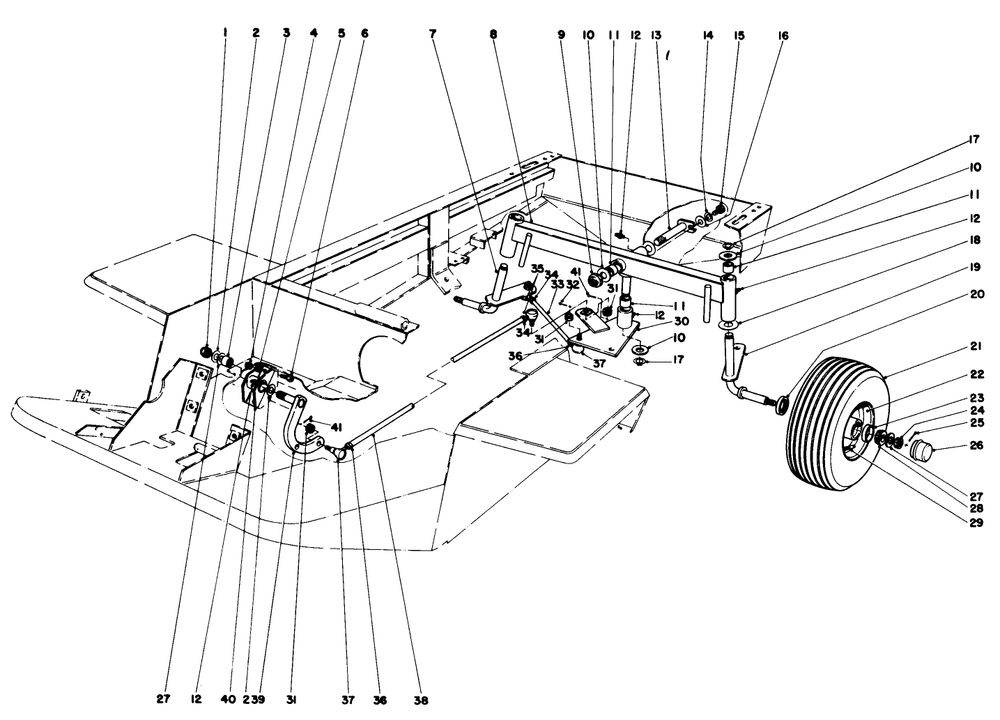

Rear Axle Assembly Diagram and Parts List for 90001 - 99999 Toro Lawn Tractor
Rear Axle Assembly

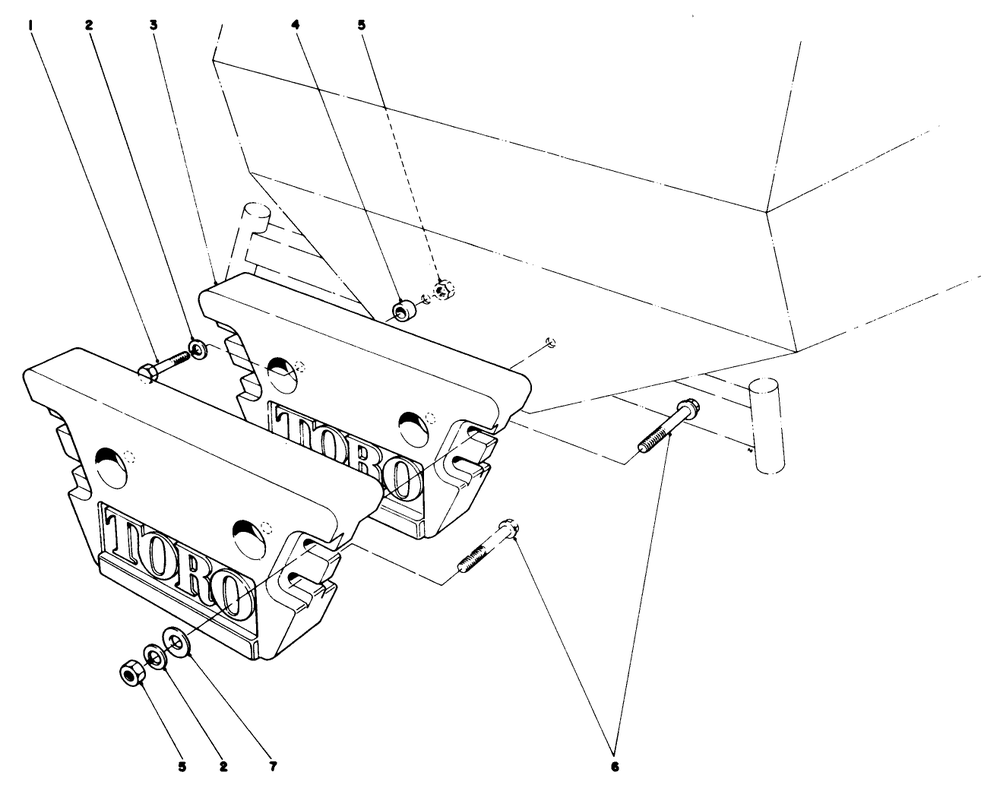

Rear Weight Kit Model No. 24-5780 (Optional) Diagram and Parts List for 90001 - 99999 Toro Lawn Tractor
Rear Weight Kit Model No. 24-5780 (Optional)

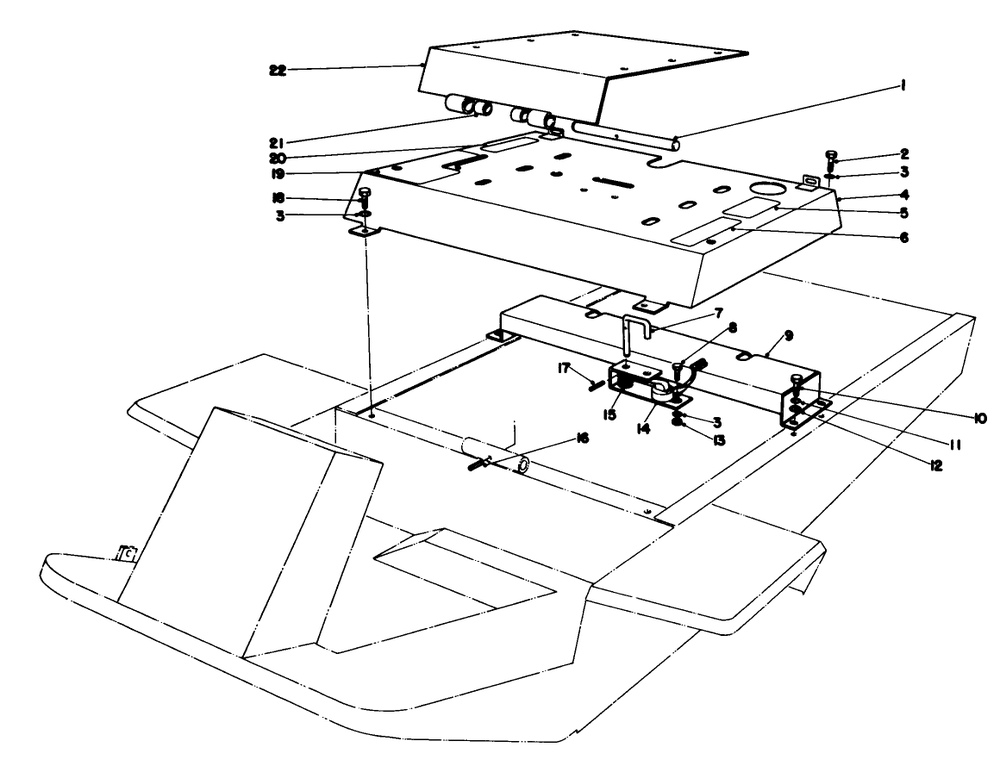

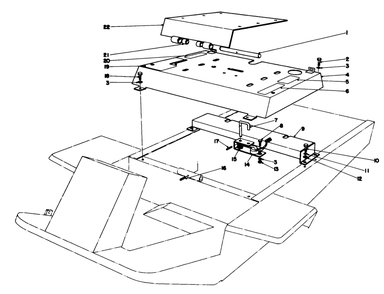

Seat Mount Assembly Diagram and Parts List for 90001 - 99999 Toro Lawn Tractor
Seat Mount Assembly

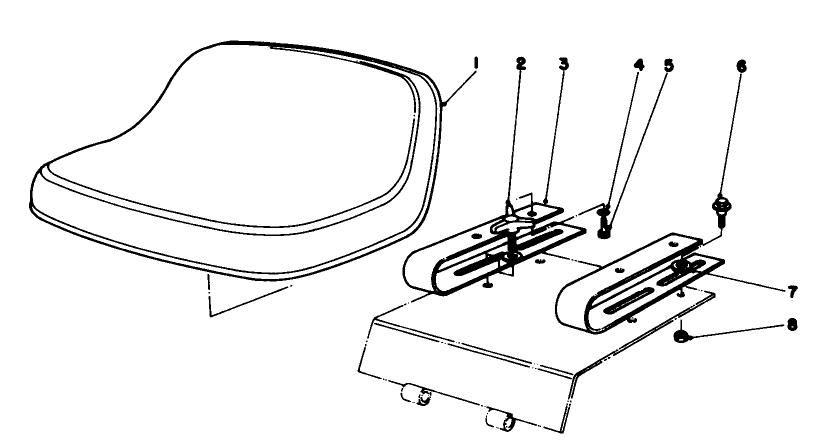

Standard Seat Kit Model No. 30765 Diagram and Parts List for 90001 - 99999 Toro Lawn Tractor
Standard Seat Kit Model No. 30765

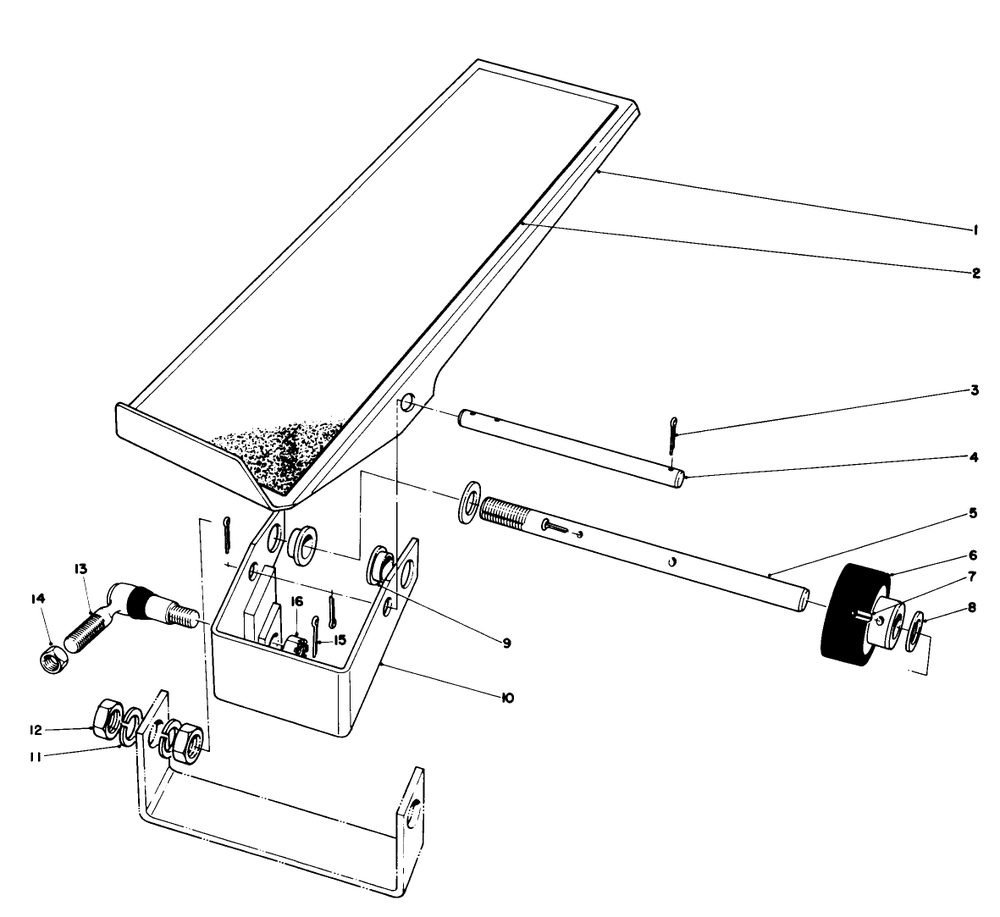

Traction Pedal Assembly Diagram and Parts List for 90001 - 99999 Toro Lawn Tractor
Traction Pedal Assembly

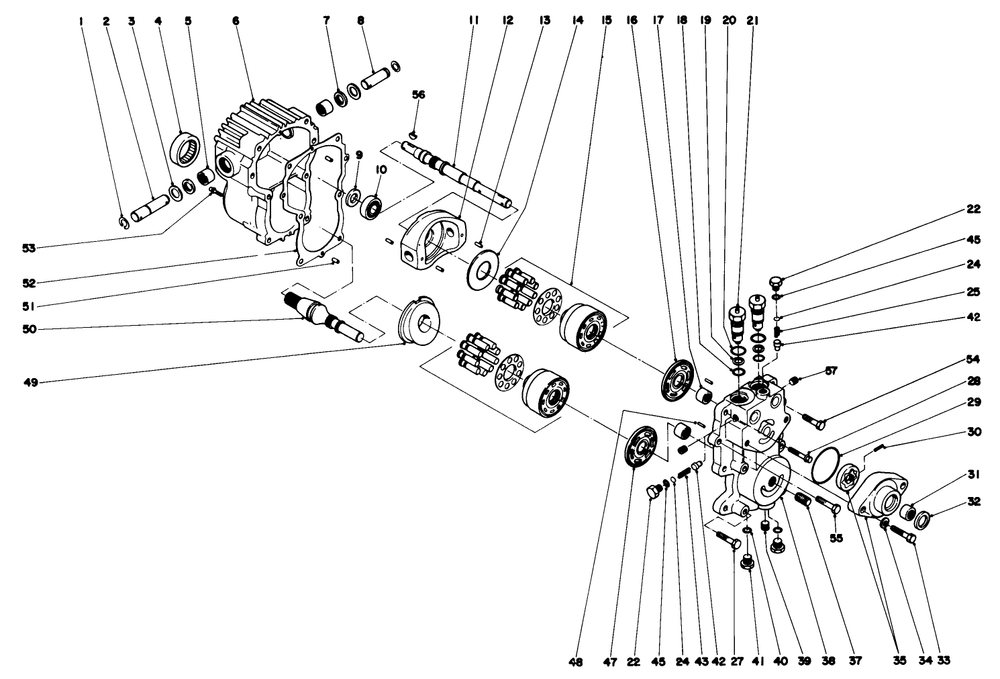

Transmission Assembly 27-3670 Diagram and Parts List for 90001 - 99999 Toro Lawn Tractor
Transmission Assembly 27-3670

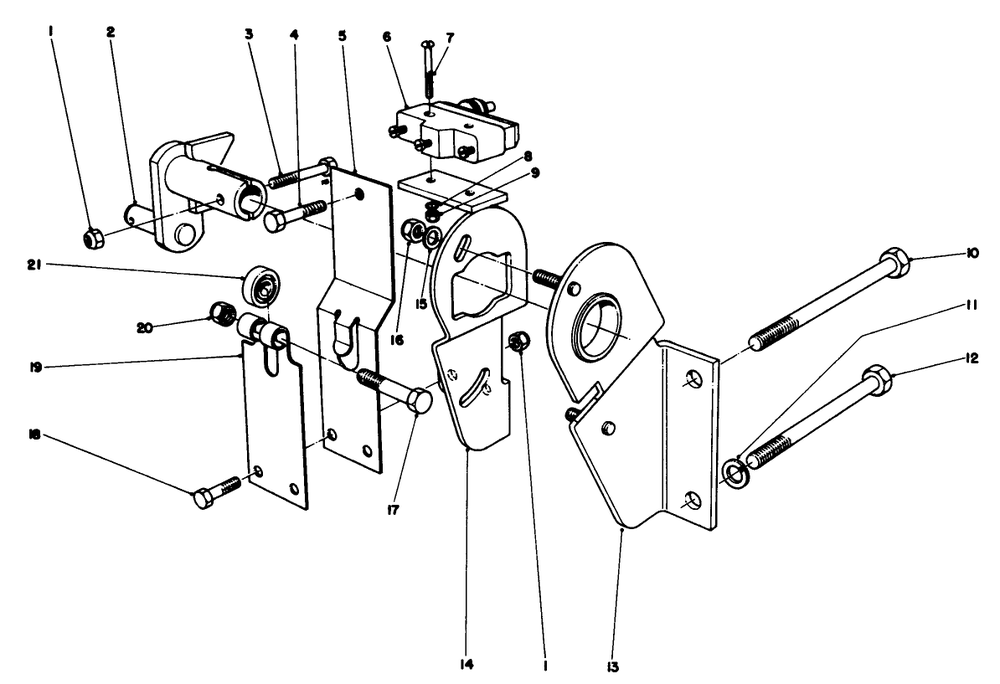

Transmission Interlock Assembly Diagram and Parts List for 90001 - 99999 Toro Lawn Tractor
Transmission Interlock Assembly

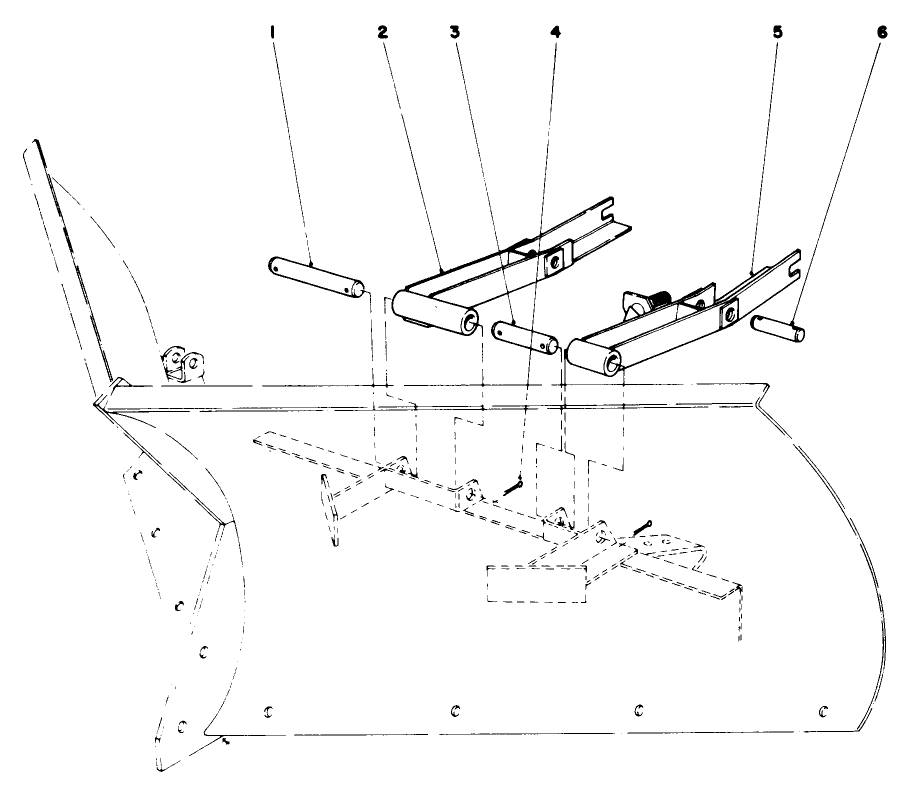

V-Plow Installation No. 30755 (Optional) Diagram and Parts List for 90001 - 99999 Toro Lawn Tractor
V-Plow Installation No. 30755 (Optional)

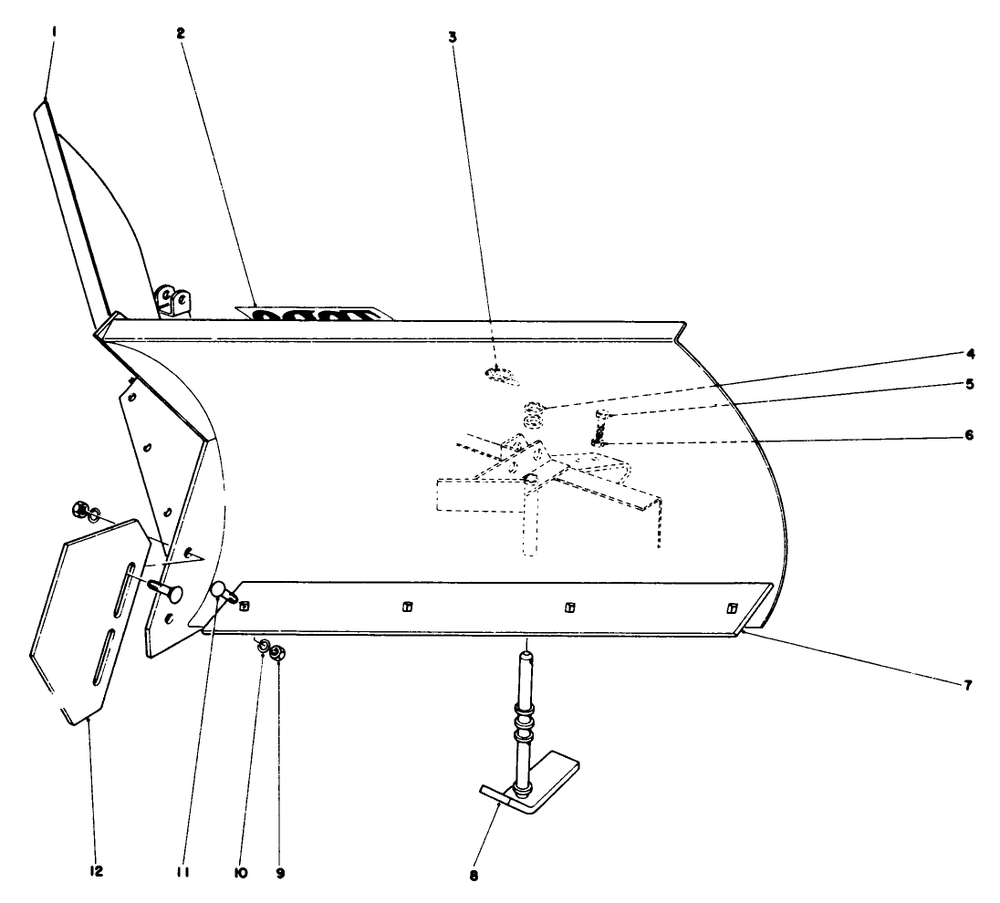

V-Plow Model No. 30750 (Optional) Diagram and Parts List for 90001 - 99999 Toro Lawn Tractor
V-Plow Model No. 30750 (Optional)
Valve And Lever Assembly Diagram and Parts List for 90001 - 99999 Toro Lawn Tractor
Valve And Lever Assembly
Valve Assembly 27-4190 Diagram and Parts List for 90001 - 99999 Toro Lawn Tractor
Valve Assembly 27-4190

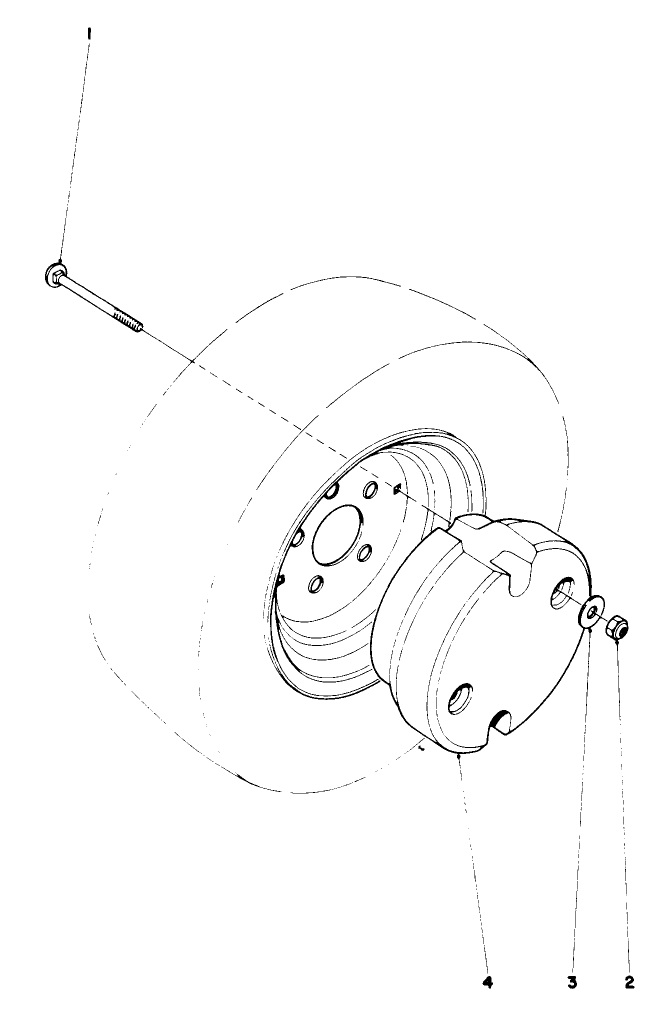

Wheel Weight Kit No. 30762 (Optional) Diagram and Parts List for 90001 - 99999 Toro Lawn Tractor
Wheel Weight Kit No. 30762 (Optional)
Previous Showing All Parts Next
48" Snowthrower Adapter Kit Model No. 30510
48" Snowthrower Adapter Kit Model No. 30510 Diagram and Parts List for 90001 - 99999 Toro Lawn Tractor
  • Self Tapping Screw – Part Number: 3210442
    Self Tapping Screw
    Part Number: 3210442
      No Longer Available
  • Reflector – Part Number: 37-5790
    Reflector
    Part Number: 37-5790
      No Longer Available
  • 1
    Chute Pivot Handle – Part Number: 37-5460
    Chute Pivot Handle
    Part Number: 37-5460
      No Longer Available
  • 2
    Spring-Extension – Part Number: 30-1020
    Spring-Extension
    Part Number: 30-1020
      No Longer Available
  • 3
    Eyebolt – Part Number: 30-0980
    Eyebolt
    Part Number: 30-0980
      No Longer Available
  • 4
    Nut-Hex – Part Number: 3217-6
    Nut-Hex
    Part Number: 3217-6
      Special Order
    $6.16
  • 5
    Screw-hh – Part Number: 323-11
    Screw-hh
    Part Number: 323-11
      In Stock
    Minimum Quantity of 2 required
    $6.16
  • 6
    Pin – Part Number: 37-5160
    Pin
    Part Number: 37-5160
      No Longer Available
  • 7
    Adapter L.H. – Part Number: 37-5620
    Adapter L.H.
    Part Number: 37-5620
      No Longer Available
  • 8
    Cotter Pin – Part Number: 3272-52
    Cotter Pin
    Part Number: 3272-52
      No Longer Available
  • 9
    SCREW-HHF – Part Number: 3234-12
    SCREW-HHF
    Part Number: 3234-12
      Special Order
    $6.16
  • 10
    Jackshaft-Support – Part Number: 37-5610
    Jackshaft-Support
    Part Number: 37-5610
      No Longer Available
  • 11
    Bearing Flangette – Part Number: 30-0170
    Bearing Flangette
    Part Number: 30-0170
      No Longer Available
  • 12
    Pulley – Part Number: 37-5070
    Pulley
    Part Number: 37-5070
      No Longer Available
  • 13
    Square Key – Part Number: 3-3267
    Square Key
    Part Number: 3-3267
      No Longer Available
  • 14
    Screw-Set, Sqh – Part Number: 3242-6
    Screw-Set, Sqh
    Part Number: 3242-6
      Special Order
    $7.00
  • 15
    V-Belt (Matched Set) – Part Number: 37-5650
    V-Belt (Matched Set)
    Part Number: 37-5650
      No Longer Available
  • 16
    Screw-carr – Part Number: 3230-16
    Screw-carr
    Part Number: 3230-16
      In Stock
    Minimum Quantity of 2 required
    $6.16
  • 17
    Screw-Carr – Part Number: 3230-4
    Screw-Carr
    Part Number: 3230-4
      Special Order
    Minimum Quantity of 2 required
    $6.16
  • 18
    Pulley – Part Number: 37-5340
    Pulley
    Part Number: 37-5340
      No Longer Available
  • 19
    Screw-Set, Sqh – Part Number: 3242-6
    Screw-Set, Sqh
    Part Number: 3242-6
      Special Order
    $7.00
  • 20
    Key – Part Number: 5-0738
    Key
    Part Number: 5-0738
      No Longer Available
  • 21
    Washer-Lock/Sp – Part Number: 3253-24
    Washer-Lock/Sp
    Part Number: 3253-24
      No Longer Available
  • 22
    Jackshaft – Part Number: 39-4370
    Jackshaft
    Part Number: 39-4370
      Special Order
    $760.41
  • 23
    Belt Shield – Part Number: 37-5580
    Belt Shield
    Part Number: 37-5580
      No Longer Available
  • 24
    Screw-hh – Part Number: 322-3
    Screw-hh
    Part Number: 322-3
      In Stock
    Minimum Quantity of 2 required
    $6.16
  • 25
    Washer-flat – Part Number: 3256-23
    Washer-flat
    Part Number: 3256-23
    ★★★★★
    ★★★★★
    (3)
      In Stock
    Minimum Quantity of 2 required
    $6.16
  • 26
    Screw-Carr – Part Number: 3229-10
    Screw-Carr
    Part Number: 3229-10
      Special Order
    $6.16
  • 27
    Nut-lock, Cone – Part Number: 32152-2
    Nut-lock, Cone
    Part Number: 32152-2
      In Stock
    $6.16
  • 28
    Adpater R.H. – Part Number: 37-5600
    Adpater R.H.
    Part Number: 37-5600
      No Longer Available
  • 29
    Pin-Spring – Part Number: 32121-45
    Pin-Spring
    Part Number: 32121-45
      Special Order
    $6.16

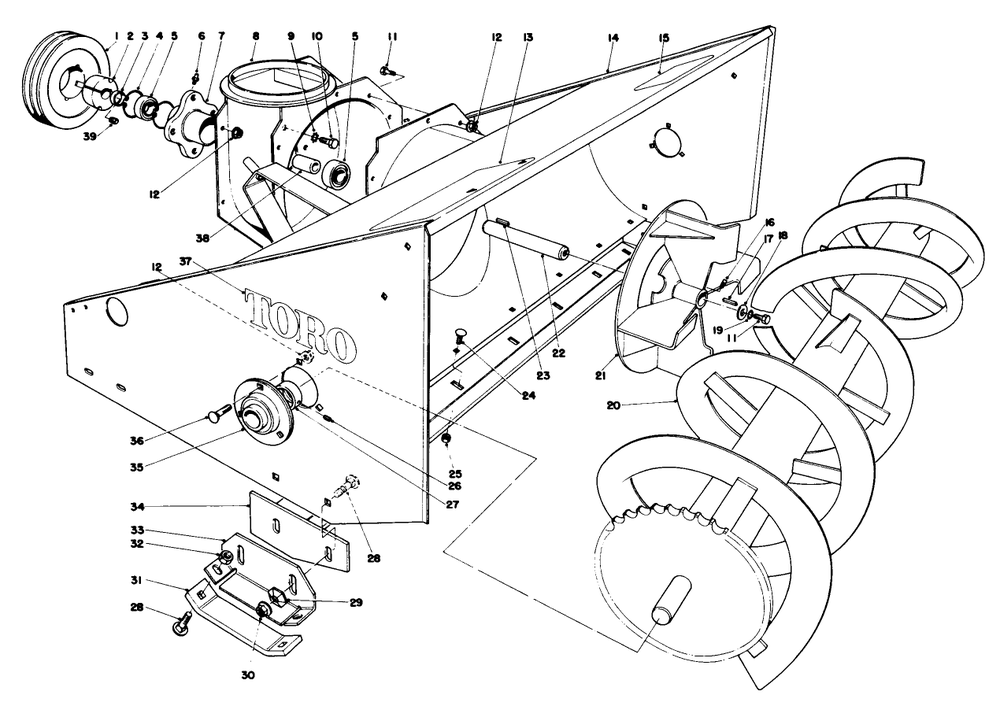

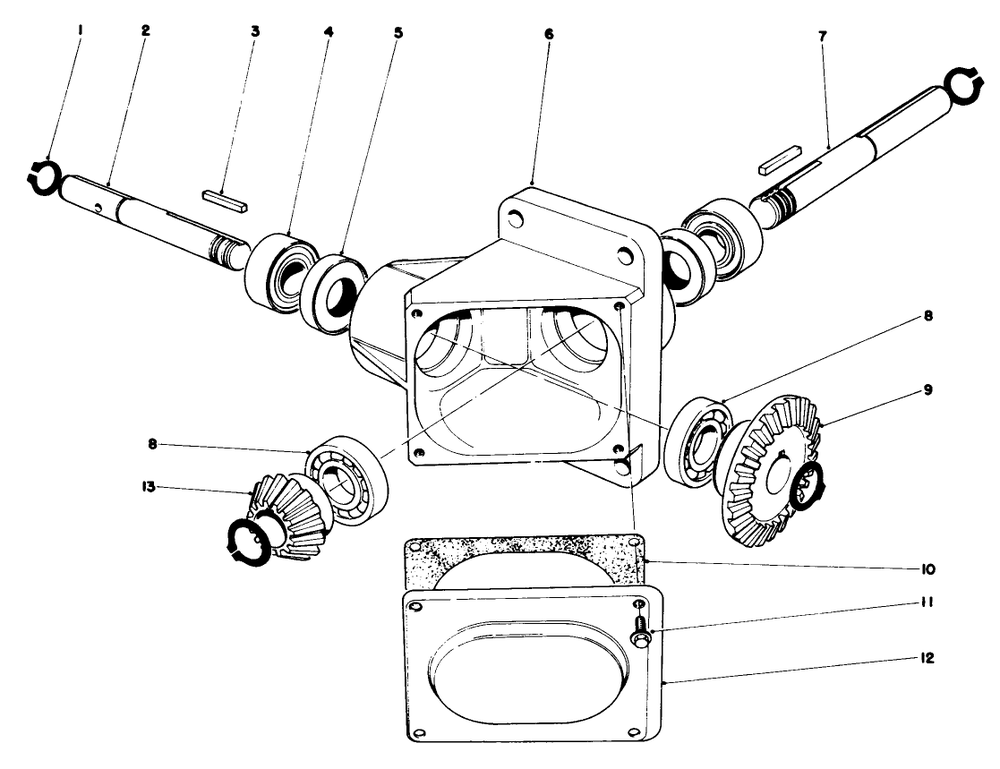

48" Snowthrower Model No. 30515
48" Snowthrower Model No. 30515 Diagram and Parts List for 90001 - 99999 Toro Lawn Tractor

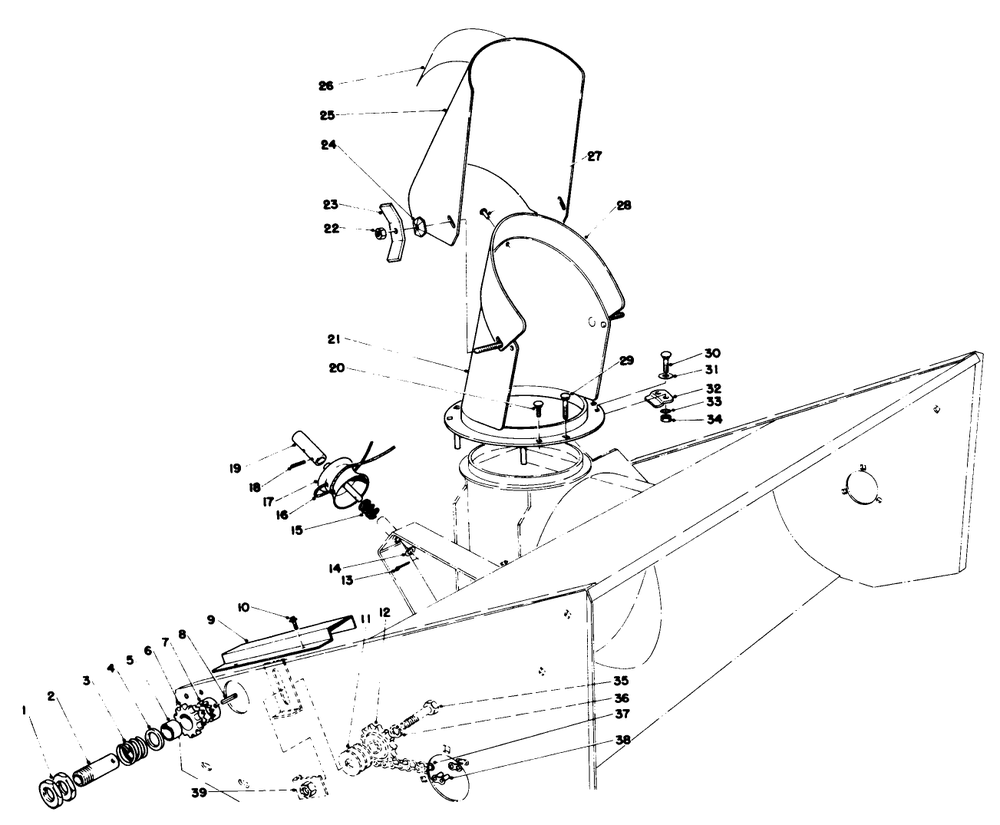

48" Snowthrower Model No. 30515 (Continued)
48" Snowthrower Model No. 30515 (Continued) Diagram and Parts List for 90001 - 99999 Toro Lawn Tractor
48" Snowthrower Model No. 30515 (Continued)
48" Snowthrower Model No. 30515 (Continued) Diagram and Parts List for 90001 - 99999 Toro Lawn Tractor
48" Snowthrower Model No. 30515 (Continued)
48" Snowthrower Model No. 30515 (Continued) Diagram and Parts List for 90001 - 99999 Toro Lawn Tractor
  • 1
    Ring-snap – Part Number: 32120-72
    Ring-snap
    Part Number: 32120-72
      In Stock
    $6.16
  • 2
    Shaft – Part Number: 30-0590
    Shaft
    Part Number: 30-0590
      No Longer Available
  • 3
    Key-woodruff – Part Number: 3257-5
    Key-woodruff
    Part Number: 3257-5
      In Stock
    $7.98
  • 4
    ROLLER BEAR (60124) – Part Number: 30-0630
    ROLLER BEAR (60124)
    Part Number: 30-0630
      No Longer Available
  • 5
    Oil Seal – Part Number: 253-122
    Oil Seal
    Part Number: 253-122
      Special Order
    $10.63
  • 6
    Housing – Part Number: 30-0650
    Housing
    Part Number: 30-0650
      No Longer Available
  • 7
    SHAFT-GEAR BOX – Part Number: 37-5840
    SHAFT-GEAR BOX
    Part Number: 37-5840
      No Longer Available
  • 8
    BEARING (R-12) – Part Number: 30-0620
    BEARING (R-12)
    Part Number: 30-0620
      No Longer Available
  • 9
    Gear – Part Number: 30-0670
    Gear
    Part Number: 30-0670
      No Longer Available
  • 10
    Gasket-Cover Plate – Part Number: 30-0680
    Gasket-Cover Plate
    Part Number: 30-0680
      No Longer Available
  • 11
    Screw – Part Number: 12-3270
    Screw
    Part Number: 12-3270
      Special Order
    $6.16
  • 12
    Cover Plate – Part Number: 30-0690
    Cover Plate
    Part Number: 30-0690
      No Longer Available
  • 13
    Gear – Part Number: 30-0600
    Gear
    Part Number: 30-0600
      No Longer Available

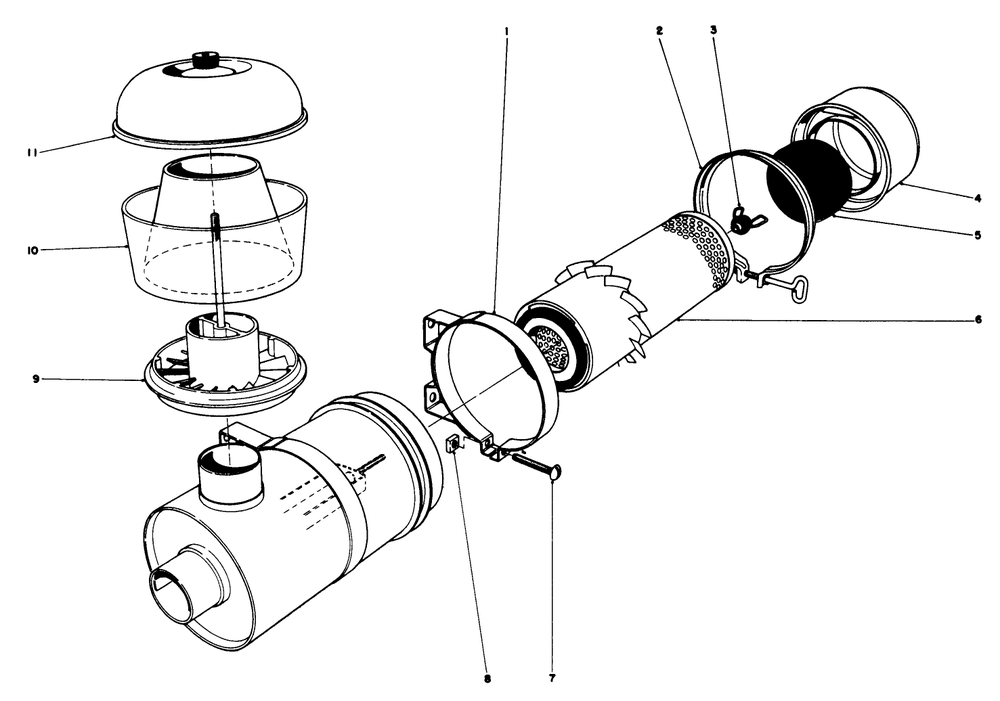

Air Cleaner Assembly 8-2329
Air Cleaner Assembly 8-2329 Diagram and Parts List for 90001 - 99999 Toro Lawn Tractor
  • 1
    Mtg Band Assembly – Part Number: 33-1350
    Mtg Band Assembly
    Part Number: 33-1350
      No Longer Available
  • 2
    Clamp Assembly – Part Number: 33-1340
    Clamp Assembly
    Part Number: 33-1340
      No Longer Available
  • 3
    Nut Assembly – Part Number: 33-1330
    Nut Assembly
    Part Number: 33-1330
      No Longer Available
  • 4
    Cup Assembly – Part Number: 33-1320
    Cup Assembly
    Part Number: 33-1320
      No Longer Available
  • 5
    Baffle – Part Number: 33-1310
    Baffle
    Part Number: 33-1310
      No Longer Available
  • 6
    Element Asm – Part Number: 108-3808
    Element Asm
    Part Number: 108-3808
      Special Order
    $42.10
  • 7
    Screw – Part Number: 3258-19
    Screw
    Part Number: 3258-19
      Special Order
    $6.16
  • 8
    Nut-Square – Part Number: 32107-11
    Nut-Square
    Part Number: 32107-11
      No Longer Available
  • 9
    Sleeve Asm – Part Number: 33-1280
    Sleeve Asm
    Part Number: 33-1280
      No Longer Available
  • 10
    Bowl Clear – Part Number: 33-1270
    Bowl Clear
    Part Number: 33-1270
      No Longer Available
  • 11
    Cover Assembly – Part Number: 33-1260
    Cover Assembly
    Part Number: 33-1260
      Special Order
    $73.23
Brake Assembly
Brake Assembly Diagram and Parts List for 90001 - 99999 Toro Lawn Tractor
Cab Light Kit Model No. 30501
Cab Light Kit Model No. 30501 Diagram and Parts List for 90001 - 99999 Toro Lawn Tractor
Cutting Unit Assembly
Cutting Unit Assembly Diagram and Parts List for 90001 - 99999 Toro Lawn Tractor
Deluxe Seat Kit Model No. 30766
Deluxe Seat Kit Model No. 30766 Diagram and Parts List for 90001 - 99999 Toro Lawn Tractor
Deluxe Seat Kit Model No. 30766 (Continued)
Deluxe Seat Kit Model No. 30766 (Continued) Diagram and Parts List for 90001 - 99999 Toro Lawn Tractor
Deluxe Seat Kit Model No. 30766 (Continued)
Deluxe Seat Kit Model No. 30766 (Continued) Diagram and Parts List for 90001 - 99999 Toro Lawn Tractor
Differential Assembly
Differential Assembly Diagram and Parts List for 90001 - 99999 Toro Lawn Tractor
Drift Cutter 48" Snowthrower Model No. 30-1000
Drift Cutter 48" Snowthrower Model No. 30-1000 Diagram and Parts List for 90001 - 99999 Toro Lawn Tractor
Electrical Schematic
Electrical Schematic Diagram and Parts List for 90001 - 99999 Toro Lawn Tractor
Engine Assembly
Engine Assembly Diagram and Parts List for 90001 - 99999 Toro Lawn Tractor
Engine Briggs And Stratton Model No. 326437-0262-01
Engine Briggs And Stratton Model No. 326437-0262-01 Diagram and Parts List for 90001 - 99999 Toro Lawn Tractor
Engine Model No. 326437-0262-01
Engine Model No. 326437-0262-01 Diagram and Parts List for 90001 - 99999 Toro Lawn Tractor
Engine Model No. 326437-0262-01
Engine Model No. 326437-0262-01 Diagram and Parts List for 90001 - 99999 Toro Lawn Tractor
Gas Tank And Air Cleaner Assembly
Gas Tank And Air Cleaner Assembly Diagram and Parts List for 90001 - 99999 Toro Lawn Tractor
  • 1
    Gas Tank (Incl. Ref. #2 & 3) – Part Number: 37-9900
    Gas Tank (Incl. Ref. #2 & 3)
    Part Number: 37-9900
      No Longer Available
  • 2
    ELBOW – Part Number: 353-705
    ELBOW
    Part Number: 353-705
      No Longer Available
  • 3
    Clamp-Hose – Part Number: 2412-36
    Clamp-Hose
    Part Number: 2412-36
      Special Order
    $6.16
  • 4
    Screw-Hh – Part Number: 323-19
    Screw-Hh
    Part Number: 323-19
      Special Order
    $6.16
  • 5
    Washer-Lock – Part Number: 3253-21
    Washer-Lock
    Part Number: 3253-21
      In Stock
    $6.16
  • 6
    Washer – Part Number: 3256-41
    Washer
    Part Number: 3256-41
      Special Order
    $6.16
  • 7
    Gas Cap (Not Vented) – Part Number: 37-9540
    Gas Cap (Not Vented)
    Part Number: 37-9540
      No Longer Available
  • 8
    Hose-Fuel – Part Number: 109-0308
    Hose-Fuel
    Part Number: 109-0308
      Special Order
    $15.52
  • 9
    Tie-Cable – Part Number: 3290-379
    Tie-Cable
    Part Number: 3290-379
      Special Order
    $6.16
  • 10
    Screw-hh – Part Number: 322-3
    Screw-hh
    Part Number: 322-3
      In Stock
    Minimum Quantity of 2 required
    $6.16
  • 11
    Air Cleaner Assembly – Part Number: 8-2329
    Air Cleaner Assembly
    Part Number: 8-2329
      No Longer Available
  • 12
    Nut-Hex – Part Number: 3217-6
    Nut-Hex
    Part Number: 3217-6
      Special Order
    $6.16
  • 13
    Screw-Hh – Part Number: 325-34
    Screw-Hh
    Part Number: 325-34
      No Longer Available
  • 14
    Washer-flat – Part Number: 3256-23
    Washer-flat
    Part Number: 3256-23
    ★★★★★
    ★★★★★
    (3)
      In Stock
    Minimum Quantity of 2 required
    $6.16
  • 15
    R-Clamp – Part Number: 2412-41
    R-Clamp
    Part Number: 2412-41
      Special Order
    $9.39
  • 16
    Screw-hh – Part Number: 322-10
    Screw-hh
    Part Number: 322-10
      In Stock
    Minimum Quantity of 2 required
    $6.16
  • 18
    Hose-Fuel – Part Number: 110-4101
    Hose-Fuel
    Part Number: 110-4101
      Special Order
    $26.13
  • 19
    DISCONTINUED – Part Number: 231-87
    DISCONTINUED
    Part Number: 231-87
      No Longer Available
  • 20
    WHEEL Assembly – Part Number: 217-107
    WHEEL Assembly
    Part Number: 217-107
      No Longer Available
  • 21
    Wheel Nut – Part Number: 242-35
    Wheel Nut
    Part Number: 242-35
      Special Order
    $13.26
  • 22
    Valve – Part Number: 5108
    Valve
    Part Number: 5108
      In Stock
    $12.22
  • 23
    Brace – Part Number: 17-3580
    Brace
    Part Number: 17-3580
      No Longer Available
  • 24
    Nut – Part Number: 3217-8
    Nut
    Part Number: 3217-8
      Special Order
    $6.16
  • 25
    Washer-Lock – Part Number: 3253-6
    Washer-Lock
    Part Number: 3253-6
      Special Order
    $6.16
  • 26
    Washer-Special – Part Number: 28-5640
    Washer-Special
    Part Number: 28-5640
      No Longer Available
  • 27
    Screw-Hh – Part Number: 324-9
    Screw-Hh
    Part Number: 324-9
      Special Order
    $6.16
  • 28
    FITTING-ELBOW, 90 DEG – Part Number: 353-536
    FITTING-ELBOW, 90 DEG
    Part Number: 353-536
      No Longer Available
Gear Box Assembly 8-0909
Gear Box Assembly 8-0909 Diagram and Parts List for 90001 - 99999 Toro Lawn Tractor
Heater Kit Model No. 30878
Heater Kit Model No. 30878 Diagram and Parts List for 90001 - 99999 Toro Lawn Tractor
Hydraulic Cyllnder 27-2510
Hydraulic Cyllnder 27-2510 Diagram and Parts List for 90001 - 99999 Toro Lawn Tractor
Hydraulic Valve And Lift Arm And Cylinders
Hydraulic Valve And Lift Arm And Cylinders Diagram and Parts List for 90001 - 99999 Toro Lawn Tractor
Instrument Panel And Steering Post Assembly
Instrument Panel And Steering Post Assembly Diagram and Parts List for 90001 - 99999 Toro Lawn Tractor
Leaf Mulcher Kit No. 30771 (Optional)
Leaf Mulcher Kit No. 30771 (Optional) Diagram and Parts List for 90001 - 99999 Toro Lawn Tractor
Pedals, Hood And Steering Wheel Assembly
Pedals, Hood And Steering Wheel Assembly Diagram and Parts List for 90001 - 99999 Toro Lawn Tractor
Power Take Off Assembly
Power Take Off Assembly Diagram and Parts List for 90001 - 99999 Toro Lawn Tractor
Rear Axle Assembly
Rear Axle Assembly Diagram and Parts List for 90001 - 99999 Toro Lawn Tractor
Rear Weight Kit Model No. 24-5780 (Optional)
Rear Weight Kit Model No. 24-5780 (Optional) Diagram and Parts List for 90001 - 99999 Toro Lawn Tractor
  • 1
    Screw-Hh – Part Number: 325-8
    Screw-Hh
    Part Number: 325-8
      Special Order
    $6.84
  • 2
    Washer-lock – Part Number: 3253-7
    Washer-lock
    Part Number: 3253-7
      Special Order
    $6.16
  • 3
    Weight-Rear – Part Number: 24-5790-01
    Weight-Rear
    Part Number: 24-5790-01
      Special Order
    $526.32
  • 4
    SPRING ANCHOR BSHG – Part Number: 57-4230
    SPRING ANCHOR BSHG
    Part Number: 57-4230
      Special Order
    $26.62
  • 5
    Nut-Hh – Part Number: 3217-9
    Nut-Hh
    Part Number: 3217-9
      Special Order
    $6.16
  • 6
    Screw-Hh – Part Number: 325-14
    Screw-Hh
    Part Number: 325-14
      Special Order
    $6.16
  • 7
    Washer-flat – Part Number: 3256-26
    Washer-flat
    Part Number: 3256-26
      In Stock
    Minimum Quantity of 2 required
    $6.16
Seat Mount Assembly
Seat Mount Assembly Diagram and Parts List for 90001 - 99999 Toro Lawn Tractor
Standard Seat Kit Model No. 30765
Standard Seat Kit Model No. 30765 Diagram and Parts List for 90001 - 99999 Toro Lawn Tractor
Traction Pedal Assembly
Traction Pedal Assembly Diagram and Parts List for 90001 - 99999 Toro Lawn Tractor
  • 1
    DISCONTINUED – Part Number: 29-5670
    DISCONTINUED
    Part Number: 29-5670
      No Longer Available
  • 2
    TRACTION PEDAL PAD – Part Number: 28-5130
    TRACTION PEDAL PAD
    Part Number: 28-5130
      No Longer Available
  • 3
    Pin-Cotter – Part Number: 3272-10
    Pin-Cotter
    Part Number: 3272-10
      Special Order
    $6.16
  • 4
    Pivot Pin Pedal – Part Number: 29-5630
    Pivot Pin Pedal
    Part Number: 29-5630
      No Longer Available
  • 5
    DISCONTINUED – Part Number: 29-5640
    DISCONTINUED
    Part Number: 29-5640
      No Longer Available
  • 6
    Wheel - Friction – Part Number: 28-5220
    Wheel - Friction
    Part Number: 28-5220
      Special Order
    $133.28
  • 7
    Pin-Spring – Part Number: 32121-16
    Pin-Spring
    Part Number: 32121-16
      Special Order
    $6.16
  • 8
    Washer-Thrust – Part Number: 5-7570
    Washer-Thrust
    Part Number: 5-7570
      No Longer Available
  • 9
    Bushing-Flange – Part Number: 256-156
    Bushing-Flange
    Part Number: 256-156
      Special Order
    $20.18
  • 10
    DISCONTINUED – Part Number: 29-5600
    DISCONTINUED
    Part Number: 29-5600
      No Longer Available
  • 11
    Washer-lock – Part Number: 3253-7
    Washer-lock
    Part Number: 3253-7
      Special Order
    $6.16
  • 12
    Nut-Jam – Part Number: 3218-5
    Nut-Jam
    Part Number: 3218-5
      Special Order
    $6.16
  • 13
    DISCONTINUED – Part Number: 21-0140
    DISCONTINUED
    Part Number: 21-0140
      No Longer Available
  • 14
    Nut-Jam – Part Number: 3220-5
    Nut-Jam
    Part Number: 3220-5
      Special Order
    $6.16
  • 15
    Pin-Cotter – Part Number: 3272-7
    Pin-Cotter
    Part Number: 3272-7
      Special Order
    $6.16
  • 16
    Slot Nut 3/8-24 – Part Number: 32136-4
    Slot Nut 3/8-24
    Part Number: 32136-4
      Special Order
    $6.16
Transmission Assembly 27-3670
Transmission Assembly 27-3670 Diagram and Parts List for 90001 - 99999 Toro Lawn Tractor
  • 1
    Ring-Retaining – Part Number: 32151-46
    Ring-Retaining
    Part Number: 32151-46
      Special Order
    $13.03
  • 2
    Trunnion Shaft – Part Number: 25-2500
    Trunnion Shaft
    Part Number: 25-2500
      Special Order
    $265.94
  • 3
    WASHER-FLAT – Part Number: 25-2510
    WASHER-FLAT
    Part Number: 25-2510
      Special Order
    $6.16
  • 4
    Roller Bearing – Part Number: 28-3300
    Roller Bearing
    Part Number: 28-3300
      Special Order
    $196.91
  • 5
    Bearing-Needle – Part Number: 252-82
    Bearing-Needle
    Part Number: 252-82
      Special Order
    $83.05
  • 6
    Housing – Part Number: 32-9240
    Housing
    Part Number: 32-9240
      No Longer Available
  • 7
    Seal – Part Number: 25-3210
    Seal
    Part Number: 25-3210
      Special Order
    $32.69
  • 8
    Trunnion Shaft – Part Number: 28-3670
    Trunnion Shaft
    Part Number: 28-3670
      Special Order
    $177.10
  • 9
    Lip Seal – Part Number: 93-4133
    Lip Seal
    Part Number: 93-4133
      No Longer Available
  • 10
    Swivel Assembly – Part Number: 251-8
    Swivel Assembly
    Part Number: 251-8
      Special Order
    $53.08
  • 11
    Shaft-Pump – Part Number: 28-3640
    Shaft-Pump
    Part Number: 28-3640
      No Longer Available
  • 12
    Variable Swashplate – Part Number: 28-3630
    Variable Swashplate
    Part Number: 28-3630
      No Longer Available
  • 13
    Pin-Spring – Part Number: 32121-91
    Pin-Spring
    Part Number: 32121-91
      Special Order
    $6.16
  • 14
    Thrust Plate – Part Number: 28-3610
    Thrust Plate
    Part Number: 28-3610
      No Longer Available
  • 15
    Cylinder Block Kit – Part Number: 48-1800
    Cylinder Block Kit
    Part Number: 48-1800
      Special Order
    $3024.23
  • 16
    Pump Valve Plate – Part Number: 28-3600
    Pump Valve Plate
    Part Number: 28-3600
      No Longer Available
  • 17
    Needle Bearing – Part Number: 25-3300
    Needle Bearing
    Part Number: 25-3300
      Special Order
    $157.53
  • 18
    O-Ring – Part Number: 28-3590
    O-Ring
    Part Number: 28-3590
      Special Order
    $7.15
  • 19
    Ring-Backup – Part Number: 28-3580
    Ring-Backup
    Part Number: 28-3580
      Special Order
    $29.50
  • 20
    O-Ring – Part Number: 28-3570
    O-Ring
    Part Number: 28-3570
      Special Order
    $9.43
  • 21
    Check Valve Assembly – Part Number: 49-7830
    Check Valve Assembly
    Part Number: 49-7830
      Special Order
    $431.72
  • 22
    Plug – Part Number: 25-2460
    Plug
    Part Number: 25-2460
      Special Order
    $52.81
  • 24
    Shim Set – Part Number: 25-2470
    Shim Set
    Part Number: 25-2470
      Special Order
    $76.66
  • 25
    Spring-Implement Valve – Part Number: 25-2570
    Spring-Implement Valve
    Part Number: 25-2570
      Special Order
    $19.68
  • 27
    Screw-hh – Part Number: 323-10
    Screw-hh
    Part Number: 323-10
      In Stock
    Minimum Quantity of 2 required
    $6.16
  • 28
    Screw - Cap Hex. Hd. – Part Number: 28-3530
    Screw - Cap Hex. Hd.
    Part Number: 28-3530
      Special Order
    $7.77
  • 29
    O-Ring – Part Number: 28-3520
    O-Ring
    Part Number: 28-3520
      Special Order
    $13.12
  • 30
    Pin – Part Number: 38-2680
    Pin
    Part Number: 38-2680
      Special Order
    $42.27
  • 31
    Needle Bearing – Part Number: 252-63
    Needle Bearing
    Part Number: 252-63
      No Longer Available
  • 32
    SEAL-LIP – Part Number: 28-3470
    SEAL-LIP
    Part Number: 28-3470
      Special Order
    $55.22
  • 33
    Screw-HH. – Part Number: 92-1773
    Screw-HH.
    Part Number: 92-1773
      Special Order
    $6.16
  • 34
    Washer-Flat – Part Number: 28-3450
    Washer-Flat
    Part Number: 28-3450
      No Longer Available
  • 35
    Kit - Charge Pump – Part Number: 117-6988
    Kit - Charge Pump
    Part Number: 117-6988
      No Longer Available
  • 37
    Union-Filter – Part Number: 25-2660
    Union-Filter
    Part Number: 25-2660
      No Longer Available
  • 38
    Center Section – Part Number: 38-2690
    Center Section
    Part Number: 38-2690
      No Longer Available
  • 39
    Plastic Plug – Part Number: 28-3430
    Plastic Plug
    Part Number: 28-3430
      No Longer Available
  • 41
    TOR PART – Part Number: 136-3219
    TOR PART
    Part Number: 136-3219
      No Longer Available
  • 42
    Relief Valve Cone Chg. – Part Number: 83-7260
    Relief Valve Cone Chg.
    Part Number: 83-7260
      Special Order
    $81.86
  • 43
    Spring Chg. Rel. Valve – Part Number: 25-2480
    Spring Chg. Rel. Valve
    Part Number: 25-2480
      Special Order
    $7.67
  • 45
    "O" Ring – Part Number: 28-3400
    "O" Ring
    Part Number: 28-3400
      Special Order
    $10.36
  • 47
    PLATE-VALVE, MOTOR – Part Number: 28-3380
    PLATE-VALVE, MOTOR
    Part Number: 28-3380
      Special Order
    $650.19
  • 48
    PIN-DOWEL – Part Number: 25-2430
    PIN-DOWEL
    Part Number: 25-2430
      Special Order
    $6.16
  • 49
    Swashplate – Part Number: 28-3370
    Swashplate
    Part Number: 28-3370
      No Longer Available
  • 50
    Shaft-Motor – Part Number: 49-8200
    Shaft-Motor
    Part Number: 49-8200
      Special Order
    $1225.99
  • 51
    Pin – Part Number: 353-599
    Pin
    Part Number: 353-599
      Special Order
    $6.16
  • 52
    Gasket – Part Number: 28-3340
    Gasket
    Part Number: 28-3340
      Special Order
    $26.13
  • 53
    12 Point Capscrew – Part Number: 28-3320
    12 Point Capscrew
    Part Number: 28-3320
      No Longer Available
  • 54
    Screw-hh – Part Number: 323-8
    Screw-hh
    Part Number: 323-8
      In Stock
    Minimum Quantity of 2 required
    $6.16
  • 55
    Screw-hh – Part Number: 323-7
    Screw-hh
    Part Number: 323-7
      In Stock
    Minimum Quantity of 2 required
    $6.16
  • 56
    Key-woodruff – Part Number: 3257-5
    Key-woodruff
    Part Number: 3257-5
      In Stock
    $7.98
  • 57
    Plug-Pipe – Part Number: 285-17
    Plug-Pipe
    Part Number: 285-17
      Special Order
    $6.16
Transmission Interlock Assembly
Transmission Interlock Assembly Diagram and Parts List for 90001 - 99999 Toro Lawn Tractor
V-Plow Installation No. 30755 (Optional)
V-Plow Installation No. 30755 (Optional) Diagram and Parts List for 90001 - 99999 Toro Lawn Tractor
  • TIRE CHAINS (1 PAIR) – Part Number: 28-5470
    TIRE CHAINS (1 PAIR)
    Part Number: 28-5470
      Special Order
    $435.31
  • 1
    Pin-RH – Part Number: 28-5490
    Pin-RH
    Part Number: 28-5490
      Special Order
    $132.83
  • 2
    Right Hand PUSH ARM WA R – Part Number: 28-5510
    Right Hand PUSH ARM WA R
    Part Number: 28-5510
      Special Order
    $1414.54
  • 3
    Pin - L.H. – Part Number: 25-1350
    Pin - L.H.
    Part Number: 25-1350
      Special Order
    $242.46
  • 4
    Pin-Cotter – Part Number: 3272-23
    Pin-Cotter
    Part Number: 3272-23
      Special Order
    $6.16
  • 5
    Push Arm-LH – Part Number: 28-5500
    Push Arm-LH
    Part Number: 28-5500
      No Longer Available
  • 6
    PIN R – Part Number: 28-6460
    PIN R
    Part Number: 28-6460
      No Longer Available
V-Plow Model No. 30750 (Optional)
V-Plow Model No. 30750 (Optional) Diagram and Parts List for 90001 - 99999 Toro Lawn Tractor
  • 1
    V-Plow – Part Number: 23-9960
    V-Plow
    Part Number: 23-9960
      No Longer Available
  • 2
    Decal-Toro – Part Number: 66-6140
    Decal-Toro
    Part Number: 66-6140
      Special Order
    $36.00
  • 3
    Klik Pin Asm – Part Number: 107-3039
    Klik Pin Asm
    Part Number: 107-3039
      Special Order
    $15.52
  • 4
    Spacer Tubes – Part Number: 20-4370
    Spacer Tubes
    Part Number: 20-4370
      Special Order
    $43.97
  • 5
    Screw-Hh – Part Number: 325-6
    Screw-Hh
    Part Number: 325-6
      Special Order
    $6.16
  • 6
    Nut-Jam – Part Number: 3218-5
    Nut-Jam
    Part Number: 3218-5
      Special Order
    $6.16
  • 7
    Scraper Blade – Part Number: 24-5570-01
    Scraper Blade
    Part Number: 24-5570-01
      Special Order
    $283.33
  • 8
    Skid – Part Number: 24-5540-01
    Skid
    Part Number: 24-5540-01
      No Longer Available
  • 9
    Nut-Hh – Part Number: 3217-9
    Nut-Hh
    Part Number: 3217-9
      Special Order
    $6.16
  • 10
    Washer-lock – Part Number: 3253-7
    Washer-lock
    Part Number: 3253-7
      Special Order
    $6.16
  • 11
    Screw-Carr – Part Number: 3233-2
    Screw-Carr
    Part Number: 3233-2
      Special Order
    $6.16
  • 12
    Nose Skid – Part Number: 24-5530-01
    Nose Skid
    Part Number: 24-5530-01
      No Longer Available
Valve And Lever Assembly
Valve And Lever Assembly Diagram and Parts List for 90001 - 99999 Toro Lawn Tractor
  • 1
    Knob-Control – Part Number: 233-39
    Knob-Control
    Part Number: 233-39
      Special Order
    $25.05
  • 2
    Valve Lever – Part Number: 274200
    Valve Lever
    Part Number: 274200
      No Longer Available
  • 3
    Valve Lever Link – Part Number: 27-4220-03
    Valve Lever Link
    Part Number: 27-4220-03
      No Longer Available
  • 4
    Pin-Cotter – Part Number: 3272-6
    Pin-Cotter
    Part Number: 3272-6
      Special Order
    $6.16
  • 5
    Nut-Jam – Part Number: 3218-1
    Nut-Jam
    Part Number: 3218-1
      Special Order
    $6.16
  • 6
    Bolt-Wheel – Part Number: 274230
    Bolt-Wheel
    Part Number: 274230
      No Longer Available
  • 7
    Washer-Lock – Part Number: 3253-3
    Washer-Lock
    Part Number: 3253-3
      Special Order
    $6.16
  • 8
    Screw-Hh – Part Number: 321-34
    Screw-Hh
    Part Number: 321-34
      Special Order
    $6.16
  • 10
    DISCONTINUED – Part Number: 27-4190
    DISCONTINUED
    Part Number: 27-4190
      No Longer Available
  • 11
    Nut-Hex – Part Number: 3217-5
    Nut-Hex
    Part Number: 3217-5
      In Stock
    $6.16
  • 12
    Pin-Clevis – Part Number: 283-17
    Pin-Clevis
    Part Number: 283-17
      Special Order
    $9.51
  • 13
    Screw – Part Number: 321-10
    Screw
    Part Number: 321-10
      In Stock
    Minimum Quantity of 2 required
    $6.16
  • 14
    Pin-Roll – Part Number: 32121-73
    Pin-Roll
    Part Number: 32121-73
      Special Order
    $6.16
Valve Assembly 27-4190
Valve Assembly 27-4190 Diagram and Parts List for 90001 - 99999 Toro Lawn Tractor
  • 1
    Plug – Part Number: 28-1120
    Plug
    Part Number: 28-1120
      No Longer Available
  • 2
    Spool – Part Number: 27-5210
    Spool
    Part Number: 27-5210
      No Longer Available
  • 3
    O-Ring – Part Number: 22-8500
    O-Ring
    Part Number: 22-8500
      Special Order
    $29.32
  • 4
    Plug Flush – Part Number: 22-8510
    Plug Flush
    Part Number: 22-8510
      No Longer Available
  • 5
    Retainer – Part Number: 22-8380
    Retainer
    Part Number: 22-8380
      Special Order
    $34.71
  • 6
    Spring – Part Number: 22-8410
    Spring
    Part Number: 22-8410
      Special Order
    $27.38
  • 7
    Float Spacer – Part Number: 27-5200
    Float Spacer
    Part Number: 27-5200
      No Longer Available
  • 8
    Ring-Snap – Part Number: 22-8480
    Ring-Snap
    Part Number: 22-8480
      Special Order
    $80.72
  • 9
    Ring-Snap – Part Number: 22-8490
    Ring-Snap
    Part Number: 22-8490
      Special Order
    $12.64
  • 10
    Plug – Part Number: 36-3970
    Plug
    Part Number: 36-3970
      No Longer Available
  • 11
    Plug – Part Number: 36-3960
    Plug
    Part Number: 36-3960
      No Longer Available
  • 12
    Plug – Part Number: 22-8330
    Plug
    Part Number: 22-8330
      Special Order
    $80.94
  • 13
    O-Ring – Part Number: 237-42
    O-Ring
    Part Number: 237-42
      In Stock
    Minimum Quantity of 2 required
    $6.16
  • 14
    Spring – Part Number: 22-8340
    Spring
    Part Number: 22-8340
      Special Order
    $29.65
  • 15
    Ball – Part Number: 22-8350
    Ball
    Part Number: 22-8350
      Special Order
    $19.09
  • 16
    Seat-Valve – Part Number: 22-8370
    Seat-Valve
    Part Number: 22-8370
      Special Order
    $108.66
  • 17
    Pin – Part Number: 22-8360
    Pin
    Part Number: 22-8360
      Special Order
    $69.65
  • 18
    Plug – Part Number: 28-1130
    Plug
    Part Number: 28-1130
      No Longer Available
  • 19
    Body – Part Number: 43-1950
    Body
    Part Number: 43-1950
      Special Order
    $964.78
Wheel Weight Kit No. 30762 (Optional)
Wheel Weight Kit No. 30762 (Optional) Diagram and Parts List for 90001 - 99999 Toro Lawn Tractor

Questions & Answers

?

Our customer Service team is at the ready daily to answer your part and product questions.

Be the first to ask our experts a question about this part!

Ask our Team

We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.

✖

Our customer service team are at the ready daily to answer your part and product questions. We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
