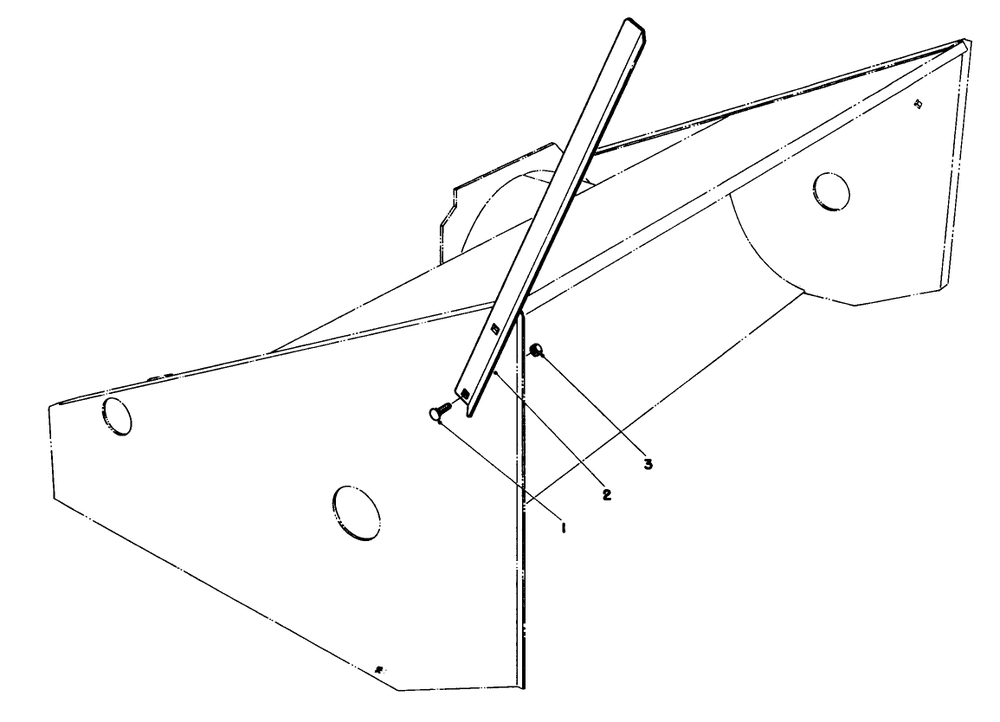

48" Snowthrower Drift Cutter Kit No. 30-1000 (Optional) Diagram and Parts List for 00000001 - 09999999 Toro Lawn Tractor
48" Snowthrower Drift Cutter Kit No. 30-1000 (Optional)
48" Snowthrower Model No. 30570 Diagram and Parts List for 00000001 - 09999999 Toro Lawn Tractor
48" Snowthrower Model No. 30570
48" Snowthrower Model No. 30570 Diagram and Parts List for 00000001 - 09999999 Toro Lawn Tractor
48" Snowthrower Model No. 30570
48" Snowthrower Model No. 30570 Diagram and Parts List for 00000001 - 09999999 Toro Lawn Tractor
48" Snowthrower Model No. 30570
48" Snowthrower-Model No. 30570 Diagram and Parts List for 00000001 - 09999999 Toro Lawn Tractor
48" Snowthrower-Model No. 30570

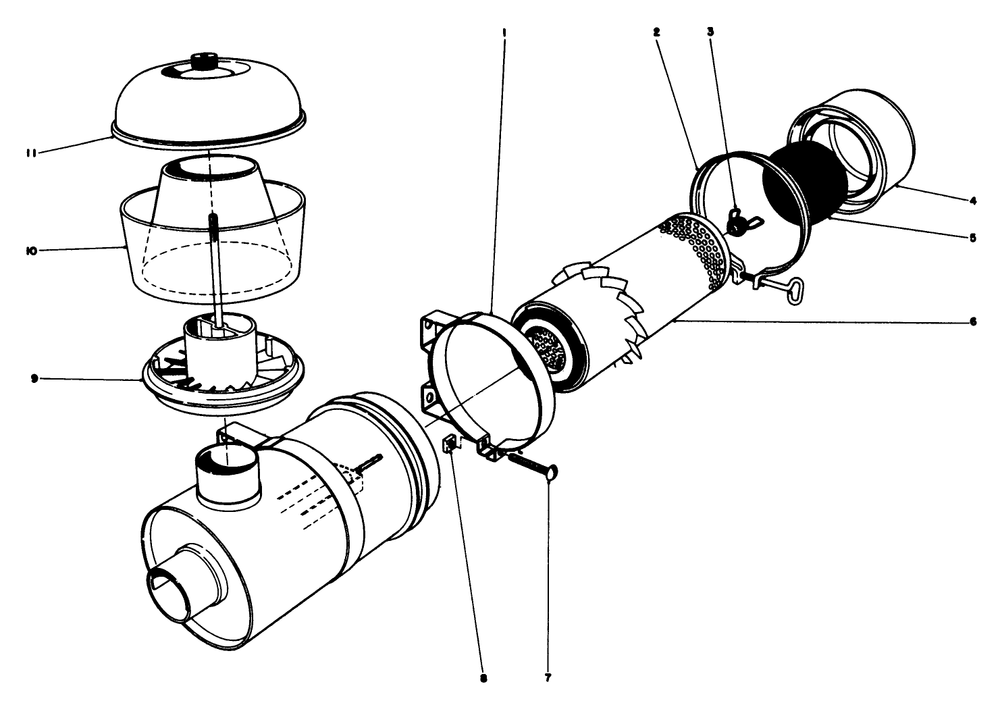

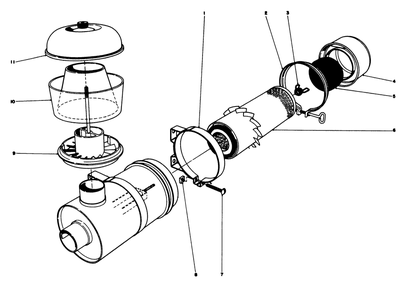

Air Cleaner Assembly 8-2329 Diagram and Parts List for 00000001 - 09999999 Toro Lawn Tractor
Air Cleaner Assembly 8-2329

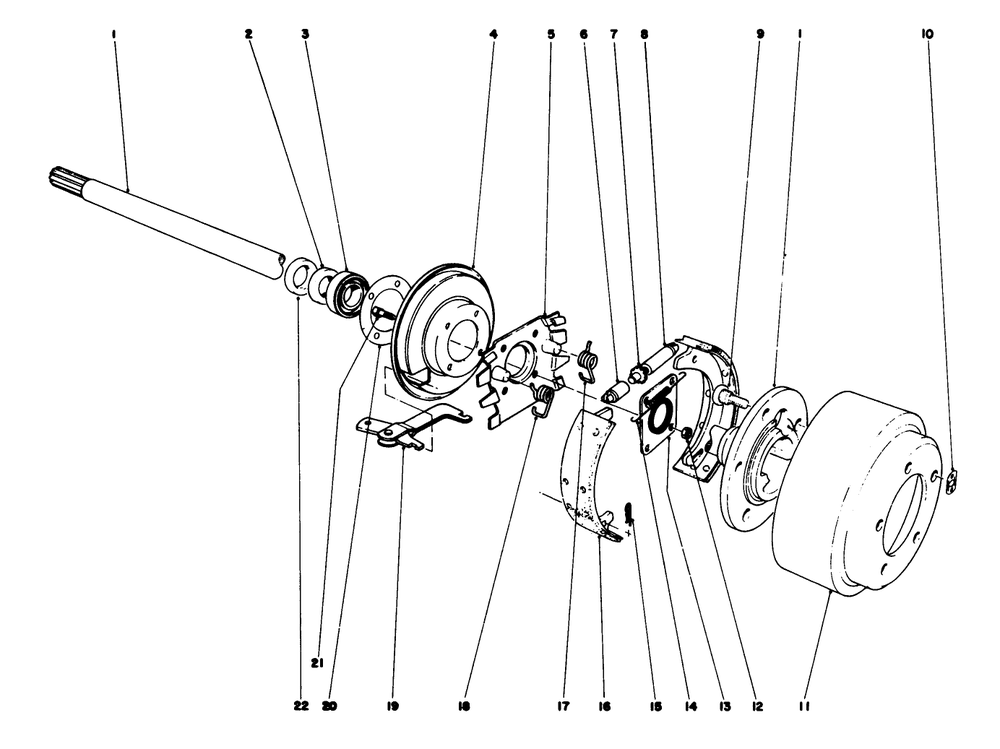

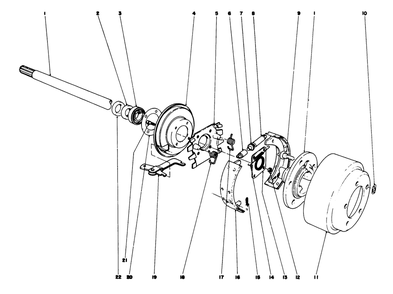

Brake Assembly Diagram and Parts List for 00000001 - 09999999 Toro Lawn Tractor
Brake Assembly
Cab Light Kit Model No. 30581 Diagram and Parts List for 00000001 - 09999999 Toro Lawn Tractor
Cab Light Kit Model No. 30581
Chute Extension Kit 26-1100 Diagram and Parts List for 00000001 - 09999999 Toro Lawn Tractor
Chute Extension Kit 26-1100

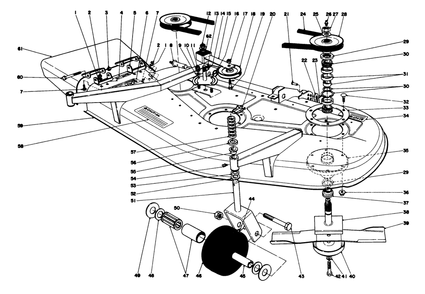

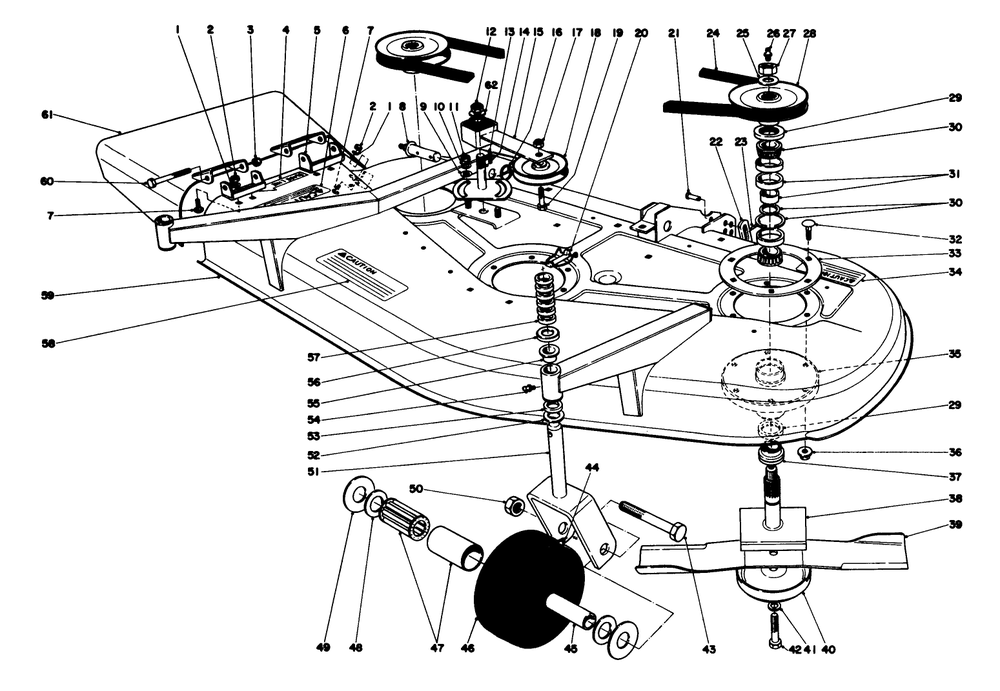

Cutting Unit Assembly Diagram and Parts List for 00000001 - 09999999 Toro Lawn Tractor
Cutting Unit Assembly

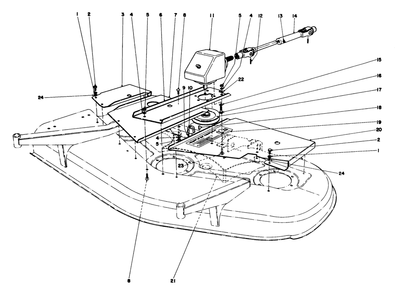

Deck Covers And Gear Box Diagram and Parts List for 00000001 - 09999999 Toro Lawn Tractor
Deck Covers And Gear Box
Deluxe Seat Kit Model No. 30766 Diagram and Parts List for 00000001 - 09999999 Toro Lawn Tractor
Deluxe Seat Kit Model No. 30766

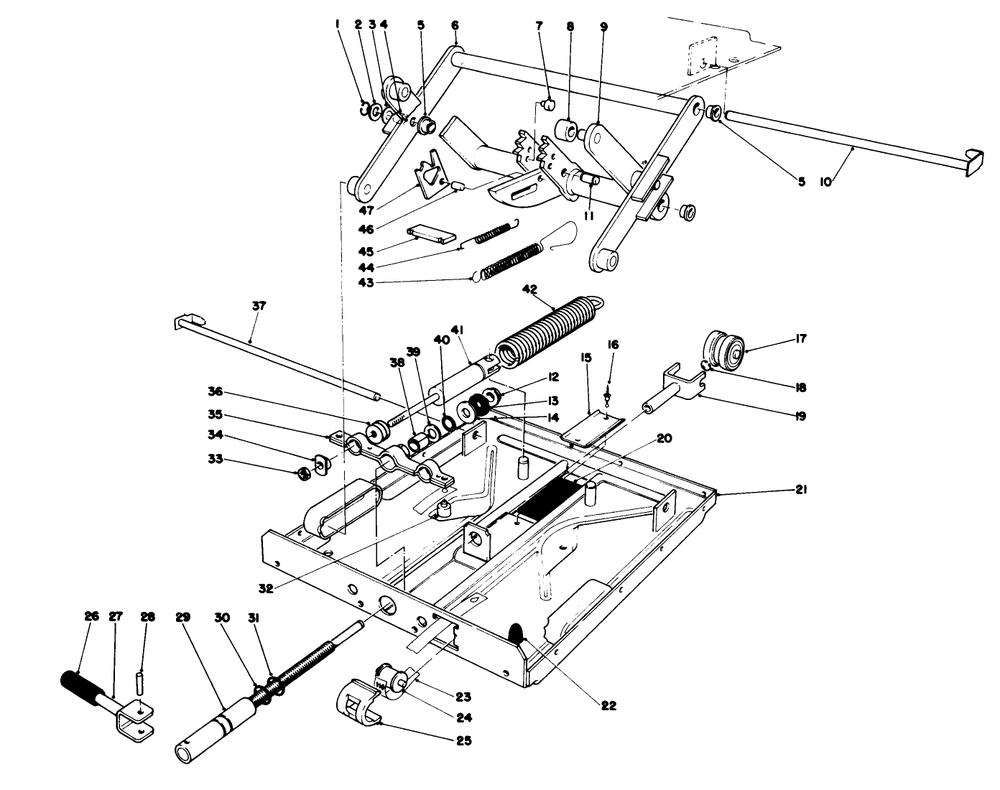

Deluxe Seat Kit Model No. 30766 (Continued) Diagram and Parts List for 00000001 - 09999999 Toro Lawn Tractor
Deluxe Seat Kit Model No. 30766 (Continued)
Deluxe Seat Kit Model No. 30766 (Continued) Diagram and Parts List for 00000001 - 09999999 Toro Lawn Tractor
Deluxe Seat Kit Model No. 30766 (Continued)

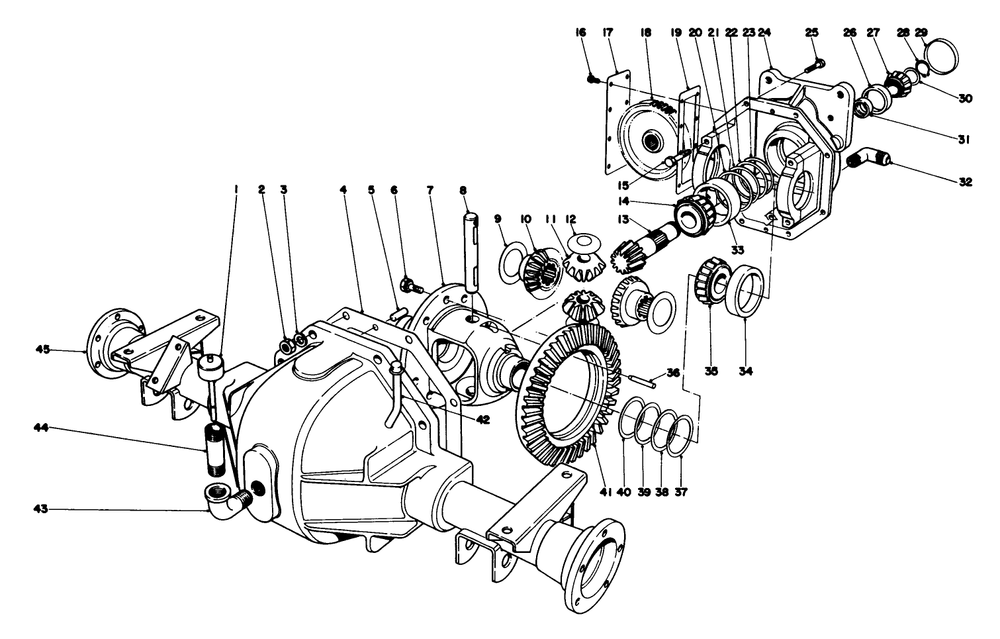

Differential Assembly Diagram and Parts List for 00000001 - 09999999 Toro Lawn Tractor
Differential Assembly
Electrical Schematic Diagram and Parts List for 00000001 - 09999999 Toro Lawn Tractor
Electrical Schematic

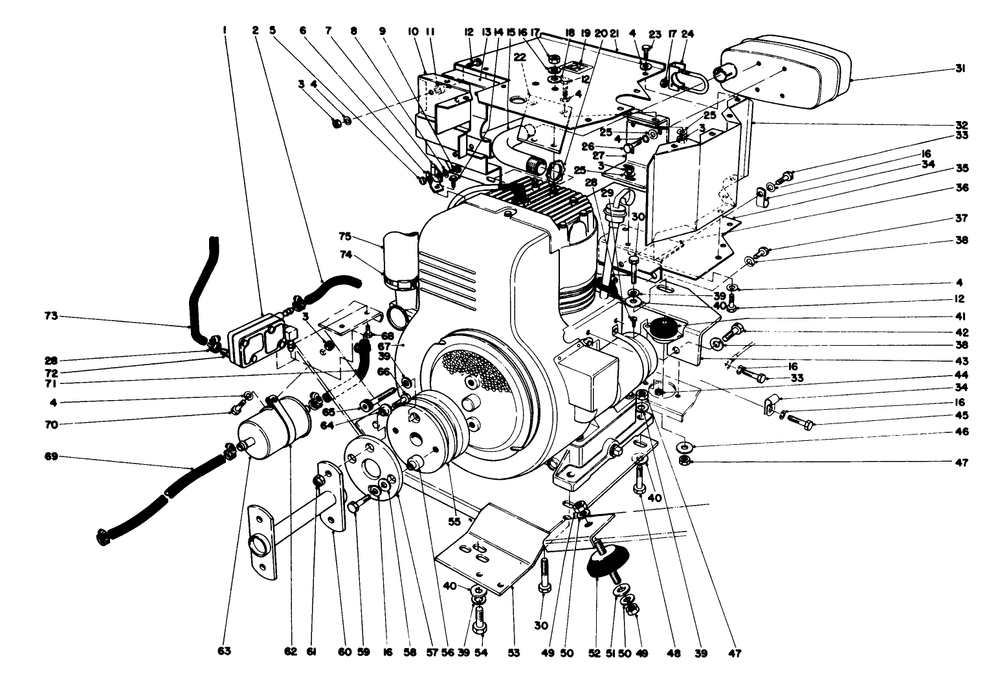

Engine Assembly Diagram and Parts List for 00000001 - 09999999 Toro Lawn Tractor
Engine Assembly

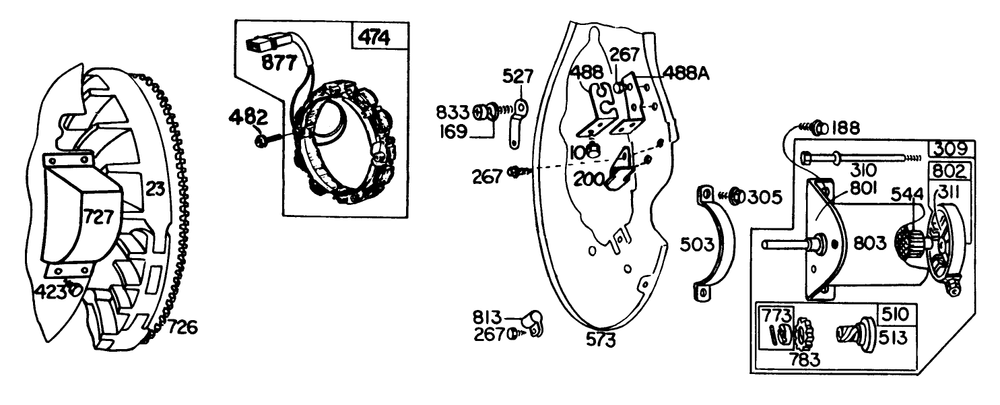

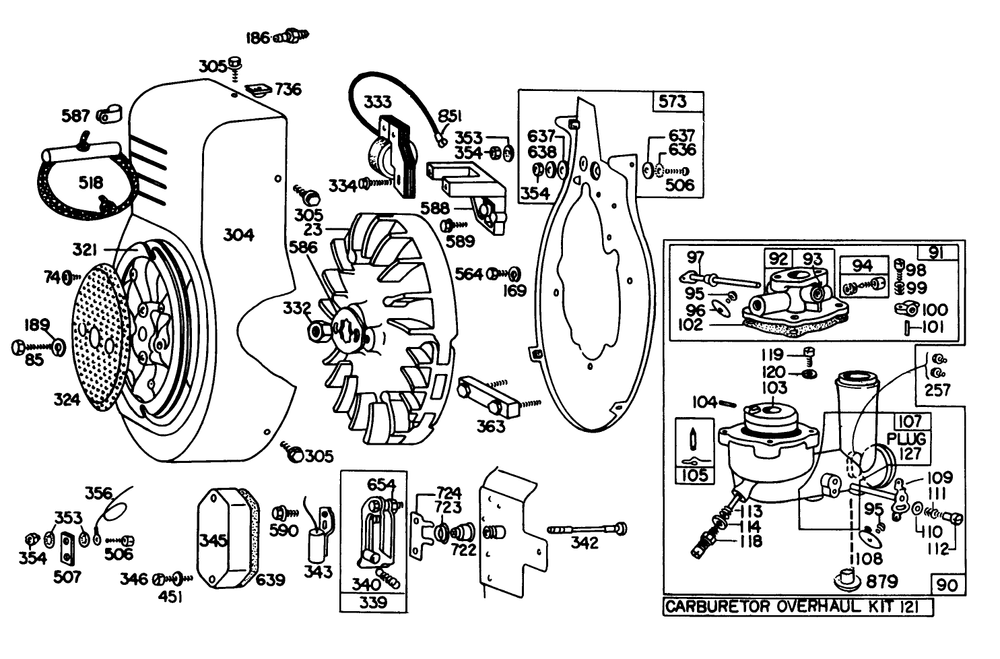

Engine Briggs & Stratton Model No. 326437-0262-01 Diagram and Parts List for 00000001 - 09999999 Toro Lawn Tractor
Engine Briggs & Stratton Model No. 326437-0262-01
Engine Briggs & Stratton Model No. 326437-0262-01 Diagram and Parts List for 00000001 - 09999999 Toro Lawn Tractor
Engine Briggs & Stratton Model No. 326437-0262-01
Engine Briggs & Stratton Model No. 326437-0262-01 Diagram and Parts List for 00000001 - 09999999 Toro Lawn Tractor
Engine Briggs & Stratton Model No. 326437-0262-01

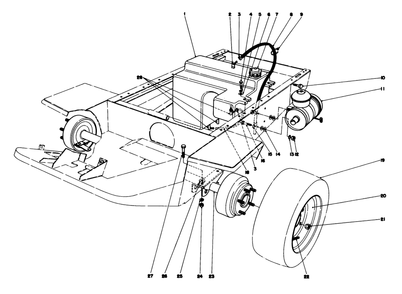

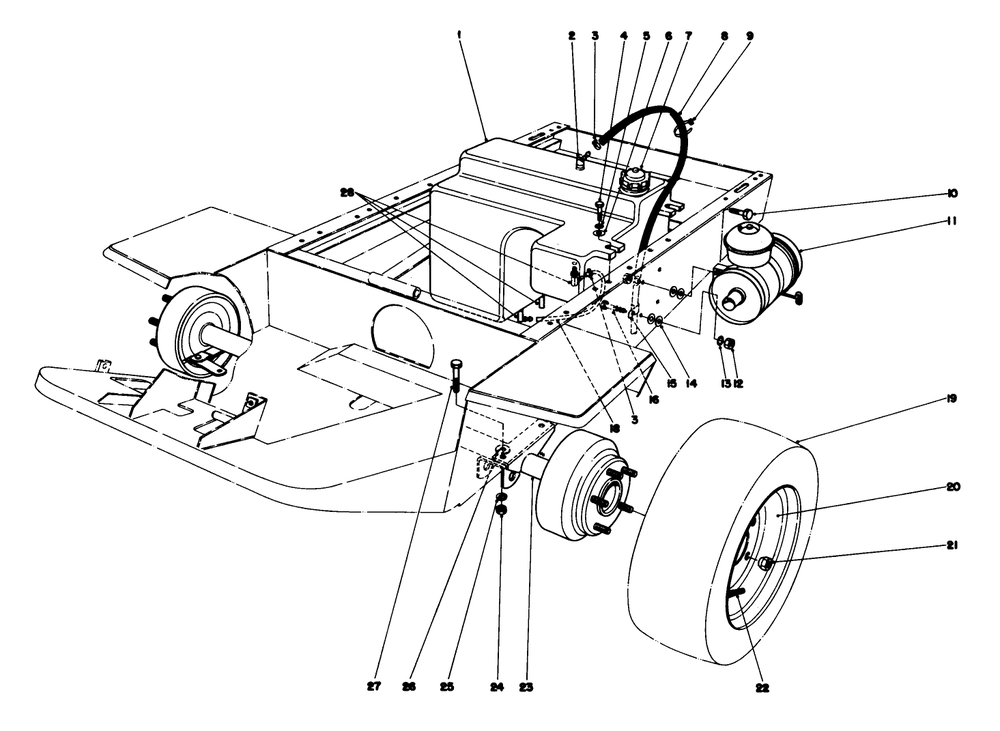

Gas Tank And Air Cleaner Assembly Diagram and Parts List for 00000001 - 09999999 Toro Lawn Tractor
Gas Tank And Air Cleaner Assembly

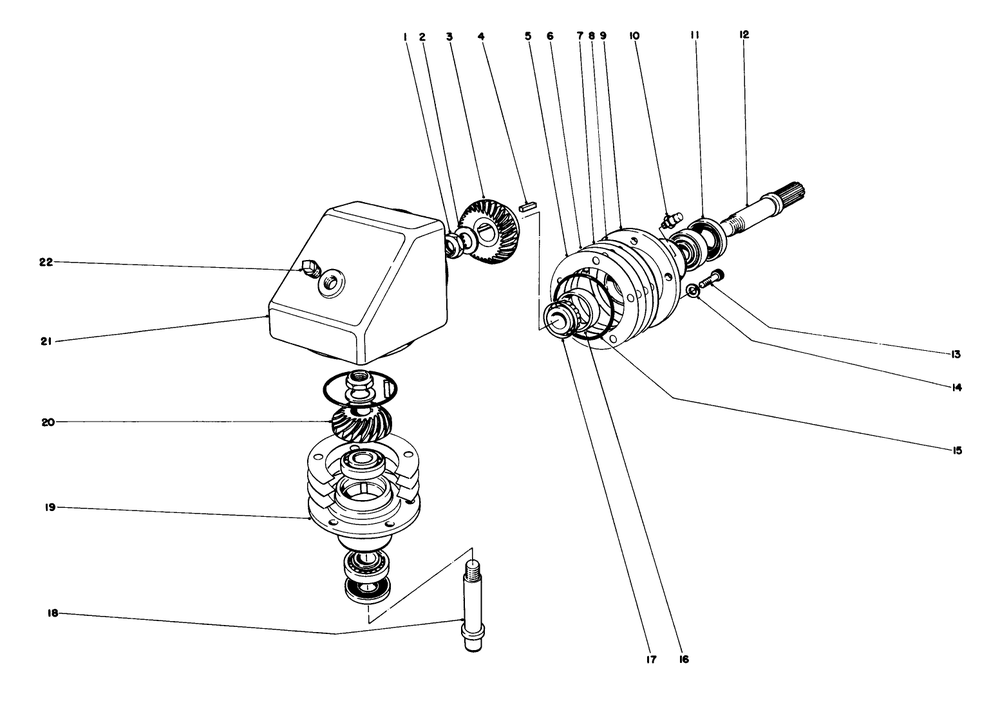

Gear Box Assembly 8-0909 Diagram and Parts List for 00000001 - 09999999 Toro Lawn Tractor
Gear Box Assembly 8-0909

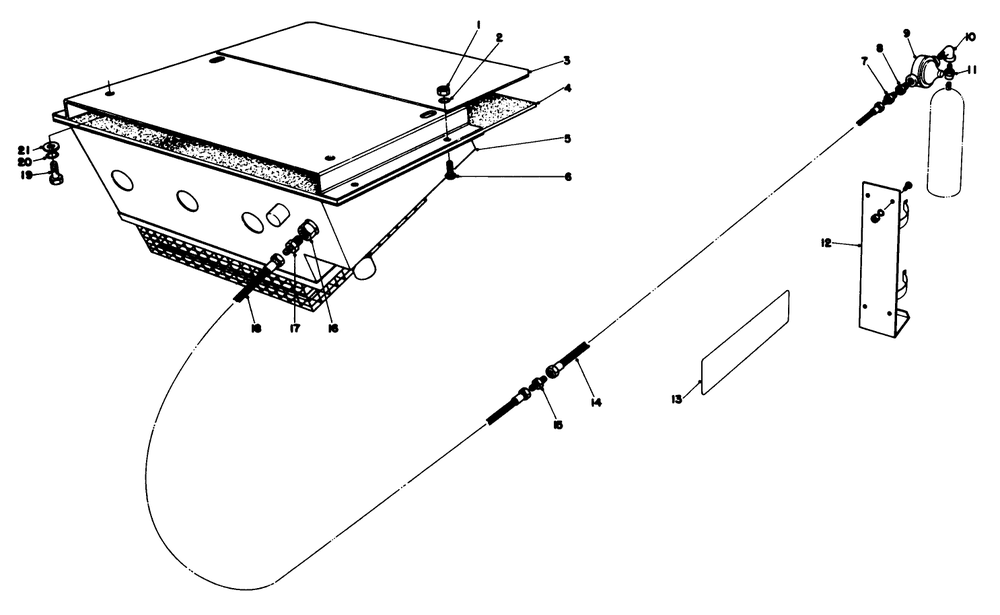

Heater Kit Model No. 30878 Diagram and Parts List for 00000001 - 09999999 Toro Lawn Tractor
Heater Kit Model No. 30878

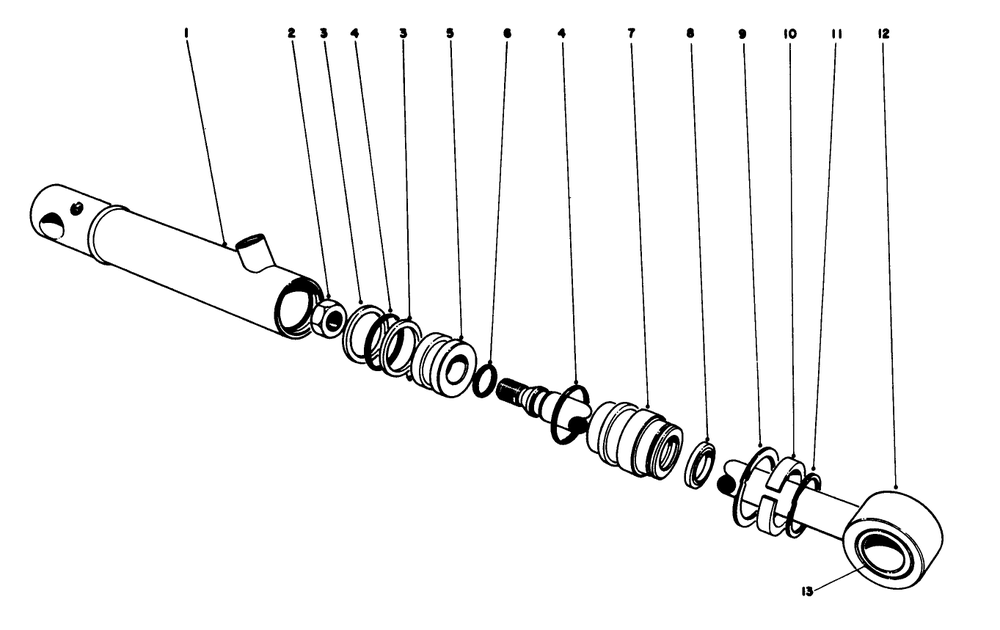

Hydraulic Cyllnder 27-2510 Diagram and Parts List for 00000001 - 09999999 Toro Lawn Tractor
Hydraulic Cyllnder 27-2510

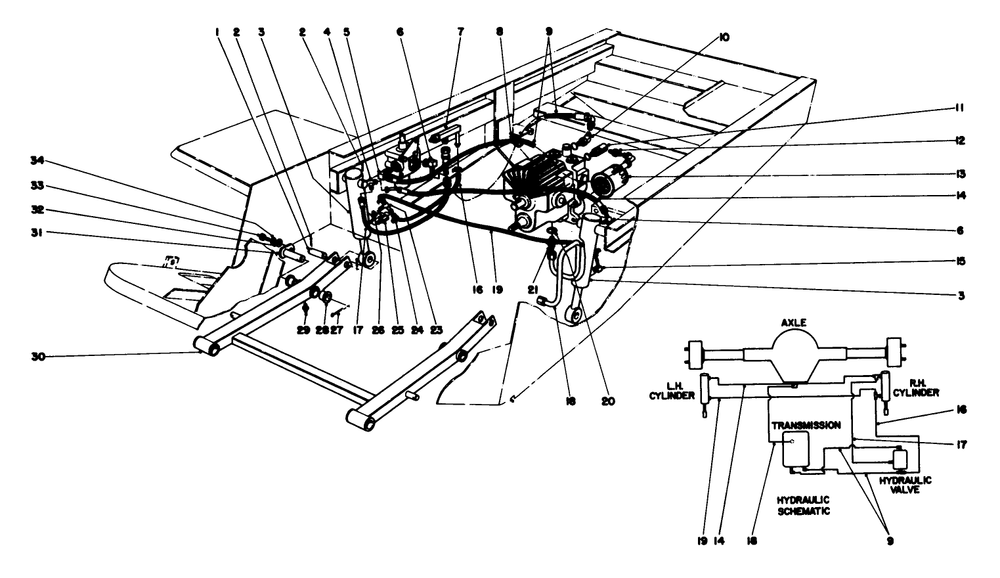

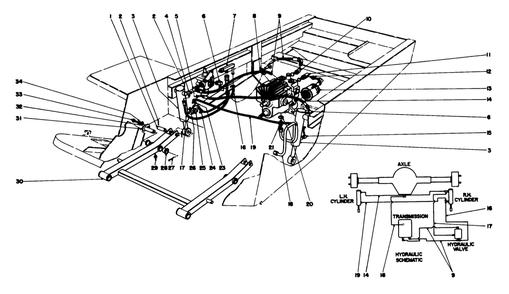

Hydraulic Valve And Lift Arm And Cyllnders Diagram and Parts List for 00000001 - 09999999 Toro Lawn Tractor
Hydraulic Valve And Lift Arm And Cyllnders
Instrument Panel And Steering Post Assembly Diagram and Parts List for 00000001 - 09999999 Toro Lawn Tractor
Instrument Panel And Steering Post Assembly

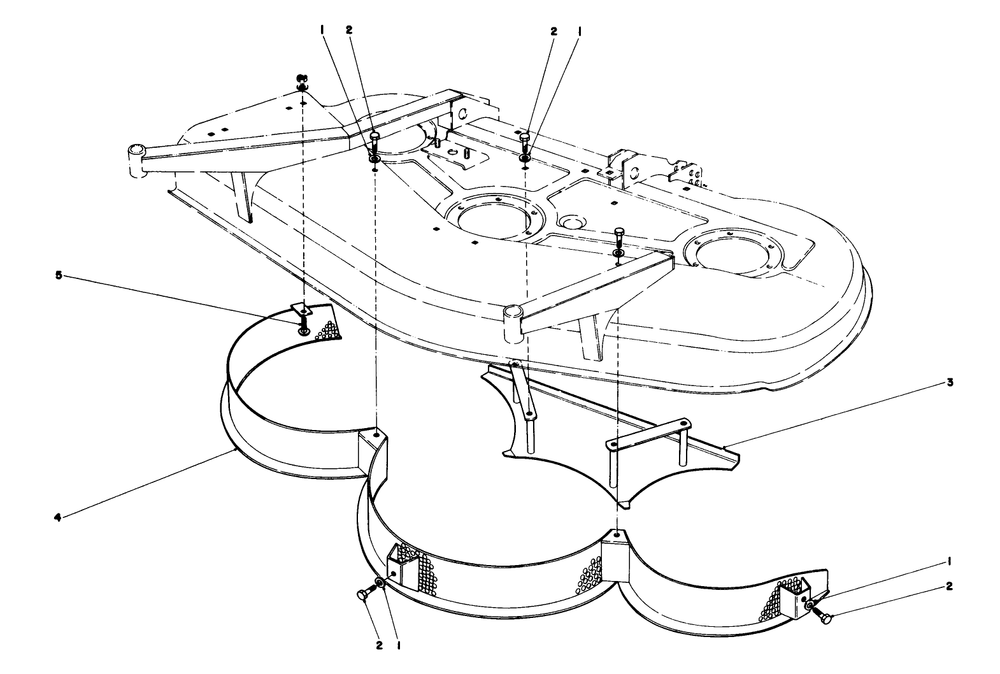

Leaf Mulcher Kit No. 30771 (Optional) Diagram and Parts List for 00000001 - 09999999 Toro Lawn Tractor
Leaf Mulcher Kit No. 30771 (Optional)
Pedals, Hood And Steering Wheel Assembly Diagram and Parts List for 00000001 - 09999999 Toro Lawn Tractor
Pedals, Hood And Steering Wheel Assembly
Power Take Off Assembly Diagram and Parts List for 00000001 - 09999999 Toro Lawn Tractor
Power Take Off Assembly

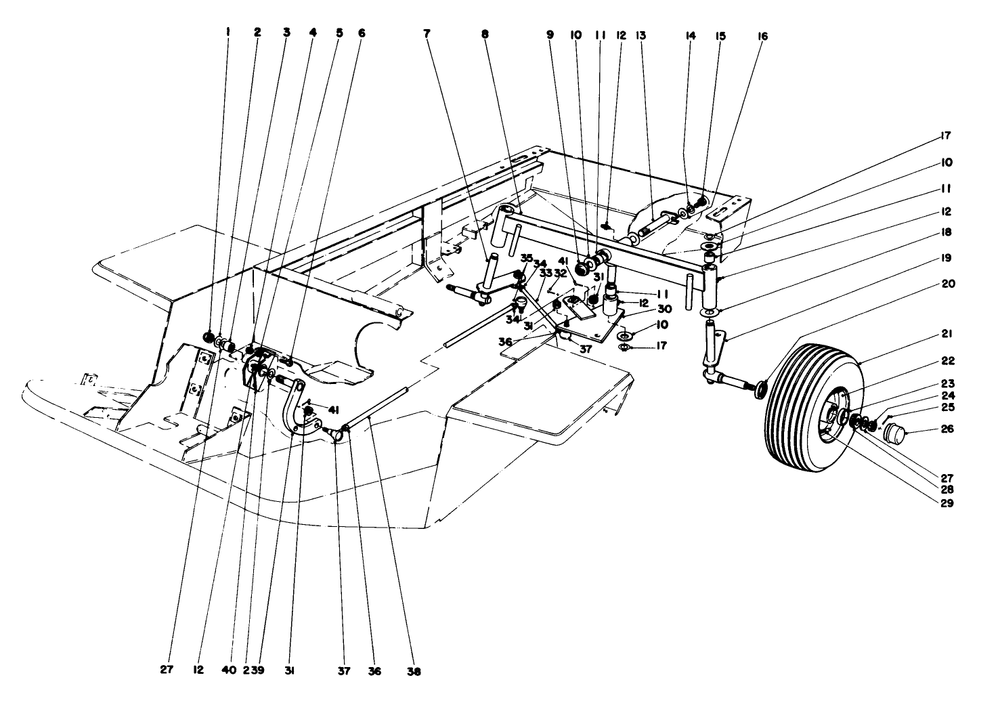

Rear Axle Assembly Diagram and Parts List for 00000001 - 09999999 Toro Lawn Tractor
Rear Axle Assembly
Rear Weight Kit Model No. 24-5780 (Optional) Diagram and Parts List for 00000001 - 09999999 Toro Lawn Tractor
Rear Weight Kit Model No. 24-5780 (Optional)
Seat Mount-Assembly Diagram and Parts List for 00000001 - 09999999 Toro Lawn Tractor
Seat Mount-Assembly

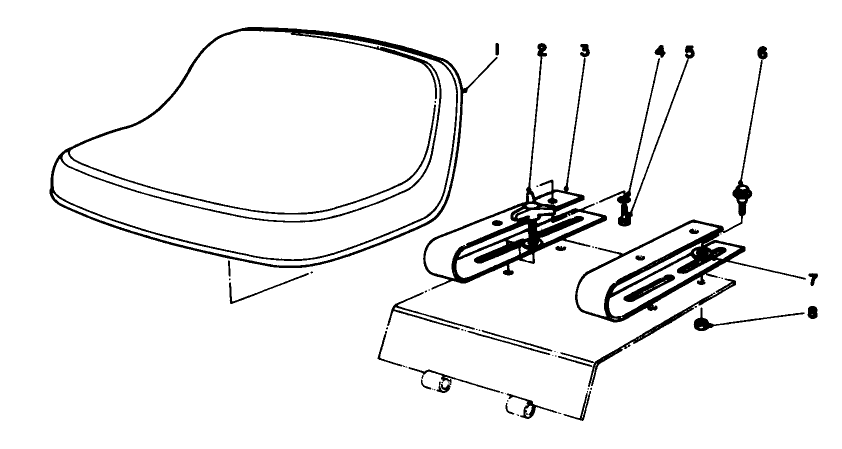

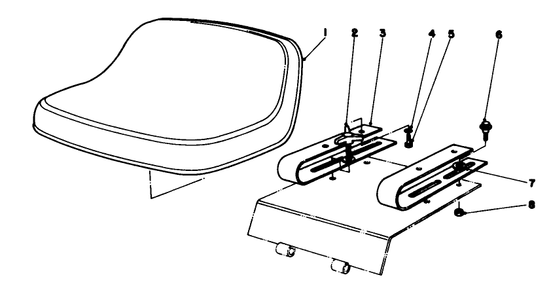

Standard Seat Kit Model No. 30765 Diagram and Parts List for 00000001 - 09999999 Toro Lawn Tractor
Standard Seat Kit Model No. 30765
Steering Gear Assembly No. 27-3290 (52" Groundsmaster) Diagram and Parts List for 00000001 - 09999999 Toro Lawn Tractor
Steering Gear Assembly No. 27-3290 (52" Groundsmaster)
Tractlon-Pedal Assembly Diagram and Parts List for 00000001 - 09999999 Toro Lawn Tractor
Tractlon-Pedal Assembly

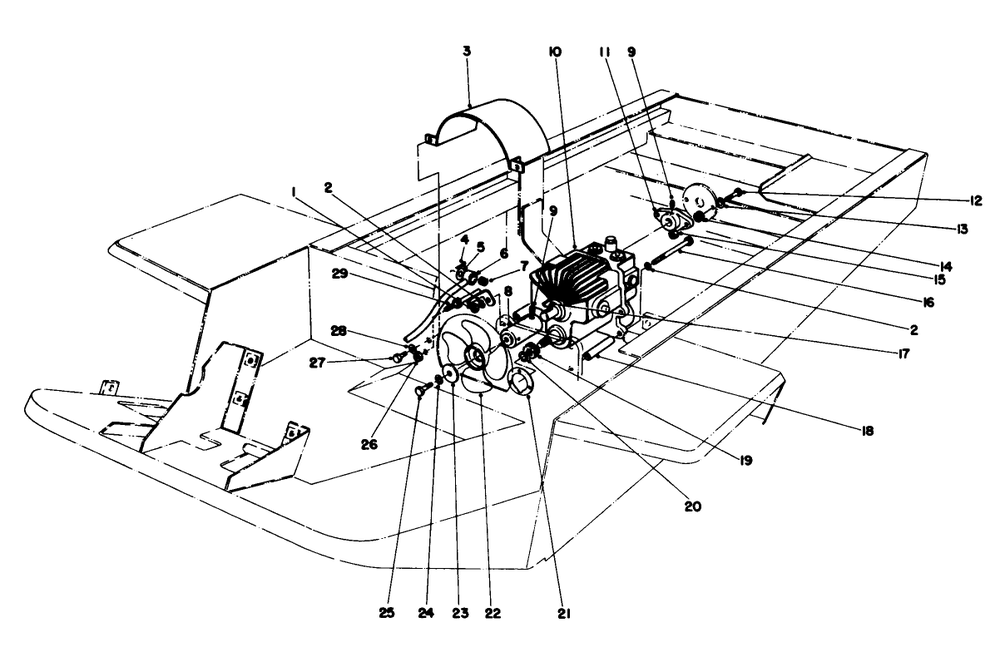

Transmission And Fan Assembly Diagram and Parts List for 00000001 - 09999999 Toro Lawn Tractor
Transmission And Fan Assembly
Transmission Assembly 27-3670 Diagram and Parts List for 00000001 - 09999999 Toro Lawn Tractor
Transmission Assembly 27-3670

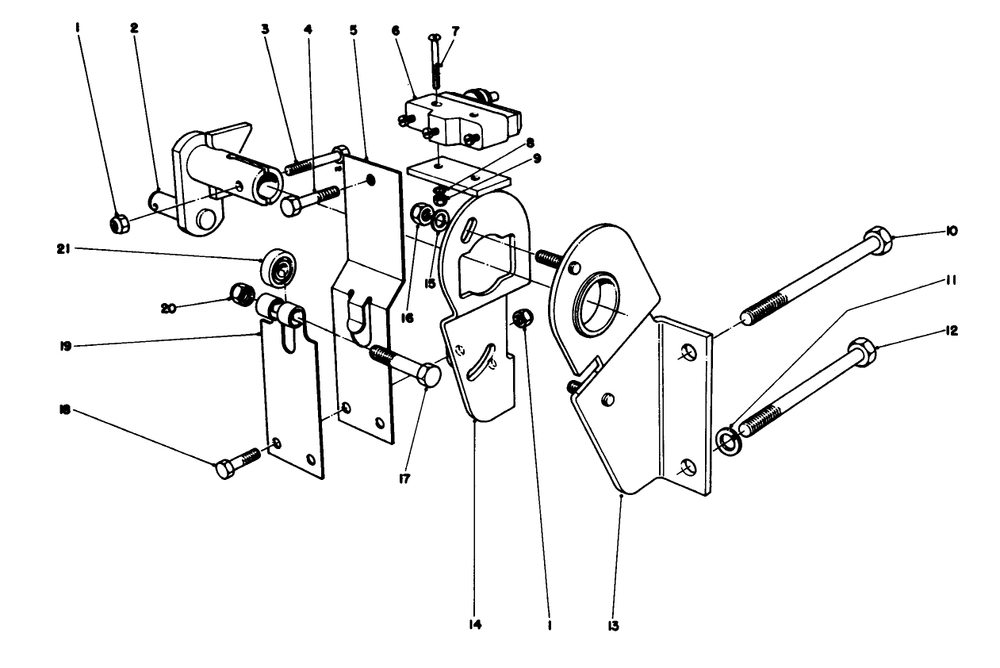

Transmission Interlock Assembly Diagram and Parts List for 00000001 - 09999999 Toro Lawn Tractor
Transmission Interlock Assembly
V-Plow Installation No. 30755 (Optional) Diagram and Parts List for 00000001 - 09999999 Toro Lawn Tractor
V-Plow Installation No. 30755 (Optional)

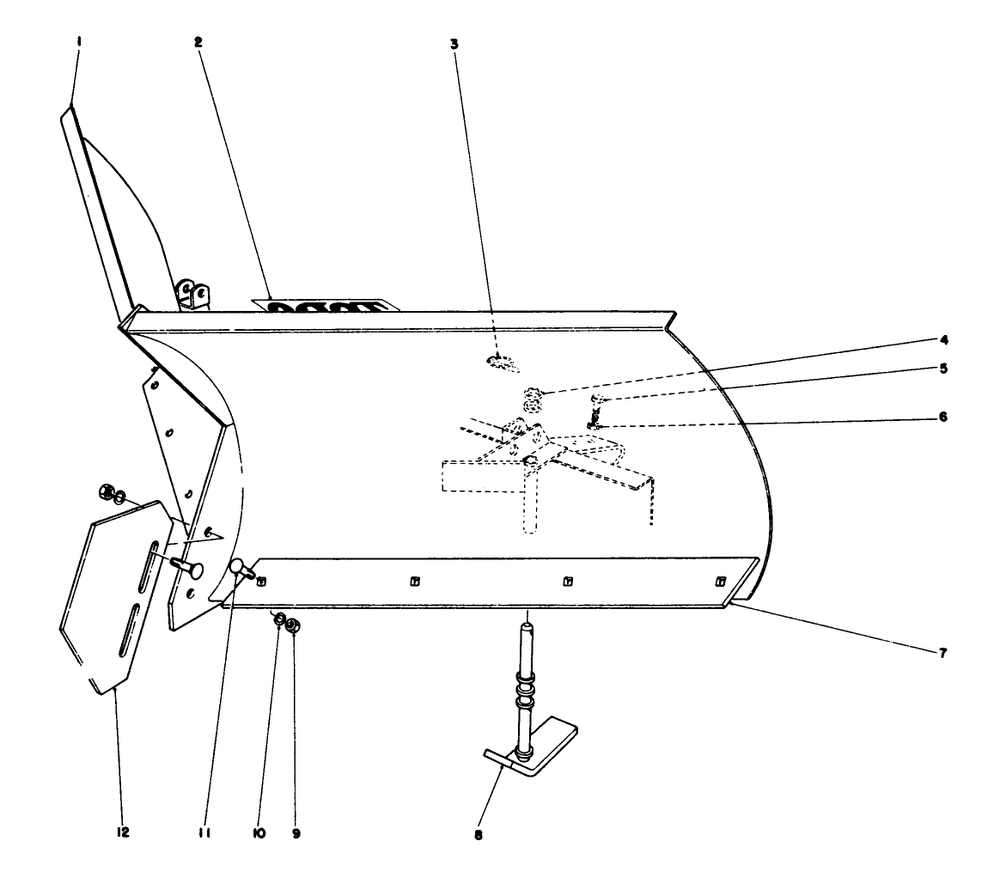

V-Plow Model No. 30750 (Optional) Diagram and Parts List for 00000001 - 09999999 Toro Lawn Tractor
V-Plow Model No. 30750 (Optional)
Valve And Lever Assembly Diagram and Parts List for 00000001 - 09999999 Toro Lawn Tractor
Valve And Lever Assembly

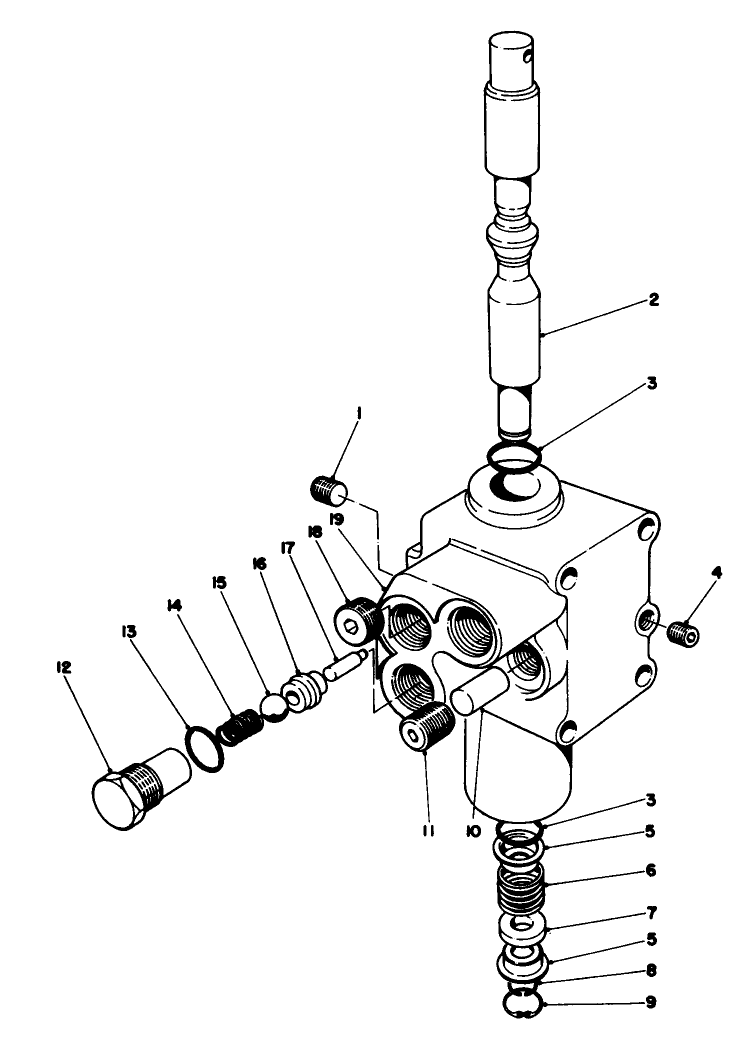

Valve Assembly 27-4190 Diagram and Parts List for 00000001 - 09999999 Toro Lawn Tractor
Valve Assembly 27-4190

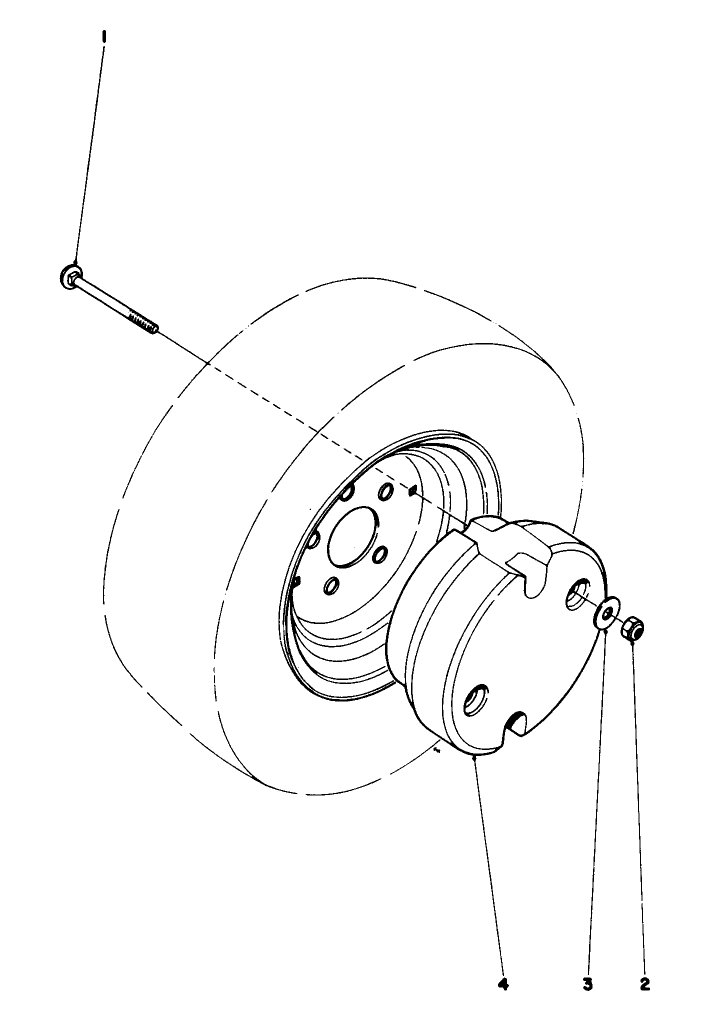

Wheel Weight Kit No. 30762 (Optional) Diagram and Parts List for 00000001 - 09999999 Toro Lawn Tractor
Wheel Weight Kit No. 30762 (Optional)
Previous Showing All Parts Next

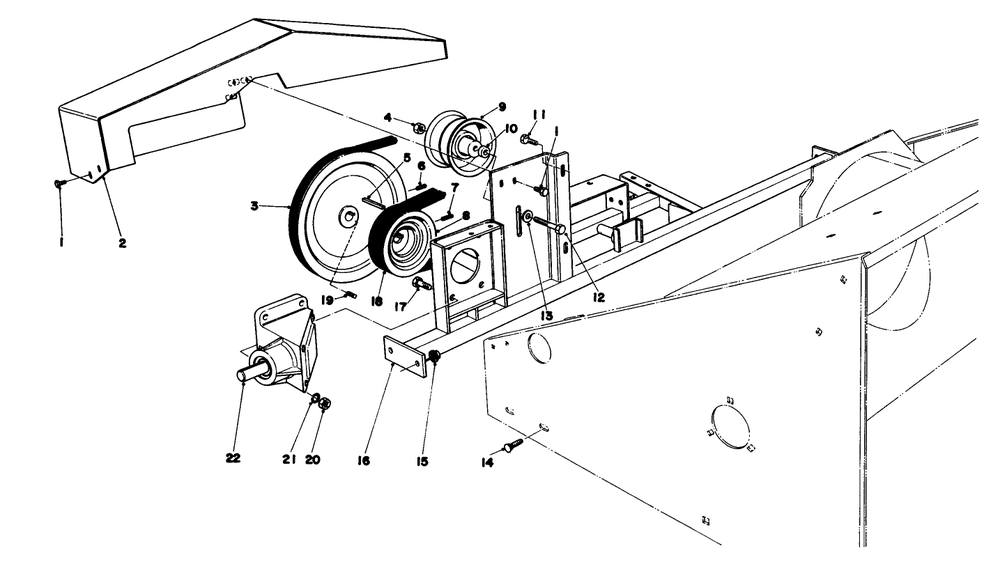

48" Snowthrower Adapter Kit-Model No. 30572

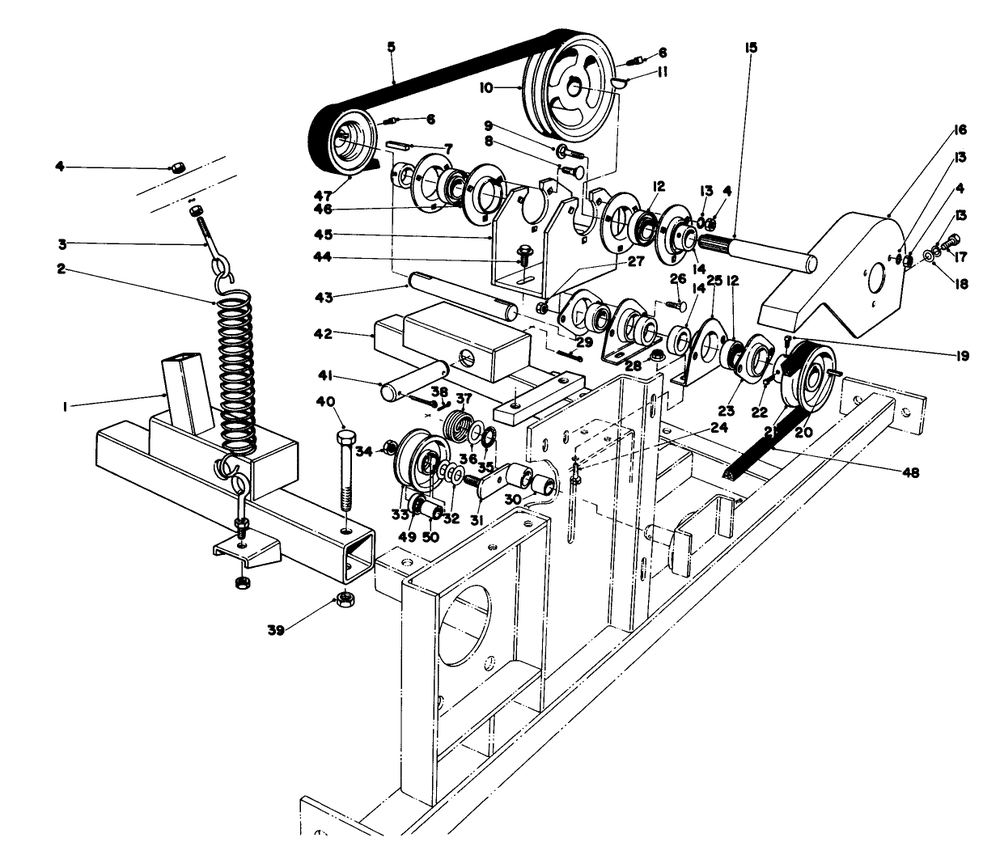

48" Snowthrower Adapter Kit-Model No. 30572 Diagram and Parts List for 00000001 - 09999999 Toro Lawn Tractor
  • Idler Pulley Assembl (Incl. Ref. #37 & 53-54) – Part Number: 32-2820
    Idler Pulley Assembl (Incl. Ref. #37 & 53-54)
    Part Number: 32-2820
      No Longer Available
  • Screw-Hwh – Part Number: 32104-95
    Screw-Hwh
    Part Number: 32104-95
      Special Order
    $5.95
  • Reflector – Part Number: 37-5790
    Reflector
    Part Number: 37-5790
      No Longer Available
  • Clamp-1 1/2 – Part Number: 2112-9
    Clamp-1 1/2
    Part Number: 2112-9
      Special Order
    $14.60
  • 1
    Adpater R.H. – Part Number: 37-5600
    Adpater R.H.
    Part Number: 37-5600
      No Longer Available
  • 2
    Spring-Extension – Part Number: 30-1020
    Spring-Extension
    Part Number: 30-1020
      No Longer Available
  • 3
    Eyebolt – Part Number: 30-0980
    Eyebolt
    Part Number: 30-0980
      No Longer Available
  • 4
    Nut-Hex – Part Number: 3217-6
    Nut-Hex
    Part Number: 3217-6
      Special Order
    $5.95
  • 5
    V-Belt (Matched Set) – Part Number: 37-5650
    V-Belt (Matched Set)
    Part Number: 37-5650
      No Longer Available
  • 6
    Screw-Set, Sqh – Part Number: 3242-6
    Screw-Set, Sqh
    Part Number: 3242-6
      Special Order
    $6.76
  • 7
    Square Key – Part Number: 3-3267
    Square Key
    Part Number: 3-3267
      No Longer Available
  • 8
    Screw-carr – Part Number: 3230-16
    Screw-carr
    Part Number: 3230-16
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 9
    Screw-Carr – Part Number: 3230-4
    Screw-Carr
    Part Number: 3230-4
      Special Order
    Minimum Quantity of 2 required
    $5.95
  • 10
    Pulley – Part Number: 37-5340
    Pulley
    Part Number: 37-5340
      No Longer Available
  • 11
    Key-Woodruff – Part Number: 3257-8
    Key-Woodruff
    Part Number: 3257-8
      Special Order
    $6.86
  • 12
    Bolt – Part Number: 251-253
    Bolt
    Part Number: 251-253
      Special Order
    $38.93
  • 13
    Washer-Lock/Sp – Part Number: 3253-24
    Washer-Lock/Sp
    Part Number: 3253-24
      No Longer Available
  • 14
    Collar - Locking – Part Number: 251-77
    Collar - Locking
    Part Number: 251-77
      Special Order
    $19.18
  • 15
    Jackshaft – Part Number: 39-4370
    Jackshaft
    Part Number: 39-4370
      Special Order
    $734.00
  • 16
    Belt Shield – Part Number: 37-5580
    Belt Shield
    Part Number: 37-5580
      No Longer Available
  • 17
    Screw-hh – Part Number: 322-3
    Screw-hh
    Part Number: 322-3
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 18
    Washer-flat – Part Number: 3256-23
    Washer-flat
    Part Number: 3256-23
    ★★★★★
    ★★★★★
    (3)
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 19
    5/16-18 X 1/2 Sq Hd – Part Number: 3242-1
    5/16-18 X 1/2 Sq Hd
    Part Number: 3242-1
      Special Order
    $6.88
  • 20
    Key – Part Number: 5-7280
    Key
    Part Number: 5-7280
      Special Order
    $6.96
  • 21
    SHEAVE 60103 – Part Number: 32-1790
    SHEAVE 60103
    Part Number: 32-1790
      No Longer Available
  • 22
    Screw-Sqh – Part Number: 3242-2
    Screw-Sqh
    Part Number: 3242-2
      Special Order
    Minimum Quantity of 2 required
    $5.95
  • 23
    Flange – Part Number: 251-286
    Flange
    Part Number: 251-286
      Special Order
    $45.66
  • 24
    Screw-Hh – Part Number: 323-4
    Screw-Hh
    Part Number: 323-4
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 25
    Flange – Part Number: 251-286
    Flange
    Part Number: 251-286
      Special Order
    $45.66
  • 26
    Bolt-carr – Part Number: 3230-1
    Bolt-carr
    Part Number: 3230-1
    ★★★★★
    ★★★★★
    (1)
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 27
    Nut-hf – Part Number: 32128-20
    Nut-hf
    Part Number: 32128-20
      In Stock
    $5.95
  • 28
    Nut-hhf, Whiz – Part Number: 3290-357
    Nut-hhf, Whiz
    Part Number: 3290-357
      In Stock
    $5.95
  • 29
    Cotter Pin – Part Number: 3272-52
    Cotter Pin
    Part Number: 3272-52
      No Longer Available
  • 30
    Bushing Bronze – Part Number: 31-0680
    Bushing Bronze
    Part Number: 31-0680
      No Longer Available
  • 31
    Idler Arm (lncl. Ref. #30) – Part Number: 37-5470
    Idler Arm (lncl. Ref. #30)
    Part Number: 37-5470
      No Longer Available
  • 32
    Washer-Flat – Part Number: 3256-27
    Washer-Flat
    Part Number: 3256-27
      Special Order
    $5.95
  • 33
    Idler Pulley – Part Number: 32-1450
    Idler Pulley
    Part Number: 32-1450
      No Longer Available
  • 34
    LOCKNUT 6239 – Part Number: 30-8670
    LOCKNUT 6239
    Part Number: 30-8670
      No Longer Available
  • 35
    Felt Washer – Part Number: 31-7620
    Felt Washer
    Part Number: 31-7620
      No Longer Available
  • 36
    Washer-Shim – Part Number: 31-0210
    Washer-Shim
    Part Number: 31-0210
      No Longer Available
  • 37
    Spring-Torsion – Part Number: 31-9500
    Spring-Torsion
    Part Number: 31-9500
      No Longer Available
  • 38
    Pin-Cotter – Part Number: 3272-23
    Pin-Cotter
    Part Number: 3272-23
      Special Order
    $5.95
  • 39
    Nut-lock, Cone – Part Number: 32152-2
    Nut-lock, Cone
    Part Number: 32152-2
      In Stock
    $5.95
  • 40
    Screw-hh – Part Number: 323-11
    Screw-hh
    Part Number: 323-11
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 41
    Pin – Part Number: 37-5160
    Pin
    Part Number: 37-5160
      No Longer Available
  • 42
    Adapter L.H. – Part Number: 37-5620
    Adapter L.H.
    Part Number: 37-5620
      No Longer Available
  • 43
    Jackshaft – Part Number: 37-5250
    Jackshaft
    Part Number: 37-5250
      No Longer Available
  • 44
    SCREW-HHF – Part Number: 3234-12
    SCREW-HHF
    Part Number: 3234-12
      Special Order
    $5.95
  • 45
    Jackshaft-Support – Part Number: 37-5610
    Jackshaft-Support
    Part Number: 37-5610
      No Longer Available
  • 46
    Flange-3 Hole – Part Number: 251-287
    Flange-3 Hole
    Part Number: 251-287
      No Longer Available
  • 47
    Pulley – Part Number: 37-5070
    Pulley
    Part Number: 37-5070
      No Longer Available
  • 48
    V-Belt – Part Number: 37-5660
    V-Belt
    Part Number: 37-5660
      No Longer Available
  • 49
    Bearing-Ball – Part Number: 109842
    Bearing-Ball
    Part Number: 109842
      Special Order
    $44.30
  • 50
    Sleeve – Part Number: 30-5440
    Sleeve
    Part Number: 30-5440
      No Longer Available
48" Snowthrower Drift Cutter Kit No. 30-1000 (Optional)
48" Snowthrower Drift Cutter Kit No. 30-1000 (Optional) Diagram and Parts List for 00000001 - 09999999 Toro Lawn Tractor
  • 1
    Step Bolt – Part Number: 3290-391
    Step Bolt
    Part Number: 3290-391
      No Longer Available
  • 2
    Drift Cutter – Part Number: 32-1840
    Drift Cutter
    Part Number: 32-1840
      No Longer Available
  • 3
    Nut-hf – Part Number: 32128-20
    Nut-hf
    Part Number: 32128-20
      In Stock
    $5.95
48" Snowthrower Model No. 30570
48" Snowthrower Model No. 30570 Diagram and Parts List for 00000001 - 09999999 Toro Lawn Tractor
48" Snowthrower Model No. 30570
48" Snowthrower Model No. 30570 Diagram and Parts List for 00000001 - 09999999 Toro Lawn Tractor
48" Snowthrower Model No. 30570
48" Snowthrower Model No. 30570 Diagram and Parts List for 00000001 - 09999999 Toro Lawn Tractor
  • 1
    Screw-hhf – Part Number: 3234-13
    Screw-hhf
    Part Number: 3234-13
      Special Order
    Minimum Quantity of 2 required
    $5.95
  • 2
    Control Assembly Choke – Part Number: 39-4560
    Control Assembly Choke
    Part Number: 39-4560
      No Longer Available
  • 3
    SHEAVE 60014 – Part Number: 32-4480
    SHEAVE 60014
    Part Number: 32-4480
      No Longer Available
  • 4
    Nut-lock, Cone – Part Number: 32152-2
    Nut-lock, Cone
    Part Number: 32152-2
      In Stock
    $5.95
  • 5
    Key – Part Number: 3-0971
    Key
    Part Number: 3-0971
      No Longer Available
  • 6
    Screw-Sqh – Part Number: 3242-2
    Screw-Sqh
    Part Number: 3242-2
      Special Order
    Minimum Quantity of 2 required
    $5.95
  • 7
    Screw-Set, Sqh – Part Number: 3242-6
    Screw-Set, Sqh
    Part Number: 3242-6
      Special Order
    $6.76
  • 8
    Pulley-Gear Box – Part Number: 37-5090
    Pulley-Gear Box
    Part Number: 37-5090
      No Longer Available
  • 9
    Idler Pulley – Part Number: 37-5760-03
    Idler Pulley
    Part Number: 37-5760-03
      Special Order
    $237.77
  • 10
    Spacer-Idler – Part Number: 37-5210
    Spacer-Idler
    Part Number: 37-5210
      Special Order
    $10.02
  • 11
    Screw-hh – Part Number: 322-3
    Screw-hh
    Part Number: 322-3
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 12
    Screw-hh – Part Number: 323-11
    Screw-hh
    Part Number: 323-11
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 13
    Washer-flat – Part Number: 3256-3
    Washer-flat
    Part Number: 3256-3
    ★★★★★
    ★★★★★
    (2)
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 14
    Screw-Carr – Part Number: 3231-30
    Screw-Carr
    Part Number: 3231-30
      No Longer Available
  • 15
    Nut-hhf, Whiz – Part Number: 3290-357
    Nut-hhf, Whiz
    Part Number: 3290-357
      In Stock
    $5.95
  • 16
    Cross Bracket – Part Number: 37-5400
    Cross Bracket
    Part Number: 37-5400
      No Longer Available
  • 17
    Screw-hh – Part Number: 323-7
    Screw-hh
    Part Number: 323-7
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 18
    V-Belt (Matched Set of 2) – Part Number: 37-5670
    V-Belt (Matched Set of 2)
    Part Number: 37-5670
      No Longer Available
  • 19
    Screw-set, Sqh – Part Number: 3242-4
    Screw-set, Sqh
    Part Number: 3242-4
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 20
    Nut-Hex – Part Number: 3217-7
    Nut-Hex
    Part Number: 3217-7
      Special Order
    $5.95
  • 21
    Washer-Lock – Part Number: 3253-21
    Washer-Lock
    Part Number: 3253-21
      In Stock
    $5.95
  • 22
    Gear Box Assembly – Part Number: 37-5410
    Gear Box Assembly
    Part Number: 37-5410
      No Longer Available
48" Snowthrower-Model No. 30570
48" Snowthrower-Model No. 30570 Diagram and Parts List for 00000001 - 09999999 Toro Lawn Tractor
  • 1
    Ring-snap – Part Number: 32120-72
    Ring-snap
    Part Number: 32120-72
      In Stock
    $5.95
  • 2
    Shaft – Part Number: 30-0590
    Shaft
    Part Number: 30-0590
      No Longer Available
  • 3
    Key – Part Number: 304660
    Key
    Part Number: 304660
      No Longer Available
  • 4
    Bearing – Part Number: 304630
    Bearing
    Part Number: 304630
      No Longer Available
  • 5
    Oil Seal – Part Number: 253-122
    Oil Seal
    Part Number: 253-122
      Special Order
    $10.26
  • 6
    Housing – Part Number: 30-0650
    Housing
    Part Number: 30-0650
      No Longer Available
  • 7
    SHAFT-GEAR BOX – Part Number: 37-5840
    SHAFT-GEAR BOX
    Part Number: 37-5840
      No Longer Available
  • 8
    BEARING (R-12) – Part Number: 30-0620
    BEARING (R-12)
    Part Number: 30-0620
      No Longer Available
  • 9
    Gear – Part Number: 30-0670
    Gear
    Part Number: 30-0670
      No Longer Available
  • 10
    Gasket-Cover Plate – Part Number: 30-0680
    Gasket-Cover Plate
    Part Number: 30-0680
      No Longer Available
  • 11
    Screw – Part Number: 12-3270
    Screw
    Part Number: 12-3270
      Special Order
    $5.95
  • 12
    Cover Plate – Part Number: 30-0690
    Cover Plate
    Part Number: 30-0690
      No Longer Available
  • 13
    Gear – Part Number: 30-0600
    Gear
    Part Number: 30-0600
      No Longer Available
Air Cleaner Assembly 8-2329
Air Cleaner Assembly 8-2329 Diagram and Parts List for 00000001 - 09999999 Toro Lawn Tractor
  • 1
    Mtg Band Assembly – Part Number: 33-1350
    Mtg Band Assembly
    Part Number: 33-1350
      No Longer Available
  • 2
    Clamp Assembly – Part Number: 33-1340
    Clamp Assembly
    Part Number: 33-1340
      No Longer Available
  • 3
    Nut Assembly – Part Number: 33-1330
    Nut Assembly
    Part Number: 33-1330
      No Longer Available
  • 4
    Cup Assembly – Part Number: 33-1320
    Cup Assembly
    Part Number: 33-1320
      No Longer Available
  • 5
    Baffle – Part Number: 33-1310
    Baffle
    Part Number: 33-1310
      No Longer Available
  • 6
    Element Asm – Part Number: 108-3808
    Element Asm
    Part Number: 108-3808
      Special Order
    $40.64
  • 7
    Screw – Part Number: 3258-19
    Screw
    Part Number: 3258-19
      Special Order
    $5.95
  • 8
    Nut-Square – Part Number: 32107-11
    Nut-Square
    Part Number: 32107-11
      No Longer Available
  • 9
    Sleeve Asm – Part Number: 33-1280
    Sleeve Asm
    Part Number: 33-1280
      No Longer Available
  • 10
    Bowl Clear – Part Number: 33-1270
    Bowl Clear
    Part Number: 33-1270
      No Longer Available
  • 11
    Cover Assembly – Part Number: 33-1260
    Cover Assembly
    Part Number: 33-1260
      Special Order
    $70.69
Brake Assembly
Brake Assembly Diagram and Parts List for 00000001 - 09999999 Toro Lawn Tractor
Cab Light Kit Model No. 30581
Cab Light Kit Model No. 30581 Diagram and Parts List for 00000001 - 09999999 Toro Lawn Tractor
Chute Extension Kit 26-1100
Chute Extension Kit 26-1100 Diagram and Parts List for 00000001 - 09999999 Toro Lawn Tractor
Cutting Unit Assembly
Cutting Unit Assembly Diagram and Parts List for 00000001 - 09999999 Toro Lawn Tractor

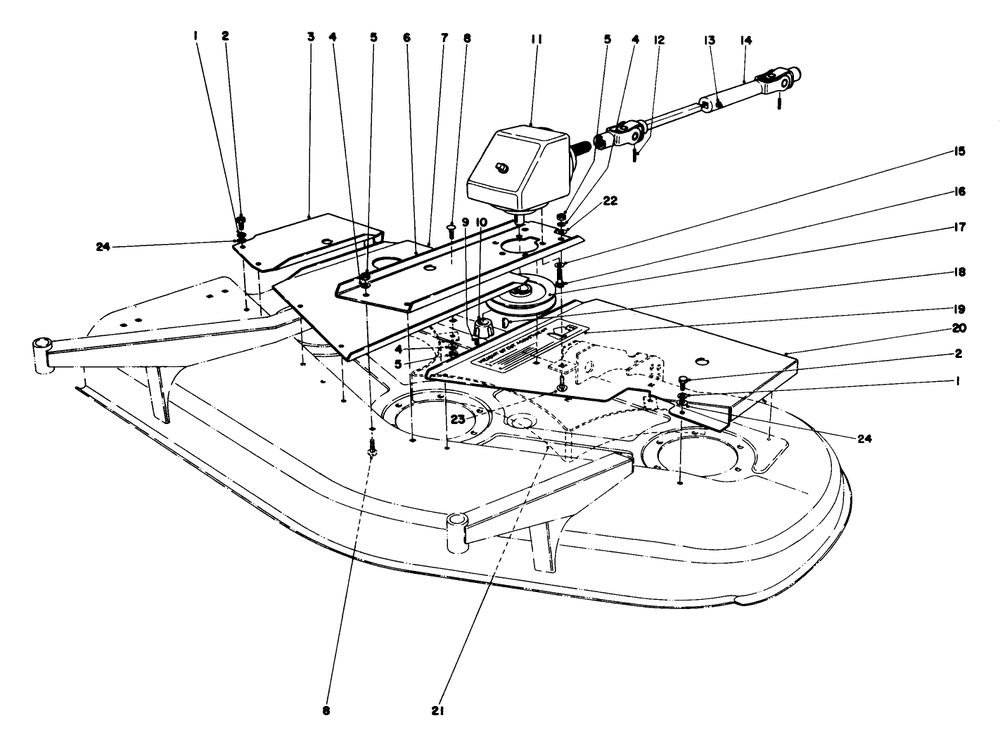

Deck Covers And Gear Box
Deck Covers And Gear Box Diagram and Parts List for 00000001 - 09999999 Toro Lawn Tractor
Deluxe Seat Kit Model No. 30766
Deluxe Seat Kit Model No. 30766 Diagram and Parts List for 00000001 - 09999999 Toro Lawn Tractor

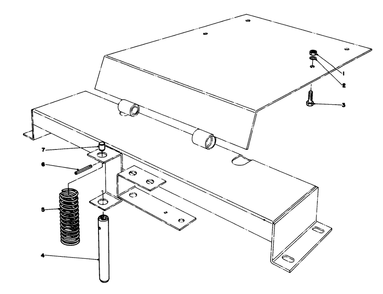

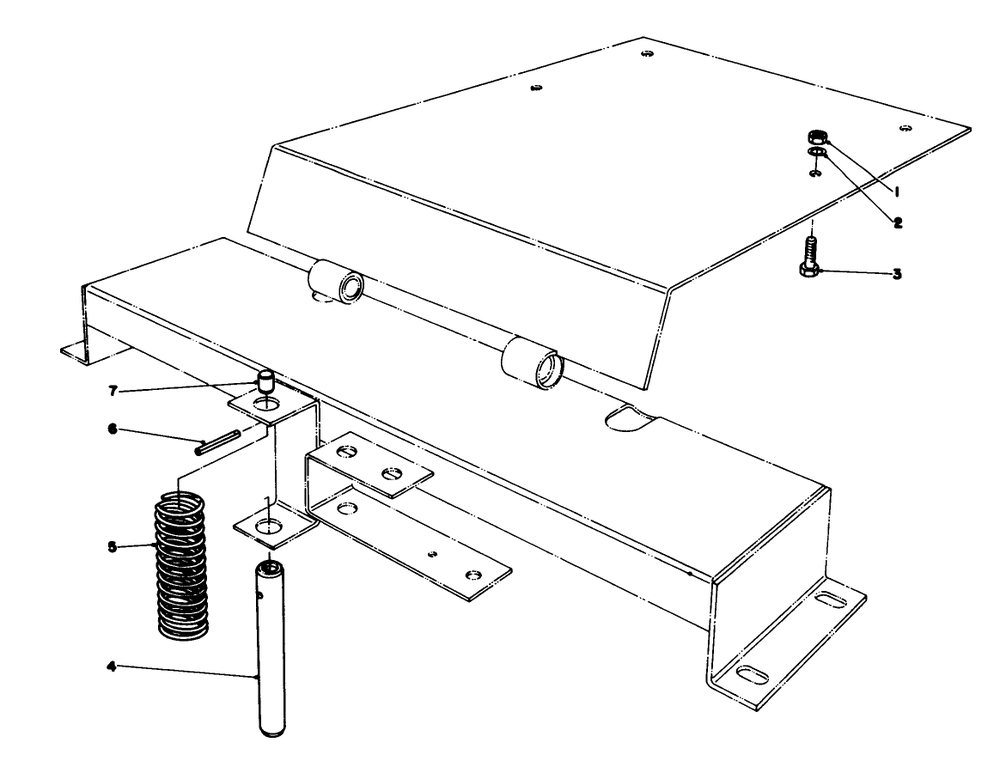

Deluxe Seat Kit Model No. 30766 (Continued)
Deluxe Seat Kit Model No. 30766 (Continued) Diagram and Parts List for 00000001 - 09999999 Toro Lawn Tractor
  • 1
    Washer – Part Number: 40-3950
    Washer
    Part Number: 40-3950
      No Longer Available
  • 2
    Washer-Flat – Part Number: 39-9500
    Washer-Flat
    Part Number: 39-9500
      No Longer Available
  • 3
    Washer – Part Number: 40-3960
    Washer
    Part Number: 40-3960
      No Longer Available
  • 4
    BRG BSHG – Part Number: 40-3970
    BRG BSHG
    Part Number: 40-3970
      No Longer Available
  • 5
    BEARING – Part Number: 40-3980
    BEARING
    Part Number: 40-3980
      No Longer Available
  • 6
    DISCONTINUED – Part Number: 40-3990
    DISCONTINUED
    Part Number: 40-3990
      No Longer Available
  • 7
    Bolt – Part Number: 40-4000
    Bolt
    Part Number: 40-4000
      No Longer Available
  • 8
    Roller – Part Number: 40-4010
    Roller
    Part Number: 40-4010
      Special Order
    $16.32
  • 9
    Frame Bag – Part Number: 40-4020
    Frame Bag
    Part Number: 40-4020
      No Longer Available
  • 10
    Pin – Part Number: 40-4030
    Pin
    Part Number: 40-4030
      No Longer Available
  • 11
    Grooved Locking Pin 08X16MM – Part Number: 40-4040
    Grooved Locking Pin 08X16MM
    Part Number: 40-4040
      No Longer Available
  • 12
    Sleeve – Part Number: 40-4050
    Sleeve
    Part Number: 40-4050
      No Longer Available
  • 13
    WASHER-RUBBER – Part Number: 40-4060
    WASHER-RUBBER
    Part Number: 40-4060
      No Longer Available
  • 14
    Washer – Part Number: 1-613235
    Washer
    Part Number: 1-613235
      Special Order
    $5.95
  • 15
    U-Track – Part Number: 40-4080
    U-Track
    Part Number: 40-4080
      Special Order
    $25.02
  • 16
    RIVET – Part Number: 40-4090
    RIVET
    Part Number: 40-4090
      No Longer Available
  • 17
    Trible-Bearing – Part Number: 40-4100
    Trible-Bearing
    Part Number: 40-4100
      No Longer Available
  • 18
    Retaining Ring – Part Number: 39-9310
    Retaining Ring
    Part Number: 39-9310
      No Longer Available
  • 19
    Fork – Part Number: 40-4110
    Fork
    Part Number: 40-4110
      No Longer Available
  • 20
    Rubber Plate – Part Number: 40-4120
    Rubber Plate
    Part Number: 40-4120
      No Longer Available
  • 21
    Lower Suspension Plate-Complete (Incl.Ref.#15-16 & 20) – Part Number: 40-4130
    Lower Suspension Plate-Complete (Incl.Ref.#15-16 & 20)
    Part Number: 40-4130
      No Longer Available
  • 22
    Rubber Bumper – Part Number: 39-9520
    Rubber Bumper
    Part Number: 39-9520
      No Longer Available
  • 23
    Weight Indicator Band – Part Number: 40-4140
    Weight Indicator Band
    Part Number: 40-4140
      No Longer Available
  • 24
    Roller – Part Number: 40-4150
    Roller
    Part Number: 40-4150
      No Longer Available
  • 25
    GUIDE-SLEEVE – Part Number: 40-4160
    GUIDE-SLEEVE
    Part Number: 40-4160
      No Longer Available
  • 26
    Handle – Part Number: 40-4170
    Handle
    Part Number: 40-4170
      No Longer Available
  • 27
    Toggle – Part Number: 40-4180
    Toggle
    Part Number: 40-4180
      Special Order
    $62.71
  • 28
    Grooved Pin 5X28MM – Part Number: 40-4190
    Grooved Pin 5X28MM
    Part Number: 40-4190
      No Longer Available
  • 29
    Pin – Part Number: 40-4200
    Pin
    Part Number: 40-4200
      No Longer Available
  • 30
    RUBBER RING 14MM Black – Part Number: 40-4210
    RUBBER RING 14MM Black
    Part Number: 40-4210
      No Longer Available
  • 31
    RUBBER RING 14MM RED – Part Number: 40-4220
    RUBBER RING 14MM RED
    Part Number: 40-4220
      No Longer Available
  • 32
    Plug – Part Number: 40-4230
    Plug
    Part Number: 40-4230
      No Longer Available
  • 33
    Nut – Part Number: 40-4240
    Nut
    Part Number: 40-4240
      No Longer Available
  • 34
    Weld Nut – Part Number: 40-4250
    Weld Nut
    Part Number: 40-4250
      No Longer Available
  • 35
    Spring Bracket – Part Number: 40-4260
    Spring Bracket
    Part Number: 40-4260
      No Longer Available
  • 36
    Threaded Rod – Part Number: 40-4270
    Threaded Rod
    Part Number: 40-4270
      No Longer Available
  • 37
    PIN – Part Number: 40-4280
    PIN
    Part Number: 40-4280
      No Longer Available
  • 38
    Sleeve 14X 1X 19MM – Part Number: 40-4290
    Sleeve 14X 1X 19MM
    Part Number: 40-4290
      No Longer Available
  • 39
    Washer – Part Number: 40-4300
    Washer
    Part Number: 40-4300
      No Longer Available
  • 40
    Thrust Needle Bearing – Part Number: 40-4310
    Thrust Needle Bearing
    Part Number: 40-4310
      No Longer Available
  • 41
    Shock Absorber – Part Number: 40-4320
    Shock Absorber
    Part Number: 40-4320
      Special Order
    $205.21
  • 42
    Coil Spring – Part Number: 40-4330
    Coil Spring
    Part Number: 40-4330
      No Longer Available
  • 43
    SPRING-COIL – Part Number: 40-4340
    SPRING-COIL
    Part Number: 40-4340
      No Longer Available
  • 44
    SPRING-COIL – Part Number: 40-4350
    SPRING-COIL
    Part Number: 40-4350
      No Longer Available
  • 45
    Plate – Part Number: 404360
    Plate
    Part Number: 404360
      Special Order
    $9.48
  • 46
    Bolt – Part Number: 40-4370
    Bolt
    Part Number: 40-4370
      No Longer Available
  • 47
    Release Bracket – Part Number: 40-4380
    Release Bracket
    Part Number: 40-4380
      No Longer Available
Deluxe Seat Kit Model No. 30766 (Continued)
Deluxe Seat Kit Model No. 30766 (Continued) Diagram and Parts List for 00000001 - 09999999 Toro Lawn Tractor
Differential Assembly
Differential Assembly Diagram and Parts List for 00000001 - 09999999 Toro Lawn Tractor
Electrical Schematic
Electrical Schematic Diagram and Parts List for 00000001 - 09999999 Toro Lawn Tractor

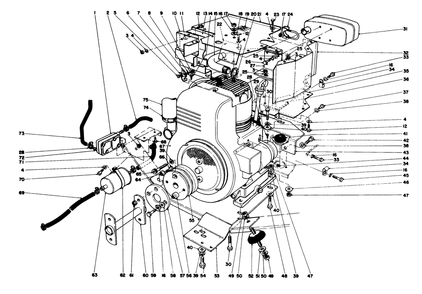

Engine Assembly
Engine Assembly Diagram and Parts List for 00000001 - 09999999 Toro Lawn Tractor

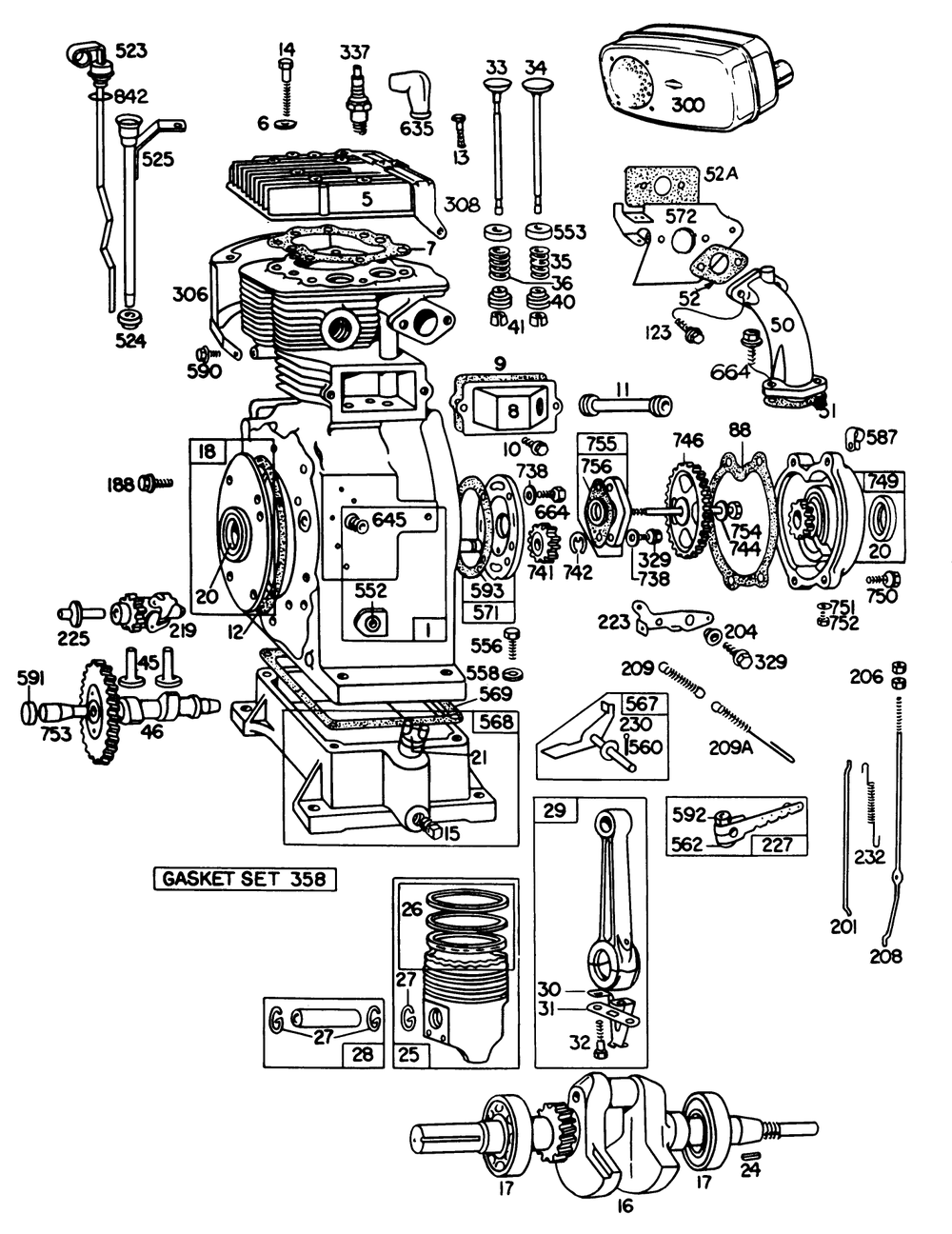

Engine Briggs & Stratton Model No. 326437-0262-01
Engine Briggs & Stratton Model No. 326437-0262-01 Diagram and Parts List for 00000001 - 09999999 Toro Lawn Tractor
Engine Briggs & Stratton Model No. 326437-0262-01
Engine Briggs & Stratton Model No. 326437-0262-01 Diagram and Parts List for 00000001 - 09999999 Toro Lawn Tractor
Engine Briggs & Stratton Model No. 326437-0262-01
Engine Briggs & Stratton Model No. 326437-0262-01 Diagram and Parts List for 00000001 - 09999999 Toro Lawn Tractor
Gas Tank And Air Cleaner Assembly
Gas Tank And Air Cleaner Assembly Diagram and Parts List for 00000001 - 09999999 Toro Lawn Tractor
  • 1
    Gas Tank (Incl. Ref. #2 & 3) – Part Number: 37-9900
    Gas Tank (Incl. Ref. #2 & 3)
    Part Number: 37-9900
      No Longer Available
  • 2
    ELBOW – Part Number: 353-705
    ELBOW
    Part Number: 353-705
      No Longer Available
  • 3
    Clamp-Hose – Part Number: 2412-36
    Clamp-Hose
    Part Number: 2412-36
      Special Order
    $5.95
  • 4
    Screw-Hh – Part Number: 323-19
    Screw-Hh
    Part Number: 323-19
      Special Order
    $5.95
  • 5
    Washer-Lock – Part Number: 3253-21
    Washer-Lock
    Part Number: 3253-21
      In Stock
    $5.95
  • 6
    Washer – Part Number: 3256-41
    Washer
    Part Number: 3256-41
      Special Order
    $5.95
  • 7
    Gas Cap (Not Vented) – Part Number: 37-9540
    Gas Cap (Not Vented)
    Part Number: 37-9540
      No Longer Available
  • 8
    Hose-Fuel – Part Number: 109-0308
    Hose-Fuel
    Part Number: 109-0308
      Special Order
    $14.98
  • 9
    Tie-Cable – Part Number: 3290-379
    Tie-Cable
    Part Number: 3290-379
      Special Order
    $5.95
  • 10
    Screw-hh – Part Number: 322-3
    Screw-hh
    Part Number: 322-3
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 11
    Air Cleaner Assembly – Part Number: 8-2329
    Air Cleaner Assembly
    Part Number: 8-2329
      No Longer Available
  • 12
    Nut-Hex – Part Number: 3217-6
    Nut-Hex
    Part Number: 3217-6
      Special Order
    $5.95
  • 13
    Washer-lock – Part Number: 3253-4
    Washer-lock
    Part Number: 3253-4
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 14
    Washer-flat – Part Number: 3256-23
    Washer-flat
    Part Number: 3256-23
    ★★★★★
    ★★★★★
    (3)
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 15
    R-Clamp – Part Number: 2412-41
    R-Clamp
    Part Number: 2412-41
      Special Order
    $9.06
  • 16
    Screw-hh – Part Number: 322-10
    Screw-hh
    Part Number: 322-10
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 18
    Hose-Fuel – Part Number: 110-4101
    Hose-Fuel
    Part Number: 110-4101
      Special Order
    $25.22
  • 19
    DISCONTINUED – Part Number: 231-87
    DISCONTINUED
    Part Number: 231-87
      No Longer Available
  • 20
    WHEEL Assembly – Part Number: 217-107
    WHEEL Assembly
    Part Number: 217-107
      No Longer Available
  • 21
    Wheel Nut – Part Number: 242-35
    Wheel Nut
    Part Number: 242-35
      Special Order
    $12.80
  • 22
    Valve – Part Number: 5108
    Valve
    Part Number: 5108
      In Stock
    $11.80
  • 23
    Axle – Part Number: 27-3580
    Axle
    Part Number: 27-3580
      No Longer Available
  • 24
    Nut – Part Number: 3217-8
    Nut
    Part Number: 3217-8
      Special Order
    $5.95
  • 25
    Washer-Lock – Part Number: 3253-6
    Washer-Lock
    Part Number: 3253-6
      Special Order
    $5.95
  • 26
    Washer-Special – Part Number: 28-5640
    Washer-Special
    Part Number: 28-5640
      No Longer Available
  • 27
    Screw-Hh – Part Number: 324-9
    Screw-Hh
    Part Number: 324-9
      Special Order
    $5.95
  • 28
    FITTING-ELBOW, 90 DEG – Part Number: 353-536
    FITTING-ELBOW, 90 DEG
    Part Number: 353-536
      No Longer Available
Gear Box Assembly 8-0909
Gear Box Assembly 8-0909 Diagram and Parts List for 00000001 - 09999999 Toro Lawn Tractor
Heater Kit Model No. 30878
Heater Kit Model No. 30878 Diagram and Parts List for 00000001 - 09999999 Toro Lawn Tractor
Hydraulic Cyllnder 27-2510
Hydraulic Cyllnder 27-2510 Diagram and Parts List for 00000001 - 09999999 Toro Lawn Tractor
Hydraulic Valve And Lift Arm And Cyllnders
Hydraulic Valve And Lift Arm And Cyllnders Diagram and Parts List for 00000001 - 09999999 Toro Lawn Tractor
Instrument Panel And Steering Post Assembly
Instrument Panel And Steering Post Assembly Diagram and Parts List for 00000001 - 09999999 Toro Lawn Tractor
Leaf Mulcher Kit No. 30771 (Optional)
Leaf Mulcher Kit No. 30771 (Optional) Diagram and Parts List for 00000001 - 09999999 Toro Lawn Tractor
Pedals, Hood And Steering Wheel Assembly
Pedals, Hood And Steering Wheel Assembly Diagram and Parts List for 00000001 - 09999999 Toro Lawn Tractor
Power Take Off Assembly
Power Take Off Assembly Diagram and Parts List for 00000001 - 09999999 Toro Lawn Tractor
Rear Axle Assembly
Rear Axle Assembly Diagram and Parts List for 00000001 - 09999999 Toro Lawn Tractor

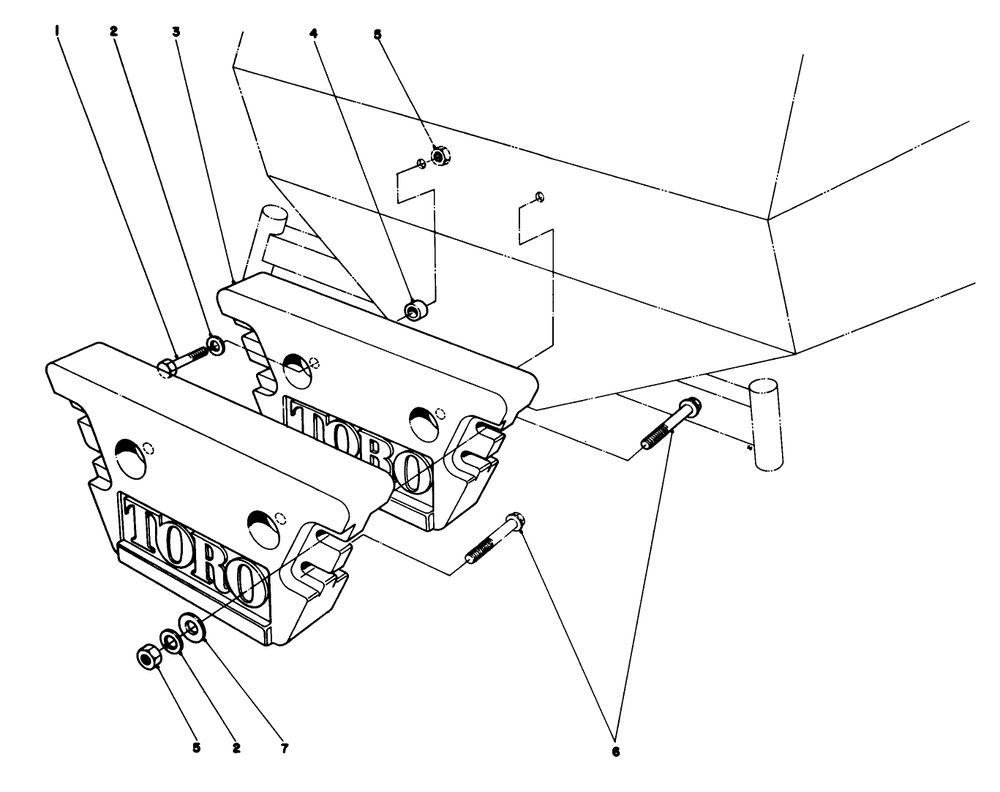

Rear Weight Kit Model No. 24-5780 (Optional)
Rear Weight Kit Model No. 24-5780 (Optional) Diagram and Parts List for 00000001 - 09999999 Toro Lawn Tractor
  • 1
    Screw-Hh – Part Number: 325-8
    Screw-Hh
    Part Number: 325-8
      Special Order
    $6.60
  • 2
    Washer-lock – Part Number: 3253-7
    Washer-lock
    Part Number: 3253-7
      Special Order
    $5.95
  • 3
    Weight-Rear – Part Number: 24-5790-01
    Weight-Rear
    Part Number: 24-5790-01
      Special Order
    $508.04
  • 4
    SPRING ANCHOR BSHG – Part Number: 57-4230
    SPRING ANCHOR BSHG
    Part Number: 57-4230
      Special Order
    $25.70
  • 5
    Nut-Hh – Part Number: 3217-9
    Nut-Hh
    Part Number: 3217-9
      Special Order
    $5.95
  • 6
    Screw-Hh – Part Number: 325-14
    Screw-Hh
    Part Number: 325-14
      Special Order
    $5.95
  • 7
    Washer-flat – Part Number: 3256-26
    Washer-flat
    Part Number: 3256-26
      In Stock
    Minimum Quantity of 2 required
    $5.95
Seat Mount-Assembly
Seat Mount-Assembly Diagram and Parts List for 00000001 - 09999999 Toro Lawn Tractor
Standard Seat Kit Model No. 30765
Standard Seat Kit Model No. 30765 Diagram and Parts List for 00000001 - 09999999 Toro Lawn Tractor
Steering Gear Assembly No. 27-3290 (52" Groundsmaster)
Steering Gear Assembly No. 27-3290 (52" Groundsmaster) Diagram and Parts List for 00000001 - 09999999 Toro Lawn Tractor
Tractlon-Pedal Assembly
Tractlon-Pedal Assembly Diagram and Parts List for 00000001 - 09999999 Toro Lawn Tractor
  • 1
    Tracton Pedal – Part Number: 29-5870
    Tracton Pedal
    Part Number: 29-5870
      No Longer Available
  • 2
    TRACTION PEDAL PAD – Part Number: 28-5130
    TRACTION PEDAL PAD
    Part Number: 28-5130
      No Longer Available
  • 3
    Pin-Cotter – Part Number: 3272-10
    Pin-Cotter
    Part Number: 3272-10
      Special Order
    $5.95
  • 4
    Pivot Pin Pedal – Part Number: 29-5630
    Pivot Pin Pedal
    Part Number: 29-5630
      No Longer Available
  • 5
    DISCONTINUED – Part Number: 29-5640
    DISCONTINUED
    Part Number: 29-5640
      No Longer Available
  • 6
    Wheel - Friction – Part Number: 28-5220
    Wheel - Friction
    Part Number: 28-5220
      Special Order
    $128.65
  • 7
    Pin-Spring – Part Number: 32121-16
    Pin-Spring
    Part Number: 32121-16
      Special Order
    $5.95
  • 8
    Washer-Thrust – Part Number: 5-7570
    Washer-Thrust
    Part Number: 5-7570
      No Longer Available
  • 9
    Bushing-Flange – Part Number: 256-156
    Bushing-Flange
    Part Number: 256-156
      Special Order
    $19.48
  • 10
    DISCONTINUED – Part Number: 29-5600
    DISCONTINUED
    Part Number: 29-5600
      No Longer Available
  • 11
    Washer-lock – Part Number: 3253-7
    Washer-lock
    Part Number: 3253-7
      Special Order
    $5.95
  • 12
    Nut-Jam – Part Number: 3218-5
    Nut-Jam
    Part Number: 3218-5
      Special Order
    $5.95
  • 13
    DISCONTINUED – Part Number: 21-0140
    DISCONTINUED
    Part Number: 21-0140
      No Longer Available
  • 14
    Nut-Jam – Part Number: 3220-5
    Nut-Jam
    Part Number: 3220-5
      Special Order
    $5.95
  • 15
    Pin-Cotter – Part Number: 3272-7
    Pin-Cotter
    Part Number: 3272-7
      Special Order
    $5.95
  • 16
    Slot Nut 3/8-24 – Part Number: 32136-4
    Slot Nut 3/8-24
    Part Number: 32136-4
      Special Order
    $5.95
Transmission And Fan Assembly
Transmission And Fan Assembly Diagram and Parts List for 00000001 - 09999999 Toro Lawn Tractor
  • Alignment Tool Kit – Part Number: 29-0060
    Alignment Tool Kit
    Part Number: 29-0060
      No Longer Available
  • 1
    Nut-Hex – Part Number: 3217-7
    Nut-Hex
    Part Number: 3217-7
      Special Order
    $5.95
  • 2
    Washer-Lock – Part Number: 3253-21
    Washer-Lock
    Part Number: 3253-21
      In Stock
    $5.95
  • 3
    DISCONTINUED – Part Number: 27-3270
    DISCONTINUED
    Part Number: 27-3270
      No Longer Available
  • 4
    Pin-Cotter – Part Number: 3272-10
    Pin-Cotter
    Part Number: 3272-10
      Special Order
    $5.95
  • 5
    Washer-flat – Part Number: 3256-26
    Washer-flat
    Part Number: 3256-26
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 6
    Tube-Pump Control – Part Number: 27-4160
    Tube-Pump Control
    Part Number: 27-4160
      No Longer Available
  • 7
    Rubber Bushing – Part Number: 23-2270
    Rubber Bushing
    Part Number: 23-2270
      Special Order
    $32.00
  • 8
    DISCONTINUED – Part Number: 27-4340
    DISCONTINUED
    Part Number: 27-4340
      No Longer Available
  • 9
    Screw-Set, Hsh – Part Number: 3245-1
    Screw-Set, Hsh
    Part Number: 3245-1
      Special Order
    $5.95
  • 10
    Transmission – Part Number: 27-3670
    Transmission
    Part Number: 27-3670
      No Longer Available
  • 11
    Hub-Pump – Part Number: 27-4370
    Hub-Pump
    Part Number: 27-4370
      Special Order
    $105.91
  • 12
    Screw-Hh – Part Number: 3210-8
    Screw-Hh
    Part Number: 3210-8
      Special Order
    $5.95
  • 13
    Washer-flat – Part Number: 3256-3
    Washer-flat
    Part Number: 3256-3
    ★★★★★
    ★★★★★
    (2)
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 14
    SPACER-RUBBER COUPLNG – Part Number: 33-2020
    SPACER-RUBBER COUPLNG
    Part Number: 33-2020
      No Longer Available
  • 15
    Nut-Hex – Part Number: 32152-5
    Nut-Hex
    Part Number: 32152-5
      In Stock
    $5.95
  • 16
    Screw-Hh – Part Number: 323-38
    Screw-Hh
    Part Number: 323-38
      Special Order
    $5.95
  • 17
    Key-woodruff – Part Number: 3257-5
    Key-woodruff
    Part Number: 3257-5
      In Stock
    $7.70
  • 18
    Spacer-Mounting – Part Number: 27-3680
    Spacer-Mounting
    Part Number: 27-3680
      Special Order
    $12.48
  • 19
    Gear-Transmission Output – Part Number: 86-7220
    Gear-Transmission Output
    Part Number: 86-7220
      Special Order
    $122.98
  • 20
    Ring-snap – Part Number: 32120-72
    Ring-snap
    Part Number: 32120-72
      In Stock
    $5.95
  • 21
    Gasket-Transmission – Part Number: 27-3690
    Gasket-Transmission
    Part Number: 27-3690
      Special Order
    $15.50
  • 22
    FAN – Part Number: 27-3740
    FAN
    Part Number: 27-3740
      No Longer Available
  • 23
    Washer – Part Number: 27-4360
    Washer
    Part Number: 27-4360
      No Longer Available
  • 24
    Washer-lock – Part Number: 3253-4
    Washer-lock
    Part Number: 3253-4
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 25
    Screw-hh – Part Number: 322-5
    Screw-hh
    Part Number: 322-5
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 26
    Nut-Jam – Part Number: 3218-5
    Nut-Jam
    Part Number: 3218-5
      Special Order
    $5.95
  • 27
    Screw-hh – Part Number: 321-2
    Screw-hh
    Part Number: 321-2
      Special Order
    $5.95
  • 28
    Washer-Lock – Part Number: 3253-3
    Washer-Lock
    Part Number: 3253-3
      Special Order
    $5.95
  • 29
    DISCONTINUED – Part Number: 27-5310
    DISCONTINUED
    Part Number: 27-5310
      No Longer Available
Transmission Assembly 27-3670
Transmission Assembly 27-3670 Diagram and Parts List for 00000001 - 09999999 Toro Lawn Tractor
  • 1
    Ring-Retaining – Part Number: 32151-46
    Ring-Retaining
    Part Number: 32151-46
      Special Order
    $12.58
  • 2
    Trunnion Shaft – Part Number: 25-2500
    Trunnion Shaft
    Part Number: 25-2500
      Special Order
    $256.70
  • 3
    WASHER-FLAT – Part Number: 25-2510
    WASHER-FLAT
    Part Number: 25-2510
      Special Order
    $5.95
  • 4
    Roller Bearing – Part Number: 28-3300
    Roller Bearing
    Part Number: 28-3300
      Special Order
    $190.07
  • 5
    Bearing-Needle – Part Number: 252-82
    Bearing-Needle
    Part Number: 252-82
      Special Order
    $80.17
  • 6
    Housing – Part Number: 32-9240
    Housing
    Part Number: 32-9240
      No Longer Available
  • 7
    Seal – Part Number: 25-3210
    Seal
    Part Number: 25-3210
      Special Order
    $31.55
  • 8
    Trunnion Shaft – Part Number: 28-3670
    Trunnion Shaft
    Part Number: 28-3670
      Special Order
    $170.95
  • 9
    Lip Seal – Part Number: 93-4133
    Lip Seal
    Part Number: 93-4133
      No Longer Available
  • 10
    Swivel Assembly – Part Number: 251-8
    Swivel Assembly
    Part Number: 251-8
      Special Order
    $51.24
  • 11
    Shaft-Pump – Part Number: 28-3640
    Shaft-Pump
    Part Number: 28-3640
      No Longer Available
  • 12
    Variable Swashplate – Part Number: 28-3630
    Variable Swashplate
    Part Number: 28-3630
      No Longer Available
  • 13
    Pin-Spring – Part Number: 32121-91
    Pin-Spring
    Part Number: 32121-91
      Special Order
    $5.95
  • 14
    Thrust Plate – Part Number: 28-3610
    Thrust Plate
    Part Number: 28-3610
      No Longer Available
  • 15
    Cylinder Block Kit – Part Number: 48-1800
    Cylinder Block Kit
    Part Number: 48-1800
      Special Order
    $2919.19
  • 16
    Pump Valve Plate – Part Number: 28-3600
    Pump Valve Plate
    Part Number: 28-3600
      No Longer Available
  • 17
    Needle Bearing – Part Number: 25-3300
    Needle Bearing
    Part Number: 25-3300
      Special Order
    $152.06
  • 18
    O-Ring – Part Number: 28-3590
    O-Ring
    Part Number: 28-3590
      Special Order
    $6.90
  • 19
    Ring-Backup – Part Number: 28-3580
    Ring-Backup
    Part Number: 28-3580
      Special Order
    $28.48
  • 20
    O-Ring – Part Number: 28-3570
    O-Ring
    Part Number: 28-3570
      Special Order
    $9.10
  • 21
    Check Valve Assembly – Part Number: 49-7830
    Check Valve Assembly
    Part Number: 49-7830
      Special Order
    $416.73
  • 22
    Plug – Part Number: 25-2460
    Plug
    Part Number: 25-2460
      Special Order
    $50.98
  • 24
    Shim Set – Part Number: 25-2470
    Shim Set
    Part Number: 25-2470
      Special Order
    $74.00
  • 25
    Spring-Implement Valve – Part Number: 25-2570
    Spring-Implement Valve
    Part Number: 25-2570
      Special Order
    $19.00
  • 27
    Screw-hh – Part Number: 323-10
    Screw-hh
    Part Number: 323-10
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 28
    Screw - Cap Hex. Hd. – Part Number: 28-3530
    Screw - Cap Hex. Hd.
    Part Number: 28-3530
      Special Order
    $7.50
  • 29
    O-Ring – Part Number: 28-3520
    O-Ring
    Part Number: 28-3520
      Special Order
    $12.66
  • 30
    Pin – Part Number: 38-2680
    Pin
    Part Number: 38-2680
      Special Order
    $40.80
  • 31
    Needle Bearing – Part Number: 252-53
    Needle Bearing
    Part Number: 252-53
      No Longer Available
  • 32
    SEAL-LIP – Part Number: 28-3470
    SEAL-LIP
    Part Number: 28-3470
      Special Order
    $53.30
  • 33
    Screw-HH. – Part Number: 92-1773
    Screw-HH.
    Part Number: 92-1773
      Special Order
    $5.95
  • 34
    Washer-Flat – Part Number: 28-3450
    Washer-Flat
    Part Number: 28-3450
      No Longer Available
  • 35
    Kit - Charge Pump – Part Number: 117-6988
    Kit - Charge Pump
    Part Number: 117-6988
      No Longer Available
  • 37
    Union-Filter – Part Number: 25-2660
    Union-Filter
    Part Number: 25-2660
      No Longer Available
  • 38
    Center Section – Part Number: 38-2690
    Center Section
    Part Number: 38-2690
      No Longer Available
  • 39
    Plastic Plug – Part Number: 28-3430
    Plastic Plug
    Part Number: 28-3430
      No Longer Available
  • 41
    TOR PART – Part Number: 136-3219
    TOR PART
    Part Number: 136-3219
      No Longer Available
  • 42
    Relief Valve Cone Chg. – Part Number: 83-7260
    Relief Valve Cone Chg.
    Part Number: 83-7260
      Special Order
    $79.02
  • 43
    Spring Chg. Rel. Valve – Part Number: 25-2480
    Spring Chg. Rel. Valve
    Part Number: 25-2480
      Special Order
    $7.40
  • 45
    "O" Ring – Part Number: 28-3400
    "O" Ring
    Part Number: 28-3400
      Special Order
    $10.00
  • 47
    PLATE-VALVE, MOTOR – Part Number: 28-3380
    PLATE-VALVE, MOTOR
    Part Number: 28-3380
      Special Order
    $627.61
  • 48
    PIN-DOWEL – Part Number: 25-2430
    PIN-DOWEL
    Part Number: 25-2430
      Special Order
    $5.95
  • 49
    Swashplate – Part Number: 28-3370
    Swashplate
    Part Number: 28-3370
      No Longer Available
  • 50
    Shaft-Motor – Part Number: 49-8200
    Shaft-Motor
    Part Number: 49-8200
      Special Order
    $1183.41
  • 51
    Pin – Part Number: 353-599
    Pin
    Part Number: 353-599
      Special Order
    $5.95
  • 52
    Gasket – Part Number: 28-3340
    Gasket
    Part Number: 28-3340
      Special Order
    $25.22
  • 53
    12 Point Capscrew – Part Number: 28-3320
    12 Point Capscrew
    Part Number: 28-3320
      No Longer Available
  • 54
    Screw-hh – Part Number: 323-8
    Screw-hh
    Part Number: 323-8
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 55
    Screw-hh – Part Number: 323-7
    Screw-hh
    Part Number: 323-7
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 56
    Key-woodruff – Part Number: 3257-5
    Key-woodruff
    Part Number: 3257-5
      In Stock
    $7.70
  • 57
    Plug-Pipe – Part Number: 285-17
    Plug-Pipe
    Part Number: 285-17
      Special Order
    $5.95
Transmission Interlock Assembly
Transmission Interlock Assembly Diagram and Parts List for 00000001 - 09999999 Toro Lawn Tractor

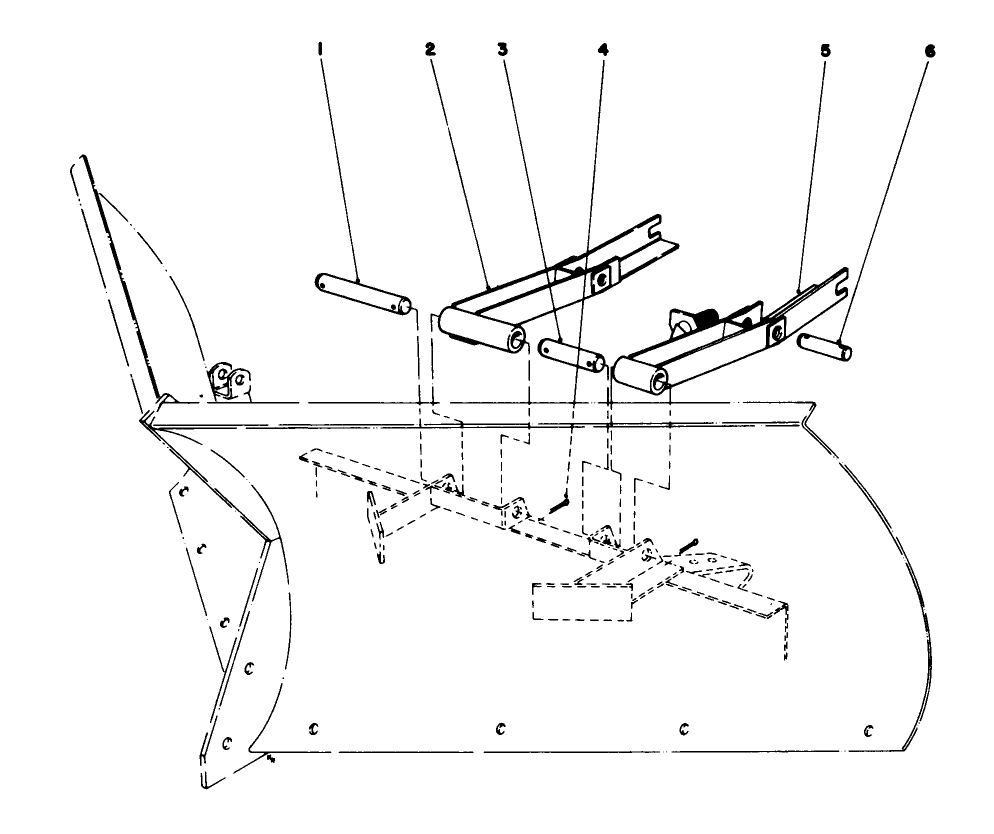

V-Plow Installation No. 30755 (Optional)
V-Plow Installation No. 30755 (Optional) Diagram and Parts List for 00000001 - 09999999 Toro Lawn Tractor
  • TIRE CHAINS (1 PAIR) – Part Number: 28-5470
    TIRE CHAINS (1 PAIR)
    Part Number: 28-5470
      Special Order
    $420.19
  • 1
    Pin-RH – Part Number: 28-5490
    Pin-RH
    Part Number: 28-5490
      Special Order
    $128.22
  • 2
    Right Hand PUSH ARM WA R – Part Number: 28-5510
    Right Hand PUSH ARM WA R
    Part Number: 28-5510
      Special Order
    $1365.41
  • 3
    Pin - L.H. – Part Number: 25-1350
    Pin - L.H.
    Part Number: 25-1350
      Special Order
    $234.04
  • 4
    Pin-Cotter – Part Number: 3272-23
    Pin-Cotter
    Part Number: 3272-23
      Special Order
    $5.95
  • 5
    Push Arm-LH – Part Number: 28-5500
    Push Arm-LH
    Part Number: 28-5500
      No Longer Available
  • 6
    PIN R – Part Number: 28-6460
    PIN R
    Part Number: 28-6460
      No Longer Available
V-Plow Model No. 30750 (Optional)
V-Plow Model No. 30750 (Optional) Diagram and Parts List for 00000001 - 09999999 Toro Lawn Tractor
  • 1
    V-Plow – Part Number: 23-9960
    V-Plow
    Part Number: 23-9960
      No Longer Available
  • 2
    Decal-Toro – Part Number: 66-6140
    Decal-Toro
    Part Number: 66-6140
      Special Order
    $34.75
  • 3
    Klik Pin Asm – Part Number: 107-3039
    Klik Pin Asm
    Part Number: 107-3039
      In Stock
    $14.98
  • 4
    Spacer Tubes – Part Number: 20-4370
    Spacer Tubes
    Part Number: 20-4370
      Special Order
    $42.44
  • 5
    Screw-Hh – Part Number: 325-6
    Screw-Hh
    Part Number: 325-6
      Special Order
    $5.95
  • 6
    Nut-Jam – Part Number: 3218-5
    Nut-Jam
    Part Number: 3218-5
      Special Order
    $5.95
  • 7
    Scraper Blade – Part Number: 24-5570-01
    Scraper Blade
    Part Number: 24-5570-01
      Special Order
    $273.49
  • 8
    Skid – Part Number: 24-5540-01
    Skid
    Part Number: 24-5540-01
      No Longer Available
  • 9
    Nut-Hh – Part Number: 3217-9
    Nut-Hh
    Part Number: 3217-9
      Special Order
    $5.95
  • 10
    Washer-lock – Part Number: 3253-7
    Washer-lock
    Part Number: 3253-7
      Special Order
    $5.95
  • 11
    Screw-Carr – Part Number: 3233-2
    Screw-Carr
    Part Number: 3233-2
      Special Order
    $5.95
  • 12
    Nose Skid – Part Number: 24-5530-01
    Nose Skid
    Part Number: 24-5530-01
      No Longer Available
Valve And Lever Assembly
Valve And Lever Assembly Diagram and Parts List for 00000001 - 09999999 Toro Lawn Tractor
  • 1
    Knob-Control – Part Number: 233-39
    Knob-Control
    Part Number: 233-39
      Special Order
    $24.18
  • 2
    Valve Lever – Part Number: 274200
    Valve Lever
    Part Number: 274200
      No Longer Available
  • 3
    Valve Lever Link – Part Number: 27-4220-03
    Valve Lever Link
    Part Number: 27-4220-03
      No Longer Available
  • 4
    Pin-Cotter – Part Number: 3272-6
    Pin-Cotter
    Part Number: 3272-6
      Special Order
    $5.95
  • 5
    Nut-Jam – Part Number: 3218-1
    Nut-Jam
    Part Number: 3218-1
      Special Order
    $5.95
  • 6
    Bolt-Wheel – Part Number: 274230
    Bolt-Wheel
    Part Number: 274230
      No Longer Available
  • 7
    Washer-Lock – Part Number: 3253-3
    Washer-Lock
    Part Number: 3253-3
      Special Order
    $5.95
  • 8
    Screw-Hh – Part Number: 321-34
    Screw-Hh
    Part Number: 321-34
      Special Order
    $5.95
  • 10
    Valve – Part Number: 274190
    Valve
    Part Number: 274190
      No Longer Available
  • 11
    Nut-Hex – Part Number: 3217-5
    Nut-Hex
    Part Number: 3217-5
      In Stock
    $5.95
  • 12
    Pin-Clevis – Part Number: 283-17
    Pin-Clevis
    Part Number: 283-17
      Special Order
    $9.18
  • 13
    Screw – Part Number: 321-10
    Screw
    Part Number: 321-10
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 14
    Pin-Roll – Part Number: 32121-73
    Pin-Roll
    Part Number: 32121-73
      Special Order
    $5.95
Valve Assembly 27-4190
Valve Assembly 27-4190 Diagram and Parts List for 00000001 - 09999999 Toro Lawn Tractor
  • 1
    Plug – Part Number: 28-1120
    Plug
    Part Number: 28-1120
      No Longer Available
  • 2
    Spool – Part Number: 27-5210
    Spool
    Part Number: 27-5210
      No Longer Available
  • 3
    O-Ring – Part Number: 22-8500
    O-Ring
    Part Number: 22-8500
      Special Order
    $28.30
  • 4
    Plug Flush – Part Number: 22-8510
    Plug Flush
    Part Number: 22-8510
      No Longer Available
  • 5
    Retainer – Part Number: 22-8380
    Retainer
    Part Number: 22-8380
      Special Order
    $33.50
  • 6
    Spring – Part Number: 22-8410
    Spring
    Part Number: 22-8410
      Special Order
    $26.43
  • 7
    Float Spacer – Part Number: 27-5200
    Float Spacer
    Part Number: 27-5200
      No Longer Available
  • 8
    Ring-Snap – Part Number: 22-8480
    Ring-Snap
    Part Number: 22-8480
      Special Order
    $77.92
  • 9
    Ring-Snap – Part Number: 22-8490
    Ring-Snap
    Part Number: 22-8490
      Special Order
    $12.20
  • 10
    Plug – Part Number: 36-3970
    Plug
    Part Number: 36-3970
      No Longer Available
  • 11
    Plug – Part Number: 36-3960
    Plug
    Part Number: 36-3960
      No Longer Available
  • 12
    Plug – Part Number: 22-8330
    Plug
    Part Number: 22-8330
      Special Order
    $78.13
  • 13
    O-Ring – Part Number: 237-42
    O-Ring
    Part Number: 237-42
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 14
    Spring – Part Number: 22-8340
    Spring
    Part Number: 22-8340
      Special Order
    $28.62
  • 15
    Ball – Part Number: 22-8350
    Ball
    Part Number: 22-8350
      Special Order
    $18.43
  • 16
    Seat-Valve – Part Number: 22-8370
    Seat-Valve
    Part Number: 22-8370
      Special Order
    $104.89
  • 17
    Pin – Part Number: 22-8360
    Pin
    Part Number: 22-8360
      Special Order
    $67.23
  • 18
    Plug – Part Number: 28-1130
    Plug
    Part Number: 28-1130
      No Longer Available
  • 19
    Body – Part Number: 43-1950
    Body
    Part Number: 43-1950
      Special Order
    $931.27
Wheel Weight Kit No. 30762 (Optional)
Wheel Weight Kit No. 30762 (Optional) Diagram and Parts List for 00000001 - 09999999 Toro Lawn Tractor

Questions & Answers

?

Our customer Service team is at the ready daily to answer your part and product questions.

Be the first to ask our experts a question about this part!

Ask our Team

We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.

✖

Our customer service team are at the ready daily to answer your part and product questions. We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
