Toro Z Master Professional 7500-D Series Riding Mower, With 72in Turbo Force Rear Discharge Mower Lawn Tractor Replacement Parts For Model 72074 (414000000 - 999999999)

We Sell Only Genuine Toro Parts

Popular Parts for 72074

Screw-taptite – Part Number: 32144-41 Screw-taptite
In Stock
Minimum Quantity of 2 required
$7.17
Nut-lock, Ni – Part Number: 3296-29 Nut-lock, Ni
In Stock
$5.95
Washer-flat – Part Number: 3256-24 Washer-flat
In Stock
Minimum Quantity of 2 required
$5.95
Roller-scalp, Anti – Part Number: 1-603299 Roller-scalp, Anti
In Stock
$29.98
Nut-flange, Ni – Part Number: 104-8301 Nut-flange, Ni
In Stock
$5.95
Screw-carr – Part Number: 3229-11 Screw-carr
In Stock
Minimum Quantity of 2 required
$5.95
Lawn Mower Hex Head Screw – Part Number: 321-4 Lawn Mower Hex Head Screw
In Stock
Minimum Quantity of 2 required
$5.95
Screw-hh – Part Number: 120-9738 Screw-hh
On Order
Minimum Quantity of 2 required
$5.95

Search Within Model

Questions & Answers for Toro 72074
Browse all Parts Search by Area
5 Stud Wheel Hub Kit Assembly No. 135-5333 Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
5 Stud Wheel Hub Kit Assembly No. 135-5333
Camshaft And Driving Gear Assembly Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
Camshaft And Driving Gear Assembly
Caster Wheel Assembly Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
Caster Wheel Assembly
Charge Pump Housing Assembly Transmission Assembly No. 131-5510 Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
Charge Pump Housing Assembly Transmission Assembly No. 131-5510
Cooling Assembly Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
Cooling Assembly
Cooling Assembly No. 121-3330 Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
Cooling Assembly No. 121-3330
Cooling Water System Assembly Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
Cooling Water System Assembly
Crankshaft And Piston Assembly Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
Crankshaft And Piston Assembly
Cylinder Block Assembly Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
Cylinder Block Assembly
Cylinder Head And Cover Assembly Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
Cylinder Head And Cover Assembly

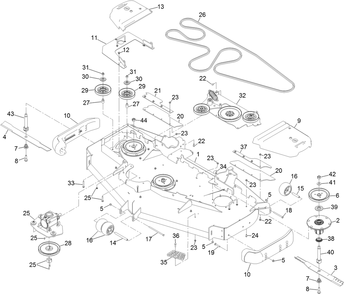

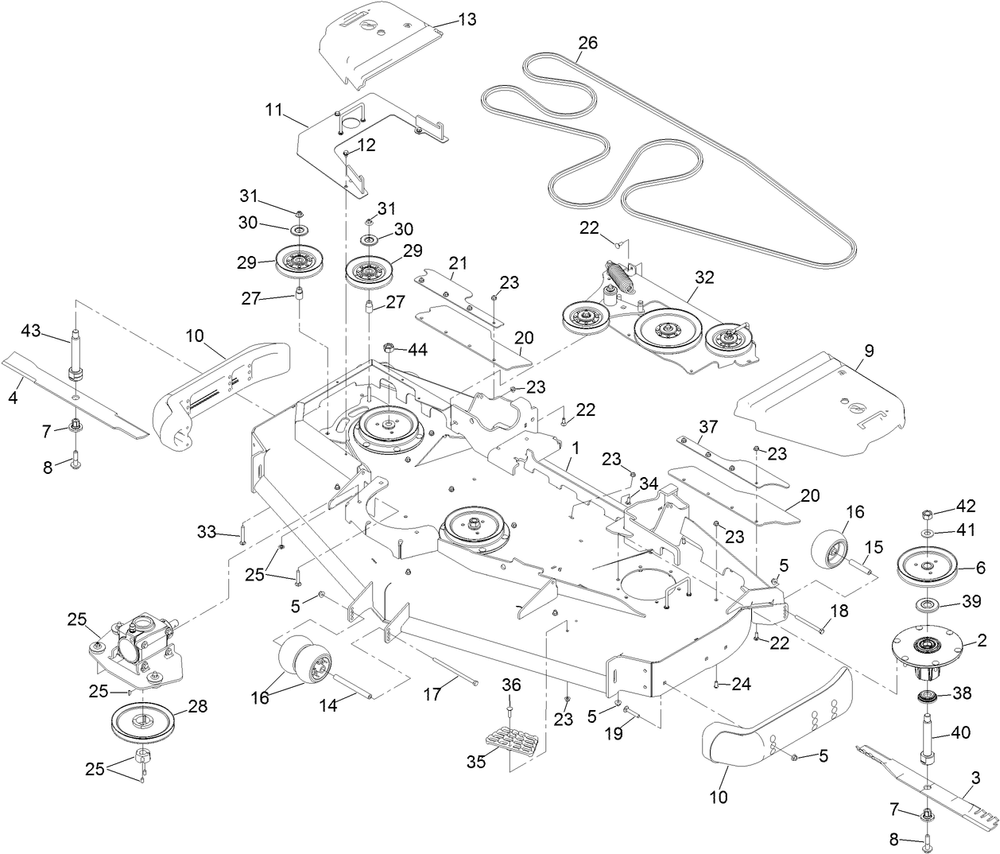

Deck Assembly Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
Deck Assembly
Deck Decal Assembly No. 140-0970 Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
Deck Decal Assembly No. 140-0970
Deck Lift Assembly Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
Deck Lift Assembly
Deck Lift Valve Assembly No. 131-1934 Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
Deck Lift Valve Assembly No. 131-1934

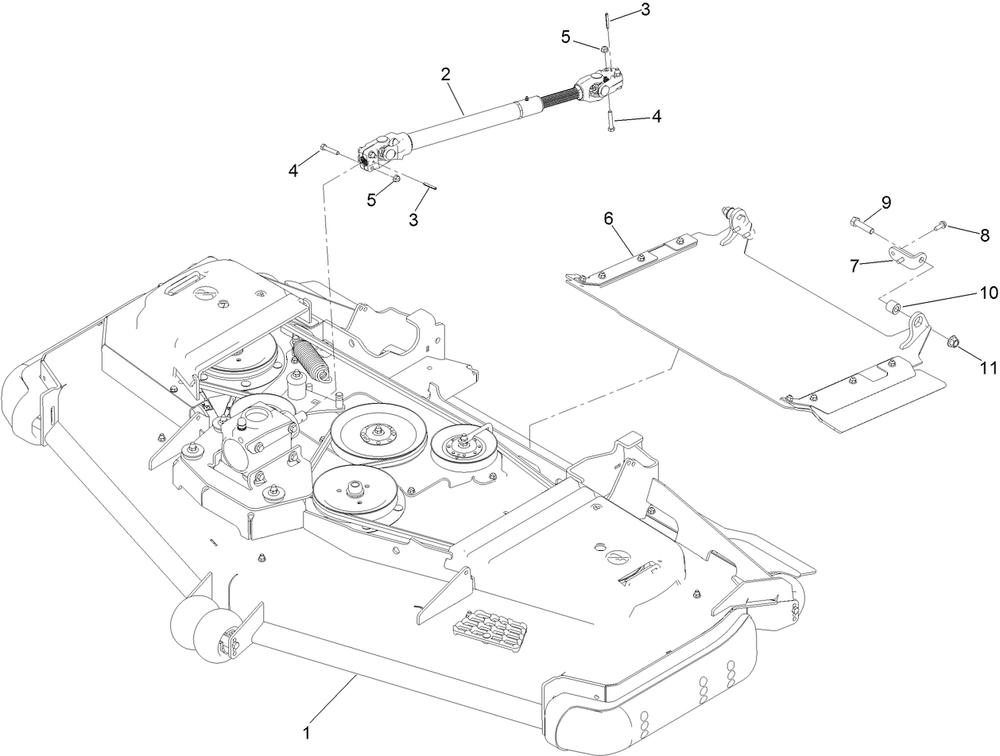

Deck, Driveshaft And Tunnel Assembly Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
Deck, Driveshaft And Tunnel Assembly
Diesel Particulate Filter Assembly Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
Diesel Particulate Filter Assembly
Discharge Tunnel Assembly 126-2789 Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
Discharge Tunnel Assembly 126-2789
Driveshaft Assembly No. 110-3575 Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
Driveshaft Assembly No. 110-3575
Electric Parts Assembly Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
Electric Parts Assembly
Electrical Assembly Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
Electrical Assembly
Electronic Control Unit Assembly Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
Electronic Control Unit Assembly
Engine Assembly Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
Engine Assembly
Exhaust Manifold Assembly Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
Exhaust Manifold Assembly
Flywheel Housing And Oil Sump Assembly Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
Flywheel Housing And Oil Sump Assembly
Frame And Roll-Over Protection System Assembly Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
Frame And Roll-Over Protection System Assembly
Fuel Injection Valve Assembly Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
Fuel Injection Valve Assembly
Fuel Line Assembly Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
Fuel Line Assembly
Fuel Pump Assembly Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
Fuel Pump Assembly
Fuel Supply Pump Assembly Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
Fuel Supply Pump Assembly
Fuel System Assembly Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
Fuel System Assembly
Gasket Set Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
Gasket Set
Gear Box And Mount Assembly Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
Gear Box And Mount Assembly
Gear Housing Assembly Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
Gear Housing Assembly
Gearbox Assembly No. 130-8659 Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
Gearbox Assembly No. 130-8659
Generator Assembly Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
Generator Assembly
Hdac Assembly No. 142-3554 Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
Hdac Assembly No. 142-3554
Hood And Cover Assembly Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
Hood And Cover Assembly
Hood Assembly No. 135-7930 Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
Hood Assembly No. 135-7930
Hydraulic Assembly Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
Hydraulic Assembly
Hydraulic Gear Pump Assembly No. 112-9542 Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
Hydraulic Gear Pump Assembly No. 112-9542
Hydraulic Reservoir Assembly No. 142-5034 Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
Hydraulic Reservoir Assembly No. 142-5034
Idler Mount Assembly No. 126-3271 Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
Idler Mount Assembly No. 126-3271
Lh Fuel Tank Assembly 142-8637 Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
Lh Fuel Tank Assembly 142-8637
Motion Control Assembly Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
Motion Control Assembly
Oil Pump Assembly Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
Oil Pump Assembly
Parking Brake Assembly Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
Parking Brake Assembly
Rear Frame Assembly Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
Rear Frame Assembly
Rear Wheel Assembly Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
Rear Wheel Assembly
Rh Fuel Tank Assembly No. 142-8638 Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
Rh Fuel Tank Assembly No. 142-8638
Roll-Over Protection System Assembly No. 142-9749 Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
Roll-Over Protection System Assembly No. 142-9749
Seat Assembly No. 147-4984 Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
Seat Assembly No. 147-4984
Seat Mounting Assembly Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
Seat Mounting Assembly
Spindle Assembly No. 137-9780 Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
Spindle Assembly No. 137-9780
Starting Motor Assembly Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
Starting Motor Assembly
Suction Manifold Assembly Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
Suction Manifold Assembly
Transmission Assembly Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
Transmission Assembly
Transmission Assembly (Cont.) Center Section Assembly Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
Transmission Assembly (Cont.) Center Section Assembly
Transmission Assembly (Cont.) Gear Case And Clutch Assembly Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
Transmission Assembly (Cont.) Gear Case And Clutch Assembly
Wire Harness Assembly No. 142-7958 Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
Wire Harness Assembly No. 142-7958
Previous Showing All Parts Next
5 Stud Wheel Hub Kit Assembly No. 135-5333
5 Stud Wheel Hub Kit Assembly No. 135-5333 Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
Camshaft And Driving Gear Assembly
Camshaft And Driving Gear Assembly Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
  • 1
    Tappet – Part Number: 125-7016
    Tappet
    Part Number: 125-7016
      Special Order
    $35.33
  • 2
    Rod-Push – Part Number: 125-7017
    Rod-Push
    Part Number: 125-7017
      Special Order
    $21.56
  • 3
    Camshaft Asm – Part Number: 127-3797
    Camshaft Asm
    Part Number: 127-3797
      Special Order
    $479.13
  • 4
    Metal-Thrust – Part Number: 125-7008
    Metal-Thrust
    Part Number: 125-7008
      Special Order
    $49.11
  • 6
    Gear-Camshaft – Part Number: 127-3052
    Gear-Camshaft
    Part Number: 127-3052
      Special Order
    $302.64
  • 7
    Key – Part Number: 125-7185
    Key
    Part Number: 125-7185
      Special Order
    $5.95
  • 8
    Pulser-Camshaft – Part Number: 127-3053
    Pulser-Camshaft
    Part Number: 127-3053
      Special Order
    $41.36
  • 9
    Bolt – Part Number: 125-7205
    Bolt
    Part Number: 125-7205
      Special Order
    $5.95
  • 10
    Bolt – Part Number: 125-7213
    Bolt
    Part Number: 125-7213
      Special Order
    $5.95
  • 11
    Sensor-Rev, Gear – Part Number: 127-3054
    Sensor-Rev, Gear
    Part Number: 127-3054
      Special Order
    $239.86
  • 12
    Bolt – Part Number: 127-3184
    Bolt
    Part Number: 127-3184
      Special Order
    $8.60
  • 13
    Shaft-Idle, Gear A – Part Number: 127-3063
    Shaft-Idle, Gear A
    Part Number: 127-3063
      No Longer Available
  • 14
    Idle Gear a Asm – Part Number: 127-3066
    Idle Gear a Asm
    Part Number: 127-3066
      Special Order
    $210.96
  • 17
    Bolt – Part Number: 125-7219
    Bolt
    Part Number: 125-7219
      Special Order
    $8.60
  • 18
    Gear-Pump, Supply – Part Number: 127-3070
    Gear-Pump, Supply
    Part Number: 127-3070
      Special Order
    $195.09
  • 19
    Washer-Spring – Part Number: 127-3167
    Washer-Spring
    Part Number: 127-3167
      Special Order
    $5.95
  • 20
    Nut-Lock – Part Number: 127-3185
    Nut-Lock
    Part Number: 127-3185
      Special Order
    $10.32
  • 21
    Shaft-Idle, Gear B – Part Number: 127-3064
    Shaft-Idle, Gear B
    Part Number: 127-3064
      No Longer Available
  • 22
    Idle Gear B Asm – Part Number: 127-3067
    Idle Gear B Asm
    Part Number: 127-3067
      Special Order
    $178.24
  • 25
    Plate-Idle, Shaft – Part Number: 127-3068
    Plate-Idle, Shaft
    Part Number: 127-3068
      No Longer Available
  • 26
    Gasket-Idle, Shaft B – Part Number: 127-3069
    Gasket-Idle, Shaft B
    Part Number: 127-3069
      Special Order
    $8.80
  • 27
    Bolt – Part Number: 125-7218
    Bolt
    Part Number: 125-7218
      Special Order
    $6.52
  • 28
    Bushing – Part Number: 125-6927
    Bushing
    Part Number: 125-6927
      Special Order
    $112.66
  • 29
    Bushing – Part Number: 127-3065
    Bushing
    Part Number: 127-3065
      Special Order
    $108.21
Caster Wheel Assembly
Caster Wheel Assembly Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
Charge Pump Housing Assembly Transmission Assembly No. 131-5510
Charge Pump Housing Assembly Transmission Assembly No. 131-5510 Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
  • 1
    Solenoid Asm – Part Number: 107-0851
    Solenoid Asm
    Part Number: 107-0851
      Special Order
    $652.37
  • 2
    Solenoid Valve Asm – Part Number: 107-0850
    Solenoid Valve Asm
    Part Number: 107-0850
      Special Order
    $190.51
  • 3
    Bolt – Part Number: 107-0863
    Bolt
    Part Number: 107-0863
      Special Order
    $5.95
  • 4
    Bolt – Part Number: 107-0864
    Bolt
    Part Number: 107-0864
      Special Order
    $7.62
  • 5
    Pump Body Asm – Part Number: 107-0840
    Pump Body Asm
    Part Number: 107-0840
      Special Order
    $1572.93
  • 6
    Pin – Part Number: 107-0848
    Pin
    Part Number: 107-0848
      Special Order
    $5.95
  • 7
    O-Ring – Part Number: 107-0856
    O-Ring
    Part Number: 107-0856
      Special Order
    $9.63
  • 8
    Spring – Part Number: 107-0845
    Spring
    Part Number: 107-0845
      Special Order
    $74.77
  • 9
    Collar – Part Number: 107-0844
    Collar
    Part Number: 107-0844
      Special Order
    $104.29
  • 11
    Cover – Part Number: 107-0846
    Cover
    Part Number: 107-0846
      No Longer Available
  • 12
    Bolt And Washer Assembly – Part Number: 93-0457
    Bolt And Washer Assembly
    Part Number: 93-0457
      Special Order
    $5.95
  • 14
    Filter Bypass Valve Asm – Part Number: 107-0843
    Filter Bypass Valve Asm
    Part Number: 107-0843
      Special Order
    $144.19
  • 15
    Piston – Part Number: 107-0818
    Piston
    Part Number: 107-0818
      Special Order
    $335.40
  • 16
    Charge Relief Valve Asm – Part Number: 107-0842
    Charge Relief Valve Asm
    Part Number: 107-0842
      Special Order
    $89.38
  • 17
    Pressure Valve Asm – Part Number: 107-0841
    Pressure Valve Asm
    Part Number: 107-0841
      Special Order
    $113.77
  • 19
    Key – Part Number: 107-0865
    Key
    Part Number: 107-0865
      Special Order
    $10.08
  • 20
    Charge Pump Seal Kit – Part Number: 107-0855
    Charge Pump Seal Kit
    Part Number: 107-0855
      Special Order
    $35.06
  • 20:1
    O-Ring – Part Number: 93-0418
    O-Ring
    Part Number: 93-0418
      Special Order
    $10.02
  • 20:2
    O Ring-Plug – Part Number: 107-0817
    O Ring-Plug
    Part Number: 107-0817
      Special Order
    $5.95
  • 20:3
    O-Ring – Part Number: 93-0475
    O-Ring
    Part Number: 93-0475
      Special Order
    $13.48
  • 20:4
    Gasket – Part Number: 107-0847
    Gasket
    Part Number: 107-0847
      Special Order
    $8.38
Cooling Assembly
Cooling Assembly Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
Cooling Assembly No. 121-3330
Cooling Assembly No. 121-3330 Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
  • 1
    Radiator – Part Number: 121-3328
    Radiator
    Part Number: 121-3328
      Special Order
    $3471.41
  • 2
    Oil Cooler – Part Number: 121-3329
    Oil Cooler
    Part Number: 121-3329
      Special Order
    $1232.50
  • 3
    Screw-hh – Part Number: 322-5
    Screw-hh
    Part Number: 322-5
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 4
    Washer-flat – Part Number: 3256-23
    Washer-flat
    Part Number: 3256-23
    ★★★★★
    ★★★★★
    (3)
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 5
    Washer-lock – Part Number: 3253-4
    Washer-lock
    Part Number: 3253-4
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 6
    Nut-Hex – Part Number: 3217-6
    Nut-Hex
    Part Number: 3217-6
      Special Order
    $5.95
  • 7
    Cap-Radiator – Part Number: 117-5138
    Cap-Radiator
    Part Number: 117-5138
      Special Order
    $56.24
  • 7:1:1
    Decal-Danger – Part Number: 117-3276
    Decal-Danger
    Part Number: 117-3276
      Special Order
    $20.06
  • 8
    Plug-Pipe – Part Number: 99-8551
    Plug-Pipe
    Part Number: 99-8551
      Special Order
    $6.72
Cooling Water System Assembly
Cooling Water System Assembly Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
  • 1
    Water Pump Asm – Part Number: 127-3071
    Water Pump Asm
    Part Number: 127-3071
      Special Order
    $1256.09
  • 3
    Gasket – Part Number: 125-6998
    Gasket
    Part Number: 125-6998
      Special Order
    $26.20
  • 4
    Plate – Part Number: 125-6999
    Plate
    Part Number: 125-6999
      Special Order
    $104.32
  • 9
    Joint – Part Number: 127-3017
    Joint
    Part Number: 127-3017
      Special Order
    $122.20
  • 10
    Plug – Part Number: 125-7123
    Plug
    Part Number: 125-7123
      Special Order
    $20.96
  • 11
    Elbow – Part Number: 125-7001
    Elbow
    Part Number: 125-7001
      Special Order
    $78.24
  • 12
    Plug – Part Number: 125-7195
    Plug
    Part Number: 125-7195
      Special Order
    $5.95
  • 13
    Screw – Part Number: 125-7234
    Screw
    Part Number: 125-7234
      Special Order
    $5.95
  • 14
    Gasket – Part Number: 125-7047
    Gasket
    Part Number: 125-7047
      Special Order
    $10.90
  • 15
    Joint – Part Number: 125-6986
    Joint
    Part Number: 125-6986
      Special Order
    $47.64
  • 16
    O-Ring – Part Number: 125-7048
    O-Ring
    Part Number: 125-7048
      Special Order
    $5.95
  • 17
    Gasket – Part Number: 125-6978
    Gasket
    Part Number: 125-6978
      Special Order
    $5.95
  • 18
    Gasket – Part Number: 125-7192
    Gasket
    Part Number: 125-7192
      Special Order
    $5.95
  • 19
    Bolt – Part Number: 93-0362
    Bolt
    Part Number: 93-0362
      Special Order
    $5.95
  • 20
    Bolt – Part Number: 125-7214
    Bolt
    Part Number: 125-7214
      Special Order
    $7.08
  • 21
    Bolt – Part Number: 125-7219
    Bolt
    Part Number: 125-7219
      Special Order
    $8.60
  • 22
    Bolt – Part Number: 125-7222
    Bolt
    Part Number: 125-7222
      Special Order
    $9.36
  • 23
    V-Pulley – Part Number: 127-4712
    V-Pulley
    Part Number: 127-4712
      Special Order
    $43.66
  • 24
    V-Belt – Part Number: 127-4771
    V-Belt
    Part Number: 127-4771
      Special Order
    $82.80
  • 25
    Fan – Part Number: 127-4702
    Fan
    Part Number: 127-4702
      Special Order
    $113.27
  • 26
    Spacer – Part Number: 127-3810
    Spacer
    Part Number: 127-3810
      Special Order
    $99.42
  • 27
    Bolt – Part Number: 125-7209
    Bolt
    Part Number: 125-7209
      Special Order
    $5.95
  • 28
    Thermostat – Part Number: 125-7029
    Thermostat
    Part Number: 125-7029
      In Stock
    $100.52
  • 29
    Gasket – Part Number: 125-7026
    Gasket
    Part Number: 125-7026
      In Stock
    Minimum Quantity of 2 required
    $6.18
  • 30
    Cover – Part Number: 125-7034
    Cover
    Part Number: 125-7034
      Special Order
    $133.84
  • 31
    Gasket – Part Number: 125-7110
    Gasket
    Part Number: 125-7110
      Special Order
    $8.00
  • 32
    Bolt – Part Number: 125-7594
    Bolt
    Part Number: 125-7594
      Special Order
    $5.95
  • 33
    Plug – Part Number: 125-6953
    Plug
    Part Number: 125-6953
      Special Order
    $16.13
  • 34
    Sensor-Thermostat, Cw – Part Number: 125-7124
    Sensor-Thermostat, Cw
    Part Number: 125-7124
      Special Order
    $159.63
  • 35
    Gasket – Part Number: 125-6979
    Gasket
    Part Number: 125-6979
      Special Order
    $5.95
  • 36
    Washer-Seal – Part Number: 125-7176
    Washer-Seal
    Part Number: 125-7176
      Special Order
    $13.70
  • 37
    Elbow – Part Number: 127-4705
    Elbow
    Part Number: 127-4705
      Special Order
    $100.47
  • 38
    E G R-C Pipe Asm – Part Number: 127-4757
    E G R-C Pipe Asm
    Part Number: 127-4757
      Special Order
    $111.05
  • 39
    Clip-Hose – Part Number: 127-3020
    Clip-Hose
    Part Number: 127-3020
      No Longer Available
  • 42
    Cw Pipe Asm – Part Number: 127-3811
    Cw Pipe Asm
    Part Number: 127-3811
      Special Order
    $151.31
  • 43
    Clip-Hose – Part Number: 127-3020
    Clip-Hose
    Part Number: 127-3020
      No Longer Available
Crankshaft And Piston Assembly
Crankshaft And Piston Assembly Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
  • 1
    Crankshaft Asm – Part Number: 127-3800
    Crankshaft Asm
    Part Number: 127-3800
      Special Order
    $3054.86
  • 2
    Pin – Part Number: 125-6995
    Pin
    Part Number: 125-6995
      Special Order
    $10.22
  • 4
    Gear – Part Number: 125-6937
    Gear
    Part Number: 125-6937
      Special Order
    $311.84
  • 5
    Key – Part Number: 125-7185
    Key
    Part Number: 125-7185
      Special Order
    $5.95
  • 7
    Pin-Spring – Part Number: 125-7182
    Pin-Spring
    Part Number: 125-7182
      Special Order
    $7.08
  • 8
    Pulley-V – Part Number: 127-3801
    Pulley-V
    Part Number: 127-3801
      Special Order
    $411.40
  • 9
    Washer – Part Number: 125-7109
    Washer
    Part Number: 125-7109
      Special Order
    $36.88
  • 10
    Bolt – Part Number: 125-6956
    Bolt
    Part Number: 125-6956
      Special Order
    $68.57
  • 11
    Bolt – Part Number: 125-6951
    Bolt
    Part Number: 125-6951
      Special Order
    $12.70
  • 12
    Flywheel Asm – Part Number: 127-4761
    Flywheel Asm
    Part Number: 127-4761
      Special Order
    $2355.66
  • 14
    Gear – Part Number: 127-4703
    Gear
    Part Number: 127-4703
      Special Order
    $321.86
  • 16
    Piston Asm – Part Number: 127-4766
    Piston Asm
    Part Number: 127-4766
      Special Order
    $688.87
  • 18
    Piston Ring Asm – Part Number: 127-4751
    Piston Ring Asm
    Part Number: 127-4751
      Special Order
    $188.73
  • 24
    Pin – Part Number: 125-7030
    Pin
    Part Number: 125-7030
      Special Order
    $67.55
  • 25
    Ring – Part Number: 125-7180
    Ring
    Part Number: 125-7180
      Special Order
    $5.95
  • 26
    Connecting Rod Asm – Part Number: 125-7242
    Connecting Rod Asm
    Part Number: 125-7242
      Special Order
    $710.20
  • 29
    Bolt – Part Number: 125-6955
    Bolt
    Part Number: 125-6955
      Special Order
    $38.68
  • 30
    Pin-Crank – Part Number: 125-7018
    Pin-Crank
    Part Number: 125-7018
      Special Order
    $40.45
  • 32
    Pin-Piston – Part Number: 125-6997
    Pin-Piston
    Part Number: 125-6997
      Special Order
    $37.05
  • 33
    Pin-Crank (.25) – Part Number: 125-7019
    Pin-Crank (.25)
    Part Number: 125-7019
      Special Order
    $40.51
  • 35
    Piston Asm (0.25 O S) – Part Number: 127-4767
    Piston Asm (0.25 O S)
    Part Number: 127-4767
      Special Order
    $839.13
  • 37
    Ring Set (0.25 O S) – Part Number: 127-4752
    Ring Set (0.25 O S)
    Part Number: 127-4752
      Special Order
    $147.91
Cylinder Block Assembly
Cylinder Block Assembly Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
  • 1
    Cylinder Block Asm – Part Number: 127-4717
    Cylinder Block Asm
    Part Number: 127-4717
      Special Order
    $6843.66
  • 4
    Plug – Part Number: 125-6980
    Plug
    Part Number: 125-6980
      Special Order
    $11.46
  • 5
    Plug – Part Number: 125-7170
    Plug
    Part Number: 125-7170
      Special Order
    $30.42
  • 6
    Bolt – Part Number: 125-7007
    Bolt
    Part Number: 125-7007
      Special Order
    $56.57
  • 9
    Bushing – Part Number: 125-7108
    Bushing
    Part Number: 125-7108
      Special Order
    $67.60
  • 10
    Plug – Part Number: 125-7239
    Plug
    Part Number: 125-7239
      Special Order
    $30.28
  • 11
    Plug – Part Number: 125-6969
    Plug
    Part Number: 125-6969
      Special Order
    $5.95
  • 12
    Plug – Part Number: 125-6973
    Plug
    Part Number: 125-6973
      Special Order
    $5.95
  • 13
    Plug – Part Number: 125-6973
    Plug
    Part Number: 125-6973
      Special Order
    $5.95
  • 14
    Plug – Part Number: 125-7237
    Plug
    Part Number: 125-7237
      Special Order
    $5.95
  • 24
    Metal-Thrust – Part Number: 125-7010
    Metal-Thrust
    Part Number: 125-7010
      Special Order
    $19.90
  • 27
    Bolt – Part Number: 125-7006
    Bolt
    Part Number: 125-7006
      Special Order
    $62.20
  • 28
    Head Gasket Asm – Part Number: 127-4716
    Head Gasket Asm
    Part Number: 127-4716
      Special Order
    $130.85
  • 29
    Metal-Main – Part Number: 125-6981
    Metal-Main
    Part Number: 125-6981
      Special Order
    $75.42
  • 32
    Metal-Main (0.25) – Part Number: 125-7009
    Metal-Main (0.25)
    Part Number: 125-7009
      Special Order
    $64.60
  • 35
    Metal-Thrust (0.25) – Part Number: 125-7011
    Metal-Thrust (0.25)
    Part Number: 125-7011
      Special Order
    $56.69
Cylinder Head And Cover Assembly
Cylinder Head And Cover Assembly Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
  • 1
    Shaft Asm – Part Number: 127-3757
    Shaft Asm
    Part Number: 127-3757
      Special Order
    $861.27
  • 2
    Shaft – Part Number: 127-3758
    Shaft
    Part Number: 127-3758
      Special Order
    $195.09
  • 4
    Support – Part Number: 127-2974
    Support
    Part Number: 127-2974
      No Longer Available
  • 5
    Support – Part Number: 127-2975
    Support
    Part Number: 127-2975
      Special Order
    $83.97
  • 6
    Bolt,stud – Part Number: 135-4012
    Bolt,stud
    Part Number: 135-4012
      Special Order
    $5.95
  • 7
    Spring – Part Number: 127-2995
    Spring
    Part Number: 127-2995
      No Longer Available
  • 8
    Arm-Rocker – Part Number: 127-2989
    Arm-Rocker
    Part Number: 127-2989
      Special Order
    $106.38
  • 9
    Screw-Adjust, Valve – Part Number: 125-7013
    Screw-Adjust, Valve
    Part Number: 125-7013
      Special Order
    $40.73
  • 11
    Nut – Part Number: 125-7014
    Nut
    Part Number: 125-7014
      Special Order
    $9.86
  • 12
    Cap-Valve – Part Number: 127-2996
    Cap-Valve
    Part Number: 127-2996
      Special Order
    $10.10
  • 13
    Cylinder Head Asm – Part Number: 127-4720
    Cylinder Head Asm
    Part Number: 127-4720
      Special Order
    $4711.27
  • 19
    Plug – Part Number: 125-7240
    Plug
    Part Number: 125-7240
      Special Order
    $8.63
  • 20
    Valve – Part Number: 127-2990
    Valve
    Part Number: 127-2990
      Special Order
    $136.60
  • 21
    Valve – Part Number: 127-4710
    Valve
    Part Number: 127-4710
      Special Order
    $60.60
  • 22
    Spring – Part Number: 127-3012
    Spring
    Part Number: 127-3012
      No Longer Available
  • 23
    Retainer-Spring – Part Number: 127-3013
    Retainer-Spring
    Part Number: 127-3013
      No Longer Available
  • 24
    Seal-Stem, Valve – Part Number: 127-2986
    Seal-Stem, Valve
    Part Number: 127-2986
      Special Order
    $13.56
  • 25
    Seal-Stem, Valve – Part Number: 127-3027
    Seal-Stem, Valve
    Part Number: 127-3027
      Special Order
    $14.42
  • 26
    Pin-Cotter – Part Number: 127-3186
    Pin-Cotter
    Part Number: 127-3186
      Special Order
    $29.82
  • 28
    Gasket-Injector – Part Number: 127-3021
    Gasket-Injector
    Part Number: 127-3021
      Special Order
    $9.66
  • 29
    Retainer-Injector – Part Number: 127-3028
    Retainer-Injector
    Part Number: 127-3028
      Special Order
    $113.27
  • 30
    Washer-Injector – Part Number: 127-2980
    Washer-Injector
    Part Number: 127-2980
      Special Order
    $32.90
  • 31
    Pin-Spring – Part Number: 125-7184
    Pin-Spring
    Part Number: 125-7184
      Special Order
    $6.52
  • 32
    Bolt – Part Number: 125-7215
    Bolt
    Part Number: 125-7215
      Special Order
    $6.52
  • 33
    Bolt – Part Number: 125-7217
    Bolt
    Part Number: 125-7217
      Special Order
    $8.60
  • 34
    Bolt – Part Number: 125-7220
    Bolt
    Part Number: 125-7220
      Special Order
    $9.36
  • 35
    Cover-Filler – Part Number: 125-6972
    Cover-Filler
    Part Number: 125-6972
      Special Order
    $21.56
  • 36
    Cylinder Head Cover Asm – Part Number: 127-4719
    Cylinder Head Cover Asm
    Part Number: 127-4719
      Special Order
    $508.19
  • 37
    Plate – Part Number: 127-2988
    Plate
    Part Number: 127-2988
      Special Order
    $239.93
  • 38
    Baffle – Part Number: 125-7012
    Baffle
    Part Number: 125-7012
      Special Order
    $11.00
  • 39
    Diaphragm – Part Number: 125-6959
    Diaphragm
    Part Number: 125-6959
      Special Order
    $92.80
  • 40
    Plate – Part Number: 125-6960
    Plate
    Part Number: 125-6960
      Special Order
    $34.30
  • 41
    Plate-Breather – Part Number: 125-6961
    Plate-Breather
    Part Number: 125-6961
      Special Order
    $54.39
  • 42
    Spring-Diaphragm – Part Number: 125-6962
    Spring-Diaphragm
    Part Number: 125-6962
      Special Order
    $38.52
  • 44
    Gasket-Head, Cylinder – Part Number: 127-3856
    Gasket-Head, Cylinder
    Part Number: 127-3856
      Special Order
    $110.55
  • 45
    Joint – Part Number: 127-3026
    Joint
    Part Number: 127-3026
      Special Order
    $94.94
  • 46
    Sensor-Pressure – Part Number: 127-3029
    Sensor-Pressure
    Part Number: 127-3029
      Special Order
    $1262.33
  • 47
    O Ring-Sensor, Pressure – Part Number: 127-3032
    O Ring-Sensor, Pressure
    Part Number: 127-3032
      Special Order
    $38.66
  • 48
    Hose Asm – Part Number: 127-3040
    Hose Asm
    Part Number: 127-3040
      Special Order
    $156.50
  • 50
    Clip-Hose – Part Number: 127-3041
    Clip-Hose
    Part Number: 127-3041
      Special Order
    $40.27
  • 51
    Plug – Part Number: 125-6913
    Plug
    Part Number: 125-6913
      Special Order
    $17.48
  • 52
    Screw – Part Number: 125-7186
    Screw
    Part Number: 125-7186
      Special Order
    $5.95
  • 53
    Screw – Part Number: 125-7186
    Screw
    Part Number: 125-7186
      Special Order
    $5.95
  • 54
    Bolt – Part Number: 127-3184
    Bolt
    Part Number: 127-3184
      Special Order
    $8.60
  • 55
    Knob – Part Number: 125-6974
    Knob
    Part Number: 125-6974
      Special Order
    $14.08
  • 56
    O-Ring – Part Number: 93-0418
    O-Ring
    Part Number: 93-0418
      Special Order
    $10.02
  • 57
    O-Ring – Part Number: 125-7197
    O-Ring
    Part Number: 125-7197
      Special Order
    $5.95
  • 58
    Lifter-Engine – Part Number: 127-4718
    Lifter-Engine
    Part Number: 127-4718
      Special Order
    $97.58
  • 59
    Bolt – Part Number: 125-7214
    Bolt
    Part Number: 125-7214
      Special Order
    $7.08
  • 60
    Plug-Glow – Part Number: 127-2991
    Plug-Glow
    Part Number: 127-2991
      Special Order
    $234.56
  • 61
    Connector-Plug, Glow – Part Number: 127-3768
    Connector-Plug, Glow
    Part Number: 127-3768
      Special Order
    $67.82
  • 62
    Harness-Wire – Part Number: 131-2704
    Harness-Wire
    Part Number: 131-2704
      Special Order
    $53.82
  • 63
    Guide – Part Number: 127-2979
    Guide
    Part Number: 127-2979
      Special Order
    $56.48
  • 64
    Guide-Valve – Part Number: 127-2997
    Guide-Valve
    Part Number: 127-2997
      Special Order
    $23.70
Deck Assembly
Deck Assembly Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
Deck Decal Assembly No. 140-0970
Deck Decal Assembly No. 140-0970 Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
Deck Lift Assembly
Deck Lift Assembly Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
Deck Lift Valve Assembly No. 131-1934
Deck Lift Valve Assembly No. 131-1934 Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
  • 3
    Valve-Solenoid – Part Number: 107-7517
    Valve-Solenoid
    Part Number: 107-7517
      Special Order
    $312.09
  • 3:1
    SEAL KIT – Part Number: 105-9156
    SEAL KIT
    Part Number: 105-9156
      Special Order
    $37.02
  • 3:2
    Nut-Solenoid – Part Number: 107-7812
    Nut-Solenoid
    Part Number: 107-7812
      Special Order
    $120.71
  • 4
    Valve-Solenoid – Part Number: 131-1935
    Valve-Solenoid
    Part Number: 131-1935
      Special Order
    $424.52
  • 5
    Coil-12v – Part Number: 115-3021
    Coil-12v
    Part Number: 115-3021
      Special Order
    $172.09
  • 6
    Coil – Part Number: 119-8036
    Coil
    Part Number: 119-8036
      Special Order
    $137.09
  • 7
    Nut-coil – Part Number: 110-2634
    Nut-coil
    Part Number: 110-2634
      In Stock
    $10.82
Deck, Driveshaft And Tunnel Assembly
Deck, Driveshaft And Tunnel Assembly Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
Diesel Particulate Filter Assembly
Diesel Particulate Filter Assembly Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
  • 1
    Gasket-Silencer – Part Number: 127-2987
    Gasket-Silencer
    Part Number: 127-2987
      Special Order
    $29.68
  • 2
    Stay-D P F – Part Number: 127-4738
    Stay-D P F
    Part Number: 127-4738
      Special Order
    $573.76
  • 3
    Stay-D P F – Part Number: 127-4739
    Stay-D P F
    Part Number: 127-4739
      Special Order
    $138.98
  • 4
    Stay-D P F – Part Number: 127-4740
    Stay-D P F
    Part Number: 127-4740
      Special Order
    $76.50
  • 5
    Stay-D P F – Part Number: 127-4741
    Stay-D P F
    Part Number: 127-4741
      Special Order
    $119.81
  • 7
    Sensor-Temp, Exhaust – Part Number: 127-4764
    Sensor-Temp, Exhaust
    Part Number: 127-4764
      Special Order
    $300.59
  • 8
    Sensor-Temp, Exhaust – Part Number: 127-4765
    Sensor-Temp, Exhaust
    Part Number: 127-4765
      Special Order
    $300.59
  • 9
    D P F Asm – Part Number: 127-4759
    D P F Asm
    Part Number: 127-4759
      Special Order
    $8782.71
  • 10
    Case-D O C – Part Number: 127-4732
    Case-D O C
    Part Number: 127-4732
      Special Order
    $2890.88
  • 12
    Case-Filter, Soot – Part Number: 127-4734
    Case-Filter, Soot
    Part Number: 127-4734
      Special Order
    $1351.11
  • 14
    Silencer-D P F – Part Number: 127-3786
    Silencer-D P F
    Part Number: 127-3786
      Special Order
    $860.57
  • 15
    Gasket-D P F – Part Number: 127-3859
    Gasket-D P F
    Part Number: 127-3859
      Special Order
    $26.48
  • 16
    Bolt – Part Number: 127-3055
    Bolt
    Part Number: 127-3055
      Special Order
    $16.78
  • 17
    Lifter-D P F – Part Number: 127-3788
    Lifter-D P F
    Part Number: 127-3788
      Special Order
    $67.82
  • 18
    Stiffener-D P F, A – Part Number: 127-3789
    Stiffener-D P F, A
    Part Number: 127-3789
      Special Order
    $111.05
  • 19
    Stiffener-D P F, B – Part Number: 127-4735
    Stiffener-D P F, B
    Part Number: 127-4735
      Special Order
    $225.97
  • 20
    Stiffener-D P F, C – Part Number: 127-3792
    Stiffener-D P F, C
    Part Number: 127-3792
      Special Order
    $147.91
  • 21
    Stiffener-D P F, C – Part Number: 127-4736
    Stiffener-D P F, C
    Part Number: 127-4736
      Special Order
    $186.89
  • 22
    Bolt – Part Number: 125-7213
    Bolt
    Part Number: 125-7213
      Special Order
    $5.95
  • 23
    Nut – Part Number: 125-7229
    Nut
    Part Number: 125-7229
      Special Order
    $5.95
  • 25
    Bolt-Joint, Pipe – Part Number: 127-3039
    Bolt-Joint, Pipe
    Part Number: 127-3039
      Special Order
    $184.03
  • 26
    Gasket-Sensor – Part Number: 127-3056
    Gasket-Sensor
    Part Number: 127-3056
      Special Order
    $5.95
  • 27
    Sensor Pipe Asm – Part Number: 127-4744
    Sensor Pipe Asm
    Part Number: 127-4744
      Special Order
    $107.67
  • 28
    Sensor Pipe Asm – Part Number: 127-4745
    Sensor Pipe Asm
    Part Number: 127-4745
      Special Order
    $107.67
  • 29
    Exhaust Hose Asm – Part Number: 127-4747
    Exhaust Hose Asm
    Part Number: 127-4747
      Special Order
    $70.51
  • 31
    Clip-Hose – Part Number: 127-3057
    Clip-Hose
    Part Number: 127-3057
      No Longer Available
  • 32
    Exhaust Hose Asm – Part Number: 127-4748
    Exhaust Hose Asm
    Part Number: 127-4748
      Special Order
    $64.57
  • 33
    Clip-Hose – Part Number: 127-3058
    Clip-Hose
    Part Number: 127-3058
      No Longer Available
  • 35
    Sensor-Pressure – Part Number: 127-3060
    Sensor-Pressure
    Part Number: 127-3060
      Special Order
    $1325.45
  • 36
    Bracket-Sensor – Part Number: 127-4750
    Bracket-Sensor
    Part Number: 127-4750
      Special Order
    $76.33
  • 37
    Bolt – Part Number: 125-7208
    Bolt
    Part Number: 125-7208
      Special Order
    $7.08
  • 38
    Bolt – Part Number: 125-7595
    Bolt
    Part Number: 125-7595
      Special Order
    $5.95
  • 39
    Band-Clip – Part Number: 127-3087
    Band-Clip
    Part Number: 127-3087
      Special Order
    $5.95
  • 40
    Band – Part Number: 127-3124
    Band
    Part Number: 127-3124
      Special Order
    $5.95
  • 41
    Clip-Connnector – Part Number: 127-3088
    Clip-Connnector
    Part Number: 127-3088
      Special Order
    $14.60
  • 42
    Bolt – Part Number: 125-7214
    Bolt
    Part Number: 125-7214
      Special Order
    $7.08
  • 43
    Bolt – Part Number: 125-7214
    Bolt
    Part Number: 125-7214
      Special Order
    $7.08
  • 44
    Bolt – Part Number: 125-7594
    Bolt
    Part Number: 125-7594
      Special Order
    $5.95
  • 45
    Bolt – Part Number: 127-4773
    Bolt
    Part Number: 127-4773
      Special Order
    $6.52
  • 46
    Bolt – Part Number: 127-3179
    Bolt
    Part Number: 127-3179
      Special Order
    $7.68
  • 47
    Bolt – Part Number: 127-3179
    Bolt
    Part Number: 127-3179
      Special Order
    $7.68
  • 48
    Bolt – Part Number: 127-3179
    Bolt
    Part Number: 127-3179
      Special Order
    $7.68
  • 49
    Nut – Part Number: 125-7230
    Nut
    Part Number: 125-7230
      Special Order
    $5.95
Discharge Tunnel Assembly 126-2789
Discharge Tunnel Assembly 126-2789 Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
Driveshaft Assembly No. 110-3575
Driveshaft Assembly No. 110-3575 Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
Electric Parts Assembly
Electric Parts Assembly Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
  • 1
    Bracket-Connector – Part Number: 130-7436
    Bracket-Connector
    Part Number: 130-7436
      Special Order
    $83.38
  • 2
    Harness – Part Number: 135-4029
    Harness
    Part Number: 135-4029
      Special Order
    $2246.41
  • 12
    Harness – Part Number: 130-7438
    Harness
    Part Number: 130-7438
      Special Order
    $689.70
  • 17
    Boot-Cap – Part Number: 131-2713
    Boot-Cap
    Part Number: 131-2713
      No Longer Available
  • 18
    Bracket-Harness – Part Number: 127-3090
    Bracket-Harness
    Part Number: 127-3090
      No Longer Available
  • 19
    Bolt – Part Number: 125-7213
    Bolt
    Part Number: 125-7213
      Special Order
    $5.95
  • 20
    Bolt – Part Number: 125-7212
    Bolt
    Part Number: 125-7212
      Special Order
    $5.95
  • 21
    Band – Part Number: 127-3187
    Band
    Part Number: 127-3187
      Special Order
    $5.95
  • 22
    Band – Part Number: 127-3188
    Band
    Part Number: 127-3188
      No Longer Available
Electrical Assembly
Electrical Assembly Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
Electronic Control Unit Assembly
Electronic Control Unit Assembly Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
Engine Assembly
Engine Assembly Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
  • 1
    Engine, 3tnv88c-Dtr5 – Part Number: 138-6927
    Engine, 3tnv88c-Dtr5
    Part Number: 138-6927
      Special Order
    $24634.80
  • 2
    Mount-Motor, Upper – Part Number: 120-9180-03
    Mount-Motor, Upper
    Part Number: 120-9180-03
      Special Order
    $87.42
  • 3
    Mount- Isolator, Engine – Part Number: 142-8456
    Mount- Isolator, Engine
    Part Number: 142-8456
      Special Order
    $89.05
  • 4
    Washer-Snubbing – Part Number: 87-5100
    Washer-Snubbing
    Part Number: 87-5100
      Special Order
    $6.13
  • 5
    Screw-Hh – Part Number: 324-11
    Screw-Hh
    Part Number: 324-11
      Special Order
    $5.95
  • 6
    Screw-Hh – Part Number: 323-6
    Screw-Hh
    Part Number: 323-6
      In Stock
    $5.95
  • 7
    Nut-Hf, Ni – Part Number: 114-8417
    Nut-Hf, Ni
    Part Number: 114-8417
      Special Order
    $5.95
  • 8
    Nut-flange, Ni – Part Number: 104-8301
    Nut-flange, Ni
    Part Number: 104-8301
      In Stock
    $5.95
  • 9
    Washer-belleville – Part Number: 98-5975
    Washer-belleville
    Part Number: 98-5975
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 10
    SCREW – Part Number: 33115-025
    SCREW
    Part Number: 33115-025
      Special Order
    $5.95
  • 11
    Coupling-Flywheel – Part Number: 120-9131
    Coupling-Flywheel
    Part Number: 120-9131
      Special Order
    $769.20
  • 12
    Bracket-Mount – Part Number: 126-8587-03
    Bracket-Mount
    Part Number: 126-8587-03
      Special Order
    $23.98
  • 13
    Bracket-Guide – Part Number: 126-7602-03
    Bracket-Guide
    Part Number: 126-7602-03
      Special Order
    $46.35
  • 14
    Grommet-Rubber – Part Number: 240-7
    Grommet-Rubber
    Part Number: 240-7
      Special Order
    $30.96
  • 15
    Screw-Hh – Part Number: 33115-016
    Screw-Hh
    Part Number: 33115-016
      Special Order
    $5.95
  • 16
    Tube-Exhaust – Part Number: 126-7652
    Tube-Exhaust
    Part Number: 126-7652
      Special Order
    $117.92
  • 17
    CLAMP-COLUMN, STEERING – Part Number: 18-2130
    CLAMP-COLUMN, STEERING
    Part Number: 18-2130
      Special Order
    $10.56
  • 18
    Bracket-Cleaner, Air – Part Number: 126-8730-03
    Bracket-Cleaner, Air
    Part Number: 126-8730-03
      Special Order
    $68.16
  • 19
    Assembly, Hdac – Part Number: 142-3554
    Assembly, Hdac
    Part Number: 142-3554
      Special Order
    $216.95
  • 20
    Hose-Air – Part Number: 120-9199
    Hose-Air
    Part Number: 120-9199
      Special Order
    $85.65
  • 21
    Hose-Air – Part Number: 120-9177
    Hose-Air
    Part Number: 120-9177
      Special Order
    $100.10
  • 22
    Washer-Belleville – Part Number: 3290-475
    Washer-Belleville
    Part Number: 3290-475
      Special Order
    $5.95
  • 23
    Screw-Hh – Part Number: 139-9940
    Screw-Hh
    Part Number: 139-9940
      Special Order
    $5.95
  • 24
    Clamp-Hose – Part Number: 2412-130
    Clamp-Hose
    Part Number: 2412-130
      Special Order
    $5.95
  • 25
    Clamp-Hose – Part Number: 2412-125
    Clamp-Hose
    Part Number: 2412-125
      Special Order
    $9.80
  • 26
    Bolt-carr – Part Number: 3230-6
    Bolt-carr
    Part Number: 3230-6
    ★★★★★
    ★★★★★
    (1)
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 27
    Nut-flange, Ni – Part Number: 104-8300
    Nut-flange, Ni
    Part Number: 104-8300
    ★★★★★
    ★★★★★
    (1)
      In Stock
    $5.95
  • 28
    Screw-hh – Part Number: 322-4
    Screw-hh
    Part Number: 322-4
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 29
    Deflector-Air – Part Number: 135-3946-03
    Deflector-Air
    Part Number: 135-3946-03
      Special Order
    $35.78
  • 30
    Screw-Hh – Part Number: 322-8
    Screw-Hh
    Part Number: 322-8
      Special Order
    $5.95
  • 31
    Nut-lock, Ni – Part Number: 3296-47
    Nut-lock, Ni
    Part Number: 3296-47
      In Stock
    $5.95
  • 32
    Housing-Flywheel – Part Number: 125-2836
    Housing-Flywheel
    Part Number: 125-2836
      Special Order
    $1071.71
  • 33
    Washer-Lock – Part Number: 48-9590
    Washer-Lock
    Part Number: 48-9590
      Special Order
    $5.95
  • 34
    Screw-Hh – Part Number: 33115-045
    Screw-Hh
    Part Number: 33115-045
      Special Order
    $5.95
  • 35
    Screw-Hh – Part Number: 33115-035
    Screw-Hh
    Part Number: 33115-035
      Special Order
    $5.95
  • 36
    Mount-Isolator – Part Number: 142-8457
    Mount-Isolator
    Part Number: 142-8457
      Special Order
    $81.23
  • 37
    Washer – Part Number: 86-1990
    Washer
    Part Number: 86-1990
      Special Order
    $5.95
  • 38
    Screw-hh – Part Number: 325-15
    Screw-hh
    Part Number: 325-15
      Special Order
    $5.98
  • 39
    Washer-Flat – Part Number: 3256-6
    Washer-Flat
    Part Number: 3256-6
      Special Order
    $5.95
  • 40
    NUT-LOCK – Part Number: 99-5107
    NUT-LOCK
    Part Number: 99-5107
      In Stock
    $5.95
Exhaust Manifold Assembly
Exhaust Manifold Assembly Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
  • 1
    Manifold-Exhaust – Part Number: 127-4726
    Manifold-Exhaust
    Part Number: 127-4726
      Special Order
    $311.93
  • 2
    Gasket-Manifold, Exhaust – Part Number: 127-3775
    Gasket-Manifold, Exhaust
    Part Number: 127-3775
      Special Order
    $21.30
  • 3
    Stud – Part Number: 127-2984
    Stud
    Part Number: 127-2984
      Special Order
    $42.05
  • 4
    Bolt – Part Number: 135-4013
    Bolt
    Part Number: 135-4013
      Special Order
    $31.86
  • 5
    Bolt – Part Number: 135-4014
    Bolt
    Part Number: 135-4014
      Special Order
    $42.48
  • 6
    Stud – Part Number: 127-4756
    Stud
    Part Number: 127-4756
      Special Order
    $13.86
  • 7
    Sensor-Temp, Exhaust – Part Number: 127-4729
    Sensor-Temp, Exhaust
    Part Number: 127-4729
      Special Order
    $207.13
  • 8
    Band-Clip – Part Number: 127-3087
    Band-Clip
    Part Number: 127-3087
      Special Order
    $5.95
  • 9
    Nut – Part Number: 125-7230
    Nut
    Part Number: 125-7230
      Special Order
    $5.95
  • 10
    Exhaust Pipe Asm – Part Number: 127-3038
    Exhaust Pipe Asm
    Part Number: 127-3038
      Special Order
    $226.40
  • 11
    Clamp – Part Number: 127-3173
    Clamp
    Part Number: 127-3173
      Special Order
    $33.68
  • 12
    Bolt-Joint, Pipe – Part Number: 127-3039
    Bolt-Joint, Pipe
    Part Number: 127-3039
      Special Order
    $184.03
  • 13
    Gasket – Part Number: 127-3174
    Gasket
    Part Number: 127-3174
      Special Order
    $5.95
  • 14
    Bolt – Part Number: 125-7206
    Bolt
    Part Number: 125-7206
      Special Order
    $5.95
  • 15
    Cooler-E G R – Part Number: 127-3042
    Cooler-E G R
    Part Number: 127-3042
      Special Order
    $1148.76
  • 16
    Gasket-Cooler, E G R – Part Number: 127-3043
    Gasket-Cooler, E G R
    Part Number: 127-3043
      Special Order
    $7.72
  • 17
    Bolt – Part Number: 135-4015
    Bolt
    Part Number: 135-4015
      Special Order
    $11.46
  • 18
    Bolt – Part Number: 135-4016
    Bolt
    Part Number: 135-4016
      Special Order
    $40.55
  • 19
    E G R Pipe Asm – Part Number: 127-3048
    E G R Pipe Asm
    Part Number: 127-3048
      Special Order
    $223.86
  • 20
    Pipe-Out, E G R – Part Number: 127-3049
    Pipe-Out, E G R
    Part Number: 127-3049
      No Longer Available
  • 21
    Stud – Part Number: 125-7043
    Stud
    Part Number: 125-7043
      Special Order
    $23.32
  • 22
    Bolt – Part Number: 125-7220
    Bolt
    Part Number: 125-7220
      Special Order
    $9.36
  • 23
    Sensor-Gas Temp, E G R – Part Number: 137-5168
    Sensor-Gas Temp, E G R
    Part Number: 137-5168
      Special Order
    $317.84
  • 24
    E G R Pipe Asm – Part Number: 127-3780
    E G R Pipe Asm
    Part Number: 127-3780
      Special Order
    $614.70
  • 25
    Gasket – Part Number: 127-3016
    Gasket
    Part Number: 127-3016
      Special Order
    $8.16
  • 26
    Bolt – Part Number: 125-7215
    Bolt
    Part Number: 125-7215
      Special Order
    $6.52
  • 27
    Nut – Part Number: 125-7229
    Nut
    Part Number: 125-7229
      Special Order
    $5.95
  • 28
    Valve-E G R – Part Number: 127-3781
    Valve-E G R
    Part Number: 127-3781
      Special Order
    $3231.57
  • 29
    Gasket-Intake Valve, E G R – Part Number: 127-3050
    Gasket-Intake Valve, E G R
    Part Number: 127-3050
      Special Order
    $10.82
  • 30
    Gasket-Out Valve, E G R – Part Number: 127-3051
    Gasket-Out Valve, E G R
    Part Number: 127-3051
      Special Order
    $9.50
  • 31
    Nut – Part Number: 125-7229
    Nut
    Part Number: 125-7229
      Special Order
    $5.95
Flywheel Housing And Oil Sump Assembly
Flywheel Housing And Oil Sump Assembly Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
  • 1
    Pin – Part Number: 125-6995
    Pin
    Part Number: 125-6995
      Special Order
    $10.22
  • 2
    Housing-Flywheel – Part Number: 127-4758
    Housing-Flywheel
    Part Number: 127-4758
      Special Order
    $1921.73
  • 3
    Cap – Part Number: 125-6910
    Cap
    Part Number: 125-6910
      Special Order
    $28.93
  • 4
    Bolt – Part Number: 125-7226
    Bolt
    Part Number: 125-7226
      Special Order
    $7.68
  • 5
    Bolt – Part Number: 125-7227
    Bolt
    Part Number: 125-7227
      Special Order
    $9.36
  • 6
    Oil Pan Assembly – Part Number: 135-4010
    Oil Pan Assembly
    Part Number: 135-4010
      Special Order
    $1056.41
  • 7
    Plug-Drain – Part Number: 125-6912
    Plug-Drain
    Part Number: 125-6912
      Special Order
    $47.33
  • 9
    Washer-Seal – Part Number: 125-7177
    Washer-Seal
    Part Number: 125-7177
      Special Order
    $12.88
  • 10
    Spacer – Part Number: 127-3756
    Spacer
    Part Number: 127-3756
      Special Order
    $817.40
  • 11
    Bolt – Part Number: 125-7214
    Bolt
    Part Number: 125-7214
      Special Order
    $7.08
  • 12
    Bolt – Part Number: 125-7215
    Bolt
    Part Number: 125-7215
      Special Order
    $6.52
  • 13
    Bolt – Part Number: 125-7219
    Bolt
    Part Number: 125-7219
      Special Order
    $8.60
  • 14
    Bolt – Part Number: 125-7220
    Bolt
    Part Number: 125-7220
      Special Order
    $9.36
  • 15
    Pin – Part Number: 125-6995
    Pin
    Part Number: 125-6995
      Special Order
    $10.22
  • 16
    Case Asm – Part Number: 135-4011
    Case Asm
    Part Number: 135-4011
      Special Order
    $473.56
  • 18
    Seal-Oil – Part Number: 125-7106
    Seal-Oil
    Part Number: 125-7106
      Special Order
    $46.33
  • 19
    Bolt – Part Number: 125-7045
    Bolt
    Part Number: 125-7045
      Special Order
    $11.03
  • 20
    Bolt – Part Number: 125-7217
    Bolt
    Part Number: 125-7217
      Special Order
    $8.60
  • 21
    Sensor-Rev, Flywheel – Part Number: 127-3062
    Sensor-Rev, Flywheel
    Part Number: 127-3062
      Special Order
    $227.49
  • 22
    Bolt – Part Number: 127-3184
    Bolt
    Part Number: 127-3184
      Special Order
    $8.60
Frame And Roll-Over Protection System Assembly
Frame And Roll-Over Protection System Assembly Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
Fuel Injection Valve Assembly
Fuel Injection Valve Assembly Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
  • 1
    Injector Asm – Part Number: 127-4754
    Injector Asm
    Part Number: 127-4754
      Special Order
    $4102.61
  • 4
    Ring-Retaining – Part Number: 130-7430
    Ring-Retaining
    Part Number: 130-7430
      Special Order
    $44.60
  • 6
    O-Ring – Part Number: 137-5173
    O-Ring
    Part Number: 137-5173
      Special Order
    $41.78
  • 7
    Rail Asm – Part Number: 127-3812
    Rail Asm
    Part Number: 127-3812
      Special Order
    $4796.90
  • 8
    Sensor-Pressure, Rail – Part Number: 131-2709
    Sensor-Pressure, Rail
    Part Number: 131-2709
      Special Order
    $545.43
  • 9
    Valve Asm – Part Number: 131-2710
    Valve Asm
    Part Number: 131-2710
      Special Order
    $454.83
  • 10
    O-Ring – Part Number: 130-7433
    O-Ring
    Part Number: 130-7433
      Special Order
    $32.63
  • 11
    Bolt – Part Number: 125-7215
    Bolt
    Part Number: 125-7215
      Special Order
    $6.52
  • 12
    Retainer – Part Number: 127-3813
    Retainer
    Part Number: 127-3813
      Special Order
    $39.88
  • 14
    Rail in Pipe Asm – Part Number: 127-3082
    Rail in Pipe Asm
    Part Number: 127-3082
      Special Order
    $114.05
  • 16
    Injection Pipe Asm – Part Number: 127-3814
    Injection Pipe Asm
    Part Number: 127-3814
      Special Order
    $151.92
  • 17
    Injection Pipe Asm – Part Number: 127-3083
    Injection Pipe Asm
    Part Number: 127-3083
      Special Order
    $151.92
  • 18
    Injection Pipe Asm – Part Number: 127-3084
    Injection Pipe Asm
    Part Number: 127-3084
      Special Order
    $151.92
  • 19
    Nut – Part Number: 125-7231
    Nut
    Part Number: 125-7231
      Special Order
    $7.08
Fuel Line Assembly
Fuel Line Assembly Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
  • 1
    Fuel/Oil Filter Asm – Part Number: 127-3075
    Fuel/Oil Filter Asm
    Part Number: 127-3075
      Special Order
    $361.33
  • 2
    Fuel/Oil Filter Bracket Asm – Part Number: 127-3076
    Fuel/Oil Filter Bracket Asm
    Part Number: 127-3076
      Special Order
    $168.98
  • 3
    Filter-Fuel/Oil – Part Number: 125-8752
    Filter-Fuel/Oil
    Part Number: 125-8752
      Special Order
    $159.53
  • 4
    Bolt – Part Number: 125-7216
    Bolt
    Part Number: 125-7216
      Special Order
    $6.52
  • 5
    Lifter – Part Number: 125-7111
    Lifter
    Part Number: 125-7111
      Special Order
    $19.80
  • 6
    Filter Bracket Asm – Part Number: 127-3815
    Filter Bracket Asm
    Part Number: 127-3815
      Special Order
    $138.77
  • 7
    Bolt – Part Number: 125-7215
    Bolt
    Part Number: 125-7215
      Special Order
    $6.52
  • 8
    Bolt – Part Number: 125-7215
    Bolt
    Part Number: 125-7215
      Special Order
    $6.52
  • 9
    Fuel Pipe Asm – Part Number: 127-3077
    Fuel Pipe Asm
    Part Number: 127-3077
      Special Order
    $161.43
  • 12
    Clamp-Hose – Part Number: 125-7191
    Clamp-Hose
    Part Number: 125-7191
      Special Order
    $29.58
  • 13
    Band – Part Number: 127-2981
    Band
    Part Number: 127-2981
      No Longer Available
  • 14
    Fuel/Oil Return Pipe Assembly – Part Number: 135-4023
    Fuel/Oil Return Pipe Assembly
    Part Number: 135-4023
      Special Order
    $450.79
  • 16
    Clamp-Hose – Part Number: 127-3172
    Clamp-Hose
    Part Number: 127-3172
      Special Order
    $10.78
  • 17
    Fuel Pipe Asm – Part Number: 127-3078
    Fuel Pipe Asm
    Part Number: 127-3078
      Special Order
    $200.52
  • 20
    Clamp-Hose – Part Number: 125-7191
    Clamp-Hose
    Part Number: 125-7191
      Special Order
    $29.58
  • 21
    Fuel Pipe Asm – Part Number: 127-3817
    Fuel Pipe Asm
    Part Number: 127-3817
      Special Order
    $241.80
  • 22
    Clip-Hose – Part Number: 127-2950
    Clip-Hose
    Part Number: 127-2950
      Special Order
    $11.28
  • 25
    Band-Clip – Part Number: 127-3087
    Band-Clip
    Part Number: 127-3087
      Special Order
    $5.95
  • 26
    Fuel Pipe Asm – Part Number: 127-3079
    Fuel Pipe Asm
    Part Number: 127-3079
      Special Order
    $141.98
  • 27
    Clip-Hose – Part Number: 127-2950
    Clip-Hose
    Part Number: 127-2950
      Special Order
    $11.28
Fuel Pump Assembly
Fuel Pump Assembly Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
Fuel Supply Pump Assembly
Fuel Supply Pump Assembly Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
  • 1
    Fuel Pump Asm – Part Number: 127-3073
    Fuel Pump Asm
    Part Number: 127-3073
      Special Order
    $5280.14
  • 2
    Valve Asm – Part Number: 131-2103
    Valve Asm
    Part Number: 131-2103
      Special Order
    $1579.64
  • 3
    Ring-Sealing – Part Number: 131-2105
    Ring-Sealing
    Part Number: 131-2105
      Special Order
    $130.08
  • 4
    O-Ring – Part Number: 131-2106
    O-Ring
    Part Number: 131-2106
      Special Order
    $73.25
  • 5
    Bolt – Part Number: 131-2107
    Bolt
    Part Number: 131-2107
      Special Order
    $59.66
  • 6
    Sensor-Temperature – Part Number: 131-2108
    Sensor-Temperature
    Part Number: 131-2108
      Special Order
    $385.37
  • 7
    O Ring-Pump, Fuel – Part Number: 127-3074
    O Ring-Pump, Fuel
    Part Number: 127-3074
      Special Order
    $57.53
  • 8
    Bolt – Part Number: 125-7216
    Bolt
    Part Number: 125-7216
      Special Order
    $6.52
Fuel System Assembly
Fuel System Assembly Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
Gasket Set
Gasket Set Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
  • 1
    Packing (Gasket Set) – Part Number: 130-7440
    Packing (Gasket Set)
    Part Number: 130-7440
      Special Order
    $1073.13
  • 2
    Head Gasket Asm – Part Number: 127-4716
    Head Gasket Asm
    Part Number: 127-4716
      Special Order
    $130.85
  • 3
    Gasket-Head, Cylinder – Part Number: 127-3856
    Gasket-Head, Cylinder
    Part Number: 127-3856
      Special Order
    $110.55
  • 4
    Seal-Stem, Valve – Part Number: 127-2986
    Seal-Stem, Valve
    Part Number: 127-2986
      Special Order
    $13.56
  • 5
    Seal-Stem, Valve – Part Number: 127-3027
    Seal-Stem, Valve
    Part Number: 127-3027
      Special Order
    $14.42
  • 6
    Gasket-Injector – Part Number: 127-3021
    Gasket-Injector
    Part Number: 127-3021
      Special Order
    $9.66
  • 7
    Gasket-Manifold, Intake – Part Number: 127-3857
    Gasket-Manifold, Intake
    Part Number: 127-3857
      Special Order
    $24.68
  • 8
    O Ring-Sensor, Pressure – Part Number: 127-3032
    O Ring-Sensor, Pressure
    Part Number: 127-3032
      Special Order
    $38.66
  • 9
    O Ring-Sensor, Temp – Part Number: 127-3033
    O Ring-Sensor, Temp
    Part Number: 127-3033
      Special Order
    $28.46
  • 10
    Gasket-Collector – Part Number: 127-3034
    Gasket-Collector
    Part Number: 127-3034
      Special Order
    $20.53
  • 11
    Gasket-Throttle – Part Number: 127-3037
    Gasket-Throttle
    Part Number: 127-3037
      Special Order
    $6.10
  • 12
    Gasket-Manifold, Exhaust – Part Number: 127-3775
    Gasket-Manifold, Exhaust
    Part Number: 127-3775
      Special Order
    $21.30
  • 13
    Gasket-Silencer – Part Number: 127-2987
    Gasket-Silencer
    Part Number: 127-2987
      Special Order
    $29.68
  • 14
    Gasket-Cooler, E G R – Part Number: 127-3043
    Gasket-Cooler, E G R
    Part Number: 127-3043
      Special Order
    $7.72
  • 15
    Gasket – Part Number: 127-3016
    Gasket
    Part Number: 127-3016
      Special Order
    $8.16
  • 16
    Gasket-Intake Valve, E G R – Part Number: 127-3050
    Gasket-Intake Valve, E G R
    Part Number: 127-3050
      Special Order
    $10.82
  • 17
    Gasket-Out Valve, E G R – Part Number: 127-3051
    Gasket-Out Valve, E G R
    Part Number: 127-3051
      Special Order
    $9.50
  • 18
    Gasket-D P F – Part Number: 127-3859
    Gasket-D P F
    Part Number: 127-3859
      Special Order
    $26.48
  • 19
    Gasket-Sensor – Part Number: 127-3056
    Gasket-Sensor
    Part Number: 127-3056
      Special Order
    $5.95
  • 20
    Gasket-Idle, Shaft B – Part Number: 127-3069
    Gasket-Idle, Shaft B
    Part Number: 127-3069
      Special Order
    $8.80
  • 21
    Gasket – Part Number: 127-3004
    Gasket
    Part Number: 127-3004
      Special Order
    $5.95
  • 22
    O-Ring – Part Number: 125-6909
    O-Ring
    Part Number: 125-6909
      Special Order
    $5.95
  • 23
    O-Ring – Part Number: 127-2973
    O-Ring
    Part Number: 127-2973
      Special Order
    $6.72
  • 24
    Gasket – Part Number: 125-7022
    Gasket
    Part Number: 125-7022
      Special Order
    $15.02
  • 25
    Gasket – Part Number: 125-7024
    Gasket
    Part Number: 125-7024
      Special Order
    $6.72
  • 26
    Gasket – Part Number: 125-7047
    Gasket
    Part Number: 125-7047
      Special Order
    $10.90
  • 27
    O-Ring – Part Number: 125-7048
    O-Ring
    Part Number: 125-7048
      Special Order
    $5.95
  • 28
    Gasket – Part Number: 125-6979
    Gasket
    Part Number: 125-6979
      Special Order
    $5.95
  • 29
    Gasket – Part Number: 125-7110
    Gasket
    Part Number: 125-7110
      Special Order
    $8.00
  • 30
    Gasket – Part Number: 125-7026
    Gasket
    Part Number: 125-7026
      In Stock
    Minimum Quantity of 2 required
    $6.18
  • 31
    Gasket – Part Number: 125-6978
    Gasket
    Part Number: 125-6978
      Special Order
    $5.95
  • 32
    O Ring-Pump, Fuel – Part Number: 127-3074
    O Ring-Pump, Fuel
    Part Number: 127-3074
      Special Order
    $57.53
  • 33
    Washer-Seal – Part Number: 125-7174
    Washer-Seal
    Part Number: 125-7174
      Special Order
    $10.22
  • 34
    Washer-Seal – Part Number: 125-7176
    Washer-Seal
    Part Number: 125-7176
      Special Order
    $13.70
  • 35
    Washer-Seal – Part Number: 127-3166
    Washer-Seal
    Part Number: 127-3166
      Special Order
    $12.70
  • 36
    Washer-Seal – Part Number: 125-7177
    Washer-Seal
    Part Number: 125-7177
      Special Order
    $12.88
  • 37
    Gasket – Part Number: 125-7192
    Gasket
    Part Number: 125-7192
      Special Order
    $5.95
  • 38
    Gasket – Part Number: 127-3174
    Gasket
    Part Number: 127-3174
      Special Order
    $5.95
  • 39
    O-Ring – Part Number: 93-0418
    O-Ring
    Part Number: 93-0418
      Special Order
    $10.02
  • 40
    O-Ring – Part Number: 125-7197
    O-Ring
    Part Number: 125-7197
      Special Order
    $5.95
Gear Box And Mount Assembly
Gear Box And Mount Assembly Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
  • 1
    Washer-belleville – Part Number: 98-5975
    Washer-belleville
    Part Number: 98-5975
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 2
    Gearbox Asm – Part Number: 130-8659
    Gearbox Asm
    Part Number: 130-8659
      Special Order
    $1130.13
  • 3
    Mount-Gearbox – Part Number: 135-0874
    Mount-Gearbox
    Part Number: 135-0874
      Special Order
    $136.22
  • 3:2
    Decal-Hazard, Entanglement – Part Number: 135-0679
    Decal-Hazard, Entanglement
    Part Number: 135-0679
      Special Order
    $10.86
  • 4
    Mount-Iso – Part Number: 126-3074
    Mount-Iso
    Part Number: 126-3074
      Special Order
    $29.98
  • 5
    Screw-Hh – Part Number: 323-6
    Screw-Hh
    Part Number: 323-6
      In Stock
    $5.95
  • 7
    Stop-Gearbox – Part Number: 126-3544
    Stop-Gearbox
    Part Number: 126-3544
      Special Order
    $16.48
  • 8
    Plug-Breather – Part Number: 130-8661
    Plug-Breather
    Part Number: 130-8661
      Special Order
    $62.89
  • 9
    Washer – Part Number: 130-4899
    Washer
    Part Number: 130-4899
      Special Order
    $5.95
  • 10
    BUSHING-TAPERLOCK – Part Number: 23-1640
    BUSHING-TAPERLOCK
    Part Number: 23-1640
      Special Order
    $103.60
  • 10:1
    Screw-Set – Part Number: 3247-4
    Screw-Set
    Part Number: 3247-4
      Special Order
    $5.95
  • 11
    Washer-Flat – Part Number: 83-1040
    Washer-Flat
    Part Number: 83-1040
      Special Order
    Minimum Quantity of 2 required
    $5.95
  • 12
    Nut-Push – Part Number: 107-3154
    Nut-Push
    Part Number: 107-3154
      Special Order
    $5.95
  • 13
    Nut-flange, Ni – Part Number: 109-6658
    Nut-flange, Ni
    Part Number: 109-6658
      Special Order
    $5.95
  • 14
    SCREW-CARR – Part Number: 3231-6
    SCREW-CARR
    Part Number: 3231-6
      Special Order
    $5.95
  • 15
    Key-woodruff – Part Number: 3257-5
    Key-woodruff
    Part Number: 3257-5
      In Stock
    $7.70
Gear Housing Assembly
Gear Housing Assembly Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
  • 1
    Case-Gear – Part Number: 127-3023
    Case-Gear
    Part Number: 127-3023
      Special Order
    $978.09
  • 2
    Pin – Part Number: 125-6995
    Pin
    Part Number: 125-6995
      Special Order
    $10.22
  • 3
    Cover-Filler – Part Number: 125-6972
    Cover-Filler
    Part Number: 125-6972
      Special Order
    $21.56
  • 4
    Pipe – Part Number: 125-7107
    Pipe
    Part Number: 125-7107
      Special Order
    $17.22
  • 5
    O-Ring – Part Number: 125-6909
    O-Ring
    Part Number: 125-6909
      Special Order
    $5.95
  • 6
    O-Ring – Part Number: 127-2973
    O-Ring
    Part Number: 127-2973
      Special Order
    $6.72
  • 7
    O-Ring – Part Number: 125-7197
    O-Ring
    Part Number: 125-7197
      Special Order
    $5.95
  • 8
    Bolt – Part Number: 125-7214
    Bolt
    Part Number: 125-7214
      Special Order
    $7.08
  • 9
    Gearcase Cover Asm – Part Number: 127-3024
    Gearcase Cover Asm
    Part Number: 127-3024
      Special Order
    $721.27
  • 11
    Seal-Oil – Part Number: 125-6944
    Seal-Oil
    Part Number: 125-6944
      Special Order
    $59.96
  • 12
    Cover – Part Number: 125-6977
    Cover
    Part Number: 125-6977
      Special Order
    $17.22
  • 13
    Washer-Seal – Part Number: 125-7174
    Washer-Seal
    Part Number: 125-7174
      Special Order
    $10.22
  • 14
    Bolt – Part Number: 125-7214
    Bolt
    Part Number: 125-7214
      Special Order
    $7.08
  • 15
    Bolt – Part Number: 125-7217
    Bolt
    Part Number: 125-7217
      Special Order
    $8.60
  • 16
    Bolt – Part Number: 125-7218
    Bolt
    Part Number: 125-7218
      Special Order
    $6.52
  • 17
    Bolt – Part Number: 125-7222
    Bolt
    Part Number: 125-7222
      Special Order
    $9.36
  • 18
    Bolt – Part Number: 125-7224
    Bolt
    Part Number: 125-7224
      Special Order
    $7.68
Gearbox Assembly No. 130-8659
Gearbox Assembly No. 130-8659 Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
  • 1:1
    CAP-OIL – Part Number: 107-2932
    CAP-OIL
    Part Number: 107-2932
      Special Order
    $58.89
  • 1:2
    PLUG – Part Number: 107-2933
    PLUG
    Part Number: 107-2933
      Special Order
    $20.46
  • 1:3
    Seal – Part Number: 117-9247
    Seal
    Part Number: 117-9247
      Special Order
    $111.23
  • 1:4
    CAP-OIL – Part Number: 107-2935
    CAP-OIL
    Part Number: 107-2935
      Special Order
    $54.48
  • 2
    Plug-Breather – Part Number: 130-8661
    Plug-Breather
    Part Number: 130-8661
      Special Order
    $62.89
  • 3
    Washer – Part Number: 130-4899
    Washer
    Part Number: 130-4899
      Special Order
    $5.95
Generator Assembly
Generator Assembly Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
  • 1
    Stud – Part Number: 127-3011
    Stud
    Part Number: 127-3011
      Special Order
    $16.63
  • 2
    Alternator – Part Number: 135-4278
    Alternator
    Part Number: 135-4278
      Special Order
    $1517.84
  • 3
    Nut – Part Number: 127-3190
    Nut
    Part Number: 127-3190
      Special Order
    $9.13
  • 4
    Rotor Asm – Part Number: 127-3843
    Rotor Asm
    Part Number: 127-3843
      No Longer Available
  • 5
    Bearing-Ball – Part Number: 127-2983
    Bearing-Ball
    Part Number: 127-2983
      Special Order
    $40.02
  • 6
    Cover – Part Number: 127-2962
    Cover
    Part Number: 127-2962
      No Longer Available
  • 7
    Frame Assembly – Part Number: 135-4025
    Frame Assembly
    Part Number: 135-4025
      Special Order
    $1062.49
  • 8
    Bearing-Ball – Part Number: 127-2958
    Bearing-Ball
    Part Number: 127-2958
      Special Order
    $43.96
  • 9
    Plate-Retainer – Part Number: 127-2959
    Plate-Retainer
    Part Number: 127-2959
      No Longer Available
  • 10
    Screw – Part Number: 127-2960
    Screw
    Part Number: 127-2960
      No Longer Available
  • 11
    Stud – Part Number: 127-2961
    Stud
    Part Number: 127-2961
      No Longer Available
  • 12
    Frame – Part Number: 127-3845
    Frame
    Part Number: 127-3845
      No Longer Available
  • 13
    Cover – Part Number: 127-3846
    Cover
    Part Number: 127-3846
      No Longer Available
  • 14
    Pulley – Part Number: 127-2954
    Pulley
    Part Number: 127-2954
      Special Order
    $119.26
  • 15
    Nut – Part Number: 127-2955
    Nut
    Part Number: 127-2955
      No Longer Available
  • 16
    Collar – Part Number: 127-2957
    Collar
    Part Number: 127-2957
      Special Order
    $34.68
  • 17
    Alternator – Part Number: 135-4278
    Alternator
    Part Number: 135-4278
      Special Order
    $1517.84
  • 18
    Holder – Part Number: 127-3848
    Holder
    Part Number: 127-3848
      Special Order
    $443.30
  • 19
    Holder – Part Number: 127-2993
    Holder
    Part Number: 127-2993
      Special Order
    $158.07
  • 20
    Screw – Part Number: 127-2965
    Screw
    Part Number: 127-2965
      No Longer Available
  • 21
    Screw – Part Number: 127-2966
    Screw
    Part Number: 127-2966
      No Longer Available
  • 22
    Bolt – Part Number: 127-2967
    Bolt
    Part Number: 127-2967
      No Longer Available
  • 23
    Screw – Part Number: 127-2968
    Screw
    Part Number: 127-2968
      Special Order
    $8.86
  • 24
    Bolt – Part Number: 127-2969
    Bolt
    Part Number: 127-2969
      No Longer Available
  • 25
    Bushing-Insulation – Part Number: 127-2970
    Bushing-Insulation
    Part Number: 127-2970
      No Longer Available
  • 26
    Nut – Part Number: 127-2971
    Nut
    Part Number: 127-2971
      No Longer Available
  • 27
    Nut – Part Number: 125-7230
    Nut
    Part Number: 125-7230
      Special Order
    $5.95
  • 28
    Spacer – Part Number: 125-6947
    Spacer
    Part Number: 125-6947
      Special Order
    $36.91
  • 29
    Adjuster – Part Number: 127-2977
    Adjuster
    Part Number: 127-2977
      Special Order
    $183.24
  • 30
    Bolt-Adjust – Part Number: 135-4027
    Bolt-Adjust
    Part Number: 135-4027
      Special Order
    $10.40
  • 31
    Bolt – Part Number: 125-7219
    Bolt
    Part Number: 125-7219
      Special Order
    $8.60
Hdac Assembly No. 142-3554
Hdac Assembly No. 142-3554 Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
Hood And Cover Assembly
Hood And Cover Assembly Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
  • 2
    Cover-Tank, Rh – Part Number: 126-8655
    Cover-Tank, Rh
    Part Number: 126-8655
      Special Order
    $476.77
  • 3
    Cover-Tank, Lh – Part Number: 126-8656
    Cover-Tank, Lh
    Part Number: 126-8656
      Special Order
    $476.77
  • 4
    Decal – Part Number: 68-3640
    Decal
    Part Number: 68-3640
      Special Order
    $27.16
  • 6
    Hood Assembly – Part Number: 135-7930
    Hood Assembly
    Part Number: 135-7930
      Special Order
    $2405.34
  • 7
    Clip – Part Number: 107069
    Clip
    Part Number: 107069
      In Stock
    $5.95
  • 8
    Screw-Torx – Part Number: 126-8216
    Screw-Torx
    Part Number: 126-8216
      Special Order
    $5.95
  • 9
    Washer-flat – Part Number: 3256-71
    Washer-flat
    Part Number: 3256-71
      Special Order
    Minimum Quantity of 2 required
    $5.95
  • 10
    Washer-Flat – Part Number: 3256-4
    Washer-Flat
    Part Number: 3256-4
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 11
    Prop-Hood – Part Number: 142-6010
    Prop-Hood
    Part Number: 142-6010
      Special Order
    $16.48
  • 12
    Pin-Cotter, Hair – Part Number: 3290-255
    Pin-Cotter, Hair
    Part Number: 3290-255
      Special Order
    $11.83
  • 14
    Latch-Catch – Part Number: 126-8672
    Latch-Catch
    Part Number: 126-8672
      Special Order
    $7.33
  • 15
    Screw-hwh – Part Number: 32144-10
    Screw-hwh
    Part Number: 32144-10
      In Stock
    Minimum Quantity of 2 required
    $6.42
Hood Assembly No. 135-7930
Hood Assembly No. 135-7930 Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
  • 1
    Hood – Part Number: 135-7929
    Hood
    Part Number: 135-7929
      Special Order
    $1570.97
  • 2
    Screen-Intake – Part Number: 135-6746-03
    Screen-Intake
    Part Number: 135-6746-03
      Special Order
    $289.27
  • 3
    Block Off-Hood – Part Number: 135-6750-03
    Block Off-Hood
    Part Number: 135-6750-03
      Special Order
    $78.10
  • 4
    Plug-Plastic – Part Number: 117-2382
    Plug-Plastic
    Part Number: 117-2382
      Special Order
    $5.95
  • 5
    Support-Hood – Part Number: 126-6524-03
    Support-Hood
    Part Number: 126-6524-03
      Special Order
    $187.49
  • 6
    Screw-carr – Part Number: 3229-1
    Screw-carr
    Part Number: 3229-1
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 7
    Nut-Hf – Part Number: 104-7201
    Nut-Hf
    Part Number: 104-7201
      In Stock
    $5.95
  • 8
    LATCH-RUBBER – Part Number: 103-2898
    LATCH-RUBBER
    Part Number: 103-2898
      Special Order
    $44.98
  • 9
    Plate-Seal – Part Number: 135-7572-03
    Plate-Seal
    Part Number: 135-7572-03
      Special Order
    $63.05
  • 10
    Seal-Foam – Part Number: 135-7573
    Seal-Foam
    Part Number: 135-7573
      Special Order
    $5.95
  • 11
    Seal-Bulb – Part Number: 126-6846
    Seal-Bulb
    Part Number: 126-6846
      Special Order
    $42.60
  • 12
    Decal – Part Number: 62-7400
    Decal
    Part Number: 62-7400
      Special Order
    $33.45
Hydraulic Assembly
Hydraulic Assembly Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
  • 1
    Hydraulic Reservoir Assembly – Part Number: 142-5034
    Hydraulic Reservoir Assembly
    Part Number: 142-5034
      Special Order
    $1049.99
  • 2
    Motor-Hydraulic, Rh – Part Number: 126-8133
    Motor-Hydraulic, Rh
    Part Number: 126-8133
      Special Order
    $1970.07
  • 2:1
    5 Stud Wheel Hub Kit – Part Number: 135-5333
    5 Stud Wheel Hub Kit
    Part Number: 135-5333
      Special Order
    $342.84
  • 3
    Motor-Hydraulic, Lh – Part Number: 126-8134
    Motor-Hydraulic, Lh
    Part Number: 126-8134
      Special Order
    $1970.07
  • 3:1
    5 Stud Wheel Hub Kit – Part Number: 135-5333
    5 Stud Wheel Hub Kit
    Part Number: 135-5333
      Special Order
    $342.84
  • 4
    Fitting-Hydraulic – Part Number: 340-155
    Fitting-Hydraulic
    Part Number: 340-155
      Special Order
    $49.25
  • 4:1
    O-Ring – Part Number: 237-79
    O-Ring
    Part Number: 237-79
      Special Order
    Minimum Quantity of 2 required
    $8.20
  • 4:2
    O-RING – Part Number: 237-151
    O-RING
    Part Number: 237-151
      Special Order
    $5.95
  • 5
    Hose Assembly – Part Number: 126-8686
    Hose Assembly
    Part Number: 126-8686
      Special Order
    $164.76
  • 6
    Hose Assembly – Part Number: 126-8687
    Hose Assembly
    Part Number: 126-8687
      Special Order
    $164.76
  • 7
    Hose Assembly – Part Number: 126-8684
    Hose Assembly
    Part Number: 126-8684
      Special Order
    $82.80
  • 8
    Hose Assembly – Part Number: 126-8685
    Hose Assembly
    Part Number: 126-8685
      Special Order
    $107.34
  • 9
    Fitting-Hyd, 90 Degree – Part Number: 340-77
    Fitting-Hyd, 90 Degree
    Part Number: 340-77
      Special Order
    $42.53
  • 9:1
    O-Ring – Part Number: 237-22
    O-Ring
    Part Number: 237-22
      In Stock
    $5.95
  • 9:2
    O-Ring – Part Number: 237-42
    O-Ring
    Part Number: 237-42
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 10
    Plate-Motor – Part Number: 126-7469-03
    Plate-Motor
    Part Number: 126-7469-03
      Special Order
    $136.22
  • 11
    Screw-Hh – Part Number: 325-19
    Screw-Hh
    Part Number: 325-19
      Special Order
    $5.95
  • 12
    Nut-HHF – Part Number: 32128-49
    Nut-HHF
    Part Number: 32128-49
      Special Order
    $5.95
  • 13
    Washer-Spring – Part Number: 1-513435
    Washer-Spring
    Part Number: 1-513435
      In Stock
    Minimum Quantity of 2 required
    $9.35
  • 14
    Screw-Hh – Part Number: 325-6
    Screw-Hh
    Part Number: 325-6
      Special Order
    $5.95
  • 15
    Plug-Magnetic – Part Number: 142-2435
    Plug-Magnetic
    Part Number: 142-2435
      Special Order
    $22.48
  • 16
    Tee Hose Assembly – Part Number: 135-3731
    Tee Hose Assembly
    Part Number: 135-3731
      Special Order
    $166.18
  • 17
    ADAPTER – Part Number: 340-3
    ADAPTER
    Part Number: 340-3
      Special Order
    $15.63
  • 17:1
    O-Ring – Part Number: 237-22
    O-Ring
    Part Number: 237-22
      In Stock
    $5.95
  • 17:2
    O-Ring – Part Number: 237-79
    O-Ring
    Part Number: 237-79
      Special Order
    Minimum Quantity of 2 required
    $8.20
  • 18
    Tie-cable – Part Number: 3290-378
    Tie-cable
    Part Number: 3290-378
      Special Order
    $5.95
  • 19
    Hose – Part Number: 126-6776
    Hose
    Part Number: 126-6776
      Special Order
    $37.48
  • 20
    Hose-Return – Part Number: 126-6767
    Hose-Return
    Part Number: 126-6767
      Special Order
    $25.48
  • 21
    Hose-Return – Part Number: 126-6768
    Hose-Return
    Part Number: 126-6768
      Special Order
    $29.98
  • 22
    Hose – Part Number: 126-6778
    Hose
    Part Number: 126-6778
      Special Order
    $19.48
  • 23
    Hose – Part Number: 126-6766
    Hose
    Part Number: 126-6766
      Special Order
    $9.72
  • 24
    Tube Assembly – Part Number: 126-8688
    Tube Assembly
    Part Number: 126-8688
      Special Order
    $212.93
  • 25
    Hose Assembly – Part Number: 126-8682
    Hose Assembly
    Part Number: 126-8682
      Special Order
    $93.73
  • 26
    Hose-Suction – Part Number: 126-6774
    Hose-Suction
    Part Number: 126-6774
      Special Order
    $31.35
  • 27
    Clip-Tie – Part Number: 32180-030
    Clip-Tie
    Part Number: 32180-030
      Special Order
    $7.86
  • 28
    Rod-Support, Hydraulic Tank – Part Number: 126-7547
    Rod-Support, Hydraulic Tank
    Part Number: 126-7547
      Special Order
    $29.98
  • 29
    Rod-Support, Hydraulic Tank – Part Number: 126-7546
    Rod-Support, Hydraulic Tank
    Part Number: 126-7546
      Special Order
    $36.80
  • 30
    Nut-flange, Ni – Part Number: 104-8300
    Nut-flange, Ni
    Part Number: 104-8300
    ★★★★★
    ★★★★★
    (1)
      In Stock
    $5.95
  • 31
    Dipstick – Part Number: 112-6365
    Dipstick
    Part Number: 112-6365
      Special Order
    $111.61
  • 32
    O-Ring – Part Number: 94-8166
    O-Ring
    Part Number: 94-8166
      Special Order
    $7.06
  • 33
    PLUG-PLASTIC – Part Number: 93-7498
    PLUG-PLASTIC
    Part Number: 93-7498
      In Stock
    $43.07
  • 34
    Fitting-straight – Part Number: 340-7
    Fitting-straight
    Part Number: 340-7
      Special Order
    $19.62
  • 34:1
    O-Ring – Part Number: 237-65
    O-Ring
    Part Number: 237-65
      Special Order
    $5.95
  • 34:2
    O-Ring – Part Number: 237-80
    O-Ring
    Part Number: 237-80
      In Stock
    $9.16
  • 35
    Fitting-Hyd. – Part Number: 340-4
    Fitting-Hyd.
    Part Number: 340-4
      Special Order
    $17.38
  • 35:1
    O-Ring – Part Number: 237-30
    O-Ring
    Part Number: 237-30
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 35:2
    O-Ring – Part Number: 237-79
    O-Ring
    Part Number: 237-79
      Special Order
    Minimum Quantity of 2 required
    $8.20
  • 36
    Fitting-Hyd., 90deg. – Part Number: 340-105
    Fitting-Hyd., 90deg.
    Part Number: 340-105
      Special Order
    $63.18
  • 36:1
    O-Ring – Part Number: 237-80
    O-Ring
    Part Number: 237-80
      In Stock
    $9.16
  • 36:2
    O-Ring – Part Number: 237-30
    O-Ring
    Part Number: 237-30
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 37
    Adapter-Straight – Part Number: 103-1912
    Adapter-Straight
    Part Number: 103-1912
      Special Order
    $29.98
  • 37:1
    O-Ring – Part Number: 237-42
    O-Ring
    Part Number: 237-42
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 38
    FITTING-HYD, 90 DEG (BARBED) – Part Number: 353-987
    FITTING-HYD, 90 DEG (BARBED)
    Part Number: 353-987
      Special Order
    $90.39
  • 38:1
    O-Ring Seal – Part Number: 237-81
    O-Ring Seal
    Part Number: 237-81
      Special Order
    $5.95
  • 39
    Fitting – Part Number: 87-8170
    Fitting
    Part Number: 87-8170
      Special Order
    $67.07
  • 39:1
    O-Ring – Part Number: 237-80
    O-Ring
    Part Number: 237-80
      In Stock
    $9.16
  • 40
    FITTING-STRAIGHT – Part Number: 354-95
    FITTING-STRAIGHT
    Part Number: 354-95
      Special Order
    $12.66
  • 41
    Clamp-hose – Part Number: 2412-98
    Clamp-hose
    Part Number: 2412-98
    ★★★★★
    ★★★★★
    (2)
      In Stock
    $5.95
  • 42
    Breather – Part Number: 68-6150
    Breather
    Part Number: 68-6150
      Special Order
    $46.42
  • 43
    Clamp-Hose – Part Number: 2412-129
    Clamp-Hose
    Part Number: 2412-129
      Special Order
    $5.95
  • 44
    Clamp-Hose – Part Number: 2412-34
    Clamp-Hose
    Part Number: 2412-34
      Special Order
    $5.95
  • 45
    Clamp-Hose – Part Number: 103-1988
    Clamp-Hose
    Part Number: 103-1988
      Special Order
    $5.95
  • 46
    Lift Cylinder Assembly – Part Number: 126-7841
    Lift Cylinder Assembly
    Part Number: 126-7841
      Special Order
    $622.76
  • 46:1
    Kit, Cyl Repair – Part Number: 142-2767
    Kit, Cyl Repair
    Part Number: 142-2767
      Special Order
    $156.23
  • 47
    Deck Lift Valve Asm – Part Number: 131-1934
    Deck Lift Valve Asm
    Part Number: 131-1934
      Special Order
    $1160.23
  • 48
    Screw-hwhtf – Part Number: 117-5248
    Screw-hwhtf
    Part Number: 117-5248
      Special Order
    $5.95
  • 49
    Fitting-Hyd, Straight – Part Number: 340-2
    Fitting-Hyd, Straight
    Part Number: 340-2
      Special Order
    $16.02
  • 49:1
    O-Ring – Part Number: 237-22
    O-Ring
    Part Number: 237-22
      In Stock
    $5.95
  • 49:2
    O-Ring – Part Number: 237-42
    O-Ring
    Part Number: 237-42
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 50
    Fitting-Hydraulic, Straight – Part Number: 126-8692
    Fitting-Hydraulic, Straight
    Part Number: 126-8692
      Special Order
    $35.60
  • 50:1
    O-Ring – Part Number: 237-78
    O-Ring
    Part Number: 237-78
      Special Order
    $5.95
  • 50:2
    O-Ring – Part Number: 237-21
    O-Ring
    Part Number: 237-21
      Special Order
    Minimum Quantity of 2 required
    $5.95
  • 51
    Hose Assembly – Part Number: 126-8683
    Hose Assembly
    Part Number: 126-8683
      Special Order
    $96.85
  • 52
    Clip-Loom – Part Number: 1-633396
    Clip-Loom
    Part Number: 1-633396
      Special Order
    $5.95
  • 53
    Nut-flange, Ni – Part Number: 104-8301
    Nut-flange, Ni
    Part Number: 104-8301
      In Stock
    $5.95
Hydraulic Gear Pump Assembly No. 112-9542
Hydraulic Gear Pump Assembly No. 112-9542 Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
  • 1
    Valve – Part Number: 112-0198
    Valve
    Part Number: 112-0198
      Special Order
    $263.93
  • 2
    Seal Kit – Part Number: 112-0199
    Seal Kit
    Part Number: 112-0199
      Special Order
    $94.33
Hydraulic Reservoir Assembly No. 142-5034
Hydraulic Reservoir Assembly No. 142-5034 Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
Idler Mount Assembly No. 126-3271
Idler Mount Assembly No. 126-3271 Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
  • 1
    Mount-Idler – Part Number: 126-3373-01
    Mount-Idler
    Part Number: 126-3373-01
      Special Order
    $314.71
  • 2
    BOLT-SHOULDER, CARRIAGE – Part Number: 116-1502
    BOLT-SHOULDER, CARRIAGE
    Part Number: 116-1502
      Special Order
    $9.28
  • 3
    SCREW-CARR – Part Number: 3231-44
    SCREW-CARR
    Part Number: 3231-44
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 4
    Idler Arm Assembly – Part Number: 126-2967
    Idler Arm Assembly
    Part Number: 126-2967
      Special Order
    $207.57
  • 4:1
    Fitting-Lube, 45 Deg – Part Number: 302-11
    Fitting-Lube, 45 Deg
    Part Number: 302-11
      On Order
    $5.95
  • 4:2
    O-Ring – Part Number: 106-7159
    O-Ring
    Part Number: 106-7159
      On Order
    Minimum Quantity of 2 required
    $5.95
  • 4:3
    Ring-Snap – Part Number: 32120-10
    Ring-Snap
    Part Number: 32120-10
      Special Order
    $5.95
  • 4:4
    Bearing-Spherical – Part Number: 103-3504
    Bearing-Spherical
    Part Number: 103-3504
      Special Order
    $29.98
  • 4:6
    SEAL-DOUBLE LIP – Part Number: 103-3505
    SEAL-DOUBLE LIP
    Part Number: 103-3505
      On Order
    Minimum Quantity of 2 required
    $6.72
  • 4:7
    SEAL-SINGLE LIP – Part Number: 103-3506
    SEAL-SINGLE LIP
    Part Number: 103-3506
      On Order
    Minimum Quantity of 2 required
    $6.72
  • 5
    Extension-spring – Part Number: 116-6317
    Extension-spring
    Part Number: 116-6317
      In Stock
    $34.07
  • 6
    Idler-V – Part Number: 126-7460
    Idler-V
    Part Number: 126-7460
      Special Order
    $125.68
  • 7
    Shield-Dust – Part Number: 126-8043
    Shield-Dust
    Part Number: 126-8043
      Special Order
    $5.95
  • 8
    Idler V – Part Number: 126-8766
    Idler V
    Part Number: 126-8766
      Special Order
    $112.81
  • 9
    Standoff-Idler – Part Number: 126-3312
    Standoff-Idler
    Part Number: 126-3312
      Special Order
    $23.98
  • 10
    GUARD-TOP – Part Number: 103-2916
    GUARD-TOP
    Part Number: 103-2916
      Special Order
    $5.95
  • 11
    Nut-flange, Ni – Part Number: 109-6658
    Nut-flange, Ni
    Part Number: 109-6658
      Special Order
    $5.95
  • 12
    Spacer – Part Number: 43-0940
    Spacer
    Part Number: 43-0940
      In Stock
    $5.95
  • 13
    Screw-Hhf – Part Number: 3234-11
    Screw-Hhf
    Part Number: 3234-11
      In Stock
    $5.95
  • 14
    SCREW-CARR – Part Number: 3231-10
    SCREW-CARR
    Part Number: 3231-10
      Special Order
    $5.95
  • 15
    Guide-Belt – Part Number: 135-0362
    Guide-Belt
    Part Number: 135-0362
      Special Order
    $32.71
  • 16
    Nut-hex – Part Number: 121-4600
    Nut-hex
    Part Number: 121-4600
    ★★★★★
    ★★★★★
    (1)
      In Stock
    $5.95
Lh Fuel Tank Assembly 142-8637
Lh Fuel Tank Assembly 142-8637 Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
Motion Control Assembly
Motion Control Assembly Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
Oil Pump Assembly
Oil Pump Assembly Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
  • 1
    Oil Pump Asm – Part Number: 127-4753
    Oil Pump Asm
    Part Number: 127-4753
      Special Order
    $316.69
  • 2
    Gasket – Part Number: 127-3004
    Gasket
    Part Number: 127-3004
      Special Order
    $5.95
  • 3
    Bolt – Part Number: 125-7232
    Bolt
    Part Number: 125-7232
      Special Order
    $6.16
  • 4
    Plug-Drain – Part Number: 125-7171
    Plug-Drain
    Part Number: 125-7171
      Special Order
    $44.60
  • 5
    Dipstick – Part Number: 125-6987
    Dipstick
    Part Number: 125-6987
      Special Order
    $118.19
  • 6
    Guide-Dipstick – Part Number: 125-6954
    Guide-Dipstick
    Part Number: 125-6954
      Special Order
    $20.82
  • 7
    Gasket – Part Number: 125-7022
    Gasket
    Part Number: 125-7022
      Special Order
    $15.02
  • 8
    Oil Inlet Pipe Assembly – Part Number: 135-4017
    Oil Inlet Pipe Assembly
    Part Number: 135-4017
      Special Order
    $167.66
  • 9
    Bolt – Part Number: 125-7217
    Bolt
    Part Number: 125-7217
      Special Order
    $8.60
  • 10
    Oil Cooler Assembly – Part Number: 135-4018
    Oil Cooler Assembly
    Part Number: 135-4018
      Special Order
    $1956.50
  • 11
    Packing-Oil Cooler – Part Number: 135-4019
    Packing-Oil Cooler
    Part Number: 135-4019
      Special Order
    $29.73
  • 12
    Nut – Part Number: 135-4020
    Nut
    Part Number: 135-4020
      Special Order
    $19.10
  • 13
    Lo Filter Bracket Assembly – Part Number: 135-4021
    Lo Filter Bracket Assembly
    Part Number: 135-4021
      Special Order
    $180.29
  • 14
    Bracket Asm – Part Number: 125-6989
    Bracket Asm
    Part Number: 125-6989
      Special Order
    $115.69
  • 16
    Stud – Part Number: 125-7042
    Stud
    Part Number: 125-7042
      Special Order
    $64.15
  • 17
    Collar-Cooler, Oil – Part Number: 135-4022
    Collar-Cooler, Oil
    Part Number: 135-4022
      Special Order
    $27.60
  • 18
    Gasket – Part Number: 125-7024
    Gasket
    Part Number: 125-7024
      Special Order
    $6.72
  • 20
    Joint – Part Number: 125-6990
    Joint
    Part Number: 125-6990
      Special Order
    $111.05
  • 21
    Pipe Asm – Part Number: 125-7078
    Pipe Asm
    Part Number: 125-7078
      Special Order
    $78.51
  • 22
    Clip – Part Number: 125-7162
    Clip
    Part Number: 125-7162
      Special Order
    $12.28
  • 24
    Clamp-Hose – Part Number: 125-7191
    Clamp-Hose
    Part Number: 125-7191
      Special Order
    $29.58
  • 25
    Pipe Asm – Part Number: 127-3804
    Pipe Asm
    Part Number: 127-3804
      Special Order
    $61.11
  • 26
    Clip – Part Number: 125-7162
    Clip
    Part Number: 125-7162
      Special Order
    $12.28
  • 28
    Tube – Part Number: 127-3805
    Tube
    Part Number: 127-3805
      Special Order
    $32.72
  • 29
    Clamp-Hose – Part Number: 125-7191
    Clamp-Hose
    Part Number: 125-7191
      Special Order
    $29.58
  • 30
    Bolt – Part Number: 125-7595
    Bolt
    Part Number: 125-7595
      Special Order
    $5.95
  • 31
    Switch-Oil – Part Number: 125-6918
    Switch-Oil
    Part Number: 125-6918
      Special Order
    $49.78
  • 32
    Filter-engine, Oil – Part Number: 125-7025
    Filter-engine, Oil
    Part Number: 125-7025
      Special Order
    $28.56
Parking Brake Assembly
Parking Brake Assembly Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
Rear Frame Assembly
Rear Frame Assembly Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
Rear Wheel Assembly
Rear Wheel Assembly Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
  • 1
    Tire Assembly – Part Number: 126-8104
    Tire Assembly
    Part Number: 126-8104
      Special Order
    $541.06
  • 1:1
    Rim – Part Number: 126-8106
    Rim
    Part Number: 126-8106
      Special Order
    $216.95
  • 1:2
    Tire – Part Number: 126-8033
    Tire
    Part Number: 126-8033
      Special Order
    $314.47
  • 1:3
    Valve – Part Number: 5108
    Valve
    Part Number: 5108
      In Stock
    $11.80
  • 2
    Nut-Lug – Part Number: 139-2564
    Nut-Lug
    Part Number: 139-2564
      In Stock
    $5.95
  • 3
    Decal-Torque, Wheel Nut – Part Number: 135-0328
    Decal-Torque, Wheel Nut
    Part Number: 135-0328
      Special Order
    $5.95
Rh Fuel Tank Assembly No. 142-8638
Rh Fuel Tank Assembly No. 142-8638 Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
Roll-Over Protection System Assembly No. 142-9749
Roll-Over Protection System Assembly No. 142-9749 Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
  • 3
    SPACER – Part Number: 109-6653
    SPACER
    Part Number: 109-6653
      In Stock
    $8.82
  • 4
    Assembly,rops Upper With Decal – Part Number: 142-2385
    Assembly,rops Upper With Decal
    Part Number: 142-2385
      Special Order
    $388.38
  • 4:2
    Decal-Warning, Folding Rops – Part Number: 107-3069
    Decal-Warning, Folding Rops
    Part Number: 107-3069
      Special Order
    $35.78
  • 5
    SPRING PIN Assembly – Part Number: 116-0104
    SPRING PIN Assembly
    Part Number: 116-0104
      Special Order
    $57.48
  • 6
    NUT-LOCK – Part Number: 99-5107
    NUT-LOCK
    Part Number: 99-5107
      In Stock
    $5.95
  • 7
    SCREW-CARR – Part Number: 3233-10
    SCREW-CARR
    Part Number: 3233-10
      Special Order
    $11.26
  • 8
    Washer-spring – Part Number: 109-9505
    Washer-spring
    Part Number: 109-9505
      In Stock
    Minimum Quantity of 2 required
    $8.42
  • 9
    SCREW-HH – Part Number: 325-35
    SCREW-HH
    Part Number: 325-35
      Special Order
    $5.95
  • 10
    SPACER – Part Number: 116-0960
    SPACER
    Part Number: 116-0960
      Special Order
    $10.02
  • 11
    Spring-Leaf – Part Number: 110-5696
    Spring-Leaf
    Part Number: 110-5696
      Special Order
    $53.97
  • 12
    Rivet-blind – Part Number: 3290-412
    Rivet-blind
    Part Number: 3290-412
      Special Order
    $5.95
Seat Assembly No. 147-4984
Seat Assembly No. 147-4984 Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
Seat Mounting Assembly
Seat Mounting Assembly Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
Spindle Assembly No. 137-9780
Spindle Assembly No. 137-9780 Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
  • 2
    BEARING-BALL – Part Number: 116-0720
    BEARING-BALL
    Part Number: 116-0720
      In Stock
    $29.97
  • 3
    Spacer-Bearing – Part Number: 138-6042
    Spacer-Bearing
    Part Number: 138-6042
      Special Order
    $15.72
Starting Motor Assembly
Starting Motor Assembly Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
  • 1
    Starter Asm – Part Number: 127-3818
    Starter Asm
    Part Number: 127-3818
      Special Order
    $1110.45
  • 2
    Switch Asm – Part Number: 127-3819
    Switch Asm
    Part Number: 127-3819
      Special Order
    $365.76
  • 3
    Armature Asm – Part Number: 127-3820
    Armature Asm
    Part Number: 127-3820
      Special Order
    $315.57
  • 4
    Yoke Asm – Part Number: 127-3821
    Yoke Asm
    Part Number: 127-3821
      Special Order
    $311.45
  • 5
    Brush Holder Asm – Part Number: 127-3822
    Brush Holder Asm
    Part Number: 127-3822
      Special Order
    $154.34
  • 6
    Brush – Part Number: 127-3823
    Brush
    Part Number: 127-3823
      Special Order
    $7.52
  • 7
    Brush Set – Part Number: 127-3824
    Brush Set
    Part Number: 127-3824
      Special Order
    $43.84
  • 8
    Spring – Part Number: 127-3825
    Spring
    Part Number: 127-3825
      Special Order
    $14.38
  • 9
    Cover Asm – Part Number: 127-3826
    Cover Asm
    Part Number: 127-3826
      Special Order
    $44.91
  • 10
    Metal – Part Number: 127-3827
    Metal
    Part Number: 127-3827
      Special Order
    $57.30
  • 11
    Gear – Part Number: 127-3828
    Gear
    Part Number: 127-3828
      Special Order
    $43.84
  • 12
    Bracket – Part Number: 127-3829
    Bracket
    Part Number: 127-3829
      Special Order
    $46.96
  • 13
    Bracket – Part Number: 127-3830
    Bracket
    Part Number: 127-3830
      Special Order
    $66.05
  • 14
    Gear – Part Number: 127-3831
    Gear
    Part Number: 127-3831
      Special Order
    $115.69
  • 15
    Bracket – Part Number: 127-3832
    Bracket
    Part Number: 127-3832
      Special Order
    $8.10
  • 16
    Pinion Asm – Part Number: 127-3833
    Pinion Asm
    Part Number: 127-3833
      Special Order
    $259.09
  • 17
    Shaft – Part Number: 127-3834
    Shaft
    Part Number: 127-3834
      Special Order
    $254.09
  • 18
    Washer Set – Part Number: 127-3835
    Washer Set
    Part Number: 127-3835
      Special Order
    $29.88
  • 19
    Case Asm – Part Number: 127-3836
    Case Asm
    Part Number: 127-3836
      Special Order
    $289.29
  • 20
    Metal-Starter – Part Number: 127-3837
    Metal-Starter
    Part Number: 127-3837
      Special Order
    $15.10
  • 21
    Lever Set – Part Number: 127-3838
    Lever Set
    Part Number: 127-3838
      Special Order
    $91.67
  • 22
    Dust Cover Asm – Part Number: 127-3839
    Dust Cover Asm
    Part Number: 127-3839
      Special Order
    $12.40
  • 23
    Bolt-Through – Part Number: 135-4024
    Bolt-Through
    Part Number: 135-4024
      Special Order
    $9.32
  • 24
    Bolt – Part Number: 125-7225
    Bolt
    Part Number: 125-7225
      Special Order
    $8.86
Suction Manifold Assembly
Suction Manifold Assembly Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
  • 1
    Pipe – Part Number: 127-4704
    Pipe
    Part Number: 127-4704
      Special Order
    $79.42
  • 2
    Clip-Hose – Part Number: 125-7040
    Clip-Hose
    Part Number: 125-7040
      Special Order
    $15.26
  • 3
    Gasket-Manifold, Intake – Part Number: 127-3857
    Gasket-Manifold, Intake
    Part Number: 127-3857
      Special Order
    $24.68
  • 4
    Intake Manifold Asm – Part Number: 127-4722
    Intake Manifold Asm
    Part Number: 127-4722
      Special Order
    $504.07
  • 5
    Manifold-Intake – Part Number: 127-4721
    Manifold-Intake
    Part Number: 127-4721
      Special Order
    $504.07
  • 6
    Stud – Part Number: 127-3180
    Stud
    Part Number: 127-3180
      Special Order
    $6.40
  • 7
    Sensor-Temp, Air – Part Number: 127-3031
    Sensor-Temp, Air
    Part Number: 127-3031
      Special Order
    $1577.91
  • 8
    Bolt – Part Number: 125-7220
    Bolt
    Part Number: 125-7220
      Special Order
    $9.36
  • 9
    Gasket-Collector – Part Number: 127-3034
    Gasket-Collector
    Part Number: 127-3034
      Special Order
    $20.53
  • 10
    Intake Collector Asm – Part Number: 127-4725
    Intake Collector Asm
    Part Number: 127-4725
      Special Order
    $813.73
  • 11
    Stud – Part Number: 127-4701
    Stud
    Part Number: 127-4701
      Special Order
    $8.98
  • 12
    Sensor-Temp, Air – Part Number: 127-3030
    Sensor-Temp, Air
    Part Number: 127-3030
      Special Order
    $302.99
  • 13
    O Ring-Sensor, Temp – Part Number: 127-3033
    O Ring-Sensor, Temp
    Part Number: 127-3033
      Special Order
    $28.46
  • 14
    Collector-Intake – Part Number: 127-4724
    Collector-Intake
    Part Number: 127-4724
      Special Order
    $303.27
  • 15
    Joint-Hose – Part Number: 127-3080
    Joint-Hose
    Part Number: 127-3080
      Special Order
    $92.67
  • 16
    Joint-Hose – Part Number: 127-3081
    Joint-Hose
    Part Number: 127-3081
      No Longer Available
  • 17
    Washer-Seal – Part Number: 127-3166
    Washer-Seal
    Part Number: 127-3166
      Special Order
    $12.70
  • 18
    Stud – Part Number: 127-3181
    Stud
    Part Number: 127-3181
      Special Order
    $7.46
  • 19
    Nut – Part Number: 127-4775
    Nut
    Part Number: 127-4775
      Special Order
    $5.95
  • 20
    Bolt – Part Number: 125-7220
    Bolt
    Part Number: 125-7220
      Special Order
    $9.36
  • 21
    Bolt – Part Number: 127-3178
    Bolt
    Part Number: 127-3178
      No Longer Available
  • 22
    Stud – Part Number: 127-3182
    Stud
    Part Number: 127-3182
      Special Order
    $6.08
  • 23
    Nut – Part Number: 125-7229
    Nut
    Part Number: 125-7229
      Special Order
    $5.95
  • 24
    Bend-Inlet – Part Number: 127-3035
    Bend-Inlet
    Part Number: 127-3035
      No Longer Available
  • 25
    Body-Throttle – Part Number: 127-3036
    Body-Throttle
    Part Number: 127-3036
      Special Order
    $1830.34
  • 26
    Gasket-Throttle – Part Number: 127-3037
    Gasket-Throttle
    Part Number: 127-3037
      Special Order
    $6.10
  • 27
    Bolt – Part Number: 125-7209
    Bolt
    Part Number: 125-7209
      Special Order
    $5.95
  • 28
    Bolt – Part Number: 125-7211
    Bolt
    Part Number: 125-7211
      Special Order
    $6.52
  • 29
    Bolt – Part Number: 127-3177
    Bolt
    Part Number: 127-3177
      No Longer Available
Transmission Assembly
Transmission Assembly Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
  • 1
    Transmisson Asm – Part Number: 131-5510
    Transmisson Asm
    Part Number: 131-5510
      Special Order
    $10503.83
  • 2
    Washer-Lock – Part Number: 48-9590
    Washer-Lock
    Part Number: 48-9590
      Special Order
    $5.95
  • 3
    Screw-Hh – Part Number: 33115-045
    Screw-Hh
    Part Number: 33115-045
      Special Order
    $5.95
  • 4
    Screw-Hh – Part Number: 33115-035
    Screw-Hh
    Part Number: 33115-035
      Special Order
    $5.95
  • 5
    Hyd Gear Pump Asm – Part Number: 112-9542
    Hyd Gear Pump Asm
    Part Number: 112-9542
      Special Order
    $1273.27
  • 6
    Washer-flat – Part Number: 3256-23
    Washer-flat
    Part Number: 3256-23
    ★★★★★
    ★★★★★
    (3)
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 7
    Washer-lock – Part Number: 3253-4
    Washer-lock
    Part Number: 3253-4
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 8
    Screw-Hh – Part Number: 33114-025
    Screw-Hh
    Part Number: 33114-025
      In Stock
    $5.95
  • 9
    Coupler-Spline – Part Number: 108-9920
    Coupler-Spline
    Part Number: 108-9920
      Special Order
    $83.42
  • 10
    O-Ring – Part Number: 108-9919
    O-Ring
    Part Number: 108-9919
      Special Order
    $5.95
  • 11
    Shield-Seal – Part Number: 114-4088
    Shield-Seal
    Part Number: 114-4088
      Special Order
    $32.71
  • 12
    Screw-Hh – Part Number: 33115-016
    Screw-Hh
    Part Number: 33115-016
      Special Order
    $5.95
  • 13
    Support-Tube – Part Number: 126-6806
    Support-Tube
    Part Number: 126-6806
      Special Order
    $11.98
  • 14
    Clip-Tie – Part Number: 32180-030
    Clip-Tie
    Part Number: 32180-030
      Special Order
    $7.86
  • 15
    Pin-Dowel – Part Number: 87-1910
    Pin-Dowel
    Part Number: 87-1910
      Special Order
    $5.95
  • 16
    FITTING-HYD, 90 DEG – Part Number: 340-132
    FITTING-HYD, 90 DEG
    Part Number: 340-132
      Special Order
    $39.25
  • 16:1
    O-Ring – Part Number: 237-78
    O-Ring
    Part Number: 237-78
      Special Order
    $5.95
  • 16:2
    O-Ring – Part Number: 237-21
    O-Ring
    Part Number: 237-21
      Special Order
    Minimum Quantity of 2 required
    $5.95
  • 17
    Tube Assembly – Part Number: 126-8689
    Tube Assembly
    Part Number: 126-8689
      Special Order
    $49.07
  • 18
    Filter-Oil, Hyd – Part Number: 108-5194
    Filter-Oil, Hyd
    Part Number: 108-5194
      Special Order
    $72.33
Transmission Assembly (Cont.) Center Section Assembly
Transmission Assembly (Cont.) Center Section Assembly Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
  • 1
    Valve-Flushing, Rh – Part Number: 107-0807
    Valve-Flushing, Rh
    Part Number: 107-0807
      Special Order
    $178.46
  • 2
    Plug – Part Number: 107-0857
    Plug
    Part Number: 107-0857
      Special Order
    $43.39
  • 3
    O Ring-Plug – Part Number: 107-0817
    O Ring-Plug
    Part Number: 107-0817
      Special Order
    $5.95
  • 4
    Center Case, Complete – Part Number: 121-3377
    Center Case, Complete
    Part Number: 121-3377
      Special Order
    $4164.49
  • 6
    Plate-Valve – Part Number: 107-0805
    Plate-Valve
    Part Number: 107-0805
      Special Order
    $184.55
  • 7
    Cylinder Block Asm – Part Number: 107-0824
    Cylinder Block Asm
    Part Number: 107-0824
      Special Order
    $1846.21
  • 8
    Plate-Thrust – Part Number: 107-0830
    Plate-Thrust
    Part Number: 107-0830
      Special Order
    $116.98
  • 9
    Pin-Parallel – Part Number: 92-0765
    Pin-Parallel
    Part Number: 92-0765
      Special Order
    $5.95
  • 10
    Bolt – Part Number: 107-0859
    Bolt
    Part Number: 107-0859
      Special Order
    $5.95
  • 11
    U-Nut – Part Number: 120-6681
    U-Nut
    Part Number: 120-6681
      Special Order
    $18.32
  • 12
    Arm-Control – Part Number: 120-6680
    Arm-Control
    Part Number: 120-6680
      Special Order
    $669.64
  • 13
    Side Cover Asm – Part Number: 107-0832
    Side Cover Asm
    Part Number: 107-0832
      Special Order
    $595.97
  • 14
    Washer – Part Number: 107-0829
    Washer
    Part Number: 107-0829
      No Longer Available
  • 15
    Pump Housing Asm – Part Number: 120-5151
    Pump Housing Asm
    Part Number: 120-5151
      Special Order
    $6122.93
  • 16
    Bearing – Part Number: 107-0826
    Bearing
    Part Number: 107-0826
      Special Order
    $55.75
  • 17
    Bearing – Part Number: 107-0821
    Bearing
    Part Number: 107-0821
      Special Order
    $68.24
  • 18
    Bearing – Part Number: 107-0838
    Bearing
    Part Number: 107-0838
      Special Order
    $97.55
  • 19
    Bolt – Part Number: 120-6682
    Bolt
    Part Number: 120-6682
      Special Order
    $13.26
  • 23
    Plug-Nptf – Part Number: 107-0861
    Plug-Nptf
    Part Number: 107-0861
      Special Order
    $17.50
  • 24
    O-Ring – Part Number: 237-79
    O-Ring
    Part Number: 237-79
      Special Order
    Minimum Quantity of 2 required
    $8.20
  • 25
    Plug – Part Number: 107-0867
    Plug
    Part Number: 107-0867
      Special Order
    $29.18
  • 26
    Pipe – Part Number: 107-0812
    Pipe
    Part Number: 107-0812
      Special Order
    $114.60
  • 27
    Center Case Seal Kit – Part Number: 107-0852
    Center Case Seal Kit
    Part Number: 107-0852
      Special Order
    $18.76
  • 27:1
    O-Ring – Part Number: 93-0418
    O-Ring
    Part Number: 93-0418
      Special Order
    $10.02
  • 27:2
    O Ring-Plug – Part Number: 107-0817
    O Ring-Plug
    Part Number: 107-0817
      Special Order
    $5.95
  • 28
    Spacer – Part Number: 107-0813
    Spacer
    Part Number: 107-0813
      Special Order
    $16.30
  • 29
    Pump Housing Seal Kit – Part Number: 107-0853
    Pump Housing Seal Kit
    Part Number: 107-0853
      Special Order
    $288.54
  • 29:2
    Gasket-Case, Center – Part Number: 107-0810
    Gasket-Case, Center
    Part Number: 107-0810
      Special Order
    $38.80
  • 29:3
    O Ring-Plug – Part Number: 107-0817
    O Ring-Plug
    Part Number: 107-0817
      Special Order
    $5.95
  • 29:4
    O-Ring – Part Number: 93-0475
    O-Ring
    Part Number: 93-0475
      Special Order
    $13.48
  • 29:5
    Seal – Part Number: 107-0814
    Seal
    Part Number: 107-0814
      Special Order
    $62.10
  • 29:6
    Ring-Seal – Part Number: 107-0825
    Ring-Seal
    Part Number: 107-0825
      Special Order
    $33.48
  • 30
    Plate-Swash – Part Number: 120-6679
    Plate-Swash
    Part Number: 120-6679
      Special Order
    $1340.23
  • 31
    Valve-Bypass – Part Number: 107-0808
    Valve-Bypass
    Part Number: 107-0808
      Special Order
    $126.97
  • 32
    Valve-Rear – Part Number: 107-0804
    Valve-Rear
    Part Number: 107-0804
      Special Order
    $555.21
  • 33
    Valve-Front – Part Number: 107-0803
    Valve-Front
    Part Number: 107-0803
      Special Order
    $555.21
  • 34
    Bolt – Part Number: 107-0863
    Bolt
    Part Number: 107-0863
      Special Order
    $5.95
  • 35
    Valve-Flushing, Lh – Part Number: 107-0806
    Valve-Flushing, Lh
    Part Number: 107-0806
      Special Order
    $178.46
  • 36
    Ring-Snap – Part Number: 92-0757
    Ring-Snap
    Part Number: 92-0757
      Special Order
    $12.86
Transmission Assembly (Cont.) Gear Case And Clutch Assembly
Transmission Assembly (Cont.) Gear Case And Clutch Assembly Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor
  • 1
    Pto Brake Asm – Part Number: 107-0839
    Pto Brake Asm
    Part Number: 107-0839
      Special Order
    $296.20
  • 2
    Rod-Push – Part Number: 107-0837
    Rod-Push
    Part Number: 107-0837
      Special Order
    $5.95
  • 3
    Pto Shaft Asm – Part Number: 107-0833
    Pto Shaft Asm
    Part Number: 107-0833
      Special Order
    $720.29
  • 4
    Ring-Seal – Part Number: 107-0825
    Ring-Seal
    Part Number: 107-0825
      Special Order
    $33.48
  • 5
    Shaft-Pump – Part Number: 107-0827
    Shaft-Pump
    Part Number: 107-0827
      Special Order
    $110.83
  • 6
    Gear-Pump – Part Number: 107-0823
    Gear-Pump
    Part Number: 107-0823
      Special Order
    $296.84
  • 7
    Pin-Parallel – Part Number: 92-0765
    Pin-Parallel
    Part Number: 92-0765
      Special Order
    $5.95
  • 8
    Gasket-Housing, Gear – Part Number: 107-0816
    Gasket-Housing, Gear
    Part Number: 107-0816
      Special Order
    $101.39
  • 9
    Bearing – Part Number: 107-0826
    Bearing
    Part Number: 107-0826
      Special Order
    $55.75
  • 10
    Housing-Case, Gear – Part Number: 120-5152
    Housing-Case, Gear
    Part Number: 120-5152
      Special Order
    $2545.07
  • 11
    Bolt – Part Number: 107-0863
    Bolt
    Part Number: 107-0863
      Special Order
    $5.95
  • 12
    Ring-Snap – Part Number: 92-0757
    Ring-Snap
    Part Number: 92-0757
      Special Order
    $12.86
  • 13
    Spacer – Part Number: 107-0813
    Spacer
    Part Number: 107-0813
      Special Order
    $16.30
  • 14
    Seal – Part Number: 107-0814
    Seal
    Part Number: 107-0814
      Special Order
    $62.10
  • 15
    O-Ring – Part Number: 93-0475
    O-Ring
    Part Number: 93-0475
      Special Order
    $13.48
  • 16
    Plug-Nptf – Part Number: 107-0861
    Plug-Nptf
    Part Number: 107-0861
      Special Order
    $17.50
  • 17
    O Ring-Plug – Part Number: 107-0817
    O Ring-Plug
    Part Number: 107-0817
      Special Order
    $5.95
  • 18
    Plug – Part Number: 107-0857
    Plug
    Part Number: 107-0857
      Special Order
    $43.39
  • 19
    Pipe – Part Number: 107-0811
    Pipe
    Part Number: 107-0811
      Special Order
    $184.49
  • 20
    Bearing – Part Number: 107-0821
    Bearing
    Part Number: 107-0821
      Special Order
    $68.24
  • 21
    Spacer – Part Number: 107-0836
    Spacer
    Part Number: 107-0836
      Special Order
    $5.95
  • 22
    Gear-Input – Part Number: 107-0820
    Gear-Input
    Part Number: 107-0820
      Special Order
    $326.79
  • 23
    Gear-Pto – Part Number: 107-0834
    Gear-Pto
    Part Number: 107-0834
      Special Order
    $806.37
  • 24
    Shaft-Pump – Part Number: 107-0822
    Shaft-Pump
    Part Number: 107-0822
      Special Order
    $196.91
  • 25
    Shaft-Input – Part Number: 107-0819
    Shaft-Input
    Part Number: 107-0819
      Special Order
    $188.74
  • 26
    Ring-Snap – Part Number: 92-0758
    Ring-Snap
    Part Number: 92-0758
      Special Order
    $6.88
  • 27
    Bearing – Part Number: 107-0838
    Bearing
    Part Number: 107-0838
      Special Order
    $97.55
  • 28
    Key – Part Number: 107-0866
    Key
    Part Number: 107-0866
      Special Order
    $8.50
  • 29
    Clutch Cylinder Asm – Part Number: 107-0835
    Clutch Cylinder Asm
    Part Number: 107-0835
      Special Order
    $1098.83
  • 30
    Gear Housing Seal Kit – Part Number: 107-0854
    Gear Housing Seal Kit
    Part Number: 107-0854
      Special Order
    $125.87
  • 30:1
    O Ring-Plug – Part Number: 107-0817
    O Ring-Plug
    Part Number: 107-0817
      Special Order
    $5.95
  • 30:3
    O-Ring – Part Number: 93-0475
    O-Ring
    Part Number: 93-0475
      Special Order
    $13.48
  • 30:4
    Seal – Part Number: 107-0814
    Seal
    Part Number: 107-0814
      Special Order
    $62.10
  • 30:5
    Gasket-Housing, Gear – Part Number: 107-0816
    Gasket-Housing, Gear
    Part Number: 107-0816
      Special Order
    $101.39
Wire Harness Assembly No. 142-7958
Wire Harness Assembly No. 142-7958 Diagram and Parts List for 414000000 - 999999999 Toro Lawn Tractor

Questions & Answers

?

Our customer Service team is at the ready daily to answer your part and product questions.

Be the first to ask our experts a question about this part!

Ask our Team

We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.

✖

Our customer service team are at the ready daily to answer your part and product questions. We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
