Snapper 38" 14 Hp Rer Hydro Drive Series 0 Lawn Tractor Replacement Parts For Model 381450HBVE (84270)
We Sell Only Genuine Snapper Parts
Popular Parts for 381450HBVE
In Stock
$14.42
In Stock
$5.95
In Stock
$8.00
In Stock
Minimum Quantity of 2 required
$5.95
In Stock
$18.25
In Stock
$5.95
In Stock
$7.18
In Stock
$25.86
Search Within Model
Browse all Parts
Search by Area
_WW_1.gif "38 Cutting Deck Belts Brakes Diagram and Parts List for 84270 Snapper Lawn Tractor")
_WW_3.gif "Brake ForwardReverse Control Assemblies Diagram and Parts List for 84270 Snapper Lawn Tractor")
_WW_4.gif "Center Spindle Assembly Diagram and Parts List for 84270 Snapper Lawn Tractor")
_WW_5.gif "Decals (Part 1) Diagram and Parts List for 84270 Snapper Lawn Tractor")
_WW_6.gif "Decals (Part 2) Diagram and Parts List for 84270 Snapper Lawn Tractor")
_WW_7.gif "Deck Lift Blade Engagement Assemblies Diagram and Parts List for 84270 Snapper Lawn Tractor")
_WW_8.gif "Electrical Components Diagram and Parts List for 84270 Snapper Lawn Tractor")
_WW_9.gif "Engine And Fuel Tank Assemblies Diagram and Parts List for 84270 Snapper Lawn Tractor")
_WW_10.gif "Engine Plate Assembly Diagram and Parts List for 84270 Snapper Lawn Tractor")
_WW_11.gif "Frame Assembly (Part 1) Diagram and Parts List for 84270 Snapper Lawn Tractor")
_WW_12.gif "Frame Assembly (Part 2) Diagram and Parts List for 84270 Snapper Lawn Tractor")
_WW_13.gif "Front Axle Wheel Assemblies Diagram and Parts List for 84270 Snapper Lawn Tractor")
_WW_14.gif "Hydro Drive Rear Wheel Assemblies Diagram and Parts List for 84270 Snapper Lawn Tractor")
_WW_15.gif "Seat Seat Mount Assemblies Diagram and Parts List for 84270 Snapper Lawn Tractor")
_WW_16.gif "Steering Assembly Diagram and Parts List for 84270 Snapper Lawn Tractor")
_WW_17.gif "Wiring Schematic Diagram and Parts List for 84270 Snapper Lawn Tractor")
Previous
Showing All Parts
Next
38 Cutting Deck Belts Brakes
_WW_1.gif "38 Cutting Deck Belts Brakes Diagram and Parts List for 84270 Snapper Lawn Tractor")
-
A-25
$8.38 -
A-26
-
A-27
$6.16
-
A-28
$5.95
-
A-29
$66.80
-
A-30
$5.95
-
A-31
$52.77
-
A-32
$6.40
-
A-33
-
A-34
-
A-35
$5.95
-
A-36
$72.75
-
A-37
$6.92
-
A-38
-
A-39
$39.15
-
A-40
-
A-41
-
A-42
$22.10
-
A-43
$6.92
-
A-44
$6.40
-
A-45
$33.80
-
A-46
$8.56
-
A-47
$14.42
-
A-48
-
A-49
$74.63
-
A-50
$11.40
-
A-51
$5.95

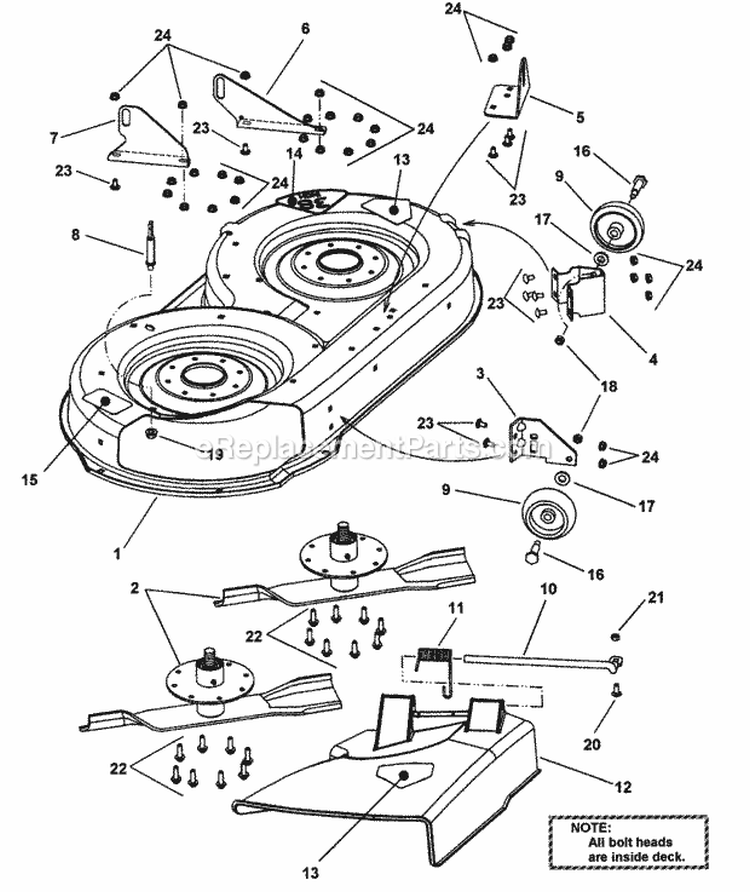

38 Deck Sub-Assembly
-
B-1
$882.04
-
B-2
$283.04
-
B-2
$283.04
-
B-3
$55.07
-
B-4
-
B-5
$56.00
-
B-6
$85.95
-
B-7
$52.24
-
B-8
-
B-9
$15.48
-
B-10
-
B-11
$33.16
-
B-12
$107.00
-
B-13
$13.77
-
B-14
$9.63
-
B-15
$10.86
-
B-16
-
B-17
$6.06
-
B-18
$6.58
-
B-19
$6.92
-
B-20
$5.95
-
B-21
$5.95
-
B-22
$5.95
-
B-22
$5.95
-
B-22
-
B-23
$6.05
-
B-24
$8.00
Brake ForwardReverse Control Assemblies

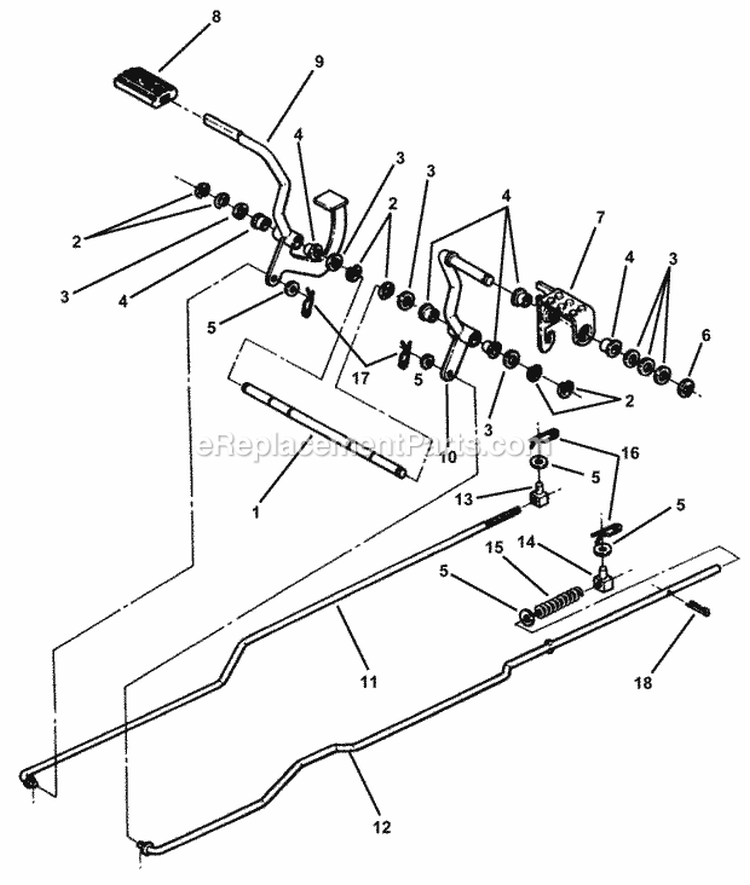

_WW_3.gif "Brake ForwardReverse Control Assemblies Diagram and Parts List for 84270 Snapper Lawn Tractor")
-
C-1
-
C-2
$5.95
-
C-3
$6.06
-
C-4
$5.95
-
C-5
$5.95
-
C-6
$5.95
-
C-7
-
C-8
-
C-9
-
C-10
$76.07
-
C-11
$29.78
-
C-12
$104.18
-
C-13
$12.32
-
C-14
-
C-15
$15.28
-
C-16
$5.95
-
C-17
$5.95
-
C-18
$5.95
Center Spindle Assembly
_WW_4.gif "Center Spindle Assembly Diagram and Parts List for 84270 Snapper Lawn Tractor")
-
D-1
$5.95
-
D-2
$8.00
-
D-3
$5.95
-
D-4
$5.95
-
D-5
$14.42
-
D-6
$5.95
-
D-7
$7.18
-
D-8
$5.95
-
D-9
$66.80
-
D-10
$9.20
-
D-11
WASHER, 49/64" I.D. x 1-1/2" O.D. FlatPart Number: 7032027SMIn StockMinimum Quantity of 2 required$6.40
-
D-12
$56.96
-
D-13
$18.06
-
D-14
$11.22
-
D-15
$14.56
-
D-16
$174.50
-
D-17
-
D-18
$48.53
-
D-19
-
D-20
-
D-21
$33.96
-
D-22
-
D-23
$40.71
-
D-24
$5.95
-
D-25
$6.05
-
D-26
$5.95
-
D-27
$7.45
-
D-28
$8.00
-
D-29
-
D-30
$5.95
-
D-31
$55.50
Decals (Part 1)
_WW_5.gif "Decals (Part 1) Diagram and Parts List for 84270 Snapper Lawn Tractor")
-
E-1
-
E-2
-
E-3
-
E-4
$13.46
-
E-5
Decals (Part 2)

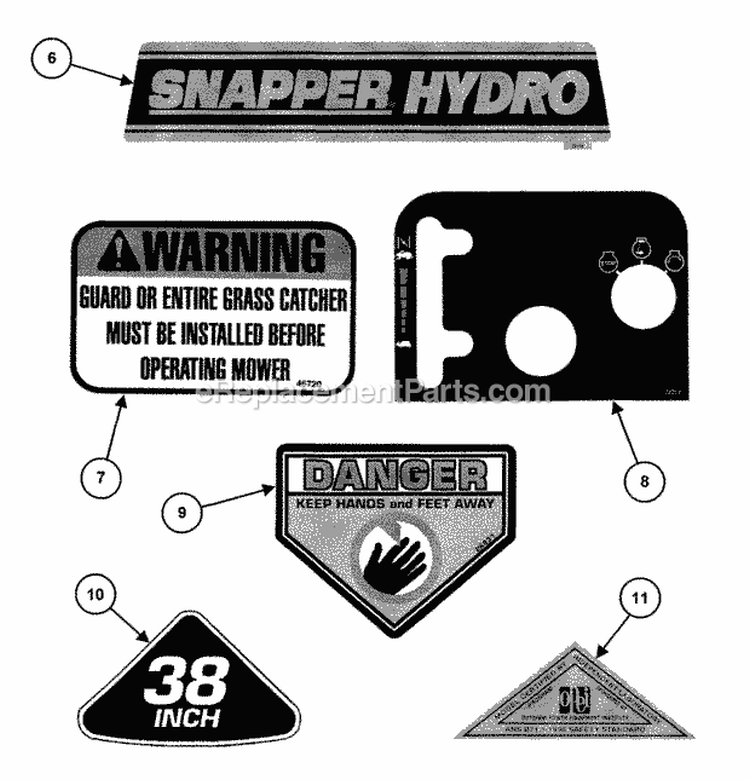

_WW_6.gif "Decals (Part 2) Diagram and Parts List for 84270 Snapper Lawn Tractor")
-
F-6
-
F-7
$10.86
-
F-8
-
F-9
$13.77
-
F-10
$9.63
-
F-11
$9.46
Deck Lift Blade Engagement Assemblies
_WW_7.gif "Deck Lift Blade Engagement Assemblies Diagram and Parts List for 84270 Snapper Lawn Tractor")
-
G-1
-
G-2
$12.16
-
G-3
$10.30
-
G-4
$6.20
-
G-5
$7.06
-
G-6
$30.98
-
G-7
-
G-8
$5.95
-
G-9
$5.95
-
G-10
$12.32
-
G-11
-
G-12
$12.06
-
G-13
$48.44
-
G-14
$98.21
-
G-15
$40.71
-
G-16
$17.90
-
G-17
-
G-18
$7.18
-
G-19
$5.95
-
G-20
$11.22
-
G-21
$8.00
-
G-22
-
G-23
$6.40
-
G-24
$6.20
-
G-25
$6.05
-
G-26
$5.95
-
G-27
$6.58
-
G-28
$6.26
-
G-29
$9.00
-
G-30
$5.95
-
G-31
$5.95
-
G-32
$5.95
-
G-33
$5.95
-
G-34
$70.77
-
G-35
$76.32
-
G-36
$5.95
-
G-37
-
G-38
$15.82
-
G-39
$6.06
-
G-40
$5.95
-
G-41
$5.95
-
G-42
$5.95
-
G-43
$7.18
-
G-44
$58.32
Electrical Components
_WW_8.gif "Electrical Components Diagram and Parts List for 84270 Snapper Lawn Tractor")
-
H-1
-
H-2
$52.75
-
H-3
$5.95
-
H-4
$5.95
-
H-5
$11.22
-
H-6
$26.67
-
H-7
$22.37
-
H-8
$5.95
-
H-9
$6.20
-
H-10
$42.11
-
H-11
$6.40
-
H-12
$5.95
-
H-13
$6.26
-
H-14
-
H-15
-
H-16
$9.76
-
H-17
$13.08
-
H-18
$15.48
-
H-19
$6.58
-
H-21
Screw, #10-24 X 1/2" Hex Washer Self-Tap (Torx)Part Number: 704060On OrderMinimum Quantity of 2 required$5.95
-
H-22
$6.30
-
H-23
$18.25
-
H-24
-
H-25
$5.95
-
H-26
$6.06
-
H-27
$5.95
Engine And Fuel Tank Assemblies

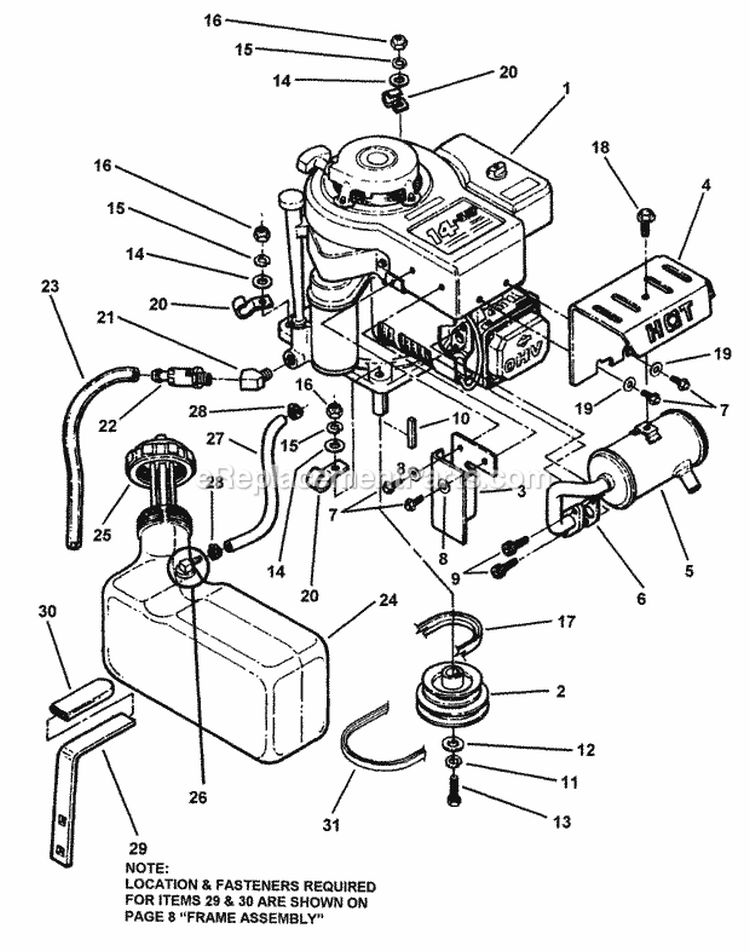

_WW_9.gif "Engine And Fuel Tank Assemblies Diagram and Parts List for 84270 Snapper Lawn Tractor")
-
I-1
-
I-2
-
I-3
-
I-4
$61.15
-
I-5
$222.77
-
I-6
-
I-7
$5.98
-
I-8
$6.05
-
I-9
$6.92
-
I-10
$7.18
-
I-11
$6.40
-
I-12
-
I-13
$5.95
-
I-14
$6.06
-
I-15
$6.15
-
I-16
$6.06
-
I-17
$32.14
-
I-18
$5.95
-
I-19
$6.92
-
I-20
$5.95
-
I-21
$23.58
-
I-22
$34.35
-
I-23
-
I-24
$215.24
-
I-25
-
I-26
-
I-27
$11.00
-
I-28
$5.95
-
I-29
-
I-30
$5.95
-
I-31
$55.50
Engine Plate Assembly

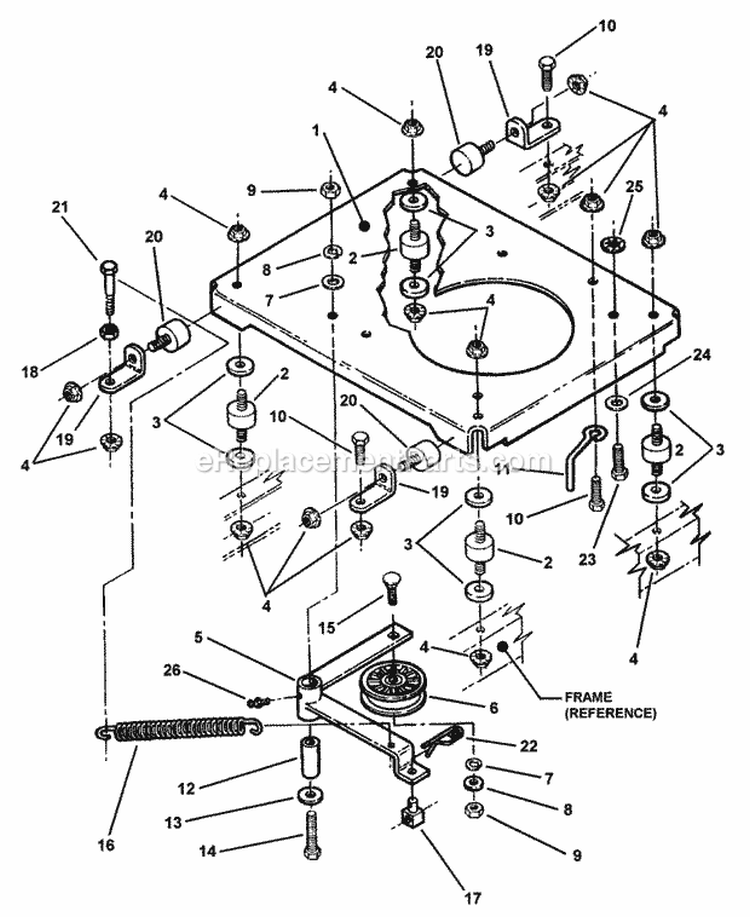

_WW_10.gif "Engine Plate Assembly Diagram and Parts List for 84270 Snapper Lawn Tractor")
-
