Simplicity B-212, 12Hp Lawn Tractor Replacement Parts For Model 2029950

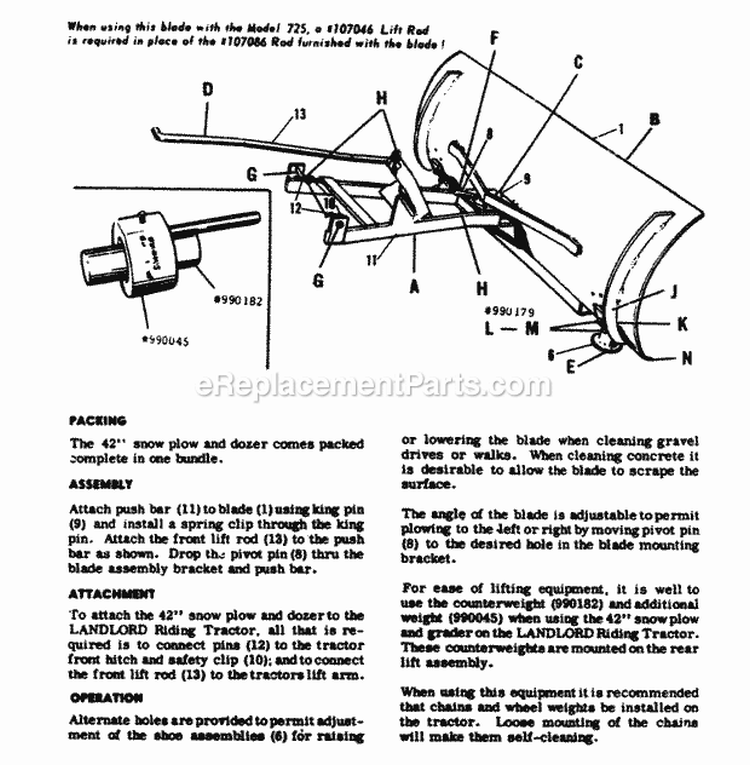

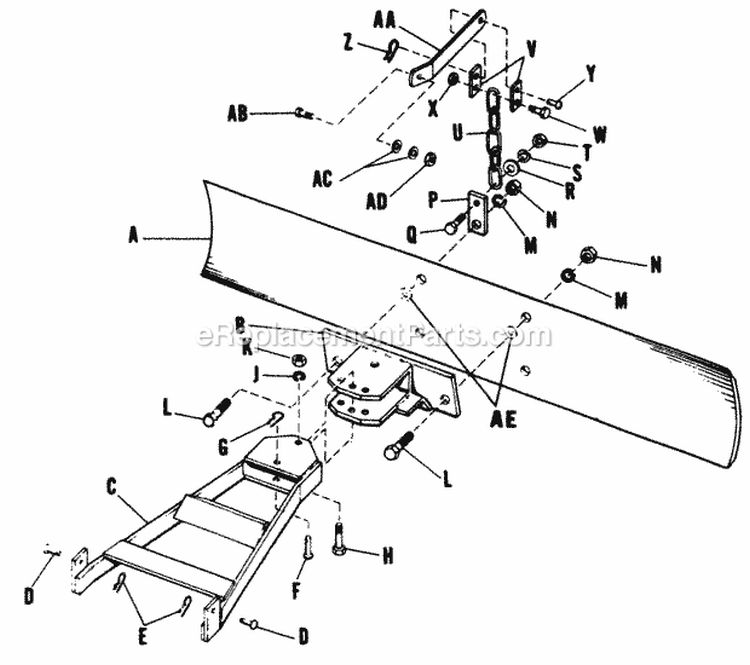

Blade, Grader, 42-In

Lever

Capscrew, Hex Head, 3/8-16 Nc X 1-1/4" Lg

Washer, Plain, 3/8"

Nut, Lock, Full Hex, 3/8"-16 Nc

Washer-0.625(0.64idx1

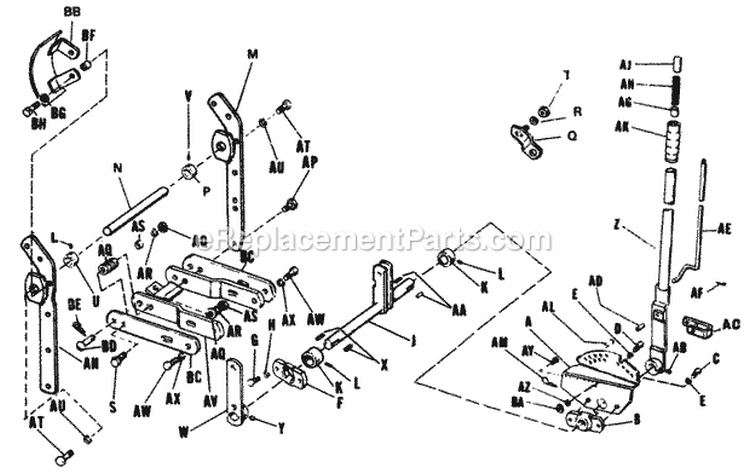

Hitch Assembly

Draw Par Assembly

Pin, Round Head Drilled, 3/8 X

Lawn Mower Hair .0915 X 17/8 Pin

★★★★★

★★★★★

(1)

Minimum Quantity of 2 required

PIN-RND HD DRILLED .5

CLIP, Hairpin

★★★★★

★★★★★

(1)

Minimum Quantity of 2 required

Capscrew, Hex Head, 5/8-In-11 Nc X 3-In Lg.

Lock Washer, 5/8"

Hex Nut, 5/8"-11

Capscrew, Hex Head, 5/8-in-11

Lock Washer, 5/8"

Hex Nut, 5/8"-11

Link

Capscrew, Hex Head, 3/8"-16 Nc X 1" Lg

Washer, Plain, 3/8"

Washer, Lock, 3/8"

Nut, Hex, Full, 3/8"-16 Nc

CHAIN - LINK

Link

Capscrew, Hex Head, 3/8"-16 Nc X 1" Lg

Nut, Lock, Full Hex, 3/8"-16 Nc

PIN, Round Head Drilled, 3/8 x 1, Black

Lawn Mower Hair .0915 X 17/8 Pin

★★★★★

★★★★★

(1)

Minimum Quantity of 2 required

Push Bar Assembly

Blade Assembly, 42-In

PIN-RND HD DRILLED .5

Rod, Front Lift

Shoe Assembly

Pin, Pivot

Pin, Round Head Drilled, 3/8 X

Hairpin Clip

Carriage Bolt, 3/8-16 X 1"

Carriage Bolt, 3/8"-16 X 3/4"

Washer, Lock, 3/8"

Nut, Hex, Full, 3/8"-16 Nc

Plate, Wear

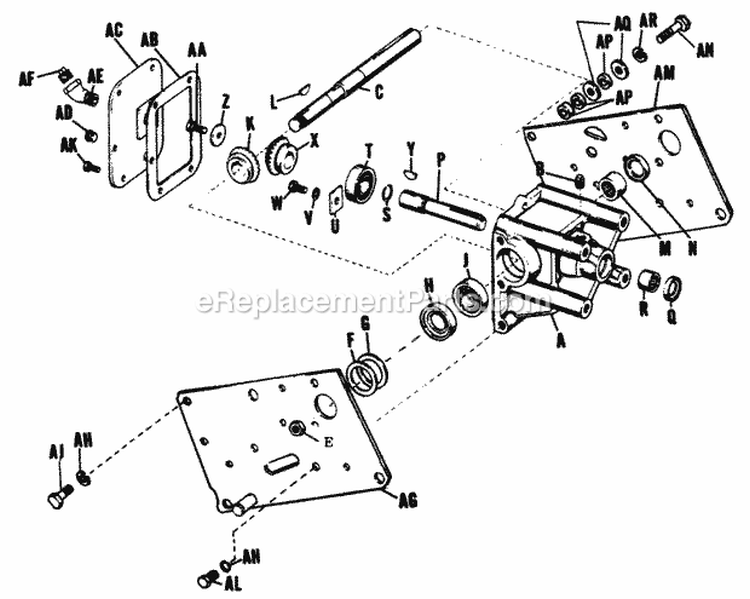

Housing, Bevel Gear, Complete W/2 Needle Brgs.

Screw, Cap, Hex., 5/16"-18 N.C. X 3/4" Lg.

GASKET-BEVEL GEAR 0.0

Housing Cover Assembly.

Pipe Plug, 1/8" Standard

Street Elbow

Plug, Pipe, 3/8"

R.H. Side Plate

Washer, Lock, 7/16"

Capscrew, Hex, Head, 7/16"-14 Nc X 1" Lg

Screw, Cap, Hex., 1/4"-20 X 5/8" Lg.

Screw, Cap Hex., 7/16"-14 X 1-1/4"

L.H. Side Plate

Hex Capscrew, 7/16"-14 X 2

Spacer

Washer, 7/16"

Washer, Lock, 7/16"

Plug, Pipe

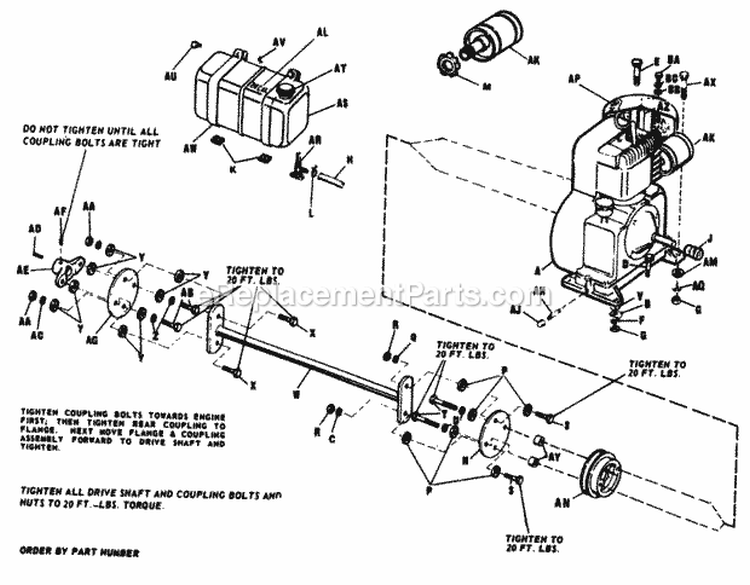

Drive Shaft

Nut, Hex., Jam

Shim

Shim

Break Seal

Bearing, Ball

Gear, Bevel, Driven

Key, Woodruff, No. 9

Bearing, Needle

SEAL-OIL 0.875ID X 1.

SHAFT-0.7869DIA 4.81

SEAL, Oil

BEARING-NEEDLE

Ring, Retaining

Bearing, Ball

PLATE-CLAMP .105THK 1

Washer, Lock, 5/16"

Capscrew, Hex Head, 5/16"-18 Nc X 5/8" Lg

GEAR-BEVEL 2.10OD 0.7

Key, Woodruff, No. 9

Washer

Pivot Lever Assembly

Washer, Plain, 3/8"

Pin, Cotter, 3/32" Diameter X 3/4" Lg

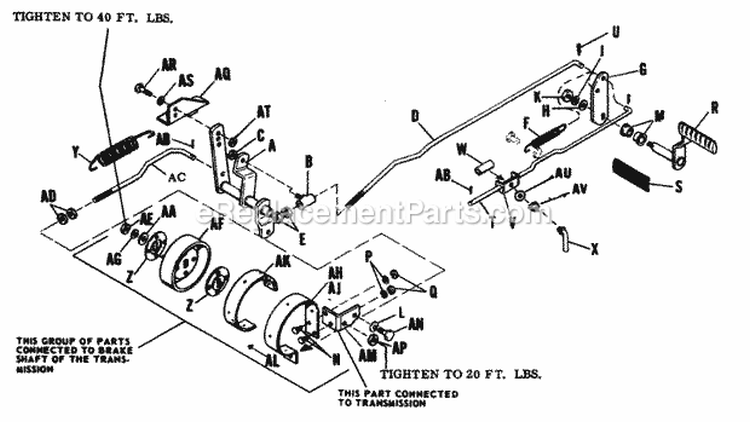

Brake Rod

Nut, Hex, Full, 3/8"-16 Nc

Full Hex. Nut, 7/16"

Brake Drum

Washer, Lock, 7/16"

Brake Band & Lining Assembly

Brake Band

Lining, Brake

Rivet #7 X 5/16" Lg.

Brake Band Bracket

Capscrew, Hex Head, 3/8"-16 Nc X 1" Lg

Nut, Hex, Full, 3/8"-16 Nc

Spring Bracket

Screw, Cap, Hex., 5/16"-18 N.C. X 3/4" Lg.

Washer, Lock, 5/16"

Nut, Hex, Full, 5/16"-18 Nc

Washer, 7/16"

Spring, Conical

GUIDE ASMY-ROD .36ID

Nut, Lock, Hex., Full, 5/16"-18 N.C.

Brake And Clutch Rod

Nut, Hex, Full, 5/16"-18 Nc

Spring

Pedal Foot Arm

Washer, Plain, 3/8"

Washer, Lock, 3/8"

Nut, Hex, Full, 3/8"-16 Nc

Washer, Lock, 3/8"

Bushing

Screw, Cap, Hex., 1/4"-20 N.C. X 3/4" Lg.

Washer, Lock, 1/4"

Nut, Full, Hex, 1/4"-20 Nc

Foot Pedal Assembly

Pad, Pedal

Brake Rod

Pin, Cotter, 1/8" X 3/4" Lg.

Bracket Assembly

Spacer

Park Brake Lock

SPRING EXTENSION

★★★★★

★★★★★

(1)

WASHER-DBL D (.50X.75

Motor-Generator

Hex Capscrew, 1/4-20 X 1/2" Lg

Battery Insulation

Fuel Tank Insulation

Wire Clamp

Harness Assembly

Speed Clip

Valve & Float

(C) AMMETER

Fuse 20 Amp.

Full Hex. Nut, #10-32

Wire

SWITCH, PLUNGER, N.O.

Switch, Starting

Lock Washer, Ext. No. 10

Screw, Round Head, Self Tapping, No. 10-24 X 1/2" Lg

Lock Washer Int. 9/16"

Clip Fuse

Battery Bracket

J Bolt

Washer, Lock, 1/4"

Wing Nut 1/4"-20

Generator Start Cable

Battery Film

KEY, PLASTIC COVERED

★★★★★

★★★★★

(2)

Nut, Hex Special

Nut hex 5/8-32

COVER-TERMINAL RED RU

Wire, Reg. Gen.

V-BELT 039.12

Support Assembly

Washer, Lock, 5/16"

Hex Capscrew, 5/16"-18 X 3/4" Lg. Grade 5

Washer, Lock, 5/16"

Nut, Hex, Full, 5/16"-18 Nc

Capscrew, Hex Head, 5/16"-18 Nc X 1-1/4" Lg

Voltage Regulator

Bracket

Screw, Cap, Hex., 1/4"-20 N.C. X 3/4" Lg.

Washer, Lock, 1/4"

Nut, Full, Hex, 1/4"-20 Nc

Belt Tightener

Screw, Cap, Hex., 5/16"-18 N.C. X 3/4" Lg.

Washer, Plain, 5/16"

Washer, Lock, 5/16"

Nut, Hex, Full, 5/16"-18 Nc

Battery

Cable

Cable

Nut, Hex, Full, 3/8"-16 Nc

Capscrew, Hex Head, 3/8-16 Nc X 1-1/4" Lg

Washer, Lock, 3/8"

Key, Parallel

Flange, Drive Shaft

Cup Point Socket Head Set Screw, 3/8"-24 X 5/8"

Coupling

Pipe Nipple, 3/8" X 1" Lg.

Cap, Pipe, 3/8" Std.

Muffler, Exhaust

Decal

Washer, Plain, 3/8"

Pulley

Film, Air Cleaner

Washer, Lock, 3/8"

Shut-Off Valve

Fuel Tank

Fuel Tank Cap

Hex. Hd. Capscrew, 1/4"-20 X 1-3/4"

Nut, Full, Hex, 1/4"-20 Nc

Tank Strap

Screw, Cap, Hex., 3/8"-16 N.C. X 2" Lg.

SPACER

Air Cleaner Spacer

Axle Stop

Hex. Hd. Capscrew 1/4"-20 X 5/8"

Washer, Plain, 1/4"

Washer, Lock, 1/4"

Washer, Lock, 3/8"

Capscrew, Hex Head, 3/8"-16 Nc X 1-3/4" Lg

Screw Assembly, Engine, L.H. Rear

Washer, Lock, 3/8"

Nut, Hex, Full, 3/8"-16 Nc

Fuel Hose

Guard Crankshaft Extension

Felt Gasket

Hose Clamp

NUT-LOCK1.000 RIGID C

Coupling

WASHER-SPCL 0.381IDX1

Washer, Lock, 3/8"

Nut, Hex, Full, 3/8"-16 Nc

Capscrew, Hex Head, 3/8-16 Nc X 1-1/4" Lg

Hex. Cap Screw, 3/8"-16 X 2-1/2"

Washer, Lock, 3/8"

Washer, Plain, 3/8"

Drive Shaft Assembly

Capscrew, Hex Head, 3/8-16 Nc X 1-1/4" Lg

WASHER-SPCL 0.381IDX1

Washer, Lock, 3/8"

Support Assembly, Fuel Tank & Battery

Washer, Lock, 7/16"

Full Hex. Nut, 7/16"

Hex Capscrew, 7/16" 20 X 1-1/2" Lg.

Foot Rest

L.H. Foot Rest Pad

R.H. Foot Rest Pad

Hex. Cap Screw, 3/8"-16 X 3/4"

Washer, Lock, 3/8"

Nut, Hex, Full, 3/8"-16 Nc

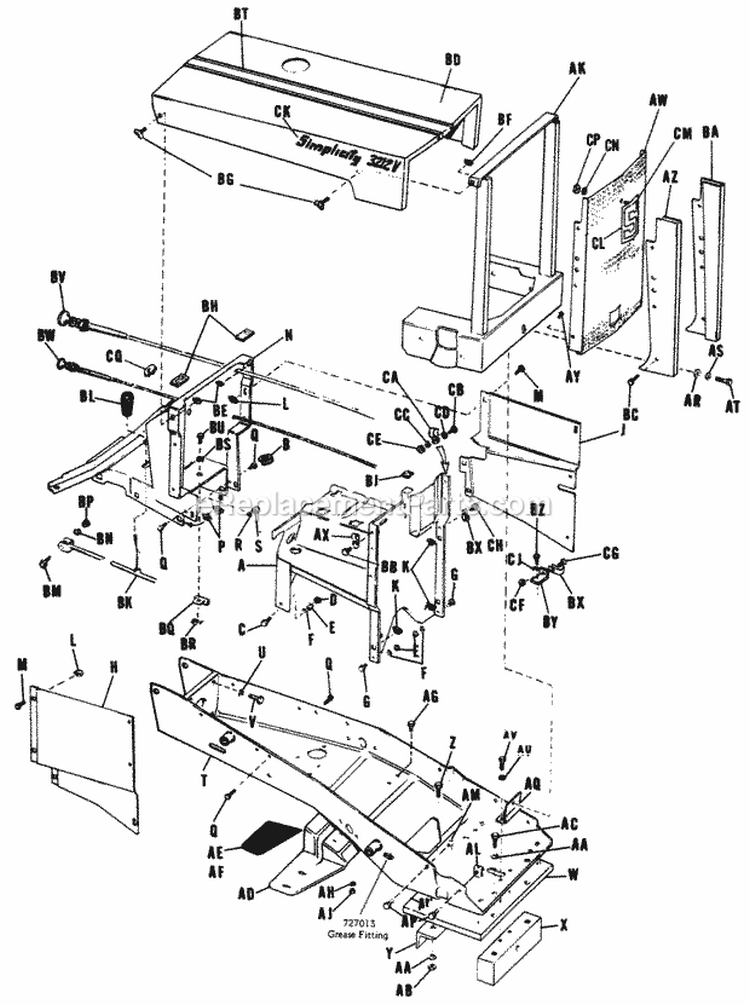

Cover & Tube Assembly

Nut Retainer

Nut Retainer

Simplicity and Number 3212 V Film L.H.

Nut-Hex-Whiz-Lock Flange. 5/16-18 X 3/4"

Bracket Assembly

Washer, Plain, 5/16"

Washer, Lock, 5/16"

Capscrew, Hex Head, 5/16"-18 Nc X 1-1/4" Lg

Washer, Lock, 5/16"

Capscrew, Hex Head, 5/16"-18 Nc X 1-1/2" Lg

Grille

Wire Clamp

Screw, Self Topping #10 X 1/2" Lg.

R.H. Side Plate

BUSHING-NEOPRENE STRG

L.H. Side Plate

Screw, Round Head, Self Tapping, No. 10-24 X 1/2" Lg

Screw, Self Topping #10 X 1/2" Lg.

Hood

Nut Retainer

Nut Retainer

Thumb Screw

Felt Pad

Felt Pad

Shifter Rod Assembly

Handle

Capscrew, Hex Head, 5/16"-18 Nc X 1-1/2" Lg

Washer, Lock, 5/16"

Nut, Hex, Full, 5/16"-18 Nc

Shift Rod Guide Assembly

Retainer Nut

Washer, Lock, 1/4"

Hood Strip

Hex. Hd. Capscrew 1/4"-20 X 5/8"

CONTROL-THROTTLE .187

Choke Control

CLIP-CLOSED .188WIRE

Throttle Cable Bracket

Self Tapping Screw, 1/4"-20 X 5/8"

Capscrew, Hex Head, 5/16"-18 Nc X 1-1/4" Lg

Clamp

Screw, Cap, Hex., 1/4"-20 N.C. X 5/8" Lg.

Washer, Lock, 1/4"

Washer, Plain, 1/4"

Nut, Full, Hex, 1/4"-20 Nc

Full Hex. Nut, #10-32

Mach. Rd. Hd. Screw, #10-32 X 3/8"

Screw, Round Head, Self Tapping, No. 10-24 X 1/2" Lg

Washer, Lock, 1/4"

Simplicity and Number 3212 V Film

Plate, Assembly.,

Emblem "S"

Lock Washer, #12

Nut, Full, Hex, #10-24

Nut, Lock, Hex., Full, 5/16"-18 N.C.

Nut, Hex, Full, 5/16"-18 Nc

Washer, Lock, 5/16"

Capscrew, Hex Head, 5/16"-18 Nc X 5/8" Lg

R.H. Side Panel

L.H. Side Panel

Retainer Nut

Nut Retainer

Hex. Hd. Capscrew 1/4"-20 X 5/8"

Inst. Panel Assembly

Retainer Nut

Hex. Cap Screw, 1/4-In-20 X 1/2-In

Washer, Lock, 1/4"

Nut, Full, Hex, 1/4"-20 Nc

Frame Assembly

Washer, Lock, 7/16"

Screw, Cap, Hex., 7/16"-14

Weight, Base

Support

Angle, Frame, Rear

Hex. Cap Screw, 7/16"-14 X 1-1/2"

Wheel And Tire Assembly (157505 For 2012)

BUSHING-0.756IDX0.885

Arm Assembly, Steering, L.H.

Screw, Set, Cup Point, Hollow Head, 5/16"-18 Nc X 1/2" L

Key, Parallel

Hex Nut, Jam Lock, 1/2"-20 N.F.

JOINT-BALL .500-20 7

Tie Rod

Nut, 1/2"-20 N.F.

Steering Wheel

Key, Woodruff, No. 9

Screw, Set, Cup Point, 5/16-18 Nc X 5/16" Lg

Screw, Set, Cup Point Socket Head, 5/16"-18 N.C. X 1/4"

Steering Shaft Assembly

Ratchet Cage Spacer

Washer, Plain, 3/8"

Washer, Lock, 3/8"

Screw, Cap, Hex., 3/8"-16 N.C. X 3/4" Lg.

Pin, Universal Joint

FORK ASMY W/BUSHING

BUSHING-0.502IDX0.628

Pin Eccentric

Engine Retaining Ring

Washer, Lock, 3/8"

BEARING-CONE 0.750IDX

Nut, Hex, Full, 3/8"-16 Nc

Sq. Hd. Set Screw, 1/4"-20 X 3/4" Lg.

Steering Bracket

BEARING-NEEDLE

Washer, Lock, 5/16"

Capscrew, Hex Head, 5/16"-18 Nc X 5/8" Lg

WASHER-SPCL 0.755IDX1

Steering Arm Assembly

Gear Steering

Washer

CAP-HUB 1.784DIA FRO

Gripco Center Lock 7/16"-14

Screw, Cap, Hex., Head, Special

Nut, Lock, Hex., Full, 5/16"-18 N.C.

RING-RET EXT # 75 0.7

Retaining Ring

Drag Link Assembly

BEARING-CONE 0.750IDX

Engine Pulley

CUP-BEARING 1.781OD

Washer

Wheel W/Bearing Cup

Tire

Tube-Tire 4.80/4.00

Spindle Assembly, R.H.

Spindle Assembly, L.H.

WASHER-SPCL 0.755IDX1

Set Collar

Screw, Set, Cup Point, 5/16-18 Nc X 5/16" Lg

Set Collar

Grease Fitting

Axle Assembly, Front

Spacer

Washer, Plain, 1/2"

Hex. Cap Screw, 1/2"-13 X 1" Lg.

Nut, Hex., Full, Lock, 1/2"-13 N.C.

Capscrew, Hex Head, 3/8-16 Nc X 1-1/4" Lg

Washer, Plain, 3/8"

SPACER-0.391IDX0.624O

Washer, Lock, 3/8"

Nut, Hex, Full, 3/8"-16 Nc

Bracket, P.T.O. Asm.

Spacer

Retaining Ring

Nut, Lock, Full Hex, 3/8"-16 Nc

SPRING-EXTN 1.000MDX

Rod Guide Asm.

Washer, Plain, 5/16"

Washer, Special

Elastic Stop Nut, 5/16"-18 N.C.

SPRING-COMP 0.494IDX

Collar, Set

Screw, Set, Square Head, Cup Point, 1/4"-20 Nc X 3/8" Lg

Rod Guide Assembly.

Nut, Lock, Full Hex, 3/8"-16 Nc

Clutch Lever Asm, P.T.O.

KNOB-INT THR .312-18

Stud

Washer, Lock, 3/8"

Nut, Hex, Full, 3/8"-16 Nc

Washer, Plain, 5/16"

Stop Center Lock Jam Nut, 3/8"-16

Pulley

Key, Transmission Pulley

Guard Belt

Capscrew, Hex Head, 3/8"-16 Nc X 1" Lg

BEARING-ROLLER 0.875I

Washer, Plain, 3/8"

Washer, Lock, 3/8"

Nut, Hex, Full, 3/8"-16 Nc

Guard Belt Support, 3/16" X 1 1/4" X 5 7/16" Lg.

Capscrew, Hex Head, 5/16"-18 Nc X 1" Lg

Washer, Lock, 5/16"

Nut, Hex, Full, 5/16"-18 Nc

HANDLE & TUBE ASMY-CL

Spring Tension Rod

Screw, Cap, Hex., 5/16"-18 N.C. X 3/4" Lg.

Nut, Lock, Hex., Full, 5/16"-18 N.C.

STUD-.437-14X2.00 .43

Washer, Lock, 7/16"

Gripco Center Lock 7/16"-14
