MTD Lawn Tractor Replacement Parts For Model 147-802-000 (1987)
We Sell Only Genuine MTD Parts
Popular Parts for MTD 147-802-000 (1987)
In Stock
Minimum Quantity of 2 required
$6.16
In Stock
Minimum Quantity of 2 required
$6.82
In Stock
Minimum Quantity of 2 required
$6.65
In Stock
Minimum Quantity of 2 required
$6.16
In Stock
$7.04
In Stock
$9.29
Special Order
$43.21
In Stock
Minimum Quantity of 2 required
$6.17
Search Within Model
Browse all Parts
Search by Area

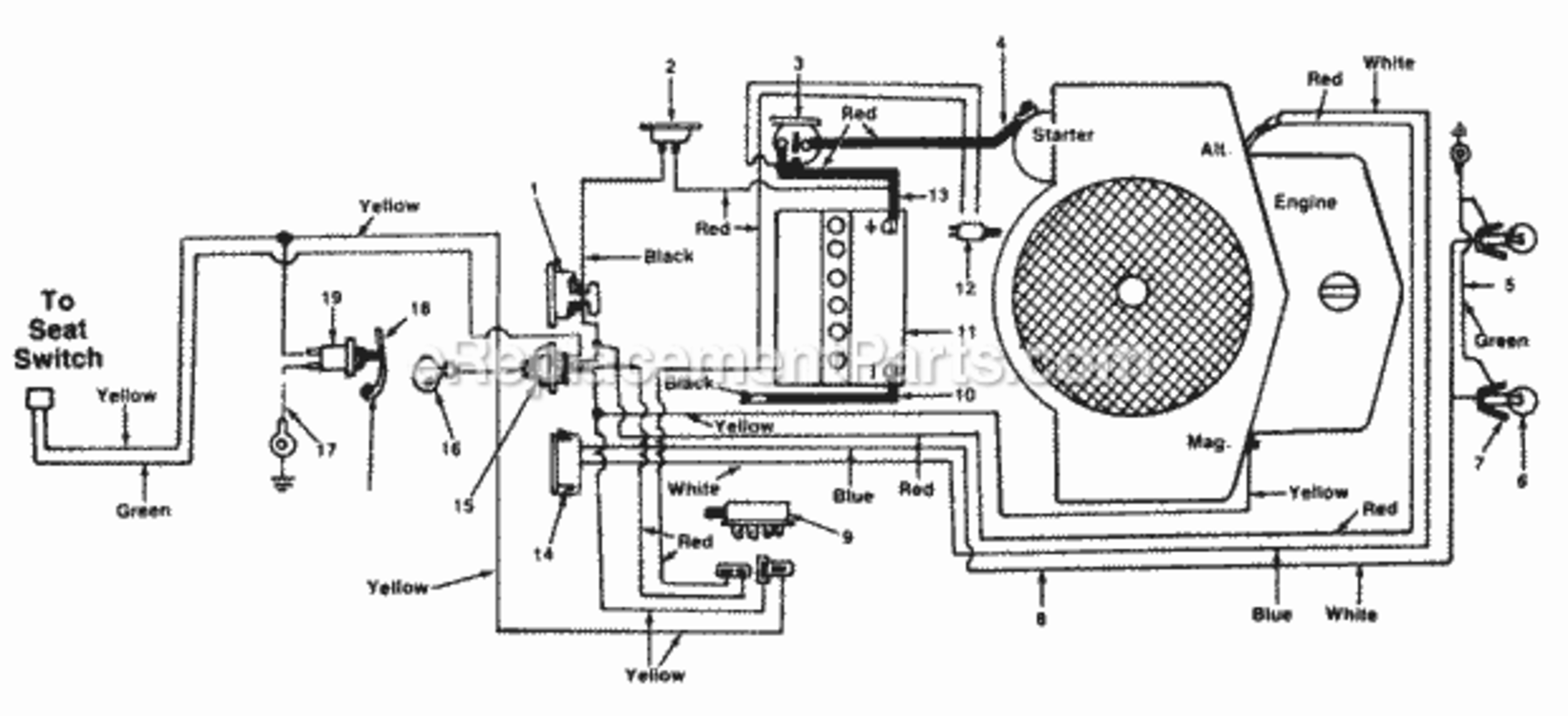

_WW_1.gif "Electrical Diagram and Parts List for 147-802-000 1987 MTD Lawn Tractor")

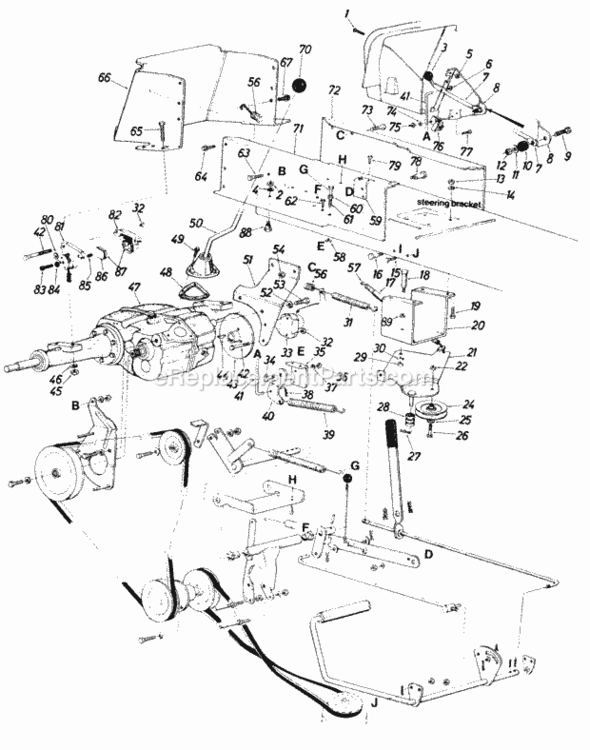

_WW_3.gif "Page C Diagram and Parts List for 147-802-000 1987 MTD Lawn Tractor")

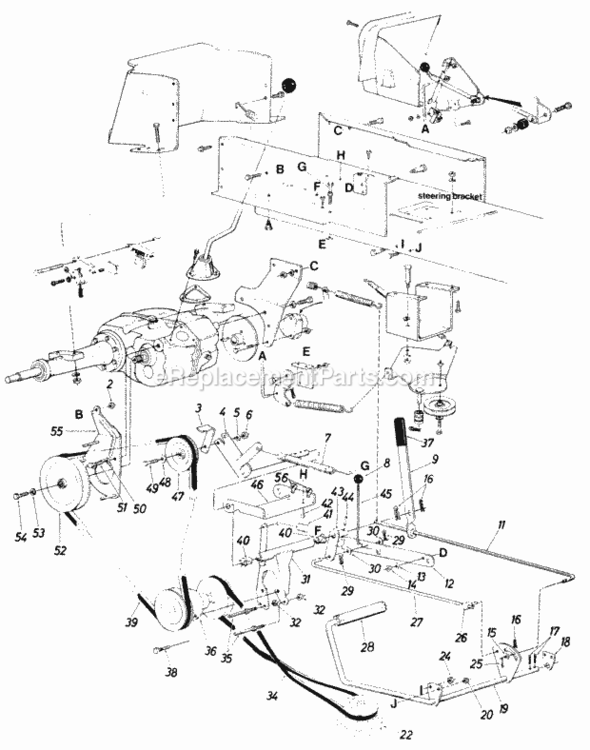

_WW_4.gif "Page D Diagram and Parts List for 147-802-000 1987 MTD Lawn Tractor")

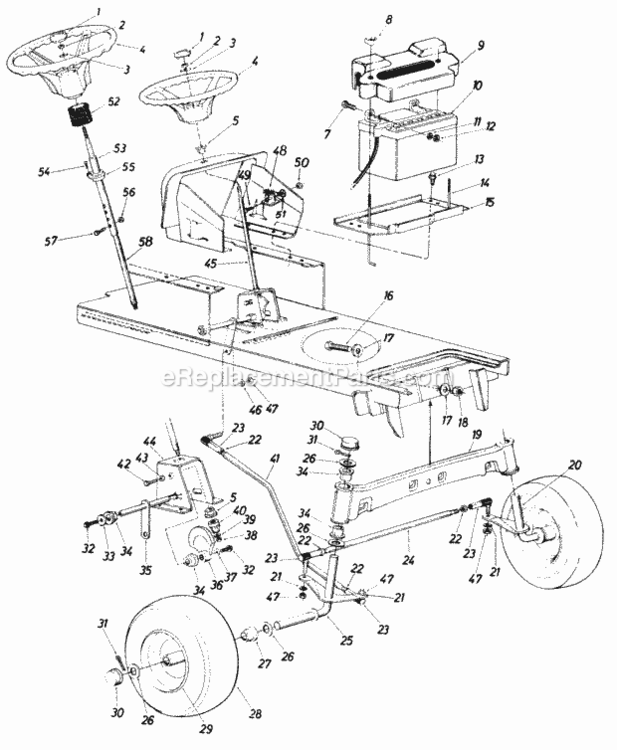

_WW_5.gif "Page E Diagram and Parts List for 147-802-000 1987 MTD Lawn Tractor")

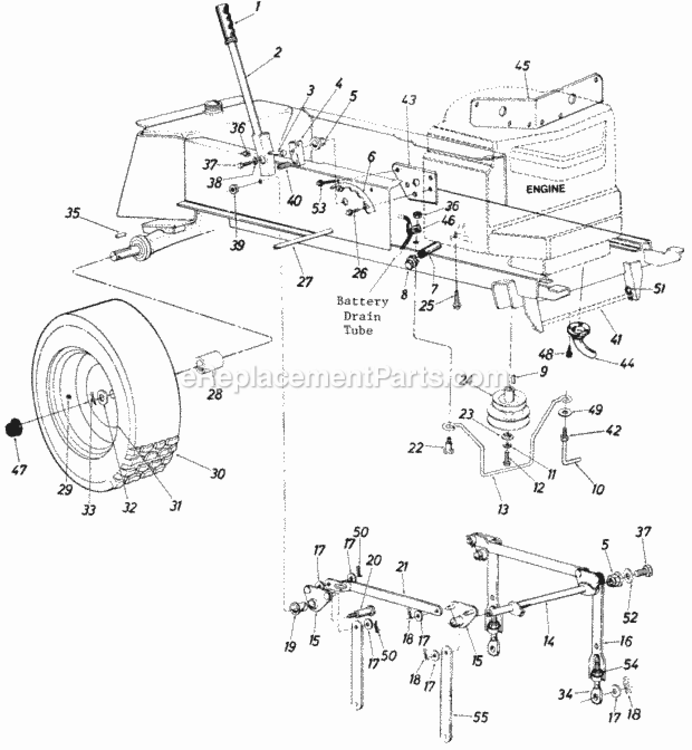

_WW_6.gif "Page F Diagram and Parts List for 147-802-000 1987 MTD Lawn Tractor")

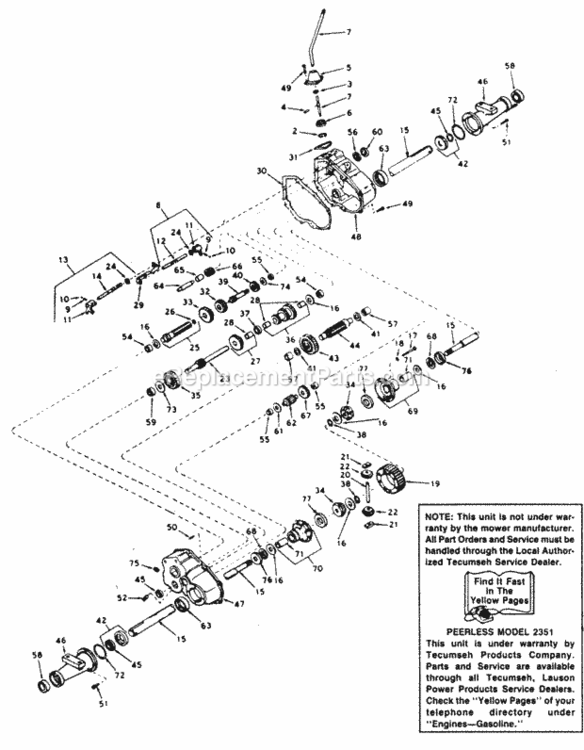

_WW_7.gif "Page G Diagram and Parts List for 147-802-000 1987 MTD Lawn Tractor")

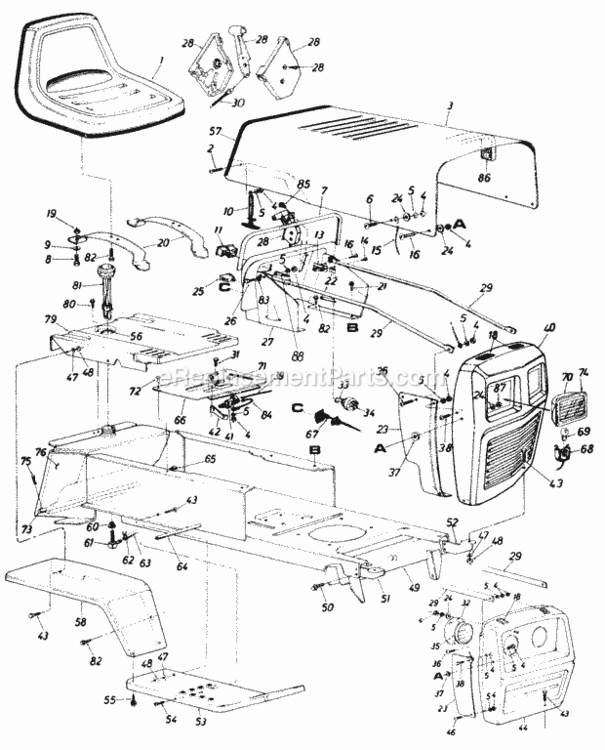

_WW_2.gif "Parts Diagram and Parts List for 147-802-000 1987 MTD Lawn Tractor")
