Husqvarna R 112c5 2014-2021 Lawn Tractor Replacement Parts For Model R112C52014-2021

We Sell Only Genuine Husqvarna Parts

Popular Parts for R112C52014-2021

Valve Drain Oil – Part Number: 532428287 Valve Drain Oil
In Stock
$25.71
Snap – Part Number: 595303001 Snap
In Stock
$6.16
Wire Assembly – Part Number: 501604801 Wire Assembly
In Stock
$34.35
Cap Asm – Part Number: 584248702 Cap Asm
In Stock
$25.71
Snap locking grey. only use f | only use for magnesium or aluminum crankcase – Part Number: 595303003 Snap locking grey. only use f | only use for magnesium or aluminum crankcase
In Stock
$15.46
Bolt – Part Number: 506675402 Bolt
In Stock
$9.28
Ball Bearing 6004-2rs1 – Part Number: 738210404 Ball Bearing 6004-2rs1
In Stock
$18.56
E-clip – Part Number: 735310920 E-clip
On Order
$6.16

Search Within Model

Questions & Answers for Husqvarna R112C52014-2021
Browse all Parts Search by Area
Chassis Rear Diagram and Parts List for Husqvarna Lawn Tractor
Chassis Rear
Chassis Rear Diagram and Parts List for Husqvarna Lawn Tractor
Chassis Rear
Controls Diagram and Parts List for Husqvarna Lawn Tractor
Controls
Controls Diagram and Parts List for Husqvarna Lawn Tractor
Controls
Cover Diagram and Parts List for Husqvarna Lawn Tractor
Cover
Cover Diagram and Parts List for Husqvarna Lawn Tractor
Cover
Decals Diagram and Parts List for Husqvarna Lawn Tractor
Decals

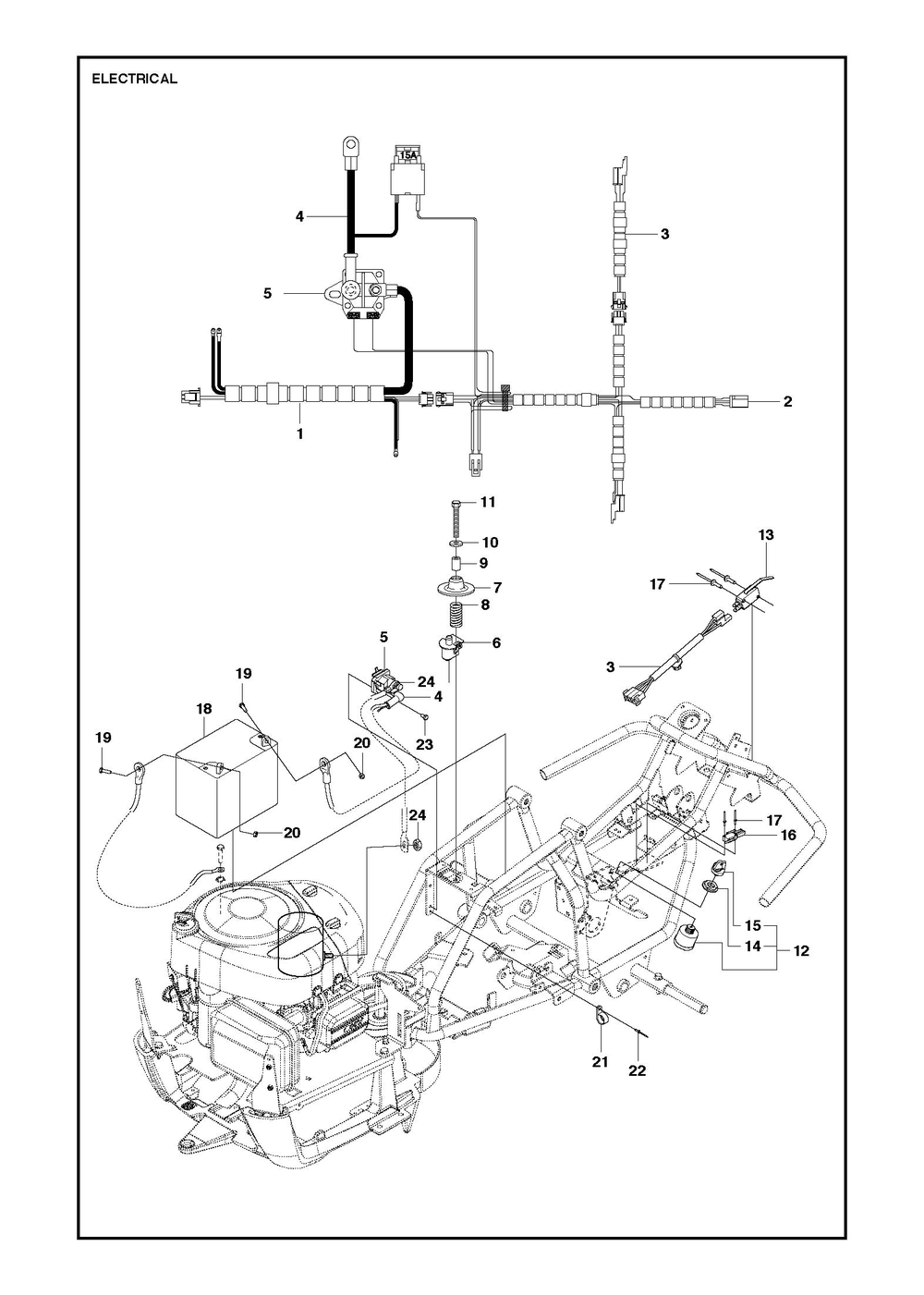

Electrical Diagram and Parts List for Husqvarna Lawn Tractor
Electrical

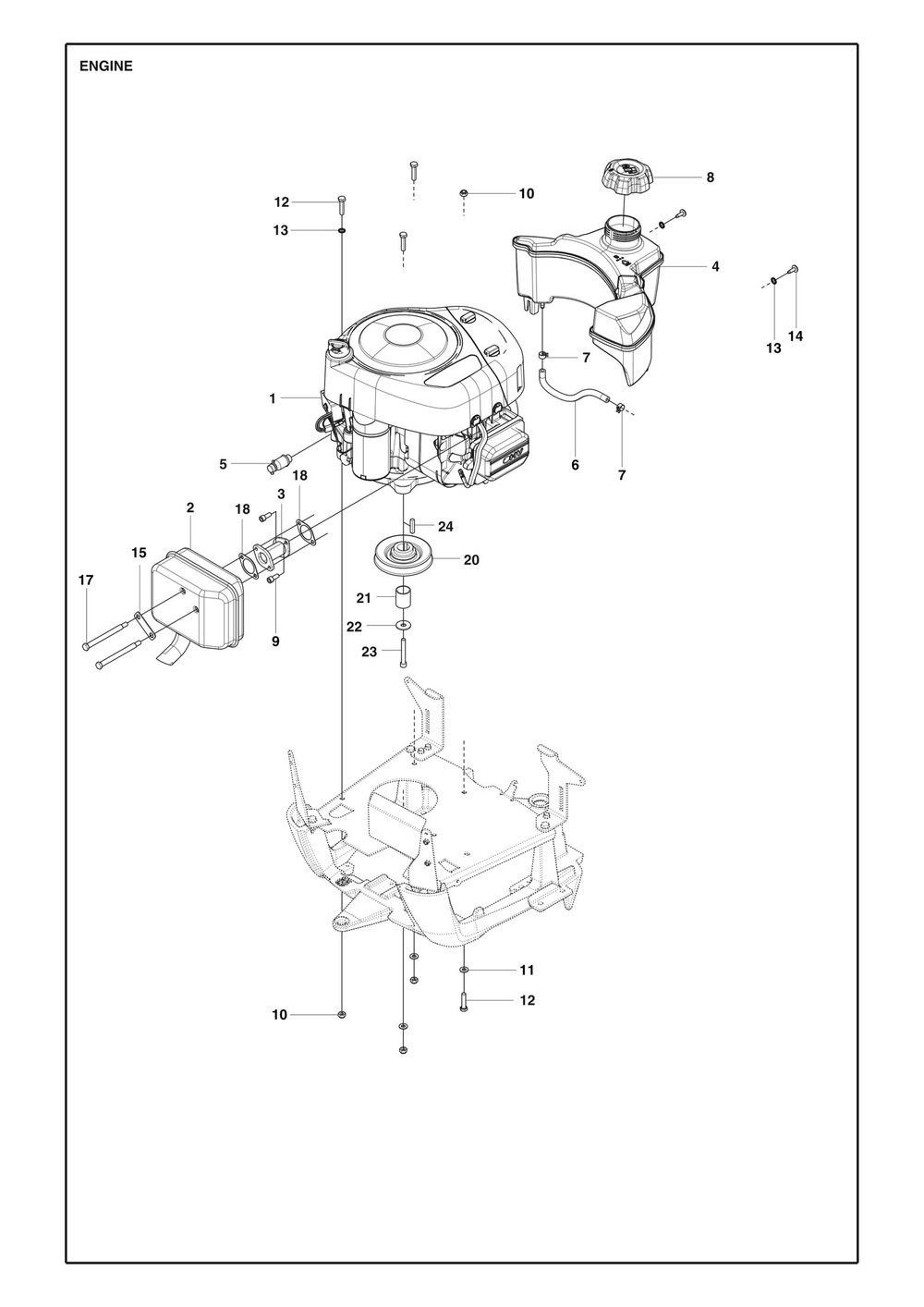

Engine Diagram and Parts List for Husqvarna Lawn Tractor
Engine

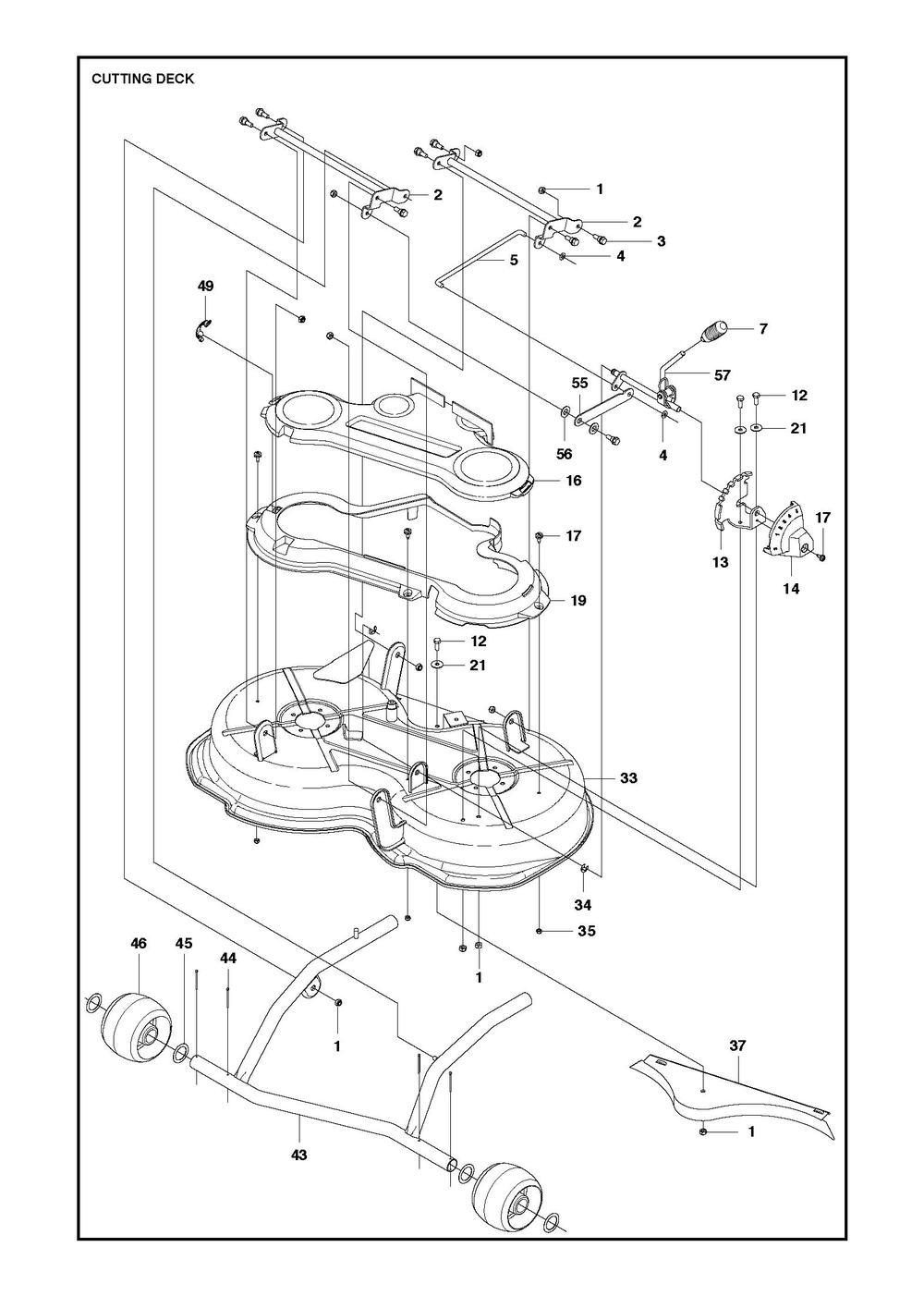

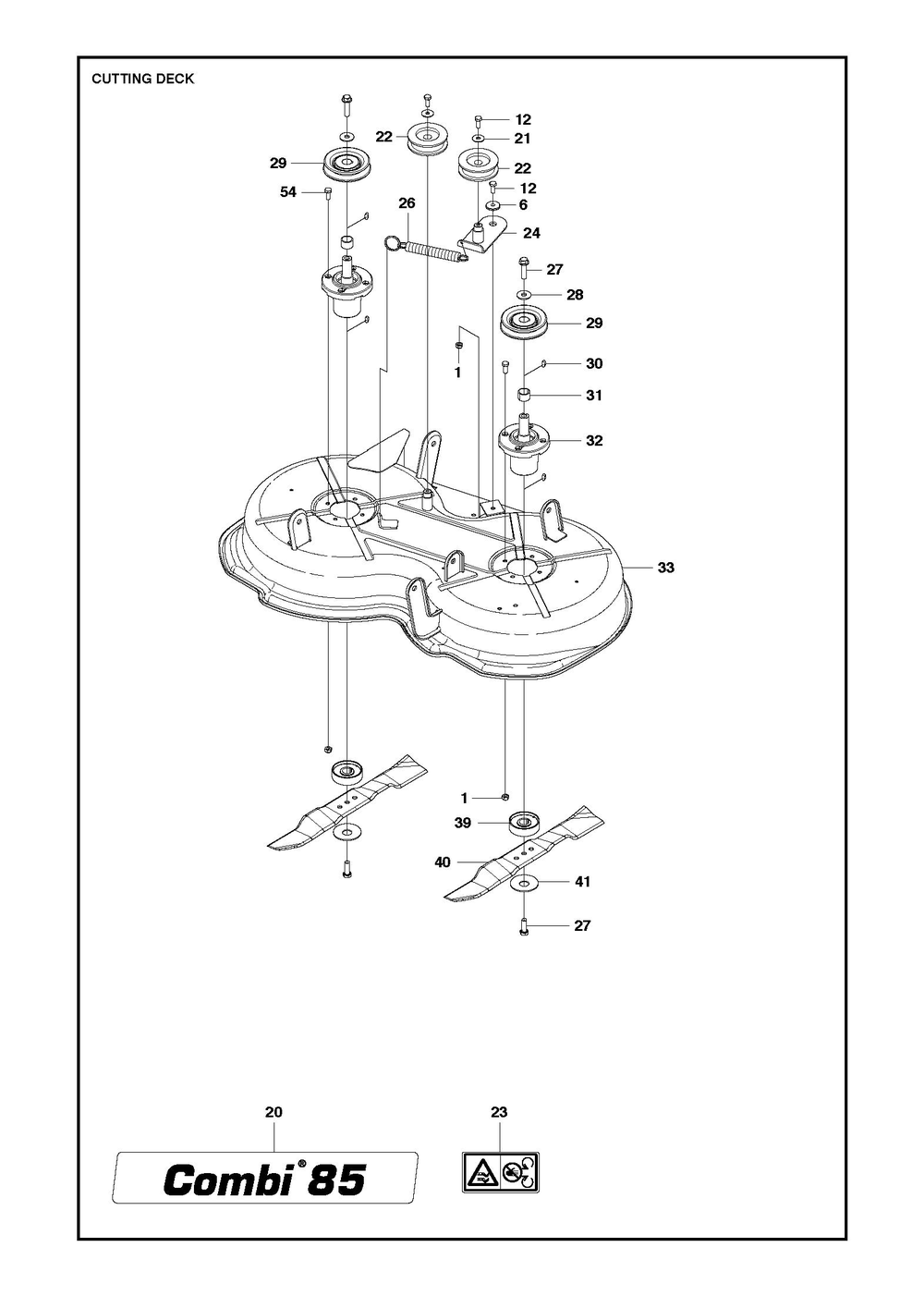

Mower Deck / Cutting Deck Diagram and Parts List for Husqvarna Lawn Tractor
Mower Deck / Cutting Deck
Mower Deck / Cutting Deck Diagram and Parts List for Husqvarna Lawn Tractor
Mower Deck / Cutting Deck

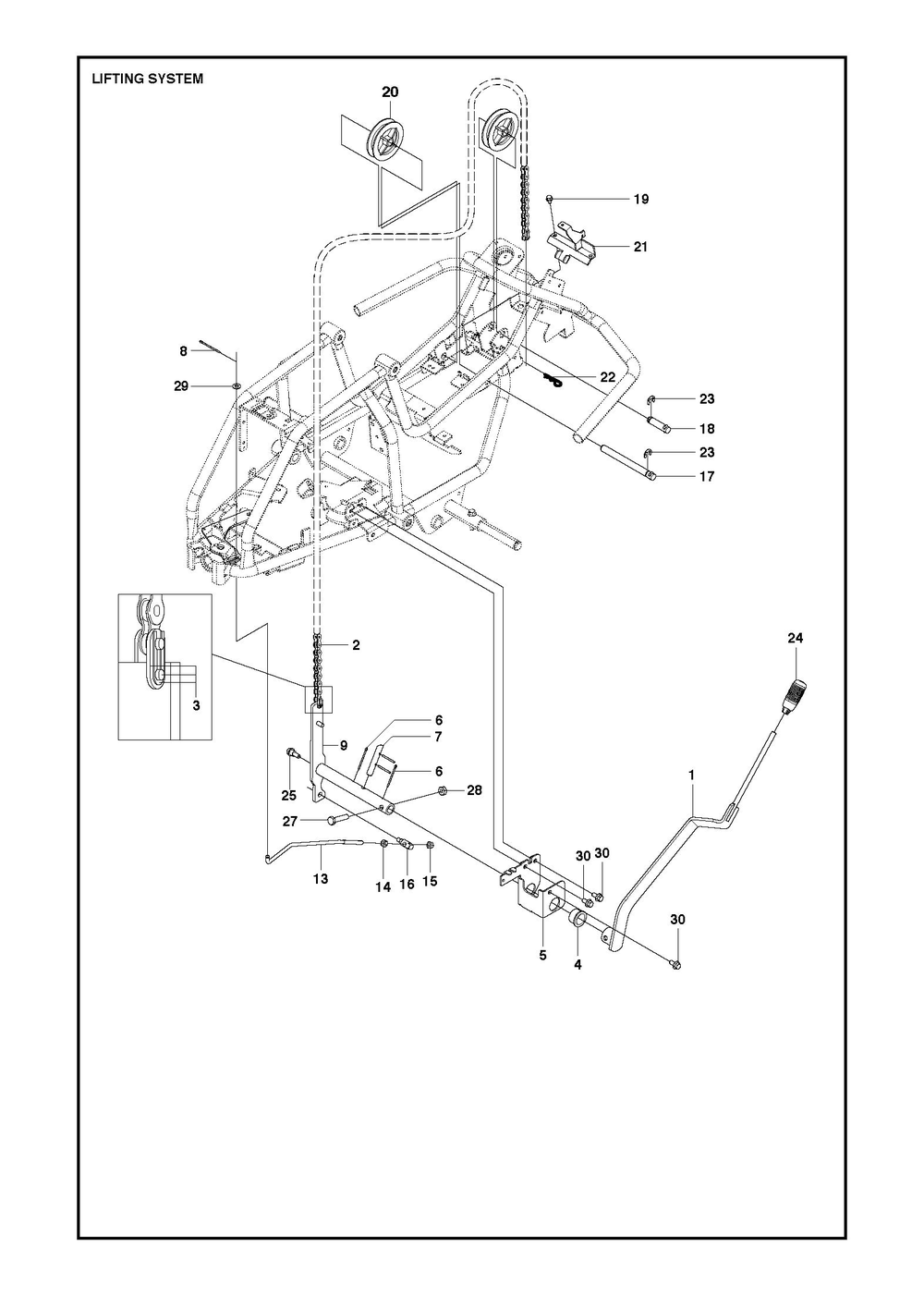

Mower Lift / Deck Lift Diagram and Parts List for Husqvarna Lawn Tractor
Mower Lift / Deck Lift

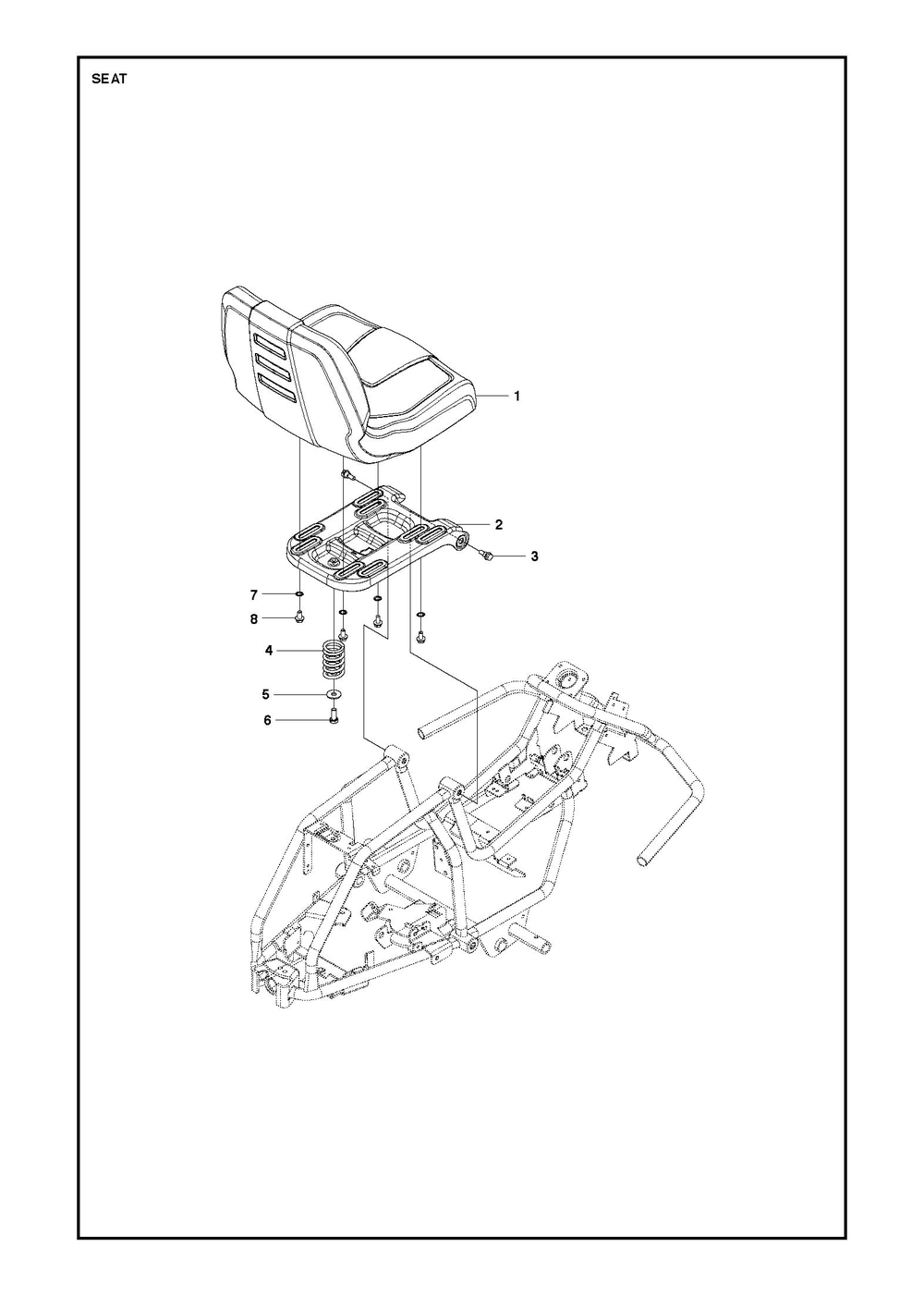

Seat Diagram and Parts List for Husqvarna Lawn Tractor
Seat
Steering Diagram and Parts List for Husqvarna Lawn Tractor
Steering
Transmission Diagram and Parts List for Husqvarna Lawn Tractor
Transmission

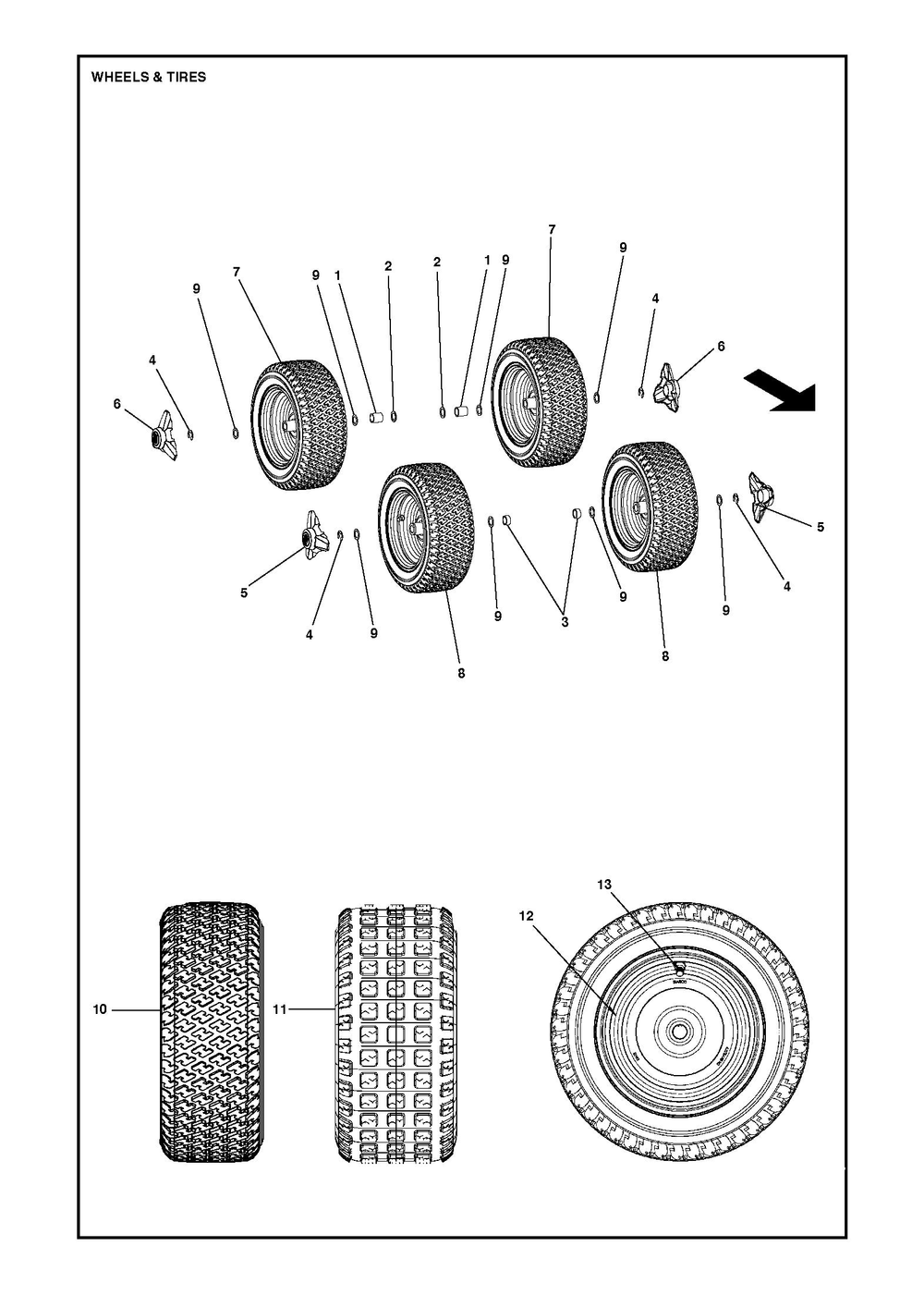

Wheels And Tires Diagram and Parts List for Husqvarna Lawn Tractor
Wheels And Tires
Previous Showing All Parts Next

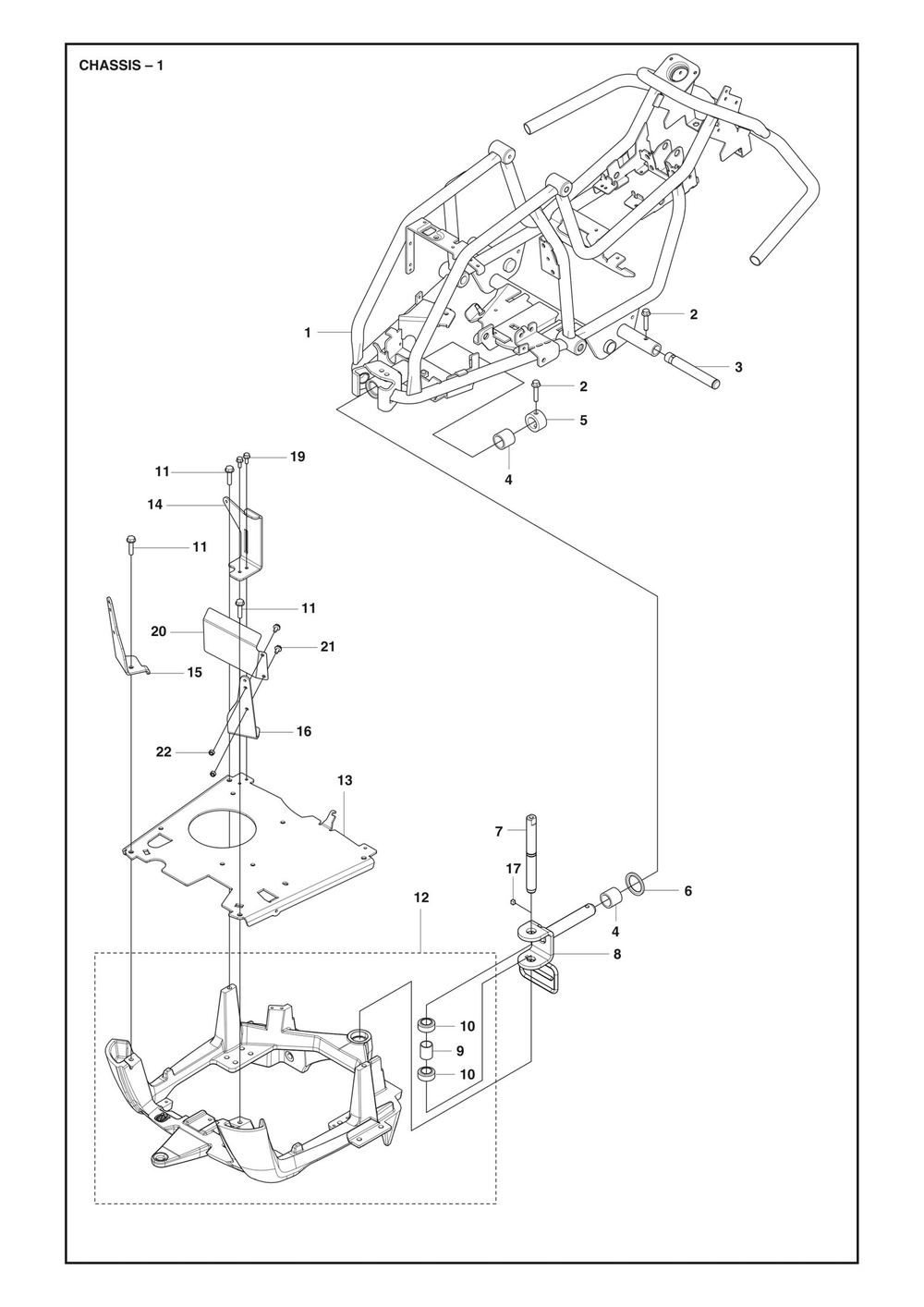

Chassis Rear
Chassis Rear Diagram and Parts List for Husqvarna Lawn Tractor
  • 1
    Frame – Part Number: 581274101
    Frame
    Part Number: 581274101
      No Longer Available
  • 2
    Bolt Flange - M8X40 – Part Number: 725245961
    Bolt Flange - M8X40
    Part Number: 725245961
      No Longer Available
  • 3
    Wheel axle l0 = 158.6 – Part Number: 597465402
    Wheel axle l0 = 158.6
    Part Number: 597465402
      Special Order
    $45.47
  • 4
    Bushing – Part Number: 506986102
    Bushing
    Part Number: 506986102
      Special Order
    $25.71
  • 5
    Stop Sleeve – Part Number: 522425201
    Stop Sleeve
    Part Number: 522425201
      No Longer Available
  • 6
    Spacer – Part Number: 522425301
    Spacer
    Part Number: 522425301
      No Longer Available
  • 7
    Shaft – Part Number: 579720401
    Shaft
    Part Number: 579720401
      Special Order
    $28.32
  • 8
    Swing Axle – Part Number: 580267401
    Swing Axle
    Part Number: 580267401
      No Longer Available
  • 9
    Sleeve – Part Number: 522424501
    Sleeve
    Part Number: 522424501
      No Longer Available
  • 10
    Bearing – Part Number: 574368501
    Bearing
    Part Number: 574368501
      No Longer Available
  • 11
    Screw Ehhfm – Part Number: 506570106
    Screw Ehhfm
    Part Number: 506570106
      Special Order
    $7.13
  • 12
    Frame Assy – Part Number: 590268201
    Frame Assy
    Part Number: 590268201
      No Longer Available
  • 13
    Bracket – Part Number: 581550901
    Bracket
    Part Number: 581550901
      No Longer Available
  • 14
    Bracket – Part Number: 581613501
    Bracket
    Part Number: 581613501
      No Longer Available
  • 15
    Bracket – Part Number: 581613601
    Bracket
    Part Number: 581613601
      No Longer Available
  • 16
    Bracket – Part Number: 581613602
    Bracket
    Part Number: 581613602
      No Longer Available
  • 17
    Key – Part Number: 577708901
    Key
    Part Number: 577708901
      No Longer Available
  • 19
    Screw Ehhfm – Part Number: 535475212
    Screw Ehhfm
    Part Number: 535475212
      In Stock
    Minimum Quantity of 2 required
    $6.16
  • 20
    Heat Shield – Part Number: 585022601
    Heat Shield
    Part Number: 585022601
      No Longer Available
  • 22
    Locknut M6 – Part Number: 732211601
    Locknut M6
    Part Number: 732211601
      Special Order
    $10.84

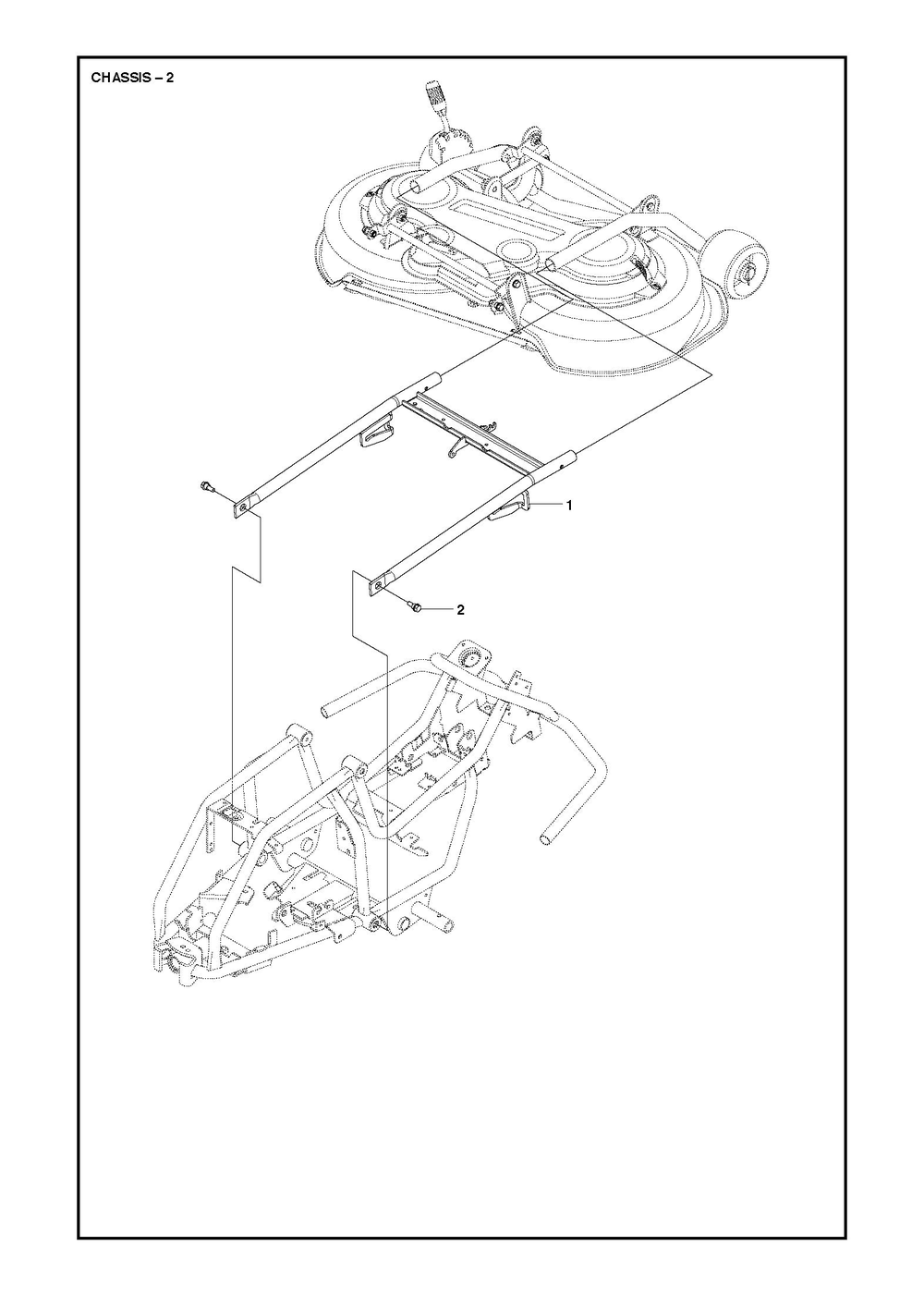

Chassis Rear
Chassis Rear Diagram and Parts List for Husqvarna Lawn Tractor
  • 1
    Equipment Frame – Part Number: 584833002
    Equipment Frame
    Part Number: 584833002
      No Longer Available
  • 2
    Bolt – Part Number: 506895801
    Bolt
    Part Number: 506895801
      On Order
    $10.84

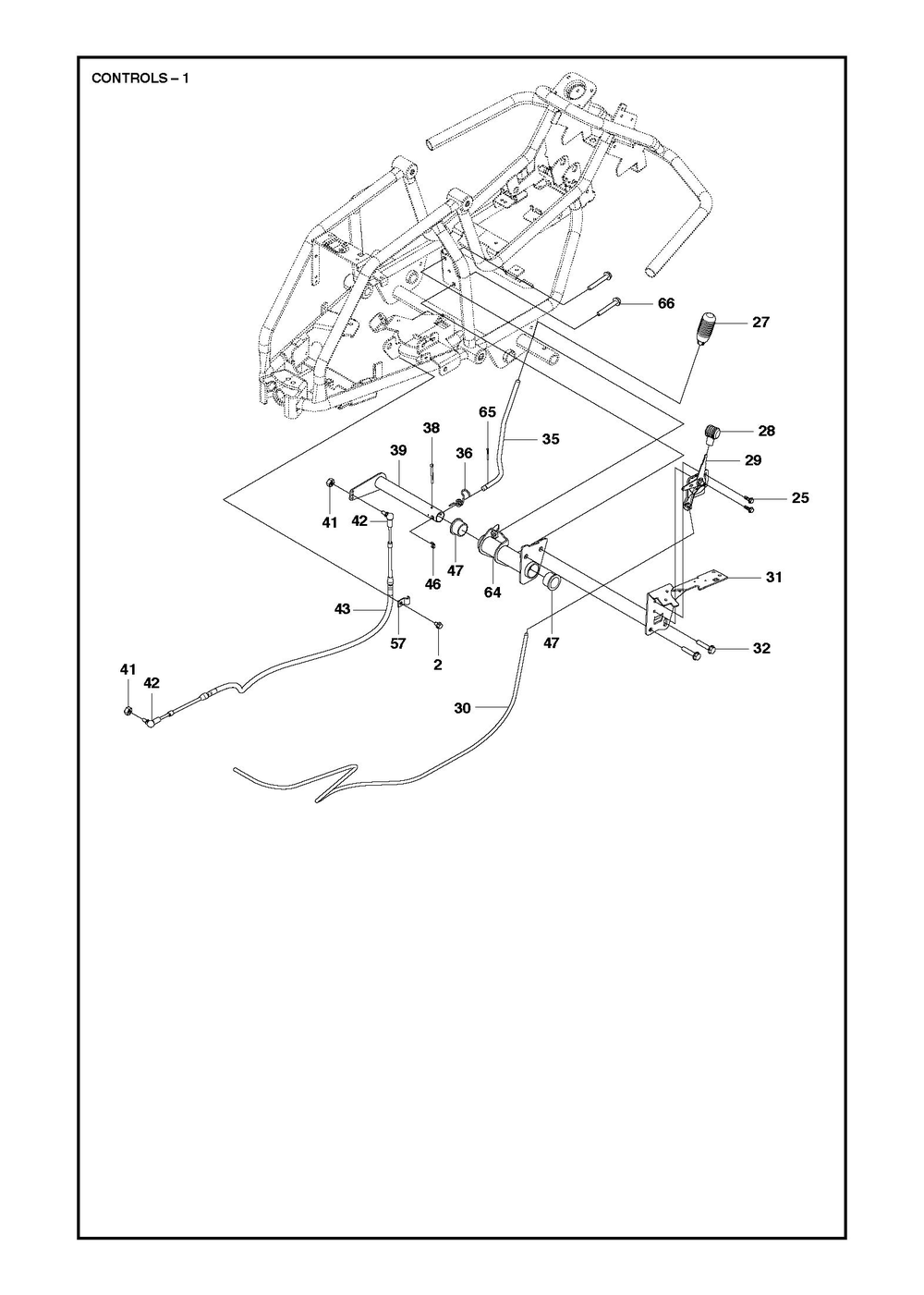

Controls
Controls Diagram and Parts List for Husqvarna Lawn Tractor
  • 2
    Screw – Part Number: 725236461
    Screw
    Part Number: 725236461
      Special Order
    $6.16
  • 9
    Washer – Part Number: 734116401
    Washer
    Part Number: 734116401
      On Order
    $6.17
  • 25
    Bolt – Part Number: 506570103
    Bolt
    Part Number: 506570103
      Special Order
    $14.28
  • 33
    Locking lever – Part Number: 523346002
    Locking lever
    Part Number: 523346002
      No Longer Available
  • 34
    Nut – Part Number: 506916201
    Nut
    Part Number: 506916201
      In Stock
    $8.56
  • 35
    Clamp – Part Number: 578996801
    Clamp
    Part Number: 578996801
      No Longer Available
  • 37
    Pedal plate assembly – Part Number: 574406601
    Pedal plate assembly
    Part Number: 574406601
      No Longer Available
  • 40
    E-clip – Part Number: 735310920
    E-clip
    Part Number: 735310920
      On Order
    $6.16
  • 42
    Wire – Part Number: 574407602
    Wire
    Part Number: 574407602
      No Longer Available
  • 44
    Pedal Rubber – Part Number: 586966402
    Pedal Rubber
    Part Number: 586966402
      In Stock
    $25.71
  • 45
    Pedal Rubber – Part Number: 586966401
    Pedal Rubber
    Part Number: 586966401
      In Stock
    $25.71
  • 48
    Bracket – Part Number: 581852801
    Bracket
    Part Number: 581852801
      No Longer Available
  • 49
    Cotter Pin – Part Number: 721615201
    Cotter Pin
    Part Number: 721615201
      No Longer Available
  • 51
    Draw Spring – Part Number: 544133401
    Draw Spring
    Part Number: 544133401
      No Longer Available
  • 52
    Rivet – Part Number: 544440701
    Rivet
    Part Number: 544440701
      Special Order
    $6.16
  • 53
    Micro Switch – Part Number: 574316101
    Micro Switch
    Part Number: 574316101
      Special Order
    $17.11
  • 54
    Bracket – Part Number: 544415701
    Bracket
    Part Number: 544415701
      In Stock
    $7.13
  • 55
    Pedal Shaft Clamp – Part Number: 506506501
    Pedal Shaft Clamp
    Part Number: 506506501
      Special Order
    $10.84
  • 56
    Bracket – Part Number: 581855301
    Bracket
    Part Number: 581855301
      No Longer Available
  • 57
    Clamp – Part Number: 506566501
    Clamp
    Part Number: 506566501
      Special Order
    $6.16
  • 58
    Spring – Part Number: 506535602
    Spring
    Part Number: 506535602
      No Longer Available
  • 59
    Spring – Part Number: 575355201
    Spring
    Part Number: 575355201
      Special Order
    $10.57
  • 60
    Link – Part Number: 544127901
    Link
    Part Number: 544127901
      No Longer Available
  • 61
    Clevis Pin – Part Number: 721839901
    Clevis Pin
    Part Number: 721839901
      No Longer Available
  • 62
    Wire assembly – Part Number: 506952502
    Wire assembly
    Part Number: 506952502
      No Longer Available
  • 63
    Spring – Part Number: 506535603
    Spring
    Part Number: 506535603
    ★★★★★
    ★★★★★
    (1)
      Special Order
    $7.73
Controls
Controls Diagram and Parts List for Husqvarna Lawn Tractor
  • 2
    Screw – Part Number: 725236461
    Screw
    Part Number: 725236461
      Special Order
    $6.16
  • 25
    Bolt – Part Number: 506570103
    Bolt
    Part Number: 506570103
      Special Order
    $14.28
  • 27
    Handle – Part Number: 588164101
    Handle
    Part Number: 588164101
      Special Order
    $18.56
  • 28
    Handle – Part Number: 506889101
    Handle
    Part Number: 506889101
      In Stock
    $7.73
  • 29
    Throttle Control – Part Number: 522505901
    Throttle Control
    Part Number: 522505901
      In Stock
    $35.02
  • 30
    Wire – Part Number: 544301704
    Wire
    Part Number: 544301704
      Special Order
    $55.44
  • 31
    Sheet – Part Number: 575240301
    Sheet
    Part Number: 575240301
      Special Order
    $30.39
  • 32
    Bolt – Part Number: 506570104
    Bolt
    Part Number: 506570104
      Special Order
    $7.73
  • 35
    Rod – Part Number: 525316501
    Rod
    Part Number: 525316501
      No Longer Available
  • 36
    Spring – Part Number: 574377801
    Spring
    Part Number: 574377801
      No Longer Available
  • 38
    Split Pin – Part Number: 721620101
    Split Pin
    Part Number: 721620101
      No Longer Available
  • 39
    Gear shift lever – Part Number: 574377701
    Gear shift lever
    Part Number: 574377701
      No Longer Available
  • 41
    Locknut M5 – Part Number: 732211401
    Locknut M5
    Part Number: 732211401
      Special Order
    $6.16
  • 42
    Connector – Part Number: 578776801
    Connector
    Part Number: 578776801
      Special Order
    $17.11
  • 43
    Control cable – Part Number: 574411104
    Control cable
    Part Number: 574411104
      No Longer Available
  • 47
    Bush – Part Number: 584871301
    Bush
    Part Number: 584871301
      Special Order
    $7.13
  • 57
    Clamp – Part Number: 506566501
    Clamp
    Part Number: 506566501
      Special Order
    $6.16
  • 64
    Bracket – Part Number: 574369702
    Bracket
    Part Number: 574369702
      No Longer Available
  • 65
    Cotter Pin – Part Number: 721615201
    Cotter Pin
    Part Number: 721615201
      No Longer Available

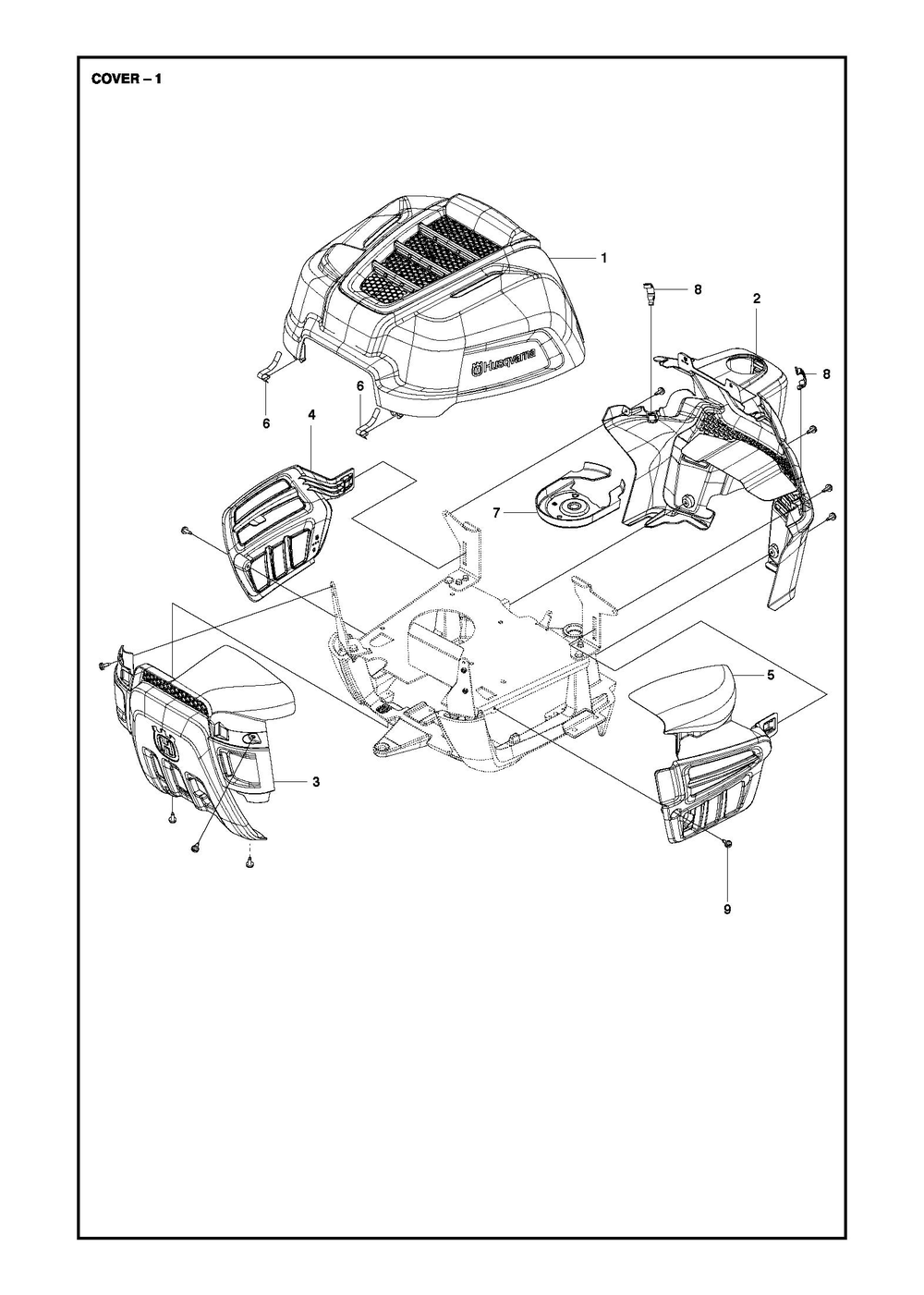

Cover
Cover Diagram and Parts List for Husqvarna Lawn Tractor
Cover
Cover Diagram and Parts List for Husqvarna Lawn Tractor
  • 1
    Cover – Part Number: 575839202
    Cover
    Part Number: 575839202
      No Longer Available
  • 2
    Battery Box – Part Number: 525477801
    Battery Box
    Part Number: 525477801
      No Longer Available
  • 3
    Foot Plate – Part Number: 521889101
    Foot Plate
    Part Number: 521889101
      No Longer Available
  • 4
    Foot Plate – Part Number: 521889202
    Foot Plate
    Part Number: 521889202
      No Longer Available
  • 5
    Cover – Part Number: 522601801
    Cover
    Part Number: 522601801
      No Longer Available
  • 6
    Cover – Part Number: 521890701
    Cover
    Part Number: 521890701
      In Stock
    $43.11
  • 7
    Control Panel – Part Number: 521889302
    Control Panel
    Part Number: 521889302
      No Longer Available
  • 8
    Cover – Part Number: 585619801
    Cover
    Part Number: 585619801
      No Longer Available
  • 9
    Cover – Part Number: 585620101
    Cover
    Part Number: 585620101
      No Longer Available
  • 10
    Cover – Part Number: 525477901
    Cover
    Part Number: 525477901
      No Longer Available
  • 11
    Cover – Part Number: 525396101
    Cover
    Part Number: 525396101
      Special Order
    $46.81
  • 13
    Nut – Part Number: 535429101
    Nut
    Part Number: 535429101
      Special Order
    $6.16
  • 14
    Screw – Part Number: 544400501
    Screw
    Part Number: 544400501
      In Stock
    $6.16
  • 15
    Cover – Part Number: 575751401
    Cover
    Part Number: 575751401
      In Stock
    $52.85

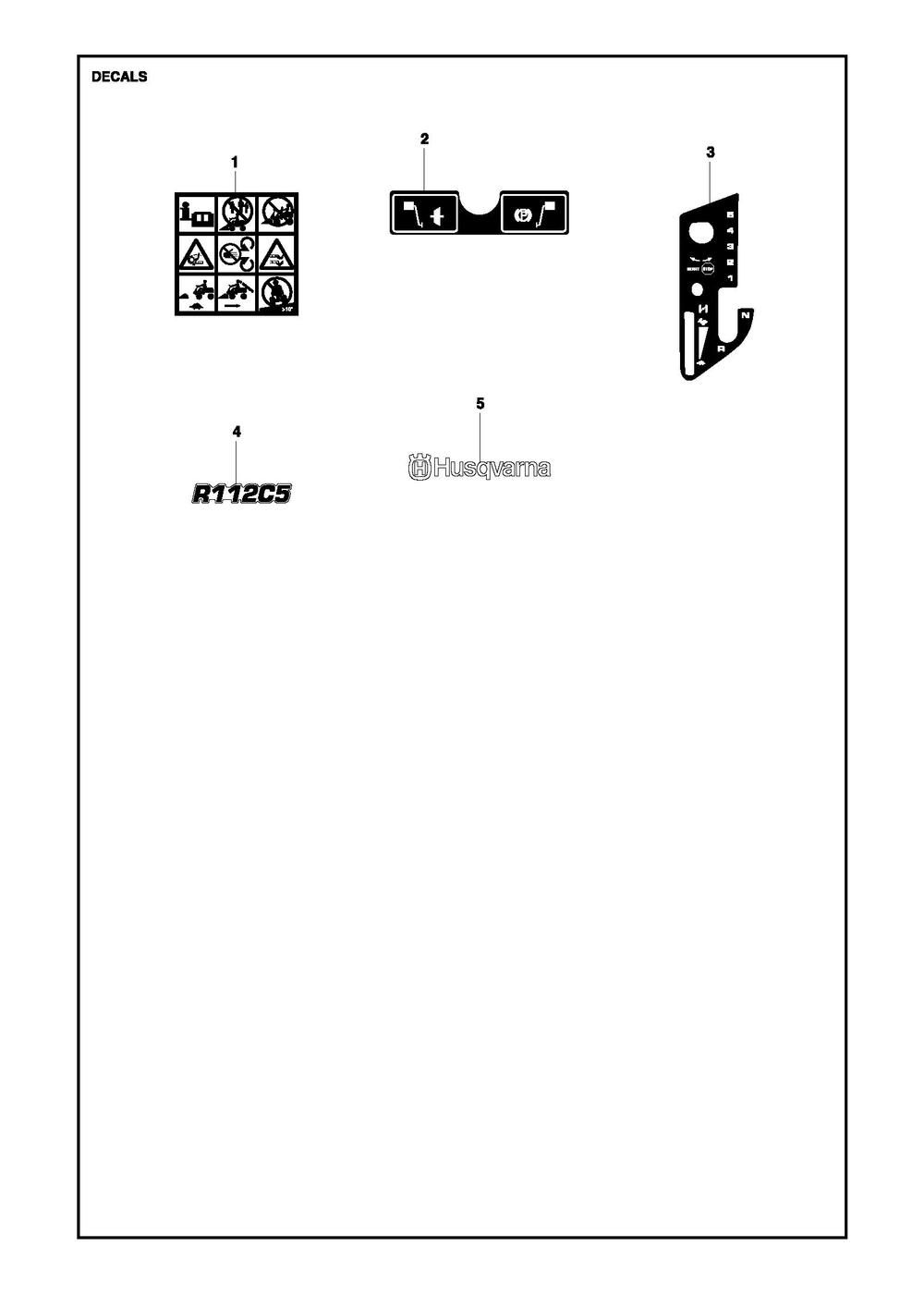

Decals
Decals Diagram and Parts List for Husqvarna Lawn Tractor
  • 1
    Decal – Part Number: 574854803
    Decal
    Part Number: 574854803
      No Longer Available
  • 2
    Decal – Part Number: 586031001
    Decal
    Part Number: 586031001
      No Longer Available
  • 3
    Decal controlpanel man no chok – Part Number: 575222602
    Decal controlpanel man no chok
    Part Number: 575222602
      No Longer Available
  • 3
    Decal – Part Number: 575222601
    Decal
    Part Number: 575222601
      No Longer Available
  • 4
    Decal – Part Number: 581048206
    Decal
    Part Number: 581048206
      No Longer Available
  • 5
    Decal – Part Number: 577062001
    Decal
    Part Number: 577062001
      In Stock
    $18.56
Electrical
Electrical Diagram and Parts List for Husqvarna Lawn Tractor
  • 1
    Wiring – Part Number: 581972401
    Wiring
    Part Number: 581972401
      No Longer Available
  • 2
    No Description Available – Part Number: 574269501
    No Description Available
    Part Number: 574269501
      No Longer Available
  • 3
    Wiring – Part Number: 574269601
    Wiring
    Part Number: 574269601
      Special Order
    $26.42
  • 4
    Cable – Part Number: 574269801
    Cable
    Part Number: 574269801
      No Longer Available
  • 5
    Relay – Part Number: 544439801
    Relay
    Part Number: 544439801
      In Stock
    $28.57
  • 6
    Switch – Part Number: 506909601
    Switch
    Part Number: 506909601
      In Stock
    $21.42
  • 7
    Washer – Part Number: 506909701
    Washer
    Part Number: 506909701
      Special Order
    $21.42
  • 8
    Spring – Part Number: 544441201
    Spring
    Part Number: 544441201
      No Longer Available
  • 9
    Spacer Tube – Part Number: 506909902
    Spacer Tube
    Part Number: 506909902
      Special Order
    $6.59
  • 10
    Washer – Part Number: 734116401
    Washer
    Part Number: 734116401
      On Order
    $6.17
  • 11
    Screw – Part Number: 725246351
    Screw
    Part Number: 725246351
      On Order
    $7.73
  • 12
    Ignition Switch – Part Number: 544442101
    Ignition Switch
    Part Number: 544442101
      In Stock
    $37.73
  • 13
    Switch – Part Number: 544415901
    Switch
    Part Number: 544415901
      Special Order
    $27.47
  • 14
    Nut – Part Number: 544442301
    Nut
    Part Number: 544442301
      In Stock
    $6.16
  • 15
    Ignition Key – Part Number: 544442401
    Ignition Key
    Part Number: 544442401
      In Stock
    $9.98
  • 16
    Micro Switch – Part Number: 574316101
    Micro Switch
    Part Number: 574316101
      Special Order
    $17.11
  • 17
    Rivet – Part Number: 544440701
    Rivet
    Part Number: 544440701
      Special Order
    $6.16
  • 18
    Battery – Part Number: 574397201
    Battery
    Part Number: 574397201
      No Longer Available
  • 19
    Screw EHHM – Part Number: 522622101
    Screw EHHM
    Part Number: 522622101
      No Longer Available
  • 20
    Nut – Part Number: 522624301
    Nut
    Part Number: 522624301
      No Longer Available
  • 21
    Cable Clamp – Part Number: 575269901
    Cable Clamp
    Part Number: 575269901
      No Longer Available
  • 22
    Rivet – Part Number: 722795402
    Rivet
    Part Number: 722795402
      No Longer Available
  • 23
    Screw – Part Number: 725236461
    Screw
    Part Number: 725236461
      Special Order
    $6.16
  • 24
    Nut – Part Number: 506899801
    Nut
    Part Number: 506899801
      No Longer Available
Engine
Engine Diagram and Parts List for Husqvarna Lawn Tractor
  • 1
    Engine – Part Number: 584872401
    Engine
    Part Number: 584872401
      No Longer Available
  • 2
    Muffler Assy – Part Number: 584244301
    Muffler Assy
    Part Number: 584244301
      No Longer Available
  • 3
    Manifold – Part Number: 584805101
    Manifold
    Part Number: 584805101
      No Longer Available
  • 4
    Fuel Tank – Part Number: 581614301
    Fuel Tank
    Part Number: 581614301
      No Longer Available
  • 5
    Valve Drain Oil – Part Number: 532428287
    Valve Drain Oil
    Part Number: 532428287
    ★★★★★
    ★★★★★
    (11)
      In Stock
    $25.71
  • 6
    Fuel Hose – Part Number: 504800015
    Fuel Hose
    Part Number: 504800015
      No Longer Available
  • 7
    Clamp – Part Number: 535469701
    Clamp
    Part Number: 535469701
      No Longer Available
  • 8
    Cap Asm – Part Number: 584248702
    Cap Asm
    Part Number: 584248702
    ★★★★★
    ★★★★★
    (3)
      In Stock
    $25.71
  • 9
    Bolt – Part Number: 506556301
    Bolt
    Part Number: 506556301
      Special Order
    $6.16
  • 10
    Locknut M8 – Part Number: 732211801
    Locknut M8
    Part Number: 732211801
      In Stock
    $6.16
  • 11
    Washer – Part Number: 734116401
    Washer
    Part Number: 734116401
      On Order
    $6.17
  • 12
    Screw – Part Number: 725245751
    Screw
    Part Number: 725245751
      Special Order
    $20.10
  • 13
    Washer – Part Number: 735216400
    Washer
    Part Number: 735216400
      No Longer Available
  • 14
    Screw – Part Number: 544400401
    Screw
    Part Number: 544400401
      No Longer Available
  • 15
    Washer – Part Number: 578259301
    Washer
    Part Number: 578259301
      No Longer Available
  • 17
    Collar Screw – Part Number: 578259101
    Collar Screw
    Part Number: 578259101
      No Longer Available
  • 18
    Flange – Part Number: 506914501
    Flange
    Part Number: 506914501
      In Stock
    $7.73
  • 20
    Pulley – Part Number: 522827601
    Pulley
    Part Number: 522827601
      No Longer Available
  • 21
    No Description Available – Part Number: 574412001
    No Description Available
    Part Number: 574412001
      No Longer Available
  • 22
    Washer – Part Number: 506597501
    Washer
    Part Number: 506597501
      No Longer Available
  • 23
    Screw – Part Number: 506556002
    Screw
    Part Number: 506556002
      Special Order
    $9.28
  • 24
    Wedge – Part Number: 506555902
    Wedge
    Part Number: 506555902
      Special Order
    $5.35
Mower Deck / Cutting Deck
Mower Deck / Cutting Deck Diagram and Parts List for Husqvarna Lawn Tractor
  • 1
    Cutting Deck – Part Number: 586147001
    Cutting Deck
    Part Number: 586147001
      No Longer Available
  • 1
    Locknut M8 – Part Number: 732211801
    Locknut M8
    Part Number: 732211801
      In Stock
    $6.16
  • 2
    Cross Bar – Part Number: 522450901
    Cross Bar
    Part Number: 522450901
      Special Order
    $30.79
  • 4
    C-Clip – Part Number: 735585200
    C-Clip
    Part Number: 735585200
      Special Order
    $9.34
  • 5
    Rod – Part Number: 522602301
    Rod
    Part Number: 522602301
      No Longer Available
  • 7
    Handle – Part Number: 574328801
    Handle
    Part Number: 574328801
      In Stock
    $13.20
  • 12
    Screw – Part Number: 725245371
    Screw
    Part Number: 725245371
      No Longer Available
  • 13
    Bracket – Part Number: 522523201
    Bracket
    Part Number: 522523201
      Special Order
    $36.37
  • 14
    Cover – Part Number: 573971801
    Cover
    Part Number: 573971801
      Special Order
    $17.17
  • 16
    Cover – Part Number: 574172101
    Cover
    Part Number: 574172101
      No Longer Available
  • 17
    Screw – Part Number: 544400501
    Screw
    Part Number: 544400501
      In Stock
    $6.16
  • 19
    Cover – Part Number: 574172001
    Cover
    Part Number: 574172001
      No Longer Available
  • 21
    Spacer – Part Number: 734116441
    Spacer
    Part Number: 734116441
      In Stock
    $6.16
  • 33
    Cutting Deck – Part Number: 581061101
    Cutting Deck
    Part Number: 581061101
      No Longer Available
  • 34
    Retaining Ring – Part Number: 735311520
    Retaining Ring
    Part Number: 735311520
      Special Order
    $6.16
  • 35
    Locknut M6 – Part Number: 732211601
    Locknut M6
    Part Number: 732211601
      Special Order
    $10.84
  • 37
    Plug – Part Number: 574041701
    Plug
    Part Number: 574041701
      No Longer Available
  • 43
    Equipment Frame – Part Number: 522451901
    Equipment Frame
    Part Number: 522451901
      No Longer Available
  • 44
    Cotter Pin – Part Number: 721618701
    Cotter Pin
    Part Number: 721618701
      No Longer Available
  • 45
    Washer – Part Number: 574264501
    Washer
    Part Number: 574264501
      In Stock
    $7.91
  • 46
    Wheel – Part Number: 522735901
    Wheel
    Part Number: 522735901
      In Stock
    $38.97
  • 49
    Snap – Part Number: 595303001
    Snap
    Part Number: 595303001
      In Stock
    $6.16
  • 55
    Arm – Part Number: 525855701
    Arm
    Part Number: 525855701
      No Longer Available
  • 56
    Washer - 25x8.5x2.3 – Part Number: 734116541
    Washer - 25x8.5x2.3
    Part Number: 734116541
      Special Order
    $7.73
  • 57
    Lever comp. – Part Number: 575802101
    Lever comp.
    Part Number: 575802101
      No Longer Available
Mower Deck / Cutting Deck
Mower Deck / Cutting Deck Diagram and Parts List for Husqvarna Lawn Tractor
  • 1
    Locknut M8 – Part Number: 732211801
    Locknut M8
    Part Number: 732211801
      In Stock
    $6.16
  • 1
    Cutting Deck – Part Number: 586147001
    Cutting Deck
    Part Number: 586147001
      No Longer Available
  • 6
    Washer – Part Number: 584288604
    Washer
    Part Number: 584288604
      Special Order
    $6.16
  • 12
    Screw – Part Number: 725245371
    Screw
    Part Number: 725245371
      No Longer Available
  • 20
    Decal – Part Number: 585077101
    Decal
    Part Number: 585077101
      No Longer Available
  • 21
    Spacer – Part Number: 734116441
    Spacer
    Part Number: 734116441
      In Stock
    $6.16
  • 22
    Pulley – Part Number: 586104302
    Pulley
    Part Number: 586104302
      Special Order
    $30.98
  • 23
    Decal – Part Number: 574510001
    Decal
    Part Number: 574510001
      Special Order
    $6.16
  • 24
    Belt tensioner – Part Number: 573969501
    Belt tensioner
    Part Number: 573969501
      No Longer Available
  • 26
    Spring – Part Number: 584298801
    Spring
    Part Number: 584298801
      No Longer Available
  • 27
    Bolt – Part Number: 506675402
    Bolt
    Part Number: 506675402
      In Stock
    $9.28
  • 29
    Pulley – Part Number: 574460701
    Pulley
    Part Number: 574460701
      No Longer Available
  • 30
    Key – Part Number: 506533501
    Key
    Part Number: 506533501
      In Stock
    $6.16
  • 31
    Tube – Part Number: 573966501
    Tube
    Part Number: 573966501
      No Longer Available
  • 32
    Bearing housing assembly – Part Number: 573968602
    Bearing housing assembly
    Part Number: 573968602
      No Longer Available
  • 33
    Cutting Deck – Part Number: 581061101
    Cutting Deck
    Part Number: 581061101
      No Longer Available
  • 39
    Adapter – Part Number: 581249701
    Adapter
    Part Number: 581249701
      No Longer Available
  • 40
    Blade – Part Number: 581083501
    Blade
    Part Number: 581083501
      No Longer Available
  • 41
    No Description Available – Part Number: 506792303
    No Description Available
    Part Number: 506792303
      No Longer Available
  • 54
    Bolt – Part Number: 725245171
    Bolt
    Part Number: 725245171
      No Longer Available
Mower Lift / Deck Lift
Mower Lift / Deck Lift Diagram and Parts List for Husqvarna Lawn Tractor
  • 1
    Lever Assy – Part Number: 580389001
    Lever Assy
    Part Number: 580389001
      No Longer Available
  • 2
    Chain – Part Number: 506554611
    Chain
    Part Number: 506554611
      Special Order
    $43.58
  • 3
    Link – Part Number: 506554701
    Link
    Part Number: 506554701
      In Stock
    $7.13
  • 4
    Bush – Part Number: 584871301
    Bush
    Part Number: 584871301
      Special Order
    $7.13
  • 5
    Bracket – Part Number: 525404701
    Bracket
    Part Number: 525404701
      No Longer Available
  • 6
    Cotter Pin – Part Number: 721618701
    Cotter Pin
    Part Number: 721618701
      No Longer Available
  • 7
    Pin – Part Number: 525406601
    Pin
    Part Number: 525406601
      In Stock
    $12.35
  • 9
    Lever assembly – Part Number: 522560202
    Lever assembly
    Part Number: 522560202
      No Longer Available
  • 13
    Rod – Part Number: 522560101
    Rod
    Part Number: 522560101
      No Longer Available
  • 15
    Locknut M8 – Part Number: 732211801
    Locknut M8
    Part Number: 732211801
      In Stock
    $6.16
  • 16
    Joint – Part Number: 525491301
    Joint
    Part Number: 525491301
      No Longer Available
  • 17
    Shaft – Part Number: 525404401
    Shaft
    Part Number: 525404401
      No Longer Available
  • 18
    Shaft – Part Number: 525404501
    Shaft
    Part Number: 525404501
      No Longer Available
  • 19
    Screw – Part Number: 725236461
    Screw
    Part Number: 725236461
      Special Order
    $6.16
  • 20
    Pulley – Part Number: 506905601
    Pulley
    Part Number: 506905601
      Special Order
    $27.85
  • 21
    Bracket – Part Number: 574315801
    Bracket
    Part Number: 574315801
      No Longer Available
  • 23
    Lock Ring – Part Number: 735311820
    Lock Ring
    Part Number: 735311820
      No Longer Available
  • 24
    Handle – Part Number: 588164101
    Handle
    Part Number: 588164101
      Special Order
    $18.56
  • 27
    Screw – Part Number: 725250071
    Screw
    Part Number: 725250071
      No Longer Available
  • 28
    Nut – Part Number: 732212001
    Nut
    Part Number: 732212001
      Special Order
    $6.17
  • 29
    Washer – Part Number: 734116401
    Washer
    Part Number: 734116401
      On Order
    $6.17
  • 30
    Bolt – Part Number: 506570103
    Bolt
    Part Number: 506570103
      Special Order
    $14.28
Seat
Seat Diagram and Parts List for Husqvarna Lawn Tractor
  • 1
    Seat – Part Number: 525814801
    Seat
    Part Number: 525814801
      Special Order
    $158.56
  • 2
    Seat Bracket – Part Number: 581041501
    Seat Bracket
    Part Number: 581041501
      No Longer Available
  • 4
    Seat Spring – Part Number: 506915301
    Seat Spring
    Part Number: 506915301
      Special Order
    $30.96
  • 6
    Screw M10X25 – Part Number: 725249371
    Screw M10X25
    Part Number: 725249371
      No Longer Available
  • 7
    Washer – Part Number: 735216400
    Washer
    Part Number: 735216400
      No Longer Available
  • 8
    Bolt – Part Number: 506570103
    Bolt
    Part Number: 506570103
      Special Order
    $14.28
Steering
Steering Diagram and Parts List for Husqvarna Lawn Tractor
Transmission
Transmission Diagram and Parts List for Husqvarna Lawn Tractor
  • 1
    Bolt – Part Number: 506570103
    Bolt
    Part Number: 506570103
      Special Order
    $14.28
  • 2
    No Description Available – Part Number: 577592101
    No Description Available
    Part Number: 577592101
      No Longer Available
  • 3
    Locknut M8 – Part Number: 732211801
    Locknut M8
    Part Number: 732211801
      In Stock
    $6.16
  • 11
    Ball Bearing 6004-2rs1 – Part Number: 738210404
    Ball Bearing 6004-2rs1
    Part Number: 738210404
    ★★★★★
    ★★★★★
    (1)
      In Stock
    $18.56
  • 12
    Belt – Part Number: 589531401
    Belt
    Part Number: 589531401
      No Longer Available
  • 13
    No Description Available – Part Number: 574259501
    No Description Available
    Part Number: 574259501
      No Longer Available
  • 15
    Shaft – Part Number: 574259801
    Shaft
    Part Number: 574259801
      Special Order
    $30.39
  • 16
    Bolt – Part Number: 506675402
    Bolt
    Part Number: 506675402
      In Stock
    $9.28
  • 18
    Spacer – Part Number: 734116441
    Spacer
    Part Number: 734116441
      In Stock
    $6.16
  • 19
    Idler Pulley – Part Number: 539919078
    Idler Pulley
    Part Number: 539919078
      In Stock
    $36.37
  • 20
    Belt – Part Number: 589532801
    Belt
    Part Number: 589532801
      No Longer Available
  • 21
    Belt Tensioner – Part Number: 522602901
    Belt Tensioner
    Part Number: 522602901
      No Longer Available
  • 22
    Screw – Part Number: 725245951
    Screw
    Part Number: 725245951
      In Stock
    $7.73
  • 24
    Pulley – Part Number: 506946901
    Pulley
    Part Number: 506946901
      In Stock
    $49.37
  • 27
    Washer – Part Number: 581765201
    Washer
    Part Number: 581765201
      Special Order
    $6.16
  • 28
    Bolt – Part Number: 506570104
    Bolt
    Part Number: 506570104
      Special Order
    $7.73
  • 29
    Washer – Part Number: 584288604
    Washer
    Part Number: 584288604
      Special Order
    $6.16
  • 30
    No Description Available – Part Number: 522831601
    No Description Available
    Part Number: 522831601
      No Longer Available
  • 31
    Screw Ehhfm – Part Number: 535475212
    Screw Ehhfm
    Part Number: 535475212
      In Stock
    Minimum Quantity of 2 required
    $6.16
  • 33
    Washer – Part Number: 506504805
    Washer
    Part Number: 506504805
    ★★★★★
    ★★★★★
    (1)
      Special Order
    $6.16
  • 34
    Bracket – Part Number: 581865101
    Bracket
    Part Number: 581865101
      No Longer Available
  • 35
    Pulley – Part Number: 584818801
    Pulley
    Part Number: 584818801
      No Longer Available
  • 36
    Belt – Part Number: 589531301
    Belt
    Part Number: 589531301
      No Longer Available
  • 37
    Belt – Part Number: 589561701
    Belt
    Part Number: 589561701
      No Longer Available
  • 38
    Screw – Part Number: 725645301
    Screw
    Part Number: 725645301
      Special Order
    $6.16
  • 39
    Retaining Ring Sga 20 – Part Number: 735312200
    Retaining Ring Sga 20
    Part Number: 735312200
      No Longer Available
  • 41
    No Description Available – Part Number: 574412001
    No Description Available
    Part Number: 574412001
      No Longer Available
  • 42
    Bolt – Part Number: 506570103
    Bolt
    Part Number: 506570103
      Special Order
    $14.28
  • 43
    Bracket – Part Number: 581960401
    Bracket
    Part Number: 581960401
      No Longer Available
  • 44
    Key – Part Number: 506509401
    Key
    Part Number: 506509401
      No Longer Available
  • 45
    Washer – Part Number: 584288604
    Washer
    Part Number: 584288604
      Special Order
    $6.16
  • 46
    Bolt – Part Number: 506570104
    Bolt
    Part Number: 506570104
      Special Order
    $7.73
  • 47
    Screw – Part Number: 725245551
    Screw
    Part Number: 725245551
      No Longer Available
  • 49
    Pulley – Part Number: 506793401
    Pulley
    Part Number: 506793401
      No Longer Available
  • 50
    Bracket – Part Number: 581960201
    Bracket
    Part Number: 581960201
      No Longer Available
  • 52
    Spring – Part Number: 594924101
    Spring
    Part Number: 594924101
      In Stock
    $6.16
  • 53
    Bolt – Part Number: 506557801
    Bolt
    Part Number: 506557801
      No Longer Available
  • 54
    Flat Washer 6.7x16 – Part Number: 734181251
    Flat Washer 6.7x16
    Part Number: 734181251
      No Longer Available
  • 55
    Screw – Part Number: 725246651
    Screw
    Part Number: 725246651
      No Longer Available
  • 56
    No Description Available – Part Number: 525320501
    No Description Available
    Part Number: 525320501
      No Longer Available
  • 57
    Retaining Ring Sga 16 – Part Number: 735311800
    Retaining Ring Sga 16
    Part Number: 735311800
      No Longer Available
  • 58
    No Description Available – Part Number: 525320601
    No Description Available
    Part Number: 525320601
      No Longer Available
  • 59
    Washer – Part Number: 506504805
    Washer
    Part Number: 506504805
    ★★★★★
    ★★★★★
    (1)
      Special Order
    $6.16
  • 62
    Transaxle – Part Number: 581847901
    Transaxle
    Part Number: 581847901
      No Longer Available
  • 63
    Washer – Part Number: 734116401
    Washer
    Part Number: 734116401
      On Order
    $6.17
  • 64
    Locknut M8 – Part Number: 732211801
    Locknut M8
    Part Number: 732211801
      In Stock
    $6.16
  • 67
    Wedge – Part Number: 506555902
    Wedge
    Part Number: 506555902
      Special Order
    $5.35
  • 68
    Pulley – Part Number: 522827601
    Pulley
    Part Number: 522827601
      No Longer Available
  • 69
    Washer – Part Number: 506597501
    Washer
    Part Number: 506597501
      No Longer Available
  • 70
    Screw – Part Number: 506556002
    Screw
    Part Number: 506556002
      Special Order
    $9.28
  • 72
    Spring – Part Number: 574506101
    Spring
    Part Number: 574506101
      Special Order
    $9.24
  • 73
    Spring – Part Number: 575567202
    Spring
    Part Number: 575567202
      Special Order
    $11.87
  • 74
    Bracket – Part Number: 577418501
    Bracket
    Part Number: 577418501
      No Longer Available
  • 75
    Screw – Part Number: 725245751
    Screw
    Part Number: 725245751
      Special Order
    $20.10
Wheels And Tires
Wheels And Tires Diagram and Parts List for Husqvarna Lawn Tractor

Questions & Answers

?

Our customer Service team is at the ready daily to answer your part and product questions.

Be the first to ask our experts a question about this part!

Ask our Team

We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.

✖

Our customer service team are at the ready daily to answer your part and product questions. We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
