Husqvarna Rc 318t 2023- Lawn Tractor Replacement Parts For Model RC318T (2023)

We Sell Only Genuine Husqvarna Parts

Popular Parts for RC318T

Washer 5/16 Std Flt – Part Number: 596134901 Washer 5/16 Std Flt
In Stock
Minimum Quantity of 2 required
$6.16
Valve Drain Oil – Part Number: 532428287 Valve Drain Oil
In Stock
$25.71
Trimmer Nut – Part Number: 731231401 Trimmer Nut
In Stock
$6.16
Cap Asm – Part Number: 584248702 Cap Asm
In Stock
$25.71
Bolt – Part Number: 506597401 Bolt
In Stock
$9.28
E-clip – Part Number: 735310920 E-clip
On Order
$6.16
Retaining Ring Sga 15 – Part Number: 735311700 Retaining Ring Sga 15
On Order
$6.16
Locknut M8 – Part Number: 732211801 Locknut M8
In Stock
$6.16

Search Within Model

Questions & Answers for Husqvarna RC318T
Browse all Parts Search by Area
Auger Diagram and Parts List for 2023 Husqvarna Lawn Tractor
Auger
Belt Diagram and Parts List for 2023 Husqvarna Lawn Tractor
Belt

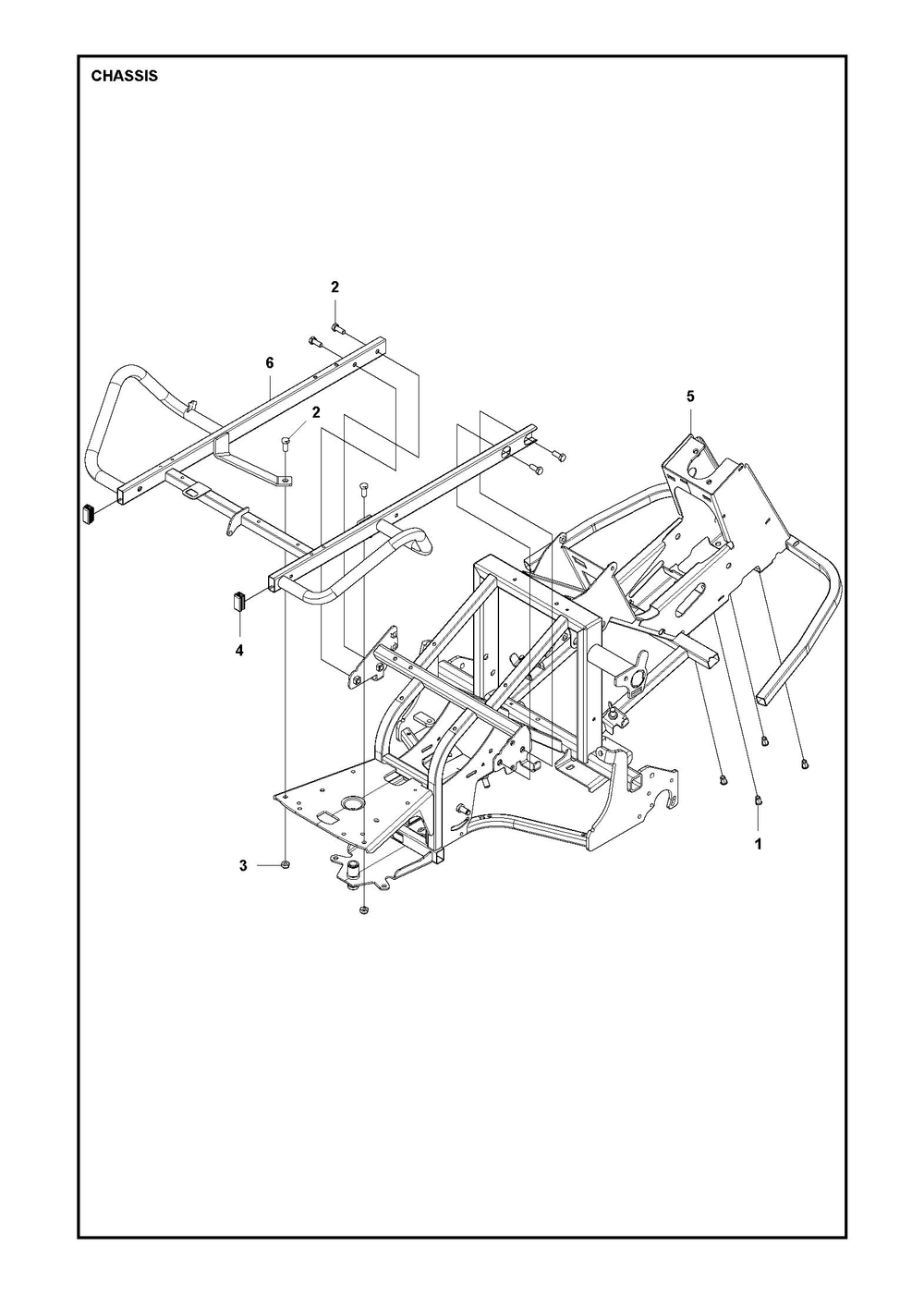

Chassis Diagram and Parts List for 2023 Husqvarna Lawn Tractor
Chassis
Collector Diagram and Parts List for 2023 Husqvarna Lawn Tractor
Collector

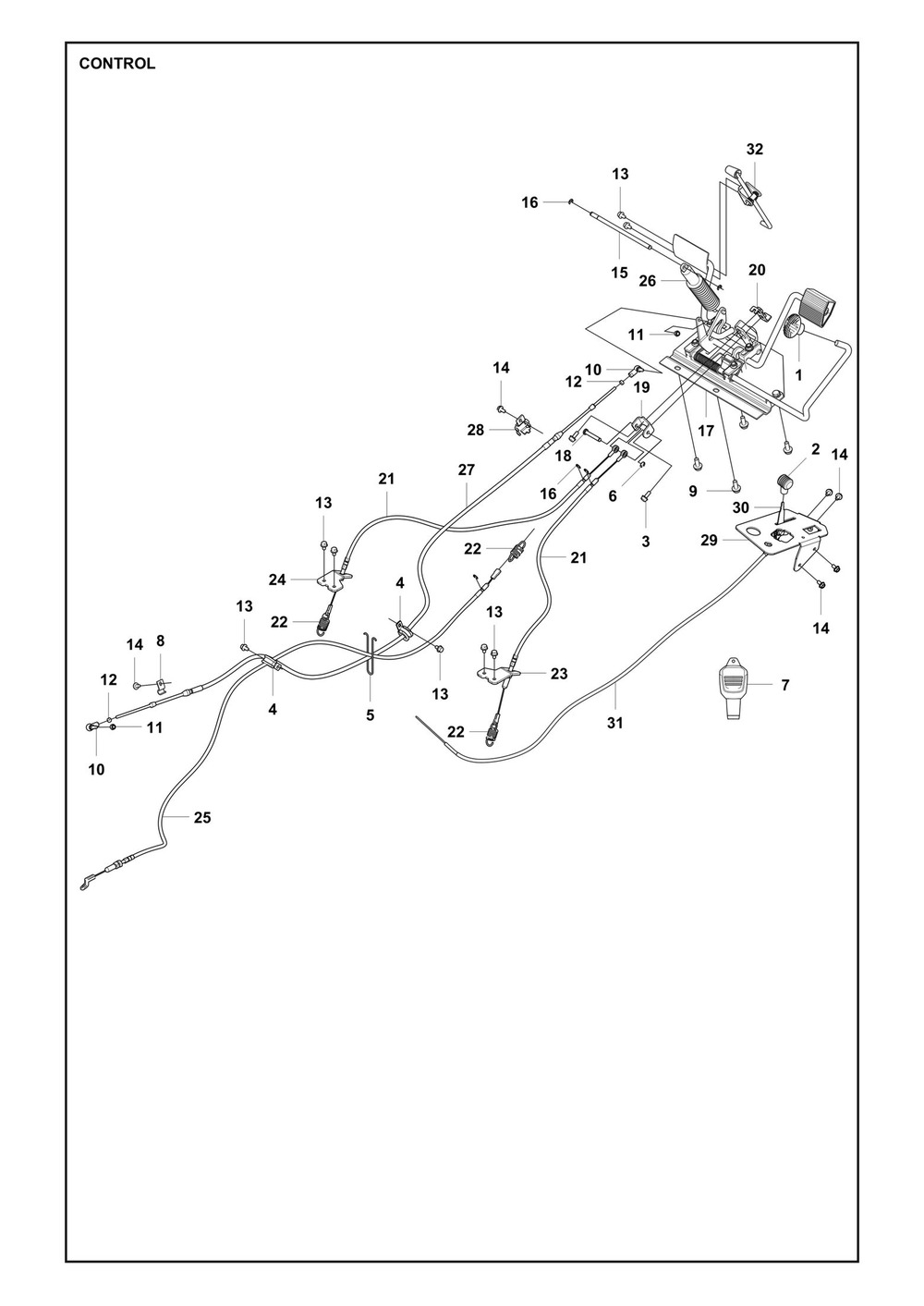

Controls Diagram and Parts List for 2023 Husqvarna Lawn Tractor
Controls
Cover Diagram and Parts List for 2023 Husqvarna Lawn Tractor
Cover

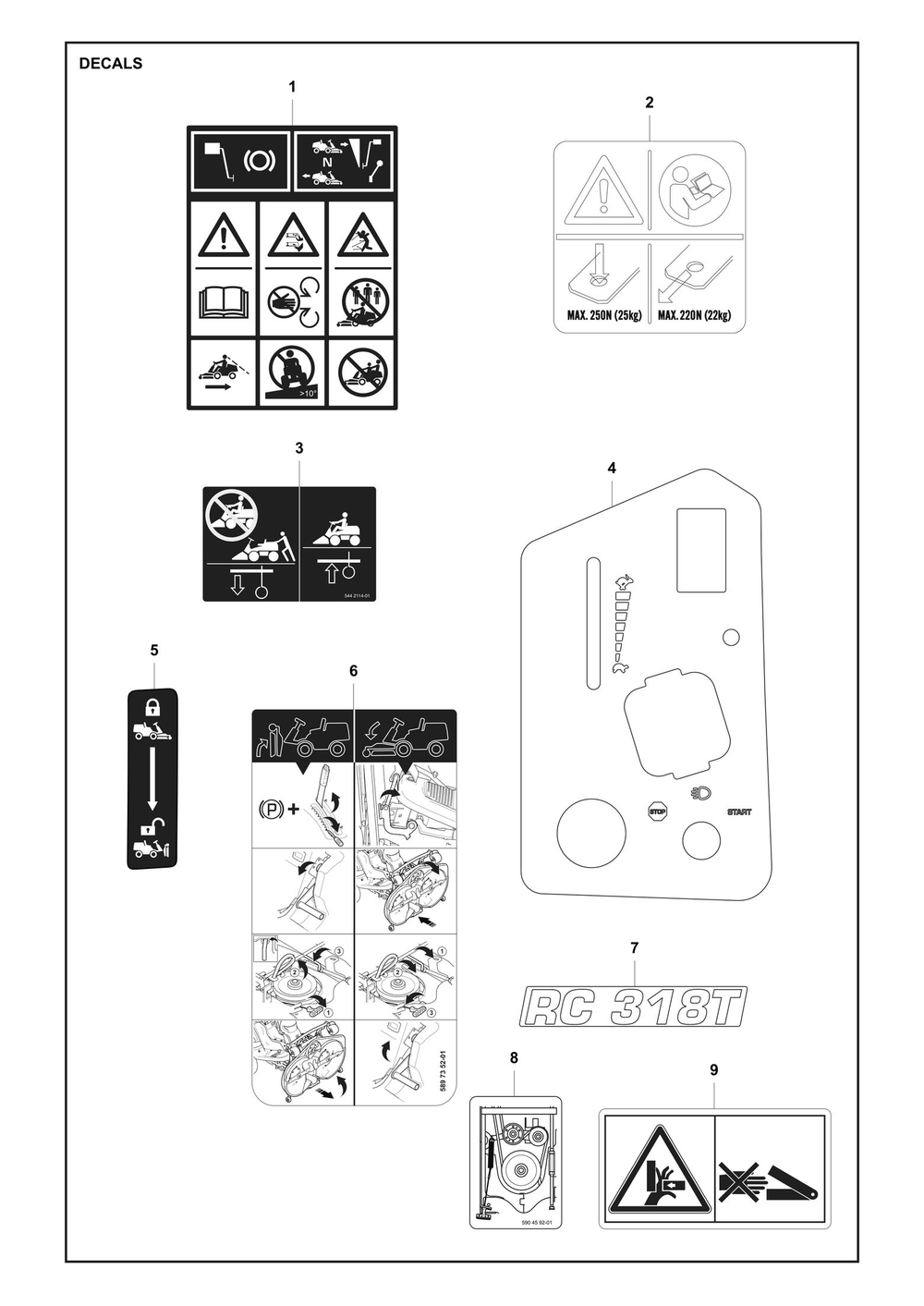

Decals Diagram and Parts List for 2023 Husqvarna Lawn Tractor
Decals

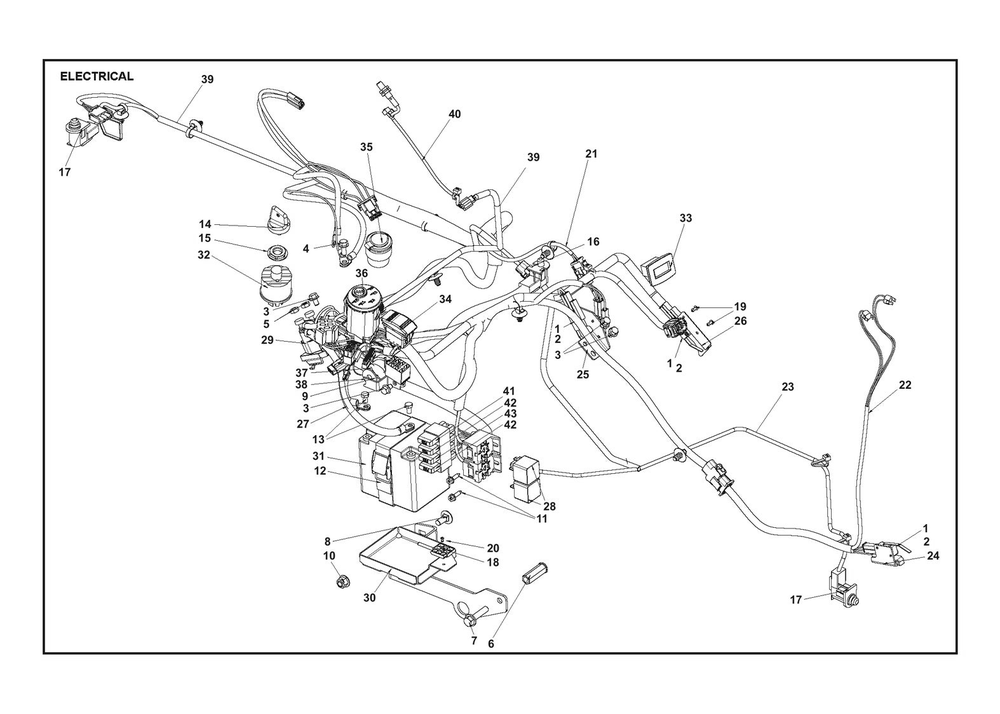

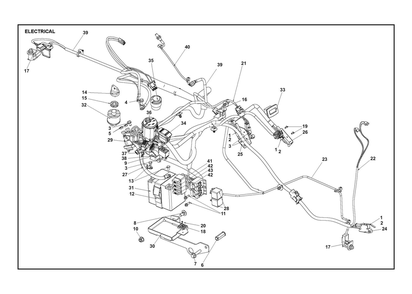

Electrical Diagram and Parts List for 2023 Husqvarna Lawn Tractor
Electrical
Engine Diagram and Parts List for 2023 Husqvarna Lawn Tractor
Engine
Frame Diagram and Parts List for 2023 Husqvarna Lawn Tractor
Frame
Fuel System Diagram and Parts List for 2023 Husqvarna Lawn Tractor
Fuel System
Height Adjustment Diagram and Parts List for 2023 Husqvarna Lawn Tractor
Height Adjustment
Mower Lift / Deck Lift Diagram and Parts List for 2023 Husqvarna Lawn Tractor
Mower Lift / Deck Lift
Seat Diagram and Parts List for 2023 Husqvarna Lawn Tractor
Seat

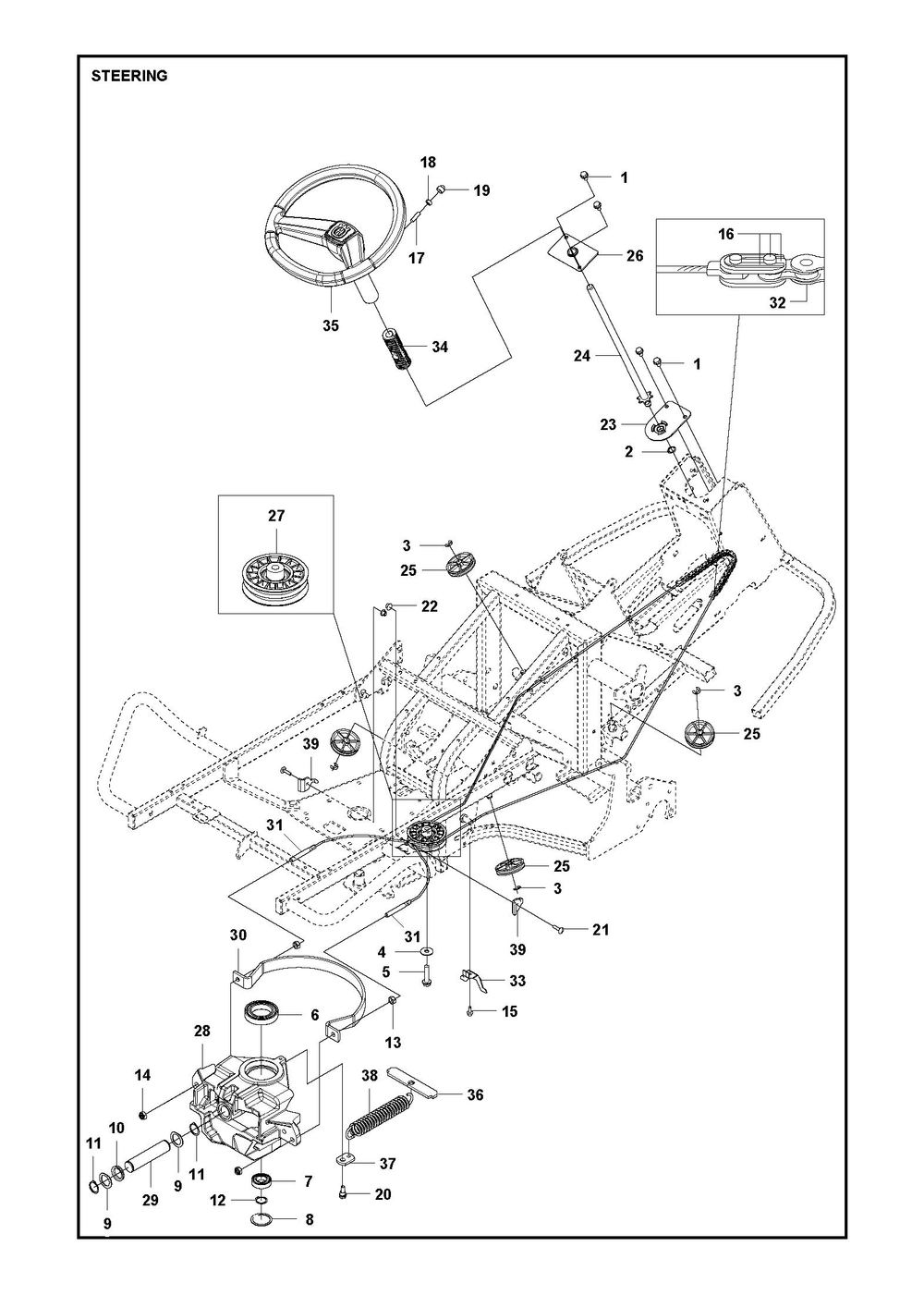

Steering Diagram and Parts List for 2023 Husqvarna Lawn Tractor
Steering

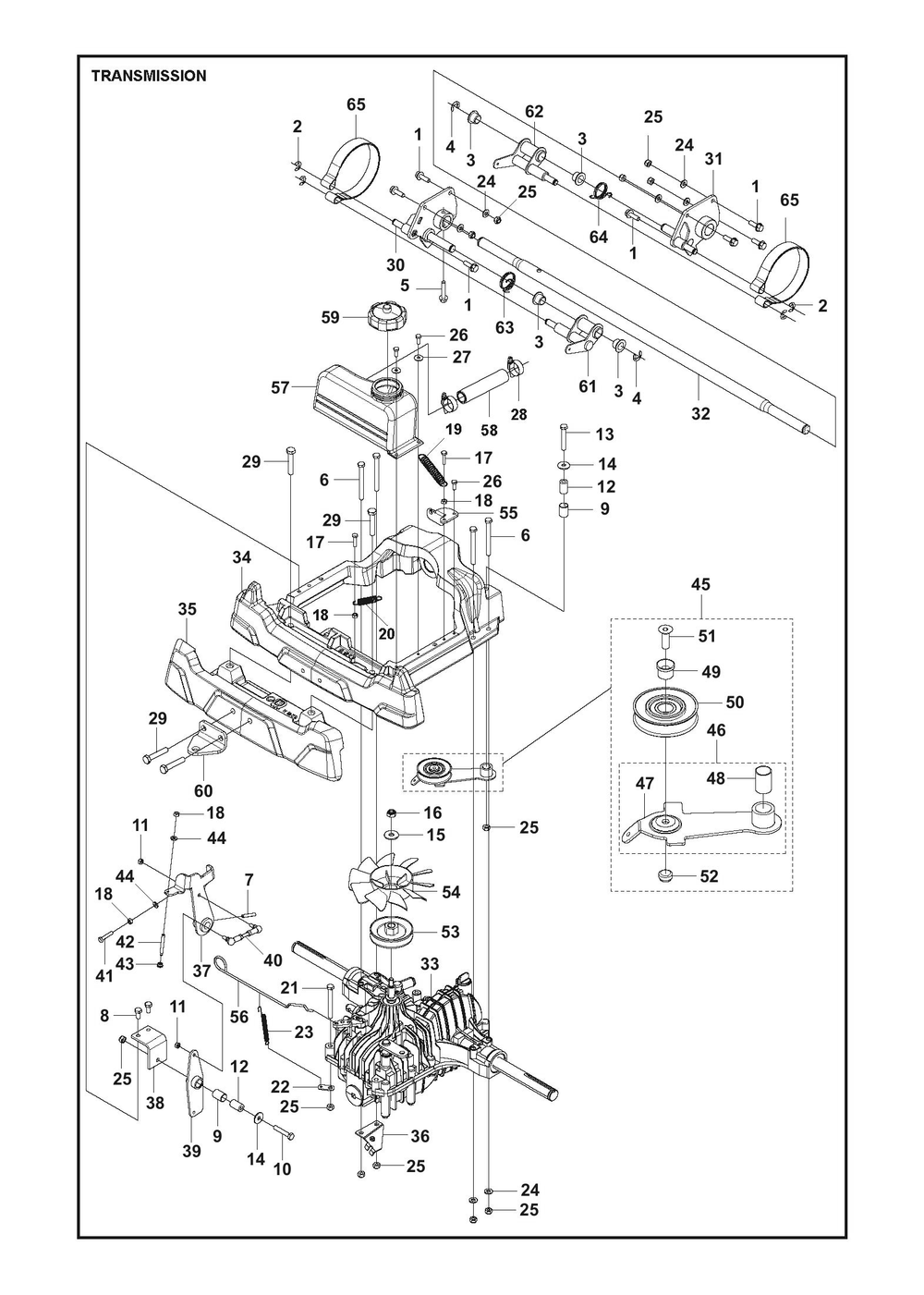

Transmission Diagram and Parts List for 2023 Husqvarna Lawn Tractor
Transmission

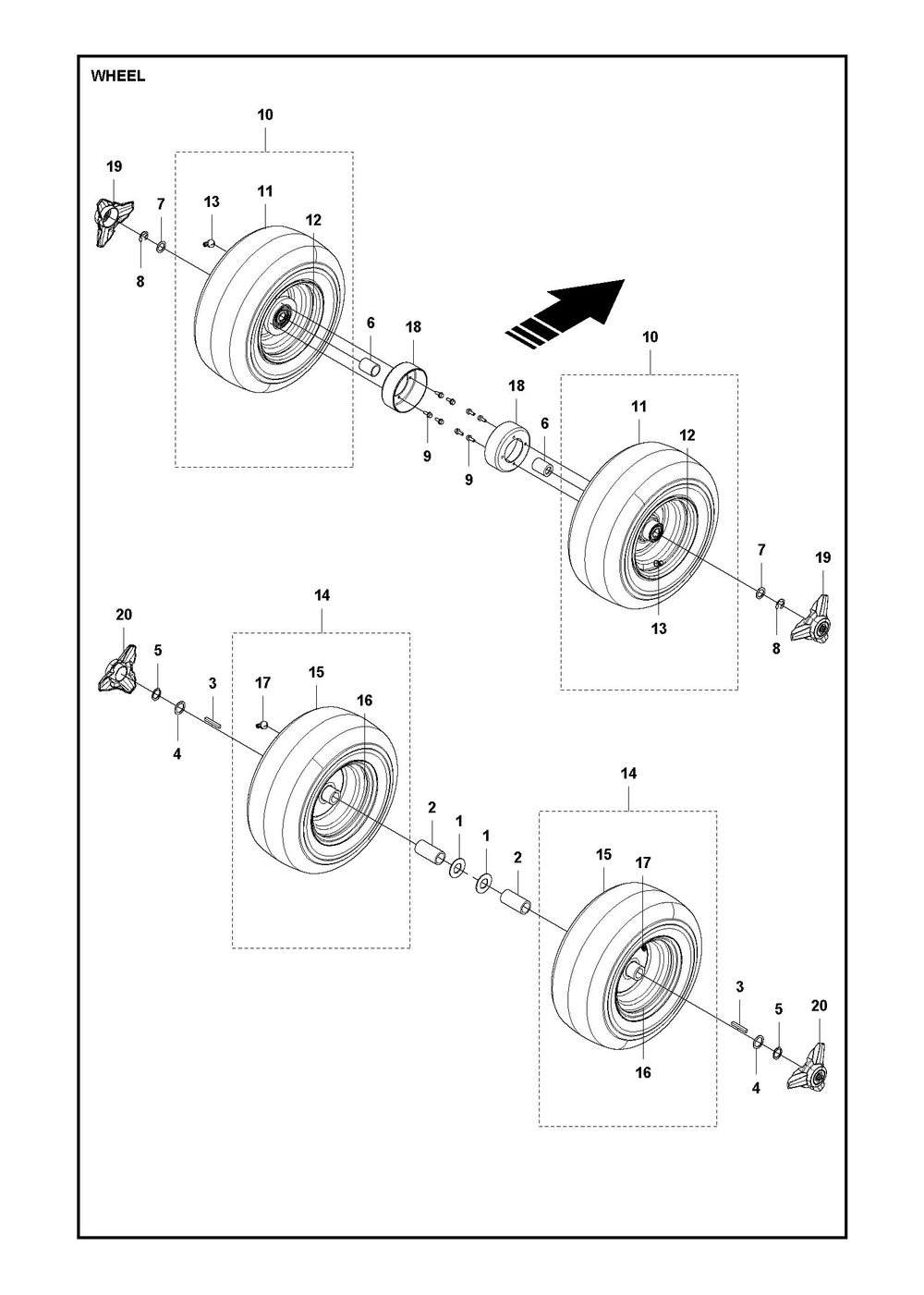

Wheels And Tires Diagram and Parts List for 2023 Husqvarna Lawn Tractor
Wheels And Tires
Previous Showing All Parts Next
Auger

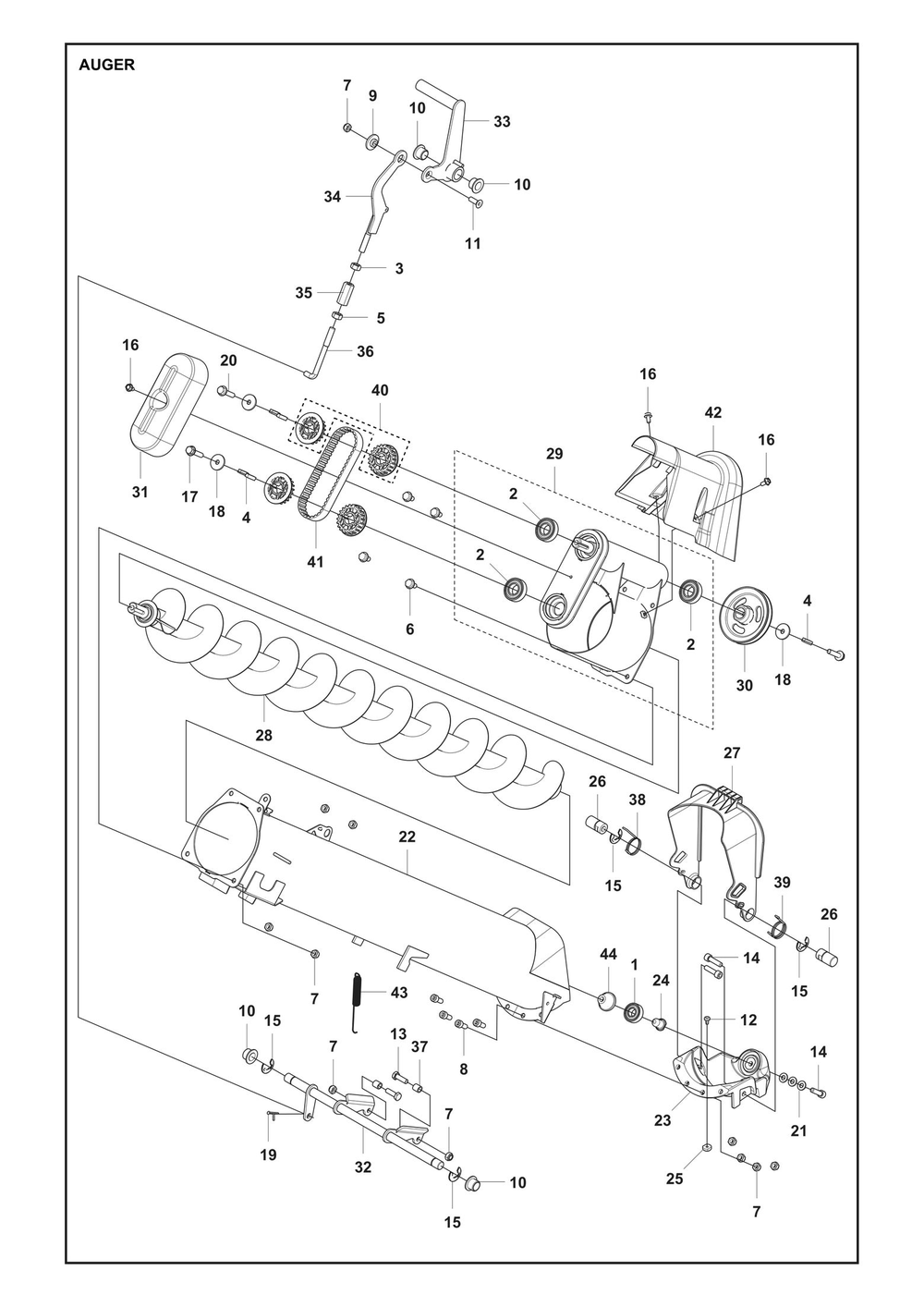

Auger Diagram and Parts List for 2023 Husqvarna Lawn Tractor
  • 1
    Ball Bearing 6202-2Rs1 – Part Number: 738220219
    Ball Bearing 6202-2Rs1
    Part Number: 738220219
      Special Order
    $49.26
  • 2
    Ball Bearing – Part Number: 582508101
    Ball Bearing
    Part Number: 582508101
      No Longer Available
  • 3
    Nut – Part Number: 506897601
    Nut
    Part Number: 506897601
      No Longer Available
  • 4
    Parallel Key – Part Number: 506533503
    Parallel Key
    Part Number: 506533503
      No Longer Available
  • 5
    Nut – Part Number: 731232001
    Nut
    Part Number: 731232001
      In Stock
    $6.17
  • 6
    Bolt – Part Number: 506570103
    Bolt
    Part Number: 506570103
      Special Order
    $14.28
  • 7
    Locknut M8 – Part Number: 732211801
    Locknut M8
    Part Number: 732211801
      In Stock
    $6.16
  • 8
    Screw Ihscm – Part Number: 725545101
    Screw Ihscm
    Part Number: 725545101
      No Longer Available
  • 9
    Washer – Part Number: 584288604
    Washer
    Part Number: 584288604
      Special Order
    $6.16
  • 10
    Bushing – Part Number: 584871302
    Bushing
    Part Number: 584871302
      Special Order
    $7.13
  • 11
    Screw – Part Number: 725645301
    Screw
    Part Number: 725645301
      Special Order
    $6.16
  • 12
    Screw Itxpantt – Part Number: 502435201
    Screw Itxpantt
    Part Number: 502435201
      No Longer Available
  • 13
    Screw – Part Number: 725245371
    Screw
    Part Number: 725245371
      No Longer Available
  • 14
    Screw – Part Number: 725545501
    Screw
    Part Number: 725545501
      No Longer Available
  • 15
    Circlip – Part Number: 735312220
    Circlip
    Part Number: 735312220
      No Longer Available
  • 17
    Screw – Part Number: 582508501
    Screw
    Part Number: 582508501
      No Longer Available
  • 18
    Washer – Part Number: 544221601
    Washer
    Part Number: 544221601
      No Longer Available
  • 20
    Screw Ehhfm – Part Number: 506570106
    Screw Ehhfm
    Part Number: 506570106
      Special Order
    $7.13
  • 21
    Washer – Part Number: 734116401
    Washer
    Part Number: 734116401
      On Order
    $6.17
  • 22
    Tube – Part Number: 588972301
    Tube
    Part Number: 588972301
      No Longer Available
  • 23
    Support – Part Number: 588687401
    Support
    Part Number: 588687401
      No Longer Available
  • 24
    Sleeve – Part Number: 588973101
    Sleeve
    Part Number: 588973101
      No Longer Available
  • 25
    Sleeve – Part Number: 588973301
    Sleeve
    Part Number: 588973301
      No Longer Available
  • 26
    Sleeve – Part Number: 588973201
    Sleeve
    Part Number: 588973201
      No Longer Available
  • 27
    Cap – Part Number: 589258301
    Cap
    Part Number: 589258301
      No Longer Available
  • 28
    Auger – Part Number: 590029901
    Auger
    Part Number: 590029901
      No Longer Available
  • 29
    Auger – Part Number: 590038501
    Auger
    Part Number: 590038501
      No Longer Available
  • 30
    Pulley Assy – Part Number: 588831401
    Pulley Assy
    Part Number: 588831401
      No Longer Available
  • 31
    Lid – Part Number: 589258401
    Lid
    Part Number: 589258401
      No Longer Available
  • 32
    Shaft Assy – Part Number: 589196701
    Shaft Assy
    Part Number: 589196701
      No Longer Available
  • 33
    Lever Assy – Part Number: 589196401
    Lever Assy
    Part Number: 589196401
      No Longer Available
  • 34
    Link Assy – Part Number: 589195901
    Link Assy
    Part Number: 589195901
      No Longer Available
  • 35
    Adjustment Rod – Part Number: 544451501
    Adjustment Rod
    Part Number: 544451501
      No Longer Available
  • 36
    Rod – Part Number: 589197101
    Rod
    Part Number: 589197101
      No Longer Available
  • 37
    Tube – Part Number: 589283501
    Tube
    Part Number: 589283501
      No Longer Available
  • 38
    Spring – Part Number: 501082101
    Spring
    Part Number: 501082101
      No Longer Available
  • 39
    Spring – Part Number: 501082102
    Spring
    Part Number: 501082102
      No Longer Available
  • 40
    Pulley – Part Number: 501090902
    Pulley
    Part Number: 501090902
      No Longer Available
  • 41
    Belt – Part Number: 589973701
    Belt
    Part Number: 589973701
      No Longer Available
  • 42
    Cover – Part Number: 501099101
    Cover
    Part Number: 501099101
      No Longer Available
  • 43
    Spring – Part Number: 582000001
    Spring
    Part Number: 582000001
      No Longer Available
  • 44
    Sleeve – Part Number: 589032301
    Sleeve
    Part Number: 589032301
      No Longer Available
Belt
Belt Diagram and Parts List for 2023 Husqvarna Lawn Tractor
  • 1
    Spring – Part Number: 582381401
    Spring
    Part Number: 582381401
      No Longer Available
  • 3
    Spacer – Part Number: 734116441
    Spacer
    Part Number: 734116441
      In Stock
    $6.16
  • 4
    Washer – Part Number: 584288604
    Washer
    Part Number: 584288604
      Special Order
    $6.16
  • 5
    Key – Part Number: 506533501
    Key
    Part Number: 506533501
      In Stock
    $6.16
  • 6
    Screw – Part Number: 725236461
    Screw
    Part Number: 725236461
      Special Order
    $6.16
  • 7
    Bolt – Part Number: 506570103
    Bolt
    Part Number: 506570103
      Special Order
    $14.28
  • 8
    Locknut M8 – Part Number: 732211801
    Locknut M8
    Part Number: 732211801
      In Stock
    $6.16
  • 9
    Screw Ehhfm – Part Number: 506570106
    Screw Ehhfm
    Part Number: 506570106
      Special Order
    $7.13
  • 10
    Bolt – Part Number: 535423801
    Bolt
    Part Number: 535423801
      In Stock
    $7.73
  • 11
    Screw – Part Number: 725245951
    Screw
    Part Number: 725245951
      In Stock
    $7.73
  • 12
    Part: 535423802 – Part Number: 535423802
    Part: 535423802
    Part Number: 535423802
      No Longer Available
  • 13
    Hex Bolt – Part Number: 725246751
    Hex Bolt
    Part Number: 725246751
      Special Order
    $7.13
  • 15
    Antivibration Element – Part Number: 544252102
    Antivibration Element
    Part Number: 544252102
      No Longer Available
  • 16
    Retaining Ring Sga 15 – Part Number: 735311700
    Retaining Ring Sga 15
    Part Number: 735311700
      On Order
    $6.16
  • 17
    Nut – Part Number: 732212001
    Nut
    Part Number: 732212001
      Special Order
    $6.17
  • 18
    Screw M10X25 – Part Number: 725249371
    Screw M10X25
    Part Number: 725249371
      No Longer Available
  • 19
    Screw – Part Number: 725245571
    Screw
    Part Number: 725245571
      Special Order
    $6.17
  • 20
    Key – Part Number: 506555901
    Key
    Part Number: 506555901
      Special Order
    $6.17
  • 21
    Spacer – Part Number: 506509201
    Spacer
    Part Number: 506509201
      Special Order
    $18.56
  • 22
    Washer – Part Number: 506597501
    Washer
    Part Number: 506597501
      No Longer Available
  • 23
    Screw – Part Number: 506556002
    Screw
    Part Number: 506556002
      Special Order
    $9.28
  • 24
    Screw – Part Number: 588793201
    Screw
    Part Number: 588793201
      No Longer Available
  • 25
    Screw – Part Number: 582508501
    Screw
    Part Number: 582508501
      No Longer Available
  • 26
    Washer – Part Number: 544221601
    Washer
    Part Number: 544221601
      No Longer Available
  • 27
    Retaining Ring Sga 25 – Part Number: 735312600
    Retaining Ring Sga 25
    Part Number: 735312600
      Special Order
    $6.16
  • 28
    Pulley Assy – Part Number: 582176501
    Pulley Assy
    Part Number: 582176501
      No Longer Available
  • 29
    Pulley riveted with bearing and nut – Part Number: 597509002
    Pulley riveted with bearing and nut
    Part Number: 597509002
      No Longer Available
  • 30
    Belt – Part Number: 593667401
    Belt
    Part Number: 593667401
      No Longer Available
  • 31
    Bracket – Part Number: 590040001
    Bracket
    Part Number: 590040001
      No Longer Available
  • 32
    Spacing Sleeve – Part Number: 589026301
    Spacing Sleeve
    Part Number: 589026301
      No Longer Available
  • 33
    Pulley – Part Number: 506974801
    Pulley
    Part Number: 506974801
      Special Order
    $62.11
  • 34
    Pulley Assy – Part Number: 588830901
    Pulley Assy
    Part Number: 588830901
      No Longer Available
  • 35
    Clutch – Part Number: 589243401
    Clutch
    Part Number: 589243401
      No Longer Available
  • 36
    Bracket – Part Number: 582199001
    Bracket
    Part Number: 582199001
      No Longer Available
  • 37
    Pulley – Part Number: 535482401
    Pulley
    Part Number: 535482401
      Special Order
    $86.97
  • 38
    Belt – Part Number: 589562301
    Belt
    Part Number: 589562301
      No Longer Available
  • 39
    Belt Tensioner Assy – Part Number: 535484403
    Belt Tensioner Assy
    Part Number: 535484403
      No Longer Available
  • 40
    Sealing – Part Number: 535485001
    Sealing
    Part Number: 535485001
      Special Order
    $6.16
  • 41
    Bushing – Part Number: 588867301
    Bushing
    Part Number: 588867301
      No Longer Available
  • 42
    Belt – Part Number: 589973901
    Belt
    Part Number: 589973901
      No Longer Available
  • 43
    Belt Guide – Part Number: 588979801
    Belt Guide
    Part Number: 588979801
      No Longer Available
  • 44
    Belt Guide – Part Number: 588980001
    Belt Guide
    Part Number: 588980001
      No Longer Available
  • 45
    Belt Guide – Part Number: 587425201
    Belt Guide
    Part Number: 587425201
      No Longer Available
  • 46
    Spring – Part Number: 506665601
    Spring
    Part Number: 506665601
      Special Order
    $56.31
  • 47
    Belt Tensioner – Part Number: 588878801
    Belt Tensioner
    Part Number: 588878801
      No Longer Available
  • 48
    Bushing – Part Number: 588820101
    Bushing
    Part Number: 588820101
      No Longer Available
  • 49
    Pulley – Part Number: 589243701
    Pulley
    Part Number: 589243701
      No Longer Available
  • 50
    Belt – Part Number: 589974001
    Belt
    Part Number: 589974001
      No Longer Available
  • 51
    Bracket – Part Number: 588839001
    Bracket
    Part Number: 588839001
      No Longer Available
  • 52
    Belt Tensioner – Part Number: 588978301
    Belt Tensioner
    Part Number: 588978301
      No Longer Available
  • 53
    Sheet – Part Number: 582221601
    Sheet
    Part Number: 582221601
      No Longer Available
  • 54
    Shaft – Part Number: 588979301
    Shaft
    Part Number: 588979301
      No Longer Available
  • 55
    Support – Part Number: 589734301
    Support
    Part Number: 589734301
      No Longer Available
  • 56
    Shaft – Part Number: 588979401
    Shaft
    Part Number: 588979401
      No Longer Available
  • 57
    Bracket – Part Number: 589032201
    Bracket
    Part Number: 589032201
      No Longer Available
  • 58
    Bracket – Part Number: 589032202
    Bracket
    Part Number: 589032202
      No Longer Available
  • 59
    Pulley – Part Number: 506946901
    Pulley
    Part Number: 506946901
      In Stock
    $49.37
  • 60
    Belt Guide – Part Number: 588978801
    Belt Guide
    Part Number: 588978801
      No Longer Available
  • 61
    Belt – Part Number: 589974101
    Belt
    Part Number: 589974101
      No Longer Available
  • 62
    Sleeve – Part Number: 588878302
    Sleeve
    Part Number: 588878302
      No Longer Available
  • 63
    Sleeve – Part Number: 590087901
    Sleeve
    Part Number: 590087901
      No Longer Available
Chassis
Chassis Diagram and Parts List for 2023 Husqvarna Lawn Tractor
  • 1
    Nut – Part Number: 506916201
    Nut
    Part Number: 506916201
      In Stock
    $8.56
  • 2
    Screw M10X25 – Part Number: 725249371
    Screw M10X25
    Part Number: 725249371
      No Longer Available
  • 3
    Nut – Part Number: 732212001
    Nut
    Part Number: 732212001
      Special Order
    $6.17
  • 4
    Plug – Part Number: 589735801
    Plug
    Part Number: 589735801
      No Longer Available
  • 5
    Chassis – Part Number: 588879202
    Chassis
    Part Number: 588879202
      No Longer Available
  • 6
    Engine Frame – Part Number: 588982601
    Engine Frame
    Part Number: 588982601
      No Longer Available
Collector
Collector Diagram and Parts List for 2023 Husqvarna Lawn Tractor
  • 1
    Screw – Part Number: 535425802
    Screw
    Part Number: 535425802
      No Longer Available
  • 2
    Washer – Part Number: 504459901
    Washer
    Part Number: 504459901
      Special Order
    $5.17
  • 4
    Pin – Part Number: 589019401
    Pin
    Part Number: 589019401
      No Longer Available
  • 6
    Circlip – Part Number: 735311401
    Circlip
    Part Number: 735311401
      No Longer Available
  • 7
    Clip – Part Number: 582752201
    Clip
    Part Number: 582752201
      No Longer Available
  • 8
    Screw Ehhfm – Part Number: 506570107
    Screw Ehhfm
    Part Number: 506570107
      No Longer Available
  • 10
    Nut Flange – Part Number: 576645704
    Nut Flange
    Part Number: 576645704
      Special Order
    $6.16
  • 11
    Retaining Ring – Part Number: 735311420
    Retaining Ring
    Part Number: 735311420
      Special Order
    $6.16
  • 12
    Screw Ihscm – Part Number: 535432801
    Screw Ihscm
    Part Number: 535432801
      Special Order
    $7.73
  • 13
    Washer – Part Number: 734116401
    Washer
    Part Number: 734116401
      On Order
    $6.17
  • 14
    Plate – Part Number: 506813801
    Plate
    Part Number: 506813801
      Special Order
    $10.84
  • 15
    Bearing – Part Number: 501102201
    Bearing
    Part Number: 501102201
      No Longer Available
  • 16
    Screw – Part Number: 725236461
    Screw
    Part Number: 725236461
      Special Order
    $6.16
  • 17
    Blind Rivet – Part Number: 722780503
    Blind Rivet
    Part Number: 722780503
      No Longer Available
  • 18
    Blind Rivet Nut – Part Number: 506916204
    Blind Rivet Nut
    Part Number: 506916204
      No Longer Available
  • 19
    Bag Frame – Part Number: 589006901
    Bag Frame
    Part Number: 589006901
      No Longer Available
  • 20
    Link Arm – Part Number: 501066101
    Link Arm
    Part Number: 501066101
      No Longer Available
  • 21
    Shaft – Part Number: 501066701
    Shaft
    Part Number: 501066701
      No Longer Available
  • 22
    Support Wheel – Part Number: 501066801
    Support Wheel
    Part Number: 501066801
      No Longer Available
  • 23
    Bracket – Part Number: 589213801
    Bracket
    Part Number: 589213801
      No Longer Available
  • 24
    Actuator – Part Number: 501108001
    Actuator
    Part Number: 501108001
      No Longer Available
  • 25
    Bracket – Part Number: 589010501
    Bracket
    Part Number: 589010501
      No Longer Available
  • 26
    Bracket – Part Number: 589010502
    Bracket
    Part Number: 589010502
      No Longer Available
  • 27
    Rod – Part Number: 501102101
    Rod
    Part Number: 501102101
      No Longer Available
  • 28
    Tool – Part Number: 582383601
    Tool
    Part Number: 582383601
      No Longer Available
  • 29
    Bracket – Part Number: 589007501
    Bracket
    Part Number: 589007501
      No Longer Available
  • 30
    Bag – Part Number: 582159401
    Bag
    Part Number: 582159401
      No Longer Available
  • 31
    Bag – Part Number: 582588501
    Bag
    Part Number: 582588501
      No Longer Available
  • 32
    Sealing – Part Number: 582579301
    Sealing
    Part Number: 582579301
      No Longer Available
  • 33
    Indicator – Part Number: 582547101
    Indicator
    Part Number: 582547101
      No Longer Available
  • 34
    Sleeve – Part Number: 582604201
    Sleeve
    Part Number: 582604201
      No Longer Available
  • 35
    Switch Reverse Tt Pedal Contro – Part Number: 532407568
    Switch Reverse Tt Pedal Contro
    Part Number: 532407568
      In Stock
    $21.41
  • 36
    Magnet – Part Number: 501098101
    Magnet
    Part Number: 501098101
      No Longer Available
  • 37
    Rivet – Part Number: 577013901
    Rivet
    Part Number: 577013901
      No Longer Available
  • 38
    Screw – Part Number: 725633501
    Screw
    Part Number: 725633501
      No Longer Available
  • 40
    Washer, 5x13x1 – Part Number: 504456001
    Washer, 5x13x1
    Part Number: 504456001
      No Longer Available
  • 41
    Cover – Part Number: 589227101
    Cover
    Part Number: 589227101
      No Longer Available
  • 42
    Wiring – Part Number: 589021201
    Wiring
    Part Number: 589021201
      No Longer Available
  • 43
    Screw – Part Number: 593122301
    Screw
    Part Number: 593122301
      No Longer Available
  • 44
    Hatch – Part Number: 582369701
    Hatch
    Part Number: 582369701
      No Longer Available
  • 45
    Hinge – Part Number: 501107001
    Hinge
    Part Number: 501107001
      No Longer Available
  • 46
    Handle – Part Number: 582413301
    Handle
    Part Number: 582413301
      No Longer Available
  • 47
    Rivet – Part Number: 577013901
    Rivet
    Part Number: 577013901
      No Longer Available
  • 48
    Reinforcement Plate – Part Number: 501175901
    Reinforcement Plate
    Part Number: 501175901
      No Longer Available
  • 49
    Screw – Part Number: 593122101
    Screw
    Part Number: 593122101
      No Longer Available
  • 50
    Reinforcement Plate – Part Number: 501175901
    Reinforcement Plate
    Part Number: 501175901
      No Longer Available
  • 51
    Screw – Part Number: 593122101
    Screw
    Part Number: 593122101
      No Longer Available
  • 52
    Decal – Part Number: 577469001
    Decal
    Part Number: 577469001
      In Stock
    $21.41
  • 53
    Nut – Part Number: 535429101
    Nut
    Part Number: 535429101
      Special Order
    $6.16
  • 54
    Screw Ehhft – Part Number: 7252370-61
    Screw Ehhft
    Part Number: 7252370-61
      No Longer Available
  • 55
    Tube – Part Number: 582494501
    Tube
    Part Number: 582494501
      No Longer Available
  • 56
    Bracket – Part Number: 501102401
    Bracket
    Part Number: 501102401
      No Longer Available
Controls
Controls Diagram and Parts List for 2023 Husqvarna Lawn Tractor
  • 1
    Knob – Part Number: 586727401
    Knob
    Part Number: 586727401
      Special Order
    $17.11
  • 2
    Handle – Part Number: 506889101
    Handle
    Part Number: 506889101
      In Stock
    $7.73
  • 3
    Screw Ehhfm – Part Number: 535475212
    Screw Ehhfm
    Part Number: 535475212
      In Stock
    Minimum Quantity of 2 required
    $6.16
  • 4
    Hose Clamp – Part Number: 574531203
    Hose Clamp
    Part Number: 574531203
      No Longer Available
  • 5
    Retainer – Part Number: 506576401
    Retainer
    Part Number: 506576401
      No Longer Available
  • 6
    C-WASHER – Part Number: 735311020
    C-WASHER
    Part Number: 735311020
      Special Order
    $6.16
  • 7
    Lever – Part Number: 586379401
    Lever
    Part Number: 586379401
      No Longer Available
  • 8
    Clamp – Part Number: 506566501
    Clamp
    Part Number: 506566501
      Special Order
    $6.16
  • 9
    Bolt – Part Number: 506570104
    Bolt
    Part Number: 506570104
      Special Order
    $7.73
  • 10
    Connector – Part Number: 578776801
    Connector
    Part Number: 578776801
      Special Order
    $17.11
  • 11
    Locknut M6 – Part Number: 732211601
    Locknut M6
    Part Number: 732211601
      Special Order
    $10.84
  • 12
    Trimmer Nut – Part Number: 731231401
    Trimmer Nut
    Part Number: 731231401
    ★★★★★
    ★★★★★
    (2)
      In Stock
    $6.16
  • 13
    Screw – Part Number: 725236461
    Screw
    Part Number: 725236461
      Special Order
    $6.16
  • 15
    Shaft – Part Number: 589774901
    Shaft
    Part Number: 589774901
      No Longer Available
  • 16
    E-clip – Part Number: 735310920
    E-clip
    Part Number: 735310920
      On Order
    $6.16
  • 17
    Pedal Plate Assy – Part Number: 586969301
    Pedal Plate Assy
    Part Number: 586969301
      No Longer Available
  • 18
    Pin – Part Number: 582763301
    Pin
    Part Number: 582763301
      No Longer Available
  • 19
    Bracket – Part Number: 582721901
    Bracket
    Part Number: 582721901
      No Longer Available
  • 20
    Bracket – Part Number: 582756801
    Bracket
    Part Number: 582756801
      No Longer Available
  • 21
    Wire – Part Number: 582767701
    Wire
    Part Number: 582767701
      No Longer Available
  • 22
    Brake Spring – Part Number: 5069191-03
    Brake Spring
    Part Number: 5069191-03
      No Longer Available
  • 23
    Bracket – Part Number: 582717501
    Bracket
    Part Number: 582717501
      No Longer Available
  • 24
    Bracket – Part Number: 582717502
    Bracket
    Part Number: 582717502
      No Longer Available
  • 25
    Brake Wire – Part Number: 506992704
    Brake Wire
    Part Number: 506992704
      No Longer Available
  • 26
    Shock Absorber – Part Number: 506938301
    Shock Absorber
    Part Number: 506938301
      No Longer Available
  • 27
    Control Cable – Part Number: 574411204
    Control Cable
    Part Number: 574411204
      No Longer Available
  • 28
    Bracket – Part Number: 589026501
    Bracket
    Part Number: 589026501
      No Longer Available
  • 29
    Sheet – Part Number: 588834601
    Sheet
    Part Number: 588834601
      No Longer Available
  • 30
    Throttle Control – Part Number: 578023501
    Throttle Control
    Part Number: 578023501
      No Longer Available
  • 31
    Wire throttle/choke l=1310 – Part Number: 544301712
    Wire throttle/choke l=1310
    Part Number: 544301712
      No Longer Available
  • 32
    Brake Lever Assembly – Part Number: 544403101
    Brake Lever Assembly
    Part Number: 544403101
      No Longer Available
Cover
Cover Diagram and Parts List for 2023 Husqvarna Lawn Tractor
  • 1
    Screw – Part Number: 544400501
    Screw
    Part Number: 544400501
      In Stock
    $6.16
  • 2
    Nut – Part Number: 535429101
    Nut
    Part Number: 535429101
      Special Order
    $6.16
  • 4
    Screw – Part Number: 574856201
    Screw
    Part Number: 574856201
      Special Order
    $6.16
  • 5
    Screw – Part Number: 522557301
    Screw
    Part Number: 522557301
      No Longer Available
  • 6
    Screw – Part Number: 725236461
    Screw
    Part Number: 725236461
      Special Order
    $6.16
  • 7
    Cover – Part Number: 589211501
    Cover
    Part Number: 589211501
      No Longer Available
  • 8
    Screw Itxpant – Part Number: 504610901
    Screw Itxpant
    Part Number: 504610901
      Special Order
    $6.16
  • 9
    Cover – Part Number: 589211401
    Cover
    Part Number: 589211401
      No Longer Available
  • 10
    Lamp – Part Number: 582214201
    Lamp
    Part Number: 582214201
      Special Order
    $18.56
  • 11
    Cover – Part Number: 501056301
    Cover
    Part Number: 501056301
      No Longer Available
  • 13
    Cover – Part Number: 589211001
    Cover
    Part Number: 589211001
      No Longer Available
  • 14
    Cover – Part Number: 589210901
    Cover
    Part Number: 589210901
      No Longer Available
  • 15
    Cover – Part Number: 589211101
    Cover
    Part Number: 589211101
      No Longer Available
  • 16
    Cover – Part Number: 589224601
    Cover
    Part Number: 589224601
      No Longer Available
  • 17
    Cover – Part Number: 589224501
    Cover
    Part Number: 589224501
      No Longer Available
  • 18
    Cover Assy – Part Number: 582277601
    Cover Assy
    Part Number: 582277601
      No Longer Available
  • 19
    Cover Assy – Part Number: 582277501
    Cover Assy
    Part Number: 582277501
      No Longer Available
  • 20
    Cover – Part Number: 589225401
    Cover
    Part Number: 589225401
      No Longer Available
  • 21
    Cover – Part Number: 589225601
    Cover
    Part Number: 589225601
      No Longer Available
  • 22
    Cover – Part Number: 589225301
    Cover
    Part Number: 589225301
      No Longer Available
  • 23
    Cover – Part Number: 589225501
    Cover
    Part Number: 589225501
      No Longer Available
  • 24
    Cover – Part Number: 589225801
    Cover
    Part Number: 589225801
      No Longer Available
  • 25
    Cover – Part Number: 589225701
    Cover
    Part Number: 589225701
      No Longer Available
  • 26
    Cover – Part Number: 589226001
    Cover
    Part Number: 589226001
      No Longer Available
  • 27
    Cover – Part Number: 589225901
    Cover
    Part Number: 589225901
      No Longer Available
  • 28
    Cover – Part Number: 589226201
    Cover
    Part Number: 589226201
      No Longer Available
  • 29
    Cover – Part Number: 589226101
    Cover
    Part Number: 589226101
      No Longer Available
  • 30
    Cover – Part Number: 589226302
    Cover
    Part Number: 589226302
      No Longer Available
  • 31
    Cover – Part Number: 589226301
    Cover
    Part Number: 589226301
      No Longer Available
  • 32
    Cover – Part Number: 589226402
    Cover
    Part Number: 589226402
      No Longer Available
  • 33
    Cover – Part Number: 589226401
    Cover
    Part Number: 589226401
      No Longer Available
  • 34
    Cover – Part Number: 574886001
    Cover
    Part Number: 574886001
      No Longer Available
  • 35
    Cover – Part Number: 589224301
    Cover
    Part Number: 589224301
      No Longer Available
  • 36
    Cover – Part Number: 589224401
    Cover
    Part Number: 589224401
      No Longer Available
  • 37
    Protective Plate – Part Number: 589948801
    Protective Plate
    Part Number: 589948801
      No Longer Available
Decals
Decals Diagram and Parts List for 2023 Husqvarna Lawn Tractor
  • 1
    Label – Part Number: 582570002
    Label
    Part Number: 582570002
      No Longer Available
  • 2
    Decal – Part Number: 546284003
    Decal
    Part Number: 546284003
      No Longer Available
  • 3
    Decal – Part Number: 544211401
    Decal
    Part Number: 544211401
      No Longer Available
  • 4
    Decal – Part Number: 589740201
    Decal
    Part Number: 589740201
      No Longer Available
  • 5
    Label – Part Number: 582570101
    Label
    Part Number: 582570101
      No Longer Available
  • 6
    Decal – Part Number: 589735201
    Decal
    Part Number: 589735201
      No Longer Available
  • 7
    Decal – Part Number: 578364517
    Decal
    Part Number: 578364517
      No Longer Available
  • 8
    Label – Part Number: 590459201
    Label
    Part Number: 590459201
      No Longer Available
  • 9
    Label – Part Number: 580712901
    Label
    Part Number: 580712901
      No Longer Available
Electrical
Electrical Diagram and Parts List for 2023 Husqvarna Lawn Tractor
  • 1
    Micro Switch – Part Number: 574316101
    Micro Switch
    Part Number: 574316101
      Special Order
    $17.11
  • 2
    Rivet – Part Number: 544440701
    Rivet
    Part Number: 544440701
      Special Order
    $6.16
  • 3
    Screw – Part Number: 725236461
    Screw
    Part Number: 725236461
      Special Order
    $6.16
  • 4
    Bolt Flange - M6 X 20 – Part Number: 725236871
    Bolt Flange - M6 X 20
    Part Number: 725236871
      In Stock
    $6.16
  • 5
    Nut – Part Number: 506899801
    Nut
    Part Number: 506899801
      No Longer Available
  • 6
    Hexagon Nut – Part Number: 576434201
    Hexagon Nut
    Part Number: 576434201
      No Longer Available
  • 7
    Screw Ehhfm – Part Number: 506570106
    Screw Ehhfm
    Part Number: 506570106
      Special Order
    $7.13
  • 8
    Screw – Part Number: 727645151
    Screw
    Part Number: 727645151
      No Longer Available
  • 9
    Spacer – Part Number: 734116441
    Spacer
    Part Number: 734116441
      In Stock
    $6.16
  • 10
    Nut Flange – Part Number: 576645704
    Nut Flange
    Part Number: 576645704
      Special Order
    $6.16
  • 11
    Screw – Part Number: 535415619
    Screw
    Part Number: 535415619
      No Longer Available
  • 12
    Belt – Part Number: 506836805
    Belt
    Part Number: 506836805
      No Longer Available
  • 13
    Screw Ehhm – Part Number: 522622102
    Screw Ehhm
    Part Number: 522622102
      No Longer Available
  • 14
    Ignition Key – Part Number: 544442401
    Ignition Key
    Part Number: 544442401
      In Stock
    $9.98
  • 15
    Nut – Part Number: 544442301
    Nut
    Part Number: 544442301
      In Stock
    $6.16
  • 16
    Switch – Part Number: 506909601
    Switch
    Part Number: 506909601
      In Stock
    $21.42
  • 17
    Switch Reverse Tt Pedal Contro – Part Number: 532407568
    Switch Reverse Tt Pedal Contro
    Part Number: 532407568
      In Stock
    $21.41
  • 18
    Clip – Part Number: 501007501
    Clip
    Part Number: 501007501
      No Longer Available
  • 19
    Blind Rivet – Part Number: 722792909
    Blind Rivet
    Part Number: 722792909
      No Longer Available
  • 20
    Rivet – Part Number: 722792609
    Rivet
    Part Number: 722792609
      No Longer Available
  • 21
    Wiring – Part Number: 589021101
    Wiring
    Part Number: 589021101
      No Longer Available
  • 22
    Wiring – Part Number: 578328901
    Wiring
    Part Number: 578328901
      No Longer Available
  • 23
    Wiring – Part Number: 582050401
    Wiring
    Part Number: 582050401
      No Longer Available
  • 24
    Bracket – Part Number: 544415701
    Bracket
    Part Number: 544415701
      In Stock
    $7.13
  • 25
    Bracket – Part Number: 588914901
    Bracket
    Part Number: 588914901
      No Longer Available
  • 26
    Bracket – Part Number: 582152801
    Bracket
    Part Number: 582152801
      No Longer Available
  • 27
    Cable – Part Number: 582115601
    Cable
    Part Number: 582115601
      No Longer Available
  • 28
    Relay – Part Number: 582049601
    Relay
    Part Number: 582049601
      No Longer Available
  • 29
    Relay – Part Number: 544439801
    Relay
    Part Number: 544439801
      In Stock
    $28.57
  • 30
    Bracket – Part Number: 588930201
    Bracket
    Part Number: 588930201
      No Longer Available
  • 30
    Bracket – Part Number: 598371201
    Bracket
    Part Number: 598371201
      No Longer Available
  • 31
    Battery – Part Number: 589392802
    Battery
    Part Number: 589392802
      No Longer Available
  • 32
    Ignition Switch – Part Number: 578261701
    Ignition Switch
    Part Number: 578261701
      In Stock
    $36.37
  • 33
    HOUR METER – Part Number: 587764302
    HOUR METER
    Part Number: 587764302
      Special Order
    $147.64
  • 34
    Switch – Part Number: 589314501
    Switch
    Part Number: 589314501
      No Longer Available
  • 35
    Power Socket – Part Number: 535474801
    Power Socket
    Part Number: 535474801
      No Longer Available
  • 36
    Switch – Part Number: 582683904
    Switch
    Part Number: 582683904
      No Longer Available
  • 37
    Buzzer – Part Number: 501182101
    Buzzer
    Part Number: 501182101
      No Longer Available
  • 38
    Bracket – Part Number: 589411701
    Bracket
    Part Number: 589411701
      No Longer Available
  • 39
    Wiring Assy – Part Number: 582673901
    Wiring Assy
    Part Number: 582673901
      No Longer Available
  • 40
    Wiring Assy – Part Number: 582606701
    Wiring Assy
    Part Number: 582606701
      No Longer Available
  • 41
    Fuse – Part Number: 590737701
    Fuse
    Part Number: 590737701
      No Longer Available
  • 42
    Fuse – Part Number: 590737501
    Fuse
    Part Number: 590737501
      No Longer Available
  • 43
    Fuse – Part Number: 590738001
    Fuse
    Part Number: 590738001
      No Longer Available
Engine
Engine Diagram and Parts List for 2023 Husqvarna Lawn Tractor
  • 1
    Engine – Part Number: 536697401
    Engine
    Part Number: 536697401
      No Longer Available
  • 2
    Valve Drain Oil – Part Number: 532428287
    Valve Drain Oil
    Part Number: 532428287
    ★★★★★
    ★★★★★
    (11)
      In Stock
    $25.71
  • 3
    No Description Available – Part Number: 578921301
    No Description Available
    Part Number: 578921301
      No Longer Available
  • 4
    Nut Flange – Part Number: 576645704
    Nut Flange
    Part Number: 576645704
      Special Order
    $6.16
  • 5
    Manifold – Part Number: 536971401
    Manifold
    Part Number: 536971401
      No Longer Available
  • 6
    Screw Ihscm – Part Number: 725545101
    Screw Ihscm
    Part Number: 725545101
      No Longer Available
  • 7
    Heat Shield – Part Number: 536970001
    Heat Shield
    Part Number: 536970001
      No Longer Available
  • 8
    Screw Rsqm – Part Number: 727637801
    Screw Rsqm
    Part Number: 727637801
      No Longer Available
  • 9
    Nut Flange – Part Number: 576645703
    Nut Flange
    Part Number: 576645703
      Special Order
    $6.16
  • 10
    Clamp Assembly – Part Number: 501152203
    Clamp Assembly
    Part Number: 501152203
      No Longer Available
  • 11
    Bracket – Part Number: 589509101
    Bracket
    Part Number: 589509101
      No Longer Available
  • 12
    Bolt – Part Number: 535423801
    Bolt
    Part Number: 535423801
      In Stock
    $7.73
  • 13
    Bolt – Part Number: 506570104
    Bolt
    Part Number: 506570104
      Special Order
    $7.73
  • 14
    Heat Shield – Part Number: 582323401
    Heat Shield
    Part Number: 582323401
      No Longer Available
  • 15
    Bracket – Part Number: 588983701
    Bracket
    Part Number: 588983701
      No Longer Available
  • 16
    Screw – Part Number: 725236461
    Screw
    Part Number: 725236461
      Special Order
    $6.16
  • 17
    Screw Ehhfm – Part Number: 506570106
    Screw Ehhfm
    Part Number: 506570106
      Special Order
    $7.13
  • 18
    Air Duct – Part Number: 582153202
    Air Duct
    Part Number: 582153202
      No Longer Available
  • 19
    Screw – Part Number: 544400501
    Screw
    Part Number: 544400501
      In Stock
    $6.16
  • 20
    Plate – Part Number: 582406001
    Plate
    Part Number: 582406001
      No Longer Available
  • 21
    Screw – Part Number: 574856202
    Screw
    Part Number: 574856202
      No Longer Available
  • 22
    Muffler assembly with heat shield – Part Number: 590533701
    Muffler assembly with heat shield
    Part Number: 590533701
      No Longer Available
Frame
Frame Diagram and Parts List for 2023 Husqvarna Lawn Tractor
  • 1
    Spring – Part Number: 506535602
    Spring
    Part Number: 506535602
      No Longer Available
  • 2
    Bolt – Part Number: 506597401
    Bolt
    Part Number: 506597401
      In Stock
    $9.28
  • 3
    Bolt – Part Number: 506895801
    Bolt
    Part Number: 506895801
      On Order
    $10.84
  • 4
    Nut – Part Number: 732252201
    Nut
    Part Number: 732252201
      No Longer Available
  • 5
    Screw Itxscfm – Part Number: 577103101
    Screw Itxscfm
    Part Number: 577103101
      No Longer Available
  • 7
    Screw – Part Number: 725251571
    Screw
    Part Number: 725251571
      No Longer Available
  • 8
    Washer 5/16 Std Flt – Part Number: 596134901
    Washer 5/16 Std Flt
    Part Number: 596134901
    ★★★★★
    ★★★★★
    (5)
      In Stock
    Minimum Quantity of 2 required
    $6.16
  • 10
    Washer – Part Number: 581765201
    Washer
    Part Number: 581765201
      Special Order
    $6.16
  • 11
    Screw IHCSFM – Part Number: 725644801
    Screw IHCSFM
    Part Number: 725644801
      Special Order
    $6.16
  • 12
    Locknut M5 – Part Number: 732211401
    Locknut M5
    Part Number: 732211401
      Special Order
    $6.16
  • 13
    Washer Steel – Part Number: 503230116
    Washer Steel
    Part Number: 503230116
      In Stock
    Minimum Quantity of 2 required
    $6.16
  • 14
    Equipment Frame – Part Number: 588850801
    Equipment Frame
    Part Number: 588850801
      No Longer Available
  • 15
    Hook – Part Number: 588889601
    Hook
    Part Number: 588889601
      No Longer Available
  • 16
    Sleeve – Part Number: 588938101
    Sleeve
    Part Number: 588938101
      No Longer Available
  • 17
    Rod – Part Number: 588890001
    Rod
    Part Number: 588890001
      No Longer Available
  • 18
    Sheet – Part Number: 588890101
    Sheet
    Part Number: 588890101
      No Longer Available
  • 19
    Sheet – Part Number: 588890201
    Sheet
    Part Number: 588890201
      No Longer Available
  • 20
    Spring – Part Number: 505420901
    Spring
    Part Number: 505420901
      No Longer Available
Fuel System
Fuel System Diagram and Parts List for 2023 Husqvarna Lawn Tractor
  • 1
    Screw Ehhfm – Part Number: 506570106
    Screw Ehhfm
    Part Number: 506570106
      Special Order
    $7.13
  • 2
    Hexagon Nut – Part Number: 576434201
    Hexagon Nut
    Part Number: 576434201
      No Longer Available
  • 3
    Locknut M6 – Part Number: 732211601
    Locknut M6
    Part Number: 732211601
      Special Order
    $10.84
  • 4
    – Part Number: 504800009
    Part Number: 504800009
      No Longer Available
  • 5
    Clamp – Part Number: 535469701
    Clamp
    Part Number: 535469701
      No Longer Available
  • 6
    Strap – Part Number: 579317401
    Strap
    Part Number: 579317401
      No Longer Available
  • 7
    Bolt – Part Number: 506570104
    Bolt
    Part Number: 506570104
      Special Order
    $7.73
  • 8
    Fuel Tank – Part Number: 501104001
    Fuel Tank
    Part Number: 501104001
      No Longer Available
  • 9
    Locking Nut – Part Number: 577764501
    Locking Nut
    Part Number: 577764501
      Special Order
    $14.28
  • 10
    Cap Asm – Part Number: 584248702
    Cap Asm
    Part Number: 584248702
    ★★★★★
    ★★★★★
    (3)
      In Stock
    $25.71
  • 11
    Bracket – Part Number: 589240601
    Bracket
    Part Number: 589240601
      No Longer Available
  • 12
    Wire – Part Number: 578261502
    Wire
    Part Number: 578261502
      No Longer Available
  • 13
    Bracket – Part Number: 589214001
    Bracket
    Part Number: 589214001
      No Longer Available
Height Adjustment
Height Adjustment Diagram and Parts List for 2023 Husqvarna Lawn Tractor
  • 1
    Bushing – Part Number: 584871302
    Bushing
    Part Number: 584871302
      Special Order
    $7.13
  • 2
    Circlip – Part Number: 735312220
    Circlip
    Part Number: 735312220
      No Longer Available
  • 4
    Washer – Part Number: 584288604
    Washer
    Part Number: 584288604
      Special Order
    $6.16
  • 5
    Bolt – Part Number: 506597401
    Bolt
    Part Number: 506597401
      In Stock
    $9.28
  • 6
    Pin – Part Number: 506784601
    Pin
    Part Number: 506784601
      Special Order
    $6.16
  • 7
    Locknut M8 – Part Number: 732211801
    Locknut M8
    Part Number: 732211801
      In Stock
    $6.16
  • 8
    Washer 5/16 Std Flt – Part Number: 596134901
    Washer 5/16 Std Flt
    Part Number: 596134901
    ★★★★★
    ★★★★★
    (5)
      In Stock
    Minimum Quantity of 2 required
    $6.16
  • 10
    Bolt – Part Number: 506570103
    Bolt
    Part Number: 506570103
      Special Order
    $14.28
  • 11
    Screw – Part Number: 725237851
    Screw
    Part Number: 725237851
      Special Order
    $7.73
  • 13
    Shaft Assy – Part Number: 588933201
    Shaft Assy
    Part Number: 588933201
      No Longer Available
  • 14
    Rod – Part Number: 588935701
    Rod
    Part Number: 588935701
      No Longer Available
  • 15
    Link – Part Number: 588935501
    Link
    Part Number: 588935501
      No Longer Available
  • 16
    Connection Rod – Part Number: 588935601
    Connection Rod
    Part Number: 588935601
      No Longer Available
  • 17
    Link Assy – Part Number: 588933801
    Link Assy
    Part Number: 588933801
      No Longer Available
  • 18
    Height Adjuster – Part Number: 582198201
    Height Adjuster
    Part Number: 582198201
      No Longer Available
  • 19
    Bracket – Part Number: 588681001
    Bracket
    Part Number: 588681001
      No Longer Available
  • 20
    Rod – Part Number: 588935801
    Rod
    Part Number: 588935801
      No Longer Available
  • 21
    Handle – Part Number: 588164101
    Handle
    Part Number: 588164101
      Special Order
    $18.56
Mower Lift / Deck Lift
Mower Lift / Deck Lift Diagram and Parts List for 2023 Husqvarna Lawn Tractor
  • 1
    – Part Number: 725254471
    Part Number: 725254471
      No Longer Available
  • 2
    Nut – Part Number: 732252201
    Nut
    Part Number: 732252201
      No Longer Available
  • 3
    Pin – Part Number: 525406601
    Pin
    Part Number: 525406601
      In Stock
    $12.35
  • 5
    Screw – Part Number: 725249751
    Screw
    Part Number: 725249751
      Special Order
    $7.73
  • 6
    Nut – Part Number: 731232001
    Nut
    Part Number: 731232001
      In Stock
    $6.17
  • 7
    Lock Ring – Part Number: 735311820
    Lock Ring
    Part Number: 735311820
      No Longer Available
  • 8
    Link – Part Number: 506554701
    Link
    Part Number: 506554701
      In Stock
    $7.13
  • 9
    Screw – Part Number: 725236461
    Screw
    Part Number: 725236461
      Special Order
    $6.16
  • 10
    Retaining Ring – Part Number: 735311420
    Retaining Ring
    Part Number: 735311420
      Special Order
    $6.16
  • 11
    Spacer – Part Number: 734116441
    Spacer
    Part Number: 734116441
      In Stock
    $6.16
  • 12
    Spring – Part Number: 589284201
    Spring
    Part Number: 589284201
      No Longer Available
  • 13
    Lifting Lever Assy – Part Number: 582190801
    Lifting Lever Assy
    Part Number: 582190801
      No Longer Available
  • 14
    Anvil – Part Number: 588927101
    Anvil
    Part Number: 588927101
      No Longer Available
  • 15
    Lifting Arm – Part Number: 588927001
    Lifting Arm
    Part Number: 588927001
      Special Order
    $14.28
  • 16
    Bearing – Part Number: 588926902
    Bearing
    Part Number: 588926902
      No Longer Available
  • 17
    Lifting Arm – Part Number: 588973401
    Lifting Arm
    Part Number: 588973401
      No Longer Available
  • 18
    Chain – Part Number: 506554606
    Chain
    Part Number: 506554606
      No Longer Available
  • 19
    Shaft – Part Number: 582871902
    Shaft
    Part Number: 582871902
      No Longer Available
  • 20
    Pulley – Part Number: 506905601
    Pulley
    Part Number: 506905601
      Special Order
    $27.85
  • 21
    Bracket – Part Number: 501092901
    Bracket
    Part Number: 501092901
      No Longer Available
  • 22
    Link Assy – Part Number: 588974001
    Link Assy
    Part Number: 588974001
      No Longer Available
  • 23
    Rod – Part Number: 588974401
    Rod
    Part Number: 588974401
      No Longer Available
  • 24
    Rod – Part Number: 588974501
    Rod
    Part Number: 588974501
      No Longer Available
Seat
Seat Diagram and Parts List for 2023 Husqvarna Lawn Tractor
  • 1
    Knob m8 – Part Number: 585065202
    Knob m8
    Part Number: 585065202
      Special Order
    $17.11
  • 4
    Compression Spring – Part Number: 582261701
    Compression Spring
    Part Number: 582261701
      No Longer Available
  • 5
    Spacer – Part Number: 734116441
    Spacer
    Part Number: 734116441
      In Stock
    $6.16
  • 6
    Bolt – Part Number: 725245171
    Bolt
    Part Number: 725245171
      No Longer Available
  • 7
    Screw – Part Number: 522557301
    Screw
    Part Number: 522557301
      No Longer Available
  • 8
    Washer – Part Number: 506565301
    Washer
    Part Number: 506565301
      Special Order
    $18.56
  • 10
    Screw M10X25 – Part Number: 725249371
    Screw M10X25
    Part Number: 725249371
      No Longer Available
  • 11
    Seat Assembly – Part Number: 587605307
    Seat Assembly
    Part Number: 587605307
      No Longer Available
  • 12
    Seat Bracket – Part Number: 589005101
    Seat Bracket
    Part Number: 589005101
      No Longer Available
  • 13
    Bracket – Part Number: 589005201
    Bracket
    Part Number: 589005201
      No Longer Available
  • 14
    Sleeve – Part Number: 588878301
    Sleeve
    Part Number: 588878301
      No Longer Available
  • 15
    Antivibration Element – Part Number: 544252102
    Antivibration Element
    Part Number: 544252102
      No Longer Available
  • 16
    Bracket – Part Number: 588878901
    Bracket
    Part Number: 588878901
      No Longer Available
Steering
Steering Diagram and Parts List for 2023 Husqvarna Lawn Tractor
  • 1
    Bolt – Part Number: 506570104
    Bolt
    Part Number: 506570104
      Special Order
    $7.73
  • 2
    Retaining Ring Sga 15 – Part Number: 735311700
    Retaining Ring Sga 15
    Part Number: 735311700
      On Order
    $6.16
  • 3
    Retaining Ring – Part Number: 735311420
    Retaining Ring
    Part Number: 735311420
      Special Order
    $6.16
  • 7
    Ball Bearing 6005-2Rs – Part Number: 738210504
    Ball Bearing 6005-2Rs
    Part Number: 738210504
      No Longer Available
  • 9
    Washer – Part Number: 582104601
    Washer
    Part Number: 582104601
      No Longer Available
  • 10
    V-Ring – Part Number: 740681521
    V-Ring
    Part Number: 740681521
      No Longer Available
  • 11
    Circlip – Part Number: 735312800
    Circlip
    Part Number: 735312800
      No Longer Available
  • 12
    Retaining Ring Sga 25 – Part Number: 735312600
    Retaining Ring Sga 25
    Part Number: 735312600
      Special Order
    $6.16
  • 13
    Nut – Part Number: 731232001
    Nut
    Part Number: 731232001
      In Stock
    $6.17
  • 14
    Nut – Part Number: 732212001
    Nut
    Part Number: 732212001
      Special Order
    $6.17
  • 15
    Screw – Part Number: 725236461
    Screw
    Part Number: 725236461
      Special Order
    $6.16
  • 16
    Link – Part Number: 506554701
    Link
    Part Number: 506554701
      In Stock
    $7.13
  • 17
    Screw – Part Number: 728745505
    Screw
    Part Number: 728745505
      Special Order
    $6.16
  • 19
    Protective Cover – Part Number: 544433201
    Protective Cover
    Part Number: 544433201
      Special Order
    $6.16
  • 21
    Screw – Part Number: 727637251
    Screw
    Part Number: 727637251
      No Longer Available
  • 22
    Nut Flange – Part Number: 576645703
    Nut Flange
    Part Number: 576645703
      Special Order
    $6.16
  • 23
    Bracket – Part Number: 501097201
    Bracket
    Part Number: 501097201
      No Longer Available
  • 24
    Steering Rod – Part Number: 583908801
    Steering Rod
    Part Number: 583908801
      Special Order
    $86.97
  • 25
    Roller – Part Number: 506522401
    Roller
    Part Number: 506522401
      Special Order
    $18.56
  • 26
    Bracket – Part Number: 584155601
    Bracket
    Part Number: 584155601
      Special Order
    $18.56
  • 27
    Pulley – Part Number: 576492503
    Pulley
    Part Number: 576492503
      No Longer Available
  • 28
    Spindle – Part Number: 501679401
    Spindle
    Part Number: 501679401
      No Longer Available
  • 29
    Swing Axle – Part Number: 535463002
    Swing Axle
    Part Number: 535463002
      No Longer Available
  • 30
    Wire Guide – Part Number: 582178601
    Wire Guide
    Part Number: 582178601
      No Longer Available
  • 31
    Cable Assy – Part Number: 501604805
    Cable Assy
    Part Number: 501604805
      No Longer Available
  • 32
    Chain – Part Number: 506554614
    Chain
    Part Number: 506554614
      No Longer Available
  • 33
    Wire Guide – Part Number: 588974701
    Wire Guide
    Part Number: 588974701
      No Longer Available
  • 34
    Spacer – Part Number: 587080901
    Spacer
    Part Number: 587080901
      Special Order
    $11.43
  • 35
    Steering Wheel – Part Number: 577960401
    Steering Wheel
    Part Number: 577960401
      Special Order
    $104.56
  • 36
    Spring Retainer – Part Number: 588979701
    Spring Retainer
    Part Number: 588979701
      No Longer Available
  • 37
    Connector – Part Number: 506670801
    Connector
    Part Number: 506670801
      Special Order
    $9.98
  • 38
    Spring – Part Number: 506671901
    Spring
    Part Number: 506671901
      Special Order
    $35.18
  • 39
    Bracket – Part Number: 582384501
    Bracket
    Part Number: 582384501
      No Longer Available
Transmission
Transmission Diagram and Parts List for 2023 Husqvarna Lawn Tractor
  • 1
    Bolt – Part Number: 506597401
    Bolt
    Part Number: 506597401
      In Stock
    $9.28
  • 2
    Retaining Ring – Part Number: 735311520
    Retaining Ring
    Part Number: 735311520
      Special Order
    $6.16
  • 3
    Bushing – Part Number: 584871302
    Bushing
    Part Number: 584871302
      Special Order
    $7.13
  • 4
    Lock Ring – Part Number: 735311820
    Lock Ring
    Part Number: 735311820
      No Longer Available
  • 5
    Bolt Flange - M8X40 – Part Number: 725245961
    Bolt Flange - M8X40
    Part Number: 725245961
      No Longer Available
  • 6
    Screw Ehhm – Part Number: 504628201
    Screw Ehhm
    Part Number: 504628201
      No Longer Available
  • 7
    Pin – Part Number: 721434701
    Pin
    Part Number: 721434701
      Special Order
    $6.16
  • 8
    Bolt, M8 X 16 – Part Number: 725244951
    Bolt, M8 X 16
    Part Number: 725244951
      In Stock
    $6.16
  • 9
    Bearing – Part Number: 506986103
    Bearing
    Part Number: 506986103
      No Longer Available
  • 10
    Screw – Part Number: 725246351
    Screw
    Part Number: 725246351
      On Order
    $7.73
  • 12
    Bushing – Part Number: 506992001
    Bushing
    Part Number: 506992001
      No Longer Available
  • 13
    Screw – Part Number: 725246251
    Screw
    Part Number: 725246251
      Special Order
    $20.10
  • 14
    Spacer – Part Number: 734116441
    Spacer
    Part Number: 734116441
      In Stock
    $6.16
  • 16
    Nut – Part Number: 732212001
    Nut
    Part Number: 732212001
      Special Order
    $6.17
  • 17
    Screw – Part Number: 725237271
    Screw
    Part Number: 725237271
      No Longer Available
  • 18
    Nut – Part Number: 731231601
    Nut
    Part Number: 731231601
      In Stock
    $6.16
  • 19
    Spring – Part Number: 506542501
    Spring
    Part Number: 506542501
      No Longer Available
  • 20
    Spring – Part Number: 506535603
    Spring
    Part Number: 506535603
    ★★★★★
    ★★★★★
    (1)
      Special Order
    $7.73
  • 21
    Screw – Part Number: 725246651
    Screw
    Part Number: 725246651
      No Longer Available
  • 22
    Connector – Part Number: 506599301
    Connector
    Part Number: 506599301
      No Longer Available
  • 23
    Spring – Part Number: 506834301
    Spring
    Part Number: 506834301
      Special Order
    $6.16
  • 24
    Washer – Part Number: 734116401
    Washer
    Part Number: 734116401
      On Order
    $6.17
  • 25
    Locknut M8 – Part Number: 732211801
    Locknut M8
    Part Number: 732211801
      In Stock
    $6.16
  • 26
    Bolt Flange - M6 X 20 – Part Number: 725236871
    Bolt Flange - M6 X 20
    Part Number: 725236871
      In Stock
    $6.16
  • 27
    Washer - 26X6.5X1.6 – Part Number: 734115441
    Washer - 26X6.5X1.6
    Part Number: 734115441
      No Longer Available
  • 28
    Hose Clamp – Part Number: 505443601
    Hose Clamp
    Part Number: 505443601
      No Longer Available
  • 30
    Sheet – Part Number: 582565701
    Sheet
    Part Number: 582565701
      No Longer Available
  • 31
    Sheet – Part Number: 582565702
    Sheet
    Part Number: 582565702
      No Longer Available
  • 32
    Wheel Axle – Part Number: 589032601
    Wheel Axle
    Part Number: 589032601
      No Longer Available
  • 33
    Transmission – Part Number: 501114101
    Transmission
    Part Number: 501114101
      No Longer Available
  • 34
    Frame Assy – Part Number: 501750801
    Frame Assy
    Part Number: 501750801
      No Longer Available
  • 35
    Counterweight – Part Number: 582051101
    Counterweight
    Part Number: 582051101
      No Longer Available
  • 36
    Bracket – Part Number: 506991501
    Bracket
    Part Number: 506991501
      No Longer Available
  • 37
    Lever – Part Number: 582817401
    Lever
    Part Number: 582817401
      No Longer Available
  • 38
    Bracket – Part Number: 506992101
    Bracket
    Part Number: 506992101
      No Longer Available
  • 39
    Lever – Part Number: 582859301
    Lever
    Part Number: 582859301
      No Longer Available
  • 40
    Rod – Part Number: 506992201
    Rod
    Part Number: 506992201
      No Longer Available
  • 41
    Screw M6S 6X30 – Part Number: 725237471
    Screw M6S 6X30
    Part Number: 725237471
      Special Order
    $15.46
  • 42
    Screw – Part Number: 589404001
    Screw
    Part Number: 589404001
      No Longer Available
  • 43
    Pad – Part Number: 589403301
    Pad
    Part Number: 589403301
      No Longer Available
  • 44
    Washer – Part Number: 503230405
    Washer
    Part Number: 503230405
      No Longer Available
  • 45
    Tensioner – Part Number: 506993001
    Tensioner
    Part Number: 506993001
      Special Order
    $104.56
  • 46
    Idler Arm – Part Number: 535406301
    Idler Arm
    Part Number: 535406301
      No Longer Available
  • 47
    Tensioner – Part Number: 506993001
    Tensioner
    Part Number: 506993001
      Special Order
    $104.56
  • 48
    Bearing – Part Number: 506986103
    Bearing
    Part Number: 506986103
      No Longer Available
  • 49
    Sleeve – Part Number: 506993301
    Sleeve
    Part Number: 506993301
      No Longer Available
  • 50
    Pulley – Part Number: 506947001
    Pulley
    Part Number: 506947001
      No Longer Available
  • 51
    Screw – Part Number: 725645301
    Screw
    Part Number: 725645301
      Special Order
    $6.16
  • 52
    Locknut M8 – Part Number: 732211801
    Locknut M8
    Part Number: 732211801
      In Stock
    $6.16
  • 53
    Pulley – Part Number: 506991401
    Pulley
    Part Number: 506991401
      Special Order
    $104.56
  • 54
    Fan – Part Number: 506948101
    Fan
    Part Number: 506948101
      No Longer Available
  • 55
    Bracket – Part Number: 506992801
    Bracket
    Part Number: 506992801
      No Longer Available
  • 56
    Arm – Part Number: 505490101
    Arm
    Part Number: 505490101
      No Longer Available
  • 57
    Expansion Tank – Part Number: 535458101
    Expansion Tank
    Part Number: 535458101
      No Longer Available
  • 58
    Hose – Part Number: 535458301
    Hose
    Part Number: 535458301
      No Longer Available
  • 59
    Fuel Cap – Part Number: 506673301
    Fuel Cap
    Part Number: 506673301
      In Stock
    $42.22
  • 60
    Draw Ring – Part Number: 506889901
    Draw Ring
    Part Number: 506889901
      Special Order
    $30.96
  • 61
    Bracket – Part Number: 582527501
    Bracket
    Part Number: 582527501
      No Longer Available
  • 62
    Bracket – Part Number: 582527502
    Bracket
    Part Number: 582527502
      No Longer Available
  • 63
    Spring – Part Number: 582762701
    Spring
    Part Number: 582762701
      No Longer Available
  • 64
    Spring – Part Number: 582762702
    Spring
    Part Number: 582762702
      No Longer Available
  • 65
    Brake Band – Part Number: 582402901
    Brake Band
    Part Number: 582402901
      No Longer Available
Wheels And Tires
Wheels And Tires Diagram and Parts List for 2023 Husqvarna Lawn Tractor
  • 1
    Washer – Part Number: 506945801
    Washer
    Part Number: 506945801
      No Longer Available
  • 2
    Sleeve – Part Number: 506800911
    Sleeve
    Part Number: 506800911
      No Longer Available
  • 2
    Sleeve – Part Number: 506800910
    Sleeve
    Part Number: 506800910
      No Longer Available
  • 3
    Key – Part Number: 506555901
    Key
    Part Number: 506555901
      Special Order
    $6.17
  • 4
    Washer – Part Number: 506504806
    Washer
    Part Number: 506504806
      No Longer Available
  • 5
    Circlip – Part Number: 574458801
    Circlip
    Part Number: 574458801
      No Longer Available
  • 6
    Sleeve – Part Number: 544132603
    Sleeve
    Part Number: 544132603
      No Longer Available
  • 7
    Washer – Part Number: 506504805
    Washer
    Part Number: 506504805
    ★★★★★
    ★★★★★
    (1)
      Special Order
    $6.16
  • 8
    Retaining Ring – Part Number: 506899001
    Retaining Ring
    Part Number: 506899001
      Special Order
    $6.16
  • 9
    Screw Ehhfm – Part Number: 535475212
    Screw Ehhfm
    Part Number: 535475212
      In Stock
    Minimum Quantity of 2 required
    $6.16
  • 10
    Wheel – Part Number: 501083201
    Wheel
    Part Number: 501083201
      No Longer Available
  • 11
    Tire – Part Number: 589395501
    Tire
    Part Number: 589395501
      No Longer Available
  • 12
    Rim Assy – Part Number: 589420201
    Rim Assy
    Part Number: 589420201
      No Longer Available
  • 14
    Wheel – Part Number: 501082301
    Wheel
    Part Number: 501082301
      No Longer Available
  • 15
    Tire – Part Number: 589395501
    Tire
    Part Number: 589395501
      No Longer Available
  • 16
    Rim – Part Number: 588878101
    Rim
    Part Number: 588878101
      No Longer Available
  • 18
    Brake Drum – Part Number: 582407801
    Brake Drum
    Part Number: 582407801
      No Longer Available
  • 19
    Hub Cap – Part Number: 544353502
    Hub Cap
    Part Number: 544353502
      No Longer Available
  • 20
    Hub Cap – Part Number: 544353504
    Hub Cap
    Part Number: 544353504
      No Longer Available

Questions & Answers

?

Our customer Service team is at the ready daily to answer your part and product questions.

Be the first to ask our experts a question about this part!

Ask our Team

We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.

✖

Our customer service team are at the ready daily to answer your part and product questions. We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
