103cm Cutting Deck
103cm Cutting Deck Diagram and Parts List for Husqvarna Lawn Tractor
  • 40
    Bracket – Part Number: 502642102
    Bracket
    Part Number: 502642102
      No Longer Available
  • 41
    Bolt – Part Number: 725245171
    Bolt
    Part Number: 725245171
      No Longer Available
  • 42
    Locknut M8 – Part Number: 732211801
    Locknut M8
    Part Number: 732211801
      In Stock
    $5.95
  • 43
    – Part Number: 502641802
    Part Number: 502641802
      No Longer Available
  • 44
    Cross Bar – Part Number: 502641902
    Cross Bar
    Part Number: 502641902
      No Longer Available
  • 45
    Bearing – Part Number: 506869601
    Bearing
    Part Number: 506869601
      No Longer Available
  • 46
    Plate – Part Number: 506813801
    Plate
    Part Number: 506813801
      Special Order
    $10.46
  • 47
    Bolt – Part Number: 725246151
    Bolt
    Part Number: 725246151
      Special Order
    $7.46
  • 48
    Locknut M8 – Part Number: 732211801
    Locknut M8
    Part Number: 732211801
      In Stock
    $5.95
  • 49
    Parallel Rod Assy – Part Number: 504812701
    Parallel Rod Assy
    Part Number: 504812701
      No Longer Available
  • 50
    Parallell Rod – Part Number: 502642301
    Parallell Rod
    Part Number: 502642301
      No Longer Available
  • 51
    Bolt – Part Number: 506839803
    Bolt
    Part Number: 506839803
      No Longer Available
  • 52
    Split Pin – Part Number: 721618301
    Split Pin
    Part Number: 721618301
      No Longer Available
  • 53
    Deck Frame – Part Number: 502642002
    Deck Frame
    Part Number: 502642002
      No Longer Available
  • 54
    Ball Bearing 6004-2rs1 – Part Number: 738210404
    Ball Bearing 6004-2rs1
    Part Number: 738210404
    ★★★★★
    ★★★★★
    (1)
      In Stock
    $17.92
  • 55
    Pivothjul – Part Number: 535505901
    Pivothjul
    Part Number: 535505901
      No Longer Available
  • 56
    – Part Number: 535504601
    Part Number: 535504601
      No Longer Available
  • 57
    Deck Roller, Front – Part Number: 506963001
    Deck Roller, Front
    Part Number: 506963001
      In Stock
    $71.95
  • 58
    Wheel Axle Tube – Part Number: 506810802
    Wheel Axle Tube
    Part Number: 506810802
      Special Order
    $11.92
  • 59
    Spacer – Part Number: 506874102
    Spacer
    Part Number: 506874102
      In Stock
    $8.96
  • 60
    Screw EHHM – Part Number: 725251951
    Screw EHHM
    Part Number: 725251951
      Special Order
    $16.52
  • 61
    Nut – Part Number: 732212001
    Nut
    Part Number: 732212001
      Special Order
    $5.96
  • 62
    Washer – Part Number: 506504805
    Washer
    Part Number: 506504805
    ★★★★★
    ★★★★★
    (1)
      Special Order
    $5.95
  • 63
    Bolt – Part Number: 506570104
    Bolt
    Part Number: 506570104
      Special Order
    $7.46
  • 64
    Spacer – Part Number: 734116441
    Spacer
    Part Number: 734116441
      In Stock
    $5.95
  • 65
    Hub Cap – Part Number: 544017001
    Hub Cap
    Part Number: 544017001
      No Longer Available
  • 66
    Bolt – Part Number: 506597401
    Bolt
    Part Number: 506597401
      In Stock
    $8.96
  • 67
    Locknut M8 – Part Number: 732211801
    Locknut M8
    Part Number: 732211801
      In Stock
    $5.95
  • 68
    Deck Attachment – Part Number: 502639501
    Deck Attachment
    Part Number: 502639501
      No Longer Available
  • 69
    Lock – Part Number: 502642401
    Lock
    Part Number: 502642401
      No Longer Available
  • 70
    Bolt – Part Number: 725245171
    Bolt
    Part Number: 725245171
      No Longer Available
  • 71
    Locknut M8 – Part Number: 732211801
    Locknut M8
    Part Number: 732211801
      In Stock
    $5.95
103cm Cutting Deck 2
103cm Cutting Deck 2 Diagram and Parts List for Husqvarna Lawn Tractor
  • 1
    Deck Shell Assy – Part Number: 504569801
    Deck Shell Assy
    Part Number: 504569801
      No Longer Available
  • 2
    Nut – Part Number: 506916201
    Nut
    Part Number: 506916201
      In Stock
    $8.26
  • 3
    Plug – Part Number: 544449201
    Plug
    Part Number: 544449201
      In Stock
    $77.95
  • 4
    Bolt – Part Number: 506570104
    Bolt
    Part Number: 506570104
      Special Order
    $7.46
  • 5
    Mandrel – Part Number: 535503501
    Mandrel
    Part Number: 535503501
      No Longer Available
  • 6
    Bearing Housing – Part Number: 576384201
    Bearing Housing
    Part Number: 576384201
      No Longer Available
  • 7
    Shaft – Part Number: 535428701
    Shaft
    Part Number: 535428701
      No Longer Available
  • 8
    SPACER – Part Number: 535428801
    SPACER
    Part Number: 535428801
      Special Order
    $12.40
  • 9
    BEARING – Part Number: 738220519
    BEARING
    Part Number: 738220519
      No Longer Available
  • 10
    Mandrel – Part Number: 535503502
    Mandrel
    Part Number: 535503502
      No Longer Available
  • 11
    Bearing Housing – Part Number: 576384201
    Bearing Housing
    Part Number: 576384201
      No Longer Available
  • 12
    AXLE – Part Number: 535428702
    AXLE
    Part Number: 535428702
      Special Order
    $71.95
  • 13
    SPACER – Part Number: 535428801
    SPACER
    Part Number: 535428801
      Special Order
    $12.40
  • 14
    BEARING – Part Number: 738220519
    BEARING
    Part Number: 738220519
      No Longer Available
  • 15
    Bolt – Part Number: 535423801
    Bolt
    Part Number: 535423801
      In Stock
    $7.46
  • 16
    Washer – Part Number: 734116401
    Washer
    Part Number: 734116401
      On Order
    $5.96
  • 17
    Locknut M8 – Part Number: 732211801
    Locknut M8
    Part Number: 732211801
      In Stock
    $5.95
  • 18
    Pulley – Part Number: 535429001
    Pulley
    Part Number: 535429001
      No Longer Available
  • 19
    Key – Part Number: 506533501
    Key
    Part Number: 506533501
      In Stock
    $5.95
  • 20
    SPACER – Part Number: 535428801
    SPACER
    Part Number: 535428801
      Special Order
    $12.40
  • 21
    – Part Number: 535429201
    Part Number: 535429201
      No Longer Available
  • 22
    Screw – Part Number: 725254251
    Screw
    Part Number: 725254251
      No Longer Available
  • 23
    – Part Number: 535504201
    Part Number: 535504201
      No Longer Available
  • 24
    Blade – Part Number: 504190410
    Blade
    Part Number: 504190410
      No Longer Available
  • 25
    WASHER – Part Number: 506792302
    WASHER
    Part Number: 506792302
      No Longer Available
  • 26
    Screw – Part Number: 725254251
    Screw
    Part Number: 725254251
      No Longer Available
  • 27
    Belt Tensioner Assembly – Part Number: 586966601
    Belt Tensioner Assembly
    Part Number: 586966601
      Special Order
    $77.95
  • 28
    Belt Tensioner Assembly – Part Number: 586966601
    Belt Tensioner Assembly
    Part Number: 586966601
      Special Order
    $77.95
  • 29
    Pulley – Part Number: 506532701
    Pulley
    Part Number: 506532701
      In Stock
    $56.05
  • 30
    Spacer – Part Number: 734116441
    Spacer
    Part Number: 734116441
      In Stock
    $5.95
  • 31
    Bolt – Part Number: 506558302
    Bolt
    Part Number: 506558302
      No Longer Available
  • 32
    Washer – Part Number: 584288604
    Washer
    Part Number: 584288604
      Special Order
    $5.95
  • 33
    Bolt – Part Number: 725245171
    Bolt
    Part Number: 725245171
      No Longer Available
  • 34
    Locknut M8 – Part Number: 732211801
    Locknut M8
    Part Number: 732211801
      In Stock
    $5.95
  • 35
    Spring – Part Number: 506533101
    Spring
    Part Number: 506533101
      In Stock
    $17.92
  • 36
    Belt – Part Number: 589534401
    Belt
    Part Number: 589534401
      No Longer Available
  • 37
    BELT COVER C103 HUSQ - GREY – Part Number: 544096103
    BELT COVER C103 HUSQ - GREY
    Part Number: 544096103
      Special Order
    $100.93
  • 38
    Screw – Part Number: 506982601
    Screw
    Part Number: 506982601
      Special Order
    $5.96
  • 39
    Washer – Part Number: 506559701
    Washer
    Part Number: 506559701
      Special Order
    $5.95
  • 72
    Decal – Part Number: 506789701
    Decal
    Part Number: 506789701
      No Longer Available
  • 73
    Label – Part Number: 544238111
    Label
    Part Number: 544238111
      No Longer Available
  • 74
    Decal – Part Number: 506929001
    Decal
    Part Number: 506929001
      No Longer Available
103cm Cutting Deck 3
103cm Cutting Deck 3 Diagram and Parts List for Husqvarna Lawn Tractor
44-Inch/112cm Cutting Deck
44-Inch/112cm Cutting Deck Diagram and Parts List for Husqvarna Lawn Tractor
  • 40
    Bracket – Part Number: 502642102
    Bracket
    Part Number: 502642102
      No Longer Available
  • 41
    Bolt – Part Number: 725245171
    Bolt
    Part Number: 725245171
      No Longer Available
  • 42
    Locknut M8 – Part Number: 732211801
    Locknut M8
    Part Number: 732211801
      In Stock
    $5.95
  • 43
    – Part Number: 502641802
    Part Number: 502641802
      No Longer Available
  • 44
    Cross Bar – Part Number: 502641902
    Cross Bar
    Part Number: 502641902
      No Longer Available
  • 45
    Bearing – Part Number: 506869601
    Bearing
    Part Number: 506869601
      No Longer Available
  • 46
    Plate – Part Number: 506813801
    Plate
    Part Number: 506813801
      Special Order
    $10.46
  • 47
    Bolt – Part Number: 725246151
    Bolt
    Part Number: 725246151
      Special Order
    $7.46
  • 48
    Locknut M8 – Part Number: 732211801
    Locknut M8
    Part Number: 732211801
      In Stock
    $5.95
  • 49
    Parallel Rod Assy – Part Number: 504812701
    Parallel Rod Assy
    Part Number: 504812701
      No Longer Available
  • 50
    Parallell Rod – Part Number: 502642301
    Parallell Rod
    Part Number: 502642301
      No Longer Available
  • 51
    Bolt – Part Number: 506839803
    Bolt
    Part Number: 506839803
      No Longer Available
  • 52
    Split Pin – Part Number: 721618301
    Split Pin
    Part Number: 721618301
      No Longer Available
  • 53
    Deck Frame – Part Number: 502642002
    Deck Frame
    Part Number: 502642002
      No Longer Available
  • 54
    Ball Bearing 6004-2rs1 – Part Number: 738210404
    Ball Bearing 6004-2rs1
    Part Number: 738210404
    ★★★★★
    ★★★★★
    (1)
      In Stock
    $17.92
  • 55
    Pivothjul – Part Number: 535505901
    Pivothjul
    Part Number: 535505901
      No Longer Available
  • 57
    Deck Roller, Front – Part Number: 506963001
    Deck Roller, Front
    Part Number: 506963001
      In Stock
    $71.95
  • 58
    Wheel Axle Tube – Part Number: 506810802
    Wheel Axle Tube
    Part Number: 506810802
      Special Order
    $11.92
  • 59
    Spacer – Part Number: 506874102
    Spacer
    Part Number: 506874102
      In Stock
    $8.96
  • 60
    Screw EHHM – Part Number: 725251951
    Screw EHHM
    Part Number: 725251951
      Special Order
    $16.52
  • 61
    Nut – Part Number: 732212001
    Nut
    Part Number: 732212001
      Special Order
    $5.96
  • 62
    Washer – Part Number: 506504805
    Washer
    Part Number: 506504805
    ★★★★★
    ★★★★★
    (1)
      Special Order
    $5.95
  • 63
    Bolt – Part Number: 506570104
    Bolt
    Part Number: 506570104
      Special Order
    $7.46
  • 64
    Spacer – Part Number: 734116441
    Spacer
    Part Number: 734116441
      In Stock
    $5.95
  • 65
    Hub Cap – Part Number: 544017001
    Hub Cap
    Part Number: 544017001
      No Longer Available
  • 66
    Bolt – Part Number: 506597401
    Bolt
    Part Number: 506597401
      In Stock
    $8.96
  • 67
    Locknut M8 – Part Number: 732211801
    Locknut M8
    Part Number: 732211801
      In Stock
    $5.95
  • 68
    Deck Attachment – Part Number: 502639501
    Deck Attachment
    Part Number: 502639501
      No Longer Available
  • 69
    Lock – Part Number: 502642401
    Lock
    Part Number: 502642401
      No Longer Available
  • 70
    Bolt – Part Number: 725245171
    Bolt
    Part Number: 725245171
      No Longer Available
  • 71
    Locknut M8 – Part Number: 732211801
    Locknut M8
    Part Number: 732211801
      In Stock
    $5.95
44-Inch/112cm Cutting Deck 2
44-Inch/112cm Cutting Deck 2 Diagram and Parts List for Husqvarna Lawn Tractor
  • 1
    Deck Shell Assy – Part Number: 504569901
    Deck Shell Assy
    Part Number: 504569901
      No Longer Available
  • 2
    Nut – Part Number: 506916201
    Nut
    Part Number: 506916201
      In Stock
    $8.26
  • 3
    Plug – Part Number: 544449301
    Plug
    Part Number: 544449301
      Special Order
    $130.63
  • 4
    Bolt – Part Number: 506570104
    Bolt
    Part Number: 506570104
      Special Order
    $7.46
  • 5
    Mandrel – Part Number: 535503501
    Mandrel
    Part Number: 535503501
      No Longer Available
  • 6
    Bearing Housing – Part Number: 576384201
    Bearing Housing
    Part Number: 576384201
      No Longer Available
  • 7
    Shaft – Part Number: 535428701
    Shaft
    Part Number: 535428701
      No Longer Available
  • 8
    SPACER – Part Number: 535428801
    SPACER
    Part Number: 535428801
      Special Order
    $12.40
  • 9
    BEARING – Part Number: 738220519
    BEARING
    Part Number: 738220519
      No Longer Available
  • 10
    Mandrel – Part Number: 535503502
    Mandrel
    Part Number: 535503502
      No Longer Available
  • 11
    Bearing Housing – Part Number: 576384201
    Bearing Housing
    Part Number: 576384201
      No Longer Available
  • 12
    AXLE – Part Number: 535428702
    AXLE
    Part Number: 535428702
      Special Order
    $71.95
  • 13
    SPACER – Part Number: 535428801
    SPACER
    Part Number: 535428801
      Special Order
    $12.40
  • 14
    BEARING – Part Number: 738220519
    BEARING
    Part Number: 738220519
      No Longer Available
  • 15
    Bolt – Part Number: 535423801
    Bolt
    Part Number: 535423801
      In Stock
    $7.46
  • 16
    Washer – Part Number: 734116401
    Washer
    Part Number: 734116401
      On Order
    $5.96
  • 17
    Locknut M8 – Part Number: 732211801
    Locknut M8
    Part Number: 732211801
      In Stock
    $5.95
  • 18
    Pulley – Part Number: 535429001
    Pulley
    Part Number: 535429001
      No Longer Available
  • 19
    Key – Part Number: 506533501
    Key
    Part Number: 506533501
      In Stock
    $5.95
  • 20
    SPACER – Part Number: 535428801
    SPACER
    Part Number: 535428801
      Special Order
    $12.40
  • 21
    – Part Number: 535429201
    Part Number: 535429201
      No Longer Available
  • 22
    Screw – Part Number: 725254251
    Screw
    Part Number: 725254251
      No Longer Available
  • 23
    – Part Number: 535504201
    Part Number: 535504201
      No Longer Available
  • 24
    Blade – Part Number: 504187810
    Blade
    Part Number: 504187810
      No Longer Available
  • 25
    WASHER – Part Number: 506792302
    WASHER
    Part Number: 506792302
      No Longer Available
  • 26
    Screw – Part Number: 725254251
    Screw
    Part Number: 725254251
      No Longer Available
  • 27
    Belt Tensioner Assembly – Part Number: 586966601
    Belt Tensioner Assembly
    Part Number: 586966601
      Special Order
    $77.95
  • 28
    Belt Tensioner Assembly – Part Number: 586966601
    Belt Tensioner Assembly
    Part Number: 586966601
      Special Order
    $77.95
  • 29
    Pulley – Part Number: 506532701
    Pulley
    Part Number: 506532701
      In Stock
    $56.05
  • 30
    Spacer – Part Number: 734116441
    Spacer
    Part Number: 734116441
      In Stock
    $5.95
  • 31
    Bolt – Part Number: 506558302
    Bolt
    Part Number: 506558302
      No Longer Available
  • 32
    Washer – Part Number: 584288604
    Washer
    Part Number: 584288604
      Special Order
    $5.95
  • 33
    Bolt – Part Number: 725245171
    Bolt
    Part Number: 725245171
      No Longer Available
  • 34
    Locknut M8 – Part Number: 732211801
    Locknut M8
    Part Number: 732211801
      In Stock
    $5.95
  • 35
    Spring – Part Number: 506533101
    Spring
    Part Number: 506533101
      In Stock
    $17.92
  • 36
    Belt – Part Number: 593806401
    Belt
    Part Number: 593806401
      Special Order
    $59.95
  • 37
    Belt cover c112 husqvarna-grey – Part Number: 544096203
    Belt cover c112 husqvarna-grey
    Part Number: 544096203
      On Order
    $59.95
  • 38
    Screw – Part Number: 506982601
    Screw
    Part Number: 506982601
      Special Order
    $5.96
  • 39
    Washer – Part Number: 506559701
    Washer
    Part Number: 506559701
      Special Order
    $5.95
  • 72
    Decal – Part Number: 506789701
    Decal
    Part Number: 506789701
      No Longer Available
  • 73
    Label – Part Number: 544238112
    Label
    Part Number: 544238112
      No Longer Available
  • 74
    Decal – Part Number: 506929001
    Decal
    Part Number: 506929001
      No Longer Available
44-Inch/112cm Cutting Deck 3
44-Inch/112cm Cutting Deck 3 Diagram and Parts List for Husqvarna Lawn Tractor

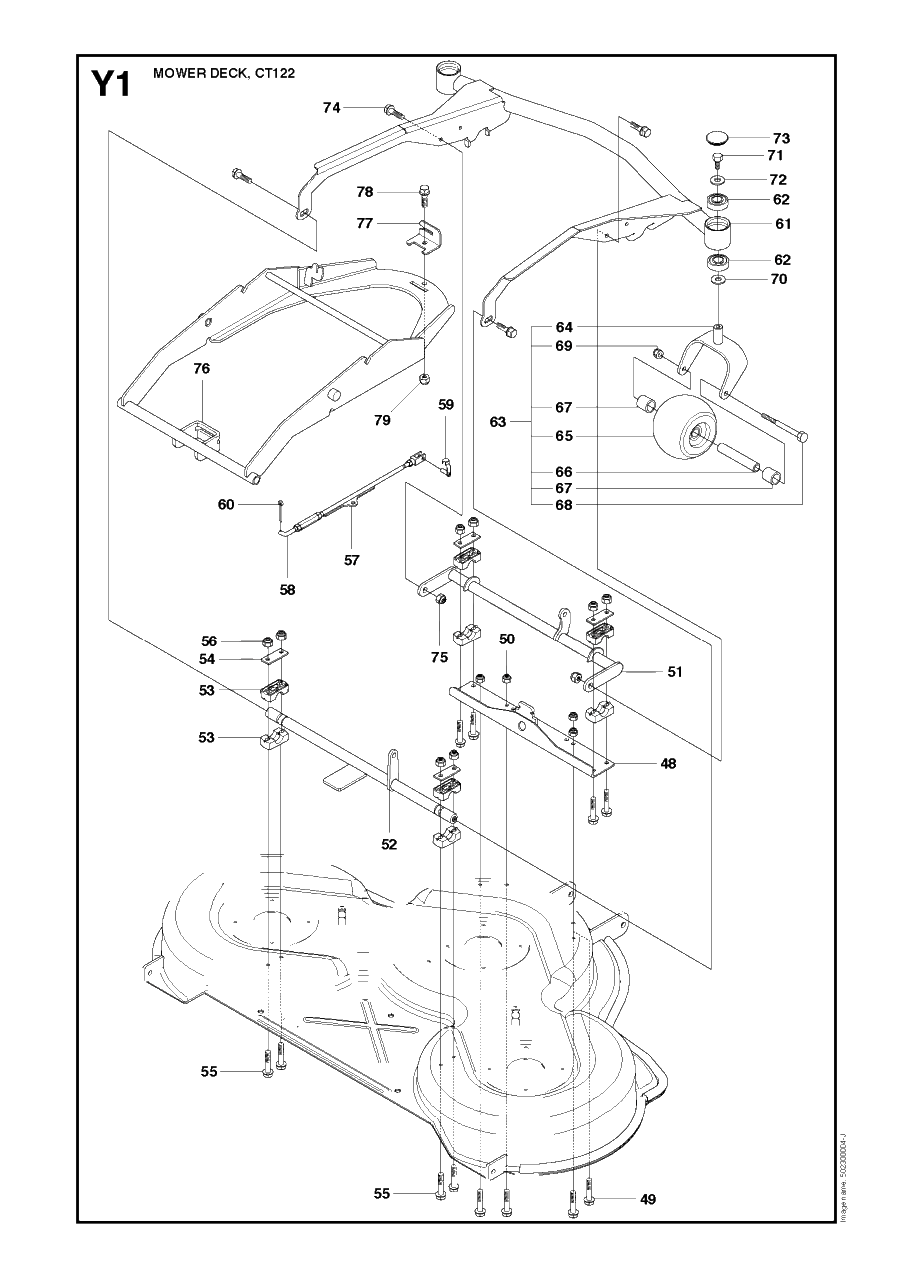

48-Inch/122cm Cutting Deck
48-Inch/122cm Cutting Deck Diagram and Parts List for Husqvarna Lawn Tractor
48-Inch/122cm Cutting Deck 2
48-Inch/122cm Cutting Deck 2 Diagram and Parts List for Husqvarna Lawn Tractor
  • 1
    Cutting Deck Kit – Part Number: 522505601
    Cutting Deck Kit
    Part Number: 522505601
      No Longer Available
  • 2
    Nut – Part Number: 506916201
    Nut
    Part Number: 506916201
      In Stock
    $8.26
  • 3
    Plug Assy – Part Number: 535428302
    Plug Assy
    Part Number: 535428302
      No Longer Available
  • 4
    Screw – Part Number: 725246351
    Screw
    Part Number: 725246351
      On Order
    $7.46
  • 5
    Washer – Part Number: 734116401
    Washer
    Part Number: 734116401
      On Order
    $5.96
  • 6
    Blade Housing Assy – Part Number: 535428601
    Blade Housing Assy
    Part Number: 535428601
      No Longer Available
  • 7
    HOUSING, BEARING – Part Number: 535428901
    HOUSING, BEARING
    Part Number: 535428901
      No Longer Available
  • 8
    Shaft – Part Number: 535428701
    Shaft
    Part Number: 535428701
      No Longer Available
  • 9
    SPACER – Part Number: 535428801
    SPACER
    Part Number: 535428801
      Special Order
    $12.40
  • 10
    BEARING – Part Number: 738220519
    BEARING
    Part Number: 738220519
      No Longer Available
  • 11
    Blade Housing Assy – Part Number: 535428602
    Blade Housing Assy
    Part Number: 535428602
      No Longer Available
  • 12
    HOUSING, BEARING – Part Number: 535428901
    HOUSING, BEARING
    Part Number: 535428901
      No Longer Available
  • 13
    AXLE – Part Number: 535428702
    AXLE
    Part Number: 535428702
      Special Order
    $71.95
  • 14
    SPACER – Part Number: 535428801
    SPACER
    Part Number: 535428801
      Special Order
    $12.40
  • 15
    BEARING – Part Number: 738220519
    BEARING
    Part Number: 738220519
      No Longer Available
  • 16
    Bolt – Part Number: 535423801
    Bolt
    Part Number: 535423801
      In Stock
    $7.46
  • 17
    Washer – Part Number: 734116401
    Washer
    Part Number: 734116401
      On Order
    $5.96
  • 18
    Locknut M8 – Part Number: 732211801
    Locknut M8
    Part Number: 732211801
      In Stock
    $5.95
  • 19
    Pulley – Part Number: 535429001
    Pulley
    Part Number: 535429001
      No Longer Available
  • 20
    Key – Part Number: 506533501
    Key
    Part Number: 506533501
      In Stock
    $5.95
  • 21
    SPACER – Part Number: 535428801
    SPACER
    Part Number: 535428801
      Special Order
    $12.40
  • 22
    – Part Number: 535429201
    Part Number: 535429201
      No Longer Available
  • 23
    Screw – Part Number: 725254251
    Screw
    Part Number: 725254251
      No Longer Available
  • 24
    – Part Number: 535504201
    Part Number: 535504201
      No Longer Available
  • 25
    Blade – Part Number: 535429410
    Blade
    Part Number: 535429410
      No Longer Available
  • 26
    WASHER – Part Number: 506792302
    WASHER
    Part Number: 506792302
      No Longer Available
  • 27
    Screw – Part Number: 725254251
    Screw
    Part Number: 725254251
      No Longer Available
  • 28
    Belt Tensioner Assembly – Part Number: 586966601
    Belt Tensioner Assembly
    Part Number: 586966601
      Special Order
    $77.95
  • 29
    Belt Tensioner Assembly – Part Number: 586966601
    Belt Tensioner Assembly
    Part Number: 586966601
      Special Order
    $77.95
  • 30
    Pulley – Part Number: 506532701
    Pulley
    Part Number: 506532701
      In Stock
    $56.05
  • 31
    Spacer – Part Number: 734116441
    Spacer
    Part Number: 734116441
      In Stock
    $5.95
  • 32
    Bolt – Part Number: 506558302
    Bolt
    Part Number: 506558302
      No Longer Available
  • 33
    Washer – Part Number: 584288604
    Washer
    Part Number: 584288604
      Special Order
    $5.95
  • 34
    Bolt – Part Number: 725245171
    Bolt
    Part Number: 725245171
      No Longer Available
  • 35
    Locknut M8 – Part Number: 732211801
    Locknut M8
    Part Number: 732211801
      In Stock
    $5.95
  • 36
    Spring – Part Number: 506533101
    Spring
    Part Number: 506533101
      In Stock
    $17.92
  • 37
    Belt – Part Number: 589533001
    Belt
    Part Number: 589533001
      No Longer Available
  • 38
    Belt Cover – Part Number: 535429601
    Belt Cover
    Part Number: 535429601
      No Longer Available
  • 39
    Screw – Part Number: 506982601
    Screw
    Part Number: 506982601
      Special Order
    $5.96
  • 40
    Washer – Part Number: 506559701
    Washer
    Part Number: 506559701
      Special Order
    $5.95
  • 41
    Wheel – Part Number: 591052601
    Wheel
    Part Number: 591052601
      Special Order
    $37.62
  • 42
    Tube – Part Number: 505450301
    Tube
    Part Number: 505450301
      No Longer Available
  • 43
    – Part Number: 725250271
    Part Number: 725250271
      No Longer Available
  • 44
    Nut – Part Number: 732212001
    Nut
    Part Number: 732212001
      Special Order
    $5.96
  • 45
    ROLLER – Part Number: 539002472
    ROLLER
    Part Number: 539002472
      No Longer Available
  • 46
    – Part Number: 544221001
    Part Number: 544221001
      No Longer Available
  • 47
    Nut M12 – Part Number: 732212201
    Nut M12
    Part Number: 732212201
      No Longer Available
  • 80
    Decal – Part Number: 506789701
    Decal
    Part Number: 506789701
      No Longer Available
  • 81
    Label – Part Number: 544238113
    Label
    Part Number: 544238113
      No Longer Available
  • 82
    Decal – Part Number: 506929001
    Decal
    Part Number: 506929001
      No Longer Available
  • 83
    Washer – Part Number: 734117441
    Washer
    Part Number: 734117441
      Special Order
    $5.96
48-Inch/122cm Cutting Deck 3
48-Inch/122cm Cutting Deck 3 Diagram and Parts List for Husqvarna Lawn Tractor
  • 48
    Bracket – Part Number: 502642102
    Bracket
    Part Number: 502642102
      No Longer Available
  • 49
    Bolt – Part Number: 725245171
    Bolt
    Part Number: 725245171
      No Longer Available
  • 50
    Locknut M8 – Part Number: 732211801
    Locknut M8
    Part Number: 732211801
      In Stock
    $5.95
  • 51
    Cross Bar – Part Number: 502641803
    Cross Bar
    Part Number: 502641803
      No Longer Available
  • 52
    Cross Bar – Part Number: 502641903
    Cross Bar
    Part Number: 502641903
      No Longer Available
  • 53
    Bearing – Part Number: 506869601
    Bearing
    Part Number: 506869601
      No Longer Available
  • 54
    Plate – Part Number: 506813801
    Plate
    Part Number: 506813801
      Special Order
    $10.46
  • 55
    Bolt – Part Number: 725246151
    Bolt
    Part Number: 725246151
      Special Order
    $7.46
  • 56
    Locknut M8 – Part Number: 732211801
    Locknut M8
    Part Number: 732211801
      In Stock
    $5.95
  • 57
    Parallel Rod Assy – Part Number: 504812702
    Parallel Rod Assy
    Part Number: 504812702
      No Longer Available
  • 58
    Parallell Rod – Part Number: 502642301
    Parallell Rod
    Part Number: 502642301
      No Longer Available
  • 59
    Bolt – Part Number: 506839803
    Bolt
    Part Number: 506839803
      No Longer Available
  • 60
    Split Pin – Part Number: 721618301
    Split Pin
    Part Number: 721618301
      No Longer Available
  • 61
    Deck Frame – Part Number: 502642003
    Deck Frame
    Part Number: 502642003
      No Longer Available
  • 62
    Ball Bearing 6004-2rs1 – Part Number: 738210404
    Ball Bearing 6004-2rs1
    Part Number: 738210404
    ★★★★★
    ★★★★★
    (1)
      In Stock
    $17.92
  • 63
    Pivothjul – Part Number: 535505901
    Pivothjul
    Part Number: 535505901
      No Longer Available
  • 64
    – Part Number: 535504601
    Part Number: 535504601
      No Longer Available
  • 65
    Deck Roller, Front – Part Number: 506963001
    Deck Roller, Front
    Part Number: 506963001
      In Stock
    $71.95
  • 66
    Wheel Axle Tube – Part Number: 506810802
    Wheel Axle Tube
    Part Number: 506810802
      Special Order
    $11.92
  • 67
    Spacer – Part Number: 506874102
    Spacer
    Part Number: 506874102
      In Stock
    $8.96
  • 68
    Screw EHHM – Part Number: 725251951
    Screw EHHM
    Part Number: 725251951
      Special Order
    $16.52
  • 69
    Nut – Part Number: 732212001
    Nut
    Part Number: 732212001
      Special Order
    $5.96
  • 70
    Washer – Part Number: 506504805
    Washer
    Part Number: 506504805
    ★★★★★
    ★★★★★
    (1)
      Special Order
    $5.95
  • 71
    Bolt – Part Number: 506570104
    Bolt
    Part Number: 506570104
      Special Order
    $7.46
  • 72
    Spacer – Part Number: 734116441
    Spacer
    Part Number: 734116441
      In Stock
    $5.95
  • 73
    Hub Cap – Part Number: 544017001
    Hub Cap
    Part Number: 544017001
      No Longer Available
  • 74
    Bolt – Part Number: 506597401
    Bolt
    Part Number: 506597401
      In Stock
    $8.96
  • 75
    Locknut M8 – Part Number: 732211801
    Locknut M8
    Part Number: 732211801
      In Stock
    $5.95
  • 76
    Deck Attachment – Part Number: 502639502
    Deck Attachment
    Part Number: 502639502
      No Longer Available
  • 77
    Lock – Part Number: 502642401
    Lock
    Part Number: 502642401
      No Longer Available
  • 78
    Bolt – Part Number: 725245171
    Bolt
    Part Number: 725245171
      No Longer Available
  • 79
    Locknut M8 – Part Number: 732211801
    Locknut M8
    Part Number: 732211801
      In Stock
    $5.95
Chassis And Enclosures
Chassis And Enclosures Diagram and Parts List for Husqvarna Lawn Tractor
  • 1
    Engine Hood Assy – Part Number: 502625501
    Engine Hood Assy
    Part Number: 502625501
      No Longer Available
  • 2
    Spring – Part Number: 504124101
    Spring
    Part Number: 504124101
      Special Order
    $14.92
  • 3
    Grid – Part Number: 502482201
    Grid
    Part Number: 502482201
      No Longer Available
  • 4
    Air Conductor – Part Number: 504101902
    Air Conductor
    Part Number: 504101902
      No Longer Available
  • 5
    Screw Itxpant – Part Number: 504610901
    Screw Itxpant
    Part Number: 504610901
      Special Order
    $5.95
  • 6
    Load Carrier – Part Number: 502494601
    Load Carrier
    Part Number: 502494601
      No Longer Available
  • 7
    Screw – Part Number: 544400501
    Screw
    Part Number: 544400501
      In Stock
    $5.95
  • 8
    Sealing – Part Number: 504629501
    Sealing
    Part Number: 504629501
      No Longer Available
  • 9
    Guide Plate – Part Number: 504613901
    Guide Plate
    Part Number: 504613901
      No Longer Available
  • 10
    Guide Plate – Part Number: 504613902
    Guide Plate
    Part Number: 504613902
      No Longer Available
  • 11
    Screw – Part Number: 725249751
    Screw
    Part Number: 725249751
      Special Order
    $7.46
  • 12
    Washer – Part Number: 734117460
    Washer
    Part Number: 734117460
      No Longer Available
  • 38
    Lid – Part Number: 504101401
    Lid
    Part Number: 504101401
      No Longer Available
  • 39
    Nut – Part Number: 732212001
    Nut
    Part Number: 732212001
      Special Order
    $5.96
Chassis And Enclosures 2
Chassis And Enclosures 2 Diagram and Parts List for Husqvarna Lawn Tractor
  • 13
    Control Cover – Part Number: 502637501
    Control Cover
    Part Number: 502637501
      No Longer Available
  • 14
    Screw Ihpanm – Part Number: 535425801
    Screw Ihpanm
    Part Number: 535425801
      No Longer Available
  • 15
    Control Cover – Part Number: 502637701
    Control Cover
    Part Number: 502637701
      No Longer Available
  • 16
    Nut – Part Number: 535429101
    Nut
    Part Number: 535429101
      Special Order
    $5.95
  • 17
    Control Cap Inner – Part Number: 535476501
    Control Cap Inner
    Part Number: 535476501
      No Longer Available
  • 20
    Screw – Part Number: 506982601
    Screw
    Part Number: 506982601
      Special Order
    $5.96
  • 21
    Washer – Part Number: 506559701
    Washer
    Part Number: 506559701
      Special Order
    $5.95
  • 24
    Sealing – Part Number: 535460501
    Sealing
    Part Number: 535460501
      No Longer Available
  • 25
    Cover – Part Number: 535459701
    Cover
    Part Number: 535459701
      No Longer Available
  • 26
    Screw – Part Number: 535425802
    Screw
    Part Number: 535425802
      No Longer Available
  • 27
    Spacer – Part Number: 535462901
    Spacer
    Part Number: 535462901
      No Longer Available
  • 29
    Unit Cover – Part Number: 502286901
    Unit Cover
    Part Number: 502286901
      No Longer Available
  • 30
    Lock – Part Number: 525390501
    Lock
    Part Number: 525390501
      No Longer Available
  • 31
    Lock Golvtunnel – Part Number: 535421501
    Lock Golvtunnel
    Part Number: 535421501
      No Longer Available
  • 32
    Chassis – Part Number: 502298302
    Chassis
    Part Number: 502298302
      No Longer Available
  • 33
    Lamp Chimney – Part Number: 535447101
    Lamp Chimney
    Part Number: 535447101
      No Longer Available
  • 34
    Housing – Part Number: 535446701
    Housing
    Part Number: 535446701
      No Longer Available
  • 35
    Lamp – Part Number: 582214201
    Lamp
    Part Number: 582214201
      Special Order
    $17.92
  • 36
    Screw – Part Number: 535415619
    Screw
    Part Number: 535415619
      No Longer Available
  • 37
    Nut – Part Number: 506892001
    Nut
    Part Number: 506892001
      No Longer Available
Chassis And Enclosures 3
Chassis And Enclosures 3 Diagram and Parts List for Husqvarna Lawn Tractor
  • 18
    Flygel Vpänster – Part Number: 535432103
    Flygel Vpänster
    Part Number: 535432103
      No Longer Available
  • 19
    Flygel Hpûger – Part Number: 535474602
    Flygel Hpûger
    Part Number: 535474602
      No Longer Available
  • 20
    Screw – Part Number: 506982601
    Screw
    Part Number: 506982601
      Special Order
    $5.96
  • 21
    Washer – Part Number: 506559701
    Washer
    Part Number: 506559701
      Special Order
    $5.95
  • 22
    Pedistal Mat – Part Number: 535474701
    Pedistal Mat
    Part Number: 535474701
      No Longer Available
  • 23
    Pedistal Mat – Part Number: 535474702
    Pedistal Mat
    Part Number: 535474702
      No Longer Available
  • 28
    Cover – Part Number: 574886101
    Cover
    Part Number: 574886101
      No Longer Available
Cover, Rear
Cover, Rear Diagram and Parts List for Husqvarna Lawn Tractor
  • 1
    Bracket – Part Number: 535406101
    Bracket
    Part Number: 535406101
      No Longer Available
  • 2
    Bushing – Part Number: 506986102
    Bushing
    Part Number: 506986102
      Special Order
    $24.82
  • 3
    Transmission – Part Number: 577531801
    Transmission
    Part Number: 577531801
      No Longer Available
  • 4
    Screw Ehhm – Part Number: 504628201
    Screw Ehhm
    Part Number: 504628201
      No Longer Available
  • 5
    Screw – Part Number: 725246651
    Screw
    Part Number: 725246651
      No Longer Available
  • 6
    Connector – Part Number: 506599301
    Connector
    Part Number: 506599301
      No Longer Available
  • 7
    Bracket – Part Number: 506991501
    Bracket
    Part Number: 506991501
      No Longer Available
  • 8
    Washer – Part Number: 734116401
    Washer
    Part Number: 734116401
      On Order
    $5.96
  • 9
    Locknut M8 – Part Number: 732211801
    Locknut M8
    Part Number: 732211801
      In Stock
    $5.95
  • 10
    Arm – Part Number: 506992401
    Arm
    Part Number: 506992401
      No Longer Available
  • 11
    Pin – Part Number: 721434701
    Pin
    Part Number: 721434701
      Special Order
    $5.95
  • 12
    Arm – Part Number: 505490101
    Arm
    Part Number: 505490101
      No Longer Available
  • 13
    Spring – Part Number: 506834301
    Spring
    Part Number: 506834301
      Special Order
    $5.95
  • 14
    Arm – Part Number: 535406201
    Arm
    Part Number: 535406201
      No Longer Available
  • 15
    Bearing – Part Number: 506986103
    Bearing
    Part Number: 506986103
      No Longer Available
  • 16
    Bushing – Part Number: 506992001
    Bushing
    Part Number: 506992001
      No Longer Available
  • 17
    Screw – Part Number: 725246351
    Screw
    Part Number: 725246351
      On Order
    $7.46
  • 18
    Spacer – Part Number: 734116441
    Spacer
    Part Number: 734116441
      In Stock
    $5.95
  • 19
    Locknut M8 – Part Number: 732211801
    Locknut M8
    Part Number: 732211801
      In Stock
    $5.95
  • 20
    Bracket – Part Number: 506992101
    Bracket
    Part Number: 506992101
      No Longer Available
  • 21
    Bolt, M8 X 16 – Part Number: 725244951
    Bolt, M8 X 16
    Part Number: 725244951
      In Stock
    $5.95
  • 22
    Rod – Part Number: 506992201
    Rod
    Part Number: 506992201
      No Longer Available
  • 23
    Locknut M6 – Part Number: 732211601
    Locknut M6
    Part Number: 732211601
      Special Order
    $10.46
  • 24
    Bracket – Part Number: 506992801
    Bracket
    Part Number: 506992801
      No Longer Available
  • 25
    Bolt Flange - M6 X 20 – Part Number: 725236871
    Bolt Flange - M6 X 20
    Part Number: 725236871
      In Stock
    $5.95
  • 26
    Screw – Part Number: 725237271
    Screw
    Part Number: 725237271
      No Longer Available
  • 27
    Nut – Part Number: 731231601
    Nut
    Part Number: 731231601
      In Stock
    $5.95
  • 28
    Spring – Part Number: 506535603
    Spring
    Part Number: 506535603
    ★★★★★
    ★★★★★
    (1)
      Special Order
    $7.46
  • 29
    Tensioner – Part Number: 506993001
    Tensioner
    Part Number: 506993001
      Special Order
    $100.93
  • 30
    Bushing – Part Number: 506992001
    Bushing
    Part Number: 506992001
      No Longer Available
  • 31
    Screw – Part Number: 725246251
    Screw
    Part Number: 725246251
      Special Order
    $19.40
  • 32
    Spacer – Part Number: 734116441
    Spacer
    Part Number: 734116441
      In Stock
    $5.95
  • 33
    Locknut M8 – Part Number: 732211801
    Locknut M8
    Part Number: 732211801
      In Stock
    $5.95
  • 34
    Spring – Part Number: 506542502
    Spring
    Part Number: 506542502
      No Longer Available
  • 35
    Screw – Part Number: 725237271
    Screw
    Part Number: 725237271
      No Longer Available
  • 36
    Nut – Part Number: 731231601
    Nut
    Part Number: 731231601
      In Stock
    $5.95
  • 37
    Expansion Tank – Part Number: 535458101
    Expansion Tank
    Part Number: 535458101
      No Longer Available
  • 38
    Bolt Flange - M6 X 20 – Part Number: 725236871
    Bolt Flange - M6 X 20
    Part Number: 725236871
      In Stock
    $5.95
  • 39
    Washer - 26X6.5X1.6 – Part Number: 734115441
    Washer - 26X6.5X1.6
    Part Number: 734115441
      No Longer Available
  • 40
    Fuel Cap – Part Number: 506673301
    Fuel Cap
    Part Number: 506673301
      In Stock
    $40.75
  • 41
    Hose – Part Number: 535458301
    Hose
    Part Number: 535458301
      No Longer Available
  • 42
    Hose Clamp – Part Number: 505443601
    Hose Clamp
    Part Number: 505443601
      No Longer Available
  • 43
    Pulley – Part Number: 506991401
    Pulley
    Part Number: 506991401
      Special Order
    $100.93
  • 44
    Fan – Part Number: 506948101
    Fan
    Part Number: 506948101
      No Longer Available
  • 45
    Washer – Part Number: 734117441
    Washer
    Part Number: 734117441
      Special Order
    $5.96
  • 46
    Nut – Part Number: 732212001
    Nut
    Part Number: 732212001
      Special Order
    $5.96
  • 47
    Draw Ring – Part Number: 506889901
    Draw Ring
    Part Number: 506889901
      Special Order
    $29.88
  • 48
    Screw M10X25 – Part Number: 725249371
    Screw M10X25
    Part Number: 725249371
      No Longer Available
  • 49
    Clamp – Part Number: 506566501
    Clamp
    Part Number: 506566501
      Special Order
    $5.95
  • 50
    SCREW – Part Number: 725236671
    SCREW
    Part Number: 725236671
      No Longer Available
Decals
Decals Diagram and Parts List for Husqvarna Lawn Tractor
  • 1
    Control Label – Part Number: 535462801
    Control Label
    Part Number: 535462801
      No Longer Available
  • 2
    Decal – Part Number: 506893301
    Decal
    Part Number: 506893301
      No Longer Available
  • 3
    Decal – Part Number: 506893401
    Decal
    Part Number: 506893401
      No Longer Available
  • 4
    Decal – Part Number: 506893501
    Decal
    Part Number: 506893501
      No Longer Available
  • 5
    Decal – Part Number: 544211401
    Decal
    Part Number: 544211401
      No Longer Available
  • 6
    Label – Part Number: 544833501
    Label
    Part Number: 544833501
      No Longer Available
  • 7
    Decal – Part Number: 506968301
    Decal
    Part Number: 506968301
      No Longer Available
  • 8
    Decal – Part Number: 506944801
    Decal
    Part Number: 506944801
      No Longer Available
  • 9
    Label – Part Number: 535413101
    Label
    Part Number: 535413101
      No Longer Available
  • 10
    – Part Number: 505217701
    Part Number: 505217701
      No Longer Available
  • 10
    Label – Part Number: 505217703
    Label
    Part Number: 505217703
      No Longer Available
  • 11
    Decal – Part Number: 506584501
    Decal
    Part Number: 506584501
      No Longer Available
  • 12
    Label – Part Number: 505514502
    Label
    Part Number: 505514502
      No Longer Available
  • 13
    Label – Part Number: 505514402
    Label
    Part Number: 505514402
      No Longer Available
  • 14
    Label – Part Number: 505516601
    Label
    Part Number: 505516601
      No Longer Available
  • 15
    Label – Part Number: 505516701
    Label
    Part Number: 505516701
      No Longer Available
  • 16
    Label – Part Number: 544391102
    Label
    Part Number: 544391102
      No Longer Available
  • 17
    Label – Part Number: 544391101
    Label
    Part Number: 544391101
      No Longer Available
  • 18
    Label – Part Number: 535458702
    Label
    Part Number: 535458702
      No Longer Available
Electrical
Electrical Diagram and Parts List for Husqvarna Lawn Tractor
  • 1
    Mat – Part Number: 535441101
    Mat
    Part Number: 535441101
      No Longer Available
  • 2
    Battery – Part Number: 577041601
    Battery
    Part Number: 577041601
      Special Order
    $170.95
  • 3
    Belt – Part Number: 506836802
    Belt
    Part Number: 506836802
      Special Order
    $5.96
  • 4
    Cover – Part Number: 504639202
    Cover
    Part Number: 504639202
      No Longer Available
  • 5
    Relay – Part Number: 544439801
    Relay
    Part Number: 544439801
      In Stock
    $27.58
  • 6
    Screw – Part Number: 725236461
    Screw
    Part Number: 725236461
      Special Order
    $5.95
  • 7
    Clip – Part Number: 501007501
    Clip
    Part Number: 501007501
      No Longer Available
  • 8
    Rivet Pop – Part Number: 722782209
    Rivet Pop
    Part Number: 722782209
      No Longer Available
  • 9
    Cable – Part Number: 586223901
    Cable
    Part Number: 586223901
      In Stock
    $27.58
  • 10
    Cable – Part Number: 576183901
    Cable
    Part Number: 576183901
      Special Order
    $13.78
  • 11
    Cable – Part Number: 576183802
    Cable
    Part Number: 576183802
      No Longer Available
  • 12
    Screw EHHM – Part Number: 522622101
    Screw EHHM
    Part Number: 522622101
      No Longer Available
  • 13
    Nut – Part Number: 522624301
    Nut
    Part Number: 522624301
      No Longer Available
  • 14
    Nut – Part Number: 506899801
    Nut
    Part Number: 506899801
      No Longer Available
  • 15
    Wiring – Part Number: 577013701
    Wiring
    Part Number: 577013701
      No Longer Available
  • 16
    Wiring – Part Number: 577013401
    Wiring
    Part Number: 577013401
      No Longer Available
  • 17
    Wiring – Part Number: 544849801
    Wiring
    Part Number: 544849801
      No Longer Available
  • 17
    Wiring – Part Number: 577013501
    Wiring
    Part Number: 577013501
      No Longer Available
  • 18
    Thermostat Assy – Part Number: 504639401
    Thermostat Assy
    Part Number: 504639401
      No Longer Available
  • 19
    Rivet – Part Number: 722782902
    Rivet
    Part Number: 722782902
      Special Order
    $5.98
  • 20
    Housing – Part Number: 535446701
    Housing
    Part Number: 535446701
      No Longer Available
  • 21
    Lamp – Part Number: 582214201
    Lamp
    Part Number: 582214201
      Special Order
    $17.92
  • 22
    Screw – Part Number: 535415619
    Screw
    Part Number: 535415619
      No Longer Available
  • 23
    Nut – Part Number: 506892001
    Nut
    Part Number: 506892001
      No Longer Available
  • 24
    Rivet – Part Number: 544440701
    Rivet
    Part Number: 544440701
      Special Order
    $5.95
  • 25
    Micro Switch – Part Number: 574316101
    Micro Switch
    Part Number: 574316101
      Special Order
    $16.52
  • 26
    Bracket – Part Number: 544415701
    Bracket
    Part Number: 544415701
      In Stock
    $6.88
  • 27
    Switch – Part Number: 574316001
    Switch
    Part Number: 574316001
      Special Order
    $16.52
  • 28
    Plate Spring – Part Number: 535457001
    Plate Spring
    Part Number: 535457001
      No Longer Available
  • 29
    Rivet – Part Number: 544440701
    Rivet
    Part Number: 544440701
      Special Order
    $5.95
  • 30
    Rivet – Part Number: 722783902
    Rivet
    Part Number: 722783902
      No Longer Available
  • 31
    Bolt – Part Number: 725232551
    Bolt
    Part Number: 725232551
      No Longer Available
  • 32
    Trimmer Nut – Part Number: 731231401
    Trimmer Nut
    Part Number: 731231401
    ★★★★★
    ★★★★★
    (2)
      In Stock
    $5.95
  • 33
    Key Switch – Part Number: 535474901
    Key Switch
    Part Number: 535474901
      No Longer Available
  • 34
    Ignition Key – Part Number: 535476001
    Ignition Key
    Part Number: 535476001
      No Longer Available
  • 35
    Washer – Part Number: 535475001
    Washer
    Part Number: 535475001
      No Longer Available
  • 36
    Key Switch – Part Number: 504851701
    Key Switch
    Part Number: 504851701
      No Longer Available
  • 37
    Hour Meter – Part Number: 577092701
    Hour Meter
    Part Number: 577092701
      No Longer Available
  • 39
    Switch – Part Number: 535462301
    Switch
    Part Number: 535462301
      No Longer Available
  • 40
    Shielding Medium – Part Number: 535462401
    Shielding Medium
    Part Number: 535462401
      No Longer Available
  • 41
    Power Socket – Part Number: 535474801
    Power Socket
    Part Number: 535474801
      No Longer Available
  • 42
    Anti-Start Switch CPL – Part Number: 506565601
    Anti-Start Switch CPL
    Part Number: 506565601
      No Longer Available
  • 43
    Screw Ihscft – Part Number: 503218872
    Screw Ihscft
    Part Number: 503218872
      In Stock
    $5.96
  • 44
    Fan – Part Number: 504629301
    Fan
    Part Number: 504629301
      No Longer Available
Engine
Engine Diagram and Parts List for Husqvarna Lawn Tractor
  • 1
    Engine – Part Number: 502636601
    Engine
    Part Number: 502636601
      No Longer Available
  • 2
    Screw – Part Number: 725245751
    Screw
    Part Number: 725245751
      Special Order
    $19.40
  • 3
    Screw – Part Number: 725245951
    Screw
    Part Number: 725245951
      In Stock
    $7.46
  • 4
    Locknut M8 – Part Number: 732211801
    Locknut M8
    Part Number: 732211801
      In Stock
    $5.95
  • 5
    Washer – Part Number: 734116401
    Washer
    Part Number: 734116401
      On Order
    $5.96
  • 6
    Washer – Part Number: 735216400
    Washer
    Part Number: 735216400
      No Longer Available
  • 7
    Exhaust Pipe – Part Number: 502636801
    Exhaust Pipe
    Part Number: 502636801
      No Longer Available
  • 8
    Exhaust Extender – Part Number: 502637001
    Exhaust Extender
    Part Number: 502637001
      No Longer Available
  • 9
    Clamp – Part Number: 501152201
    Clamp
    Part Number: 501152201
      In Stock
    $5.95
  • 10
    Engine Frame – Part Number: 502530402
    Engine Frame
    Part Number: 502530402
      No Longer Available
  • 11
    Bolt – Part Number: 725245171
    Bolt
    Part Number: 725245171
      No Longer Available
  • 12
    Muffler Assy – Part Number: 544392701
    Muffler Assy
    Part Number: 544392701
      No Longer Available
  • 13
    Screw Ehhfm – Part Number: 535475212
    Screw Ehhfm
    Part Number: 535475212
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 14
    Plug – Part Number: 504643601
    Plug
    Part Number: 504643601
      No Longer Available
  • 15
    Heat Protector – Part Number: 505395502
    Heat Protector
    Part Number: 505395502
      No Longer Available
  • 16
    Damper – Part Number: 504638801
    Damper
    Part Number: 504638801
      No Longer Available
  • 17
    Locknut M5 – Part Number: 732211401
    Locknut M5
    Part Number: 732211401
      Special Order
    $5.95
  • 18
    Latch – Part Number: 504613403
    Latch
    Part Number: 504613403
      No Longer Available
  • 19
    Latch – Part Number: 504613404
    Latch
    Part Number: 504613404
      No Longer Available
  • 20
    Screwehhm – Part Number: 725237451
    Screwehhm
    Part Number: 725237451
      No Longer Available
  • 21
    Bushing – Part Number: 504638401
    Bushing
    Part Number: 504638401
      No Longer Available
  • 22
    Spring – Part Number: 504639001
    Spring
    Part Number: 504639001
      No Longer Available
  • 23
    Washer - 26X6.5X1.6 – Part Number: 734115441
    Washer - 26X6.5X1.6
    Part Number: 734115441
      No Longer Available
  • 24
    Locknut M6 – Part Number: 732211601
    Locknut M6
    Part Number: 732211601
      Special Order
    $10.46
  • 25
    Gasket – Part Number: 535414236
    Gasket
    Part Number: 535414236
      No Longer Available
  • 26
    Joint – Part Number: 535414416
    Joint
    Part Number: 535414416
      No Longer Available
  • 27
    O-RING – Part Number: 531001190
    O-RING
    Part Number: 531001190
      No Longer Available
  • 28
    Plug – Part Number: 535414460
    Plug
    Part Number: 535414460
      No Longer Available
  • 29
    Bellows – Part Number: 504546901
    Bellows
    Part Number: 504546901
      No Longer Available
  • 30
    Hose Clamp – Part Number: 544202703
    Hose Clamp
    Part Number: 544202703
      No Longer Available
Frame
Frame Diagram and Parts List for Husqvarna Lawn Tractor
Fuel System
Fuel System Diagram and Parts List for Husqvarna Lawn Tractor
  • 1
    Fuel Tank – Part Number: 535425201
    Fuel Tank
    Part Number: 535425201
      No Longer Available
  • 2
    Fuel Cap – Part Number: 506673301
    Fuel Cap
    Part Number: 506673301
      In Stock
    $40.75
  • 3
    Fuel Hose – Part Number: 504800005
    Fuel Hose
    Part Number: 504800005
      No Longer Available
  • 4
    Clamp – Part Number: 535469701
    Clamp
    Part Number: 535469701
      No Longer Available
  • 5
    Connection – Part Number: 506891801
    Connection
    Part Number: 506891801
      No Longer Available
  • 6
    O-Ring – Part Number: 740481202
    O-Ring
    Part Number: 740481202
      No Longer Available
  • 7
    Screw – Part Number: 535415619
    Screw
    Part Number: 535415619
      No Longer Available
  • 8
    Design Cover Tank – Part Number: 535432701
    Design Cover Tank
    Part Number: 535432701
      No Longer Available
  • 9
    Screw Ihpanm – Part Number: 535425801
    Screw Ihpanm
    Part Number: 535425801
      No Longer Available
  • 10
    Bracket – Part Number: 535438601
    Bracket
    Part Number: 535438601
      No Longer Available
  • 11
    Bolt – Part Number: 725245171
    Bolt
    Part Number: 725245171
      No Longer Available
  • 12
    Screw – Part Number: 725236651
    Screw
    Part Number: 725236651
      Special Order
    $10.46
  • 13
    Flat Washer 6.7x16 – Part Number: 734181251
    Flat Washer 6.7x16
    Part Number: 734181251
      No Longer Available
  • 14
    Tank Support – Part Number: 535438801
    Tank Support
    Part Number: 535438801
      No Longer Available
  • 15
    Screw – Part Number: 725249571
    Screw
    Part Number: 725249571
      No Longer Available
  • 16
    Nut – Part Number: 732212001
    Nut
    Part Number: 732212001
      Special Order
    $5.96
  • 17
    – Part Number: 506791001
    Part Number: 506791001
      No Longer Available
Height Adjustment
Height Adjustment Diagram and Parts List for Husqvarna Lawn Tractor
  • 1
    Control Plate – Part Number: 535475402
    Control Plate
    Part Number: 535475402
      No Longer Available
  • 1
    Control Plate – Part Number: 535475401
    Control Plate
    Part Number: 535475401
      No Longer Available
  • 2
    Bolt – Part Number: 725245171
    Bolt
    Part Number: 725245171
      No Longer Available
  • 4
    Arm – Part Number: 506784502
    Arm
    Part Number: 506784502
      No Longer Available
  • 5
    Pin – Part Number: 506784601
    Pin
    Part Number: 506784601
      Special Order
    $5.95
  • 6
    Bushing – Part Number: 584871302
    Bushing
    Part Number: 584871302
      Special Order
    $6.88
  • 7
    Circlip – Part Number: 735312220
    Circlip
    Part Number: 735312220
      No Longer Available
  • 8
    Lever – Part Number: 506784701
    Lever
    Part Number: 506784701
      No Longer Available
  • 9
    Hair Pin Spring – Part Number: 506531401
    Hair Pin Spring
    Part Number: 506531401
      No Longer Available
  • 10
    Pivot Pin – Part Number: 506531501
    Pivot Pin
    Part Number: 506531501
      No Longer Available
  • 11
    E-clip – Part Number: 735310920
    E-clip
    Part Number: 735310920
      On Order
    $5.95
  • 12
    Handle – Part Number: 588164101
    Handle
    Part Number: 588164101
      Special Order
    $17.92
  • 13
    Link – Part Number: 502636301
    Link
    Part Number: 502636301
      No Longer Available
  • 14
    Washer – Part Number: 584288604
    Washer
    Part Number: 584288604
      Special Order
    $5.95
  • 15
    Screw – Part Number: 725245371
    Screw
    Part Number: 725245371
      No Longer Available
  • 16
    Locknut M6 – Part Number: 732211601
    Locknut M6
    Part Number: 732211601
      Special Order
    $10.46
  • 17
    Rod – Part Number: 506854501
    Rod
    Part Number: 506854501
      No Longer Available
  • 18
    Nut – Part Number: 731231801
    Nut
    Part Number: 731231801
      In Stock
    $5.95
  • 19
    Washer 5/16 Std Flt – Part Number: 596134901
    Washer 5/16 Std Flt
    Part Number: 596134901
    ★★★★★
    ★★★★★
    (5)
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 20
    Locknut M8 – Part Number: 732211801
    Locknut M8
    Part Number: 732211801
      In Stock
    $5.95
  • 21
    Split Pin – Part Number: 721618301
    Split Pin
    Part Number: 721618301
      No Longer Available
  • 22
    Connector – Part Number: 502636402
    Connector
    Part Number: 502636402
      No Longer Available
  • 23
    Bolt – Part Number: 506597401
    Bolt
    Part Number: 506597401
      In Stock
    $8.96
  • 24
    Nut – Part Number: 731231801
    Nut
    Part Number: 731231801
      In Stock
    $5.95
  • 25
    Lever – Part Number: 506865903
    Lever
    Part Number: 506865903
      No Longer Available
  • 26
    Control – Part Number: 506865904
    Control
    Part Number: 506865904
      No Longer Available
  • 27
    Handle – Part Number: 506889101
    Handle
    Part Number: 506889101
      In Stock
    $7.46
  • 28
    Knob – Part Number: 506889102
    Knob
    Part Number: 506889102
      Special Order
    $17.92
  • 29
    Bushing – Part Number: 506888901
    Bushing
    Part Number: 506888901
      No Longer Available
  • 30
    Screw M6S 6X30 – Part Number: 725237471
    Screw M6S 6X30
    Part Number: 725237471
      Special Order
    $14.92
  • 31
    Locknut M6 – Part Number: 732211601
    Locknut M6
    Part Number: 732211601
      Special Order
    $10.46
  • 32
    Spacer – Part Number: 506928502
    Spacer
    Part Number: 506928502
      No Longer Available
  • 33
    Springwasher – Part Number: 506839401
    Springwasher
    Part Number: 506839401
      In Stock
    $5.95
  • 34
    Gaswire Kpl. – Part Number: 506863907
    Gaswire Kpl.
    Part Number: 506863907
      No Longer Available
  • 35
    Clamp – Part Number: 506508201
    Clamp
    Part Number: 506508201
      No Longer Available
  • 36
    Screw – Part Number: 725233551
    Screw
    Part Number: 725233551
      No Longer Available
  • 37
    Locknut M5 – Part Number: 732211401
    Locknut M5
    Part Number: 732211401
      Special Order
    $5.95
Hydraulics
Hydraulics Diagram and Parts List for Husqvarna Lawn Tractor
  • 1
    Pipe Fitting – Part Number: 535426501
    Pipe Fitting
    Part Number: 535426501
      No Longer Available
  • 2
    Hydraulic Hose – Part Number: 535450301
    Hydraulic Hose
    Part Number: 535450301
      No Longer Available
  • 3
    Hydraulic Pipe – Part Number: 544834201
    Hydraulic Pipe
    Part Number: 544834201
      No Longer Available
  • 4
    Pipe Fitting – Part Number: 535437301
    Pipe Fitting
    Part Number: 535437301
      No Longer Available
  • 5
    Pipe Fitting – Part Number: 535426901
    Pipe Fitting
    Part Number: 535426901
      No Longer Available
  • 6
    Hydraulic Pipe – Part Number: 504209901
    Hydraulic Pipe
    Part Number: 504209901
      No Longer Available
  • 7
    Pipe Fitting – Part Number: 535426801
    Pipe Fitting
    Part Number: 535426801
      No Longer Available
  • 8
    Pipe Clamp – Part Number: 544373303
    Pipe Clamp
    Part Number: 544373303
      No Longer Available
  • 9
    Cover – Part Number: 535438501
    Cover
    Part Number: 535438501
      No Longer Available
  • 10
    Screw Ehhfm – Part Number: 535475245
    Screw Ehhfm
    Part Number: 535475245
      Special Order
    $5.95
  • 11
    Locknut M6 – Part Number: 732211601
    Locknut M6
    Part Number: 732211601
      Special Order
    $10.46
  • 12
    Filter Unit – Part Number: 522535601
    Filter Unit
    Part Number: 522535601
      No Longer Available
  • 13
    Oil Filter – Part Number: 575645401
    Oil Filter
    Part Number: 575645401
      Special Order
    $77.95
  • 14
    Pipe Fitting – Part Number: 535437001
    Pipe Fitting
    Part Number: 535437001
      No Longer Available
  • 15
    Pipe Fitting – Part Number: 535437101
    Pipe Fitting
    Part Number: 535437101
      No Longer Available
  • 16
    Rubber Steel Washer – Part Number: 535437201
    Rubber Steel Washer
    Part Number: 535437201
      No Longer Available
  • 17
    Lifting Lever – Part Number: 505440001
    Lifting Lever
    Part Number: 505440001
      No Longer Available
  • 18
    Knob – Part Number: 535438201
    Knob
    Part Number: 535438201
      No Longer Available
  • 19
    Bolt, M8 X 16 – Part Number: 725244951
    Bolt, M8 X 16
    Part Number: 725244951
      In Stock
    $5.95
  • 20
    Nut – Part Number: 731231801
    Nut
    Part Number: 731231801
      In Stock
    $5.95
  • 21
    Screw – Part Number: 728844305
    Screw
    Part Number: 728844305
      No Longer Available
  • 22
    Cylinder Assy – Part Number: 535427201
    Cylinder Assy
    Part Number: 535427201
      No Longer Available
  • 23
    Hydraulic Hose – Part Number: 535427103
    Hydraulic Hose
    Part Number: 535427103
      No Longer Available
  • 24
    Locking Pin – Part Number: 535437601
    Locking Pin
    Part Number: 535437601
      No Longer Available
  • 25
    U-Plpàt – Part Number: 535456601
    U-Plpàt
    Part Number: 535456601
      No Longer Available
  • 26
    Retaining Ring – Part Number: 735311200
    Retaining Ring
    Part Number: 735311200
      In Stock
    $5.95
  • 27
    Pipe Fitting – Part Number: 535426801
    Pipe Fitting
    Part Number: 535426801
      No Longer Available
  • 28
    Hydraulic Pipe – Part Number: 544834401
    Hydraulic Pipe
    Part Number: 544834401
      No Longer Available
  • 29
    Hydraulic Hose – Part Number: 535450402
    Hydraulic Hose
    Part Number: 535450402
      No Longer Available
  • 30
    Pipe Fitting – Part Number: 535426601
    Pipe Fitting
    Part Number: 535426601
      No Longer Available
  • 31
    Pipe Clamp – Part Number: 544373303
    Pipe Clamp
    Part Number: 544373303
      No Longer Available
  • 32
    Cover – Part Number: 535438501
    Cover
    Part Number: 535438501
      No Longer Available
  • 33
    Screw Ehhfm – Part Number: 535475245
    Screw Ehhfm
    Part Number: 535475245
      Special Order
    $5.95
  • 34
    Cage Nut – Part Number: 544811702
    Cage Nut
    Part Number: 544811702
      No Longer Available
  • 35
    Protector – Part Number: 544026601
    Protector
    Part Number: 544026601
      No Longer Available
Mower Lift / Deck Lift
Mower Lift / Deck Lift Diagram and Parts List for Husqvarna Lawn Tractor
  • 1
    Rod – Part Number: 506665901
    Rod
    Part Number: 506665901
      No Longer Available
  • 2
    Link – Part Number: 504636701
    Link
    Part Number: 504636701
      No Longer Available
  • 3
    Clutch Rod Rear – Part Number: 535444702
    Clutch Rod Rear
    Part Number: 535444702
      No Longer Available
  • 4
    Spacer – Part Number: 734116441
    Spacer
    Part Number: 734116441
      In Stock
    $5.95
  • 5
    Carrier – Part Number: 506951101
    Carrier
    Part Number: 506951101
      No Longer Available
  • 6
    Shaft – Part Number: 506968001
    Shaft
    Part Number: 506968001
      No Longer Available
  • 7
    Screw Ehhm – Part Number: 725254451
    Screw Ehhm
    Part Number: 725254451
      No Longer Available
  • 8
    Nut – Part Number: 732252201
    Nut
    Part Number: 732252201
      No Longer Available
  • 9
    Screw – Part Number: 725245371
    Screw
    Part Number: 725245371
      No Longer Available
  • 10
    Nut – Part Number: 731231801
    Nut
    Part Number: 731231801
      In Stock
    $5.95
  • 11
    Arm – Part Number: 506951401
    Arm
    Part Number: 506951401
      No Longer Available
  • 12
    Bush – Part Number: 584871301
    Bush
    Part Number: 584871301
      Special Order
    $6.88
  • 13
    Pawl – Part Number: 504907901
    Pawl
    Part Number: 504907901
      No Longer Available
  • 14
    Bush – Part Number: 584871301
    Bush
    Part Number: 584871301
      Special Order
    $6.88
  • 15
    Washer – Part Number: 506515701
    Washer
    Part Number: 506515701
      No Longer Available
  • 16
    Split Pin – Part Number: 721620101
    Split Pin
    Part Number: 721620101
      No Longer Available
  • 17
    Lever Clutch – Part Number: 506784301
    Lever Clutch
    Part Number: 506784301
      Special Order
    $44.82
  • 18
    Nut – Part Number: 731232001
    Nut
    Part Number: 731232001
      In Stock
    $5.96
  • 19
    Screw – Part Number: 725249751
    Screw
    Part Number: 725249751
      Special Order
    $7.46
  • 20
    Pin – Part Number: 525406601
    Pin
    Part Number: 525406601
      In Stock
    $11.92
  • 22
    Split Pin – Part Number: 721618301
    Split Pin
    Part Number: 721618301
      No Longer Available
  • 23
    Arm – Part Number: 506940501
    Arm
    Part Number: 506940501
      No Longer Available
  • 24
    Spring – Part Number: 506817001
    Spring
    Part Number: 506817001
      No Longer Available
  • 25
    – Part Number: 725254471
    Part Number: 725254471
      No Longer Available
  • 26
    Nut – Part Number: 732252201
    Nut
    Part Number: 732252201
      No Longer Available
  • 27
    Pulley – Part Number: 506905601
    Pulley
    Part Number: 506905601
      Special Order
    $26.88
  • 28
    Shaft – Part Number: 506905701
    Shaft
    Part Number: 506905701
      No Longer Available
  • 29
    Shaft – Part Number: 506905702
    Shaft
    Part Number: 506905702
      No Longer Available
  • 30
    Spacer – Part Number: 506905801
    Spacer
    Part Number: 506905801
      No Longer Available
  • 31
    Lock Ring – Part Number: 735311820
    Lock Ring
    Part Number: 735311820
      No Longer Available
  • 32
    Chain – Part Number: 506554608
    Chain
    Part Number: 506554608
      No Longer Available
  • 33
    Link – Part Number: 506554701
    Link
    Part Number: 506554701
      In Stock
    $6.88
  • 34
    Brake Lever – Part Number: 504628701
    Brake Lever
    Part Number: 504628701
      No Longer Available
  • 35
    Washer – Part Number: 584288604
    Washer
    Part Number: 584288604
      Special Order
    $5.95
  • 36
    Bolt – Part Number: 506597401
    Bolt
    Part Number: 506597401
      In Stock
    $8.96
  • 37
    Locknut M8 – Part Number: 732211801
    Locknut M8
    Part Number: 732211801
      In Stock
    $5.95
  • 38
    Spring – Part Number: 506542501
    Spring
    Part Number: 506542501
      No Longer Available
  • 39
    Rod – Part Number: 504636801
    Rod
    Part Number: 504636801
      No Longer Available
  • 40
    Retaining Ring – Part Number: 735311420
    Retaining Ring
    Part Number: 735311420
      Special Order
    $5.95
Pedals
Pedals Diagram and Parts List for Husqvarna Lawn Tractor
  • 1
    Pedal plate assy hydrostatic k – Part Number: 583951401
    Pedal plate assy hydrostatic k
    Part Number: 583951401
      Special Order
    $191.71
  • 2
    Knob – Part Number: 586727401
    Knob
    Part Number: 586727401
      Special Order
    $16.52
  • 3
    Bolt – Part Number: 506570104
    Bolt
    Part Number: 506570104
      Special Order
    $7.46
  • 4
    Shock Absorber – Part Number: 506938301
    Shock Absorber
    Part Number: 506938301
      No Longer Available
  • 5
    Shaft – Part Number: 506938402
    Shaft
    Part Number: 506938402
      No Longer Available
  • 6
    E-clip – Part Number: 735310920
    E-clip
    Part Number: 735310920
      On Order
    $5.95
  • 7
    Spring – Part Number: 506946301
    Spring
    Part Number: 506946301
      On Order
    $11.03
  • 8
    Wire – Part Number: 576712101
    Wire
    Part Number: 576712101
      In Stock
    $43.89
  • 8
    Cable – Part Number: 506992702
    Cable
    Part Number: 506992702
      No Longer Available
  • 9
    E-clip – Part Number: 735310920
    E-clip
    Part Number: 735310920
      On Order
    $5.95
  • 10
    Bromssppärr Kpl. Gem. – Part Number: 506538404
    Bromssppärr Kpl. Gem.
    Part Number: 506538404
      No Longer Available
  • 11
    Screw – Part Number: 725236461
    Screw
    Part Number: 725236461
      Special Order
    $5.95
  • 12
    Control Cable – Part Number: 582152001
    Control Cable
    Part Number: 582152001
    ★★★★★
    ★★★★★
    (3)
      In Stock
    $84.38
  • 13
    Trimmer Nut – Part Number: 731231401
    Trimmer Nut
    Part Number: 731231401
    ★★★★★
    ★★★★★
    (2)
      In Stock
    $5.95
  • 14
    Connector – Part Number: 578776801
    Connector
    Part Number: 578776801
      Special Order
    $16.52
  • 15
    Locknut M5 – Part Number: 732211401
    Locknut M5
    Part Number: 732211401
      Special Order
    $5.95
  • 16
    Bracket – Part Number: 506800001
    Bracket
    Part Number: 506800001
      No Longer Available
  • 17
    Screw – Part Number: 535475316
    Screw
    Part Number: 535475316
      No Longer Available
  • 18
    Locknut M5 – Part Number: 732211401
    Locknut M5
    Part Number: 732211401
      Special Order
    $5.95
  • 19
    Clamp – Part Number: 506566501
    Clamp
    Part Number: 506566501
      Special Order
    $5.95
  • 20
    Ball Bearing 6002-2rs1 – Part Number: 738210204
    Ball Bearing 6002-2rs1
    Part Number: 738210204
      Special Order
    $17.92
  • 21
    ROLLER – Part Number: 535459901
    ROLLER
    Part Number: 535459901
      No Longer Available
  • 22
    Plate – Part Number: 535459601
    Plate
    Part Number: 535459601
      No Longer Available
  • 23
    Spring – Part Number: 535459501
    Spring
    Part Number: 535459501
      Special Order
    $11.03
  • 24
    Pedal Shaft Clamp – Part Number: 506506501
    Pedal Shaft Clamp
    Part Number: 506506501
      Special Order
    $10.46
  • 25
    Support – Part Number: 506954101
    Support
    Part Number: 506954101
      Special Order
    $8.96
  • 26
    Plate – Part Number: 506804101
    Plate
    Part Number: 506804101
      Special Order
    $10.46
  • 27
    Pedal Rubber – Part Number: 586966401
    Pedal Rubber
    Part Number: 586966401
      In Stock
    $24.82
  • 28
    Pedal Rubber – Part Number: 586966402
    Pedal Rubber
    Part Number: 586966402
      In Stock
    $24.82
  • 29
    Arm – Part Number: 506538501
    Arm
    Part Number: 506538501
      No Longer Available
  • 30
    Bracket – Part Number: 506538601
    Bracket
    Part Number: 506538601
      No Longer Available
  • 31
    Spring – Part Number: 506538901
    Spring
    Part Number: 506538901
      No Longer Available
  • 32
    Pin – Part Number: 506538801
    Pin
    Part Number: 506538801
      No Longer Available
  • 33
    Washer – Part Number: 735583501
    Washer
    Part Number: 735583501
      Special Order
    $5.95
  • 34
    Knob, Red – Part Number: 506538704
    Knob, Red
    Part Number: 506538704
      No Longer Available
  • 35
    Screw – Part Number: 729532971
    Screw
    Part Number: 729532971
      No Longer Available
Seat
Seat Diagram and Parts List for Husqvarna Lawn Tractor
  • 1
    Seat Assy – Part Number: 535458501
    Seat Assy
    Part Number: 535458501
      No Longer Available
  • 2
    Arm Rest Kit – Part Number: 535458601
    Arm Rest Kit
    Part Number: 535458601
      No Longer Available
  • 3
    Bracket – Part Number: 535414976
    Bracket
    Part Number: 535414976
      No Longer Available
  • 3
    Bracket – Part Number: 535414975
    Bracket
    Part Number: 535414975
      No Longer Available
  • 4
    Screw – Part Number: 535414977
    Screw
    Part Number: 535414977
      No Longer Available
  • 5
    Spacer – Part Number: 535414978
    Spacer
    Part Number: 535414978
      No Longer Available
  • 6
    Screw – Part Number: 535414979
    Screw
    Part Number: 535414979
      No Longer Available
  • 7
    Nut – Part Number: 535414980
    Nut
    Part Number: 535414980
      No Longer Available
  • 8
    Armstpûd – Part Number: 535414981
    Armstpûd
    Part Number: 535414981
      No Longer Available
  • 9
    Locknut M8 – Part Number: 732211801
    Locknut M8
    Part Number: 732211801
      In Stock
    $5.95
  • 10
    Anti-Start Switch CPL – Part Number: 506565601
    Anti-Start Switch CPL
    Part Number: 506565601
      No Longer Available
  • 11
    Screw Ihscft – Part Number: 503218872
    Screw Ihscft
    Part Number: 503218872
      In Stock
    $5.96
  • 12
    Damping Piece – Part Number: 529292401
    Damping Piece
    Part Number: 529292401
      No Longer Available
Steering
Steering Diagram and Parts List for Husqvarna Lawn Tractor
  • 1
    Spindle – Part Number: 506934702
    Spindle
    Part Number: 506934702
      No Longer Available
  • 2
    Ball Bearing 6010 2Rs1 – Part Number: 738211004
    Ball Bearing 6010 2Rs1
    Part Number: 738211004
      Special Order
    $202.99
  • 3
    Ball Bearing 6005-2Rs – Part Number: 738210504
    Ball Bearing 6005-2Rs
    Part Number: 738210504
      No Longer Available
  • 4
    Circlip Sgh 47 – Part Number: 735314010
    Circlip Sgh 47
    Part Number: 735314010
      Special Order
    $7.46
  • 5
    Retaining Ring Sga 25 – Part Number: 735312600
    Retaining Ring Sga 25
    Part Number: 735312600
      Special Order
    $5.95
  • 6
    SHAFT – Part Number: 535463001
    SHAFT
    Part Number: 535463001
      No Longer Available
  • 7
    Retaining Ring Sga 25 – Part Number: 735312600
    Retaining Ring Sga 25
    Part Number: 735312600
      Special Order
    $5.95
  • 8
    Washer – Part Number: 506773401
    Washer
    Part Number: 506773401
      Special Order
    $5.96
  • 9
    V-Ring – Part Number: 740681421
    V-Ring
    Part Number: 740681421
      Special Order
    $17.92
  • 13
    Bolt – Part Number: 506597401
    Bolt
    Part Number: 506597401
      In Stock
    $8.96
  • 14
    Wire Guide – Part Number: 544427301
    Wire Guide
    Part Number: 544427301
      Special Order
    $43.89
  • 15
    Wire Assy – Part Number: 501604803
    Wire Assy
    Part Number: 501604803
      Special Order
    $22.14
  • 16
    Nut – Part Number: 731232001
    Nut
    Part Number: 731232001
      In Stock
    $5.96
  • 17
    Pulley – Part Number: 576492501
    Pulley
    Part Number: 576492501
      Special Order
    $65.95
  • 18
    Roller – Part Number: 535424101
    Roller
    Part Number: 535424101
      No Longer Available
  • 19
    Circlip Sgh 47 – Part Number: 735314010
    Circlip Sgh 47
    Part Number: 735314010
      Special Order
    $7.46
  • 20
    Ball-bearing 6204-2rs – Part Number: 738220419
    Ball-bearing 6204-2rs
    Part Number: 738220419
      In Stock
    $26.88
  • 21
    Bushing – Part Number: 506500802
    Bushing
    Part Number: 506500802
      No Longer Available
  • 22
    Screw – Part Number: 725250071
    Screw
    Part Number: 725250071
      No Longer Available
  • 23
    Washer – Part Number: 734117441
    Washer
    Part Number: 734117441
      Special Order
    $5.96
  • 24
    Nut – Part Number: 732212001
    Nut
    Part Number: 732212001
      Special Order
    $5.96
  • 25
    Roller – Part Number: 506522401
    Roller
    Part Number: 506522401
      Special Order
    $17.92
  • 26
    Shaft – Part Number: 506539404
    Shaft
    Part Number: 506539404
      Special Order
    $27.58
  • 27
    Retaining Ring – Part Number: 735311420
    Retaining Ring
    Part Number: 735311420
      Special Order
    $5.95
  • 28
    Steering Chain – Part Number: 506554601
    Steering Chain
    Part Number: 506554601
      In Stock
    $26.88
  • 29
    Link – Part Number: 506554701
    Link
    Part Number: 506554701
      In Stock
    $6.88
Steering 2
Steering 2 Diagram and Parts List for Husqvarna Lawn Tractor
  • 30
    Comfort Steering – Part Number: 502636001
    Comfort Steering
    Part Number: 502636001
      No Longer Available
  • 31
    Screw – Part Number: 728844305
    Screw
    Part Number: 728844305
      No Longer Available
  • 32
    Spacer – Part Number: 587080901
    Spacer
    Part Number: 587080901
      Special Order
    $11.03
  • 33
    Retaining Ring Sga 25 – Part Number: 735312600
    Retaining Ring Sga 25
    Part Number: 735312600
      Special Order
    $5.95
  • 34
    – Part Number: 535423701
    Part Number: 535423701
      No Longer Available
  • 35
    Screw Ihscm – Part Number: 535432801
    Screw Ihscm
    Part Number: 535432801
      Special Order
    $7.46
  • 36
    Bearing Housing – Part Number: 535423601
    Bearing Housing
    Part Number: 535423601
      No Longer Available
  • 37
    Ball Bearing 6005-2Rs – Part Number: 738210504
    Ball Bearing 6005-2Rs
    Part Number: 738210504
      No Longer Available
  • 38
    Circlip Sgh 47 – Part Number: 735314010
    Circlip Sgh 47
    Part Number: 735314010
      Special Order
    $7.46
  • 39
    Steering Rod – Part Number: 535421901
    Steering Rod
    Part Number: 535421901
      No Longer Available
  • 40
    Reinforcing Tube – Part Number: 502296201
    Reinforcing Tube
    Part Number: 502296201
      No Longer Available
  • 41
    Screw – Part Number: 725537055
    Screw
    Part Number: 725537055
    ★★★★★
    ★★★★★
    (1)
      In Stock
    $7.96
  • 42
    Bearing Housing – Part Number: 535423501
    Bearing Housing
    Part Number: 535423501
      No Longer Available
  • 43
    Spring Pin – Part Number: 721433501
    Spring Pin
    Part Number: 721433501
      No Longer Available
  • 44
    Comfort Steering – Part Number: 535457103
    Comfort Steering
    Part Number: 535457103
      No Longer Available
  • 45
    Ball Bearing – Part Number: 535427801
    Ball Bearing
    Part Number: 535427801
      No Longer Available
  • 46
    Circlip – Part Number: 735313300
    Circlip
    Part Number: 735313300
      No Longer Available
  • 47
    Bearing Cage – Part Number: 504538201
    Bearing Cage
    Part Number: 504538201
      No Longer Available
  • 48
    Bolt – Part Number: 506570104
    Bolt
    Part Number: 506570104
      Special Order
    $7.46
  • 49
    – Part Number: 544375201
    Part Number: 544375201
      No Longer Available
  • 50
    Screw – Part Number: 728745505
    Screw
    Part Number: 728745505
      Special Order
    $5.95
  • 51
    Nut – Part Number: 731231801
    Nut
    Part Number: 731231801
      In Stock
    $5.95
  • 52
    Protective Cover – Part Number: 544433201
    Protective Cover
    Part Number: 544433201
      Special Order
    $5.95
Transmission
Transmission Diagram and Parts List for Husqvarna Lawn Tractor
  • 1
    Belt – Part Number: 580994701
    Belt
    Part Number: 580994701
      No Longer Available
  • 2
    Belt – Part Number: 589532901
    Belt
    Part Number: 589532901
      No Longer Available
  • 3
    Belt – Part Number: 593806201
    Belt
    Part Number: 593806201
      Special Order
    $28.84
  • 4
    Pulley – Part Number: 535482401
    Pulley
    Part Number: 535482401
      Special Order
    $83.95
  • 5
    Spacer – Part Number: 506509201
    Spacer
    Part Number: 506509201
      Special Order
    $17.92
  • 6
    Key – Part Number: 506555901
    Key
    Part Number: 506555901
      Special Order
    $5.96
  • 7
    Washer – Part Number: 506597501
    Washer
    Part Number: 506597501
      No Longer Available
  • 8
    Screw – Part Number: 506556002
    Screw
    Part Number: 506556002
      Special Order
    $8.96
  • 9
    Belt Guide – Part Number: 506664501
    Belt Guide
    Part Number: 506664501
      Special Order
    $31.24
  • 10
    Nut – Part Number: 731232001
    Nut
    Part Number: 731232001
      In Stock
    $5.96
  • 11
    Tensioner – Part Number: 535484402
    Tensioner
    Part Number: 535484402
      Special Order
    $83.95
  • 12
    Retaining Ring Sga 25 – Part Number: 735312600
    Retaining Ring Sga 25
    Part Number: 735312600
      Special Order
    $5.95
  • 13
    Spring – Part Number: 506665601
    Spring
    Part Number: 506665601
      Special Order
    $54.35
  • 14
    Shaft – Part Number: 544426102
    Shaft
    Part Number: 544426102
      No Longer Available
  • 15
    Bolt – Part Number: 506675402
    Bolt
    Part Number: 506675402
      In Stock
    $8.96
  • 16
    Pulley – Part Number: 535482201
    Pulley
    Part Number: 535482201
      In Stock
    $77.95
  • 17
    Washer – Part Number: 506775701
    Washer
    Part Number: 506775701
      In Stock
    $7.46
  • 18
    Belt Guide – Part Number: 544405301
    Belt Guide
    Part Number: 544405301
      Special Order
    $11.03
  • 19
    Bolt – Part Number: 506597401
    Bolt
    Part Number: 506597401
      In Stock
    $8.96
  • 20
    Pulley riveted with bearing and nut – Part Number: 597509002
    Pulley riveted with bearing and nut
    Part Number: 597509002
      No Longer Available
  • 23
    Bolt – Part Number: 725246151
    Bolt
    Part Number: 725246151
      Special Order
    $7.46
  • 24
    Spacer – Part Number: 734116441
    Spacer
    Part Number: 734116441
      In Stock
    $5.95
  • 25
    Bushing – Part Number: 544002901
    Bushing
    Part Number: 544002901
      No Longer Available
  • 26
    Washer – Part Number: 734116401
    Washer
    Part Number: 734116401
      On Order
    $5.96
  • 27
    Locknut M8 – Part Number: 732211801
    Locknut M8
    Part Number: 732211801
      In Stock
    $5.95
Wheels And Tires

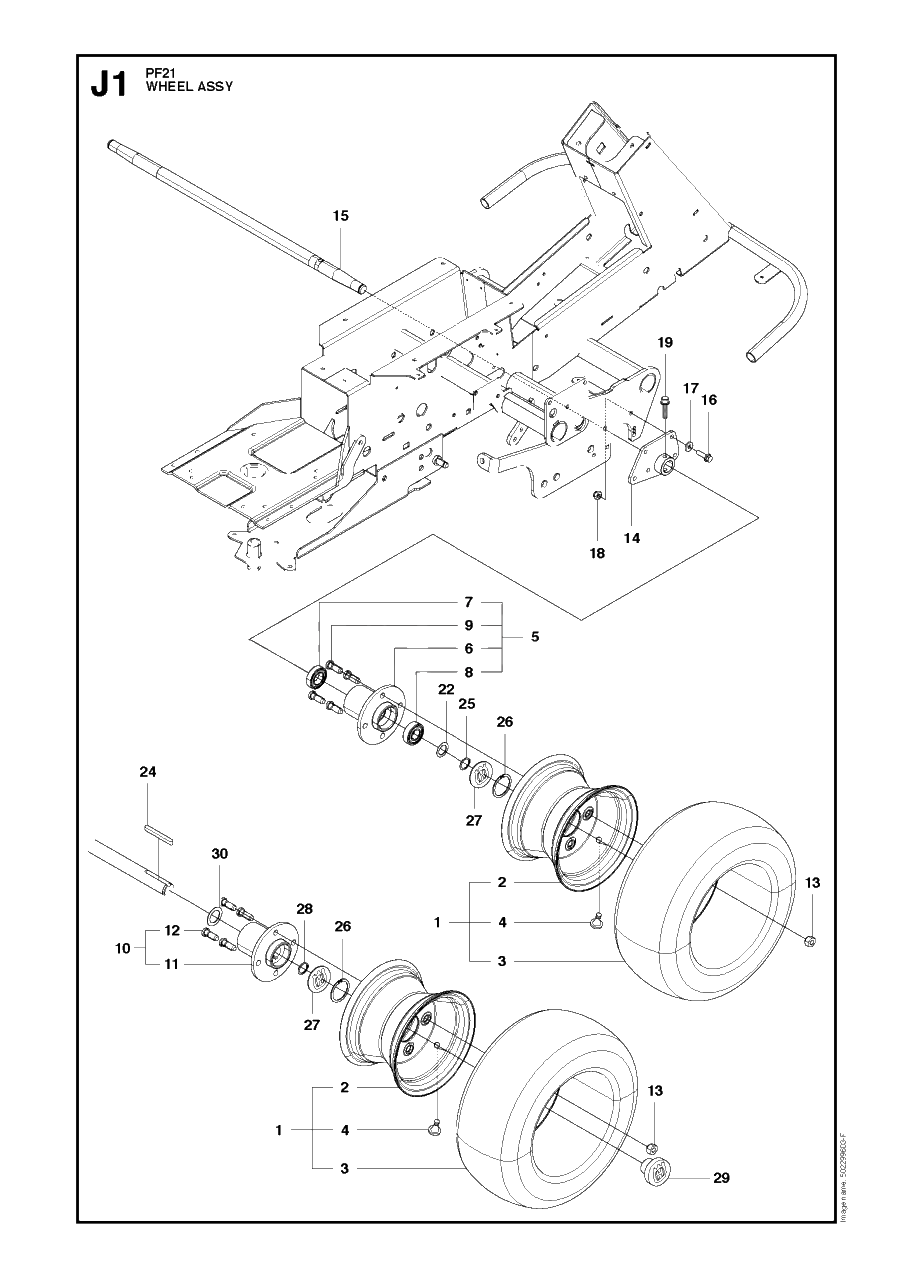

Wheels And Tires Diagram and Parts List for Husqvarna Lawn Tractor
  • 1
    Wheel Assy – Part Number: 504630002
    Wheel Assy
    Part Number: 504630002
      No Longer Available
  • 2
    Rim – Part Number: 506867801
    Rim
    Part Number: 506867801
      No Longer Available
  • 3
    Tire – Part Number: 580630101
    Tire
    Part Number: 580630101
      Special Order
    $114.78
  • 4
    Valve – Part Number: 506574301
    Valve
    Part Number: 506574301
      No Longer Available
  • 5
    – Part Number: 506864701
    Part Number: 506864701
      No Longer Available
  • 5
    Hub Assy – Part Number: 577573201
    Hub Assy
    Part Number: 577573201
      No Longer Available
  • 6
    Hub – Part Number: 506890101
    Hub
    Part Number: 506890101
      No Longer Available
  • 7
    Ball Bearing 6005-2Rs – Part Number: 738210504
    Ball Bearing 6005-2Rs
    Part Number: 738210504
      No Longer Available
  • 8
    Ball-bearing 6204-2rs – Part Number: 738220419
    Ball-bearing 6204-2rs
    Part Number: 738220419
      In Stock
    $26.88
  • 9
    Bolt – Part Number: 506890201
    Bolt
    Part Number: 506890201
      No Longer Available
  • 10
    Hub Assy – Part Number: 577573001
    Hub Assy
    Part Number: 577573001
      No Longer Available
  • 11
    Hub – Part Number: 506890001
    Hub
    Part Number: 506890001
      No Longer Available
  • 12
    Bolt – Part Number: 506890201
    Bolt
    Part Number: 506890201
      No Longer Available
  • 13
    Nut – Part Number: 506865001
    Nut
    Part Number: 506865001
      No Longer Available
  • 14
    Bracket – Part Number: 504619801
    Bracket
    Part Number: 504619801
      No Longer Available
  • 15
    Front Axle – Part Number: 505453001
    Front Axle
    Part Number: 505453001
      No Longer Available
  • 16
    Bolt – Part Number: 506597401
    Bolt
    Part Number: 506597401
      In Stock
    $8.96
  • 17
    Washer – Part Number: 734116401
    Washer
    Part Number: 734116401
      On Order
    $5.96
  • 18
    Locknut M8 – Part Number: 732211801
    Locknut M8
    Part Number: 732211801
      In Stock
    $5.95
  • 19
    Bolt Flange - M8X40 – Part Number: 725245961
    Bolt Flange - M8X40
    Part Number: 725245961
      No Longer Available
  • 22
    Washer – Part Number: 506504805
    Washer
    Part Number: 506504805
    ★★★★★
    ★★★★★
    (1)
      Special Order
    $5.95
  • 24
    Key – Part Number: 506555901
    Key
    Part Number: 506555901
      Special Order
    $5.96
  • 25
    Retaining Ring Sga 20 – Part Number: 735312200
    Retaining Ring Sga 20
    Part Number: 735312200
      No Longer Available
  • 26
    Circlip – Part Number: 735314110
    Circlip
    Part Number: 735314110
      No Longer Available
  • 26
    Retaining Ring Sga 25 – Part Number: 735312600
    Retaining Ring Sga 25
    Part Number: 735312600
      Special Order
    $5.95
  • 27
    Cover Washer – Part Number: 577591501
    Cover Washer
    Part Number: 577591501
      No Longer Available
  • 28
    Circlip – Part Number: 574458801
    Circlip
    Part Number: 574458801
      No Longer Available
  • 29
    Cover – Part Number: 506864801
    Cover
    Part Number: 506864801
      No Longer Available
  • 30
    Washer – Part Number: 506504806
    Washer
    Part Number: 506504806
      No Longer Available

Questions & Answers

?

Our customer Service team is at the ready daily to answer your part and product questions.

Be the first to ask our experts a question about this part!

Ask our Team

We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.

✖

Our customer service team are at the ready daily to answer your part and product questions. We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
