Questions & Answers for Husqvarna R13BIO
Browse all Parts Search by Area
90cm Cutting Deck Diagram and Parts List for 2002-02 Husqvarna Lawn Tractor
90cm Cutting Deck
Accessories Diagram and Parts List for 2002-02 Husqvarna Lawn Tractor
Accessories
Chassis / Frame Diagram and Parts List for 2002-02 Husqvarna Lawn Tractor
Chassis / Frame
Controls Diagram and Parts List for 2002-02 Husqvarna Lawn Tractor
Controls

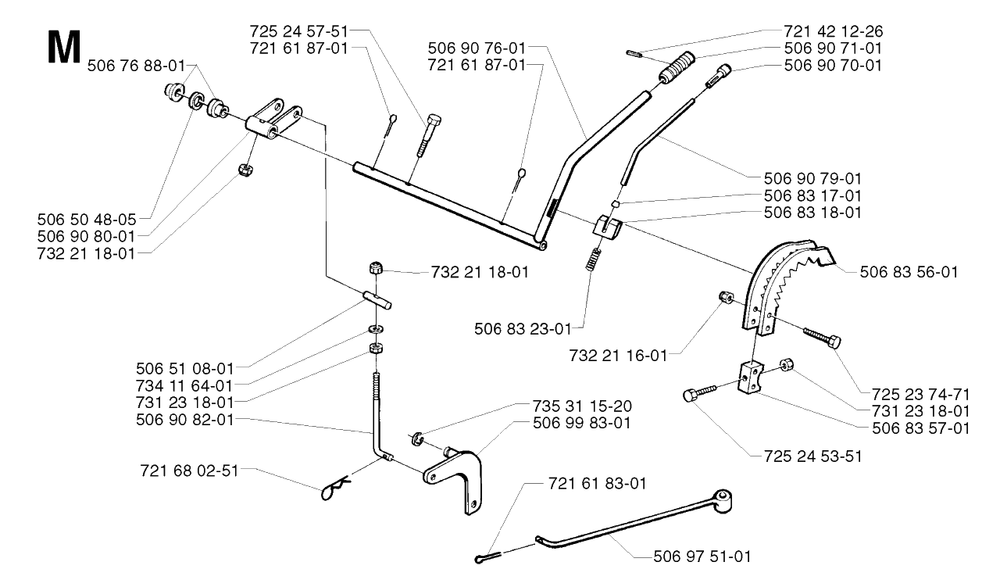

Controls 2 Diagram and Parts List for 2002-02 Husqvarna Lawn Tractor
Controls 2

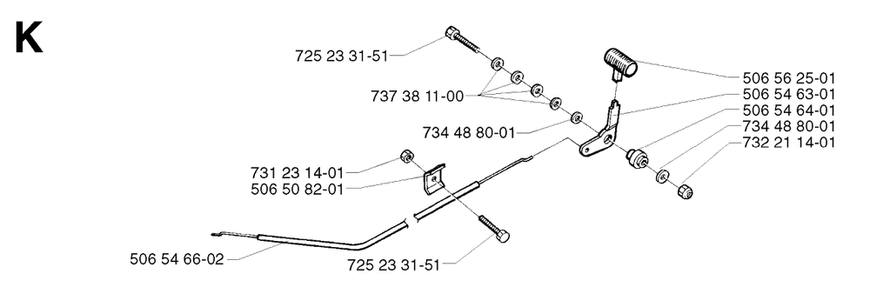

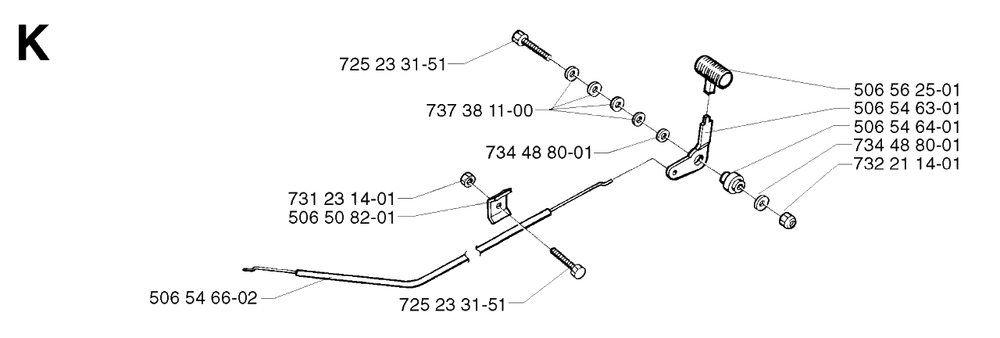

Controls 3 Diagram and Parts List for 2002-02 Husqvarna Lawn Tractor
Controls 3

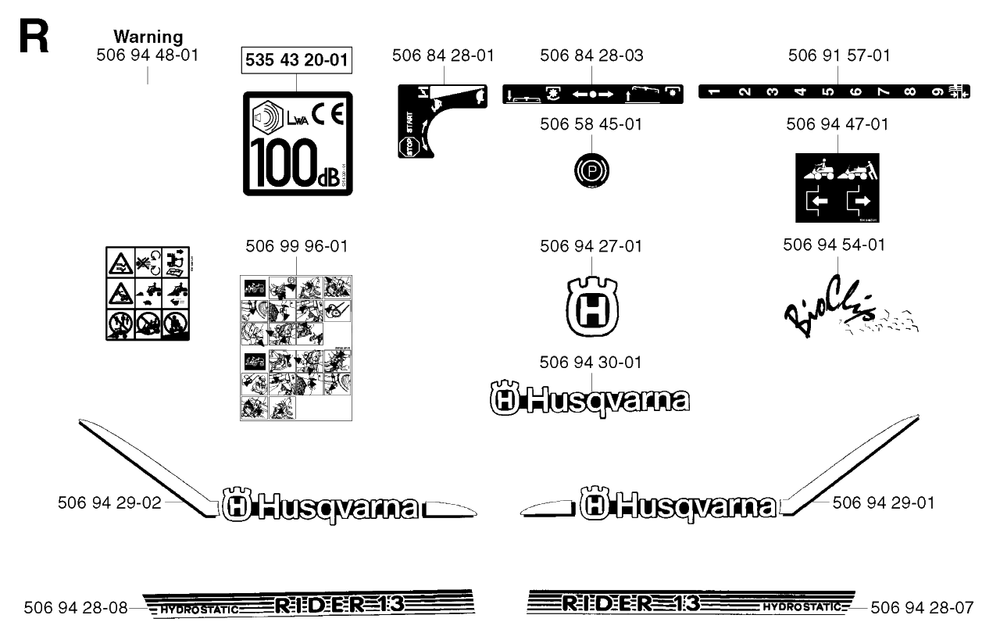

Decals Diagram and Parts List for 2002-02 Husqvarna Lawn Tractor
Decals
Electrical Diagram and Parts List for 2002-02 Husqvarna Lawn Tractor
Electrical
Engine Diagram and Parts List for 2002-02 Husqvarna Lawn Tractor
Engine

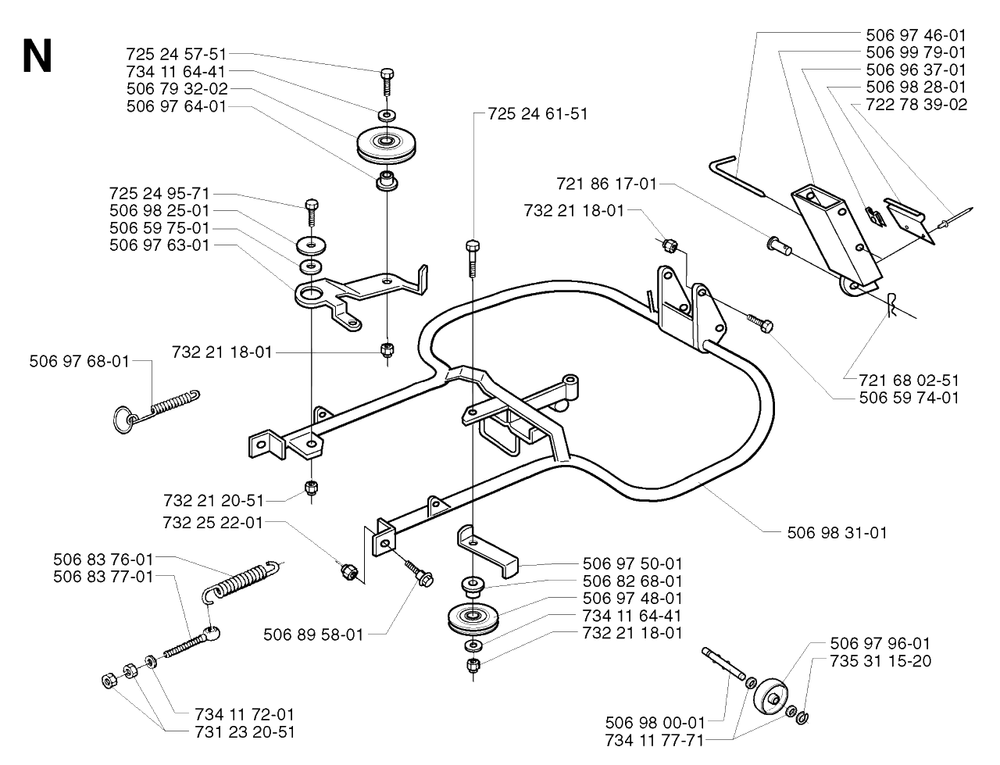

Frame Diagram and Parts List for 2002-02 Husqvarna Lawn Tractor
Frame
Hood Diagram and Parts List for 2002-02 Husqvarna Lawn Tractor
Hood
Pedals Diagram and Parts List for 2002-02 Husqvarna Lawn Tractor
Pedals
Protection Frame Diagram and Parts List for 2002-02 Husqvarna Lawn Tractor
Protection Frame

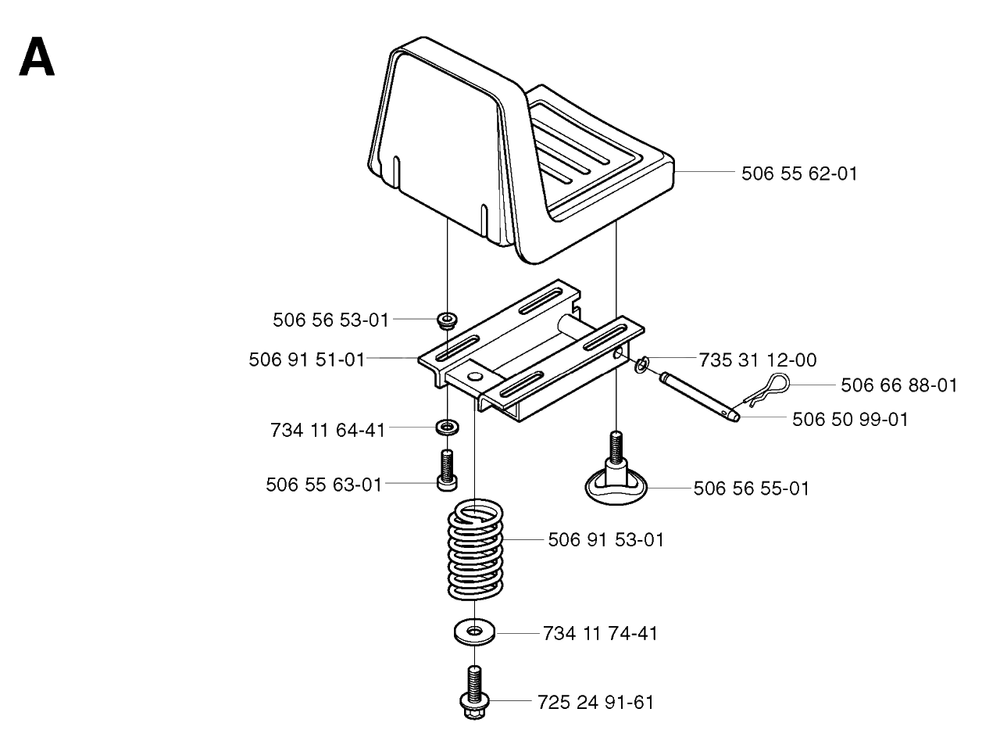

Seat Diagram and Parts List for 2002-02 Husqvarna Lawn Tractor
Seat

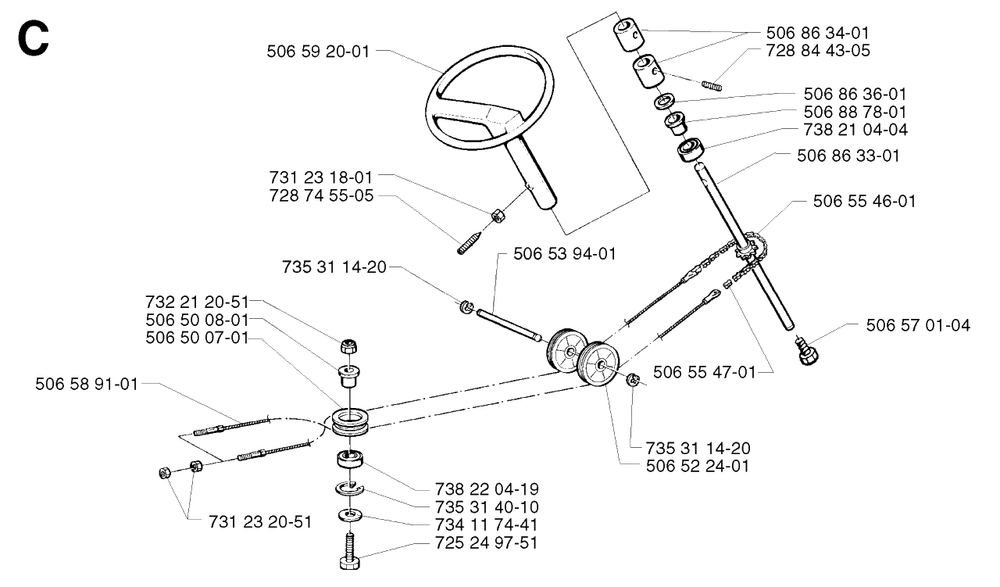

Steering Diagram and Parts List for 2002-02 Husqvarna Lawn Tractor
Steering

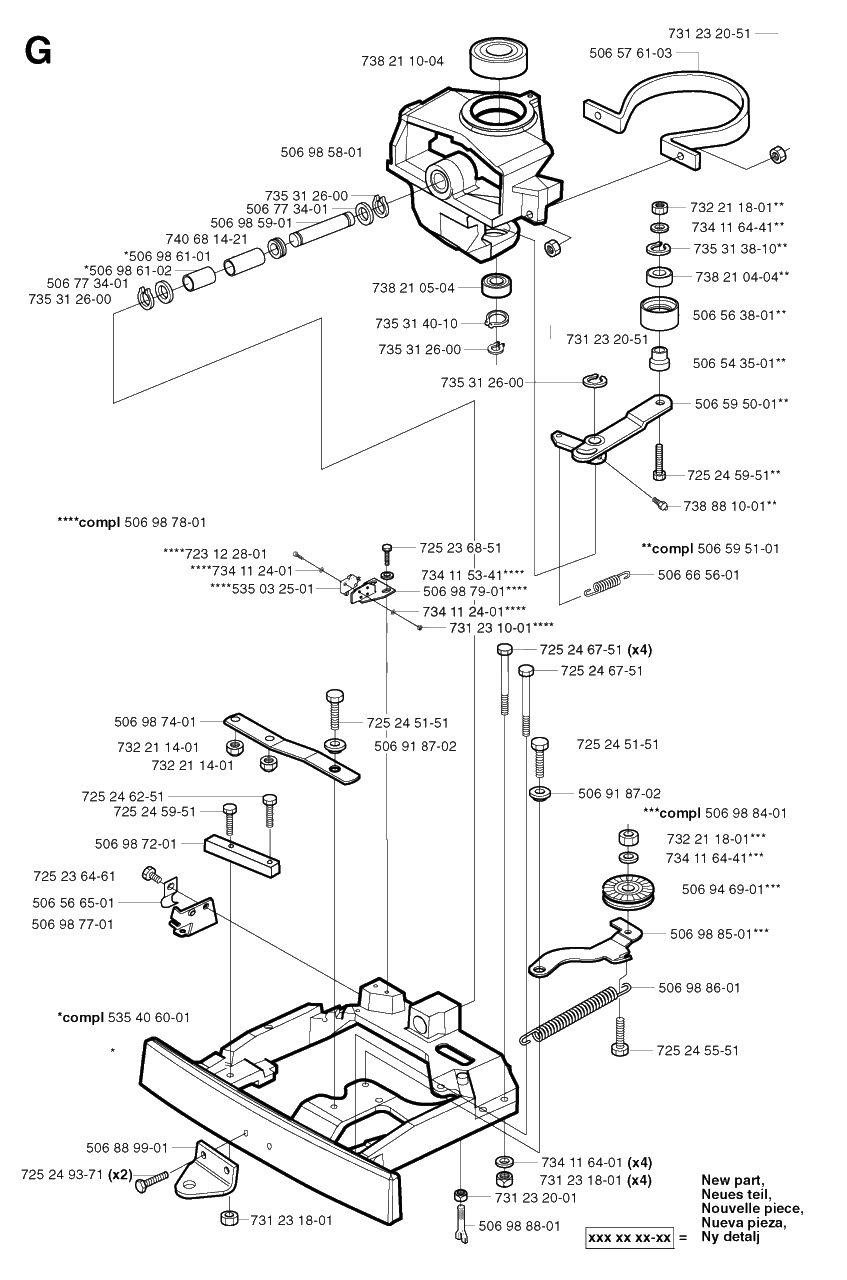

Steering Column Diagram and Parts List for 2002-02 Husqvarna Lawn Tractor
Steering Column

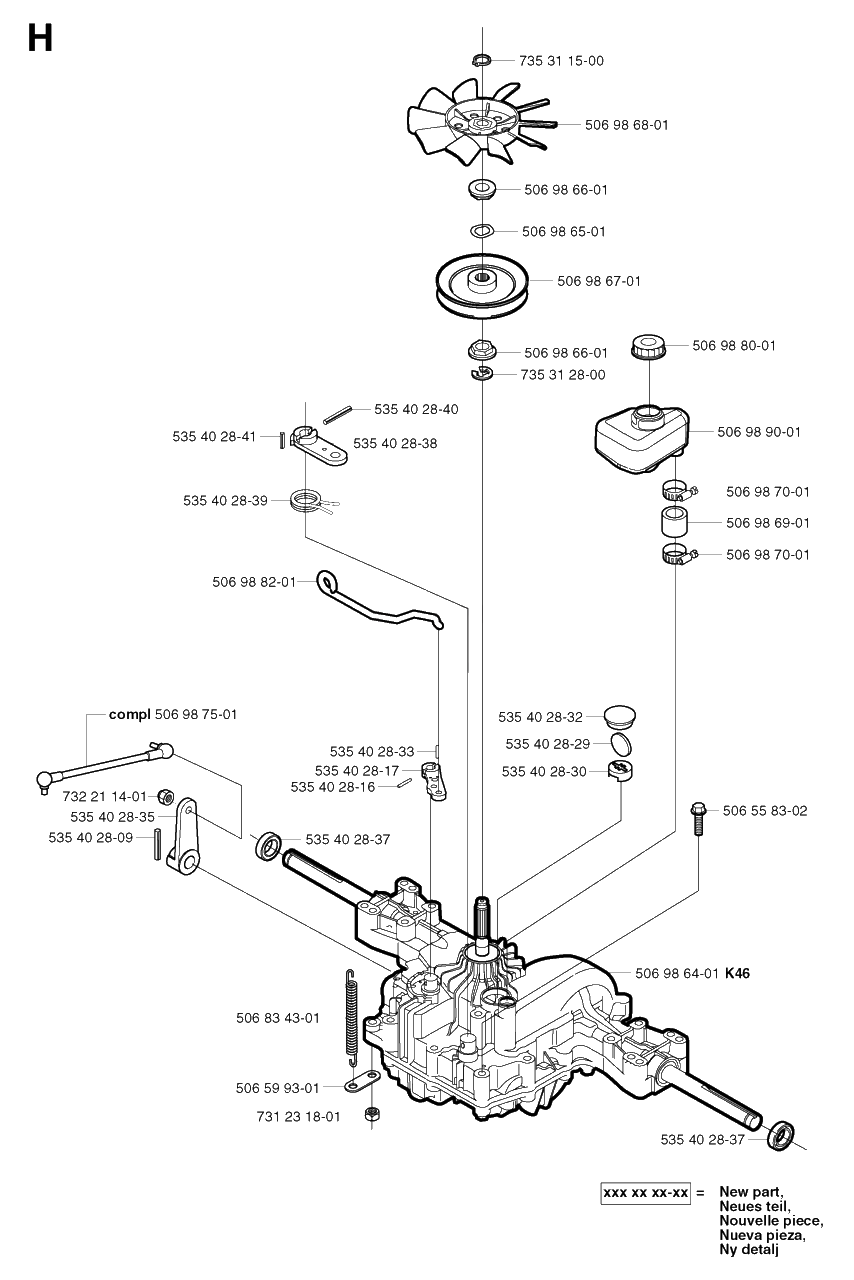

Transmission Diagram and Parts List for 2002-02 Husqvarna Lawn Tractor
Transmission

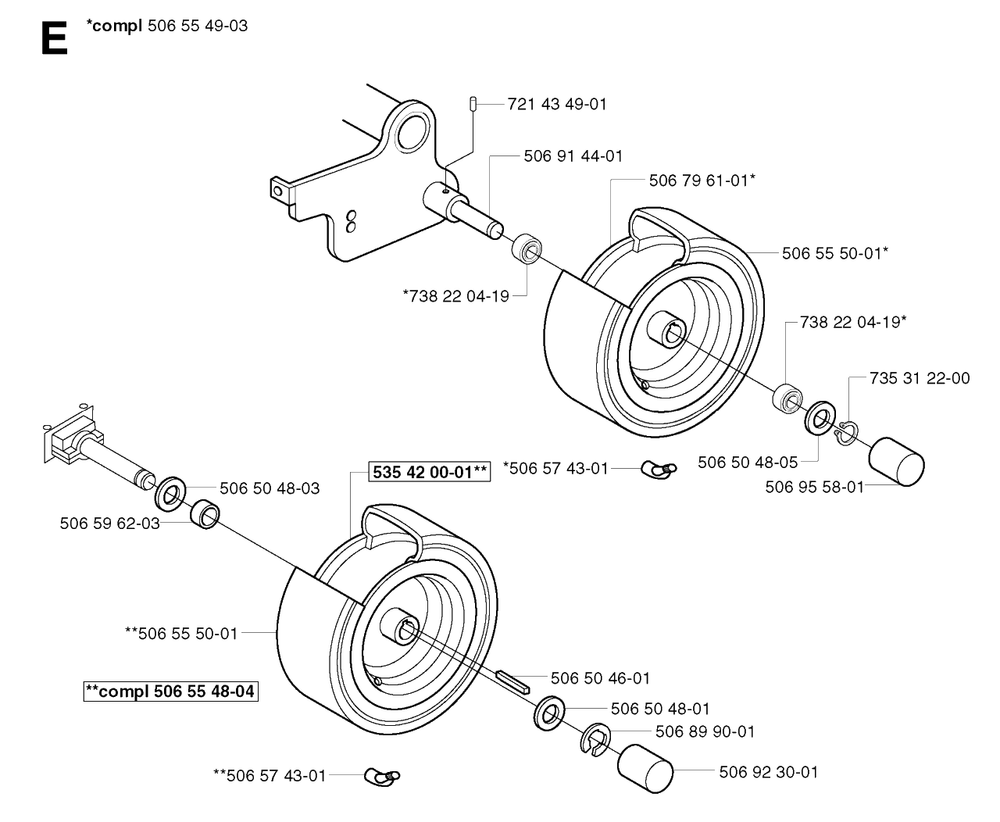

Wheels And Tires Diagram and Parts List for 2002-02 Husqvarna Lawn Tractor
Wheels And Tires
Previous Showing All Parts Next
90cm Cutting Deck

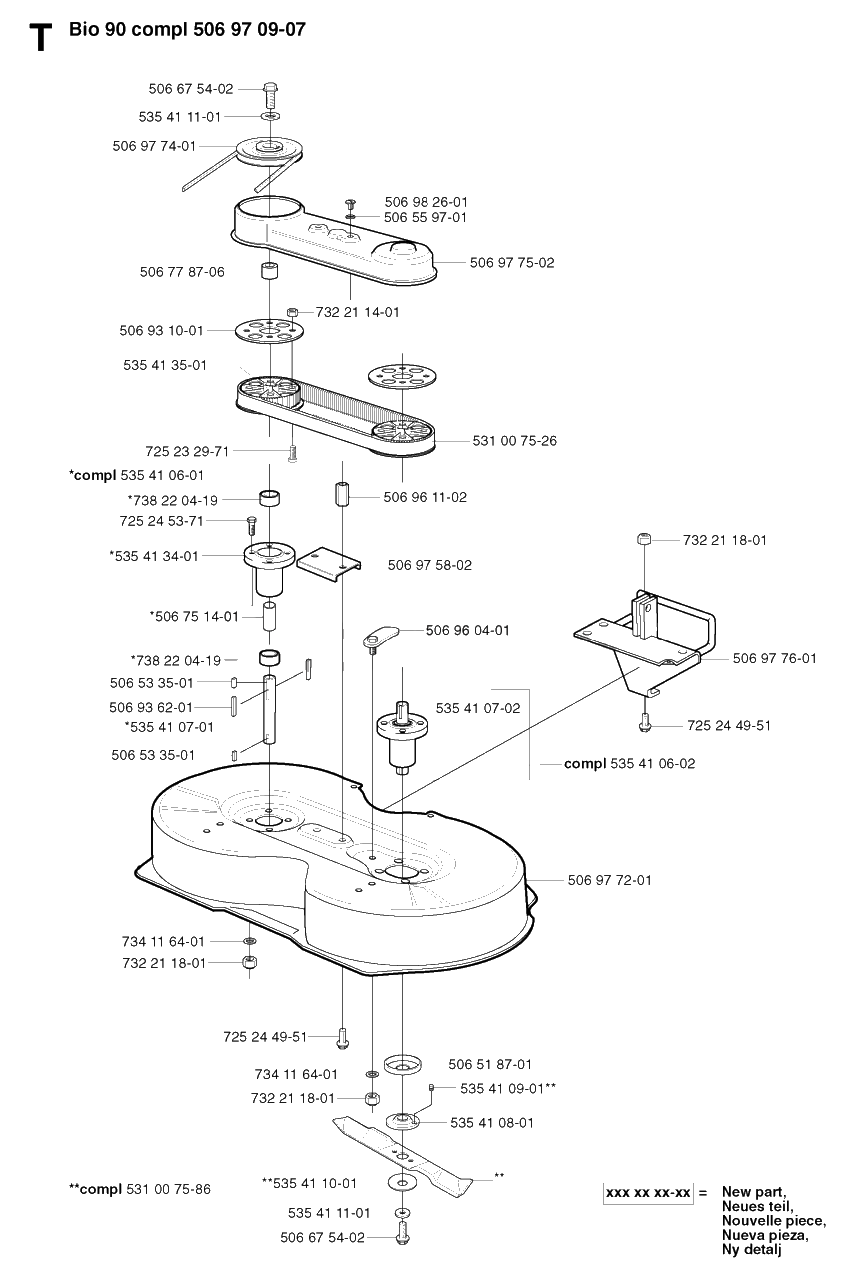

90cm Cutting Deck Diagram and Parts List for 2002-02 Husqvarna Lawn Tractor
  • 506 51 87-01
    Bearing Cover – Part Number: 506518701
    Bearing Cover
    Part Number: 506518701
      No Longer Available
  • 506 53 35-01
    Key – Part Number: 506533501
    Key
    Part Number: 506533501
      In Stock
    $5.95
  • 506 55 97-01
    Washer – Part Number: 506559701
    Washer
    Part Number: 506559701
      Special Order
    $5.95
  • 506 67 54-02
    Bolt – Part Number: 506675402
    Bolt
    Part Number: 506675402
      In Stock
    $8.96
  • 506 75 14-01
    Spacer – Part Number: 506751401
    Spacer
    Part Number: 506751401
      No Longer Available
  • 506 77 87-06
    Spacer – Part Number: 506778706
    Spacer
    Part Number: 506778706
      No Longer Available
  • 506 93 10-01
    Flange – Part Number: 506931001
    Flange
    Part Number: 506931001
      No Longer Available
  • 506 93 62-01
    Key – Part Number: 506936201
    Key
    Part Number: 506936201
      No Longer Available
  • 506 96 04-01
    Eccentric – Part Number: 506960401
    Eccentric
    Part Number: 506960401
      No Longer Available
  • 506 96 11-02
    Sleeve – Part Number: 506961102
    Sleeve
    Part Number: 506961102
      No Longer Available
  • 506 97 09-07
    Cutting Deck – Part Number: 506970907
    Cutting Deck
    Part Number: 506970907
      No Longer Available
  • 506 97 58-02
    Bracket – Part Number: 506975802
    Bracket
    Part Number: 506975802
      No Longer Available
  • 506 97 72-01
    Housing – Part Number: 506977201
    Housing
    Part Number: 506977201
      No Longer Available
  • 506 97 74-01
    Pulley – Part Number: 506977401
    Pulley
    Part Number: 506977401
      No Longer Available
  • 506 97 75-02
    Belt Cover – Part Number: 506977502
    Belt Cover
    Part Number: 506977502
      No Longer Available
  • 506 97 76-01
    Bracket – Part Number: 506977601
    Bracket
    Part Number: 506977601
      No Longer Available
  • 506 98 26-01
    Screw – Part Number: 506982601
    Screw
    Part Number: 506982601
      Special Order
    $5.96
  • 531 00 75-26
    Belt – Part Number: 589531501
    Belt
    Part Number: 589531501
      No Longer Available
  • 531 00 75-86
    Blade – Part Number: 531007586
    Blade
    Part Number: 531007586
      No Longer Available
  • 535 41 06-01
    Mandrel Assy. – Part Number: 535410601
    Mandrel Assy.
    Part Number: 535410601
      No Longer Available
  • 535 41 06-02
    Adapter – Part Number: 535410602
    Adapter
    Part Number: 535410602
      No Longer Available
  • 535 41 07-01
    Shaft – Part Number: 535410701
    Shaft
    Part Number: 535410701
      No Longer Available
  • 535 41 07-02
    Shaft – Part Number: 535410702
    Shaft
    Part Number: 535410702
      No Longer Available
  • 535 41 08-01
    Adapter – Part Number: 535410801
    Adapter
    Part Number: 535410801
      No Longer Available
  • 535 41 09-01
    Pin – Part Number: 535410901
    Pin
    Part Number: 535410901
      No Longer Available
  • 535 41 10-01
    Washer – Part Number: 535411001
    Washer
    Part Number: 535411001
      No Longer Available
  • 535 41 11-01
    Washer – Part Number: 535411101
    Washer
    Part Number: 535411101
      No Longer Available
  • 535 41 34-01
    Bearing Housing – Part Number: 535413401
    Bearing Housing
    Part Number: 535413401
      No Longer Available
  • 535 41 35-01
    Pulley – Part Number: 535413501
    Pulley
    Part Number: 535413501
      No Longer Available
  • 725 23 29-71
    Screw – Part Number: 725232971
    Screw
    Part Number: 725232971
      In Stock
    Minimum Quantity of 2 required
    $4.99
  • 725 24 49-51
    Bolt, M8 X 16 – Part Number: 725244951
    Bolt, M8 X 16
    Part Number: 725244951
      In Stock
    $5.95
  • 725 24 53-71
    Screw – Part Number: 725245371
    Screw
    Part Number: 725245371
      No Longer Available
  • 732 21 14-01
    Locknut M5 – Part Number: 732211401
    Locknut M5
    Part Number: 732211401
      Special Order
    $5.95
  • 732 21 18-01
    Locknut M8 – Part Number: 732211801
    Locknut M8
    Part Number: 732211801
      In Stock
    $5.95
  • 734 11 64-01
    Washer – Part Number: 734116401
    Washer
    Part Number: 734116401
      On Order
    $5.96
  • 738 22 04-19
    Ball-bearing 6204-2rs – Part Number: 738220419
    Ball-bearing 6204-2rs
    Part Number: 738220419
      In Stock
    $26.88
Accessories

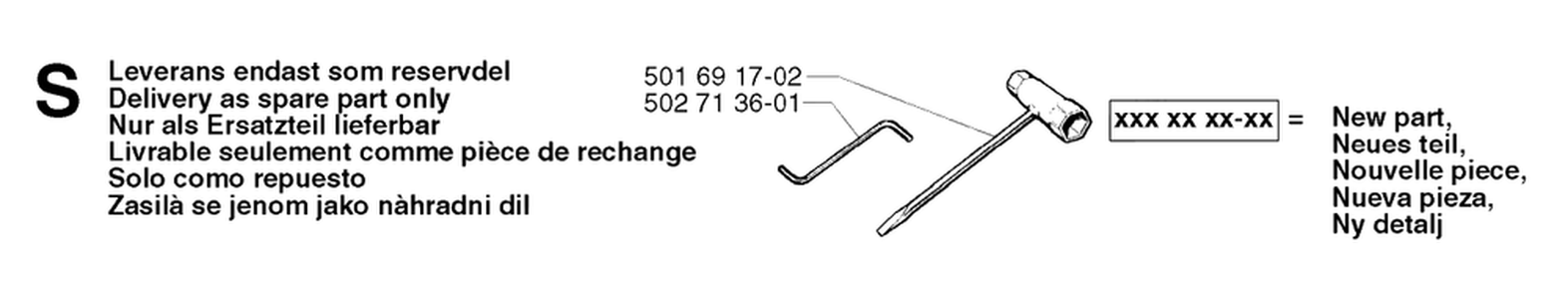

Accessories Diagram and Parts List for 2002-02 Husqvarna Lawn Tractor
  • 501 69 17-02
    Combi Tool – Part Number: 501691702
    Combi Tool
    Part Number: 501691702
      Special Order
    $14.92
  • 502 71 36-01
    Allen Key – Part Number: 502713601
    Allen Key
    Part Number: 502713601
      No Longer Available
Chassis / Frame

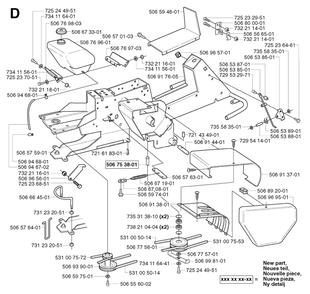

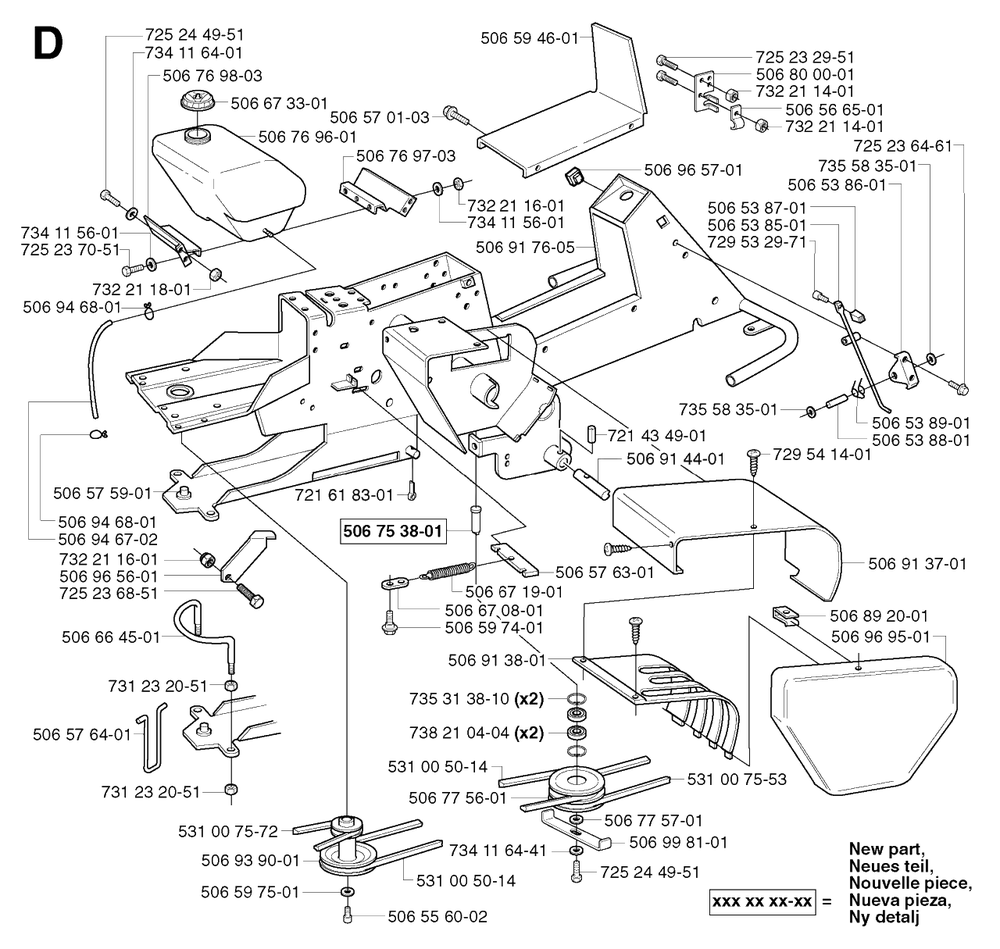

Chassis / Frame Diagram and Parts List for 2002-02 Husqvarna Lawn Tractor
  • 506 53 85-01
    Arm – Part Number: 506538501
    Arm
    Part Number: 506538501
      No Longer Available
  • 506 53 86-01
    Bracket – Part Number: 506538601
    Bracket
    Part Number: 506538601
      No Longer Available
  • 506 53 87-01
    Button – Part Number: 506538701
    Button
    Part Number: 506538701
      No Longer Available
  • 506 53 88-01
    Pin – Part Number: 506538801
    Pin
    Part Number: 506538801
      No Longer Available
  • 506 53 89-01
    Spring – Part Number: 506538901
    Spring
    Part Number: 506538901
      No Longer Available
  • 506 55 60-02
    Screw – Part Number: 506556002
    Screw
    Part Number: 506556002
      Special Order
    $8.96
  • 506 56 65-01
    Clamp – Part Number: 506566501
    Clamp
    Part Number: 506566501
      Special Order
    $5.95
  • 506 57 01-03
    Bolt – Part Number: 506570103
    Bolt
    Part Number: 506570103
      Special Order
    $13.78
  • 506 57 59-01
    Shaft Pivot – Part Number: 506575901
    Shaft Pivot
    Part Number: 506575901
      No Longer Available
  • 506 57 63-01
    Spring Retainer – Part Number: 590735401
    Spring Retainer
    Part Number: 590735401
    ★★★★★
    ★★★★★
    (1)
      In Stock
    $22.40
  • 506 57 64-01
    Retainer – Part Number: 506576401
    Retainer
    Part Number: 506576401
      No Longer Available
  • 506 59 46-01
    Center Panel – Part Number: 506594601
    Center Panel
    Part Number: 506594601
      No Longer Available
  • 506 59 74-01
    Bolt – Part Number: 506597401
    Bolt
    Part Number: 506597401
      In Stock
    $8.96
  • 506 59 75-01
    Washer – Part Number: 506597501
    Washer
    Part Number: 506597501
      No Longer Available
  • 506 66 45-01
    Belt Guide – Part Number: 506664501
    Belt Guide
    Part Number: 506664501
      Special Order
    $31.24
  • 506 67 08-01
    Connector – Part Number: 506670801
    Connector
    Part Number: 506670801
      Special Order
    $9.63
  • 506 67 19-01
    Spring – Part Number: 506671901
    Spring
    Part Number: 506671901
      Special Order
    $33.96
  • 506 67 33-01
    Fuel Cap – Part Number: 506673301
    Fuel Cap
    Part Number: 506673301
      In Stock
    $40.75
  • 506 75 38-01
    Shaft – Part Number: 506753801
    Shaft
    Part Number: 506753801
      No Longer Available
  • 506 76 96-01
    Fuel Tank – Part Number: 506769601
    Fuel Tank
    Part Number: 506769601
      No Longer Available
  • 506 76 97-03
    Bracket – Part Number: 506769703
    Bracket
    Part Number: 506769703
      No Longer Available
  • 506 76 98-03
    Bracket – Part Number: 506769803
    Bracket
    Part Number: 506769803
      No Longer Available
  • 506 77 56-01
    Pulley – Part Number: 535482201
    Pulley
    Part Number: 535482201
      In Stock
    $77.95
  • 506 77 57-01
    Washer – Part Number: 506775701
    Washer
    Part Number: 506775701
      In Stock
    $7.46
  • 506 80 00-01
    Bracket – Part Number: 506800001
    Bracket
    Part Number: 506800001
      No Longer Available
  • 506 89 20-01
    Nut – Part Number: 506892001
    Nut
    Part Number: 506892001
      No Longer Available
  • 506 91 37-01
    Cover – Part Number: 506913701
    Cover
    Part Number: 506913701
      No Longer Available
  • 506 91 38-01
    Cover – Part Number: 506913801
    Cover
    Part Number: 506913801
      No Longer Available
  • 506 91 44-01
    Shaft – Part Number: 506914401
    Shaft
    Part Number: 506914401
      No Longer Available
  • 506 91 76-05
    FRAME – Part Number: 535470201
    FRAME
    Part Number: 535470201
      No Longer Available
  • 506 93 90-91
    – Part Number: 506939091
    Part Number: 506939091
      No Longer Available
  • 506 94 67-02
    Hose – Part Number: 506946702
    Hose
    Part Number: 506946702
      No Longer Available
  • 506 94 68-01
    Clip – Part Number: 506946801
    Clip
    Part Number: 506946801
      No Longer Available
  • 506 96 56-01
    Plate – Part Number: 506965601
    Plate
    Part Number: 506965601
      No Longer Available
  • 506 96 57-01
    Plug – Part Number: 506965701
    Plug
    Part Number: 506965701
      No Longer Available
  • 506 96 95-01
    Cover – Part Number: 506969501
    Cover
    Part Number: 506969501
      No Longer Available
  • 506 99 81-01
    Belt Guide – Part Number: 506998101
    Belt Guide
    Part Number: 506998101
      No Longer Available
  • 531 00 50-14
    Main Deck Belt - 14 Pro/16 – Part Number: 589530501
    Main Deck Belt - 14 Pro/16
    Part Number: 589530501
      No Longer Available
  • 531 00 75-53
    Belt – Part Number: 531007553
    Belt
    Part Number: 531007553
      No Longer Available
  • 531 00 75-72
    Drive Belt – Part Number: 589531201
    Drive Belt
    Part Number: 589531201
    ★★★★★
    ★★★★★
    (1)
      In Stock
    $37.61
  • 721 43 49-01
    Pin – Part Number: 721434901
    Pin
    Part Number: 721434901
      No Longer Available
  • 721 61 83-01
    Split Pin – Part Number: 721618301
    Split Pin
    Part Number: 721618301
      No Longer Available
  • 725 23 29-51
    Screw – Part Number: 725232951
    Screw
    Part Number: 725232951
      No Longer Available
  • 725 23 64-61
    Screw – Part Number: 725236461
    Screw
    Part Number: 725236461
      Special Order
    $5.95
  • 725 23 68-51
    Screw – Part Number: 725236851
    Screw
    Part Number: 725236851
      No Longer Available
  • 725 23 70-51
    Screw M6S 6x20 – Part Number: 725237071
    Screw M6S 6x20
    Part Number: 725237071
      Special Order
    $5.95
  • 725 24 49-51
    Bolt, M8 X 16 – Part Number: 725244951
    Bolt, M8 X 16
    Part Number: 725244951
      In Stock
    $5.95
  • 729 53 29-71
    Screw – Part Number: 729532971
    Screw
    Part Number: 729532971
      No Longer Available
  • 729 54 14-01
    Screw – Part Number: 729541401
    Screw
    Part Number: 729541401
      No Longer Available
  • 731 23 20-51
    Nut – Part Number: 731232001
    Nut
    Part Number: 731232001
      In Stock
    $5.96
  • 732 21 14-01
    Locknut M5 – Part Number: 732211401
    Locknut M5
    Part Number: 732211401
      Special Order
    $5.95
  • 732 21 16-01
    Locknut M6 – Part Number: 732211601
    Locknut M6
    Part Number: 732211601
      Special Order
    $10.46
  • 732 21 18-01
    Locknut M8 – Part Number: 732211801
    Locknut M8
    Part Number: 732211801
      In Stock
    $5.95
  • 734 11 56-01
    Flat Washer 6.7x16 – Part Number: 734181251
    Flat Washer 6.7x16
    Part Number: 734181251
      No Longer Available
  • 734 11 64-01
    Washer – Part Number: 734116401
    Washer
    Part Number: 734116401
      On Order
    $5.96
  • 734 11 64-41
    Spacer – Part Number: 734116441
    Spacer
    Part Number: 734116441
      In Stock
    $5.95
  • 735 31 38-10
    Retaining Ring – Part Number: 735313810
    Retaining Ring
    Part Number: 735313810
      In Stock
    $5.95
  • 735 58 35-01
    Washer – Part Number: 735583501
    Washer
    Part Number: 735583501
      Special Order
    $5.95
  • 738 21 04-04
    Ball Bearing 6004-2rs1 – Part Number: 738210404
    Ball Bearing 6004-2rs1
    Part Number: 738210404
    ★★★★★
    ★★★★★
    (1)
      In Stock
    $17.92
Controls

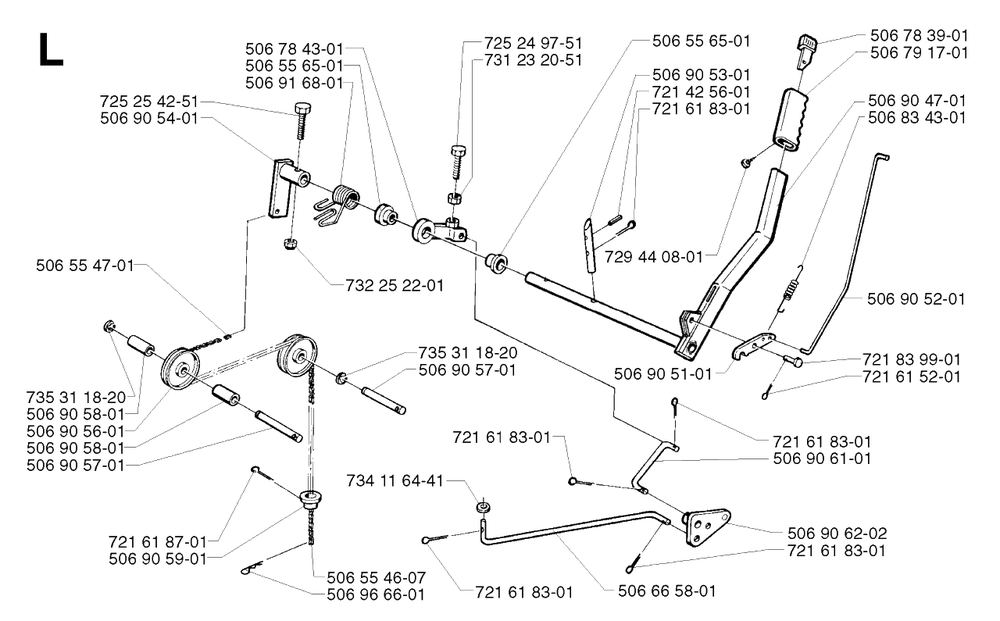

Controls Diagram and Parts List for 2002-02 Husqvarna Lawn Tractor
  • 506 55 46-07
    Chain – Part Number: 506554607
    Chain
    Part Number: 506554607
      Special Order
    $54.35
  • 506 55 47-01
    Link – Part Number: 506554701
    Link
    Part Number: 506554701
      In Stock
    $6.88
  • 506 55 65-01
    Bush – Part Number: 584871301
    Bush
    Part Number: 584871301
      Special Order
    $6.88
  • 506 66 58-01
    Rod – Part Number: 506665801
    Rod
    Part Number: 506665801
      No Longer Available
  • 506 78 39-01
    Button – Part Number: 506783901
    Button
    Part Number: 506783901
      No Longer Available
  • 506 78 43-01
    Lever Clutch – Part Number: 506784301
    Lever Clutch
    Part Number: 506784301
      Special Order
    $44.82
  • 506 79 17-01
    Hand Grip – Part Number: 506791701
    Hand Grip
    Part Number: 506791701
      No Longer Available
  • 506 83 43-01
    Spring – Part Number: 506834301
    Spring
    Part Number: 506834301
      Special Order
    $5.95
  • 506 90 47-01
    Lever – Part Number: 501018602
    Lever
    Part Number: 501018602
      No Longer Available
  • 506 90 51-01
    Lever – Part Number: 506905101
    Lever
    Part Number: 506905101
      No Longer Available
  • 506 90 52-01
    Rod – Part Number: 506905201
    Rod
    Part Number: 506905201
      No Longer Available
  • 506 90 53-01
    Pin – Part Number: 525406601
    Pin
    Part Number: 525406601
      In Stock
    $11.92
  • 506 90 54-01
    Lever – Part Number: 506905401
    Lever
    Part Number: 506905401
      No Longer Available
  • 506 90 56-01
    Pulley – Part Number: 506905601
    Pulley
    Part Number: 506905601
      Special Order
    $26.88
  • 506 90 57-01
    Shaft – Part Number: 506905701
    Shaft
    Part Number: 506905701
      No Longer Available
  • 506 90 58-01
    Spacer – Part Number: 506905801
    Spacer
    Part Number: 506905801
      No Longer Available
  • 506 90 59-01
    Bushing – Part Number: 506905901
    Bushing
    Part Number: 506905901
      No Longer Available
  • 506 90 61-01
    Linkage – Part Number: 506906101
    Linkage
    Part Number: 506906101
      No Longer Available
  • 506 90 62-02
    Link – Part Number: 506906202
    Link
    Part Number: 506906202
      No Longer Available
  • 506 91 68-01
    Spring – Part Number: 506916801
    Spring
    Part Number: 506916801
      Special Order
    $11.92
  • 506 96 66-01
    Retainer – Part Number: 506966601
    Retainer
    Part Number: 506966601
      Special Order
    $5.95
  • 721 42 56-01
    Pin – Part Number: 721125930
    Pin
    Part Number: 721125930
      No Longer Available
  • 721 61 52-01
    Cotter Pin – Part Number: 721615201
    Cotter Pin
    Part Number: 721615201
      No Longer Available
  • 721 61 83-01
    Split Pin – Part Number: 721618301
    Split Pin
    Part Number: 721618301
      No Longer Available
  • 721 61 87-01
    Cotter Pin – Part Number: 721618701
    Cotter Pin
    Part Number: 721618701
      No Longer Available
  • 721 83 99-01
    Clevis Pin – Part Number: 721839901
    Clevis Pin
    Part Number: 721839901
      No Longer Available
  • 725 24 97-51
    Screw – Part Number: 725249751
    Screw
    Part Number: 725249751
      Special Order
    $7.46
  • 725 25 42-51
    Screw – Part Number: 725254251
    Screw
    Part Number: 725254251
      No Longer Available
  • 729 44 08-01
    Screw – Part Number: 729440801
    Screw
    Part Number: 729440801
      No Longer Available
  • 731 23 20-51
    Nut – Part Number: 731232001
    Nut
    Part Number: 731232001
      In Stock
    $5.96
  • 732 25 22-01
    Nut – Part Number: 732252201
    Nut
    Part Number: 732252201
      No Longer Available
  • 734 11 64-41
    Spacer – Part Number: 734116441
    Spacer
    Part Number: 734116441
      In Stock
    $5.95
  • 735 31 18-20
    Lock Ring – Part Number: 735311820
    Lock Ring
    Part Number: 735311820
      No Longer Available
Controls 2
Controls 2 Diagram and Parts List for 2002-02 Husqvarna Lawn Tractor
  • 506 50 48-05
    Washer – Part Number: 506504805
    Washer
    Part Number: 506504805
    ★★★★★
    ★★★★★
    (1)
      Special Order
    $5.95
  • 506 51 08-01
    Clevis Pin – Part Number: 506510801
    Clevis Pin
    Part Number: 506510801
      No Longer Available
  • 506 76 88-01
    Bushing – Part Number: 506768801
    Bushing
    Part Number: 506768801
      No Longer Available
  • 506 83 17-01
    End Piece – Part Number: 506831701
    End Piece
    Part Number: 506831701
      No Longer Available
  • 506 83 18-01
    Catch – Part Number: 506831801
    Catch
    Part Number: 506831801
      Special Order
    $68.50
  • 506 83 23-01
    Spring – Part Number: 506832301
    Spring
    Part Number: 506832301
      No Longer Available
  • 506 83 56-01
    Index Plate – Part Number: 506835601
    Index Plate
    Part Number: 506835601
      No Longer Available
  • 506 83 57-01
    Clamp – Part Number: 506835701
    Clamp
    Part Number: 506835701
      No Longer Available
  • 506 90 70-01
    Button – Part Number: 506907001
    Button
    Part Number: 506907001
      No Longer Available
  • 506 90 71-01
    Knob – Part Number: 506907101
    Knob
    Part Number: 506907101
      No Longer Available
  • 506 90 76-01
    Lever – Part Number: 506907601
    Lever
    Part Number: 506907601
      No Longer Available
  • 506 90 79-01
    Rod – Part Number: 506907901
    Rod
    Part Number: 506907901
      No Longer Available
  • 506 90 80-01
    Lever – Part Number: 506908001
    Lever
    Part Number: 506908001
      No Longer Available
  • 506 90 82-01
    Linkage – Part Number: 506908201
    Linkage
    Part Number: 506908201
      In Stock
    $17.92
  • 506 97 51-01
    Clutch Rod – Part Number: 506975101
    Clutch Rod
    Part Number: 506975101
      No Longer Available
  • 506 99 83-01
    Bracket – Part Number: 506998301
    Bracket
    Part Number: 506998301
      No Longer Available
  • 721 42 12-26
    Spring Pin – Part Number: 721421226
    Spring Pin
    Part Number: 721421226
      No Longer Available
  • 721 61 83-01
    Split Pin – Part Number: 721618301
    Split Pin
    Part Number: 721618301
      No Longer Available
  • 721 61 87-01
    Cotter Pin – Part Number: 721618701
    Cotter Pin
    Part Number: 721618701
      No Longer Available
  • 721 68 02-51
    R-Clip – Part Number: 721680251
    R-Clip
    Part Number: 721680251
      No Longer Available
  • 725 23 74-71
    Screw M6S 6X30 – Part Number: 725237471
    Screw M6S 6X30
    Part Number: 725237471
      Special Order
    $14.92
  • 725 24 53-51
    Screw – Part Number: 725245371
    Screw
    Part Number: 725245371
      No Longer Available
  • 725 24 57-51
    Screw – Part Number: 725245751
    Screw
    Part Number: 725245751
      Special Order
    $19.40
  • 731 23 18-01
    Nut – Part Number: 731231801
    Nut
    Part Number: 731231801
      In Stock
    $5.95
  • 732 21 16-01
    Locknut M6 – Part Number: 732211601
    Locknut M6
    Part Number: 732211601
      Special Order
    $10.46
  • 732 21 18-01
    Locknut M8 – Part Number: 732211801
    Locknut M8
    Part Number: 732211801
      In Stock
    $5.95
  • 734 11 64-01
    Washer – Part Number: 734116401
    Washer
    Part Number: 734116401
      On Order
    $5.96
  • 735 31 15-20
    Retaining Ring – Part Number: 735311520
    Retaining Ring
    Part Number: 735311520
      Special Order
    $5.95
Controls 3
Controls 3 Diagram and Parts List for 2002-02 Husqvarna Lawn Tractor
  • 506 50 82-01
    Clamp – Part Number: 506508201
    Clamp
    Part Number: 506508201
      No Longer Available
  • 506 54 63-01
    Throttle Lever – Part Number: 506546301
    Throttle Lever
    Part Number: 506546301
      No Longer Available
  • 506 54 64-01
    Pivot Bush – Part Number: 506546401
    Pivot Bush
    Part Number: 506546401
      No Longer Available
  • 506 54 66-02
    Throttle Cable – Part Number: 506546602
    Throttle Cable
    Part Number: 506546602
      No Longer Available
  • 506 56 25-01
    Handle – Part Number: 506562501
    Handle
    Part Number: 506562501
      No Longer Available
  • 725 23 31-51
    Screw M6S 5X20 – Part Number: 725233151
    Screw M6S 5X20
    Part Number: 725233151
      Special Order
    $5.98
  • 731 23 14-01
    Trimmer Nut – Part Number: 731231401
    Trimmer Nut
    Part Number: 731231401
    ★★★★★
    ★★★★★
    (2)
      In Stock
    $5.95
  • 732 21 14-01
    Locknut M5 – Part Number: 732211401
    Locknut M5
    Part Number: 732211401
      Special Order
    $5.95
  • 734 48 80-01
    Washer – Part Number: 734488001
    Washer
    Part Number: 734488001
      Special Order
    $5.16
  • 737 38 11-00
    Spring – Part Number: 737381100
    Spring
    Part Number: 737381100
      No Longer Available
Decals
Decals Diagram and Parts List for 2002-02 Husqvarna Lawn Tractor
  • 506 58 45-01
    Decal – Part Number: 506584501
    Decal
    Part Number: 506584501
      No Longer Available
  • 506 84 28-01
    Decal – Part Number: 506842801
    Decal
    Part Number: 506842801
      No Longer Available
  • 506 84 28-03
    Decal – Part Number: 506842803
    Decal
    Part Number: 506842803
      No Longer Available
  • 506 91 57-01
    Decal – Part Number: 506915701
    Decal
    Part Number: 506915701
      No Longer Available
  • 506 94 27-01
    Decal – Part Number: 506942701
    Decal
    Part Number: 506942701
      No Longer Available
  • 506 94 28-07
    Stripes Motorkpàpa V. – Part Number: 506942807
    Stripes Motorkpàpa V.
    Part Number: 506942807
      No Longer Available
  • 506 94 28-08
    Stripes Motorkpàpa H. – Part Number: 506942808
    Stripes Motorkpàpa H.
    Part Number: 506942808
      No Longer Available
  • 506 94 29-01
    Decal – Part Number: 506942901
    Decal
    Part Number: 506942901
      No Longer Available
  • 506 94 29-02
    Decal – Part Number: 506942902
    Decal
    Part Number: 506942902
      No Longer Available
  • 506 94 30-01
    Decal – Part Number: 506943001
    Decal
    Part Number: 506943001
      No Longer Available
  • 506 94 47-01
    Decal – Part Number: 506944701
    Decal
    Part Number: 506944701
      No Longer Available
  • 506 94 48-01
    Decal – Part Number: 506944801
    Decal
    Part Number: 506944801
      No Longer Available
  • 506 94 54-01
    Decal – Part Number: 506945401
    Decal
    Part Number: 506945401
      No Longer Available
  • 506 99 96-01
    Decal – Part Number: 506999601
    Decal
    Part Number: 506999601
      No Longer Available
  • 535 43 20-01
    Decal – Part Number: 535432001
    Decal
    Part Number: 535432001
      No Longer Available
Electrical

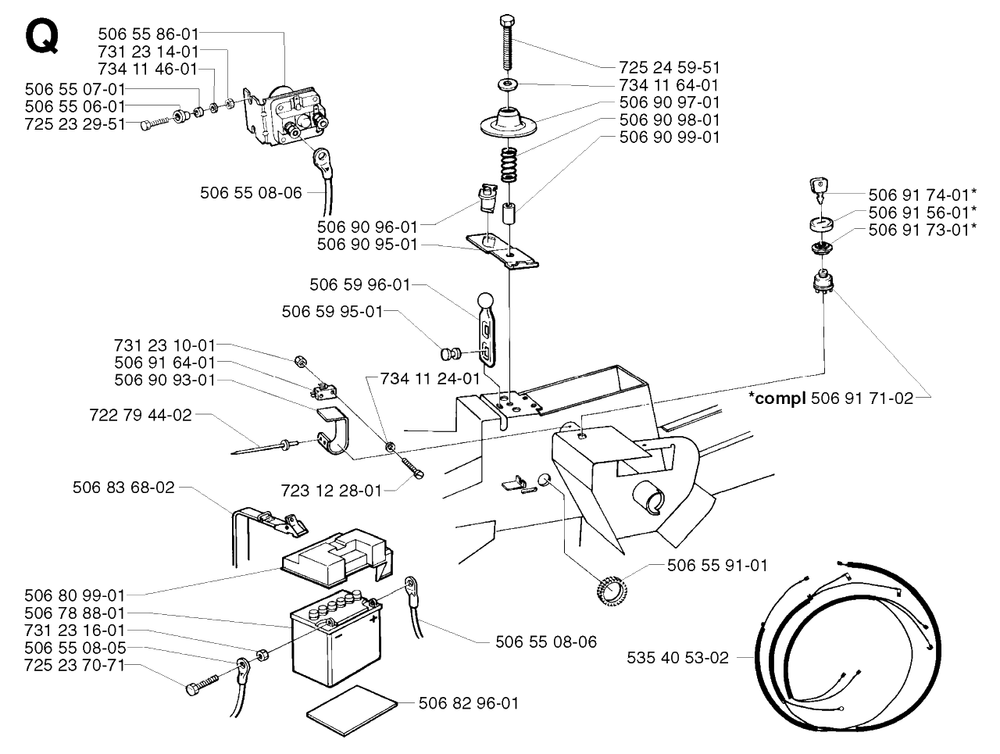

Electrical Diagram and Parts List for 2002-02 Husqvarna Lawn Tractor
  • 506 55 06-01
    Spacer – Part Number: 506550601
    Spacer
    Part Number: 506550601
      No Longer Available
  • 506 55 07-01
    Spacer – Part Number: 506550701
    Spacer
    Part Number: 506550701
      No Longer Available
  • 506 55 08-05
    Cable – Part Number: 506550805
    Cable
    Part Number: 506550805
      No Longer Available
  • 506 55 08-06
    Cable – Part Number: 506550806
    Cable
    Part Number: 506550806
      No Longer Available
  • 506 55 86-01
    Starting Solenoid – Part Number: 506558601
    Starting Solenoid
    Part Number: 506558601
      No Longer Available
  • 506 55 91-01
    Protection Ring – Part Number: 506559101
    Protection Ring
    Part Number: 506559101
      No Longer Available
  • 506 59 95-01
    Button – Part Number: 506599501
    Button
    Part Number: 506599501
      No Longer Available
  • 506 59 96-01
    Support Strap – Part Number: 506599601
    Support Strap
    Part Number: 506599601
      No Longer Available
  • 506 78 88-01
    BATTERY, WET – Part Number: 531031071
    BATTERY, WET
    Part Number: 531031071
      No Longer Available
  • 506 80 99-01
    Cover – Part Number: 506809901
    Cover
    Part Number: 506809901
      No Longer Available
  • 506 82 96-01
    Mat – Part Number: 506829601
    Mat
    Part Number: 506829601
      No Longer Available
  • 506 83 68-02
    Belt – Part Number: 506836802
    Belt
    Part Number: 506836802
      Special Order
    $5.96
  • 506 90 93-01
    Bracket – Part Number: 506909301
    Bracket
    Part Number: 506909301
      No Longer Available
  • 506 90 95-01
    Bracket – Part Number: 506909501
    Bracket
    Part Number: 506909501
      No Longer Available
  • 506 90 96-01
    Switch – Part Number: 506909601
    Switch
    Part Number: 506909601
      In Stock
    $20.68
  • 506 90 97-01
    Washer – Part Number: 506909701
    Washer
    Part Number: 506909701
      Special Order
    $20.68
  • 506 90 98-01
    Spring – Part Number: 506909801
    Spring
    Part Number: 506909801
      No Longer Available
  • 506 90 99-01
    Bushing – Part Number: 506909901
    Bushing
    Part Number: 506909901
      No Longer Available
  • 506 91 56-01
    Cover Switch Key – Part Number: 532141226
    Cover Switch Key
    Part Number: 532141226
      Special Order
    $12.21
  • 506 91 64-01
    Switch – Part Number: 574316001
    Switch
    Part Number: 574316001
      Special Order
    $16.52
  • 506 91 71-02
    Ignition Switch – Part Number: 506917103
    Ignition Switch
    Part Number: 506917103
      No Longer Available
  • 506 91 73-01
    DISCONTINUED – Part Number: 506917301
    DISCONTINUED
    Part Number: 506917301
      No Longer Available
  • 506 91 74-01
    DISCONTINUED – Part Number: 506917401
    DISCONTINUED
    Part Number: 506917401
      No Longer Available
  • 535 40 53-02
    Wiring – Part Number: 535405302
    Wiring
    Part Number: 535405302
      No Longer Available
  • 722 79 44-02
    Rivet – Part Number: 722794402
    Rivet
    Part Number: 722794402
      No Longer Available
  • 723 12 28-01
    Screw – Part Number: 723122801
    Screw
    Part Number: 723122801
      No Longer Available
  • 725 23 29-51
    Screw – Part Number: 725232951
    Screw
    Part Number: 725232951
      No Longer Available
  • 725 23 70-71
    Screw M6S 6x20 – Part Number: 725237071
    Screw M6S 6x20
    Part Number: 725237071
      Special Order
    $5.95
  • 725 24 59-51
    Screw – Part Number: 725245951
    Screw
    Part Number: 725245951
      In Stock
    $7.46
  • 731 23 10-01
    NUT M6M M3 – Part Number: 731231001
    NUT M6M M3
    Part Number: 731231001
      Special Order
    $8.26
  • 731 23 14-01
    Trimmer Nut – Part Number: 731231401
    Trimmer Nut
    Part Number: 731231401
    ★★★★★
    ★★★★★
    (2)
      In Stock
    $5.95
  • 731 23 16-01
    Nut – Part Number: 731231601
    Nut
    Part Number: 731231601
      In Stock
    $5.95
  • 734 11 24-01
    Washer Brb 3.2x7 – Part Number: 734112401
    Washer Brb 3.2x7
    Part Number: 734112401
      No Longer Available
  • 734 11 46-01
    Washer – Part Number: 819070816
    Washer
    Part Number: 819070816
      Special Order
    $2.99
  • 734 11 64-01
    Washer – Part Number: 734116401
    Washer
    Part Number: 734116401
      On Order
    $5.96
Engine

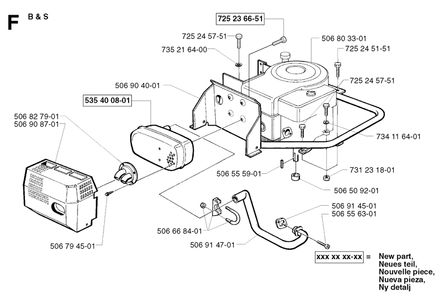

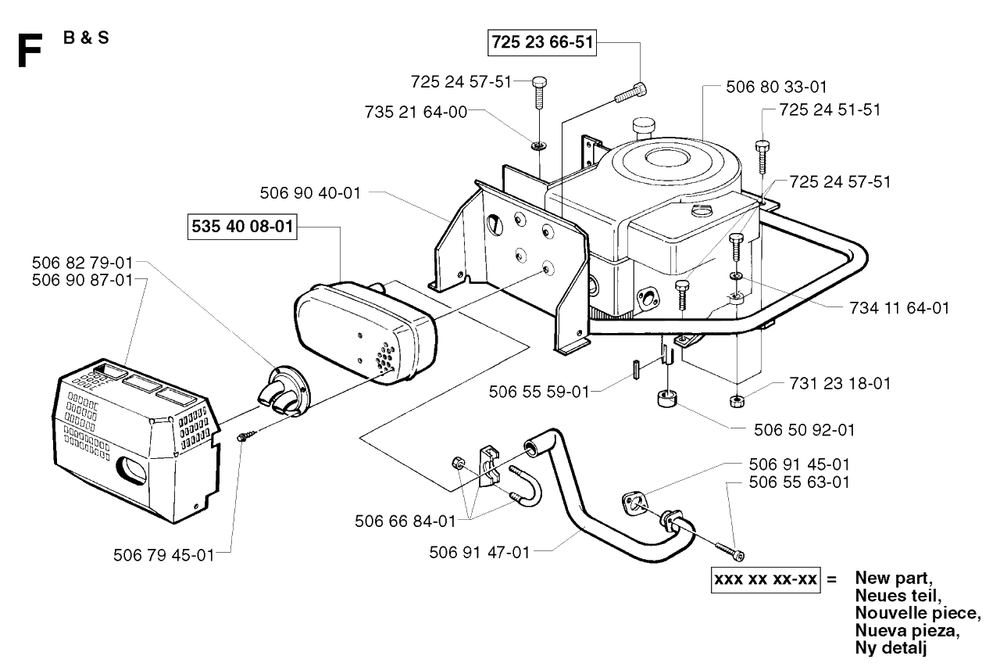

Engine Diagram and Parts List for 2002-02 Husqvarna Lawn Tractor
  • 506 50 92-01
    Spacer – Part Number: 506509201
    Spacer
    Part Number: 506509201
      Special Order
    $17.92
  • 506 55 59-01
    Key – Part Number: 506555901
    Key
    Part Number: 506555901
      Special Order
    $5.96
  • 506 55 63-01
    Bolt – Part Number: 506556301
    Bolt
    Part Number: 506556301
      Special Order
    $5.95
  • 506 66 84-01
    Clamp – Part Number: 501152201
    Clamp
    Part Number: 501152201
      In Stock
    $5.95
  • 506 79 45-01
    Screw – Part Number: 506794501
    Screw
    Part Number: 506794501
      Special Order
    $10.46
  • 506 80 33-01
    Motor Assy – Part Number: 506803301
    Motor Assy
    Part Number: 506803301
      No Longer Available
  • 506 82 79-01
    Pipe – Part Number: 506827901
    Pipe
    Part Number: 506827901
      Special Order
    $164.59
  • 506 90 40-01
    Bracket – Part Number: 506904001
    Bracket
    Part Number: 506904001
      No Longer Available
  • 506 90 87-01
    Heat Shield – Part Number: 506908701
    Heat Shield
    Part Number: 506908701
      No Longer Available
  • 506 91 45-01
    Flange – Part Number: 506914501
    Flange
    Part Number: 506914501
      In Stock
    $7.46
  • 506 91 47-01
    Exhaust Pipe – Part Number: 506914701
    Exhaust Pipe
    Part Number: 506914701
      No Longer Available
  • 535 40 08-01
    Muffler – Part Number: 584617401
    Muffler
    Part Number: 584617401
      Special Order
    $202.99
  • 725 23 66-51
    Screw – Part Number: 725236651
    Screw
    Part Number: 725236651
      Special Order
    $10.46
  • 725 24 51-51
    Screw 8X20 – Part Number: 725245151
    Screw 8X20
    Part Number: 725245151
      No Longer Available
  • 725 24 57-51
    Screw – Part Number: 725245751
    Screw
    Part Number: 725245751
      Special Order
    $19.40
  • 731 23 18-01
    Nut – Part Number: 731231801
    Nut
    Part Number: 731231801
      In Stock
    $5.95
  • 734 11 64-01
    Washer – Part Number: 734116401
    Washer
    Part Number: 734116401
      On Order
    $5.96
  • 735 21 64-00
    Washer – Part Number: 735216400
    Washer
    Part Number: 735216400
      No Longer Available
Frame
Frame Diagram and Parts List for 2002-02 Husqvarna Lawn Tractor
  • 506 59 74-01
    Bolt – Part Number: 506597401
    Bolt
    Part Number: 506597401
      In Stock
    $8.96
  • 506 59 75-01
    Washer – Part Number: 506597501
    Washer
    Part Number: 506597501
      No Longer Available
  • 506 79 32-02
    Pulley – Part Number: 586104302
    Pulley
    Part Number: 586104302
      Special Order
    $29.90
  • 506 82 68-01
    Bushing – Part Number: 506826801
    Bushing
    Part Number: 506826801
      No Longer Available
  • 506 83 76-01
    Spring – Part Number: 506837601
    Spring
    Part Number: 506837601
      In Stock
    $40.75
  • 506 83 77-01
    Screw – Part Number: 506837701
    Screw
    Part Number: 506837701
      Special Order
    $14.92
  • 506 89 58-01
    Bolt – Part Number: 506895801
    Bolt
    Part Number: 506895801
      On Order
    $10.46
  • 506 96 37-01
    Bracket – Part Number: 506963701
    Bracket
    Part Number: 506963701
      No Longer Available
  • 506 97 46-01
    Pin – Part Number: 506974601
    Pin
    Part Number: 506974601
      No Longer Available
  • 506 97 48-01
    Pulley – Part Number: 506974801
    Pulley
    Part Number: 506974801
      Special Order
    $59.95
  • 506 97 50-01
    Guide – Part Number: 506975001
    Guide
    Part Number: 506975001
      No Longer Available
  • 506 97 63-01
    Arm – Part Number: 506976301
    Arm
    Part Number: 506976301
      No Longer Available
  • 506 97 64-01
    Bushing – Part Number: 506976401
    Bushing
    Part Number: 506976401
      No Longer Available
  • 506 97 68-01
    Spring – Part Number: 594020601
    Spring
    Part Number: 594020601
      No Longer Available
  • 506 97 96-01
    Wheel – Part Number: 506979601
    Wheel
    Part Number: 506979601
      No Longer Available
  • 506 98 00-01
    Shaft – Part Number: 506980001
    Shaft
    Part Number: 506980001
      No Longer Available
  • 506 98 25-01
    Washer – Part Number: 506982501
    Washer
    Part Number: 506982501
      No Longer Available
  • 506 98 28-01
    Bracket – Part Number: 506982801
    Bracket
    Part Number: 506982801
      No Longer Available
  • 506 98 31-01
    Deck Attachment Assy – Part Number: 506983101
    Deck Attachment Assy
    Part Number: 506983101
      No Longer Available
  • 506 99 79-01
    Link – Part Number: 506997901
    Link
    Part Number: 506997901
      No Longer Available
  • 721 68 02-51
    R-Clip – Part Number: 721680251
    R-Clip
    Part Number: 721680251
      No Longer Available
  • 721 86 17-01
    Bolt – Part Number: 721861701
    Bolt
    Part Number: 721861701
      No Longer Available
  • 722 78 39-02
    Rivet – Part Number: 722783902
    Rivet
    Part Number: 722783902
      No Longer Available
  • 725 24 57-51
    Screw – Part Number: 725245751
    Screw
    Part Number: 725245751
      Special Order
    $19.40
  • 725 24 61-51
    Bolt – Part Number: 725246151
    Bolt
    Part Number: 725246151
      Special Order
    $7.46
  • 725 24 95-71
    Screw – Part Number: 725249571
    Screw
    Part Number: 725249571
      No Longer Available
  • 731 23 20-51
    Nut – Part Number: 731232001
    Nut
    Part Number: 731232001
      In Stock
    $5.96
  • 732 21 18-01
    Locknut M8 – Part Number: 732211801
    Locknut M8
    Part Number: 732211801
      In Stock
    $5.95
  • 732 21 20-51
    Nut – Part Number: 732212001
    Nut
    Part Number: 732212001
      Special Order
    $5.96
  • 732 25 22-01
    Nut – Part Number: 732252201
    Nut
    Part Number: 732252201
      No Longer Available
  • 734 11 64-41
    Spacer – Part Number: 734116441
    Spacer
    Part Number: 734116441
      In Stock
    $5.95
  • 734 11 72-01
    Washer 5/16 Std Flt – Part Number: 596134901
    Washer 5/16 Std Flt
    Part Number: 596134901
    ★★★★★
    ★★★★★
    (5)
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 734 11 77-71
    Lawn Mower Bushing – Part Number: 734117771
    Lawn Mower Bushing
    Part Number: 734117771
      In Stock
    $5.95
  • 735 31 15-20
    Retaining Ring – Part Number: 735311520
    Retaining Ring
    Part Number: 735311520
      Special Order
    $5.95
Hood

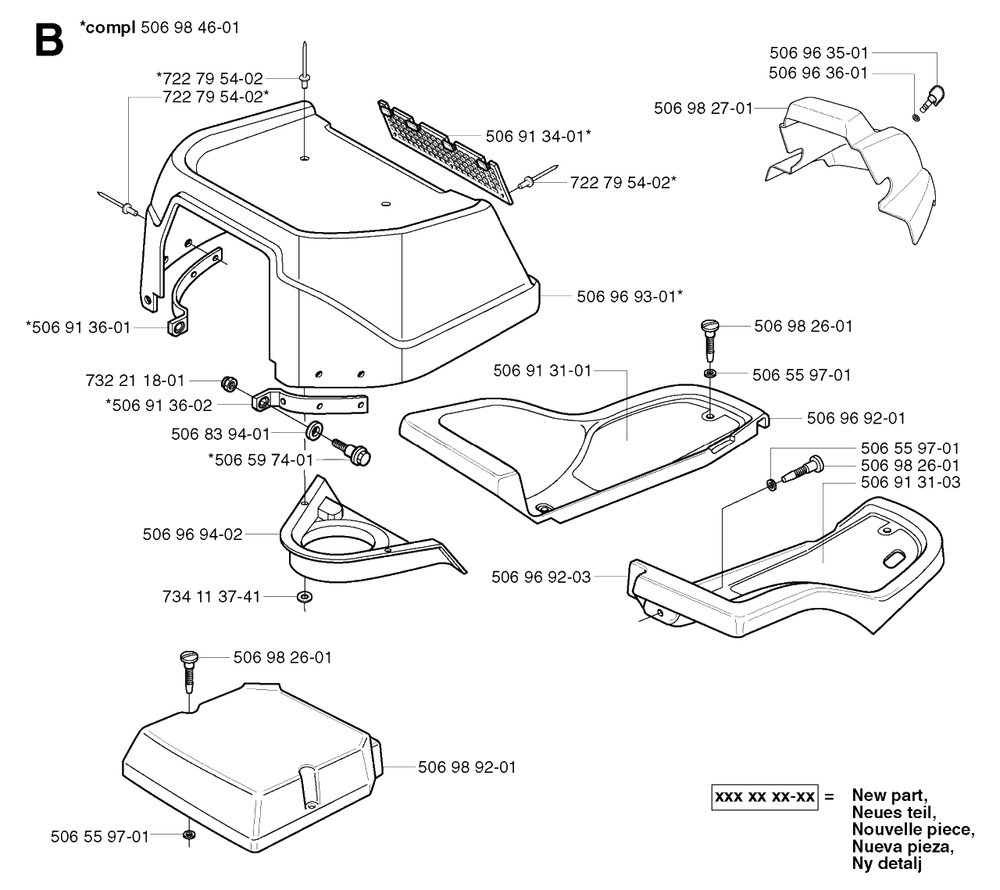

Hood Diagram and Parts List for 2002-02 Husqvarna Lawn Tractor
  • 506 55 97-01
    Washer – Part Number: 506559701
    Washer
    Part Number: 506559701
      Special Order
    $5.95
  • 506 59 74-01
    Bolt – Part Number: 506597401
    Bolt
    Part Number: 506597401
      In Stock
    $8.96
  • 506 83 94-01
    Springwasher – Part Number: 506839401
    Springwasher
    Part Number: 506839401
      In Stock
    $5.95
  • 506 91 31-01
    Mat – Part Number: 535466101
    Mat
    Part Number: 535466101
      No Longer Available
  • 506 91 31-03
    Mat – Part Number: 535466103
    Mat
    Part Number: 535466103
      No Longer Available
  • 506 91 34-01
    Screen – Part Number: 506913401
    Screen
    Part Number: 506913401
      No Longer Available
  • 506 91 36-01
    Bracket – Part Number: 506913601
    Bracket
    Part Number: 506913601
      No Longer Available
  • 506 91 36-02
    Bracket – Part Number: 506913602
    Bracket
    Part Number: 506913602
      No Longer Available
  • 506 96 35-01
    BOLT – Part Number: 525390601
    BOLT
    Part Number: 525390601
      No Longer Available
  • 506 96 36-01
    Washer – Part Number: 506963601
    Washer
    Part Number: 506963601
      No Longer Available
  • 506 96 92-01
    Plate Left – Part Number: 535466001
    Plate Left
    Part Number: 535466001
      No Longer Available
  • 506 96 92-03
    Plate Pan – Part Number: 535466003
    Plate Pan
    Part Number: 535466003
      No Longer Available
  • 506 96 93-01
    Hood - 16H – Part Number: 506984605
    Hood - 16H
    Part Number: 506984605
      No Longer Available
  • 506 96 94-02
    Air Conductor – Part Number: 506969402
    Air Conductor
    Part Number: 506969402
      No Longer Available
  • 506 98 26-01
    Screw – Part Number: 506982601
    Screw
    Part Number: 506982601
      Special Order
    $5.96
  • 506 98 27-01
    FRONT HOOD – Part Number: 535469802
    FRONT HOOD
    Part Number: 535469802
      No Longer Available
  • 506 98 46-01
    Hood - 16H – Part Number: 506984605
    Hood - 16H
    Part Number: 506984605
      No Longer Available
  • 506 98 92-01
    Cover – Part Number: 578261201
    Cover
    Part Number: 578261201
      No Longer Available
  • 722 79 54-02
    Rivet – Part Number: 722795402
    Rivet
    Part Number: 722795402
      No Longer Available
  • 732 21 18-01
    Locknut M8 – Part Number: 732211801
    Locknut M8
    Part Number: 732211801
      In Stock
    $5.95
  • 734 11 37-41
    Washer – Part Number: 734113741
    Washer
    Part Number: 734113741
      Special Order
    $8.10
Pedals

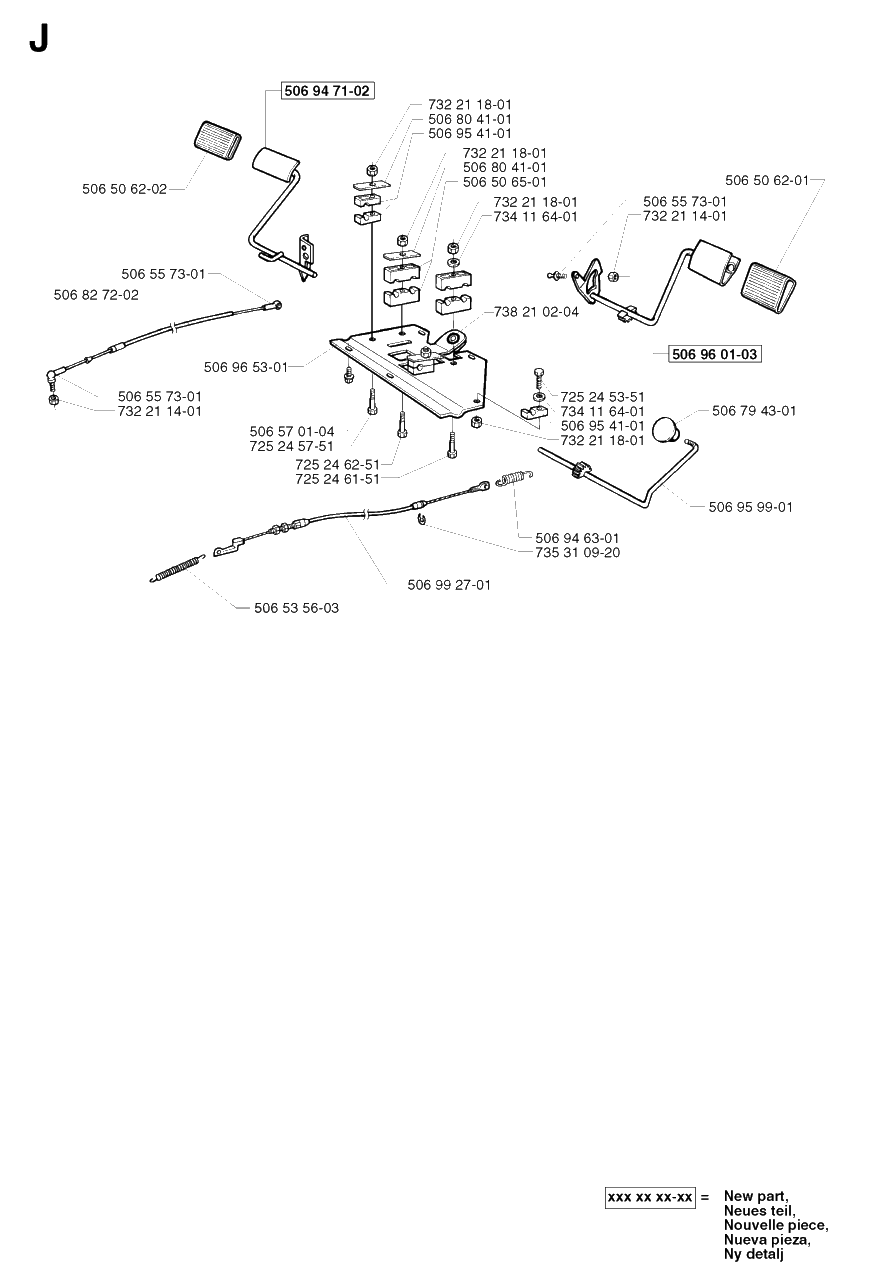

Pedals Diagram and Parts List for 2002-02 Husqvarna Lawn Tractor
  • 506 50 62-01
    Pedal Rubber – Part Number: 586966401
    Pedal Rubber
    Part Number: 586966401
      In Stock
    $24.82
  • 506 50 62-02
    Pedal Rubber – Part Number: 586966402
    Pedal Rubber
    Part Number: 586966402
      In Stock
    $24.82
  • 506 50 65-01
    Pedal Shaft Clamp – Part Number: 506506501
    Pedal Shaft Clamp
    Part Number: 506506501
      Special Order
    $10.46
  • 506 53 56-03
    Spring – Part Number: 506535603
    Spring
    Part Number: 506535603
    ★★★★★
    ★★★★★
    (1)
      Special Order
    $7.46
  • 506 55 73-01
    Connector – Part Number: 578776801
    Connector
    Part Number: 578776801
      Special Order
    $16.52
  • 506 57 01-04
    Bolt – Part Number: 506570104
    Bolt
    Part Number: 506570104
      Special Order
    $7.46
  • 506 79 43-01
    Knob – Part Number: 586727401
    Knob
    Part Number: 586727401
      Special Order
    $16.52
  • 506 80 41-01
    Plate – Part Number: 506804101
    Plate
    Part Number: 506804101
      Special Order
    $10.46
  • 506 82 72-02
    Control Cable – Part Number: 582152001
    Control Cable
    Part Number: 582152001
    ★★★★★
    ★★★★★
    (3)
      In Stock
    $84.38
  • 506 94 63-01
    Spring – Part Number: 506946301
    Spring
    Part Number: 506946301
      On Order
    $11.03
  • 506 94 71-02
    Pedal – Part Number: 506947102
    Pedal
    Part Number: 506947102
      No Longer Available
  • 506 95 41-01
    Support – Part Number: 506954101
    Support
    Part Number: 506954101
      Special Order
    $8.96
  • 506 95 99-01
    Pedal – Part Number: 506959901
    Pedal
    Part Number: 506959901
      No Longer Available
  • 506 96 01-03
    Pedal – Part Number: 506960103
    Pedal
    Part Number: 506960103
      No Longer Available
  • 506 96 53-01
    Plate – Part Number: 506965301
    Plate
    Part Number: 506965301
      No Longer Available
  • 506 99 27-01
    Brake Wire – Part Number: 506992701
    Brake Wire
    Part Number: 506992701
      No Longer Available
  • 725 24 53-51
    Screw – Part Number: 725245371
    Screw
    Part Number: 725245371
      No Longer Available
  • 725 24 57-51
    Screw – Part Number: 725245751
    Screw
    Part Number: 725245751
      Special Order
    $19.40
  • 725 24 61-51
    Bolt – Part Number: 725246151
    Bolt
    Part Number: 725246151
      Special Order
    $7.46
  • 725 24 62-51
    Screw – Part Number: 725246251
    Screw
    Part Number: 725246251
      Special Order
    $19.40
  • 732 21 14-01
    Locknut M5 – Part Number: 732211401
    Locknut M5
    Part Number: 732211401
      Special Order
    $5.95
  • 732 21 18-01
    Locknut M8 – Part Number: 732211801
    Locknut M8
    Part Number: 732211801
      In Stock
    $5.95
  • 734 11 64-01
    Washer – Part Number: 734116401
    Washer
    Part Number: 734116401
      On Order
    $5.96
  • 735 31 09-20
    E-clip – Part Number: 735310920
    E-clip
    Part Number: 735310920
      On Order
    $5.95
  • 738 21 02-04
    Ball Bearing 6002-2rs1 – Part Number: 738210204
    Ball Bearing 6002-2rs1
    Part Number: 738210204
      Special Order
    $17.92
Protection Frame

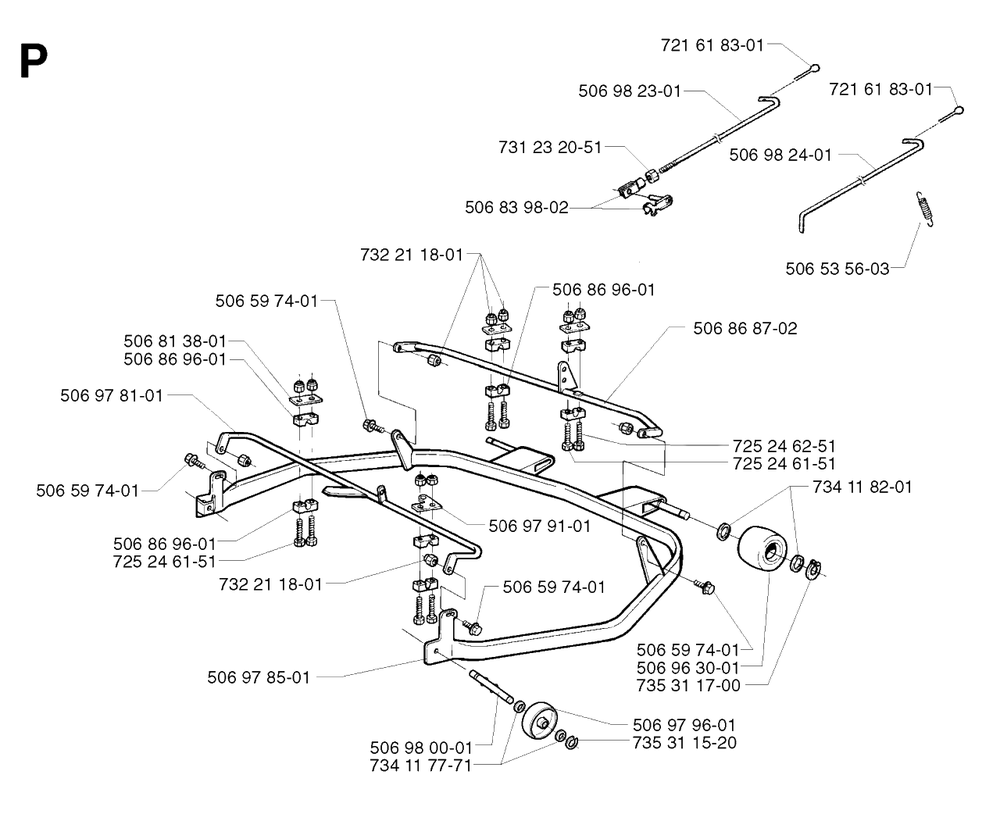

Protection Frame Diagram and Parts List for 2002-02 Husqvarna Lawn Tractor
  • 506 53 56-03
    Spring – Part Number: 506535603
    Spring
    Part Number: 506535603
    ★★★★★
    ★★★★★
    (1)
      Special Order
    $7.46
  • 506 59 74-01
    Bolt – Part Number: 506597401
    Bolt
    Part Number: 506597401
      In Stock
    $8.96
  • 506 81 38-01
    Plate – Part Number: 506813801
    Plate
    Part Number: 506813801
      Special Order
    $10.46
  • 506 83 98-02
    Joint Cpl – Part Number: 506839802
    Joint Cpl
    Part Number: 506839802
      No Longer Available
  • 506 86 87-02
    Pipe – Part Number: 506868702
    Pipe
    Part Number: 506868702
      No Longer Available
  • 506 86 96-01
    Bearing – Part Number: 506869601
    Bearing
    Part Number: 506869601
      No Longer Available
  • 506 96 30-01
    Deck Roller, Front – Part Number: 506963001
    Deck Roller, Front
    Part Number: 506963001
      In Stock
    $71.95
  • 506 97 81-01
    Pipe – Part Number: 506978101
    Pipe
    Part Number: 506978101
      No Longer Available
  • 506 97 85-01
    Frame – Part Number: 506978501
    Frame
    Part Number: 506978501
      No Longer Available
  • 506 97 91-01
    Plate – Part Number: 506979101
    Plate
    Part Number: 506979101
      No Longer Available
  • 506 97 96-01
    Wheel – Part Number: 506979601
    Wheel
    Part Number: 506979601
      No Longer Available
  • 506 98 00-01
    Shaft – Part Number: 506980001
    Shaft
    Part Number: 506980001
      No Longer Available
  • 506 98 23-01
    Parallel Rod – Part Number: 506982301
    Parallel Rod
    Part Number: 506982301
      No Longer Available
  • 506 98 24-01
    Clutch Rod – Part Number: 506982401
    Clutch Rod
    Part Number: 506982401
      No Longer Available
  • 721 61 83-01
    Split Pin – Part Number: 721618301
    Split Pin
    Part Number: 721618301
      No Longer Available
  • 725 24 61-51
    Bolt – Part Number: 725246151
    Bolt
    Part Number: 725246151
      Special Order
    $7.46
  • 725 24 62-51
    Screw – Part Number: 725246251
    Screw
    Part Number: 725246251
      Special Order
    $19.40
  • 731 23 20-51
    Nut – Part Number: 731232001
    Nut
    Part Number: 731232001
      In Stock
    $5.96
  • 732 21 18-01
    Locknut M8 – Part Number: 732211801
    Locknut M8
    Part Number: 732211801
      In Stock
    $5.95
  • 734 11 77-71
    Lawn Mower Bushing – Part Number: 734117771
    Lawn Mower Bushing
    Part Number: 734117771
      In Stock
    $5.95
  • 734 11 82-01
    Washer – Part Number: 734118201
    Washer
    Part Number: 734118201
      In Stock
    $6.36
  • 735 31 15-20
    Retaining Ring – Part Number: 735311520
    Retaining Ring
    Part Number: 735311520
      Special Order
    $5.95
  • 735 31 17-00
    Retaining Ring Sga 15 – Part Number: 735311700
    Retaining Ring Sga 15
    Part Number: 735311700
      On Order
    $5.95
Seat
Seat Diagram and Parts List for 2002-02 Husqvarna Lawn Tractor
  • 506 50 99-01
    Shaft – Part Number: 506509901
    Shaft
    Part Number: 506509901
      No Longer Available
  • 506 55 62-01
    SEAT – Part Number: 506556201
    SEAT
    Part Number: 506556201
      No Longer Available
  • 506 55 63-01
    Bolt – Part Number: 506556301
    Bolt
    Part Number: 506556301
      Special Order
    $5.95
  • 506 56 53-01
    Washer – Part Number: 506565301
    Washer
    Part Number: 506565301
      Special Order
    $17.92
  • 506 56 55-01
    Adjusting Knob – Part Number: 585065201
    Adjusting Knob
    Part Number: 585065201
      No Longer Available
  • 506 66 88-01
    Pin – Part Number: 506668801
    Pin
    Part Number: 506668801
      No Longer Available
  • 506 91 51-01
    Seat Base – Part Number: 506915101
    Seat Base
    Part Number: 506915101
      No Longer Available
  • 506 91 53-01
    Seat Spring – Part Number: 506915301
    Seat Spring
    Part Number: 506915301
      Special Order
    $29.88
  • 725 24 91-61
    Screw M10X25 – Part Number: 725249371
    Screw M10X25
    Part Number: 725249371
      No Longer Available
  • 734 11 64-41
    Spacer – Part Number: 734116441
    Spacer
    Part Number: 734116441
      In Stock
    $5.95
  • 734 11 74-41
    Washer – Part Number: 734117441
    Washer
    Part Number: 734117441
      Special Order
    $5.96
  • 735 31 12-00
    Retaining Ring – Part Number: 735311200
    Retaining Ring
    Part Number: 735311200
      In Stock
    $5.95
Steering
Steering Diagram and Parts List for 2002-02 Husqvarna Lawn Tractor
  • 506 50 07-01
    Pulley – Part Number: 506500701
    Pulley
    Part Number: 506500701
      No Longer Available
  • 506 50 08-01
    Spacer – Part Number: 506500801
    Spacer
    Part Number: 506500801
      No Longer Available
  • 506 52 24-01
    Roller – Part Number: 506522401
    Roller
    Part Number: 506522401
      Special Order
    $17.92
  • 506 53 94-01
    Shaft – Part Number: 506539404
    Shaft
    Part Number: 506539404
      Special Order
    $27.58
  • 506 55 46-01
    Steering Chain – Part Number: 506554601
    Steering Chain
    Part Number: 506554601
      In Stock
    $26.88
  • 506 55 47-01
    Link – Part Number: 506554701
    Link
    Part Number: 506554701
      In Stock
    $6.88
  • 506 57 01-04
    Bolt – Part Number: 506570104
    Bolt
    Part Number: 506570104
      Special Order
    $7.46
  • 506 58 91-01
    Wire Assembly – Part Number: 501604801
    Wire Assembly
    Part Number: 501604801
    ★★★★★
    ★★★★★
    (3)
      In Stock
    $33.16
  • 506 59 20-01
    Steering Wheel – Part Number: 506592001
    Steering Wheel
    Part Number: 506592001
      No Longer Available
  • 506 86 33-01
    Shaft – Part Number: 506863301
    Shaft
    Part Number: 506863301
      No Longer Available
  • 506 86 34-01
    Spacer – Part Number: 587080901
    Spacer
    Part Number: 587080901
      Special Order
    $11.03
  • 506 86 36-01
    Washer – Part Number: 506863601
    Washer
    Part Number: 506863601
      Special Order
    $26.88
  • 506 88 78-01
    Spacer – Part Number: 506887801
    Spacer
    Part Number: 506887801
      No Longer Available
  • 725 24 97-51
    Screw – Part Number: 725249751
    Screw
    Part Number: 725249751
      Special Order
    $7.46
  • 728 74 55-05
    Screw – Part Number: 728745505
    Screw
    Part Number: 728745505
      Special Order
    $5.95
  • 728 84 43-05
    Screw – Part Number: 728844305
    Screw
    Part Number: 728844305
      No Longer Available
  • 731 23 18-01
    Nut – Part Number: 731231801
    Nut
    Part Number: 731231801
      In Stock
    $5.95
  • 731 23 20-51
    Nut – Part Number: 731232001
    Nut
    Part Number: 731232001
      In Stock
    $5.96
  • 732 21 20-51
    Nut – Part Number: 732212001
    Nut
    Part Number: 732212001
      Special Order
    $5.96
  • 734 11 74-41
    Washer – Part Number: 734117441
    Washer
    Part Number: 734117441
      Special Order
    $5.96
  • 735 31 14-20
    Retaining Ring – Part Number: 735311420
    Retaining Ring
    Part Number: 735311420
      Special Order
    $5.95
  • 735 31 40-10
    Circlip Sgh 47 – Part Number: 735314010
    Circlip Sgh 47
    Part Number: 735314010
      Special Order
    $7.46
  • 738 21 04-04
    Ball Bearing 6004-2rs1 – Part Number: 738210404
    Ball Bearing 6004-2rs1
    Part Number: 738210404
    ★★★★★
    ★★★★★
    (1)
      In Stock
    $17.92
  • 738 22 04-19
    Ball-bearing 6204-2rs – Part Number: 738220419
    Ball-bearing 6204-2rs
    Part Number: 738220419
      In Stock
    $26.88
Steering Column
Steering Column Diagram and Parts List for 2002-02 Husqvarna Lawn Tractor
  • 506 54 35-01
    Bush – Part Number: 506543501
    Bush
    Part Number: 506543501
      No Longer Available
  • 506 56 38-01
    Roller – Part Number: 506563801
    Roller
    Part Number: 506563801
      No Longer Available
  • 506 56 65-01
    Clamp – Part Number: 506566501
    Clamp
    Part Number: 506566501
      Special Order
    $5.95
  • 506 57 61-03
    Guide Plate – Part Number: 506576103
    Guide Plate
    Part Number: 506576103
      No Longer Available
  • 506 59 50-01
    Lever – Part Number: 506595001
    Lever
    Part Number: 506595001
      No Longer Available
  • 506 59 51-01
    Tensioner – Part Number: 535484401
    Tensioner
    Part Number: 535484401
      In Stock
    $71.95
  • 506 66 56-01
    Spring – Part Number: 506665601
    Spring
    Part Number: 506665601
      Special Order
    $54.35
  • 506 77 34-01
    Washer – Part Number: 506773401
    Washer
    Part Number: 506773401
      Special Order
    $5.96
  • 506 88 99-01
    Draw Ring – Part Number: 506889901
    Draw Ring
    Part Number: 506889901
      Special Order
    $29.88
  • 506 91 87-02
    Washer – Part Number: 584288604
    Washer
    Part Number: 584288604
      Special Order
    $5.95
  • 506 94 69-01
    Pulley – Part Number: 506946901
    Pulley
    Part Number: 506946901
      In Stock
    $47.66
  • 506 98 58-01
    Spindle – Part Number: 506985801
    Spindle
    Part Number: 506985801
      No Longer Available
  • 506 98 59-01
    Shaft – Part Number: 506985901
    Shaft
    Part Number: 506985901
      Special Order
    $59.95
  • 506 98 61-01
    Bushing – Part Number: 506986102
    Bushing
    Part Number: 506986102
      Special Order
    $24.82
  • 506 98 61-02
    Bushing – Part Number: 506986102
    Bushing
    Part Number: 506986102
      Special Order
    $24.82
  • 506 98 72-01
    Bracket – Part Number: 506987201
    Bracket
    Part Number: 506987201
      No Longer Available
  • 506 98 74-01
    Arm – Part Number: 506987403
    Arm
    Part Number: 506987403
      No Longer Available
  • 506 98 77-01
    Bracket – Part Number: 506987701
    Bracket
    Part Number: 506987701
      No Longer Available
  • 506 98 78-01
    Micro Switch – Part Number: 535469002
    Micro Switch
    Part Number: 535469002
      No Longer Available
  • 506 98 79-01
    Bracket – Part Number: 506987901
    Bracket
    Part Number: 506987901
      No Longer Available
  • 506 98 84-01
    Tensioner – Part Number: 506988401
    Tensioner
    Part Number: 506988401
      Special Order
    $71.95
  • 506 98 85-01
    Tensioner – Part Number: 588740401
    Tensioner
    Part Number: 588740401
      Special Order
    $24.82
  • 506 98 86-01
    Spring – Part Number: 594924101
    Spring
    Part Number: 594924101
      In Stock
    $5.95
  • 506 98 88-01
    Screw – Part Number: 506988801
    Screw
    Part Number: 506988801
      No Longer Available
  • 535 03 25-01
    Switch – Part Number: 535469201
    Switch
    Part Number: 535469201
      Special Order
    $24.82
  • 535 40 60-01
    Bracket – Part Number: 535406001
    Bracket
    Part Number: 535406001
      Special Order
    $393.81
  • 723 12 28-01
    Screw – Part Number: 723122801
    Screw
    Part Number: 723122801
      No Longer Available
  • 725 23 64-61
    Screw – Part Number: 725236461
    Screw
    Part Number: 725236461
      Special Order
    $5.95
  • 725 23 68-51
    Screw – Part Number: 725236851
    Screw
    Part Number: 725236851
      No Longer Available
  • 725 24 51-51
    Screw 8X20 – Part Number: 725245151
    Screw 8X20
    Part Number: 725245151
      No Longer Available
  • 725 24 55-51
    Screw – Part Number: 725245551
    Screw
    Part Number: 725245551
      No Longer Available
  • 725 24 59-51
    Screw – Part Number: 725245951
    Screw
    Part Number: 725245951
      In Stock
    $7.46
  • 725 24 62-51
    Screw – Part Number: 725246251
    Screw
    Part Number: 725246251
      Special Order
    $19.40
  • 725 24 67-51
    Hex Bolt – Part Number: 725246751
    Hex Bolt
    Part Number: 725246751
      Special Order
    $6.88
  • 725 24 93-71
    Screw M10X25 – Part Number: 725249371
    Screw M10X25
    Part Number: 725249371
      No Longer Available
  • 731 23 10-01
    NUT M6M M3 – Part Number: 731231001
    NUT M6M M3
    Part Number: 731231001
      Special Order
    $8.26
  • 731 23 18-01
    Nut – Part Number: 731231801
    Nut
    Part Number: 731231801
      In Stock
    $5.95
  • 731 23 20-01
    Nut – Part Number: 731232001
    Nut
    Part Number: 731232001
      In Stock
    $5.96
  • 731 23 20-51
    Nut – Part Number: 731232001
    Nut
    Part Number: 731232001
      In Stock
    $5.96
  • 732 21 14-01
    Locknut M5 – Part Number: 732211401
    Locknut M5
    Part Number: 732211401
      Special Order
    $5.95
  • 732 21 18-01
    Locknut M8 – Part Number: 732211801
    Locknut M8
    Part Number: 732211801
      In Stock
    $5.95
  • 734 11 24-01
    Washer Brb 3.2x7 – Part Number: 734112401
    Washer Brb 3.2x7
    Part Number: 734112401
      No Longer Available
  • 734 11 53-41
    Washer – Part Number: 734115341
    Washer
    Part Number: 734115341
      No Longer Available
  • 734 11 64-01
    Washer – Part Number: 734116401
    Washer
    Part Number: 734116401
      On Order
    $5.96
  • 734 11 64-41
    Spacer – Part Number: 734116441
    Spacer
    Part Number: 734116441
      In Stock
    $5.95
  • 735 31 26-00
    Retaining Ring Sga 25 – Part Number: 735312600
    Retaining Ring Sga 25
    Part Number: 735312600
      Special Order
    $5.95
  • 735 31 38-10
    Retaining Ring – Part Number: 735313810
    Retaining Ring
    Part Number: 735313810
      In Stock
    $5.95
  • 735 31 40-10
    Circlip Sgh 47 – Part Number: 735314010
    Circlip Sgh 47
    Part Number: 735314010
      Special Order
    $7.46
  • 738 21 04-04
    Ball Bearing 6004-2rs1 – Part Number: 738210404
    Ball Bearing 6004-2rs1
    Part Number: 738210404
    ★★★★★
    ★★★★★
    (1)
      In Stock
    $17.92
  • 738 21 05-04
    Ball Bearing 6005-2Rs – Part Number: 738210504
    Ball Bearing 6005-2Rs
    Part Number: 738210504
      No Longer Available
  • 738 21 10-04
    Ball Bearing 6010 2Rs1 – Part Number: 738211004
    Ball Bearing 6010 2Rs1
    Part Number: 738211004
      Special Order
    $202.99
  • 738 88 10-01
    Grease Nipple – Part Number: 738881001
    Grease Nipple
    Part Number: 738881001
      Special Order
    $10.46
  • 740 68 14-21
    V-Ring – Part Number: 740681421
    V-Ring
    Part Number: 740681421
      Special Order
    $17.92
Transmission
Transmission Diagram and Parts List for 2002-02 Husqvarna Lawn Tractor
  • 506 55 83-02
    Bolt – Part Number: 506558302
    Bolt
    Part Number: 506558302
      No Longer Available
  • 506 59 93-01
    Connector – Part Number: 506599301
    Connector
    Part Number: 506599301
      No Longer Available
  • 506 83 43-01
    Spring – Part Number: 506834301
    Spring
    Part Number: 506834301
      Special Order
    $5.95
  • 506 98 64-01
    DISCONTINUED – Part Number: 506986301
    DISCONTINUED
    Part Number: 506986301
      Special Order
    $1463.53
  • 506 98 65-01
    Washer – Part Number: 506986501
    Washer
    Part Number: 506986501
      Special Order
    $6.88
  • 506 98 66-01
    Sleeve – Part Number: 506986601
    Sleeve
    Part Number: 506986601
      Special Order
    $11.03
  • 506 98 67-01
    Pulley B – Part Number: 502451901
    Pulley B
    Part Number: 502451901
      Special Order
    $53.95
  • 506 98 68-01
    Fan – Part Number: 583350101
    Fan
    Part Number: 583350101
    ★★★★★
    ★★★★★
    (1)
      In Stock
    $35.11
  • 506 98 69-01
    Tube – Part Number: 502451601
    Tube
    Part Number: 502451601
      Special Order
    $27.58
  • 506 98 70-01
    Clamp – Part Number: 505131102
    Clamp
    Part Number: 505131102
      Special Order
    $8.26
  • 506 98 75-01
    Rod – Part Number: 506987501
    Rod
    Part Number: 506987501
      Special Order
    $47.66
  • 506 98 80-01
    Tank Cap Assy – Part Number: 590324701
    Tank Cap Assy
    Part Number: 590324701
      No Longer Available
  • 506 98 82-01
    Rod – Part Number: 506988201
    Rod
    Part Number: 506988201
      No Longer Available
  • 506 98 90-01
    Tank – Part Number: 506989001
    Tank
    Part Number: 506989001
      No Longer Available
  • 535 40 28-09
    Pin – Part Number: 535402809
    Pin
    Part Number: 535402809
      No Longer Available
  • 535 40 28-16
    Pin – Part Number: 535402816
    Pin
    Part Number: 535402816
    ★★★★★
    ★★★★★
    (1)
      Special Order
    $6.88
  • 535 40 28-17
    Arm – Part Number: 535402817
    Arm
    Part Number: 535402817
      Special Order
    $28.84
  • 535 40 28-29
    Magnet – Part Number: 535402829
    Magnet
    Part Number: 535402829
      No Longer Available
  • 535 40 28-30
    Holder – Part Number: 535402830
    Holder
    Part Number: 535402830
      No Longer Available
  • 535 40 28-32
    Plug – Part Number: 535402832
    Plug
    Part Number: 535402832
      In Stock
    $20.68
  • 535 40 28-33
    Pin – Part Number: 535402833
    Pin
    Part Number: 535402833
      Special Order
    $5.95
  • 535 40 28-35
    Lever – Part Number: 535402835
    Lever
    Part Number: 535402835
      No Longer Available
  • 535 40 28-37
    Sealing – Part Number: 583349301
    Sealing
    Part Number: 583349301
    ★★★★★
    ★★★★★
    (1)
      In Stock
    $24.82
  • 535 40 28-38
    Arm – Part Number: 535402838
    Arm
    Part Number: 535402838
      Special Order
    $24.82
  • 535 40 28-39
    Return Spring – Part Number: 535402839
    Return Spring
    Part Number: 535402839
      No Longer Available
  • 535 40 28-40
    Pin – Part Number: 535402840
    Pin
    Part Number: 535402840
      Special Order
    $6.88
  • 535 40 28-41
    Pin – Part Number: 535402841
    Pin
    Part Number: 535402841
      Special Order
    $5.95
  • 731 23 18-01
    Nut – Part Number: 731231801
    Nut
    Part Number: 731231801
      In Stock
    $5.95
  • 732 21 14-01
    Locknut M5 – Part Number: 732211401
    Locknut M5
    Part Number: 732211401
      Special Order
    $5.95
  • 735 31 15-00
    Retaining Ring – Part Number: 735311500
    Retaining Ring
    Part Number: 735311500
      In Stock
    $5.95
  • 735 31 28-00
    Circlip – Part Number: 735312800
    Circlip
    Part Number: 735312800
      No Longer Available
Wheels And Tires
Wheels And Tires Diagram and Parts List for 2002-02 Husqvarna Lawn Tractor
  • 506 50 46-01
    Key – Part Number: 506504601
    Key
    Part Number: 506504601
      No Longer Available
  • 506 50 48-01
    Washer – Part Number: 506504801
    Washer
    Part Number: 506504801
      No Longer Available
  • 506 50 48-03
    Washer – Part Number: 506504803
    Washer
    Part Number: 506504803
      Special Order
    $19.40
  • 506 50 48-05
    Washer – Part Number: 506504805
    Washer
    Part Number: 506504805
    ★★★★★
    ★★★★★
    (1)
      Special Order
    $5.95
  • 506 55 48-04
    Wheel (Compl) – Part Number: 506554804
    Wheel (Compl)
    Part Number: 506554804
      No Longer Available
  • 506 55 49-03
    Wheel – Part Number: 506554903
    Wheel
    Part Number: 506554903
      No Longer Available
  • 506 55 50-01
    Tire – Part Number: 506555001
    Tire
    Part Number: 506555001
      No Longer Available
  • 506 57 43-01
    Valve – Part Number: 506574301
    Valve
    Part Number: 506574301
      No Longer Available
  • 506 59 62-03
    Space Sleeve – Part Number: 506596203
    Space Sleeve
    Part Number: 506596203
      No Longer Available
  • 506 79 61-01
    Front Rim – Part Number: 506796101
    Front Rim
    Part Number: 506796101
      No Longer Available
  • 506 89 90-01
    Retaining Ring – Part Number: 506899001
    Retaining Ring
    Part Number: 506899001
      Special Order
    $5.95
  • 506 91 44-01
    Shaft – Part Number: 506914401
    Shaft
    Part Number: 506914401
      No Longer Available
  • 506 92 30-01
    Dust Cap – Part Number: 577772901
    Dust Cap
    Part Number: 577772901
      No Longer Available
  • 506 95 58-01
    Hubcap – Part Number: 506955801
    Hubcap
    Part Number: 506955801
      Special Order
    $17.92
  • 535 42 00-01
    Rim – Part Number: 535420001
    Rim
    Part Number: 535420001
      No Longer Available
  • 721 43 49-01
    Pin – Part Number: 721434901
    Pin
    Part Number: 721434901
      No Longer Available
  • 735 31 22-00
    Retaining Ring Sga 20 – Part Number: 735312200
    Retaining Ring Sga 20
    Part Number: 735312200
      No Longer Available
  • 738 22 04-19
    Ball-bearing 6204-2rs – Part Number: 738220419
    Ball-bearing 6204-2rs
    Part Number: 738220419
      In Stock
    $26.88

Questions & Answers

?

Our customer Service team is at the ready daily to answer your part and product questions.

Be the first to ask our experts a question about this part!

Ask our Team

We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.

✖

Our customer service team are at the ready daily to answer your part and product questions. We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
