Craftsman Peerless Transaxle Lawn Tractor Replacement Parts For Model 143808

We Sell Only Genuine Craftsman Parts

Popular Parts for 143808

Needle Bearing – Part Number: 780086 Needle Bearing
In Stock
$19.28
Screw 1/4-20 X 1-1/4 – Part Number: 792073 Screw 1/4-20 X 1-1/4
In Stock
Minimum Quantity of 2 required
$5.95
Retaining Ring – Part Number: TC-792035 Retaining Ring
Special Order
$14.80
Nut – Part Number: 792075 Nut
Special Order
$5.95
Shift Collar – Part Number: 784266 Shift Collar
Special Order
$16.58
thrust washer – Part Number: TC-780108 thrust washer
Special Order
$8.96
Washer – Part Number: 780001 Washer
Special Order
$5.95
Plug – Part Number: 792074 Plug
Special Order
$28.36

Search Within Model

Questions & Answers for Craftsman 143808
Browse all Parts Search by Area

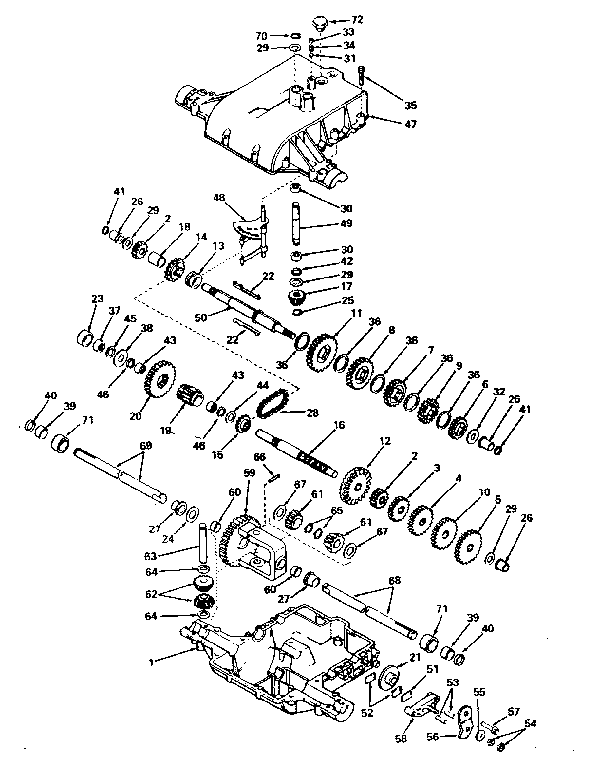

Replacement Parts Diagram and Parts List for Craftsman Lawn Tractor
Replacement Parts
Previous Showing All Parts Next
Replacement Parts
Replacement Parts Diagram and Parts List for Craftsman Lawn Tractor
  • 1
    Transaxle – Part Number: 794247
    Transaxle
    Part Number: 794247
      No Longer Available
  • 1A
    Case – Part Number: 770069
    Case
    Part Number: 770069
      No Longer Available
  • 2
    Gear – Part Number: 778136
    Gear
    Part Number: 778136
      Special Order
    $28.16
  • 3
    Lawn tractor transaxle spur gear, 20-tooth – Part Number: 778126
    Lawn tractor transaxle spur gear, 20-tooth
    Part Number: 778126
      No Longer Available
  • 4
    Gear – Part Number: 778127
    Gear
    Part Number: 778127
      No Longer Available
  • 5
    Gear – Part Number: 778129
    Gear
    Part Number: 778129
      No Longer Available
  • 6
    SPUR GEAR – Part Number: 778121A
    SPUR GEAR
    Part Number: 778121A
      Special Order
    $49.45
  • 7
    Lawn tractor transaxle spur gear, 25-tooth – Part Number: 778123
    Lawn tractor transaxle spur gear, 25-tooth
    Part Number: 778123
      No Longer Available
  • 8
    Lawn tractor transaxle intermediate gear – Part Number: 778124
    Lawn tractor transaxle intermediate gear
    Part Number: 778124
      No Longer Available
  • 9
    Gear – Part Number: 778122
    Gear
    Part Number: 778122
      No Longer Available
  • 10
    Gear, Spur (28 Teeth) – Part Number: 778128
    Gear, Spur (28 Teeth)
    Part Number: 778128
      Special Order
    $31.12
  • 11
    Gear Spur 35 Teeth – Part Number: 778125
    Gear Spur 35 Teeth
    Part Number: 778125
      Special Order
    $44.00
  • 12
    Gear – Part Number: 778137
    Gear
    Part Number: 778137
      No Longer Available
  • 13
    Shift Collar – Part Number: 784266
    Shift Collar
    Part Number: 784266
      Special Order
    $16.58
  • 14
    Sprocket – Part Number: 786083
    Sprocket
    Part Number: 786083
      Special Order
    $24.30
  • 15
    Sprocket-9 Teeth – Part Number: 786082
    Sprocket-9 Teeth
    Part Number: 786082
      No Longer Available
  • 16
    Shaft – Part Number: 776181
    Shaft
    Part Number: 776181
      No Longer Available
  • 17
    Bevel Pinion, Input – Part Number: TC-778113A
    Bevel Pinion, Input
    Part Number: TC-778113A
      No Longer Available
  • 18
    Spacer – Part Number: 786074
    Spacer
    Part Number: 786074
      Special Order
    $9.70
  • 19
    Pinion-Output – Part Number: 778138
    Pinion-Output
    Part Number: 778138
      Special Order
    $61.55
  • 20
    Output Gear – Part Number: 778139
    Output Gear
    Part Number: 778139
      Special Order
    $45.00
  • 21
    Brake Disc – Part Number: 790003
    Brake Disc
    Part Number: 790003
      No Longer Available
  • 22
    Key – Part Number: 792089A
    Key
    Part Number: 792089A
      Special Order
    $18.02
  • 23
    Spacer – Part Number: 786075
    Spacer
    Part Number: 786075
      Special Order
    $5.95
  • 24
    Washer – Part Number: 780001
    Washer
    Part Number: 780001
      Special Order
    $5.95
  • 25
    Snap Rng Ext – Part Number: 788040
    Snap Rng Ext
    Part Number: 788040
      No Longer Available
  • 26
    Bushing – Part Number: 780105
    Bushing
    Part Number: 780105
      No Longer Available
  • 27
    Bushing – Part Number: 780059
    Bushing
    Part Number: 780059
      No Longer Available
  • 28
    Chain – Part Number: 786081
    Chain
    Part Number: 786081
      No Longer Available
  • 29
    Washer, Thrust – Part Number: TC-780072
    Washer, Thrust
    Part Number: TC-780072
      No Longer Available
  • 30
    Needle Bearing – Part Number: 780086
    Needle Bearing
    Part Number: 780086
      In Stock
    $19.28
  • 31
    Ball-Steel – Part Number: 792077
    Ball-Steel
    Part Number: 792077
      Special Order
    $5.95
  • 32
    Washer – Part Number: 780109
    Washer
    Part Number: 780109
      Special Order
    $5.95
  • 33
    Screw – Part Number: 792078
    Screw
    Part Number: 792078
      Special Order
    $5.95
  • 34
    Spring – Part Number: TC-792079
    Spring
    Part Number: TC-792079
      No Longer Available
  • 35
    Screw 1/4-20 X 1-1/4 – Part Number: 792073
    Screw 1/4-20 X 1-1/4
    Part Number: 792073
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 36
    thrust washer – Part Number: TC-780108
    thrust washer
    Part Number: TC-780108
      Special Order
    $8.96
  • 37
    Bearing – Part Number: 780111
    Bearing
    Part Number: 780111
      No Longer Available
  • 38
    Washer-Flat – Part Number: 780113
    Washer-Flat
    Part Number: 780113
      Special Order
    $17.00
  • 39
    Bearing Needle – Part Number: 780140
    Bearing Needle
    Part Number: 780140
      Special Order
    $28.60
  • 40
    Seal Oil – Part Number: 788042
    Seal Oil
    Part Number: 788042
      Special Order
    $7.62
  • 41
    USE 00788051A – Part Number: 788051
    USE 00788051A
    Part Number: 788051
      Special Order
    $5.95
  • 42
    O-Ring – Part Number: TC-792001
    O-Ring
    Part Number: TC-792001
      No Longer Available
  • 43
    Bearing-Needle – Part Number: 780112
    Bearing-Needle
    Part Number: 780112
      Special Order
    $24.42
  • 44
    Washer-Flat – Part Number: 780114
    Washer-Flat
    Part Number: 780114
      Special Order
    $5.95
  • 45
    Seal – Part Number: 788052
    Seal
    Part Number: 788052
      No Longer Available
  • 46
    Ring-Square Cut – Part Number: 788053
    Ring-Square Cut
    Part Number: 788053
      Special Order
    $5.95
  • 47
    Cover – Part Number: 772077
    Cover
    Part Number: 772077
      No Longer Available
  • 48
    Rod & Fork Assembly – Part Number: 784290
    Rod & Fork Assembly
    Part Number: 784290
      Special Order
    $87.44
  • 49
    Input Shaft – Part Number: 776135
    Input Shaft
    Part Number: 776135
      Special Order
    $42.11
  • 50
    Brake shaft – Part Number: 776184
    Brake shaft
    Part Number: 776184
      No Longer Available
  • 51
    Plate, Brake Pad – Part Number: TC-790007
    Plate, Brake Pad
    Part Number: TC-790007
      No Longer Available
  • 52
    PAD KIT-BRAKE – Part Number: TC-799021
    PAD KIT-BRAKE
    Part Number: TC-799021
      In Stock
    $19.30
  • 53
    Pin, Dowel – Part Number: TC-786026
    Pin, Dowel
    Part Number: TC-786026
      No Longer Available
  • 54
    Nut – Part Number: 792075
    Nut
    Part Number: 792075
      Special Order
    $5.95
  • 55
    USE 792076A – Part Number: 792076
    USE 792076A
    Part Number: 792076
      Special Order
    $5.95
  • 56
    USE 790008A – Part Number: 790008
    USE 790008A
    Part Number: 790008
      Special Order
    $5.95
  • 57
    Screw 1/4-20 X 1-1/4 – Part Number: 792073
    Screw 1/4-20 X 1-1/4
    Part Number: 792073
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 58
    Holder-Brake Pad – Part Number: 790005
    Holder-Brake Pad
    Part Number: 790005
      Special Order
    $10.90
  • 59
    Gear Assembly., Differential – Part Number: 778053A
    Gear Assembly., Differential
    Part Number: 778053A
      Special Order
    $73.33
  • 60
    Bushing – Part Number: 780064
    Bushing
    Part Number: 780064
      Special Order
    $7.28
  • 61
    USE 00778132 – Part Number: 778067
    USE 00778132
    Part Number: 778067
      Special Order
    $23.40
  • 62
    USE 00778068A – Part Number: 778068
    USE 00778068A
    Part Number: 778068
      Special Order
    $10.00
  • 63
    Drive Pin – Part Number: 786034
    Drive Pin
    Part Number: 786034
      Special Order
    $15.98
  • 64
    Thrust Washer – Part Number: 780065
    Thrust Washer
    Part Number: 780065
      Special Order
    $5.95
  • 65
    Snap Ring – Part Number: 788038
    Snap Ring
    Part Number: 788038
      Special Order
    $5.95
  • 66
    Pin-Roll – Part Number: 792040
    Pin-Roll
    Part Number: 792040
      Special Order
    $5.95
  • 67
    Washer – Part Number: 780001
    Washer
    Part Number: 780001
      Special Order
    $5.95
  • 68
    Axle – Part Number: 774400
    Axle
    Part Number: 774400
      No Longer Available
  • 69
    Axle – Part Number: 774399
    Axle
    Part Number: 774399
      No Longer Available
  • 70
    Retaining Ring – Part Number: TC-792035
    Retaining Ring
    Part Number: TC-792035
      Special Order
    $14.80
  • 71
    Sleeve – Part Number: 786084
    Sleeve
    Part Number: 786084
      Special Order
    $5.95
  • 72
    Plug – Part Number: 792074
    Plug
    Part Number: 792074
      Special Order
    $28.36
