Craftsman Lawn Tractor Replacement Parts For Model 91725630

We Sell Only Genuine Craftsman Parts

Popular Parts for 91725630

Lawn Mower Washer Thrust – Part Number: 532006266 Lawn Mower Washer Thrust
In Stock
$6.16
Washer Thrust 5/8 X 1.10 X 1/3 – Part Number: 532001370 Washer Thrust 5/8 X 1.10 X 1/3
In Stock
$7.13
Lawn Mower Needle Bearing – Part Number: 532004895 Lawn Mower Needle Bearing
In Stock
$17.11
Lawn Mower Washer 27/32 X 11/4 X 16 Gauge – Part Number: 819272016 Lawn Mower Washer 27/32 X 11/4 X 16 Gauge
In Stock
$6.16
Steel Ball Kit (12 Balls) – Part Number: 532100482 Steel Ball Kit (12 Balls)
In Stock
$7.23
Cover, Pedal – Part Number: 510089501 Cover, Pedal
In Stock
$7.04
Locknut-muff/elbow – Part Number: 691808 Locknut-muff/elbow
In Stock
$12.14
Shift Mechanism Seal – Part Number: 532110542 Shift Mechanism Seal
Special Order
$12.12

Search Within Model

Questions & Answers for Craftsman 91725630
Browse all Parts Search by Area
Page A Diagram and Parts List for Craftsman Lawn Tractor
Page A
Page B Diagram and Parts List for Craftsman Lawn Tractor
Page B

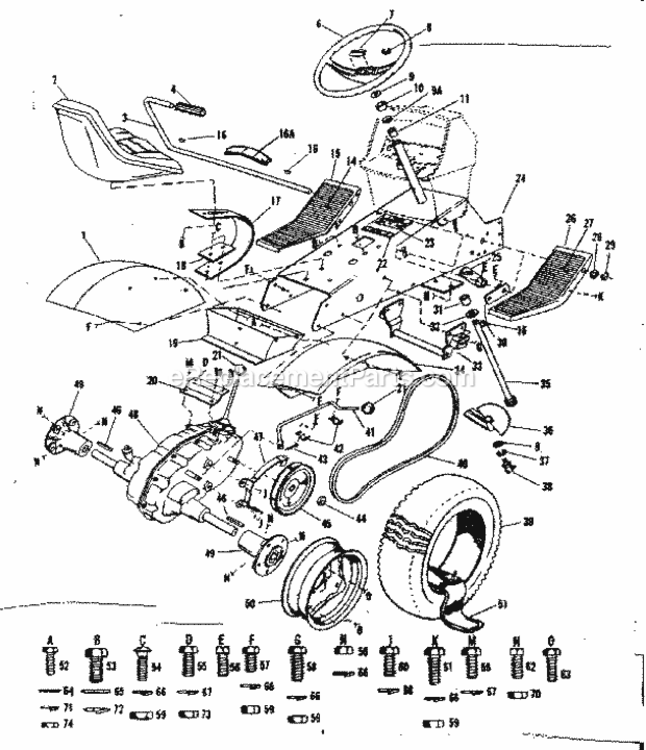

Page C Diagram and Parts List for Craftsman Lawn Tractor
Page C

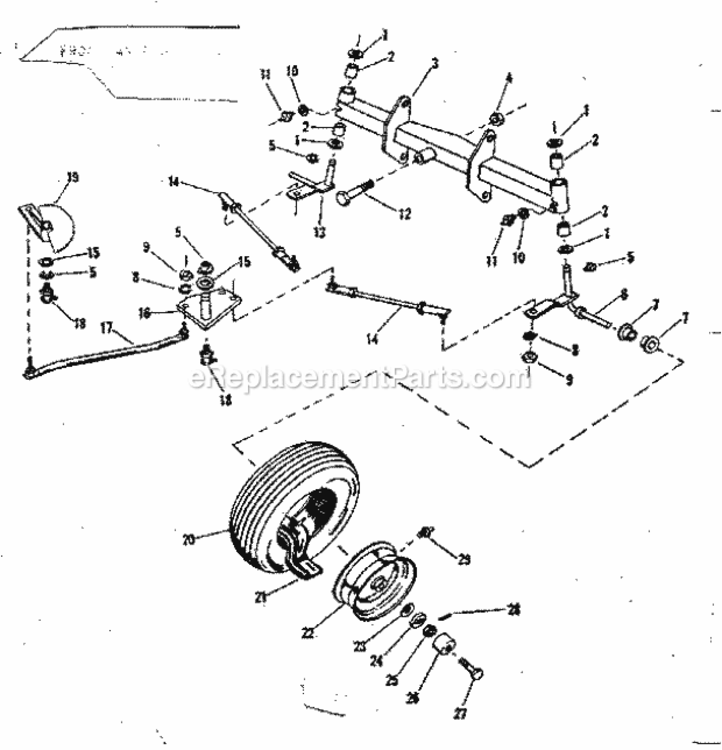

Page D Diagram and Parts List for Craftsman Lawn Tractor
Page D

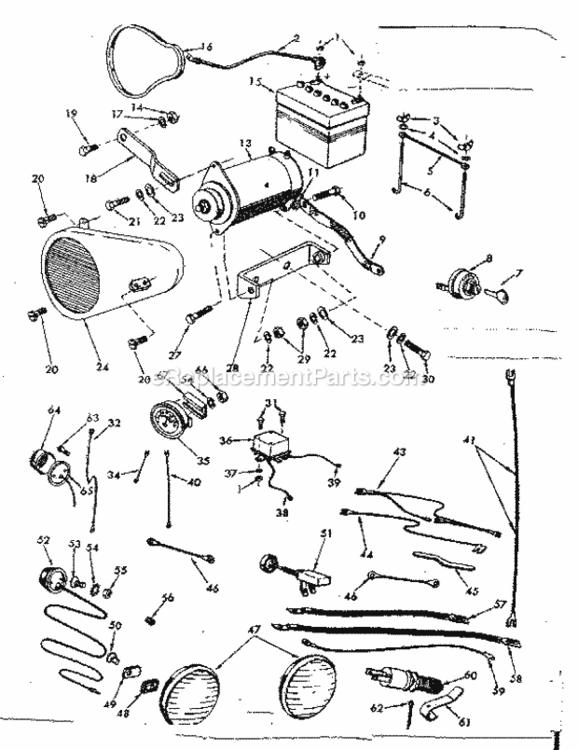

Page E Diagram and Parts List for Craftsman Lawn Tractor
Page E

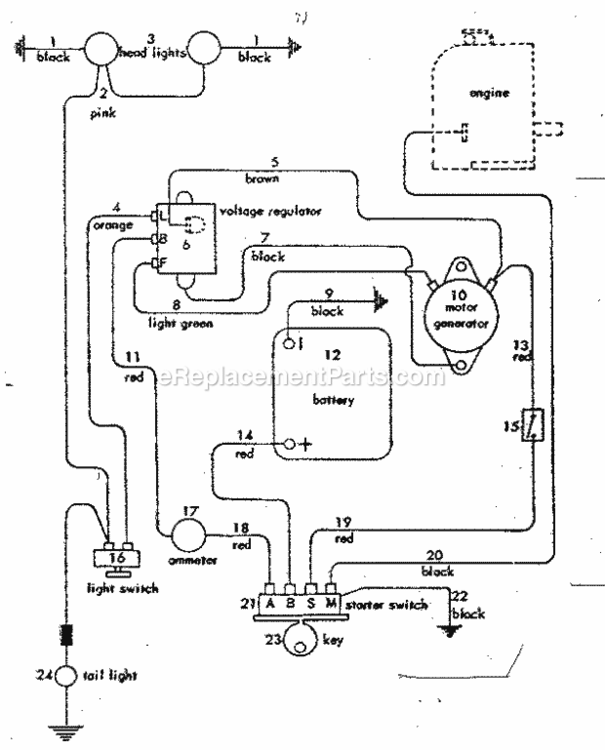

Page F Diagram and Parts List for Craftsman Lawn Tractor
Page F

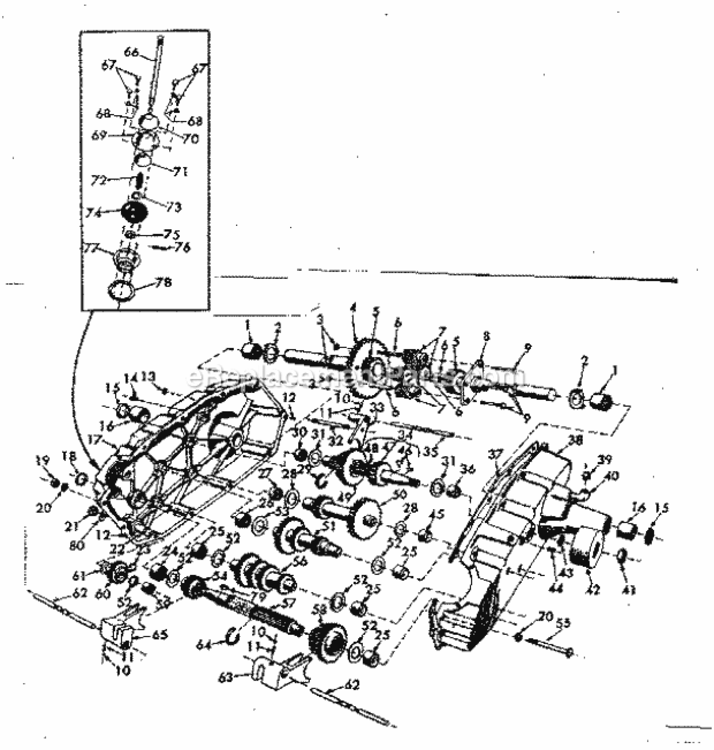

Page G Diagram and Parts List for Craftsman Lawn Tractor
Page G
Previous Showing All Parts Next
Page A

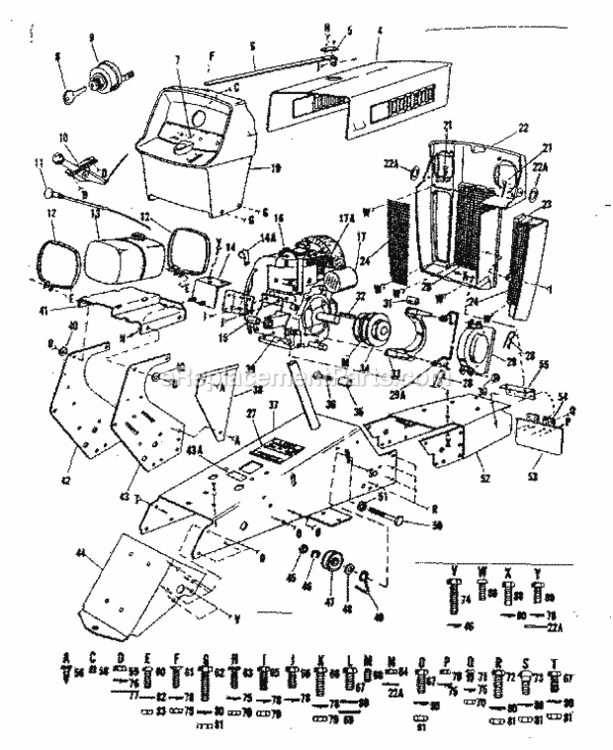

Page A Diagram and Parts List for Craftsman Lawn Tractor
  • A-4
    Cowl Top – Part Number: 634A415
    Cowl Top
    Part Number: 634A415
      No Longer Available
  • A-5
    Bumper – Part Number: 7553H
    Bumper
    Part Number: 7553H
      No Longer Available
  • A-6
    Brace – Part Number: 8762H
    Brace
    Part Number: 8762H
      No Longer Available
  • A-7
    Dshbrd Panel – Part Number: 776R
    Dshbrd Panel
    Part Number: 776R
      No Longer Available
  • A-8
    Ignition Key – Part Number: STD365410
    Ignition Key
    Part Number: STD365410
      No Longer Available
  • A-9
    Starter Switch – Part Number: 74R
    Starter Switch
    Part Number: 74R
      No Longer Available
  • A-10
    Remote Control – Part Number: 634A273B
    Remote Control
    Part Number: 634A273B
      No Longer Available
  • A-11
    Check Control – Part Number: 9662H
    Check Control
    Part Number: 9662H
      No Longer Available
  • A-14
    Tie Bracket – Part Number: 634A378
    Tie Bracket
    Part Number: 634A378
      No Longer Available
  • A-14A
    Clip – Part Number: 9776H
    Clip
    Part Number: 9776H
      No Longer Available
  • A-15
    Bearing – Part Number: 8094H
    Bearing
    Part Number: 8094H
      No Longer Available
  • A-16
    Engine – Part Number: 634A305
    Engine
    Part Number: 634A305
      No Longer Available
  • A-17
    Muffler – Part Number: 634A372
    Muffler
    Part Number: 634A372
      No Longer Available
  • A-17A
    Locknut-muff/elbow – Part Number: 691808
    Locknut-muff/elbow
    Part Number: 691808
      In Stock
    $12.14
  • A-19
    Dashboard – Part Number: 702R
    Dashboard
    Part Number: 702R
      No Longer Available
  • A-21
    Pin 8Pk – Part Number: STD560907
    Pin 8Pk
    Part Number: STD560907
      No Longer Available
  • A-22
    Grill – Part Number: 749R
    Grill
    Part Number: 749R
      No Longer Available
  • A-22A
    Flat Washer, 8Pk – Part Number: STD551031
    Flat Washer, 8Pk
    Part Number: STD551031
      No Longer Available
  • A-23
    Grill Side – Part Number: 8780H
    Grill Side
    Part Number: 8780H
      No Longer Available
  • A-24
    Grill Screen – Part Number: 9039H
    Grill Screen
    Part Number: 9039H
      No Longer Available
  • A-25
    Screen – Part Number: 8774H
    Screen
    Part Number: 8774H
      No Longer Available
  • A-28
    Pin 2Pk – Part Number: STD624008
    Pin 2Pk
    Part Number: STD624008
      No Longer Available
  • A-29
    Belt Guide – Part Number: 640A45
    Belt Guide
    Part Number: 640A45
      No Longer Available
  • A-29A
    Retainer – Part Number: 9011H
    Retainer
    Part Number: 9011H
      No Longer Available
  • A-30
    1/4-20 Hex Lock Nut – Part Number: STD541425
    1/4-20 Hex Lock Nut
    Part Number: STD541425
      No Longer Available
  • A-31
    Spacer – Part Number: 8704H1
    Spacer
    Part Number: 8704H1
      No Longer Available
  • A-32
    Square Key – Part Number: STD580111
    Square Key
    Part Number: STD580111
      No Longer Available
  • A-33
    Plate Assembly – Part Number: 640A44
    Plate Assembly
    Part Number: 640A44
      No Longer Available
  • A-34
    Engine Pulley – Part Number: 634A104
    Engine Pulley
    Part Number: 634A104
      No Longer Available
  • A-35
    Spacer – Part Number: 8238H
    Spacer
    Part Number: 8238H
      No Longer Available
  • A-36
    Screw 8Pk – Part Number: STD512522
    Screw 8Pk
    Part Number: STD512522
      No Longer Available
  • A-37
    Chassis Assembly – Part Number: 634A405
    Chassis Assembly
    Part Number: 634A405
      No Longer Available
  • A-38
    Cover Right Hand – Part Number: 1360R
    Cover Right Hand
    Part Number: 1360R
      No Longer Available
  • A-39
    Weld Support – Part Number: 640A26
    Weld Support
    Part Number: 640A26
      No Longer Available
  • A-40
    Washer 8Pk – Part Number: STD551037
    Washer 8Pk
    Part Number: STD551037
      No Longer Available
  • A-41
    Battery Supp – Part Number: 634A280
    Battery Supp
    Part Number: 634A280
      No Longer Available
  • A-42
    Support Brkt – Part Number: 7218H1
    Support Brkt
    Part Number: 7218H1
      No Longer Available
  • A-43
    Bracket – Part Number: 1361R
    Bracket
    Part Number: 1361R
      No Longer Available
  • A-44
    Drawbar – Part Number: 634A101
    Drawbar
    Part Number: 634A101
      No Longer Available
  • A-45
    Nut 8Pk – Part Number: STD541043
    Nut 8Pk
    Part Number: STD541043
      No Longer Available
  • A-46
    Washer Lock 7/16 – Part Number: STD551143
    Washer Lock 7/16
    Part Number: STD551143
      No Longer Available
  • A-47
    IDLER T – Part Number: 583772001
    IDLER T
    Part Number: 583772001
      Special Order
    $49.37
  • A-48
    Washer 8Pk – Part Number: STD551043
    Washer 8Pk
    Part Number: STD551043
      No Longer Available
  • A-49
    Belt Guide – Part Number: 6479H1
    Belt Guide
    Part Number: 6479H1
      No Longer Available
  • A-50
    Hex Fin Bolt – Part Number: 3155P
    Hex Fin Bolt
    Part Number: 3155P
      No Longer Available
  • A-51
    Washer 8Pk – Part Number: STD551043
    Washer 8Pk
    Part Number: STD551043
      No Longer Available
  • A-52
    Mount Engine – Part Number: 634A459
    Mount Engine
    Part Number: 634A459
      No Longer Available
  • A-53
    Cover – Part Number: 634A28
    Cover
    Part Number: 634A28
      No Longer Available
  • A-54
    Hinge – Part Number: 6485H
    Hinge
    Part Number: 6485H
      No Longer Available
  • A-55
    Cover Support – Part Number: 6433H
    Cover Support
    Part Number: 6433H
      No Longer Available
  • A-56
    Screw 8Pk – Part Number: STD512505
    Screw 8Pk
    Part Number: STD512505
      No Longer Available
  • A-58
    Screw – Part Number: 4502P
    Screw
    Part Number: 4502P
      No Longer Available
  • A-59
    Nut 8Pk – Part Number: STD541025
    Nut 8Pk
    Part Number: STD541025
      No Longer Available
  • A-60
    Screw, Hex Head 1/4-20 x 1-1/4 – Part Number: STD522512
    Screw, Hex Head 1/4-20 x 1-1/4
    Part Number: STD522512
      No Longer Available
  • A-61
    Head Screw Filter – Part Number: 3156P
    Head Screw Filter
    Part Number: 3156P
      No Longer Available
  • A-62
    Screw, 2 Pk. – Part Number: STD523715
    Screw, 2 Pk.
    Part Number: STD523715
      No Longer Available
  • A-63
    Machine Screw, 8-pack – Part Number: STD511007
    Machine Screw, 8-pack
    Part Number: STD511007
      No Longer Available
  • A-64
    Locknut – Part Number: STD541431
    Locknut
    Part Number: STD541431
      No Longer Available
  • A-65
    Screw 5Pk – Part Number: STD523107
    Screw 5Pk
    Part Number: STD523107
      No Longer Available
  • A-66
    Screw 5Pk – Part Number: STD523112
    Screw 5Pk
    Part Number: STD523112
      No Longer Available
  • A-67
    Screw 5pk – Part Number: STD523710
    Screw 5pk
    Part Number: STD523710
      No Longer Available
  • A-68
    Screw – Part Number: 4514P
    Screw
    Part Number: 4514P
      No Longer Available
  • A-69
    Washer 8Pk – Part Number: STD551043
    Washer 8Pk
    Part Number: STD551043
      No Longer Available
  • A-70
    Nut 8Pk – Part Number: STD541010
    Nut 8Pk
    Part Number: STD541010
      No Longer Available
  • A-71
    Screw 8Pk – Part Number: STD511003
    Screw 8Pk
    Part Number: STD511003
      No Longer Available
  • A-72
    Screw 5Pk – Part Number: STD523712
    Screw 5Pk
    Part Number: STD523712
      No Longer Available
  • A-73
    Carriage Bolt – Part Number: STD533710
    Carriage Bolt
    Part Number: STD533710
      No Longer Available
  • A-74
    Bolt – Part Number: 74780720
    Bolt
    Part Number: 74780720
      No Longer Available
  • A-75
    Washer 8Pk – Part Number: STD551110
    Washer 8Pk
    Part Number: STD551110
      No Longer Available
  • A-76
    Washer 8Pk – Part Number: STD551125
    Washer 8Pk
    Part Number: STD551125
      No Longer Available
  • A-77
    Washer 8Pk – Part Number: STD551025
    Washer 8Pk
    Part Number: STD551025
      No Longer Available
  • A-78
    Lock Washer – Part Number: STD551131
    Lock Washer
    Part Number: STD551131
      No Longer Available
  • A-79
    Nut 8Pk – Part Number: STD541031
    Nut 8Pk
    Part Number: STD541031
      No Longer Available
  • A-80
    Washer, Lock 3/8 – Part Number: STD551137
    Washer, Lock 3/8
    Part Number: STD551137
      No Longer Available
  • A-81
    Nut 8Pk – Part Number: STD541037
    Nut 8Pk
    Part Number: STD541037
      No Longer Available
  • A-82
    Washer 8Pk – Part Number: STD551025
    Washer 8Pk
    Part Number: STD551025
      No Longer Available
  • A-83
    Nut 8Pk – Part Number: STD541025
    Nut 8Pk
    Part Number: STD541025
      No Longer Available
  • A-86
    Screw 8Pk – Part Number: STD601003
    Screw 8Pk
    Part Number: STD601003
      No Longer Available
  • A-88
    Screw 5Pk – Part Number: STD523707
    Screw 5Pk
    Part Number: STD523707
      No Longer Available
  • A-89
    Screw 5Pk – Part Number: STD523107
    Screw 5Pk
    Part Number: STD523107
      No Longer Available
  • A-800
    Lawn Tractor Tie Rod End – Part Number: 109851X
    Lawn Tractor Tie Rod End
    Part Number: 109851X
      No Longer Available
  • A-800
    Hanger Kit – Part Number: 25393
    Hanger Kit
    Part Number: 25393
      No Longer Available
  • A-800
    42 Complete Deck – Part Number: 253582
    42 Complete Deck
    Part Number: 253582
      No Longer Available
  • A-800
    Ball Jnt Right Hand – Part Number: 7445R
    Ball Jnt Right Hand
    Part Number: 7445R
      No Longer Available
  • A-800
    Transaxle – Part Number: 633A38
    Transaxle
    Part Number: 633A38
      No Longer Available
  • A-800
    Tie Rod Tube – Part Number: 7446R
    Tie Rod Tube
    Part Number: 7446R
      No Longer Available
  • A-800
    Parts List – Part Number: 1135R
    Parts List
    Part Number: 1135R
      No Longer Available
Page B

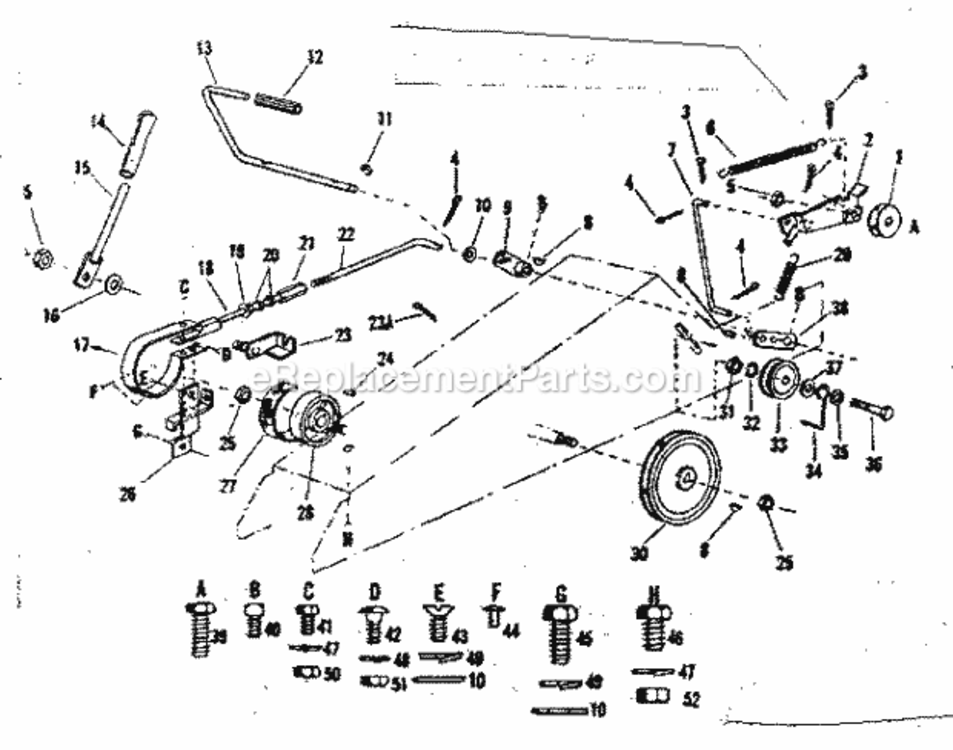

Page B Diagram and Parts List for Craftsman Lawn Tractor
  • B-1
    Idler – Part Number: 634A86
    Idler
    Part Number: 634A86
      No Longer Available
  • B-2
    Bracket Pin – Part Number: 634A296A
    Bracket Pin
    Part Number: 634A296A
      No Longer Available
  • B-3
    Cotter Pin 1/4 X 1 – Part Number: 2541P
    Cotter Pin 1/4 X 1
    Part Number: 2541P
      No Longer Available
  • B-4
    Pin 8Pk – Part Number: STD561210
    Pin 8Pk
    Part Number: STD561210
      No Longer Available
  • B-5
    Hex Lock Nut – Part Number: STD541537
    Hex Lock Nut
    Part Number: STD541537
      No Longer Available
  • B-6
    Spring – Part Number: 583771801
    Spring
    Part Number: 583771801
      No Longer Available
  • B-7
    Clutch Rod – Part Number: 6406H
    Clutch Rod
    Part Number: 6406H
      No Longer Available
  • B-8
    Key – Part Number: STD580020
    Key
    Part Number: STD580020
      No Longer Available
  • B-9
    Brake Arm – Part Number: 634A33A
    Brake Arm
    Part Number: 634A33A
      No Longer Available
  • B-10
    Washer 8Pk – Part Number: STD551037
    Washer 8Pk
    Part Number: STD551037
      No Longer Available
  • B-11
    E-Ring 5Pk – Part Number: STD581062
    E-Ring 5Pk
    Part Number: STD581062
      No Longer Available
  • B-12
    Cover, Pedal – Part Number: 510089501
    Cover, Pedal
    Part Number: 510089501
    ★★★★★
    ★★★★★
    (4)
      In Stock
    $7.04
  • B-13
    Pedal Shaft – Part Number: 766R
    Pedal Shaft
    Part Number: 766R
      No Longer Available
  • B-14
    Handle Grip – Part Number: 4379H
    Handle Grip
    Part Number: 4379H
      No Longer Available
  • B-15
    Lock Handle – Part Number: 634A170
    Lock Handle
    Part Number: 634A170
      No Longer Available
  • B-16
    Belleville Washer – Part Number: 532062335
    Belleville Washer
    Part Number: 532062335
      Special Order
    $9.91
  • B-17
    Brake Band – Part Number: 583638601
    Brake Band
    Part Number: 583638601
      No Longer Available
  • B-18
    Brake Rod – Part Number: 634A193
    Brake Rod
    Part Number: 634A193
      No Longer Available
  • B-19
    Flange Nut – Part Number: 6000H
    Flange Nut
    Part Number: 6000H
      No Longer Available
  • B-20
    Nut 8Pk – Part Number: STD541037
    Nut 8Pk
    Part Number: STD541037
      No Longer Available
  • B-21
    Turnbuckle – Part Number: 6417H
    Turnbuckle
    Part Number: 6417H
      No Longer Available
  • B-22
    Brake Rod F – Part Number: 7638H
    Brake Rod F
    Part Number: 7638H
      No Longer Available
  • B-23
    Park Lock – Part Number: 634A396
    Park Lock
    Part Number: 634A396
      No Longer Available
  • B-24
    Key 2Pk – Part Number: STD580025
    Key 2Pk
    Part Number: STD580025
      No Longer Available
  • B-25
    Nut 2Pk – Part Number: STD541550
    Nut 2Pk
    Part Number: STD541550
      No Longer Available
  • B-26
    Bracket Assembly – Part Number: 634T220
    Bracket Assembly
    Part Number: 634T220
      No Longer Available
  • B-27
    Brake Band – Part Number: 583638601
    Brake Band
    Part Number: 583638601
      No Longer Available
  • B-28
    Brake Drum – Part Number: 7648H
    Brake Drum
    Part Number: 7648H
      No Longer Available
  • B-29
    Spring – Part Number: 4301H
    Spring
    Part Number: 4301H
      No Longer Available
  • B-30
    Transmission Pulley – Part Number: 6461H2
    Transmission Pulley
    Part Number: 6461H2
      No Longer Available
  • B-31
    Nut 8Pk – Part Number: STD541043
    Nut 8Pk
    Part Number: STD541043
      No Longer Available
  • B-32
    Washer Lock 7/16 – Part Number: STD551143
    Washer Lock 7/16
    Part Number: STD551143
      No Longer Available
  • B-33
    IDLER T – Part Number: 583772001
    IDLER T
    Part Number: 583772001
      Special Order
    $49.37
  • B-34
    Belt Guide – Part Number: 6479H1
    Belt Guide
    Part Number: 6479H1
      No Longer Available
  • B-35
    Washer 8Pk – Part Number: STD551043
    Washer 8Pk
    Part Number: STD551043
      No Longer Available
  • B-36
    Hex Fin Bolt – Part Number: 3155P
    Hex Fin Bolt
    Part Number: 3155P
      No Longer Available
  • B-37
    Washer 8Pk – Part Number: STD551043
    Washer 8Pk
    Part Number: STD551043
      No Longer Available
  • B-38
    Arm – Part Number: 626A31A
    Arm
    Part Number: 626A31A
      No Longer Available
  • B-39
    Screw 2Pk – Part Number: STD623710
    Screw 2Pk
    Part Number: STD623710
      No Longer Available
  • B-40
    Screw – Part Number: 4501P
    Screw
    Part Number: 4501P
      No Longer Available
  • B-41
    Bolt, Hex Head 5/16-18 – Part Number: 596322201
    Bolt, Hex Head 5/16-18
    Part Number: 596322201
      Special Order
    $6.16
  • B-42
    Bolt – Part Number: 11P
    Bolt
    Part Number: 11P
      No Longer Available
  • B-43
    Head Screw Filter – Part Number: 3164P
    Head Screw Filter
    Part Number: 3164P
      No Longer Available
  • B-44
    Rivet – Part Number: 2004P
    Rivet
    Part Number: 2004P
      No Longer Available
  • B-45
    Screw 5Pk – Part Number: STD523707
    Screw 5Pk
    Part Number: STD523707
      No Longer Available
  • B-46
    Screw 5Pk – Part Number: STD523106
    Screw 5Pk
    Part Number: STD523106
      No Longer Available
  • B-47
    Lock Washer – Part Number: STD551131
    Lock Washer
    Part Number: STD551131
      No Longer Available
  • B-48
    Washer 8Pk – Part Number: STD551125
    Washer 8Pk
    Part Number: STD551125
      No Longer Available
  • B-49
    Washer, Lock 3/8 – Part Number: STD551137
    Washer, Lock 3/8
    Part Number: STD551137
      No Longer Available
  • B-50
    Locknut – Part Number: STD541431
    Locknut
    Part Number: STD541431
      No Longer Available
  • B-51
    Nut 8Pk – Part Number: STD541025
    Nut 8Pk
    Part Number: STD541025
      No Longer Available
  • B-52
    Nut 8Pk – Part Number: STD541031
    Nut 8Pk
    Part Number: STD541031
      No Longer Available
  • B-800
    Tie Rod Tube – Part Number: 7446R
    Tie Rod Tube
    Part Number: 7446R
      No Longer Available
  • B-800
    Lawn Tractor Tie Rod End – Part Number: 109851X
    Lawn Tractor Tie Rod End
    Part Number: 109851X
      No Longer Available
  • B-800
    Hanger Kit – Part Number: 25393
    Hanger Kit
    Part Number: 25393
      No Longer Available
  • B-800
    Parts List – Part Number: 1135R
    Parts List
    Part Number: 1135R
      No Longer Available
  • B-800
    Ball Jnt Right Hand – Part Number: 7445R
    Ball Jnt Right Hand
    Part Number: 7445R
      No Longer Available
  • B-800
    Transaxle – Part Number: 633A38
    Transaxle
    Part Number: 633A38
      No Longer Available
  • B-800
    42 Complete Deck – Part Number: 253582
    42 Complete Deck
    Part Number: 253582
      No Longer Available
Page C
Page C Diagram and Parts List for Craftsman Lawn Tractor
  • C-1
    Fender Left Hand – Part Number: 8770H
    Fender Left Hand
    Part Number: 8770H
      No Longer Available
  • C-2
    Seat – Part Number: 9578H
    Seat
    Part Number: 9578H
      No Longer Available
  • C-3
    Pedal Shaft – Part Number: 766R
    Pedal Shaft
    Part Number: 766R
      No Longer Available
  • C-4
    Cover, Pedal – Part Number: 510089501
    Cover, Pedal
    Part Number: 510089501
    ★★★★★
    ★★★★★
    (4)
      In Stock
    $7.04
  • C-6
    String Wheel – Part Number: 8796H
    String Wheel
    Part Number: 8796H
      No Longer Available
  • C-7
    Cap – Part Number: 8797H
    Cap
    Part Number: 8797H
      No Longer Available
  • C-8
    Snap Rng Ext – Part Number: STD582075
    Snap Rng Ext
    Part Number: STD582075
      No Longer Available
  • C-9
    Washer – Part Number: 121749X
    Washer
    Part Number: 121749X
      No Longer Available
  • C-9A
    Cap – Part Number: 9007H
    Cap
    Part Number: 9007H
      No Longer Available
  • C-10
    Bushing – Part Number: 5949H
    Bushing
    Part Number: 5949H
      No Longer Available
  • C-11
    Bearing – Part Number: 6468H
    Bearing
    Part Number: 6468H
      No Longer Available
  • C-14
    Foot Pad Left Hand – Part Number: 7235H
    Foot Pad Left Hand
    Part Number: 7235H
      No Longer Available
  • C-15
    Foot Rest – Part Number: 634A112
    Foot Rest
    Part Number: 634A112
      No Longer Available
  • C-16
    Key – Part Number: STD580020
    Key
    Part Number: STD580020
      No Longer Available
  • C-16A
    Spring – Part Number: 9008H
    Spring
    Part Number: 9008H
      No Longer Available
  • C-17
    Seat Spring – Part Number: 9712H
    Seat Spring
    Part Number: 9712H
      No Longer Available
  • C-18
    Sprg Rein – Part Number: 8141H
    Sprg Rein
    Part Number: 8141H
      No Longer Available
  • C-19
    Tool Box – Part Number: 634A276
    Tool Box
    Part Number: 634A276
      No Longer Available
  • C-20
    Transmission Bracket – Part Number: 6459H
    Transmission Bracket
    Part Number: 6459H
      No Longer Available
  • C-21
    Knob Rd – Part Number: 532162132
    Knob Rd
    Part Number: 532162132
      No Longer Available
  • C-22
    Drive Rivet – Part Number: 9251H
    Drive Rivet
    Part Number: 9251H
      No Longer Available
  • C-24
    Chassis Assembly – Part Number: 634A405
    Chassis Assembly
    Part Number: 634A405
      No Longer Available
  • C-25
    Brake Arm – Part Number: 634A33A
    Brake Arm
    Part Number: 634A33A
      No Longer Available
  • C-26
    Foot Rest – Part Number: 634A113
    Foot Rest
    Part Number: 634A113
      No Longer Available
  • C-27
    Foot Pad Right Hand – Part Number: 7236H
    Foot Pad Right Hand
    Part Number: 7236H
      No Longer Available
  • C-28
    Washer 5Pk – Part Number: STD551062
    Washer 5Pk
    Part Number: STD551062
      No Longer Available
  • C-29
    E-Ring 5Pk – Part Number: STD581062
    E-Ring 5Pk
    Part Number: STD581062
      No Longer Available
  • C-30
    Arm – Part Number: 626A31A
    Arm
    Part Number: 626A31A
      No Longer Available
  • C-31
    Bearing – Part Number: 4766H
    Bearing
    Part Number: 4766H
      No Longer Available
  • C-32
    Washer, 29/32 x 1 - 1/4 x 16 Ga – Part Number: 819292016
    Washer, 29/32 x 1 - 1/4 x 16 Ga
    Part Number: 819292016
      On Order
    $11.43
  • C-33
    Hanger – Part Number: 634A362
    Hanger
    Part Number: 634A362
      No Longer Available
  • C-34
    Fender Right Hand – Part Number: 8769H
    Fender Right Hand
    Part Number: 8769H
      No Longer Available
  • C-35
    Shaft Pin – Part Number: 640A30
    Shaft Pin
    Part Number: 640A30
      No Longer Available
  • C-36
    Gear Sector – Part Number: 634A95
    Gear Sector
    Part Number: 634A95
      No Longer Available
  • C-37
    Ring 2Pk – Part Number: STD581075
    Ring 2Pk
    Part Number: STD581075
      No Longer Available
  • C-38
    Zerk – Part Number: 6842M
    Zerk
    Part Number: 6842M
      No Longer Available
  • C-39
    SUPPORT-SHIFT BRKT F – Part Number: 5808
    SUPPORT-SHIFT BRKT F
    Part Number: 5808
      Special Order
    $6.16
  • C-40
    Belt – Part Number: STD325810
    Belt
    Part Number: STD325810
      No Longer Available
  • C-41
    Shift Rod – Part Number: 6477H
    Shift Rod
    Part Number: 6477H
      No Longer Available
  • C-42
    Shaft Rod Bracket – Part Number: 6442H
    Shaft Rod Bracket
    Part Number: 6442H
      No Longer Available
  • C-43
    Pin – Part Number: STD561820
    Pin
    Part Number: STD561820
      No Longer Available
  • C-44
    Nut 2Pk – Part Number: STD541550
    Nut 2Pk
    Part Number: STD541550
      No Longer Available
  • C-45
    Transmission Pulley – Part Number: 6461H2
    Transmission Pulley
    Part Number: 6461H2
      No Longer Available
  • C-46
    Sq Key – Part Number: 8327H
    Sq Key
    Part Number: 8327H
      No Longer Available
  • C-47
    Belt Guide – Part Number: 634A22A
    Belt Guide
    Part Number: 634A22A
      No Longer Available
  • C-48
    Transaxle – Part Number: 633A38
    Transaxle
    Part Number: 633A38
      No Longer Available
  • C-49
    Hub – Part Number: 8778H
    Hub
    Part Number: 8778H
      No Longer Available
  • C-50
    Rim Wheel – Part Number: 1297H1
    Rim Wheel
    Part Number: 1297H1
      No Longer Available
  • C-51
    Tube – Part Number: 1296H
    Tube
    Part Number: 1296H
      No Longer Available
  • C-52
    Bolt-hex rb – Part Number: 74780416
    Bolt-hex rb
    Part Number: 74780416
      No Longer Available
  • C-53
    Hex Fin Bolt – Part Number: 3044P
    Hex Fin Bolt
    Part Number: 3044P
      No Longer Available
  • C-54
    Carriage Bolt – Part Number: STD533712
    Carriage Bolt
    Part Number: STD533712
      No Longer Available
  • C-55
    Bolt Fin Hex – Part Number: 74780716
    Bolt Fin Hex
    Part Number: 74780716
      No Longer Available
  • C-56
    Screw – Part Number: 4501P
    Screw
    Part Number: 4501P
      No Longer Available
  • C-57
    Screw 5Pk – Part Number: STD523707
    Screw 5Pk
    Part Number: STD523707
      No Longer Available
  • C-58
    Screw 5pk – Part Number: STD523710
    Screw 5pk
    Part Number: STD523710
      No Longer Available
  • C-59
    Nut 8Pk – Part Number: STD541037
    Nut 8Pk
    Part Number: STD541037
      No Longer Available
  • C-60
    Screw 5Pk – Part Number: STD523107
    Screw 5Pk
    Part Number: STD523107
      No Longer Available
  • C-61
    Screw 5Pk – Part Number: STD523712
    Screw 5Pk
    Part Number: STD523712
      No Longer Available
  • C-62
    Screw – Part Number: 23100620
    Screw
    Part Number: 23100620
      No Longer Available
  • C-63
    Hub Bolt – Part Number: 140080
    Hub Bolt
    Part Number: 140080
      No Longer Available
  • C-64
    Washer 8Pk – Part Number: STD551025
    Washer 8Pk
    Part Number: STD551025
      No Longer Available
  • C-65
    Washer 8Pk – Part Number: STD551050
    Washer 8Pk
    Part Number: STD551050
      No Longer Available
  • C-66
    Washer, Lock 3/8 – Part Number: STD551137
    Washer, Lock 3/8
    Part Number: STD551137
      No Longer Available
  • C-67
    Washer Lock 7/16 – Part Number: STD551143
    Washer Lock 7/16
    Part Number: STD551143
      No Longer Available
  • C-68
    Lock Washer – Part Number: STD551131
    Lock Washer
    Part Number: STD551131
      No Longer Available
  • C-70
    Nut 8Pk – Part Number: STD541237
    Nut 8Pk
    Part Number: STD541237
      No Longer Available
  • C-71
    Washer 8Pk – Part Number: STD551125
    Washer 8Pk
    Part Number: STD551125
      No Longer Available
  • C-72
    Washer 5Pk – Part Number: STD551150
    Washer 5Pk
    Part Number: STD551150
      No Longer Available
  • C-73
    Nut 8Pk – Part Number: STD541043
    Nut 8Pk
    Part Number: STD541043
      No Longer Available
  • C-74
    Nut 8Pk – Part Number: STD541025
    Nut 8Pk
    Part Number: STD541025
      No Longer Available
  • C-800
    Lawn Tractor Tie Rod End – Part Number: 109851X
    Lawn Tractor Tie Rod End
    Part Number: 109851X
      No Longer Available
  • C-800
    Hanger Kit – Part Number: 25393
    Hanger Kit
    Part Number: 25393
      No Longer Available
  • C-800
    Tie Rod Tube – Part Number: 7446R
    Tie Rod Tube
    Part Number: 7446R
      No Longer Available
  • C-800
    Ball Jnt Right Hand – Part Number: 7445R
    Ball Jnt Right Hand
    Part Number: 7445R
      No Longer Available
  • C-800
    Transaxle – Part Number: 633A38
    Transaxle
    Part Number: 633A38
      No Longer Available
  • C-800
    42 Complete Deck – Part Number: 253582
    42 Complete Deck
    Part Number: 253582
      No Longer Available
  • C-800
    Parts List – Part Number: 1135R
    Parts List
    Part Number: 1135R
      No Longer Available
Page D
Page D Diagram and Parts List for Craftsman Lawn Tractor
Page E
Page E Diagram and Parts List for Craftsman Lawn Tractor
  • E-1
    Nut 8Pk – Part Number: STD541025
    Nut 8Pk
    Part Number: STD541025
      No Longer Available
  • E-2
    Battery Cable – Part Number: 634A452
    Battery Cable
    Part Number: 634A452
      No Longer Available
  • E-3
    Wingnut Unc – Part Number: STD541625
    Wingnut Unc
    Part Number: STD541625
      No Longer Available
  • E-4
    Washer 8Pk – Part Number: STD551025
    Washer 8Pk
    Part Number: STD551025
      No Longer Available
  • E-5
    Battery Clamp – Part Number: 5110H
    Battery Clamp
    Part Number: 5110H
      No Longer Available
  • E-6
    Battery Bolt – Part Number: 5072H
    Battery Bolt
    Part Number: 5072H
      No Longer Available
  • E-7
    Ignition Key – Part Number: STD365410
    Ignition Key
    Part Number: STD365410
      No Longer Available
  • E-8
    Starter Switch – Part Number: 74R
    Starter Switch
    Part Number: 74R
      No Longer Available
  • E-9
    Ground Cable – Part Number: 6534H
    Ground Cable
    Part Number: 6534H
      No Longer Available
  • E-10
    Screw 2Pk – Part Number: STD523117
    Screw 2Pk
    Part Number: STD523117
      No Longer Available
  • E-11
    Collar Stop – Part Number: STD551237
    Collar Stop
    Part Number: STD551237
      No Longer Available
  • E-13
    Motor Genrtr – Part Number: 634A298
    Motor Genrtr
    Part Number: 634A298
      No Longer Available
  • E-14
    Nut 8Pk – Part Number: STD541037
    Nut 8Pk
    Part Number: STD541037
      No Longer Available
  • E-15
    SANDER ACCESSORY KIT – Part Number: 50795
    SANDER ACCESSORY KIT
    Part Number: 50795
      Special Order
    $351.13
  • E-16
    V Belt – Part Number: 3754H1
    V Belt
    Part Number: 3754H1
      No Longer Available
  • E-17
    Washer, Lock 3/8 – Part Number: STD551137
    Washer, Lock 3/8
    Part Number: STD551137
      No Longer Available
  • E-18
    Adjustment Strap – Part Number: 6419H
    Adjustment Strap
    Part Number: 6419H
      No Longer Available
  • E-19
    Screw 5pk – Part Number: STD523710
    Screw 5pk
    Part Number: STD523710
      No Longer Available
  • E-21
    Screw 5Pk – Part Number: STD523107
    Screw 5Pk
    Part Number: STD523107
      No Longer Available
  • E-22
    Lock Washer – Part Number: STD551131
    Lock Washer
    Part Number: STD551131
      No Longer Available
  • E-23
    Flat Washer, 8Pk – Part Number: STD551031
    Flat Washer, 8Pk
    Part Number: STD551031
      No Longer Available
  • E-24
    Belt Assembly – Part Number: 606A327
    Belt Assembly
    Part Number: 606A327
      No Longer Available
  • E-26
    Washer 8Pk – Part Number: STD551025
    Washer 8Pk
    Part Number: STD551025
      No Longer Available
  • E-27
    Screw 5Pk – Part Number: STD523112
    Screw 5Pk
    Part Number: STD523112
      No Longer Available
  • E-28
    Bracket Bushing – Part Number: 606A361
    Bracket Bushing
    Part Number: 606A361
      No Longer Available
  • E-29
    Nut 8Pk – Part Number: STD541031
    Nut 8Pk
    Part Number: STD541031
      No Longer Available
  • E-30
    Screw 5Pk – Part Number: STD523107
    Screw 5Pk
    Part Number: STD523107
      No Longer Available
  • E-31
    Screw – Part Number: STD522506
    Screw
    Part Number: STD522506
      No Longer Available
  • E-32
    Ground Wire – Part Number: 5959H
    Ground Wire
    Part Number: 5959H
      No Longer Available
  • E-34
    Lead Wire – Part Number: 7249H
    Lead Wire
    Part Number: 7249H
      No Longer Available
  • E-35
    Ammeter – Part Number: 532124900
    Ammeter
    Part Number: 532124900
      Special Order
    $68.32
  • E-36
    Voltage Regulator – Part Number: 606A190
    Voltage Regulator
    Part Number: 606A190
      No Longer Available
  • E-37
    Washer 8Pk – Part Number: STD551125
    Washer 8Pk
    Part Number: STD551125
      No Longer Available
  • E-38
    Ground Wire – Part Number: 5803H
    Ground Wire
    Part Number: 5803H
      No Longer Available
  • E-39
    Field Wire – Part Number: 5804H
    Field Wire
    Part Number: 5804H
      No Longer Available
  • E-40
    Lead Wire – Part Number: 6994H
    Lead Wire
    Part Number: 6994H
      No Longer Available
  • E-41
    Short Wire – Part Number: 6536H
    Short Wire
    Part Number: 6536H
      No Longer Available
  • E-43
    Lead Wire – Part Number: 8147H
    Lead Wire
    Part Number: 8147H
      No Longer Available
  • E-44
    Lead Wire – Part Number: 6538H
    Lead Wire
    Part Number: 6538H
      No Longer Available
  • E-45
    Ties 8Pk – Part Number: STD426600
    Ties 8Pk
    Part Number: STD426600
      No Longer Available
  • E-46
    Ground Wire – Part Number: 7035H
    Ground Wire
    Part Number: 7035H
      No Longer Available
  • E-47
    4411 Lamp – Part Number: STD374411
    4411 Lamp
    Part Number: STD374411
      No Longer Available
  • E-48
    Spacer – Part Number: 8784H1
    Spacer
    Part Number: 8784H1
      No Longer Available
  • E-49
    Mntg Clip – Part Number: 8768H
    Mntg Clip
    Part Number: 8768H
      No Longer Available
  • E-50
    Screw 8Pk – Part Number: STD601003
    Screw 8Pk
    Part Number: STD601003
      No Longer Available
  • E-51
    Light Switch – Part Number: 5735H
    Light Switch
    Part Number: 5735H
      No Longer Available
  • E-52
    Tail Light – Part Number: 8089H
    Tail Light
    Part Number: 8089H
      No Longer Available
  • E-53
    Spur Screw – Part Number: STD511005
    Spur Screw
    Part Number: STD511005
      No Longer Available
  • E-54
    Washer 8Pk – Part Number: STD551110
    Washer 8Pk
    Part Number: STD551110
      No Longer Available
  • E-55
    Nut 8Pk – Part Number: STD541010
    Nut 8Pk
    Part Number: STD541010
      No Longer Available
  • E-56
    Hose – Part Number: 9197H
    Hose
    Part Number: 9197H
      No Longer Available
  • E-57
    Battery Cable – Part Number: 770R
    Battery Cable
    Part Number: 770R
      No Longer Available
  • E-58
    Battery Cable – Part Number: 771R
    Battery Cable
    Part Number: 771R
      No Longer Available
  • E-59
    Ground Wire – Part Number: 786R
    Ground Wire
    Part Number: 786R
      No Longer Available
  • E-60
    Safety Switch – Part Number: 772R
    Safety Switch
    Part Number: 772R
      No Longer Available
  • E-62
    Actuator – Part Number: 767R
    Actuator
    Part Number: 767R
      No Longer Available
  • E-62A
    Pin 8Pk – Part Number: STD561220
    Pin 8Pk
    Part Number: STD561220
      No Longer Available
  • E-63
    Miniature Bayonet Light Bulb – Part Number: STD373895
    Miniature Bayonet Light Bulb
    Part Number: STD373895
      No Longer Available
  • E-64
    Lens – Part Number: 8292H
    Lens
    Part Number: 8292H
      No Longer Available
  • E-65
    Housing – Part Number: 8293H
    Housing
    Part Number: 8293H
      No Longer Available
  • E-66
    Spndl Pulley – Part Number: STD541110
    Spndl Pulley
    Part Number: STD541110
      No Longer Available
  • E-67
    Terminal Cover – Part Number: 1358R
    Terminal Cover
    Part Number: 1358R
      No Longer Available
  • E-800
    Parts List – Part Number: 1135R
    Parts List
    Part Number: 1135R
      No Longer Available
  • E-800
    42 Complete Deck – Part Number: 253582
    42 Complete Deck
    Part Number: 253582
      No Longer Available
  • E-800
    Lawn Tractor Tie Rod End – Part Number: 109851X
    Lawn Tractor Tie Rod End
    Part Number: 109851X
      No Longer Available
  • E-800
    Hanger Kit – Part Number: 25393
    Hanger Kit
    Part Number: 25393
      No Longer Available
  • E-800
    Tie Rod Tube – Part Number: 7446R
    Tie Rod Tube
    Part Number: 7446R
      No Longer Available
  • E-800
    Transaxle – Part Number: 633A38
    Transaxle
    Part Number: 633A38
      No Longer Available
  • E-800
    Ball Jnt Right Hand – Part Number: 7445R
    Ball Jnt Right Hand
    Part Number: 7445R
      No Longer Available
Page F
Page F Diagram and Parts List for Craftsman Lawn Tractor
Page G
Page G Diagram and Parts List for Craftsman Lawn Tractor

Questions & Answers

?

Our customer Service team is at the ready daily to answer your part and product questions.

Be the first to ask our experts a question about this part!

Ask our Team

We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.

✖

Our customer service team are at the ready daily to answer your part and product questions. We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
