Craftsman Lawn Tractor Replacement Parts For Model 9172552702

We Sell Only Genuine Craftsman Parts

Popular Parts for 9172552702

Lawn Mower Hood Latch – Part Number: 532109808 Lawn Mower Hood Latch
In Stock
$6.82
Lawn Mower Washer – Part Number: 532067725 Lawn Mower Washer
In Stock
$8.26
Bushing, Steering – Part Number: 532155108 Bushing, Steering
In Stock
$9.63
Switch, Ignition – Part Number: 532365402 Switch, Ignition
In Stock
$33.47
Cover, Pedal – Part Number: 510089501 Cover, Pedal
In Stock
$6.80
Screw – Part Number: 583607701 Screw
In Stock
$5.95
Lawn Mower Tube – Part Number: 532007152 Lawn Mower Tube
In Stock
$59.95
Nut, Ignition – Part Number: 532124211 Nut, Ignition
Special Order
$7.54

Search Within Model

Questions & Answers for Craftsman 9172552702
Browse all Parts Search by Area

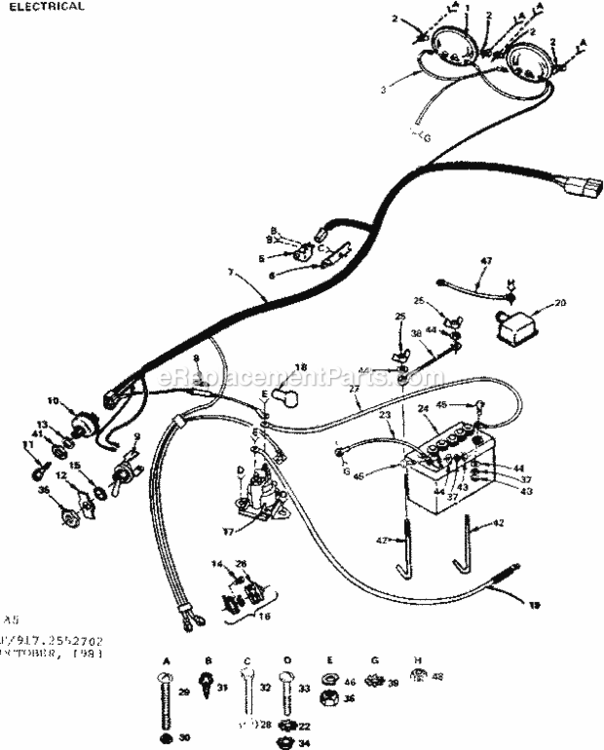

Page A Diagram and Parts List for Craftsman Lawn Tractor
Page A
Page B Diagram and Parts List for Craftsman Lawn Tractor
Page B

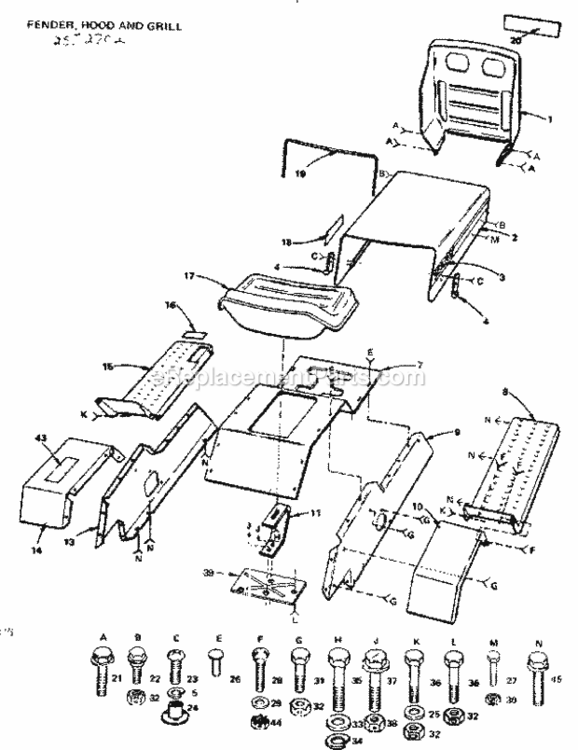

Page C Diagram and Parts List for Craftsman Lawn Tractor
Page C

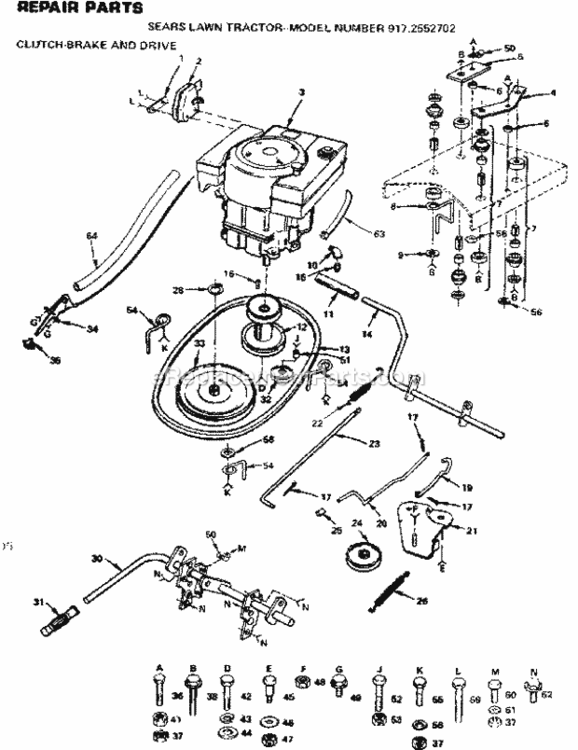

Page D Diagram and Parts List for Craftsman Lawn Tractor
Page D

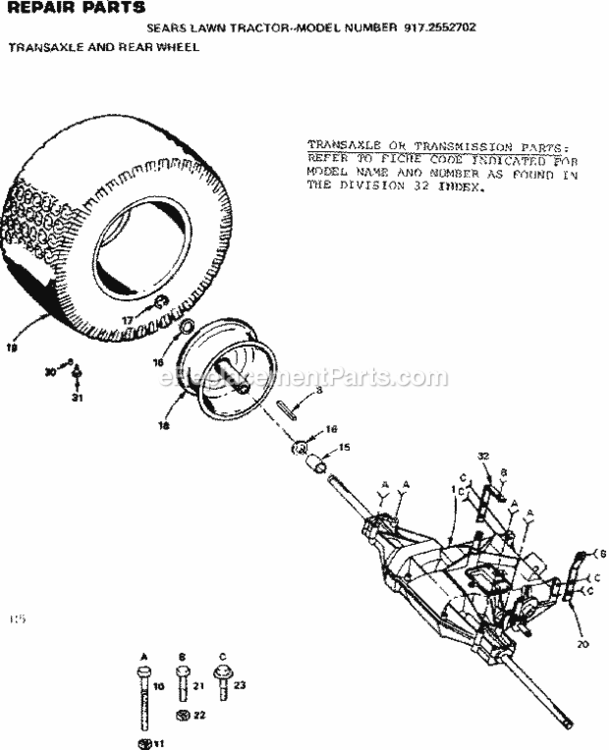

Page E Diagram and Parts List for Craftsman Lawn Tractor
Page E

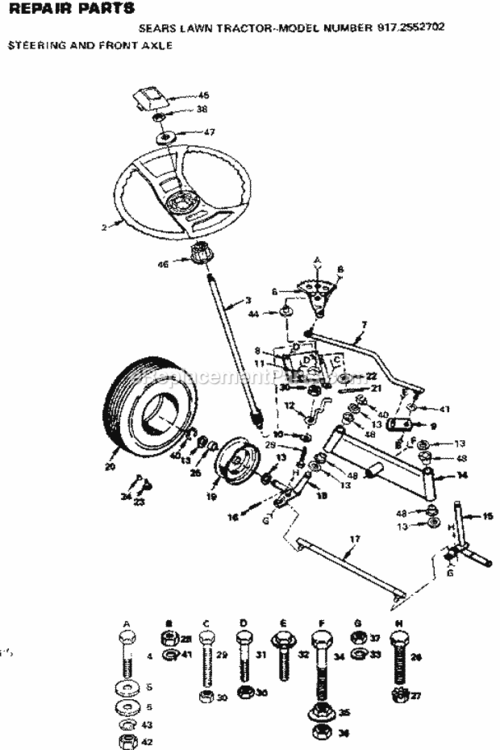

Page F Diagram and Parts List for Craftsman Lawn Tractor
Page F

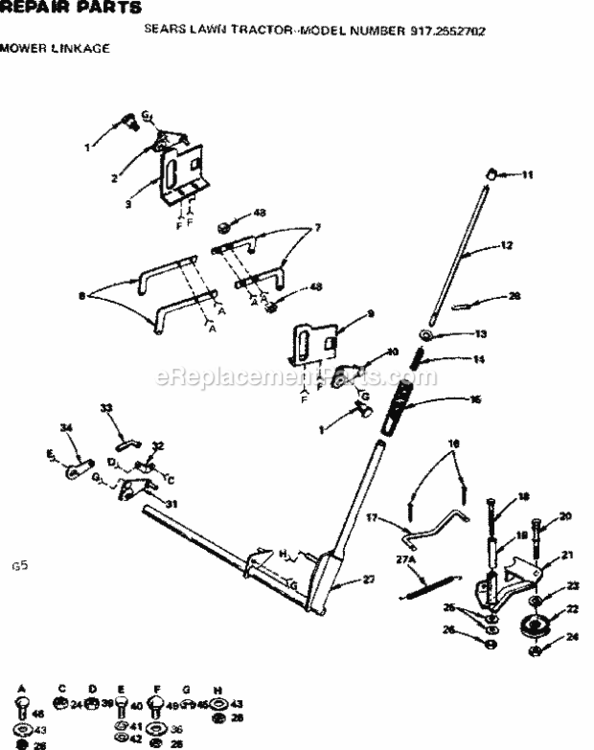

Page G Diagram and Parts List for Craftsman Lawn Tractor
Page G

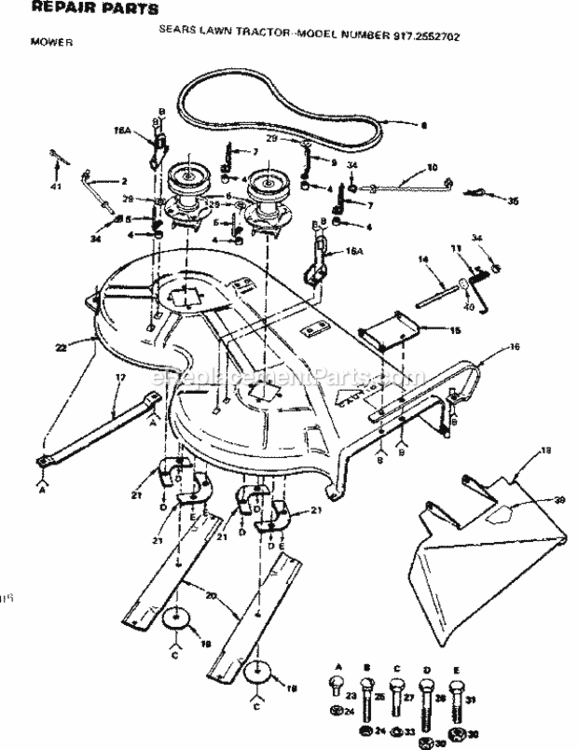

Page H Diagram and Parts List for Craftsman Lawn Tractor
Page H
Previous Showing All Parts Next
Page A
Page A Diagram and Parts List for Craftsman Lawn Tractor
Page B

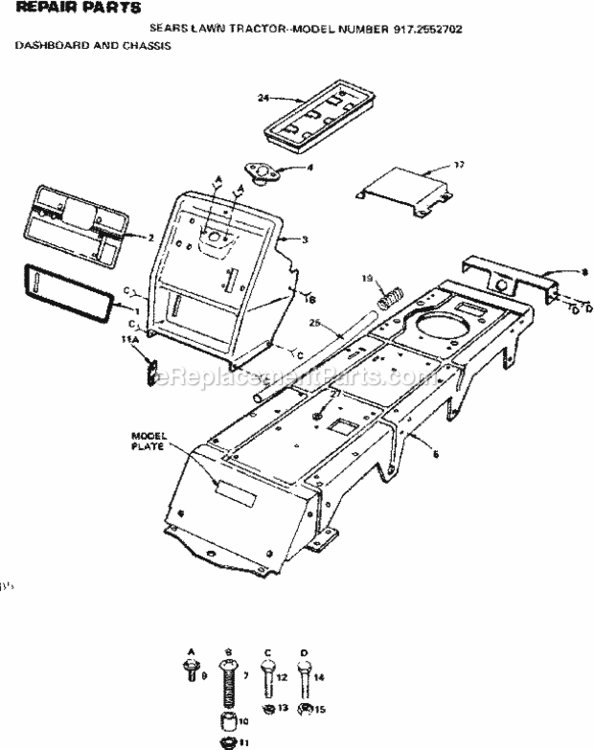

Page B Diagram and Parts List for Craftsman Lawn Tractor
  • B-1
    Decal – Part Number: 100770L
    Decal
    Part Number: 100770L
      No Longer Available
  • B-2
    Decal – Part Number: 1841J
    Decal
    Part Number: 1841J
      No Longer Available
  • B-3
    Dashboard – Part Number: 678H272
    Dashboard
    Part Number: 678H272
      No Longer Available
  • B-4
    Bushing, Steering – Part Number: 532155108
    Bushing, Steering
    Part Number: 532155108
      In Stock
    $9.63
  • B-5
    Chassis – Part Number: 101212N
    Chassis
    Part Number: 101212N
      No Longer Available
  • B-7
    Pan head screw – Part Number: 74981024
    Pan head screw
    Part Number: 74981024
      No Longer Available
  • B-8
    Axle Sup. – Part Number: 1626J
    Axle Sup.
    Part Number: 1626J
      No Longer Available
  • B-9
    Sheet Metal Screw – Part Number: STD611005
    Sheet Metal Screw
    Part Number: STD611005
      No Longer Available
  • B-10
    Spacer – Part Number: 7206J
    Spacer
    Part Number: 7206J
      No Longer Available
  • B-11
    Nut 2Pk – Part Number: STD541462
    Nut 2Pk
    Part Number: STD541462
      No Longer Available
  • B-11A
    Clip – Part Number: 2521R
    Clip
    Part Number: 2521R
      No Longer Available
  • B-12
    Screw 5Pk – Part Number: STD523107
    Screw 5Pk
    Part Number: STD523107
      No Longer Available
  • B-13
    Locknut – Part Number: STD541431
    Locknut
    Part Number: STD541431
      No Longer Available
  • B-14
    Screw 5Pk – Part Number: STD523707
    Screw 5Pk
    Part Number: STD523707
      No Longer Available
  • B-15
    Starter Pulley Kit – Part Number: 73680600
    Starter Pulley Kit
    Part Number: 73680600
      No Longer Available
  • B-17
    Support – Part Number: 100538M
    Support
    Part Number: 100538M
      No Longer Available
  • B-19
    Spring – Part Number: 101687X
    Spring
    Part Number: 101687X
      No Longer Available
  • B-24
    Tray, Battery – Part Number: 532007603
    Tray, Battery
    Part Number: 532007603
      In Stock
    $9.63
  • B-25
    Drain Tube – Part Number: 102333X
    Drain Tube
    Part Number: 102333X
      No Longer Available
  • B-27
    Bushing – Part Number: 3807R
    Bushing
    Part Number: 3807R
      No Longer Available
  • B-800
    Owners Manual – Part Number: 917104204
    Owners Manual
    Part Number: 917104204
      No Longer Available
  • B-800
    Rating Tag – Part Number: 101781X
    Rating Tag
    Part Number: 101781X
      No Longer Available
  • B-800
    Decal – Part Number: 101027X
    Decal
    Part Number: 101027X
      No Longer Available
  • B-800
    Thread-forming Screw, 8-pack – Part Number: STD610805
    Thread-forming Screw, 8-pack
    Part Number: STD610805
      No Longer Available
  • B-800
    Spark Screen – Part Number: 677V1
    Spark Screen
    Part Number: 677V1
      No Longer Available
  • B-800
    Instructions – Part Number: 101539X
    Instructions
    Part Number: 101539X
      No Longer Available
Page C
Page C Diagram and Parts List for Craftsman Lawn Tractor
Page D
Page D Diagram and Parts List for Craftsman Lawn Tractor
  • D-1
    Muffler Clip – Part Number: 583778101
    Muffler Clip
    Part Number: 583778101
      No Longer Available
  • D-2
    Muffler – Part Number: 882J
    Muffler
    Part Number: 882J
      No Longer Available
  • D-3
    Engine – Part Number: 104195X
    Engine
    Part Number: 104195X
      No Longer Available
  • D-4
    Strap – Part Number: 1532J
    Strap
    Part Number: 1532J
      No Longer Available
  • D-5
    Strap – Part Number: 1531J
    Strap
    Part Number: 1531J
      No Longer Available
  • D-6
    Spacer – Part Number: 100568K
    Spacer
    Part Number: 100568K
      No Longer Available
  • D-7
    Isomount Assy. – Part Number: 674A166
    Isomount Assy.
    Part Number: 674A166
      No Longer Available
  • D-8
    Snubber – Part Number: 1666J
    Snubber
    Part Number: 1666J
      No Longer Available
  • D-9
    Washer 8Pk – Part Number: STD551037
    Washer 8Pk
    Part Number: STD551037
      No Longer Available
  • D-10
    Elbow – Part Number: 13170300
    Elbow
    Part Number: 13170300
      No Longer Available
  • D-11
    Cover, Pedal – Part Number: 510089501
    Cover, Pedal
    Part Number: 510089501
    ★★★★★
    ★★★★★
    (4)
      In Stock
    $6.80
  • D-12
    Kit.Pulley.E – Part Number: 582962201
    Kit.Pulley.E
    Part Number: 582962201
      No Longer Available
  • D-13
    Belt – Part Number: STD324830
    Belt
    Part Number: STD324830
      No Longer Available
  • D-14
    Pedal Shaft – Part Number: 100506M
    Pedal Shaft
    Part Number: 100506M
      No Longer Available
  • D-15
    Drain Plug – Part Number: 31927
    Drain Plug
    Part Number: 31927
      Special Order
    $5.95
  • D-16
    Square Key – Part Number: STD580111
    Square Key
    Part Number: STD580111
      No Longer Available
  • D-17
    Pin 8Pk – Part Number: STD560907
    Pin 8Pk
    Part Number: STD560907
      No Longer Available
  • D-19
    Rod – Part Number: 1636J
    Rod
    Part Number: 1636J
      No Longer Available
  • D-20
    Brake Rod – Part Number: 100529M
    Brake Rod
    Part Number: 100529M
      No Longer Available
  • D-21
    Bracket – Part Number: 677A903
    Bracket
    Part Number: 677A903
      No Longer Available
  • D-22
    BRAKE SPRING T – Part Number: 583685701
    BRAKE SPRING T
    Part Number: 583685701
      Special Order
    $24.82
  • D-23
    Rod – Part Number: 101558X
    Rod
    Part Number: 101558X
      No Longer Available
  • D-24
    Pulley, Idler – Part Number: 532104679
    Pulley, Idler
    Part Number: 532104679
    ★★★★★
    ★★★★★
    (2)
      In Stock
    $24.82
  • D-25
    Plunger cap – Part Number: 71673
    Plunger cap
    Part Number: 71673
      No Longer Available
  • D-26
    Spring – Part Number: 100123L
    Spring
    Part Number: 100123L
      No Longer Available
  • D-28
    Ring, Retainer – Part Number: 12000028
    Ring, Retainer
    Part Number: 12000028
      No Longer Available
  • D-30
    Shaft Cl. – Part Number: 100507M
    Shaft Cl.
    Part Number: 100507M
      No Longer Available
  • D-31
    ASM, CART K9306 – Part Number: 67653
    ASM, CART K9306
    Part Number: 67653
      Special Order
    $967.37
  • D-32
    Idler Pulley – Part Number: 105307X
    Idler Pulley
    Part Number: 105307X
      No Longer Available
  • D-33
    Pulley – Part Number: 1631J
    Pulley
    Part Number: 1631J
      No Longer Available
  • D-34
    Cable – Part Number: 3375J
    Cable
    Part Number: 3375J
      No Longer Available
  • D-35
    Ball Float – Part Number: 61159
    Ball Float
    Part Number: 61159
      No Longer Available
  • D-36
    Bolt – Part Number: 74790524
    Bolt
    Part Number: 74790524
      No Longer Available
  • D-37
    Locknut – Part Number: STD541431
    Locknut
    Part Number: STD541431
      No Longer Available
  • D-38
    Screw – Part Number: 17490640
    Screw
    Part Number: 17490640
      No Longer Available
  • D-41
    Lock Nut – Part Number: 73860500
    Lock Nut
    Part Number: 73860500
      No Longer Available
  • D-42
    Bolt – Part Number: 74770724
    Bolt
    Part Number: 74770724
      No Longer Available
  • D-43
    Washer Lock 7/16 – Part Number: STD551143
    Washer Lock 7/16
    Part Number: STD551143
      No Longer Available
  • D-44
    Washer – Part Number: 19152405
    Washer
    Part Number: 19152405
      No Longer Available
  • D-45
    Bolt – Part Number: 101008K
    Bolt
    Part Number: 101008K
      No Longer Available
  • D-46
    Washer – Part Number: 98000148
    Washer
    Part Number: 98000148
      No Longer Available
  • D-47
    Hex Lock Nut – Part Number: STD541531
    Hex Lock Nut
    Part Number: STD541531
      No Longer Available
  • D-48
    Hex Lock Nut – Part Number: STD541537
    Hex Lock Nut
    Part Number: STD541537
      No Longer Available
  • D-49
    Screw 1/4-20 unc x 1/2 – Part Number: 17720408
    Screw 1/4-20 unc x 1/2
    Part Number: 17720408
      No Longer Available
  • D-50
    Clip, Fuel Line – Part Number: 2751R
    Clip, Fuel Line
    Part Number: 2751R
      No Longer Available
  • D-51
    Spacer-Split 395 x 59 Bzp – Part Number: 532124965
    Spacer-Split 395 x 59 Bzp
    Part Number: 532124965
      Special Order
    $5.95
  • D-52
    Screw 2Pk – Part Number: STD523722
    Screw 2Pk
    Part Number: STD523722
      No Longer Available
  • D-53
    Starter Pulley Kit – Part Number: 73680600
    Starter Pulley Kit
    Part Number: 73680600
      No Longer Available
  • D-54
    Snubber – Part Number: 678H492
    Snubber
    Part Number: 678H492
      No Longer Available
  • D-55
    Screw 5Pk – Part Number: STD523110
    Screw 5Pk
    Part Number: STD523110
      No Longer Available
  • D-56
    Washer – Part Number: 19111216
    Washer
    Part Number: 19111216
      No Longer Available
  • D-58
    Washer – Part Number: 55611
    Washer
    Part Number: 55611
      No Longer Available
  • D-59
    Screw 2Pk – Part Number: STD523130
    Screw 2Pk
    Part Number: STD523130
      No Longer Available
  • D-60
    Screw 5Pk – Part Number: STD523107
    Screw 5Pk
    Part Number: STD523107
      No Longer Available
  • D-61
    Washer – Part Number: 19111214
    Washer
    Part Number: 19111214
      No Longer Available
  • D-62
    Screw – Part Number: 17490610
    Screw
    Part Number: 17490610
      No Longer Available
  • D-63
    Ties 8Pk – Part Number: STD426600
    Ties 8Pk
    Part Number: STD426600
      No Longer Available
  • D-64
    Sleeve – Part Number: 7512J
    Sleeve
    Part Number: 7512J
      No Longer Available
  • D-800
    Owners Manual – Part Number: 917104204
    Owners Manual
    Part Number: 917104204
      No Longer Available
  • D-800
    Rating Tag – Part Number: 101781X
    Rating Tag
    Part Number: 101781X
      No Longer Available
  • D-800
    Decal – Part Number: 101027X
    Decal
    Part Number: 101027X
      No Longer Available
  • D-800
    Thread-forming Screw, 8-pack – Part Number: STD610805
    Thread-forming Screw, 8-pack
    Part Number: STD610805
      No Longer Available
  • D-800
    Spark Screen – Part Number: 677V1
    Spark Screen
    Part Number: 677V1
      No Longer Available
  • D-800
    Instructions – Part Number: 101539X
    Instructions
    Part Number: 101539X
      No Longer Available
Page E
Page E Diagram and Parts List for Craftsman Lawn Tractor
  • E-1
    Transaxle – Part Number: 101454X
    Transaxle
    Part Number: 101454X
      No Longer Available
  • E-8
    3/16 Sq Key – Part Number: STD580105
    3/16 Sq Key
    Part Number: STD580105
      No Longer Available
  • E-10
    Screw 2Pk – Part Number: STD523727
    Screw 2Pk
    Part Number: STD523727
      No Longer Available
  • E-11
    Starter Pulley Kit – Part Number: 73680600
    Starter Pulley Kit
    Part Number: 73680600
      No Longer Available
  • E-15
    Spacer – Part Number: 2935J
    Spacer
    Part Number: 2935J
      No Longer Available
  • E-16
    Washer – Part Number: 121749X
    Washer
    Part Number: 121749X
      No Longer Available
  • E-17
    Ring 2Pk – Part Number: STD581075
    Ring 2Pk
    Part Number: STD581075
      No Longer Available
  • E-18
    Rim, Rear – Part Number: 140325X417
    Rim, Rear
    Part Number: 140325X417
      No Longer Available
  • E-19
    Tire – Part Number: 122074X
    Tire
    Part Number: 122074X
      No Longer Available
  • E-19A
    Lawn Mower Tube – Part Number: 532007152
    Lawn Mower Tube
    Part Number: 532007152
      In Stock
    $59.95
  • E-20
    Strap – Part Number: 678H505
    Strap
    Part Number: 678H505
      No Longer Available
  • E-21
    Screw 5Pk – Part Number: STD523107
    Screw 5Pk
    Part Number: STD523107
      No Longer Available
  • E-22
    Locknut – Part Number: STD541431
    Locknut
    Part Number: STD541431
      No Longer Available
  • E-23
    Screw – Part Number: 583607701
    Screw
    Part Number: 583607701
      In Stock
    $5.95
  • E-30
    Soc. Flat Hd. Screw, #10-24 x 1/2" – Part Number: 59192
    Soc. Flat Hd. Screw, #10-24 x 1/2"
    Part Number: 59192
      Special Order
    $10.98
  • E-31
    Lawn Tractor Tire Valve Stem – Part Number: 65139
    Lawn Tractor Tire Valve Stem
    Part Number: 65139
      No Longer Available
  • E-32
    Strap – Part Number: 678H504
    Strap
    Part Number: 678H504
      No Longer Available
  • E-800
    Instructions – Part Number: 101539X
    Instructions
    Part Number: 101539X
      No Longer Available
  • E-800
    Spark Screen – Part Number: 677V1
    Spark Screen
    Part Number: 677V1
      No Longer Available
  • E-800
    Thread-forming Screw, 8-pack – Part Number: STD610805
    Thread-forming Screw, 8-pack
    Part Number: STD610805
      No Longer Available
  • E-800
    Decal – Part Number: 101027X
    Decal
    Part Number: 101027X
      No Longer Available
  • E-800
    Rating Tag – Part Number: 101781X
    Rating Tag
    Part Number: 101781X
      No Longer Available
  • E-800
    Owners Manual – Part Number: 917104204
    Owners Manual
    Part Number: 917104204
      No Longer Available
Page F
Page F Diagram and Parts List for Craftsman Lawn Tractor
  • F-2
    Steering Wheel Kit – Part Number: 583261901
    Steering Wheel Kit
    Part Number: 583261901
      No Longer Available
  • F-3
    Pinion – Part Number: 677A758
    Pinion
    Part Number: 677A758
      No Longer Available
  • F-4
    Capscr Hx Nc – Part Number: STD525020
    Capscr Hx Nc
    Part Number: STD525020
      No Longer Available
  • F-5
    Lawn Mower Washer – Part Number: 532067725
    Lawn Mower Washer
    Part Number: 532067725
      In Stock
    $8.26
  • F-6
    Sector – Part Number: 100508L
    Sector
    Part Number: 100508L
      No Longer Available
  • F-7
    Link – Part Number: 1640J
    Link
    Part Number: 1640J
      No Longer Available
  • F-8
    Support – Part Number: 101456X
    Support
    Part Number: 101456X
      No Longer Available
  • F-9
    Steering Assembly – Part Number: 677H955
    Steering Assembly
    Part Number: 677H955
      No Longer Available
  • F-10
    Washer – Part Number: 55611
    Washer
    Part Number: 55611
      No Longer Available
  • F-11
    Clip, Fuel Line – Part Number: 2751R
    Clip, Fuel Line
    Part Number: 2751R
      No Longer Available
  • F-12
    Guide – Part Number: 7320J
    Guide
    Part Number: 7320J
      No Longer Available
  • F-13
    Washer – Part Number: 121749X
    Washer
    Part Number: 121749X
      No Longer Available
  • F-14
    Axle – Part Number: 100554N
    Axle
    Part Number: 100554N
      No Longer Available
  • F-15
    Spindle – Part Number: 678H667
    Spindle
    Part Number: 678H667
      No Longer Available
  • F-16
    Roll Pin – Part Number: 532437620
    Roll Pin
    Part Number: 532437620
      No Longer Available
  • F-17
    Tie Rod – Part Number: 1637J
    Tie Rod
    Part Number: 1637J
      No Longer Available
  • F-18
    Spindle Assembly – Part Number: 678H666
    Spindle Assembly
    Part Number: 678H666
      No Longer Available
  • F-19
    Rim – Part Number: 100694K
    Rim
    Part Number: 100694K
      No Longer Available
  • F-20
    Tire – Part Number: 122073X
    Tire
    Part Number: 122073X
      No Longer Available
  • F-20A
    Inner tube – Part Number: 59904
    Inner tube
    Part Number: 59904
      No Longer Available
  • F-21
    Pin 5Pk – Part Number: STD571210
    Pin 5Pk
    Part Number: STD571210
      No Longer Available
  • F-22
    Lawn Mower Bushing – Part Number: 734117771
    Lawn Mower Bushing
    Part Number: 734117771
      In Stock
    $5.95
  • F-23
    Lawn Tractor Tire Valve Stem – Part Number: 65139
    Lawn Tractor Tire Valve Stem
    Part Number: 65139
      No Longer Available
  • F-24
    Soc. Flat Hd. Screw, #10-24 x 1/2" – Part Number: 59192
    Soc. Flat Hd. Screw, #10-24 x 1/2"
    Part Number: 59192
      Special Order
    $10.98
  • F-25
    Lawn Tractor Axle Flange Bearing – Part Number: 9040H
    Lawn Tractor Axle Flange Bearing
    Part Number: 9040H
      No Longer Available
  • F-26
    Bolt – Part Number: 74930624
    Bolt
    Part Number: 74930624
      No Longer Available
  • F-27
    Nut Keps Hex 3/8-16 Unc – Part Number: 873510600
    Nut Keps Hex 3/8-16 Unc
    Part Number: 873510600
      Special Order
    $5.93
  • F-28
    Hex Lock Nut – Part Number: STD541537
    Hex Lock Nut
    Part Number: STD541537
      No Longer Available
  • F-29
    Screw 5Pk – Part Number: STD523110
    Screw 5Pk
    Part Number: STD523110
      No Longer Available
  • F-30
    Locknut – Part Number: STD541431
    Locknut
    Part Number: STD541431
      No Longer Available
  • F-31
    Screw 5Pk – Part Number: STD523107
    Screw 5Pk
    Part Number: STD523107
      No Longer Available
  • F-32
    Bolt – Part Number: 98000139
    Bolt
    Part Number: 98000139
      No Longer Available
  • F-33
    Lock Washer – Part Number: STD551131
    Lock Washer
    Part Number: STD551131
      No Longer Available
  • F-34
    Bolt – Part Number: 74761088
    Bolt
    Part Number: 74761088
      No Longer Available
  • F-35
    Nut – Part Number: 98000144
    Nut
    Part Number: 98000144
      No Longer Available
  • F-36
    Nut 2Pk – Part Number: STD541262
    Nut 2Pk
    Part Number: STD541262
      No Longer Available
  • F-37
    Wheel Nut – Part Number: STD541131
    Wheel Nut
    Part Number: STD541131
      No Longer Available
  • F-38
    Nut 5Pk – Part Number: STD541350
    Nut 5Pk
    Part Number: STD541350
      No Longer Available
  • F-40
    Lawn Tractor Ring Clip – Part Number: 12000029
    Lawn Tractor Ring Clip
    Part Number: 12000029
      No Longer Available
  • F-41
    Washer, Lock 3/8 – Part Number: STD551137
    Washer, Lock 3/8
    Part Number: STD551137
      No Longer Available
  • F-42
    Nut 5Pk – Part Number: STD541050
    Nut 5Pk
    Part Number: STD541050
      No Longer Available
  • F-43
    Washer 5Pk – Part Number: STD551150
    Washer 5Pk
    Part Number: STD551150
      No Longer Available
  • F-44
    Spacer – Part Number: 100537K
    Spacer
    Part Number: 100537K
      No Longer Available
  • F-45
    Insert, Steering Wheel – Part Number: 100710L
    Insert, Steering Wheel
    Part Number: 100710L
      No Longer Available
  • F-46
    Steering Wheel Adapter – Part Number: 437747
    Steering Wheel Adapter
    Part Number: 437747
      No Longer Available
  • F-47
    Washer – Part Number: 100712K
    Washer
    Part Number: 100712K
      No Longer Available
  • F-48
    Bearing – Part Number: 3366R
    Bearing
    Part Number: 3366R
      No Longer Available
  • F-800
    Owners Manual – Part Number: 917104204
    Owners Manual
    Part Number: 917104204
      No Longer Available
  • F-800
    Rating Tag – Part Number: 101781X
    Rating Tag
    Part Number: 101781X
      No Longer Available
  • F-800
    Decal – Part Number: 101027X
    Decal
    Part Number: 101027X
      No Longer Available
  • F-800
    Thread-forming Screw, 8-pack – Part Number: STD610805
    Thread-forming Screw, 8-pack
    Part Number: STD610805
      No Longer Available
  • F-800
    Spark Screen – Part Number: 677V1
    Spark Screen
    Part Number: 677V1
      No Longer Available
  • F-800
    Instructions – Part Number: 101539X
    Instructions
    Part Number: 101539X
      No Longer Available
Page G
Page G Diagram and Parts List for Craftsman Lawn Tractor
  • G-1
    Bolt – Part Number: 4792J
    Bolt
    Part Number: 4792J
      No Longer Available
  • G-2
    Arm Assembly – Part Number: 678H457
    Arm Assembly
    Part Number: 678H457
      No Longer Available
  • G-3
    Bracket – Part Number: 100526M
    Bracket
    Part Number: 100526M
      No Longer Available
  • G-7
    Link – Part Number: 512J
    Link
    Part Number: 512J
      No Longer Available
  • G-8
    Link – Part Number: 1658J
    Link
    Part Number: 1658J
      No Longer Available
  • G-9
    Bracket – Part Number: 100525M
    Bracket
    Part Number: 100525M
      No Longer Available
  • G-10
    Arm Assembly – Part Number: 678H460
    Arm Assembly
    Part Number: 678H460
      No Longer Available
  • G-11
    Plunger Cap – Part Number: 583780901
    Plunger Cap
    Part Number: 583780901
      No Longer Available
  • G-12
    Rods – Part Number: 1663J
    Rods
    Part Number: 1663J
      No Longer Available
  • G-13
    Washer 8Pk – Part Number: STD551043
    Washer 8Pk
    Part Number: STD551043
      No Longer Available
  • G-14
    Spring – Part Number: 71669
    Spring
    Part Number: 71669
      No Longer Available
  • G-15
    Light Grip – Part Number: 583693601
    Light Grip
    Part Number: 583693601
      No Longer Available
  • G-16
    Pin 8Pk – Part Number: STD561210
    Pin 8Pk
    Part Number: STD561210
      No Longer Available
  • G-17
    Link – Part Number: 678H496
    Link
    Part Number: 678H496
      No Longer Available
  • G-18
    Bolt – Part Number: STD523147
    Bolt
    Part Number: STD523147
      No Longer Available
  • G-19
    Sleeve – Part Number: 1850J
    Sleeve
    Part Number: 1850J
      No Longer Available
  • G-20
    Bolt – Part Number: 1665J
    Bolt
    Part Number: 1665J
      No Longer Available
  • G-21
    Bracket – Part Number: 677H962
    Bracket
    Part Number: 677H962
      No Longer Available
  • G-22
    Pulley – Part Number: 105313X
    Pulley
    Part Number: 105313X
      No Longer Available
  • G-23
    Washer 8Pk – Part Number: STD551025
    Washer 8Pk
    Part Number: STD551025
      No Longer Available
  • G-24
    Starter Pulley Kit – Part Number: 73680600
    Starter Pulley Kit
    Part Number: 73680600
      No Longer Available
  • G-25
    Flat Washer, 8Pk – Part Number: STD551031
    Flat Washer, 8Pk
    Part Number: STD551031
      No Longer Available
  • G-26
    Locknut – Part Number: STD541431
    Locknut
    Part Number: STD541431
      No Longer Available
  • G-27
    Lift Shaft – Part Number: 677H972
    Lift Shaft
    Part Number: 677H972
      No Longer Available
  • G-27A
    Spring – Part Number: 7458J
    Spring
    Part Number: 7458J
      No Longer Available
  • G-28
    Lock Pin – Part Number: 5005J
    Lock Pin
    Part Number: 5005J
      No Longer Available
  • G-31
    Arm Assembly – Part Number: 678H462
    Arm Assembly
    Part Number: 678H462
      No Longer Available
  • G-32
    Adj. Bracket – Part Number: 678H498
    Adj. Bracket
    Part Number: 678H498
      No Longer Available
  • G-33
    Adj. Rod – Part Number: 100530K
    Adj. Rod
    Part Number: 100530K
      No Longer Available
  • G-34
    Arm – Part Number: 678H463
    Arm
    Part Number: 678H463
      No Longer Available
  • G-36
    Washer – Part Number: 19111010
    Washer
    Part Number: 19111010
      No Longer Available
  • G-39
    Hex Lock Nut – Part Number: STD541537
    Hex Lock Nut
    Part Number: STD541537
      No Longer Available
  • G-40
    Screw 8Pk – Part Number: STD522507
    Screw 8Pk
    Part Number: STD522507
      No Longer Available
  • G-41
    Washer 8Pk – Part Number: STD551125
    Washer 8Pk
    Part Number: STD551125
      No Longer Available
  • G-42
    Washer – Part Number: 19092016
    Washer
    Part Number: 19092016
      No Longer Available
  • G-43
    Washer – Part Number: 19111216
    Washer
    Part Number: 19111216
      No Longer Available
  • G-45
    E-ring .375 – Part Number: 595841101
    E-ring .375
    Part Number: 595841101
      Special Order
    $5.95
  • G-46
    Carriage Bolt – Part Number: STD533107
    Carriage Bolt
    Part Number: STD533107
      No Longer Available
  • G-48
    Lawn & Garden Equipment Nut – Part Number: 73680800
    Lawn & Garden Equipment Nut
    Part Number: 73680800
      No Longer Available
  • G-49
    Carriage Bolt – Part Number: STD533110
    Carriage Bolt
    Part Number: STD533110
      No Longer Available
  • G-800
    Instructions – Part Number: 101539X
    Instructions
    Part Number: 101539X
      No Longer Available
  • G-800
    Spark Screen – Part Number: 677V1
    Spark Screen
    Part Number: 677V1
      No Longer Available
  • G-800
    Thread-forming Screw, 8-pack – Part Number: STD610805
    Thread-forming Screw, 8-pack
    Part Number: STD610805
      No Longer Available
  • G-800
    Decal – Part Number: 101027X
    Decal
    Part Number: 101027X
      No Longer Available
  • G-800
    Rating Tag – Part Number: 101781X
    Rating Tag
    Part Number: 101781X
      No Longer Available
  • G-800
    Owners Manual – Part Number: 917104204
    Owners Manual
    Part Number: 917104204
      No Longer Available
Page H
Page H Diagram and Parts List for Craftsman Lawn Tractor
  • H-2
    Rod – Part Number: 100516L
    Rod
    Part Number: 100516L
      No Longer Available
  • H-4
    Spacer – Part Number: 4497J
    Spacer
    Part Number: 4497J
      No Longer Available
  • H-5
    Snubber – Part Number: 678H501
    Snubber
    Part Number: 678H501
      No Longer Available
  • H-6
    Quill – Part Number: 678H280
    Quill
    Part Number: 678H280
      No Longer Available
  • H-7
    Brake Assembly – Part Number: 583651401
    Brake Assembly
    Part Number: 583651401
      No Longer Available
  • H-8
    Blade Drive Belt – Part Number: 583785901
    Blade Drive Belt
    Part Number: 583785901
      No Longer Available
  • H-9
    Snubber – Part Number: 1763J
    Snubber
    Part Number: 1763J
      No Longer Available
  • H-10
    Rod – Part Number: 100517L
    Rod
    Part Number: 100517L
      No Longer Available
  • H-11
    Spring – Part Number: 71526
    Spring
    Part Number: 71526
      No Longer Available
  • H-14
    Rod – Part Number: 100569K
    Rod
    Part Number: 100569K
      No Longer Available
  • H-15
    Bracket – Part Number: 678H464
    Bracket
    Part Number: 678H464
      No Longer Available
  • H-16
    Runner – Part Number: 678H630
    Runner
    Part Number: 678H630
      No Longer Available
  • H-16A
    Bracket – Part Number: 4487J
    Bracket
    Part Number: 4487J
      No Longer Available
  • H-17
    Skid – Part Number: 4496J
    Skid
    Part Number: 4496J
      No Longer Available
  • H-18
    Deflector – Part Number: 100544N
    Deflector
    Part Number: 100544N
      No Longer Available
  • H-19
    Washer – Part Number: 583789501
    Washer
    Part Number: 583789501
      No Longer Available
  • H-20
    Hanger Bracket – Part Number: 25645
    Hanger Bracket
    Part Number: 25645
      No Longer Available
  • H-21
    Support Plate – Part Number: 100668L
    Support Plate
    Part Number: 100668L
      No Longer Available
  • H-22
    Housing – Part Number: 677A501
    Housing
    Part Number: 677A501
      No Longer Available
  • H-23
    Bolt – Part Number: STD533106
    Bolt
    Part Number: STD533106
      No Longer Available
  • H-24
    Locknut – Part Number: STD541431
    Locknut
    Part Number: STD541431
      No Longer Available
  • H-25
    Carriage Bolt – Part Number: STD533107
    Carriage Bolt
    Part Number: STD533107
      No Longer Available
  • H-27
    Screw 2Pk – Part Number: STD623710
    Screw 2Pk
    Part Number: STD623710
      No Longer Available
  • H-28
    Screw, 2 Pk. – Part Number: STD523715
    Screw, 2 Pk.
    Part Number: STD523715
      No Longer Available
  • H-29
    Washer 8Pk – Part Number: STD551025
    Washer 8Pk
    Part Number: STD551025
      No Longer Available
  • H-30
    Starter Pulley Kit – Part Number: 73680600
    Starter Pulley Kit
    Part Number: 73680600
      No Longer Available
  • H-31
    Screw 5pk – Part Number: STD523710
    Screw 5pk
    Part Number: STD523710
      No Longer Available
  • H-33
    Washer, Lock 3/8 – Part Number: STD551137
    Washer, Lock 3/8
    Part Number: STD551137
      No Longer Available
  • H-34
    Lawn Tractor Push Nut – Part Number: 110452X
    Lawn Tractor Push Nut
    Part Number: 110452X
      No Longer Available
  • H-35
    Retainer Spring – Part Number: 4921H
    Retainer Spring
    Part Number: 4921H
      No Longer Available
  • H-39
    Decal, Warning – Part Number: 539913010
    Decal, Warning
    Part Number: 539913010
      In Stock
    $5.09
  • H-40
    Washer – Part Number: 19111416
    Washer
    Part Number: 19111416
      No Longer Available
  • H-41
    Pin 8Pk – Part Number: STD561210
    Pin 8Pk
    Part Number: STD561210
      No Longer Available
  • H-800
    Owners Manual – Part Number: 917104204
    Owners Manual
    Part Number: 917104204
      No Longer Available
  • H-800
    Rating Tag – Part Number: 101781X
    Rating Tag
    Part Number: 101781X
      No Longer Available
  • H-800
    Decal – Part Number: 101027X
    Decal
    Part Number: 101027X
      No Longer Available
  • H-800
    Thread-forming Screw, 8-pack – Part Number: STD610805
    Thread-forming Screw, 8-pack
    Part Number: STD610805
      No Longer Available
  • H-800
    Spark Screen – Part Number: 677V1
    Spark Screen
    Part Number: 677V1
      No Longer Available
  • H-800
    Instructions – Part Number: 101539X
    Instructions
    Part Number: 101539X
      No Longer Available

Questions & Answers

?

Our customer Service team is at the ready daily to answer your part and product questions.

Be the first to ask our experts a question about this part!

Ask our Team

We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.

✖

Our customer service team are at the ready daily to answer your part and product questions. We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
