Page A Diagram and Parts List for Craftsman Lawn Tractor
Page A
Page B Diagram and Parts List for Craftsman Lawn Tractor
Page B
Page C Diagram and Parts List for Craftsman Lawn Tractor
Page C
Page D Diagram and Parts List for Craftsman Lawn Tractor
Page D
Page E Diagram and Parts List for Craftsman Lawn Tractor
Page E
Page F Diagram and Parts List for Craftsman Lawn Tractor
Page F
Page G Diagram and Parts List for Craftsman Lawn Tractor
Page G
Page H Diagram and Parts List for Craftsman Lawn Tractor
Page H
Page I Diagram and Parts List for Craftsman Lawn Tractor
Page I
Previous Showing All Parts Next
Page A
Page A Diagram and Parts List for Craftsman Lawn Tractor
Page B

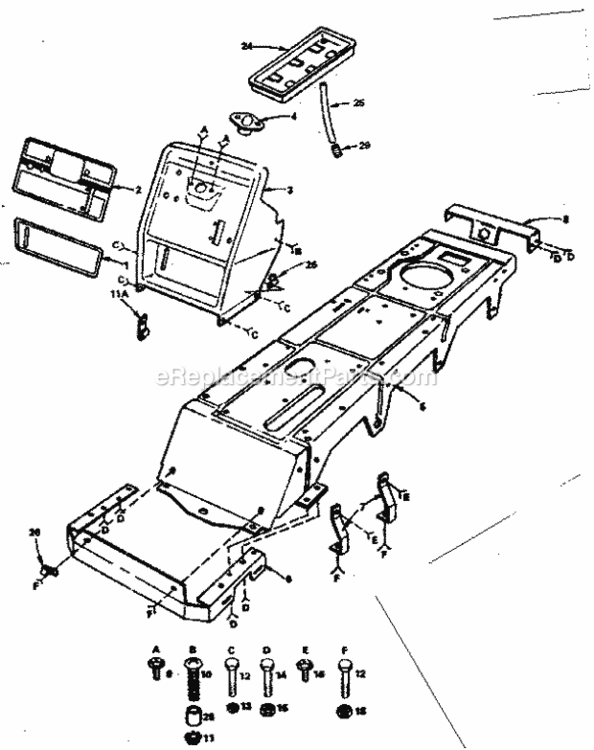

Page B Diagram and Parts List for Craftsman Lawn Tractor
  • B-1
    Decal – Part Number: 100770L
    Decal
    Part Number: 100770L
      No Longer Available
  • B-2
    Decal – Part Number: 1841J
    Decal
    Part Number: 1841J
      No Longer Available
  • B-3
    Dashboard – Part Number: 678H272
    Dashboard
    Part Number: 678H272
      No Longer Available
  • B-4
    Bushing, Steering – Part Number: 532155107
    Bushing, Steering
    Part Number: 532155107
      In Stock
    $8.30
  • B-5
    Chassis – Part Number: 102834X
    Chassis
    Part Number: 102834X
      No Longer Available
  • B-6
    Bearing – Part Number: 678H490
    Bearing
    Part Number: 678H490
      No Longer Available
  • B-7
    Strap – Part Number: 678H491
    Strap
    Part Number: 678H491
      No Longer Available
  • B-8
    Axle Sup. – Part Number: 1626J
    Axle Sup.
    Part Number: 1626J
      No Longer Available
  • B-9
    Sheet Metal Screw – Part Number: STD611005
    Sheet Metal Screw
    Part Number: STD611005
      No Longer Available
  • B-10
    Pan head screw – Part Number: 74981024
    Pan head screw
    Part Number: 74981024
      No Longer Available
  • B-11
    Nut 2Pk – Part Number: STD541462
    Nut 2Pk
    Part Number: STD541462
      No Longer Available
  • B-11A
    Clip – Part Number: 2521R
    Clip
    Part Number: 2521R
      No Longer Available
  • B-12
    Screw 5Pk – Part Number: STD523107
    Screw 5Pk
    Part Number: STD523107
      No Longer Available
  • B-13
    Locknut – Part Number: STD541431
    Locknut
    Part Number: STD541431
      No Longer Available
  • B-14
    Screw 5Pk – Part Number: STD523707
    Screw 5Pk
    Part Number: STD523707
      No Longer Available
  • B-15
    Starter Pulley Kit – Part Number: 73680600
    Starter Pulley Kit
    Part Number: 73680600
      No Longer Available
  • B-16
    Screw – Part Number: 17490508
    Screw
    Part Number: 17490508
      No Longer Available
  • B-18
    Locknut – Part Number: STD541431
    Locknut
    Part Number: STD541431
      No Longer Available
  • B-24
    Tray, Battery – Part Number: 532007603
    Tray, Battery
    Part Number: 532007603
      In Stock
    $9.63
  • B-25
    Tube – Part Number: 100541K
    Tube
    Part Number: 100541K
      No Longer Available
  • B-26
    Clip, Fuel Line – Part Number: 532100207
    Clip, Fuel Line
    Part Number: 532100207
      No Longer Available
  • B-28
    Spacer – Part Number: 7206J
    Spacer
    Part Number: 7206J
      No Longer Available
  • B-29
    Spring – Part Number: 101687X
    Spring
    Part Number: 101687X
      No Longer Available
  • B-800
    Manual – Part Number: 102833X
    Manual
    Part Number: 102833X
      No Longer Available
  • B-800
    Inner Tube – Part Number: 66465
    Inner Tube
    Part Number: 66465
      No Longer Available
  • B-800
    Decal – Part Number: 101027X
    Decal
    Part Number: 101027X
      No Longer Available
  • B-800
    Instructions – Part Number: 101539X
    Instructions
    Part Number: 101539X
      No Longer Available
  • B-800
    Spark Screen – Part Number: 677V1
    Spark Screen
    Part Number: 677V1
      No Longer Available
  • B-800
    Hardware – Part Number: 677A204
    Hardware
    Part Number: 677A204
      No Longer Available
Page C

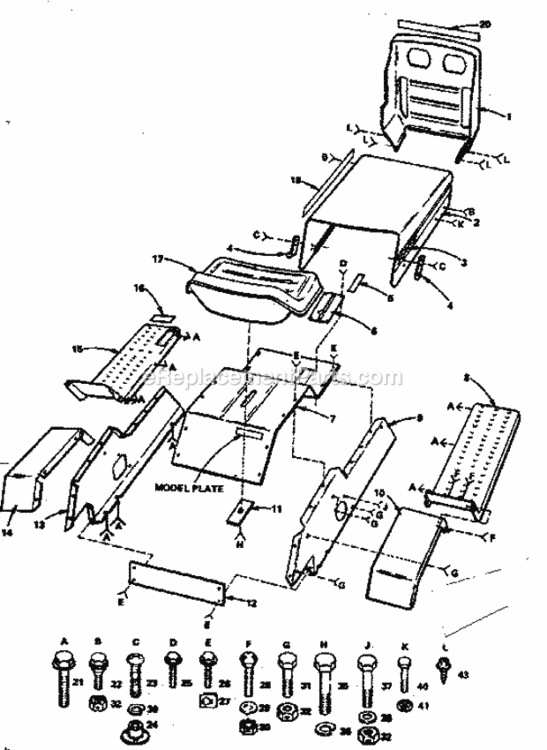

Page C Diagram and Parts List for Craftsman Lawn Tractor
  • C-1
    Grill – Part Number: 102810X
    Grill
    Part Number: 102810X
      No Longer Available
  • C-2
    Hood – Part Number: 100535K
    Hood
    Part Number: 100535K
      No Longer Available
  • C-3
    Decal – Part Number: 4500J
    Decal
    Part Number: 4500J
      No Longer Available
  • C-4
    Lawn Mower Hood Latch – Part Number: 532109808
    Lawn Mower Hood Latch
    Part Number: 532109808
    ★★★★★
    ★★★★★
    (12)
      In Stock
    $6.82
  • C-5
    Transmission – Part Number: 794287
    Transmission
    Part Number: 794287
      No Longer Available
  • C-6
    Plate – Part Number: 678H333
    Plate
    Part Number: 678H333
      No Longer Available
  • C-7
    Panel – Part Number: 677A759
    Panel
    Part Number: 677A759
      No Longer Available
  • C-8
    Foot Rest – Part Number: 677H94
    Foot Rest
    Part Number: 677H94
      No Longer Available
  • C-9
    Panel – Part Number: 678H275
    Panel
    Part Number: 678H275
      No Longer Available
  • C-10
    Fender – Part Number: 677H704
    Fender
    Part Number: 677H704
      No Longer Available
  • C-11
    Washer – Part Number: 678H456
    Washer
    Part Number: 678H456
      No Longer Available
  • C-12
    Panel – Part Number: 677H86
    Panel
    Part Number: 677H86
      No Longer Available
  • C-13
    Panel – Part Number: 678H276
    Panel
    Part Number: 678H276
      No Longer Available
  • C-14
    Fender – Part Number: 677H705
    Fender
    Part Number: 677H705
      No Longer Available
  • C-15
    Foot Rest – Part Number: 678H471
    Foot Rest
    Part Number: 678H471
      No Longer Available
  • C-16
    Decal – Part Number: 9596R
    Decal
    Part Number: 9596R
      No Longer Available
  • C-17
    Seat – Part Number: 74786
    Seat
    Part Number: 74786
      No Longer Available
  • C-18
    Decal – Part Number: 4501J
    Decal
    Part Number: 4501J
      No Longer Available
  • C-20
    Decal – Part Number: 2893J
    Decal
    Part Number: 2893J
      No Longer Available
  • C-21
    Screw – Part Number: 17490508
    Screw
    Part Number: 17490508
      No Longer Available
  • C-22
    Bolt, Shoulder 5/16-18 – Part Number: 100536K
    Bolt, Shoulder 5/16-18
    Part Number: 100536K
      No Longer Available
  • C-23
    Spur Screw – Part Number: STD511005
    Spur Screw
    Part Number: STD511005
      No Longer Available
  • C-24
    Left-side gauge wheel bracket weld nut – Part Number: 2029J
    Left-side gauge wheel bracket weld nut
    Part Number: 2029J
      No Longer Available
  • C-25
    Screw – Part Number: 17211206
    Screw
    Part Number: 17211206
      No Longer Available
  • C-28
    Carriage Bolt – Part Number: STD532505
    Carriage Bolt
    Part Number: STD532505
      No Longer Available
  • C-29
    Washer 8Pk – Part Number: STD551025
    Washer 8Pk
    Part Number: STD551025
      No Longer Available
  • C-30
    1/4-20 Hex Lock Nut – Part Number: STD541425
    1/4-20 Hex Lock Nut
    Part Number: STD541425
      No Longer Available
  • C-31
    Screw 5Pk – Part Number: STD523105
    Screw 5Pk
    Part Number: STD523105
      No Longer Available
  • C-32
    Locknut – Part Number: STD541431
    Locknut
    Part Number: STD541431
      No Longer Available
  • C-35
    Screw 2Pk – Part Number: STD525007
    Screw 2Pk
    Part Number: STD525007
      No Longer Available
  • C-36
    Washer 5Pk – Part Number: STD551150
    Washer 5Pk
    Part Number: STD551150
      No Longer Available
  • C-37
    Screw 5Pk – Part Number: STD523107
    Screw 5Pk
    Part Number: STD523107
      No Longer Available
  • C-38
    Washer – Part Number: 19111216
    Washer
    Part Number: 19111216
      No Longer Available
  • C-39
    Washer 8Pk – Part Number: STD551110
    Washer 8Pk
    Part Number: STD551110
      No Longer Available
  • C-40
    Square Head Machine Bolt (8 pack) – Part Number: STD522505
    Square Head Machine Bolt (8 pack)
    Part Number: STD522505
      No Longer Available
  • C-41
    Lock nut – Part Number: 73680400
    Lock nut
    Part Number: 73680400
      No Longer Available
  • C-43
    Screw – Part Number: 17490508
    Screw
    Part Number: 17490508
      No Longer Available
  • C-800
    Inner Tube – Part Number: 66465
    Inner Tube
    Part Number: 66465
      No Longer Available
  • C-800
    Decal – Part Number: 101027X
    Decal
    Part Number: 101027X
      No Longer Available
  • C-800
    Instructions – Part Number: 101539X
    Instructions
    Part Number: 101539X
      No Longer Available
  • C-800
    Manual – Part Number: 102833X
    Manual
    Part Number: 102833X
      No Longer Available
  • C-800
    Spark Screen – Part Number: 677V1
    Spark Screen
    Part Number: 677V1
      No Longer Available
  • C-800
    Hardware – Part Number: 677A204
    Hardware
    Part Number: 677A204
      No Longer Available
Page D

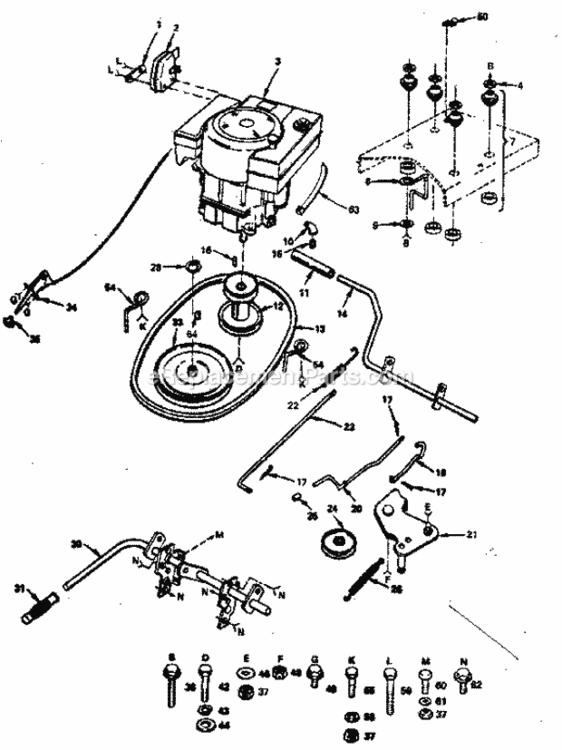

Page D Diagram and Parts List for Craftsman Lawn Tractor
Page E

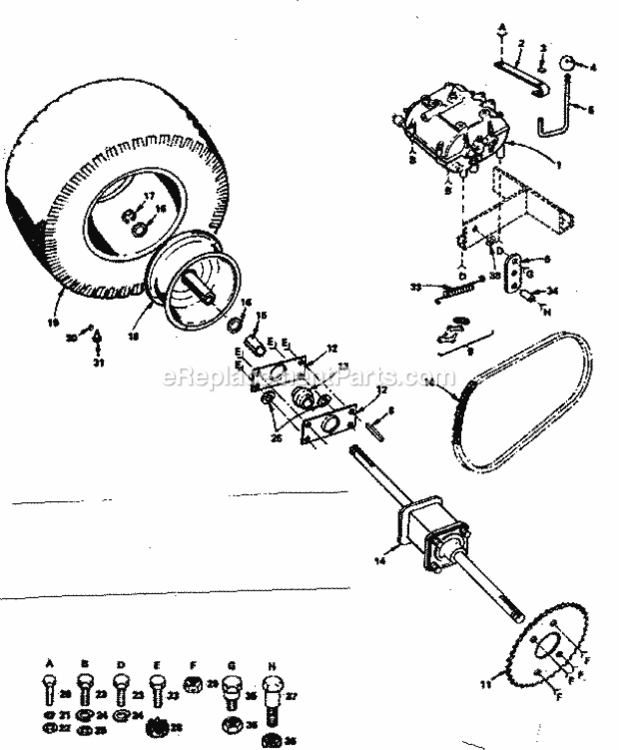

Page E Diagram and Parts List for Craftsman Lawn Tractor
  • E-1
    Transmission – Part Number: 794287
    Transmission
    Part Number: 794287
      No Longer Available
  • E-2
    Arm – Part Number: 360J
    Arm
    Part Number: 360J
      No Longer Available
  • E-3
    E-ring .375 – Part Number: 595841101
    E-ring .375
    Part Number: 595841101
      Special Order
    $5.95
  • E-4
    Knob Rd – Part Number: 532162132
    Knob Rd
    Part Number: 532162132
      No Longer Available
  • E-5
    Lever – Part Number: 348J
    Lever
    Part Number: 348J
      No Longer Available
  • E-6
    Arm – Part Number: 678H493
    Arm
    Part Number: 678H493
      No Longer Available
  • E-8
    3/16 Sq Key – Part Number: STD580105
    3/16 Sq Key
    Part Number: STD580105
      No Longer Available
  • E-9
    40 M Link – Part Number: STD316409
    40 M Link
    Part Number: STD316409
      No Longer Available
  • E-10
    Chain – Part Number: 7101J
    Chain
    Part Number: 7101J
      No Longer Available
  • E-11
    Sprocket – Part Number: 100729M
    Sprocket
    Part Number: 100729M
      No Longer Available
  • E-12
    Bearg Cup – Part Number: 68571
    Bearg Cup
    Part Number: 68571
      No Longer Available
  • E-13
    Bearing – Part Number: 100520K
    Bearing
    Part Number: 100520K
      No Longer Available
  • E-14
    Differential – Part Number: 100548M
    Differential
    Part Number: 100548M
      No Longer Available
  • E-15
    Spacer – Part Number: 2936J
    Spacer
    Part Number: 2936J
      No Longer Available
  • E-16
    Washer – Part Number: 121749X
    Washer
    Part Number: 121749X
      No Longer Available
  • E-17
    Ring 2Pk – Part Number: STD581075
    Ring 2Pk
    Part Number: STD581075
      No Longer Available
  • E-18
    Rim, Rear – Part Number: 140325X417
    Rim, Rear
    Part Number: 140325X417
      No Longer Available
  • E-19
    Front Tire 16 X 6.5-8 – Part Number: 532122075
    Front Tire 16 X 6.5-8
    Part Number: 532122075
    ★★★★★
    ★★★★★
    (2)
      In Stock
    $65.95
  • E-19A
    Tube-Front – Part Number: 532008134
    Tube-Front
    Part Number: 532008134
      Special Order
    $59.95
  • E-20
    Screw 8pk – Part Number: STD622506
    Screw 8pk
    Part Number: STD622506
      No Longer Available
  • E-21
    Washer 8Pk – Part Number: STD551125
    Washer 8Pk
    Part Number: STD551125
      No Longer Available
  • E-22
    Washer 8Pk – Part Number: STD551025
    Washer 8Pk
    Part Number: STD551025
      No Longer Available
  • E-23
    Screw 5Pk – Part Number: STD523107
    Screw 5Pk
    Part Number: STD523107
      No Longer Available
  • E-24
    Lock Washer – Part Number: STD551131
    Lock Washer
    Part Number: STD551131
      No Longer Available
  • E-25
    DISCONTINUED – Part Number: 819111212
    DISCONTINUED
    Part Number: 819111212
      Special Order
    $5.95
  • E-28
    Locknut – Part Number: STD541431
    Locknut
    Part Number: STD541431
      No Longer Available
  • E-29
    Locknut – Part Number: STD541431
    Locknut
    Part Number: STD541431
      No Longer Available
  • E-30
    Soc. Flat Hd. Screw, #10-24 x 1/2" – Part Number: 59192
    Soc. Flat Hd. Screw, #10-24 x 1/2"
    Part Number: 59192
      Special Order
    $10.98
  • E-31
    Lawn Tractor Tire Valve Stem – Part Number: 65139
    Lawn Tractor Tire Valve Stem
    Part Number: 65139
      No Longer Available
  • E-33
    Spring – Part Number: 58606
    Spring
    Part Number: 58606
      No Longer Available
  • E-34
    Roller – Part Number: 2929J
    Roller
    Part Number: 2929J
      No Longer Available
  • E-35
    Bolt – Part Number: 2930J
    Bolt
    Part Number: 2930J
      No Longer Available
  • E-36
    Starter Pulley Kit – Part Number: 73680600
    Starter Pulley Kit
    Part Number: 73680600
      No Longer Available
  • E-37
    Bolt – Part Number: 2931J
    Bolt
    Part Number: 2931J
      No Longer Available
  • E-38
    Washer – Part Number: 19121410
    Washer
    Part Number: 19121410
      No Longer Available
  • E-800
    Spark Screen – Part Number: 677V1
    Spark Screen
    Part Number: 677V1
      No Longer Available
  • E-800
    Hardware – Part Number: 677A204
    Hardware
    Part Number: 677A204
      No Longer Available
  • E-800
    Inner Tube – Part Number: 66465
    Inner Tube
    Part Number: 66465
      No Longer Available
  • E-800
    Instructions – Part Number: 101539X
    Instructions
    Part Number: 101539X
      No Longer Available
  • E-800
    Decal – Part Number: 101027X
    Decal
    Part Number: 101027X
      No Longer Available
  • E-800
    Manual – Part Number: 102833X
    Manual
    Part Number: 102833X
      No Longer Available
Page F

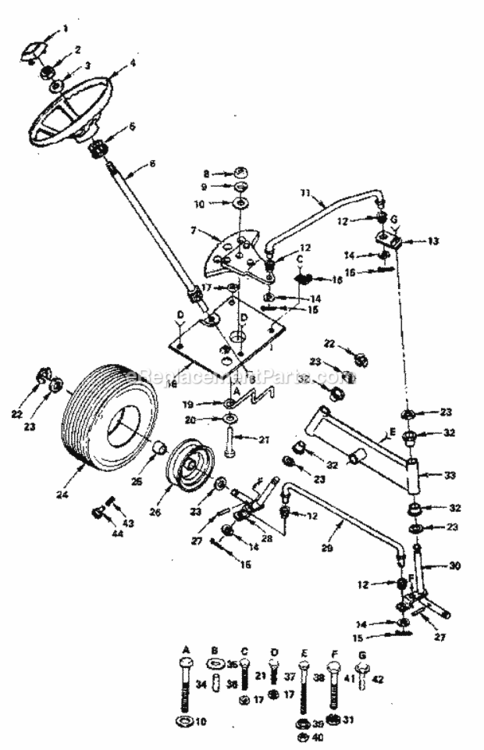

Page F Diagram and Parts List for Craftsman Lawn Tractor
Page G
Page G Diagram and Parts List for Craftsman Lawn Tractor
  • G-2
    Rod – Part Number: 100516L
    Rod
    Part Number: 100516L
      No Longer Available
  • G-5
    Snubber – Part Number: 678H501
    Snubber
    Part Number: 678H501
      No Longer Available
  • G-6
    Mandrel Assembly – Part Number: 101477X
    Mandrel Assembly
    Part Number: 101477X
      No Longer Available
  • G-7
    Brake Assembly – Part Number: 583651401
    Brake Assembly
    Part Number: 583651401
      No Longer Available
  • G-8
    Blade Drive Belt – Part Number: 583785901
    Blade Drive Belt
    Part Number: 583785901
      No Longer Available
  • G-9
    Snubber – Part Number: 1763J
    Snubber
    Part Number: 1763J
      No Longer Available
  • G-10
    Rod – Part Number: 100517L
    Rod
    Part Number: 100517L
      No Longer Available
  • G-11
    Spring – Part Number: 71526
    Spring
    Part Number: 71526
      No Longer Available
  • G-14
    Rod – Part Number: 100569K
    Rod
    Part Number: 100569K
      No Longer Available
  • G-15
    Bracket – Part Number: 678H464
    Bracket
    Part Number: 678H464
      No Longer Available
  • G-16
    Runner – Part Number: 678H630
    Runner
    Part Number: 678H630
      No Longer Available
  • G-16A
    Bracket – Part Number: 4487J
    Bracket
    Part Number: 4487J
      No Longer Available
  • G-17
    Skid – Part Number: 4496J
    Skid
    Part Number: 4496J
      No Longer Available
  • G-18
    Shield – Part Number: 674A258
    Shield
    Part Number: 674A258
      No Longer Available
  • G-19
    Washer – Part Number: 583789501
    Washer
    Part Number: 583789501
      No Longer Available
  • G-20
    Blade – Part Number: 105210X
    Blade
    Part Number: 105210X
      No Longer Available
  • G-21
    Support Plate – Part Number: 100668L
    Support Plate
    Part Number: 100668L
      No Longer Available
  • G-22
    Housing – Part Number: 200113X
    Housing
    Part Number: 200113X
      No Longer Available
  • G-23
    Bolt – Part Number: STD533106
    Bolt
    Part Number: STD533106
      No Longer Available
  • G-24
    Locknut – Part Number: STD541431
    Locknut
    Part Number: STD541431
      No Longer Available
  • G-25
    Carriage Bolt – Part Number: STD533107
    Carriage Bolt
    Part Number: STD533107
      No Longer Available
  • G-27
    Screw – Part Number: STD623715
    Screw
    Part Number: STD623715
      No Longer Available
  • G-28
    Screw – Part Number: 17060620
    Screw
    Part Number: 17060620
      No Longer Available
  • G-29
    Washer 13/32 X 13/16 X 12 Ga – Part Number: 596133201
    Washer 13/32 X 13/16 X 12 Ga
    Part Number: 596133201
      In Stock
    $8.25
  • G-30
    Starter Pulley Kit – Part Number: 73680600
    Starter Pulley Kit
    Part Number: 73680600
      No Longer Available
  • G-31
    Lawn Tractor Screw – Part Number: 17000612
    Lawn Tractor Screw
    Part Number: 17000612
      No Longer Available
  • G-33
    Washer, Lock 3/8 – Part Number: STD551137
    Washer, Lock 3/8
    Part Number: STD551137
      No Longer Available
  • G-34
    Lawn Tractor Push Nut – Part Number: 110452X
    Lawn Tractor Push Nut
    Part Number: 110452X
      No Longer Available
  • G-35
    Retainer Spring – Part Number: 4921H
    Retainer Spring
    Part Number: 4921H
      No Longer Available
  • G-40
    Washer – Part Number: 19111416
    Washer
    Part Number: 19111416
      No Longer Available
  • G-41
    Pin 8Pk – Part Number: STD561210
    Pin 8Pk
    Part Number: STD561210
      No Longer Available
  • G-42
    Bolts – Part Number: 17060624
    Bolts
    Part Number: 17060624
      No Longer Available
  • G-43
    Decal, Warning – Part Number: 539913010
    Decal, Warning
    Part Number: 539913010
      In Stock
    $5.09
  • G-44
    Cap – Part Number: 105304X
    Cap
    Part Number: 105304X
      No Longer Available
  • G-800
    Hardware – Part Number: 677A204
    Hardware
    Part Number: 677A204
      No Longer Available
  • G-800
    Spark Screen – Part Number: 677V1
    Spark Screen
    Part Number: 677V1
      No Longer Available
  • G-800
    Inner Tube – Part Number: 66465
    Inner Tube
    Part Number: 66465
      No Longer Available
  • G-800
    Instructions – Part Number: 101539X
    Instructions
    Part Number: 101539X
      No Longer Available
  • G-800
    Decal – Part Number: 101027X
    Decal
    Part Number: 101027X
      No Longer Available
  • G-800
    Manual – Part Number: 102833X
    Manual
    Part Number: 102833X
      No Longer Available

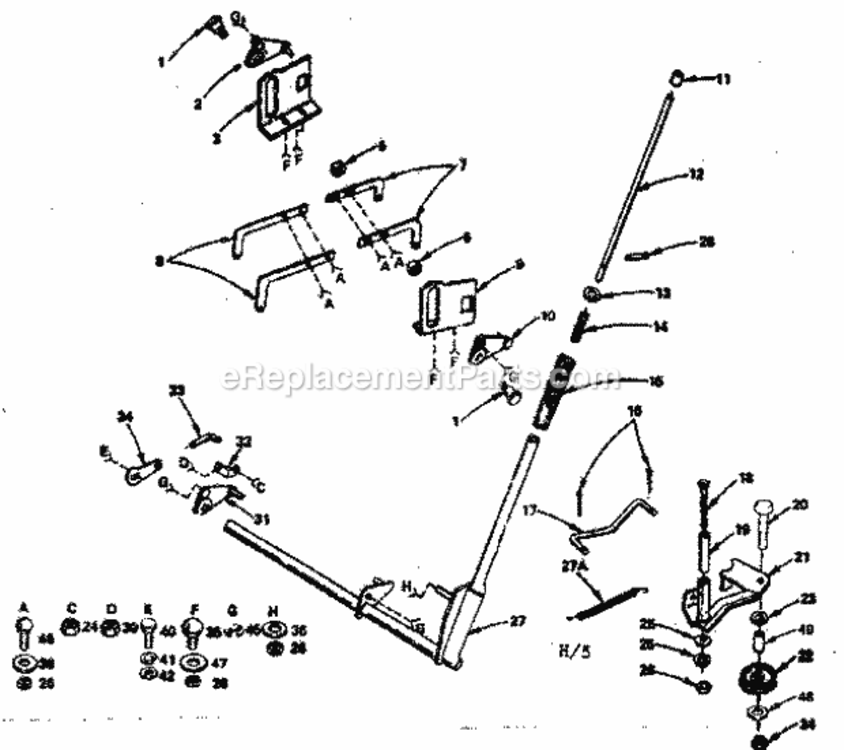

Page H
Page H Diagram and Parts List for Craftsman Lawn Tractor
  • H-1
    Bolt – Part Number: 4792J
    Bolt
    Part Number: 4792J
      No Longer Available
  • H-2
    Arm Assembly – Part Number: 678H457
    Arm Assembly
    Part Number: 678H457
      No Longer Available
  • H-3
    Slide Bracket - L.H. – Part Number: 100528M
    Slide Bracket - L.H.
    Part Number: 100528M
      No Longer Available
  • H-6
    Lawn & Garden Equipment Nut – Part Number: 73680800
    Lawn & Garden Equipment Nut
    Part Number: 73680800
      No Longer Available
  • H-7
    Link – Part Number: 512J
    Link
    Part Number: 512J
      No Longer Available
  • H-8
    Link – Part Number: 1658J
    Link
    Part Number: 1658J
      No Longer Available
  • H-9
    Bracket – Part Number: 100525M
    Bracket
    Part Number: 100525M
      No Longer Available
  • H-10
    Arm Assembly – Part Number: 678H460
    Arm Assembly
    Part Number: 678H460
      No Longer Available
  • H-11
    Plunger Cap – Part Number: 583780901
    Plunger Cap
    Part Number: 583780901
      No Longer Available
  • H-12
    Rods – Part Number: 1663J
    Rods
    Part Number: 1663J
      No Longer Available
  • H-13
    Washer 8Pk – Part Number: STD551043
    Washer 8Pk
    Part Number: STD551043
      No Longer Available
  • H-14
    Mounting Bracket – Part Number: 71569
    Mounting Bracket
    Part Number: 71569
      No Longer Available
  • H-15
    Light Grip – Part Number: 583693601
    Light Grip
    Part Number: 583693601
      No Longer Available
  • H-16
    Pin – Part Number: STD561820
    Pin
    Part Number: STD561820
      No Longer Available
  • H-17
    Link – Part Number: 678H496
    Link
    Part Number: 678H496
      No Longer Available
  • H-18
    Bolt – Part Number: STD523147
    Bolt
    Part Number: STD523147
      No Longer Available
  • H-19
    Sleeve – Part Number: 1850J
    Sleeve
    Part Number: 1850J
      No Longer Available
  • H-20
    Screw 2Pk – Part Number: STD523730
    Screw 2Pk
    Part Number: STD523730
      No Longer Available
  • H-21
    Mower Idler Bracket Weldment – Part Number: 877H962
    Mower Idler Bracket Weldment
    Part Number: 877H962
      No Longer Available
  • H-22
    Pulley – Part Number: 105313X
    Pulley
    Part Number: 105313X
      No Longer Available
  • H-23
    Washer 8Pk – Part Number: STD551025
    Washer 8Pk
    Part Number: STD551025
      No Longer Available
  • H-24
    Starter Pulley Kit – Part Number: 73680600
    Starter Pulley Kit
    Part Number: 73680600
      No Longer Available
  • H-25
    Flat Washer, 8Pk – Part Number: STD551031
    Flat Washer, 8Pk
    Part Number: STD551031
      No Longer Available
  • H-26
    Locknut – Part Number: STD541431
    Locknut
    Part Number: STD541431
      No Longer Available
  • H-27
    Lift Shaft – Part Number: 677H972
    Lift Shaft
    Part Number: 677H972
      No Longer Available
  • H-27A
    Spring – Part Number: 7458J
    Spring
    Part Number: 7458J
      No Longer Available
  • H-28
    Pin – Part Number: 667J
    Pin
    Part Number: 667J
      No Longer Available
  • H-31
    Arm Assembly – Part Number: 678H462
    Arm Assembly
    Part Number: 678H462
      No Longer Available
  • H-32
    Adj. Bracket – Part Number: 678H498
    Adj. Bracket
    Part Number: 678H498
      No Longer Available
  • H-33
    Adj. Rod – Part Number: 100530K
    Adj. Rod
    Part Number: 100530K
      No Longer Available
  • H-34
    Arm – Part Number: 678H463
    Arm
    Part Number: 678H463
      No Longer Available
  • H-35
    Carriage Bolt – Part Number: STD533110
    Carriage Bolt
    Part Number: STD533110
      No Longer Available
  • H-36
    Washer – Part Number: 19111216
    Washer
    Part Number: 19111216
      No Longer Available
  • H-39
    Hex Lock Nut – Part Number: STD541537
    Hex Lock Nut
    Part Number: STD541537
      No Longer Available
  • H-40
    Screw 8Pk – Part Number: STD522507
    Screw 8Pk
    Part Number: STD522507
      No Longer Available
  • H-41
    Washer 8Pk – Part Number: STD551125
    Washer 8Pk
    Part Number: STD551125
      No Longer Available
  • H-42
    Washer – Part Number: 19092016
    Washer
    Part Number: 19092016
      No Longer Available
  • H-45
    E-ring .375 – Part Number: 595841101
    E-ring .375
    Part Number: 595841101
      Special Order
    $5.95
  • H-46
    Carriage Bolt – Part Number: STD533107
    Carriage Bolt
    Part Number: STD533107
      No Longer Available
  • H-47
    Washer – Part Number: 19111010
    Washer
    Part Number: 19111010
      No Longer Available
  • H-48
    Washer 8Pk – Part Number: STD551037
    Washer 8Pk
    Part Number: STD551037
      No Longer Available
  • H-49
    Spacer – Part Number: 101496X
    Spacer
    Part Number: 101496X
      No Longer Available
  • H-800
    Spark Screen – Part Number: 677V1
    Spark Screen
    Part Number: 677V1
      No Longer Available
  • H-800
    Manual – Part Number: 102833X
    Manual
    Part Number: 102833X
      No Longer Available
  • H-800
    Inner Tube – Part Number: 66465
    Inner Tube
    Part Number: 66465
      No Longer Available
  • H-800
    Instructions – Part Number: 101539X
    Instructions
    Part Number: 101539X
      No Longer Available
  • H-800
    Decal – Part Number: 101027X
    Decal
    Part Number: 101027X
      No Longer Available
  • H-800
    Hardware – Part Number: 677A204
    Hardware
    Part Number: 677A204
      No Longer Available
Page I

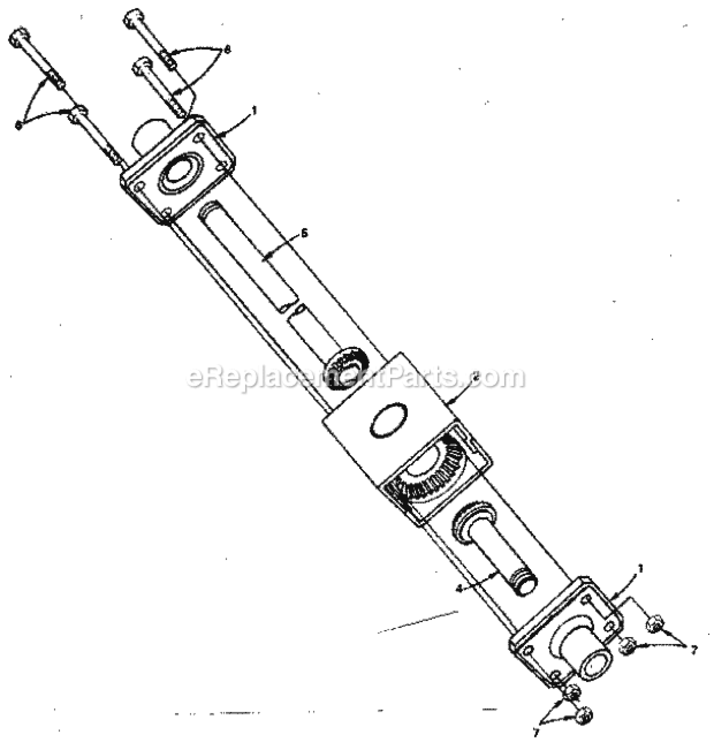

Page I Diagram and Parts List for Craftsman Lawn Tractor
  • I-1
    End Cap – Part Number: 101489X
    End Cap
    Part Number: 101489X
      No Longer Available
  • I-2
    Gear Case – Part Number: 2309J
    Gear Case
    Part Number: 2309J
      No Longer Available
  • I-4
    Gear Shaft – Part Number: 101490X
    Gear Shaft
    Part Number: 101490X
      No Longer Available
  • I-5
    Gear Shaft – Part Number: 101491X
    Gear Shaft
    Part Number: 101491X
      No Longer Available
  • I-6
    Screw 2Pk – Part Number: STD523135
    Screw 2Pk
    Part Number: STD523135
      No Longer Available
  • I-7
    Nut 8Pk – Part Number: STD541031
    Nut 8Pk
    Part Number: STD541031
      No Longer Available
  • I-800
    Manual – Part Number: 102833X
    Manual
    Part Number: 102833X
      No Longer Available
  • I-800
    Hardware – Part Number: 677A204
    Hardware
    Part Number: 677A204
      No Longer Available
  • I-800
    Spark Screen – Part Number: 677V1
    Spark Screen
    Part Number: 677V1
      No Longer Available
  • I-800
    Inner Tube – Part Number: 66465
    Inner Tube
    Part Number: 66465
      No Longer Available
  • I-800
    Instructions – Part Number: 101539X
    Instructions
    Part Number: 101539X
      No Longer Available
  • I-800
    Decal – Part Number: 101027X
    Decal
    Part Number: 101027X
      No Longer Available

Questions & Answers

?

Our customer Service team is at the ready daily to answer your part and product questions.

Be the first to ask our experts a question about this part!

Ask our Team

We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.

✖

Our customer service team are at the ready daily to answer your part and product questions. We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
