Craftsman Lawn Tractor Replacement Parts For Model 917250730

We Sell Only Genuine Craftsman Parts

Popular Parts for 917250730

Lawn Mower Washer – Part Number: 532067725 Lawn Mower Washer
In Stock
$8.26
Nut, Ignition – Part Number: 532124211 Nut, Ignition
Special Order
$7.54
Pin, Dowel – Part Number: 786026B Pin, Dowel
Special Order
$5.95
Screw 1/4-20 x 2-1/4 – Part Number: 792085A Screw 1/4-20 x 2-1/4
In Stock
Minimum Quantity of 2 required
$5.95
Holder – Part Number: 790025 Holder
Special Order
$20.26
Chain-Roller – Part Number: 786062A Chain-Roller
On Order
$34.24
CUTTER, HINGE 472C 8-12 CI – Part Number: 74710 CUTTER, HINGE 472C 8-12 CI
Special Order
$2886.50
M10 Flat Washer – Part Number: 74832 M10 Flat Washer
In Stock
$10.12

Search Within Model

Questions & Answers for Craftsman 917250730
Browse all Parts Search by Area
Page A Diagram and Parts List for Craftsman Lawn Tractor
Page A
Page B Diagram and Parts List for Craftsman Lawn Tractor
Page B
Page C Diagram and Parts List for Craftsman Lawn Tractor
Page C
Page D Diagram and Parts List for Craftsman Lawn Tractor
Page D
Page E Diagram and Parts List for Craftsman Lawn Tractor
Page E
Page F Diagram and Parts List for Craftsman Lawn Tractor
Page F
Page G Diagram and Parts List for Craftsman Lawn Tractor
Page G
Previous Showing All Parts Next

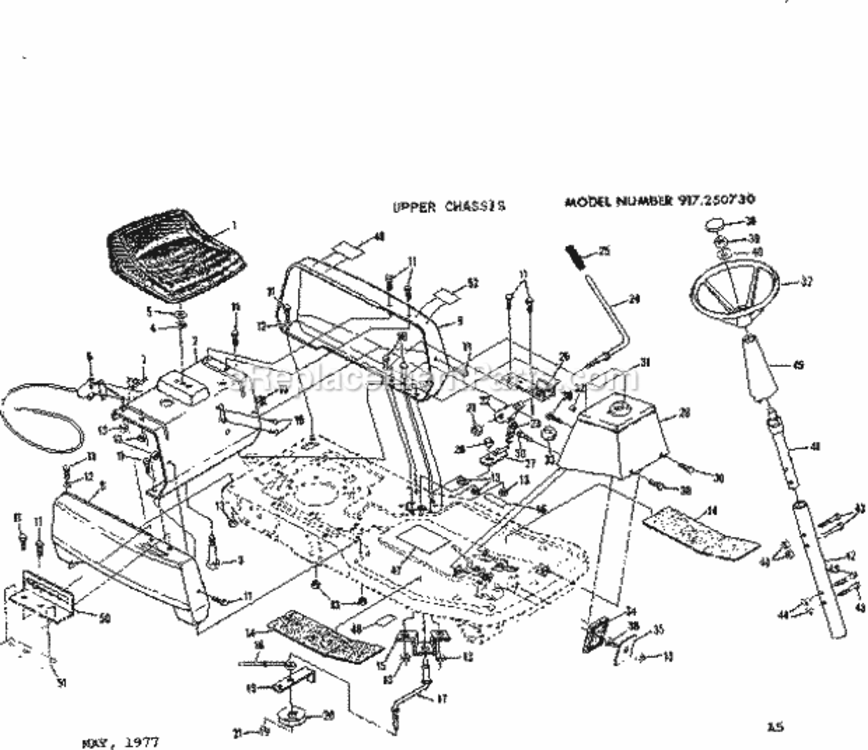

Page A
Page A Diagram and Parts List for Craftsman Lawn Tractor
  • A-1
    Lawn Tractor Seat – Part Number: 401042
    Lawn Tractor Seat
    Part Number: 401042
      No Longer Available
  • A-2
    Panel – Part Number: 74962
    Panel
    Part Number: 74962
      No Longer Available
  • A-3
    Bolt – Part Number: 72639
    Bolt
    Part Number: 72639
      No Longer Available
  • A-4
    Washer 5Pk – Part Number: STD551150
    Washer 5Pk
    Part Number: STD551150
      No Longer Available
  • A-5
    Washer 8Pk – Part Number: STD551050
    Washer 8Pk
    Part Number: STD551050
      No Longer Available
  • A-6
    Remote Control – Part Number: 74537
    Remote Control
    Part Number: 74537
      No Longer Available
  • A-7
    Ball Float – Part Number: 61159
    Ball Float
    Part Number: 61159
      No Longer Available
  • A-8
    Panel – Part Number: 74649
    Panel
    Part Number: 74649
      No Longer Available
  • A-9
    Panel – Part Number: 74648
    Panel
    Part Number: 74648
      No Longer Available
  • A-10
    Screw – Part Number: 68346
    Screw
    Part Number: 68346
      No Longer Available
  • A-11
    SCREW SHC M4-0.7 X 25 G8.8 CAD – Part Number: 71949
    SCREW SHC M4-0.7 X 25 G8.8 CAD
    Part Number: 71949
      Special Order
    $2.99
  • A-12
    Body, Water Pump – Part Number: 52915
    Body, Water Pump
    Part Number: 52915
      Special Order
    $342.77
  • A-13
    Locknut – Part Number: STD541431
    Locknut
    Part Number: STD541431
      No Longer Available
  • A-14
    Pad – Part Number: 72384
    Pad
    Part Number: 72384
      No Longer Available
  • A-15
    NEMA12 ENC 1200-1600 – Part Number: 74542
    NEMA12 ENC 1200-1600
    Part Number: 74542
      Special Order
    $2.99
  • A-16
    Screw 5Pk – Part Number: STD523107
    Screw 5Pk
    Part Number: STD523107
      No Longer Available
  • A-17
    NEMA3R ENC 1200-1600 – Part Number: 74543
    NEMA3R ENC 1200-1600
    Part Number: 74543
      Special Order
    $18.46
  • A-18
    Wrappr – Part Number: 73190
    Wrappr
    Part Number: 73190
      Special Order
    $41.09
  • A-19
    Belt Keeper – Part Number: 74544
    Belt Keeper
    Part Number: 74544
      No Longer Available
  • A-20
    Bracket, Switch Support (Weld/Power Switches) – Part Number: 53018
    Bracket, Switch Support (Weld/Power Switches)
    Part Number: 53018
      Special Order
    $29.14
  • A-21
    Housing Cover – Part Number: 51961
    Housing Cover
    Part Number: 51961
      Special Order
    $102.39
  • A-22
    Spring Arm – Part Number: 105197X
    Spring Arm
    Part Number: 105197X
      No Longer Available
  • A-23
    LINECORD – Part Number: 75045
    LINECORD
    Part Number: 75045
      Special Order
    $174.02
  • A-24
    NEMA12 ENC 600-1000 AMP – Part Number: 74538
    NEMA12 ENC 600-1000 AMP
    Part Number: 74538
      Special Order
    $15.76
  • A-25
    Grip – Part Number: 71246
    Grip
    Part Number: 71246
      No Longer Available
  • A-26
    Handle Bracket – Part Number: 74539
    Handle Bracket
    Part Number: 74539
      No Longer Available
  • A-27
    CNTCT-FXD 8-1000ASTY – Part Number: 75339
    CNTCT-FXD 8-1000ASTY
    Part Number: 75339
      Special Order
    $9.00
  • A-28
    Nut – Part Number: 62336
    Nut
    Part Number: 62336
      No Longer Available
  • A-29
    Console – Part Number: 74659
    Console
    Part Number: 74659
      No Longer Available
  • A-30
    Screw – Part Number: 17490508
    Screw
    Part Number: 17490508
      No Longer Available
  • A-31
    Decal – Part Number: 73260
    Decal
    Part Number: 73260
      No Longer Available
  • A-32
    Plunger cap – Part Number: 71673
    Plunger cap
    Part Number: 71673
      No Longer Available
  • A-33
    Knob Rd – Part Number: 532162132
    Knob Rd
    Part Number: 532162132
      No Longer Available
  • A-34
    Foot Pad – Part Number: 67365
    Foot Pad
    Part Number: 67365
      No Longer Available
  • A-35
    Plate – Part Number: 67189
    Plate
    Part Number: 67189
      No Longer Available
  • A-36
    Carriage Bolt – Part Number: STD533107
    Carriage Bolt
    Part Number: STD533107
      No Longer Available
  • A-37
    Steer Shell – Part Number: 74564
    Steer Shell
    Part Number: 74564
      No Longer Available
  • A-38
    Insert Cap – Part Number: 74572
    Insert Cap
    Part Number: 74572
      No Longer Available
  • A-39
    Nut 5Pk – Part Number: STD541350
    Nut 5Pk
    Part Number: STD541350
      No Longer Available
  • A-40
    Washer 8Pk – Part Number: STD551050
    Washer 8Pk
    Part Number: STD551050
      No Longer Available
  • A-41
    Steer Shaft – Part Number: 74566
    Steer Shaft
    Part Number: 74566
      No Longer Available
  • A-42
    Extension Shaft – Part Number: 74682
    Extension Shaft
    Part Number: 74682
      No Longer Available
  • A-43
    Screw, Hex Head 1/4-20 x 1-1/4 – Part Number: STD522512
    Screw, Hex Head 1/4-20 x 1-1/4
    Part Number: STD522512
      No Longer Available
  • A-44
    1/4-20 Hex Lock Nut – Part Number: STD541425
    1/4-20 Hex Lock Nut
    Part Number: STD541425
      No Longer Available
  • A-45
    GEAR:73.14PD CSHFT – Part Number: 72705
    GEAR:73.14PD CSHFT
    Part Number: 72705
      Special Order
    $19.86
  • A-46
    Decal – Part Number: 67605
    Decal
    Part Number: 67605
      No Longer Available
  • A-47
    Decal – Part Number: 73213
    Decal
    Part Number: 73213
      No Longer Available
  • A-48
    Decal – Part Number: 68306
    Decal
    Part Number: 68306
      No Longer Available
  • A-49
    Decal – Part Number: 74512
    Decal
    Part Number: 74512
      No Longer Available
  • A-50
    Use 77258 Stator – Part Number: 74706
    Use 77258 Stator
    Part Number: 74706
      Special Order
    $2.99
  • A-51
    Str Asm 1400dpe Shor – Part Number: 74705
    Str Asm 1400dpe Shor
    Part Number: 74705
      Special Order
    $351.31
  • A-52
    Decal – Part Number: 74561
    Decal
    Part Number: 74561
      No Longer Available
  • A-800
    BRACKET:IDLER CAST. – Part Number: 74835
    BRACKET:IDLER CAST.
    Part Number: 74835
      Special Order
    $19.12

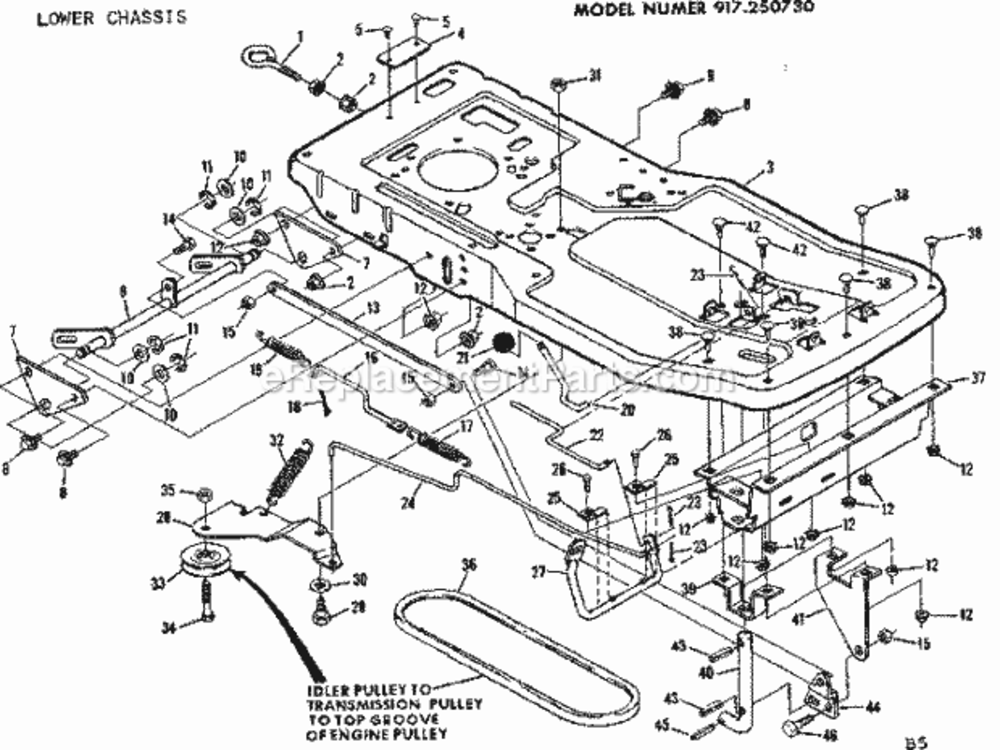

Page B
Page B Diagram and Parts List for Craftsman Lawn Tractor

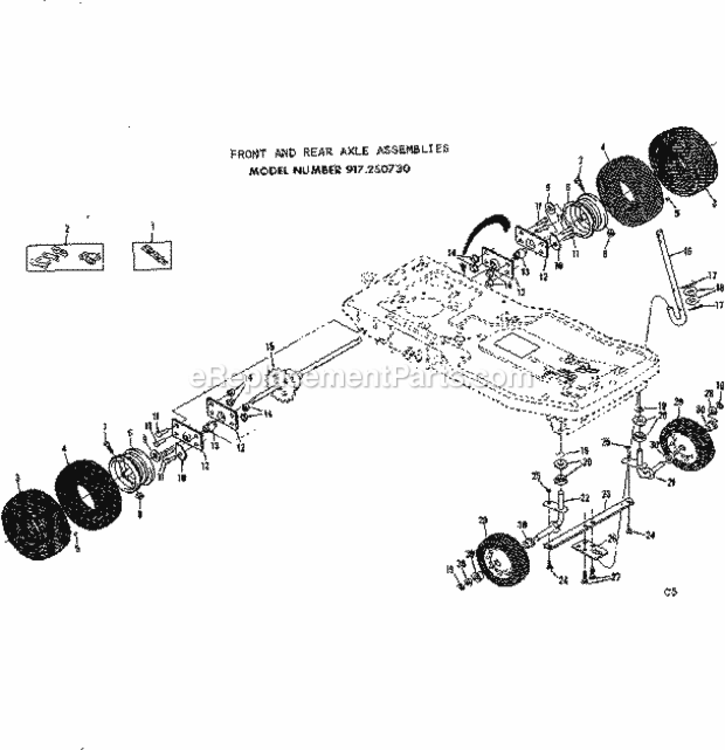

Page C
Page C Diagram and Parts List for Craftsman Lawn Tractor

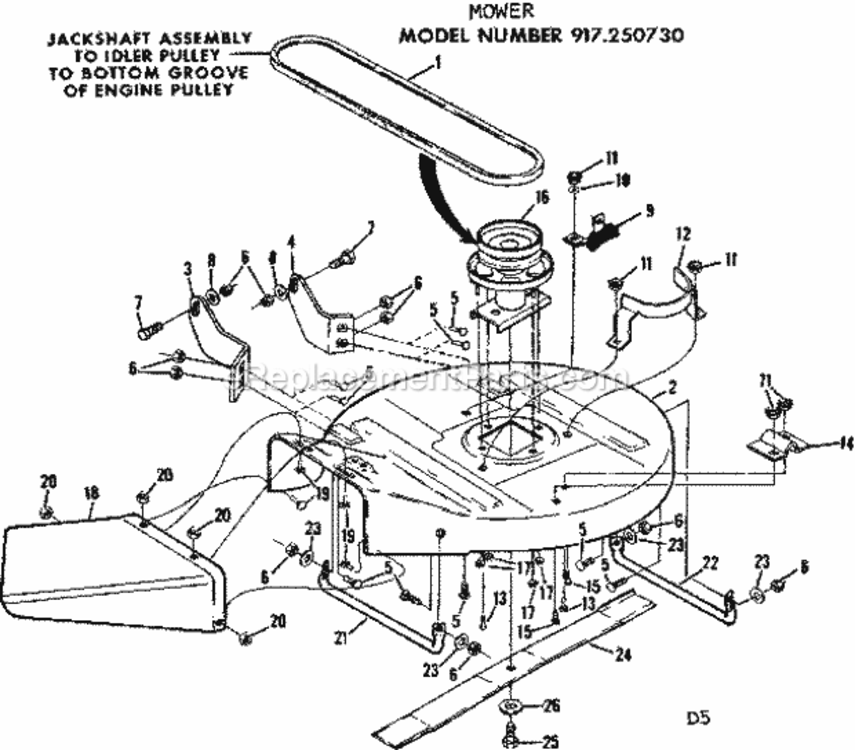

Page D
Page D Diagram and Parts List for Craftsman Lawn Tractor
Page E
Page E Diagram and Parts List for Craftsman Lawn Tractor

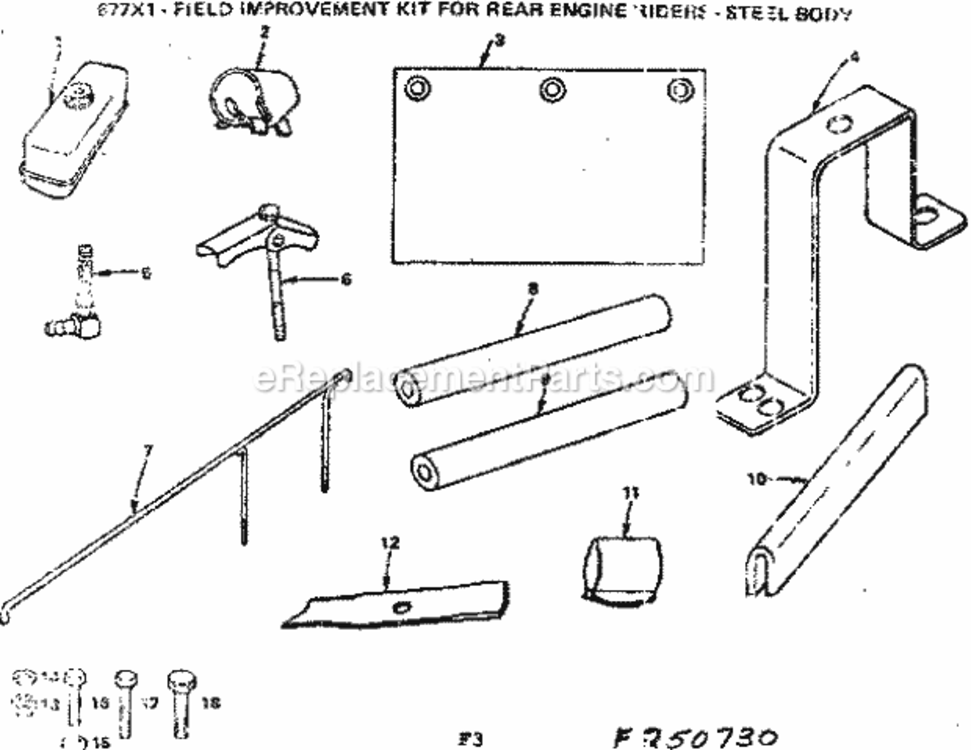

Page F
Page F Diagram and Parts List for Craftsman Lawn Tractor
  • F-1
    Tank – Part Number: 742J
    Tank
    Part Number: 742J
      No Longer Available
  • F-2
    Hose Clamp – Part Number: STD316708
    Hose Clamp
    Part Number: STD316708
      No Longer Available
  • F-3
    Shield – Part Number: 605J
    Shield
    Part Number: 605J
      No Longer Available
  • F-5
    Elbow – Part Number: 739J
    Elbow
    Part Number: 739J
      No Longer Available
  • F-7
    Bracket – Part Number: 677A41
    Bracket
    Part Number: 677A41
      No Longer Available
  • F-8
    Fuel Line – Part Number: 764J
    Fuel Line
    Part Number: 764J
      No Longer Available
  • F-10
    Strip – Part Number: 737J
    Strip
    Part Number: 737J
      No Longer Available
  • F-11
    Clamp – Part Number: 738J
    Clamp
    Part Number: 738J
      No Longer Available
  • F-12
    Hanger Bracket – Part Number: 25646
    Hanger Bracket
    Part Number: 25646
      No Longer Available
  • F-13
    Nut 8Pk – Part Number: STD541031
    Nut 8Pk
    Part Number: STD541031
      No Longer Available
  • F-14
    Lock Washer – Part Number: STD551131
    Lock Washer
    Part Number: STD551131
      No Longer Available
  • F-15
    Washer 8Pk – Part Number: STD551050
    Washer 8Pk
    Part Number: STD551050
      No Longer Available
  • F-16
    Screw 8Pk – Part Number: STD522507
    Screw 8Pk
    Part Number: STD522507
      No Longer Available
  • F-800
    BRACKET:IDLER CAST. – Part Number: 74835
    BRACKET:IDLER CAST.
    Part Number: 74835
      Special Order
    $19.12

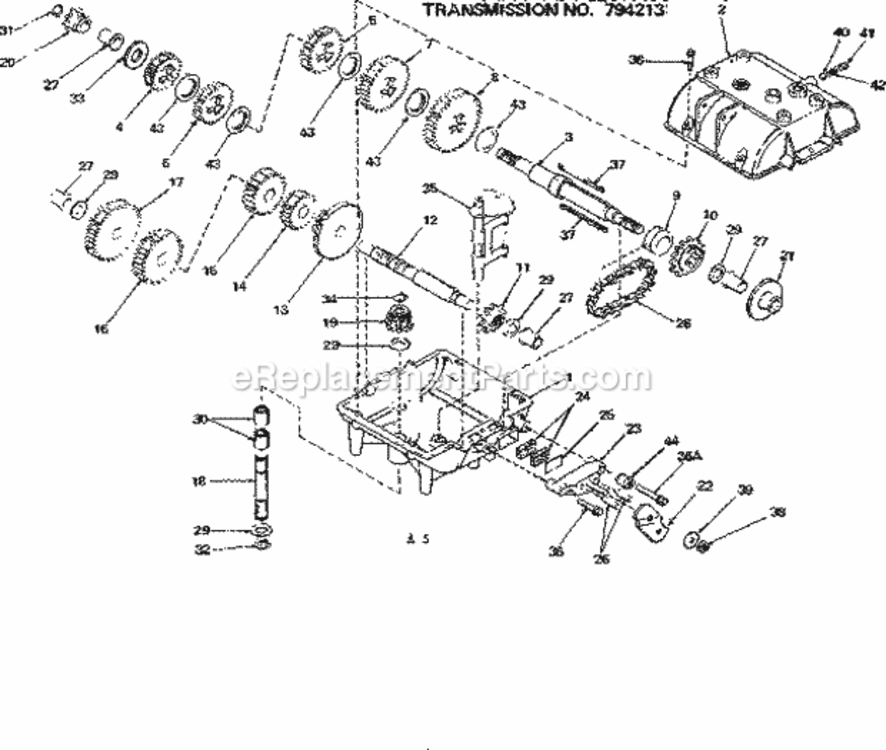

Page G
