Craftsman Lawn Tractor Replacement Parts For Model 502255623

We Sell Only Genuine Craftsman Parts

Popular Parts for 502255623

Lawn Tractor Mandrel Housing – Part Number: 492574MA Lawn Tractor Mandrel Housing
In Stock
$59.44
Nut – Part Number: 15X100MA Nut
In Stock
$5.95
Lawn Mower Washer – Part Number: 17X166MA Lawn Mower Washer
In Stock
$19.25
Pushnut, 3/8 – Part Number: 703948 Pushnut, 3/8
In Stock
$6.20
Grip – Part Number: 1753233YP Grip
In Stock
$10.10
Idler Pulley Kit #14 – Part Number: 420613MA Idler Pulley Kit #14
In Stock
$25.82
Spring-torsion – Part Number: 166X4MA Spring-torsion
In Stock
$9.76
Washer – Part Number: 17X160MA Washer
In Stock
Minimum Quantity of 2 required
$6.92

Search Within Model

Questions & Answers for Craftsman 502255623
Browse all Parts Search by Area
Page A Diagram and Parts List for Craftsman Lawn Tractor
Page A

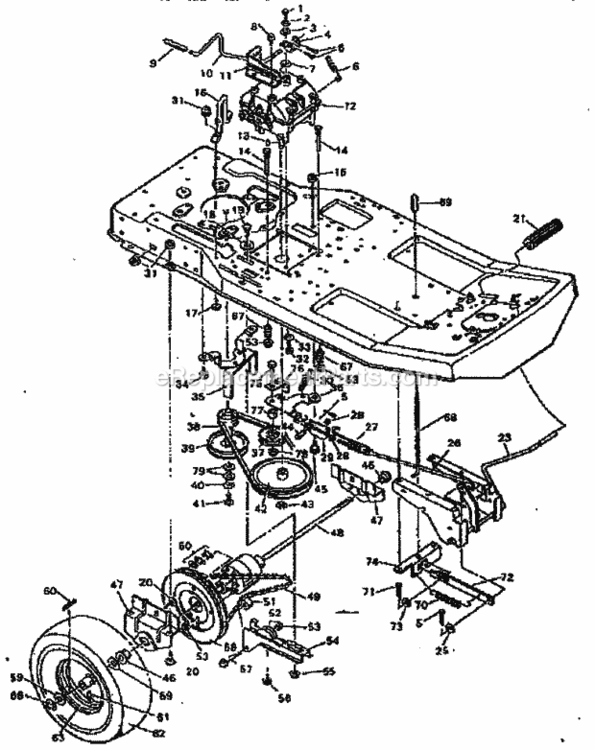

Page B Diagram and Parts List for Craftsman Lawn Tractor
Page B

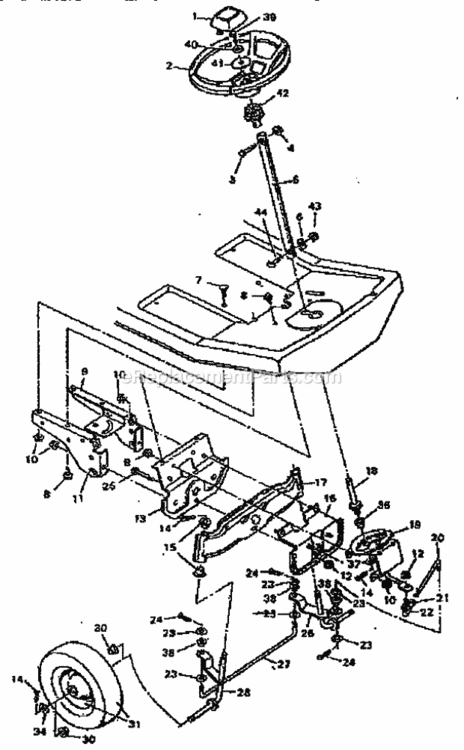

Page C Diagram and Parts List for Craftsman Lawn Tractor
Page C

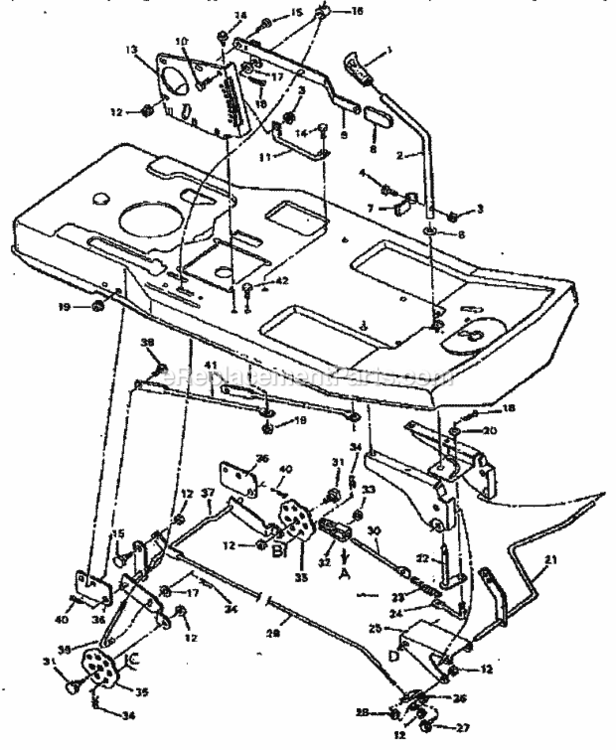

Page D Diagram and Parts List for Craftsman Lawn Tractor
Page D

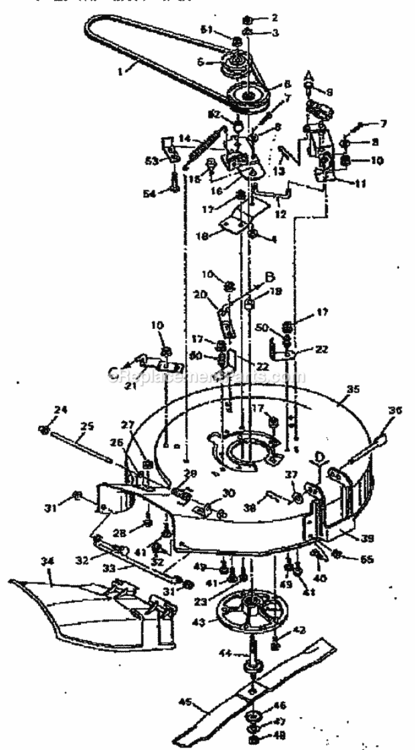

Page E Diagram and Parts List for Craftsman Lawn Tractor
Page E

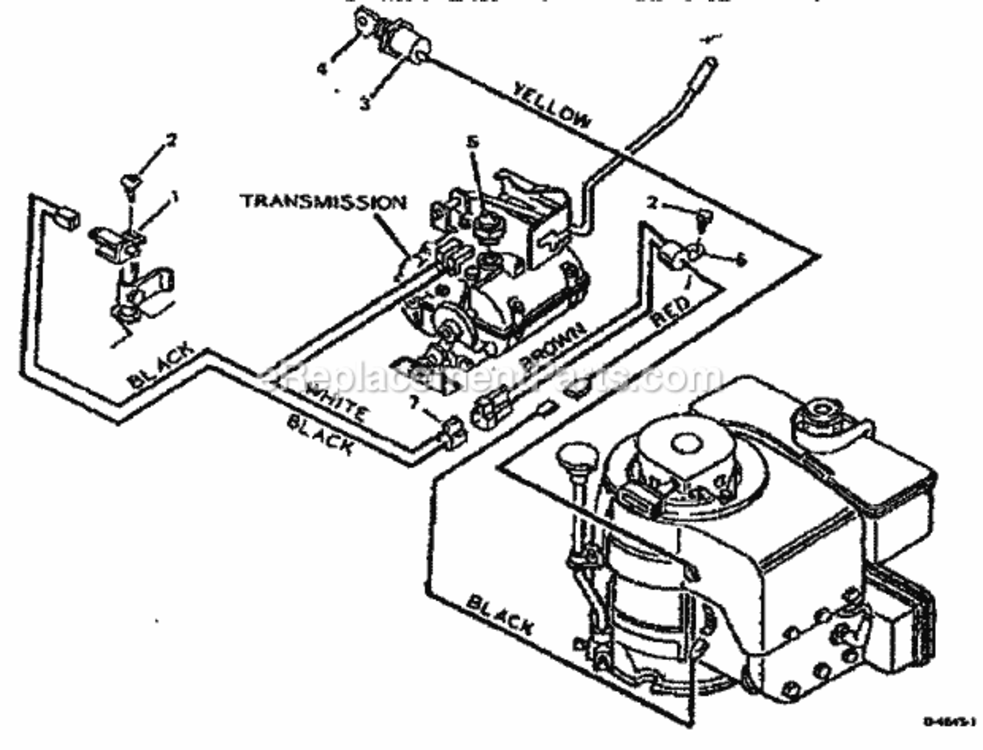

Page F Diagram and Parts List for Craftsman Lawn Tractor
Page F
Previous Showing All Parts Next
Page A

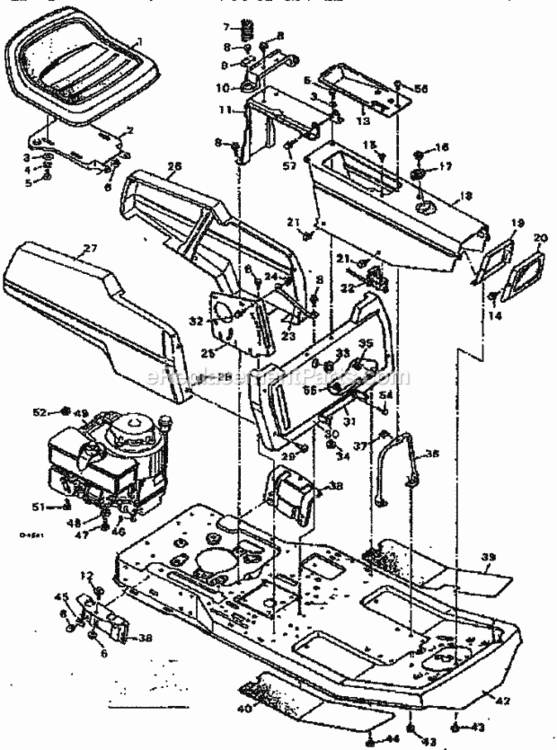

Page A Diagram and Parts List for Craftsman Lawn Tractor
  • A-1
    OBS SILKSCN CONT PNL – Part Number: 55431
    OBS SILKSCN CONT PNL
    Part Number: 55431
      Special Order
    $2.99
  • A-2
    Mount Seat – Part Number: 55359
    Mount Seat
    Part Number: 55359
      No Longer Available
  • A-3
    Flat Washer, 8Pk – Part Number: STD551031
    Flat Washer, 8Pk
    Part Number: STD551031
      No Longer Available
  • A-4
    Lock Washer – Part Number: STD551131
    Lock Washer
    Part Number: STD551131
      No Longer Available
  • A-5
    Screw 5Pk – Part Number: STD523106
    Screw 5Pk
    Part Number: STD523106
      No Longer Available
  • A-6
    Nut 5Pk – Part Number: STD541437
    Nut 5Pk
    Part Number: STD541437
      No Longer Available
  • A-7
    Spring – Part Number: 164X17
    Spring
    Part Number: 164X17
      No Longer Available
  • A-8
    Screw – Part Number: 26X49MA
    Screw
    Part Number: 26X49MA
      Special Order
    $5.95
  • A-9
    3-1/2-INCH (89 MM) W X 15-1/2- – Part Number: 90014
    3-1/2-INCH (89 MM) W X 15-1/2-
    Part Number: 90014
      Special Order
    $35.27
  • A-10
    Seat Spring – Part Number: 55062
    Seat Spring
    Part Number: 55062
      No Longer Available
  • A-11
    Support – Part Number: 55366
    Support
    Part Number: 55366
      No Longer Available
  • A-12
    Bolt, Shoulder – Part Number: 9x29MA
    Bolt, Shoulder
    Part Number: 9x29MA
      Special Order
    $6.26
  • A-13
    Regulator, Voltage/Frequency – Part Number: 55824
    Regulator, Voltage/Frequency
    Part Number: 55824
      Special Order
    $2.99
  • A-14
    Screw 1/4-inchab X.50 – Part Number: 26X238MA
    Screw 1/4-inchab X.50
    Part Number: 26X238MA
      Special Order
    $5.95
  • A-15
    O-ring Seal – Part Number: STD610803
    O-ring Seal
    Part Number: STD610803
      No Longer Available
  • A-16
    Bushing – Part Number: 55717MA
    Bushing
    Part Number: 55717MA
      Special Order
    $5.95
  • A-17
    Bearing – Part Number: 55004MA
    Bearing
    Part Number: 55004MA
      Special Order
    $6.00
  • A-18
    Console – Part Number: 70222SE
    Console
    Part Number: 70222SE
      No Longer Available
  • A-19
    Insulator – Part Number: 55349
    Insulator
    Part Number: 55349
      Special Order
    $11.36
  • A-20
    OBS FLYWHEEL – Part Number: 55421
    OBS FLYWHEEL
    Part Number: 55421
      Special Order
    $2.99
  • A-21
    Screw Hexhead Tap. – Part Number: 26X214MA
    Screw Hexhead Tap.
    Part Number: 26X214MA
      Special Order
    $6.06
  • A-22
    Throttle Assembly – Part Number: 55424
    Throttle Assembly
    Part Number: 55424
      No Longer Available
  • A-23
    Strut Plate – Part Number: 55348
    Strut Plate
    Part Number: 55348
      No Longer Available
  • A-24
    1/4-20 Hex Lock Nut – Part Number: STD541425
    1/4-20 Hex Lock Nut
    Part Number: STD541425
      No Longer Available
  • A-25
    Plate – Part Number: 55365
    Plate
    Part Number: 55365
      No Longer Available
  • A-26
    Left Side Air Duct – Part Number: 70220
    Left Side Air Duct
    Part Number: 70220
      Special Order
    $81.67
  • A-27
    Top And Bottom Air Duct – Part Number: 70221
    Top And Bottom Air Duct
    Part Number: 70221
      Special Order
    $105.51
  • A-28
    RECEPTACLE – Part Number: 28X52MA
    RECEPTACLE
    Part Number: 28X52MA
      Special Order
    $9.58
  • A-29
    Screw, Southco – Part Number: 91330MA
    Screw, Southco
    Part Number: 91330MA
      Special Order
    $7.33
  • A-30
    Spindle, Vaned Pencil Grinder – Part Number: 55392
    Spindle, Vaned Pencil Grinder
    Part Number: 55392
      Special Order
    $196.27
  • A-31
    RETAINING RING – Part Number: 55358
    RETAINING RING
    Part Number: 55358
      No Longer Available
  • A-32
    Screw – Part Number: STD522506
    Screw
    Part Number: STD522506
      No Longer Available
  • A-33
    HANDLE,97 SEARS VSPW – Part Number: 21268
    HANDLE,97 SEARS VSPW
    Part Number: 21268
      Special Order
    $36.33
  • A-34
    Locknut – Part Number: STD541431
    Locknut
    Part Number: STD541431
      No Longer Available
  • A-35
    J-Nut – Part Number: 28X18MA
    J-Nut
    Part Number: 28X18MA
      Special Order
    $5.95
  • A-36
    Support Console – Part Number: 55350
    Support Console
    Part Number: 55350
      No Longer Available
  • A-37
    U-Nut – Part Number: 28X20
    U-Nut
    Part Number: 28X20
      No Longer Available
  • A-38
    GUARD – Part Number: 55360
    GUARD
    Part Number: 55360
      No Longer Available
  • A-39
    Valve Body Housing, Pencil Gri – Part Number: 55409
    Valve Body Housing, Pencil Gri
    Part Number: 55409
      Special Order
    $160.27
  • A-40
    Mat Right Hand – Part Number: 55408
    Mat Right Hand
    Part Number: 55408
      No Longer Available
  • A-42
    Hhcs - M6-1.0 X 70mm – Part Number: 55816
    Hhcs - M6-1.0 X 70mm
    Part Number: 55816
      Special Order
    $2.99
  • A-43
    Screw 25x75 (ards – Part Number: 26X213MA
    Screw 25x75 (ards
    Part Number: 26X213MA
      Special Order
    $6.40
  • A-44
    SCREW SPC .25-20X.62 – Part Number: 6X74MA
    SCREW SPC .25-20X.62
    Part Number: 6X74MA
      Special Order
    $5.98
  • A-45
    Washer 8Pk – Part Number: STD551231
    Washer 8Pk
    Part Number: STD551231
      Special Order
    $8.66
  • A-46
    Key 2Pk – Part Number: STD580019
    Key 2Pk
    Part Number: STD580019
      No Longer Available
  • A-47
    Screw 5Pk – Part Number: STD523107
    Screw 5Pk
    Part Number: STD523107
      No Longer Available
  • A-48
    Collar Stop – Part Number: STD551237
    Collar Stop
    Part Number: STD551237
      No Longer Available
  • A-49
    Engine – Part Number: 55755
    Engine
    Part Number: 55755
      No Longer Available
  • A-51
    Screw 5Pk – Part Number: STD623112
    Screw 5Pk
    Part Number: STD623112
      No Longer Available
  • A-52
    Hex Lock Nut – Part Number: STD541531
    Hex Lock Nut
    Part Number: STD541531
      No Longer Available
  • A-54
    Spur Screw – Part Number: STD511005
    Spur Screw
    Part Number: STD511005
      No Longer Available
  • A-55
    Nut 8Pk – Part Number: STD541410
    Nut 8Pk
    Part Number: STD541410
      No Longer Available
  • A-56
    Screw – Part Number: 26X239MA
    Screw
    Part Number: 26X239MA
      In Stock
    Minimum Quantity of 2 required
    $6.06
  • A-57
    Shoulder Bolt – Part Number: 009X30MA
    Shoulder Bolt
    Part Number: 009X30MA
      No Longer Available
  • A-800
    TIE (ARDS) – Part Number: 32618MA
    TIE (ARDS)
    Part Number: 32618MA
      Special Order
    $5.95
  • A-800
    Manual – Part Number: F-8238
    Manual
    Part Number: F-8238
      No Longer Available
  • A-800
    Complete Deck – Part Number: 403207
    Complete Deck
    Part Number: 403207
      No Longer Available
  • A-800
    Clamp – Part Number: 21980
    Clamp
    Part Number: 21980
      No Longer Available
