Craftsman Lawn Tractor Replacement Parts For Model 12728876

We Sell Only Genuine Craftsman Parts

Popular Parts for 12728876

Flanged Bearing – Part Number: 38304-03 Flanged Bearing
Special Order
$11.40
Washer – Part Number: 64163-19 Washer
Special Order
$6.16
Blt-Met M8-1 – Part Number: 64205-001 Blt-Met M8-1
Special Order
$6.16

Search Within Model

Questions & Answers for Craftsman 12728876
Browse all Parts Search by Area
Page A Diagram and Parts List for Craftsman Lawn Tractor
Page A
Page B Diagram and Parts List for Craftsman Lawn Tractor
Page B
Page C Diagram and Parts List for Craftsman Lawn Tractor
Page C
Page D Diagram and Parts List for Craftsman Lawn Tractor
Page D
Page E Diagram and Parts List for Craftsman Lawn Tractor
Page E
Page F Diagram and Parts List for Craftsman Lawn Tractor
Page F
Page G Diagram and Parts List for Craftsman Lawn Tractor
Page G
Page H Diagram and Parts List for Craftsman Lawn Tractor
Page H
Page I Diagram and Parts List for Craftsman Lawn Tractor
Page I
Page J Diagram and Parts List for Craftsman Lawn Tractor
Page J
Page K Diagram and Parts List for Craftsman Lawn Tractor
Page K
Page L Diagram and Parts List for Craftsman Lawn Tractor
Page L

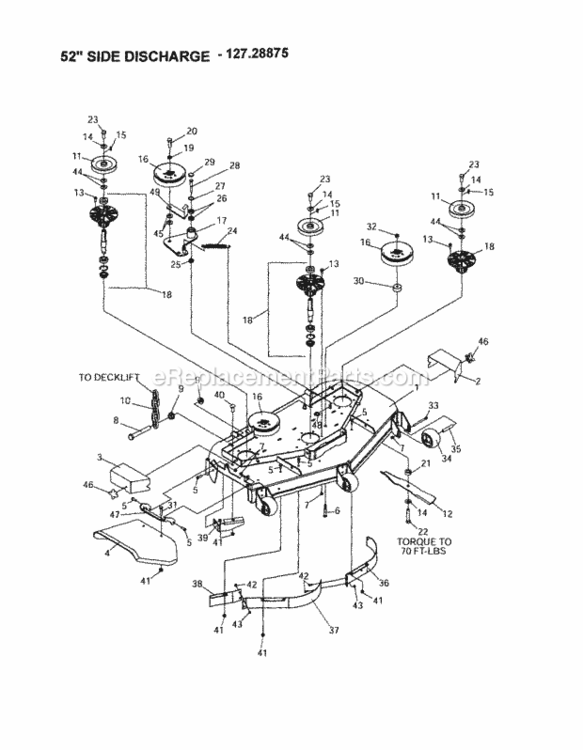

Page M Diagram and Parts List for Craftsman Lawn Tractor
Page M

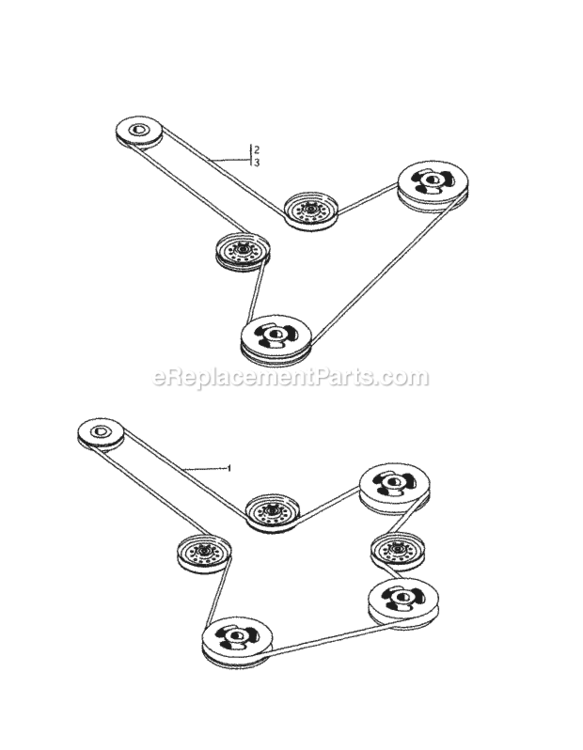

Page N Diagram and Parts List for Craftsman Lawn Tractor
Page N

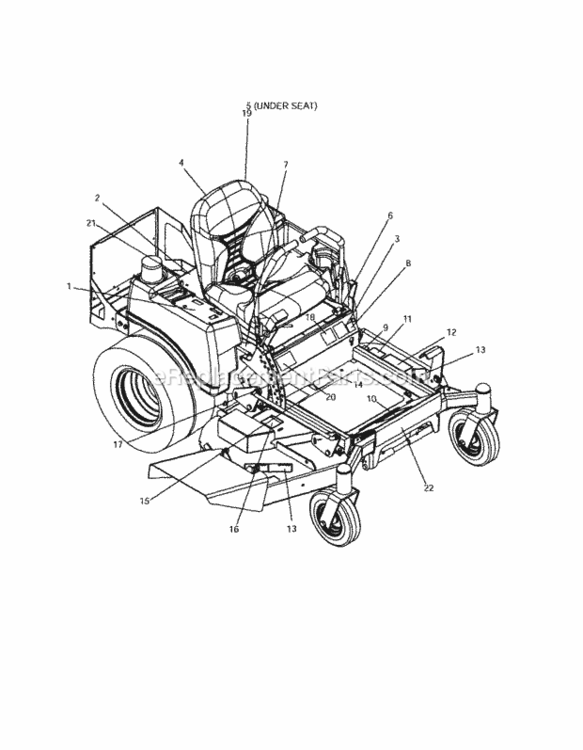

Page O Diagram and Parts List for Craftsman Lawn Tractor
Page O
Previous Showing All Parts Next
Page A
Page A Diagram and Parts List for Craftsman Lawn Tractor
Page B
Page B Diagram and Parts List for Craftsman Lawn Tractor

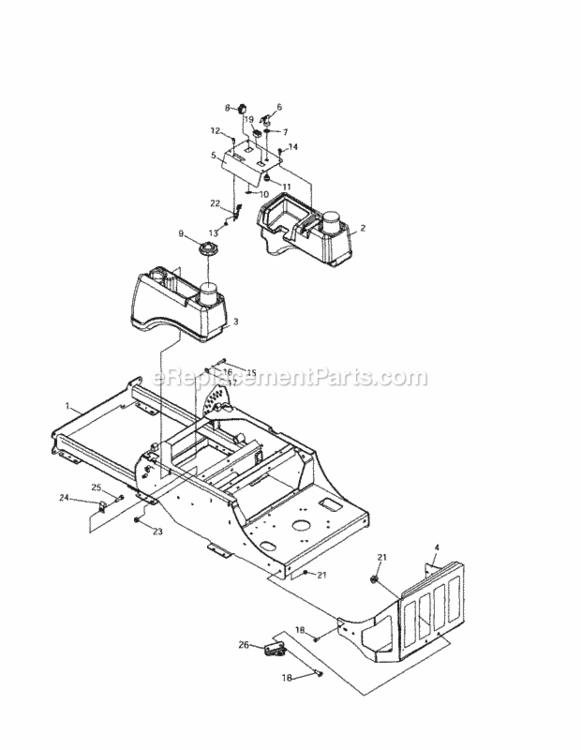

Page C
Page C Diagram and Parts List for Craftsman Lawn Tractor
Page D

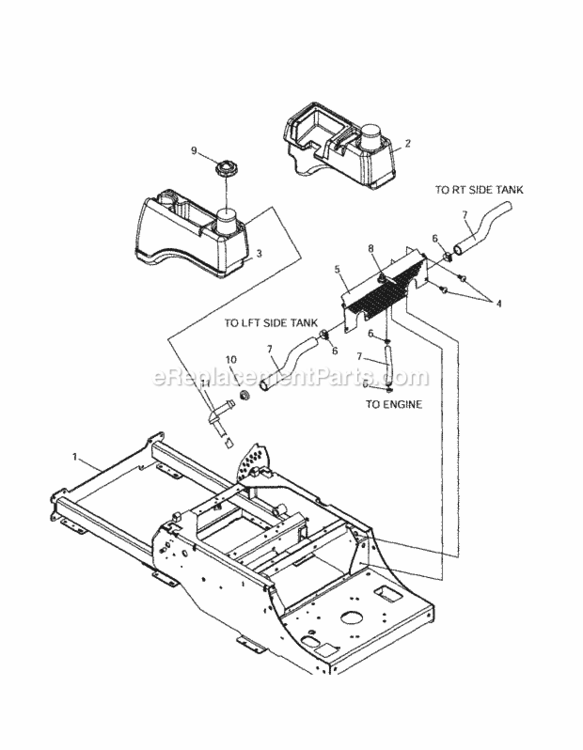

Page D Diagram and Parts List for Craftsman Lawn Tractor
Page E

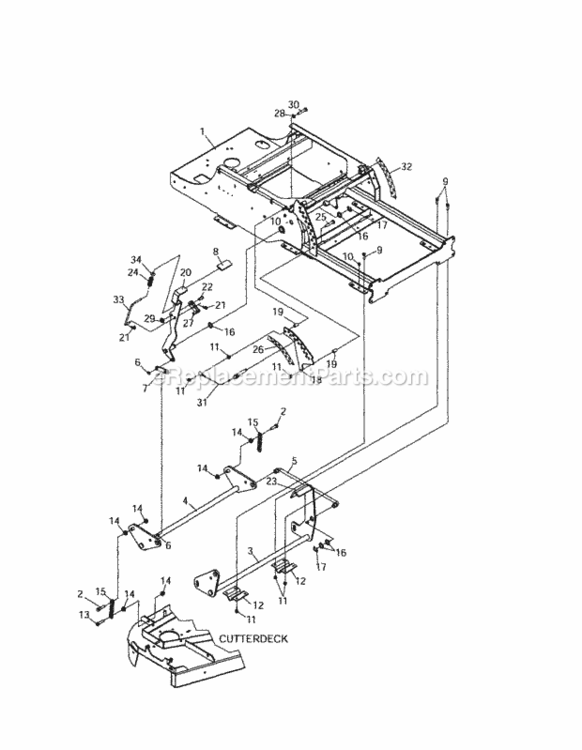

Page E Diagram and Parts List for Craftsman Lawn Tractor

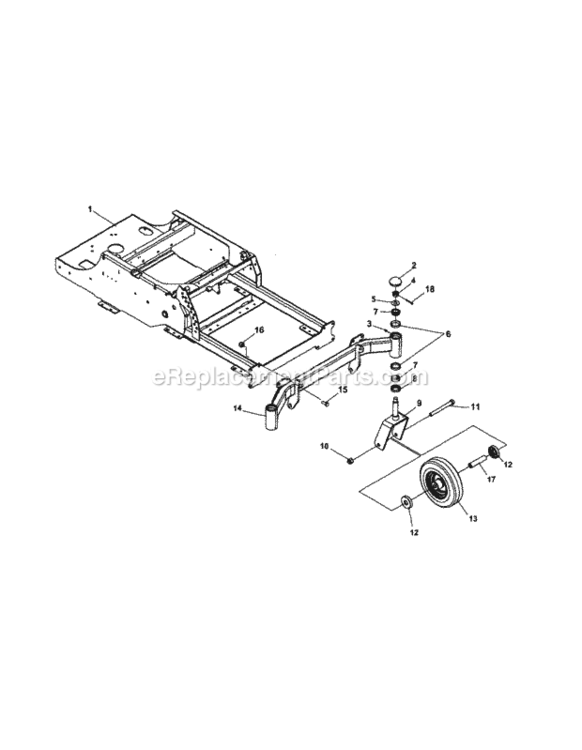

Page F
Page F Diagram and Parts List for Craftsman Lawn Tractor
Page G
Page G Diagram and Parts List for Craftsman Lawn Tractor
Page H
Page H Diagram and Parts List for Craftsman Lawn Tractor

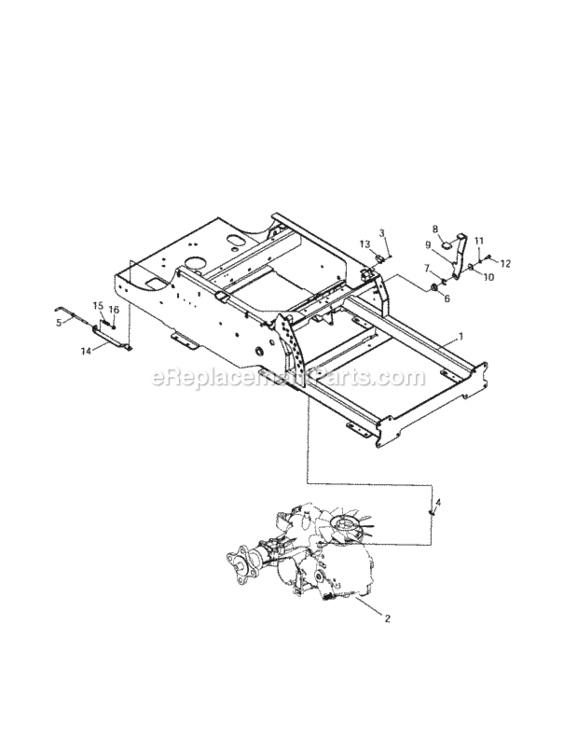

Page I
Page I Diagram and Parts List for Craftsman Lawn Tractor
  • I-1
    S-Frame W/Labels – Part Number: 4163747
    S-Frame W/Labels
    Part Number: 4163747
      No Longer Available
  • I-2
    Axle – Part Number: 4156464
    Axle
    Part Number: 4156464
      No Longer Available
  • I-3
    Blt-Tdfm 10- – Part Number: 64197-015
    Blt-Tdfm 10-
    Part Number: 64197-015
      No Longer Available
  • I-4
    Cotter Hairpin – Part Number: 64168-2
    Cotter Hairpin
    Part Number: 64168-2
      No Longer Available
  • I-5
    Rod-Bypass C – Part Number: 4148697
    Rod-Bypass C
    Part Number: 4148697
      No Longer Available
  • I-6
    Flange Bearing – Part Number: 4146187
    Flange Bearing
    Part Number: 4146187
      No Longer Available
  • I-7
    Ring – Part Number: 64221-03
    Ring
    Part Number: 64221-03
      No Longer Available
  • I-8
    Grip – Part Number: 2188155
    Grip
    Part Number: 2188155
      No Longer Available
  • I-9
    Brake Handle – Part Number: 4163060.7
    Brake Handle
    Part Number: 4163060.7
      No Longer Available
  • I-10
    Washer – Part Number: 64163-34
    Washer
    Part Number: 64163-34
      No Longer Available
  • I-11
    Lock Washer – Part Number: 64006-01
    Lock Washer
    Part Number: 64006-01
      No Longer Available
  • I-12
    Bolt-Hex 1/4-20 X 3 – Part Number: 64123-89
    Bolt-Hex 1/4-20 X 3
    Part Number: 64123-89
      No Longer Available
  • I-13
    Switch-Nono – Part Number: 2188156
    Switch-Nono
    Part Number: 2188156
      No Longer Available
  • I-14
    Link-Dump Valve – Part Number: 4148698.7
    Link-Dump Valve
    Part Number: 4148698.7
      No Longer Available
  • I-15
    Spring-Compression – Part Number: 2720977
    Spring-Compression
    Part Number: 2720977
      No Longer Available
  • I-16
    Lock Nut – Part Number: 64229-01
    Lock Nut
    Part Number: 64229-01
      No Longer Available
Page J
Page J Diagram and Parts List for Craftsman Lawn Tractor
  • J-1
    Main Harness – Part Number: 4154880
    Main Harness
    Part Number: 4154880
      No Longer Available
  • J-2
    Fuse – Part Number: 148082-20
    Fuse
    Part Number: 148082-20
      No Longer Available
  • J-3
    Cable-Batt 4 – Part Number: 30-419
    Cable-Batt 4
    Part Number: 30-419
      No Longer Available
  • J-4
    Switch Seat – Part Number: 4124009
    Switch Seat
    Part Number: 4124009
      No Longer Available
  • J-5
    Meter-Hour – Part Number: 4165120
    Meter-Hour
    Part Number: 4165120
      No Longer Available
  • J-6
    Cable-Batt 4 – Part Number: 30-180
    Cable-Batt 4
    Part Number: 30-180
      No Longer Available
  • J-7
    Switch Key – Part Number: 128010
    Switch Key
    Part Number: 128010
      No Longer Available
  • J-8
    Relay-40Amp – Part Number: 2722325
    Relay-40Amp
    Part Number: 2722325
      No Longer Available
  • J-9
    Module-Delay – Part Number: 2188154
    Module-Delay
    Part Number: 2188154
      No Longer Available
  • J-10
    Switch-Pto – Part Number: 2721505
    Switch-Pto
    Part Number: 2721505
      No Longer Available
  • J-11
    Clutch Engine – Part Number: 4144116
    Clutch Engine
    Part Number: 4144116
      No Longer Available
  • J-12
    Cover-Pos Te – Part Number: 30-184
    Cover-Pos Te
    Part Number: 30-184
      No Longer Available
  • J-13
    Switch Dbl P – Part Number: 108208
    Switch Dbl P
    Part Number: 108208
      No Longer Available
  • J-14
    Switch-Nono – Part Number: 2188156
    Switch-Nono
    Part Number: 2188156
      No Longer Available
  • J-15
    Solenoid – Part Number: 38665
    Solenoid
    Part Number: 38665
      No Longer Available
  • J-16
    Terminal Cover – Part Number: 2308095
    Terminal Cover
    Part Number: 2308095
      No Longer Available
  • J-17
    Battery Cable – Part Number: 108061-04
    Battery Cable
    Part Number: 108061-04
      No Longer Available
  • J-18
    Ground Wire – Part Number: 2188225
    Ground Wire
    Part Number: 2188225
      No Longer Available
  • J-19
    Harness-Jump – Part Number: 2722013
    Harness-Jump
    Part Number: 2722013
      No Longer Available
  • J-20
    Clutch – Part Number: 2720949
    Clutch
    Part Number: 2720949
      No Longer Available
  • J-21
    Nut-Wlf 1/4- – Part Number: 64141-2
    Nut-Wlf 1/4-
    Part Number: 64141-2
      No Longer Available
  • J-22
    Harness-Jump – Part Number: 4164972
    Harness-Jump
    Part Number: 4164972
      No Longer Available
  • J-23
    Sleeve – Part Number: 56-081-36
    Sleeve
    Part Number: 56-081-36
      No Longer Available
Page K
Page K Diagram and Parts List for Craftsman Lawn Tractor

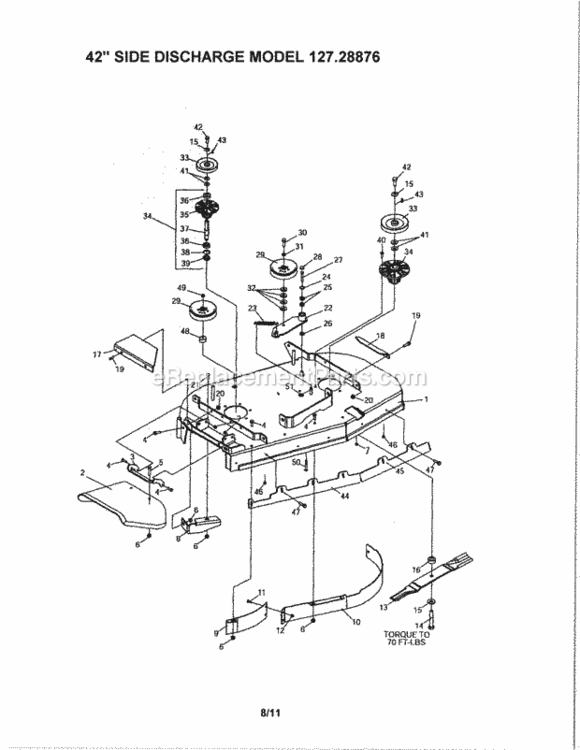

Page L
Page L Diagram and Parts List for Craftsman Lawn Tractor
  • L-1
    S-42 Deck W/ – Part Number: 4163814
    S-42 Deck W/
    Part Number: 4163814
      No Longer Available
  • L-2
    Chute – Part Number: 4147399
    Chute
    Part Number: 4147399
      No Longer Available
  • L-3
    Hinge-Chute_ – Part Number: 4149017.7
    Hinge-Chute_
    Part Number: 4149017.7
      No Longer Available
  • L-4
    Bolt-Hex 3/8-16 X – Part Number: 64123-50
    Bolt-Hex 3/8-16 X
    Part Number: 64123-50
      No Longer Available
  • L-5
    Blt-Flg Hd 3 – Part Number: 64262-013
    Blt-Flg Hd 3
    Part Number: 64262-013
      No Longer Available
  • L-6
    Locknut-Nylo – Part Number: 64268-03
    Locknut-Nylo
    Part Number: 64268-03
      No Longer Available
  • L-7
    Locknut-Nylo – Part Number: 64229-03
    Locknut-Nylo
    Part Number: 64229-03
      No Longer Available
  • L-8
    Discharge Baffle – Part Number: 4115864.7
    Discharge Baffle
    Part Number: 4115864.7
      No Longer Available
  • L-9
    Baffle – Part Number: 4150775.7
    Baffle
    Part Number: 4150775.7
      No Longer Available
  • L-10
    Baffle – Part Number: 4150779.7
    Baffle
    Part Number: 4150779.7
      No Longer Available
  • L-11
    Blt-Crg 1/4- – Part Number: 64018-2
    Blt-Crg 1/4-
    Part Number: 64018-2
      No Longer Available
  • L-12
    Lock Nut – Part Number: 64229-01
    Lock Nut
    Part Number: 64229-01
      No Longer Available
  • L-13
    Blade – Part Number: 112111-03
    Blade
    Part Number: 112111-03
      No Longer Available
  • L-14
    Blt-Hex 5/8- – Part Number: 64123-187
    Blt-Hex 5/8-
    Part Number: 64123-187
      No Longer Available
  • L-15
    Spring Washer – Part Number: 64209-03
    Spring Washer
    Part Number: 64209-03
      No Longer Available
  • L-16
    Spacer Blade – Part Number: 4118314
    Spacer Blade
    Part Number: 4118314
      No Longer Available
  • L-17
    Cover Belt – Part Number: 4152317.7
    Cover Belt
    Part Number: 4152317.7
      No Longer Available
  • L-18
    Cover Belt – Part Number: 4150977.7
    Cover Belt
    Part Number: 4150977.7
      No Longer Available
  • L-19
    Bolt-5/16-18 X 3/4 Wlf – Part Number: 64139-08
    Bolt-5/16-18 X 3/4 Wlf
    Part Number: 64139-08
      No Longer Available
  • L-20
    Locknut-5/16 – Part Number: 64229-02
    Locknut-5/16
    Part Number: 64229-02
      No Longer Available
  • L-21
    Nut-5/16-18 – Part Number: 64141-6
    Nut-5/16-18
    Part Number: 64141-6
      No Longer Available
  • L-22
    Arm Deck Id – Part Number: 4146065
    Arm Deck Id
    Part Number: 4146065
      No Longer Available
  • L-23
    Extension Spring – Part Number: 2308133
    Extension Spring
    Part Number: 2308133
      No Longer Available
  • L-24
    Snap Ring-26 – Part Number: 64144-40
    Snap Ring-26
    Part Number: 64144-40
      No Longer Available
  • L-25
    Ball Bearing – Part Number: 4128004
    Ball Bearing
    Part Number: 4128004
      No Longer Available
  • L-26
    Seal – Part Number: 4127999
    Seal
    Part Number: 4127999
      No Longer Available
  • L-27
    Bolt-Met Hex – Part Number: 64270-01
    Bolt-Met Hex
    Part Number: 64270-01
      No Longer Available
  • L-28
    End Cap – Part Number: 4128002
    End Cap
    Part Number: 4128002
      No Longer Available
  • L-29
    Idler Pulley – Part Number: 128169
    Idler Pulley
    Part Number: 128169
      No Longer Available
  • L-30
    Blt-Hex 1/2- – Part Number: 64123-90
    Blt-Hex 1/2-
    Part Number: 64123-90
      No Longer Available
  • L-31
    Lockwshr-Hel – Part Number: 64006-05
    Lockwshr-Hel
    Part Number: 64006-05
      No Longer Available
  • L-32
    Washer – Part Number: 64163-19
    Washer
    Part Number: 64163-19
      Special Order
    $6.16
  • L-33
    Pulley-6.25 – Part Number: 4149197
    Pulley-6.25
    Part Number: 4149197
      No Longer Available
  • L-34
    Spindle Assembly – Part Number: 4165023
    Spindle Assembly
    Part Number: 4165023
      No Longer Available
  • L-35
    Housing-Spindle 6 Hole (3) – Part Number: 4164948
    Housing-Spindle 6 Hole (3)
    Part Number: 4164948
      No Longer Available
  • L-36
    Bag Spindle – Part Number: 38348-01
    Bag Spindle
    Part Number: 38348-01
      No Longer Available
  • L-37
    Shaft Spindle – Part Number: 2183070-02
    Shaft Spindle
    Part Number: 2183070-02
      No Longer Available
  • L-38
    Snap Ring – Part Number: 64144-38
    Snap Ring
    Part Number: 64144-38
      No Longer Available
  • L-39
    Nut Spindle – Part Number: 38315
    Nut Spindle
    Part Number: 38315
      No Longer Available
  • L-40
    Blt-Flg Hd 3 – Part Number: 64262-012
    Blt-Flg Hd 3
    Part Number: 64262-012
      No Longer Available
  • L-41
    Washer – Part Number: 64163-84
    Washer
    Part Number: 64163-84
      No Longer Available
  • L-42
    Blt-Hex 5/8-18X1. – Part Number: 64123-208
    Blt-Hex 5/8-18X1.
    Part Number: 64123-208
      No Longer Available
  • L-43
    Key – Part Number: 64164-12
    Key
    Part Number: 64164-12
      No Longer Available
  • L-44
    Extension-42 – Part Number: 4168678.2
    Extension-42
    Part Number: 4168678.2
      No Longer Available
  • L-45
    Extension-42 – Part Number: 4168677.2
    Extension-42
    Part Number: 4168677.2
      No Longer Available
  • L-46
    Nut-Wlf 1/4- – Part Number: 64141-2
    Nut-Wlf 1/4-
    Part Number: 64141-2
      No Longer Available
  • L-47
    Bolt-Hex 1/4-20 X – Part Number: 64123-114
    Bolt-Hex 1/4-20 X
    Part Number: 64123-114
      No Longer Available
  • L-48
    Spacer – Part Number: 4152578-01
    Spacer
    Part Number: 4152578-01
      No Longer Available
  • L-49
    Nut-Fl Ny Lo – Part Number: 64268-05
    Nut-Fl Ny Lo
    Part Number: 64268-05
      No Longer Available
  • L-50
    Blt-Hex 1/4- – Part Number: 64123-31
    Blt-Hex 1/4-
    Part Number: 64123-31
      No Longer Available
  • L-51
    E-Clip – Part Number: 64144-36
    E-Clip
    Part Number: 64144-36
      No Longer Available
Page M
Page M Diagram and Parts List for Craftsman Lawn Tractor
  • M-1
    S-52In Deck – Part Number: 4168374
    S-52In Deck
    Part Number: 4168374
      No Longer Available
  • M-2
    Guard – Part Number: 4143552.7
    Guard
    Part Number: 4143552.7
      No Longer Available
  • M-3
    Guard – Part Number: 4143553.7
    Guard
    Part Number: 4143553.7
      No Longer Available
  • M-4
    Chute – Part Number: 4147115
    Chute
    Part Number: 4147115
      No Longer Available
  • M-5
    Bolt-Hex 3/8-16 X – Part Number: 64123-50
    Bolt-Hex 3/8-16 X
    Part Number: 64123-50
      No Longer Available
  • M-6
    Bolt-Crg 1/2 – Part Number: 64018-11
    Bolt-Crg 1/2
    Part Number: 64018-11
      No Longer Available
  • M-7
    Locknut-Nylo – Part Number: 64229-03
    Locknut-Nylo
    Part Number: 64229-03
      No Longer Available
  • M-8
    Blt-Met M12X – Part Number: 64205-029
    Blt-Met M12X
    Part Number: 64205-029
      No Longer Available
  • M-9
    Nut – Part Number: 64246-04
    Nut
    Part Number: 64246-04
      No Longer Available
  • M-10
    Chain-6.35 – Part Number: 2188127
    Chain-6.35
    Part Number: 2188127
      No Longer Available
  • M-11
    Pulley Spindle – Part Number: 4144947
    Pulley Spindle
    Part Number: 4144947
      No Longer Available
  • M-12
    Blade 18.00 – Part Number: 112111-02
    Blade 18.00
    Part Number: 112111-02
      No Longer Available
  • M-13
    Blt-Flg Hd 3 – Part Number: 64262-012
    Blt-Flg Hd 3
    Part Number: 64262-012
      No Longer Available
  • M-14
    Spring Washer – Part Number: 64209-03
    Spring Washer
    Part Number: 64209-03
      No Longer Available
  • M-15
    Key – Part Number: 64164-12
    Key
    Part Number: 64164-12
      No Longer Available
  • M-16
    Idler Pulley – Part Number: 128169
    Idler Pulley
    Part Number: 128169
      No Longer Available
  • M-17
    Idler Arm Deck – Part Number: 4147896
    Idler Arm Deck
    Part Number: 4147896
      No Longer Available
  • M-18
    Spindle Assembly – Part Number: 4165023
    Spindle Assembly
    Part Number: 4165023
      No Longer Available
  • M-19
    Lockwshr-Hel – Part Number: 64006-05
    Lockwshr-Hel
    Part Number: 64006-05
      No Longer Available
  • M-20
    Blt-Hex 1/2- – Part Number: 64123-90
    Blt-Hex 1/2-
    Part Number: 64123-90
      No Longer Available
  • M-21
    Spacer Blade – Part Number: 4118314
    Spacer Blade
    Part Number: 4118314
      No Longer Available
  • M-22
    Blt-Hex 5/8- – Part Number: 64123-187
    Blt-Hex 5/8-
    Part Number: 64123-187
      No Longer Available
  • M-23
    Blt-Hex 5/8-18X1. – Part Number: 64123-208
    Blt-Hex 5/8-18X1.
    Part Number: 64123-208
      No Longer Available
  • M-24
    Extension Spring – Part Number: 2308133
    Extension Spring
    Part Number: 2308133
      No Longer Available
  • M-25
    Seal – Part Number: 4127999
    Seal
    Part Number: 4127999
      No Longer Available
  • M-26
    Ball Bearing – Part Number: 4128004
    Ball Bearing
    Part Number: 4128004
      No Longer Available
  • M-27
    Snap Ring-26 – Part Number: 64144-40
    Snap Ring-26
    Part Number: 64144-40
      No Longer Available
  • M-28
    Bolt-Met Hex – Part Number: 64270-01
    Bolt-Met Hex
    Part Number: 64270-01
      No Longer Available
  • M-29
    End Cap – Part Number: 4128002
    End Cap
    Part Number: 4128002
      No Longer Available
  • M-30
    Spacer – Part Number: 4152578-01
    Spacer
    Part Number: 4152578-01
      No Longer Available
  • M-31
    Blt-Flg Hd 3 – Part Number: 64262-013
    Blt-Flg Hd 3
    Part Number: 64262-013
      No Longer Available
  • M-32
    Nut-Fl Ny Lo – Part Number: 64268-05
    Nut-Fl Ny Lo
    Part Number: 64268-05
      No Longer Available
  • M-33
    Bolt-Crg 3/8-16 X 4-1 – Part Number: 64018-30
    Bolt-Crg 3/8-16 X 4-1
    Part Number: 64018-30
      No Longer Available
  • M-34
    Roller – Part Number: 2721512
    Roller
    Part Number: 2721512
      No Longer Available
  • M-35
    Roller Spacer – Part Number: 2720685
    Roller Spacer
    Part Number: 2720685
      No Longer Available
  • M-36
    Baffle – Part Number: 4118427.7
    Baffle
    Part Number: 4118427.7
      No Longer Available
  • M-37
    Baffle – Part Number: 4134338.7
    Baffle
    Part Number: 4134338.7
      No Longer Available
  • M-38
    Baffle – Part Number: 4134343.7
    Baffle
    Part Number: 4134343.7
      No Longer Available
  • M-39
    Discharge Baffle – Part Number: 4115864.7
    Discharge Baffle
    Part Number: 4115864.7
      No Longer Available
  • M-40
    Bolt-3/8-16X – Part Number: 64018-3
    Bolt-3/8-16X
    Part Number: 64018-3
      No Longer Available
  • M-41
    Locknut-Nylo – Part Number: 64268-03
    Locknut-Nylo
    Part Number: 64268-03
      No Longer Available
  • M-42
    Blt-Crg 1/4- – Part Number: 64018-2
    Blt-Crg 1/4-
    Part Number: 64018-2
      No Longer Available
  • M-43
    Lock Nut – Part Number: 64229-01
    Lock Nut
    Part Number: 64229-01
      No Longer Available
  • M-44
    Washer – Part Number: 64163-84
    Washer
    Part Number: 64163-84
      No Longer Available
  • M-45
    Washer – Part Number: 64163-19
    Washer
    Part Number: 64163-19
      Special Order
    $6.16
  • M-45A
    Locknut-Nylo – Part Number: 64268-03
    Locknut-Nylo
    Part Number: 64268-03
      No Longer Available
  • M-47
    Hinge-Chute_ – Part Number: 4149017.7
    Hinge-Chute_
    Part Number: 4149017.7
      No Longer Available
  • M-48
    E-Clip – Part Number: 64144-36
    E-Clip
    Part Number: 64144-36
      No Longer Available
  • M-49
    Belt Guide – Part Number: 4163514.7
    Belt Guide
    Part Number: 4163514.7
      No Longer Available
Page N
Page N Diagram and Parts List for Craftsman Lawn Tractor
  • N-1
    Belt-52 Cut – Part Number: 4168470
    Belt-52 Cut
    Part Number: 4168470
      No Longer Available
  • N-2
    Belt – Part Number: 4147716
    Belt
    Part Number: 4147716
      No Longer Available
  • N-3
    Belt – Part Number: 4144212
    Belt
    Part Number: 4144212
      No Longer Available
Page O
Page O Diagram and Parts List for Craftsman Lawn Tractor

Questions & Answers

?

Our customer Service team is at the ready daily to answer your part and product questions.

Be the first to ask our experts a question about this part!

Ask our Team

We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.

✖

Our customer service team are at the ready daily to answer your part and product questions. We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
