Page A Diagram and Parts List for Craftsman Lawn Tractor
Page A
Page B Diagram and Parts List for Craftsman Lawn Tractor
Page B

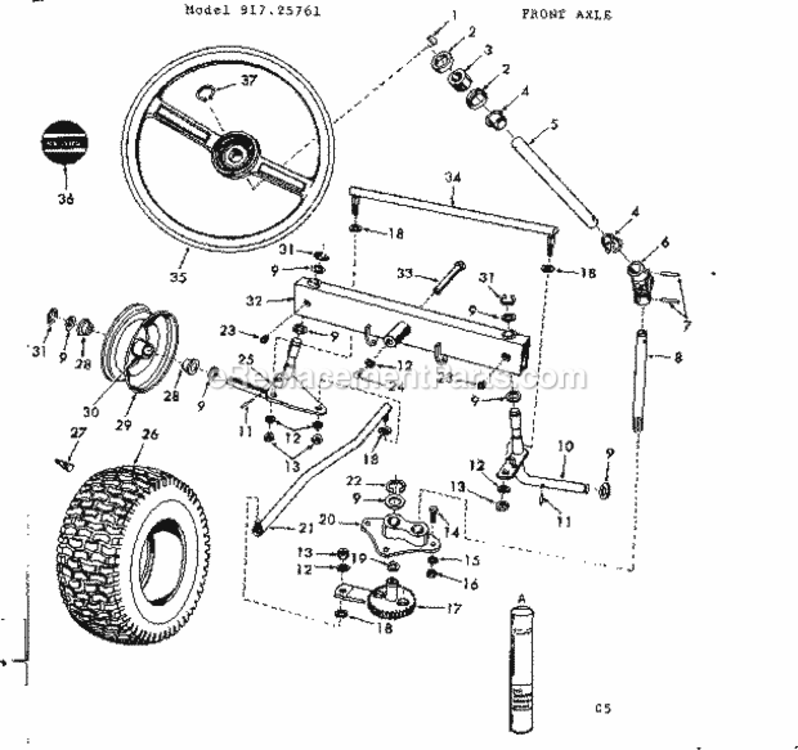

Page C Diagram and Parts List for Craftsman Lawn Tractor
Page C

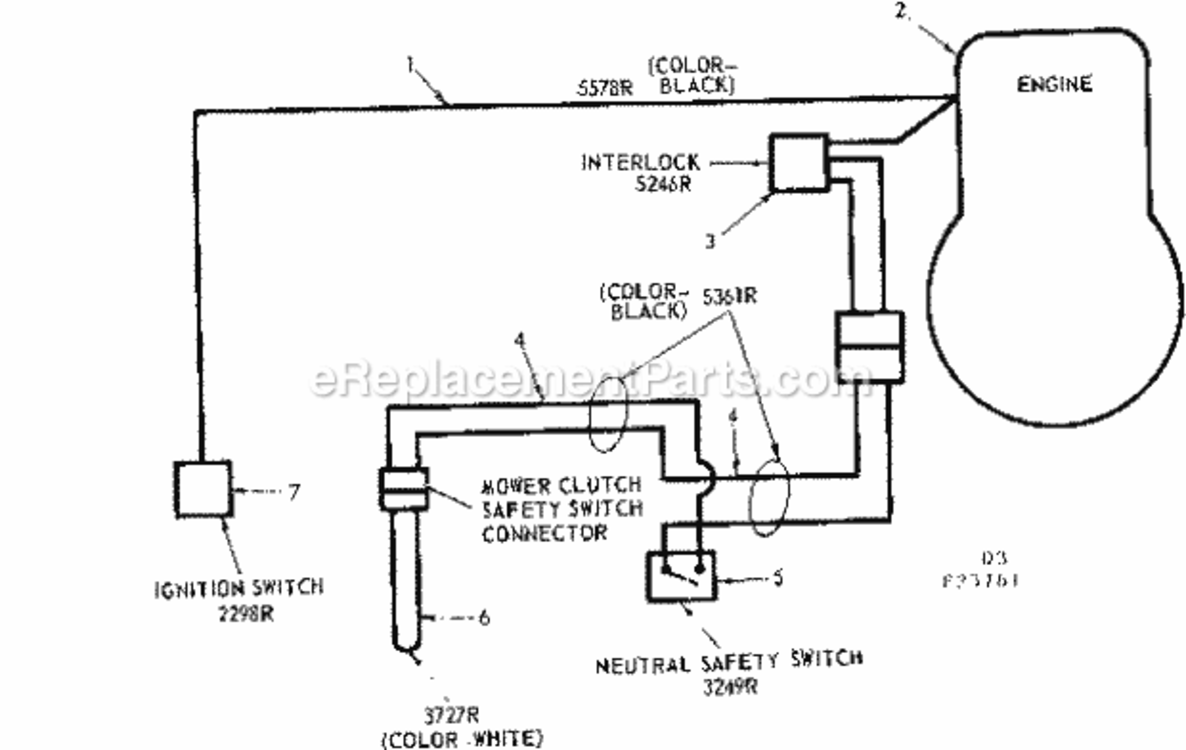

Page D Diagram and Parts List for Craftsman Lawn Tractor
Page D
Page E Diagram and Parts List for Craftsman Lawn Tractor
Page E
Previous Showing All Parts Next
Page A
Page A Diagram and Parts List for Craftsman Lawn Tractor
  • A-1
    Seat – Part Number: 3563R
    Seat
    Part Number: 3563R
      No Longer Available
  • A-2
    Hood – Part Number: 3339R
    Hood
    Part Number: 3339R
      No Longer Available
  • A-3
    Decal – Part Number: 3300R
    Decal
    Part Number: 3300R
      No Longer Available
  • A-4
    Decal – Part Number: 3624R
    Decal
    Part Number: 3624R
      No Longer Available
  • A-5
    Decal – Part Number: 3604R
    Decal
    Part Number: 3604R
      No Longer Available
  • A-6
    Decal – Part Number: 3571R
    Decal
    Part Number: 3571R
      No Longer Available
  • A-7
    Fuel Gauge – Part Number: 3346R
    Fuel Gauge
    Part Number: 3346R
      No Longer Available
  • A-8
    Fuel Tank – Part Number: 3349R
    Fuel Tank
    Part Number: 3349R
      No Longer Available
  • A-9
    Fitting – Part Number: 815R
    Fitting
    Part Number: 815R
      No Longer Available
  • A-10
    Hose Clamp – Part Number: STD316708
    Hose Clamp
    Part Number: STD316708
      No Longer Available
  • A-11
    Hose – Part Number: 295J
    Hose
    Part Number: 295J
      No Longer Available
  • A-12
    Screen – Part Number: 2875R
    Screen
    Part Number: 2875R
      No Longer Available
  • A-13
    Screen – Part Number: 2876R
    Screen
    Part Number: 2876R
      No Longer Available
  • A-15
    Grill – Part Number: 2896R
    Grill
    Part Number: 2896R
      No Longer Available
  • A-16
    Grill Cable – Part Number: 3577R
    Grill Cable
    Part Number: 3577R
      No Longer Available
  • A-17
    Screen – Part Number: 3585R
    Screen
    Part Number: 3585R
      No Longer Available
  • A-18
    Plate – Part Number: 2879R
    Plate
    Part Number: 2879R
      No Longer Available
  • A-19
    Support – Part Number: 663A103
    Support
    Part Number: 663A103
      No Longer Available
  • A-20
    Brace – Part Number: 2880R
    Brace
    Part Number: 2880R
      No Longer Available
  • A-21
    Ft Rest Right Hand – Part Number: 2882R
    Ft Rest Right Hand
    Part Number: 2882R
      No Longer Available
  • A-22
    Foot Pad Right Hand – Part Number: 3586R
    Foot Pad Right Hand
    Part Number: 3586R
      No Longer Available
  • A-23
    Decal – Part Number: 1362R
    Decal
    Part Number: 1362R
      No Longer Available
  • A-24
    Foot Plate – Part Number: 4787R
    Foot Plate
    Part Number: 4787R
      No Longer Available
  • A-25
    Bracket – Part Number: 3230R
    Bracket
    Part Number: 3230R
      No Longer Available
  • A-26
    Decal – Part Number: 5770R
    Decal
    Part Number: 5770R
      No Longer Available
  • A-27
    Fender Assembly – Part Number: 663A39
    Fender Assembly
    Part Number: 663A39
      No Longer Available
  • A-28
    Panel – Part Number: 663A26
    Panel
    Part Number: 663A26
      No Longer Available
  • A-29
    Manual – Part Number: 3877R
    Manual
    Part Number: 3877R
      No Longer Available
  • A-30
    Tow Plate – Part Number: 3345R
    Tow Plate
    Part Number: 3345R
      No Longer Available
  • A-31
    Model Plate – Part Number: 5791R
    Model Plate
    Part Number: 5791R
      No Longer Available
  • A-32
    Drive Rivet – Part Number: 9521H
    Drive Rivet
    Part Number: 9521H
      No Longer Available
  • A-33
    Panel – Part Number: 5216R
    Panel
    Part Number: 5216R
      No Longer Available
  • A-34
    Reflector – Part Number: 5012R
    Reflector
    Part Number: 5012R
      No Longer Available
  • A-38
    Brace – Part Number: 3569R
    Brace
    Part Number: 3569R
      No Longer Available
  • A-39
    Fender Assembly – Part Number: 663A40
    Fender Assembly
    Part Number: 663A40
      No Longer Available
  • A-41
    Safty Supprt – Part Number: 3337R
    Safty Supprt
    Part Number: 3337R
      No Longer Available
  • A-42
    Switch – Part Number: 3249R
    Switch
    Part Number: 3249R
      No Longer Available
  • A-43
    Interlock – Part Number: 5246R
    Interlock
    Part Number: 5246R
      No Longer Available
  • A-43A
    Clamp – Part Number: 5401R
    Clamp
    Part Number: 5401R
      No Longer Available
  • A-43B
    Shortng Wire – Part Number: 3727R
    Shortng Wire
    Part Number: 3727R
      No Longer Available
  • A-44
    Frame – Part Number: 3310R
    Frame
    Part Number: 3310R
      No Longer Available
  • A-45
    Hinge – Part Number: 2755R
    Hinge
    Part Number: 2755R
      No Longer Available
  • A-46
    Clip – Part Number: 3862R
    Clip
    Part Number: 3862R
      No Longer Available
  • A-47
    Shortng Wire – Part Number: 3727R
    Shortng Wire
    Part Number: 3727R
      No Longer Available
  • A-48
    Screw 8Pk – Part Number: STD601003
    Screw 8Pk
    Part Number: STD601003
      No Longer Available
  • A-49
    Decal – Part Number: 3582R
    Decal
    Part Number: 3582R
      No Longer Available
  • A-51
    Panel – Part Number: 663A27
    Panel
    Part Number: 663A27
      No Longer Available
  • A-52
    Brace – Part Number: 3372R
    Brace
    Part Number: 3372R
      No Longer Available
  • A-53
    Decal – Part Number: 3607R
    Decal
    Part Number: 3607R
      No Longer Available
  • A-54
    Decal – Part Number: 3608R
    Decal
    Part Number: 3608R
      No Longer Available
  • A-55
    Hinge – Part Number: 3417R
    Hinge
    Part Number: 3417R
      No Longer Available
  • A-57
    Ft Rest Left Hand – Part Number: 2881R
    Ft Rest Left Hand
    Part Number: 2881R
      No Longer Available
  • A-58
    Decal – Part Number: 1064R
    Decal
    Part Number: 1064R
      No Longer Available
  • A-59
    Dashbd Wld – Part Number: 663A20
    Dashbd Wld
    Part Number: 663A20
      No Longer Available
  • A-60
    Control – Part Number: 663A71
    Control
    Part Number: 663A71
      No Longer Available
  • A-61
    Spring – Part Number: 4250R
    Spring
    Part Number: 4250R
      No Longer Available
  • A-63
    Axle Sup Left Hand – Part Number: 2878R
    Axle Sup Left Hand
    Part Number: 2878R
      No Longer Available
  • A-64
    Shift Plate – Part Number: 3340R
    Shift Plate
    Part Number: 3340R
      No Longer Available
  • A-67
    Seat Plate – Part Number: 3415R
    Seat Plate
    Part Number: 3415R
      No Longer Available
  • A-68
    Seat Spring – Part Number: 3575R
    Seat Spring
    Part Number: 3575R
      No Longer Available
  • A-69
    Lock Washer – Part Number: STD551131
    Lock Washer
    Part Number: STD551131
      No Longer Available
  • A-70
    Nut 8Pk – Part Number: STD541031
    Nut 8Pk
    Part Number: STD541031
      No Longer Available
  • A-71
    Washer 8Pk – Part Number: STD551025
    Washer 8Pk
    Part Number: STD551025
      No Longer Available
  • A-72
    Washer 8Pk – Part Number: STD551125
    Washer 8Pk
    Part Number: STD551125
      No Longer Available
  • A-73
    Nut 8Pk – Part Number: STD541025
    Nut 8Pk
    Part Number: STD541025
      No Longer Available
  • A-74
    Flat Washer, 8Pk – Part Number: STD551031
    Flat Washer, 8Pk
    Part Number: STD551031
      No Longer Available
  • A-75
    Locknut – Part Number: STD541431
    Locknut
    Part Number: STD541431
      No Longer Available
  • A-76
    Nut Retainer – Part Number: 3254R
    Nut Retainer
    Part Number: 3254R
      No Longer Available
  • A-77
    Safty Sticke – Part Number: 3239R
    Safty Sticke
    Part Number: 3239R
      No Longer Available
  • A-78
    Washer, Lock 3/8 – Part Number: STD551137
    Washer, Lock 3/8
    Part Number: STD551137
      No Longer Available
  • A-79
    Nut 8Pk – Part Number: STD541037
    Nut 8Pk
    Part Number: STD541037
      No Longer Available
  • A-80
    Nut – Part Number: 186F
    Nut
    Part Number: 186F
      No Longer Available
  • A-81A
    Carriage Bolt – Part Number: STD533107
    Carriage Bolt
    Part Number: STD533107
      No Longer Available
  • A-81B
    Screw 8Pk – Part Number: STD601003
    Screw 8Pk
    Part Number: STD601003
      No Longer Available
  • A-81C
    Screw 8Pk – Part Number: STD512505
    Screw 8Pk
    Part Number: STD512505
      No Longer Available
  • A-81D
    Square Head Machine Bolt (8 pack) – Part Number: STD522505
    Square Head Machine Bolt (8 pack)
    Part Number: STD522505
      No Longer Available
  • A-81E
    Bolt – Part Number: 74780408
    Bolt
    Part Number: 74780408
      No Longer Available
  • A-81F
    Screw 5Pk – Part Number: STD523107
    Screw 5Pk
    Part Number: STD523107
      No Longer Available
  • A-81G
    Screw 5Pk – Part Number: STD523112
    Screw 5Pk
    Part Number: STD523112
      No Longer Available
  • A-81I
    Screw – Part Number: 5562P
    Screw
    Part Number: 5562P
      No Longer Available
  • A-81J
    Screw 5Pk – Part Number: STD523107
    Screw 5Pk
    Part Number: STD523107
      No Longer Available
  • A-81M
    Screw 5Pk – Part Number: STD523707
    Screw 5Pk
    Part Number: STD523707
      No Longer Available
  • A-81N
    Lock Screw – Part Number: 4291R
    Lock Screw
    Part Number: 4291R
      No Longer Available
  • A-81P
    Washer 8Pk – Part Number: STD551125
    Washer 8Pk
    Part Number: STD551125
      No Longer Available
  • A-81R
    Bushing – Part Number: 3807R
    Bushing
    Part Number: 3807R
      No Longer Available
  • A-800
    Ignition Key – Part Number: STD365410
    Ignition Key
    Part Number: STD365410
      No Longer Available
  • A-800
    Manual – Part Number: 5793R
    Manual
    Part Number: 5793R
      No Longer Available
Page B
Page B Diagram and Parts List for Craftsman Lawn Tractor
  • B-1
    Engine – Part Number: 663A25
    Engine
    Part Number: 663A25
      No Longer Available
  • B-2
    Nut 8Pk – Part Number: STD541031
    Nut 8Pk
    Part Number: STD541031
      No Longer Available
  • B-3
    Lock Washer – Part Number: STD551131
    Lock Washer
    Part Number: STD551131
      No Longer Available
  • B-4
    Screw 8Pk – Part Number: STD512505
    Screw 8Pk
    Part Number: STD512505
      No Longer Available
  • B-5
    Brake Stop – Part Number: 5060R
    Brake Stop
    Part Number: 5060R
      No Longer Available
  • B-6
    Screw 5Pk – Part Number: STD523115
    Screw 5Pk
    Part Number: STD523115
      No Longer Available
  • B-7
    Grill Cable – Part Number: 3577R
    Grill Cable
    Part Number: 3577R
      No Longer Available
  • B-8
    Deflector – Part Number: 4002R
    Deflector
    Part Number: 4002R
      No Longer Available
  • B-9
    Cover, Pedal – Part Number: 510089501
    Cover, Pedal
    Part Number: 510089501
    ★★★★★
    ★★★★★
    (4)
      In Stock
    $6.80
  • B-10
    Foot Shaft – Part Number: 663A85
    Foot Shaft
    Part Number: 663A85
      No Longer Available
  • B-11
    Idler Pulley – Part Number: 1342R
    Idler Pulley
    Part Number: 1342R
      No Longer Available
  • B-12
    Idlr Std-Of – Part Number: 3319R
    Idlr Std-Of
    Part Number: 3319R
      No Longer Available
  • B-13
    Idler Guard – Part Number: 2868R
    Idler Guard
    Part Number: 2868R
      No Longer Available
  • B-14
    Support – Part Number: 2870R
    Support
    Part Number: 2870R
      No Longer Available
  • B-15
    Foot Plate – Part Number: 4787R
    Foot Plate
    Part Number: 4787R
      No Longer Available
  • B-16
    Idler Bearing – Part Number: 3363R
    Idler Bearing
    Part Number: 3363R
      No Longer Available
  • B-17
    Pin 8Pk – Part Number: STD561210
    Pin 8Pk
    Part Number: STD561210
      No Longer Available
  • B-18
    Handle Grip – Part Number: 4379H
    Handle Grip
    Part Number: 4379H
      No Longer Available
  • B-19
    Lever – Part Number: 663A29
    Lever
    Part Number: 663A29
      No Longer Available
  • B-20
    Spacer – Part Number: 3323R
    Spacer
    Part Number: 3323R
      No Longer Available
  • B-21
    Lawn Tractor Tire Valve Stem – Part Number: 65139
    Lawn Tractor Tire Valve Stem
    Part Number: 65139
      No Longer Available
  • B-22
    Tire – Part Number: 3964R
    Tire
    Part Number: 3964R
      No Longer Available
  • B-23
    Ring 2Pk – Part Number: STD581075
    Ring 2Pk
    Part Number: STD581075
      No Longer Available
  • B-24
    Washer – Part Number: 121749X
    Washer
    Part Number: 121749X
      No Longer Available
  • B-25
    Square Key – Part Number: 3570R
    Square Key
    Part Number: 3570R
      No Longer Available
  • B-26
    Wheel – Part Number: 3965R
    Wheel
    Part Number: 3965R
      No Longer Available
  • B-27
    Flat Washer, 8Pk – Part Number: STD551031
    Flat Washer, 8Pk
    Part Number: STD551031
      No Longer Available
  • B-28
    Anchor – Part Number: 3313R
    Anchor
    Part Number: 3313R
      No Longer Available
  • B-29
    Spring – Part Number: 4019R
    Spring
    Part Number: 4019R
      No Longer Available
  • B-30
    Nut 8Pk – Part Number: STD541225
    Nut 8Pk
    Part Number: STD541225
      No Longer Available
  • B-31
    Fan-flywheel – Part Number: 596832
    Fan-flywheel
    Part Number: 596832
    ★★★★★
    ★★★★★
    (8)
      In Stock
    $52.80
  • B-32
    Screw 8Pk – Part Number: STD511002
    Screw 8Pk
    Part Number: STD511002
      No Longer Available
  • B-33
    Washer 8Pk – Part Number: STD551050
    Washer 8Pk
    Part Number: STD551050
      No Longer Available
  • B-34
    Parkng Shft – Part Number: 4863R
    Parkng Shft
    Part Number: 4863R
      No Longer Available
  • B-35
    Brake Rod – Part Number: 3315R
    Brake Rod
    Part Number: 3315R
      No Longer Available
  • B-36
    Support – Part Number: 3334R
    Support
    Part Number: 3334R
      No Longer Available
  • B-37
    Washer 8Pk – Part Number: STD551043
    Washer 8Pk
    Part Number: STD551043
      No Longer Available
  • B-38
    E Ring – Part Number: STD581043
    E Ring
    Part Number: STD581043
      No Longer Available
  • B-39
    Washer 8Pk – Part Number: STD551037
    Washer 8Pk
    Part Number: STD551037
      No Longer Available
  • B-40
    Bracket – Part Number: 663A23
    Bracket
    Part Number: 663A23
      No Longer Available
  • B-41
    Key – Part Number: STD580020
    Key
    Part Number: STD580020
      No Longer Available
  • B-42
    Nut 8Pk – Part Number: STD541331
    Nut 8Pk
    Part Number: STD541331
      No Longer Available
  • B-43
    Idler – Part Number: 4178H
    Idler
    Part Number: 4178H
      No Longer Available
  • B-44
    Clutch Rod – Part Number: 3314R
    Clutch Rod
    Part Number: 3314R
      No Longer Available
  • B-45
    Pin – Part Number: 3573R
    Pin
    Part Number: 3573R
      No Longer Available
  • B-46
    Clutch Spring – Part Number: 3362R
    Clutch Spring
    Part Number: 3362R
      No Longer Available
  • B-47
    Knob Rd – Part Number: 532162132
    Knob Rd
    Part Number: 532162132
      No Longer Available
  • B-48
    Spring – Part Number: 3860R
    Spring
    Part Number: 3860R
      No Longer Available
  • B-49
    Screw 5Pk – Part Number: STD523106
    Screw 5Pk
    Part Number: STD523106
      No Longer Available
  • B-50
    Valve – Part Number: 3584R
    Valve
    Part Number: 3584R
      No Longer Available
  • B-51
    Screw 2Pk – Part Number: STD523127
    Screw 2Pk
    Part Number: STD523127
      No Longer Available
  • B-52
    Bolt – Part Number: 54P
    Bolt
    Part Number: 54P
      No Longer Available
  • B-53
    Guard – Part Number: 3328R
    Guard
    Part Number: 3328R
      No Longer Available
  • B-54
    Pulley – Part Number: 3359R
    Pulley
    Part Number: 3359R
      No Longer Available
  • B-55
    Eng Tie Dwn – Part Number: 4158R
    Eng Tie Dwn
    Part Number: 4158R
      No Longer Available
  • B-56
    Spacer – Part Number: 4157R
    Spacer
    Part Number: 4157R
      No Longer Available
  • B-57
    Mount – Part Number: 3786R
    Mount
    Part Number: 3786R
      No Longer Available
  • B-58
    Washer – Part Number: 2515R
    Washer
    Part Number: 2515R
      No Longer Available
  • B-59
    Rebound Mt – Part Number: 3787R
    Rebound Mt
    Part Number: 3787R
      No Longer Available
  • B-60
    Square Key – Part Number: STD580111
    Square Key
    Part Number: STD580111
      No Longer Available
  • B-61
    Washer Lock 7/16 – Part Number: STD551143
    Washer Lock 7/16
    Part Number: STD551143
      No Longer Available
  • B-62
    Bolt – Part Number: 3272P
    Bolt
    Part Number: 3272P
      No Longer Available
  • B-63
    Support – Part Number: 2957R
    Support
    Part Number: 2957R
      No Longer Available
  • B-64
    Screw 5Pk – Part Number: STD523107
    Screw 5Pk
    Part Number: STD523107
      No Longer Available
  • B-65
    Bolt-hex rb – Part Number: 74780416
    Bolt-hex rb
    Part Number: 74780416
      No Longer Available
  • B-66
    Washer 8Pk – Part Number: STD551125
    Washer 8Pk
    Part Number: STD551125
      No Longer Available
  • B-67
    Belt – Part Number: STD324910
    Belt
    Part Number: STD324910
      No Longer Available
  • B-68
    Deflector – Part Number: 4003R
    Deflector
    Part Number: 4003R
      No Longer Available
  • B-69
    Muffler – Part Number: 663A98
    Muffler
    Part Number: 663A98
      No Longer Available
  • B-70
    Nut 8Pk – Part Number: STD541025
    Nut 8Pk
    Part Number: STD541025
      No Longer Available
  • B-71
    Pulley – Part Number: 3358R
    Pulley
    Part Number: 3358R
      No Longer Available
  • B-72
    Washer, Lock 3/8 – Part Number: STD551137
    Washer, Lock 3/8
    Part Number: STD551137
      No Longer Available
  • B-73
    Hex Lock Nut – Part Number: STD541537
    Hex Lock Nut
    Part Number: STD541537
      No Longer Available
  • B-74
    E-Ring 5Pk – Part Number: STD581062
    E-Ring 5Pk
    Part Number: STD581062
      No Longer Available
  • B-75
    Nut 5Pk – Part Number: STD541143
    Nut 5Pk
    Part Number: STD541143
      No Longer Available
  • B-76
    Nut – Part Number: 873610600
    Nut
    Part Number: 873610600
      Special Order
    $5.95
  • B-77
    Brake Arm – Part Number: 5405R
    Brake Arm
    Part Number: 5405R
      No Longer Available
  • B-78
    Belt Guard – Part Number: 663A104
    Belt Guard
    Part Number: 663A104
      No Longer Available
  • B-79
    Screw 5Pk – Part Number: STD523110
    Screw 5Pk
    Part Number: STD523110
      No Longer Available
  • B-80
    Brake Spring – Part Number: 5809R
    Brake Spring
    Part Number: 5809R
      No Longer Available
  • B-81A
    Bolt – Part Number: 74780408
    Bolt
    Part Number: 74780408
      No Longer Available
  • B-81B
    Bolt-hex rb – Part Number: 74780416
    Bolt-hex rb
    Part Number: 74780416
      No Longer Available
  • B-81C
    Self-Tapping Screw – Part Number: STD600803
    Self-Tapping Screw
    Part Number: STD600803
      No Longer Available
  • B-81E
    Bolt – Part Number: 74780408
    Bolt
    Part Number: 74780408
      No Longer Available
  • B-81F
    Screw 5Pk – Part Number: STD523110
    Screw 5Pk
    Part Number: STD523110
      No Longer Available
  • B-800
    Manual – Part Number: 5793R
    Manual
    Part Number: 5793R
      No Longer Available
  • B-800
    Ignition Key – Part Number: STD365410
    Ignition Key
    Part Number: STD365410
      No Longer Available
Page C
Page C Diagram and Parts List for Craftsman Lawn Tractor
  • C-1
    Key – Part Number: STD580020
    Key
    Part Number: STD580020
      No Longer Available
  • C-2
    Cap – Part Number: 9007H
    Cap
    Part Number: 9007H
      No Longer Available
  • C-3
    Bushing – Part Number: 5949H
    Bushing
    Part Number: 5949H
      No Longer Available
  • C-4
    Bearing – Part Number: 3366R
    Bearing
    Part Number: 3366R
      No Longer Available
  • C-5
    Str Shaft – Part Number: 3324R
    Str Shaft
    Part Number: 3324R
      No Longer Available
  • C-6
    Universal Joint – Part Number: 3369R
    Universal Joint
    Part Number: 3369R
      No Longer Available
  • C-7
    Pin 2Pk – Part Number: STD572510
    Pin 2Pk
    Part Number: STD572510
      No Longer Available
  • C-8
    Shaft – Part Number: 3322R
    Shaft
    Part Number: 3322R
      No Longer Available
  • C-9
    Washer – Part Number: 121749X
    Washer
    Part Number: 121749X
      No Longer Available
  • C-10
    King Pin – Part Number: 663A30
    King Pin
    Part Number: 663A30
      No Longer Available
  • C-11
    Pin 5Pk – Part Number: STD571812
    Pin 5Pk
    Part Number: STD571812
      No Longer Available
  • C-12
    Washer, Lock 3/8 – Part Number: STD551137
    Washer, Lock 3/8
    Part Number: STD551137
      No Longer Available
  • C-13
    Hex Lock Nut – Part Number: STD541537
    Hex Lock Nut
    Part Number: STD541537
      No Longer Available
  • C-14
    Screw 5Pk – Part Number: STD523107
    Screw 5Pk
    Part Number: STD523107
      No Longer Available
  • C-15
    Lock Washer – Part Number: STD551131
    Lock Washer
    Part Number: STD551131
      No Longer Available
  • C-16
    Nut 8Pk – Part Number: STD541031
    Nut 8Pk
    Part Number: STD541031
      No Longer Available
  • C-17
    Str Sector – Part Number: 663A28
    Str Sector
    Part Number: 663A28
      No Longer Available
  • C-18
    Washer – Part Number: 2515R
    Washer
    Part Number: 2515R
      No Longer Available
  • C-19
    Spacer – Part Number: 3327R
    Spacer
    Part Number: 3327R
      No Longer Available
  • C-20
    Brng Str Sct – Part Number: 3364R
    Brng Str Sct
    Part Number: 3364R
      No Longer Available
  • C-21
    Drag Link – Part Number: 5603R
    Drag Link
    Part Number: 5603R
      No Longer Available
  • C-22
    E-Ring 5Pk – Part Number: STD581062
    E-Ring 5Pk
    Part Number: STD581062
      No Longer Available
  • C-23
    Lawn Tractor Grease Fitting – Part Number: 6855M
    Lawn Tractor Grease Fitting
    Part Number: 6855M
      No Longer Available
  • C-24
    Screw 5Pk – Part Number: STD523707
    Screw 5Pk
    Part Number: STD523707
      No Longer Available
  • C-25
    King Pin – Part Number: 663A31
    King Pin
    Part Number: 663A31
      No Longer Available
  • C-26
    Tire – Part Number: 3966R
    Tire
    Part Number: 3966R
      No Longer Available
  • C-27
    Lawn Tractor Tire Valve Stem – Part Number: 65139
    Lawn Tractor Tire Valve Stem
    Part Number: 65139
      No Longer Available
  • C-28
    Flange Bearing – Part Number: 3736R
    Flange Bearing
    Part Number: 3736R
      No Longer Available
  • C-29
    Wheel – Part Number: 3967R
    Wheel
    Part Number: 3967R
      No Longer Available
  • C-30
    Fitting, Grease – Part Number: 532124860
    Fitting, Grease
    Part Number: 532124860
      Special Order
    $9.63
  • C-31
    Ring 2Pk – Part Number: STD581075
    Ring 2Pk
    Part Number: STD581075
      No Longer Available
  • C-32
    Axle – Part Number: 663A34
    Axle
    Part Number: 663A34
      No Longer Available
  • C-33
    Pivot Bolt – Part Number: 3351R
    Pivot Bolt
    Part Number: 3351R
      No Longer Available
  • C-34
    Tie Rod – Part Number: 3347R
    Tie Rod
    Part Number: 3347R
      No Longer Available
  • C-35
    Str Wheel – Part Number: 2700R
    Str Wheel
    Part Number: 2700R
      No Longer Available
  • C-36
    Cap – Part Number: 2701R
    Cap
    Part Number: 2701R
      No Longer Available
  • C-37
    Snap Rng Ext – Part Number: STD582075
    Snap Rng Ext
    Part Number: STD582075
      No Longer Available
  • C-37A
    Grease – Part Number: 6066J
    Grease
    Part Number: 6066J
      No Longer Available
  • C-800
    Ignition Key – Part Number: STD365410
    Ignition Key
    Part Number: STD365410
      No Longer Available
  • C-800
    Manual – Part Number: 5793R
    Manual
    Part Number: 5793R
      No Longer Available
Page D
Page D Diagram and Parts List for Craftsman Lawn Tractor
  • D-1
    Wire – Part Number: 5578R
    Wire
    Part Number: 5578R
      No Longer Available
  • D-2
    Engine – Part Number: 663A25
    Engine
    Part Number: 663A25
      No Longer Available
  • D-3
    Interlock – Part Number: 5246R
    Interlock
    Part Number: 5246R
      No Longer Available
  • D-4
    Wire – Part Number: 5361R
    Wire
    Part Number: 5361R
      No Longer Available
  • D-5
    Switch – Part Number: 3249R
    Switch
    Part Number: 3249R
      No Longer Available
  • D-6
    Shortng Wire – Part Number: 3727R
    Shortng Wire
    Part Number: 3727R
      No Longer Available
  • D-7
    Ign Switch – Part Number: STD365400
    Ign Switch
    Part Number: STD365400
      No Longer Available
  • D-800
    Manual – Part Number: 5793R
    Manual
    Part Number: 5793R
      No Longer Available
  • D-800
    Ignition Key – Part Number: STD365410
    Ignition Key
    Part Number: STD365410
      No Longer Available
Page E
Page E Diagram and Parts List for Craftsman Lawn Tractor
  • E-1
    Lever – Part Number: 784247
    Lever
    Part Number: 784247
      No Longer Available
  • E-2
    Lever Housing – Part Number: 784088
    Lever Housing
    Part Number: 784088
      No Longer Available
  • E-3
    O-Ring – Part Number: TC-792001
    O-Ring
    Part Number: TC-792001
      No Longer Available
  • E-4
    DRIVE PIN – Part Number: 792049
    DRIVE PIN
    Part Number: 792049
      Special Order
    $7.28
  • E-5
    Lever Keeper – Part Number: 784094
    Lever Keeper
    Part Number: 784094
      No Longer Available
  • E-6
    Ring-Snap – Part Number: 792016
    Ring-Snap
    Part Number: 792016
      Special Order
    $5.95
  • E-7
    Housing Assembly – Part Number: 784246
    Housing Assembly
    Part Number: 784246
      No Longer Available
  • E-8
    Riser Block – Part Number: 786057
    Riser Block
    Part Number: 786057
      No Longer Available
  • E-9
    Gasket – Part Number: 788003A
    Gasket
    Part Number: 788003A
      No Longer Available
  • E-10
    Oil Seal – Part Number: 788035A
    Oil Seal
    Part Number: 788035A
      No Longer Available
  • E-11
    Ring 5Pk – Part Number: STD582062
    Ring 5Pk
    Part Number: STD582062
      No Longer Available
  • E-12
    R10 Brg – Part Number: STD315100
    R10 Brg
    Part Number: STD315100
      No Longer Available
  • E-13
    Bearing – Part Number: 780061
    Bearing
    Part Number: 780061
      No Longer Available
  • E-14
    B108 Brg – Part Number: STD311008
    B108 Brg
    Part Number: STD311008
      No Longer Available
  • E-15
    OIL SEAL – Part Number: 788043
    OIL SEAL
    Part Number: 788043
      Special Order
    $9.70
  • E-16
    Pad, Brake – Part Number: 799021
    Pad, Brake
    Part Number: 799021
      No Longer Available
  • E-17
    Plate, Brake Pad – Part Number: TC-790007
    Plate, Brake Pad
    Part Number: TC-790007
      No Longer Available
  • E-18
    Holder – Part Number: 790025
    Holder
    Part Number: 790025
      Special Order
    $20.26
  • E-19
    Pin, Dowel – Part Number: 786026B
    Pin, Dowel
    Part Number: 786026B
      Special Order
    $5.95
  • E-20
    Locknut – Part Number: STD541431
    Locknut
    Part Number: STD541431
      No Longer Available
  • E-21
    Washer, Flat – Part Number: 792076A
    Washer, Flat
    Part Number: 792076A
      No Longer Available
  • E-22
    BRAKE LEVER – Part Number: 790016
    BRAKE LEVER
    Part Number: 790016
      Special Order
    $13.40
  • E-23
    Screw, Hex Head 1/4-20 x 1-1/4 – Part Number: STD522512
    Screw, Hex Head 1/4-20 x 1-1/4
    Part Number: STD522512
      No Longer Available
  • E-24
    Housing-Blower – Part Number: 592814
    Housing-Blower
    Part Number: 592814
      In Stock
    $164.49
  • E-25
    Axle Housing – Part Number: 782043
    Axle Housing
    Part Number: 782043
      No Longer Available
  • E-26
    O Ring – Part Number: 780091
    O Ring
    Part Number: 780091
      Special Order
    $24.60
  • E-27
    Oil Seal – Part Number: 788009
    Oil Seal
    Part Number: 788009
      No Longer Available
  • E-28
    Screw, 5/16-18 x 1" – Part Number: 792037
    Screw, 5/16-18 x 1"
    Part Number: 792037
      Special Order
    $5.95
  • E-29
    Lock Washer – Part Number: STD551131
    Lock Washer
    Part Number: STD551131
      No Longer Available
  • E-30
    USE 00770063A – Part Number: 770063
    USE 00770063A
    Part Number: 770063
      Special Order
    $184.02
  • E-31
    Washer, Thrust – Part Number: TC-780072
    Washer, Thrust
    Part Number: TC-780072
      No Longer Available
  • E-32
    THRUST BEARING – Part Number: 780071
    THRUST BEARING
    Part Number: 780071
      Special Order
    $15.16
  • E-33
    PLUG – Part Number: 792039
    PLUG
    Part Number: 792039
      Special Order
    $5.95
  • E-34
    Input Shaft – Part Number: 776103
    Input Shaft
    Part Number: 776103
      No Longer Available
  • E-35
    Input Pinion – Part Number: 778077
    Input Pinion
    Part Number: 778077
      No Longer Available
  • E-36
    Snap rng ext – Part Number: STD582056
    Snap rng ext
    Part Number: STD582056
      No Longer Available
  • E-37
    Shaft Gear – Part Number: 776102
    Shaft Gear
    Part Number: 776102
      No Longer Available
  • E-38
    Gear – Part Number: 778064
    Gear
    Part Number: 778064
      No Longer Available
  • E-39
    Idler Spacer – Part Number: 786036
    Idler Spacer
    Part Number: 786036
      No Longer Available
  • E-40
    Shaft – Part Number: 776057
    Shaft
    Part Number: 776057
      No Longer Available
  • E-41
    Gasket – Part Number: 788033A
    Gasket
    Part Number: 788033A
      No Longer Available
  • E-42
    Bearing – Part Number: 780060
    Bearing
    Part Number: 780060
      No Longer Available
  • E-43
    Bushing – Part Number: 780062
    Bushing
    Part Number: 780062
      No Longer Available
  • E-44
    Plate – Part Number: 786033
    Plate
    Part Number: 786033
      No Longer Available
  • E-45
    Bushing – Part Number: 780064
    Bushing
    Part Number: 780064
      Special Order
    $7.28
  • E-46
    Gear Assembly., Differential – Part Number: 778175
    Gear Assembly., Differential
    Part Number: 778175
      Special Order
    $297.69
  • E-47
    Washer – Part Number: 780001
    Washer
    Part Number: 780001
      Special Order
    $5.95
  • E-48
    Axle – Part Number: 774221
    Axle
    Part Number: 774221
      No Longer Available
  • E-49
    BEVEL GEAR – Part Number: 778132
    BEVEL GEAR
    Part Number: 778132
      Special Order
    $35.69
  • E-50
    Snap Rng Ext – Part Number: STD582075
    Snap Rng Ext
    Part Number: STD582075
      No Longer Available
  • E-51
    Thrust Washer – Part Number: 780065
    Thrust Washer
    Part Number: 780065
      Special Order
    $5.95
  • E-52
    Alternative for PE-778068: GEAR-BEVEL – Part Number: TC-778131
    Alternative for PE-778068: GEAR-BEVEL
    Part Number: TC-778131
      No Longer Available
  • E-53
    Bushing – Part Number: 780059
    Bushing
    Part Number: 780059
      No Longer Available
  • E-54
    Screw – Part Number: 792036
    Screw
    Part Number: 792036
      No Longer Available
  • E-55
    Axle Housing – Part Number: 782036A
    Axle Housing
    Part Number: 782036A
      No Longer Available
  • E-56
    Cover – Part Number: 772042
    Cover
    Part Number: 772042
      No Longer Available
  • E-57
    Axle – Part Number: 774220
    Axle
    Part Number: 774220
      No Longer Available
  • E-58
    Pin-Roll – Part Number: 792040
    Pin-Roll
    Part Number: 792040
      Special Order
    $5.95
  • E-59
    Drive Pin – Part Number: 786034
    Drive Pin
    Part Number: 786034
      Special Order
    $15.98
  • E-60
    BUSHING – Part Number: 780066
    BUSHING
    Part Number: 780066
      Special Order
    $9.70
  • E-61
    Key – Part Number: 792034A
    Key
    Part Number: 792034A
      No Longer Available
  • E-62
    Sleeve Assembly – Part Number: 786035
    Sleeve Assembly
    Part Number: 786035
      No Longer Available
  • E-63
    Gear (39 Teeth) – Part Number: 778074
    Gear (39 Teeth)
    Part Number: 778074
      Special Order
    $90.47
  • E-64
    Spur Gear – Part Number: 778062
    Spur Gear
    Part Number: 778062
      No Longer Available
  • E-65
    Gear – Part Number: 778063
    Gear
    Part Number: 778063
      No Longer Available
  • E-66
    Bearing – Part Number: 780063
    Bearing
    Part Number: 780063
      No Longer Available
  • E-67
    Gear – Part Number: 778060
    Gear
    Part Number: 778060
      No Longer Available
  • E-68
    Gear – Part Number: 778059
    Gear
    Part Number: 778059
      No Longer Available
  • E-69
    Gear – Part Number: 778058
    Gear
    Part Number: 778058
      No Longer Available
  • E-70
    Shaft – Part Number: 776138
    Shaft
    Part Number: 776138
      No Longer Available
  • E-71
    Key – Part Number: STD580020
    Key
    Part Number: STD580020
      No Longer Available
  • E-72
    Idle Shaft – Part Number: 776190A
    Idle Shaft
    Part Number: 776190A
      No Longer Available
  • E-73
    SPUR GEAR – Part Number: 778024A
    SPUR GEAR
    Part Number: 778024A
      Special Order
    $32.98
  • E-74
    Gear – Part Number: 778057
    Gear
    Part Number: 778057
      No Longer Available
  • E-75
    Washer – Part Number: 780073
    Washer
    Part Number: 780073
      No Longer Available
  • E-76
    Snap Rng Ext – Part Number: STD582050
    Snap Rng Ext
    Part Number: STD582050
      No Longer Available
  • E-77
    Shift Rod – Part Number: 784083
    Shift Rod
    Part Number: 784083
      No Longer Available
  • E-78
    Fork Shifter – Part Number: 784004
    Fork Shifter
    Part Number: 784004
      No Longer Available
  • E-79
    Spring – Part Number: 792003
    Spring
    Part Number: 792003
      Special Order
    $5.95
  • E-80
    BALL – Part Number: 792004
    BALL
    Part Number: 792004
      Special Order
    $5.95
  • E-81
    Shifter Stop – Part Number: 784087
    Shifter Stop
    Part Number: 784087
      No Longer Available
  • E-82
    Shift Rod – Part Number: 784085
    Shift Rod
    Part Number: 784085
      No Longer Available
  • E-83
    Shift Rod – Part Number: 784084
    Shift Rod
    Part Number: 784084
      No Longer Available
  • E-84
    Shaft Rod Assembly – Part Number: 784079
    Shaft Rod Assembly
    Part Number: 784079
      No Longer Available
  • E-85
    Special Screws – Part Number: STD522517
    Special Screws
    Part Number: STD522517
      No Longer Available
  • E-86
    Screw 1/4-20 x 2-1/4 – Part Number: 792085A
    Screw 1/4-20 x 2-1/4
    Part Number: 792085A
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • E-87
    Spacer – Part Number: 786067
    Spacer
    Part Number: 786067
      Special Order
    $5.95

Questions & Answers

?

Our customer Service team is at the ready daily to answer your part and product questions.

Be the first to ask our experts a question about this part!

Ask our Team

We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.

✖

Our customer service team are at the ready daily to answer your part and product questions. We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
