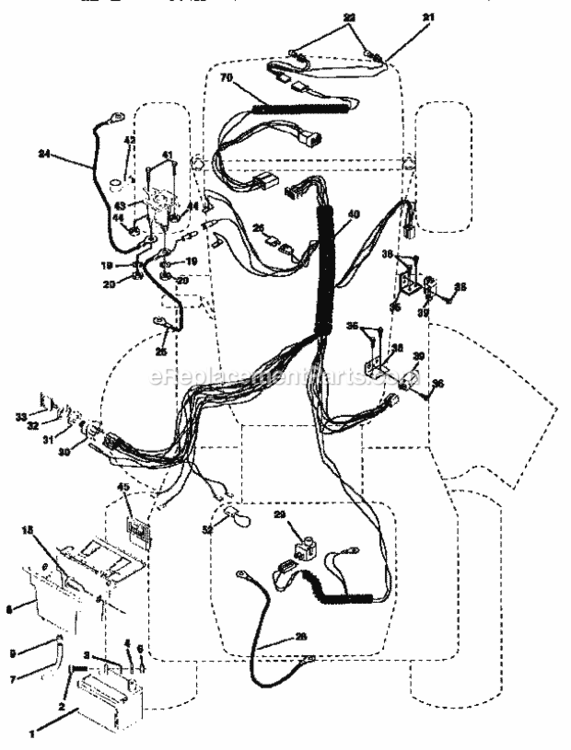

Page A Diagram and Parts List for Craftsman Lawn Tractor
Page A

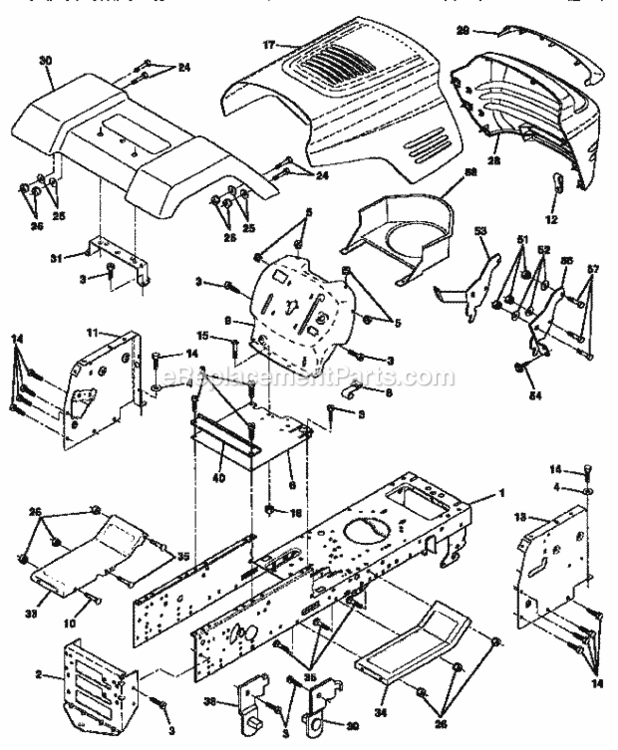

Page B Diagram and Parts List for Craftsman Lawn Tractor
Page B

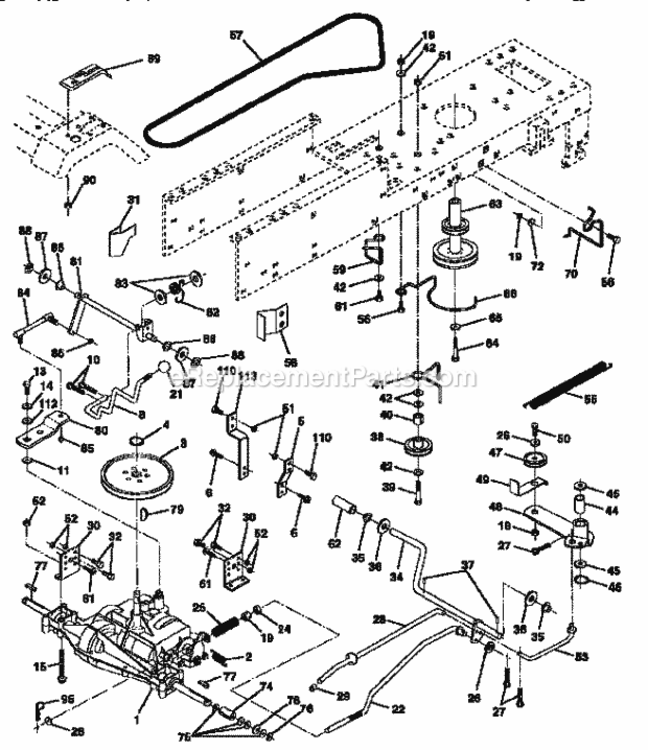

Page C Diagram and Parts List for Craftsman Lawn Tractor
Page C

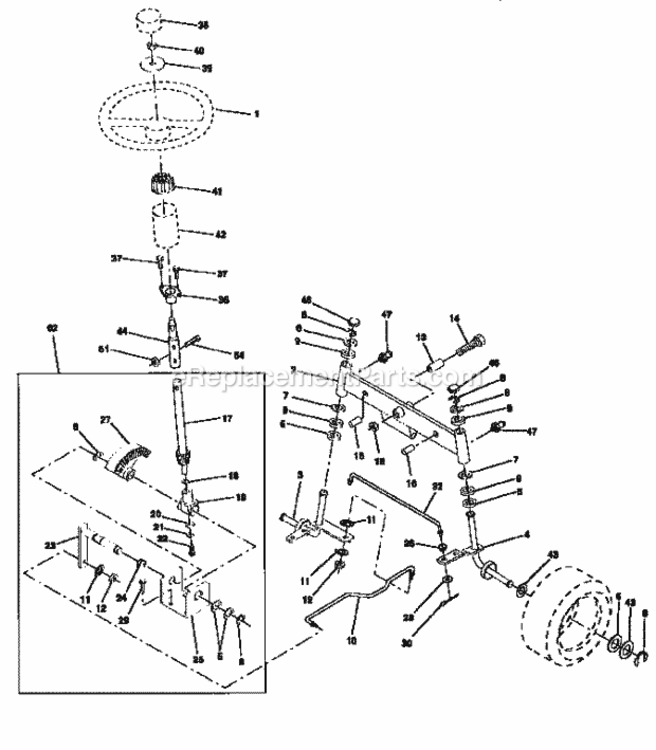

Page D Diagram and Parts List for Craftsman Lawn Tractor
Page D

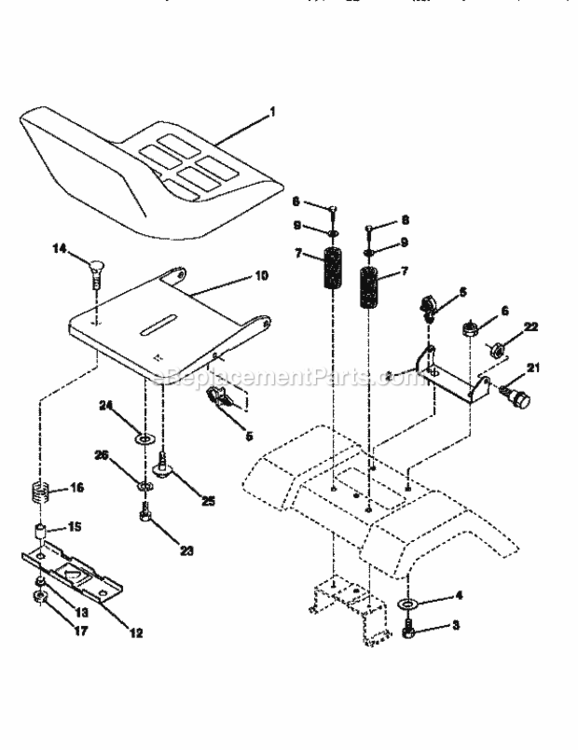

Page E Diagram and Parts List for Craftsman Lawn Tractor
Page E

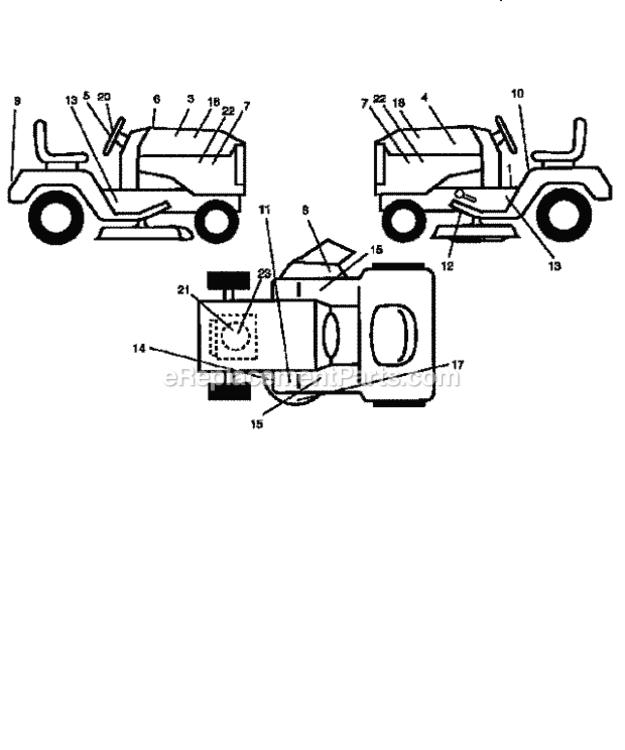

Page F Diagram and Parts List for Craftsman Lawn Tractor
Page F

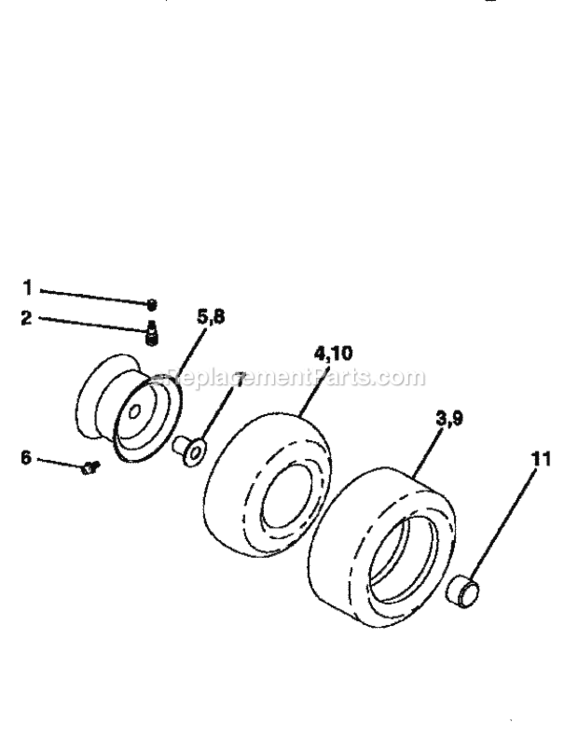

Page G Diagram and Parts List for Craftsman Lawn Tractor
Page G
Page H Diagram and Parts List for Craftsman Lawn Tractor
Page H
Page I Diagram and Parts List for Craftsman Lawn Tractor
Page I

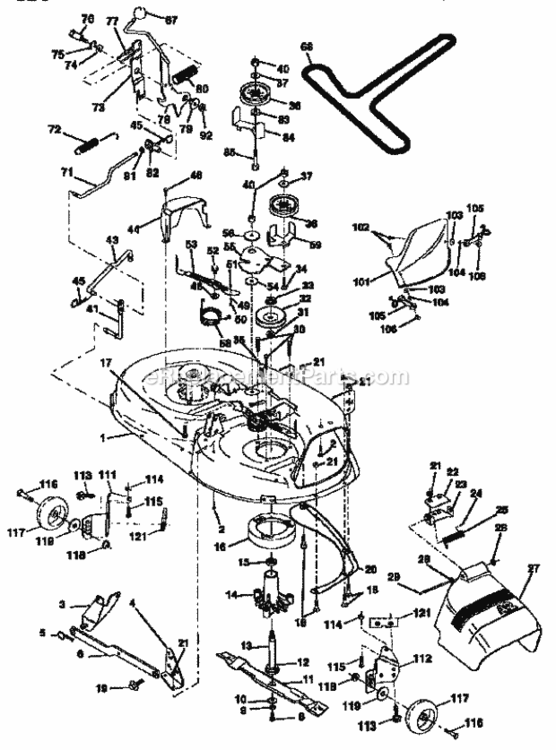

Page J Diagram and Parts List for Craftsman Lawn Tractor
Page J

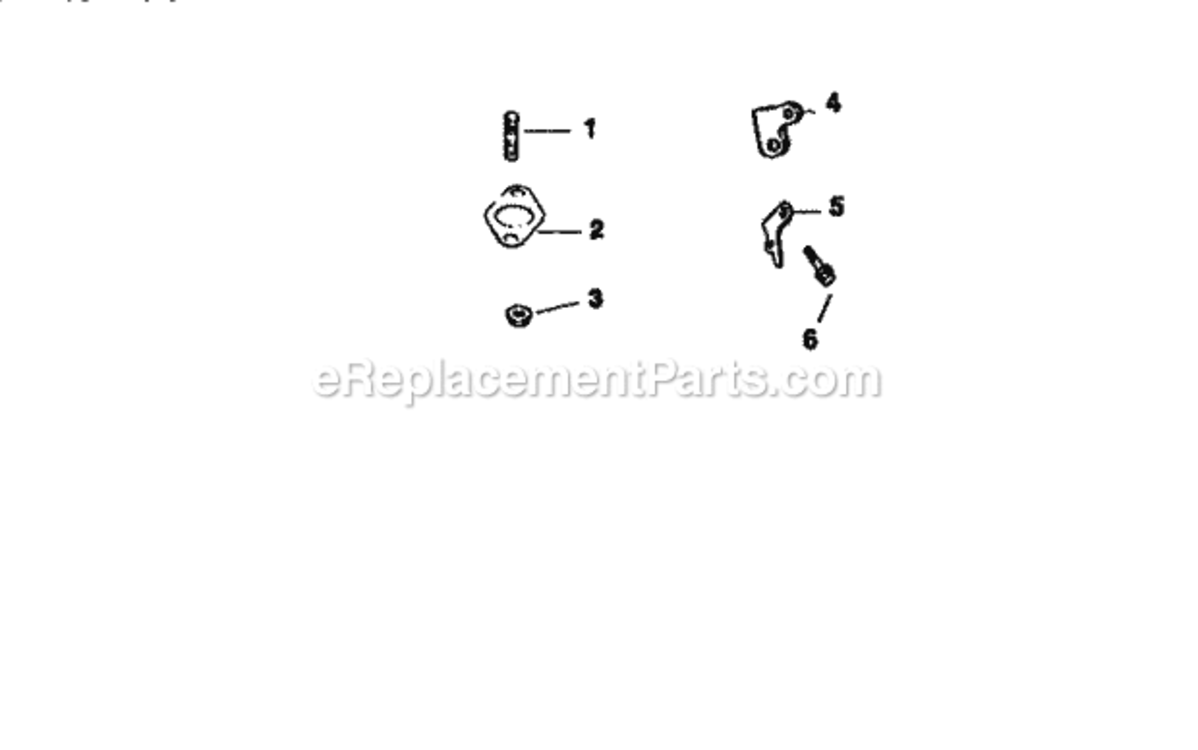

Page K Diagram and Parts List for Craftsman Lawn Tractor
Page K

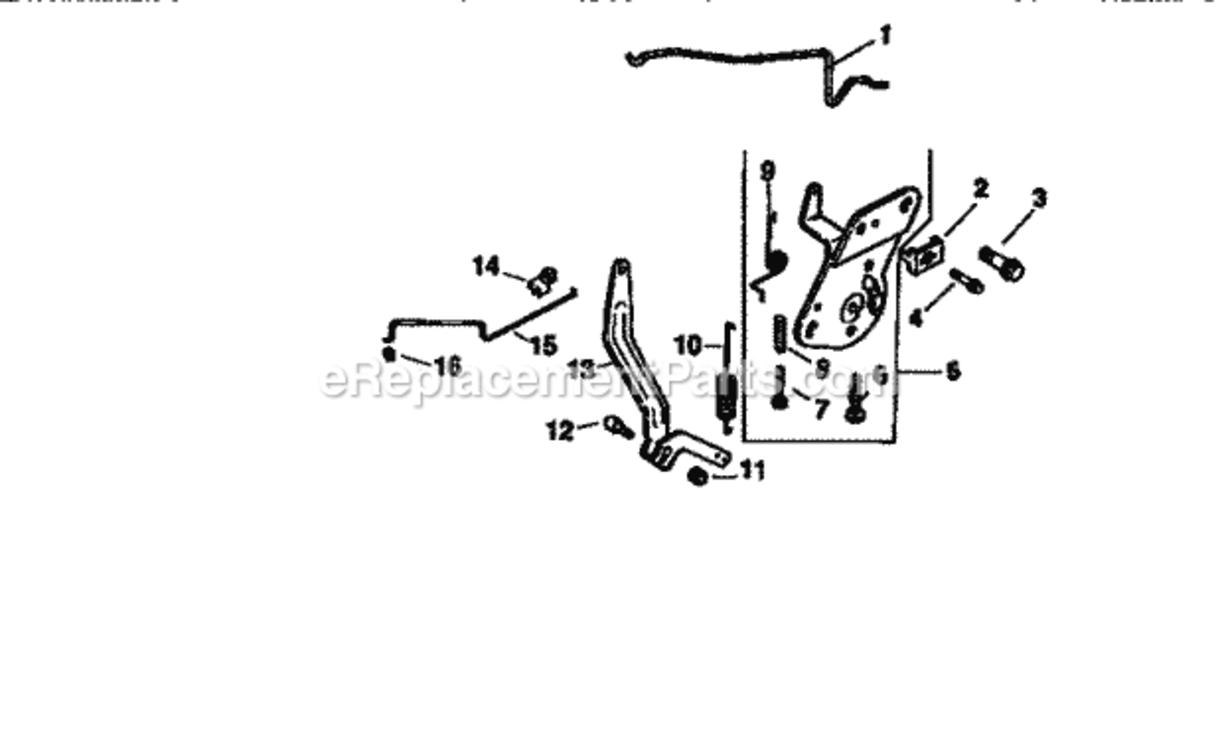

Page L Diagram and Parts List for Craftsman Lawn Tractor
Page L

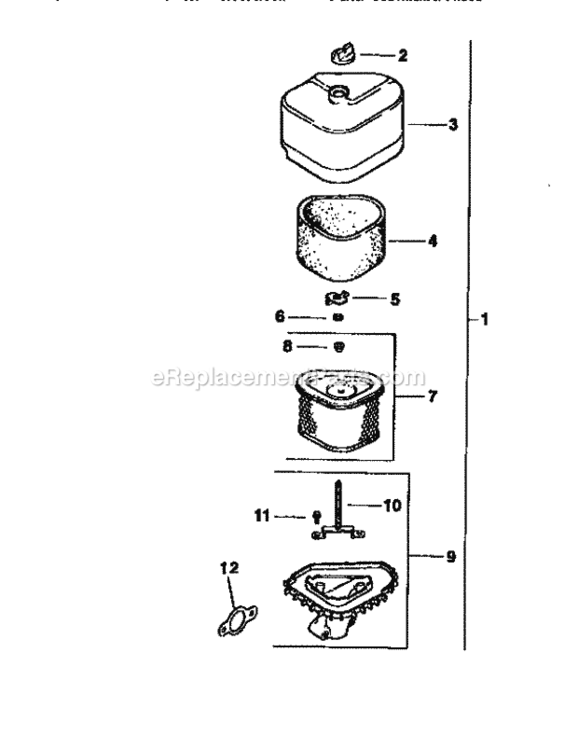

Page M Diagram and Parts List for Craftsman Lawn Tractor
Page M
Page N Diagram and Parts List for Craftsman Lawn Tractor
Page N
Page O Diagram and Parts List for Craftsman Lawn Tractor
Page O
Page P Diagram and Parts List for Craftsman Lawn Tractor
Page P
Page Q Diagram and Parts List for Craftsman Lawn Tractor
Page Q

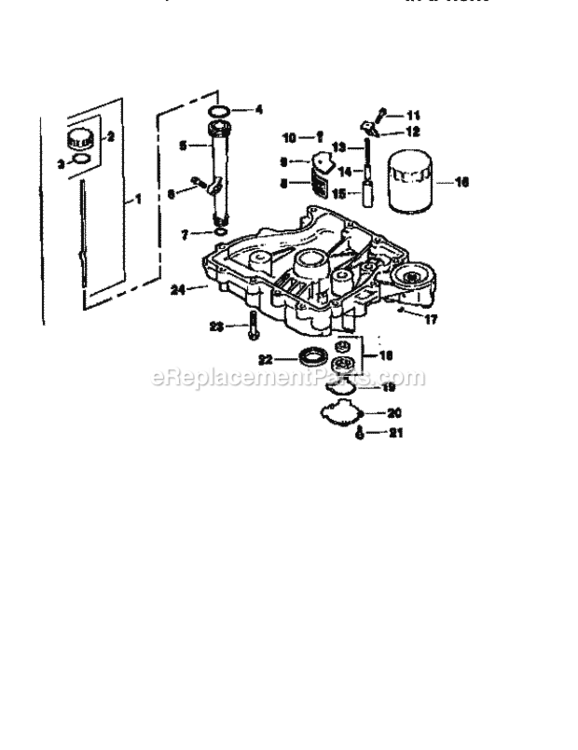

Page R Diagram and Parts List for Craftsman Lawn Tractor
Page R

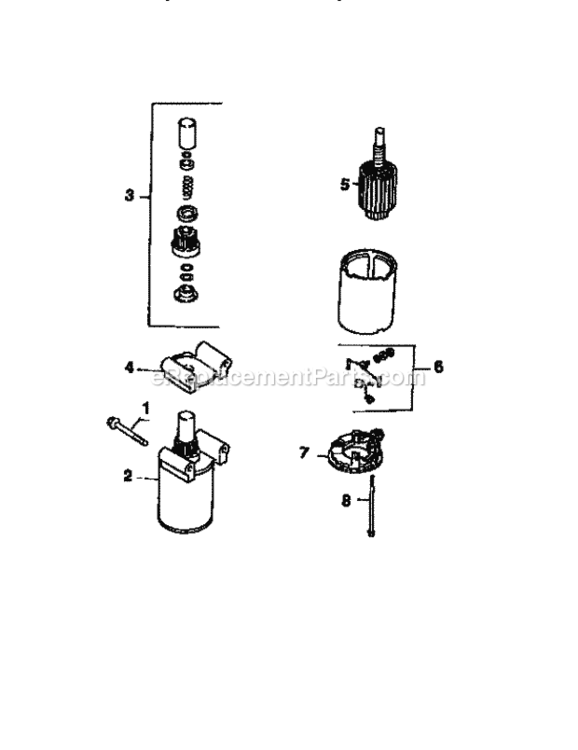

Page S Diagram and Parts List for Craftsman Lawn Tractor
Page S
Page T Diagram and Parts List for Craftsman Lawn Tractor
Page T
Page U Diagram and Parts List for Craftsman Lawn Tractor
Page U
Page V Diagram and Parts List for Craftsman Lawn Tractor
Page V
Previous Showing All Parts Next
Page A
Page A Diagram and Parts List for Craftsman Lawn Tractor
Page B
Page B Diagram and Parts List for Craftsman Lawn Tractor
Page C
Page C Diagram and Parts List for Craftsman Lawn Tractor
Page D
Page D Diagram and Parts List for Craftsman Lawn Tractor
Page E
Page E Diagram and Parts List for Craftsman Lawn Tractor
Page F
Page F Diagram and Parts List for Craftsman Lawn Tractor
Page G
Page G Diagram and Parts List for Craftsman Lawn Tractor
Page H

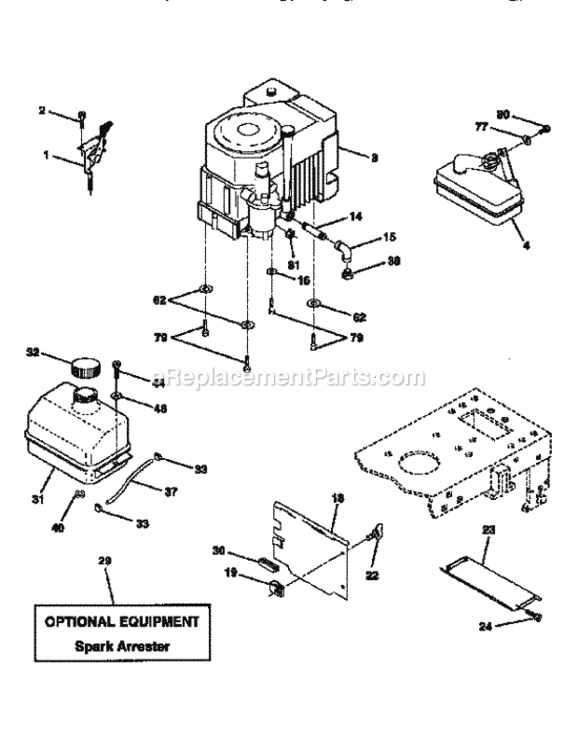

Page H Diagram and Parts List for Craftsman Lawn Tractor
Page I

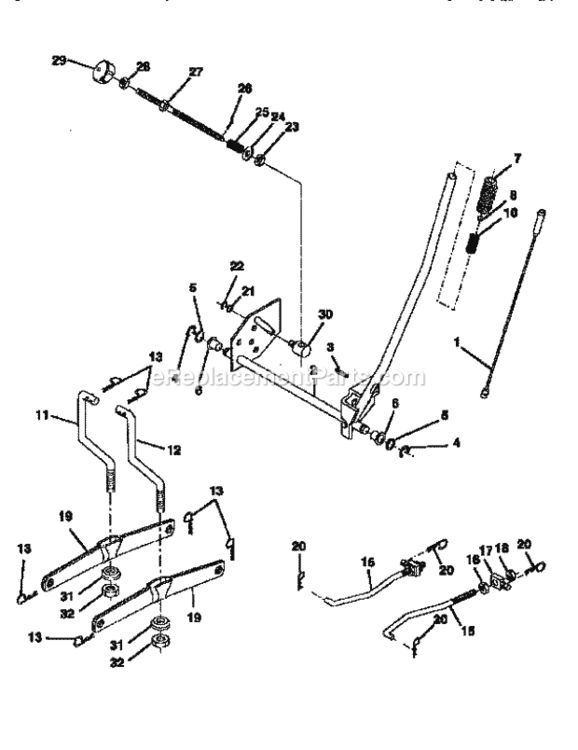

Page I Diagram and Parts List for Craftsman Lawn Tractor
Page J
Page J Diagram and Parts List for Craftsman Lawn Tractor
Page K
Page K Diagram and Parts List for Craftsman Lawn Tractor
Page L
Page L Diagram and Parts List for Craftsman Lawn Tractor
Page M
Page M Diagram and Parts List for Craftsman Lawn Tractor
Page N

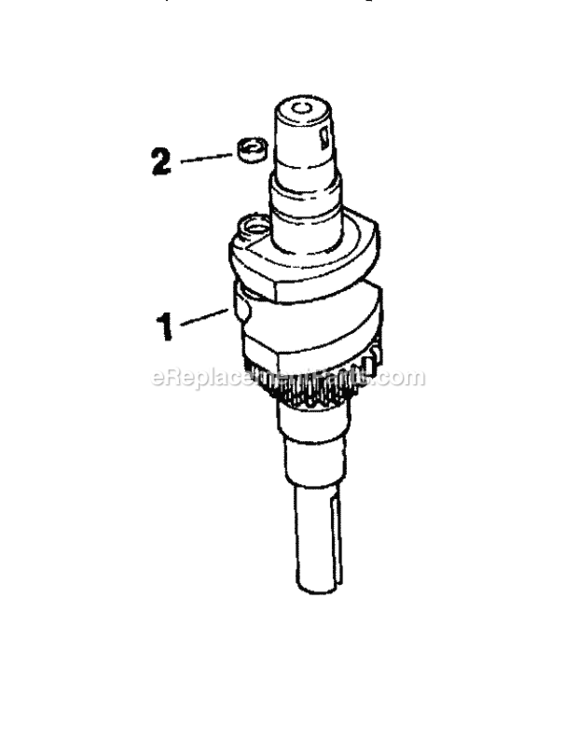

Page N Diagram and Parts List for Craftsman Lawn Tractor
  • N-1
    Crankshaft – Part Number: 12-014-30-S
    Crankshaft
    Part Number: 12-014-30-S
      No Longer Available
  • N-2
    Plug – Part Number: 12-139-01-S
    Plug
    Part Number: 12-139-01-S
      No Longer Available
Page O

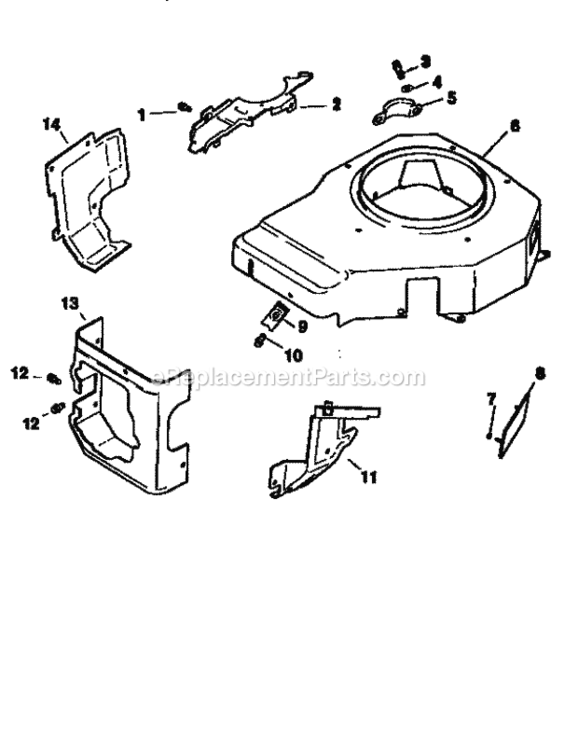

Page O Diagram and Parts List for Craftsman Lawn Tractor
  • O-1
    Screw – Part Number: KH-M-0545010
    Screw
    Part Number: KH-M-0545010
      In Stock
    Minimum Quantity of 2 required
    $6.50
  • O-2
    Backing Plate – Part Number: 12-146-07-S
    Backing Plate
    Part Number: 12-146-07-S
      No Longer Available
  • O-3
    Thread Screw – Part Number: 25-086-396-S
    Thread Screw
    Part Number: 25-086-396-S
      Special Order
    $6.16
  • O-4
    Washer 5/16-In. – Part Number: 220534-S
    Washer 5/16-In.
    Part Number: 220534-S
      No Longer Available
  • O-5
    Pinion Cover – Part Number: 24-096-05-S
    Pinion Cover
    Part Number: 24-096-05-S
      Special Order
    $19.79
  • O-6
    Housing, Blower – Part Number: 1202732
    Housing, Blower
    Part Number: 1202732
      No Longer Available
  • O-7
    Ring, Retainger 2 – Part Number: 1214101
    Ring, Retainger 2
    Part Number: 1214101
      No Longer Available
  • O-8
    Cover – Part Number: 1209628
    Cover
    Part Number: 1209628
      No Longer Available
  • O-9
    Clip, Mounting 3 – Part Number: 2515402
    Clip, Mounting 3
    Part Number: 2515402
      No Longer Available
  • O-10
    Thread Screw – Part Number: 25-086-399-S
    Thread Screw
    Part Number: 25-086-399-S
      No Longer Available
  • O-11
    Baffle – Part Number: 12-063-10-S
    Baffle
    Part Number: 12-063-10-S
      No Longer Available
  • O-12
    Thread Screw – Part Number: 25-086-397-S
    Thread Screw
    Part Number: 25-086-397-S
      Special Order
    $6.16
  • O-13
    Cylinder Baffle – Part Number: 12-063-08-S
    Cylinder Baffle
    Part Number: 12-063-08-S
      No Longer Available
  • O-14
    Cylinder Baffle – Part Number: 12-063-19-S
    Cylinder Baffle
    Part Number: 12-063-19-S
      No Longer Available
  • O-99
    Decal, Hp – Part Number: 24-113-100-S
    Decal, Hp
    Part Number: 24-113-100-S
      No Longer Available
Page P
Page P Diagram and Parts List for Craftsman Lawn Tractor
  • P-1
    Hydro Lifter – Part Number: 25-351-01-S
    Hydro Lifter
    Part Number: 25-351-01-S
      No Longer Available
  • P-2
    Cylinder – Part Number: 12-755-81-S
    Cylinder
    Part Number: 12-755-81-S
      No Longer Available
  • P-3
    Push Rod – Part Number: 12-411-04-S
    Push Rod
    Part Number: 12-411-04-S
      No Longer Available
  • P-4
    Gasket – Part Number: 12-041-10-S
    Gasket
    Part Number: 12-041-10-S
      No Longer Available
  • P-5
    Valve – Part Number: 12-017-01-S
    Valve
    Part Number: 12-017-01-S
      Special Order
    $35.72
  • P-5A
    Intake Valve – Part Number: 12-017-02-S
    Intake Valve
    Part Number: 12-017-02-S
      No Longer Available
  • P-6
    Valve – Part Number: 12-016-01-S
    Valve
    Part Number: 12-016-01-S
      No Longer Available
  • P-6A
    Exhaust Valve – Part Number: 12-016-02-S
    Exhaust Valve
    Part Number: 12-016-02-S
      No Longer Available
  • P-7
    Arm, Rocker – Part Number: 12-755-74-S
    Arm, Rocker
    Part Number: 12-755-74-S
      No Longer Available
  • P-8
    Flat Washer – Part Number: 12-468-05-S
    Flat Washer
    Part Number: 12-468-05-S
      No Longer Available
  • P-9
    Spacer – Part Number: 12-112-13-S
    Spacer
    Part Number: 12-112-13-S
      No Longer Available
  • P-10
    Hex Flange Screw – Part Number: 20-086-02-S
    Hex Flange Screw
    Part Number: 20-086-02-S
      No Longer Available
  • P-11
    Spring, Valve – Part Number: 12-089-34-S
    Spring, Valve
    Part Number: 12-089-34-S
      No Longer Available
  • P-12
    Cap Valve Spacer – Part Number: 25-173-28-S
    Cap Valve Spacer
    Part Number: 25-173-28-S
      No Longer Available
  • P-13
    Retainer – Part Number: 12-755-03-S
    Retainer
    Part Number: 12-755-03-S
      No Longer Available
  • P-14
    Clamp Hose – Part Number: 25-237-31-S
    Clamp Hose
    Part Number: 25-237-31-S
      No Longer Available
  • P-15
    Hose – Part Number: 12-326-03-S
    Hose
    Part Number: 12-326-03-S
      No Longer Available
  • P-16
    Thread Screw – Part Number: 25-086-396-S
    Thread Screw
    Part Number: 25-086-396-S
      Special Order
    $6.16
  • P-17
    Valve Cover – Part Number: 12-755-102-S
    Valve Cover
    Part Number: 12-755-102-S
      No Longer Available
  • P-18
    Retainer-Spring – Part Number: KH-235011-S
    Retainer-Spring
    Part Number: KH-235011-S
      Special Order
    $11.73
  • P-19
    Seal, Valve Stem – Part Number: 66-032-05-S
    Seal, Valve Stem
    Part Number: 66-032-05-S
      No Longer Available
  • P-20
    Screw – Part Number: KH-M-0640034
    Screw
    Part Number: KH-M-0640034
      No Longer Available
  • P-21
    Arm, Rocker – Part Number: 12-755-74-S
    Arm, Rocker
    Part Number: 12-755-74-S
      No Longer Available
  • P-22
    Rocker Arm – Part Number: 2418603
    Rocker Arm
    Part Number: 2418603
      No Longer Available
  • P-23
    Screw – Part Number: KH-M-0545010
    Screw
    Part Number: KH-M-0545010
      In Stock
    Minimum Quantity of 2 required
    $6.50
  • P-24
    Reed Retainer – Part Number: 66-018-04-S
    Reed Retainer
    Part Number: 66-018-04-S
      No Longer Available
  • P-25
    Reed, Oil Re – Part Number: 24-402-02-S
    Reed, Oil Re
    Part Number: 24-402-02-S
      No Longer Available
  • P-26
    Head - Use 12 318 15 – Part Number: 1231809
    Head - Use 12 318 15
    Part Number: 1231809
      No Longer Available
  • P-27
    Plug, Pipe – Part Number: 25-139-60-S
    Plug, Pipe
    Part Number: 25-139-60-S
      No Longer Available

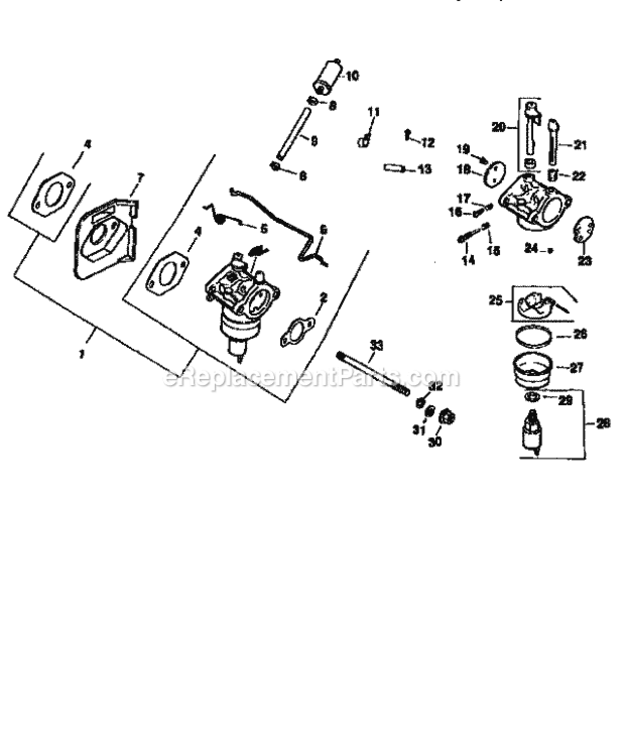

Page Q
Page Q Diagram and Parts List for Craftsman Lawn Tractor
  • Q-1
    Kit, Carburetor – Part Number: 1285356
    Kit, Carburetor
    Part Number: 1285356
      No Longer Available
  • Q-2
    Gasket – Part Number: 12-041-02-S
    Gasket
    Part Number: 12-041-02-S
      No Longer Available
  • Q-4
    Gasket, Carburetor – Part Number: 12-041-01-S
    Gasket, Carburetor
    Part Number: 12-041-01-S
      No Longer Available
  • Q-5
    Spring – Part Number: 12-089-23-S
    Spring
    Part Number: 12-089-23-S
      No Longer Available
  • Q-6
    Choke Linkage – Part Number: 12-079-07-S
    Choke Linkage
    Part Number: 12-079-07-S
      No Longer Available
  • Q-7
    Heat Deflector – Part Number: 1226504
    Heat Deflector
    Part Number: 1226504
      No Longer Available
  • Q-8
    Clamp Hose – Part Number: 25-237-31-S
    Clamp Hose
    Part Number: 25-237-31-S
      No Longer Available
  • Q-9
    Line – Part Number: 25-353-10-S
    Line
    Part Number: 25-353-10-S
      Special Order
    $8.27
  • Q-10
    Filter, Fuel – Part Number: 25-050-07-S1
    Filter, Fuel
    Part Number: 25-050-07-S1
      No Longer Available
  • Q-11
    Clip, Cable – Part Number: 47-154-01-S
    Clip, Cable
    Part Number: 47-154-01-S
      No Longer Available
  • Q-12
    Screw Grnd W – Part Number: 12-086-07
    Screw Grnd W
    Part Number: 12-086-07
      No Longer Available
  • Q-13
    Sleeve – Part Number: 12-431-01-S
    Sleeve
    Part Number: 12-431-01-S
      No Longer Available
  • Q-14
    Idle Needle – Part Number: 12-368-05-S
    Idle Needle
    Part Number: 12-368-05-S
      No Longer Available
  • Q-15
    Spring – Part Number: 12-089-09-S
    Spring
    Part Number: 12-089-09-S
      No Longer Available
  • Q-16
    Screw – Part Number: 12-086-04-S
    Screw
    Part Number: 12-086-04-S
      No Longer Available
  • Q-17
    Spring – Part Number: 12-089-09-S
    Spring
    Part Number: 12-089-09-S
      No Longer Available
  • Q-18
    Plate – Part Number: 12-146-03-S
    Plate
    Part Number: 12-146-03-S
      No Longer Available
  • Q-19
    Screw – Part Number: 25-086-27-S
    Screw
    Part Number: 25-086-27-S
      No Longer Available
  • Q-20
    Throttle Shaft – Part Number: 12-144-09-S
    Throttle Shaft
    Part Number: 12-144-09-S
      No Longer Available
  • Q-21
    Shaft – Part Number: 12-144-08-S
    Shaft
    Part Number: 12-144-08-S
      No Longer Available
  • Q-22
    Spring – Part Number: 12-089-10-S
    Spring
    Part Number: 12-089-10-S
      No Longer Available
  • Q-23
    Plate – Part Number: 12-146-02-S
    Plate
    Part Number: 12-146-02-S
      No Longer Available
  • Q-24
    Jet, Main – Part Number: 1233703
    Jet, Main
    Part Number: 1233703
      No Longer Available
  • Q-25
    Float – Part Number: 12-757-02-S
    Float
    Part Number: 12-757-02-S
      No Longer Available
  • Q-26
    Gasket – Part Number: 12-041-05-S
    Gasket
    Part Number: 12-041-05-S
      No Longer Available
  • Q-27
    Bowl – Part Number: 12-104-01-S
    Bowl
    Part Number: 12-104-01-S
      No Longer Available
  • Q-28
    Lawn & Garden Equipment Engine Fuel Shut-off So... – Part Number: 12-757-33-S
    Lawn & Garden Equipment Engine Fuel Shut-off So...
    Part Number: 12-757-33-S
      No Longer Available
  • Q-29
    Carburetor Bowl Gasket – Part Number: 25-041-03-S
    Carburetor Bowl Gasket
    Part Number: 25-041-03-S
      No Longer Available
  • Q-30
    Nut: Flg M6x1.0 – Part Number: M-641060-S
    Nut: Flg M6x1.0
    Part Number: M-641060-S
    ★★★★★
    ★★★★★
    (1)
      In Stock
    $8.39
  • Q-31
    Washer: Flat 1/4 (o.d. 1/2) – Part Number: X-25-63-S
    Washer: Flat 1/4 (o.d. 1/2)
    Part Number: X-25-63-S
      In Stock
    $6.16
  • Q-32
    Washer, Lock 1/4-In. – Part Number: X-22-11-S
    Washer, Lock 1/4-In.
    Part Number: X-22-11-S
      Special Order
    $6.16
  • Q-33
    Stud – Part Number: M-629122-S
    Stud
    Part Number: M-629122-S
      Special Order
    $11.67
  • Q-99
    Gasket, Carburetor – Part Number: 12-041-01-S
    Gasket, Carburetor
    Part Number: 12-041-01-S
      No Longer Available
  • Q-99A
    Carburetor – Part Number: 12-757-03-S
    Carburetor
    Part Number: 12-757-03-S
      No Longer Available
  • Q-99B
    Lead – Part Number: 12-518-05-S
    Lead
    Part Number: 12-518-05-S
      No Longer Available
  • Q-99C
    Lead – Part Number: 4151834
    Lead
    Part Number: 4151834
      No Longer Available
Page R
Page R Diagram and Parts List for Craftsman Lawn Tractor
Page S
Page S Diagram and Parts List for Craftsman Lawn Tractor
  • S-1
    Hex Screw – Part Number: M-839070-S
    Hex Screw
    Part Number: M-839070-S
      Special Order
    $18.42
  • S-2
    Starter Motor – Part Number: 25-098-11-S
    Starter Motor
    Part Number: 25-098-11-S
      No Longer Available
  • S-3
    Drive Kit – Part Number: 12-755-54-S
    Drive Kit
    Part Number: 12-755-54-S
      Special Order
    $135.91
  • S-4
    P End Drive – Part Number: 12-227-17-S
    P End Drive
    Part Number: 12-227-17-S
      No Longer Available
  • S-5
    Armature – Part Number: 45-170-03-S
    Armature
    Part Number: 45-170-03-S
      No Longer Available
  • S-6
    Brush Kit – Part Number: 82-755-28-S
    Brush Kit
    Part Number: 82-755-28-S
      No Longer Available
  • S-7
    Commutator – Part Number: 12-227-11-S
    Commutator
    Part Number: 12-227-11-S
      No Longer Available
  • S-8
    Bolt – Part Number: 1208625
    Bolt
    Part Number: 1208625
      No Longer Available
Page T
Page T Diagram and Parts List for Craftsman Lawn Tractor
  • T-1
    Screw, Hex, Flange, M10 X 1.5 X 46 – Part Number: 1208614
    Screw, Hex, Flange, M10 X 1.5 X 46
    Part Number: 1208614
      No Longer Available
  • T-2
    Washer – Part Number: 12-468-03-S
    Washer
    Part Number: 12-468-03-S
      No Longer Available
  • T-3
    Screen – Part Number: 12-162-03-S
    Screen
    Part Number: 12-162-03-S
      No Longer Available
  • T-4
    Hex Screw – Part Number: M-639016-S
    Hex Screw
    Part Number: M-639016-S
      Special Order
    $6.16
  • T-5
    Bolt, Shoulder – Part Number: 25-086-47-S
    Bolt, Shoulder
    Part Number: 25-086-47-S
      No Longer Available
  • T-6
    Spacer, Fan – Part Number: 12-157-03-S
    Spacer, Fan
    Part Number: 12-157-03-S
      No Longer Available
  • T-7
    Key – Part Number: X-42-15-S
    Key
    Part Number: X-42-15-S
      Special Order
    $6.16
  • T-8
    Fly Wheel – Part Number: 1202525
    Fly Wheel
    Part Number: 1202525
      No Longer Available
  • T-9
    Connector – Part Number: 41-155-02-S
    Connector
    Part Number: 41-155-02-S
      No Longer Available
  • T-10
    Hex Head Screw – Part Number: M-548025-S
    Hex Head Screw
    Part Number: M-548025-S
      Special Order
    $6.16
  • T-11
    Screw – Part Number: KH-M-0545010
    Screw
    Part Number: KH-M-0545010
      In Stock
    Minimum Quantity of 2 required
    $6.50
  • T-12
    Clip-Kill Lead – Part Number: X-728-1-S
    Clip-Kill Lead
    Part Number: X-728-1-S
      Special Order
    $6.16
  • T-13
    Stator – Part Number: 12-085-03-S
    Stator
    Part Number: 12-085-03-S
      No Longer Available
  • T-14
    Spark Plug 2 – Part Number: 1213202
    Spark Plug 2
    Part Number: 1213202
      No Longer Available
  • T-15
    Clip-Kill Lead – Part Number: X-728-1-S
    Clip-Kill Lead
    Part Number: X-728-1-S
      Special Order
    $6.16
  • T-16
    Ignition Module – Part Number: 12-584-04-S
    Ignition Module
    Part Number: 12-584-04-S
      No Longer Available
  • T-17
    Thread Screw – Part Number: 25-086-399-S
    Thread Screw
    Part Number: 25-086-399-S
      No Longer Available
  • T-99
    Lead – Part Number: 12-518-01-S
    Lead
    Part Number: 12-518-01-S
      No Longer Available
Page U
Page U Diagram and Parts List for Craftsman Lawn Tractor
  • U-1
    Seal – Part Number: 12-032-03-S
    Seal
    Part Number: 12-032-03-S
      No Longer Available
  • U-2
    Short Block – Part Number: 12-522-18
    Short Block
    Part Number: 12-522-18
      No Longer Available
  • U-3
    Strap – Part Number: 12-445-02-S
    Strap
    Part Number: 12-445-02-S
      No Longer Available
  • U-4
    Screw – Part Number: M-839025-S
    Screw
    Part Number: M-839025-S
      Special Order
    $6.16
  • U-5
    Pin, Locating – Part Number: 24-380-16-S
    Pin, Locating
    Part Number: 24-380-16-S
      No Longer Available
  • U-6
    Camshaft – Part Number: 12-755-49-S
    Camshaft
    Part Number: 12-755-49-S
      No Longer Available
  • U-7
    Actuating Spring – Part Number: 12-089-37-S
    Actuating Spring
    Part Number: 12-089-37-S
      No Longer Available
  • U-8
    Shim – Part Number: 12-422-08-S
    Shim
    Part Number: 12-422-08-S
      No Longer Available
  • U-8A
    Shim – Part Number: 12-422-09-S
    Shim
    Part Number: 12-422-09-S
      No Longer Available
  • U-8B
    Shim – Part Number: 12-422-10-S
    Shim
    Part Number: 12-422-10-S
      No Longer Available
  • U-8C
    Shim – Part Number: 12-422-11-S
    Shim
    Part Number: 12-422-11-S
      No Longer Available
  • U-8D
    Shim – Part Number: 12-422-12-S
    Shim
    Part Number: 12-422-12-S
      No Longer Available
  • U-8E
    Shim – Part Number: 12-422-13-S
    Shim
    Part Number: 12-422-13-S
      No Longer Available
  • U-8F
    Shim – Part Number: 12-422-07-S
    Shim
    Part Number: 12-422-07-S
      No Longer Available
  • U-9
    Balance Shaft – Part Number: 12-144-27-S
    Balance Shaft
    Part Number: 12-144-27-S
      No Longer Available
  • U-10
    Piston And Rings – Part Number: 12-874-07-S
    Piston And Rings
    Part Number: 12-874-07-S
      No Longer Available
  • U-10A
    Piston And Rings – Part Number: 12-874-08-S
    Piston And Rings
    Part Number: 12-874-08-S
      No Longer Available
  • U-10B
    Piston And Rings – Part Number: 12-874-09-S
    Piston And Rings
    Part Number: 12-874-09-S
      No Longer Available
  • U-11
    Retainer, Piston Pin – Part Number: 12-018-02-S
    Retainer, Piston Pin
    Part Number: 12-018-02-S
      No Longer Available
  • U-12
    Ring Set, St – Part Number: 12-108-07-S
    Ring Set, St
    Part Number: 12-108-07-S
      No Longer Available
  • U-12A
    Ring – Part Number: 12-108-08-S
    Ring
    Part Number: 12-108-08-S
      No Longer Available
  • U-12B
    Ring – Part Number: 12-108-09-S
    Ring
    Part Number: 12-108-09-S
      No Longer Available
  • U-13
    Connect Rod – Part Number: 12-067-05-S
    Connect Rod
    Part Number: 12-067-05-S
      No Longer Available
  • U-13A
    Connecting Rod – Part Number: 12-067-06-S
    Connecting Rod
    Part Number: 12-067-06-S
      No Longer Available
  • U-14
    Pin – Part Number: 12-380-01-S
    Pin
    Part Number: 12-380-01-S
      No Longer Available
  • U-15
    Gear-Governor – Part Number: KH-12-043-05
    Gear-Governor
    Part Number: KH-12-043-05
      No Longer Available
  • U-16
    Washer: Flat 6 Mm – Part Number: M-631005-S
    Washer: Flat 6 Mm
    Part Number: M-631005-S
      In Stock
    Minimum Quantity of 2 required
    $6.16
  • U-17
    Shaft – Part Number: 12-144-02-S
    Shaft
    Part Number: 12-144-02-S
      No Longer Available
  • U-18
    Plug, Cup – Part Number: 5213909
    Plug, Cup
    Part Number: 5213909
      No Longer Available
  • U-19
    Kit, Shaft, Governor Cross, With Clip – Part Number: 1275564
    Kit, Shaft, Governor Cross, With Clip
    Part Number: 1275564
      No Longer Available
  • U-20
    Shaft, Governor Cross – Part Number: 1214424
    Shaft, Governor Cross
    Part Number: 1214424
      No Longer Available
  • U-21
    Washer, Plain 1/4" – Part Number: X-25-102-S
    Washer, Plain 1/4"
    Part Number: X-25-102-S
      In Stock
    Minimum Quantity of 2 required
    $6.16
  • U-22
    Seal – Part Number: 12-032-01-S
    Seal
    Part Number: 12-032-01-S
      Special Order
    $6.28
  • U-23
    Washer-Governor Shaft – Part Number: M-631015-S
    Washer-Governor Shaft
    Part Number: M-631015-S
      Special Order
    $6.16
  • U-24
    Clip, Hitch Pin – Part Number: 1215405
    Clip, Hitch Pin
    Part Number: 1215405
      No Longer Available

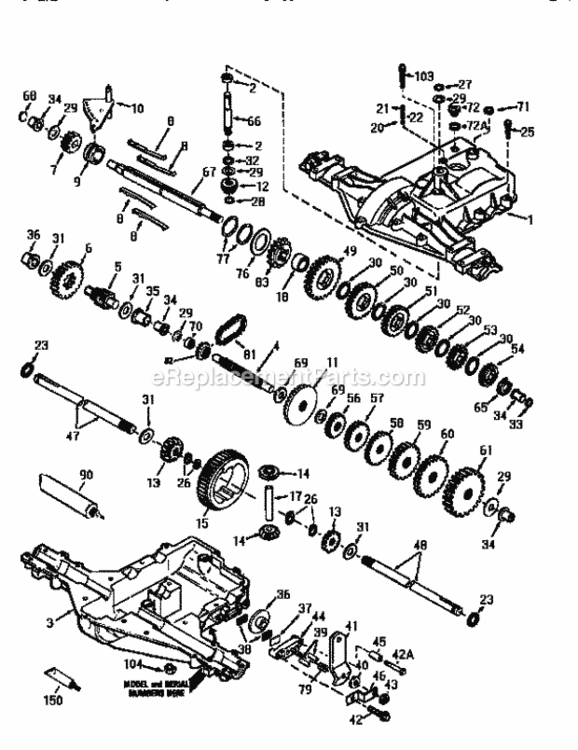

Page V
Page V Diagram and Parts List for Craftsman Lawn Tractor
  • V-1
    COVER – Part Number: 772140
    COVER
    Part Number: 772140
      Special Order
    $146.13
  • V-2
    B108 Brg – Part Number: STD311008
    B108 Brg
    Part Number: STD311008
      No Longer Available
  • V-3
    CASE – Part Number: 770131A
    CASE
    Part Number: 770131A
      Special Order
    $106.60
  • V-4
    Countershaft – Part Number: 776260A
    Countershaft
    Part Number: 776260A
      No Longer Available
  • V-5
    Shaft and Pinion Assembly, Output – Part Number: 776219B
    Shaft and Pinion Assembly, Output
    Part Number: 776219B
      No Longer Available
  • V-6
    Output Gear – Part Number: 778139
    Output Gear
    Part Number: 778139
      Special Order
    $46.62
  • V-7
    Gear – Part Number: 778136
    Gear
    Part Number: 778136
      Special Order
    $29.17
  • V-8
    Shift Key – Part Number: 792180A
    Shift Key
    Part Number: 792180A
      Special Order
    $35.00
  • V-9
    Shifter Collar – Part Number: 784352
    Shifter Collar
    Part Number: 784352
      No Longer Available
  • V-10
    Rod And Fork – Part Number: 784355
    Rod And Fork
    Part Number: 784355
      No Longer Available
  • V-11
    BEVEL GEAR – Part Number: 778229
    BEVEL GEAR
    Part Number: 778229
      Special Order
    $81.82
  • V-12
    Bevel Pinion, Input – Part Number: TC-778113A
    Bevel Pinion, Input
    Part Number: TC-778113A
      No Longer Available
  • V-13
    Gear – Part Number: 778166
    Gear
    Part Number: 778166
      Special Order
    $36.56
  • V-14
    Alternative for PE-778068: GEAR-BEVEL – Part Number: TC-778131
    Alternative for PE-778068: GEAR-BEVEL
    Part Number: TC-778131
      No Longer Available
  • V-15
    Gear-Ring – Part Number: 778260
    Gear-Ring
    Part Number: 778260
      Special Order
    $86.12
  • V-17
    Drive Pin – Part Number: 786139
    Drive Pin
    Part Number: 786139
      Special Order
    $14.64
  • V-18
    Spacer, Neutral – Part Number: 786102
    Spacer, Neutral
    Part Number: 786102
      No Longer Available
  • V-20
    Steel Ball-5/16" Dia – Part Number: TC-792077A
    Steel Ball-5/16" Dia
    Part Number: TC-792077A
      No Longer Available
  • V-21
    Screw – Part Number: 792078
    Screw
    Part Number: 792078
      Special Order
    $6.16
  • V-22
    Spring – Part Number: TC-792079
    Spring
    Part Number: TC-792079
      No Longer Available
  • V-23
    Ring-seal – Part Number: TC-788061
    Ring-seal
    Part Number: TC-788061
      No Longer Available
  • V-25
    Screw 1/4-20 X 1-1/4 – Part Number: 792073
    Screw 1/4-20 X 1-1/4
    Part Number: 792073
      In Stock
    Minimum Quantity of 2 required
    $6.16
  • V-26
    Ring, Retainer (4 Required, Package of 2) – Part Number: 792125
    Ring, Retainer (4 Required, Package of 2)
    Part Number: 792125
      No Longer Available
  • V-27
    Ring 5Pk – Part Number: STD582062
    Ring 5Pk
    Part Number: STD582062
      No Longer Available
  • V-28
    Snap rng ext – Part Number: STD582056
    Snap rng ext
    Part Number: STD582056
      No Longer Available
  • V-29
    Washer, Thrust – Part Number: TC-780072
    Washer, Thrust
    Part Number: TC-780072
      No Longer Available
  • V-30
    thrust washer – Part Number: TC-780108
    thrust washer
    Part Number: TC-780108
      Special Order
    $9.28
  • V-31
    Washer – Part Number: 780001
    Washer
    Part Number: 780001
      Special Order
    $6.16
  • V-32
    O-Ring – Part Number: TC-792001
    O-Ring
    Part Number: TC-792001
      No Longer Available
  • V-33
    Sealer – Part Number: 788093A
    Sealer
    Part Number: 788093A
      Special Order
    $71.40
  • V-34
    Flange Bushing – Part Number: TC-780105A
    Flange Bushing
    Part Number: TC-780105A
      No Longer Available
  • V-35
    Bushing – Part Number: 780118A
    Bushing
    Part Number: 780118A
      Special Order
    $10.05
  • V-36
    Brake Disc – Part Number: 790003
    Brake Disc
    Part Number: 790003
      No Longer Available
  • V-37
    Plate, Brake Pad – Part Number: TC-790007
    Plate, Brake Pad
    Part Number: TC-790007
      No Longer Available
  • V-38
    Pad, Brake – Part Number: 799021
    Pad, Brake
    Part Number: 799021
      No Longer Available
  • V-39
    Pin, Dowel – Part Number: 786026B
    Pin, Dowel
    Part Number: 786026B
      Special Order
    $6.16
  • V-40
    Washer, Flat – Part Number: 792076A
    Washer, Flat
    Part Number: 792076A
      No Longer Available
  • V-41
    Lever, Brake – Part Number: 790079
    Lever, Brake
    Part Number: 790079
      No Longer Available
  • V-42
    Screw 1/4-20 X 1-1/4 – Part Number: 792073
    Screw 1/4-20 X 1-1/4
    Part Number: 792073
      In Stock
    Minimum Quantity of 2 required
    $6.16
  • V-42A
    Screw 1/4-20 x 2-1/4 – Part Number: 792085A
    Screw 1/4-20 x 2-1/4
    Part Number: 792085A
      In Stock
    Minimum Quantity of 2 required
    $6.16
  • V-43
    Locknut – Part Number: STD541431
    Locknut
    Part Number: STD541431
      No Longer Available
  • V-44
    Holder – Part Number: 790025
    Holder
    Part Number: 790025
      Special Order
    $20.99
  • V-45
    Spacer – Part Number: 786066
    Spacer
    Part Number: 786066
      In Stock
    $6.65
  • V-46
    Bracket – Part Number: 786086
    Bracket
    Part Number: 786086
      Special Order
    $7.54
  • V-47
    Axle, 11-15/16" – Part Number: 774690
    Axle, 11-15/16"
    Part Number: 774690
      No Longer Available
  • V-48
    Axle – Part Number: 774691
    Axle
    Part Number: 774691
      In Stock
    $86.32
  • V-49
    Spur Gear – Part Number: 778215
    Spur Gear
    Part Number: 778215
      Special Order
    $64.88
  • V-50
    Gear Spur 35 Teeth – Part Number: 778125
    Gear Spur 35 Teeth
    Part Number: 778125
      Special Order
    $45.58
  • V-51
    Spur Gear-30 Teeth – Part Number: TC-778124A
    Spur Gear-30 Teeth
    Part Number: TC-778124A
      No Longer Available
  • V-52
    Gear, Spur (25 Teeth) – Part Number: TC-778123A
    Gear, Spur (25 Teeth)
    Part Number: TC-778123A
      No Longer Available
  • V-53
    Gear – Part Number: 778122A
    Gear
    Part Number: 778122A
      Special Order
    $42.94
  • V-54
    Gear Spur 19T – Part Number: 778273
    Gear Spur 19T
    Part Number: 778273
      Special Order
    $54.03
  • V-56
    Spur Gear (12 teeth-steel) – Part Number: 778230
    Spur Gear (12 teeth-steel)
    Part Number: 778230
      No Longer Available
  • V-57
    Gear – Part Number: 778151
    Gear
    Part Number: 778151
      Special Order
    $17.63
  • V-58
    Spur Gear-20 Teeth – Part Number: 778126A
    Spur Gear-20 Teeth
    Part Number: 778126A
      Special Order
    $64.32
  • V-59
    Gear, Spur 25 Teeth – Part Number: 778127A
    Gear, Spur 25 Teeth
    Part Number: 778127A
      Special Order
    $58.66
  • V-60
    Gear-Spur – Part Number: 778128A
    Gear-Spur
    Part Number: 778128A
      Special Order
    $44.08
  • V-61
    Gear – Part Number: 778208
    Gear
    Part Number: 778208
      Special Order
    $57.34
  • V-65
    Washer – Part Number: 780109
    Washer
    Part Number: 780109
      Special Order
    $6.16
  • V-66
    Input Shaft – Part Number: 776135
    Input Shaft
    Part Number: 776135
      Special Order
    $43.63
  • V-67
    Shifter & Brake Shaft (4-keyed) – Part Number: 776315A
    Shifter & Brake Shaft (4-keyed)
    Part Number: 776315A
      No Longer Available
  • V-68
    Plug – Part Number: 786116A
    Plug
    Part Number: 786116A
      No Longer Available
  • V-69
    Washer – Part Number: 780051
    Washer
    Part Number: 780051
      Special Order
    $6.16
  • V-70
    Spacer – Part Number: 786118
    Spacer
    Part Number: 786118
      No Longer Available
  • V-71
    Seal, Square Cut – Part Number: 788069
    Seal, Square Cut
    Part Number: 788069
      In Stock
    Minimum Quantity of 2 required
    $6.16
  • V-72
    Plug-Threaded 5/16-18 – Part Number: 792165
    Plug-Threaded 5/16-18
    Part Number: 792165
      Special Order
    $6.16
  • V-72A
    'O' Ring
    Part Number: 788091
      No Longer Available
  • V-76
    Washer, Thrust – Part Number: 780090
    Washer, Thrust
    Part Number: 780090
      No Longer Available
  • V-77
    Retaining ring – Part Number: 788078A
    Retaining ring
    Part Number: 788078A
      Special Order
    $6.16
  • V-79
    Spring, Brake – Part Number: 792144
    Spring, Brake
    Part Number: 792144
      No Longer Available
  • V-81
    Chain – Part Number: 786081
    Chain
    Part Number: 786081
      No Longer Available
  • V-82
    Sprocket-9 Teeth – Part Number: 786082
    Sprocket-9 Teeth
    Part Number: 786082
      No Longer Available
  • V-83
    Sprocket 18 Teeth – Part Number: 786123
    Sprocket 18 Teeth
    Part Number: 786123
      No Longer Available
  • V-90
    GREASE BENTONIT – Part Number: TC-788067D
    GREASE BENTONIT
    Part Number: TC-788067D
      Special Order
    $92.20
  • V-103
    SCREW – Part Number: 792166
    SCREW
    Part Number: 792166
      Special Order
    $6.16
  • V-104
    NUT – Part Number: 792167
    NUT
    Part Number: 792167
      Special Order
    $6.16
  • V-150
    gasket eliminator (LOCTITE 515) – Part Number: TC-510334
    gasket eliminator (LOCTITE 515)
    Part Number: TC-510334
      No Longer Available

Questions & Answers

?

Our customer Service team is at the ready daily to answer your part and product questions.

Be the first to ask our experts a question about this part!

Ask our Team

We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.

✖

Our customer service team are at the ready daily to answer your part and product questions. We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
