Ariens Sierra 1548H 48" Lawn Tractor Replacement Parts For Model 936024 (000101)
We Sell Only Genuine Ariens Parts
Popular Parts for 936024
In Stock
$6.16
In Stock
$6.16
Special Order
Minimum Quantity of 2 required
$6.16
In Stock
Minimum Quantity of 2 required
$6.16
In Stock
$13.47
In Stock
$13.47
In Stock
Minimum Quantity of 2 required
$6.16
In Stock
Minimum Quantity of 2 required
$6.16
Search Within Model
Browse all Parts
Search by Area
_WW_1.gif "48\" Hanger Arm Diagram and Parts List for 000101 Ariens Lawn Tractor")
_WW_2.gif "48\" Mower Lawn Tractor & Rollers Cont. Diagram and Parts List for 000101 Ariens Lawn Tractor")
_WW_3.gif "48\" Mower Spindles Diagram and Parts List for 000101 Ariens Lawn Tractor")
_WW_4.gif "Attachment Lift Diagram and Parts List for 000101 Ariens Lawn Tractor")
_WW_5.gif "Clutch & Brake - Hydro Diagram and Parts List for 000101 Ariens Lawn Tractor")
_WW_6.gif "Engine, Fuel Tank & Belt Drive Diagram and Parts List for 000101 Ariens Lawn Tractor")
_WW_7.gif "Exhaust Diagram and Parts List for 000101 Ariens Lawn Tractor")
_WW_8.gif "Frame & Rear Lawn Tractor Diagram and Parts List for 000101 Ariens Lawn Tractor")
_WW_9.gif "Hood, Dash & Battery Diagram and Parts List for 000101 Ariens Lawn Tractor")
_WW_10.gif "Rear Wheel & Hydro Drive Diagram and Parts List for 000101 Ariens Lawn Tractor")
_WW_11.gif "Steering Diagram and Parts List for 000101 Ariens Lawn Tractor")
Previous
Showing All Parts
Next

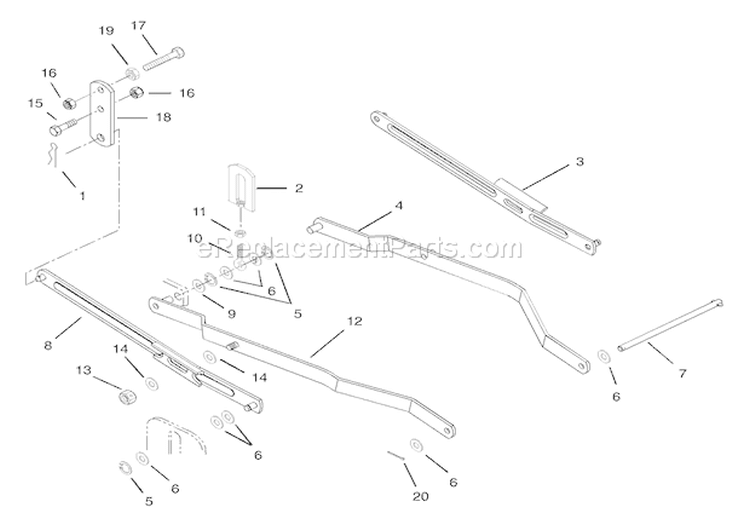

48" Hanger Arm
_WW_1.gif "48\" Hanger Arm Diagram and Parts List for 000101 Ariens Lawn Tractor")
-
A-1
$6.16 -
A-2
$59.62
-
A-3
-
A-4
-
A-5
$6.16
-
A-6
-
A-7
-
A-8
-
A-9
-
A-10
-
A-11
-
A-12
-
A-13
$6.16
-
A-14
-
A-15
$6.16
-
A-16
$6.16
-
A-17
-
A-18
$43.19
-
A-19
-
A-20
$6.16
48" Mower Lawn Tractor & Rollers Cont.
_WW_2.gif "48\" Mower Lawn Tractor & Rollers Cont. Diagram and Parts List for 000101 Ariens Lawn Tractor")
-
B-1
-
B-2
$62.69
-
B-3
$100.98
-
B-4
$34.42
-
B-5
$72.31
-
B-6
-
B-7
$6.16
-
B-8
-
B-9
-
B-10
-
B-11
$6.16
-
B-12
-
B-13
$21.30
-
B-14
-
B-15
$6.16
-
B-16
-
B-17
-
B-18
$165.49
-
B-19
-
B-20
-
B-21
$6.16
-
B-22
$8.47
-
B-23
$54.65
-
B-24
$26.00
-
B-25
$65.25
-
B-26
$72.76
-
B-27
$6.16
-
B-28
$66.14
-
B-29
$6.16
-
B-30
$6.16
-
B-31
$6.16
-
B-32
$138.01
-
B-33
$31.06
-
B-34
-
B-35
-
B-36
-
B-37
-
B-38
-
B-39
-
B-40
$104.10
-
B-41
-
B-42
-
B-43
-
B-44
-
B-45
-
B-46
-
B-47
-
B-48
$6.16
-
B-49
-
B-50
-
B-51
$10.63
-
B-52
-
B-53
$6.16
-
B-800
-
B-800
$49.35
-
B-800
$6.16
48" Mower Spindles
_WW_3.gif "48\" Mower Spindles Diagram and Parts List for 000101 Ariens Lawn Tractor")
-
C-1
-
C-2
$6.16
-
C-3
-
C-4
$20.60
-
C-5
$38.95
-
C-6
$114.28
-
C-7
-
C-8
-
C-9
-
C-10
$6.16
-
C-11
-
C-12
-
C-13
-
C-14
-
C-15
$43.97
-
C-16
-
C-17
-
C-18
$22.02
-
C-19
$74.29
-
C-20
$67.68
-
C-21
-
C-22
$6.16
-
C-23
$205.98
-
C-24
$6.16
-
C-25
$6.16
-
C-26
$19.17
-
C-27
$90.21
-
C-28
$6.16
-
C-29
$6.16
-
C-30
$34.42
-
C-31
$91.39
-
C-32
$31.06
-
C-33
$27.12
-
C-34
$12.74
-
C-35
$6.16
-
C-36
-
C-37
$6.16
-
C-38
-
C-39
-
C-40
-
C-41
Attachment Lift
_WW_4.gif "Attachment Lift Diagram and Parts List for 000101 Ariens Lawn Tractor")
-
D-1
-
D-2
$6.16
-
D-3
$6.16
-
D-4
-
D-5
$52.89
-
D-6
$13.47
-
D-7
-
D-8
-
D-9
-
D-10
$6.16
-
D-11
-
D-12
-
D-13
$6.16
-
D-14
$6.16
-
D-15
-
D-16
-
D-17
-
D-18
-
D-19
$77.62
-
D-20
-
D-21
-
D-22
-
D-23
-
D-24
-
D-25
$6.16
-
D-26
-
D-27
-
D-28
-
D-29
$6.16
-
D-30
$6.16
-
D-31
-
D-32
$6.16
-
D-33
-
D-34
-
D-35
$6.16
-
D-800
Clutch & Brake - Hydro
_WW_5.gif "Clutch & Brake - Hydro Diagram and Parts List for 000101 Ariens Lawn Tractor")
-
E-1
-
E-2
$6.16
-
E-3
-
E-4
$20.60
-
E-5
-
E-6
$10.79
-
E-7
-
E-8
$72.31
-
E-9
$6.16
-
E-10
$7.77
-
E-11
$6.16
-
E-12
-
E-13
$6.16
-
E-14
$12.05
-
E-15
$6.16
-
E-16
-
E-17
-
E-18
-
E-19
$13.47
-
E-20
-
E-21
-
E-22
$29.04
-
E-23
$6.16
-
E-24
$6.16
-
E-25
$6.16
-
E-26
-
E-27
$19.87
-
E-28
$6.16
Engine, Fuel Tank & Belt Drive
_WW_6.gif "Engine, Fuel Tank & Belt Drive Diagram and Parts List for 000101 Ariens Lawn Tractor")
-
F-1
-
F-2
$6.16
-
F-3
-
F-4
$6.16
-
F-5
$6.16
-
F-6
-
F-7
$6.16
-
F-8
$12.05
-
F-9
-
F-10
-
F-11
-
F-12
$6.16
-
F-13
-
F-14
$6.16
-
F-15
$20.60
-
F-16
-
F-17
-
F-18
$6.16
-
F-19
-
F-20
-
F-21
-
F-22
$59.95
-
F-23
-
F-24
-
F-25
$64.47
-
F-26
$22.02
-
F-27
$10.63
-
F-28
$48.12
-
F-29
$116.63
-
F-30
$6.16
-
F-31
$6.16
-
F-32
-
F-33
$35.89
-
F-34
$46.55
-
F-35
$27.72
-
F-36
-
F-37
$79.23
-
F-38
$51.96
-
F-39
-
F-40
$48.12
-
F-41
$6.16
-
F-42
$6.16
-
F-43
-
F-44
$19.17
-
F-45
-
F-46
$6.16
-
F-47
-
F-48
$324.60
-
F-49
$39.74
-
F-50
$57.96
-
F-51
$6.16
-
F-52
$9.20
-
F-53
$72.31
-
F-54
-
F-55
$6.16
-
F-56
$9.20
-
F-57
-
F-58
$6.16
-
F-59
$19.87
-
F-60
$23.44
-
F-61
-
F-62
$6.16
-
F-63
$6.16
-
F-64
$6.16
-
F-65
$6.16
-
F-66
-
F-67
$6.16
-
F-68
$7.77
-
F-69
$55.02
-
F-70
-
F-71
-
F-72
$7.77
-
F-800
$67.29
-
F-800
-
F-800
-
F-800
-
F-800
$538.27
-
F-800
-
F-800
-
F-800
$116.63
-
F-800
-
F-800
-
F-800
-
F-800
$6.16
Exhaust
_WW_7.gif "Exhaust Diagram and Parts List for 000101 Ariens Lawn Tractor")
-
G-1
$7.77
-
G-2
-
G-3
-
G-4
-
G-5
-
G-6
$102.51
-
G-7
-
G-8
$15.44
-
G-9
-
G-10
$173.58
-
G-11
$69.36
-
G-12
$6.16
-
G-13
$192.04
-
G-14
-
G-15
$6.16
-
G-16
-
G-17
-
G-18
-
G-19
-
G-20
-
G-21
$6.16
Frame & Rear Lawn Tractor
_WW_8.gif "Frame & Rear Lawn Tractor Diagram and Parts List for 000101 Ariens Lawn Tractor")
-
H-1
-
H-2
-
H-3
$6.16
-
H-4
-
H-5
-
H-6
-
H-7
-
H-8
-
H-9
-
H-10
$6.16
-
H-11
$6.16
-
H-12
$6.16
-
H-13
$6.16
-
H-14
-
H-15
$20.60
-
H-16
-
H-17
$6.16
-
H-18
-
H-19
-
H-20
$6.16
-
H-21
$6.16
-
H-22
$6.16
-
H-23
-
H-24
-
H-25
-
H-26
-
H-27
-
H-28
-
H-29
-
H-30
-
H-31
-
H-32
-
H-33
$6.16
-
H-34
-
H-35
-
H-36
$6.16
-
H-37
-
H-38
-
H-800
-
H-800
-
H-800
Hood, Dash & Battery
_WW_9.gif "Hood, Dash & Battery Diagram and Parts List for 000101 Ariens Lawn Tractor")
-
I-1
-
I-2
$6.16
-
I-3
-
I-4
-
I-5
-
I-6
-
I-7
$13.47
-
I-8
$6.16
-
I-9
$31.91
-
I-10
-
I-11
$101.76
-
I-12
-
I-13
$6.16
-
I-14
-
I-15
$47.38
-
I-16
-
I-17
-
I-18
-
I-19
-
I-20
$6.16
-
I-21
-
I-22
$6.16
-
I-23
-
I-24
-
I-25
$12.74
-
I-26
-
I-27
$27.12
-
I-28
-
I-29
-
I-30
-
I-31
-
I-32
-
I-33
$6.16
-
I-34
-
I-35
$20.95
-
I-36
$63.14
-
I-37
$69.36
-
I-38
-
I-39
-
I-40
-
I-41
-
I-42
-
I-43
$6.16
-
I-44
-
I-45
$6.16
-
I-46
-
I-47
-
I-48
$6.16
-
I-49
$6.16
-
I-50
-
I-51
-
I-52
$6.16
-
I-53
-
I-54
-
I-55
-
I-56
$6.16
-
I-57
-
I-58
$6.16
-
I-59
-
I-60
-
I-61
-
I-62
-
I-63
$12.74
-
I-64
-
I-65
$6.16
-
I-66
-
I-67
-
I-68
$32.30
-
I-69
-
I-70
$6.16
-
I-800
$6.16
-
I-800
$77.65
-
I-800
$54.86
Rear Wheel & Hydro Drive
_WW_10.gif "Rear Wheel & Hydro Drive Diagram and Parts List for 000101 Ariens Lawn Tractor")
-
J-1
-
J-2
-
J-3
$6.16
-
J-4
$6.16
-
J-5
Screw-Tapping .38-16 x 1.00 Hex Washer Head Thread RollingPart Number: 07414100No Longer Available
-
J-6
$6.16
-
J-7
$6.16
-
J-8
$72.76
-
J-9
$42.03
-
J-10
$6.16
-
J-11
-
J-12
-
J-13
$6.16
-
J-14
$26.13
-
J-15
-
J-16
$39.74
-
J-17
-
J-18
$6.16
-
J-19
$6.16
-
J-20
-
J-21
$6.16
-
J-22
-
J-23
$156.16
-
J-24
$29.38
-
J-25
$6.16
-
J-26
$6.16
-
J-27
$60.04
-
J-28
$6.16
-
J-29
-
J-30
$54.65
-
J-31
-
J-32
-
J-33
-
J-34
-
J-35
-
J-36
$6.16
-
J-37
-
J-38
-
J-39
-
J-40
-
J-41
-
J-42
$6.16
-
J-43
-
J-44
-
J-45
-
J-46
$6.16
-
J-47
$19.17
-
J-48
$10.63
-
J-49
$6.16
-
J-50
$6.16
-
J-51
-
J-52
$6.16
-
J-53
$13.47
-
J-54
-
J-55
$12.05
-
J-56
-
J-57
-
J-58
$40.75
-
J-59
-
J-60
-
J-800
-
J-800
-
J-800
$130.15

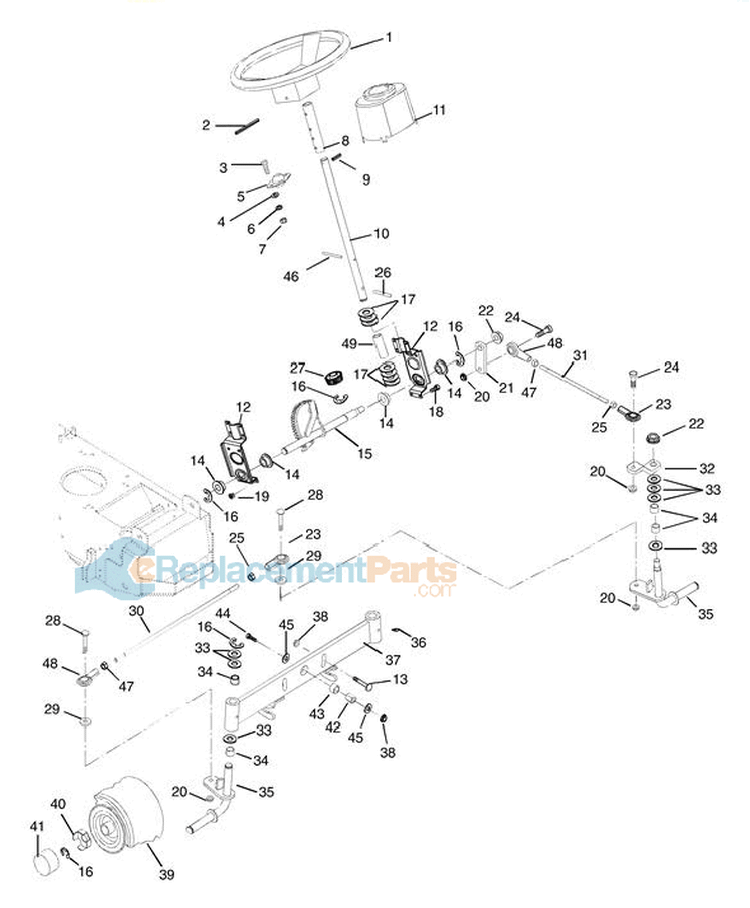

Steering
_WW_11.gif "Steering Diagram and Parts List for 000101 Ariens Lawn Tractor")
-
K-1
-
K-2
$6.16
-
K-3
$6.16
-
K-4
-
K-5
$35.84
-
K-6
$6.16
-
K-7
-
K-8
-
K-9
$6.16
-
K-10
$150.16
-
K-11
-
K-12
$65.25
-
K-13
$6.16
-
K-14
$24.86
-
K-15
$180.20
-
K-16
$6.16
-
K-17
$6.16
-
K-18
-
K-19
-
K-20
$6.16
-
K-21
-
K-22
-
K-23
$26.00
-
K-24
$6.16
-
K-25
-
K-26
$26.85
-
K-27
$82.46
-
K-28
-
K-29
$6.35
-
K-30
$99.48
-
K-31
-
K-32
-
K-33
$6.16
-
K-34
$26.00
-
K-35
$320.71
-
K-36
$6.16
-
K-37
-
K-38
$6.16
-
K-39
-
K-40
$29.38
-
K-41
$6.16
-
K-42
$19.87
-
K-43
-
K-44
-
K-45
-
K-46
$6.16
-
K-47
-
K-48
$24.20
-
K-49
$15.60
-
K-800
-
K-800
-
K-800
$154.71
-
K-800
-
K-800
$19.87
✖
