Questions & Answers for Toro 22370
Browse all Parts Search by Area
Air Cleaner Assembly No. 99-5410 Diagram and Parts List for 413000000 - 414487256 Toro Lawn Tractor Accessories
Air Cleaner Assembly No. 99-5410
Attachment Plate Assembly No. 140-6017 Diagram and Parts List for 413000000 - 414487256 Toro Lawn Tractor Accessories
Attachment Plate Assembly No. 140-6017
Camshaft And Driving Gear Assembly Diagram and Parts List for 413000000 - 414487256 Toro Lawn Tractor Accessories
Camshaft And Driving Gear Assembly

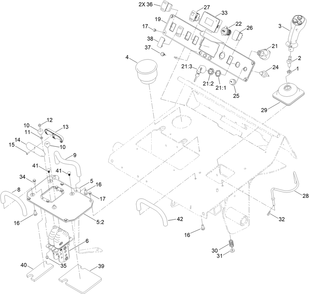

Console Assembly Diagram and Parts List for 413000000 - 414487256 Toro Lawn Tractor Accessories
Console Assembly
Control Valve Assembly No. 145-3279 Diagram and Parts List for 413000000 - 414487256 Toro Lawn Tractor Accessories
Control Valve Assembly No. 145-3279
Cooling System Assembly Diagram and Parts List for 413000000 - 414487256 Toro Lawn Tractor Accessories
Cooling System Assembly
Cooling System Assembly Diagram and Parts List for 413000000 - 414487256 Toro Lawn Tractor Accessories
Cooling System Assembly

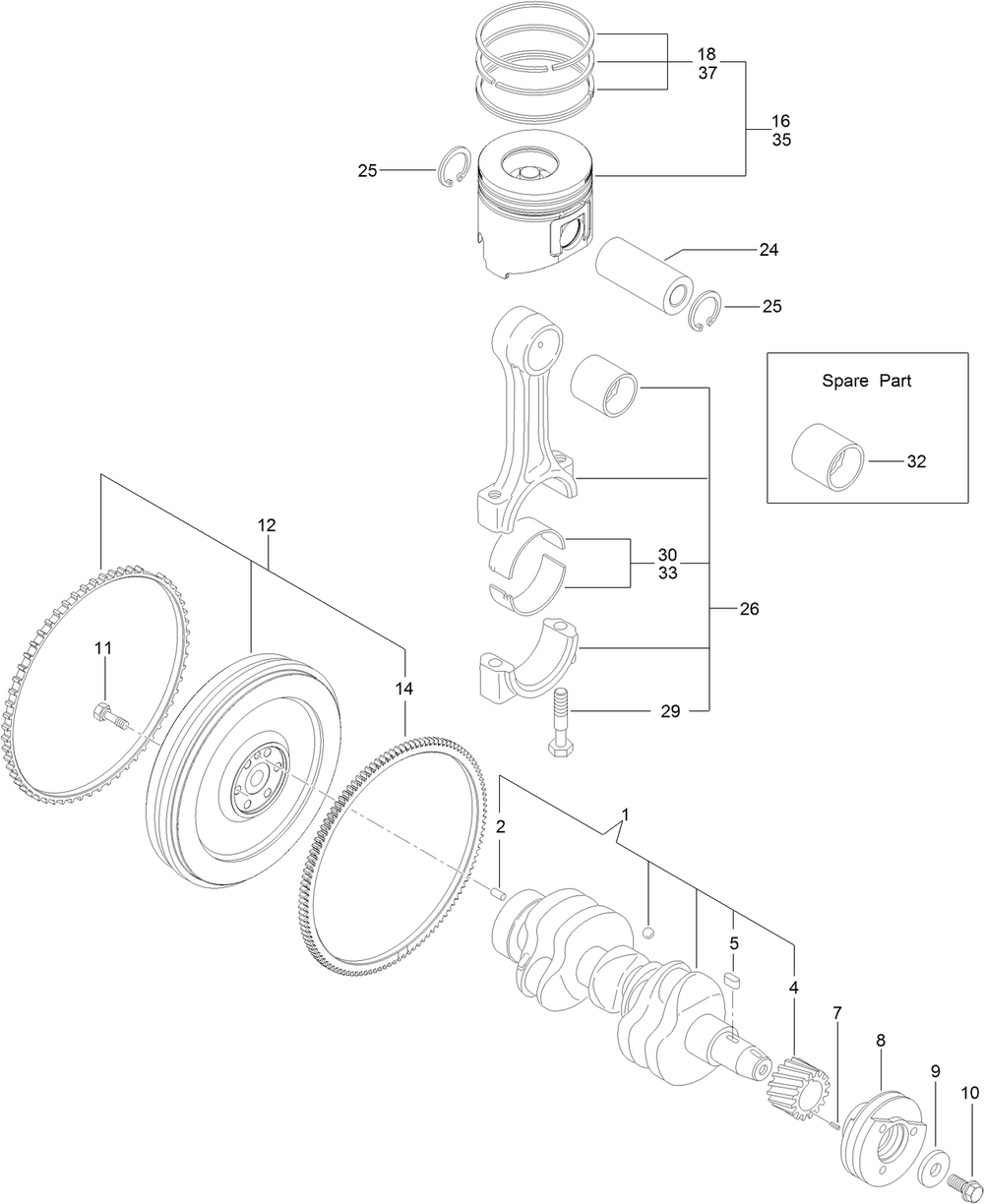

Crankshaft And Piston Assembly Diagram and Parts List for 413000000 - 414487256 Toro Lawn Tractor Accessories
Crankshaft And Piston Assembly

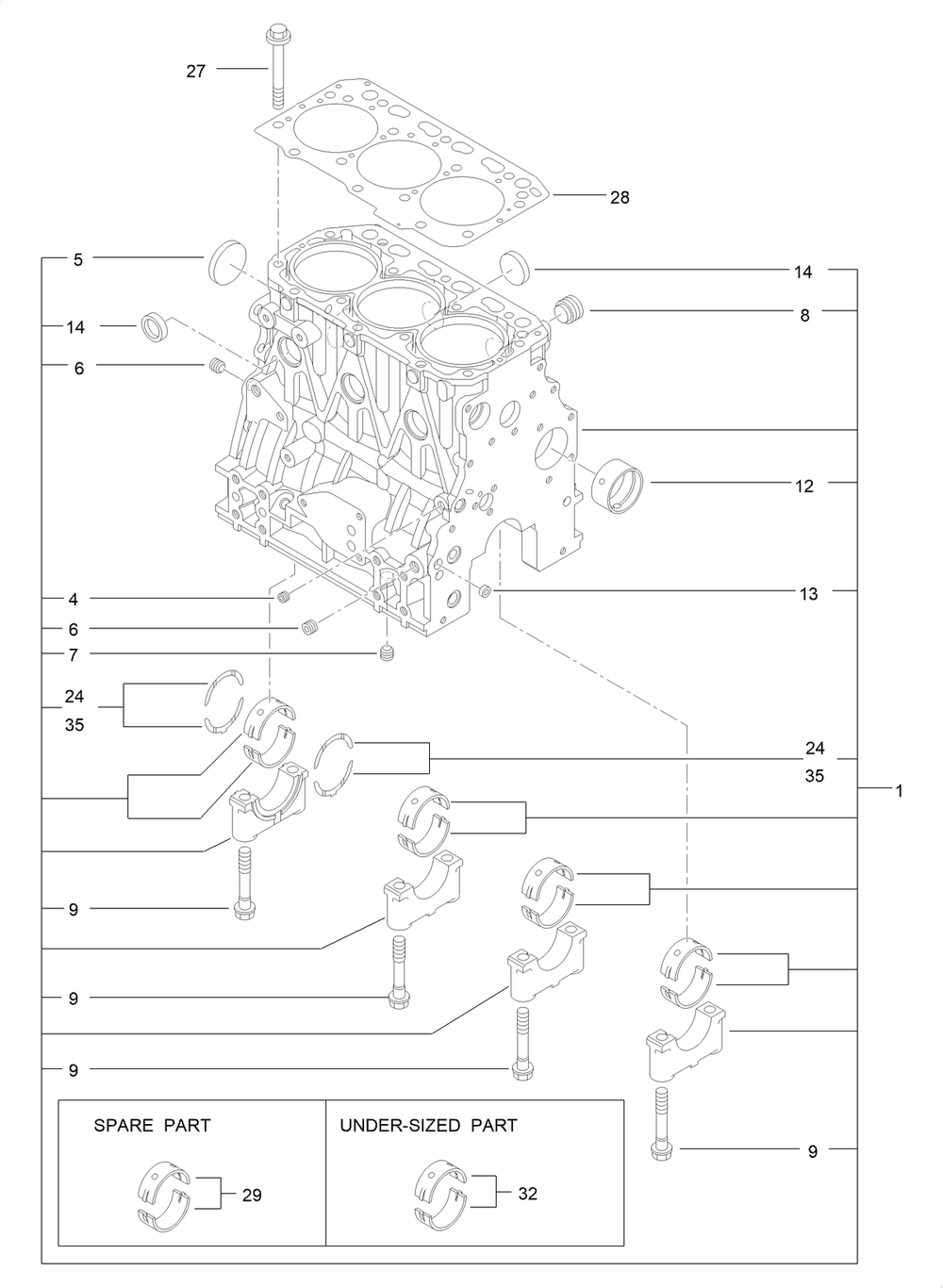

Cylinder Block Assembly Diagram and Parts List for 413000000 - 414487256 Toro Lawn Tractor Accessories
Cylinder Block Assembly
Cylinder Head And Cover Assembly Diagram and Parts List for 413000000 - 414487256 Toro Lawn Tractor Accessories
Cylinder Head And Cover Assembly
Diesel Particulate Filter Assembly Diagram and Parts List for 413000000 - 414487256 Toro Lawn Tractor Accessories
Diesel Particulate Filter Assembly

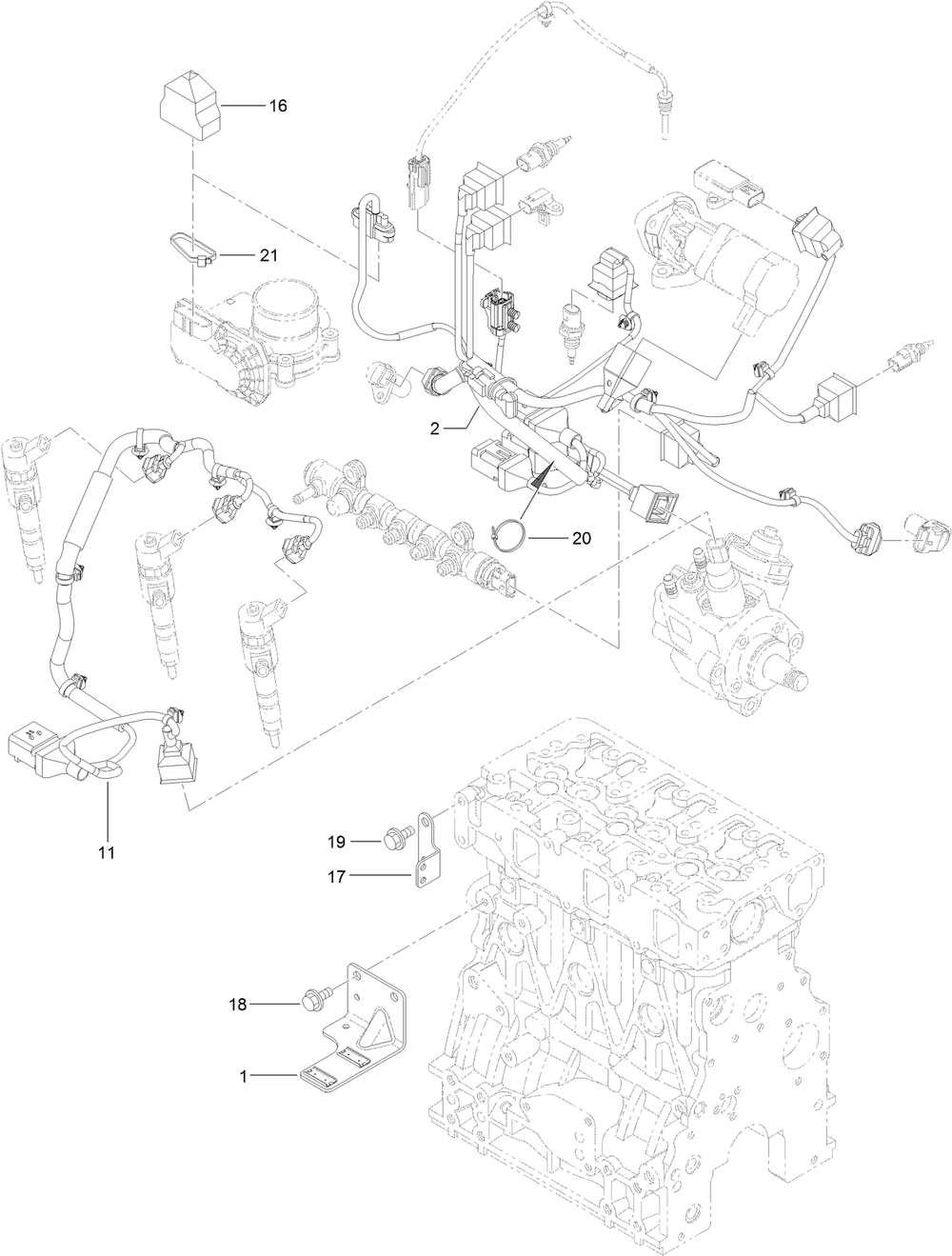

Electric Parts Assembly Diagram and Parts List for 413000000 - 414487256 Toro Lawn Tractor Accessories
Electric Parts Assembly
Electrical System Assembly Diagram and Parts List for 413000000 - 414487256 Toro Lawn Tractor Accessories
Electrical System Assembly

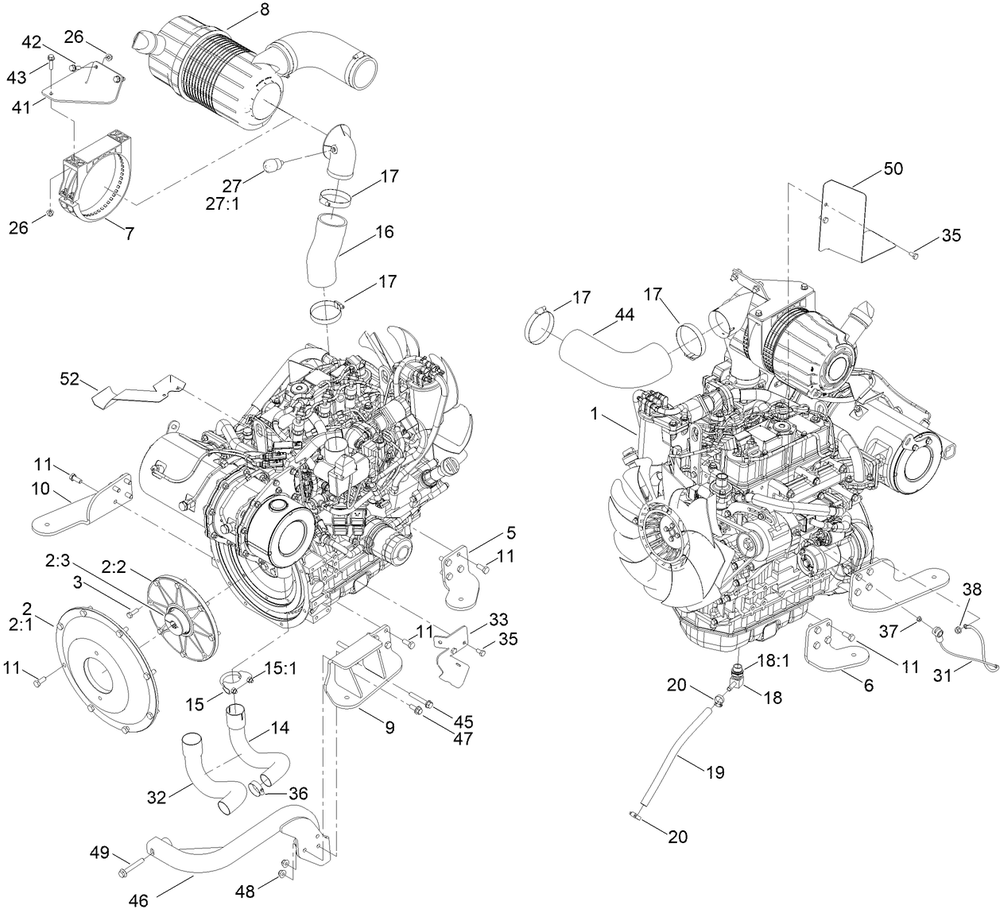

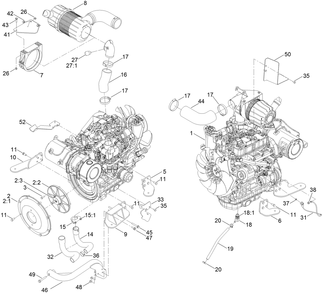

Engine Assembly Diagram and Parts List for 413000000 - 414487256 Toro Lawn Tractor Accessories
Engine Assembly
Exhaust Manifold Assembly Diagram and Parts List for 413000000 - 414487256 Toro Lawn Tractor Accessories
Exhaust Manifold Assembly
Flywheel Housing And Oil Sump Assembly Diagram and Parts List for 413000000 - 414487256 Toro Lawn Tractor Accessories
Flywheel Housing And Oil Sump Assembly

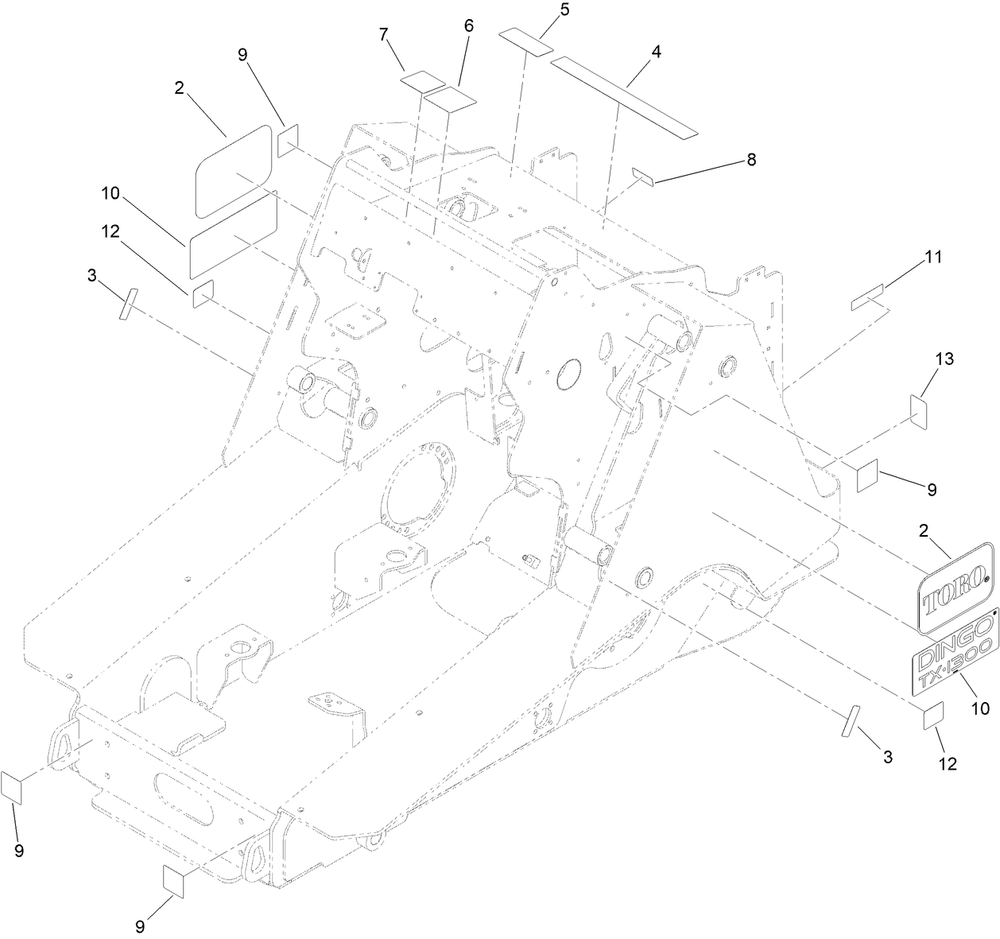

Frame Decal Assembly No. 139-4750 Diagram and Parts List for 413000000 - 414487256 Toro Lawn Tractor Accessories
Frame Decal Assembly No. 139-4750

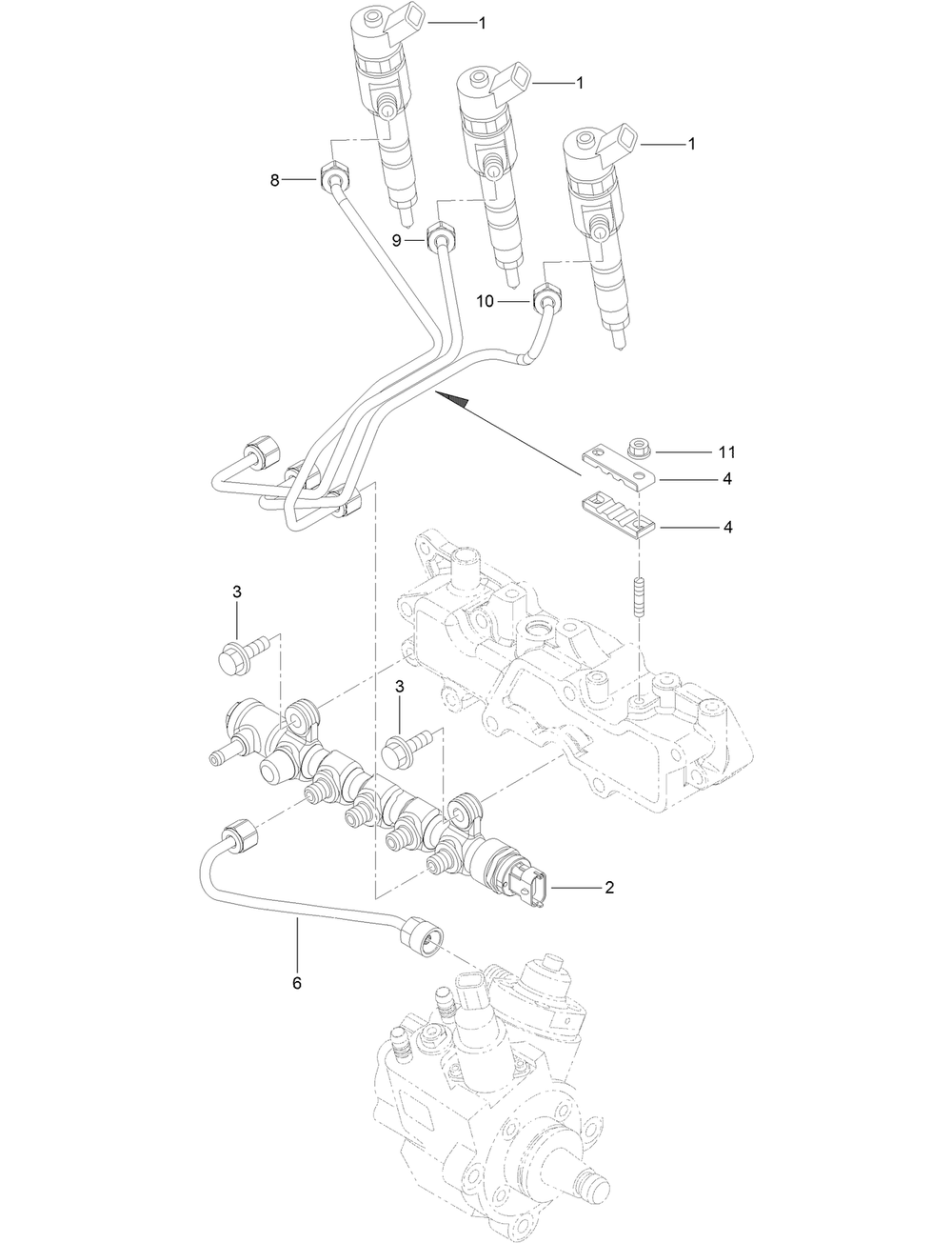

Fuel Injection Valve Assembly Diagram and Parts List for 413000000 - 414487256 Toro Lawn Tractor Accessories
Fuel Injection Valve Assembly

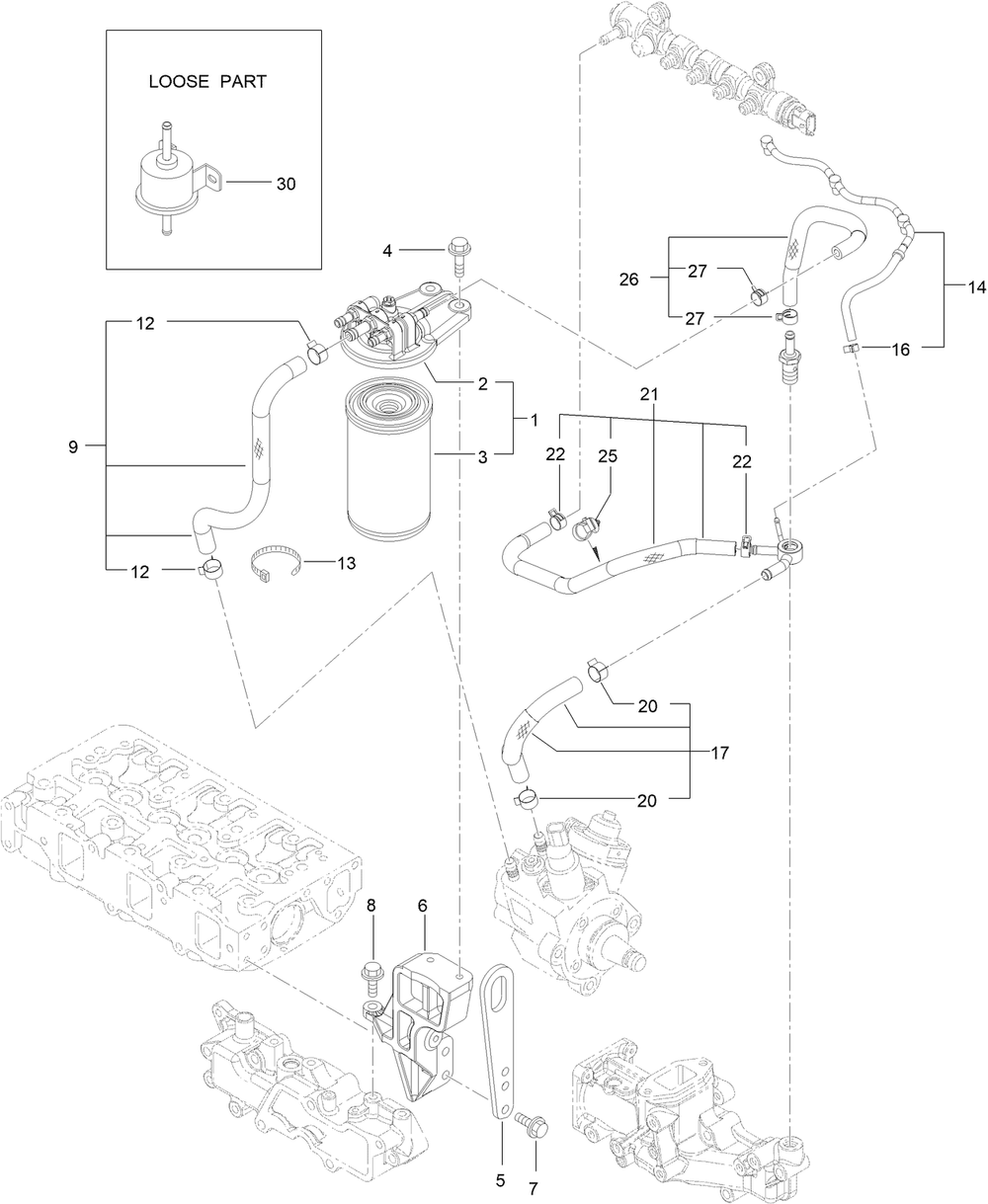

Fuel Line Assembly Diagram and Parts List for 413000000 - 414487256 Toro Lawn Tractor Accessories
Fuel Line Assembly

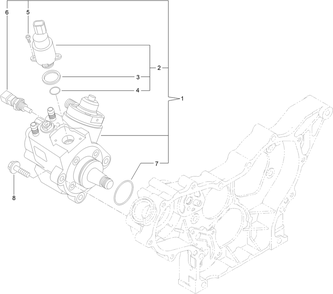

Fuel System Assembly Diagram and Parts List for 413000000 - 414487256 Toro Lawn Tractor Accessories
Fuel System Assembly

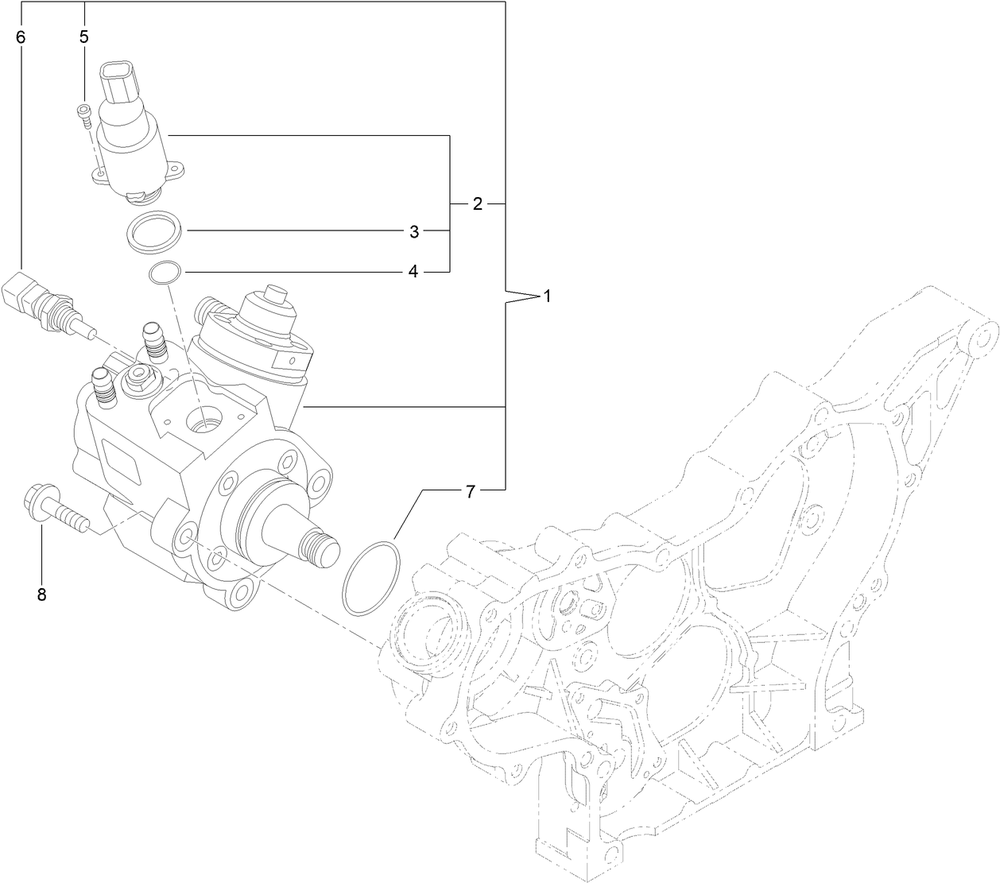

Fuel System Assembly Diagram and Parts List for 413000000 - 414487256 Toro Lawn Tractor Accessories
Fuel System Assembly

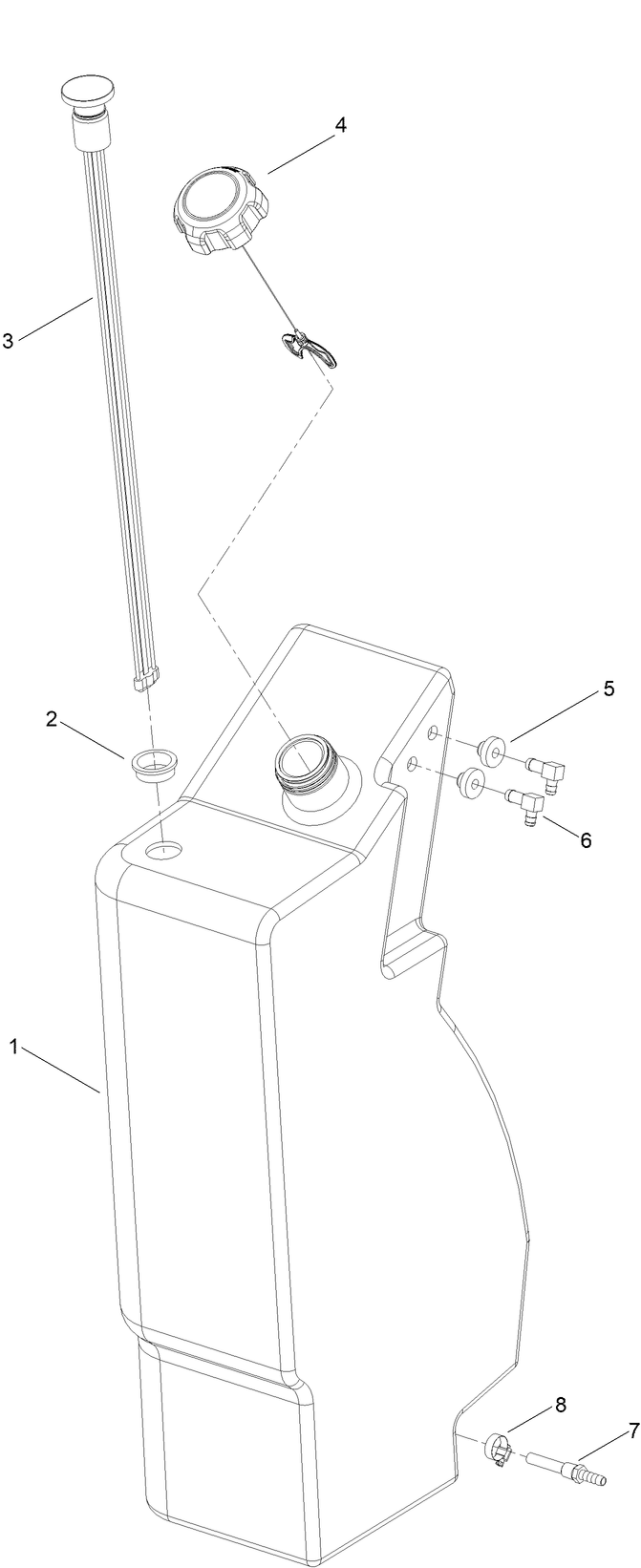

Fuel Tank Assembly No. 140-1679 Diagram and Parts List for 413000000 - 414487256 Toro Lawn Tractor Accessories
Fuel Tank Assembly No. 140-1679

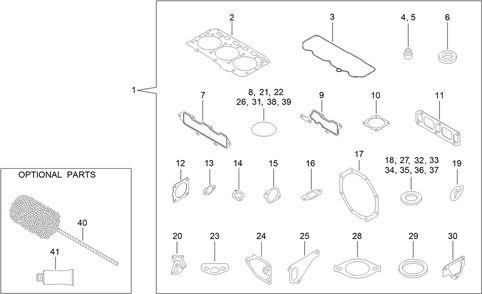

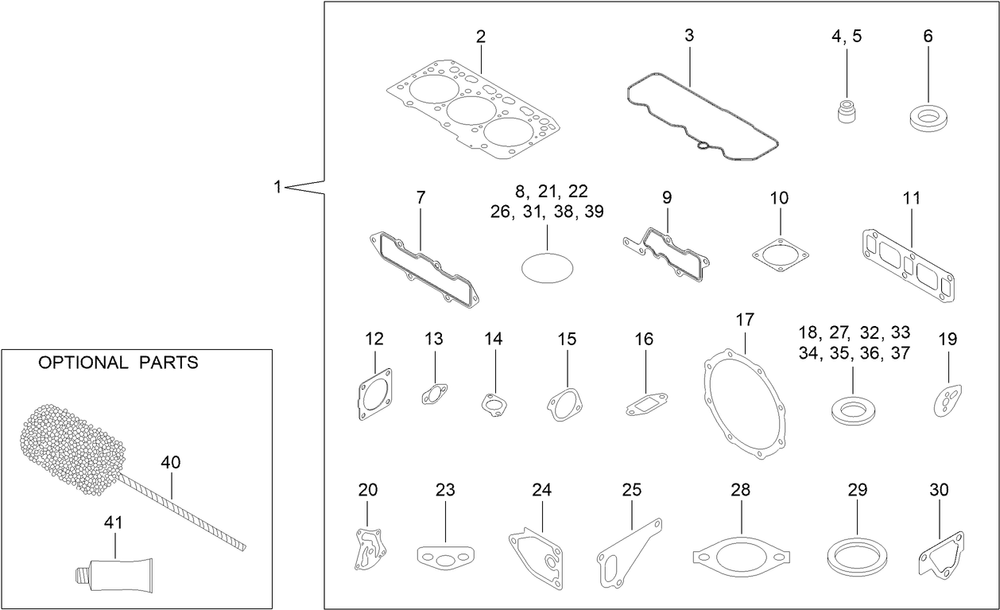

Gasket Set Diagram and Parts List for 413000000 - 414487256 Toro Lawn Tractor Accessories
Gasket Set
Gear Housing Assembly Diagram and Parts List for 413000000 - 414487256 Toro Lawn Tractor Accessories
Gear Housing Assembly

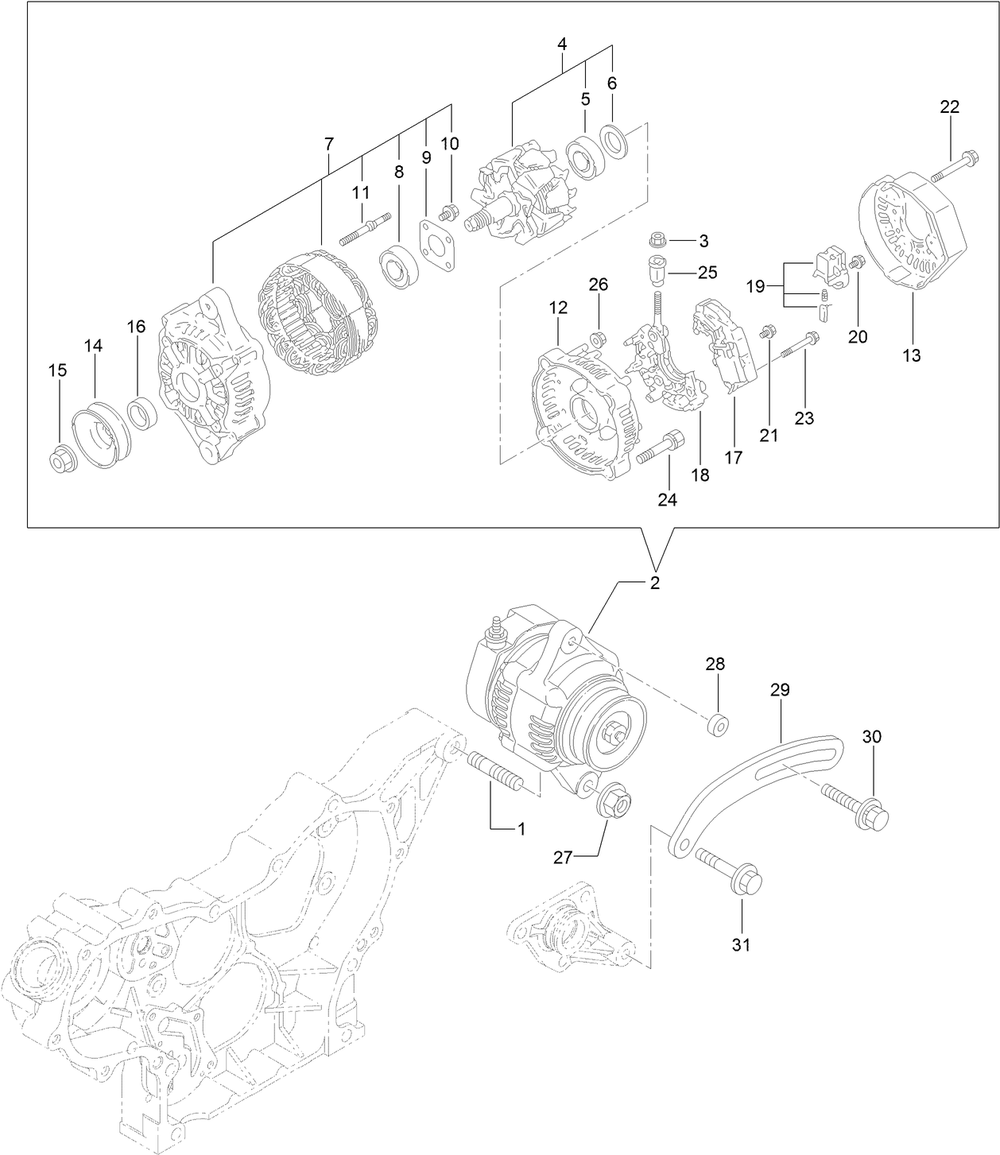

Generator Assembly Diagram and Parts List for 413000000 - 414487256 Toro Lawn Tractor Accessories
Generator Assembly
Hood And Cover Assembly Diagram and Parts List for 413000000 - 414487256 Toro Lawn Tractor Accessories
Hood And Cover Assembly

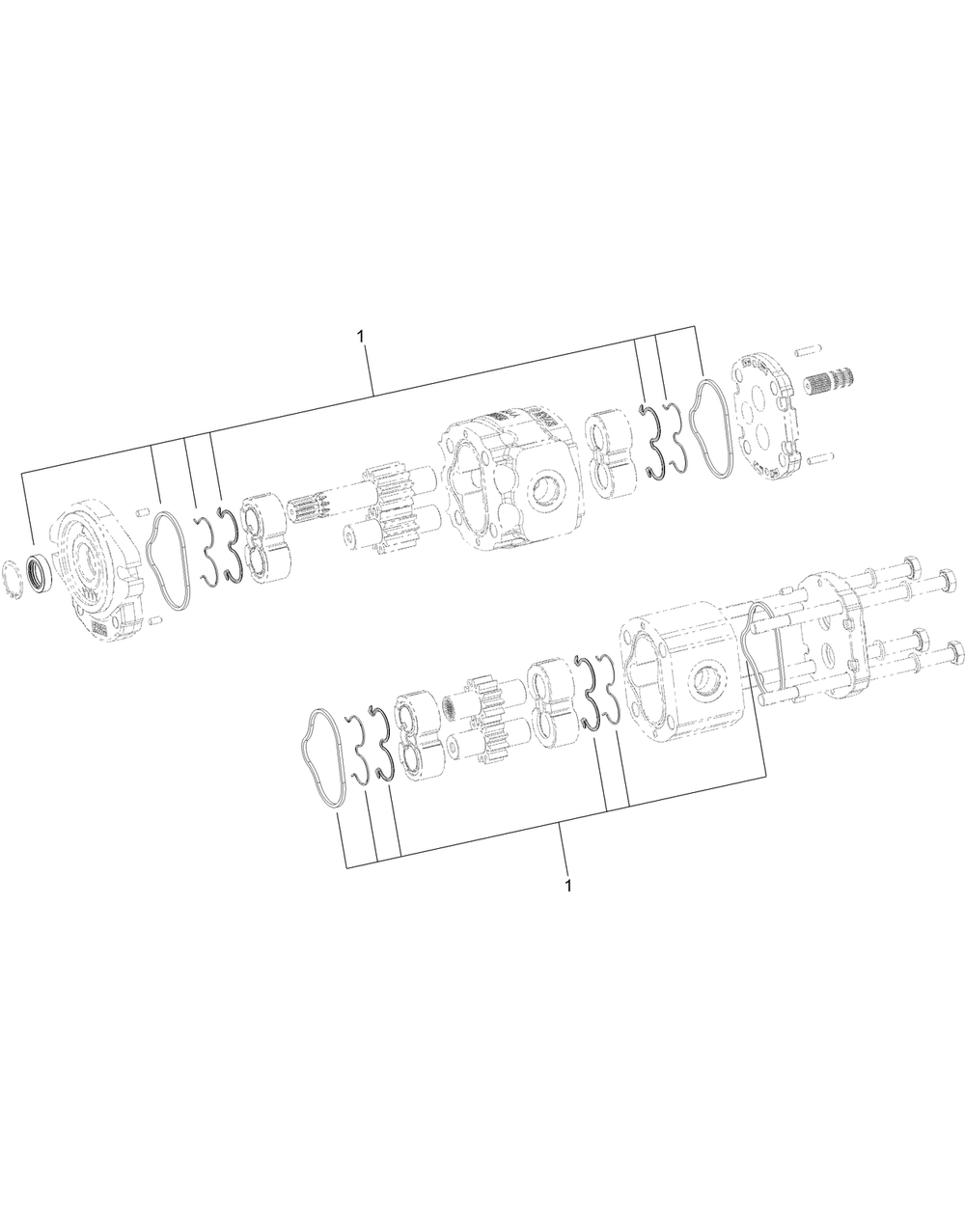

Hydraulic Gear Pump Assembly No. 139-4755 Diagram and Parts List for 413000000 - 414487256 Toro Lawn Tractor Accessories
Hydraulic Gear Pump Assembly No. 139-4755
Lh Track Assembly No. 139-7294 Diagram and Parts List for 413000000 - 414487256 Toro Lawn Tractor Accessories
Lh Track Assembly No. 139-7294
Loader Arm Hydraulic Assembly Diagram and Parts List for 413000000 - 414487256 Toro Lawn Tractor Accessories
Loader Arm Hydraulic Assembly

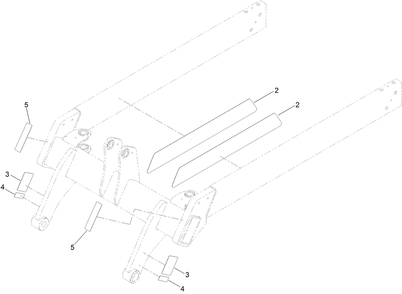

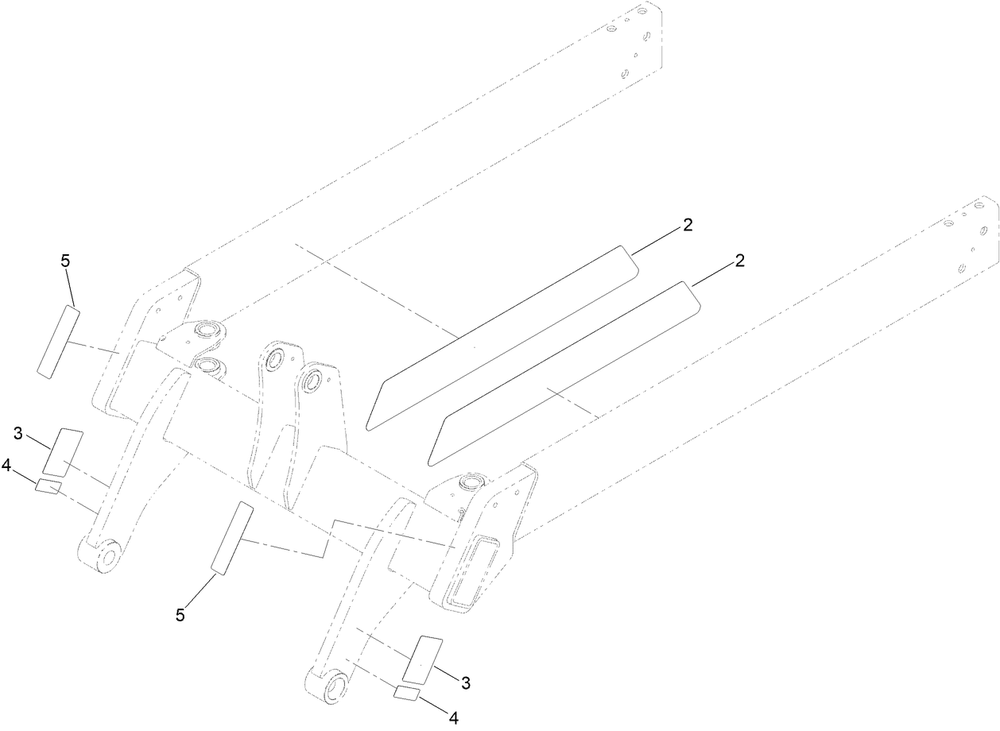

Lower Loader Arm Assembly No. 140-6063 Diagram and Parts List for 413000000 - 414487256 Toro Lawn Tractor Accessories
Lower Loader Arm Assembly No. 140-6063

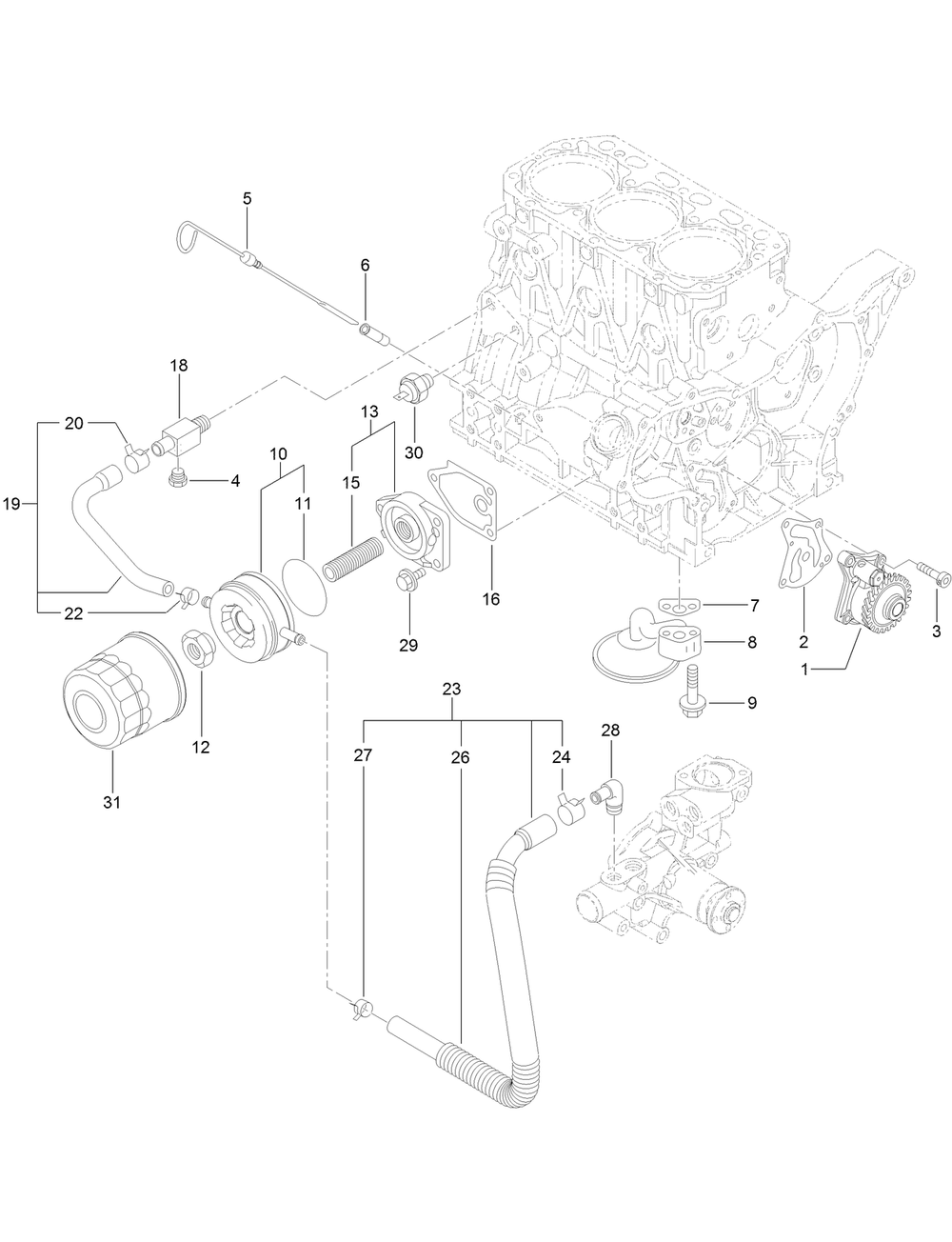

Lubrication And Oil System Assembly Diagram and Parts List for 413000000 - 414487256 Toro Lawn Tractor Accessories
Lubrication And Oil System Assembly
Main Frame Assembly Diagram and Parts List for 413000000 - 414487256 Toro Lawn Tractor Accessories
Main Frame Assembly

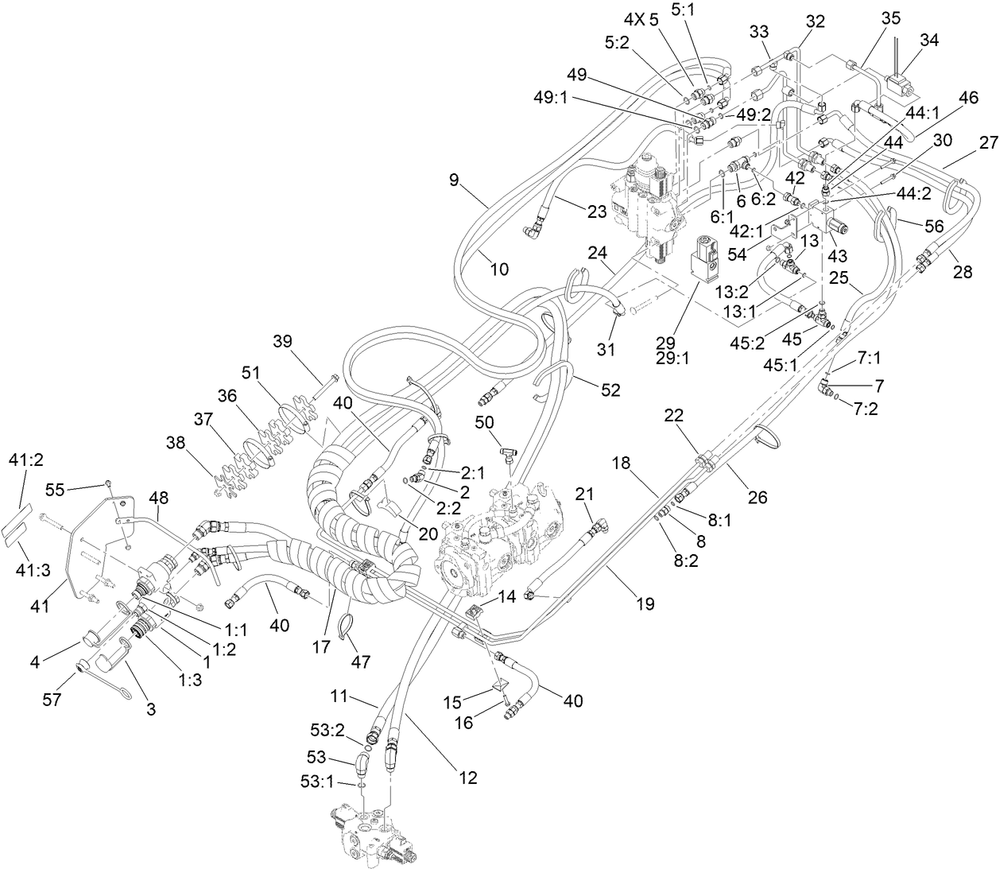

Manifold Hydraulic Assembly Diagram and Parts List for 413000000 - 414487256 Toro Lawn Tractor Accessories
Manifold Hydraulic Assembly

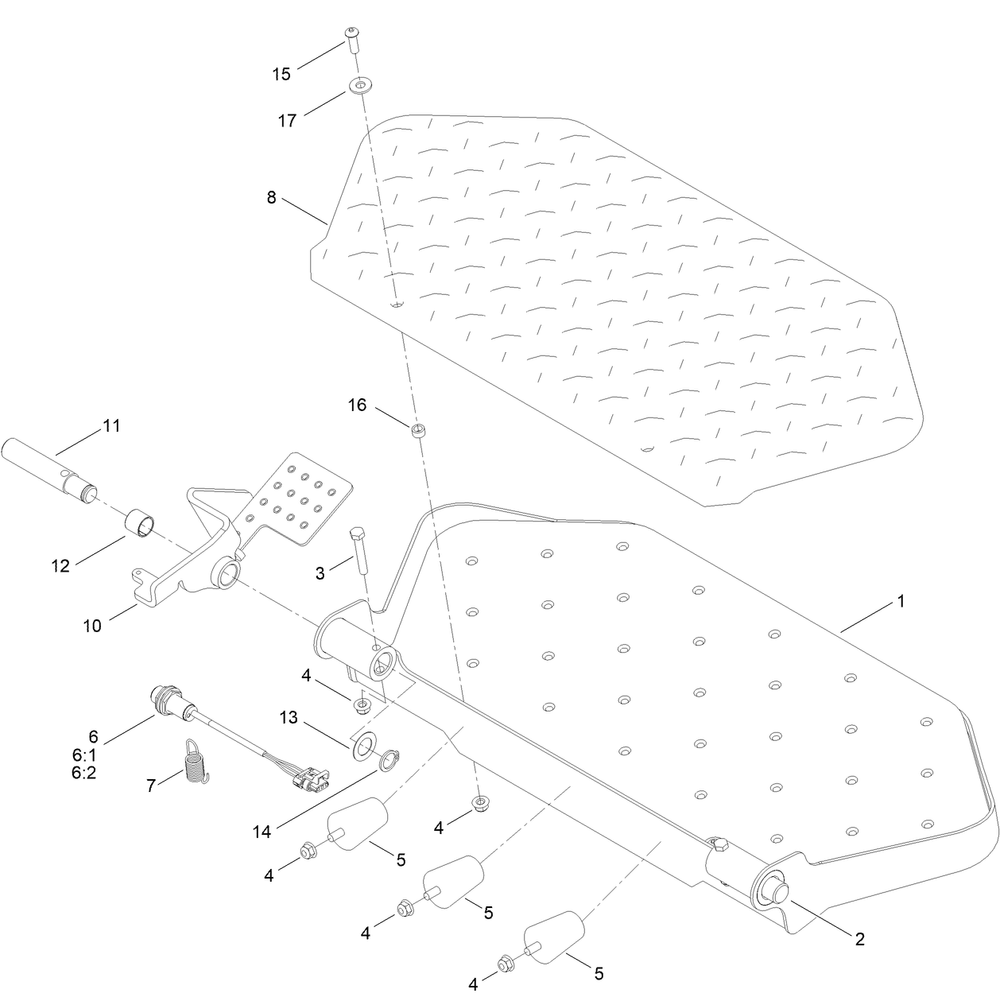

Platform Assembly Diagram and Parts List for 413000000 - 414487256 Toro Lawn Tractor Accessories
Platform Assembly

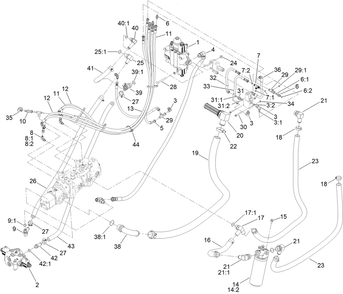

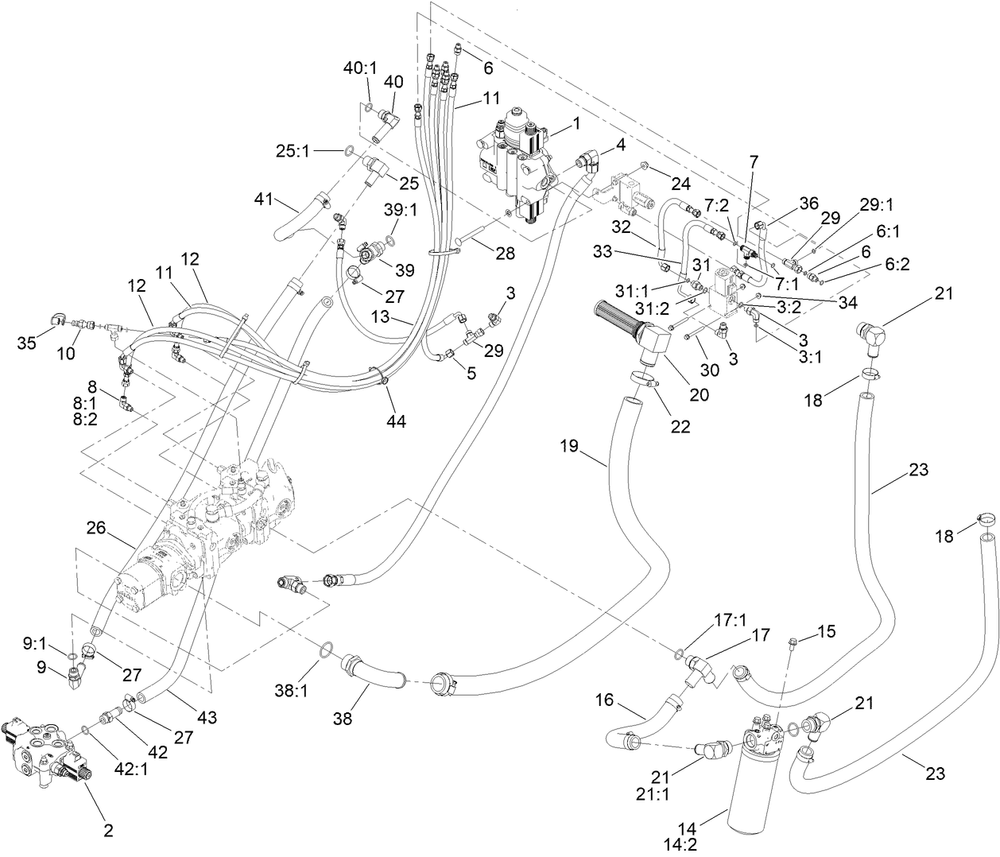

Principal Hydraulic Assembly Diagram and Parts List for 413000000 - 414487256 Toro Lawn Tractor Accessories
Principal Hydraulic Assembly
Rh Track Assembly No. 139-7293 Diagram and Parts List for 413000000 - 414487256 Toro Lawn Tractor Accessories
Rh Track Assembly No. 139-7293

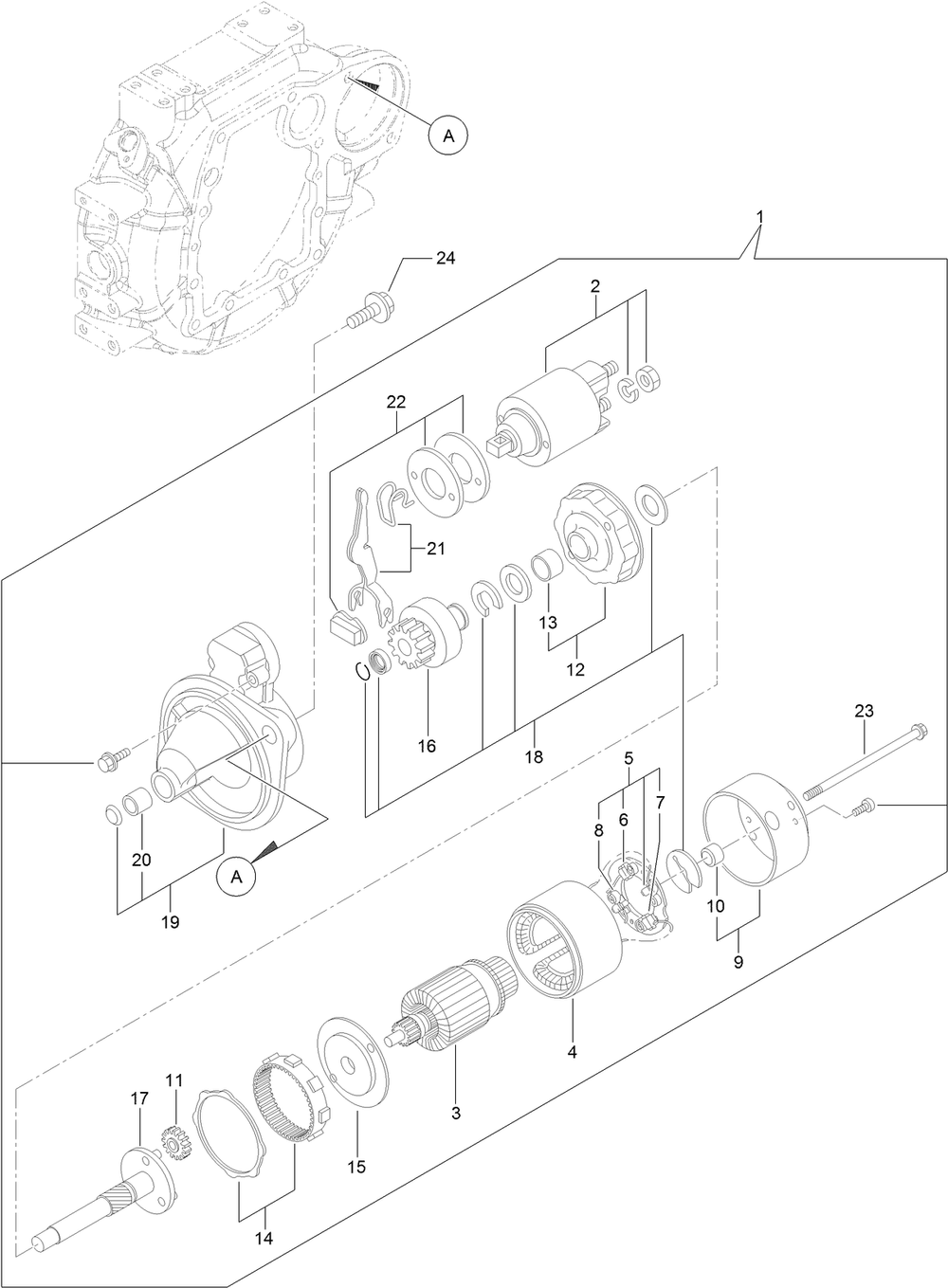

Starting Motor Assembly Diagram and Parts List for 413000000 - 414487256 Toro Lawn Tractor Accessories
Starting Motor Assembly

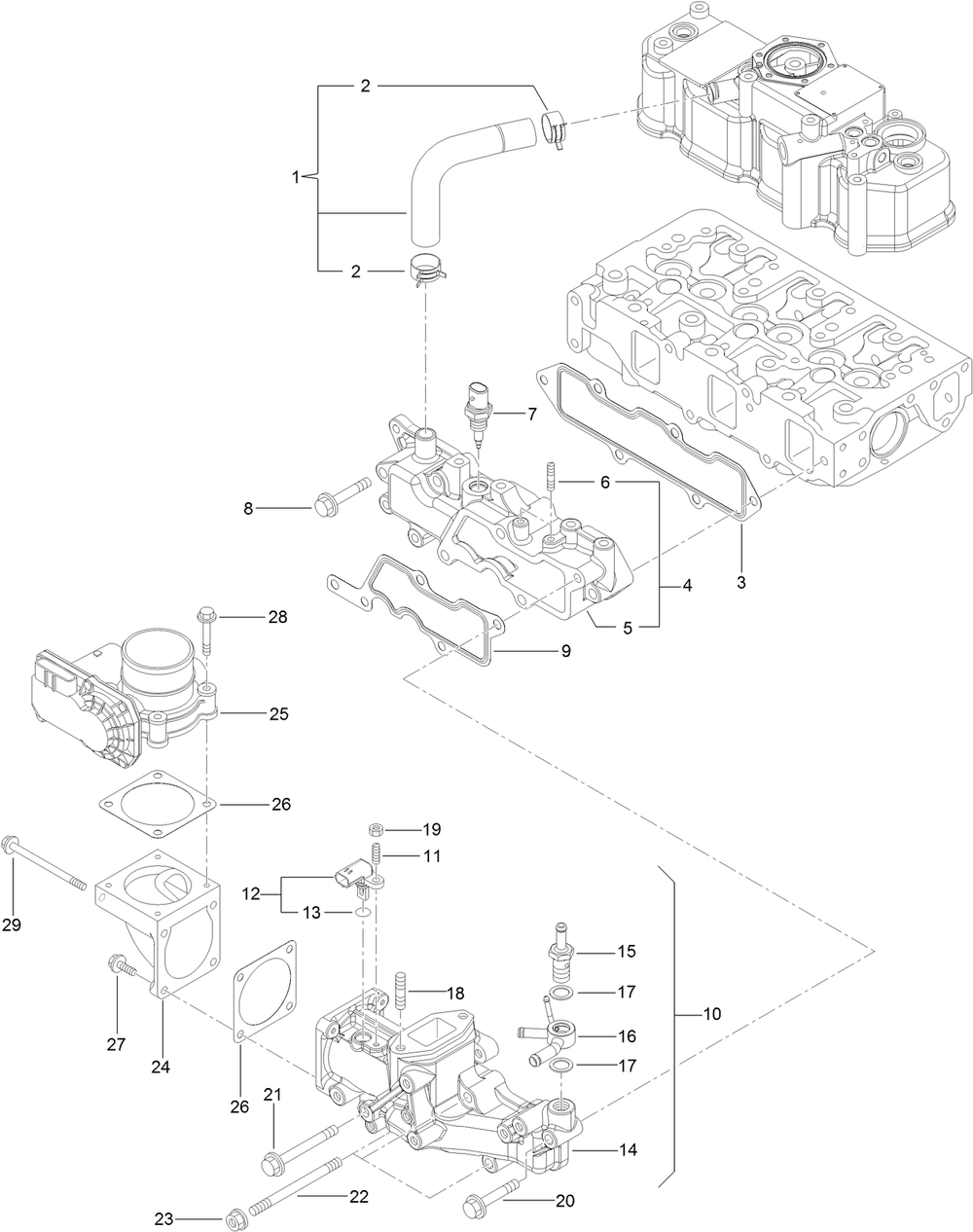

Suction Manifold Assembly Diagram and Parts List for 413000000 - 414487256 Toro Lawn Tractor Accessories
Suction Manifold Assembly

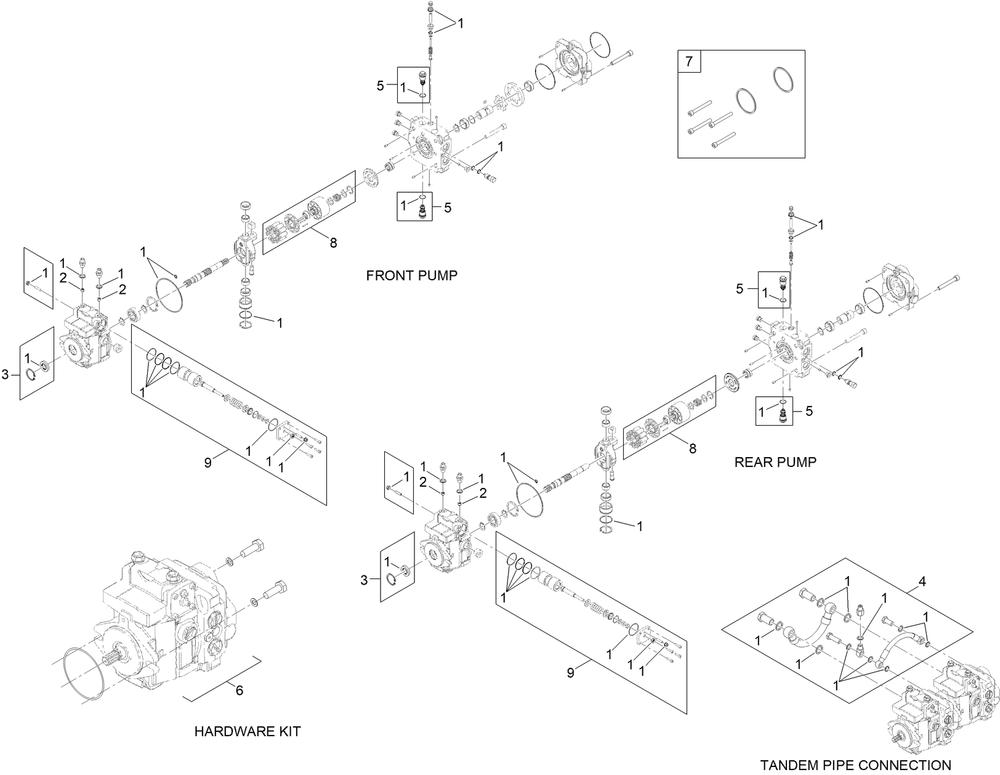

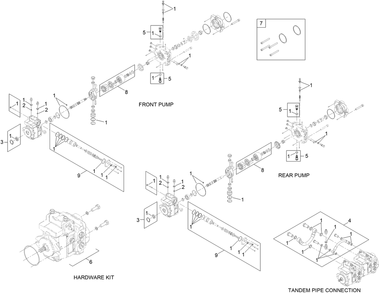

Tandem Pump Assembly No. 139-4733 Diagram and Parts List for 413000000 - 414487256 Toro Lawn Tractor Accessories
Tandem Pump Assembly No. 139-4733
Tandem Pump Hydraulic Assembly Diagram and Parts List for 413000000 - 414487256 Toro Lawn Tractor Accessories
Tandem Pump Hydraulic Assembly
Track Assembly Diagram and Parts List for 413000000 - 414487256 Toro Lawn Tractor Accessories
Track Assembly

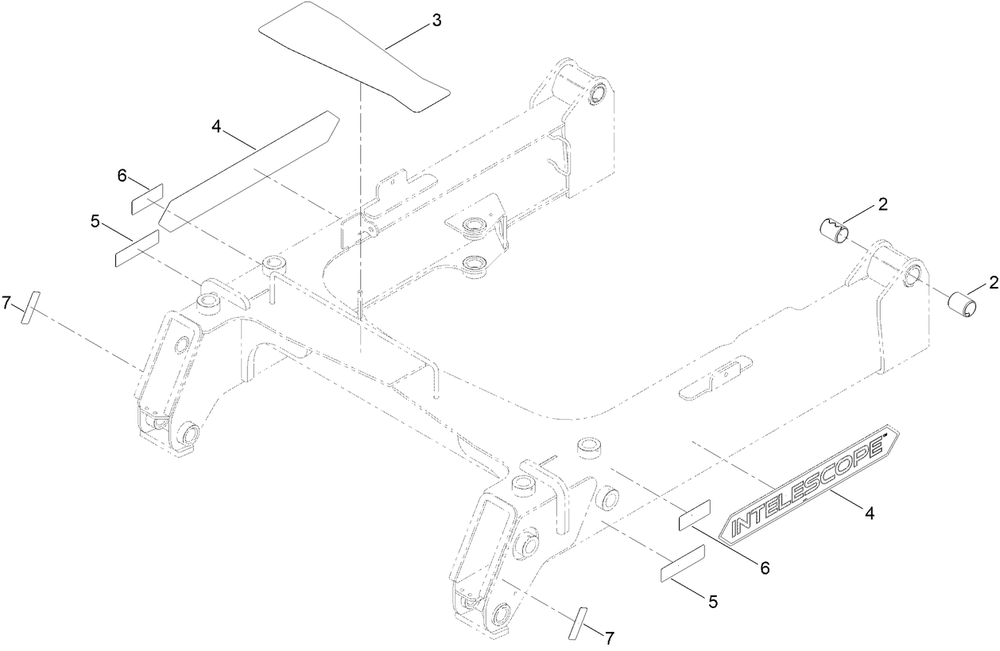

Upper Loader Arm Assembly No. 140-6062 Diagram and Parts List for 413000000 - 414487256 Toro Lawn Tractor Accessories
Upper Loader Arm Assembly No. 140-6062
Previous Showing All Parts Next
Air Cleaner Assembly No. 99-5410
Air Cleaner Assembly No. 99-5410 Diagram and Parts List for 413000000 - 414487256 Toro Lawn Tractor Accessories
  • 1
    Valve-Vacuator – Part Number: 104-4258
    Valve-Vacuator
    Part Number: 104-4258
      No Longer Available
  • 3
    Cover – Part Number: 104-4259
    Cover
    Part Number: 104-4259
      No Longer Available
  • 6
    Filter-Air – Part Number: 108-3814
    Filter-Air
    Part Number: 108-3814
      No Longer Available
  • 7
    Filter-Air – Part Number: 108-3816
    Filter-Air
    Part Number: 108-3816
      No Longer Available

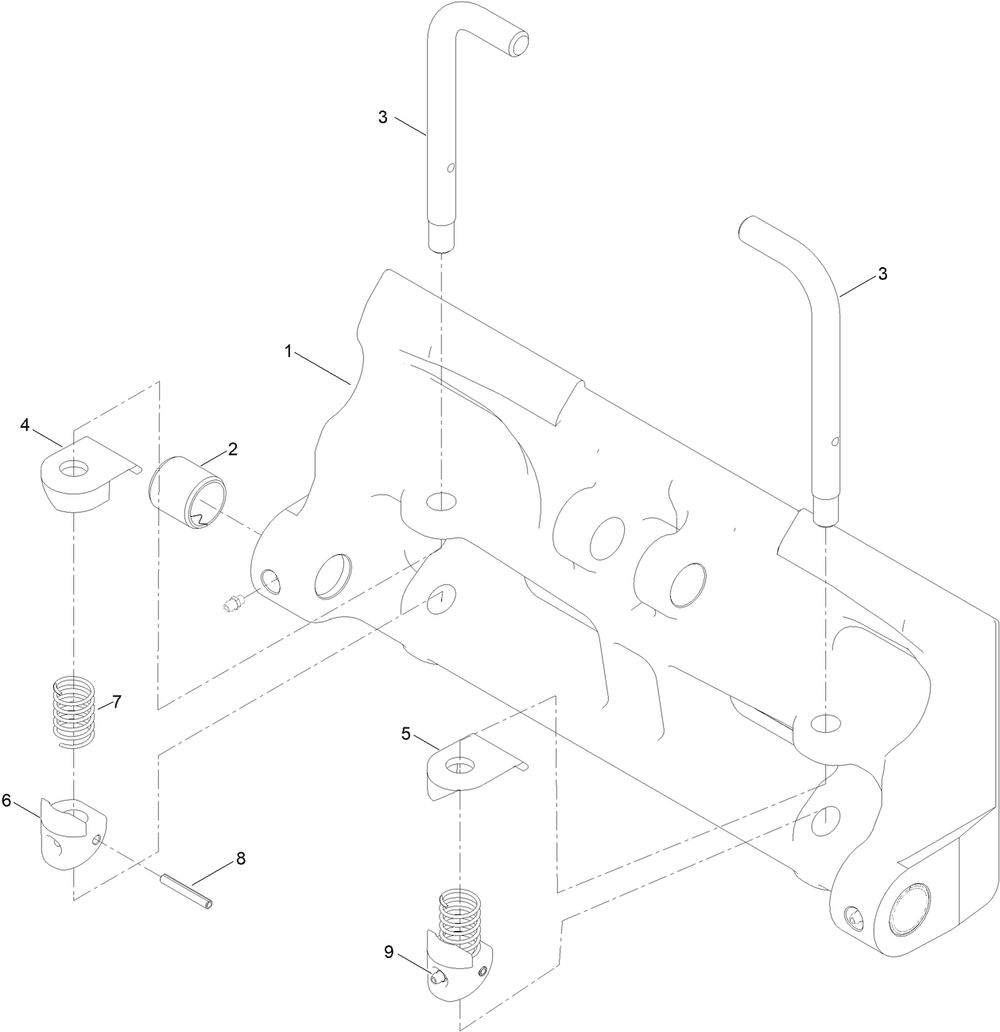

Attachment Plate Assembly No. 140-6017
Attachment Plate Assembly No. 140-6017 Diagram and Parts List for 413000000 - 414487256 Toro Lawn Tractor Accessories
  • 1
    Qtach – Part Number: 140-5992
    Qtach
    Part Number: 140-5992
      No Longer Available
  • 2
    Bushing-Spring – Part Number: 139-5737
    Bushing-Spring
    Part Number: 139-5737
      No Longer Available
  • 3
    Pin-Locking, – Part Number: 140-5979
    Pin-Locking,
    Part Number: 140-5979
      No Longer Available
  • 4
    STOP-PIN, LH – Part Number: 140-5983
    STOP-PIN, LH
    Part Number: 140-5983
      No Longer Available
  • 5
    STOP-PIN, RH – Part Number: 140-5991
    STOP-PIN, RH
    Part Number: 140-5991
      No Longer Available
  • 6
    CAM-QTACH – Part Number: 140-5981
    CAM-QTACH
    Part Number: 140-5981
      No Longer Available
  • 7
    Spring-Compression – Part Number: 100-9782
    Spring-Compression
    Part Number: 100-9782
      Special Order
    $9.18
  • 8
    Pin-Roll – Part Number: 32121-32
    Pin-Roll
    Part Number: 32121-32
      Special Order
    $5.95
  • 9
    Fitting-grease – Part Number: 302-5
    Fitting-grease
    Part Number: 302-5
      In Stock
    $5.95
Camshaft And Driving Gear Assembly
Camshaft And Driving Gear Assembly Diagram and Parts List for 413000000 - 414487256 Toro Lawn Tractor Accessories
  • 1
    Tappet – Part Number: 125-7016
    Tappet
    Part Number: 125-7016
      Special Order
    $35.33
  • 2
    Rod-Push – Part Number: 125-7017
    Rod-Push
    Part Number: 125-7017
      Special Order
    $21.56
  • 3
    Camshaft Asm – Part Number: 127-3797
    Camshaft Asm
    Part Number: 127-3797
      Special Order
    $479.13
  • 4
    Metal-Thrust – Part Number: 125-7008
    Metal-Thrust
    Part Number: 125-7008
      Special Order
    $49.11
  • 6
    Gear-Camshaft – Part Number: 127-3052
    Gear-Camshaft
    Part Number: 127-3052
      Special Order
    $302.64
  • 7
    Key – Part Number: 125-7185
    Key
    Part Number: 125-7185
      Special Order
    $5.95
  • 8
    Pulser-Camshaft – Part Number: 127-3053
    Pulser-Camshaft
    Part Number: 127-3053
      Special Order
    $41.36
  • 9
    Bolt – Part Number: 125-7205
    Bolt
    Part Number: 125-7205
      Special Order
    $5.95
  • 10
    Bolt – Part Number: 125-7213
    Bolt
    Part Number: 125-7213
      Special Order
    $5.95
  • 11
    Sensor-Rev, Gear – Part Number: 127-3054
    Sensor-Rev, Gear
    Part Number: 127-3054
      Special Order
    $239.86
  • 12
    Bolt – Part Number: 127-3184
    Bolt
    Part Number: 127-3184
      Special Order
    $8.60
  • 13
    Shaft-Idle, Gear A – Part Number: 127-3063
    Shaft-Idle, Gear A
    Part Number: 127-3063
      No Longer Available
  • 14
    Idle Gear a Asm – Part Number: 127-3066
    Idle Gear a Asm
    Part Number: 127-3066
      Special Order
    $210.96
  • 17
    Bolt – Part Number: 125-7219
    Bolt
    Part Number: 125-7219
      Special Order
    $8.60
  • 18
    Gear-Pump, Supply – Part Number: 127-3070
    Gear-Pump, Supply
    Part Number: 127-3070
      Special Order
    $195.09
  • 19
    Washer-Spring – Part Number: 127-3167
    Washer-Spring
    Part Number: 127-3167
      Special Order
    $5.95
  • 20
    Nut-Lock – Part Number: 127-3185
    Nut-Lock
    Part Number: 127-3185
      Special Order
    $10.32
  • 21
    Shaft-Idle, Gear B – Part Number: 127-3064
    Shaft-Idle, Gear B
    Part Number: 127-3064
      No Longer Available
  • 22
    Idle Gear B Asm – Part Number: 127-3067
    Idle Gear B Asm
    Part Number: 127-3067
      Special Order
    $178.24
  • 25
    Plate-Idle, Shaft – Part Number: 127-3068
    Plate-Idle, Shaft
    Part Number: 127-3068
      No Longer Available
  • 26
    Gasket-Idle, Shaft B – Part Number: 127-3069
    Gasket-Idle, Shaft B
    Part Number: 127-3069
      Special Order
    $8.80
  • 27
    Bolt – Part Number: 125-7218
    Bolt
    Part Number: 125-7218
      Special Order
    $6.52
  • 28
    Bushing – Part Number: 125-6927
    Bushing
    Part Number: 125-6927
      Special Order
    $112.66
  • 29
    Bushing – Part Number: 127-3065
    Bushing
    Part Number: 127-3065
      Special Order
    $108.21

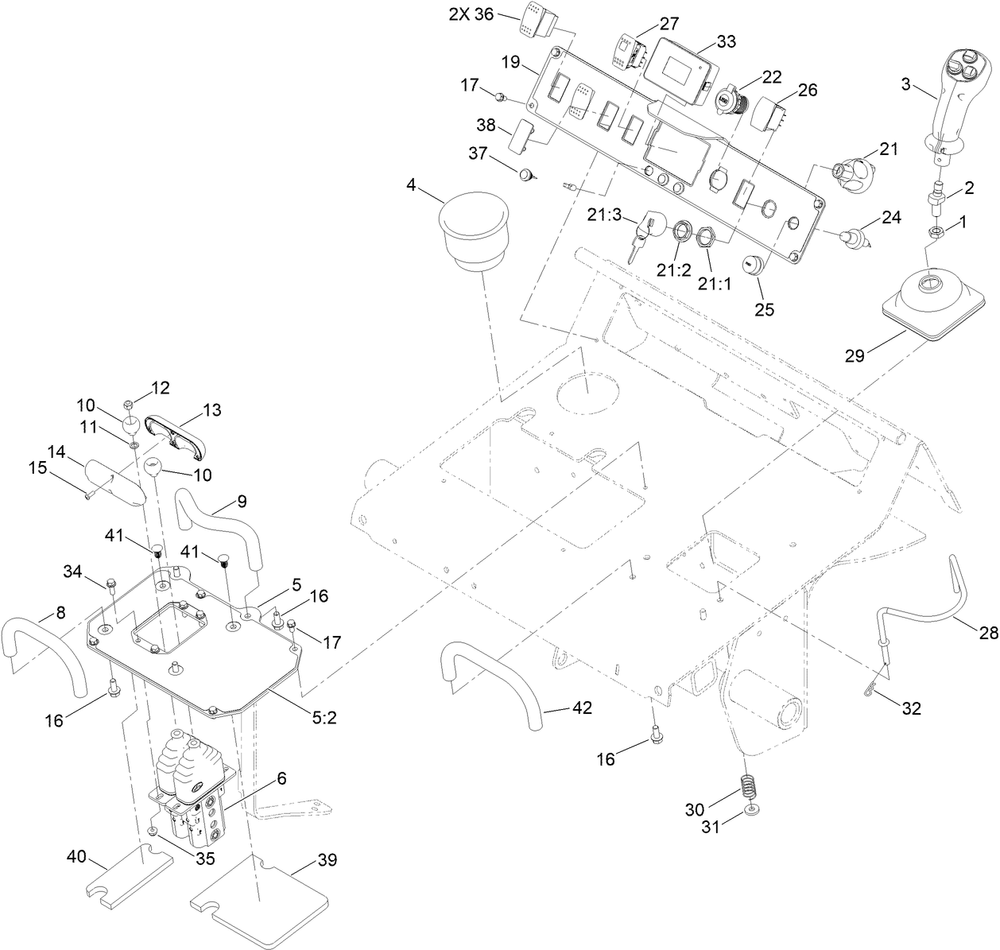

Console Assembly
Console Assembly Diagram and Parts List for 413000000 - 414487256 Toro Lawn Tractor Accessories
Control Valve Assembly No. 145-3279
Control Valve Assembly No. 145-3279 Diagram and Parts List for 413000000 - 414487256 Toro Lawn Tractor Accessories
Cooling System Assembly
Cooling System Assembly Diagram and Parts List for 413000000 - 414487256 Toro Lawn Tractor Accessories
  • 1
    Water Pump Asm – Part Number: 127-3071
    Water Pump Asm
    Part Number: 127-3071
      Special Order
    $1256.09
  • 3
    Gasket – Part Number: 125-6998
    Gasket
    Part Number: 125-6998
      Special Order
    $26.20
  • 4
    Plate – Part Number: 125-6999
    Plate
    Part Number: 125-6999
      Special Order
    $104.32
  • 9
    Joint – Part Number: 127-3017
    Joint
    Part Number: 127-3017
      Special Order
    $122.20
  • 10
    Plug – Part Number: 125-7123
    Plug
    Part Number: 125-7123
      Special Order
    $20.96
  • 11
    Plug – Part Number: 127-3175
    Plug
    Part Number: 127-3175
      No Longer Available
  • 12
    Plug – Part Number: 125-7195
    Plug
    Part Number: 125-7195
      Special Order
    $5.95
  • 13
    Screw – Part Number: 125-7234
    Screw
    Part Number: 125-7234
      Special Order
    $5.95
  • 14
    Gasket – Part Number: 125-7047
    Gasket
    Part Number: 125-7047
      Special Order
    $10.90
  • 15
    Joint – Part Number: 125-6986
    Joint
    Part Number: 125-6986
      Special Order
    $47.64
  • 16
    O-Ring – Part Number: 125-7048
    O-Ring
    Part Number: 125-7048
      Special Order
    $5.95
  • 17
    Gasket – Part Number: 125-6978
    Gasket
    Part Number: 125-6978
      Special Order
    $5.95
  • 18
    Gasket – Part Number: 125-7192
    Gasket
    Part Number: 125-7192
      Special Order
    $5.95
  • 19
    Bolt – Part Number: 93-0362
    Bolt
    Part Number: 93-0362
      Special Order
    $5.95
  • 20
    Bolt – Part Number: 125-7214
    Bolt
    Part Number: 125-7214
      Special Order
    $7.08
  • 21
    Bolt – Part Number: 125-7219
    Bolt
    Part Number: 125-7219
      Special Order
    $8.60
  • 22
    Bolt – Part Number: 125-7222
    Bolt
    Part Number: 125-7222
      Special Order
    $9.36
  • 23
    V-Pulley – Part Number: 125-7039
    V-Pulley
    Part Number: 125-7039
      No Longer Available
  • 24
    V-Belt – Part Number: 127-2998
    V-Belt
    Part Number: 127-2998
      No Longer Available
  • 25
    Fan – Part Number: 127-4713
    Fan
    Part Number: 127-4713
      No Longer Available
  • 26
    Spacer – Part Number: 127-4768
    Spacer
    Part Number: 127-4768
      No Longer Available
  • 27
    Bolt – Part Number: 125-7211
    Bolt
    Part Number: 125-7211
      Special Order
    $6.52
  • 28
    Thermostat – Part Number: 125-7029
    Thermostat
    Part Number: 125-7029
      In Stock
    $100.52
  • 29
    Gasket – Part Number: 125-7026
    Gasket
    Part Number: 125-7026
      In Stock
    Minimum Quantity of 2 required
    $6.18
  • 30
    Cover – Part Number: 125-7034
    Cover
    Part Number: 125-7034
      Special Order
    $133.84
  • 31
    Gasket – Part Number: 125-7110
    Gasket
    Part Number: 125-7110
      Special Order
    $8.00
  • 32
    Bolt – Part Number: 125-7594
    Bolt
    Part Number: 125-7594
      Special Order
    $5.95
  • 33
    Plug – Part Number: 125-6953
    Plug
    Part Number: 125-6953
      Special Order
    $16.13
  • 34
    Sensor-Thermostat, Cw – Part Number: 125-7124
    Sensor-Thermostat, Cw
    Part Number: 125-7124
      Special Order
    $159.63
  • 35
    Gasket – Part Number: 125-6979
    Gasket
    Part Number: 125-6979
      Special Order
    $5.95
  • 36
    Washer-Seal – Part Number: 125-7176
    Washer-Seal
    Part Number: 125-7176
      Special Order
    $13.70
  • 37
    Joint – Part Number: 127-3017
    Joint
    Part Number: 127-3017
      Special Order
    $122.20
  • 38
    Water In Pipe Asm – Part Number: 127-3072
    Water In Pipe Asm
    Part Number: 127-3072
      No Longer Available
  • 40
    Clip-Hose – Part Number: 127-3020
    Clip-Hose
    Part Number: 127-3020
      No Longer Available
  • 42
    Cw Pipe Asm – Part Number: 127-3811
    Cw Pipe Asm
    Part Number: 127-3811
      Special Order
    $151.31
  • 43
    Clip-Hose – Part Number: 127-3020
    Clip-Hose
    Part Number: 127-3020
      No Longer Available
Cooling System Assembly
Cooling System Assembly Diagram and Parts List for 413000000 - 414487256 Toro Lawn Tractor Accessories
Crankshaft And Piston Assembly
Crankshaft And Piston Assembly Diagram and Parts List for 413000000 - 414487256 Toro Lawn Tractor Accessories
  • 1
    Crankshaft Asm – Part Number: 127-3800
    Crankshaft Asm
    Part Number: 127-3800
      Special Order
    $3054.86
  • 2
    Pin – Part Number: 125-6995
    Pin
    Part Number: 125-6995
      Special Order
    $10.22
  • 4
    Gear – Part Number: 125-6937
    Gear
    Part Number: 125-6937
      Special Order
    $311.84
  • 5
    Key – Part Number: 125-7185
    Key
    Part Number: 125-7185
      Special Order
    $5.95
  • 7
    Pin-Spring – Part Number: 125-7182
    Pin-Spring
    Part Number: 125-7182
      Special Order
    $7.08
  • 8
    Pulley-V – Part Number: 127-3801
    Pulley-V
    Part Number: 127-3801
      Special Order
    $411.40
  • 9
    Washer – Part Number: 125-7109
    Washer
    Part Number: 125-7109
      Special Order
    $36.88
  • 10
    Bolt – Part Number: 125-6956
    Bolt
    Part Number: 125-6956
      Special Order
    $68.57
  • 11
    Bolt – Part Number: 125-6951
    Bolt
    Part Number: 125-6951
      Special Order
    $12.70
  • 12
    Flywheel Asm – Part Number: 127-3802
    Flywheel Asm
    Part Number: 127-3802
      No Longer Available
  • 14
    Gear – Part Number: 125-6943
    Gear
    Part Number: 125-6943
      No Longer Available
  • 16
    Piston Asm – Part Number: 127-4766
    Piston Asm
    Part Number: 127-4766
      Special Order
    $688.87
  • 18
    Piston Ring Asm – Part Number: 127-4751
    Piston Ring Asm
    Part Number: 127-4751
      Special Order
    $188.73
  • 24
    Pin – Part Number: 125-7030
    Pin
    Part Number: 125-7030
      Special Order
    $67.55
  • 25
    Ring – Part Number: 125-7180
    Ring
    Part Number: 125-7180
      Special Order
    $5.95
  • 26
    Connecting Rod Asm – Part Number: 125-7242
    Connecting Rod Asm
    Part Number: 125-7242
      Special Order
    $710.20
  • 29
    Bolt – Part Number: 125-6955
    Bolt
    Part Number: 125-6955
      Special Order
    $38.68
  • 30
    Pin-Crank – Part Number: 125-7018
    Pin-Crank
    Part Number: 125-7018
      Special Order
    $40.45
  • 32
    Pin-Piston – Part Number: 125-6997
    Pin-Piston
    Part Number: 125-6997
      Special Order
    $37.05
  • 33
    Pin-Crank (.25) – Part Number: 125-7019
    Pin-Crank (.25)
    Part Number: 125-7019
      Special Order
    $40.51
  • 35
    Piston Asm (0.25 O S) – Part Number: 127-4767
    Piston Asm (0.25 O S)
    Part Number: 127-4767
      Special Order
    $839.13
  • 37
    Ring Set (0.25 O S) – Part Number: 127-4752
    Ring Set (0.25 O S)
    Part Number: 127-4752
      Special Order
    $147.91
Cylinder Block Assembly
Cylinder Block Assembly Diagram and Parts List for 413000000 - 414487256 Toro Lawn Tractor Accessories
  • 1
    Cylinder Block Asm – Part Number: 127-4717
    Cylinder Block Asm
    Part Number: 127-4717
      Special Order
    $6843.66
  • 4
    Plug – Part Number: 125-6969
    Plug
    Part Number: 125-6969
      Special Order
    $5.95
  • 5
    Plug – Part Number: 125-6980
    Plug
    Part Number: 125-6980
      Special Order
    $11.46
  • 6
    Plug – Part Number: 125-6973
    Plug
    Part Number: 125-6973
      Special Order
    $5.95
  • 7
    Plug – Part Number: 125-6973
    Plug
    Part Number: 125-6973
      Special Order
    $5.95
  • 8
    Plug – Part Number: 125-7170
    Plug
    Part Number: 125-7170
      Special Order
    $30.42
  • 9
    Bolt – Part Number: 125-7007
    Bolt
    Part Number: 125-7007
      Special Order
    $56.57
  • 12
    Bushing – Part Number: 125-7108
    Bushing
    Part Number: 125-7108
      Special Order
    $67.60
  • 13
    Plug – Part Number: 125-7237
    Plug
    Part Number: 125-7237
      Special Order
    $5.95
  • 14
    Plug – Part Number: 125-7239
    Plug
    Part Number: 125-7239
      Special Order
    $30.28
  • 24
    Metal-Thrust – Part Number: 125-7010
    Metal-Thrust
    Part Number: 125-7010
      Special Order
    $19.90
  • 27
    Bolt – Part Number: 125-7006
    Bolt
    Part Number: 125-7006
      Special Order
    $62.20
  • 28
    Head Gasket Asm – Part Number: 127-4716
    Head Gasket Asm
    Part Number: 127-4716
      Special Order
    $130.85
  • 29
    Metal-Main – Part Number: 125-6981
    Metal-Main
    Part Number: 125-6981
      Special Order
    $75.42
  • 32
    Metal-Main (0.25) – Part Number: 125-7009
    Metal-Main (0.25)
    Part Number: 125-7009
      Special Order
    $64.60
  • 35
    Metal-Thrust (0.25) – Part Number: 125-7011
    Metal-Thrust (0.25)
    Part Number: 125-7011
      Special Order
    $56.69

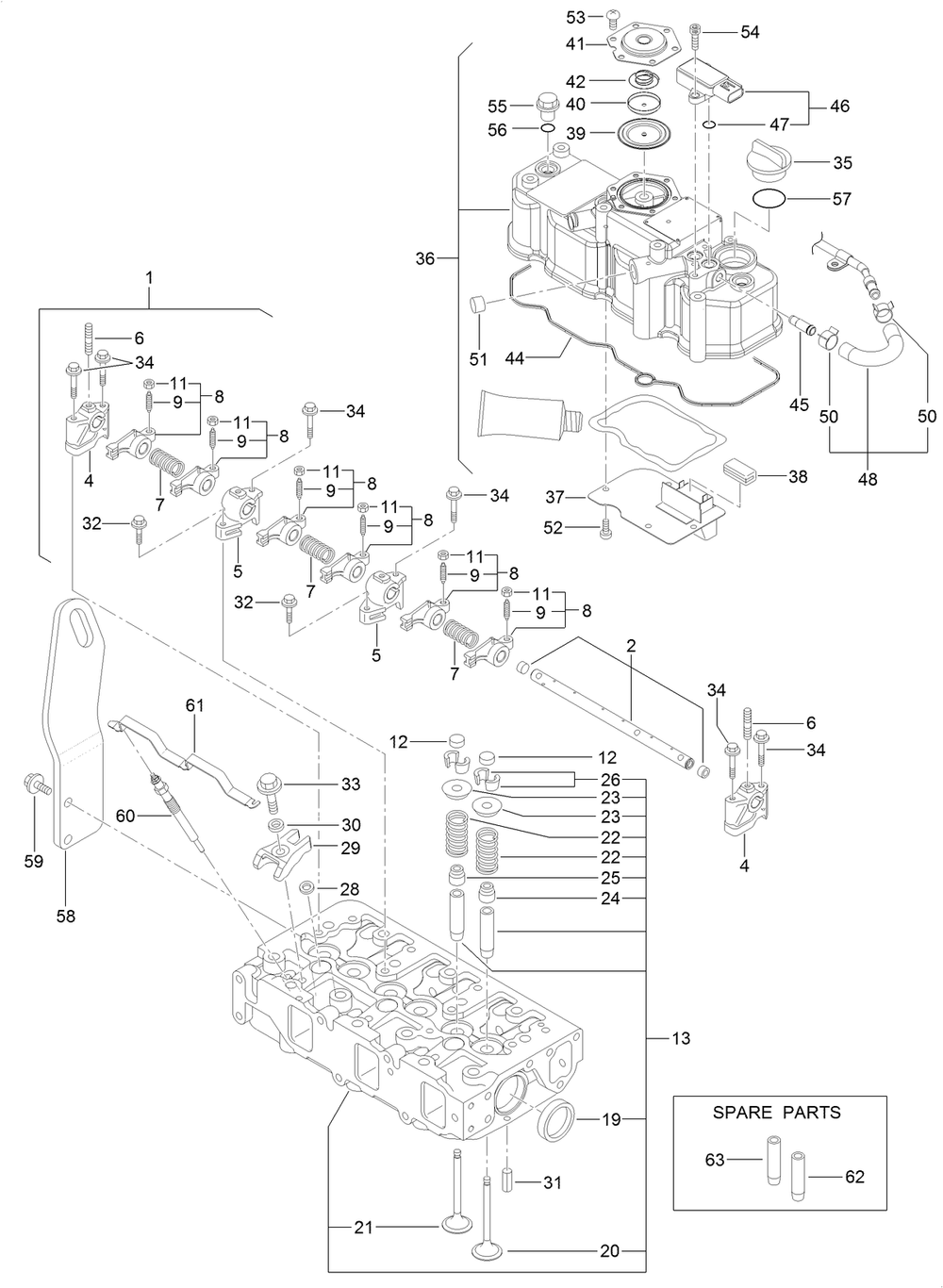

Cylinder Head And Cover Assembly
Cylinder Head And Cover Assembly Diagram and Parts List for 413000000 - 414487256 Toro Lawn Tractor Accessories
  • 1
    Shaft Asm – Part Number: 127-3757
    Shaft Asm
    Part Number: 127-3757
      Special Order
    $861.27
  • 2
    Shaft – Part Number: 127-3758
    Shaft
    Part Number: 127-3758
      Special Order
    $195.09
  • 4
    Support – Part Number: 127-2974
    Support
    Part Number: 127-2974
      No Longer Available
  • 5
    Support – Part Number: 127-2975
    Support
    Part Number: 127-2975
      Special Order
    $83.97
  • 6
    Stud – Part Number: 127-3759
    Stud
    Part Number: 127-3759
      No Longer Available
  • 7
    Spring – Part Number: 127-2995
    Spring
    Part Number: 127-2995
      No Longer Available
  • 8
    Arm-Rocker – Part Number: 127-2989
    Arm-Rocker
    Part Number: 127-2989
      Special Order
    $106.38
  • 9
    Screw-Adjust, Valve – Part Number: 125-7013
    Screw-Adjust, Valve
    Part Number: 125-7013
      Special Order
    $40.73
  • 11
    Nut – Part Number: 125-7014
    Nut
    Part Number: 125-7014
      Special Order
    $9.86
  • 12
    Cap-Valve – Part Number: 127-2996
    Cap-Valve
    Part Number: 127-2996
      Special Order
    $10.10
  • 13
    Cylinder Head Asm – Part Number: 127-4720
    Cylinder Head Asm
    Part Number: 127-4720
      Special Order
    $4711.27
  • 19
    Plug – Part Number: 125-7240
    Plug
    Part Number: 125-7240
      Special Order
    $8.63
  • 20
    Valve – Part Number: 127-2990
    Valve
    Part Number: 127-2990
      Special Order
    $136.60
  • 21
    Valve – Part Number: 127-4710
    Valve
    Part Number: 127-4710
      Special Order
    $60.60
  • 22
    Spring – Part Number: 127-3012
    Spring
    Part Number: 127-3012
      No Longer Available
  • 23
    Retainer-Spring – Part Number: 127-3013
    Retainer-Spring
    Part Number: 127-3013
      No Longer Available
  • 24
    Seal-Stem, Valve – Part Number: 127-2986
    Seal-Stem, Valve
    Part Number: 127-2986
      Special Order
    $13.56
  • 25
    Seal-Stem, Valve – Part Number: 127-3027
    Seal-Stem, Valve
    Part Number: 127-3027
      Special Order
    $14.42
  • 26
    Pin-Cotter – Part Number: 127-3186
    Pin-Cotter
    Part Number: 127-3186
      Special Order
    $29.82
  • 28
    Gasket-Injector – Part Number: 127-3021
    Gasket-Injector
    Part Number: 127-3021
      Special Order
    $9.66
  • 29
    Retainer-Injector – Part Number: 127-3028
    Retainer-Injector
    Part Number: 127-3028
      Special Order
    $113.27
  • 30
    Washer-Injector – Part Number: 127-2980
    Washer-Injector
    Part Number: 127-2980
      Special Order
    $32.90
  • 31
    Pin-Spring – Part Number: 125-7184
    Pin-Spring
    Part Number: 125-7184
      Special Order
    $6.52
  • 32
    Bolt – Part Number: 125-7215
    Bolt
    Part Number: 125-7215
      Special Order
    $6.52
  • 33
    Bolt – Part Number: 125-7217
    Bolt
    Part Number: 125-7217
      Special Order
    $8.60
  • 34
    Bolt – Part Number: 125-7220
    Bolt
    Part Number: 125-7220
      Special Order
    $9.36
  • 35
    Cover-Filler – Part Number: 125-6972
    Cover-Filler
    Part Number: 125-6972
      Special Order
    $21.56
  • 36
    Cylinder Head Cover Asm – Part Number: 127-4719
    Cylinder Head Cover Asm
    Part Number: 127-4719
      Special Order
    $508.19
  • 37
    Plate – Part Number: 127-2988
    Plate
    Part Number: 127-2988
      Special Order
    $239.93
  • 38
    Baffle – Part Number: 125-7012
    Baffle
    Part Number: 125-7012
      Special Order
    $11.00
  • 39
    Diaphragm – Part Number: 125-6959
    Diaphragm
    Part Number: 125-6959
      Special Order
    $92.80
  • 40
    Plate – Part Number: 125-6960
    Plate
    Part Number: 125-6960
      Special Order
    $34.30
  • 41
    Plate-Breather – Part Number: 125-6961
    Plate-Breather
    Part Number: 125-6961
      Special Order
    $54.39
  • 42
    Spring-Diaphragm – Part Number: 125-6962
    Spring-Diaphragm
    Part Number: 125-6962
      Special Order
    $38.52
  • 44
    Gasket-Head, Cylinder – Part Number: 127-3856
    Gasket-Head, Cylinder
    Part Number: 127-3856
      Special Order
    $110.55
  • 45
    Joint – Part Number: 127-3026
    Joint
    Part Number: 127-3026
      Special Order
    $94.94
  • 46
    Sensor-Pressure – Part Number: 127-3029
    Sensor-Pressure
    Part Number: 127-3029
      Special Order
    $1262.33
  • 47
    O Ring-Sensor, Pressure – Part Number: 127-3032
    O Ring-Sensor, Pressure
    Part Number: 127-3032
      Special Order
    $38.66
  • 48
    Hose Asm – Part Number: 127-3040
    Hose Asm
    Part Number: 127-3040
      Special Order
    $156.50
  • 50
    Clip-Hose – Part Number: 127-3041
    Clip-Hose
    Part Number: 127-3041
      Special Order
    $40.27
  • 51
    Plug – Part Number: 125-6913
    Plug
    Part Number: 125-6913
      Special Order
    $17.48
  • 52
    Screw – Part Number: 125-7186
    Screw
    Part Number: 125-7186
      Special Order
    $5.95
  • 53
    Screw – Part Number: 125-7186
    Screw
    Part Number: 125-7186
      Special Order
    $5.95
  • 54
    Bolt – Part Number: 127-3184
    Bolt
    Part Number: 127-3184
      Special Order
    $8.60
  • 55
    Knob – Part Number: 125-6974
    Knob
    Part Number: 125-6974
      Special Order
    $14.08
  • 56
    O-Ring – Part Number: 93-0418
    O-Ring
    Part Number: 93-0418
      Special Order
    $10.02
  • 57
    O-Ring – Part Number: 125-7197
    O-Ring
    Part Number: 125-7197
      Special Order
    $5.95
  • 58
    Lifter – Part Number: 125-7111
    Lifter
    Part Number: 125-7111
      Special Order
    $19.80
  • 59
    Bolt – Part Number: 125-7214
    Bolt
    Part Number: 125-7214
      Special Order
    $7.08
  • 60
    Plug-Glow – Part Number: 127-2991
    Plug-Glow
    Part Number: 127-2991
      Special Order
    $234.56
  • 61
    Connector-Plug, Glow – Part Number: 127-3768
    Connector-Plug, Glow
    Part Number: 127-3768
      Special Order
    $67.82
  • 62
    Guide – Part Number: 127-2979
    Guide
    Part Number: 127-2979
      Special Order
    $56.48
  • 63
    Guide-Valve – Part Number: 127-2997
    Guide-Valve
    Part Number: 127-2997
      Special Order
    $23.70
Diesel Particulate Filter Assembly
Diesel Particulate Filter Assembly Diagram and Parts List for 413000000 - 414487256 Toro Lawn Tractor Accessories
  • 1
    Gasket-Exhaust – Part Number: 121-3058
    Gasket-Exhaust
    Part Number: 121-3058
      Special Order
    $41.52
  • 2
    Dpf Unit – Part Number: 127-4742
    Dpf Unit
    Part Number: 127-4742
      No Longer Available
  • 3
    Sensor-Temp, Exhaust – Part Number: 127-4764
    Sensor-Temp, Exhaust
    Part Number: 127-4764
      Special Order
    $300.59
  • 4
    Sensor-Temp, Exhaust – Part Number: 127-4765
    Sensor-Temp, Exhaust
    Part Number: 127-4765
      Special Order
    $300.59
  • 5
    D P F Asm – Part Number: 127-4730
    D P F Asm
    Part Number: 127-4730
      No Longer Available
  • 6
    Case-Doc – Part Number: 127-4731
    Case-Doc
    Part Number: 127-4731
      No Longer Available
  • 8
    Case-Soot Filter – Part Number: 127-4733
    Case-Soot Filter
    Part Number: 127-4733
      No Longer Available
  • 10
    Silencer-D P F – Part Number: 127-3786
    Silencer-D P F
    Part Number: 127-3786
      Special Order
    $860.57
  • 11
    Gasket-D P F – Part Number: 127-3859
    Gasket-D P F
    Part Number: 127-3859
      Special Order
    $26.48
  • 12
    Bolt – Part Number: 127-3055
    Bolt
    Part Number: 127-3055
      Special Order
    $16.78
  • 13
    Lifter-D P F – Part Number: 127-3788
    Lifter-D P F
    Part Number: 127-3788
      Special Order
    $67.82
  • 14
    Stiffener-D P F, A – Part Number: 127-3789
    Stiffener-D P F, A
    Part Number: 127-3789
      Special Order
    $111.05
  • 15
    Stiffener-D P F, B – Part Number: 127-3790
    Stiffener-D P F, B
    Part Number: 127-3790
      Special Order
    $121.18
  • 16
    Stiffener-D P F, C – Part Number: 127-3791
    Stiffener-D P F, C
    Part Number: 127-3791
      Special Order
    $206.74
  • 17
    Stiffener-D P F, C – Part Number: 127-3792
    Stiffener-D P F, C
    Part Number: 127-3792
      Special Order
    $147.91
  • 18
    Stay-Dpf – Part Number: 127-4737
    Stay-Dpf
    Part Number: 127-4737
      No Longer Available
  • 19
    Bolt – Part Number: 125-7213
    Bolt
    Part Number: 125-7213
      Special Order
    $5.95
  • 20
    Bolt – Part Number: 125-7594
    Bolt
    Part Number: 125-7594
      Special Order
    $5.95
  • 21
    Nut – Part Number: 125-7229
    Nut
    Part Number: 125-7229
      Special Order
    $5.95
  • 22
    Sensor Pressure Unit – Part Number: 127-4777
    Sensor Pressure Unit
    Part Number: 127-4777
      No Longer Available
  • 23
    Bolt-Joint, Pipe – Part Number: 127-3039
    Bolt-Joint, Pipe
    Part Number: 127-3039
      Special Order
    $184.03
  • 24
    Pipe-Sensor – Part Number: 127-3795
    Pipe-Sensor
    Part Number: 127-3795
      No Longer Available
  • 25
    Gasket-Sensor – Part Number: 127-3056
    Gasket-Sensor
    Part Number: 127-3056
      Special Order
    $5.95
  • 26
    Pipe-Sensor – Part Number: 127-3796
    Pipe-Sensor
    Part Number: 127-3796
      No Longer Available
  • 27
    Exhaust Hose Asm – Part Number: 127-4746
    Exhaust Hose Asm
    Part Number: 127-4746
      No Longer Available
  • 29
    Clip-Hose – Part Number: 127-3057
    Clip-Hose
    Part Number: 127-3057
      No Longer Available
  • 30
    Exhaust Pressure Hose Asm – Part Number: 127-3059
    Exhaust Pressure Hose Asm
    Part Number: 127-3059
      No Longer Available
  • 32
    Clip-Hose – Part Number: 127-3058
    Clip-Hose
    Part Number: 127-3058
      No Longer Available
  • 33
    Sensor-Pressure – Part Number: 127-3060
    Sensor-Pressure
    Part Number: 127-3060
      Special Order
    $1325.45
  • 34
    Bracket-Sensor, Pressure – Part Number: 127-3061
    Bracket-Sensor, Pressure
    Part Number: 127-3061
      No Longer Available
  • 35
    Bolt – Part Number: 125-7208
    Bolt
    Part Number: 125-7208
      Special Order
    $7.08
  • 36
    Bolt – Part Number: 125-7595
    Bolt
    Part Number: 125-7595
      Special Order
    $5.95
  • 37
    Band-Clip – Part Number: 127-3087
    Band-Clip
    Part Number: 127-3087
      Special Order
    $5.95
  • 38
    Band – Part Number: 127-3124
    Band
    Part Number: 127-3124
      Special Order
    $5.95
  • 39
    Clip-Connnector – Part Number: 127-3088
    Clip-Connnector
    Part Number: 127-3088
      Special Order
    $14.60
  • 40
    Bolt – Part Number: 127-4773
    Bolt
    Part Number: 127-4773
      Special Order
    $6.52
  • 41
    Nut – Part Number: 125-7229
    Nut
    Part Number: 125-7229
      Special Order
    $5.95
Electric Parts Assembly
Electric Parts Assembly Diagram and Parts List for 413000000 - 414487256 Toro Lawn Tractor Accessories
  • 1
    Bracket-Connector – Part Number: 127-3086
    Bracket-Connector
    Part Number: 127-3086
      No Longer Available
  • 2
    Harness – Part Number: 135-4029
    Harness
    Part Number: 135-4029
      Special Order
    $2246.41
  • 11
    Harness – Part Number: 130-7438
    Harness
    Part Number: 130-7438
      Special Order
    $689.70
  • 16
    Boot-Type, Cap – Part Number: 127-3089
    Boot-Type, Cap
    Part Number: 127-3089
      No Longer Available
  • 17
    Bracket-Harness – Part Number: 127-3090
    Bracket-Harness
    Part Number: 127-3090
      No Longer Available
  • 18
    Bolt – Part Number: 93-0362
    Bolt
    Part Number: 93-0362
      Special Order
    $5.95
  • 19
    Bolt – Part Number: 93-0362
    Bolt
    Part Number: 93-0362
      Special Order
    $5.95
  • 20
    Band – Part Number: 127-3187
    Band
    Part Number: 127-3187
      Special Order
    $5.95
  • 21
    Band – Part Number: 127-3188
    Band
    Part Number: 127-3188
      No Longer Available
Electrical System Assembly
Electrical System Assembly Diagram and Parts List for 413000000 - 414487256 Toro Lawn Tractor Accessories
Engine Assembly
Engine Assembly Diagram and Parts List for 413000000 - 414487256 Toro Lawn Tractor Accessories
Exhaust Manifold Assembly
Exhaust Manifold Assembly Diagram and Parts List for 413000000 - 414487256 Toro Lawn Tractor Accessories
  • 1
    Gasket-Manifold, Exhaust – Part Number: 127-3775
    Gasket-Manifold, Exhaust
    Part Number: 127-3775
      Special Order
    $21.30
  • 2
    Manifold-Exhaust – Part Number: 127-4727
    Manifold-Exhaust
    Part Number: 127-4727
      No Longer Available
  • 3
    Bolt-Flange – Part Number: 127-3776
    Bolt-Flange
    Part Number: 127-3776
      No Longer Available
  • 4
    Bolt-M10 – Part Number: 127-3044
    Bolt-M10
    Part Number: 127-3044
      No Longer Available
  • 5
    Stud – Part Number: 127-4756
    Stud
    Part Number: 127-4756
      Special Order
    $13.86
  • 6
    Sensor-Temp, Exhaust – Part Number: 127-4728
    Sensor-Temp, Exhaust
    Part Number: 127-4728
      No Longer Available
  • 7
    Band-Clip – Part Number: 127-3087
    Band-Clip
    Part Number: 127-3087
      Special Order
    $5.95
  • 8
    Stud – Part Number: 125-7043
    Stud
    Part Number: 125-7043
      Special Order
    $23.32
  • 9
    Nut – Part Number: 125-7230
    Nut
    Part Number: 125-7230
      Special Order
    $5.95
  • 10
    Exhaust Pipe Asm – Part Number: 127-3038
    Exhaust Pipe Asm
    Part Number: 127-3038
      Special Order
    $226.40
  • 11
    Clamp – Part Number: 127-3173
    Clamp
    Part Number: 127-3173
      Special Order
    $33.68
  • 12
    Bolt-Joint, Pipe – Part Number: 127-3039
    Bolt-Joint, Pipe
    Part Number: 127-3039
      Special Order
    $184.03
  • 13
    Gasket – Part Number: 127-3174
    Gasket
    Part Number: 127-3174
      Special Order
    $5.95
  • 14
    Bolt – Part Number: 125-7206
    Bolt
    Part Number: 125-7206
      Special Order
    $5.95
  • 15
    Cooler-E G R – Part Number: 127-3042
    Cooler-E G R
    Part Number: 127-3042
      Special Order
    $1148.76
  • 16
    Gasket-Cooler, E G R – Part Number: 127-3043
    Gasket-Cooler, E G R
    Part Number: 127-3043
      Special Order
    $7.72
  • 17
    Bolt – Part Number: 127-2976
    Bolt
    Part Number: 127-2976
      No Longer Available
  • 18
    Bolt-Flange – Part Number: 127-3022
    Bolt-Flange
    Part Number: 127-3022
      No Longer Available
  • 19
    E G R Pipe Asm – Part Number: 127-3048
    E G R Pipe Asm
    Part Number: 127-3048
      Special Order
    $223.86
  • 20
    Pipe-Out, E G R – Part Number: 127-3049
    Pipe-Out, E G R
    Part Number: 127-3049
      No Longer Available
  • 21
    Stud – Part Number: 125-7043
    Stud
    Part Number: 125-7043
      Special Order
    $23.32
  • 22
    Bolt – Part Number: 125-7220
    Bolt
    Part Number: 125-7220
      Special Order
    $9.36
  • 23
    Sensor-Gas Temp, E G R – Part Number: 127-3047
    Sensor-Gas Temp, E G R
    Part Number: 127-3047
      No Longer Available
  • 24
    E G R Pipe Asm – Part Number: 127-3780
    E G R Pipe Asm
    Part Number: 127-3780
      Special Order
    $614.70
  • 25
    Gasket – Part Number: 127-3016
    Gasket
    Part Number: 127-3016
      Special Order
    $8.16
  • 26
    Bolt – Part Number: 125-7215
    Bolt
    Part Number: 125-7215
      Special Order
    $6.52
  • 27
    Nut – Part Number: 125-7229
    Nut
    Part Number: 125-7229
      Special Order
    $5.95
  • 28
    Valve-E G R – Part Number: 127-3781
    Valve-E G R
    Part Number: 127-3781
      Special Order
    $3231.57
  • 29
    Gasket-Intake Valve, E G R – Part Number: 127-3050
    Gasket-Intake Valve, E G R
    Part Number: 127-3050
      Special Order
    $10.82
  • 30
    Gasket-Out Valve, E G R – Part Number: 127-3051
    Gasket-Out Valve, E G R
    Part Number: 127-3051
      Special Order
    $9.50
  • 31
    Nut – Part Number: 125-7229
    Nut
    Part Number: 125-7229
      Special Order
    $5.95
Flywheel Housing And Oil Sump Assembly
Flywheel Housing And Oil Sump Assembly Diagram and Parts List for 413000000 - 414487256 Toro Lawn Tractor Accessories
  • 1
    Pin – Part Number: 125-6995
    Pin
    Part Number: 125-6995
      Special Order
    $10.22
  • 2
    Housing-Flywheel – Part Number: 127-3025
    Housing-Flywheel
    Part Number: 127-3025
      No Longer Available
  • 3
    Cap – Part Number: 125-6910
    Cap
    Part Number: 125-6910
      Special Order
    $28.93
  • 4
    Bolt – Part Number: 125-7226
    Bolt
    Part Number: 125-7226
      Special Order
    $7.68
  • 5
    Bolt – Part Number: 125-7227
    Bolt
    Part Number: 125-7227
      Special Order
    $9.36
  • 6
    Oil Pan Asm – Part Number: 127-3755
    Oil Pan Asm
    Part Number: 127-3755
      No Longer Available
  • 7
    Plug-Drain – Part Number: 125-6912
    Plug-Drain
    Part Number: 125-6912
      Special Order
    $47.33
  • 9
    Washer-Seal – Part Number: 125-7177
    Washer-Seal
    Part Number: 125-7177
      Special Order
    $12.88
  • 10
    Spacer – Part Number: 127-3756
    Spacer
    Part Number: 127-3756
      Special Order
    $817.40
  • 11
    Bolt – Part Number: 125-7214
    Bolt
    Part Number: 125-7214
      Special Order
    $7.08
  • 12
    Bolt – Part Number: 125-7215
    Bolt
    Part Number: 125-7215
      Special Order
    $6.52
  • 13
    Bolt – Part Number: 125-7219
    Bolt
    Part Number: 125-7219
      Special Order
    $8.60
  • 14
    Bolt – Part Number: 125-7220
    Bolt
    Part Number: 125-7220
      Special Order
    $9.36
  • 15
    Pin – Part Number: 125-6995
    Pin
    Part Number: 125-6995
      Special Order
    $10.22
  • 16
    Case Asm – Part Number: 125-6996
    Case Asm
    Part Number: 125-6996
      No Longer Available
  • 18
    Seal-Oil – Part Number: 125-7106
    Seal-Oil
    Part Number: 125-7106
      Special Order
    $46.33
  • 19
    Bolt – Part Number: 125-7045
    Bolt
    Part Number: 125-7045
      Special Order
    $11.03
  • 20
    Bolt – Part Number: 125-7217
    Bolt
    Part Number: 125-7217
      Special Order
    $8.60
  • 21
    Sensor-Rev, Flywheel – Part Number: 127-3062
    Sensor-Rev, Flywheel
    Part Number: 127-3062
      Special Order
    $227.49
  • 22
    Bolt – Part Number: 127-3184
    Bolt
    Part Number: 127-3184
      Special Order
    $8.60
Frame Decal Assembly No. 139-4750
Frame Decal Assembly No. 139-4750 Diagram and Parts List for 413000000 - 414487256 Toro Lawn Tractor Accessories
Fuel Injection Valve Assembly
Fuel Injection Valve Assembly Diagram and Parts List for 413000000 - 414487256 Toro Lawn Tractor Accessories
  • 1
    Injector Asm – Part Number: 127-4754
    Injector Asm
    Part Number: 127-4754
      Special Order
    $4102.61
  • 2
    Rail Asm – Part Number: 127-3812
    Rail Asm
    Part Number: 127-3812
      Special Order
    $4796.90
  • 3
    Bolt – Part Number: 125-7215
    Bolt
    Part Number: 125-7215
      Special Order
    $6.52
  • 4
    Retainer – Part Number: 127-3813
    Retainer
    Part Number: 127-3813
      Special Order
    $39.88
  • 6
    Rail in Pipe Asm – Part Number: 127-3082
    Rail in Pipe Asm
    Part Number: 127-3082
      Special Order
    $114.05
  • 8
    Injection Pipe Asm – Part Number: 127-3814
    Injection Pipe Asm
    Part Number: 127-3814
      Special Order
    $151.92
  • 9
    Injection Pipe Asm – Part Number: 127-3083
    Injection Pipe Asm
    Part Number: 127-3083
      Special Order
    $151.92
  • 10
    Injection Pipe Asm – Part Number: 127-3084
    Injection Pipe Asm
    Part Number: 127-3084
      Special Order
    $151.92
  • 11
    Nut – Part Number: 125-7231
    Nut
    Part Number: 125-7231
      Special Order
    $7.08
Fuel Line Assembly
Fuel Line Assembly Diagram and Parts List for 413000000 - 414487256 Toro Lawn Tractor Accessories
  • 1
    Fuel/Oil Filter Asm – Part Number: 127-3075
    Fuel/Oil Filter Asm
    Part Number: 127-3075
      Special Order
    $361.33
  • 2
    Fuel/Oil Filter Bracket Asm – Part Number: 127-3076
    Fuel/Oil Filter Bracket Asm
    Part Number: 127-3076
      Special Order
    $168.98
  • 3
    Filter-Fuel/Oil – Part Number: 125-8752
    Filter-Fuel/Oil
    Part Number: 125-8752
      Special Order
    $159.53
  • 4
    Bolt – Part Number: 125-7216
    Bolt
    Part Number: 125-7216
      Special Order
    $6.52
  • 5
    Lifter – Part Number: 125-7111
    Lifter
    Part Number: 125-7111
      Special Order
    $19.80
  • 6
    Filter Bracket Asm – Part Number: 127-3815
    Filter Bracket Asm
    Part Number: 127-3815
      Special Order
    $138.77
  • 7
    Bolt – Part Number: 125-7215
    Bolt
    Part Number: 125-7215
      Special Order
    $6.52
  • 8
    Bolt – Part Number: 125-7215
    Bolt
    Part Number: 125-7215
      Special Order
    $6.52
  • 9
    Fuel Pipe Asm – Part Number: 127-3077
    Fuel Pipe Asm
    Part Number: 127-3077
      Special Order
    $161.43
  • 12
    Clamp-Hose – Part Number: 125-7191
    Clamp-Hose
    Part Number: 125-7191
      Special Order
    $29.58
  • 13
    Band – Part Number: 127-2981
    Band
    Part Number: 127-2981
      No Longer Available
  • 14
    Fuel/Oil Return Pipe Assembly – Part Number: 135-4023
    Fuel/Oil Return Pipe Assembly
    Part Number: 135-4023
      Special Order
    $450.79
  • 16
    Clamp-Hose – Part Number: 127-3172
    Clamp-Hose
    Part Number: 127-3172
      Special Order
    $10.78
  • 17
    Fuel Pipe Asm – Part Number: 127-3078
    Fuel Pipe Asm
    Part Number: 127-3078
      Special Order
    $200.52
  • 20
    Clamp-Hose – Part Number: 125-7191
    Clamp-Hose
    Part Number: 125-7191
      Special Order
    $29.58
  • 21
    Fuel Pipe Asm – Part Number: 127-3817
    Fuel Pipe Asm
    Part Number: 127-3817
      Special Order
    $241.80
  • 22
    Clip-Hose – Part Number: 127-2950
    Clip-Hose
    Part Number: 127-2950
      Special Order
    $11.28
  • 25
    Band-Clip – Part Number: 127-3087
    Band-Clip
    Part Number: 127-3087
      Special Order
    $5.95
  • 26
    Fuel Pipe Asm – Part Number: 127-3079
    Fuel Pipe Asm
    Part Number: 127-3079
      Special Order
    $141.98
  • 27
    Clip-Hose – Part Number: 127-2950
    Clip-Hose
    Part Number: 127-2950
      Special Order
    $11.28
  • 30
    Pump-Fuel, Electric – Part Number: 121-5613
    Pump-Fuel, Electric
    Part Number: 121-5613
      Special Order
    $433.84
Fuel System Assembly
Fuel System Assembly Diagram and Parts List for 413000000 - 414487256 Toro Lawn Tractor Accessories
  • 1
    Fuel Pump Asm – Part Number: 127-3073
    Fuel Pump Asm
    Part Number: 127-3073
      Special Order
    $5280.14
  • 2
    Valve Asm – Part Number: 131-2103
    Valve Asm
    Part Number: 131-2103
      Special Order
    $1579.64
  • 3
    Ring-Sealing – Part Number: 131-2105
    Ring-Sealing
    Part Number: 131-2105
      Special Order
    $130.08
  • 4
    O-Ring – Part Number: 131-2106
    O-Ring
    Part Number: 131-2106
      Special Order
    $73.25
  • 5
    Bolt – Part Number: 131-2107
    Bolt
    Part Number: 131-2107
      Special Order
    $59.66
  • 6
    Sensor-Temperature – Part Number: 131-2108
    Sensor-Temperature
    Part Number: 131-2108
      Special Order
    $385.37
  • 7
    O Ring-Pump, Fuel – Part Number: 127-3074
    O Ring-Pump, Fuel
    Part Number: 127-3074
      Special Order
    $57.53
  • 8
    Bolt – Part Number: 125-7216
    Bolt
    Part Number: 125-7216
      Special Order
    $6.52
Fuel System Assembly
Fuel System Assembly Diagram and Parts List for 413000000 - 414487256 Toro Lawn Tractor Accessories
  • 2
    FILTER HEAD Assembly – Part Number: 109-2678
    FILTER HEAD Assembly
    Part Number: 109-2678
      No Longer Available
  • 2:2
    Vent-Air – Part Number: 63-8290
    Vent-Air
    Part Number: 63-8290
      Special Order
    $29.90
  • 2:3
    Element-Spin On – Part Number: 63-8300
    Element-Spin On
    Part Number: 63-8300
      In Stock
    $36.64
  • 2:3:1
    Valve-Drain – Part Number: 63-8310
    Valve-Drain
    Part Number: 63-8310
      In Stock
    $20.30
  • 3
    FITTING-ELBOW – Part Number: 353-781
    FITTING-ELBOW
    Part Number: 353-781
      Special Order
    $34.93
  • 4
    Screw-Carr – Part Number: 3229-2
    Screw-Carr
    Part Number: 3229-2
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 6
    Nut-retaining – Part Number: 1-803037
    Nut-retaining
    Part Number: 1-803037
      Special Order
    $5.95
  • 7
    Screw-hh – Part Number: 321-2
    Screw-hh
    Part Number: 321-2
      Special Order
    $5.95
  • 8
    Pump-Fuel, Electric – Part Number: 121-5613
    Pump-Fuel, Electric
    Part Number: 121-5613
      Special Order
    $433.84
  • 9
    Cooler-Oil – Part Number: 116-7205
    Cooler-Oil
    Part Number: 116-7205
      Special Order
    $215.21
  • 11
    Nut-Hf – Part Number: 104-7201
    Nut-Hf
    Part Number: 104-7201
      In Stock
    $5.95
  • 12
    Hose-Fuel – Part Number: 110-6186
    Hose-Fuel
    Part Number: 110-6186
      Special Order
    $30.36
  • 13
    Hose-Fuel – Part Number: 110-8752
    Hose-Fuel
    Part Number: 110-8752
      Special Order
    $14.66
  • 14
    Hose-Fuel – Part Number: 109-0308
    Hose-Fuel
    Part Number: 109-0308
      Special Order
    $14.98
  • 15
    Hose-Fuel – Part Number: 110-4105
    Hose-Fuel
    Part Number: 110-4105
      Special Order
    $18.40
  • 16
    Hose-Fuel – Part Number: 110-9662
    Hose-Fuel
    Part Number: 110-9662
      Special Order
    $45.05
  • 17
    FITTING-STRAIGHT – Part Number: 354-95
    FITTING-STRAIGHT
    Part Number: 354-95
      Special Order
    $12.66
  • 18
    Breather – Part Number: 68-6150
    Breather
    Part Number: 68-6150
      Special Order
    $46.42
  • 19
    Clamp-Worm – Part Number: 2412-108
    Clamp-Worm
    Part Number: 2412-108
      Special Order
    $5.95
  • 20
    Clamp-Hose – Part Number: 92-2379
    Clamp-Hose
    Part Number: 92-2379
      Special Order
    $5.95
  • 22
    Screw-Hhf – Part Number: 115-5103
    Screw-Hhf
    Part Number: 115-5103
      Special Order
    $5.95
  • 23
    R-Clamp – Part Number: 2412-134
    R-Clamp
    Part Number: 2412-134
      Special Order
    $8.68
  • 24
    Sleeve-Thermal – Part Number: 131-0575
    Sleeve-Thermal
    Part Number: 131-0575
      No Longer Available
  • 25
    Sleeve-Thermal – Part Number: 144-4385
    Sleeve-Thermal
    Part Number: 144-4385
      No Longer Available
  • 26
    Valve-Check, Fuel – Part Number: 99-5000
    Valve-Check, Fuel
    Part Number: 99-5000
      Special Order
    $14.76
  • 27
    Hose-Fuel – Part Number: 112-6388
    Hose-Fuel
    Part Number: 112-6388
      No Longer Available
Fuel Tank Assembly No. 140-1679
Fuel Tank Assembly No. 140-1679 Diagram and Parts List for 413000000 - 414487256 Toro Lawn Tractor Accessories
Gasket Set
Gasket Set Diagram and Parts List for 413000000 - 414487256 Toro Lawn Tractor Accessories
  • 1
    Gasket Kit – Part Number: 127-4776
    Gasket Kit
    Part Number: 127-4776
      No Longer Available
  • 2
    Head Gasket Asm – Part Number: 127-4716
    Head Gasket Asm
    Part Number: 127-4716
      Special Order
    $130.85
  • 3
    Gasket-Head, Cylinder – Part Number: 127-3856
    Gasket-Head, Cylinder
    Part Number: 127-3856
      Special Order
    $110.55
  • 4
    Seal-Stem, Valve – Part Number: 127-2986
    Seal-Stem, Valve
    Part Number: 127-2986
      Special Order
    $13.56
  • 5
    Seal-Stem, Valve – Part Number: 127-3027
    Seal-Stem, Valve
    Part Number: 127-3027
      Special Order
    $14.42
  • 6
    Gasket-Injector – Part Number: 127-3021
    Gasket-Injector
    Part Number: 127-3021
      Special Order
    $9.66
  • 7
    Gasket-Manifold, Intake – Part Number: 127-3857
    Gasket-Manifold, Intake
    Part Number: 127-3857
      Special Order
    $24.68
  • 8
    O Ring-Sensor, Temp – Part Number: 127-3033
    O Ring-Sensor, Temp
    Part Number: 127-3033
      Special Order
    $28.46
  • 9
    Gasket-Collector – Part Number: 127-3034
    Gasket-Collector
    Part Number: 127-3034
      Special Order
    $20.53
  • 10
    Gasket-Throttle – Part Number: 127-3037
    Gasket-Throttle
    Part Number: 127-3037
      Special Order
    $6.10
  • 11
    Gasket-Manifold, Exhaust – Part Number: 127-3775
    Gasket-Manifold, Exhaust
    Part Number: 127-3775
      Special Order
    $21.30
  • 12
    Gasket-Exhaust – Part Number: 121-3058
    Gasket-Exhaust
    Part Number: 121-3058
      Special Order
    $41.52
  • 13
    Gasket-Cooler, E G R – Part Number: 127-3043
    Gasket-Cooler, E G R
    Part Number: 127-3043
      Special Order
    $7.72
  • 14
    Gasket – Part Number: 127-3016
    Gasket
    Part Number: 127-3016
      Special Order
    $8.16
  • 15
    Gasket-Intake Valve, E G R – Part Number: 127-3050
    Gasket-Intake Valve, E G R
    Part Number: 127-3050
      Special Order
    $10.82
  • 16
    Gasket-Out Valve, E G R – Part Number: 127-3051
    Gasket-Out Valve, E G R
    Part Number: 127-3051
      Special Order
    $9.50
  • 17
    Gasket-D P F – Part Number: 127-3859
    Gasket-D P F
    Part Number: 127-3859
      Special Order
    $26.48
  • 18
    Gasket-Sensor – Part Number: 127-3056
    Gasket-Sensor
    Part Number: 127-3056
      Special Order
    $5.95
  • 19
    Gasket-Idle, Shaft B – Part Number: 127-3069
    Gasket-Idle, Shaft B
    Part Number: 127-3069
      Special Order
    $8.80
  • 20
    Gasket – Part Number: 127-3004
    Gasket
    Part Number: 127-3004
      Special Order
    $5.95
  • 21
    O-Ring – Part Number: 125-6909
    O-Ring
    Part Number: 125-6909
      Special Order
    $5.95
  • 22
    O-Ring – Part Number: 127-2973
    O-Ring
    Part Number: 127-2973
      Special Order
    $6.72
  • 23
    Gasket – Part Number: 125-7022
    Gasket
    Part Number: 125-7022
      Special Order
    $15.02
  • 24
    Gasket – Part Number: 125-7024
    Gasket
    Part Number: 125-7024
      Special Order
    $6.72
  • 25
    Gasket – Part Number: 125-7047
    Gasket
    Part Number: 125-7047
      Special Order
    $10.90
  • 26
    O-Ring – Part Number: 125-7048
    O-Ring
    Part Number: 125-7048
      Special Order
    $5.95
  • 27
    Gasket – Part Number: 125-6979
    Gasket
    Part Number: 125-6979
      Special Order
    $5.95
  • 28
    Gasket – Part Number: 125-7110
    Gasket
    Part Number: 125-7110
      Special Order
    $8.00
  • 29
    Gasket – Part Number: 125-7026
    Gasket
    Part Number: 125-7026
      In Stock
    Minimum Quantity of 2 required
    $6.18
  • 30
    Gasket – Part Number: 125-6978
    Gasket
    Part Number: 125-6978
      Special Order
    $5.95
  • 31
    O Ring-Pump, Fuel – Part Number: 127-3074
    O Ring-Pump, Fuel
    Part Number: 127-3074
      Special Order
    $57.53
  • 32
    Washer-Seal – Part Number: 125-7174
    Washer-Seal
    Part Number: 125-7174
      Special Order
    $10.22
  • 33
    Washer-Seal – Part Number: 125-7176
    Washer-Seal
    Part Number: 125-7176
      Special Order
    $13.70
  • 34
    Washer-Seal – Part Number: 127-3166
    Washer-Seal
    Part Number: 127-3166
      Special Order
    $12.70
  • 35
    Washer-Seal – Part Number: 125-7177
    Washer-Seal
    Part Number: 125-7177
      Special Order
    $12.88
  • 36
    Gasket – Part Number: 125-7192
    Gasket
    Part Number: 125-7192
      Special Order
    $5.95
  • 37
    Gasket – Part Number: 127-3174
    Gasket
    Part Number: 127-3174
      Special Order
    $5.95
  • 38
    O-Ring – Part Number: 93-0418
    O-Ring
    Part Number: 93-0418
      Special Order
    $10.02
  • 39
    O-Ring – Part Number: 125-7197
    O-Ring
    Part Number: 125-7197
      Special Order
    $5.95
  • 40
    Hone – Part Number: 127-3000
    Hone
    Part Number: 127-3000
      No Longer Available
  • 41
    Gasket-Liquid – Part Number: 125-7248
    Gasket-Liquid
    Part Number: 125-7248
      No Longer Available
Gear Housing Assembly
Gear Housing Assembly Diagram and Parts List for 413000000 - 414487256 Toro Lawn Tractor Accessories
  • 1
    Case-Gear – Part Number: 127-3023
    Case-Gear
    Part Number: 127-3023
      Special Order
    $978.09
  • 2
    Pin – Part Number: 125-6995
    Pin
    Part Number: 125-6995
      Special Order
    $10.22
  • 3
    Cover-Filler – Part Number: 125-6972
    Cover-Filler
    Part Number: 125-6972
      Special Order
    $21.56
  • 4
    Pipe – Part Number: 125-7107
    Pipe
    Part Number: 125-7107
      Special Order
    $17.22
  • 5
    O-Ring – Part Number: 125-6909
    O-Ring
    Part Number: 125-6909
      Special Order
    $5.95
  • 6
    O-Ring – Part Number: 127-2973
    O-Ring
    Part Number: 127-2973
      Special Order
    $6.72
  • 7
    O-Ring – Part Number: 125-7197
    O-Ring
    Part Number: 125-7197
      Special Order
    $5.95
  • 8
    Bolt – Part Number: 125-7214
    Bolt
    Part Number: 125-7214
      Special Order
    $7.08
  • 9
    Gearcase Cover Asm – Part Number: 127-3024
    Gearcase Cover Asm
    Part Number: 127-3024
      Special Order
    $721.27
  • 11
    Seal-Oil – Part Number: 125-6944
    Seal-Oil
    Part Number: 125-6944
      Special Order
    $59.96
  • 12
    Cover – Part Number: 125-6977
    Cover
    Part Number: 125-6977
      Special Order
    $17.22
  • 13
    Washer-Seal – Part Number: 125-7174
    Washer-Seal
    Part Number: 125-7174
      Special Order
    $10.22
  • 14
    Bolt – Part Number: 125-7214
    Bolt
    Part Number: 125-7214
      Special Order
    $7.08
  • 15
    Bolt – Part Number: 125-7217
    Bolt
    Part Number: 125-7217
      Special Order
    $8.60
  • 16
    Bolt – Part Number: 125-7218
    Bolt
    Part Number: 125-7218
      Special Order
    $6.52
  • 17
    Bolt – Part Number: 125-7222
    Bolt
    Part Number: 125-7222
      Special Order
    $9.36
  • 18
    Bolt – Part Number: 125-7224
    Bolt
    Part Number: 125-7224
      Special Order
    $7.68
Generator Assembly
Generator Assembly Diagram and Parts List for 413000000 - 414487256 Toro Lawn Tractor Accessories
  • 1
    Stud – Part Number: 127-3011
    Stud
    Part Number: 127-3011
      Special Order
    $16.63
  • 2
    Generator – Part Number: 127-3841
    Generator
    Part Number: 127-3841
      Special Order
    $2054.54
  • 3
    Nut – Part Number: 127-3190
    Nut
    Part Number: 127-3190
      Special Order
    $9.13
  • 4
    Rotor Asm – Part Number: 127-3843
    Rotor Asm
    Part Number: 127-3843
      No Longer Available
  • 5
    Bearing-Ball – Part Number: 127-2983
    Bearing-Ball
    Part Number: 127-2983
      Special Order
    $40.02
  • 6
    Cover – Part Number: 127-2962
    Cover
    Part Number: 127-2962
      No Longer Available
  • 7
    Frame Asm – Part Number: 127-3844
    Frame Asm
    Part Number: 127-3844
      No Longer Available
  • 8
    Bearing-Ball – Part Number: 127-2958
    Bearing-Ball
    Part Number: 127-2958
      Special Order
    $43.96
  • 9
    Plate-Retainer – Part Number: 127-2959
    Plate-Retainer
    Part Number: 127-2959
      No Longer Available
  • 10
    Screw – Part Number: 127-2960
    Screw
    Part Number: 127-2960
      No Longer Available
  • 11
    Stud – Part Number: 127-2961
    Stud
    Part Number: 127-2961
      No Longer Available
  • 12
    Frame – Part Number: 127-3845
    Frame
    Part Number: 127-3845
      No Longer Available
  • 13
    Cover – Part Number: 127-3846
    Cover
    Part Number: 127-3846
      No Longer Available
  • 14
    Pulley – Part Number: 127-2954
    Pulley
    Part Number: 127-2954
      Special Order
    $119.26
  • 15
    Nut – Part Number: 127-2955
    Nut
    Part Number: 127-2955
      No Longer Available
  • 16
    Collar – Part Number: 127-2957
    Collar
    Part Number: 127-2957
      Special Order
    $34.68
  • 17
    Regulator Asm – Part Number: 127-3847
    Regulator Asm
    Part Number: 127-3847
      No Longer Available
  • 18
    Holder – Part Number: 127-3848
    Holder
    Part Number: 127-3848
      Special Order
    $443.30
  • 19
    Holder – Part Number: 127-2993
    Holder
    Part Number: 127-2993
      Special Order
    $158.07
  • 20
    Screw – Part Number: 127-2965
    Screw
    Part Number: 127-2965
      No Longer Available
  • 21
    Screw – Part Number: 127-2966
    Screw
    Part Number: 127-2966
      No Longer Available
  • 22
    Bolt – Part Number: 127-2967
    Bolt
    Part Number: 127-2967
      No Longer Available
  • 23
    Screw – Part Number: 127-2968
    Screw
    Part Number: 127-2968
      Special Order
    $8.86
  • 24
    Bolt – Part Number: 127-2969
    Bolt
    Part Number: 127-2969
      No Longer Available
  • 25
    Bushing-Insulation – Part Number: 127-2970
    Bushing-Insulation
    Part Number: 127-2970
      No Longer Available
  • 26
    Nut – Part Number: 127-2971
    Nut
    Part Number: 127-2971
      No Longer Available
  • 27
    Nut – Part Number: 125-7230
    Nut
    Part Number: 125-7230
      Special Order
    $5.95
  • 28
    Spacer – Part Number: 125-6947
    Spacer
    Part Number: 125-6947
      Special Order
    $36.91
  • 29
    Adjuster – Part Number: 127-2977
    Adjuster
    Part Number: 127-2977
      Special Order
    $183.24
  • 30
    Bolt – Part Number: 125-7134
    Bolt
    Part Number: 125-7134
      Special Order
    $43.89
  • 31
    Bolt – Part Number: 125-7219
    Bolt
    Part Number: 125-7219
      Special Order
    $8.60
Hood And Cover Assembly
Hood And Cover Assembly Diagram and Parts List for 413000000 - 414487256 Toro Lawn Tractor Accessories
  • 1
    Cover-Rear [black] – Part Number: 140-6079-03
    Cover-Rear [black]
    Part Number: 140-6079-03
      No Longer Available
  • 3
    Nut-flange, Ni – Part Number: 104-8300
    Nut-flange, Ni
    Part Number: 104-8300
    ★★★★★
    ★★★★★
    (1)
      In Stock
    $5.95
  • 8
    Cushion-Pad – Part Number: 140-4499
    Cushion-Pad
    Part Number: 140-4499
      No Longer Available
  • 9
    Cushion-Pad – Part Number: 140-4500
    Cushion-Pad
    Part Number: 140-4500
      No Longer Available
  • 10
    Nut-Tinnerman – Part Number: 105-4886
    Nut-Tinnerman
    Part Number: 105-4886
      Special Order
    $5.95
  • 11
    Nut-Push – Part Number: 107-3154
    Nut-Push
    Part Number: 107-3154
      Special Order
    $5.95
  • 13
    Screw-hhf – Part Number: 3234-42
    Screw-hhf
    Part Number: 3234-42
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 14
    Screw-Hhf – Part Number: 3234-5
    Screw-Hhf
    Part Number: 3234-5
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 16
    Cover – Part Number: 140-6065
    Cover
    Part Number: 140-6065
      No Longer Available
  • 16:2
    Decal-surface hot – Part Number: 115-2047
    Decal-surface hot
    Part Number: 115-2047
      Special Order
    $28.16
  • 17
    Cover-Side, Rh [black] – Part Number: 144-4379-03
    Cover-Side, Rh [black]
    Part Number: 144-4379-03
      No Longer Available
  • 18
    Cover-Bottom – Part Number: 140-4506-01
    Cover-Bottom
    Part Number: 140-4506-01
      No Longer Available
  • 19
    Clamp-r – Part Number: 2412-120
    Clamp-r
    Part Number: 2412-120
      Special Order
    $9.72
  • 20
    Washer-Back – Part Number: 3269-10
    Washer-Back
    Part Number: 3269-10
      Special Order
    $5.95
  • 21
    Rivet-Pop – Part Number: 3269-17
    Rivet-Pop
    Part Number: 3269-17
      Special Order
    $5.95
  • 22
    Tube-Manual – Part Number: 104-7050
    Tube-Manual
    Part Number: 104-7050
      Special Order
    $16.43
  • 23
    Cap-Housing – Part Number: 104-7048
    Cap-Housing
    Part Number: 104-7048
      Special Order
    $9.78
  • 24
    Hinge-Hood – Part Number: 140-1830
    Hinge-Hood
    Part Number: 140-1830
      No Longer Available
  • 25
    Hood [black] – Part Number: 140-5940-03
    Hood [black]
    Part Number: 140-5940-03
      No Longer Available
  • 26
    Seal-Bulb – Part Number: 140-5942
    Seal-Bulb
    Part Number: 140-5942
      No Longer Available
  • 28
    Stud-ball – Part Number: 103-5752
    Stud-ball
    Part Number: 103-5752
      In Stock
    $10.02
  • 29
    Screw-Hwhtf – Part Number: 32144-14
    Screw-Hwhtf
    Part Number: 32144-14
      In Stock
    Minimum Quantity of 2 required
    $6.42
  • 31
    COVER-FRONT – Part Number: 140-5928-03
    COVER-FRONT
    Part Number: 140-5928-03
      No Longer Available
  • 32
    Front Cover Assembly, [black] – Part Number: 144-0828-03
    Front Cover Assembly, [black]
    Part Number: 144-0828-03
      No Longer Available
  • 33
    Latch-Compression, Locking – Part Number: 144-4364
    Latch-Compression, Locking
    Part Number: 144-4364
      No Longer Available
  • 43
    Gas Spring Asm – Part Number: 117-9651
    Gas Spring Asm
    Part Number: 117-9651
      Special Order
    $227.66
  • 44
    Nut-clip u – Part Number: 115-7721
    Nut-clip u
    Part Number: 115-7721
      Special Order
    $5.95
  • 45
    Screw-Hhf – Part Number: 3234-29
    Screw-Hhf
    Part Number: 3234-29
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 46
    Ring-Retaining, Bolt – Part Number: 109-5667
    Ring-Retaining, Bolt
    Part Number: 109-5667
      Special Order
    $8.08
  • 48
    Clip – Part Number: 107069
    Clip
    Part Number: 107069
      In Stock
    $5.95
  • 49
    HOOD SCOOP ASM – Part Number: 145-4276
    HOOD SCOOP ASM
    Part Number: 145-4276
      No Longer Available
  • 49:2
    Decal-Toro – Part Number: 117-0871
    Decal-Toro
    Part Number: 117-0871
      Special Order
    $47.25
  • 49:3
    Decal-Service – Part Number: 145-4274
    Decal-Service
    Part Number: 145-4274
      No Longer Available
  • 50
    Screw – Part Number: 32105-15
    Screw
    Part Number: 32105-15
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 51
    Cushion-Pad – Part Number: 144-0796
    Cushion-Pad
    Part Number: 144-0796
      No Longer Available
Hydraulic Gear Pump Assembly No. 139-4755
Hydraulic Gear Pump Assembly No. 139-4755 Diagram and Parts List for 413000000 - 414487256 Toro Lawn Tractor Accessories
  • 1
    KIT-SEAL, – Part Number: 139-4757
    KIT-SEAL,
    Part Number: 139-4757
      No Longer Available
Lh Track Assembly No. 139-7294
Lh Track Assembly No. 139-7294 Diagram and Parts List for 413000000 - 414487256 Toro Lawn Tractor Accessories
Loader Arm Hydraulic Assembly
Loader Arm Hydraulic Assembly Diagram and Parts List for 413000000 - 414487256 Toro Lawn Tractor Accessories
Lower Loader Arm Assembly No. 140-6063
Lower Loader Arm Assembly No. 140-6063 Diagram and Parts List for 413000000 - 414487256 Toro Lawn Tractor Accessories
Lubrication And Oil System Assembly
Lubrication And Oil System Assembly Diagram and Parts List for 413000000 - 414487256 Toro Lawn Tractor Accessories
  • 1
    Oil Pump Asm – Part Number: 127-4753
    Oil Pump Asm
    Part Number: 127-4753
      Special Order
    $316.69
  • 2
    Gasket – Part Number: 127-3004
    Gasket
    Part Number: 127-3004
      Special Order
    $5.95
  • 3
    Bolt – Part Number: 125-7232
    Bolt
    Part Number: 125-7232
      Special Order
    $6.16
  • 4
    Plug-Drain – Part Number: 125-7171
    Plug-Drain
    Part Number: 125-7171
      Special Order
    $44.60
  • 5
    Dipstick – Part Number: 125-6987
    Dipstick
    Part Number: 125-6987
      Special Order
    $118.19
  • 6
    Guide-Dipstick – Part Number: 125-6954
    Guide-Dipstick
    Part Number: 125-6954
      Special Order
    $20.82
  • 7
    Gasket – Part Number: 125-7022
    Gasket
    Part Number: 125-7022
      Special Order
    $15.02
  • 8
    Pipe Asm – Part Number: 127-3803
    Pipe Asm
    Part Number: 127-3803
      No Longer Available
  • 9
    Bolt – Part Number: 125-7217
    Bolt
    Part Number: 125-7217
      Special Order
    $8.60
  • 10
    Cooler Asm – Part Number: 125-7074
    Cooler Asm
    Part Number: 125-7074
      No Longer Available
  • 11
    O-Ring – Part Number: 125-7075
    O-Ring
    Part Number: 125-7075
      Special Order
    $40.36
  • 12
    Nut-Cooler, Oil – Part Number: 125-7041
    Nut-Cooler, Oil
    Part Number: 125-7041
      Special Order
    $80.48
  • 13
    Bracket Asm – Part Number: 125-6989
    Bracket Asm
    Part Number: 125-6989
      Special Order
    $115.69
  • 15
    Stud – Part Number: 125-7042
    Stud
    Part Number: 125-7042
      Special Order
    $64.15
  • 16
    Gasket – Part Number: 125-7024
    Gasket
    Part Number: 125-7024
      Special Order
    $6.72
  • 18
    Joint – Part Number: 125-6990
    Joint
    Part Number: 125-6990
      Special Order
    $111.05
  • 19
    Pipe Asm – Part Number: 125-7078
    Pipe Asm
    Part Number: 125-7078
      Special Order
    $78.51
  • 20
    Clip – Part Number: 125-7162
    Clip
    Part Number: 125-7162
      Special Order
    $12.28
  • 22
    Clamp-Hose – Part Number: 125-7191
    Clamp-Hose
    Part Number: 125-7191
      Special Order
    $29.58
  • 23
    Pipe Asm – Part Number: 127-3804
    Pipe Asm
    Part Number: 127-3804
      Special Order
    $61.11
  • 24
    Clip – Part Number: 125-7162
    Clip
    Part Number: 125-7162
      Special Order
    $12.28
  • 26
    Tube – Part Number: 127-3805
    Tube
    Part Number: 127-3805
      Special Order
    $32.72
  • 27
    Clamp-Hose – Part Number: 125-7191
    Clamp-Hose
    Part Number: 125-7191
      Special Order
    $29.58
  • 28
    Elbow – Part Number: 125-7001
    Elbow
    Part Number: 125-7001
      Special Order
    $78.24
  • 29
    Bolt – Part Number: 125-7595
    Bolt
    Part Number: 125-7595
      Special Order
    $5.95
  • 30
    Switch-Oil – Part Number: 125-6918
    Switch-Oil
    Part Number: 125-6918
      Special Order
    $49.78
  • 31
    Filter-engine, Oil – Part Number: 125-7025
    Filter-engine, Oil
    Part Number: 125-7025
      Special Order
    $28.56
Main Frame Assembly
Main Frame Assembly Diagram and Parts List for 413000000 - 414487256 Toro Lawn Tractor Accessories
Manifold Hydraulic Assembly
Manifold Hydraulic Assembly Diagram and Parts List for 413000000 - 414487256 Toro Lawn Tractor Accessories
  • O-Ring – Part Number: 237-21
    O-Ring
    Part Number: 237-21
      Special Order
    Minimum Quantity of 2 required
    $5.95
  • 1
    MANIFOLD-QDC – Part Number: 150-2410
    MANIFOLD-QDC
    Part Number: 150-2410
      No Longer Available
  • 1:1
    Kit-Male Coupler, 1/2-Inch – Part Number: 150-3702
    Kit-Male Coupler, 1/2-Inch
    Part Number: 150-3702
      No Longer Available
  • 1:2
    Kit-Male Coupler, 3/8-Inch – Part Number: 150-3703
    Kit-Male Coupler, 3/8-Inch
    Part Number: 150-3703
      No Longer Available
  • 1:3
    KIT-FEMALE COUPLER, 1/2 – Part Number: 150-3704
    KIT-FEMALE COUPLER, 1/2
    Part Number: 150-3704
      No Longer Available
  • 2
    Fitting-Hyd, 45 Degree – Part Number: 340-87
    Fitting-Hyd, 45 Degree
    Part Number: 340-87
      Special Order
    $34.48
  • 2:1
    O-Ring – Part Number: 237-22
    O-Ring
    Part Number: 237-22
      In Stock
    $5.95
  • 2:2
    O-Ring – Part Number: 237-42
    O-Ring
    Part Number: 237-42
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 3
    Plug-Dust, Coupler – Part Number: 100-8816
    Plug-Dust, Coupler
    Part Number: 100-8816
      No Longer Available
  • 4
    Dust Cap-Nipple – Part Number: 100-8815
    Dust Cap-Nipple
    Part Number: 100-8815
      No Longer Available
  • 5
    ADAPTER – Part Number: 340-3
    ADAPTER
    Part Number: 340-3
      Special Order
    $15.63
  • 5:1
    O-Ring – Part Number: 237-22
    O-Ring
    Part Number: 237-22
      In Stock
    $5.95
  • 5:2
    O-Ring – Part Number: 237-79
    O-Ring
    Part Number: 237-79
      Special Order
    Minimum Quantity of 2 required
    $8.20
  • 6
    Fitting-Hyd, Tee – Part Number: 117-9881
    Fitting-Hyd, Tee
    Part Number: 117-9881
      No Longer Available
  • 6:1
    O-Ring – Part Number: 237-79
    O-Ring
    Part Number: 237-79
      Special Order
    Minimum Quantity of 2 required
    $8.20
  • 6:2
    O-Ring – Part Number: 237-22
    O-Ring
    Part Number: 237-22
      In Stock
    $5.95
  • 7
    Fitting-Hyd, 90 Degree – Part Number: 340-77
    Fitting-Hyd, 90 Degree
    Part Number: 340-77
      Special Order
    $42.53
  • 7:1
    O-Ring – Part Number: 237-22
    O-Ring
    Part Number: 237-22
      In Stock
    $5.95
  • 7:2
    O-Ring – Part Number: 237-42
    O-Ring
    Part Number: 237-42
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 8
    Fitting-Hyd, Straight – Part Number: 340-2
    Fitting-Hyd, Straight
    Part Number: 340-2
      Special Order
    $16.02
  • 8:1
    O-Ring – Part Number: 237-22
    O-Ring
    Part Number: 237-22
      In Stock
    $5.95
  • 8:2
    O-Ring – Part Number: 237-42
    O-Ring
    Part Number: 237-42
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 9
    HYD HOSE ASM – Part Number: 140-4462
    HYD HOSE ASM
    Part Number: 140-4462
      No Longer Available
  • 10
    HYD HOSE ASM – Part Number: 140-5976
    HYD HOSE ASM
    Part Number: 140-5976
      No Longer Available
  • 11
    HYD HOSE ASM – Part Number: 140-4469
    HYD HOSE ASM
    Part Number: 140-4469
      No Longer Available
  • 12
    HYD HOSE ASM – Part Number: 140-4470
    HYD HOSE ASM
    Part Number: 140-4470
      No Longer Available
  • 13
    FITTING-TEE – Part Number: 340-86
    FITTING-TEE
    Part Number: 340-86
      Special Order
    $60.05
  • 13:1
    O-Ring – Part Number: 237-22
    O-Ring
    Part Number: 237-22
      In Stock
    $5.95
  • 13:2
    O-Ring – Part Number: 237-42
    O-Ring
    Part Number: 237-42
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 14
    Clamp-Hose – Part Number: 137-5275
    Clamp-Hose
    Part Number: 137-5275
      No Longer Available
  • 15
    Plate-Clamp Retainer – Part Number: 127-8424
    Plate-Clamp Retainer
    Part Number: 127-8424
      No Longer Available
  • 16
    Screw-Hh – Part Number: 321-13
    Screw-Hh
    Part Number: 321-13
      In Stock
    $5.95
  • 17
    WRAP-HOSE – Part Number: 140-5902
    WRAP-HOSE
    Part Number: 140-5902
      No Longer Available
  • 18
    Hyd Tube Assembly – Part Number: 140-5985
    Hyd Tube Assembly
    Part Number: 140-5985
      No Longer Available
  • 19
    Hyd Tube Assembly – Part Number: 140-5986
    Hyd Tube Assembly
    Part Number: 140-5986
      No Longer Available
  • 20
    Block-Hardline – Part Number: 137-0146
    Block-Hardline
    Part Number: 137-0146
      No Longer Available
  • 21
    Hyd Hose Assembly – Part Number: 133-1619
    Hyd Hose Assembly
    Part Number: 133-1619
      No Longer Available
  • 22
    Nut-Lock, Bulkhead – Part Number: 340-70
    Nut-Lock, Bulkhead
    Part Number: 340-70
      Special Order
    $5.95
  • 23
    HYD HOSE ASM – Part Number: 140-5911
    HYD HOSE ASM
    Part Number: 140-5911
      No Longer Available
  • 24
    HYD HOSE ASM – Part Number: 140-5912
    HYD HOSE ASM
    Part Number: 140-5912
      No Longer Available
  • 25
    HYD HOSE ASM – Part Number: 140-5913
    HYD HOSE ASM
    Part Number: 140-5913
      No Longer Available
  • 26
    HYD HOSE ASM – Part Number: 140-5914
    HYD HOSE ASM
    Part Number: 140-5914
      No Longer Available
  • 27
    HYD HOSE ASM – Part Number: 140-5915
    HYD HOSE ASM
    Part Number: 140-5915
      No Longer Available
  • 28
    HYD HOSE ASM – Part Number: 140-6031
    HYD HOSE ASM
    Part Number: 140-6031
      No Longer Available
  • 29
    Solenoid Valve – Part Number: 158-627
    Solenoid Valve
    Part Number: 158-627
      No Longer Available
  • 29:1
    SCREW-GEAR, DRIVE – Part Number: 21-7770
    SCREW-GEAR, DRIVE
    Part Number: 21-7770
      Special Order
    $5.95
  • 30
    Screw-Hhf – Part Number: 32105-18
    Screw-Hhf
    Part Number: 32105-18
      No Longer Available
  • 31
    HYD HOSE ASM – Part Number: 140-5964
    HYD HOSE ASM
    Part Number: 140-5964
      No Longer Available
  • 32
    Hyd Tube Assembly – Part Number: 145-4331
    Hyd Tube Assembly
    Part Number: 145-4331
      No Longer Available
  • 33
    Hyd Tube Assembly – Part Number: 145-4332
    Hyd Tube Assembly
    Part Number: 145-4332
      No Longer Available
  • 34
    Switch-Pressure, – Part Number: 139-4848
    Switch-Pressure,
    Part Number: 139-4848
      No Longer Available
  • 35
    Hyd Tube Assembly – Part Number: 140-5969
    Hyd Tube Assembly
    Part Number: 140-5969
      No Longer Available
  • 36
    Clamp-Hose – Part Number: 140-6007
    Clamp-Hose
    Part Number: 140-6007
      No Longer Available
  • 37
    Clamp-Hose – Part Number: 140-6008
    Clamp-Hose
    Part Number: 140-6008
      No Longer Available
  • 38
    Plate-Backer – Part Number: 140-6045-03
    Plate-Backer
    Part Number: 140-6045-03
      No Longer Available
  • 39
    Screw-Hhf – Part Number: 3234-41
    Screw-Hhf
    Part Number: 3234-41
      Special Order
    $5.95
  • 40
    HYD HOSE ASM – Part Number: 140-5987
    HYD HOSE ASM
    Part Number: 140-5987
      No Longer Available
  • 41
    Mount-Qc – Part Number: 140-6075
    Mount-Qc
    Part Number: 140-6075
      No Longer Available
  • 41:2
    DECAL-CAUTION – Part Number: 115-4855
    DECAL-CAUTION
    Part Number: 115-4855
      No Longer Available
  • 41:3
    Decal-Warning – Part Number: 139-1173
    Decal-Warning
    Part Number: 139-1173
      No Longer Available
  • 42
    Connector-Swivel, Straight – Part Number: 104-3779
    Connector-Swivel, Straight
    Part Number: 104-3779
      No Longer Available
  • 42:1
    O-Ring – Part Number: 237-42
    O-Ring
    Part Number: 237-42
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 43
    Valve-Sequence – Part Number: 139-4856
    Valve-Sequence
    Part Number: 139-4856
      No Longer Available
  • 44
    FITTING-STRAIGHT – Part Number: 114-7783
    FITTING-STRAIGHT
    Part Number: 114-7783
      Special Order
    $95.05
  • 44:1
    O-Ring – Part Number: 237-22
    O-Ring
    Part Number: 237-22
      In Stock
    $5.95
  • 44:2
    O-Ring – Part Number: 237-42
    O-Ring
    Part Number: 237-42
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 45
    Tee – Part Number: 340-94
    Tee
    Part Number: 340-94
      Special Order
    $62.78
  • 45:1
    O-Ring – Part Number: 237-22
    O-Ring
    Part Number: 237-22
      In Stock
    $5.95
  • 45:2
    O-Ring – Part Number: 237-42
    O-Ring
    Part Number: 237-42
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 46
    HYD HOSE ASM – Part Number: 140-5970
    HYD HOSE ASM
    Part Number: 140-5970
      No Longer Available
  • 47
    Tie-Cable – Part Number: 3334-945
    Tie-Cable
    Part Number: 3334-945
      In Stock
    $5.95
  • 48
    Guide-Hoses – Part Number: 140-6058
    Guide-Hoses
    Part Number: 140-6058
      No Longer Available
  • 49
    Valve-Check – Part Number: 145-4333
    Valve-Check
    Part Number: 145-4333
      No Longer Available
  • 49:1
    O-Ring – Part Number: 237-79
    O-Ring
    Part Number: 237-79
      Special Order
    Minimum Quantity of 2 required
    $8.20
  • 49:2
    O-Ring – Part Number: 237-30
    O-Ring
    Part Number: 237-30
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 50
    Fitting-Tee – Part Number: 99-3477
    Fitting-Tee
    Part Number: 99-3477
      No Longer Available
  • 51
    Clamp-Band/Screw – Part Number: 144-4255
    Clamp-Band/Screw
    Part Number: 144-4255
      No Longer Available
  • 52
    Trim-Seal – Part Number: 133-8572
    Trim-Seal
    Part Number: 133-8572
      No Longer Available
  • 53
    Fitting-Hydraulic – Part Number: 340-153
    Fitting-Hydraulic
    Part Number: 340-153
      No Longer Available
  • 53:1
    O-Ring – Part Number: 237-79
    O-Ring
    Part Number: 237-79
      Special Order
    Minimum Quantity of 2 required
    $8.20
  • 53:2
    O-RING – Part Number: 237-151
    O-RING
    Part Number: 237-151
      Special Order
    $5.95
  • 54
    Bracket-Mount, Valve – Part Number: 144-4369-03
    Bracket-Mount, Valve
    Part Number: 144-4369-03
      No Longer Available
  • 55
    Screw-Hhf – Part Number: 115-5103
    Screw-Hhf
    Part Number: 115-5103
      Special Order
    $5.95
  • 56
    Trim-Seal – Part Number: 133-8571
    Trim-Seal
    Part Number: 133-8571
      No Longer Available
  • 57
    Cap-Dust, Nipple – Part Number: 131-6069
    Cap-Dust, Nipple
    Part Number: 131-6069
      Special Order
    $19.32
Platform Assembly
Platform Assembly Diagram and Parts List for 413000000 - 414487256 Toro Lawn Tractor Accessories
Principal Hydraulic Assembly
Principal Hydraulic Assembly Diagram and Parts List for 413000000 - 414487256 Toro Lawn Tractor Accessories
  • 1
    LOADER VALVE ASM, – Part Number: 144-4257
    LOADER VALVE ASM,
    Part Number: 144-4257
      No Longer Available
  • 2
    VALVE-HYD, – Part Number: 139-4737
    VALVE-HYD,
    Part Number: 139-4737
      No Longer Available
  • 3
    ADAPTER – Part Number: 340-82
    ADAPTER
    Part Number: 340-82
      Special Order
    $30.86
  • 3:1
    O-Ring – Part Number: 237-42
    O-Ring
    Part Number: 237-42
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 3:2
    O-Ring – Part Number: 237-21
    O-Ring
    Part Number: 237-21
      Special Order
    Minimum Quantity of 2 required
    $5.95
  • 4
    HYD HOSE ASM – Part Number: 140-4489
    HYD HOSE ASM
    Part Number: 140-4489
      No Longer Available
  • 5
    HYD HOSE ASM – Part Number: 140-4453
    HYD HOSE ASM
    Part Number: 140-4453
      No Longer Available
  • 6
    Fitting-Straight (Incl. Ref. #66 & 67) – Part Number: 340-92
    Fitting-Straight (Incl. Ref. #66 & 67)
    Part Number: 340-92
      Special Order
    $17.22
  • 6:1
    O-Ring – Part Number: 237-78
    O-Ring
    Part Number: 237-78
      Special Order
    $5.95
  • 6:2
    O-Ring – Part Number: 237-21
    O-Ring
    Part Number: 237-21
      Special Order
    Minimum Quantity of 2 required
    $5.95
  • 7
    Fitting-Tee – Part Number: 340-140
    Fitting-Tee
    Part Number: 340-140
      No Longer Available
  • 7:1
    O-Ring – Part Number: 237-21
    O-Ring
    Part Number: 237-21
      Special Order
    Minimum Quantity of 2 required
    $5.95
  • 7:2
    O-Ring – Part Number: 237-78
    O-Ring
    Part Number: 237-78
      Special Order
    $5.95
  • 8
    FITTING-HYD, 90 DEG – Part Number: 340-132
    FITTING-HYD, 90 DEG
    Part Number: 340-132
      Special Order
    $39.25
  • 8:1
    O-Ring – Part Number: 237-78
    O-Ring
    Part Number: 237-78
      Special Order
    $5.95
  • 8:2
    O-Ring – Part Number: 237-21
    O-Ring
    Part Number: 237-21
      Special Order
    Minimum Quantity of 2 required
    $5.95
  • 9
    Fitting – Part Number: 87-8170
    Fitting
    Part Number: 87-8170
      Special Order
    $67.07
  • 9:1
    O-Ring – Part Number: 237-80
    O-Ring
    Part Number: 237-80
      In Stock
    $9.16
  • 10
    Nipple-Test – Part Number: 115-8886
    Nipple-Test
    Part Number: 115-8886
      No Longer Available
  • 11
    HYD HOSE ASM – Part Number: 140-4457
    HYD HOSE ASM
    Part Number: 140-4457
      No Longer Available
  • 12
    HYD HOSE ASM – Part Number: 140-4458
    HYD HOSE ASM
    Part Number: 140-4458
      No Longer Available
  • 13
    HYD HOSE ASM – Part Number: 140-4459
    HYD HOSE ASM
    Part Number: 140-4459
      No Longer Available
  • 14
    Filter Head Assembly – Part Number: 139-1010
    Filter Head Assembly
    Part Number: 139-1010
      No Longer Available
  • 14:2
    Element-Filter – Part Number: 94-2621
    Element-Filter
    Part Number: 94-2621
      No Longer Available
  • 15
    Screw-Hhf – Part Number: 3234-1
    Screw-Hhf
    Part Number: 3234-1
      Special Order
    $5.95
  • 16
    HYD HOSE ASM – Part Number: 140-4480
    HYD HOSE ASM
    Part Number: 140-4480
      No Longer Available
  • 17
    Connector – Part Number: AU375462A1
    Connector
    Part Number: AU375462A1
      No Longer Available
  • 17:1
    O-Ring Seal – Part Number: 237-81
    O-Ring Seal
    Part Number: 237-81
      Special Order
    $5.95
  • 18
    Clamp-Hose – Part Number: 2412-34
    Clamp-Hose
    Part Number: 2412-34
      Special Order
    $5.95
  • 19
    HYD HOSE ASM – Part Number: 140-4482
    HYD HOSE ASM
    Part Number: 140-4482
      No Longer Available
  • 20
    Strainer Fitting Assembly – Part Number: 140-6070
    Strainer Fitting Assembly
    Part Number: 140-6070
      No Longer Available
  • 21
    Stem-Barb, 90 Deg – Part Number: 23-8910
    Stem-Barb, 90 Deg
    Part Number: 23-8910
      No Longer Available
  • 21:1
    O-RING – Part Number: 237-146
    O-RING
    Part Number: 237-146
      Special Order
    $7.02
  • 22
    Clamp-Hose – Part Number: 2412-92
    Clamp-Hose
    Part Number: 2412-92
      Special Order
    $5.95
  • 23
    HYD HOSE ASM – Part Number: 140-4481
    HYD HOSE ASM
    Part Number: 140-4481
      No Longer Available
  • 24
    Nut-flange, Ni – Part Number: 104-8301
    Nut-flange, Ni
    Part Number: 104-8301
      In Stock
    $5.95
  • 25
    FITTING-HYD, 90 DEG (BARBED) – Part Number: 353-987
    FITTING-HYD, 90 DEG (BARBED)
    Part Number: 353-987
      Special Order
    $90.39
  • 25:1
    O-Ring Seal – Part Number: 237-81
    O-Ring Seal
    Part Number: 237-81
      Special Order
    $5.95
  • 26
    HYD HOSE ASM – Part Number: 140-4487
    HYD HOSE ASM
    Part Number: 140-4487
      No Longer Available
  • 27
    Clamp-Hose – Part Number: 2412-129
    Clamp-Hose
    Part Number: 2412-129
      Special Order
    $5.95
  • 28
    Screw-Carr – Part Number: 3231-11
    Screw-Carr
    Part Number: 3231-11
      Special Order
    $5.95
  • 29
    FITTING – Part Number: 340-151
    FITTING
    Part Number: 340-151
      No Longer Available
  • 29:1
    O-Ring – Part Number: 237-21
    O-Ring
    Part Number: 237-21
      Special Order
    Minimum Quantity of 2 required
    $5.95
  • 30
    Screw-Hhf – Part Number: 138-3326
    Screw-Hhf
    Part Number: 138-3326
      No Longer Available
  • 31
    Adapter – Part Number: 340-1
    Adapter
    Part Number: 340-1
      Special Order
    $15.28
  • 31:1
    O-Ring – Part Number: 237-21
    O-Ring
    Part Number: 237-21
      Special Order
    Minimum Quantity of 2 required
    $5.95
  • 31:2
    O-Ring – Part Number: 237-42
    O-Ring
    Part Number: 237-42
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 32
    HYD HOSE ASM – Part Number: 144-4413
    HYD HOSE ASM
    Part Number: 144-4413
      No Longer Available
  • 33
    HYD HOSE ASM – Part Number: 140-5958
    HYD HOSE ASM
    Part Number: 140-5958
      No Longer Available
  • 34
    Nut-Hf – Part Number: 104-7201
    Nut-Hf
    Part Number: 104-7201
      In Stock
    $5.95
  • 35
    Cap-Fitting, Yellow – Part Number: 354-79
    Cap-Fitting, Yellow
    Part Number: 354-79
      No Longer Available
  • 36
    HYD HOSE ASM – Part Number: 140-4460
    HYD HOSE ASM
    Part Number: 140-4460
      No Longer Available
  • 38
    ELBOW-SUCTION, – Part Number: 139-4748
    ELBOW-SUCTION,
    Part Number: 139-4748
      No Longer Available
  • 38:1
    O-Ring – Part Number: 237-101
    O-Ring
    Part Number: 237-101
      No Longer Available
  • 39
    Fitting-45 Deg – Part Number: 93-6794
    Fitting-45 Deg
    Part Number: 93-6794
      No Longer Available
  • 39:1
    O-Ring Seal – Part Number: 237-81
    O-Ring Seal
    Part Number: 237-81
      Special Order
    $5.95
  • 40
    Fitting – Part Number: 87-8170
    Fitting
    Part Number: 87-8170
      Special Order
    $67.07
  • 40:1
    O-Ring – Part Number: 237-80
    O-Ring
    Part Number: 237-80
      In Stock
    $9.16
  • 41
    HYD HOSE – Part Number: 144-4339
    HYD HOSE
    Part Number: 144-4339
      No Longer Available
  • 42
    Fitting-Hyd – Part Number: 354-136
    Fitting-Hyd
    Part Number: 354-136
      No Longer Available
  • 42:1
    O-Ring – Part Number: 237-80
    O-Ring
    Part Number: 237-80
      In Stock
    $9.16
  • 43
    HYD HOSE ASM – Part Number: 144-4351
    HYD HOSE ASM
    Part Number: 144-4351
      No Longer Available
  • 44
    Mount-Tie Wrap, Magnetic – Part Number: 32180-139
    Mount-Tie Wrap, Magnetic
    Part Number: 32180-139
      No Longer Available
Rh Track Assembly No. 139-7293
Rh Track Assembly No. 139-7293 Diagram and Parts List for 413000000 - 414487256 Toro Lawn Tractor Accessories
Starting Motor Assembly
Starting Motor Assembly Diagram and Parts List for 413000000 - 414487256 Toro Lawn Tractor Accessories
  • 1
    Starter Asm – Part Number: 127-3818
    Starter Asm
    Part Number: 127-3818
      Special Order
    $1110.45
  • 2
    Switch Asm – Part Number: 127-3819
    Switch Asm
    Part Number: 127-3819
      Special Order
    $365.76
  • 3
    Armature Asm – Part Number: 127-3820
    Armature Asm
    Part Number: 127-3820
      Special Order
    $315.57
  • 4
    Yoke Asm – Part Number: 127-3821
    Yoke Asm
    Part Number: 127-3821
      Special Order
    $311.45
  • 5
    Brush Holder Asm – Part Number: 127-3822
    Brush Holder Asm
    Part Number: 127-3822
      Special Order
    $154.34
  • 6
    Brush – Part Number: 127-3823
    Brush
    Part Number: 127-3823
      Special Order
    $7.52
  • 7
    Brush Set – Part Number: 127-3824
    Brush Set
    Part Number: 127-3824
      Special Order
    $43.84
  • 8
    Spring – Part Number: 127-3825
    Spring
    Part Number: 127-3825
      Special Order
    $14.38
  • 9
    Cover Asm – Part Number: 127-3826
    Cover Asm
    Part Number: 127-3826
      Special Order
    $44.91
  • 10
    Metal – Part Number: 127-3827
    Metal
    Part Number: 127-3827
      Special Order
    $57.30
  • 11
    Gear – Part Number: 127-3828
    Gear
    Part Number: 127-3828
      Special Order
    $43.84
  • 12
    Bracket – Part Number: 127-3829
    Bracket
    Part Number: 127-3829
      Special Order
    $46.96
  • 13
    Bracket – Part Number: 127-3830
    Bracket
    Part Number: 127-3830
      Special Order
    $66.05
  • 14
    Gear – Part Number: 127-3831
    Gear
    Part Number: 127-3831
      Special Order
    $115.69
  • 15
    Bracket – Part Number: 127-3832
    Bracket
    Part Number: 127-3832
      Special Order
    $8.10
  • 16
    Pinion Asm – Part Number: 127-3833
    Pinion Asm
    Part Number: 127-3833
      Special Order
    $259.09
  • 17
    Shaft – Part Number: 127-3834
    Shaft
    Part Number: 127-3834
      Special Order
    $254.09
  • 18
    Washer Set – Part Number: 127-3835
    Washer Set
    Part Number: 127-3835
      Special Order
    $29.88
  • 19
    Case Asm – Part Number: 127-3836
    Case Asm
    Part Number: 127-3836
      Special Order
    $289.29
  • 20
    Metal-Starter – Part Number: 127-3837
    Metal-Starter
    Part Number: 127-3837
      Special Order
    $15.10
  • 21
    Lever Set – Part Number: 127-3838
    Lever Set
    Part Number: 127-3838
      Special Order
    $91.67
  • 22
    Dust Cover Asm – Part Number: 127-3839
    Dust Cover Asm
    Part Number: 127-3839
      Special Order
    $12.40
  • 23
    Bolt-Through – Part Number: 127-3840
    Bolt-Through
    Part Number: 127-3840
      No Longer Available
  • 24
    Bolt – Part Number: 125-7225
    Bolt
    Part Number: 125-7225
      Special Order
    $8.86
Suction Manifold Assembly
Suction Manifold Assembly Diagram and Parts List for 413000000 - 414487256 Toro Lawn Tractor Accessories
  • 1
    Pipe – Part Number: 127-4704
    Pipe
    Part Number: 127-4704
      Special Order
    $79.42
  • 2
    Clip-Hose – Part Number: 125-7040
    Clip-Hose
    Part Number: 125-7040
      Special Order
    $15.26
  • 3
    Gasket-Manifold, Intake – Part Number: 127-3857
    Gasket-Manifold, Intake
    Part Number: 127-3857
      Special Order
    $24.68
  • 4
    Intake Manifold Asm – Part Number: 127-4722
    Intake Manifold Asm
    Part Number: 127-4722
      Special Order
    $504.07
  • 5
    Manifold-Intake – Part Number: 127-4721
    Manifold-Intake
    Part Number: 127-4721
      Special Order
    $504.07
  • 6
    Stud – Part Number: 127-3180
    Stud
    Part Number: 127-3180
      Special Order
    $6.40
  • 7
    Sensor-Temp, Air – Part Number: 127-3031
    Sensor-Temp, Air
    Part Number: 127-3031
      Special Order
    $1577.91
  • 8
    Bolt – Part Number: 125-7220
    Bolt
    Part Number: 125-7220
      Special Order
    $9.36
  • 9
    Gasket-Collector – Part Number: 127-3034
    Gasket-Collector
    Part Number: 127-3034
      Special Order
    $20.53
  • 10
    Intake Collector Asm – Part Number: 127-4725
    Intake Collector Asm
    Part Number: 127-4725
      Special Order
    $813.73
  • 11
    Stud – Part Number: 127-4701
    Stud
    Part Number: 127-4701
      Special Order
    $8.98
  • 12
    Sensor-Temp, Air – Part Number: 127-3030
    Sensor-Temp, Air
    Part Number: 127-3030
      Special Order
    $302.99
  • 13
    O Ring-Sensor, Temp – Part Number: 127-3033
    O Ring-Sensor, Temp
    Part Number: 127-3033
      Special Order
    $28.46
  • 14
    Collector-Intake – Part Number: 127-4724
    Collector-Intake
    Part Number: 127-4724
      Special Order
    $303.27
  • 15
    Joint-Hose – Part Number: 127-3080
    Joint-Hose
    Part Number: 127-3080
      Special Order
    $92.67
  • 16
    Joint-Hose – Part Number: 127-3081
    Joint-Hose
    Part Number: 127-3081
      No Longer Available
  • 17
    Washer-Seal – Part Number: 127-3166
    Washer-Seal
    Part Number: 127-3166
      Special Order
    $12.70
  • 18
    Stud – Part Number: 127-4774
    Stud
    Part Number: 127-4774
      No Longer Available
  • 19
    Nut – Part Number: 127-4775
    Nut
    Part Number: 127-4775
      Special Order
    $5.95
  • 20
    Bolt – Part Number: 125-7220
    Bolt
    Part Number: 125-7220
      Special Order
    $9.36
  • 21
    Bolt – Part Number: 127-3178
    Bolt
    Part Number: 127-3178
      No Longer Available
  • 22
    Stud – Part Number: 127-3182
    Stud
    Part Number: 127-3182
      Special Order
    $6.08
  • 23
    Nut – Part Number: 125-7229
    Nut
    Part Number: 125-7229
      Special Order
    $5.95
  • 24
    Bend-Inlet – Part Number: 127-3035
    Bend-Inlet
    Part Number: 127-3035
      No Longer Available
  • 25
    Body-Throttle – Part Number: 127-3036
    Body-Throttle
    Part Number: 127-3036
      Special Order
    $1830.34
  • 26
    Gasket-Throttle – Part Number: 127-3037
    Gasket-Throttle
    Part Number: 127-3037
      Special Order
    $6.10
  • 27
    Bolt – Part Number: 125-7209
    Bolt
    Part Number: 125-7209
      Special Order
    $5.95
  • 28
    Bolt – Part Number: 125-7211
    Bolt
    Part Number: 125-7211
      Special Order
    $6.52
  • 29
    Bolt – Part Number: 127-3177
    Bolt
    Part Number: 127-3177
      No Longer Available
Tandem Pump Assembly No. 139-4733
Tandem Pump Assembly No. 139-4733 Diagram and Parts List for 413000000 - 414487256 Toro Lawn Tractor Accessories
Tandem Pump Hydraulic Assembly
Tandem Pump Hydraulic Assembly Diagram and Parts List for 413000000 - 414487256 Toro Lawn Tractor Accessories
  • 1
    PUMP-TANDEM – Part Number: 139-4733
    PUMP-TANDEM
    Part Number: 139-4733
      No Longer Available
  • 2
    Fitting-Hydraulic – Part Number: 340-14
    Fitting-Hydraulic
    Part Number: 340-14
      Special Order
    $67.35
  • 2:1
    O-Ring – Part Number: 237-65
    O-Ring
    Part Number: 237-65
      Special Order
    $5.95
  • 2:2
    O-Ring – Part Number: 237-80
    O-Ring
    Part Number: 237-80
      In Stock
    $9.16
  • 3
    Gear Pump Assembly – Part Number: 139-4755
    Gear Pump Assembly
    Part Number: 139-4755
      No Longer Available
  • 4
    Screw-Hhf – Part Number: 33105-020
    Screw-Hhf
    Part Number: 33105-020
      No Longer Available
  • 5
    Fitting-HYD, 90deg. – Part Number: 340-101
    Fitting-HYD, 90deg.
    Part Number: 340-101
      Special Order
    $49.35
  • 5:1
    O-Ring – Part Number: 237-30
    O-Ring
    Part Number: 237-30
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 5:2
    O-Ring – Part Number: 237-79
    O-Ring
    Part Number: 237-79
      Special Order
    Minimum Quantity of 2 required
    $8.20
  • 6
    Fitting-straight – Part Number: 340-7
    Fitting-straight
    Part Number: 340-7
      Special Order
    $19.62
  • 6:1
    O-Ring – Part Number: 237-65
    O-Ring
    Part Number: 237-65
      Special Order
    $5.95
  • 6:2
    O-Ring – Part Number: 237-80
    O-Ring
    Part Number: 237-80
      In Stock
    $9.16
  • 7
    Fitting-Hyd. – Part Number: 340-4
    Fitting-Hyd.
    Part Number: 340-4
      Special Order
    $17.38
  • 7:1
    O-Ring – Part Number: 237-30
    O-Ring
    Part Number: 237-30
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 7:2
    O-Ring – Part Number: 237-79
    O-Ring
    Part Number: 237-79
      Special Order
    Minimum Quantity of 2 required
    $8.20
  • 8
    HYD HOSE ASM – Part Number: 140-4450
    HYD HOSE ASM
    Part Number: 140-4450
      No Longer Available
  • 9
    HYD HOSE ASM – Part Number: 140-4451
    HYD HOSE ASM
    Part Number: 140-4451
      No Longer Available
  • 10
    HYD HOSE ASM – Part Number: 140-5977
    HYD HOSE ASM
    Part Number: 140-5977
      No Longer Available
  • 11
    HYD HOSE ASM – Part Number: 140-5978
    HYD HOSE ASM
    Part Number: 140-5978
      No Longer Available
  • 12
    HYD HOSE ASM – Part Number: 140-4483
    HYD HOSE ASM
    Part Number: 140-4483
      No Longer Available
  • 13
    Hose-Hyd – Part Number: 105-4347
    Hose-Hyd
    Part Number: 105-4347
      No Longer Available
  • 14
    Fitting-elbow-90 – Part Number: 340-17
    Fitting-elbow-90
    Part Number: 340-17
      No Longer Available
  • 14:1
    O-Ring – Part Number: 237-65
    O-Ring
    Part Number: 237-65
      Special Order
    $5.95
  • 14:2
    O-Ring – Part Number: 237-80
    O-Ring
    Part Number: 237-80
      In Stock
    $9.16
  • 15
    HYD HOSE ASM – Part Number: 140-4461
    HYD HOSE ASM
    Part Number: 140-4461
      No Longer Available
  • 16
    HYD HOSE ASM – Part Number: 140-4468
    HYD HOSE ASM
    Part Number: 140-4468
      No Longer Available
  • 17
    Guide-Hose – Part Number: 140-4486
    Guide-Hose
    Part Number: 140-4486
      No Longer Available
  • 18
    Fitting-Tee – Part Number: 340-109
    Fitting-Tee
    Part Number: 340-109
      Special Order
    $93.60
  • 18:1
    O-Ring – Part Number: 237-79
    O-Ring
    Part Number: 237-79
      Special Order
    Minimum Quantity of 2 required
    $8.20
  • 18:2
    O-Ring – Part Number: 237-30
    O-Ring
    Part Number: 237-30
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 19
    Fitting-Hyd – Part Number: 94-6031
    Fitting-Hyd
    Part Number: 94-6031
      No Longer Available
  • 19:1
    O-Ring – Part Number: 237-30
    O-Ring
    Part Number: 237-30
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • 20
    Screw-Hfh – Part Number: 133-9682
    Screw-Hfh
    Part Number: 133-9682
      No Longer Available
  • 21
    Screw-Hfh – Part Number: AU100416
    Screw-Hfh
    Part Number: AU100416
      No Longer Available
  • 22
    O-Ring – Part Number: 353-949
    O-Ring
    Part Number: 353-949
      No Longer Available
  • 23
    Tee-Adapter – Part Number: 340-93
    Tee-Adapter
    Part Number: 340-93
      No Longer Available
  • 23:1
    O-Ring – Part Number: 237-65
    O-Ring
    Part Number: 237-65
      Special Order
    $5.95
  • 23:2
    O-Ring – Part Number: 237-80
    O-Ring
    Part Number: 237-80
      In Stock
    $9.16
  • 24
    NIPPLE – Part Number: 86-5860
    NIPPLE
    Part Number: 86-5860
      Special Order
    $67.05
  • 25
    Nut-Push – Part Number: 107-3154
    Nut-Push
    Part Number: 107-3154
      Special Order
    $5.95
Track Assembly
Track Assembly Diagram and Parts List for 413000000 - 414487256 Toro Lawn Tractor Accessories
Upper Loader Arm Assembly No. 140-6062
Upper Loader Arm Assembly No. 140-6062 Diagram and Parts List for 413000000 - 414487256 Toro Lawn Tractor Accessories

Questions & Answers

?

Our customer Service team is at the ready daily to answer your part and product questions.

Be the first to ask our experts a question about this part!

Ask our Team

We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.

✖

Our customer service team are at the ready daily to answer your part and product questions. We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
