Page A Diagram and Parts List for Craftsman Lawn Tractor Accessories
Page A
Previous Showing All Parts Next
Page A

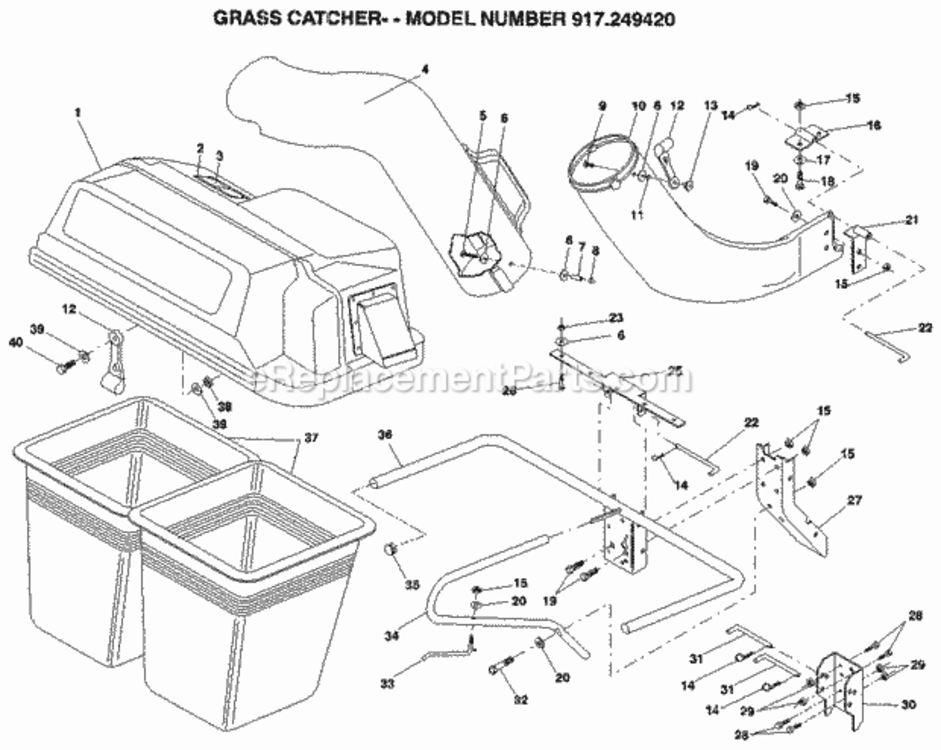

Page A Diagram and Parts List for Craftsman Lawn Tractor Accessories
  • A-1
    Cover – Part Number: 131023
    Cover
    Part Number: 131023
      No Longer Available
  • A-2
    Rivet – Part Number: 124124X
    Rivet
    Part Number: 124124X
      No Longer Available
  • A-3
    Window – Part Number: 126670X
    Window
    Part Number: 126670X
      No Longer Available
  • A-4
    Upper Chute – Part Number: 582955701
    Upper Chute
    Part Number: 582955701
      No Longer Available
  • A-5
    Screw – Part Number: 582055101
    Screw
    Part Number: 582055101
      No Longer Available
  • A-6
    Washer, 3/16 X 3/4 X 16 Gauge – Part Number: 819061216
    Washer, 3/16 X 3/4 X 16 Gauge
    Part Number: 819061216
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • A-7
    Spacer – Part Number: 7206J
    Spacer
    Part Number: 7206J
      No Longer Available
  • A-8
    Nut – Part Number: STD541810
    Nut
    Part Number: STD541810
      No Longer Available
  • A-9
    Spur Screw – Part Number: STD511005
    Spur Screw
    Part Number: STD511005
      No Longer Available
  • A-10
    Chute – Part Number: 127540
    Chute
    Part Number: 127540
      No Longer Available
  • A-11
    Washer 8Pk – Part Number: STD551110
    Washer 8Pk
    Part Number: STD551110
      No Longer Available
  • A-12
    Lawn Mower Hood Latch – Part Number: 532109808
    Lawn Mower Hood Latch
    Part Number: 532109808
    ★★★★★
    ★★★★★
    (12)
      In Stock
    $6.82
  • A-13
    Left-side gauge wheel bracket weld nut – Part Number: 2029J
    Left-side gauge wheel bracket weld nut
    Part Number: 2029J
      No Longer Available
  • A-14
    Pin 2Pk – Part Number: STD624008
    Pin 2Pk
    Part Number: STD624008
      No Longer Available
  • A-15
    Locknut – Part Number: STD541431
    Locknut
    Part Number: STD541431
      No Longer Available
  • A-16
    Bracket – Part Number: 120098X
    Bracket
    Part Number: 120098X
      No Longer Available
  • A-17
    Washer 13/32 X 13/16 X 12 Ga – Part Number: 596133201
    Washer 13/32 X 13/16 X 12 Ga
    Part Number: 596133201
      In Stock
    $8.25
  • A-18
    Carriage Bolt – Part Number: STD533110
    Carriage Bolt
    Part Number: STD533110
      No Longer Available
  • A-19
    Screw 5Pk – Part Number: STD523107
    Screw 5Pk
    Part Number: STD523107
      No Longer Available
  • A-20
    DISCONTINUED – Part Number: 819111212
    DISCONTINUED
    Part Number: 819111212
      Special Order
    $5.95
  • A-21
    Bracket – Part Number: 121770X
    Bracket
    Part Number: 121770X
      No Longer Available
  • A-22
    Pin – Part Number: 120097X
    Pin
    Part Number: 120097X
      No Longer Available
  • A-23
    Nut – Part Number: 73681000
    Nut
    Part Number: 73681000
      No Longer Available
  • A-25
    Cover – Part Number: 130721
    Cover
    Part Number: 130721
      No Longer Available
  • A-26
    Spur Screw – Part Number: STD511005
    Spur Screw
    Part Number: STD511005
      No Longer Available
  • A-27
    Support Post – Part Number: 127467X
    Support Post
    Part Number: 127467X
      No Longer Available
  • A-28
    Screw 5Pk – Part Number: STD523107
    Screw 5Pk
    Part Number: STD523107
      No Longer Available
  • A-29
    Locknut – Part Number: STD541431
    Locknut
    Part Number: STD541431
      No Longer Available
  • A-30
    Bracket – Part Number: 128688
    Bracket
    Part Number: 128688
      No Longer Available
  • A-31
    Pin – Part Number: 124475X
    Pin
    Part Number: 124475X
      No Longer Available
  • A-32
    Bolt, Fin Hex 5/16-18 Unc X 1-3/4 – Part Number: 74760528
    Bolt, Fin Hex 5/16-18 Unc X 1-3/4
    Part Number: 74760528
      No Longer Available
  • A-33
    Rod Latch – Part Number: 123252X
    Rod Latch
    Part Number: 123252X
      No Longer Available
  • A-34
    Support – Part Number: 124410X
    Support
    Part Number: 124410X
      No Longer Available
  • A-35
    NOSE-MOVABLE – Part Number: 174083
    NOSE-MOVABLE
    Part Number: 174083
    ★★★★★
    ★★★★★
    (1)
      In Stock
    $23.15
  • A-36
    Container Assembly – Part Number: 129508
    Container Assembly
    Part Number: 129508
      No Longer Available
  • A-37
    Container – Part Number: 121768X
    Container
    Part Number: 121768X
      No Longer Available
  • A-38
    Lock nut – Part Number: 73680400
    Lock nut
    Part Number: 73680400
      No Longer Available
  • A-39
    Washer 8Pk – Part Number: STD551025
    Washer 8Pk
    Part Number: STD551025
      No Longer Available
  • A-40
    Bolt – Part Number: 74760412
    Bolt
    Part Number: 74760412
      No Longer Available
  • A-800
    Screw 5Pk – Part Number: STD523707
    Screw 5Pk
    Part Number: STD523707
      No Longer Available
  • A-800
    Bag – Part Number: 104419X
    Bag
    Part Number: 104419X
      No Longer Available
  • A-800
    Manual – Part Number: 130762
    Manual
    Part Number: 130762
      No Longer Available
  • A-800
    Nut 5Pk – Part Number: STD541437
    Nut 5Pk
    Part Number: STD541437
      No Longer Available
  • A-800
    Decal – Part Number: 126334X
    Decal
    Part Number: 126334X
      No Longer Available
